UEA CRAM Lab O2 and CO2 calibration results
RUN = 200917a
PROCESSED: 17:32:16 Mon 21Aug2023

Notes
Logfile

Results

Using data from 262.01 to 262.52 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D548325 411.744 0.036 0.085 411.936 0.036 0.085 6 -625.65 1.52 -5.78 7
5 D753898 371.707 0.022 -0.002 371.911 0.022 -0.001 7 -422.46 0.54 0.96 7
6 D269491 452.356 0.071 -0.114 452.628 0.071 -0.115 7 -969.73 0.75 0.47 7
9 D753902 595.518 5.921 0.026 601.110 5.926 0.023 7 -1450.67 5.99 -2.38 7
10 D753899 704.733 15.789 5.216 720.846 15.814 5.190 7 -1773.52 14.72 -8.69 7
11 D548332 475.676 0.358 0.207 476.196 0.359 0.208 7 -943.20 0.61 2.17 7
15 D548331 409.830 0.017 0.051 410.024 0.017 0.050 7 -703.58 0.98 5.10 7
WT D258968 406.300 0.007 0.007 406.499 0.007 0.007 98 -842.05 0.56 3.40 98
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns

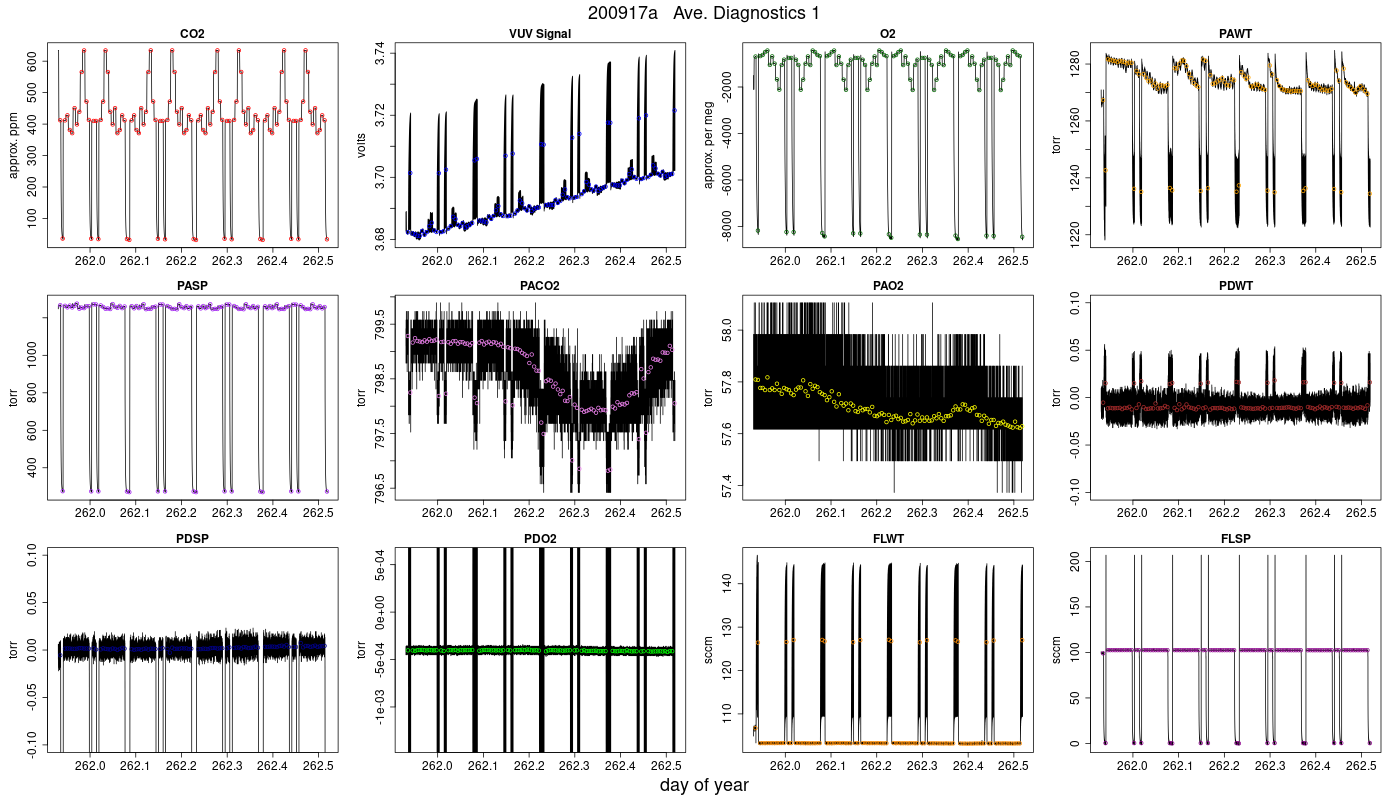

Jog Ave. Diagnostics 1

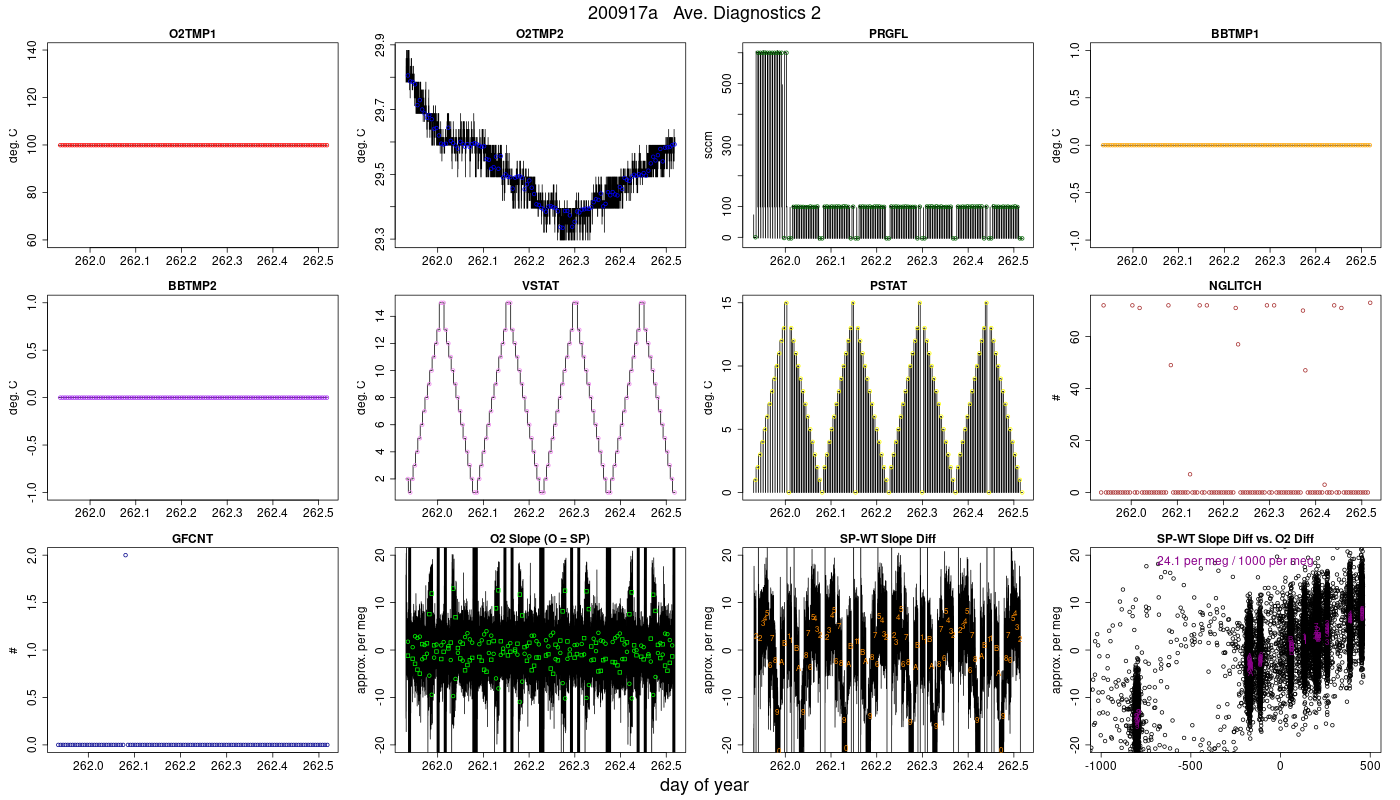

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters

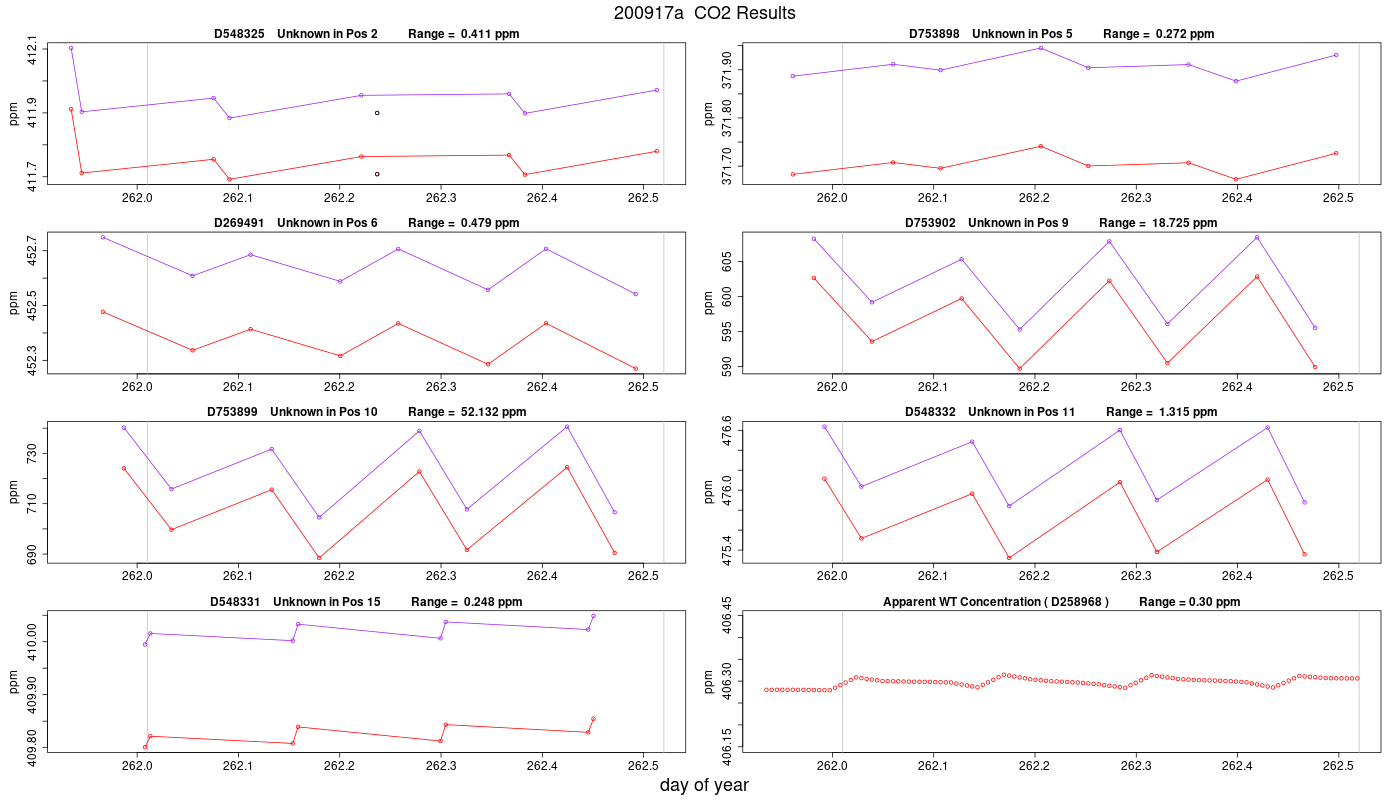

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

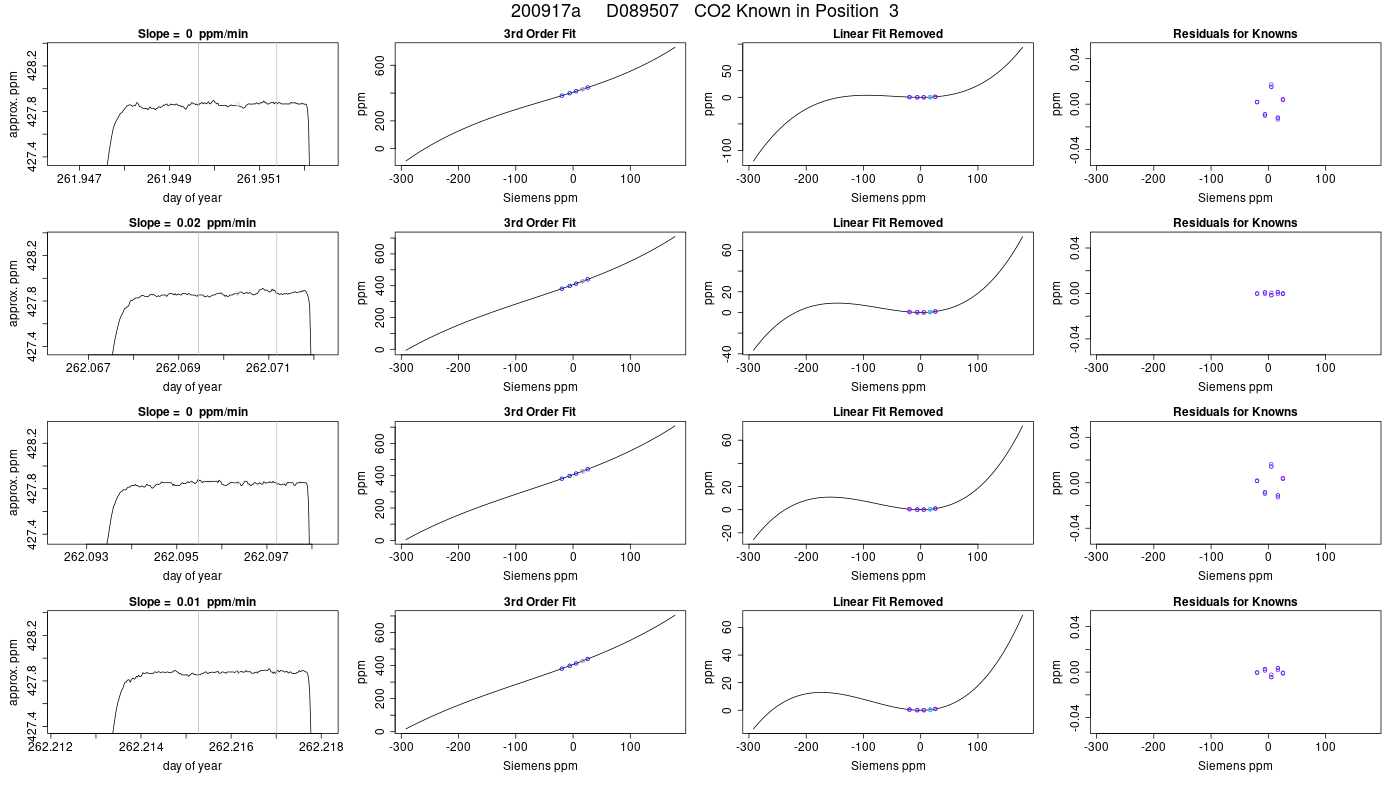

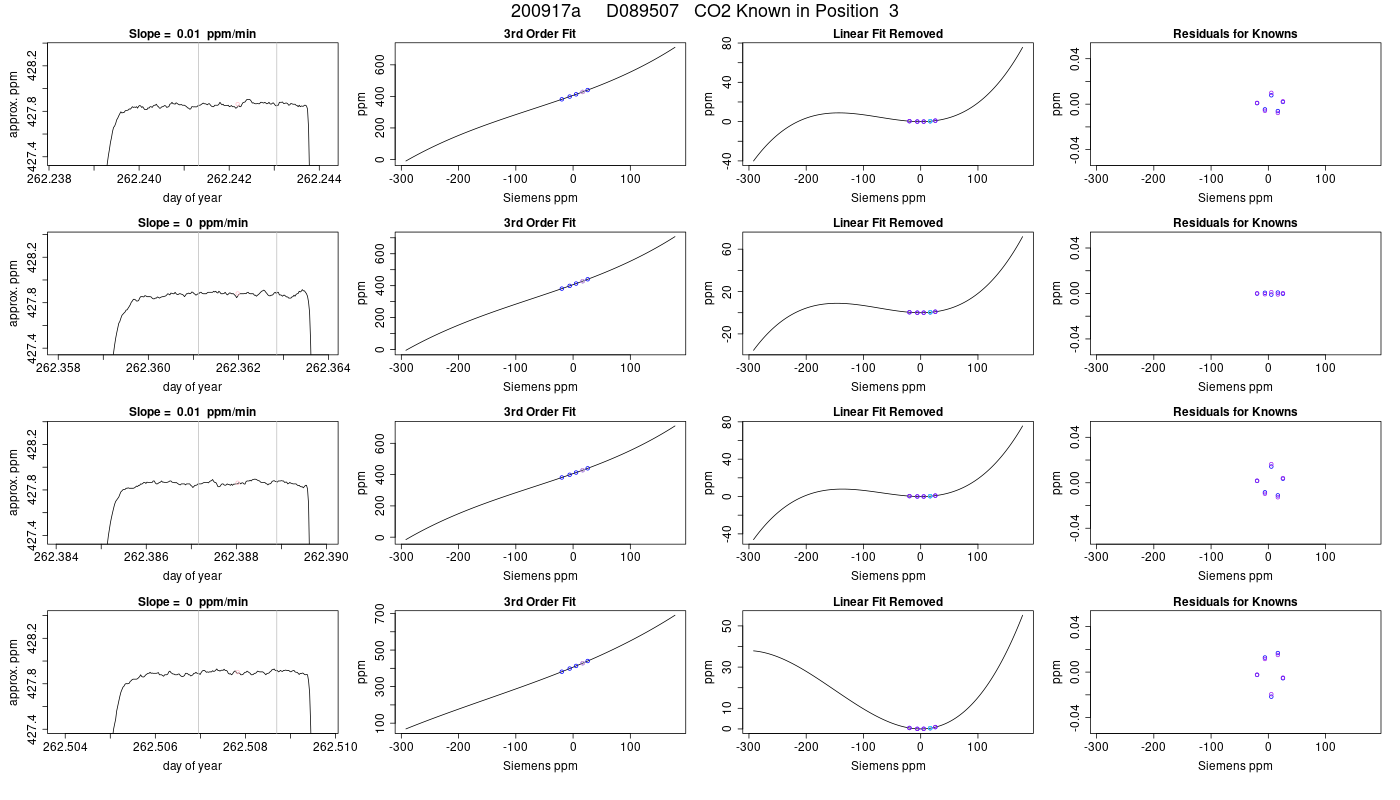

3 D089507 428.087 -0.001 0.010 428.275 -0.003 0.010 7 -559.23 -0.28 0.21 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

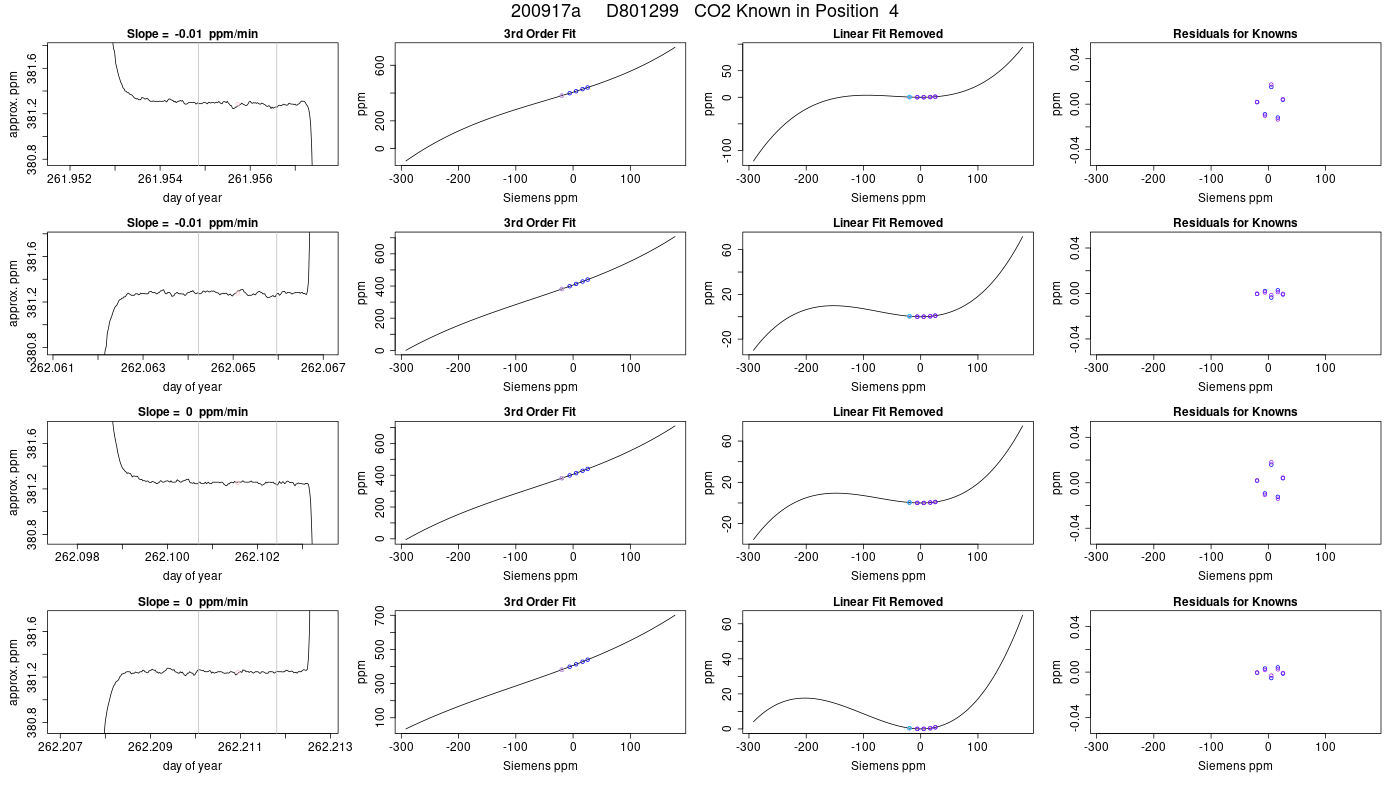

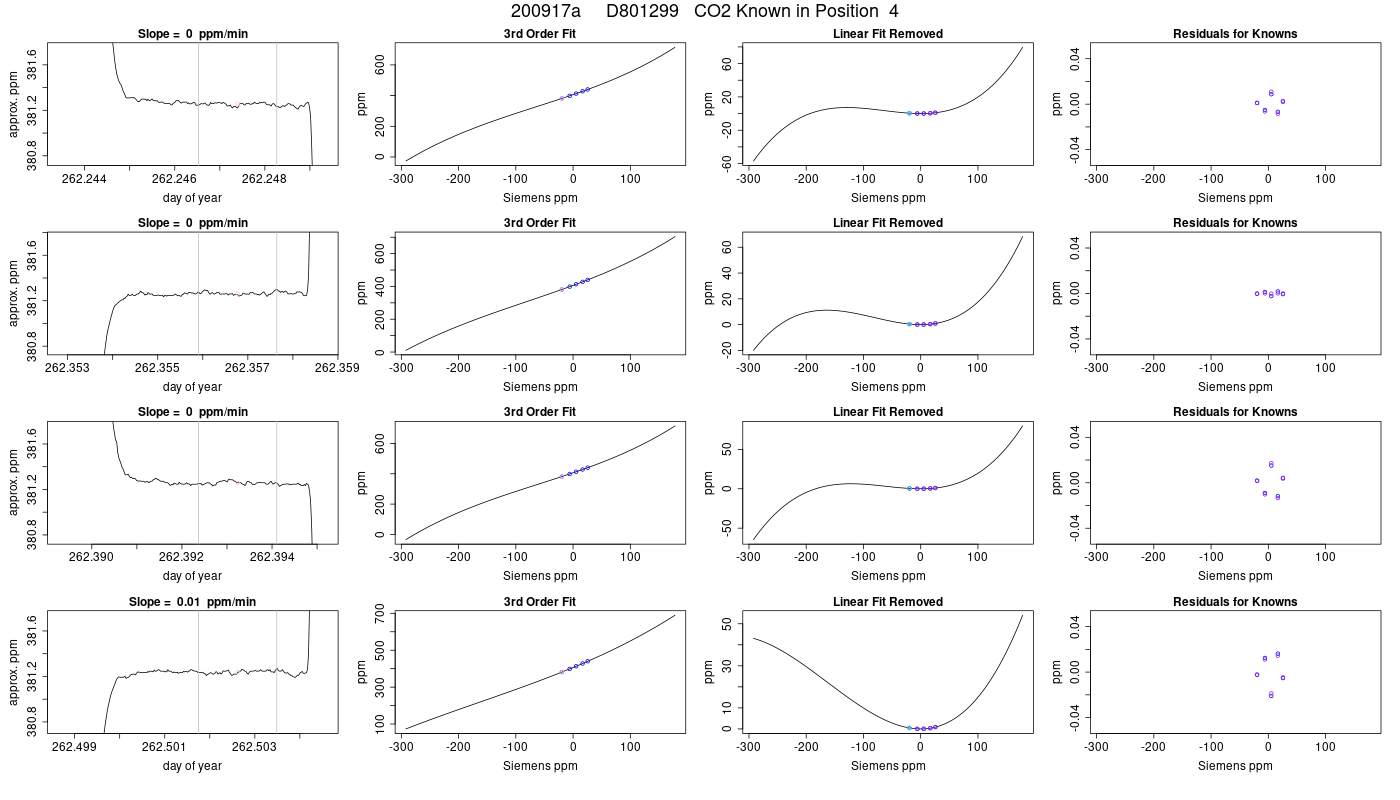

4 D801299 381.475 0.000 0.002 381.695 0.000 0.002 7 -477.75 -1.21 0.16 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

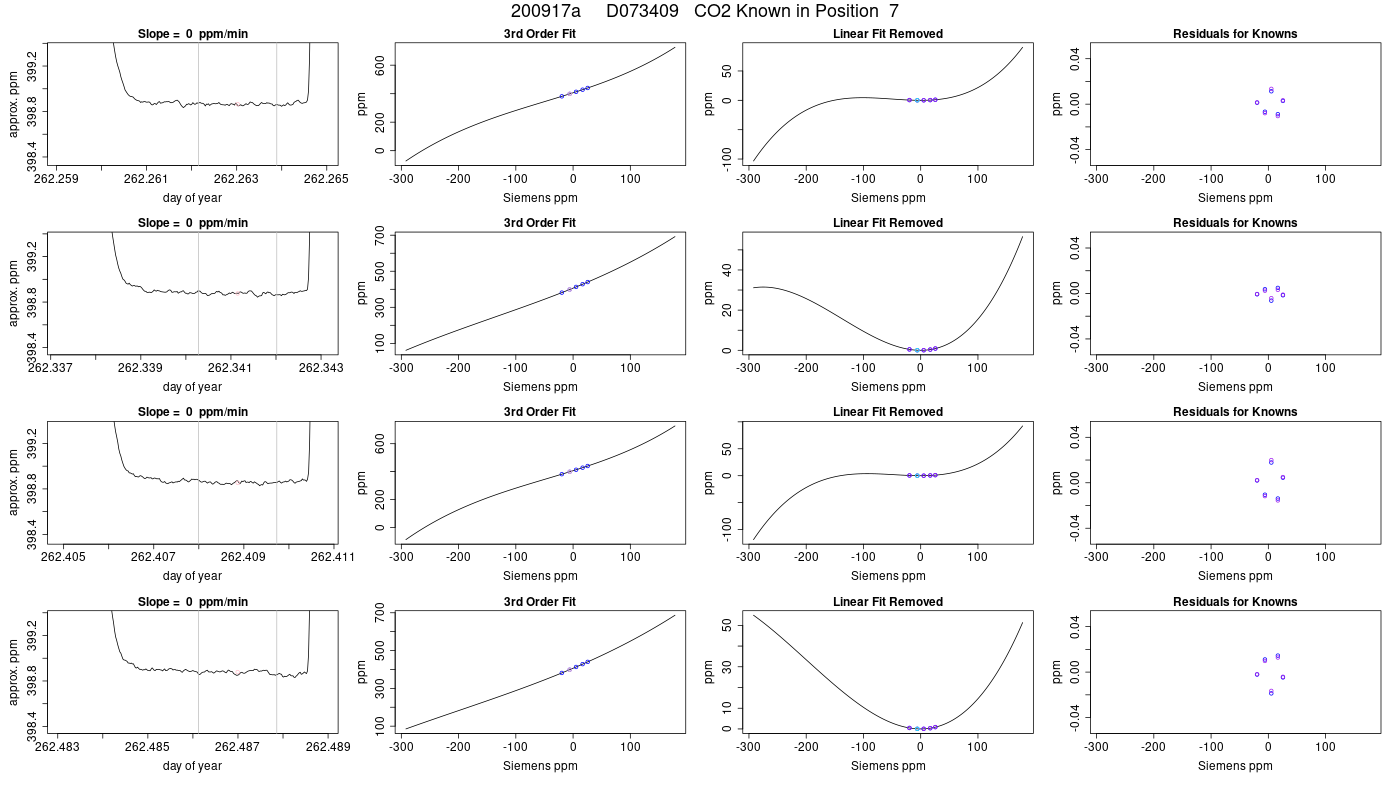

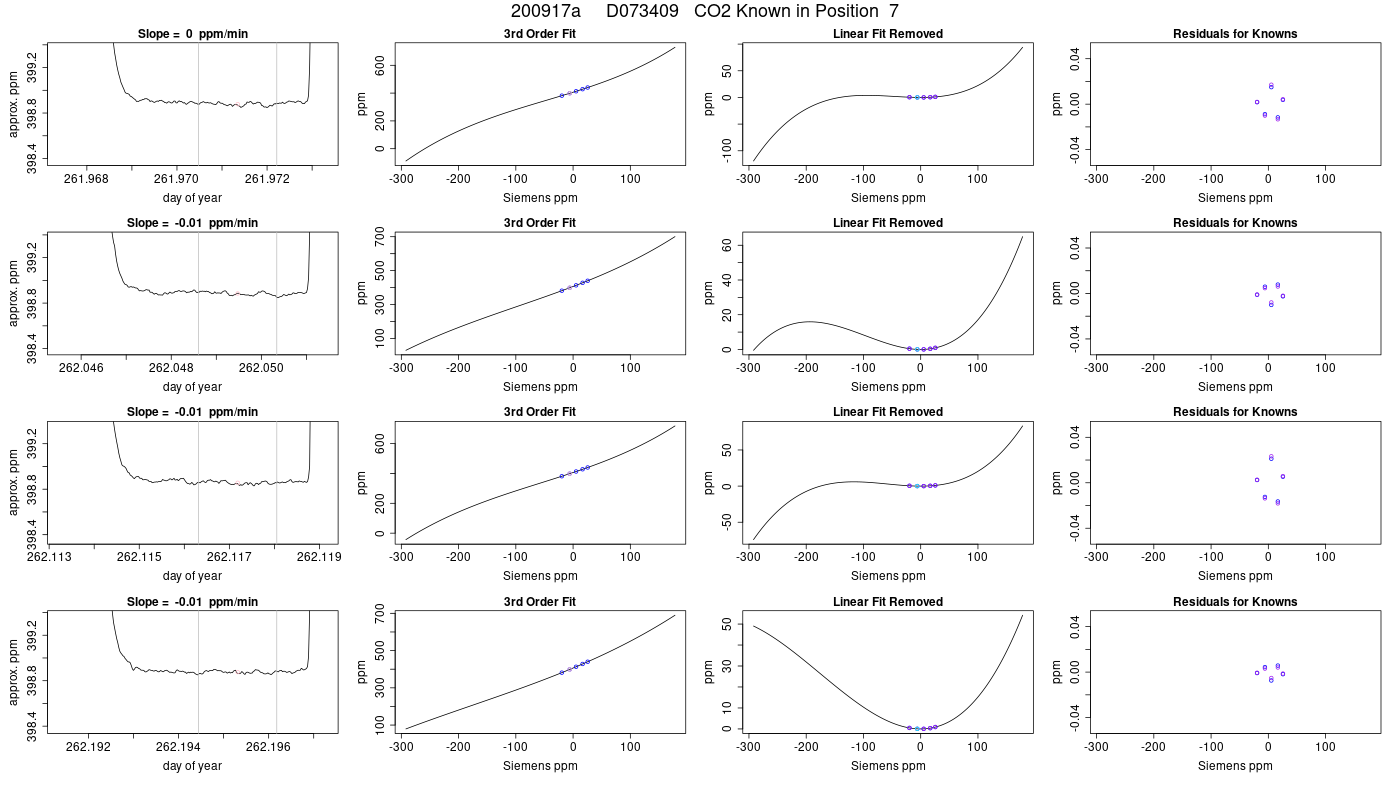

7 D073409 398.707 -0.001 0.009 398.918 -0.002 0.009 7 -651.78 0.66 0.29 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
8 D073419 440.065 0.000 0.004 440.275 0.001 0.004 7 -919.32 -2.10 0.27 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
12 D073418 413.092 0.001 0.020 413.280 0.003 0.020 7 -779.40 2.88 0.62 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

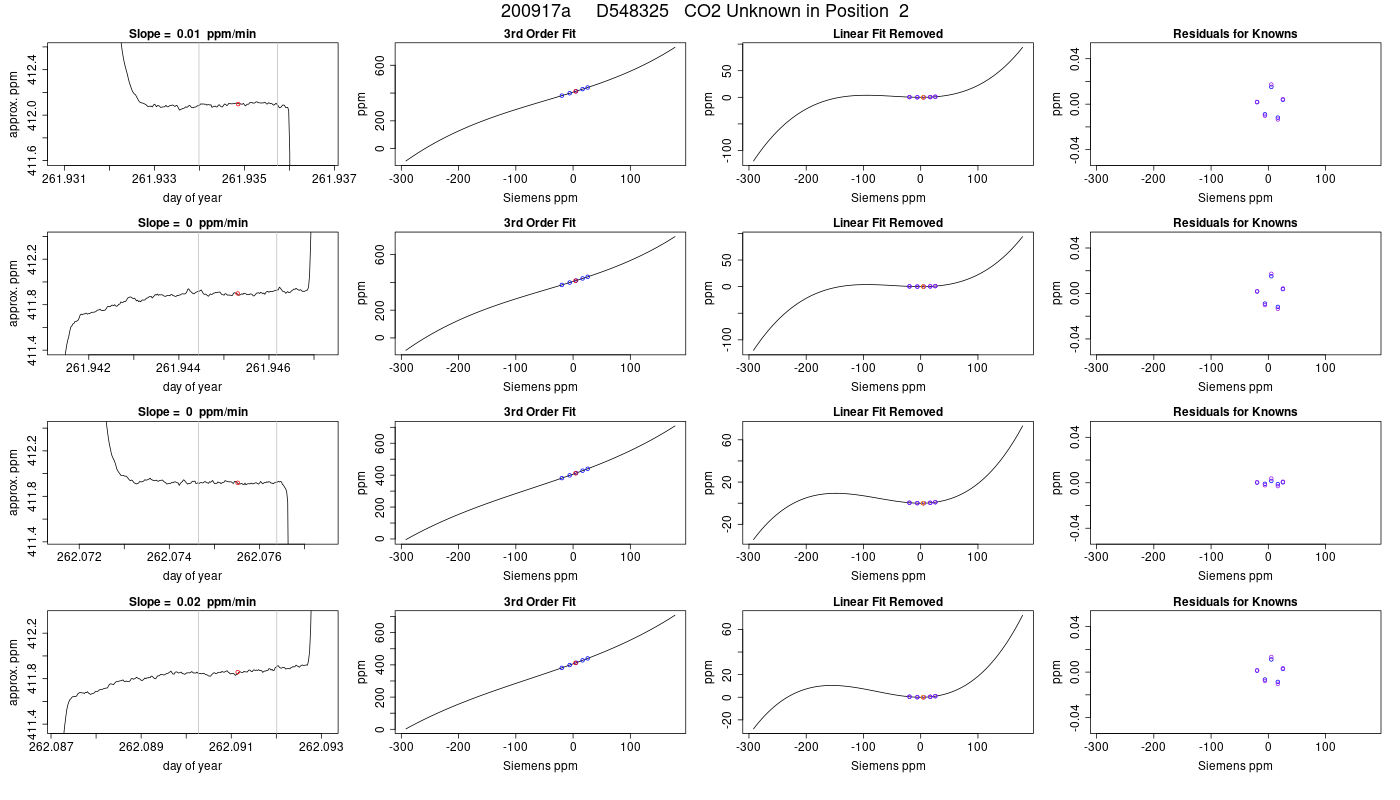

2 D548325    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
261.935 411.912 0.011 -643.58 5.62 412.103 0.011
261.945 411.712 0.013 -624.98 2.56 411.903 0.013
262.076 411.755 0.008 -623.33 2.05 411.946 0.008
262.091 411.692 0.017 -626.61 1.40 411.884 0.017
262.221 411.763 0.012 -624.72 1.42 411.955 0.012
262.237 411.708 0.020 -625.60 1.94 411.900 0.020
262.367 411.768 0.018 -624.77 1.69 411.959 0.018
262.383 411.707 0.019 -626.72 2.15 411.898 0.019
262.513 411.780 0.011 -627.81 1.91 411.972 0.011

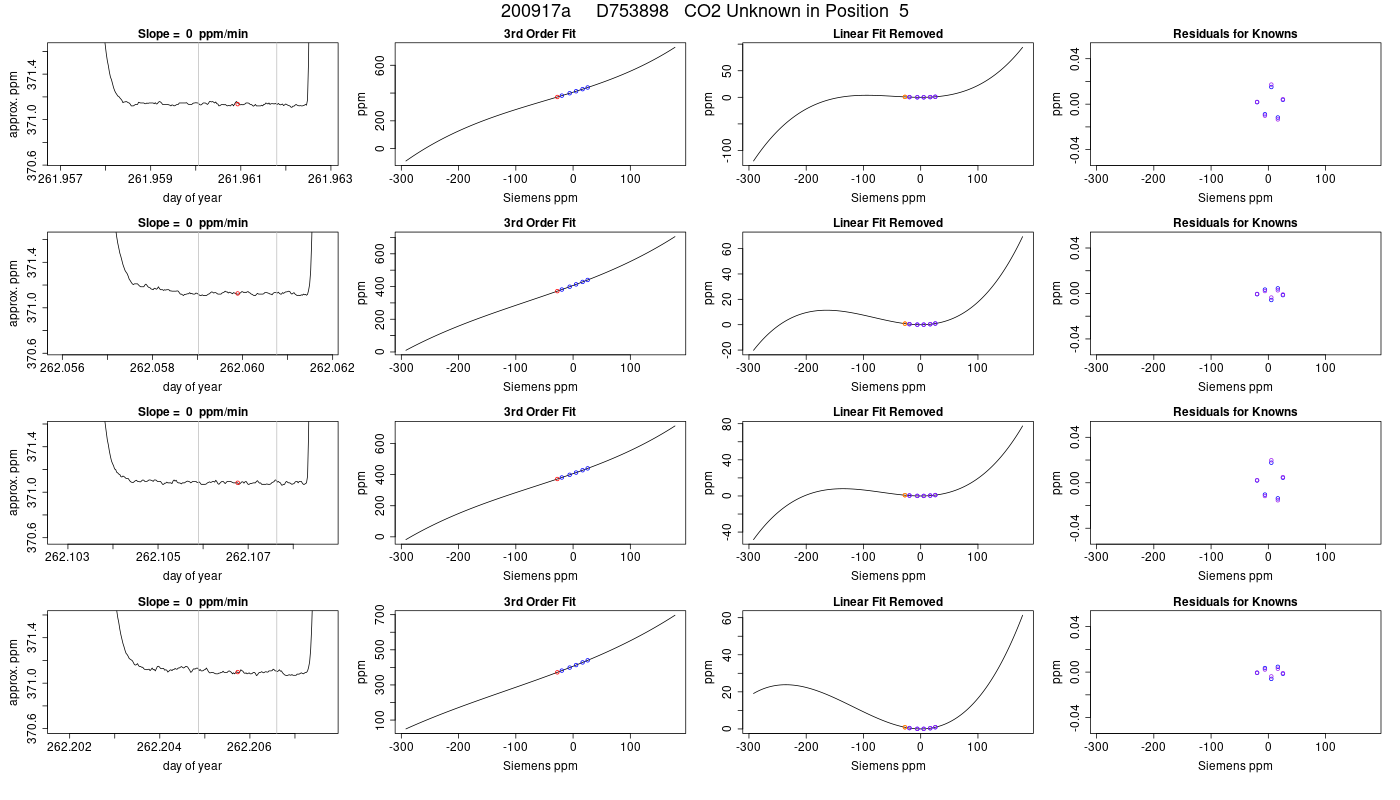

5 D753898    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
261.961 371.683 0.011 -422.52 1.68 371.887 0.011
262.060 371.708 0.010 -423.13 2.24 371.911 0.010
262.107 371.695 0.010 -422.38 1.98 371.899 0.010
262.206 371.741 0.012 -422.93 2.17 371.945 0.012
262.253 371.700 0.013 -421.74 1.91 371.904 0.013
262.352 371.707 0.016 -421.74 2.03 371.911 0.016
262.398 371.673 0.013 -422.64 1.95 371.876 0.013
262.497 371.727 0.016 -422.63 2.45 371.931 0.016

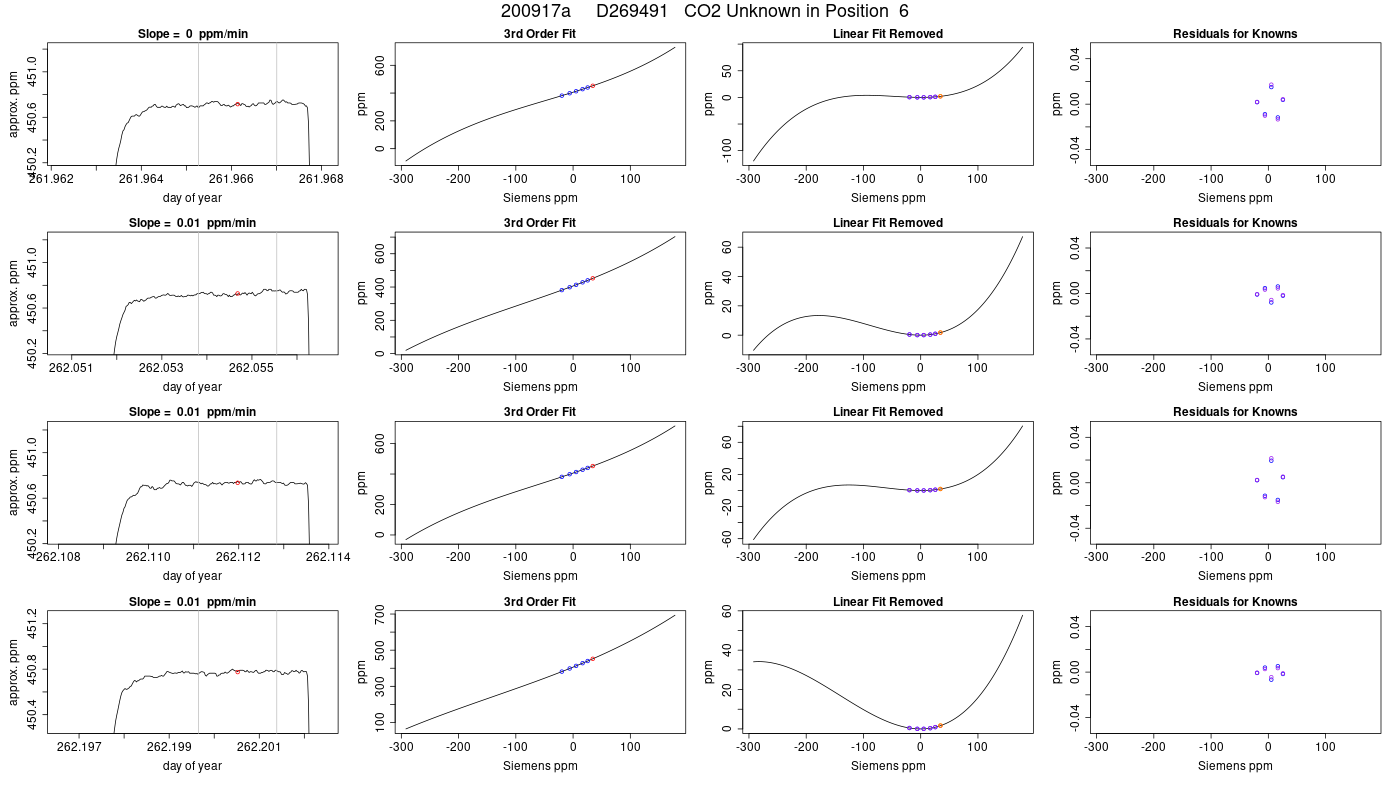

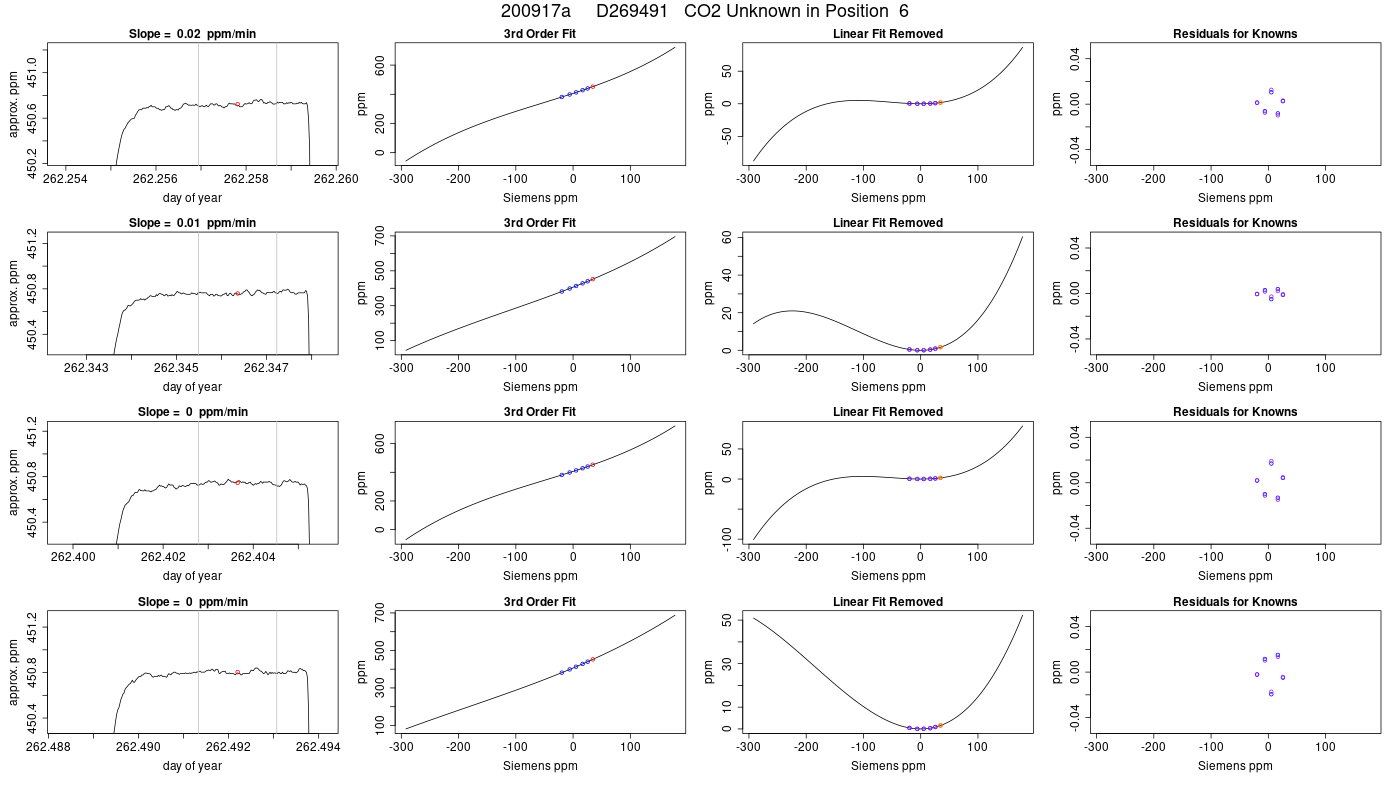

6 D269491    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
261.966 452.477 0.015 -966.73 1.87 452.749 0.015
262.055 452.337 0.017 -969.91 2.52 452.608 0.017
262.112 452.414 0.012 -968.99 2.40 452.686 0.012
262.201 452.316 0.014 -970.35 2.23 452.588 0.014
262.258 452.435 0.018 -969.73 2.51 452.707 0.018
262.346 452.286 0.014 -970.96 3.22 452.557 0.014
262.404 452.435 0.012 -968.83 1.94 452.707 0.012
262.492 452.270 0.015 -969.37 2.94 452.542 0.015

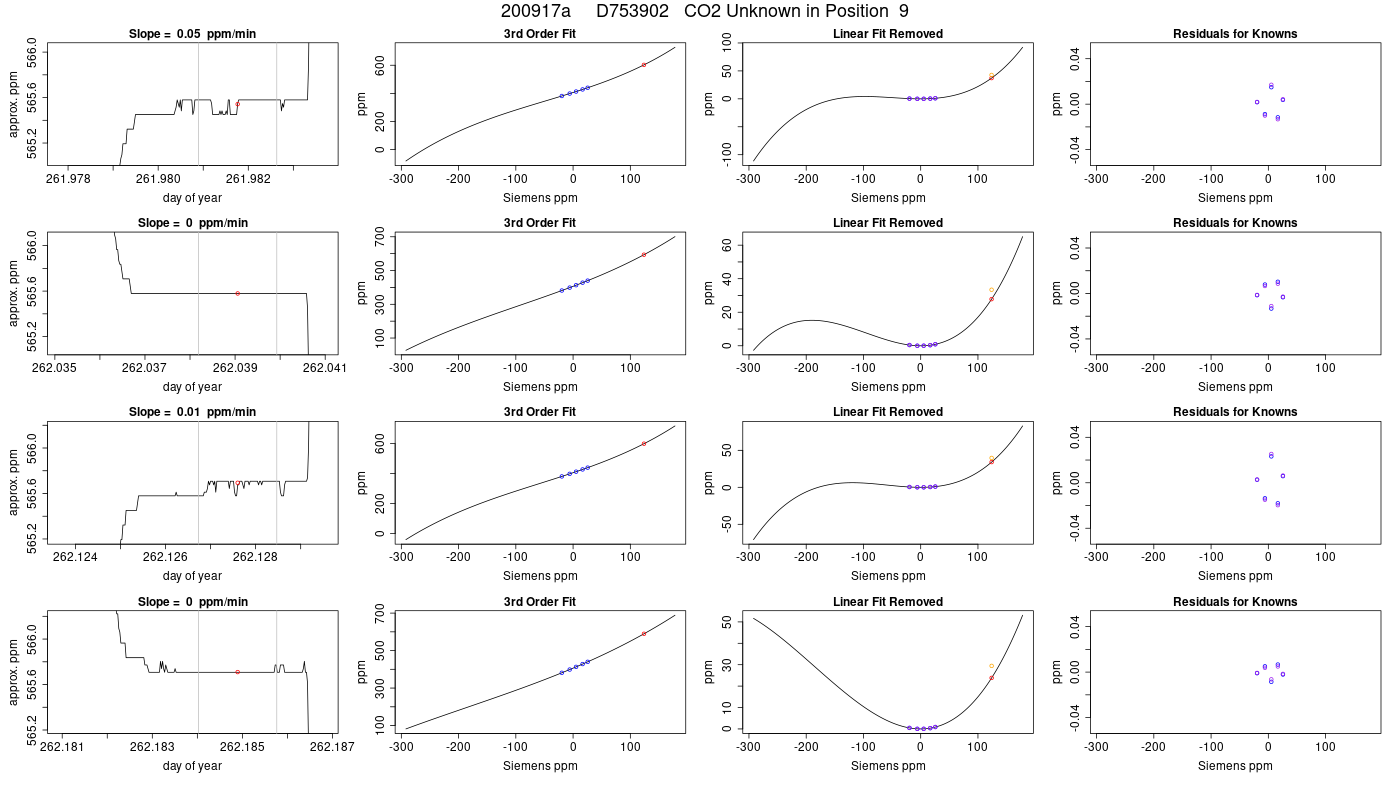

9 D753902    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
261.982 602.645 0.057 -1443.61 2.19 608.246 0.057
262.039 593.589 0.000 -1451.83 1.85 599.182 0.000
262.128 599.725 0.028 -1445.26 2.15 605.321 0.028
262.185 589.723 0.010 -1456.63 1.80 595.308 0.010
262.273 602.270 0.000 -1445.25 2.33 607.866 0.000
262.331 590.517 0.000 -1456.26 2.13 596.099 0.000
262.419 602.850 0.021 -1443.15 1.63 608.448 0.021
262.477 589.952 0.000 -1456.30 2.21 595.542 0.000

10 D753899    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
261.987 724.056 0.000 -1752.06 2.26 740.201 0.000
262.034 699.694 0.000 -1773.55 2.09 715.814 0.000
262.133 715.574 0.061 -1759.66 2.03 731.703 0.061
262.180 688.466 0.056 -1789.08 2.01 704.558 0.056
262.279 722.777 0.000 -1760.44 2.57 738.922 0.000
262.326 691.663 0.025 -1788.28 2.23 707.745 0.025
262.424 724.461 0.029 -1756.46 2.13 740.599 0.029
262.471 690.495 0.000 -1787.14 2.76 706.585 0.000

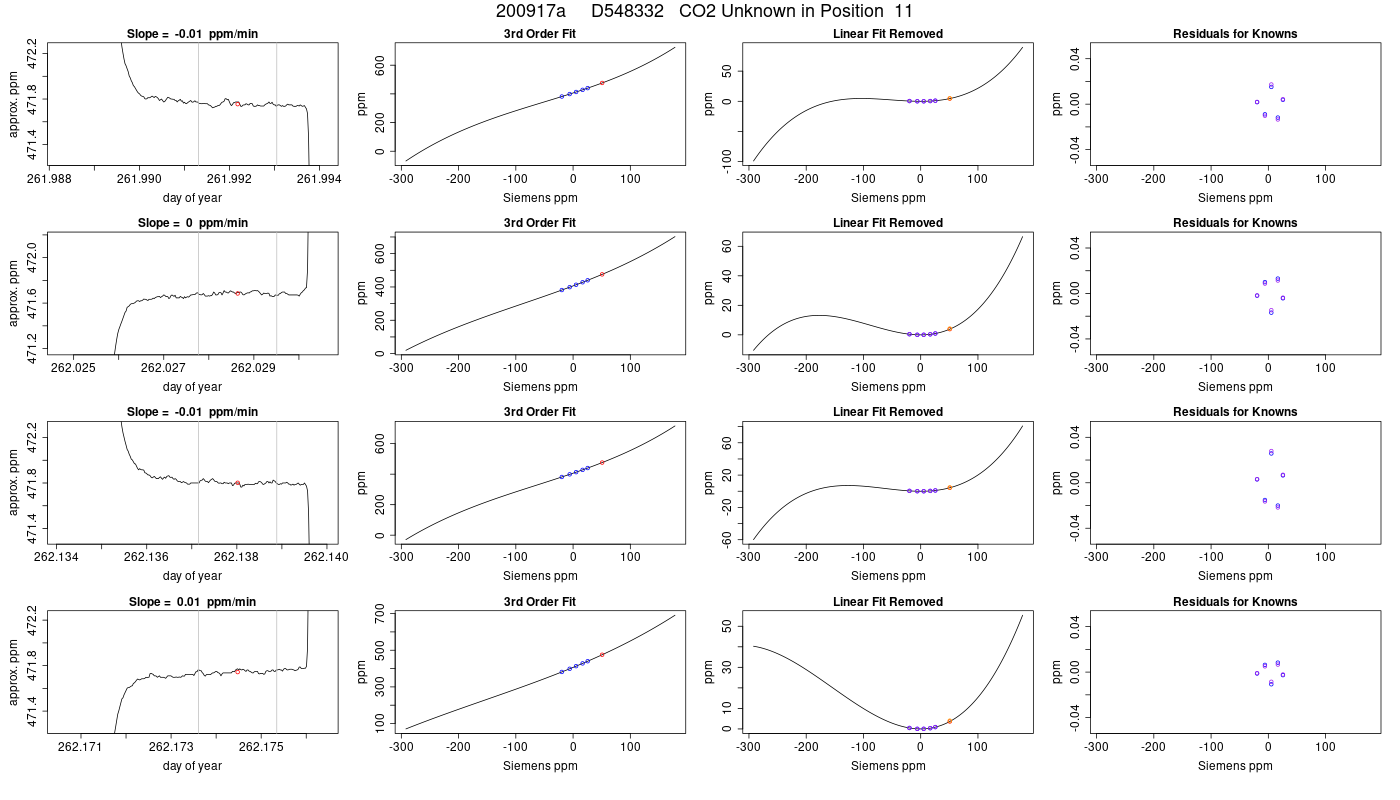

11 D548332    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
261.992 476.115 0.017 -944.62 1.75 476.637 0.017
262.029 475.517 0.015 -944.09 2.18 476.037 0.015
262.138 475.965 0.016 -943.42 2.19 476.486 0.016
262.174 475.322 0.015 -943.08 1.77 475.841 0.015
262.284 476.081 0.019 -943.17 2.27 476.602 0.019
262.320 475.382 0.017 -942.40 1.75 475.902 0.017
262.430 476.106 0.015 -943.70 1.89 476.628 0.015
262.466 475.358 0.013 -942.52 2.05 475.878 0.013

15 D548331    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
262.008 409.801 0.014 -706.85 2.00 409.995 0.014
262.013 409.822 0.012 -705.01 1.85 410.016 0.012
262.154 409.808 0.012 -704.35 1.80 410.002 0.012
262.159 409.839 0.016 -703.56 2.36 410.033 0.016
262.299 409.812 0.009 -704.21 1.89 410.006 0.009
262.305 409.843 0.013 -702.59 1.89 410.037 0.013
262.445 409.829 0.018 -702.76 2.04 410.023 0.018
262.451 409.855 0.014 -702.56 1.50 410.049 0.014
