UEA CRAM Lab O2 and CO2 calibration results
RUN = 191216a
PROCESSED: 17:16:59 Mon 21Aug2023

Notes
Logfile

Results

Using data from 350.836 to 351.293 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 CC78691 384.915 0.009 0.014 385.136 0.009 0.014 8 -406.27 1.33 -0.37 8
6 ND29112 399.975 0.010 -0.054 400.183 0.010 -0.053 8 -575.00 0.51 -1.49 8
9 D399093 415.248 0.008 0.002 415.436 0.008 0.002 8 -874.51 1.73 -10.92 8
11 D273555 443.394 0.006 -0.019 443.617 0.007 -0.019 8 -909.00 1.33 -7.49 8
13 D801298 412.933 0.006 0.001 413.123 0.006 0.001 8 444.94 3.56 12.33 8
14 D273559 375.126 0.009 -0.003 375.338 0.009 -0.003 8 423.13 1.38 1.47 8
WT D258968 406.452 0.010 -0.069 406.651 0.010 -0.069 88 -837.53 0.90 -5.96 88
Text File

Raw Data and Diagnostics Figures

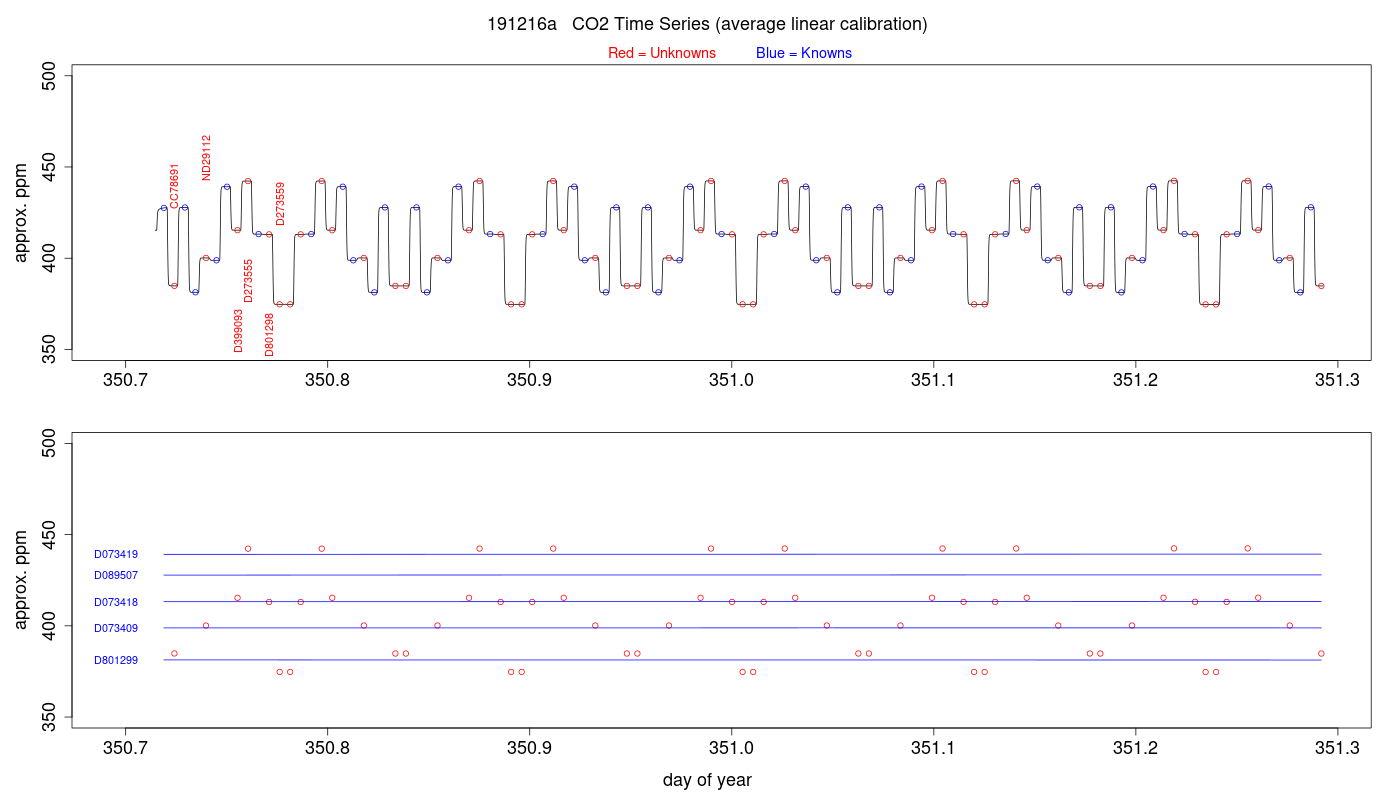

CO2 Timeseries

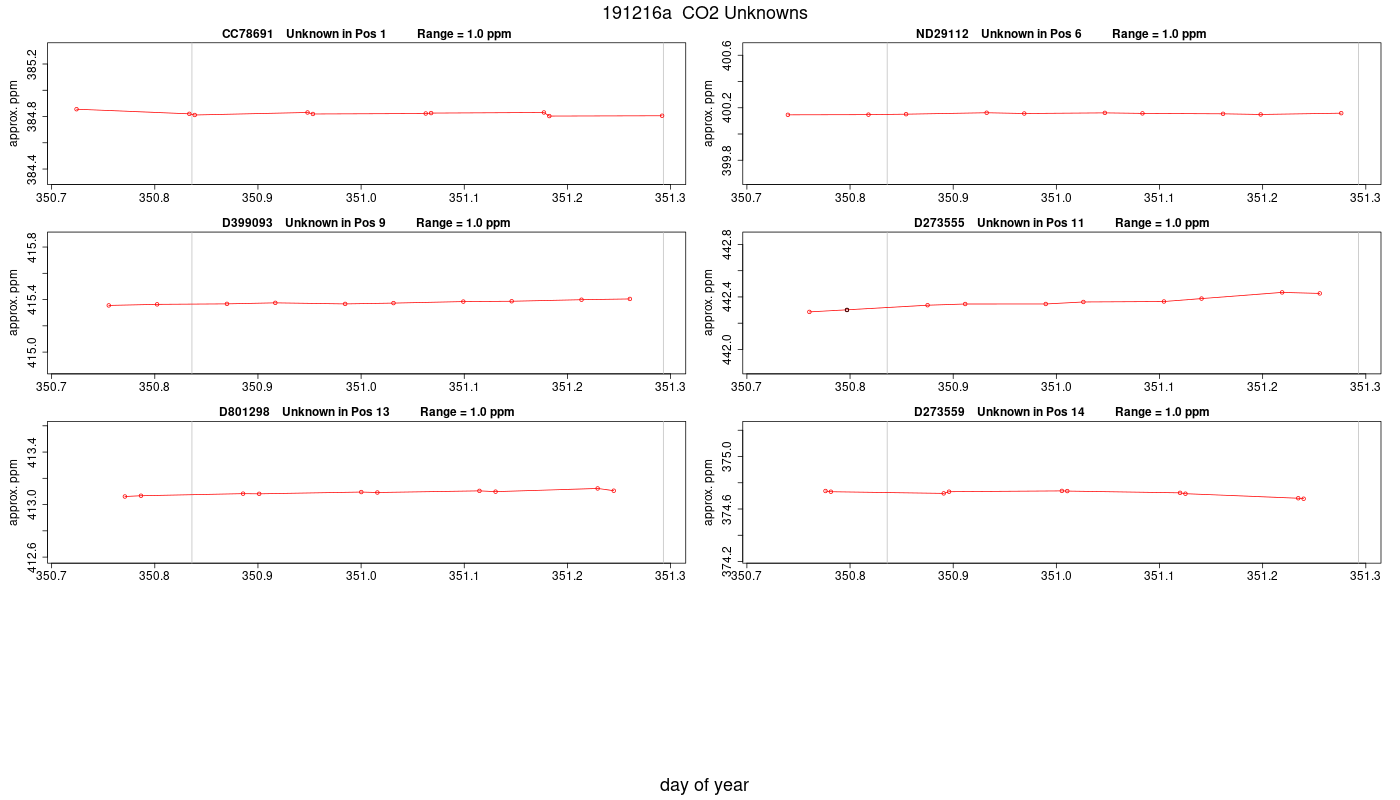

 CO2 Averages for Unknowns

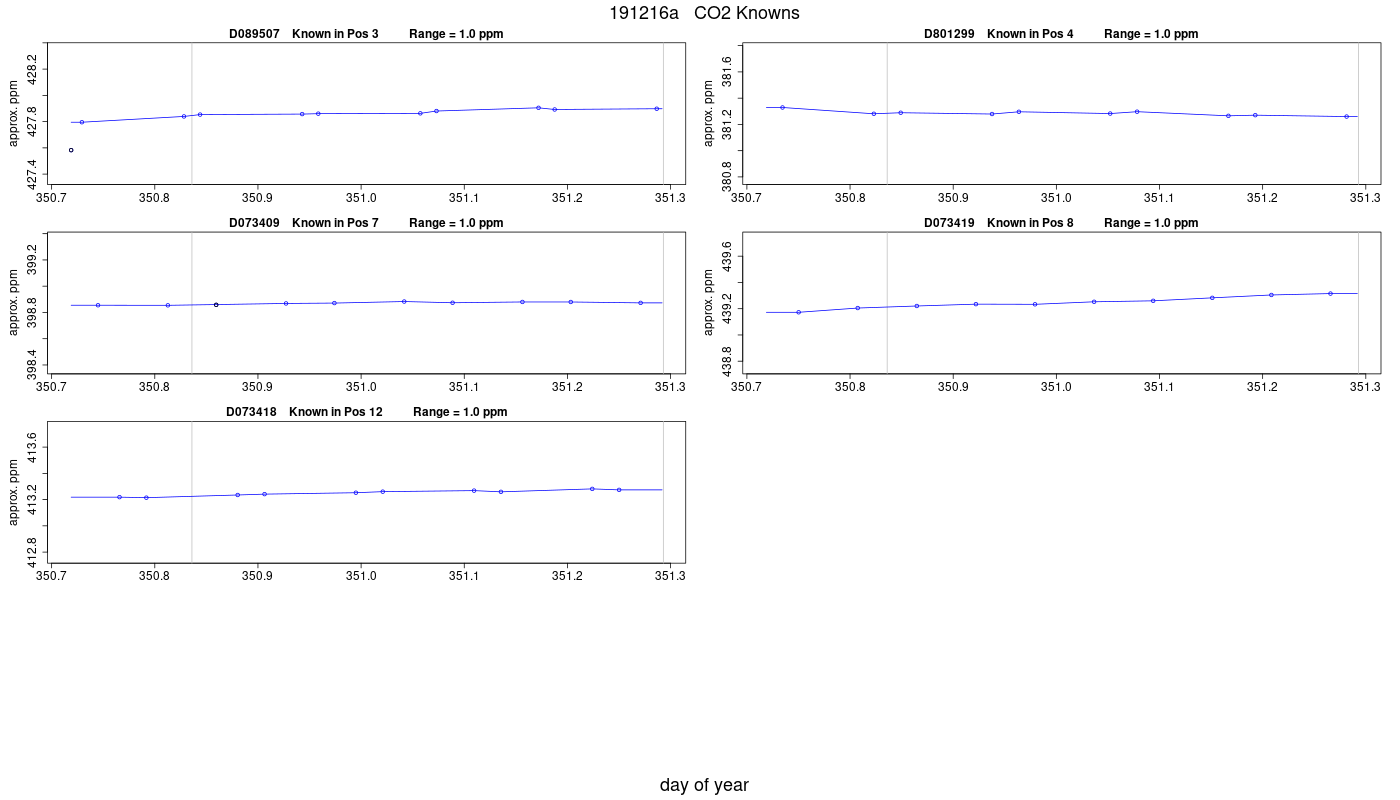

 CO2 Averages for Knowns

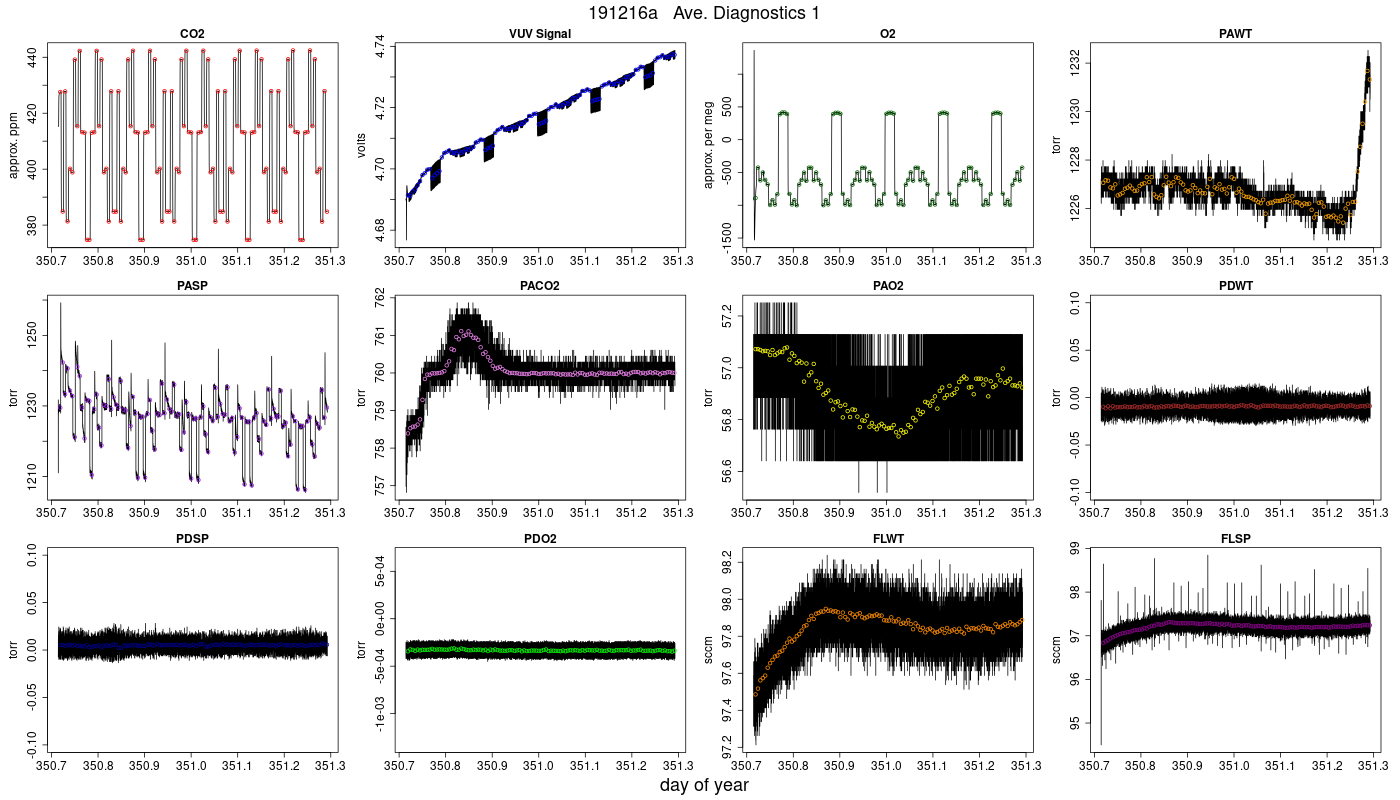

Jog Ave. Diagnostics 1

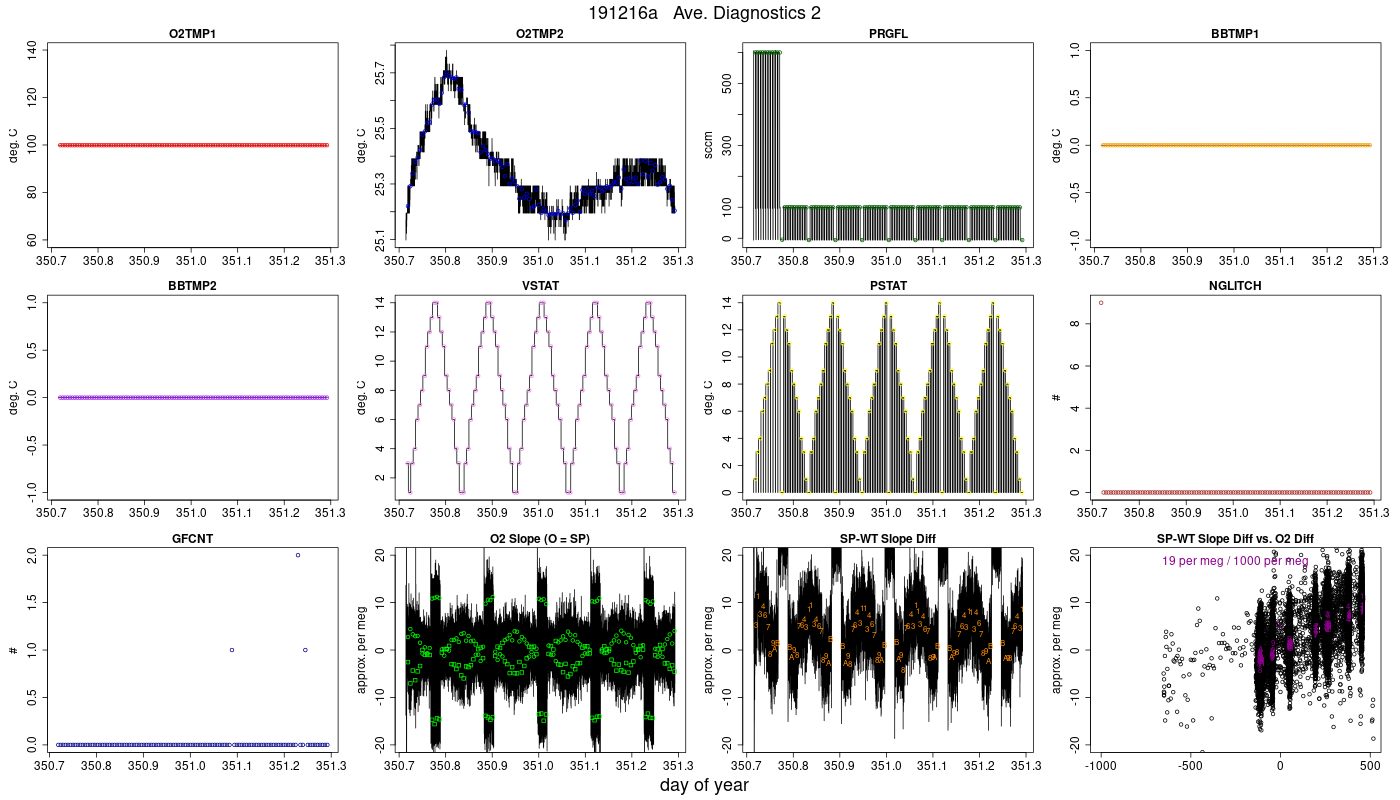

 Jog Ave. Diagnostics 2

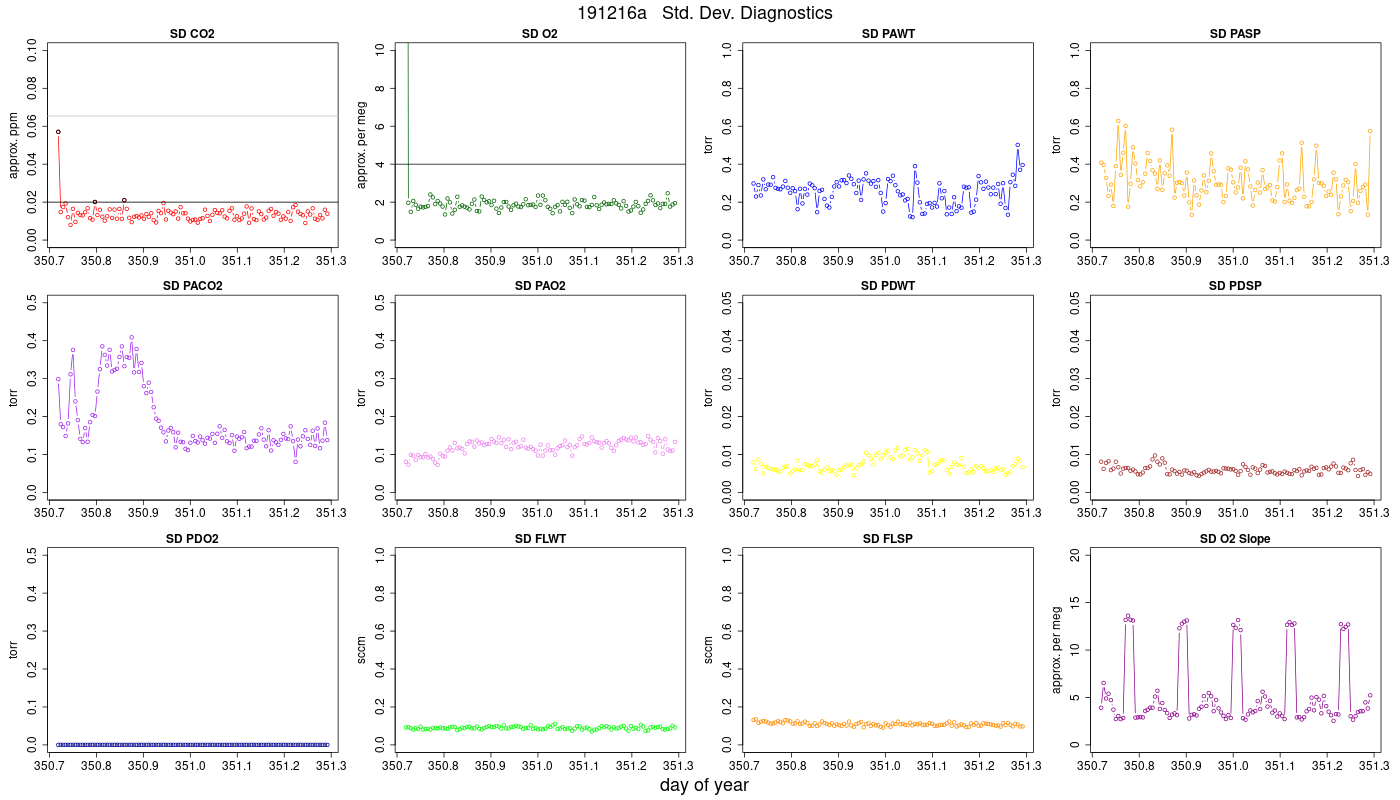

 Jog Std. Dev. Diagnostics

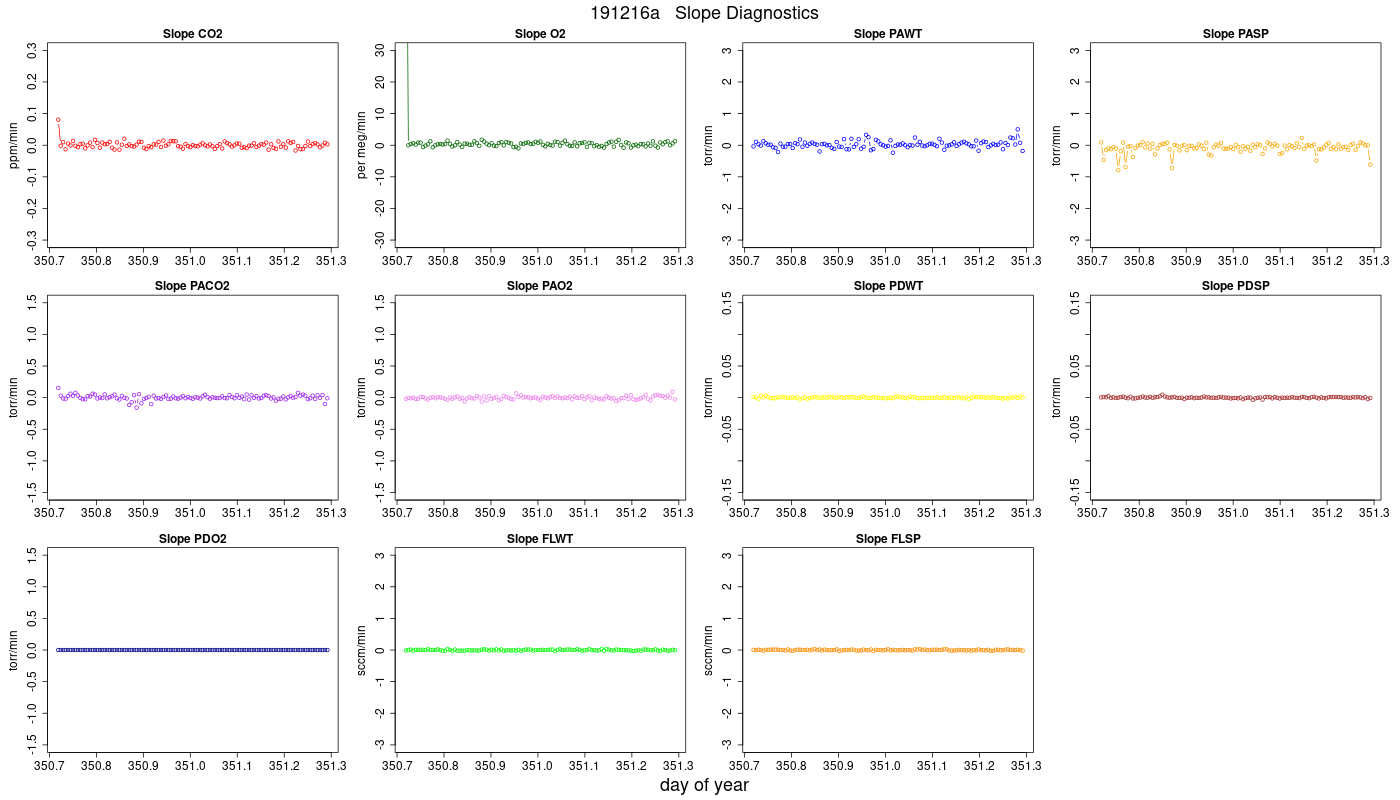

Jog Slope Diagnostics

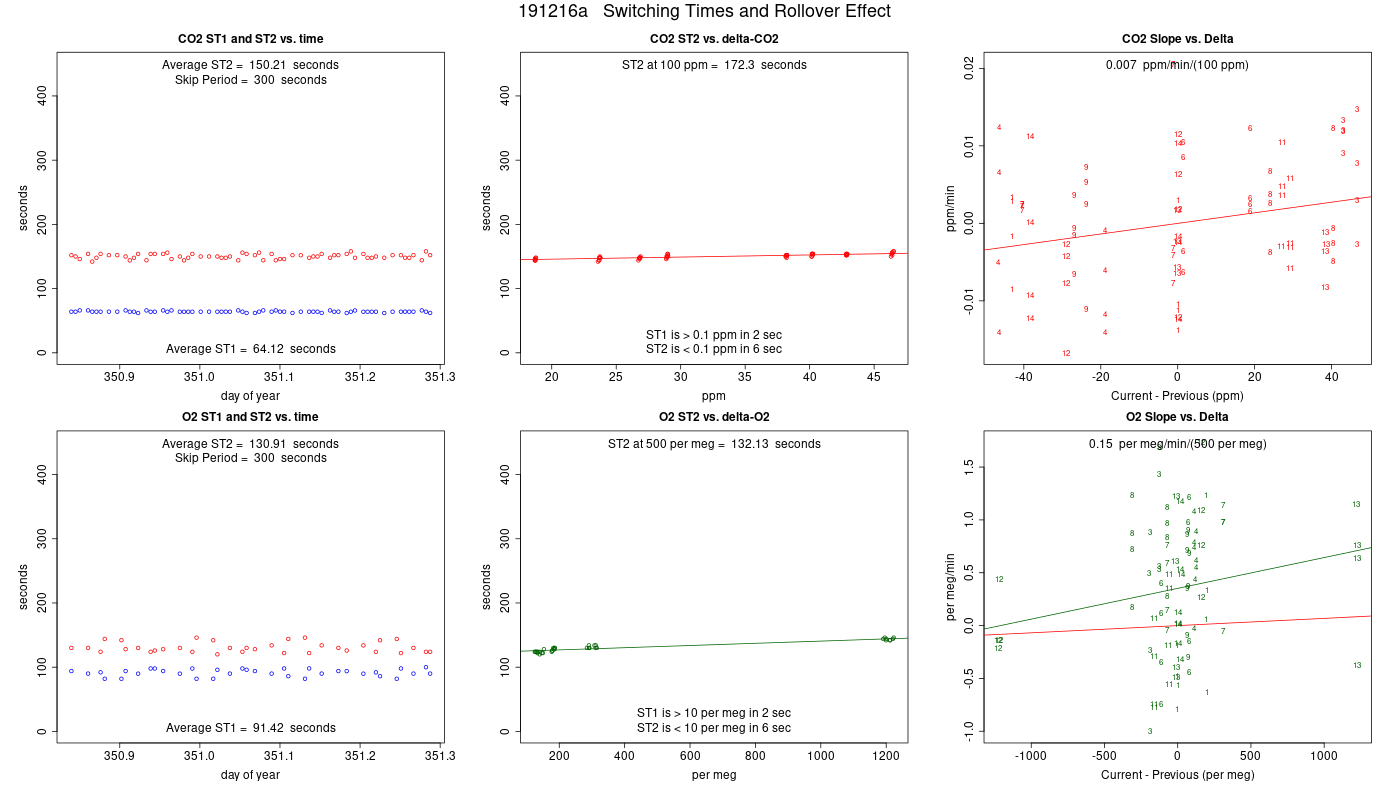

 Rollover Effect

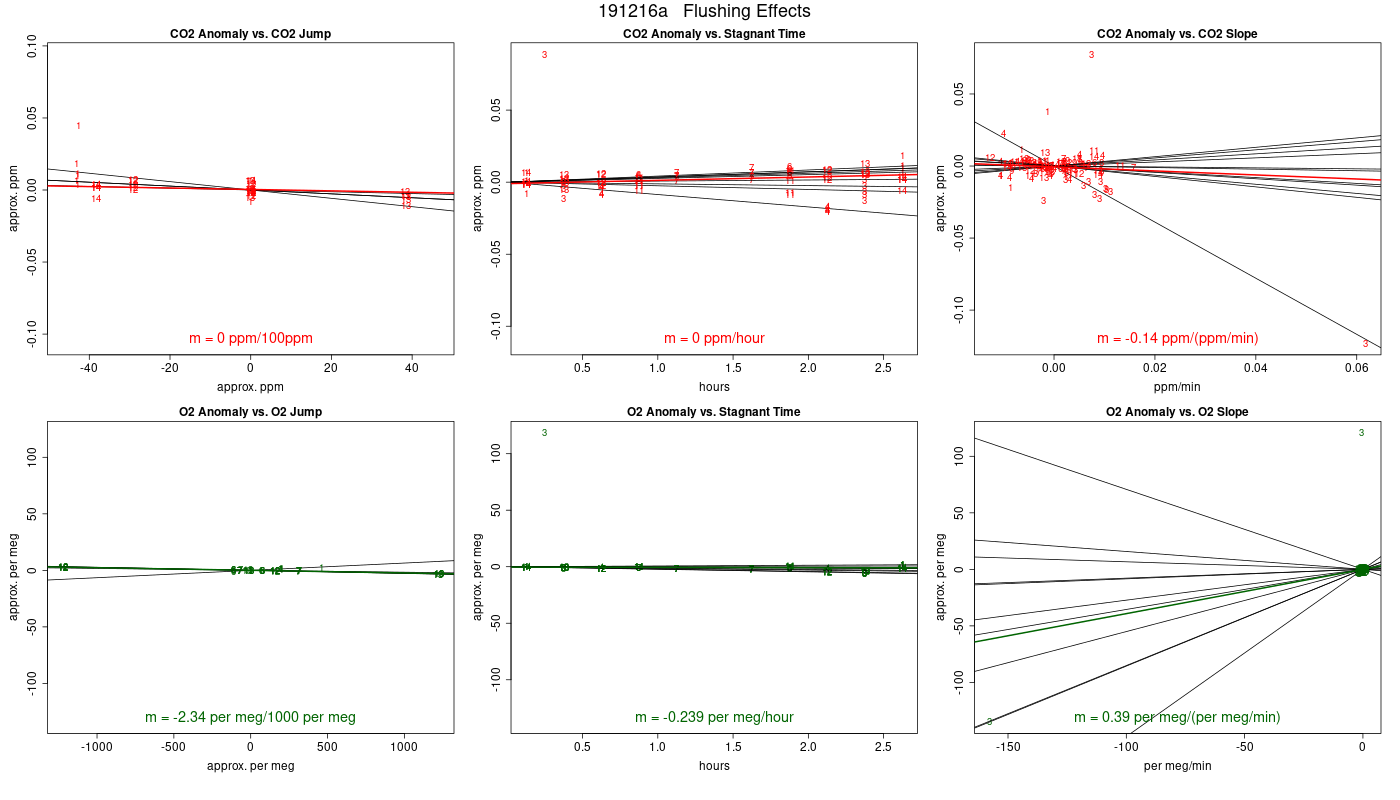

 Flushing Effect
CO2 Parameters

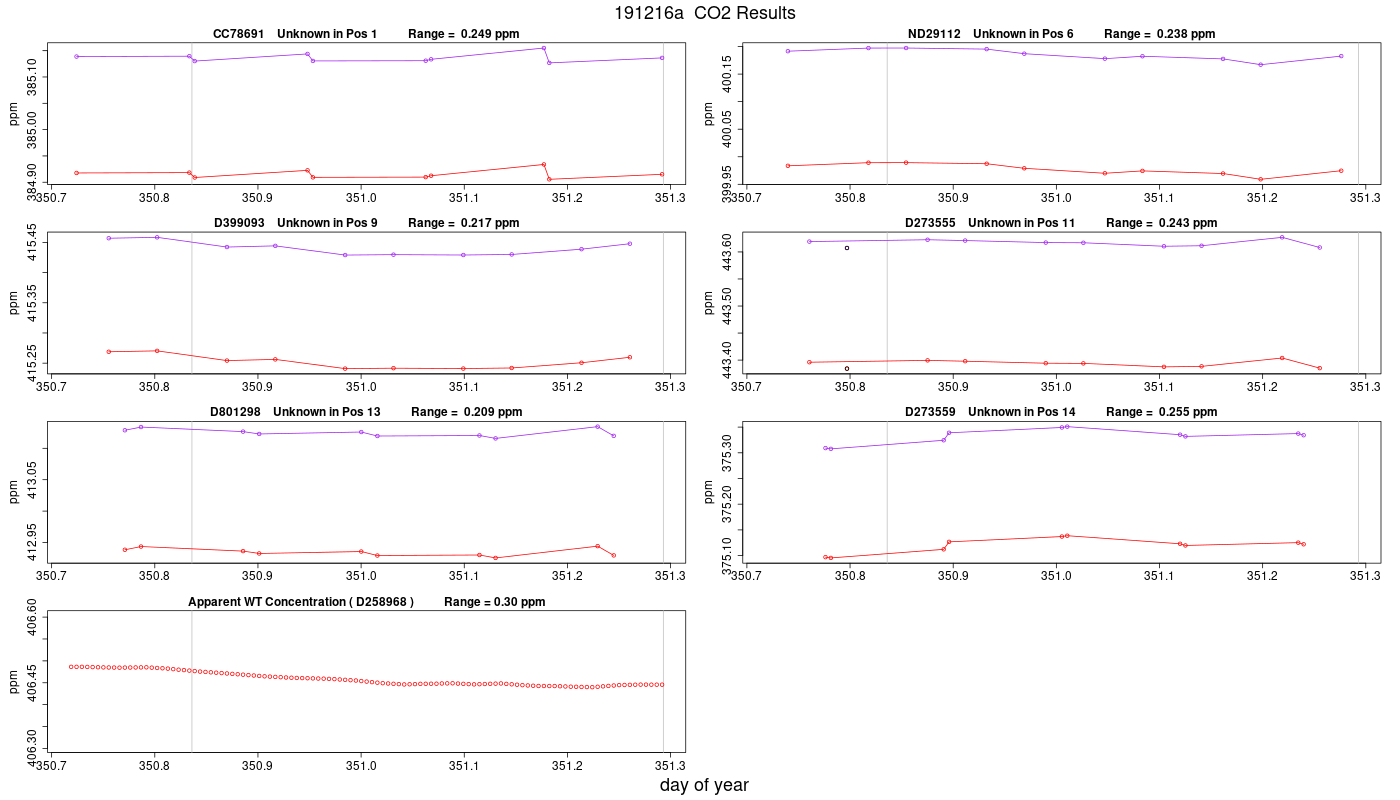

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

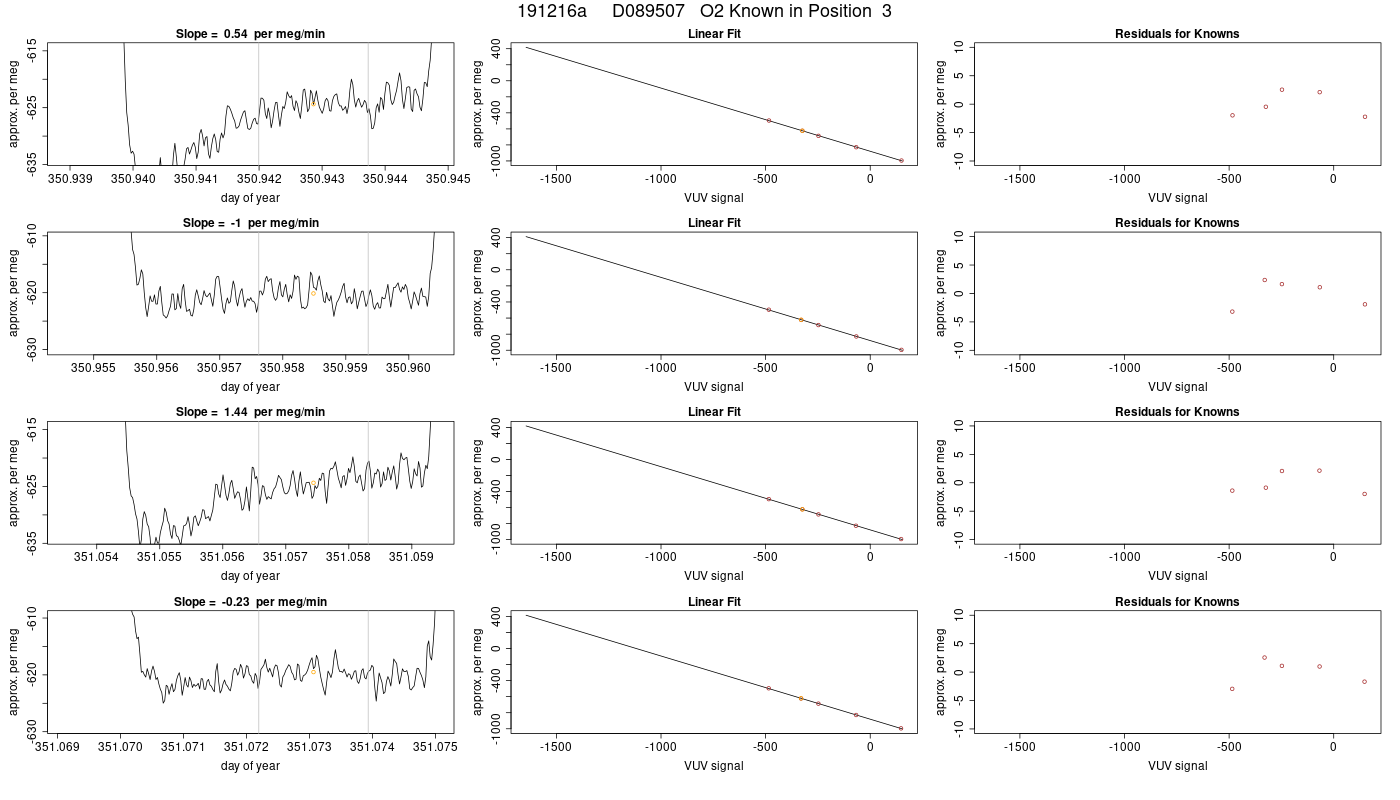

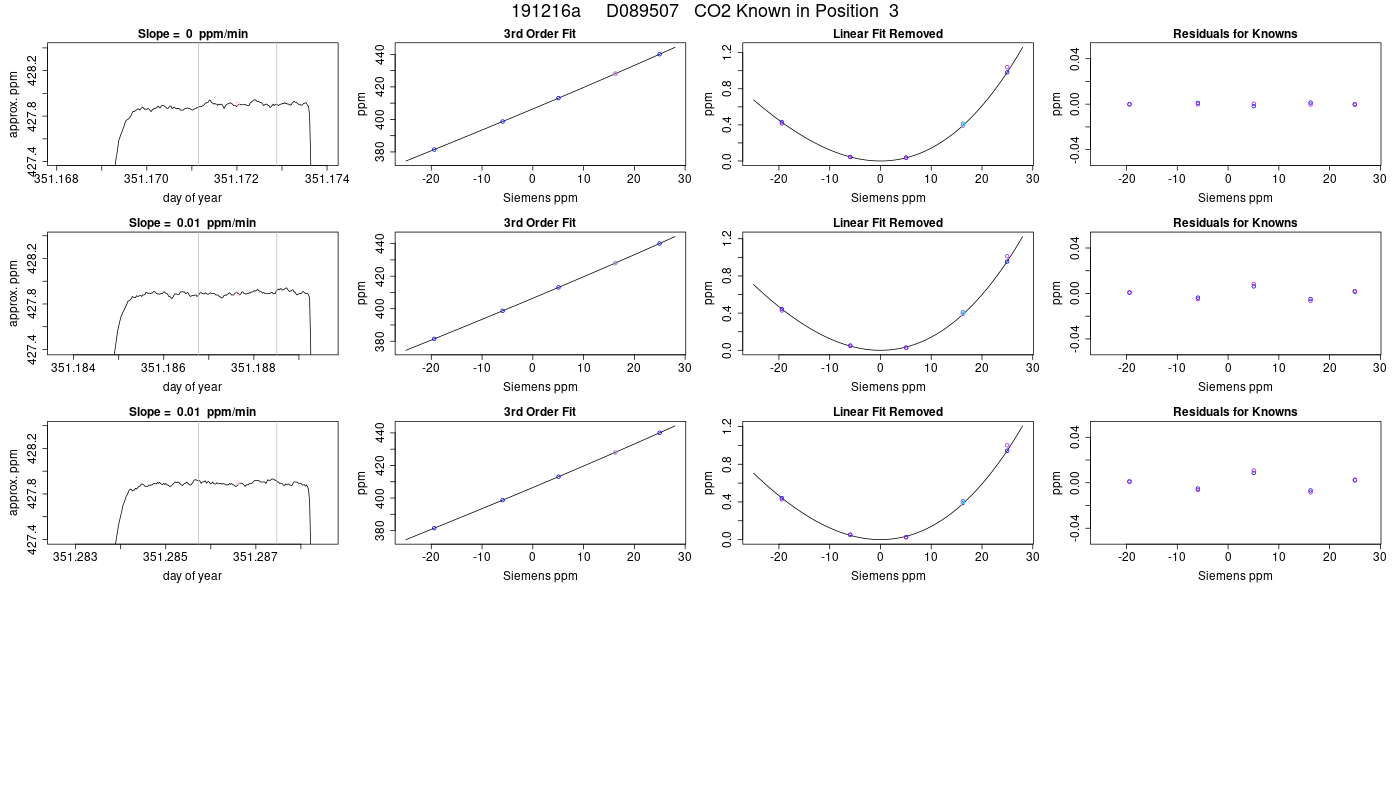

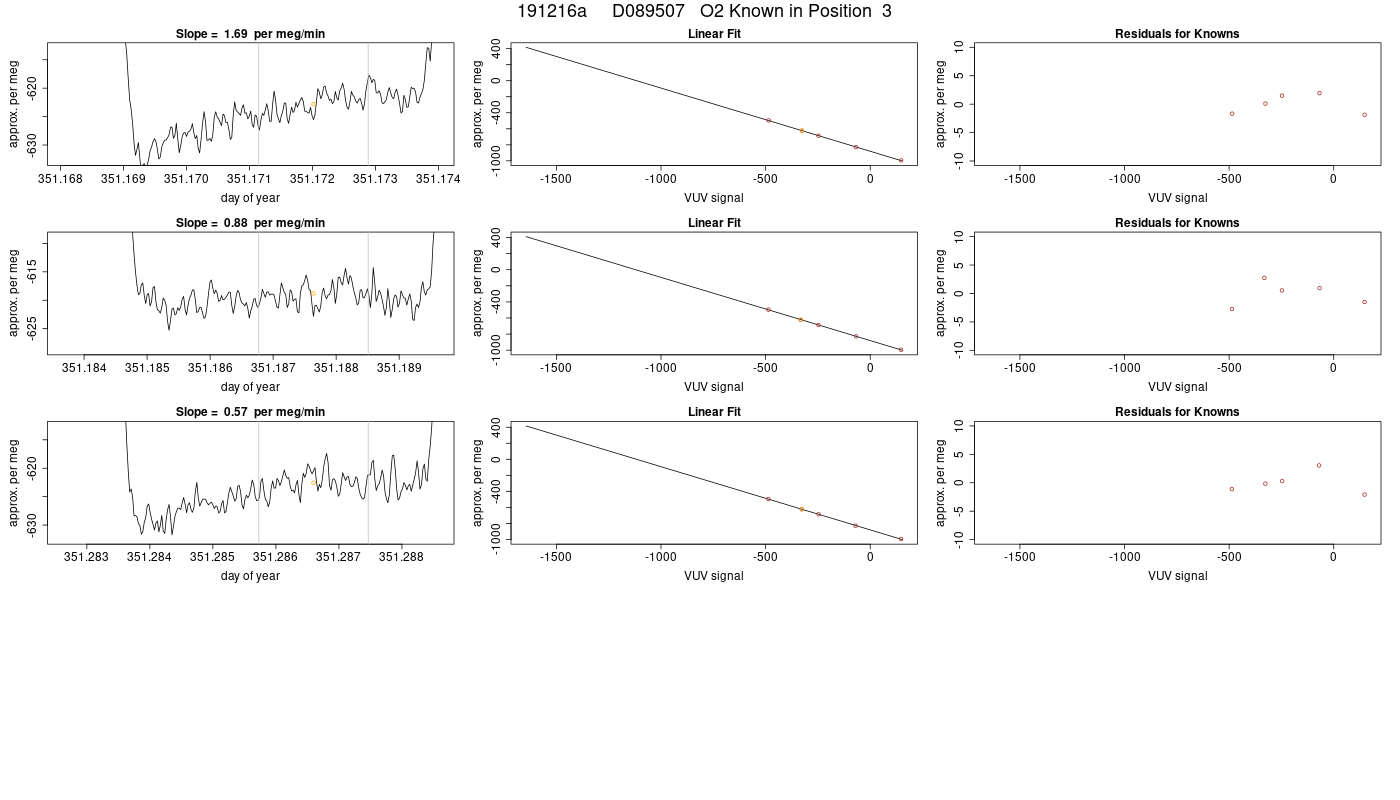

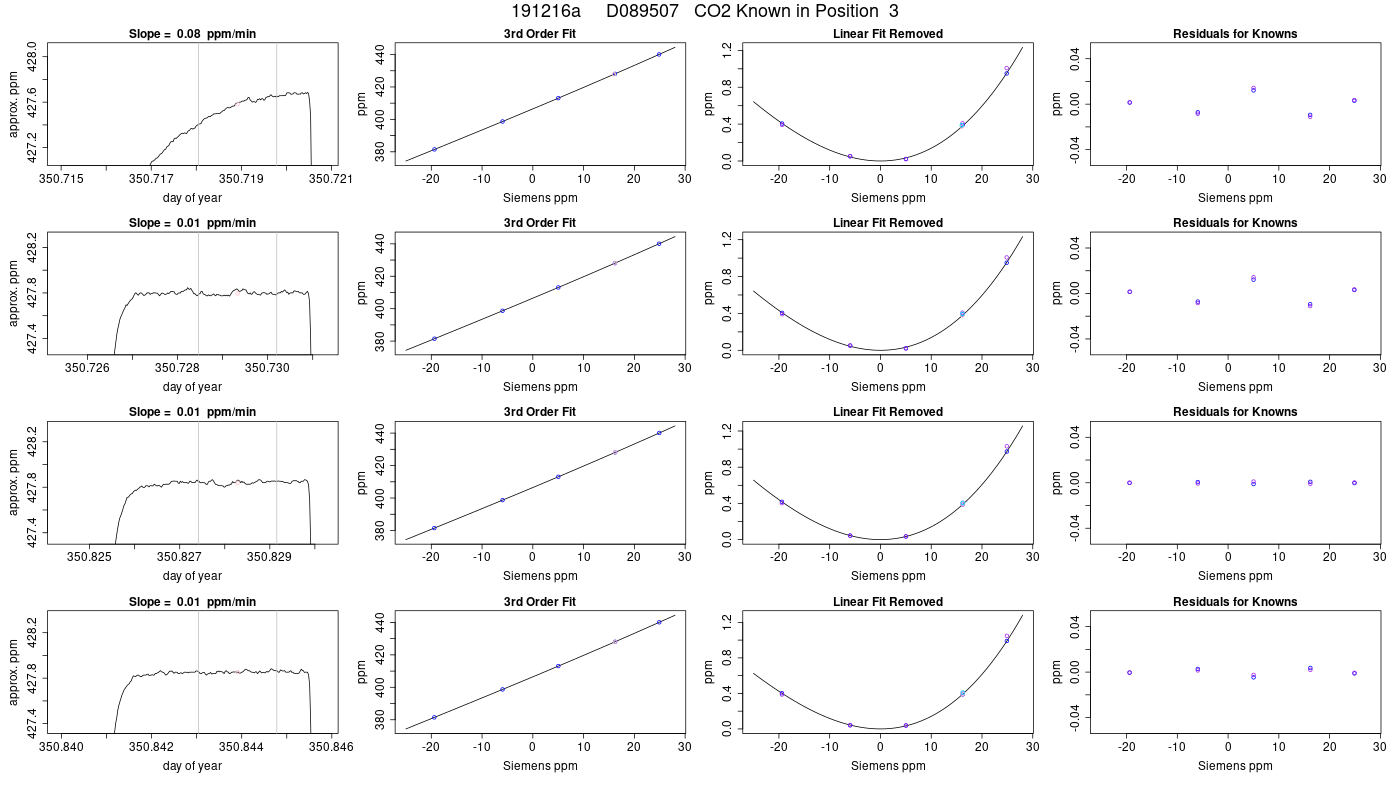

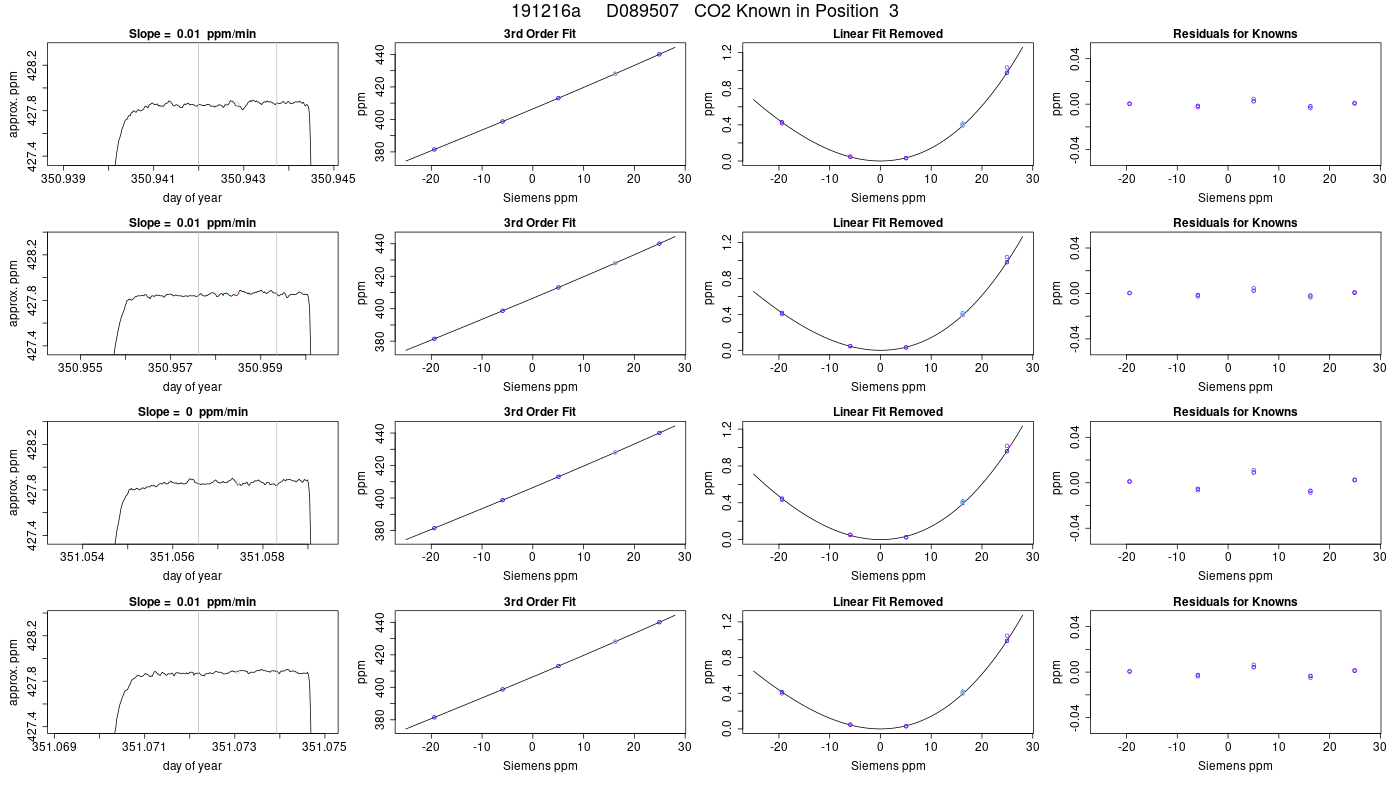

3 D089507 428.087 -0.003 0.004 428.275 -0.004 0.004 8 -559.23 1.16 1.65 8    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

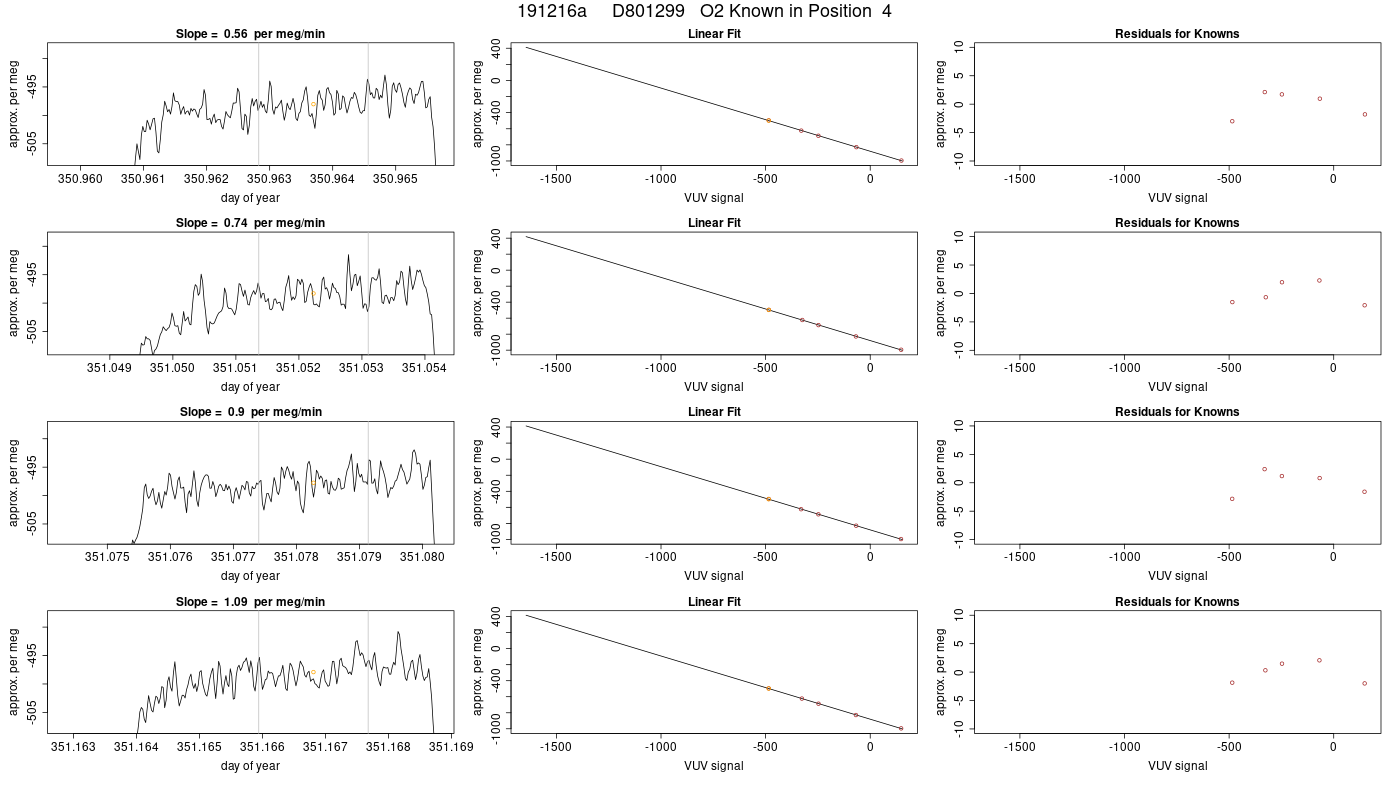

4 D801299 381.475 0.000 0.001 381.695 0.001 0.001 8 -477.75 -2.44 1.01 8    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

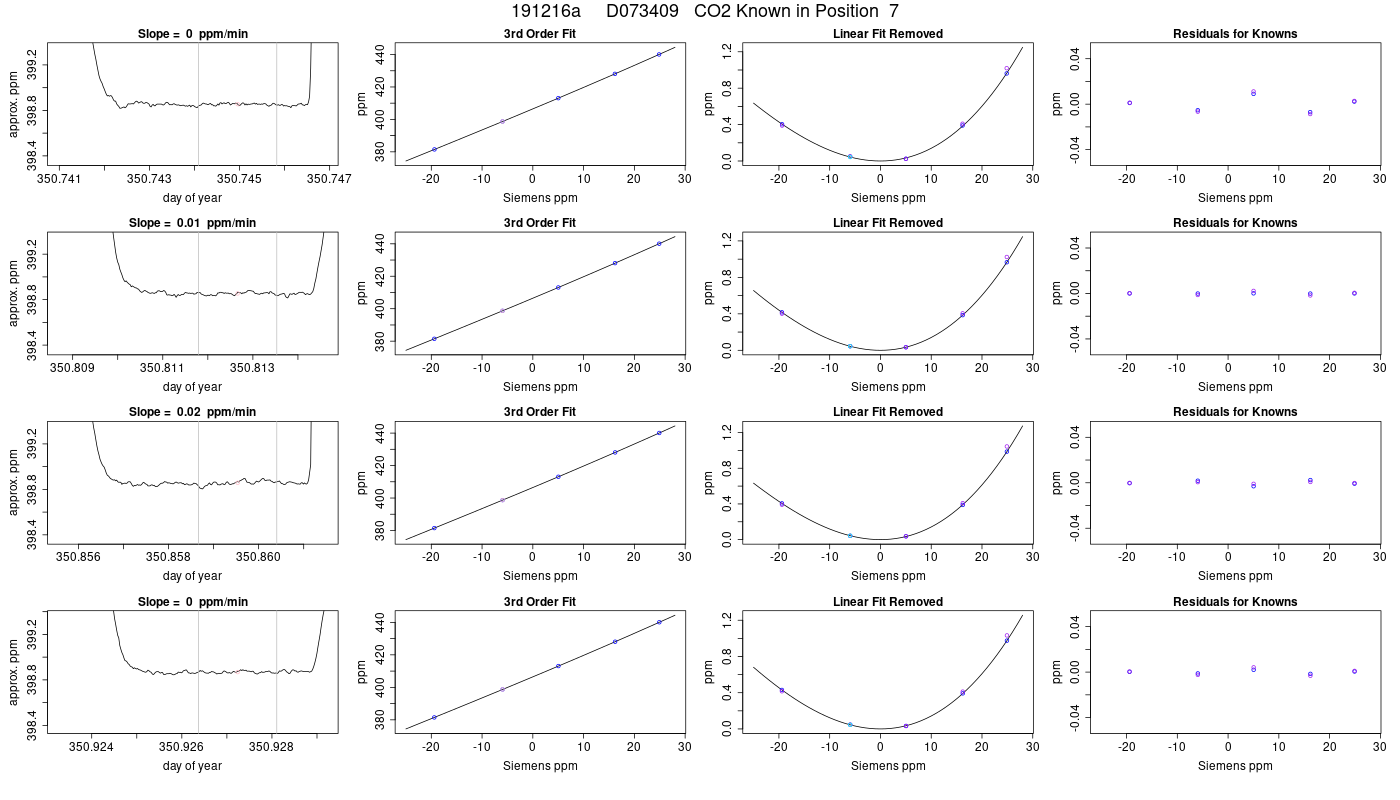

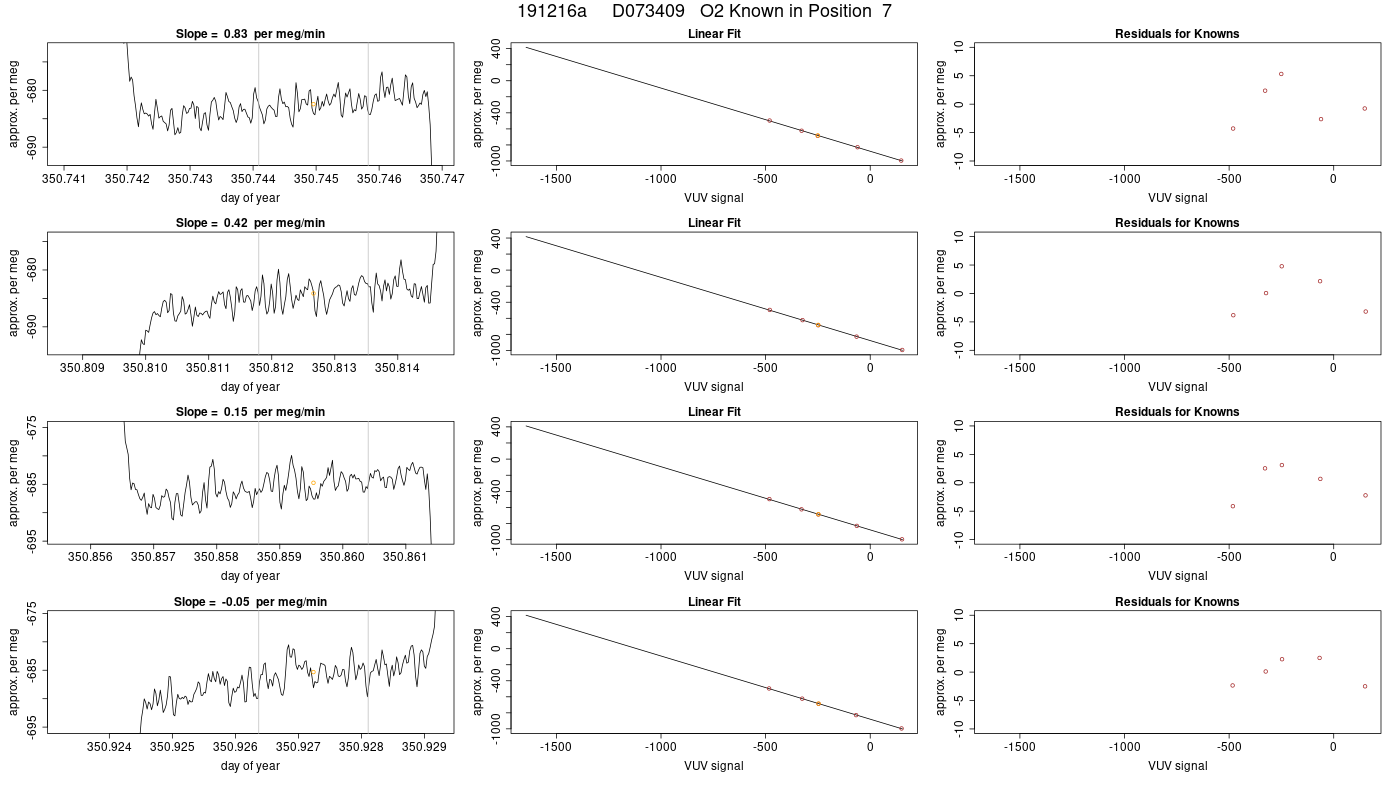

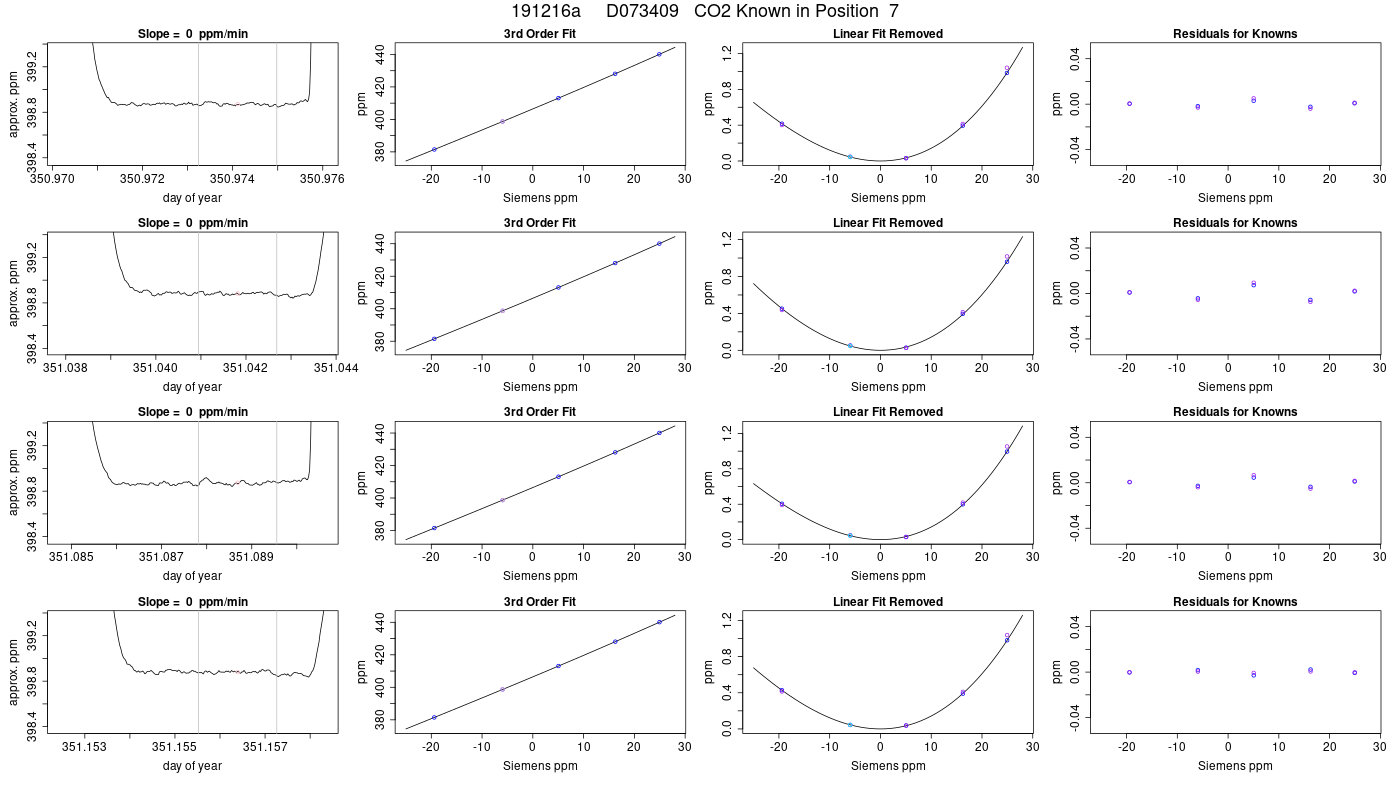

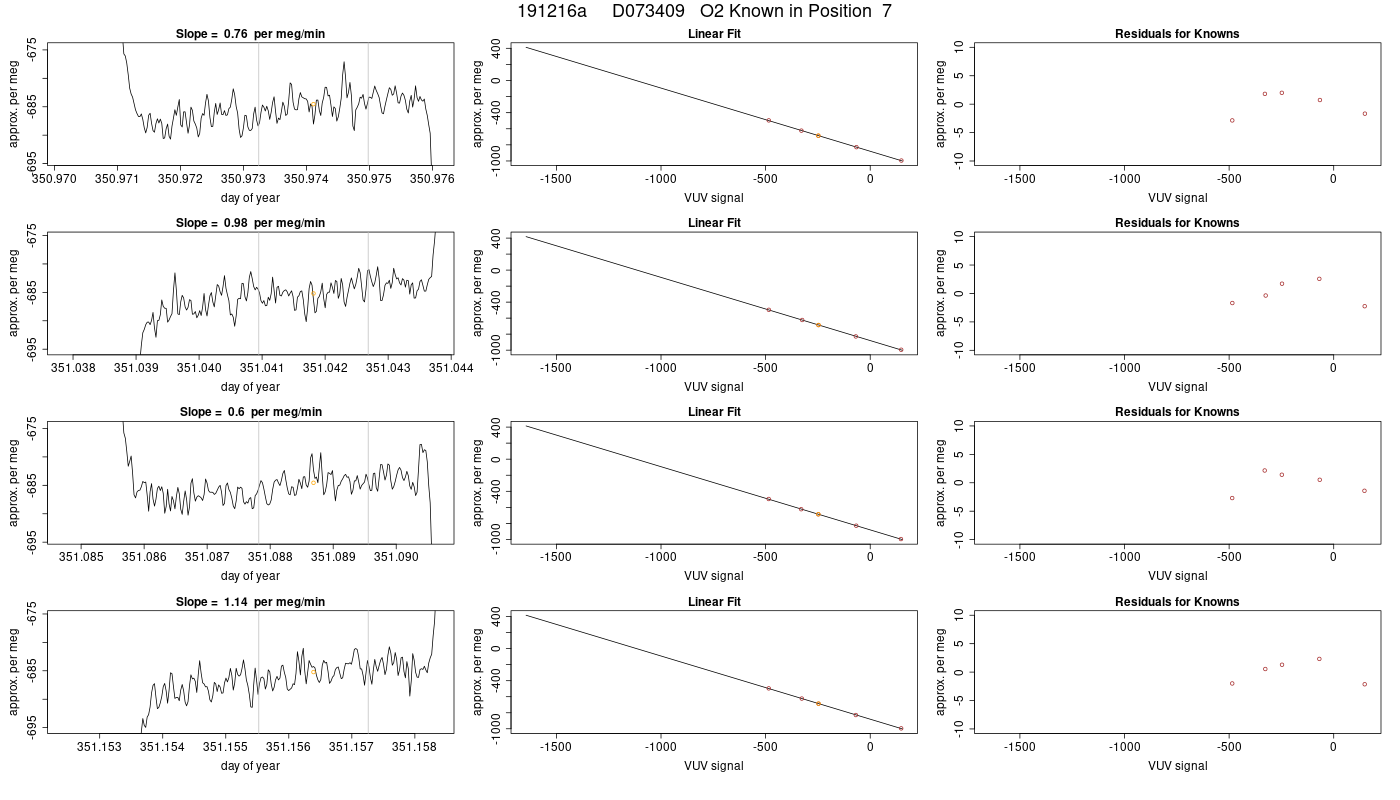

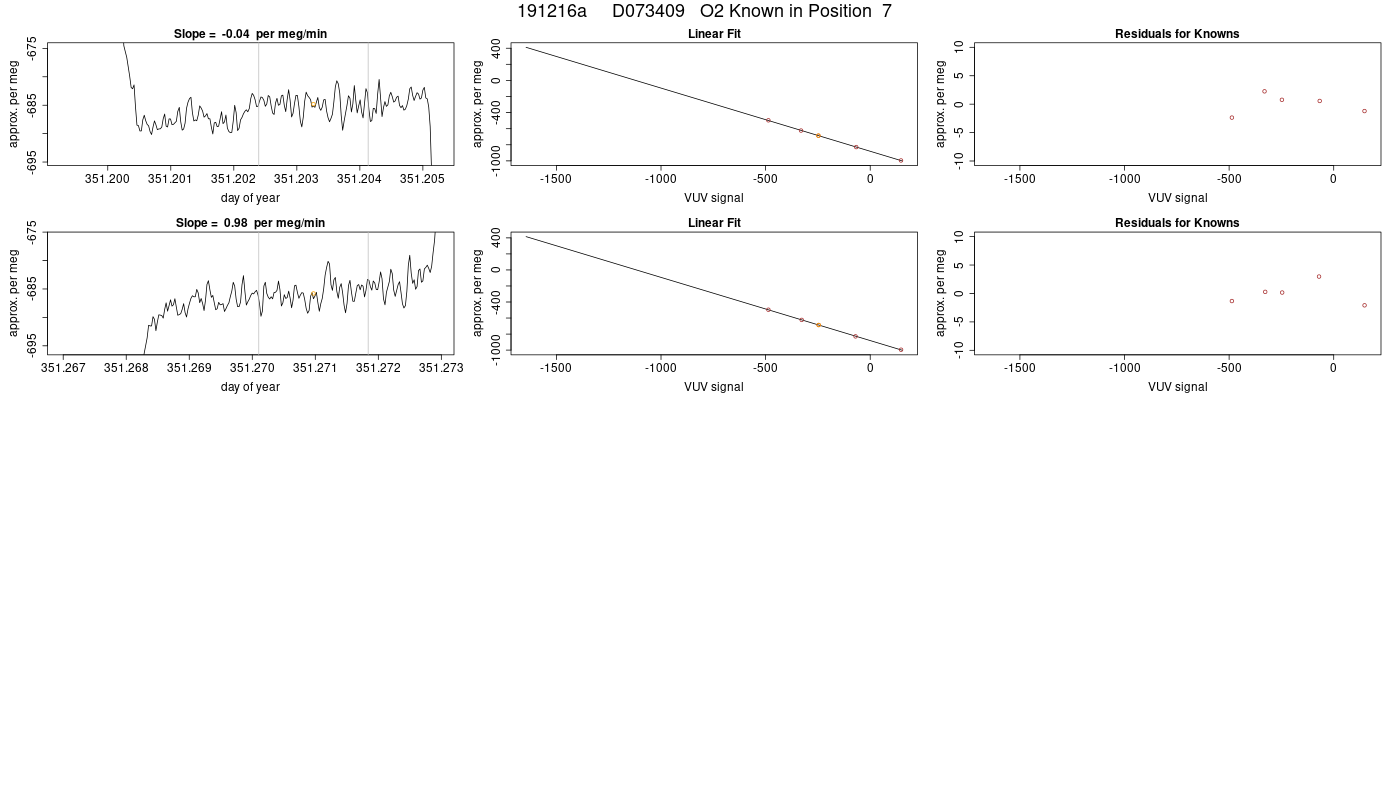

7 D073409 398.707 -0.003 0.003 398.918 -0.004 0.003 7 -651.78 1.59 0.91 8    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

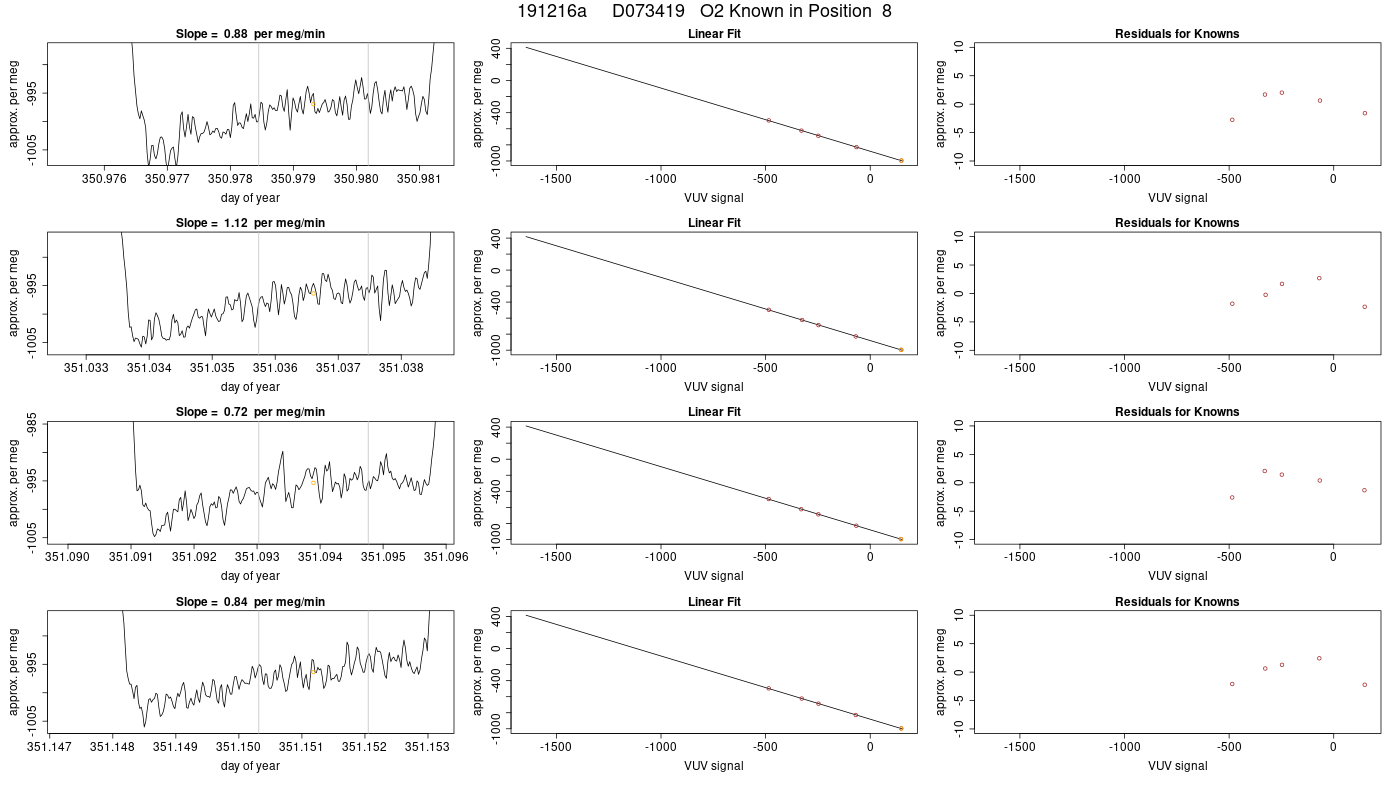

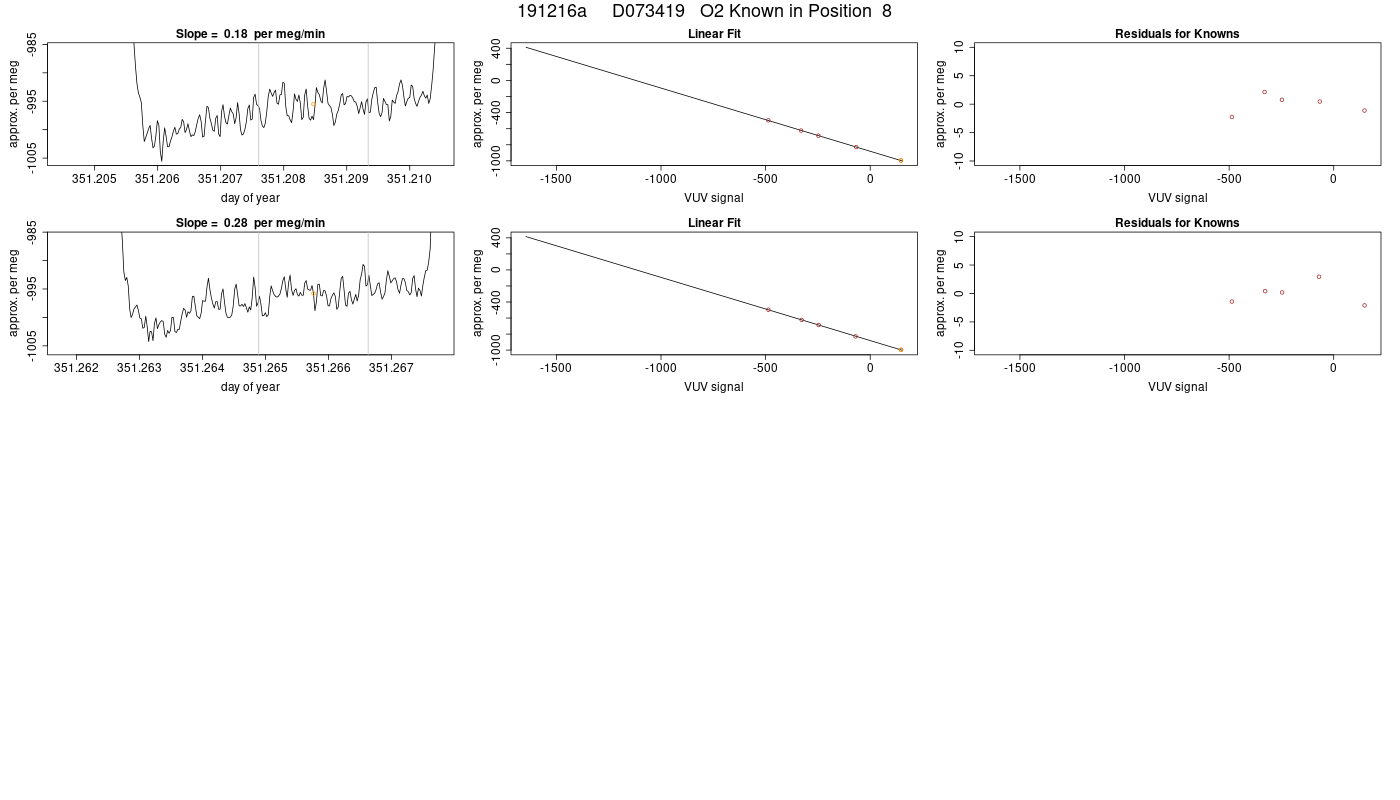

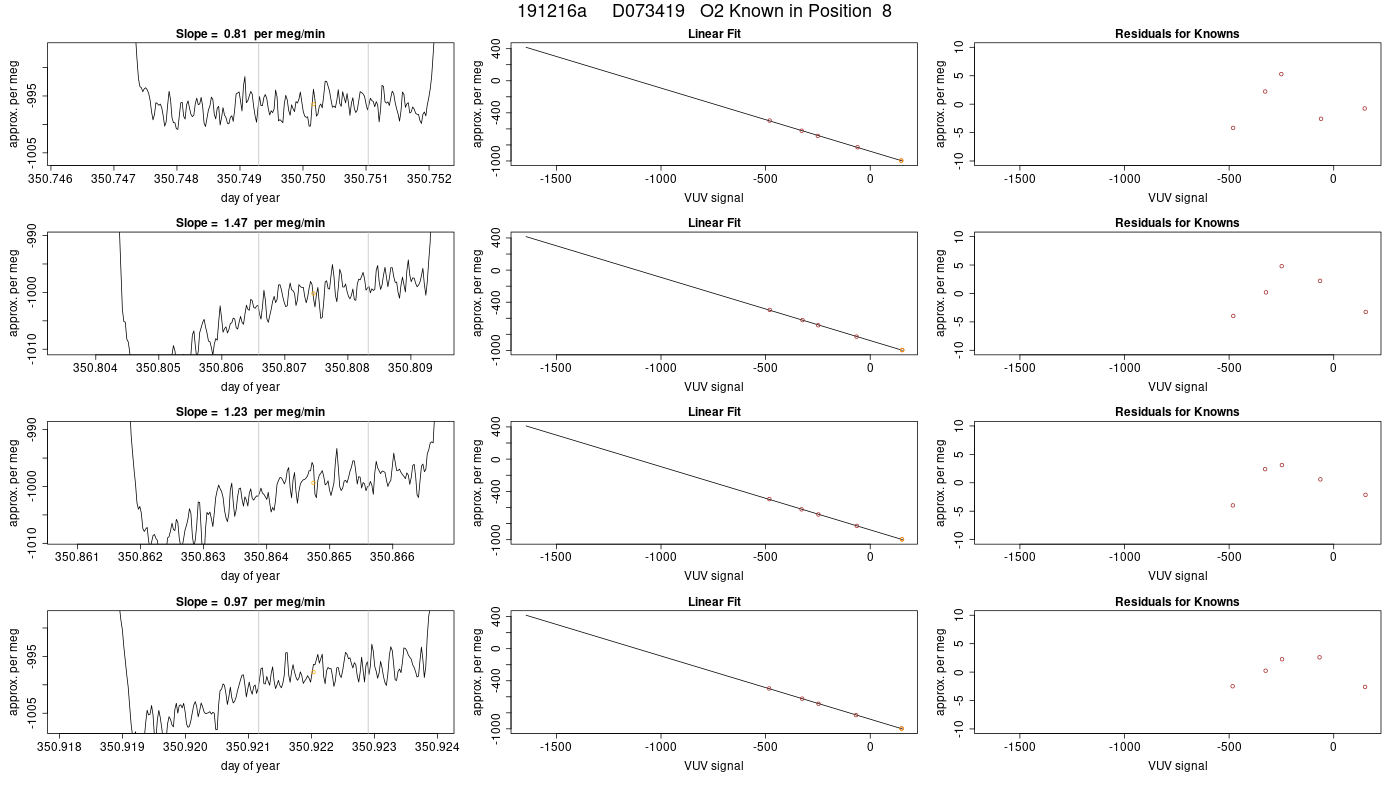

8 D073419 440.065 0.001 0.001 440.275 0.001 0.001 8 -919.32 -1.93 0.53 8    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

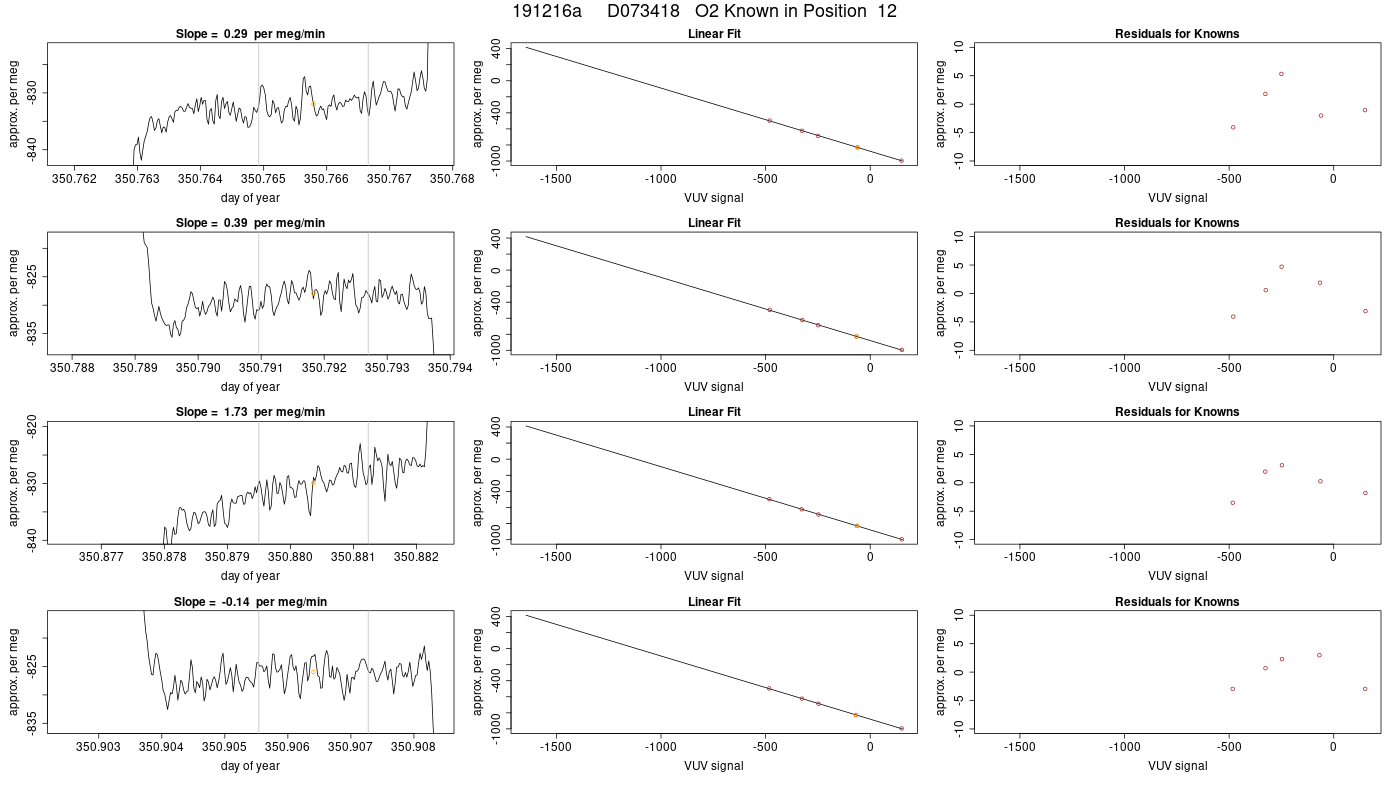

12 D073418 413.092 0.004 0.005 413.280 0.006 0.005 8 -779.40 1.57 1.37 8    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

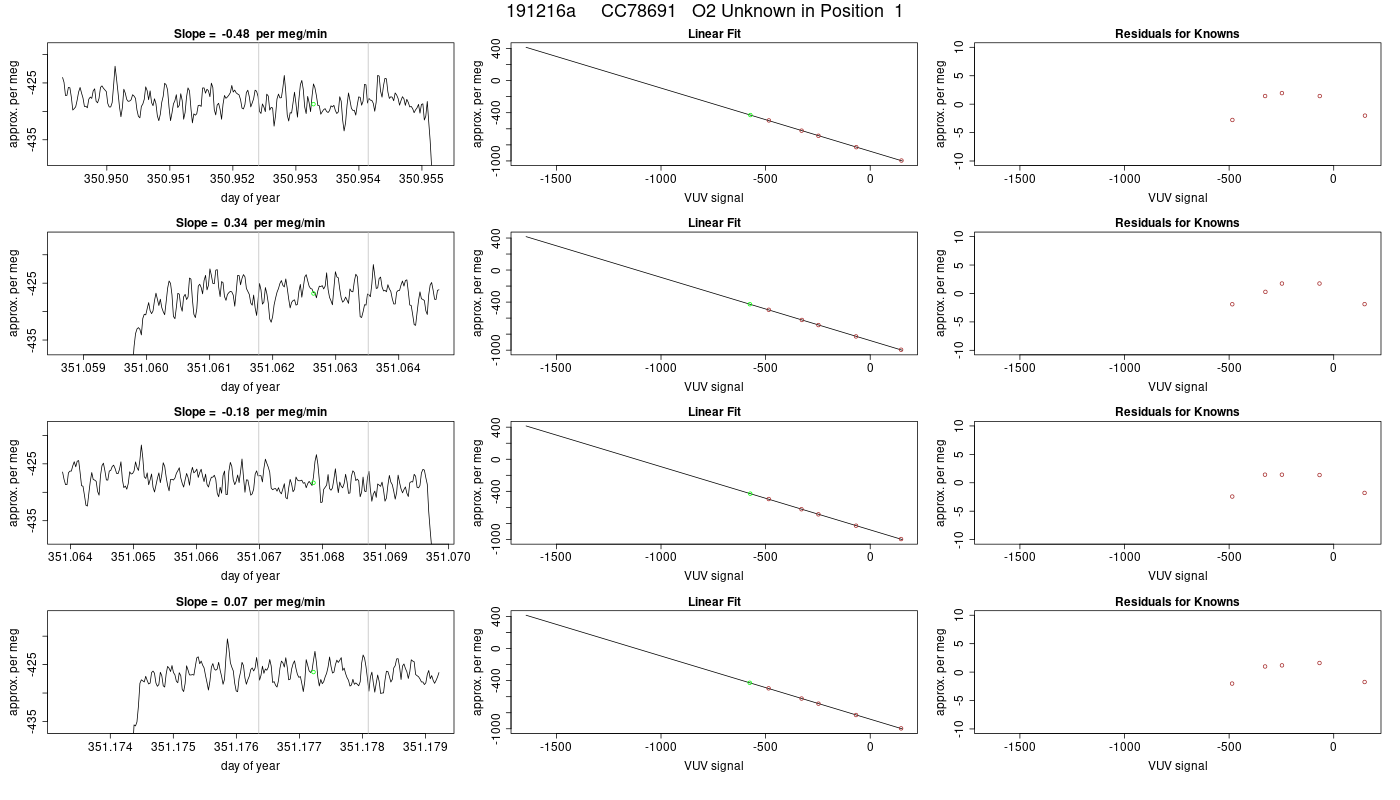

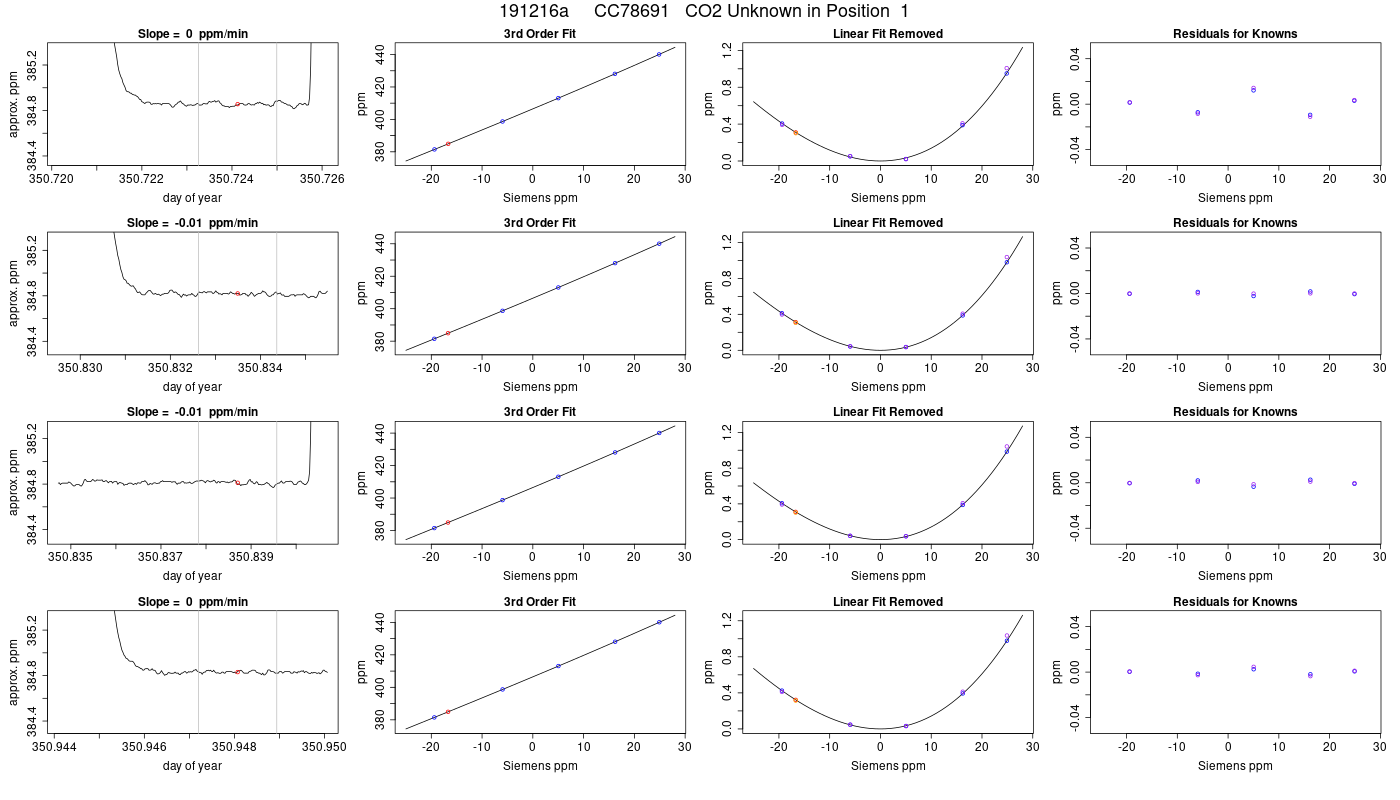

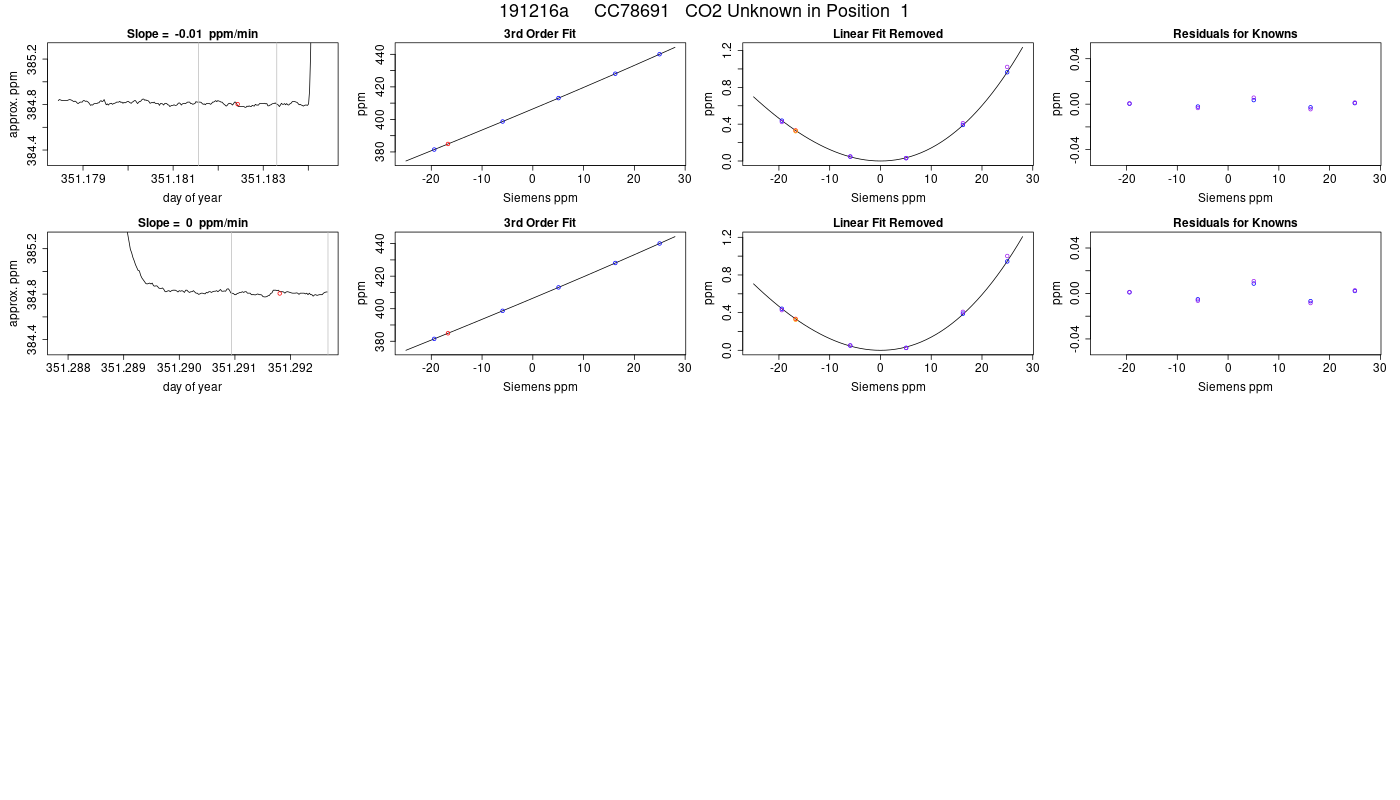

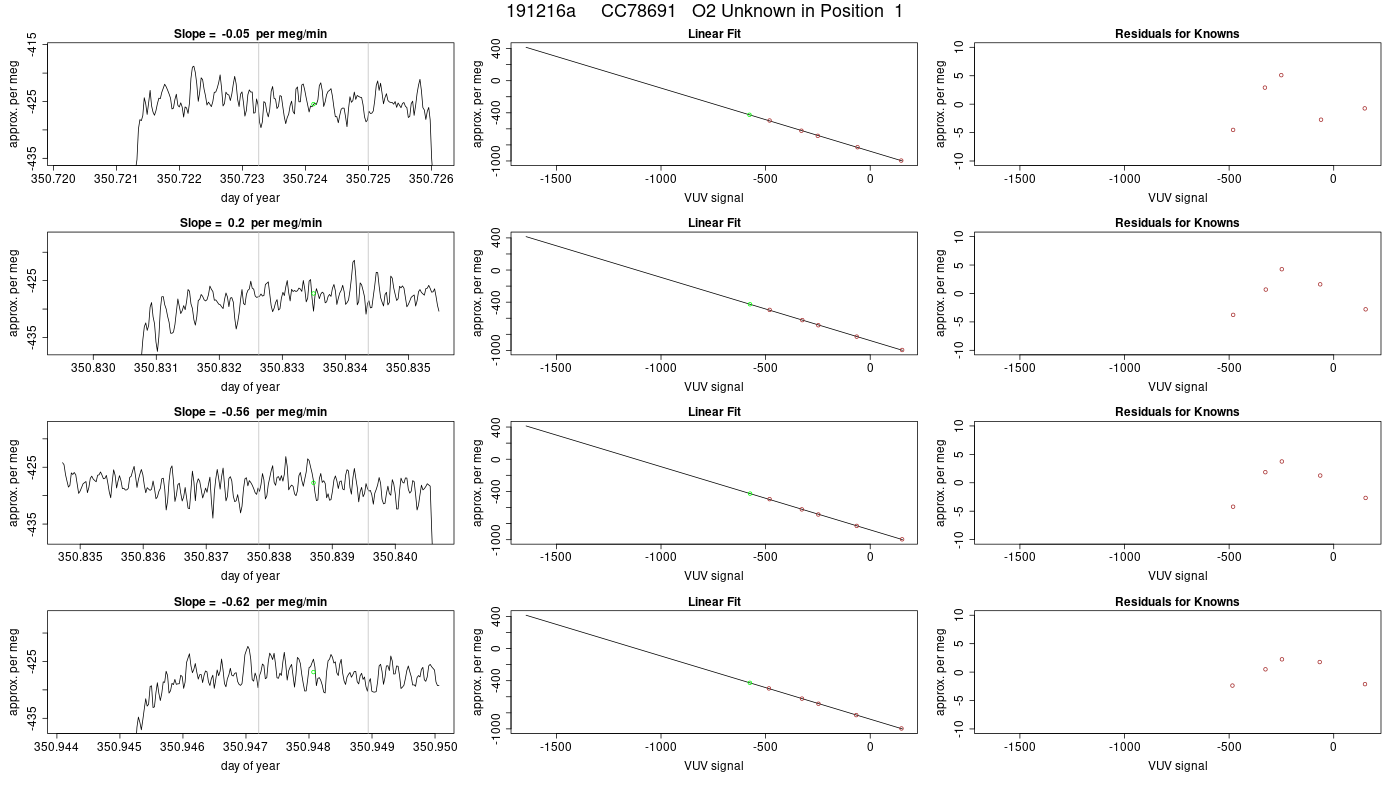

1 CC78691    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
350.724 384.918 0.015 -403.51 1.97 385.139 0.015
350.833 384.918 0.012 -404.32 1.76 385.139 0.012
350.839 384.909 0.016 -405.67 1.83 385.130 0.016
350.948 384.923 0.011 -405.13 1.83 385.144 0.011
350.953 384.909 0.015 -407.74 1.91 385.131 0.015
351.063 384.910 0.014 -405.09 2.02 385.131 0.014
351.068 384.912 0.016 -407.33 1.70 385.134 0.016
351.177 384.934 0.013 -405.52 1.67 385.155 0.013
351.182 384.906 0.015 -408.40 2.05 385.127 0.015
351.292 384.915 0.014 -405.30 1.95 385.136 0.014

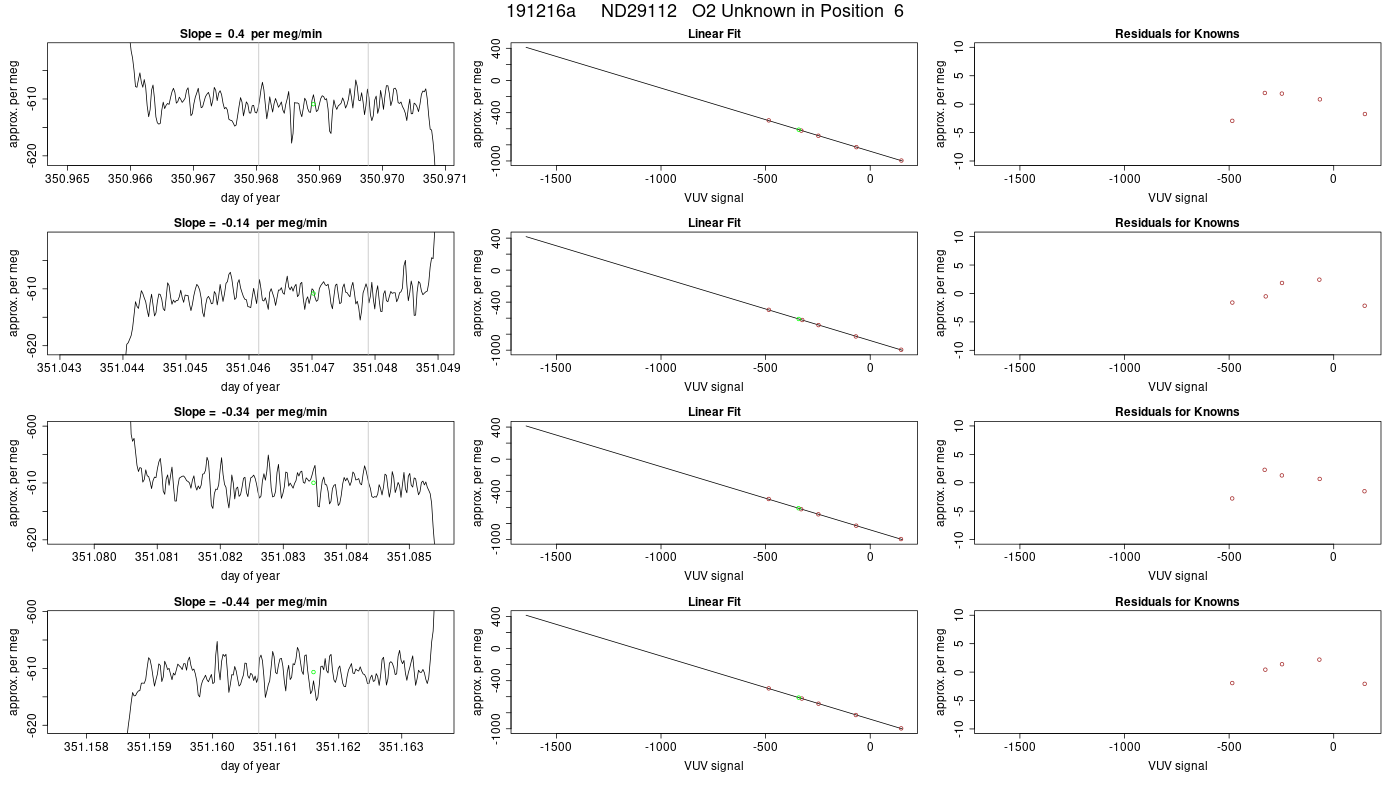

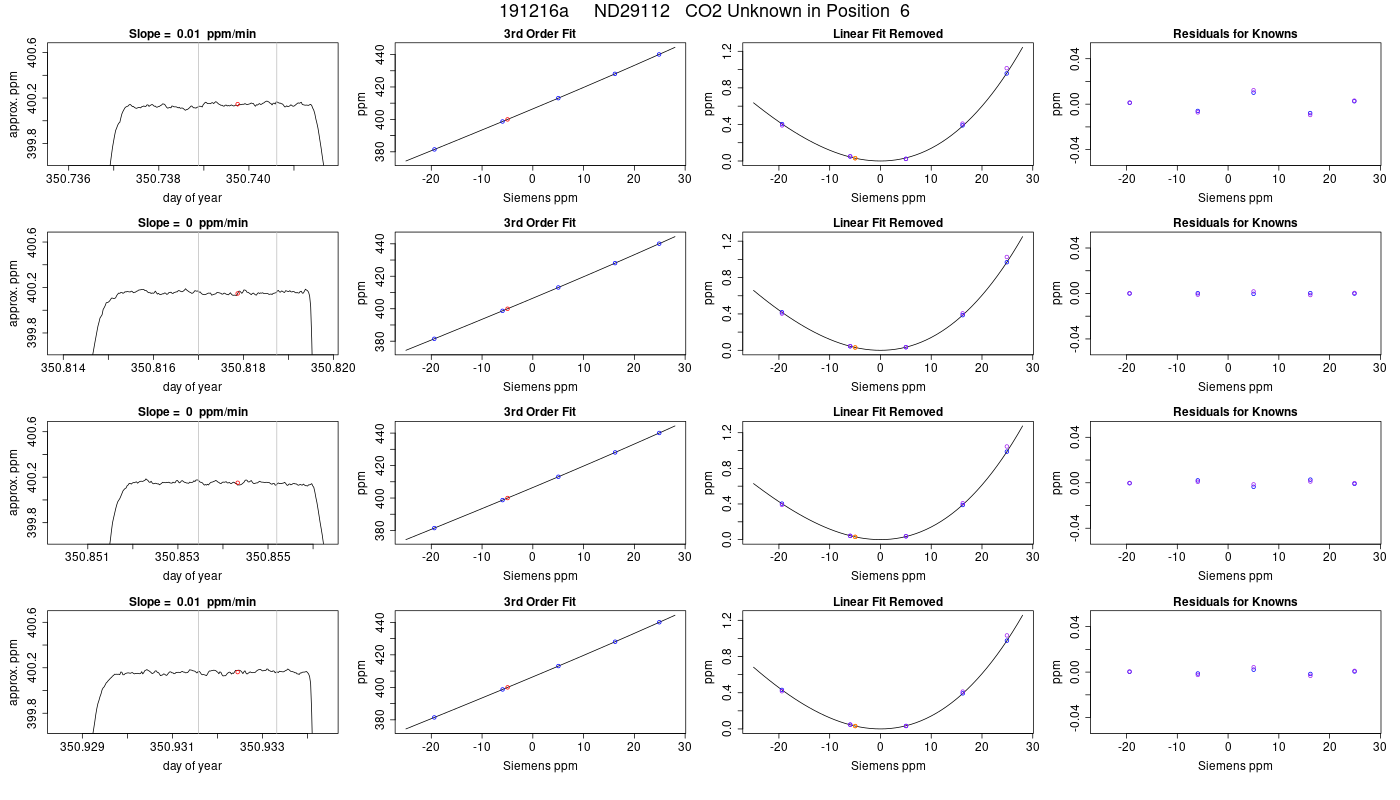

6 ND29112    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
350.740 399.984 0.012 -577.10 1.86 400.192 0.012
350.818 399.989 0.010 -574.30 1.40 400.197 0.010
350.854 399.989 0.011 -574.47 1.62 400.197 0.011
350.932 399.987 0.015 -575.08 2.01 400.195 0.015
350.969 399.979 0.015 -575.38 1.89 400.187 0.015
351.047 399.970 0.013 -574.37 1.51 400.178 0.013
351.083 399.974 0.015 -574.82 1.89 400.182 0.015
351.162 399.970 0.012 -574.73 2.10 400.178 0.012
351.198 399.959 0.013 -575.94 1.56 400.167 0.013
351.276 399.975 0.013 -575.20 2.47 400.183 0.013

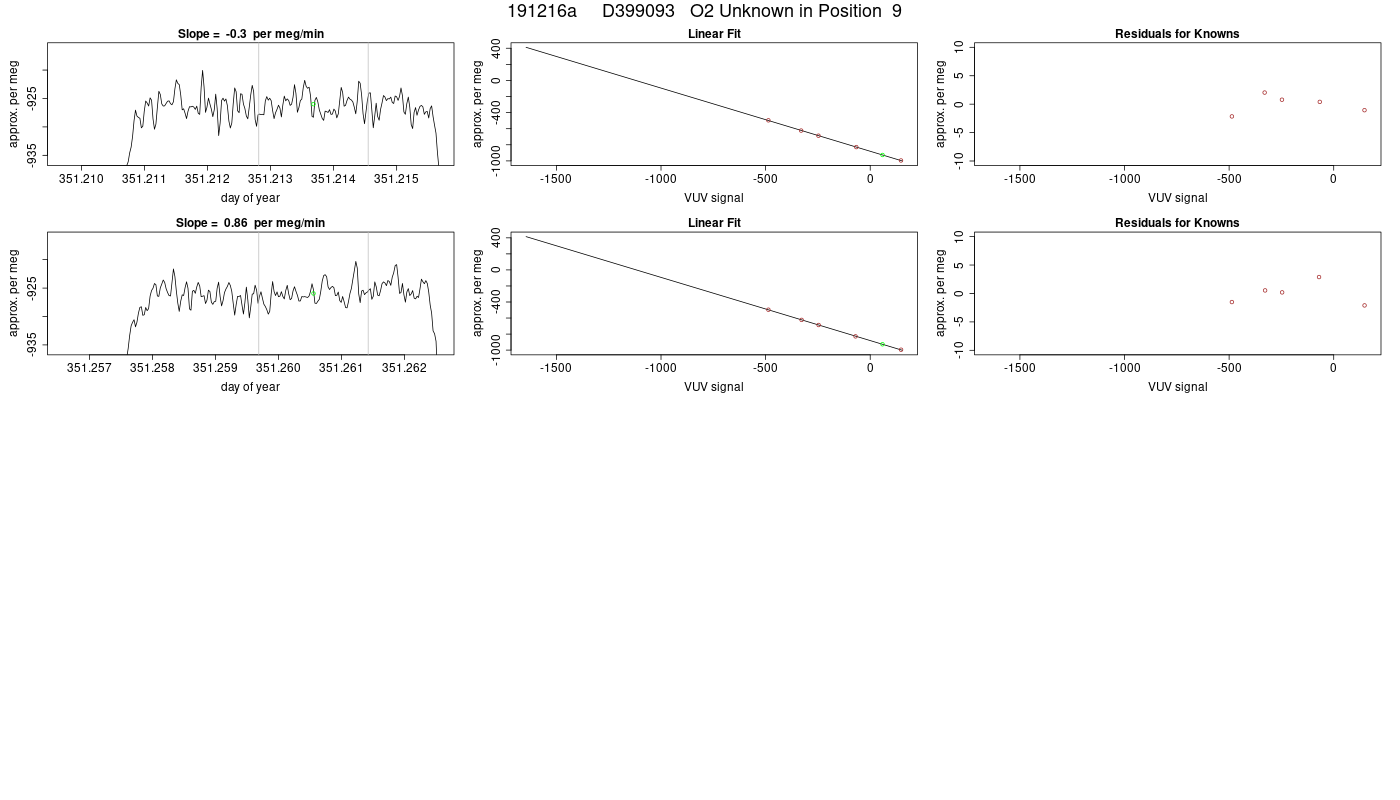

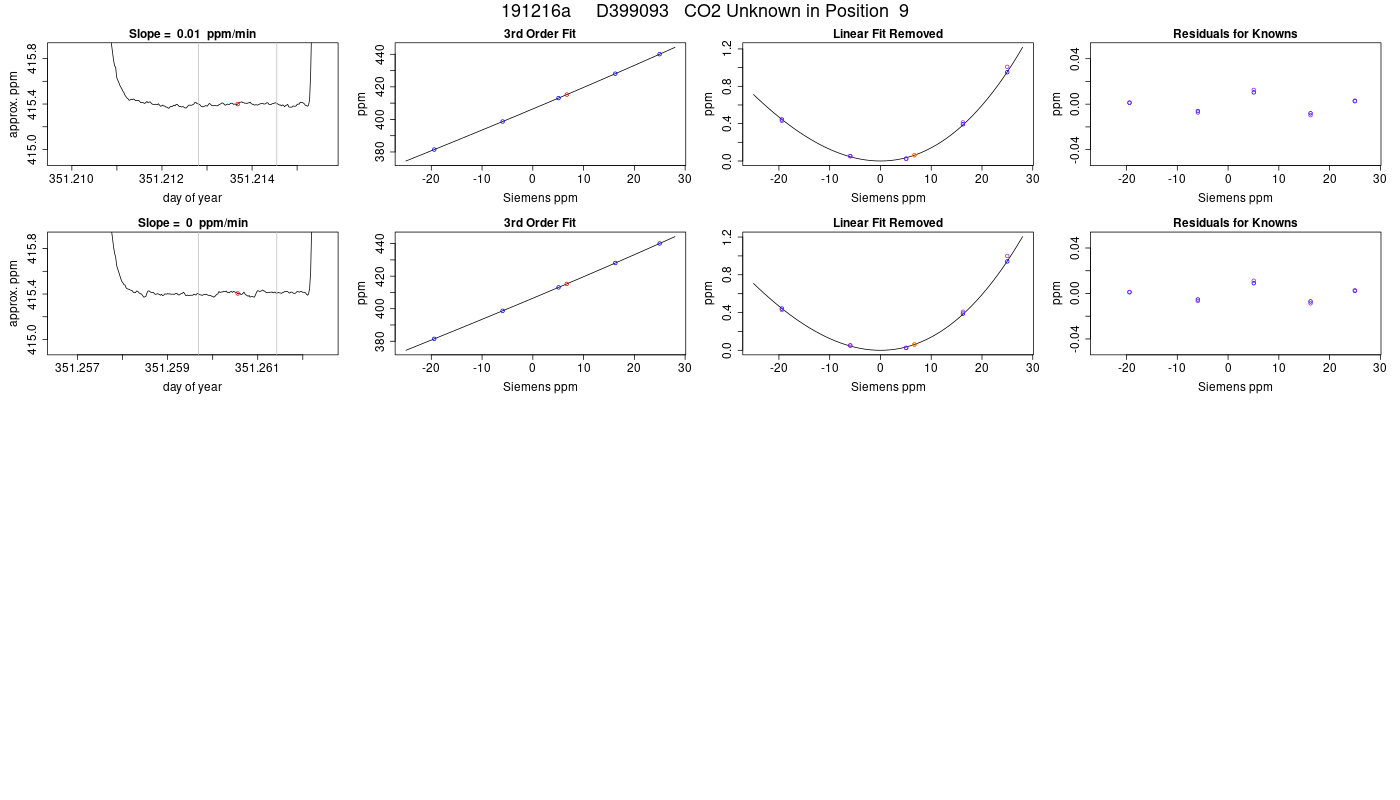

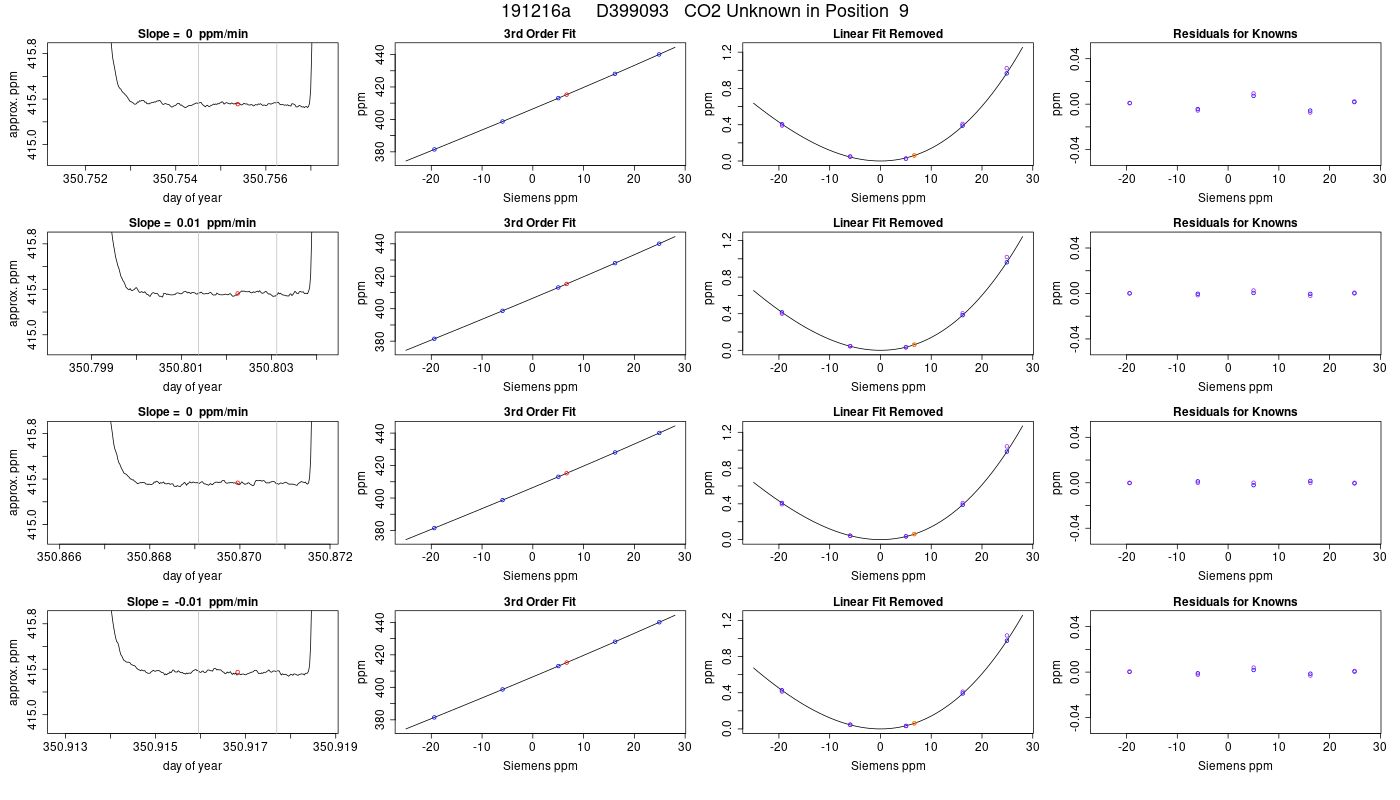

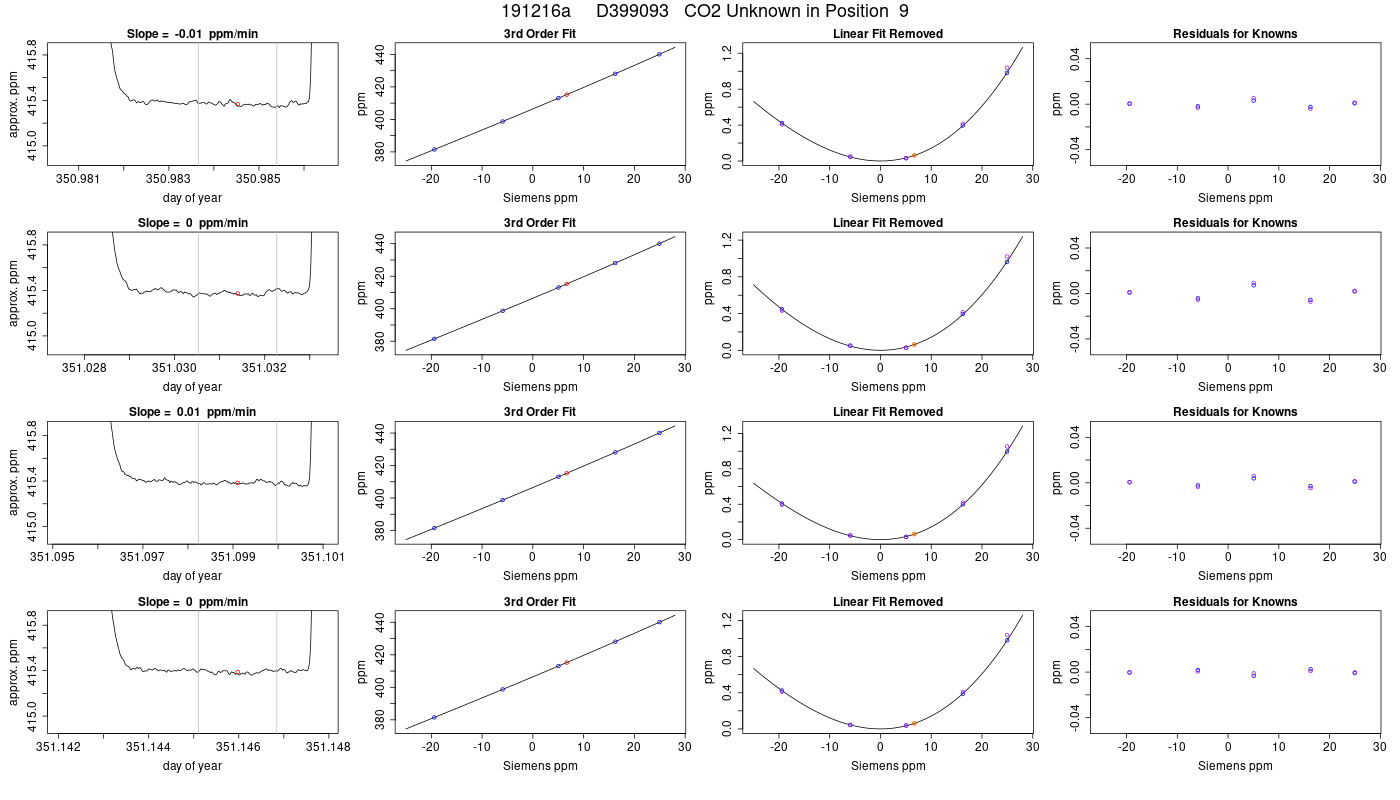

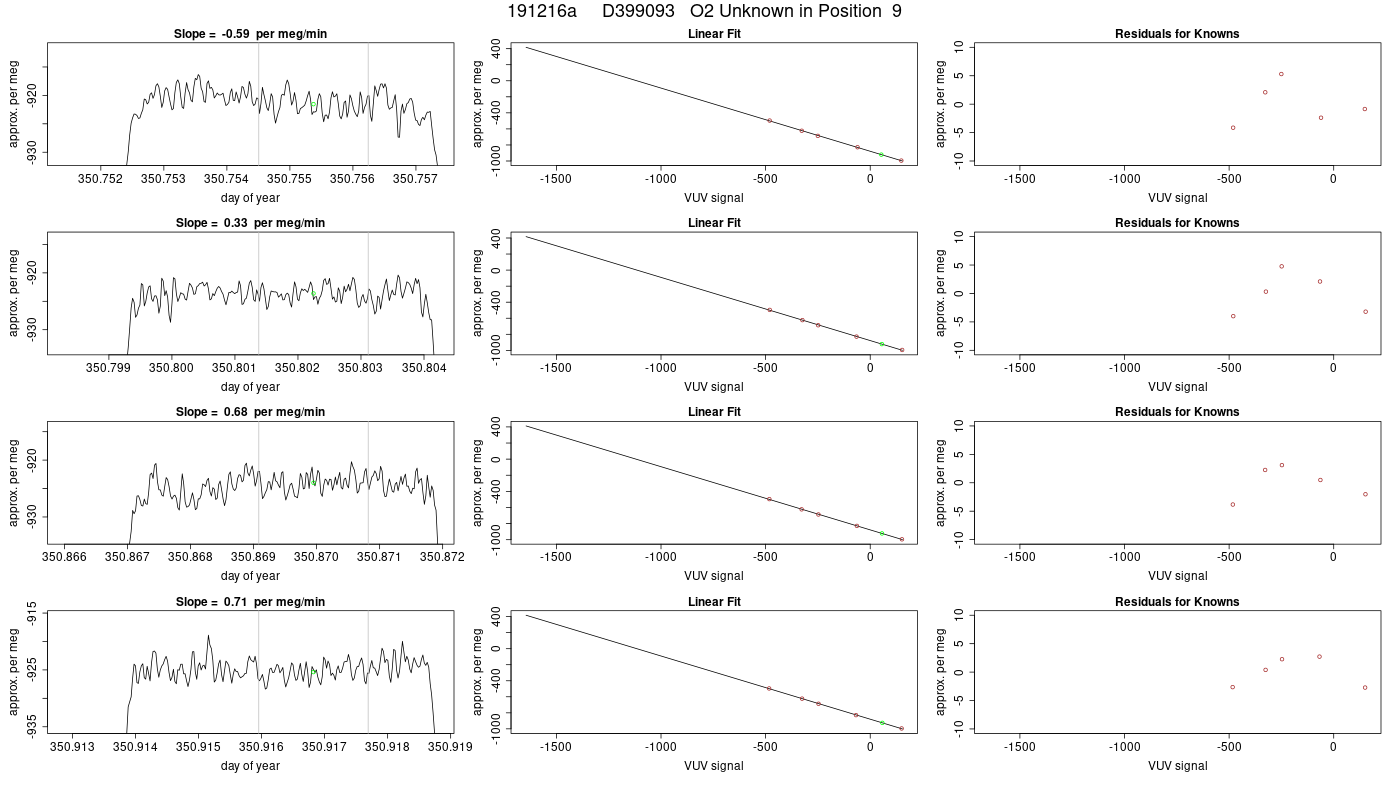

9 D399093    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
350.755 415.269 0.010 -869.47 1.72 415.457 0.010
350.802 415.270 0.013 -870.85 1.35 415.458 0.013
350.870 415.254 0.012 -870.99 1.53 415.442 0.012
350.917 415.256 0.014 -874.01 1.43 415.444 0.014
350.985 415.241 0.014 -873.24 1.85 415.429 0.014
351.031 415.242 0.016 -874.73 1.42 415.430 0.016
351.099 415.241 0.013 -875.41 2.08 415.429 0.013
351.146 415.242 0.015 -875.99 1.88 415.430 0.015
351.214 415.251 0.010 -875.58 1.79 415.439 0.010
351.261 415.260 0.017 -876.13 1.69 415.448 0.017

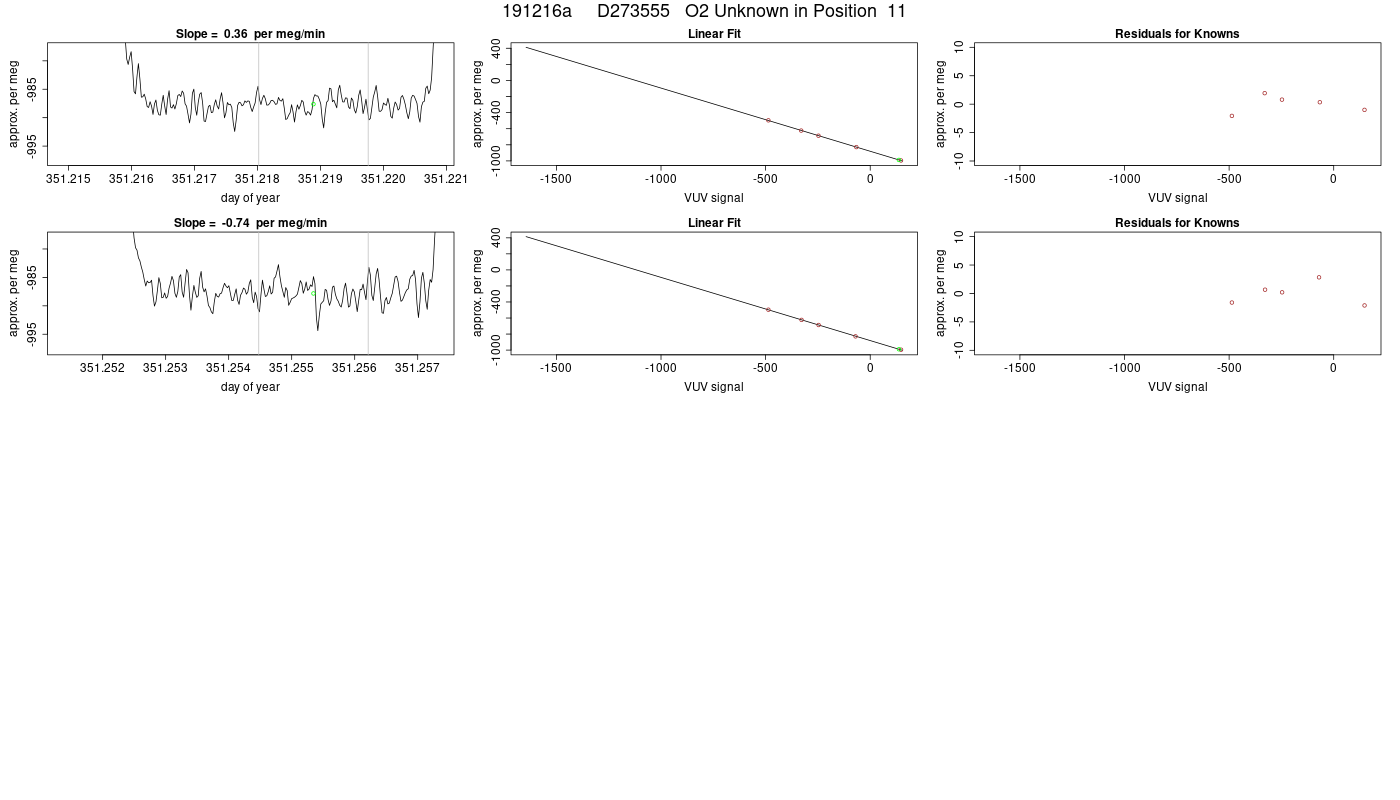

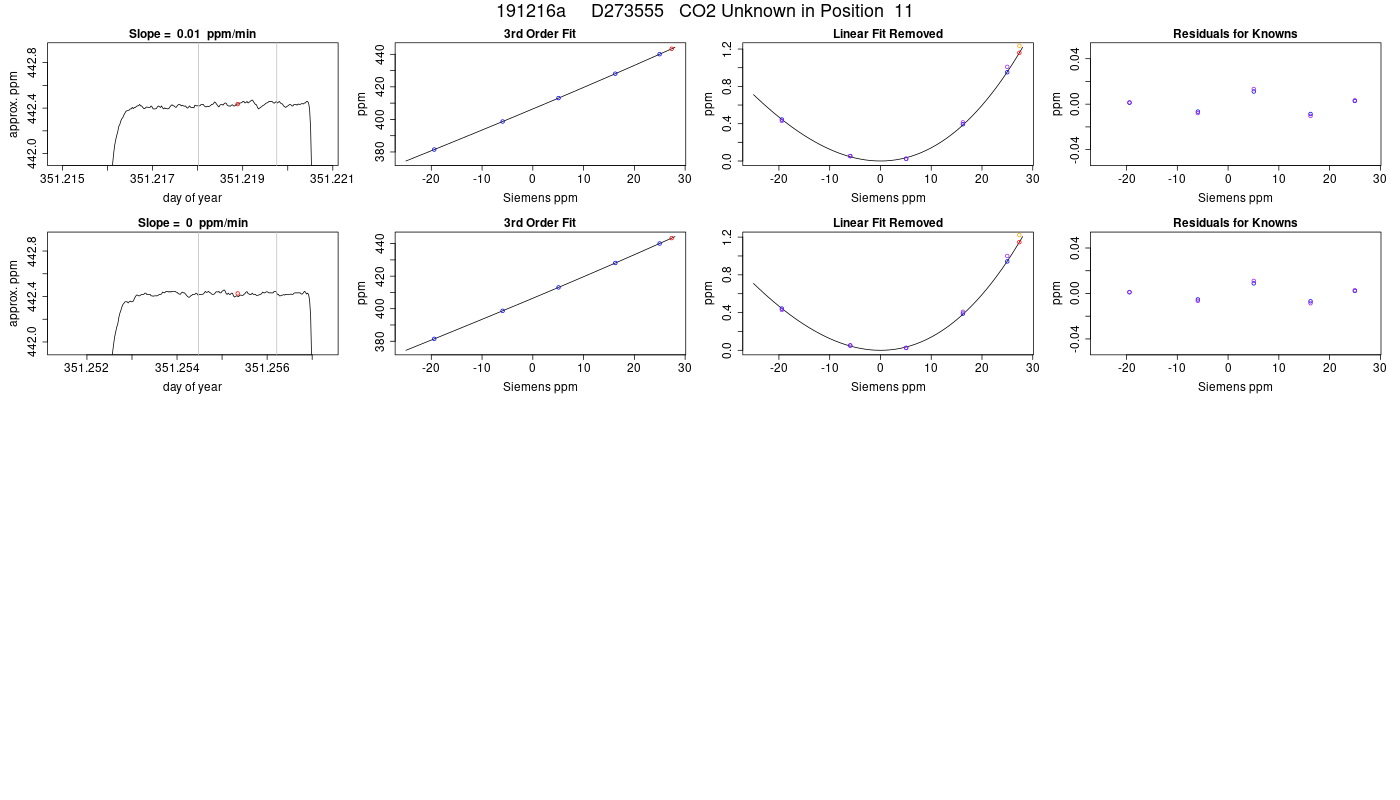

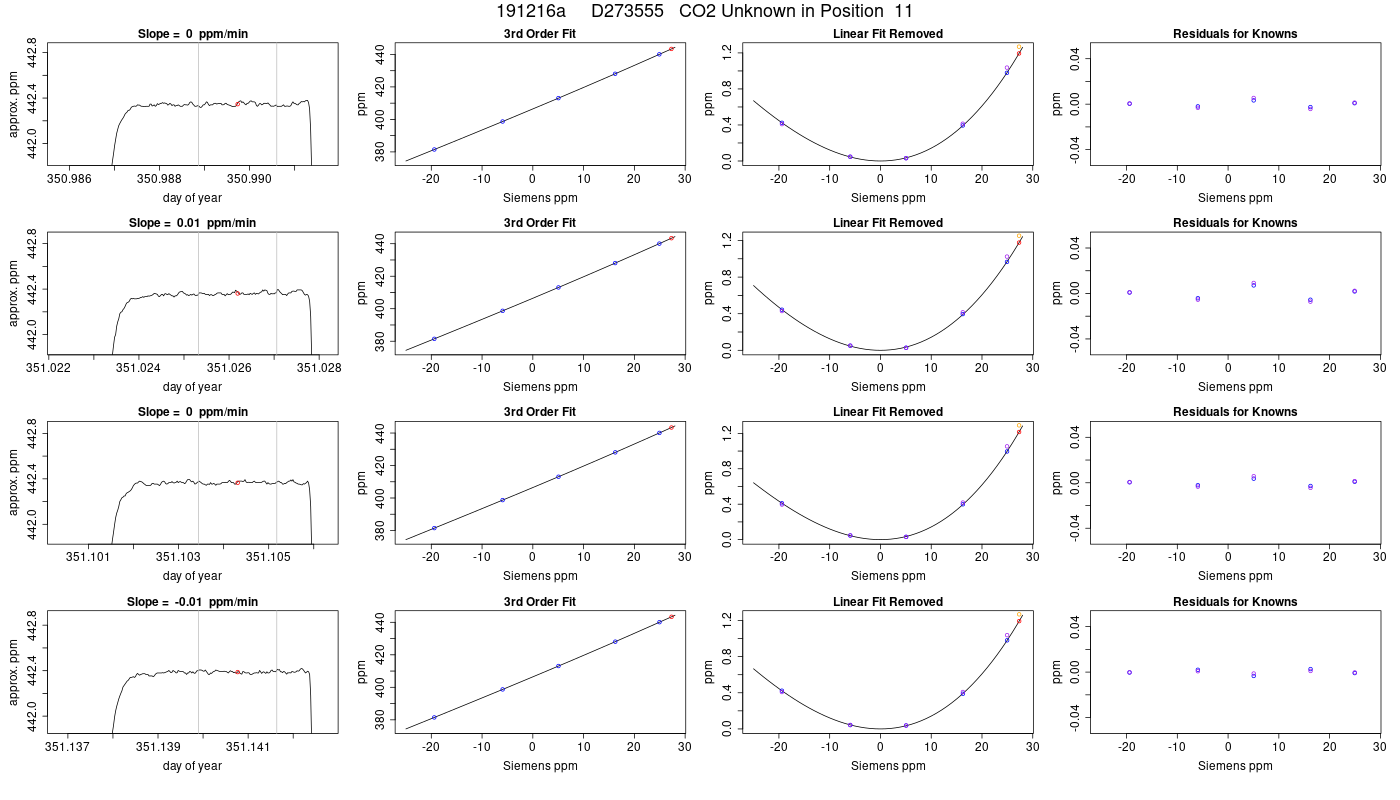

11 D273555    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
350.761 443.396 0.014 -909.18 1.75 443.619 0.014
350.797 443.384 0.020 -908.31 1.77 443.607 0.020
350.875 443.399 0.009 -906.53 1.51 443.623 0.009
350.912 443.398 0.012 -908.87 1.66 443.621 0.012
350.990 443.394 0.014 -907.53 1.87 443.617 0.014
351.026 443.394 0.012 -909.64 1.65 443.617 0.012
351.104 443.387 0.011 -909.78 1.75 443.610 0.011
351.141 443.388 0.010 -909.85 1.98 443.611 0.010
351.219 443.404 0.017 -909.35 1.44 443.627 0.017
351.255 443.385 0.013 -910.47 1.93 443.608 0.013

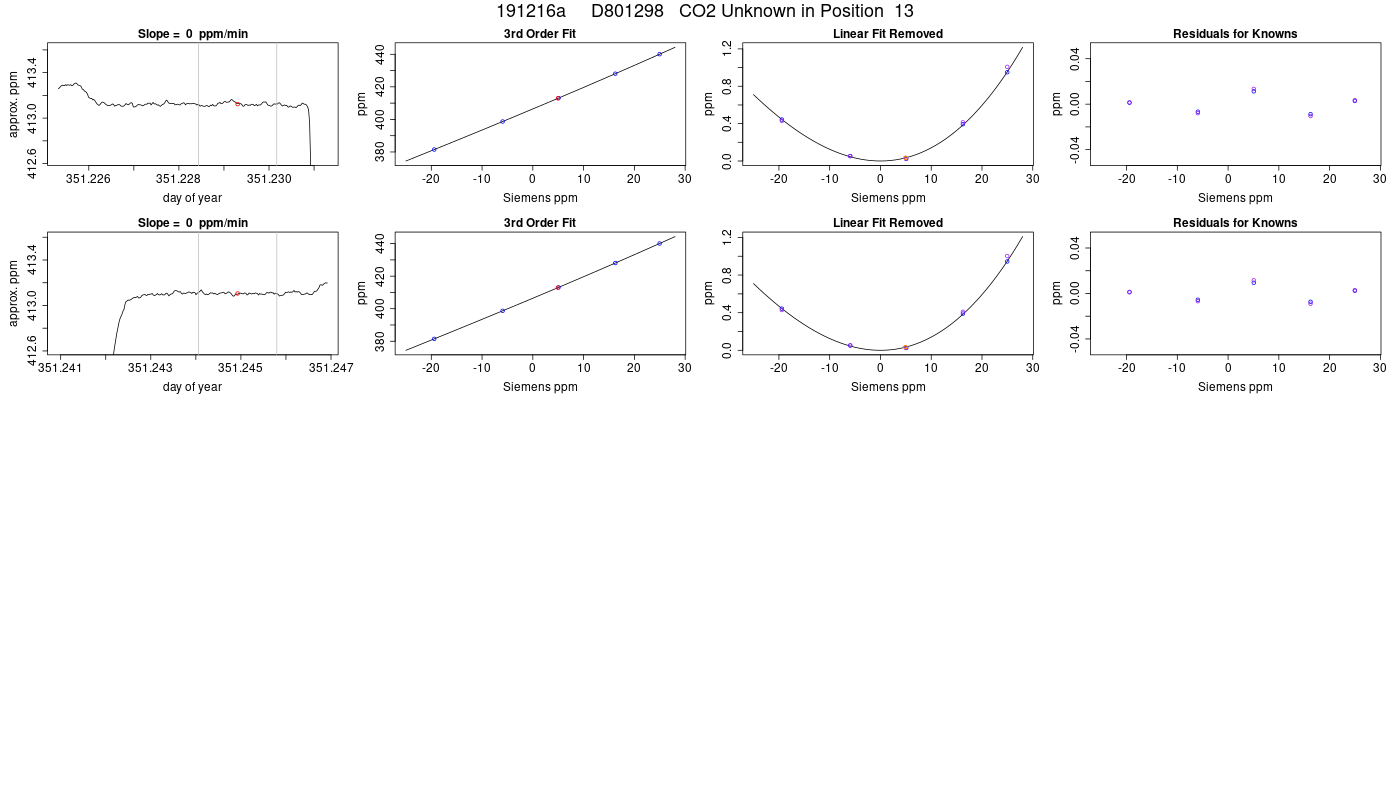

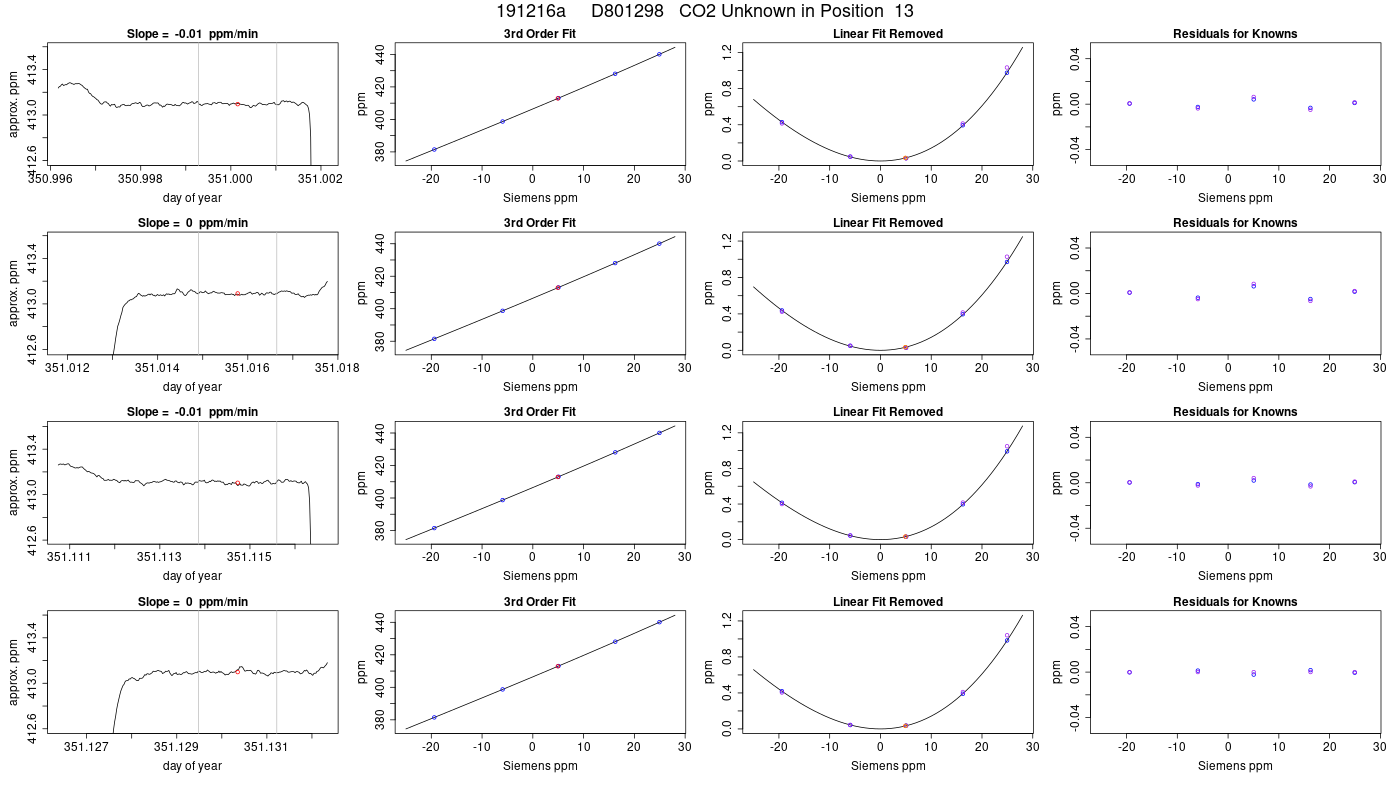

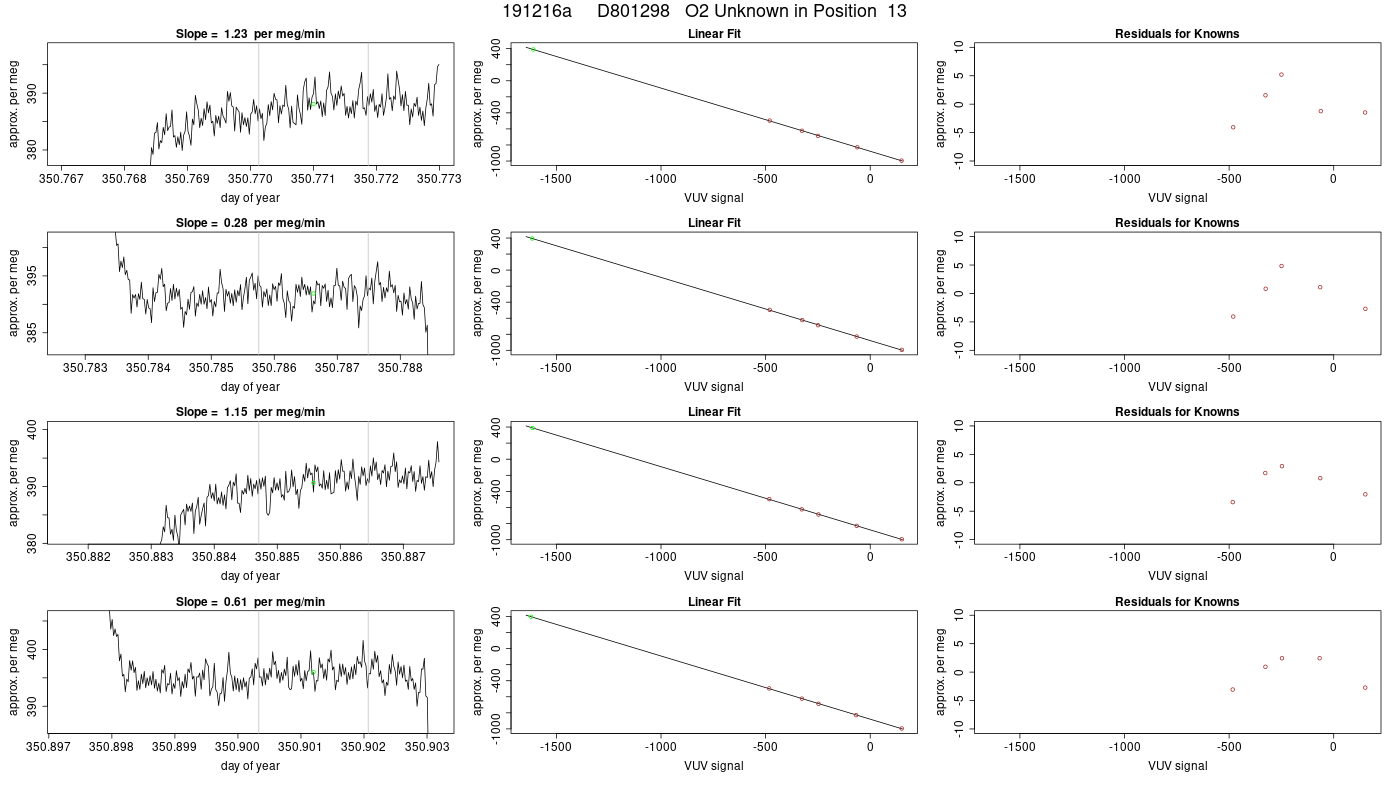

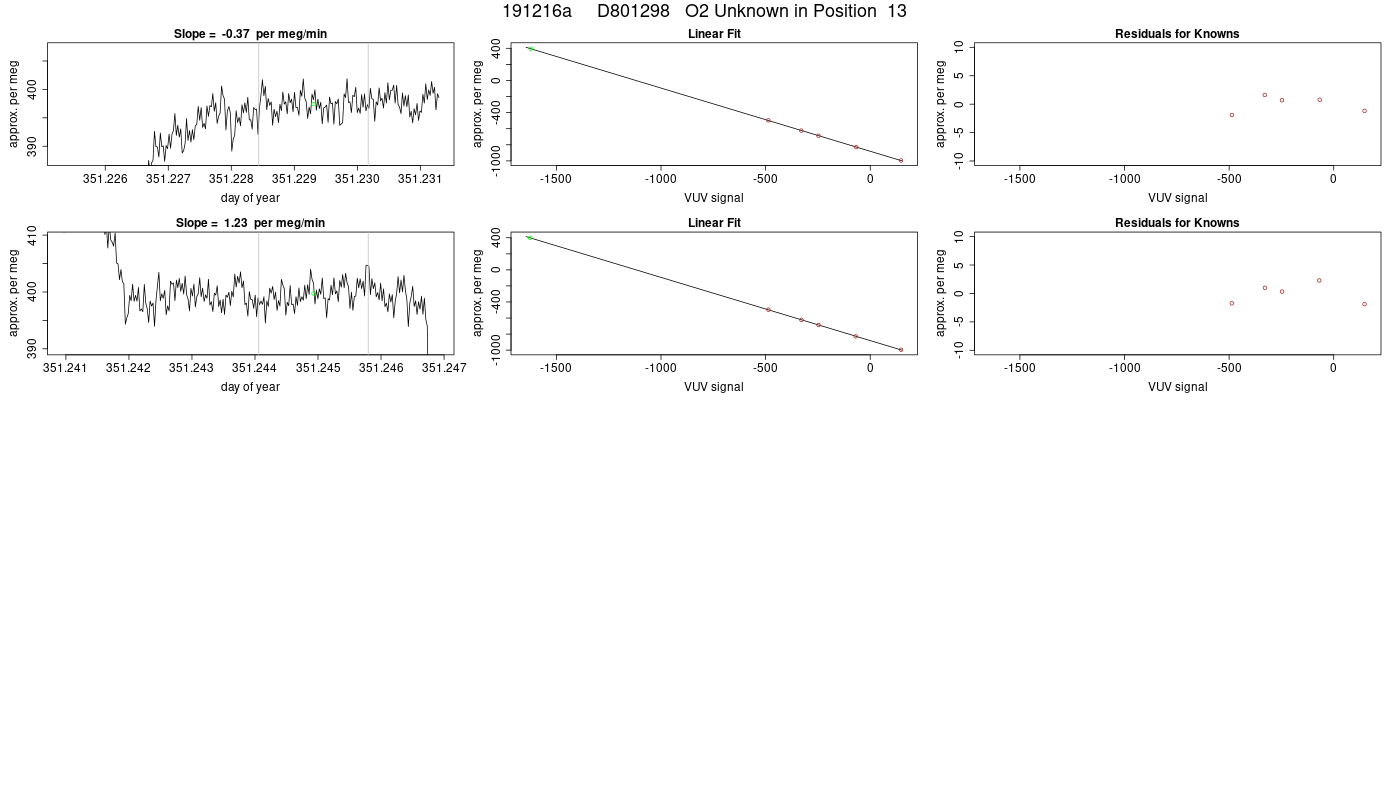

13 D801298    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
350.771 412.938 0.013 438.48 2.40 413.129 0.013
350.787 412.944 0.012 443.13 2.06 413.134 0.012
350.886 412.936 0.013 437.91 2.11 413.127 0.013
350.901 412.933 0.011 445.57 1.85 413.123 0.011
351.000 412.936 0.010 442.91 2.35 413.126 0.010
351.016 412.929 0.009 448.36 2.10 413.120 0.009
351.115 412.930 0.014 444.86 1.85 413.120 0.014
351.130 412.925 0.017 448.73 1.64 413.116 0.017
351.229 412.944 0.015 443.65 1.91 413.134 0.015
351.245 412.929 0.009 447.56 2.10 413.120 0.009

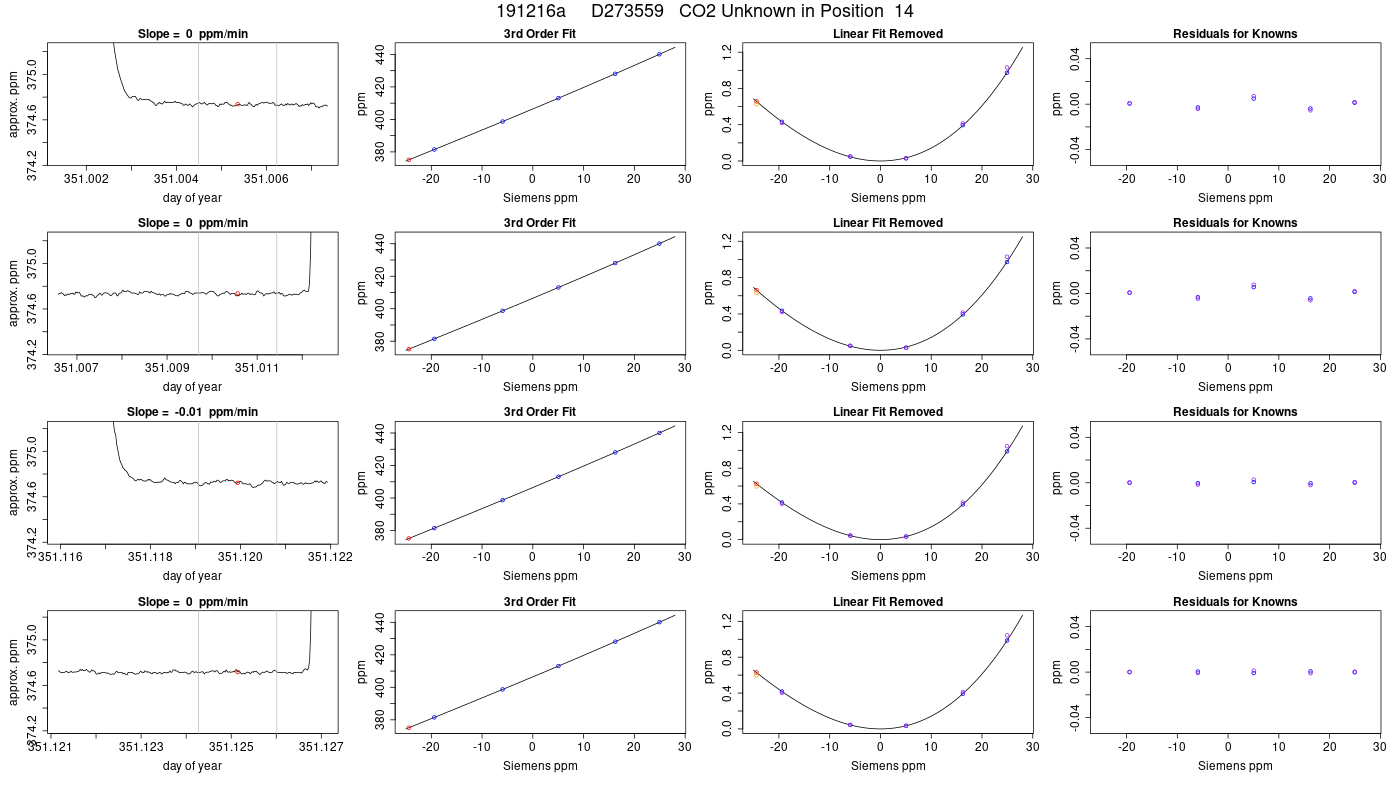

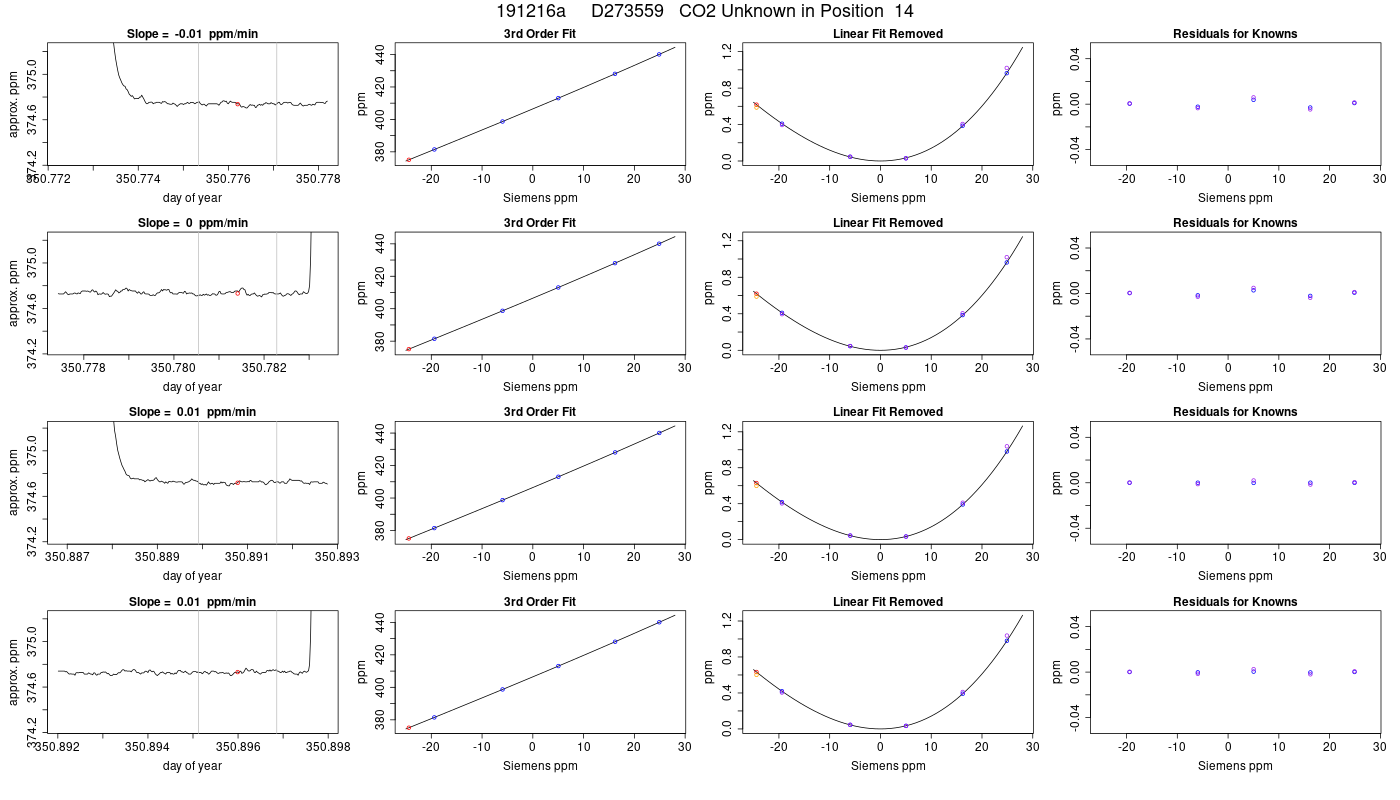

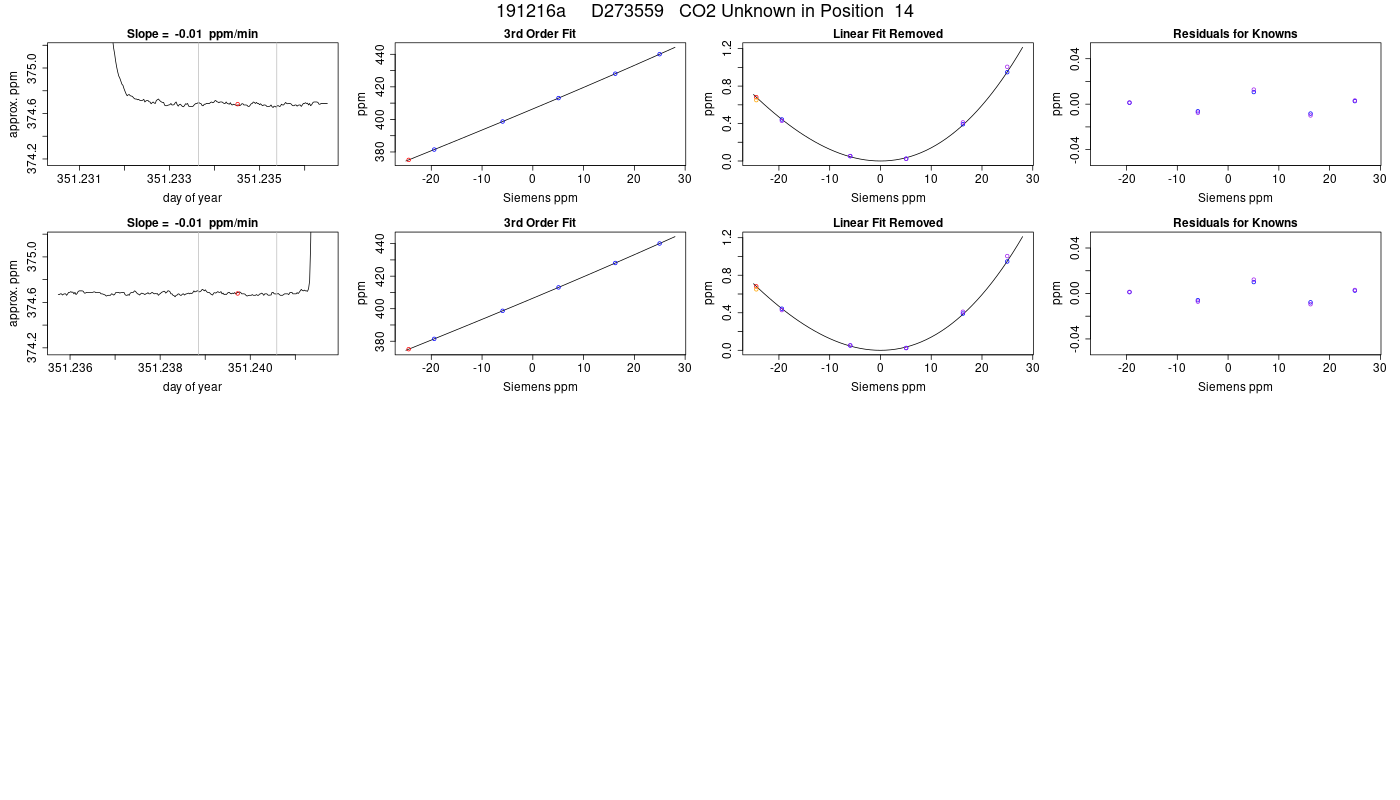

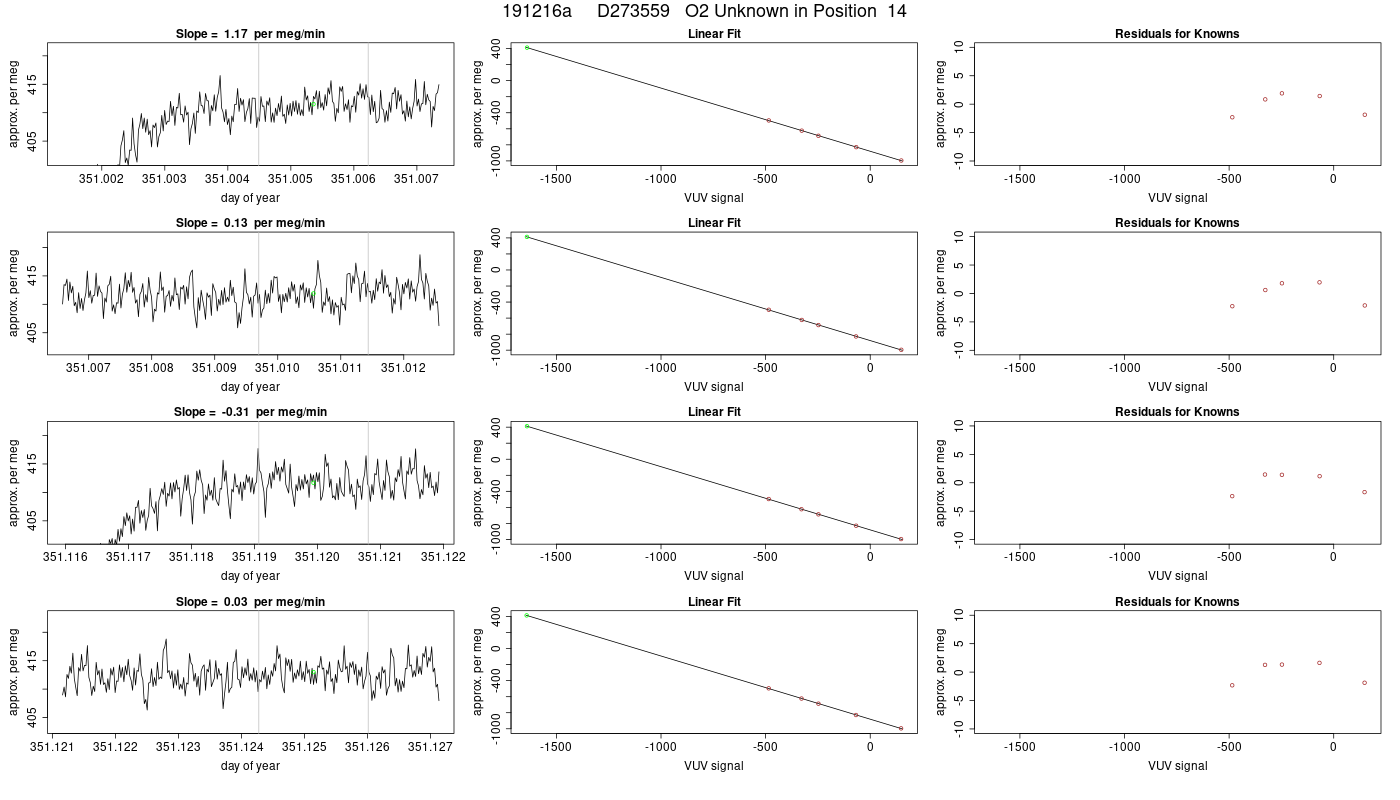

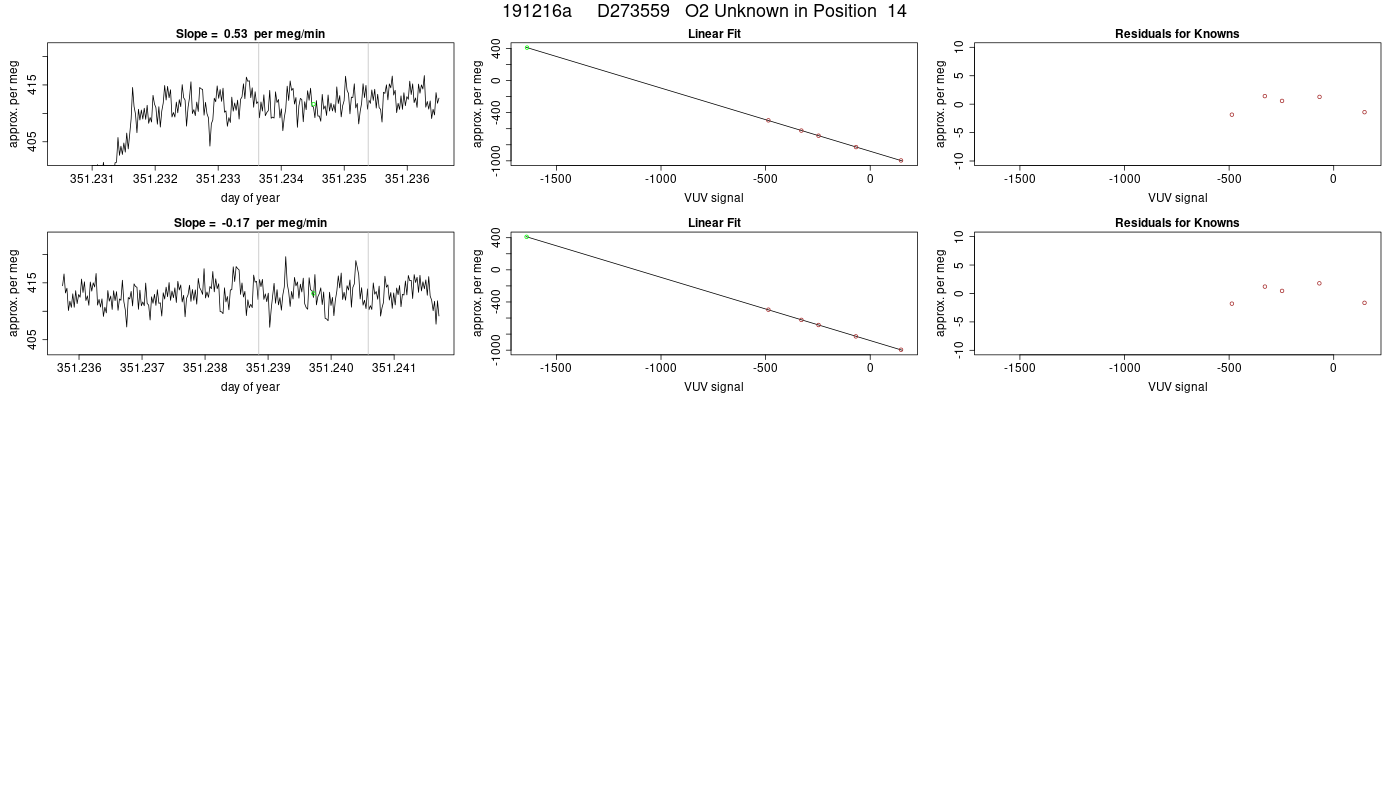

14 D273559    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
350.776 375.097 0.015 428.74 2.25 375.309 0.015
350.781 375.095 0.017 428.95 1.90 375.308 0.017
350.891 375.112 0.012 421.13 1.99 375.324 0.012
350.896 375.127 0.013 422.89 2.04 375.339 0.013
351.005 375.137 0.011 423.21 1.86 375.349 0.011
351.011 375.139 0.011 424.39 2.34 375.351 0.011
351.120 375.123 0.018 423.54 2.27 375.335 0.018
351.125 375.120 0.009 425.19 1.83 375.332 0.009
351.235 375.125 0.014 421.31 2.06 375.337 0.014
351.240 375.122 0.013 423.36 2.36 375.334 0.013
