UEA CRAM Lab O2 and CO2 calibration results
RUN = 180930a
PROCESSED: 16:58:59 Mon 21Aug2023

Notes
Logfile

Results

Using data from 273.86 to 274.333 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.139 0.006 -0.005 382.360 0.006 -0.005 7 -481.68 1.29 -6.76 7
6 D570040 405.319 0.006 0.004 405.519 0.006 0.004 7 -701.37 1.71 5.34 7
9 D570039 412.129 0.004 -0.004 412.320 0.004 -0.004 7 -725.98 0.68 2.83 7
10 D570036 418.169 0.010 0.046 418.354 0.010 0.046 7 -724.15 2.03 11.63 7
11 D570038 462.717 0.045 -0.196 463.071 0.045 -0.196 7 -885.04 1.28 0.04 6
13 D570035 398.998 0.005 0.006 399.207 0.005 0.006 6 -614.98 1.17 6.83 7
14 D273559 375.027 0.013 0.038 375.240 0.013 0.038 7 425.43 1.93 -7.27 7
15 D570037 440.237 0.011 0.014 440.448 0.011 0.014 7 -801.02 1.00 1.03 7
WT D258964 397.435 0.012 -0.087 397.646 0.012 -0.087 91 -748.54 0.59 -3.91 91
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries

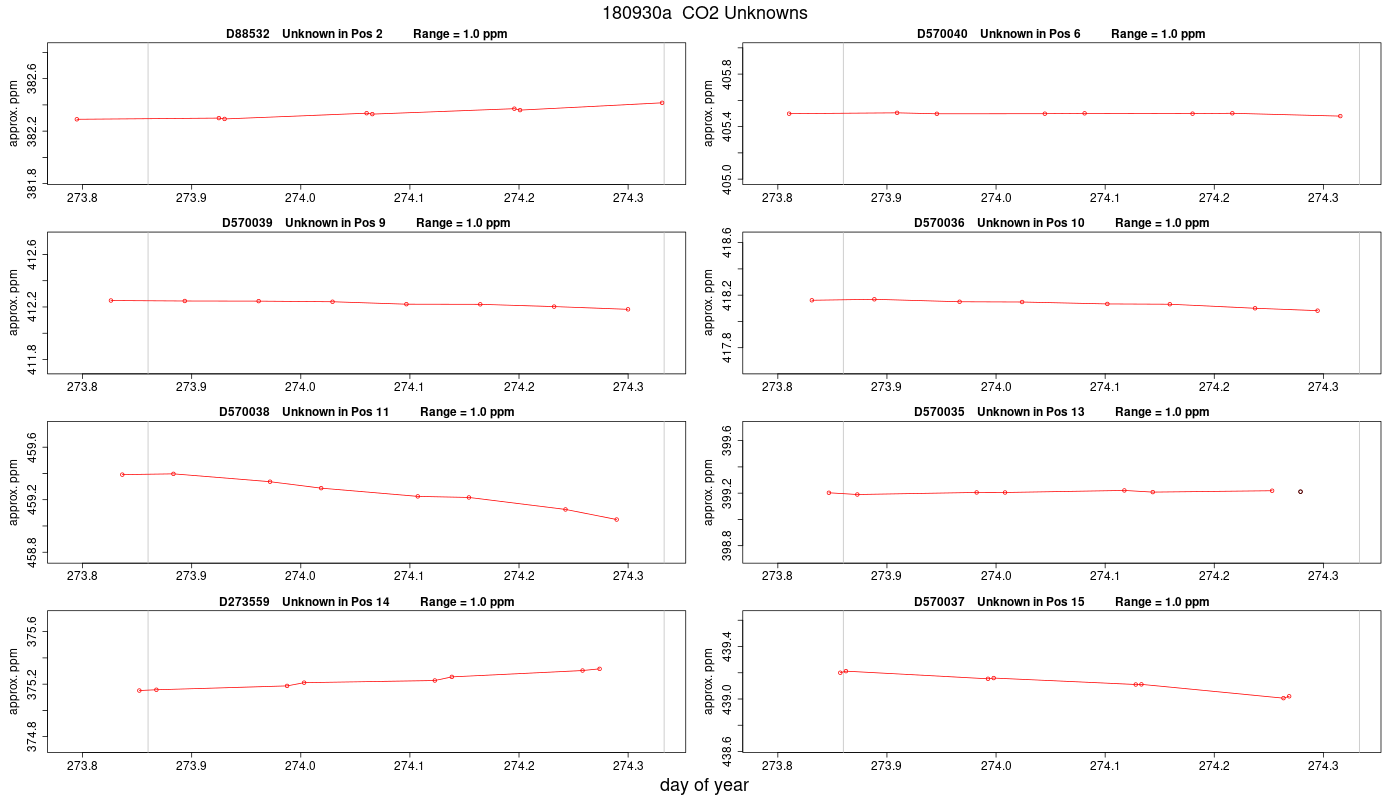

 CO2 Averages for Unknowns

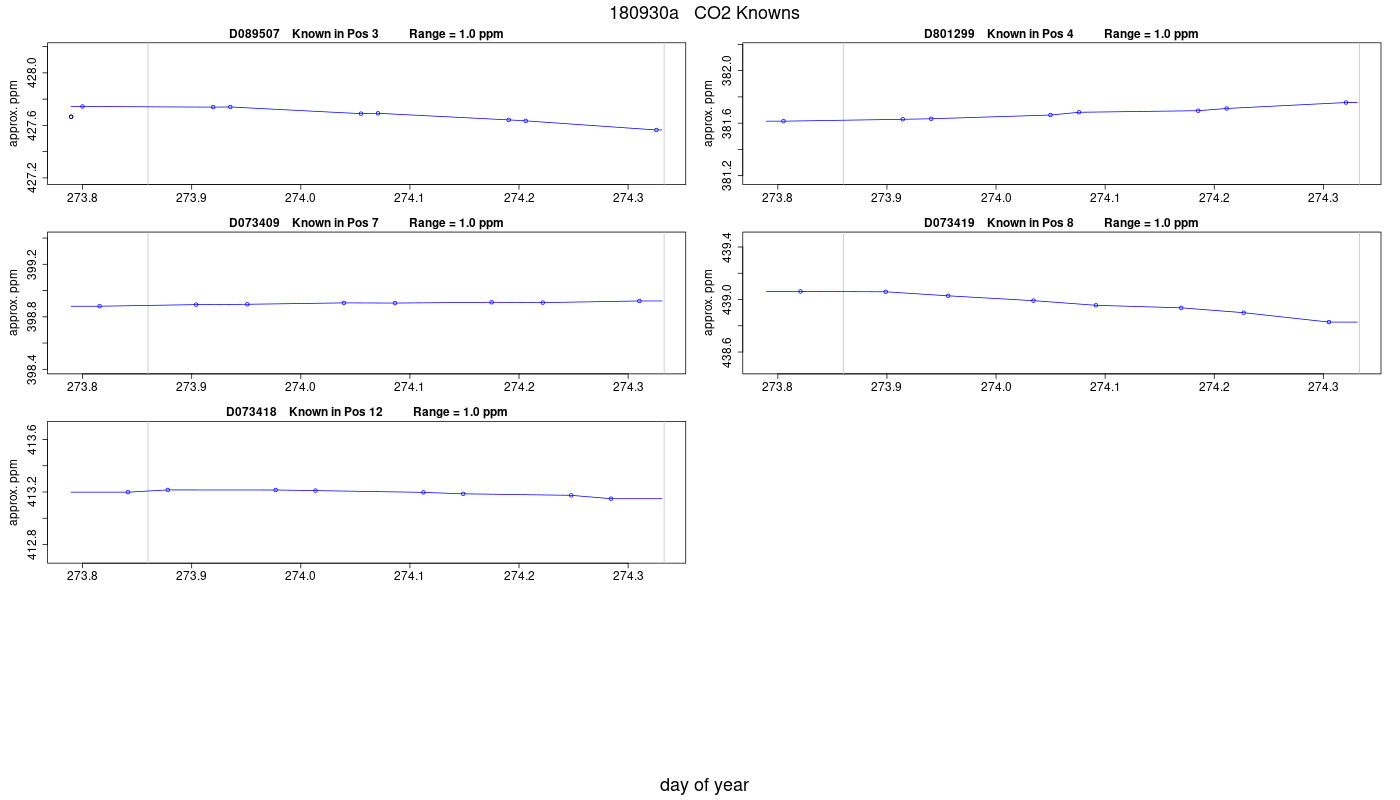

 CO2 Averages for Knowns
Jog Ave. Diagnostics 1

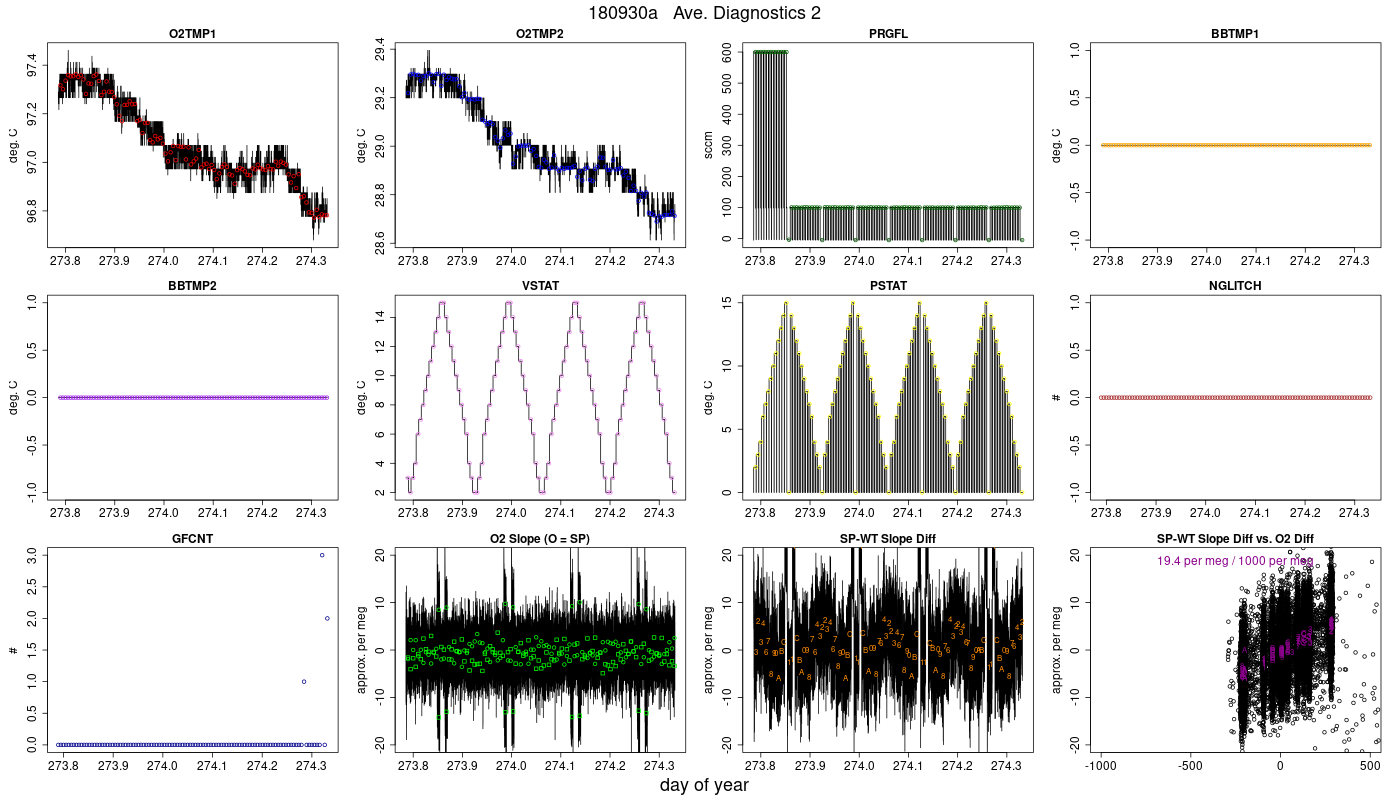

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

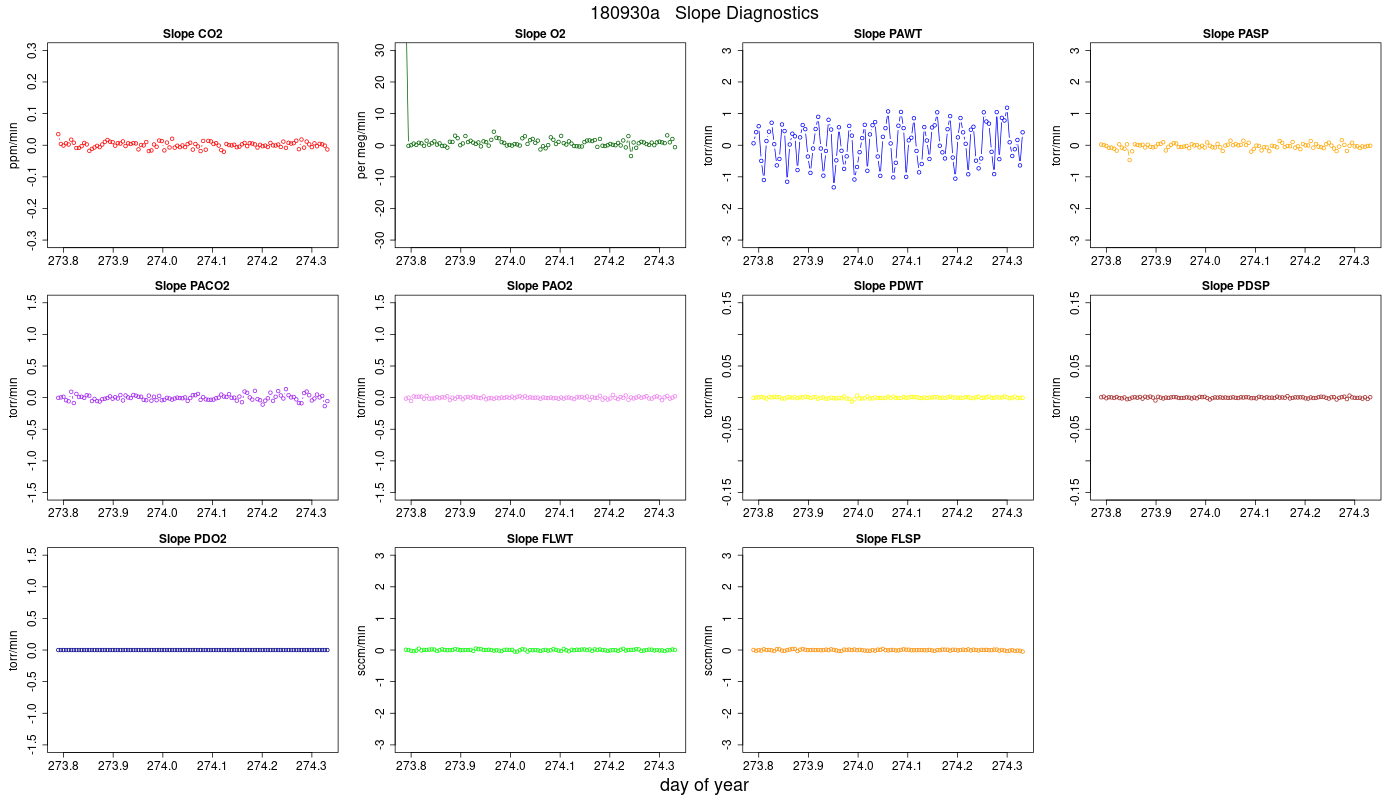

Jog Slope Diagnostics

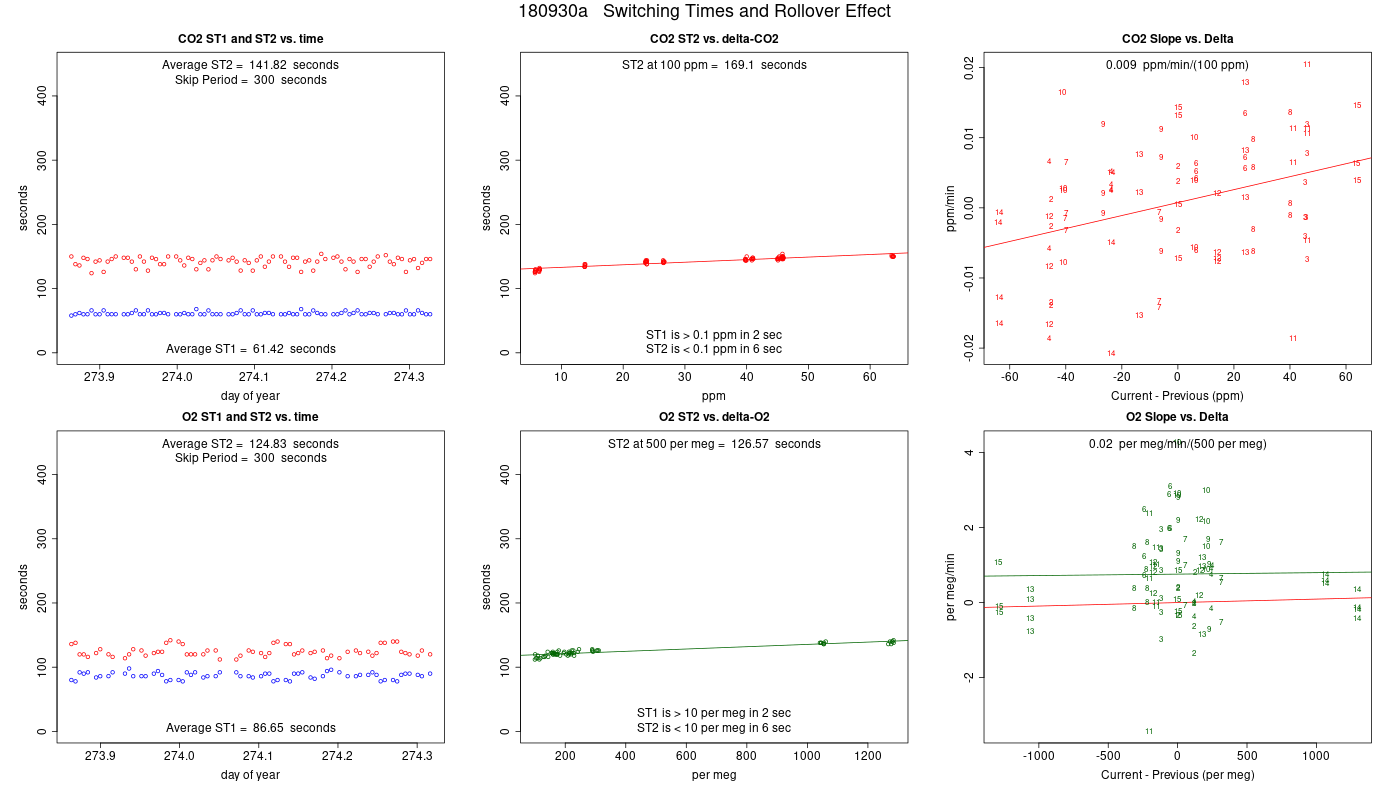

 Rollover Effect

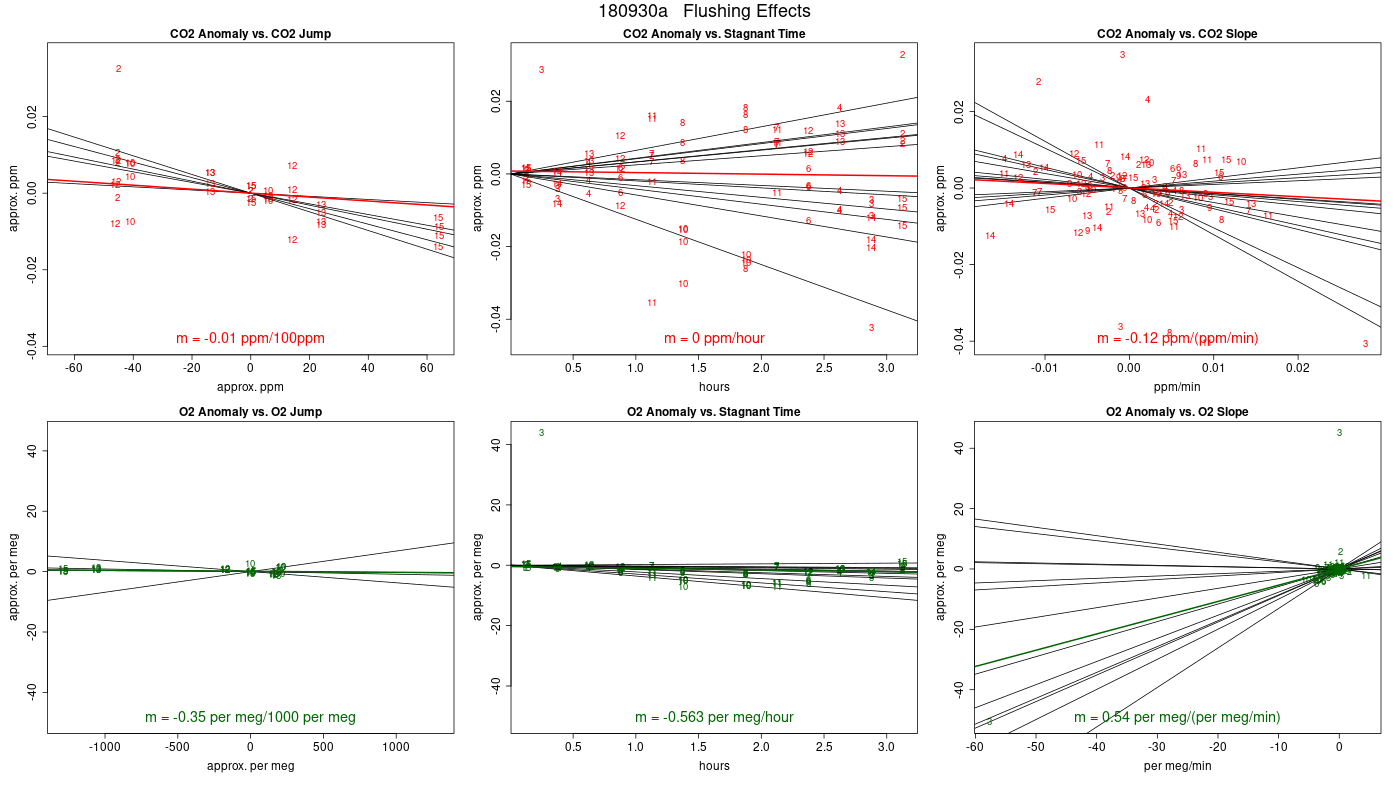

 Flushing Effect
CO2 Parameters

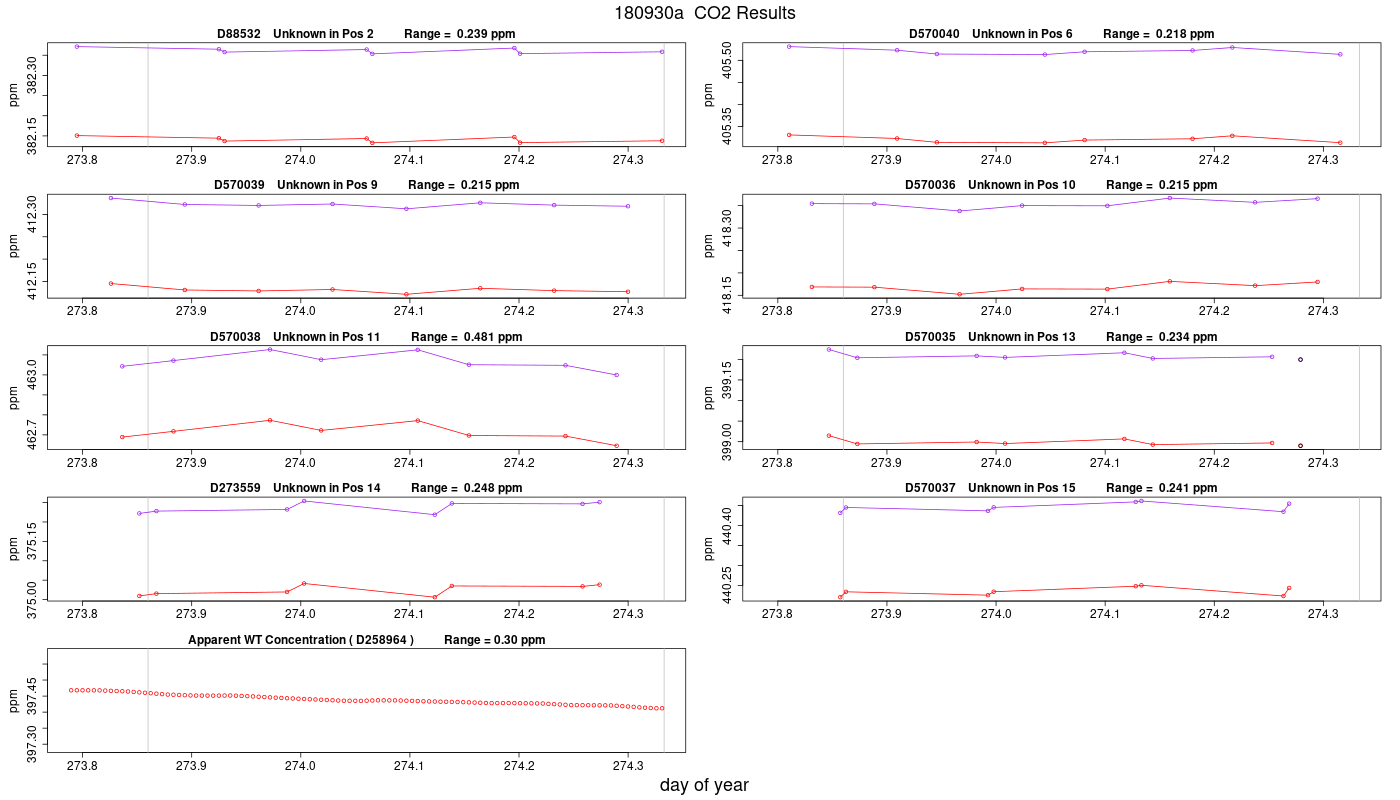

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results

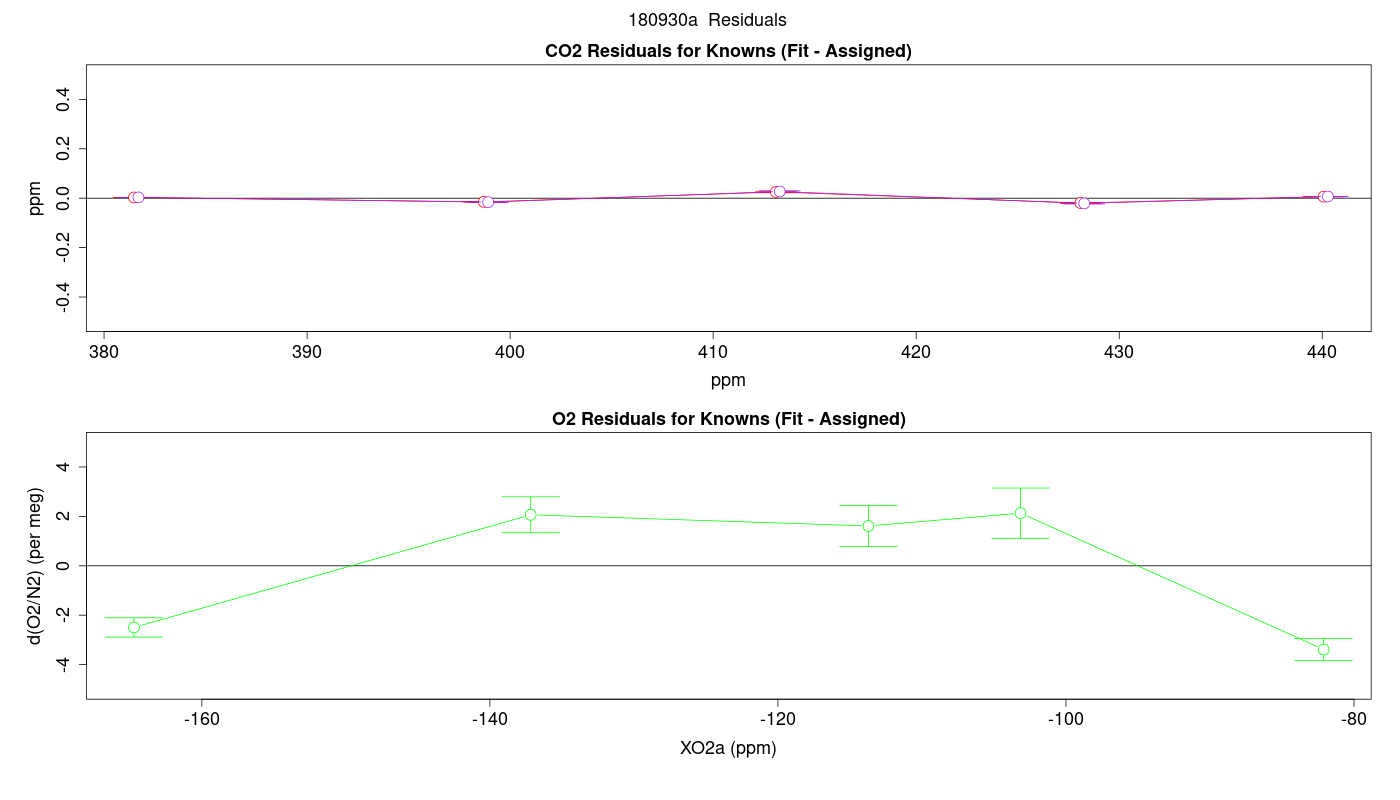

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

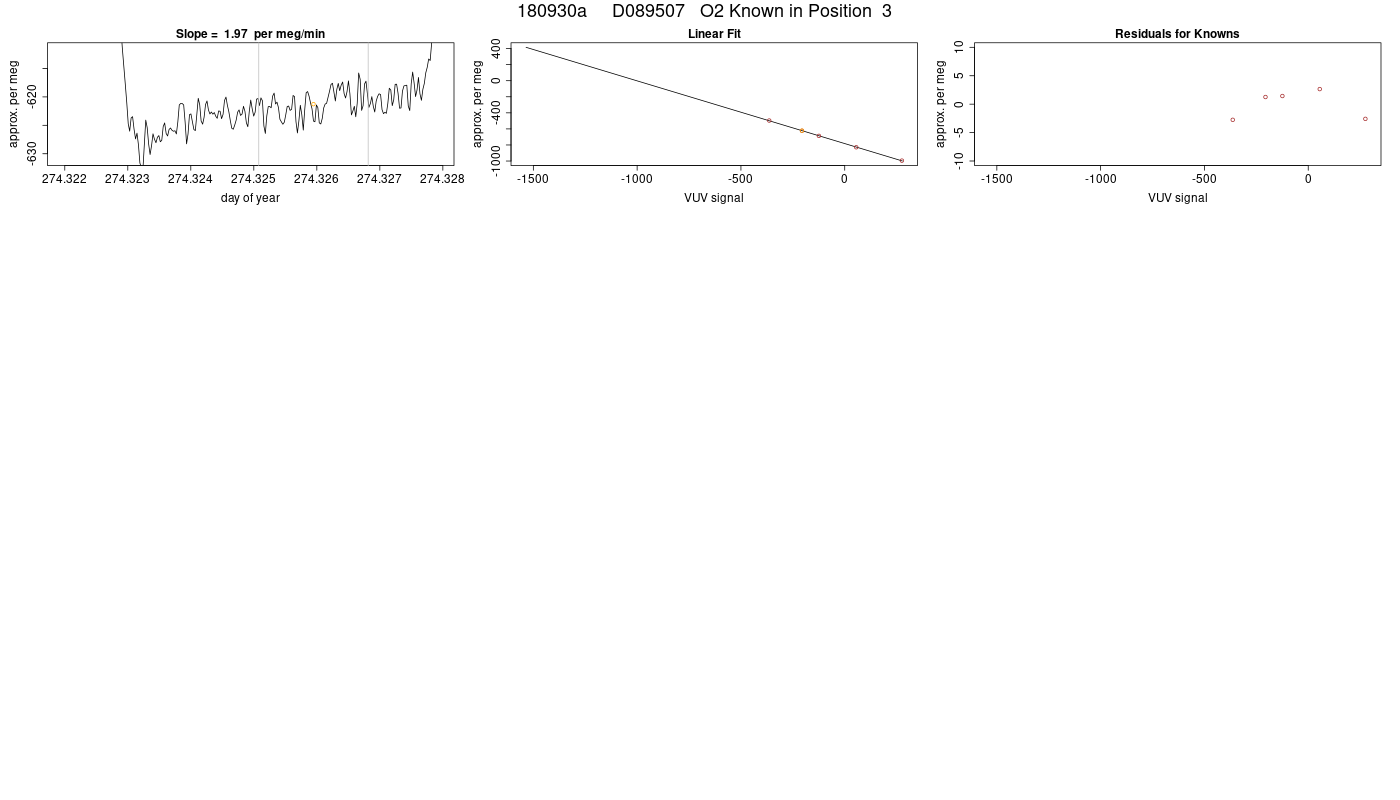

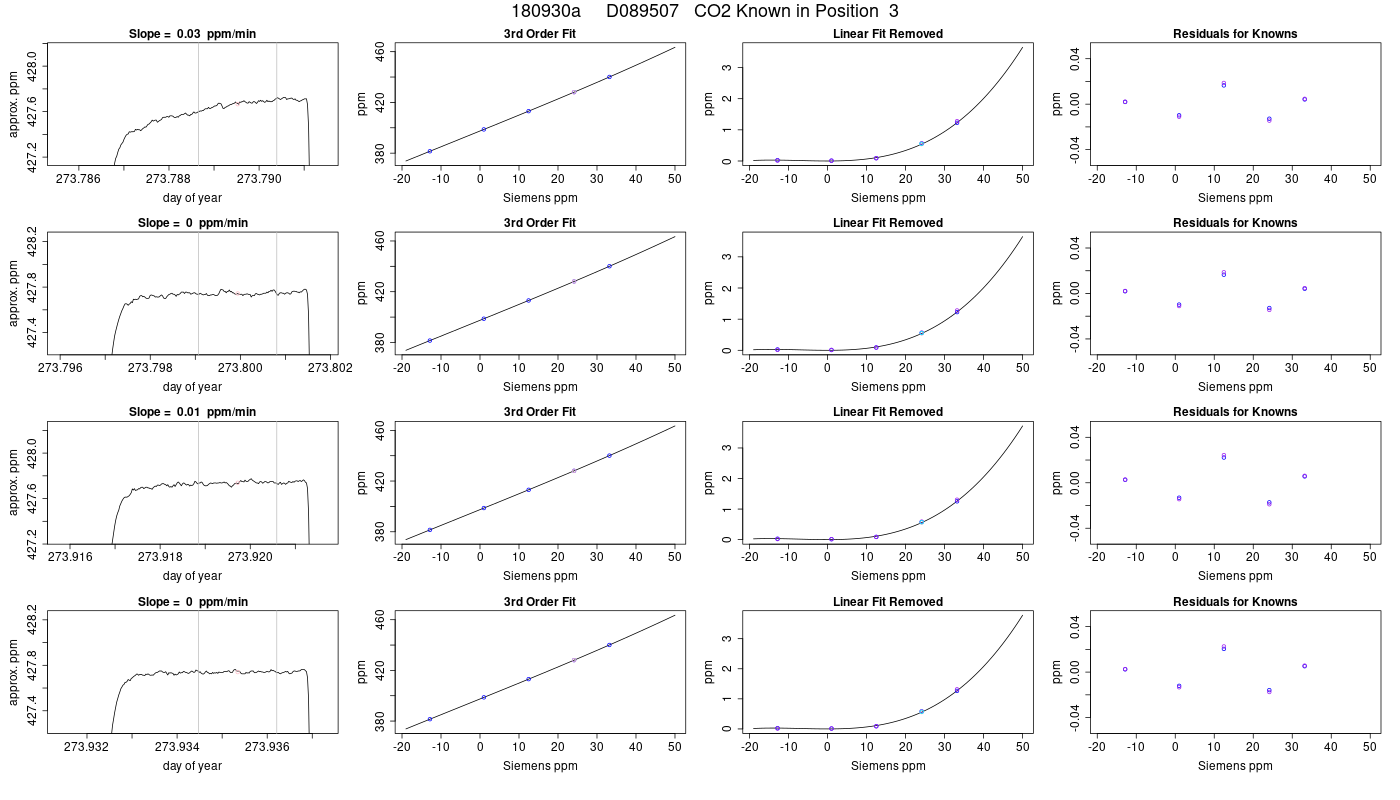

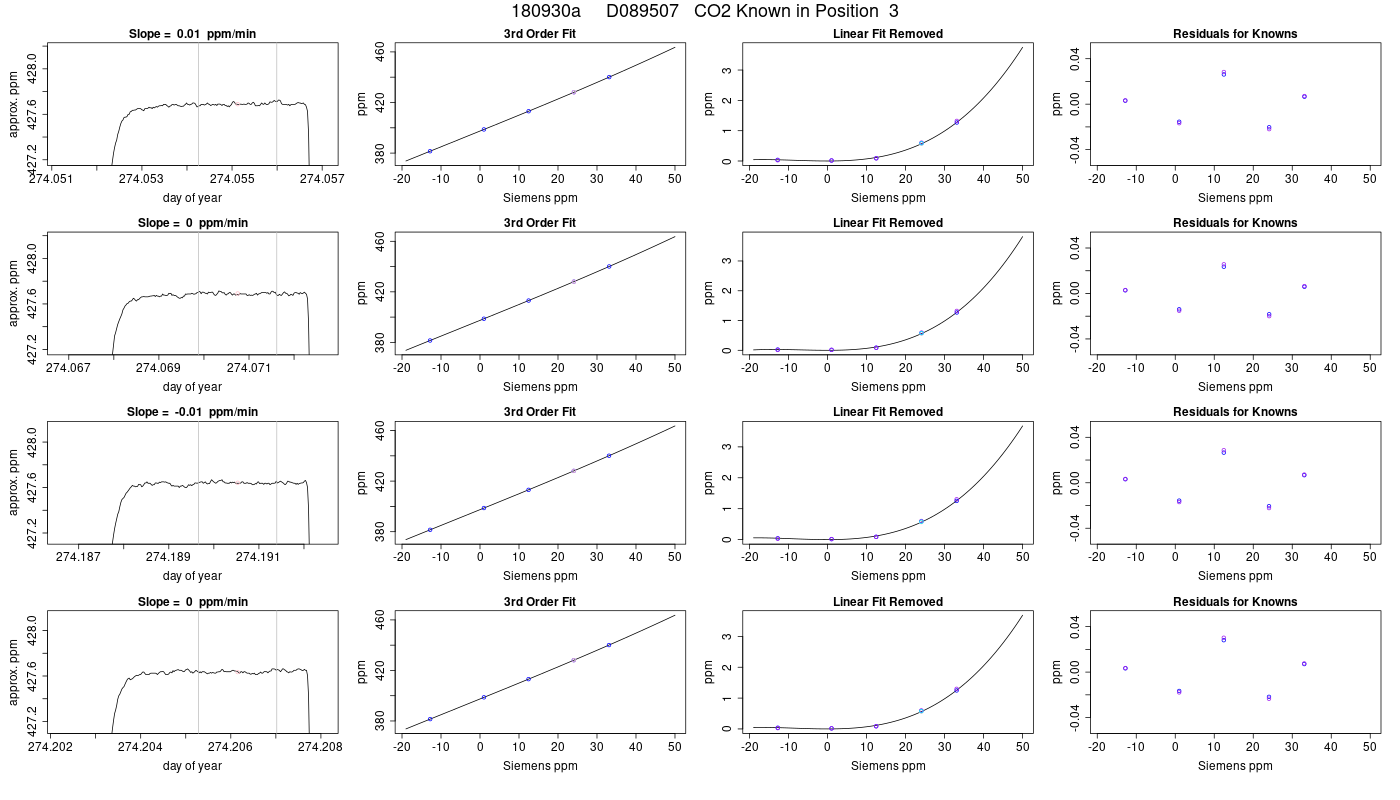

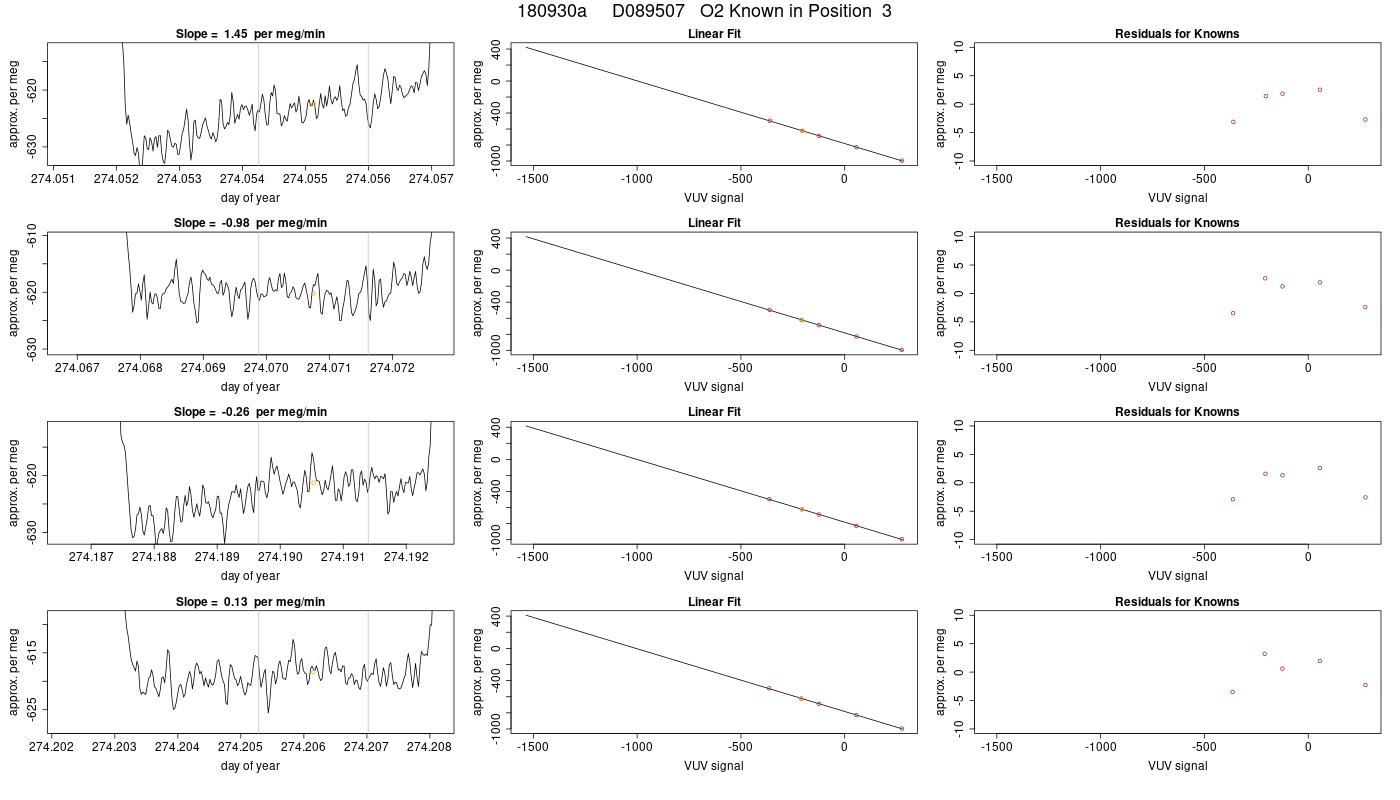

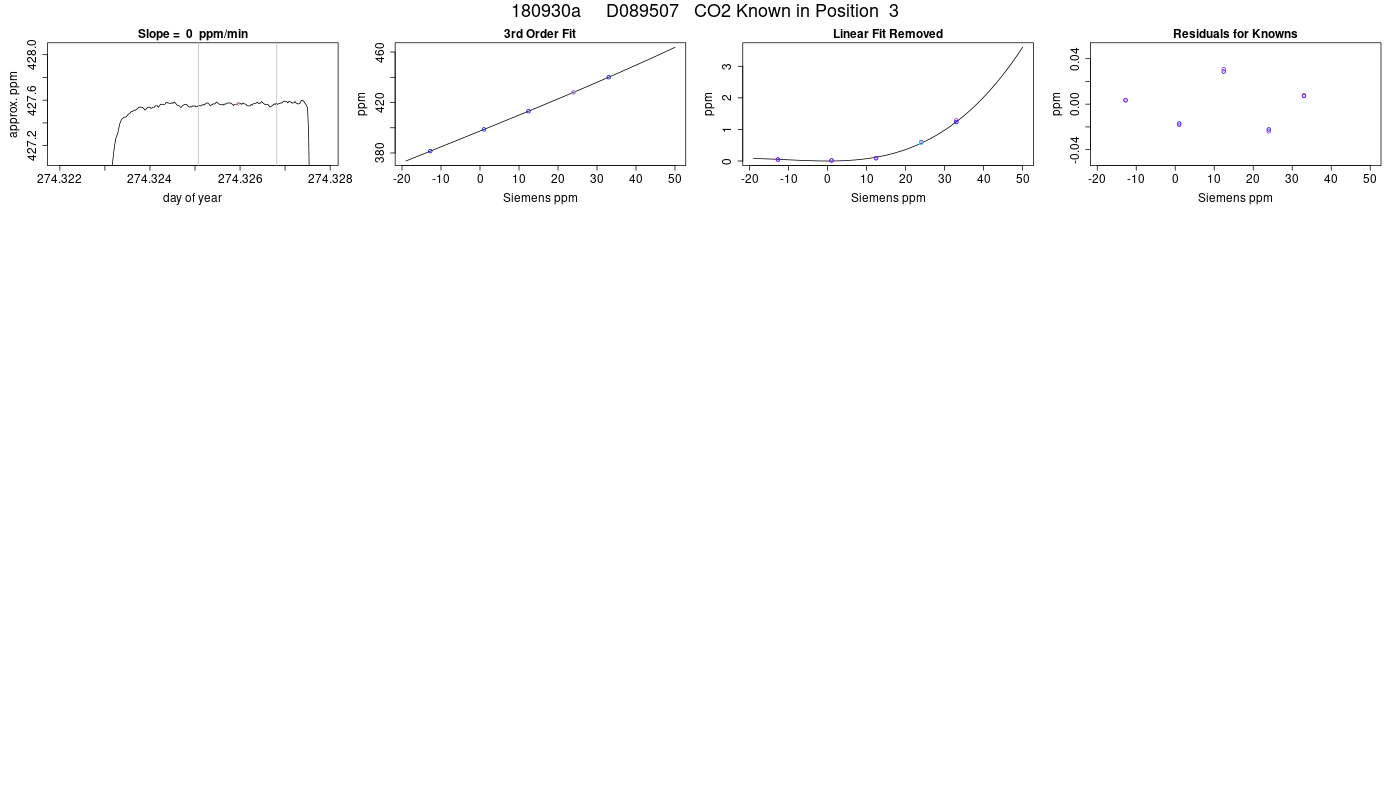

3 D089507 428.087 -0.019 0.002 428.275 -0.021 0.002 7 -559.23 2.13 1.02 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

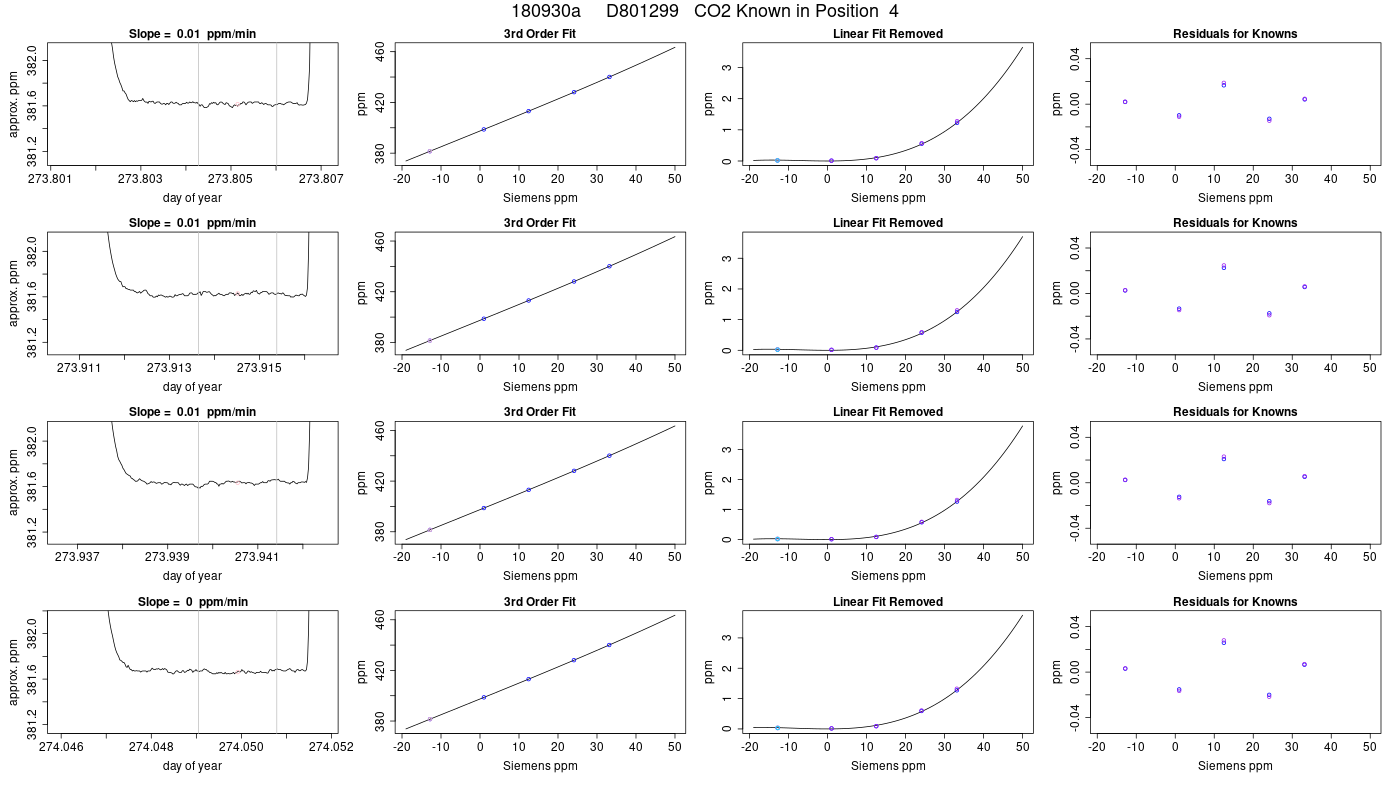

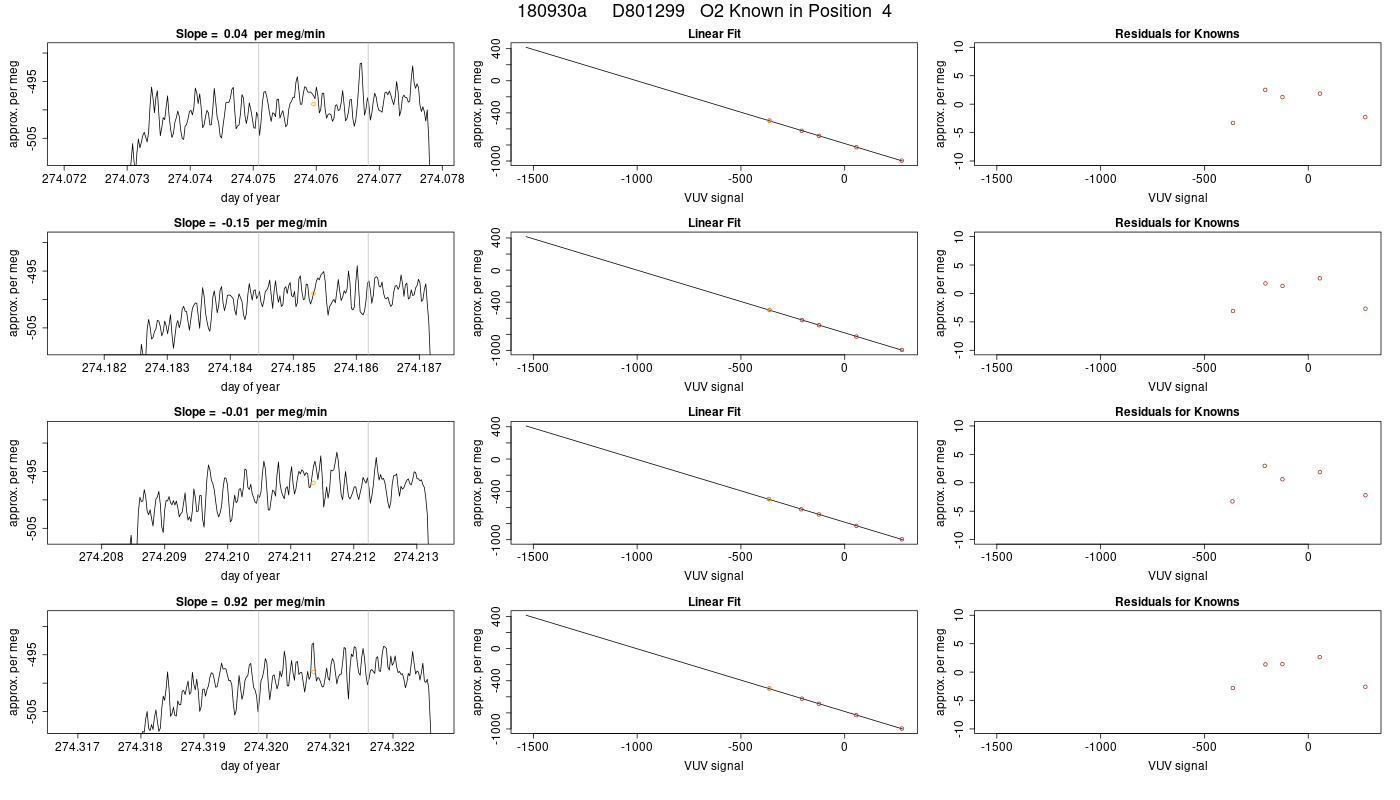

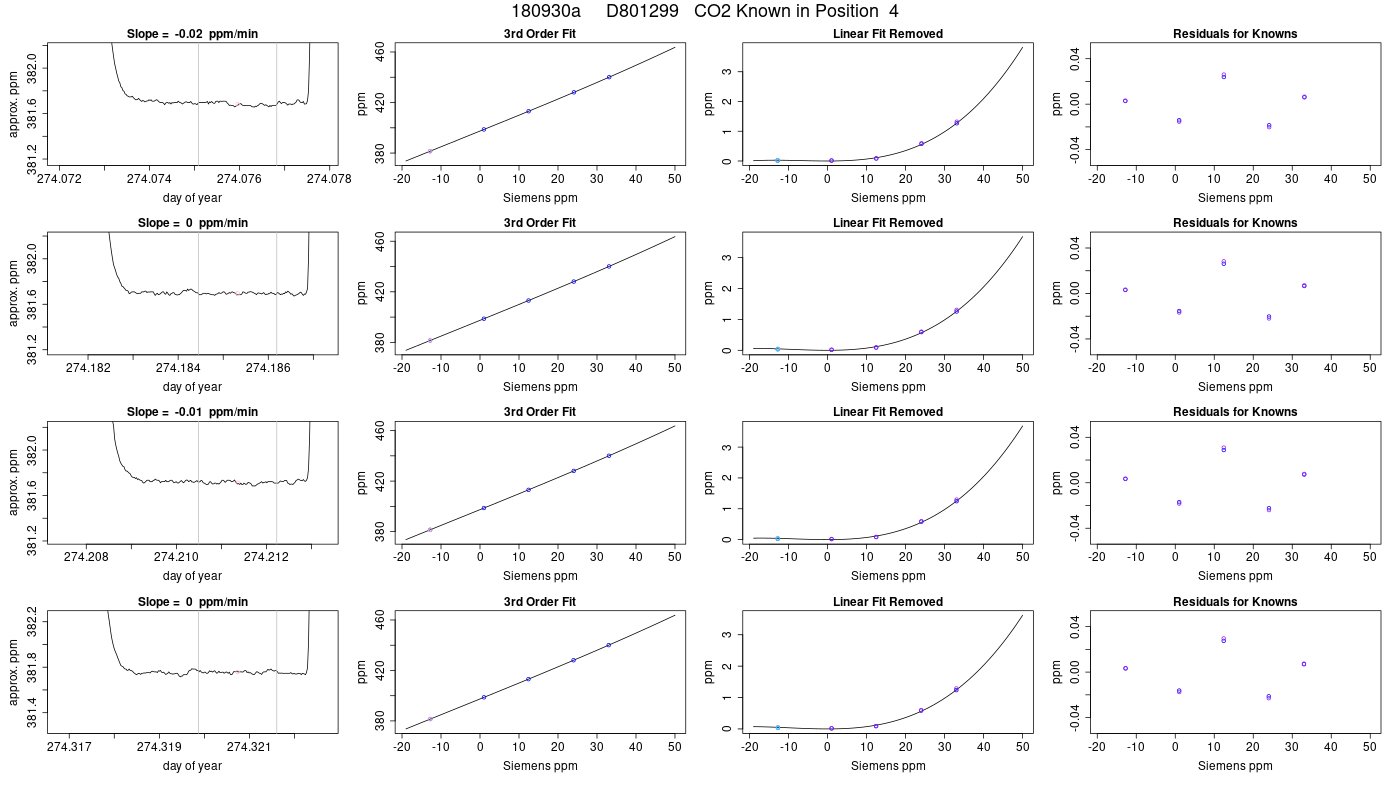

4 D801299 381.475 0.003 0.000 381.695 0.003 0.000 7 -477.75 -3.39 0.45 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

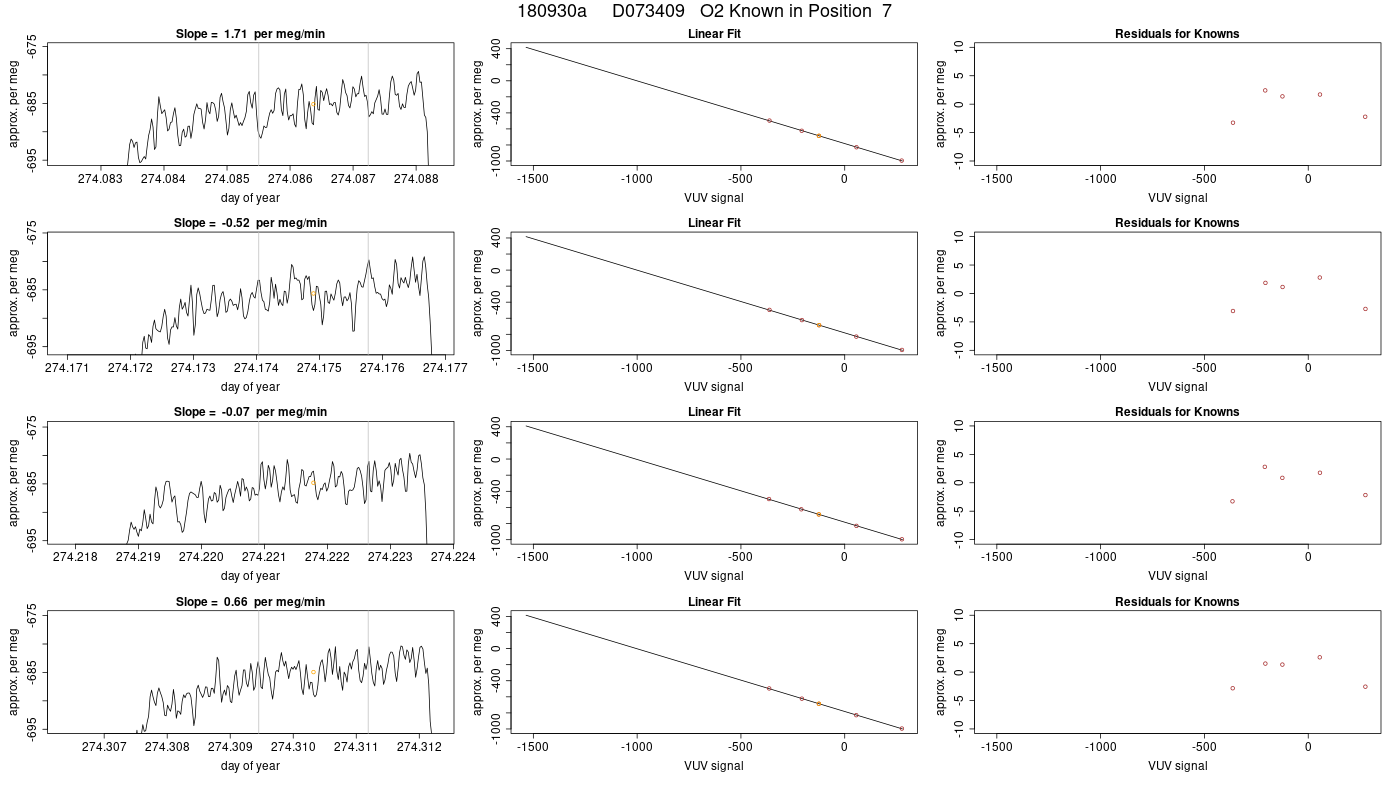

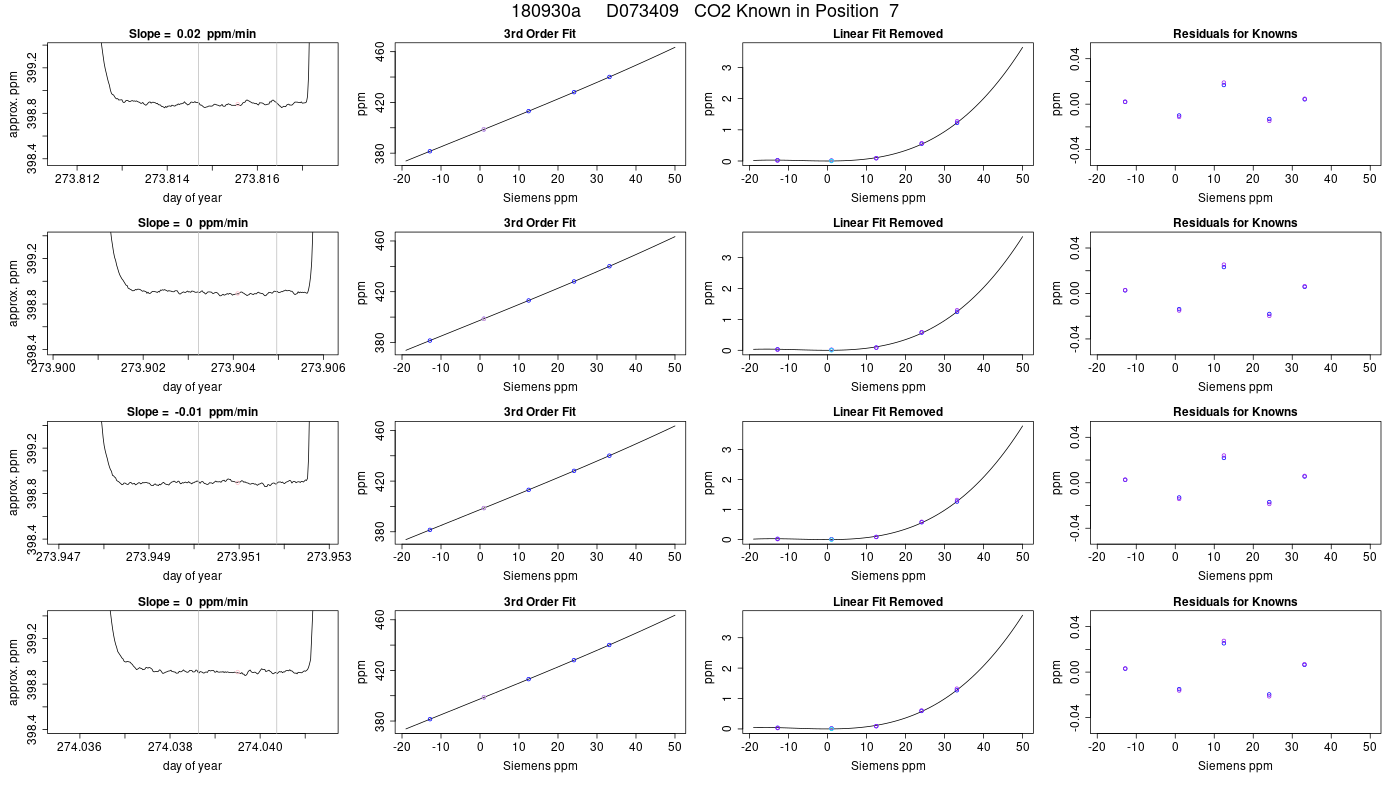

7 D073409 398.707 -0.015 0.002 398.918 -0.016 0.002 7 -651.78 1.61 0.82 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

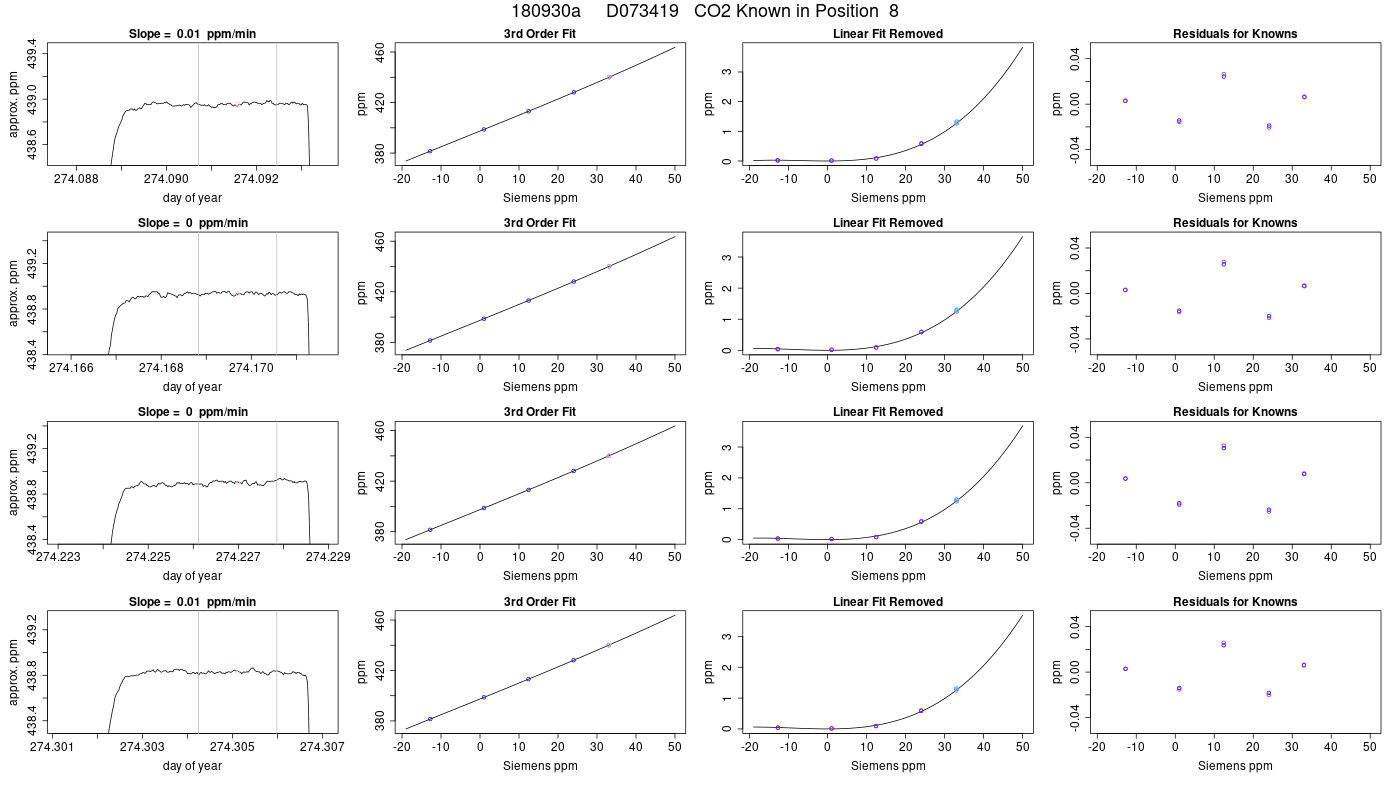

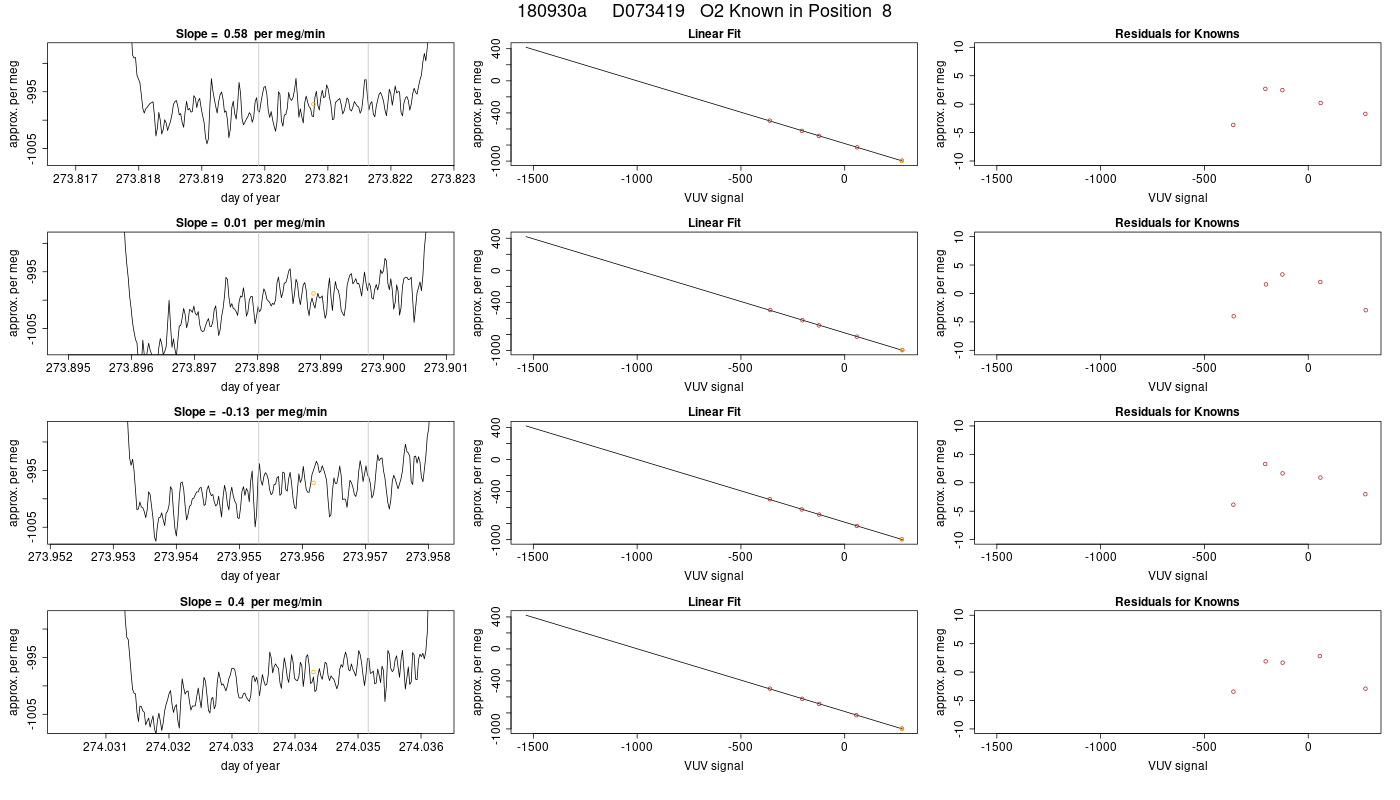

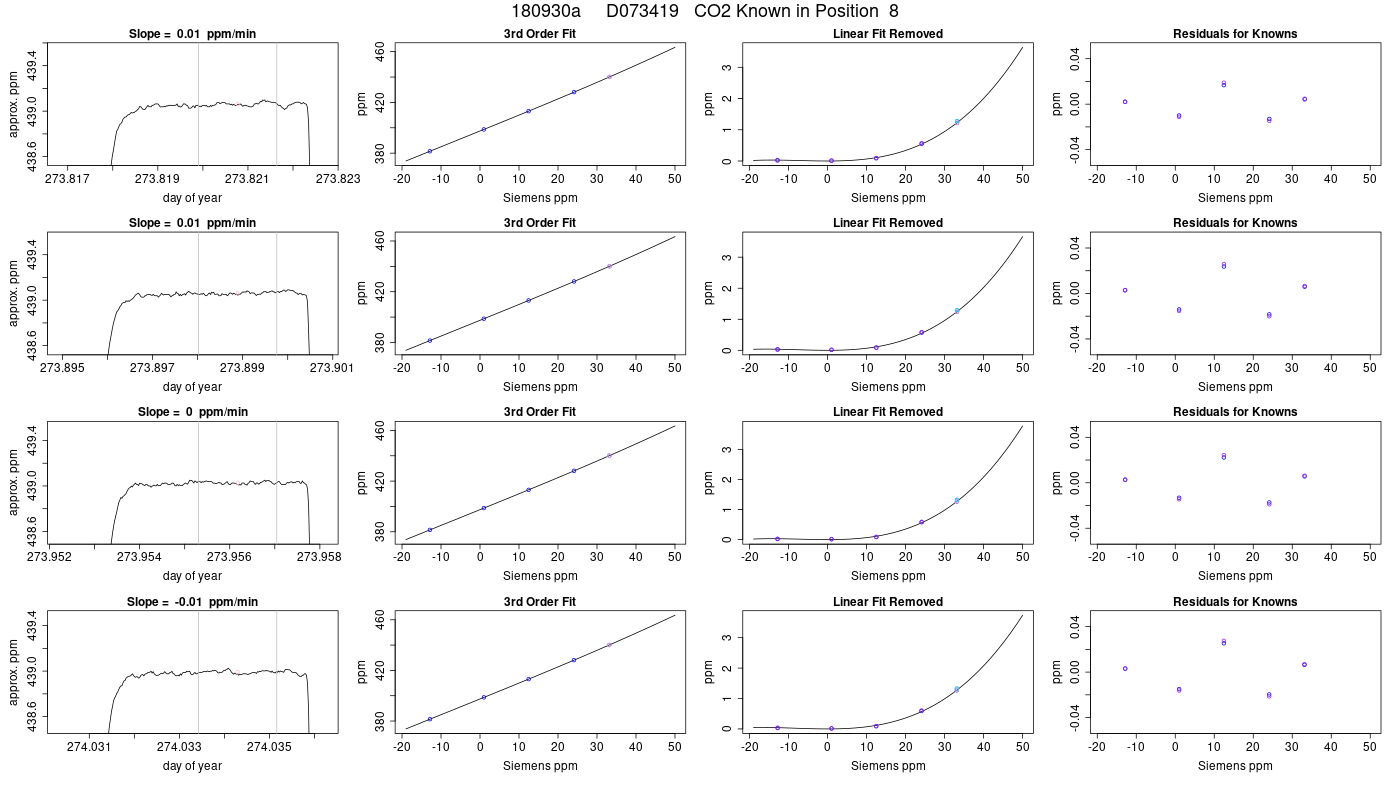

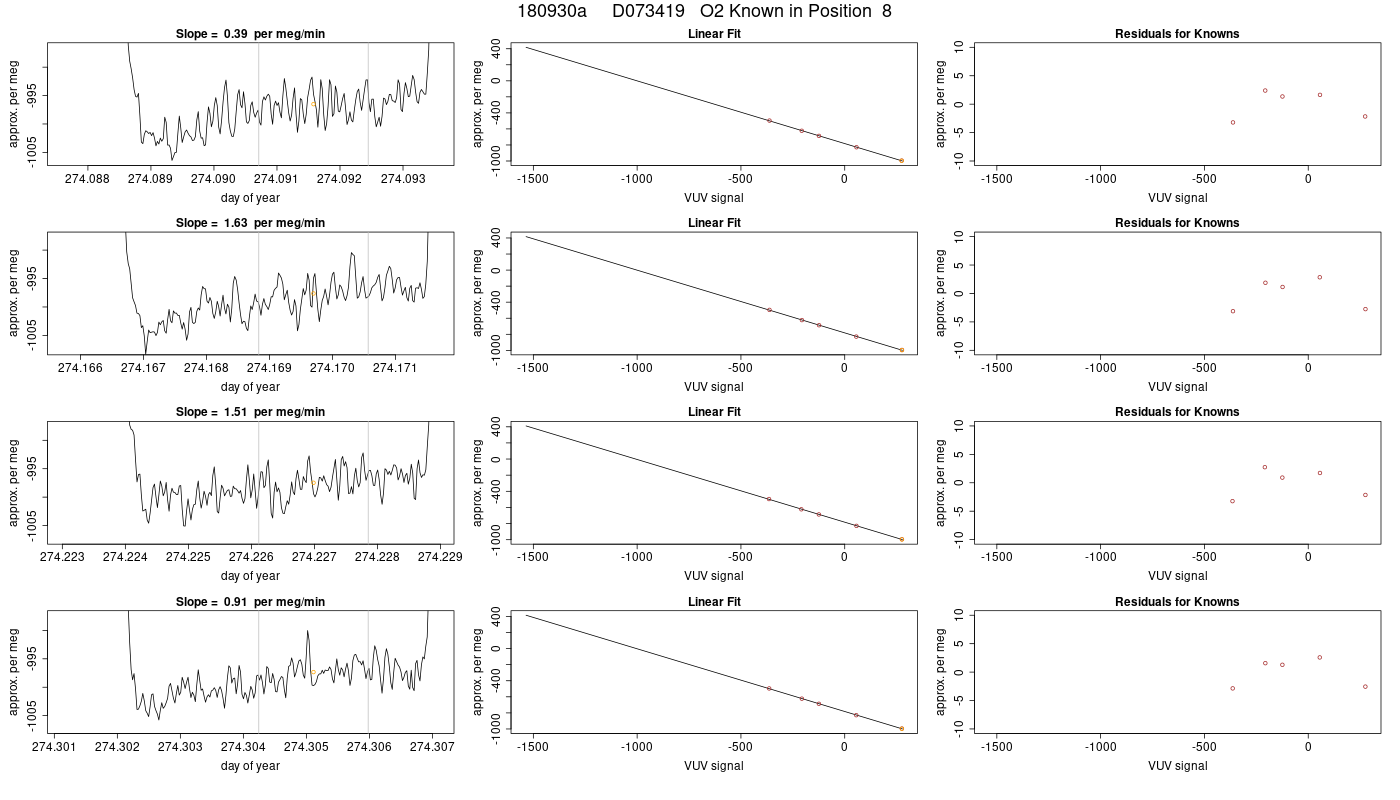

8 D073419 440.065 0.006 0.001 440.275 0.007 0.001 7 -919.32 -2.49 0.39 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

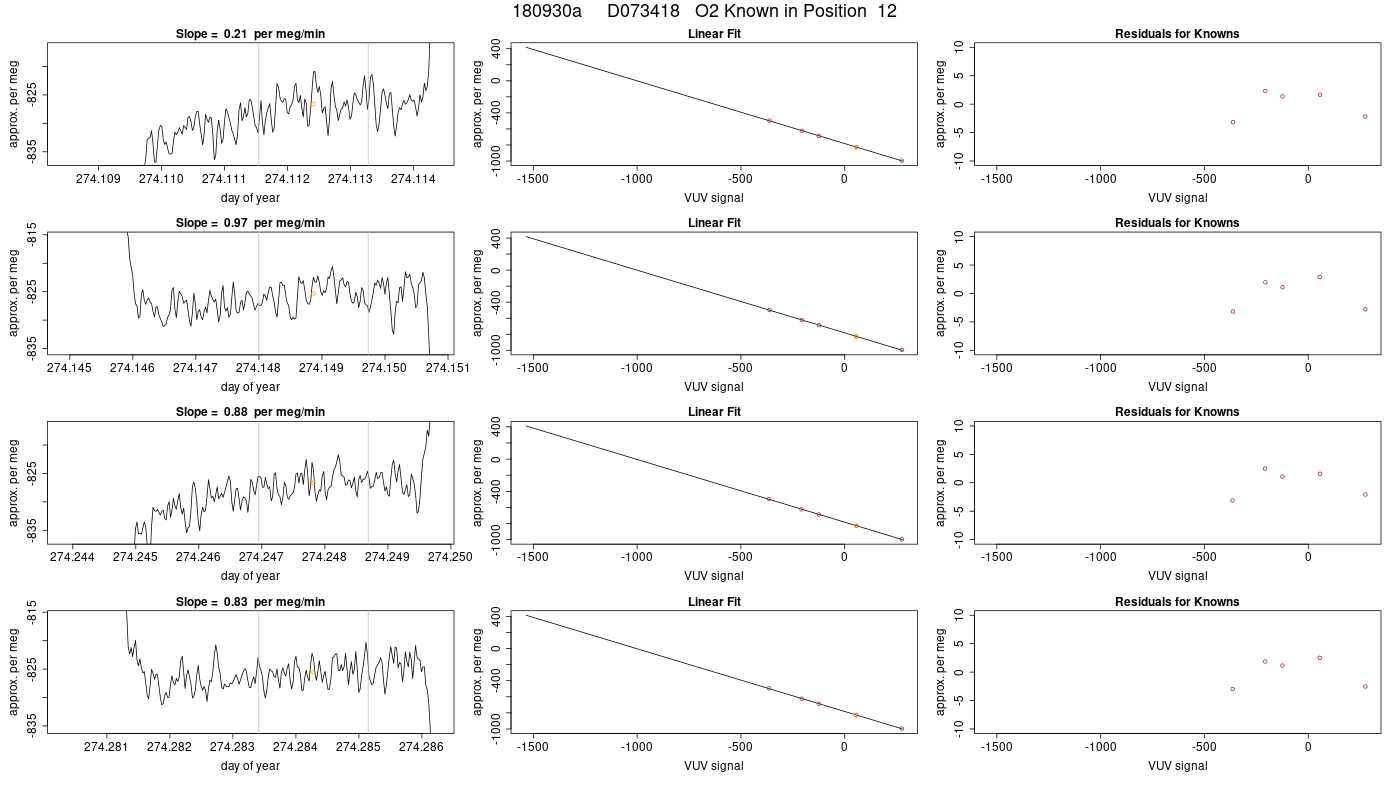

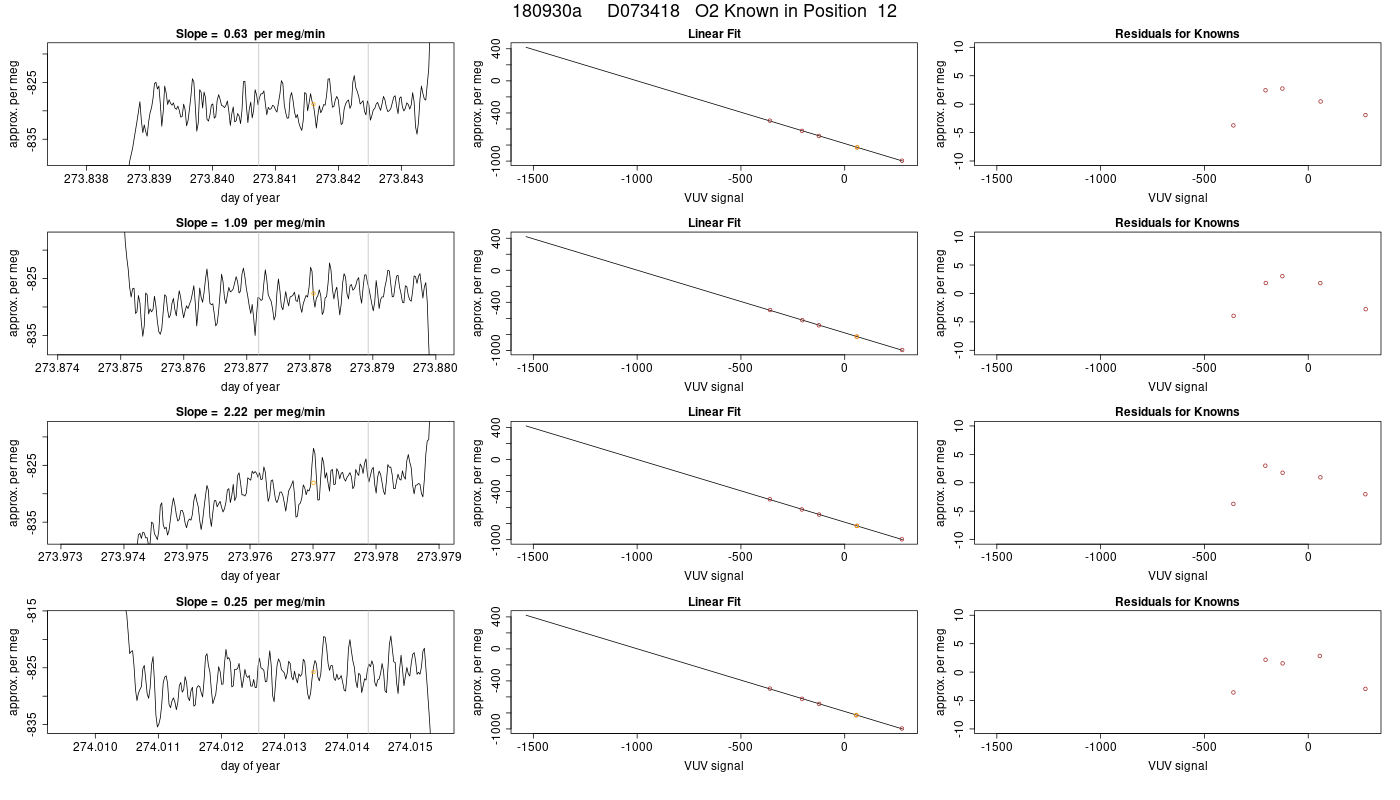

12 D073418 413.092 0.025 0.003 413.280 0.027 0.003 7 -779.40 2.06 0.73 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

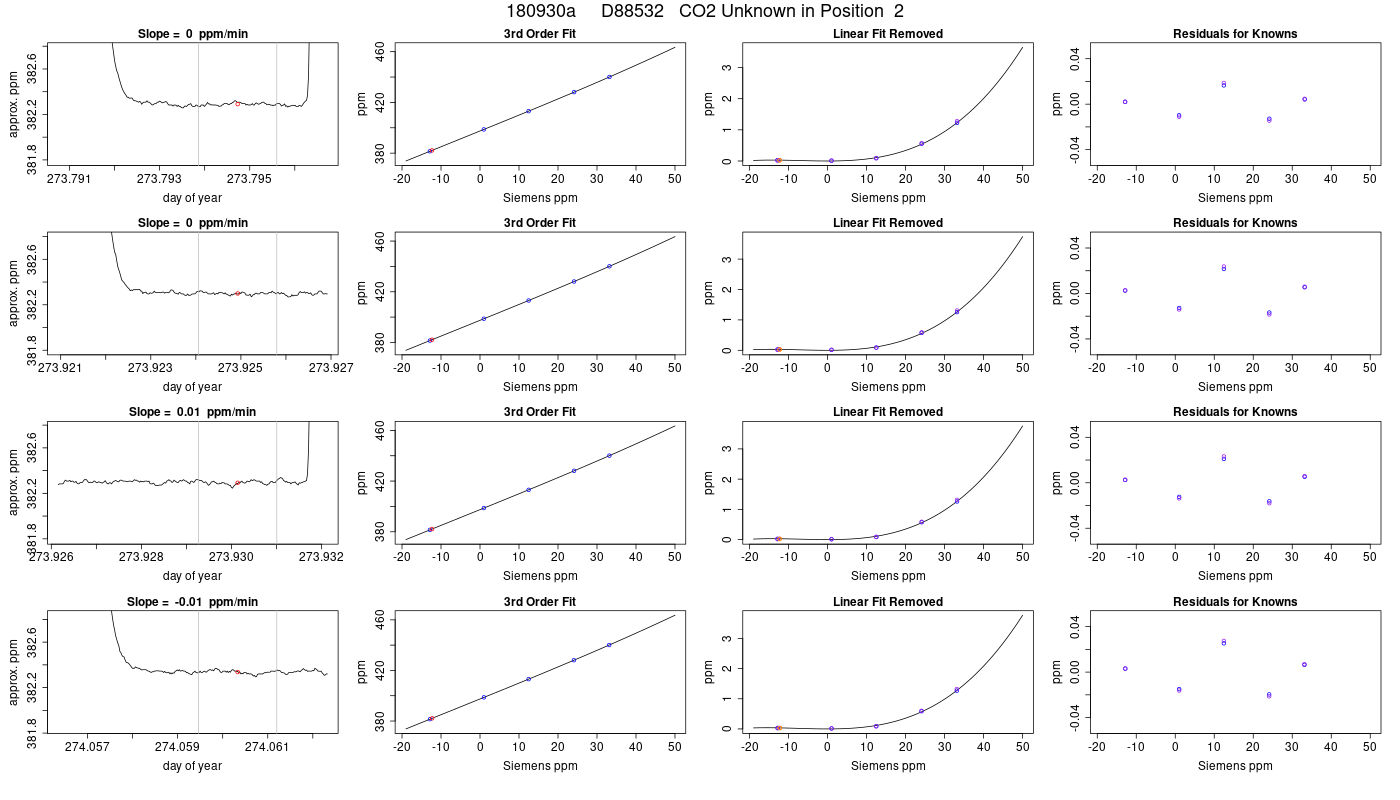

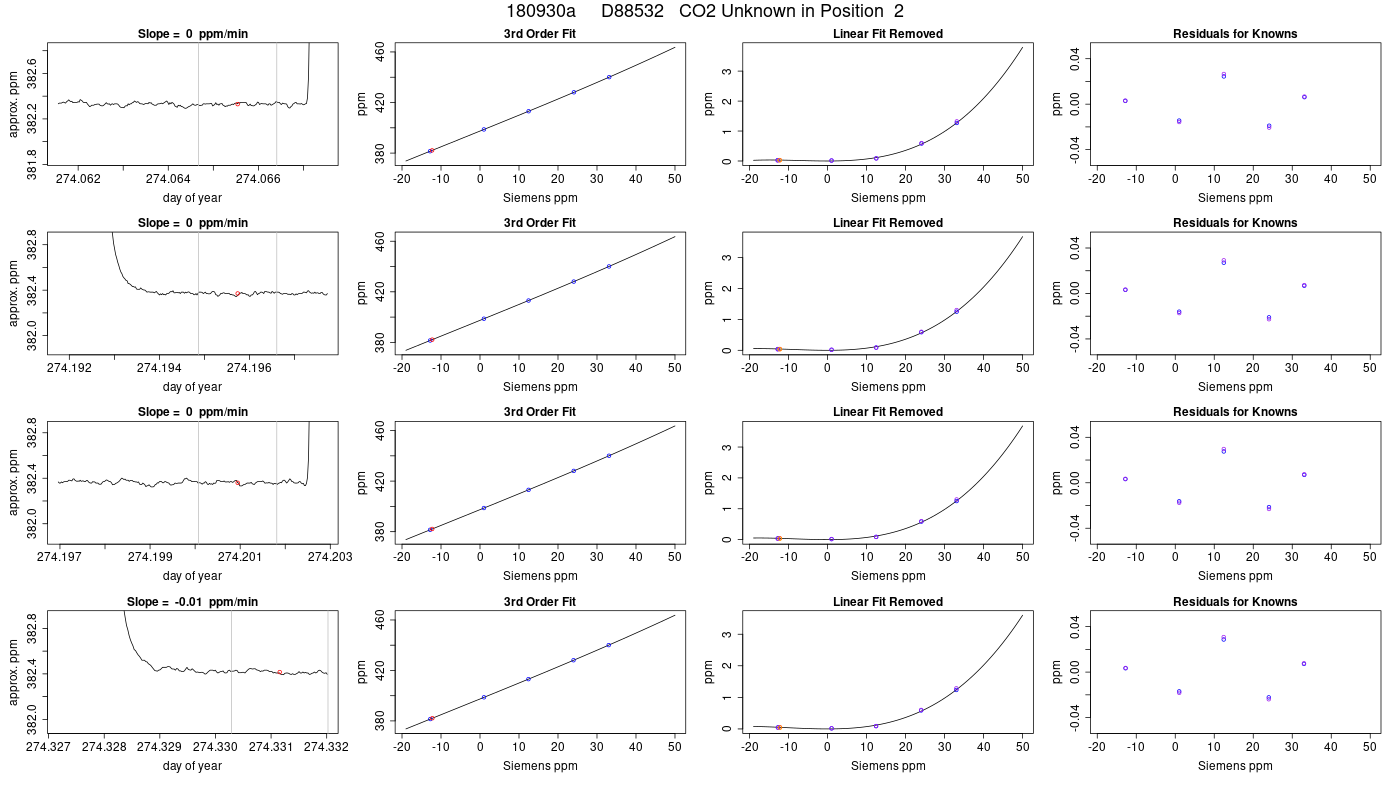

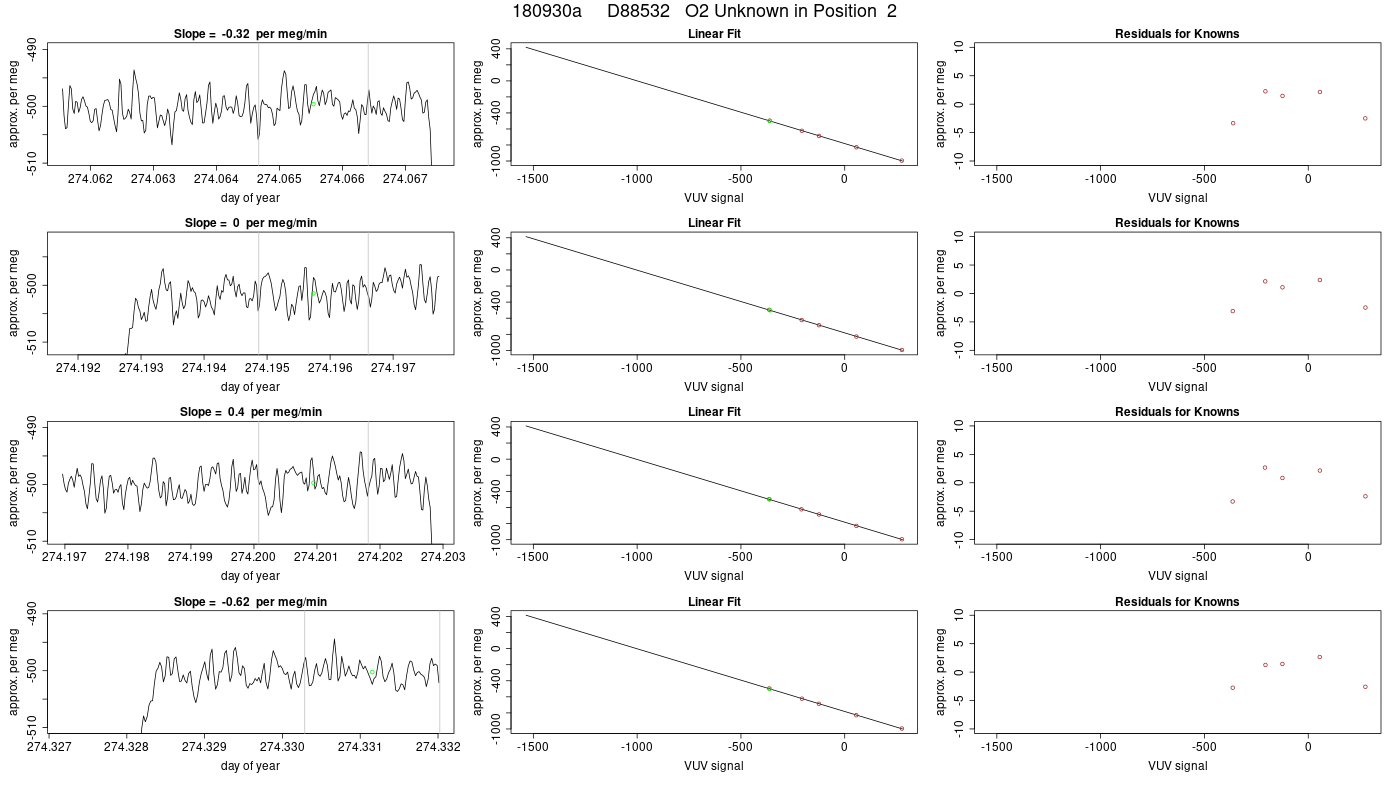

2 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.795 382.151 0.011 -475.83 2.25 382.371 0.011
273.925 382.144 0.011 -480.05 2.22 382.365 0.011
273.930 382.137 0.015 -480.70 1.93 382.358 0.015
274.060 382.144 0.015 -481.72 2.31 382.364 0.015
274.066 382.133 0.010 -480.68 2.17 382.353 0.010
274.196 382.147 0.012 -483.71 2.27 382.368 0.012
274.201 382.133 0.012 -482.58 2.64 382.354 0.012
274.331 382.138 0.014 -482.30 1.73 382.359 0.014

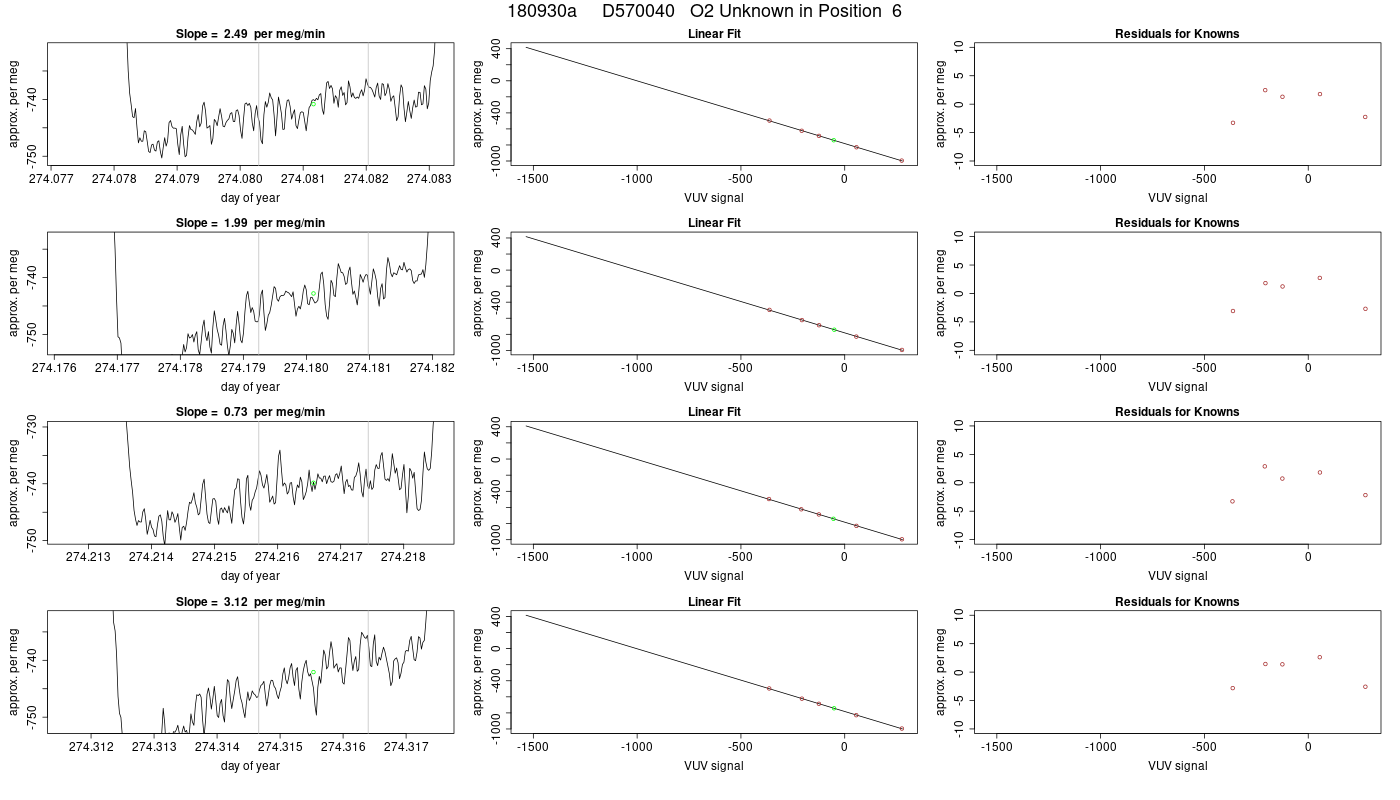

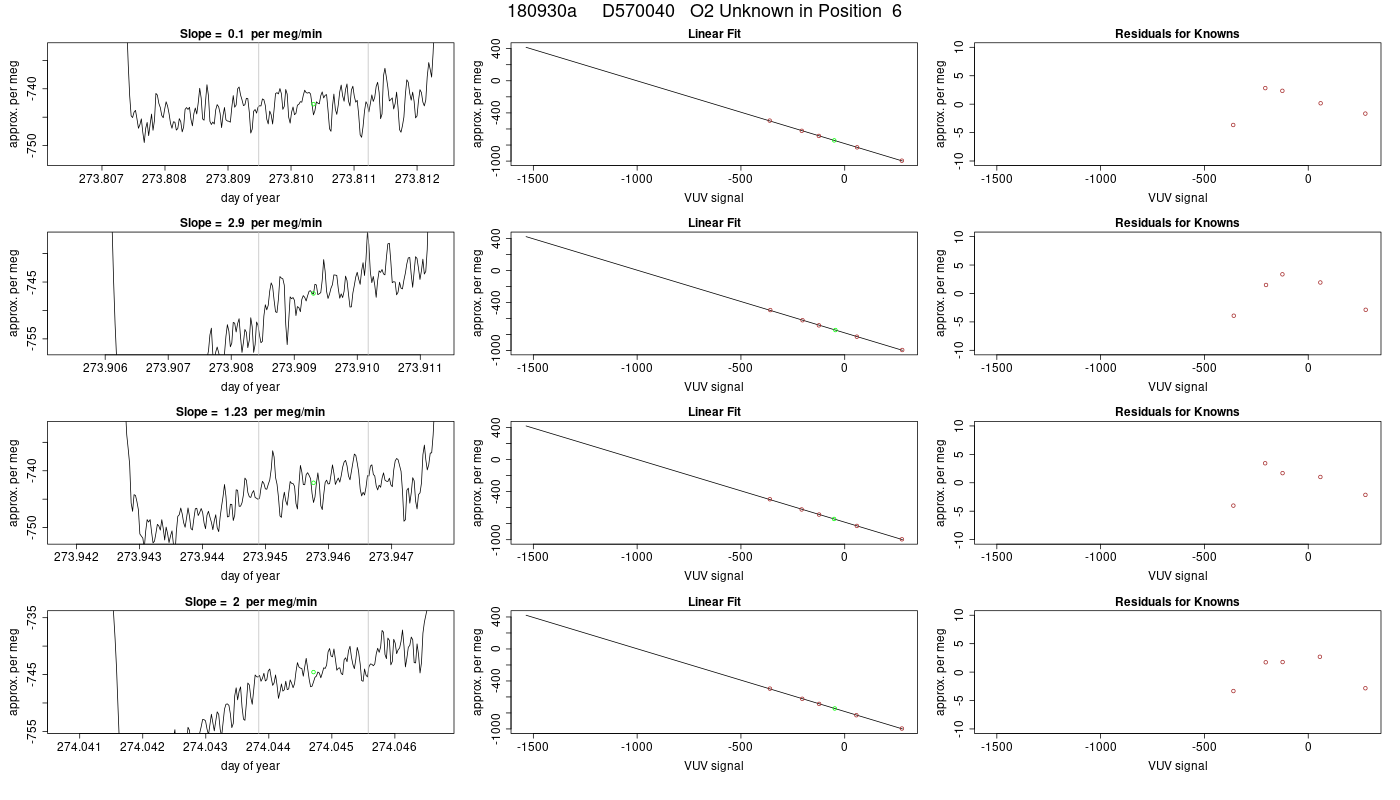

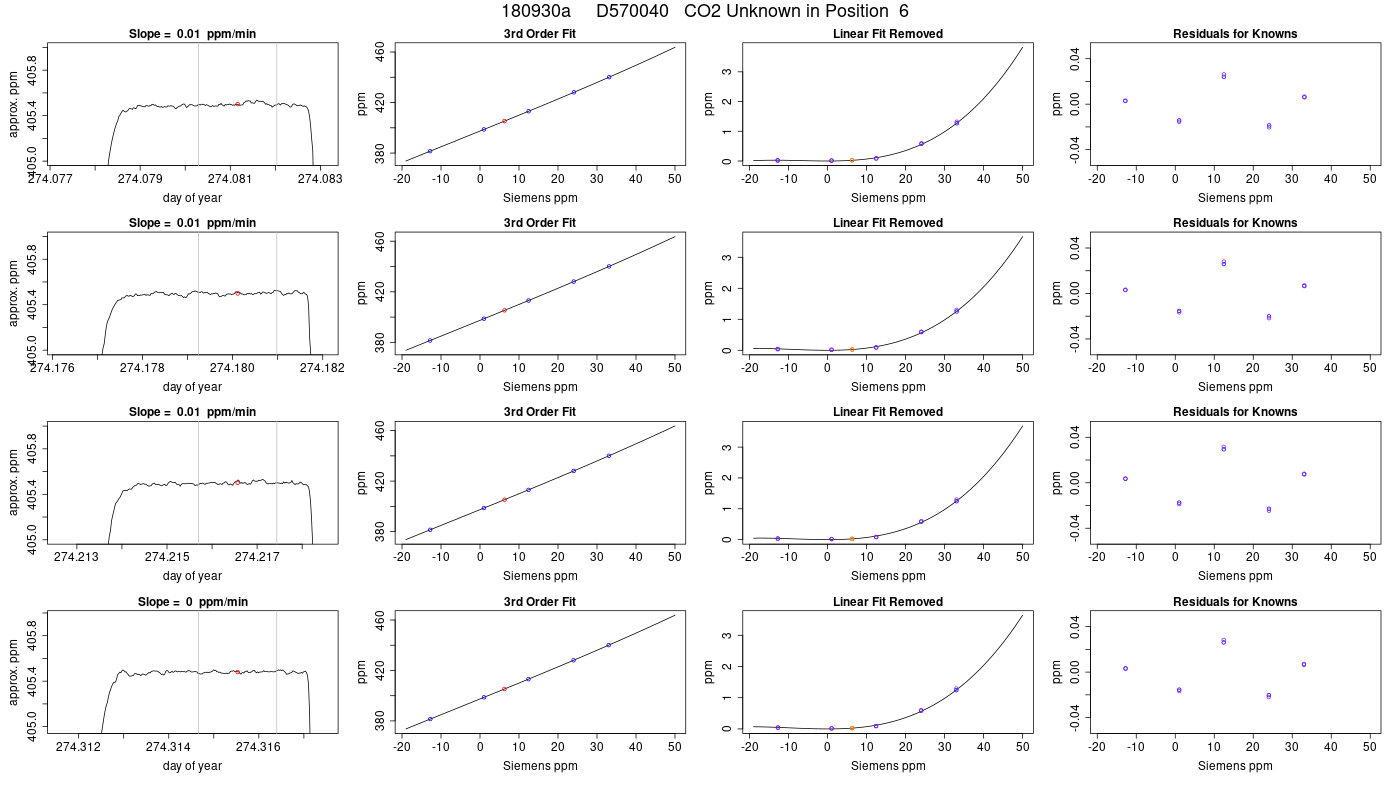

6 D570040    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.810 405.331 0.011 -700.99 2.11 405.531 0.011
273.909 405.323 0.012 -704.31 3.35 405.523 0.012
273.946 405.314 0.012 -700.38 2.53 405.514 0.012
274.045 405.313 0.012 -702.79 2.10 405.513 0.012
274.081 405.319 0.015 -699.89 2.53 405.519 0.015
274.180 405.322 0.011 -701.55 2.52 405.522 0.011
274.217 405.329 0.012 -699.43 1.84 405.529 0.012
274.316 405.313 0.008 -701.25 3.21 405.514 0.008

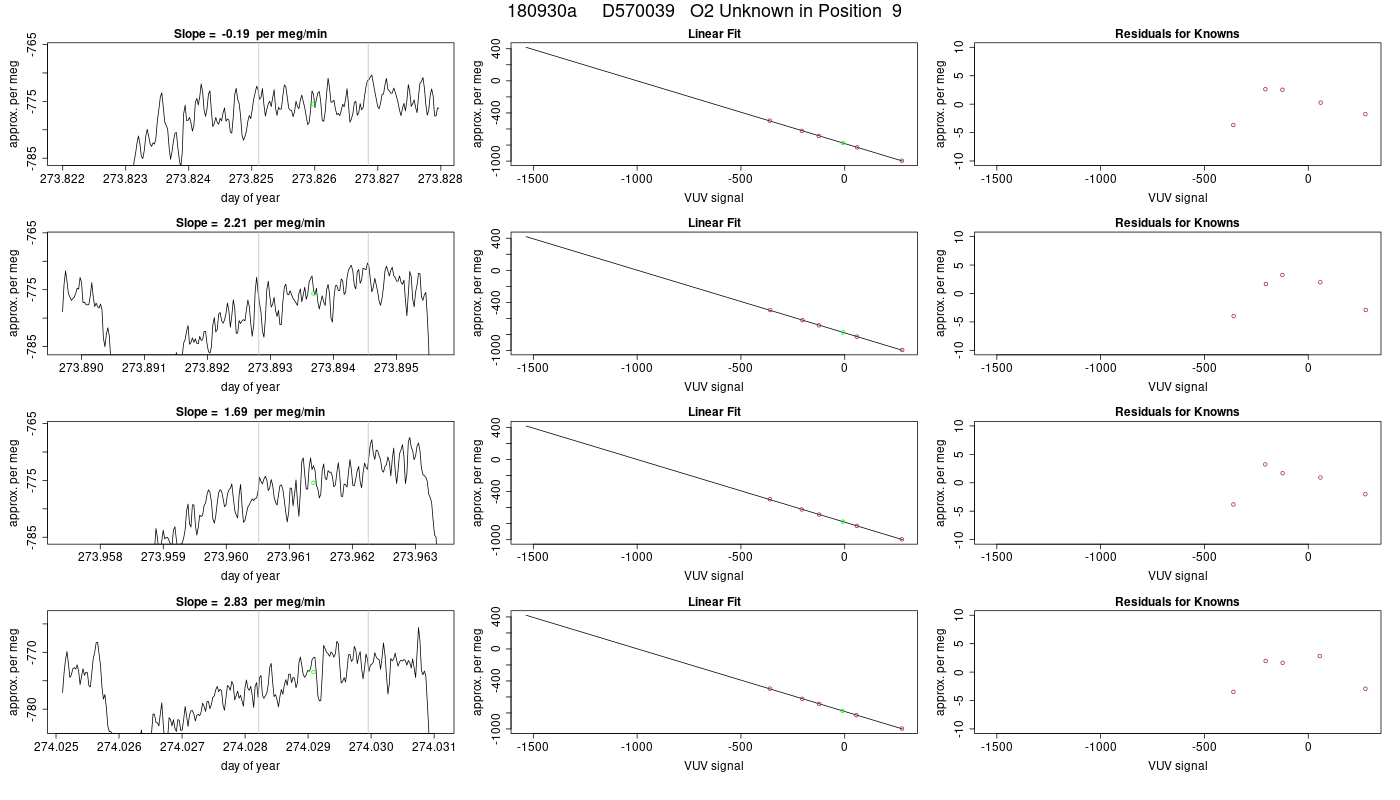

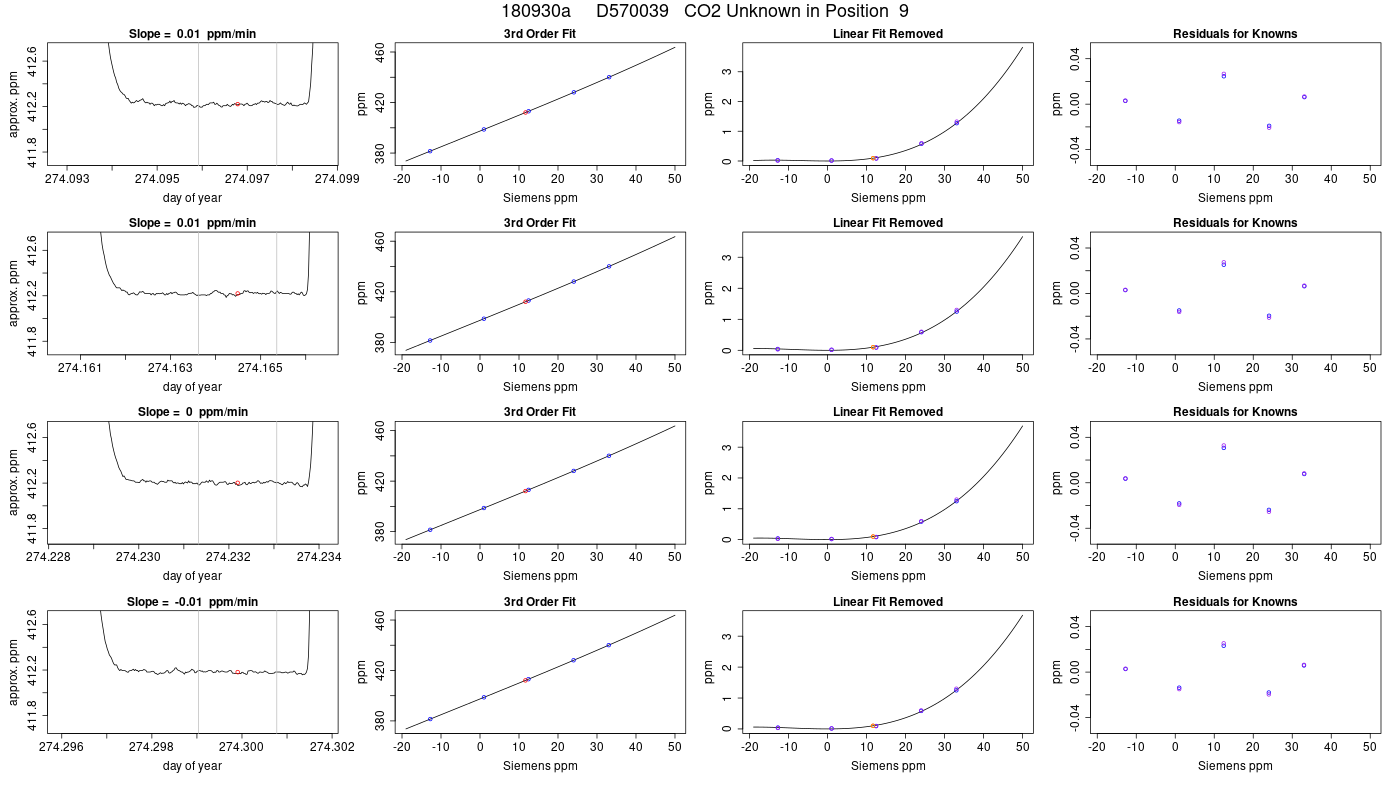

9 D570039    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.826 412.145 0.011 -726.93 1.82 412.337 0.011
273.894 412.131 0.014 -726.46 2.81 412.322 0.014
273.961 412.129 0.012 -726.99 2.47 412.320 0.012
274.029 412.132 0.017 -725.15 2.91 412.323 0.017
274.097 412.121 0.014 -726.27 1.89 412.313 0.014
274.164 412.135 0.013 -725.92 2.40 412.326 0.013
274.232 412.130 0.011 -725.96 2.52 412.321 0.011
274.300 412.127 0.009 -725.11 2.23 412.318 0.009

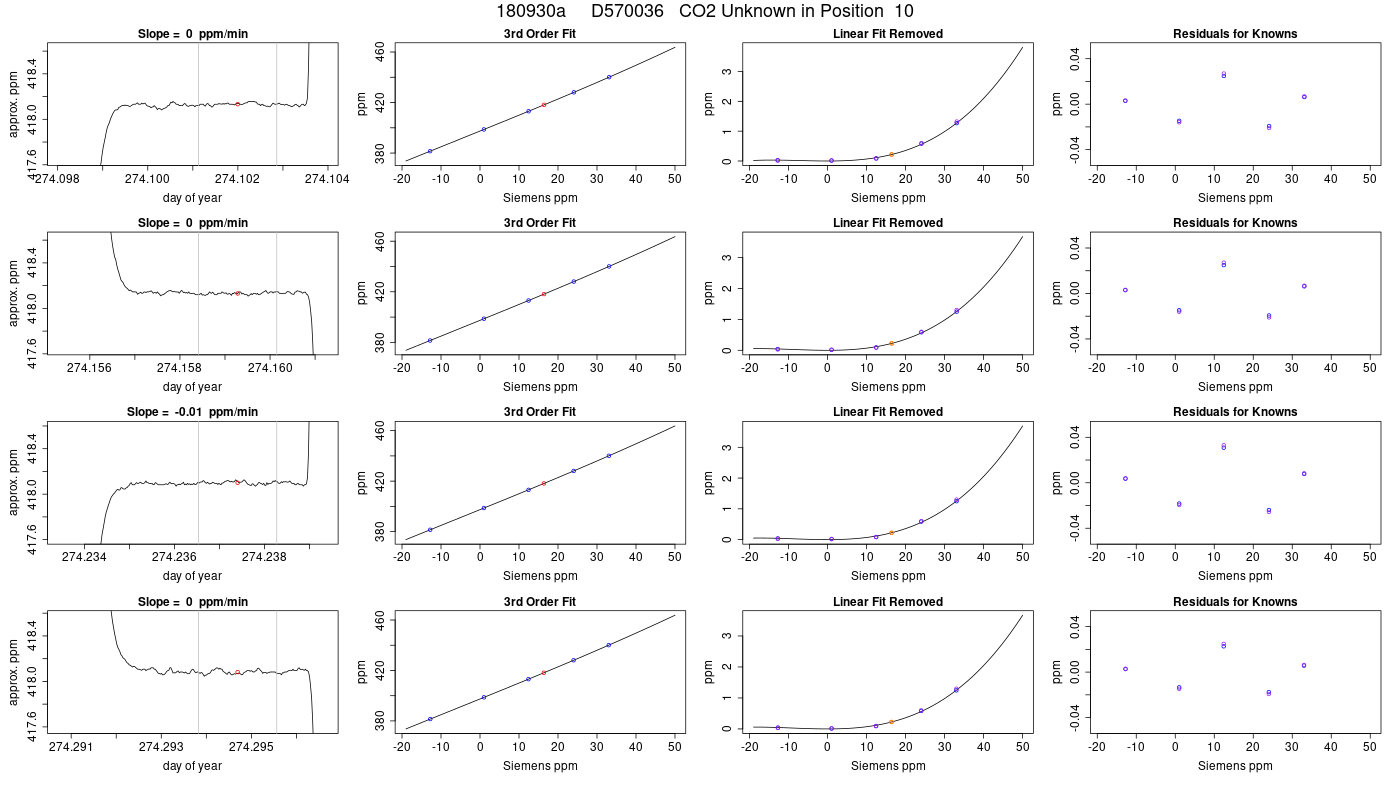

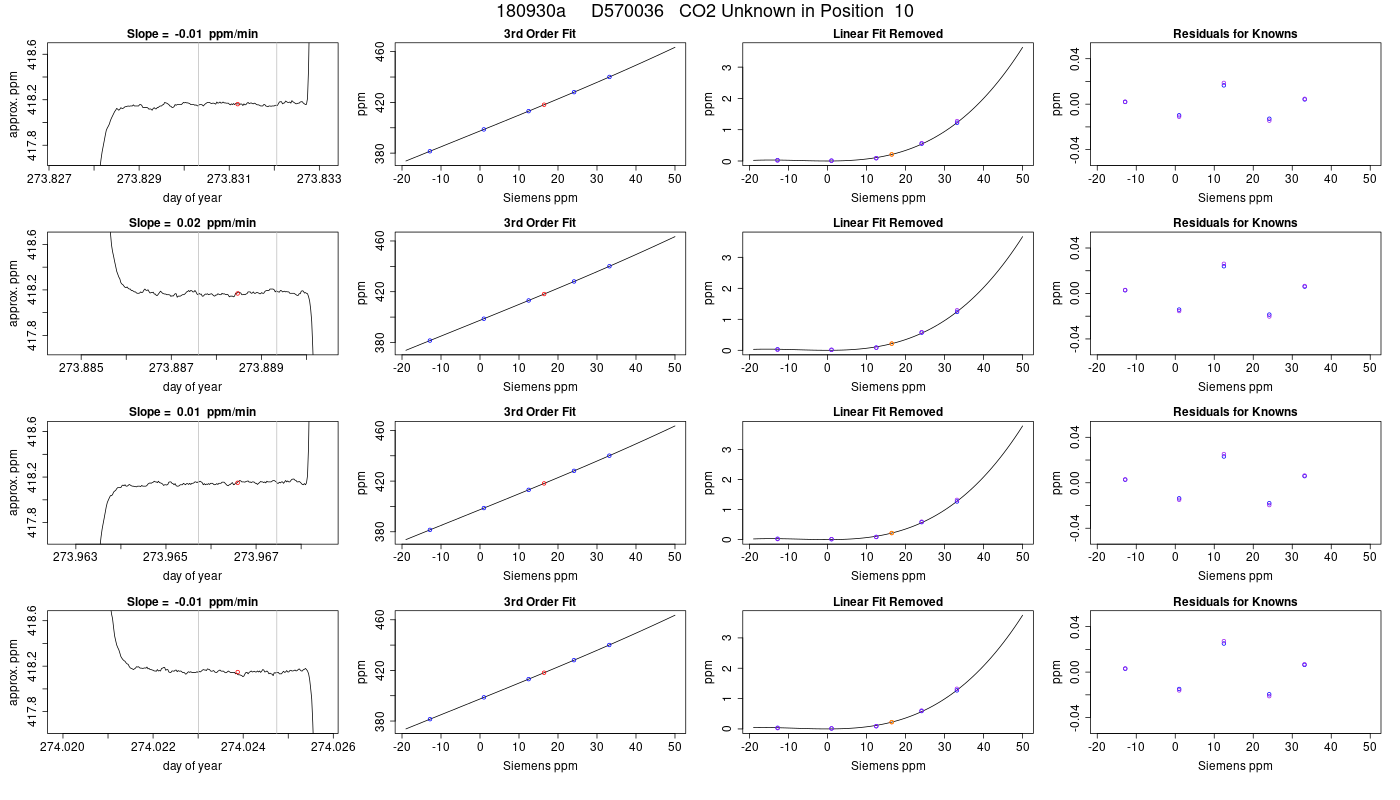

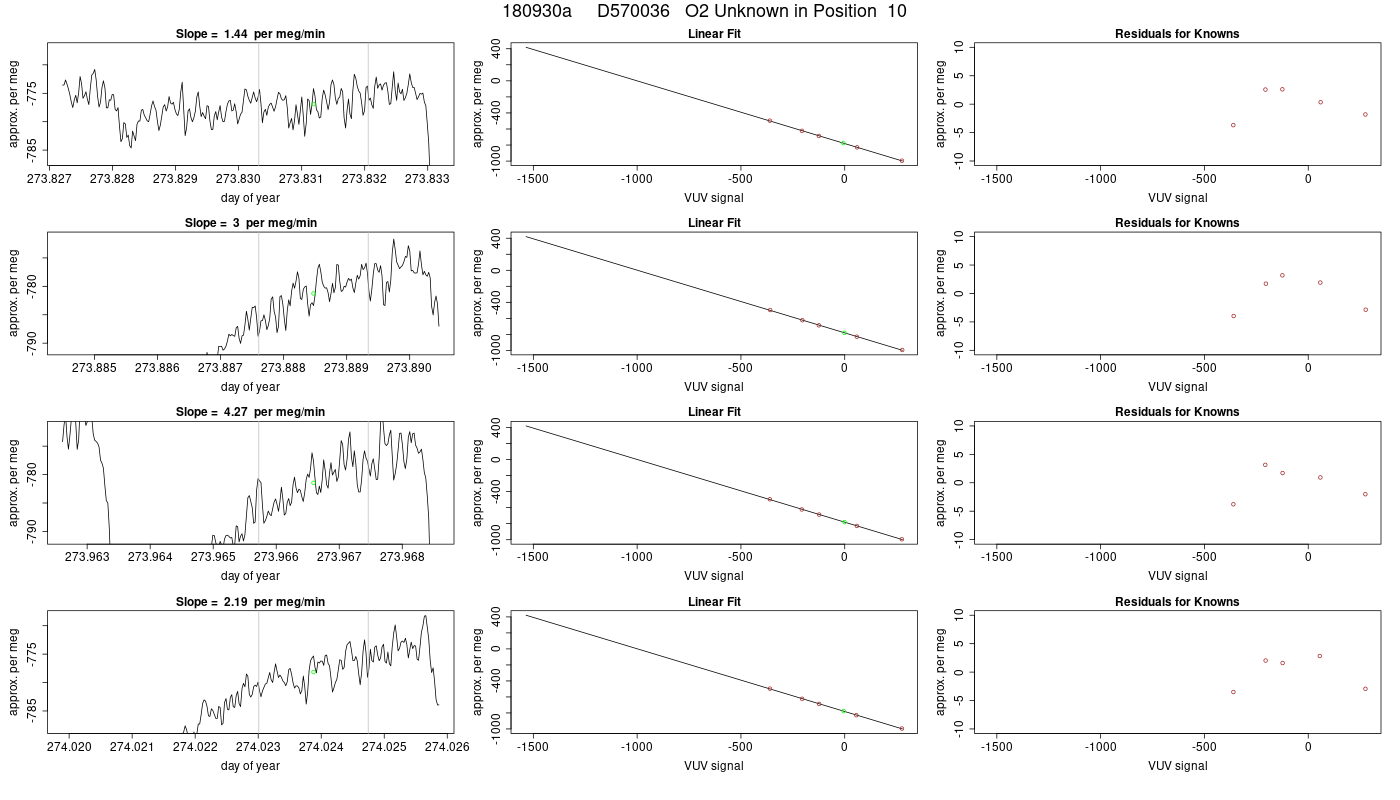

10 D570036    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.831 418.169 0.011 -722.38 2.32 418.354 0.011
273.888 418.168 0.017 -726.22 3.24 418.354 0.017
273.967 418.152 0.011 -727.09 3.73 418.338 0.011
274.024 418.164 0.014 -723.98 2.52 418.350 0.014
274.102 418.164 0.012 -724.40 3.49 418.350 0.012
274.159 418.181 0.010 -721.99 2.37 418.367 0.010
274.237 418.172 0.013 -723.89 2.81 418.357 0.013
274.295 418.180 0.017 -721.51 2.32 418.366 0.017

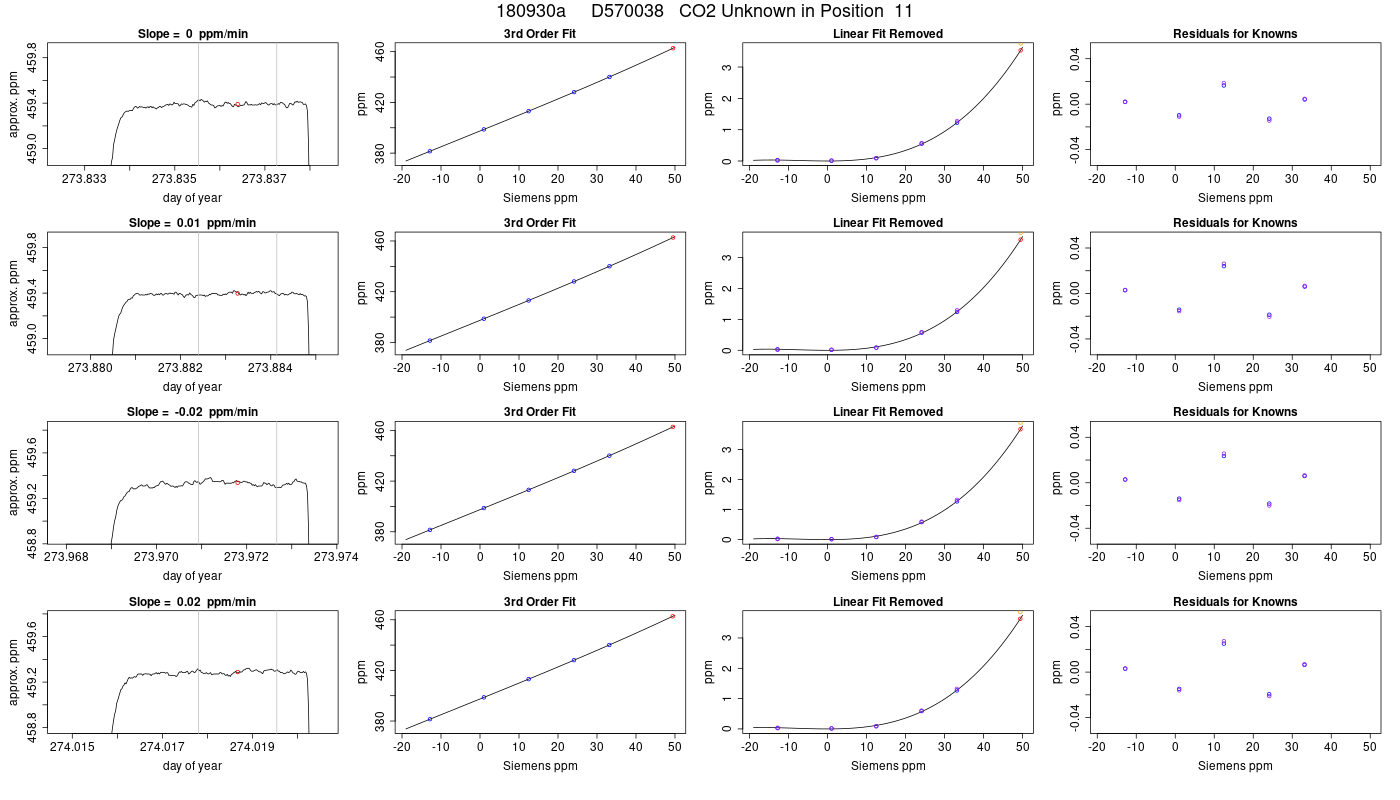

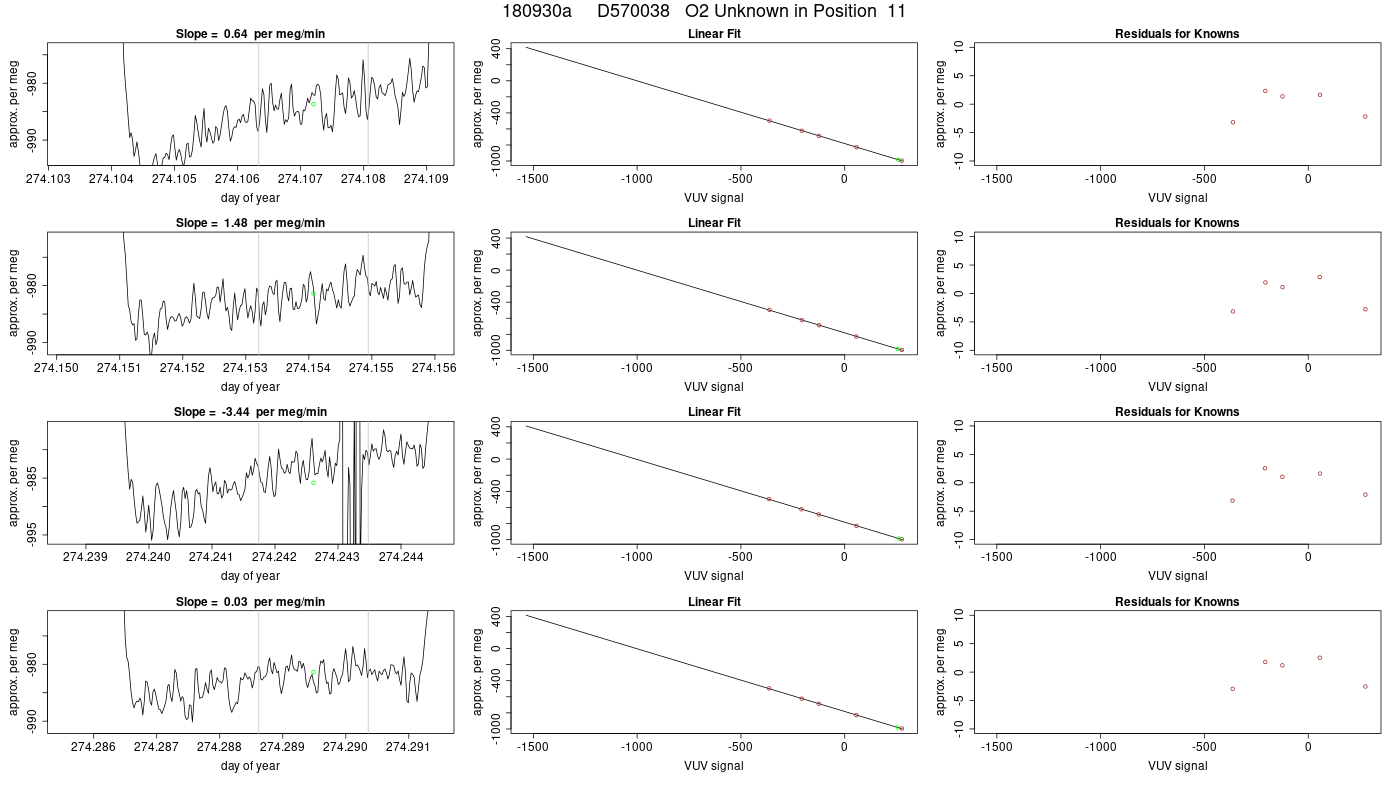

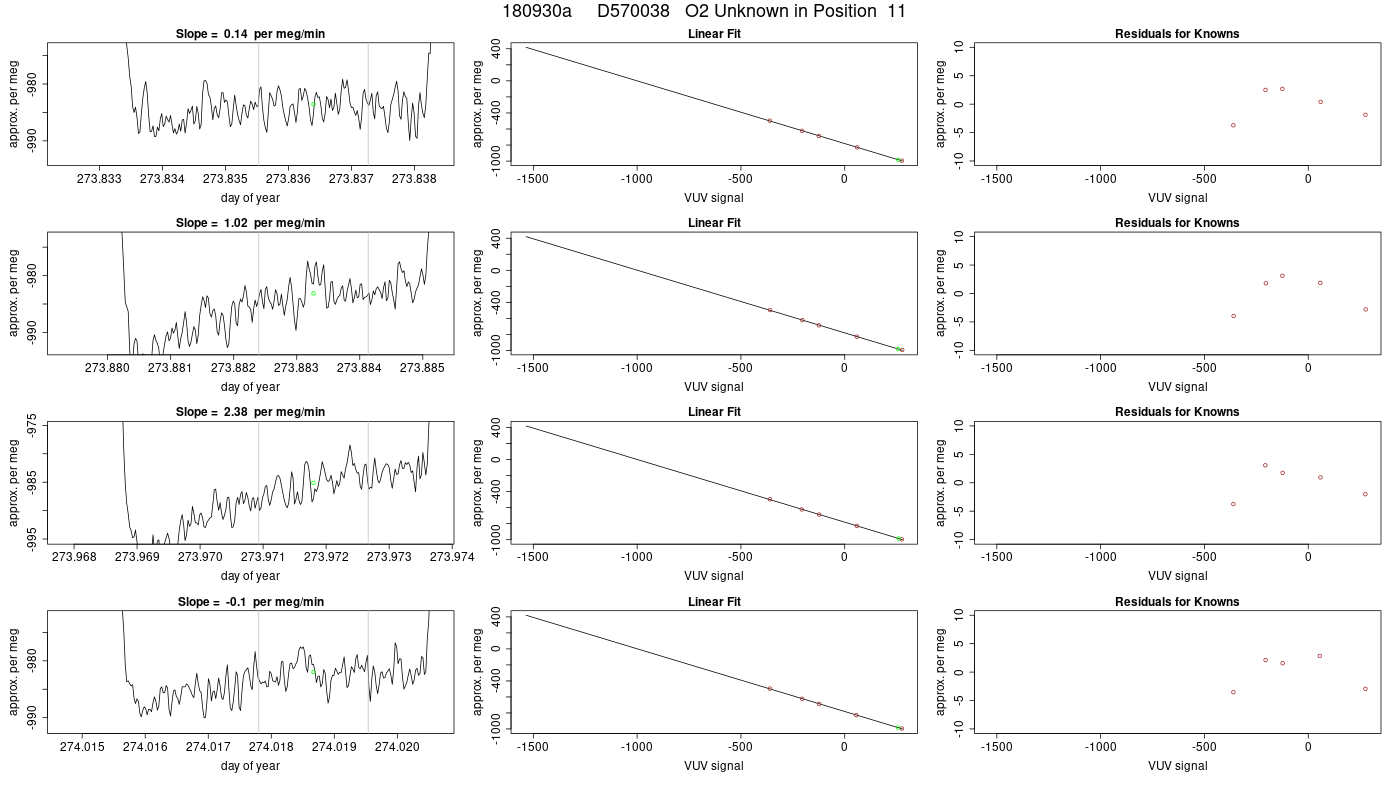

11 D570038    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.836 462.689 0.016 -885.13 2.20 463.043 0.016
273.883 462.718 0.013 -884.64 2.36 463.072 0.013
273.972 462.773 0.019 -886.98 2.61 463.127 0.019
274.019 462.722 0.017 -884.58 2.08 463.076 0.017
274.107 462.771 0.012 -886.25 2.75 463.125 0.012
274.154 462.697 0.012 -883.96 2.65 463.051 0.012
274.243 462.694 0.018 -887.72 42.17 463.048 0.018
274.289 462.646 0.019 -883.84 1.90 462.999 0.019

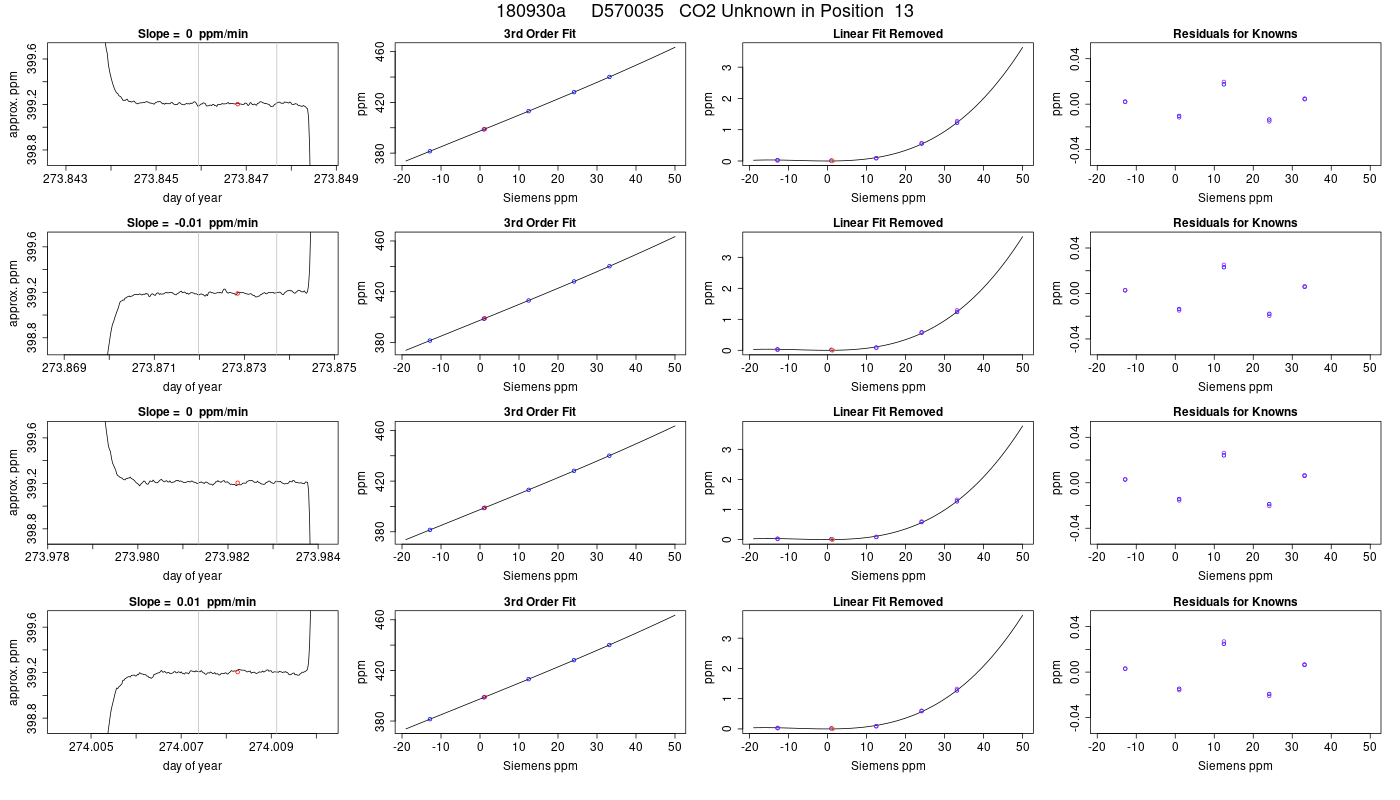

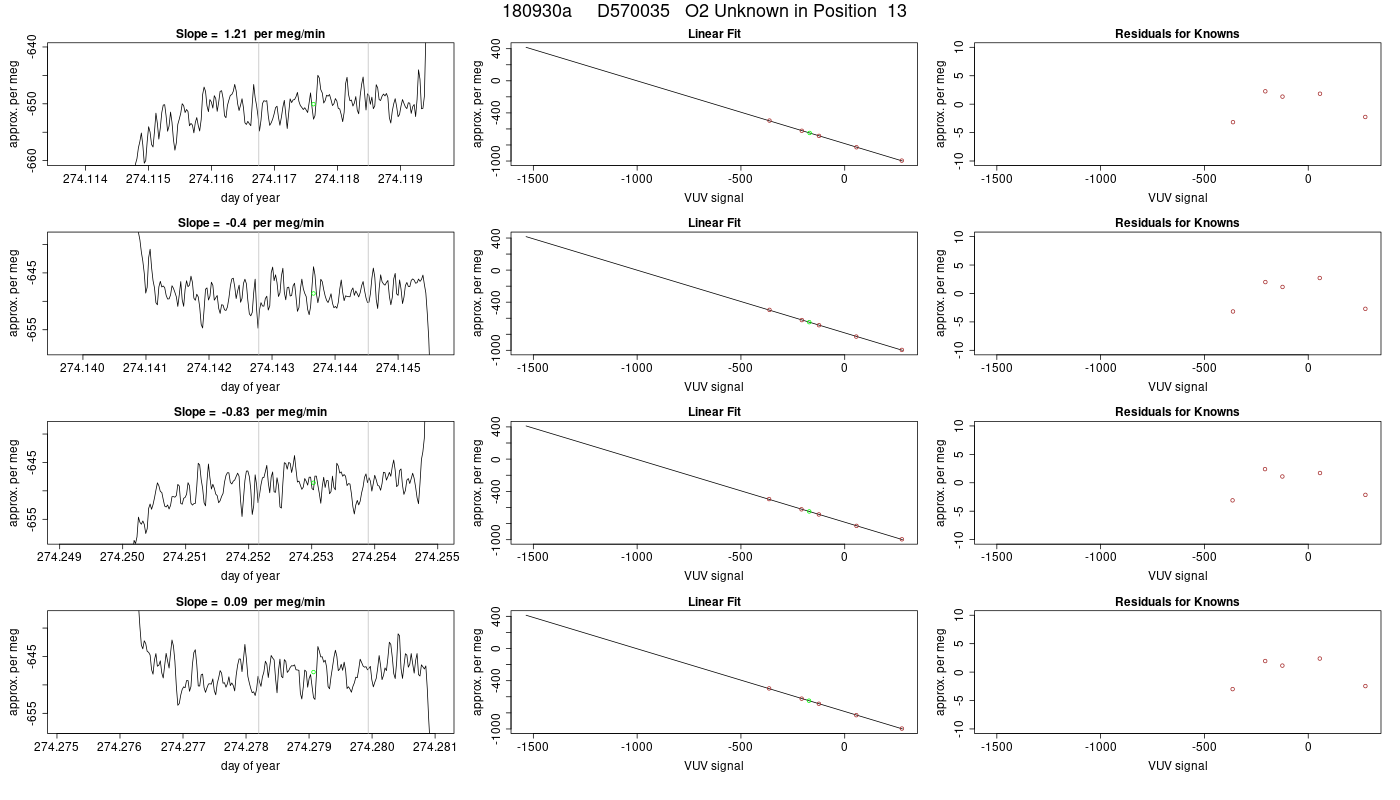

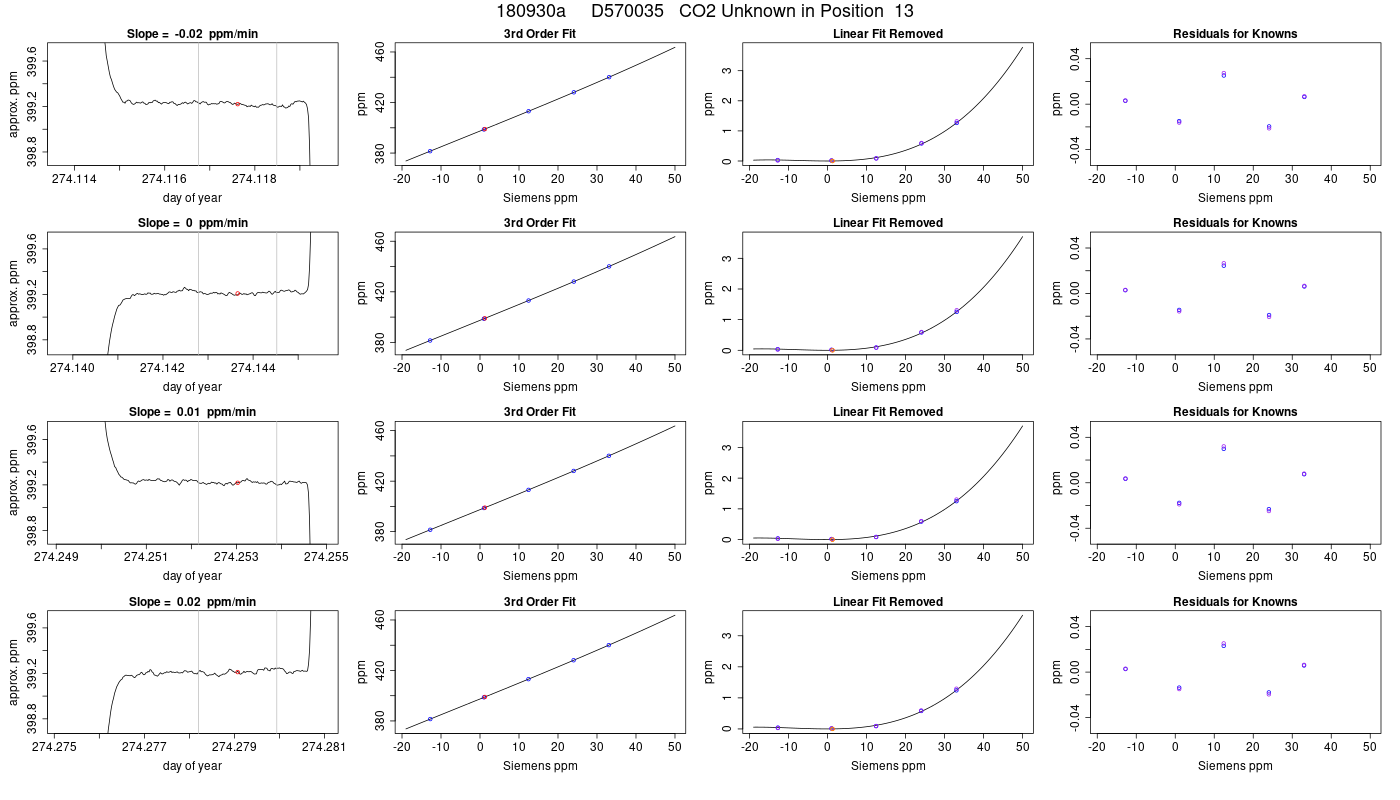

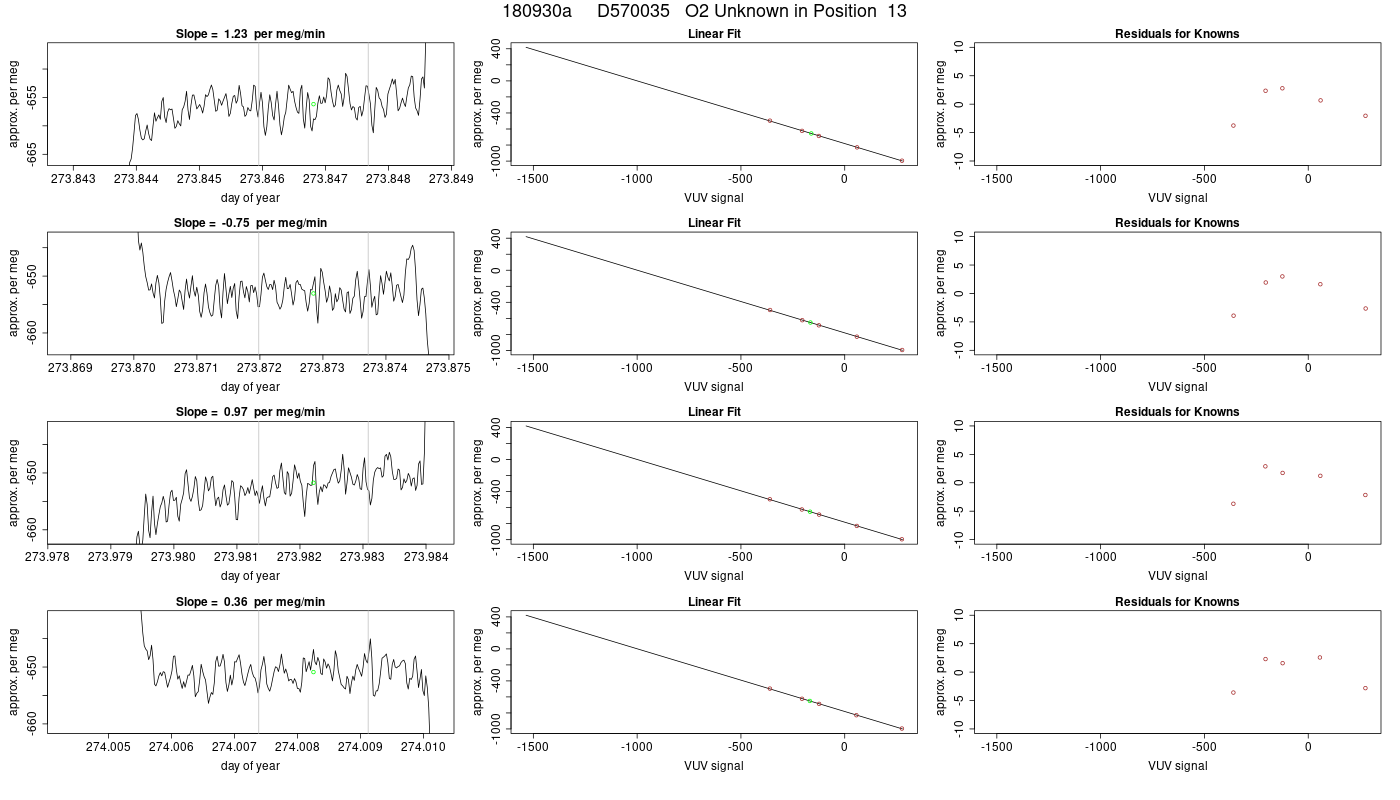

13 D570035    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.847 399.015 0.010 -620.20 2.53 399.224 0.010
273.873 398.995 0.013 -616.82 2.09 399.204 0.013
273.982 398.999 0.012 -615.94 2.09 399.208 0.012
274.008 398.995 0.012 -615.17 1.91 399.205 0.012
274.118 399.007 0.013 -615.13 2.09 399.216 0.013
274.144 398.993 0.009 -613.73 1.93 399.202 0.009
274.253 398.997 0.012 -614.50 2.16 399.206 0.012
274.279 398.990 0.020 -613.54 2.14 399.199 0.020

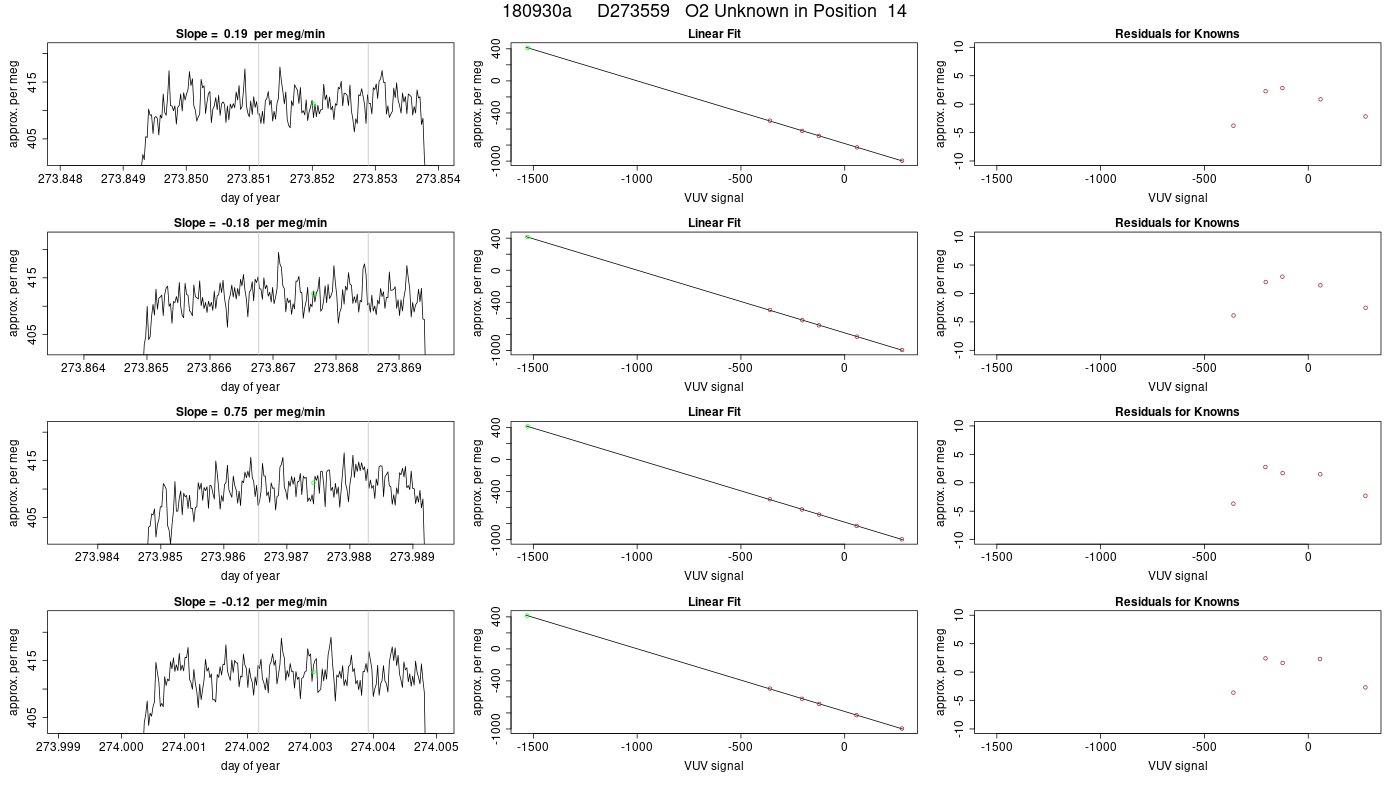

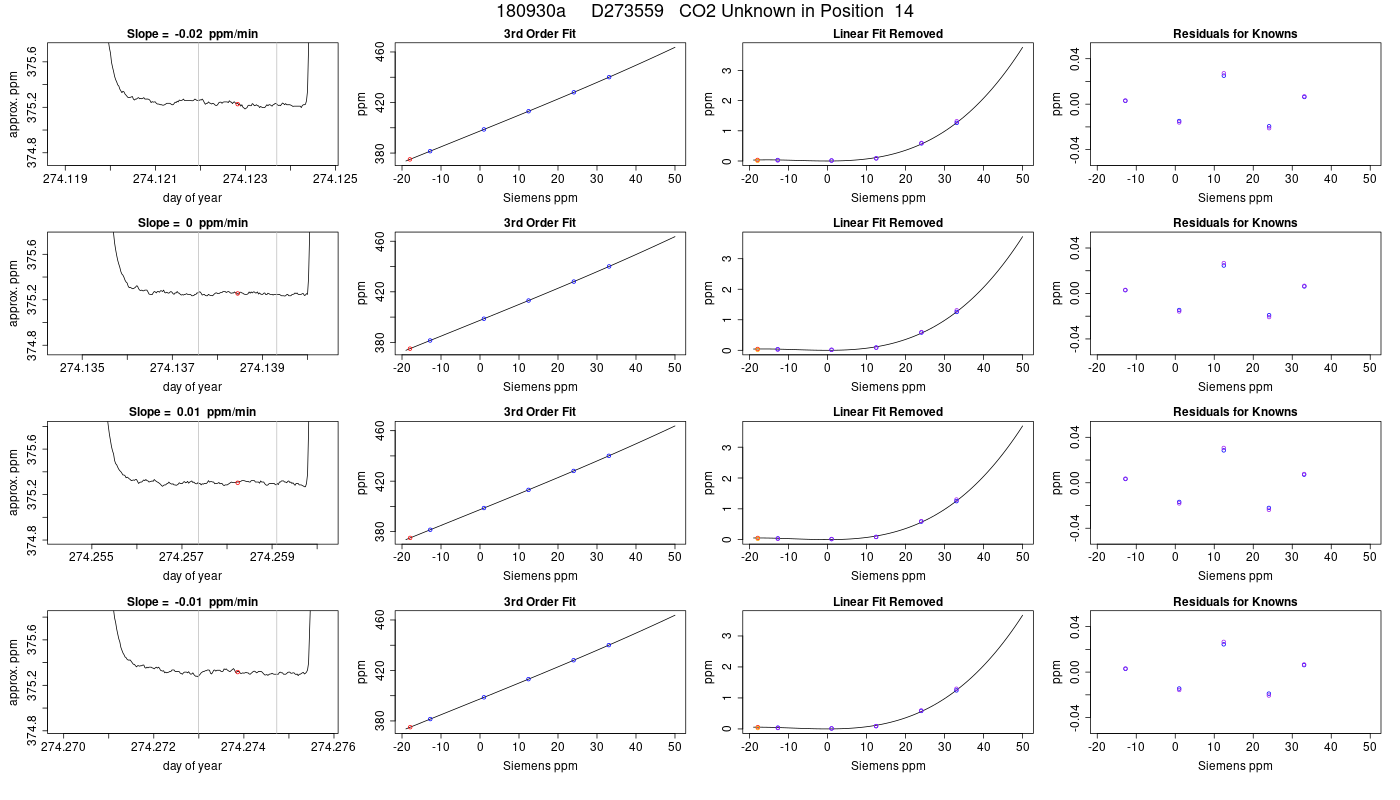

14 D273559    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.852 375.009 0.017 424.16 2.29 375.222 0.017
273.868 375.015 0.010 426.07 2.46 375.228 0.010
273.987 375.020 0.014 425.06 2.36 375.232 0.014
274.003 375.041 0.016 427.80 2.33 375.254 0.016
274.123 375.006 0.019 425.29 2.36 375.219 0.019
274.138 375.035 0.010 427.26 2.24 375.248 0.010
274.258 375.034 0.012 421.95 2.19 375.247 0.012
274.274 375.038 0.015 424.58 2.20 375.251 0.015

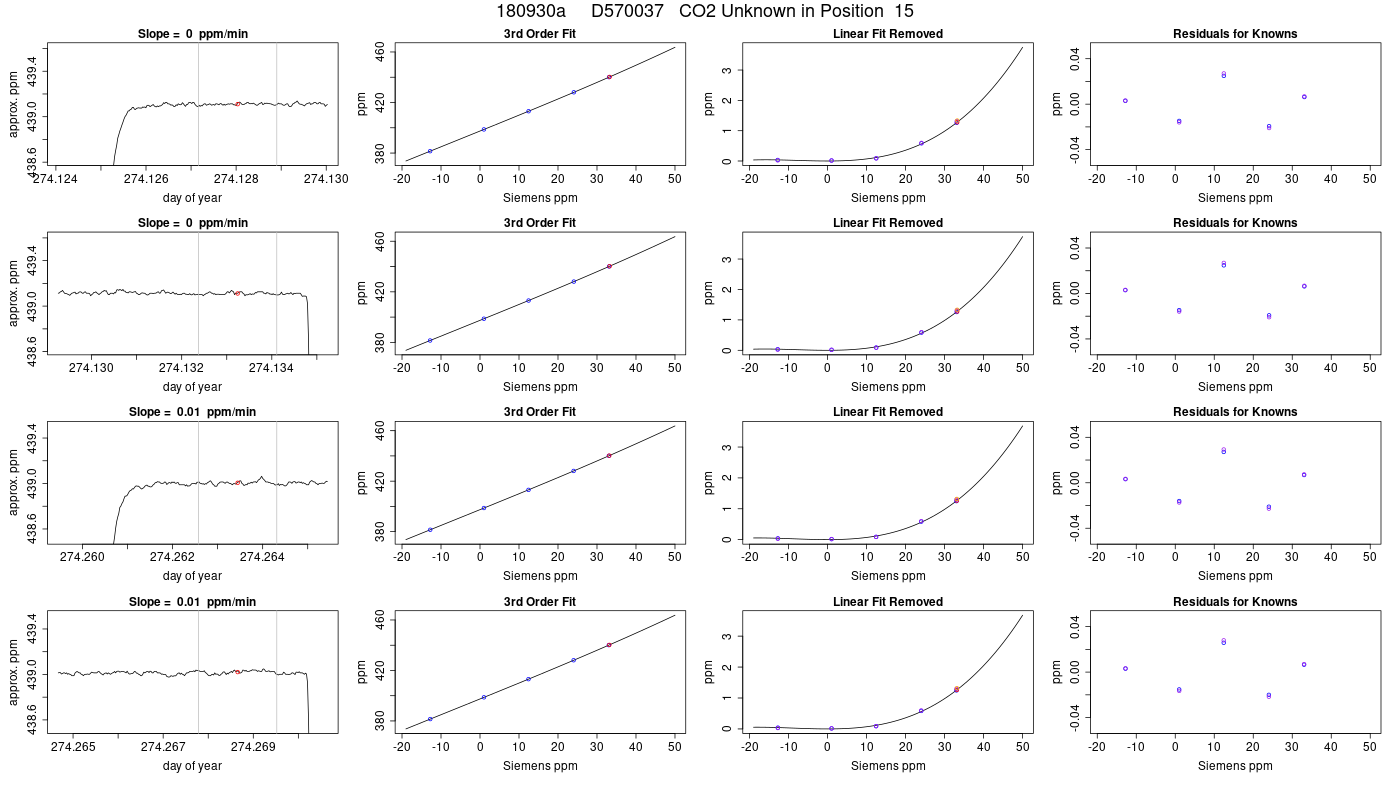

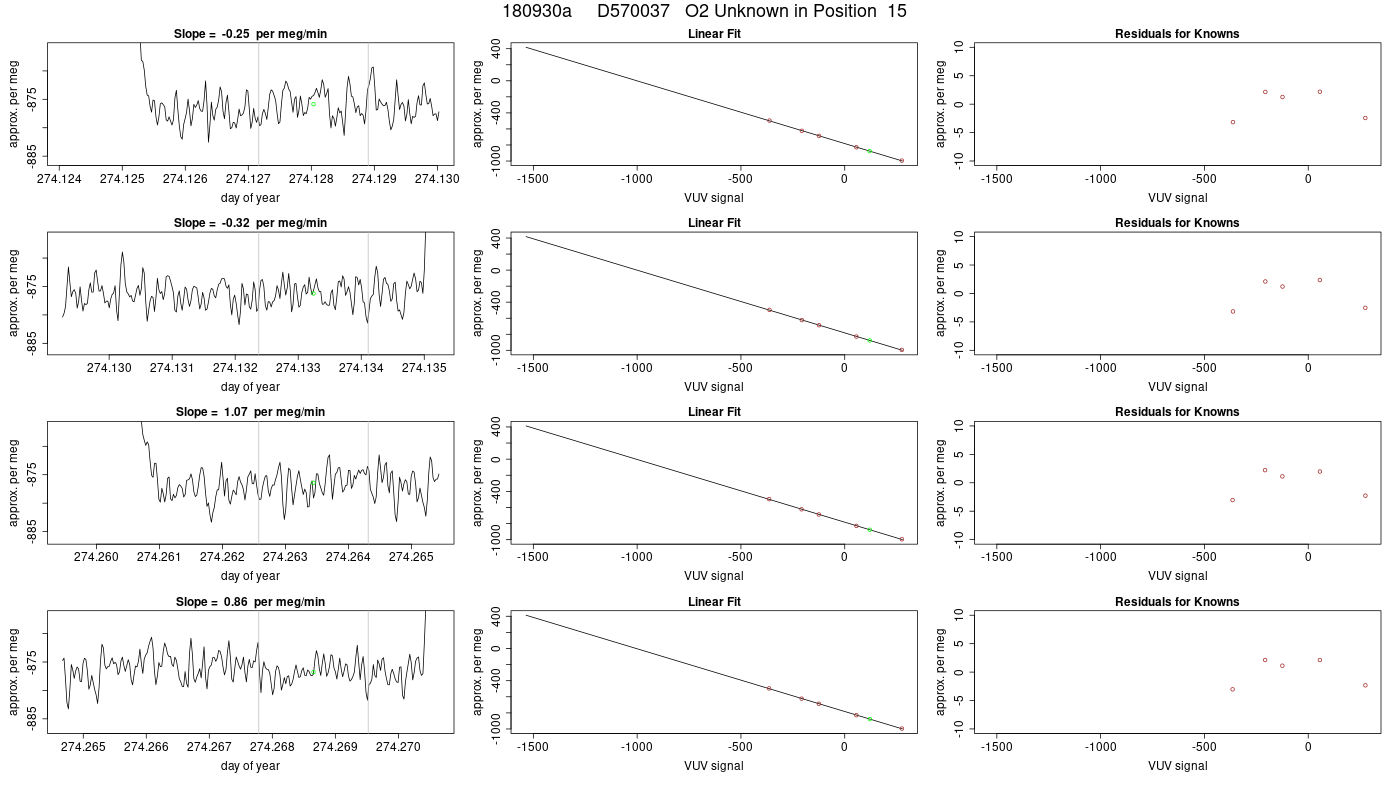

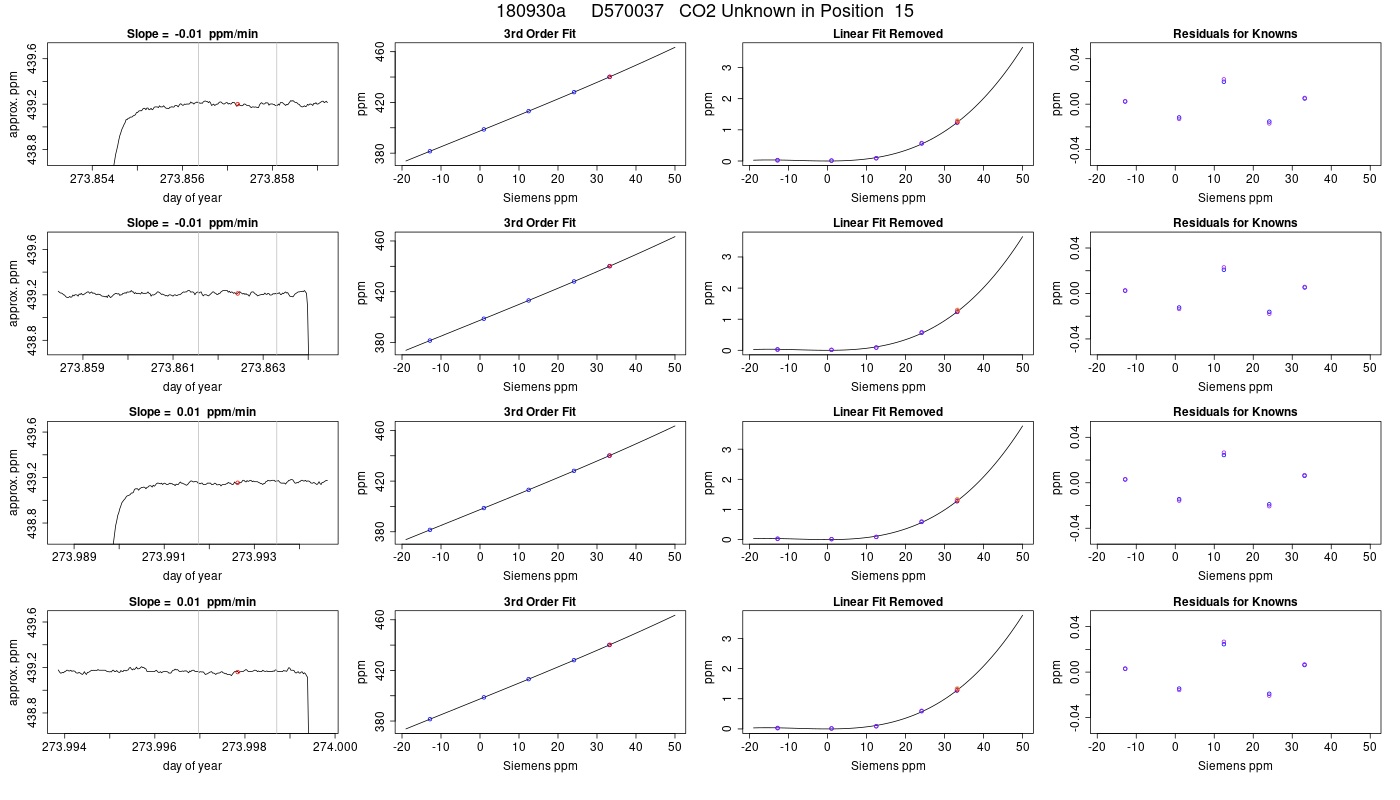

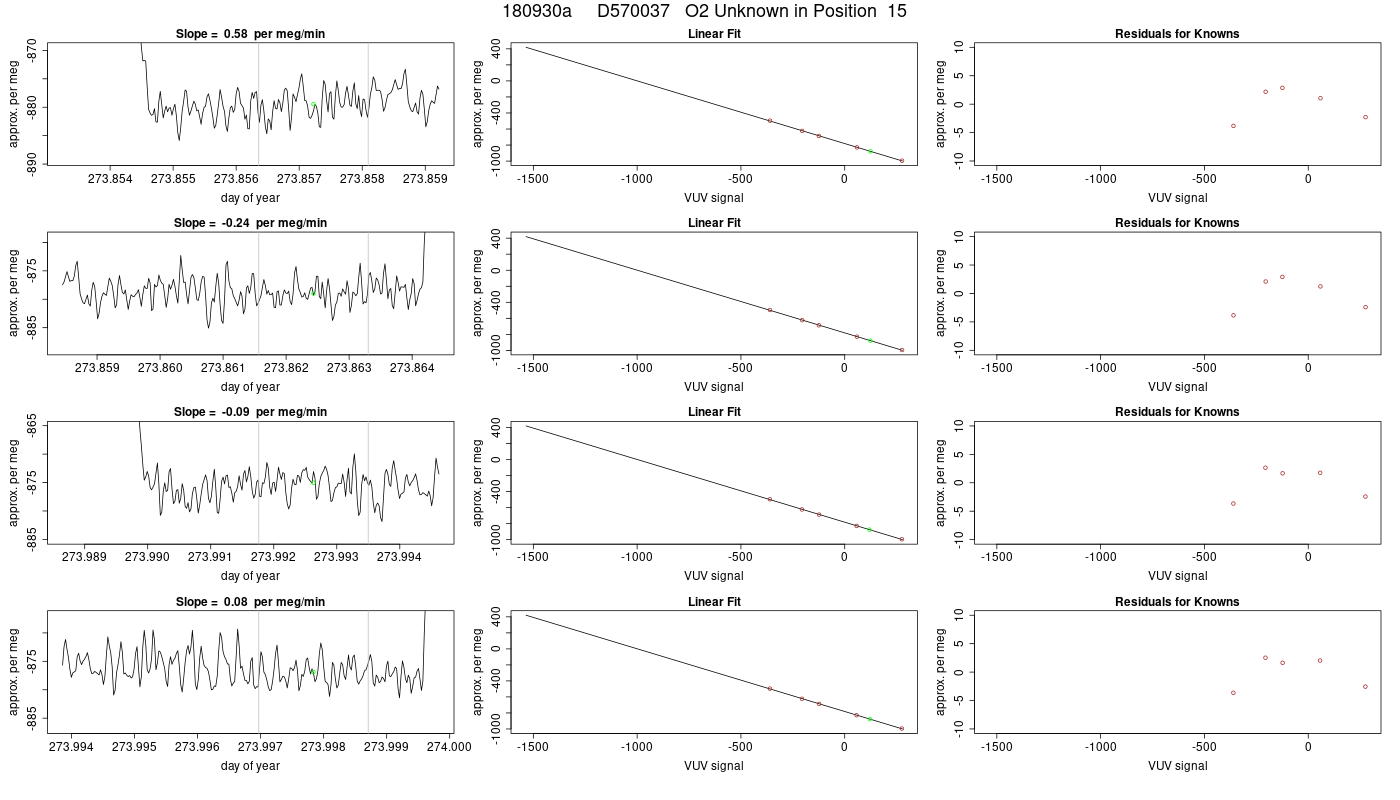

15 D570037    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
273.857 440.221 0.014 -803.12 2.33 440.432 0.014
273.862 440.234 0.013 -802.61 1.81 440.445 0.013
273.993 440.226 0.013 -799.27 2.13 440.437 0.013
273.998 440.234 0.012 -801.19 2.01 440.445 0.012
274.128 440.248 0.008 -800.58 2.36 440.459 0.008
274.133 440.250 0.011 -800.96 1.97 440.461 0.011
274.263 440.223 0.016 -801.08 2.23 440.435 0.016
274.269 440.244 0.015 -801.45 1.83 440.455 0.015
