UEA CRAM Lab O2 and CO2 calibration results
RUN = 180927a
PROCESSED: 16:58:28 Mon 21Aug2023

Notes
Logfile

Results

Using data from 270.887 to 271.36 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.142 0.009 -0.035 382.362 0.009 -0.035 7 -482.55 0.76 -1.73 7
6 D570040 405.328 0.006 -0.018 405.528 0.006 -0.018 7 -701.66 1.42 3.69 7
9 D570039 412.129 0.006 -0.020 412.320 0.006 -0.020 7 -725.80 0.74 -2.33 7
10 D570036 418.166 0.011 -0.003 418.352 0.011 -0.003 7 -723.24 1.12 5.64 7
11 D570038 462.728 0.033 0.027 463.082 0.033 0.027 7 -885.05 0.72 1.58 7
13 D570035 399.001 0.006 -0.021 399.210 0.006 -0.021 7 -615.81 0.73 3.15 7
14 D273559 375.016 0.013 -0.063 375.228 0.013 -0.063 7 424.76 2.60 -0.44 7
15 D570037 440.239 0.015 0.090 440.450 0.015 0.090 7 -801.54 0.94 -2.10 7
WT D258964 397.453 0.010 -0.074 397.664 0.010 -0.074 91 -750.62 0.53 -3.52 91
Text File

Raw Data and Diagnostics Figures

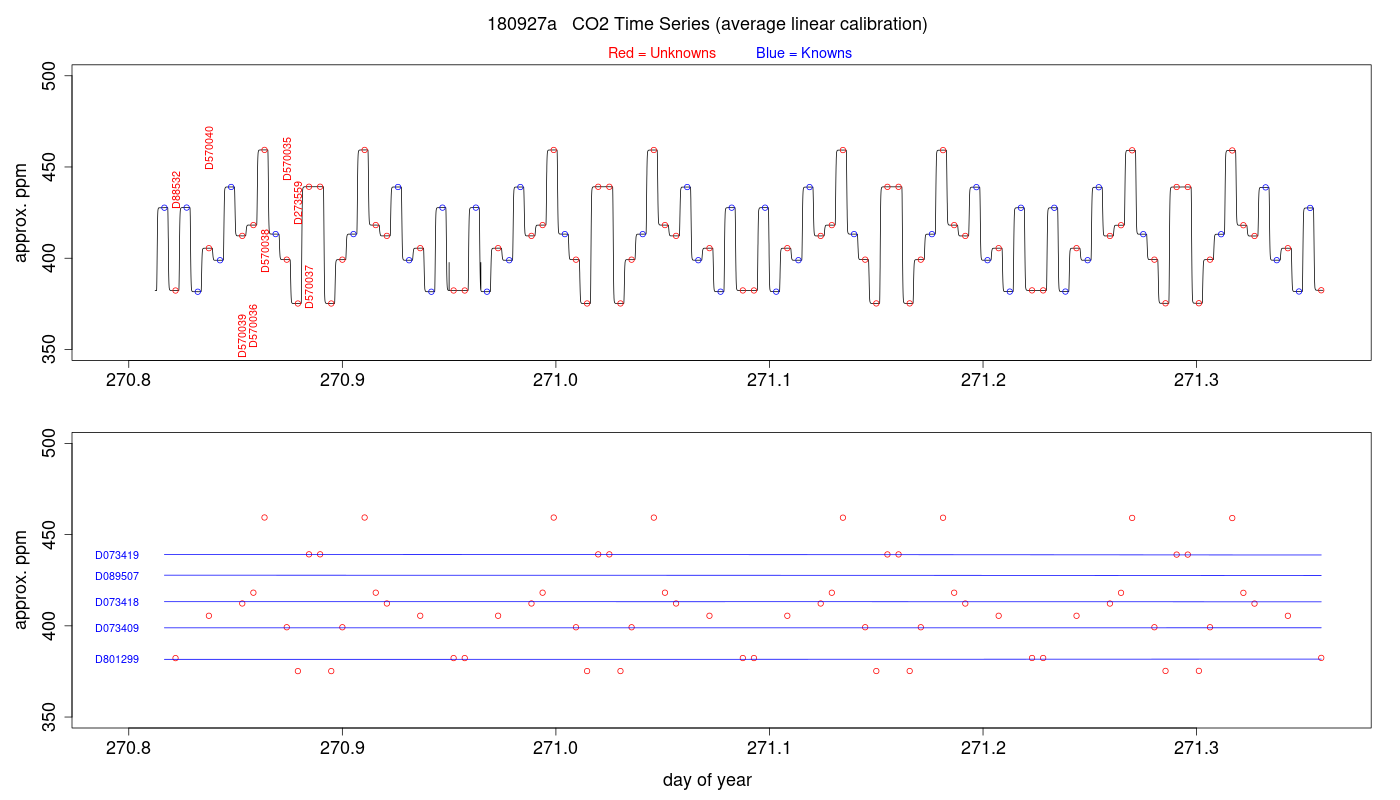

CO2 Timeseries
 CO2 Averages for Unknowns

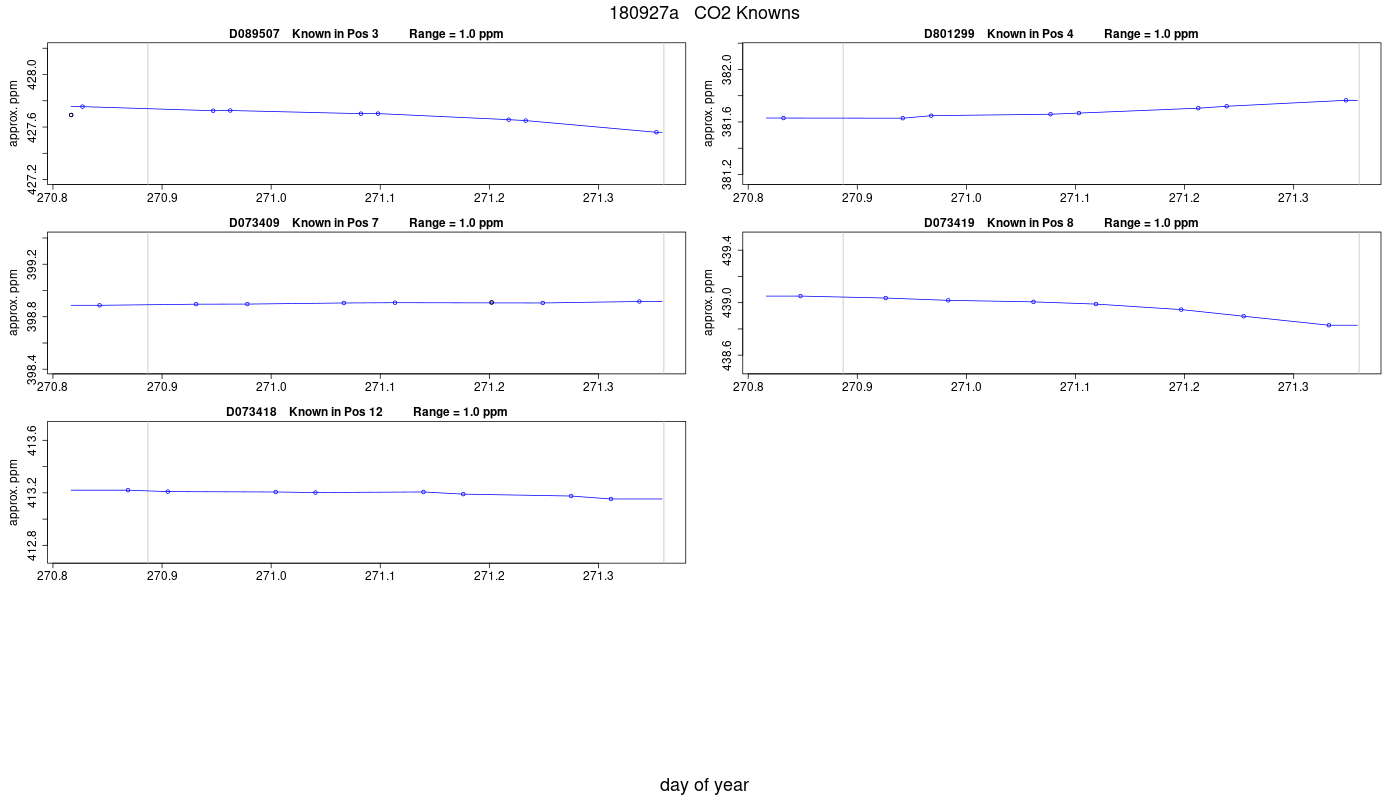

 CO2 Averages for Knowns
Jog Ave. Diagnostics 1

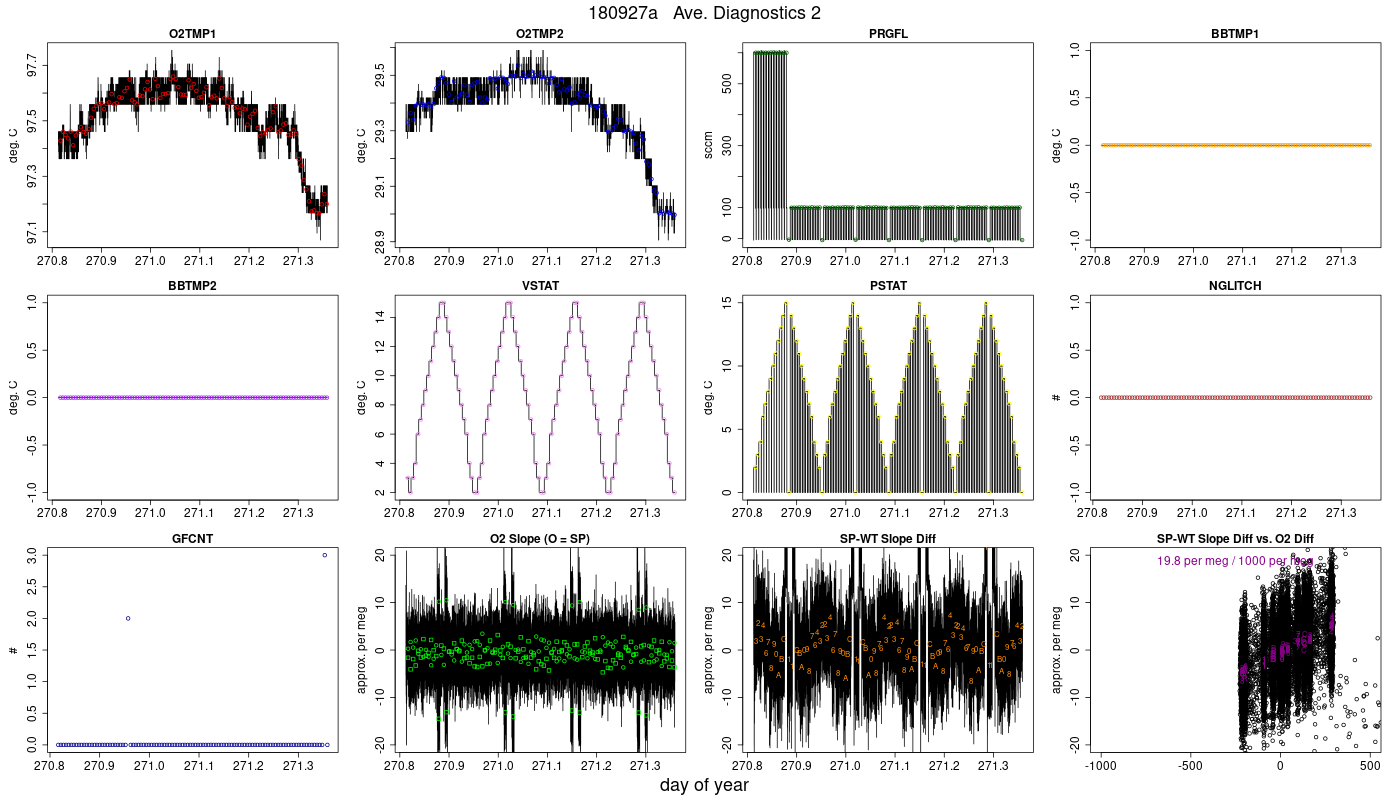

 Jog Ave. Diagnostics 2

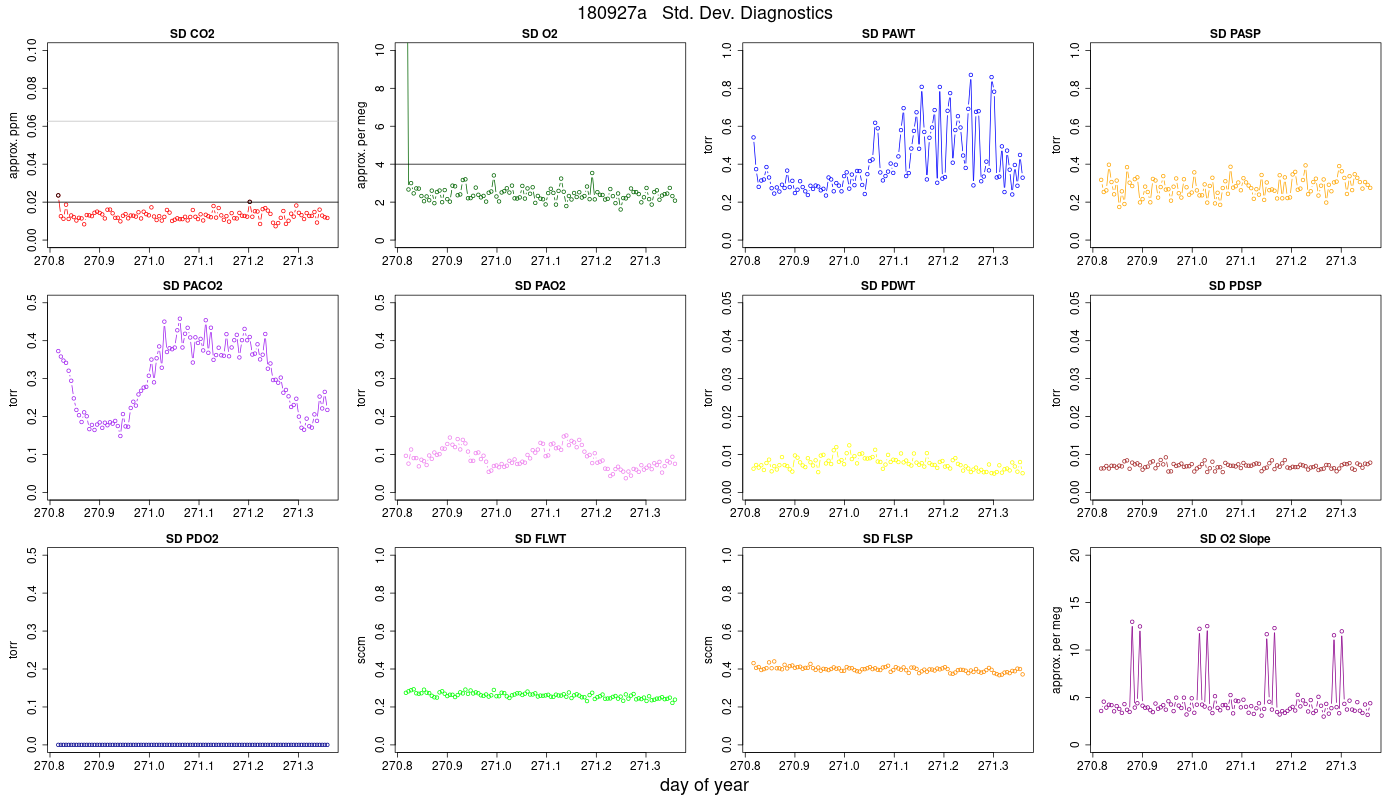

 Jog Std. Dev. Diagnostics

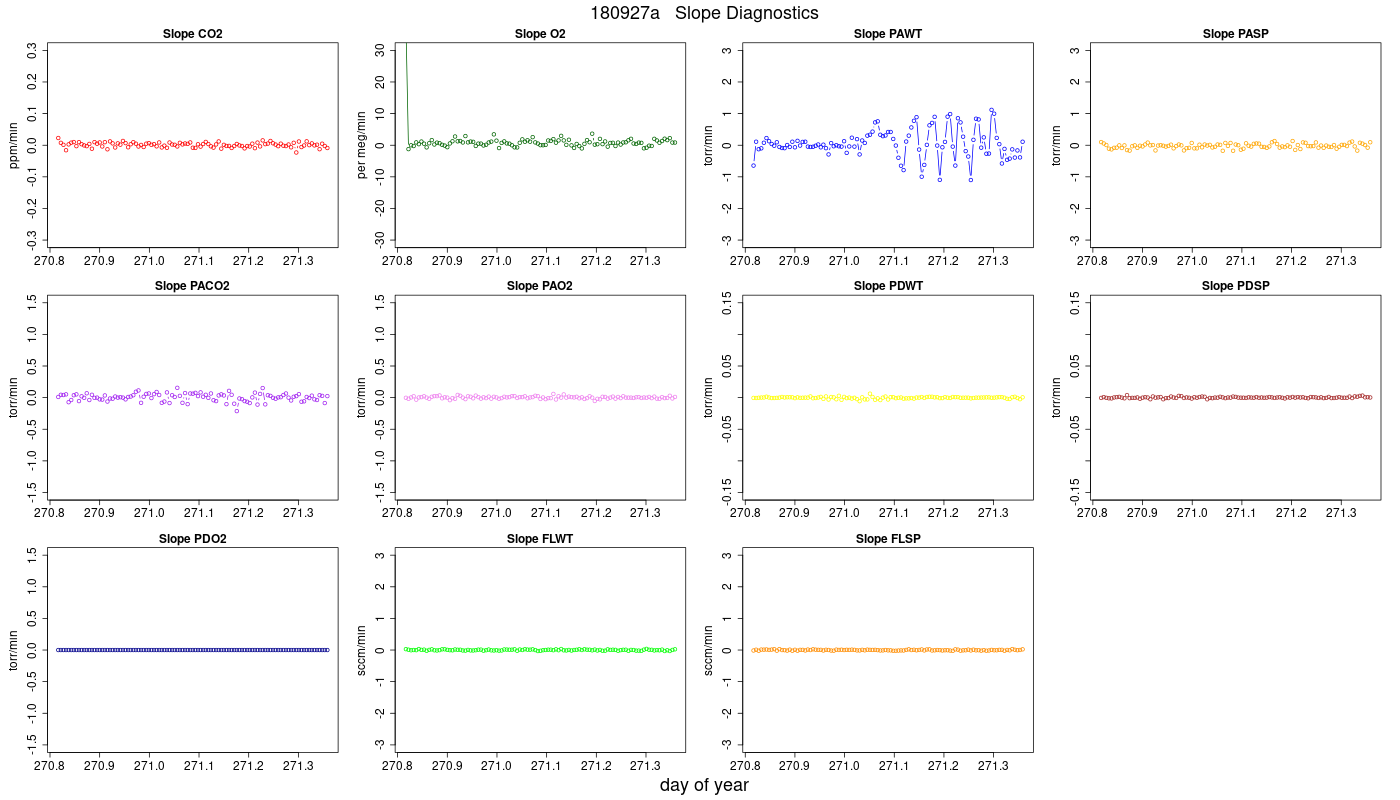

Jog Slope Diagnostics

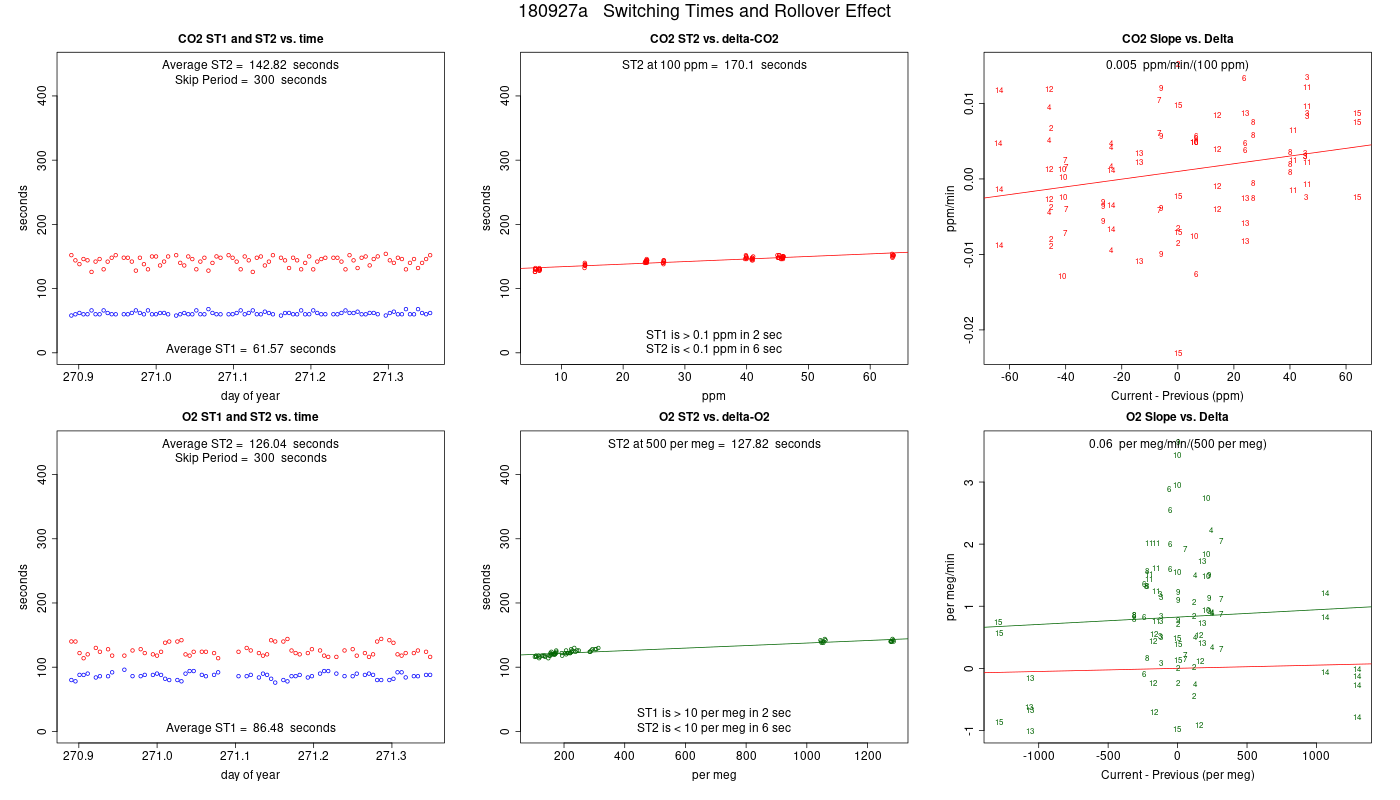

 Rollover Effect

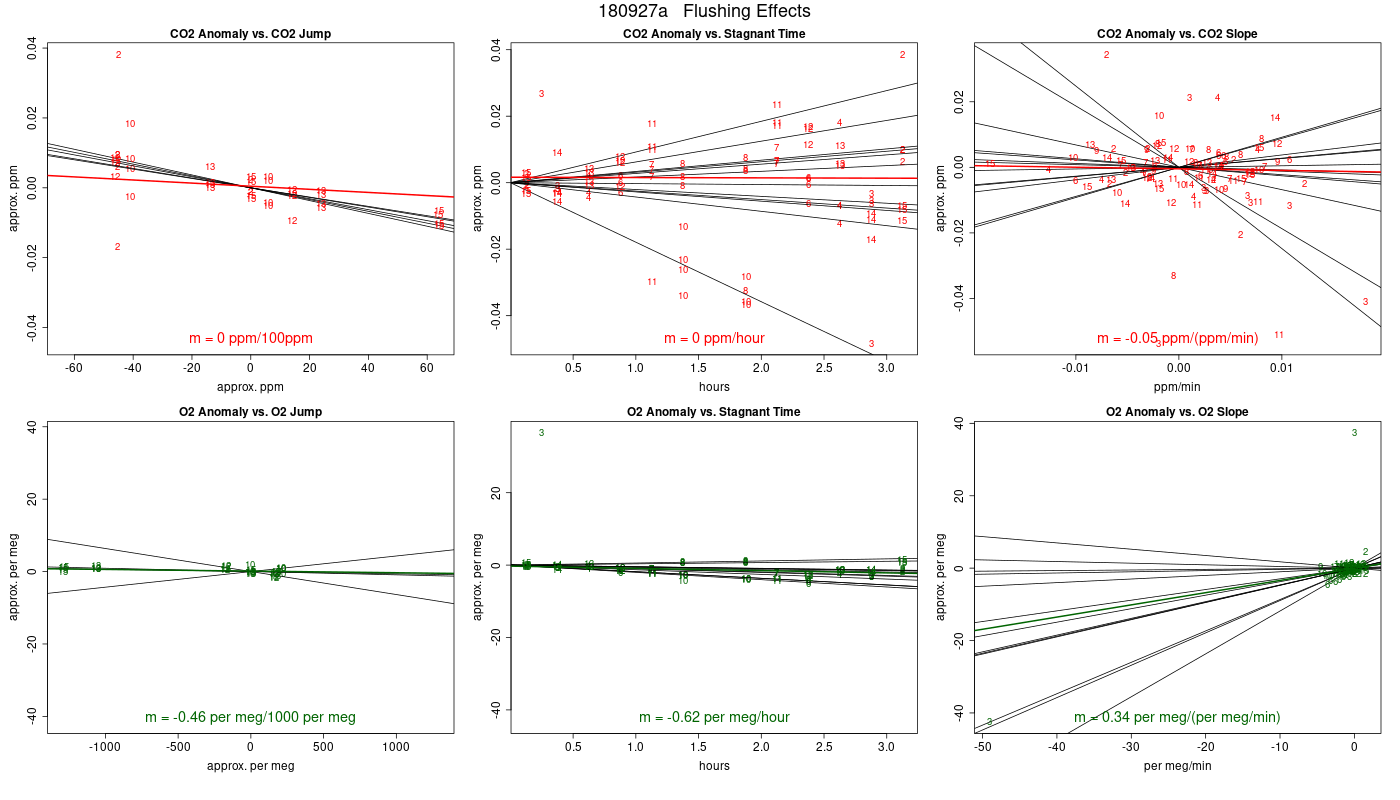

 Flushing Effect
CO2 Parameters

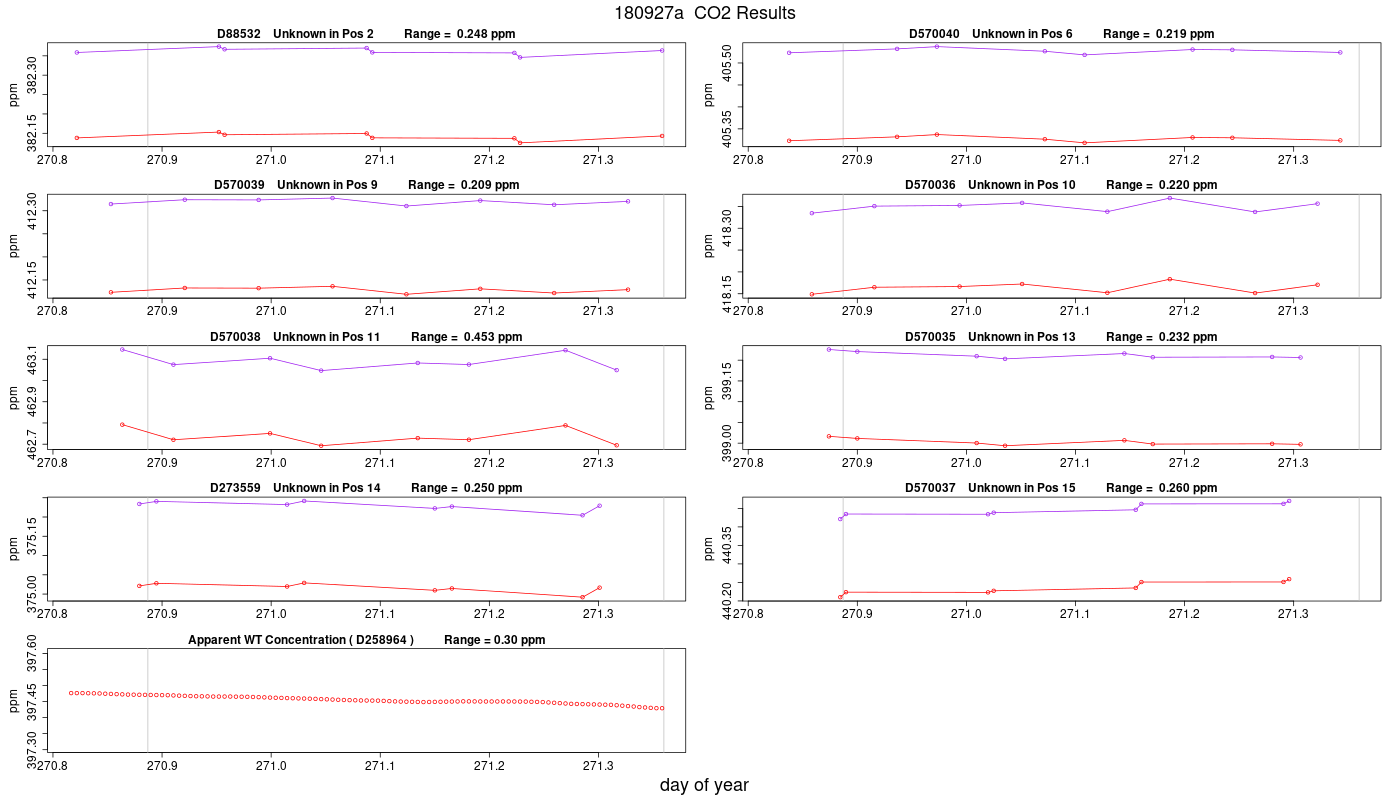

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results

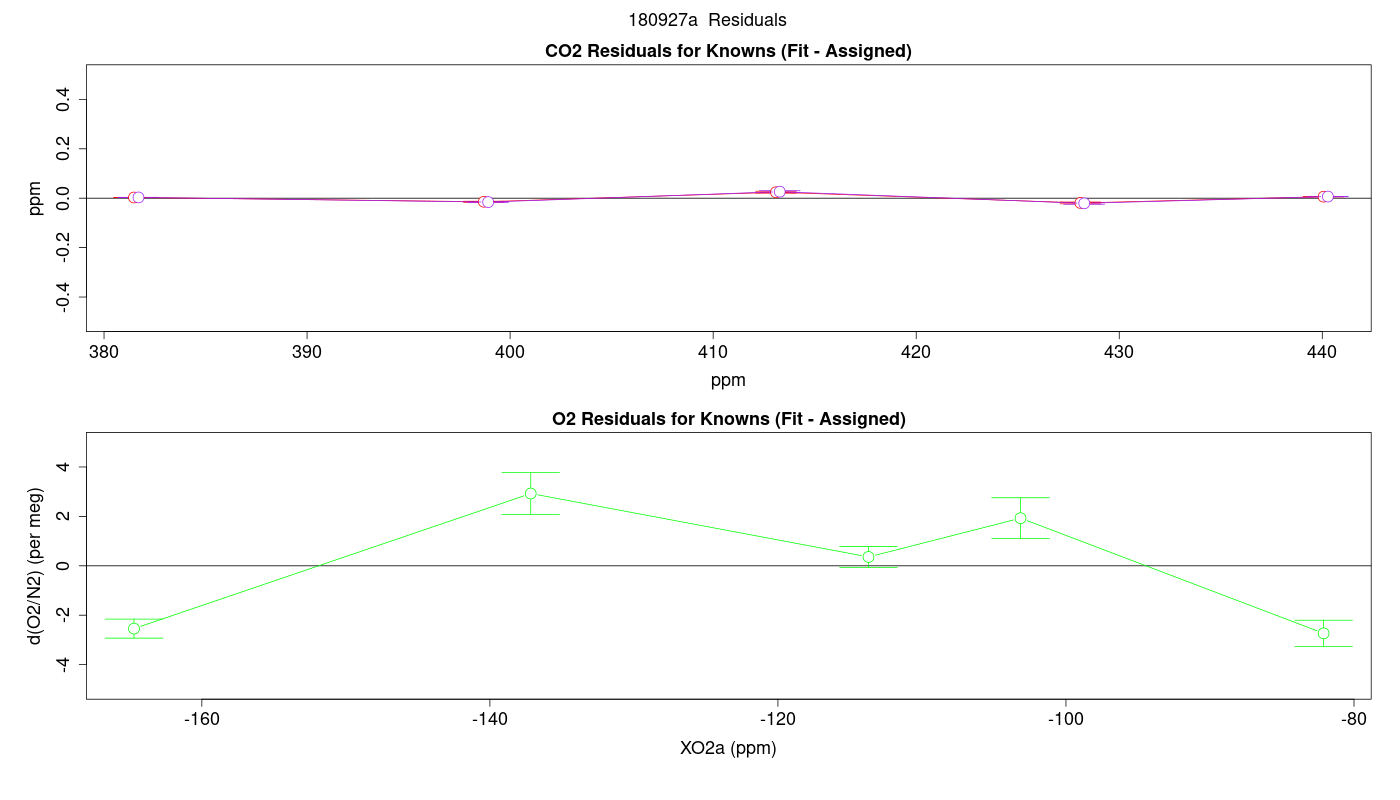

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

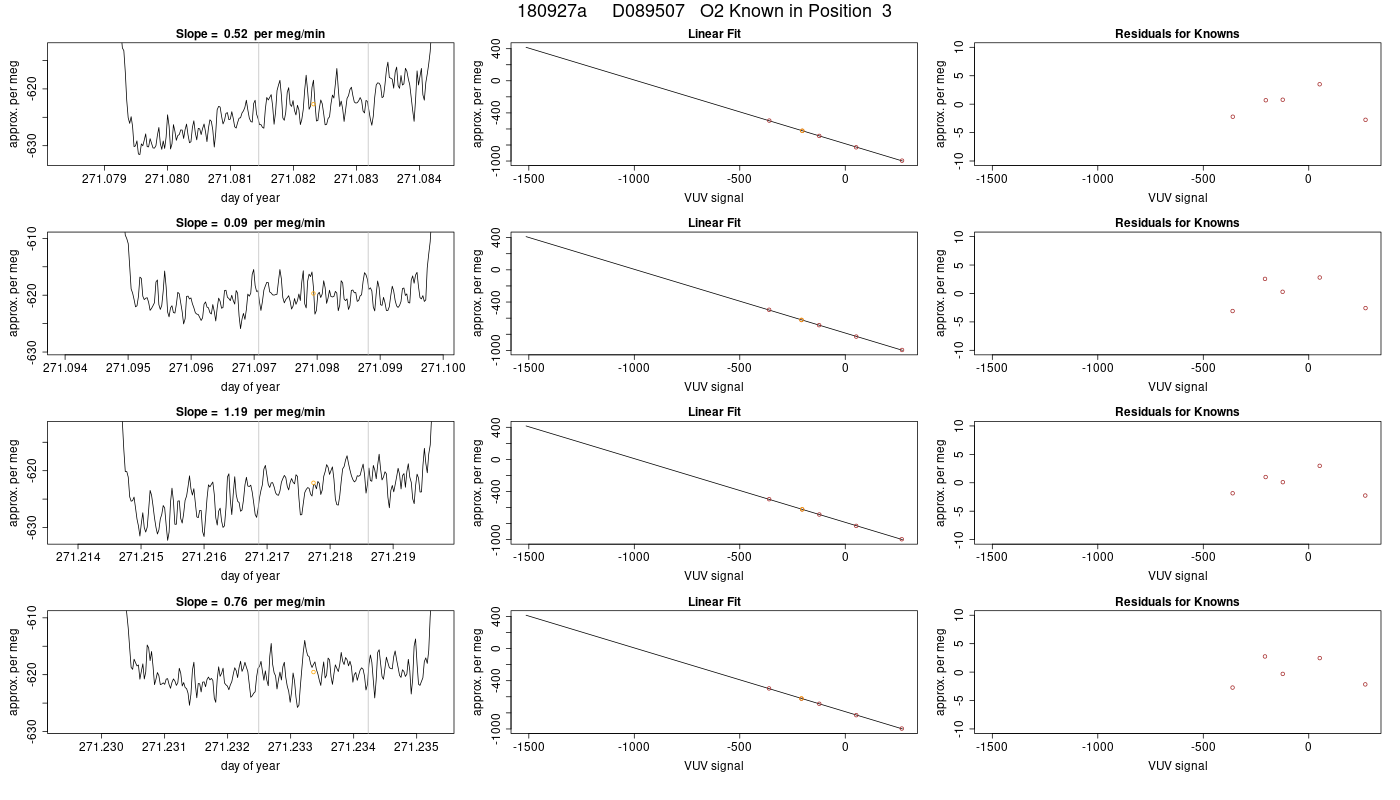

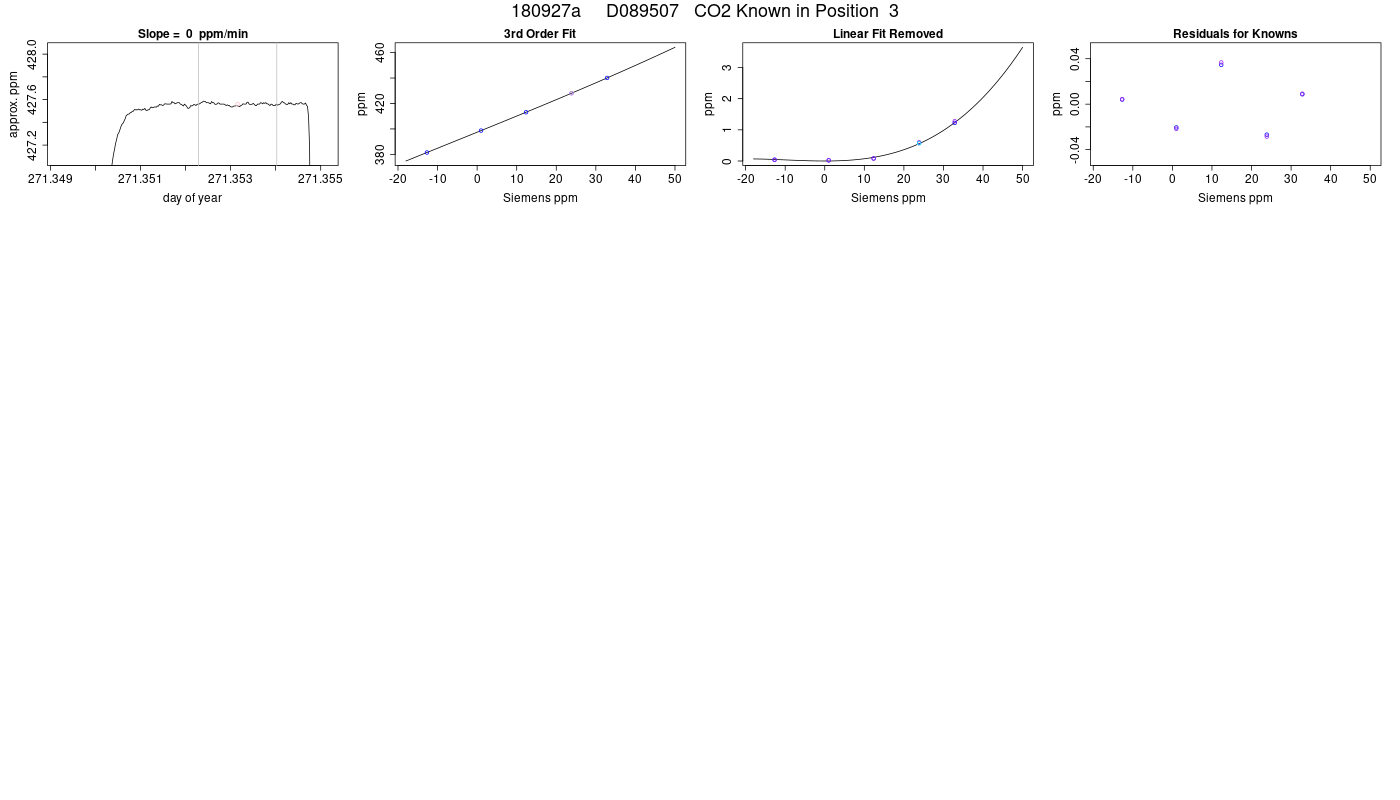

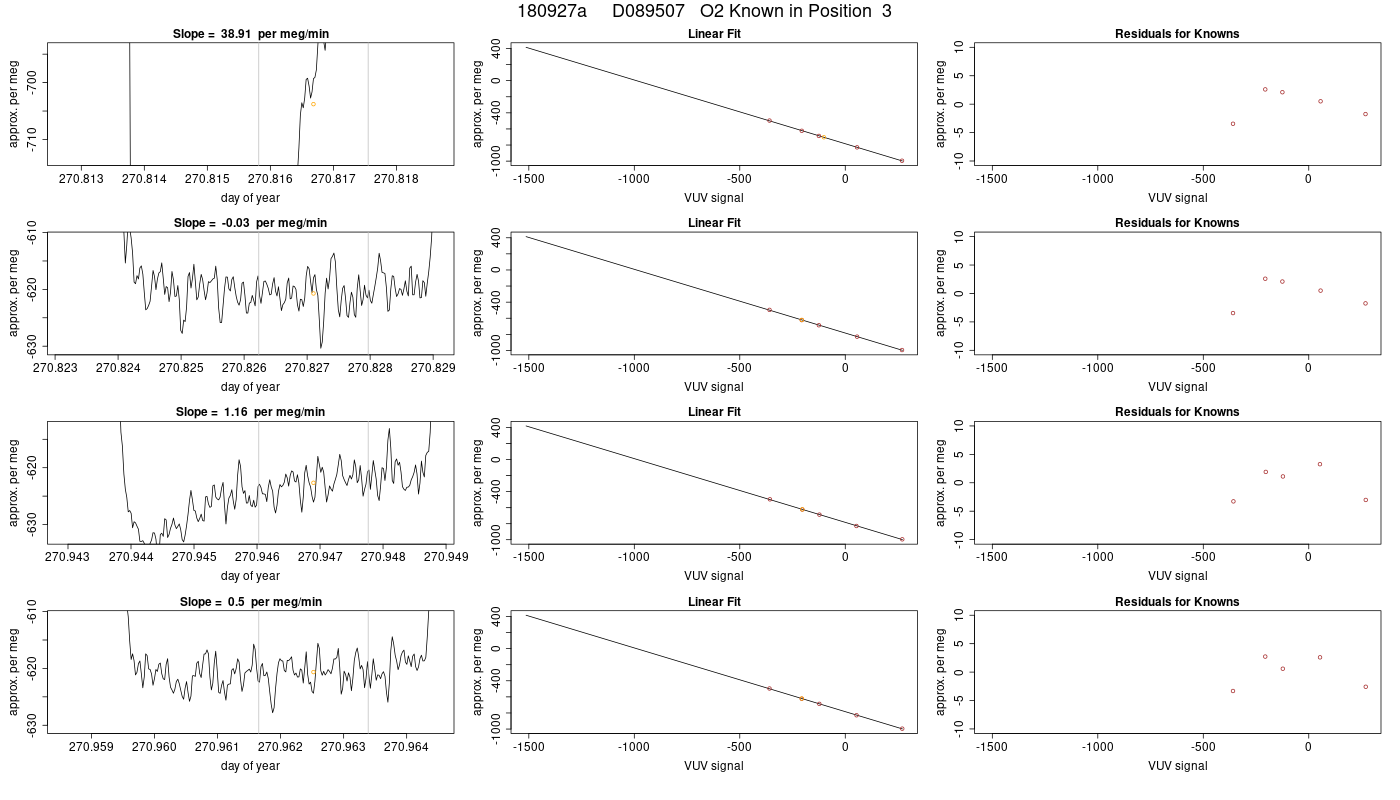

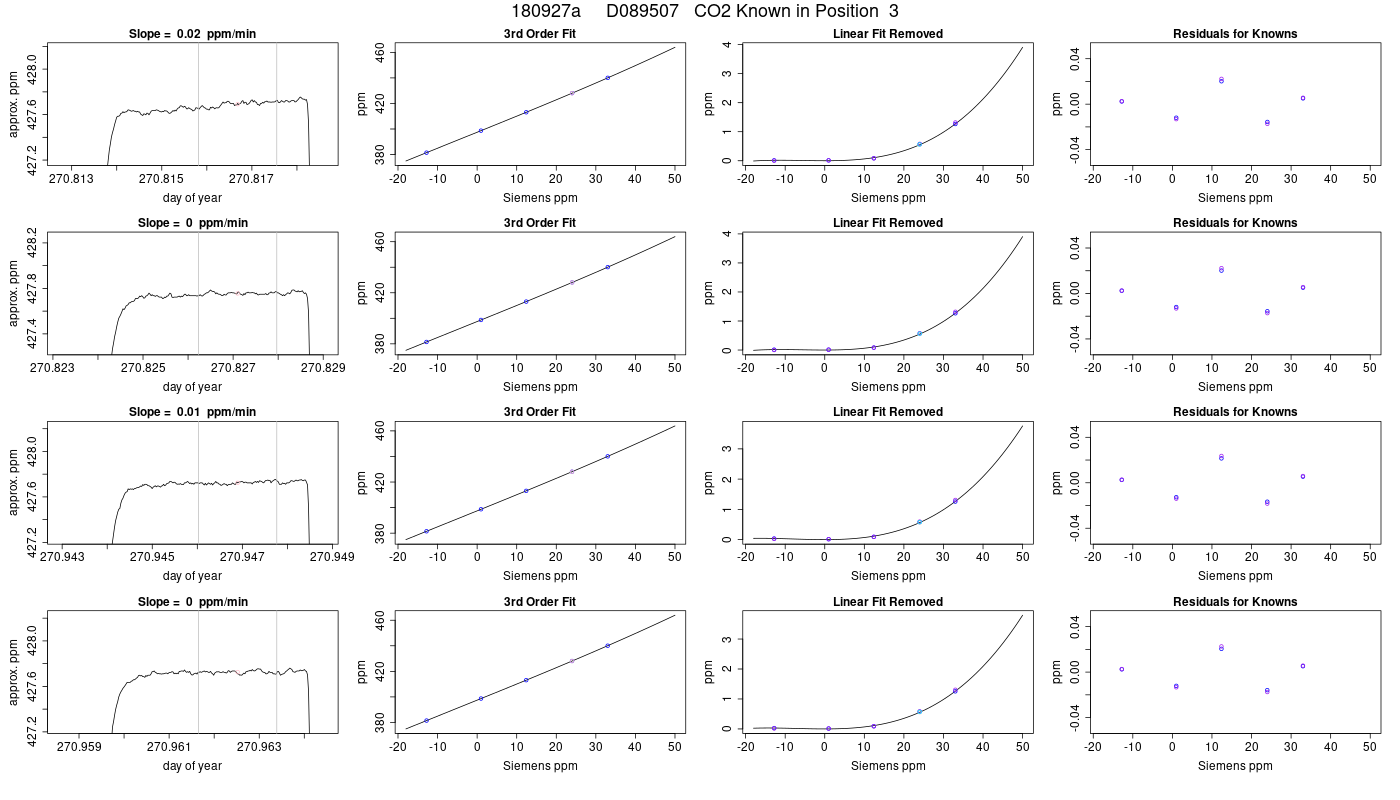

3 D089507 428.087 -0.019 0.004 428.275 -0.021 0.004 7 -559.23 1.93 0.83 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

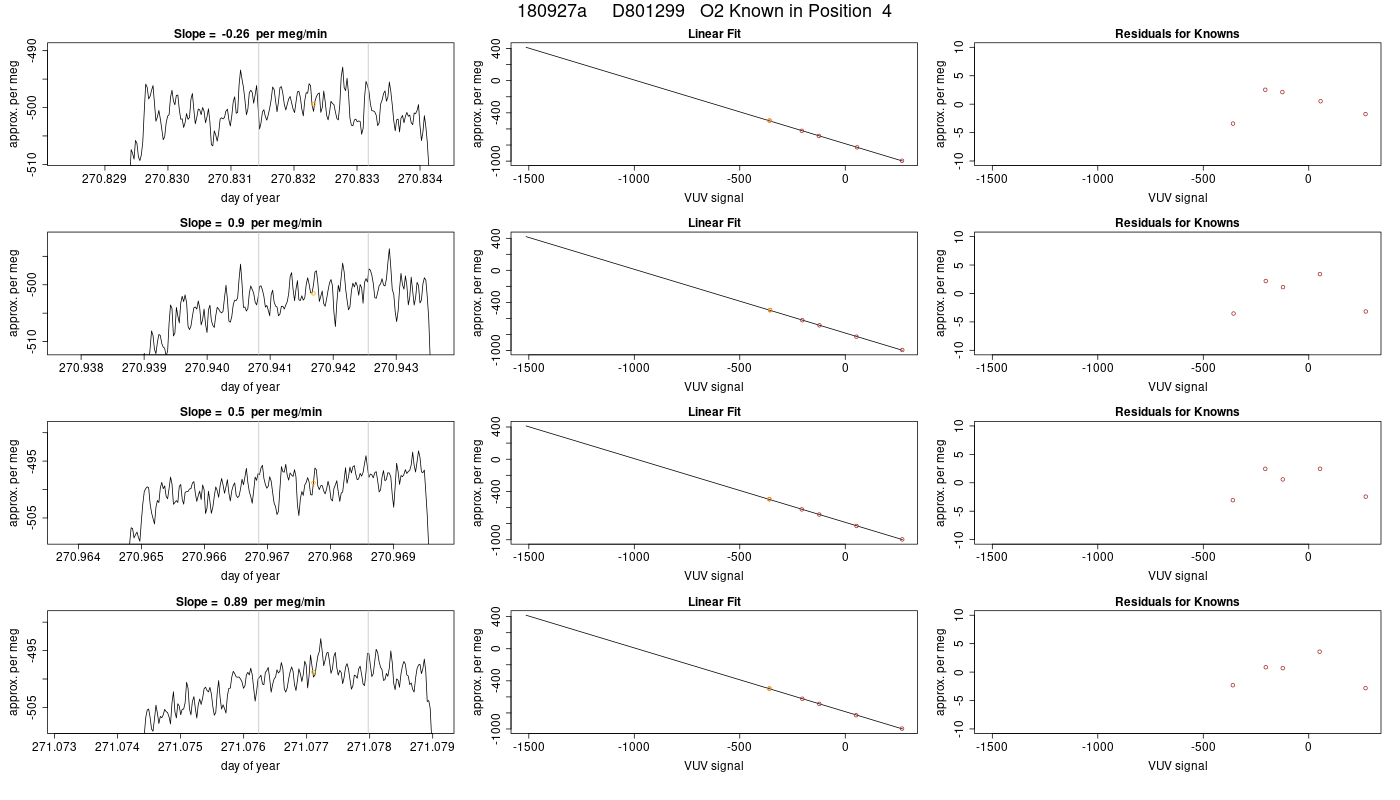

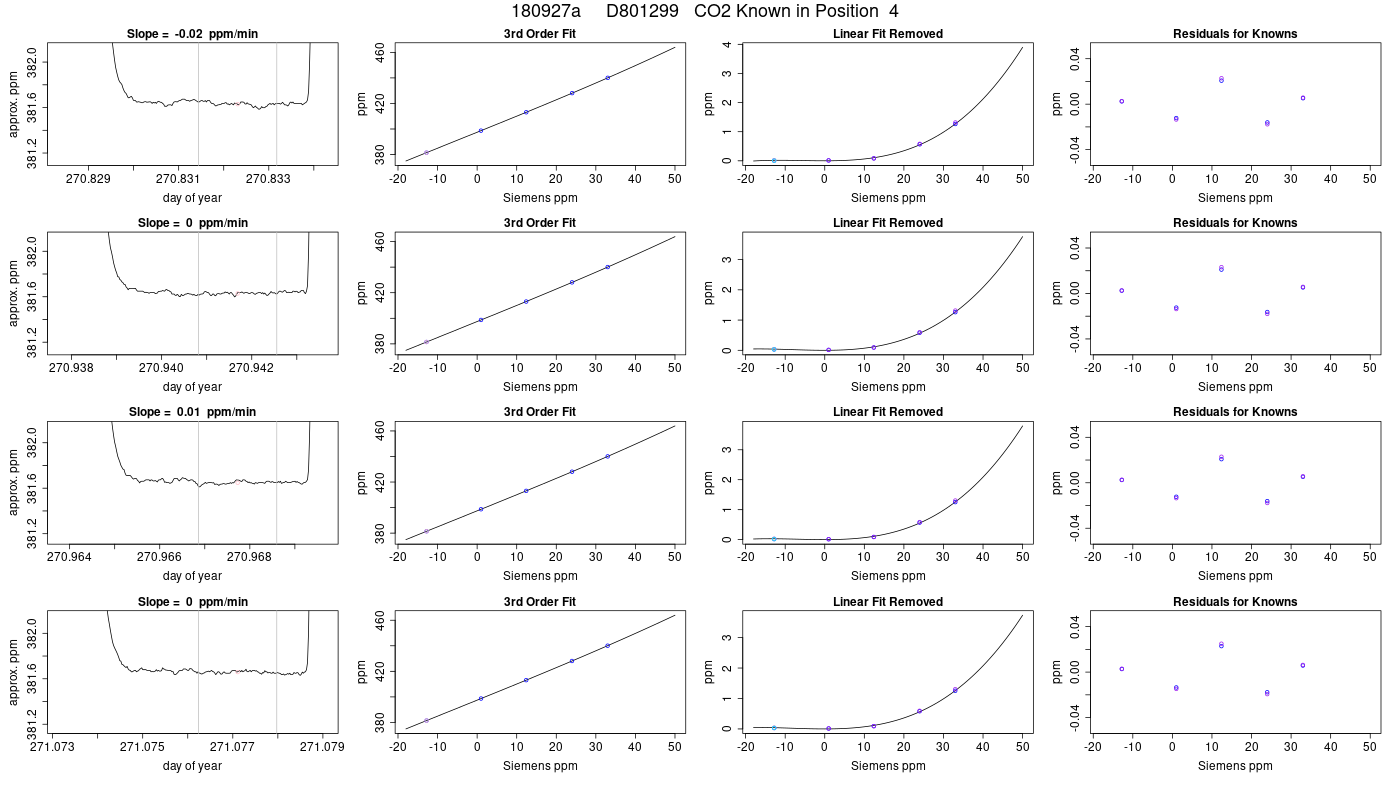

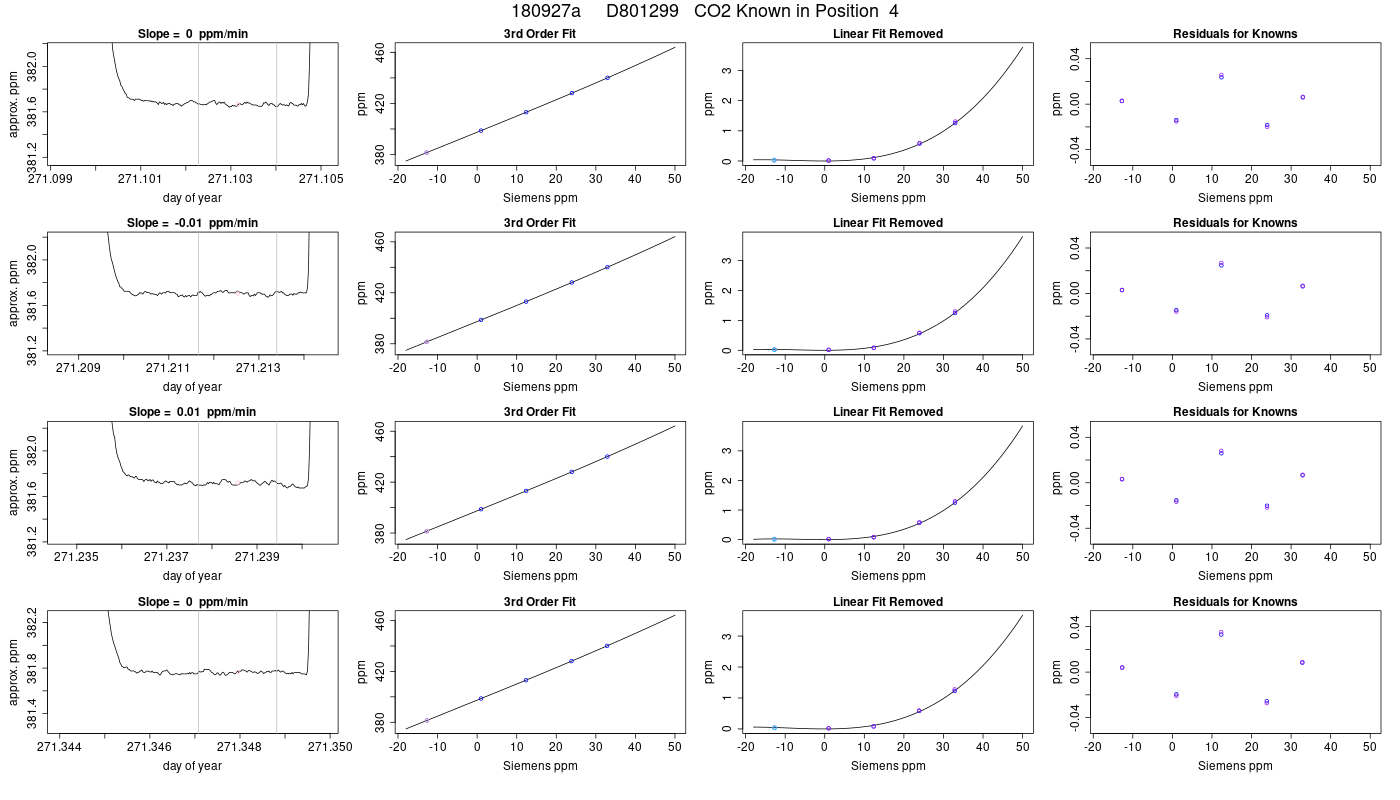

4 D801299 381.475 0.003 0.000 381.695 0.003 0.000 7 -477.75 -2.73 0.53 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

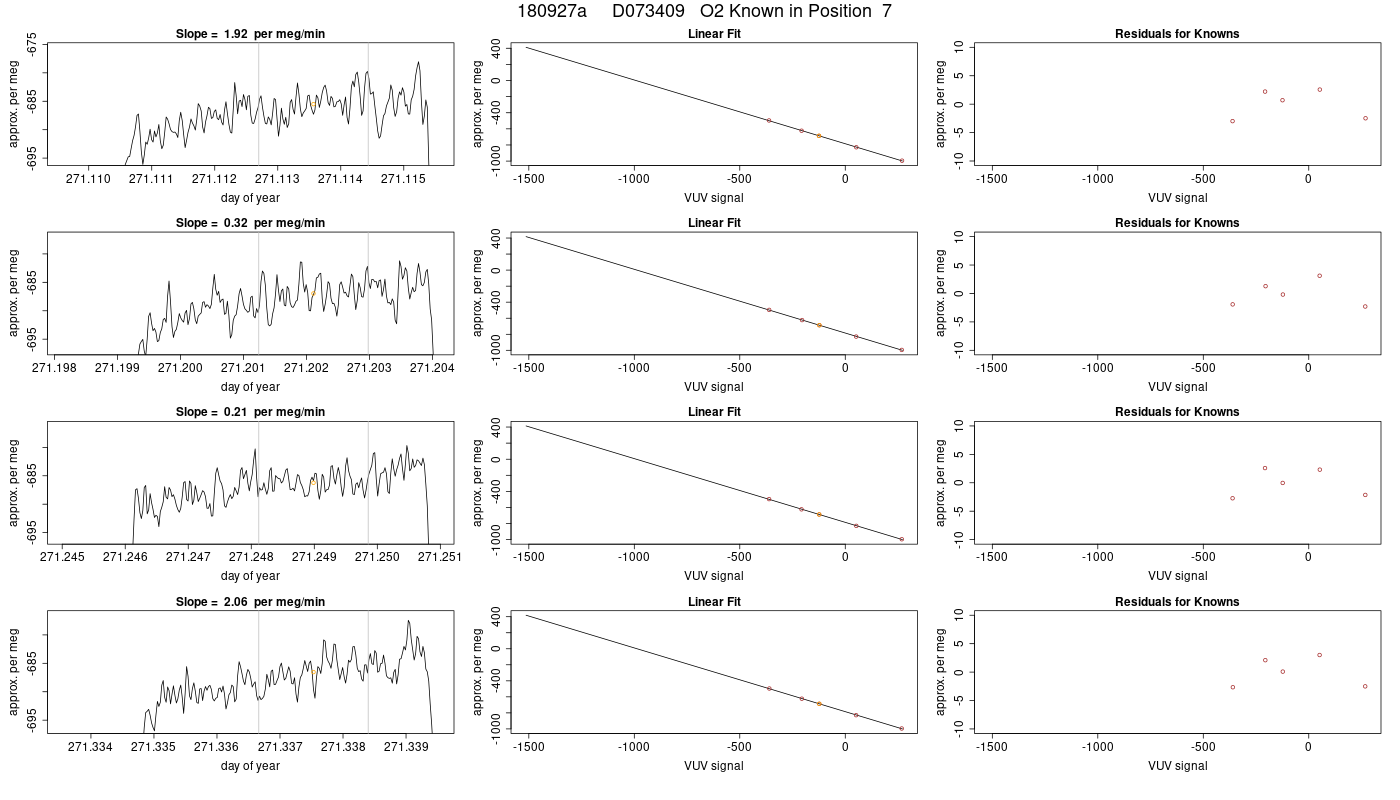

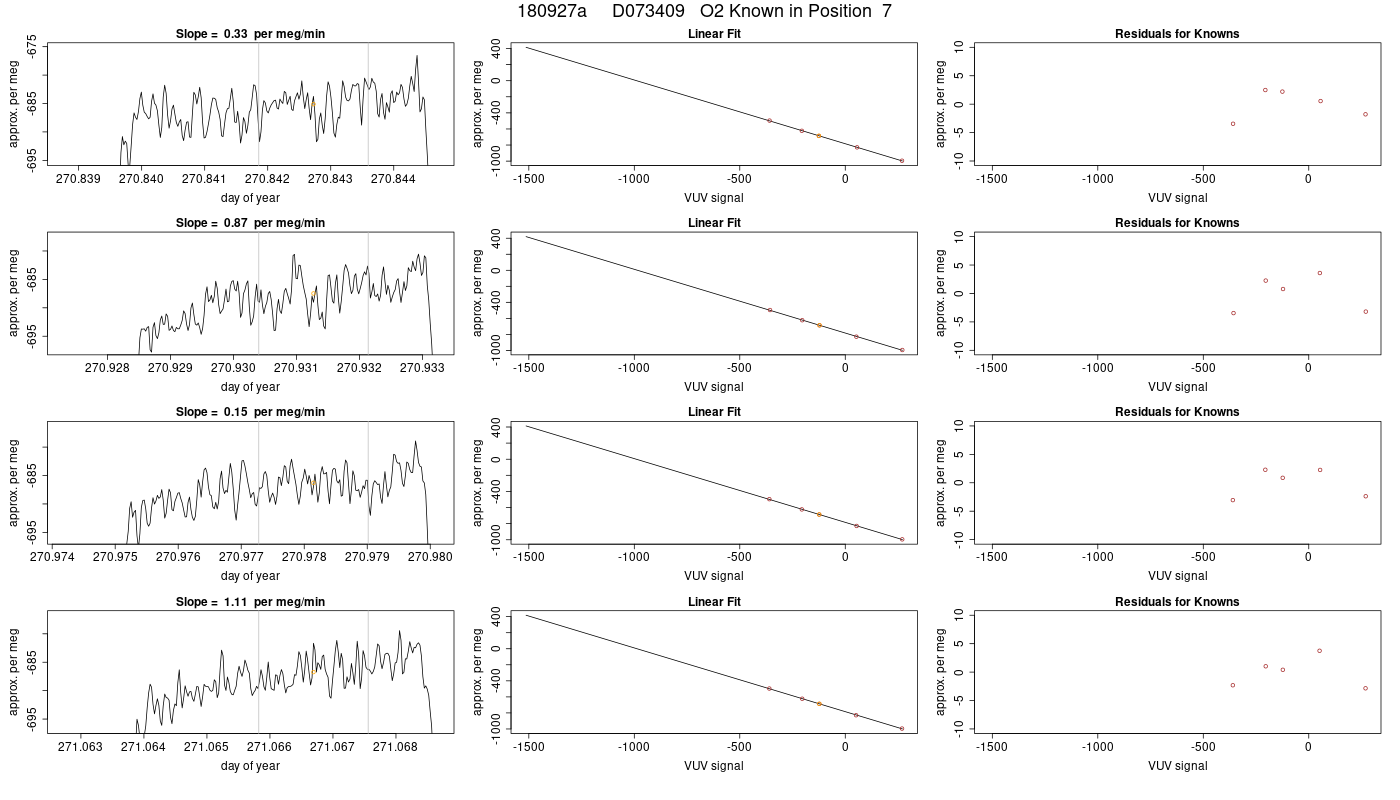

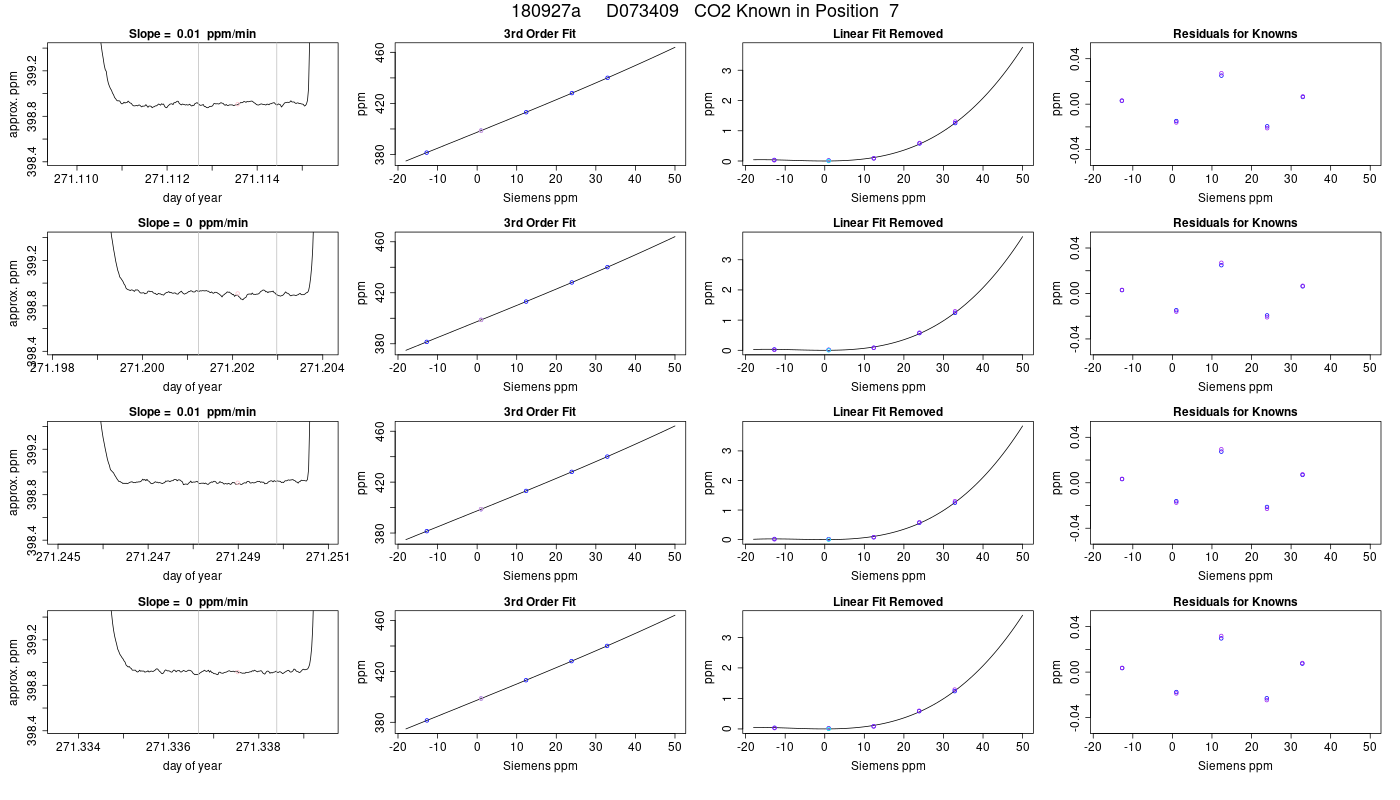

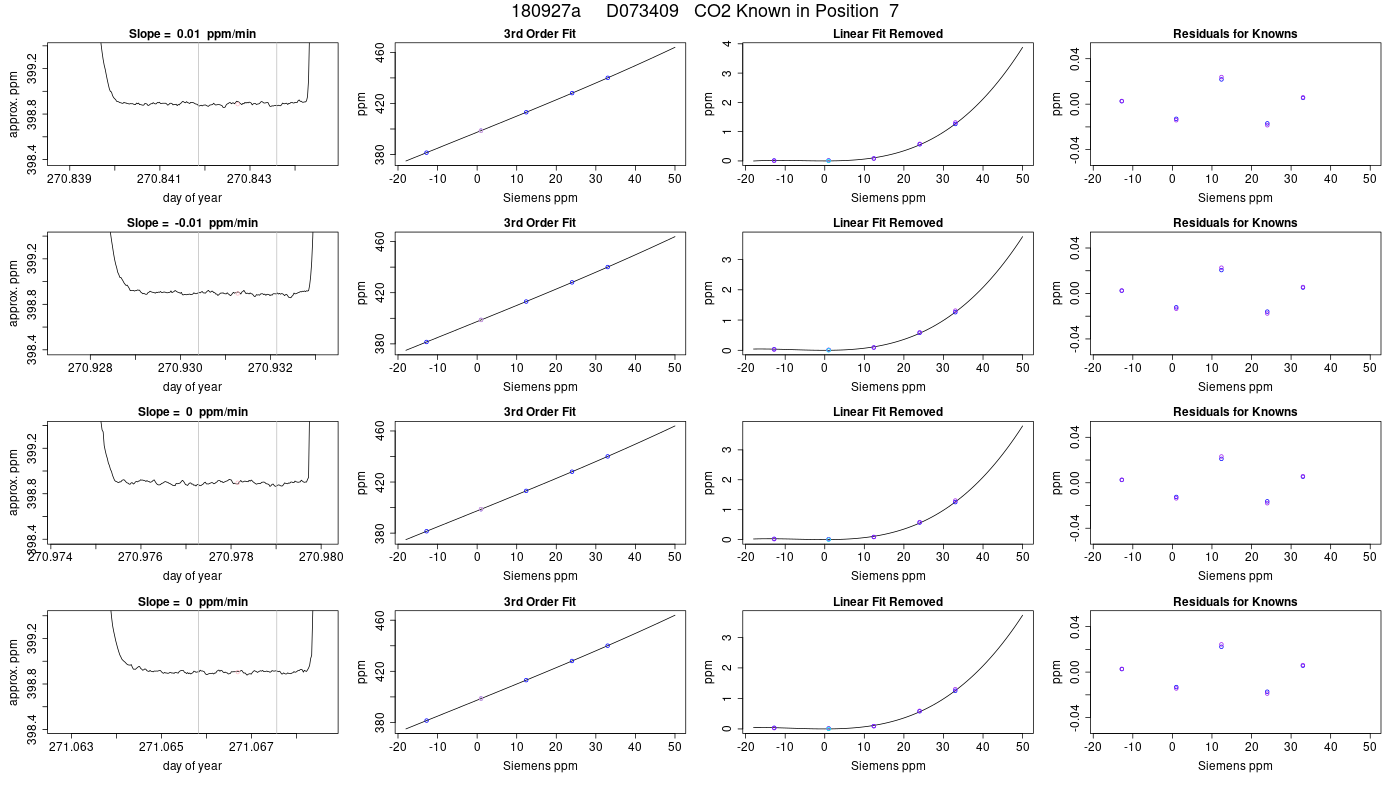

7 D073409 398.707 -0.014 0.002 398.918 -0.016 0.002 6 -651.78 0.36 0.42 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

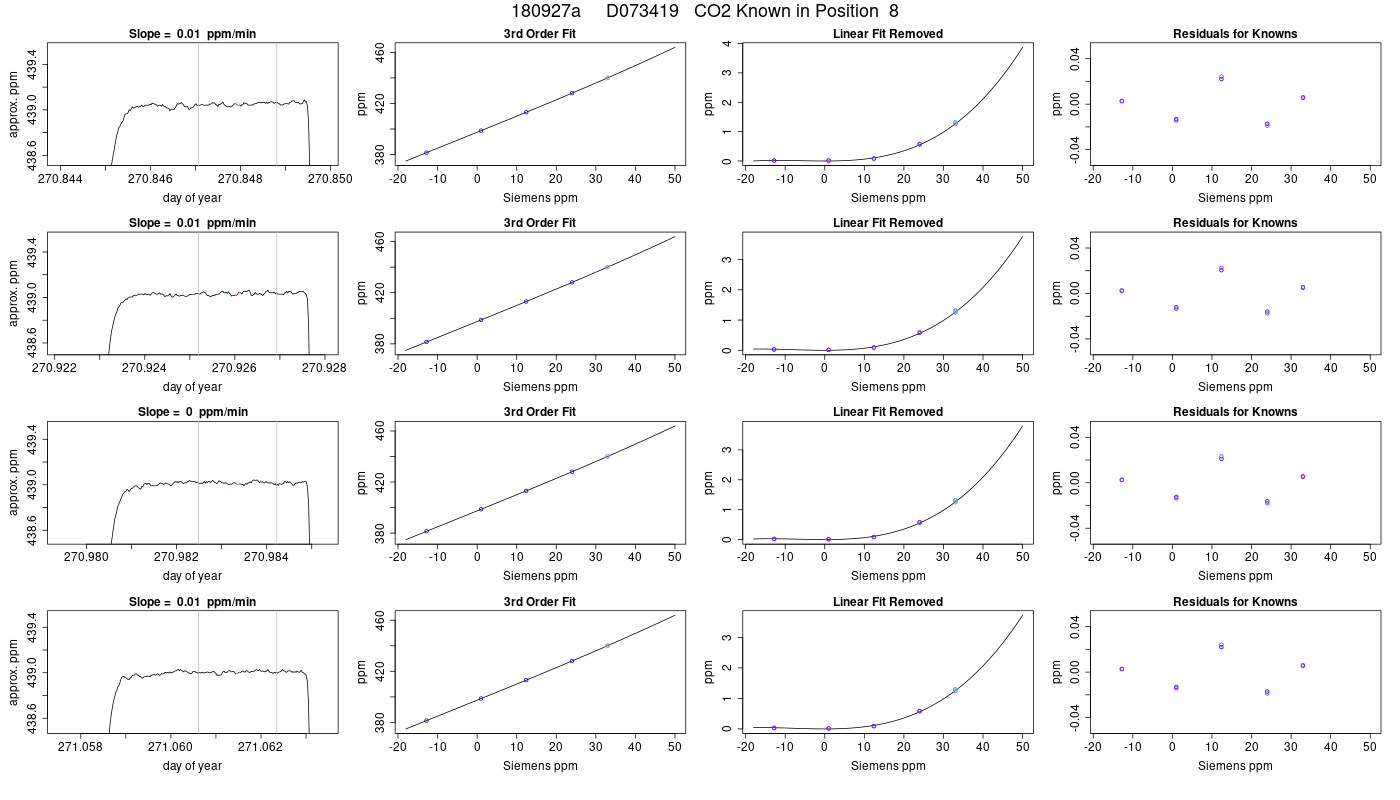

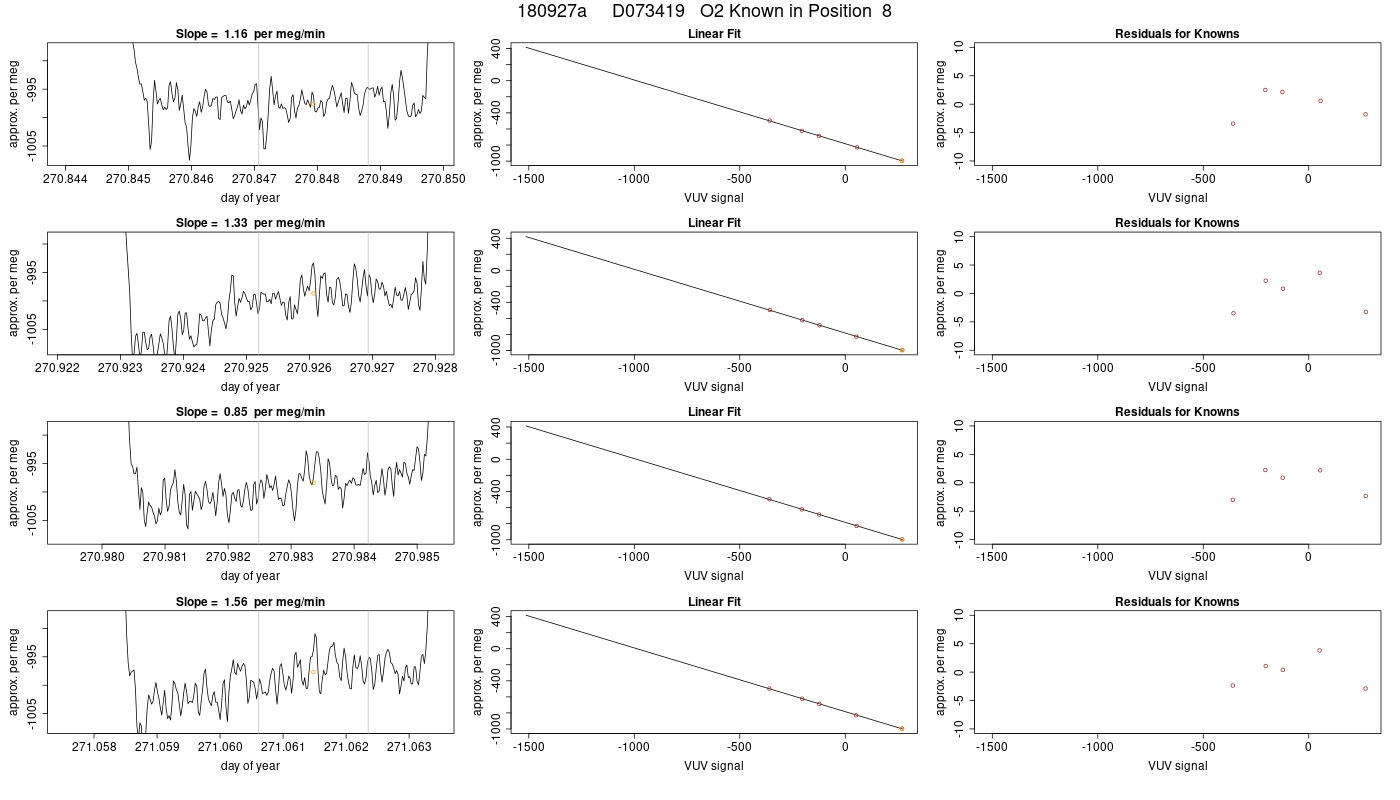

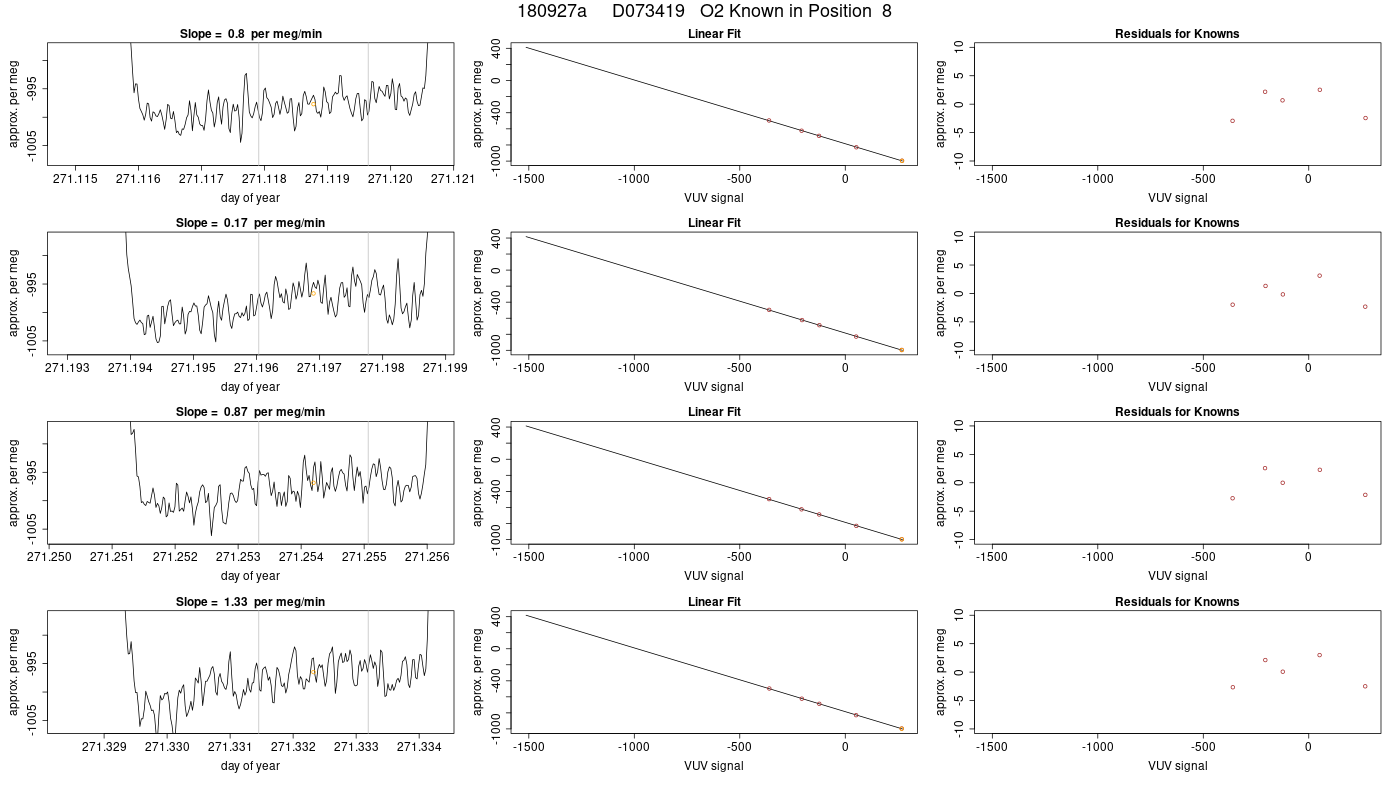

8 D073419 440.065 0.006 0.001 440.275 0.007 0.001 7 -919.32 -2.54 0.39 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

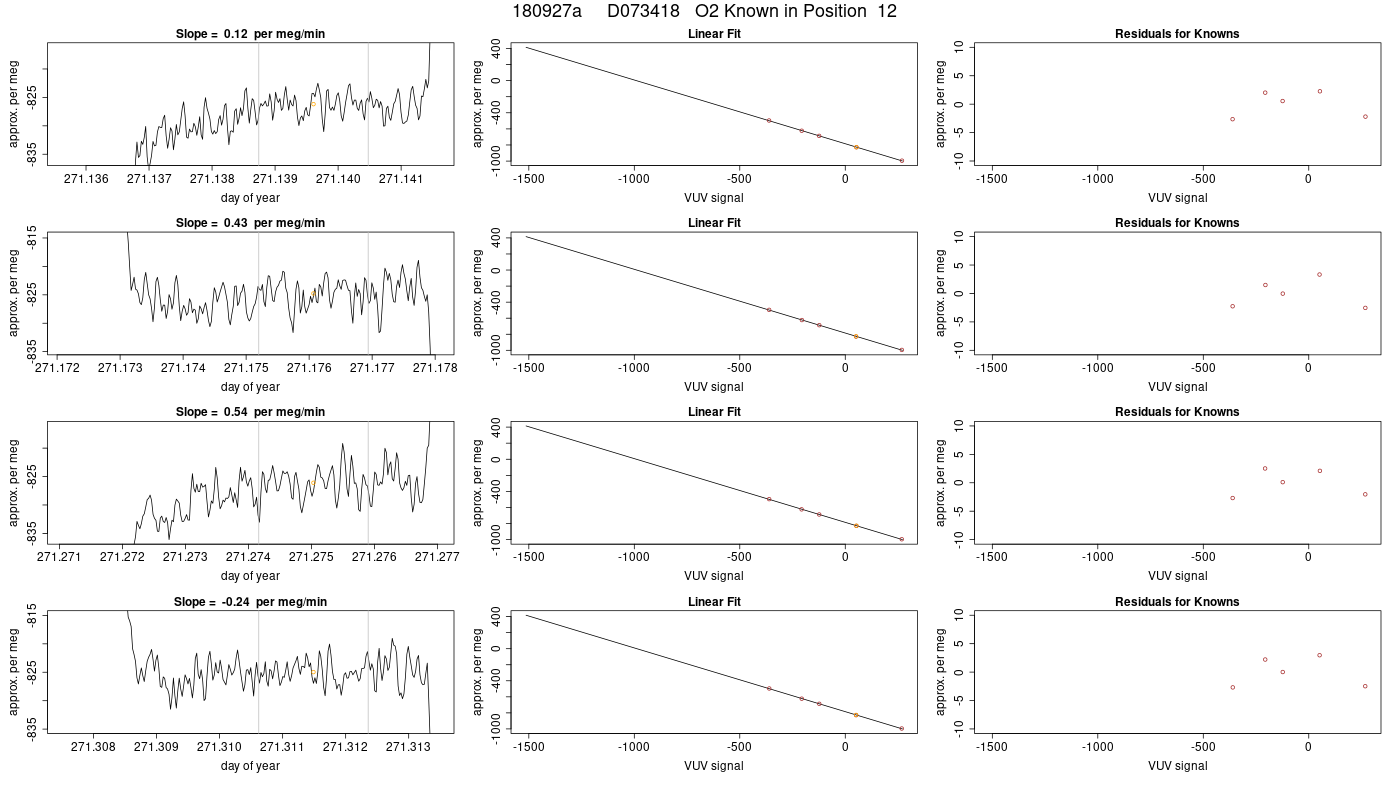

12 D073418 413.092 0.024 0.004 413.280 0.026 0.004 7 -779.40 2.93 0.85 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

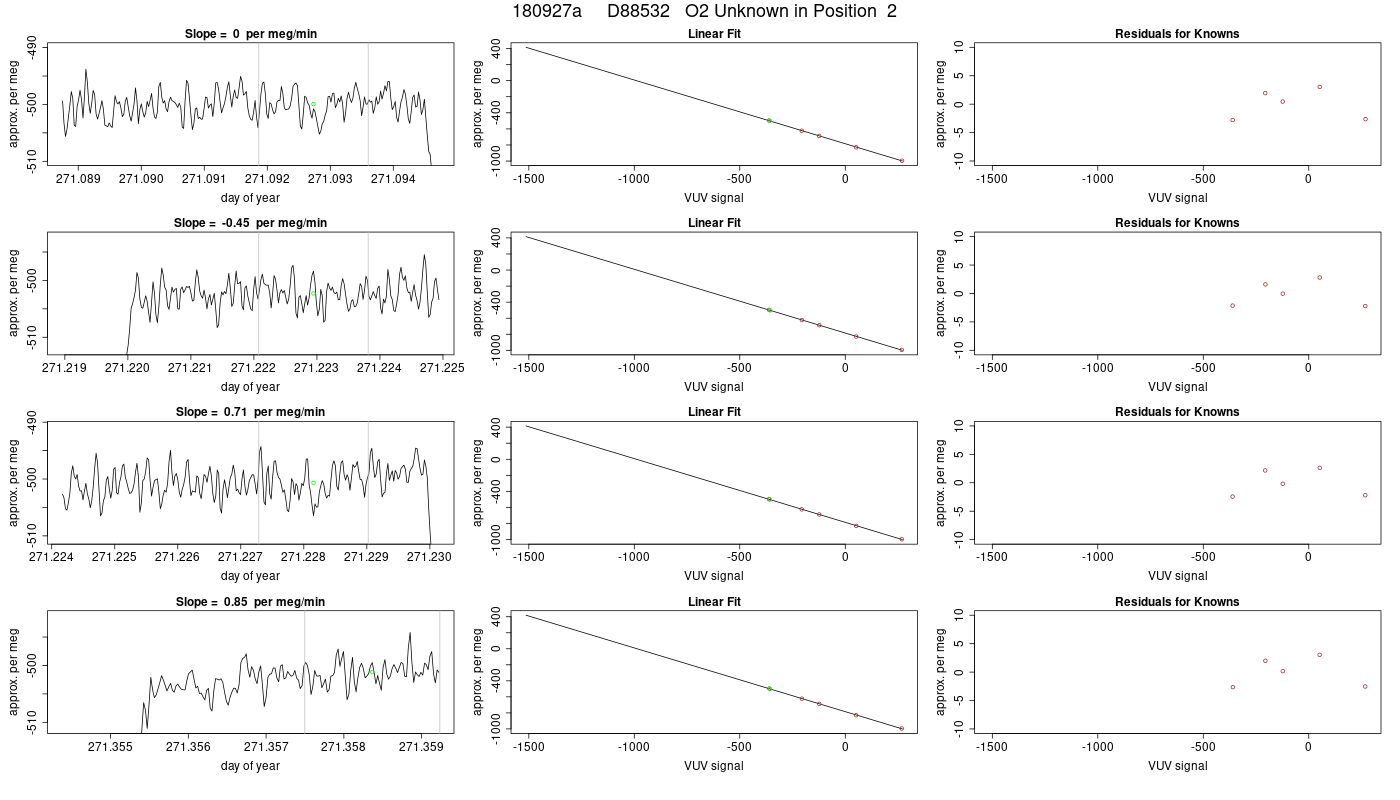

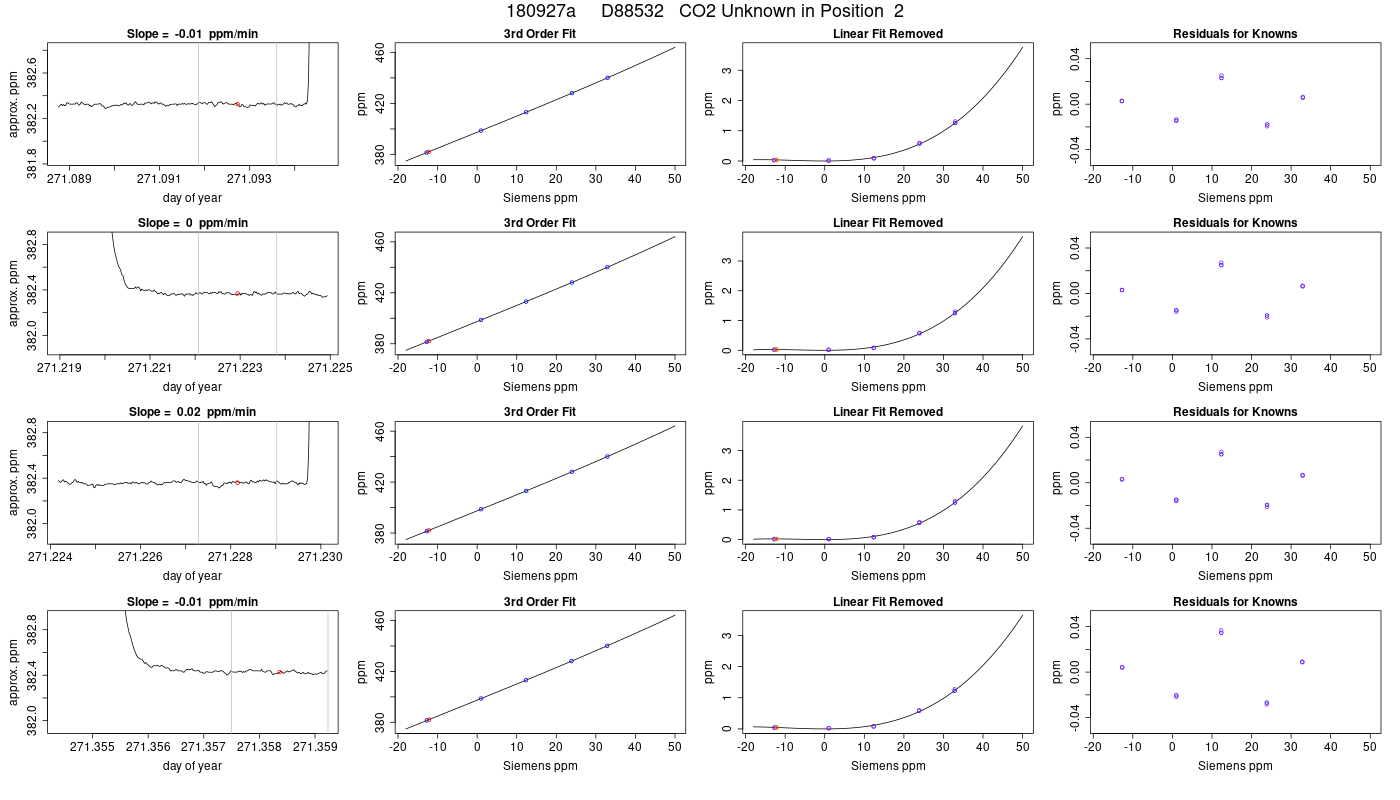

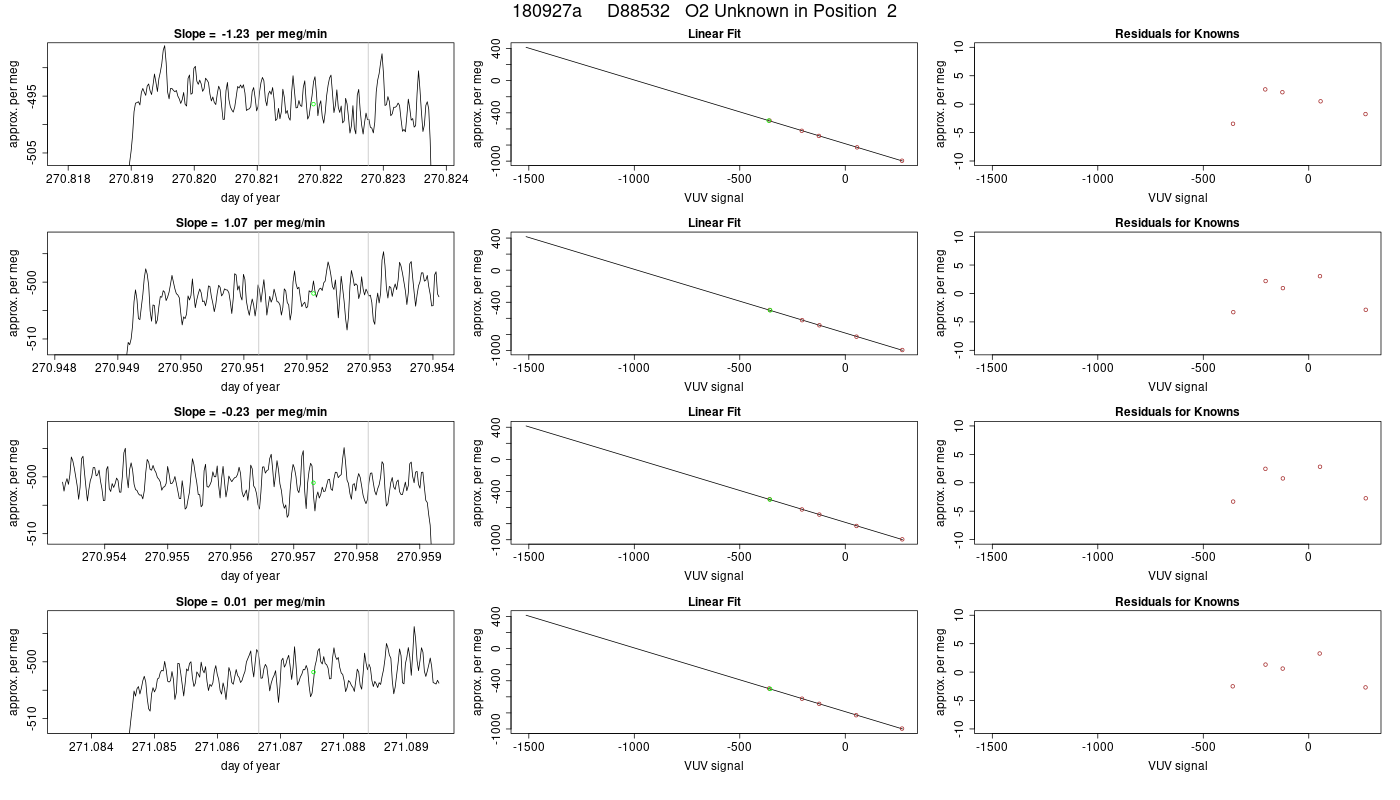

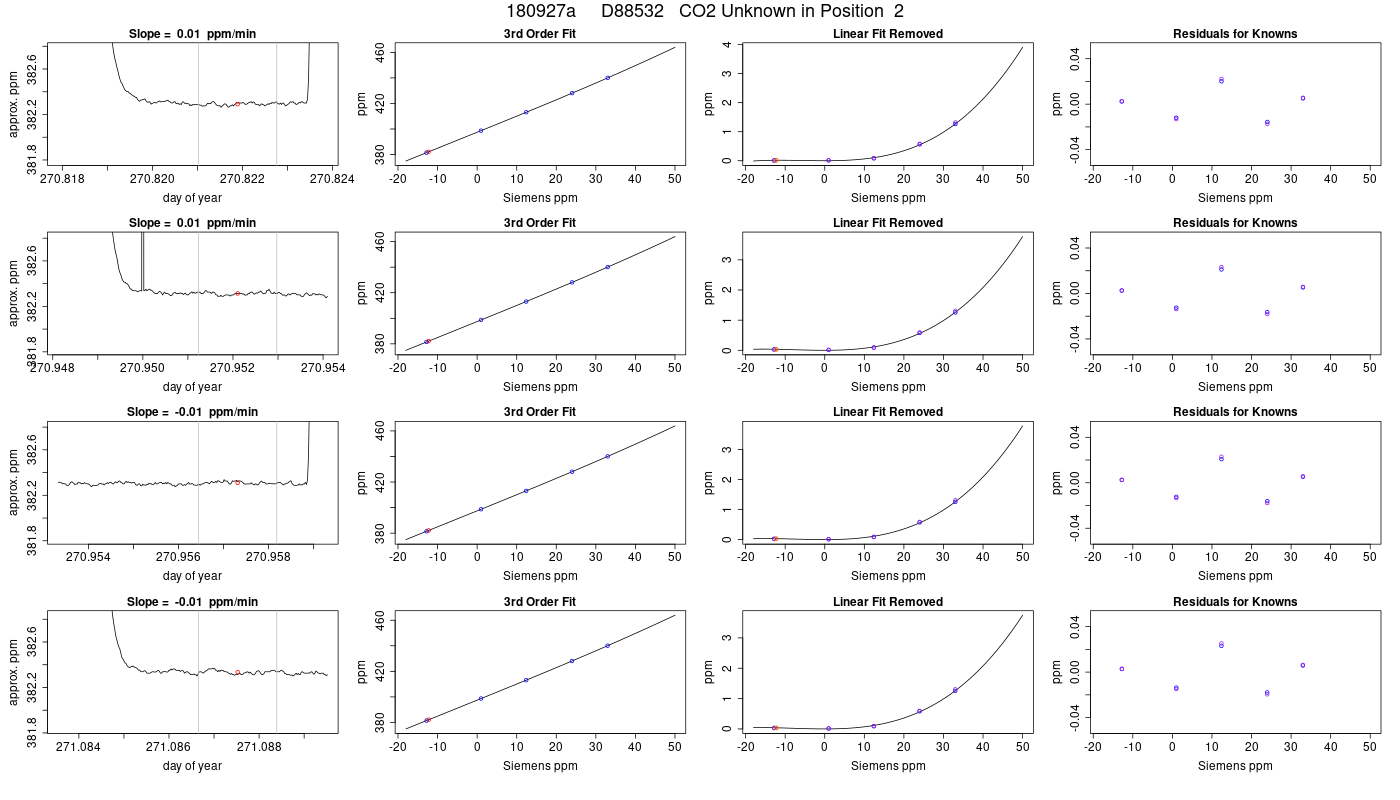

2 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.822 382.138 0.013 -477.80 2.67 382.359 0.013
270.952 382.153 0.014 -482.17 2.33 382.374 0.014
270.957 382.146 0.011 -481.79 2.77 382.367 0.011
271.088 382.149 0.016 -483.30 2.18 382.370 0.016
271.093 382.138 0.012 -481.97 2.15 382.359 0.012
271.223 382.137 0.008 -483.85 2.18 382.358 0.008
271.228 382.125 0.016 -482.61 2.69 382.346 0.016
271.358 382.143 0.012 -482.20 2.08 382.364 0.012

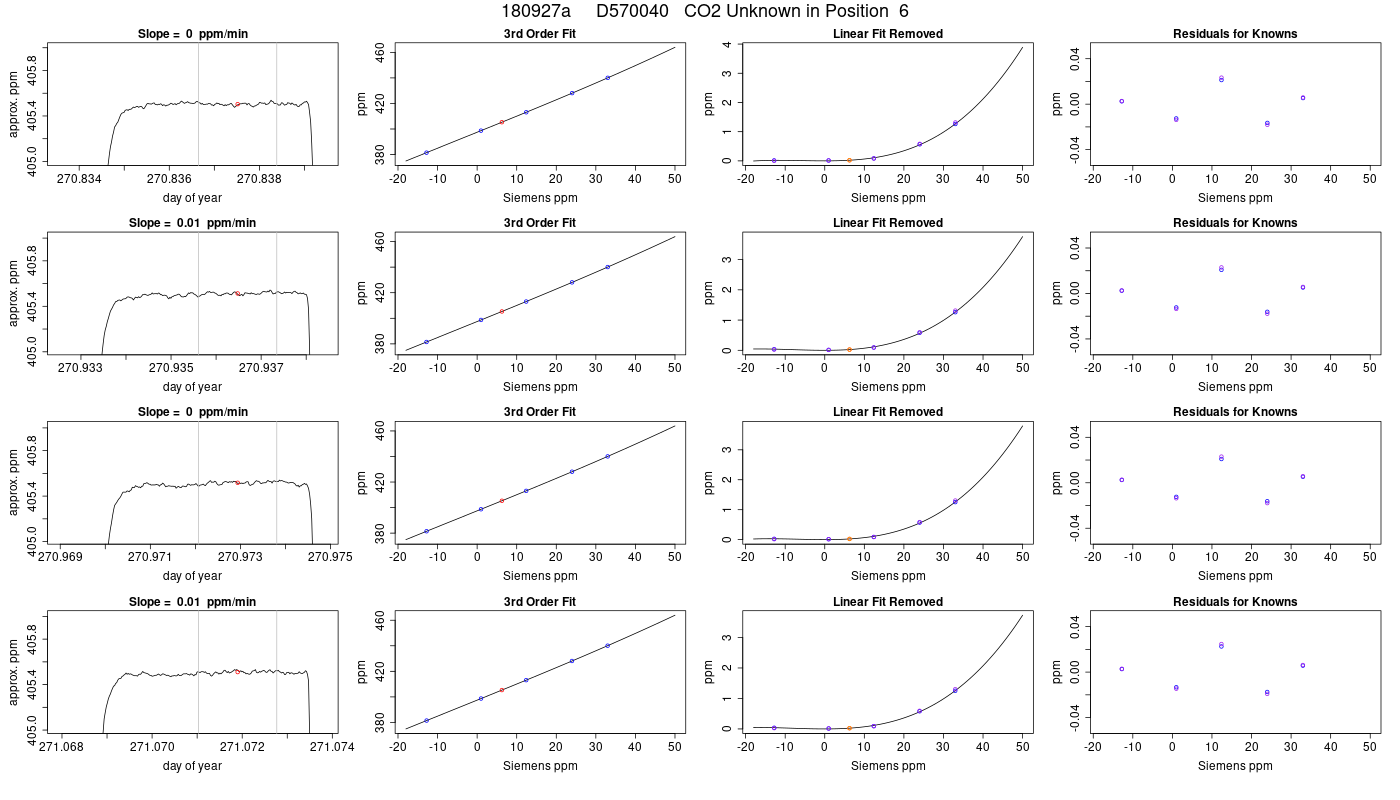

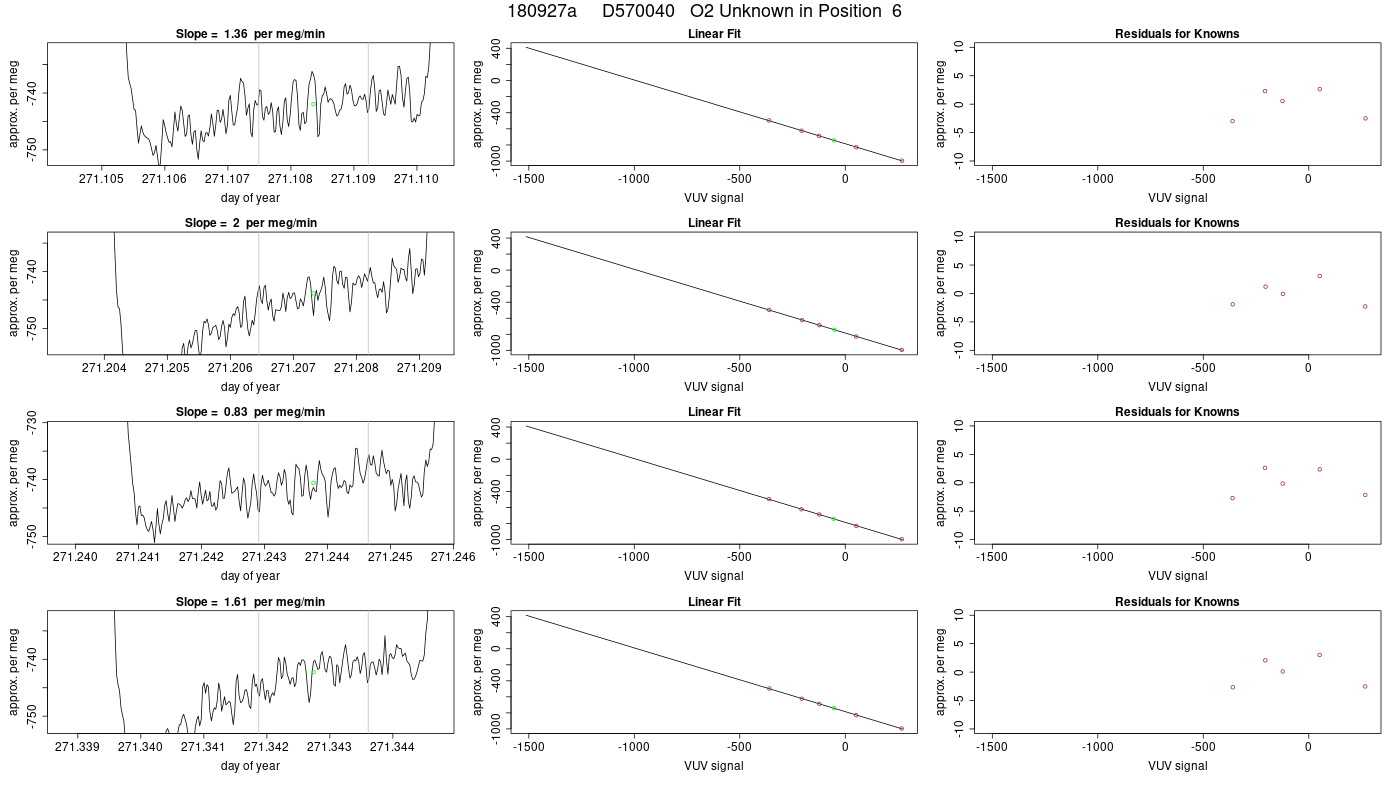

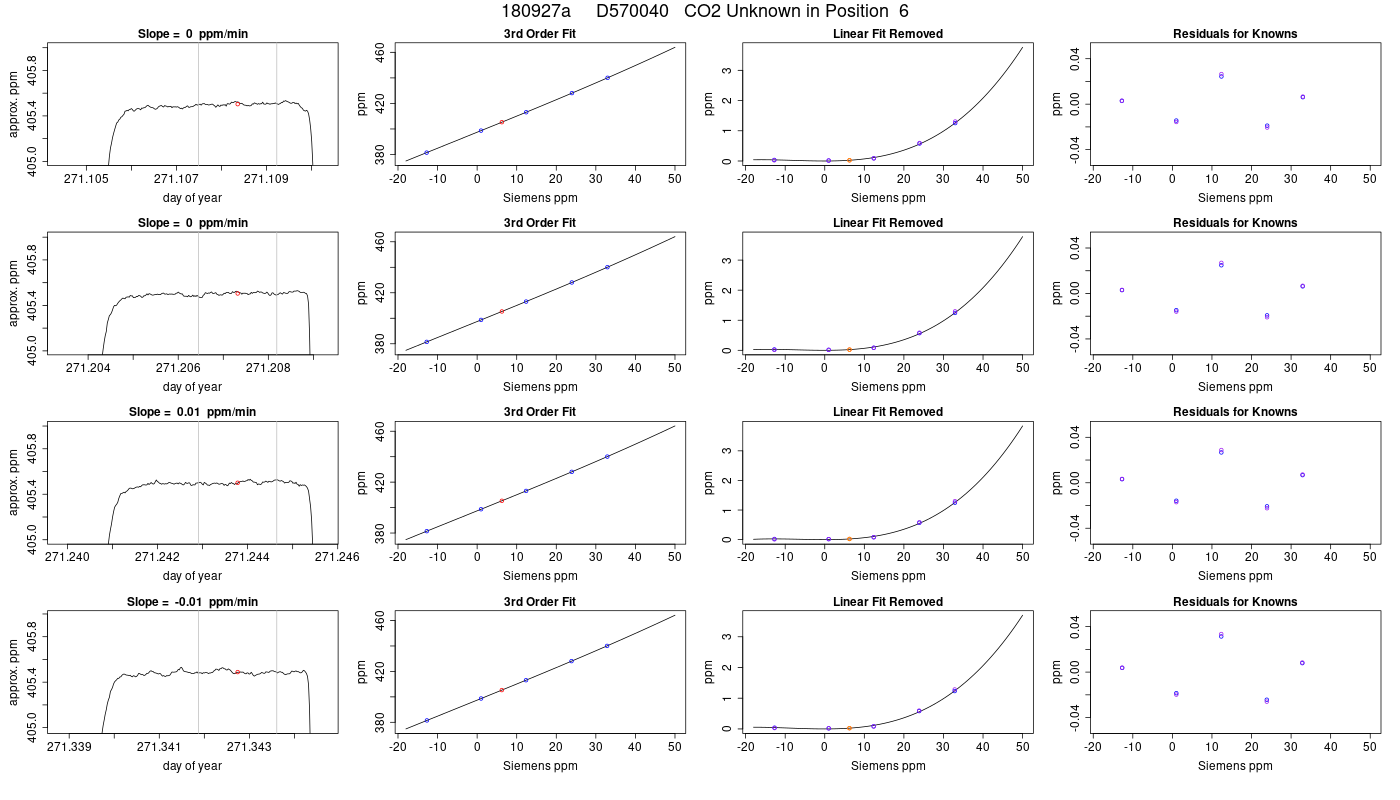

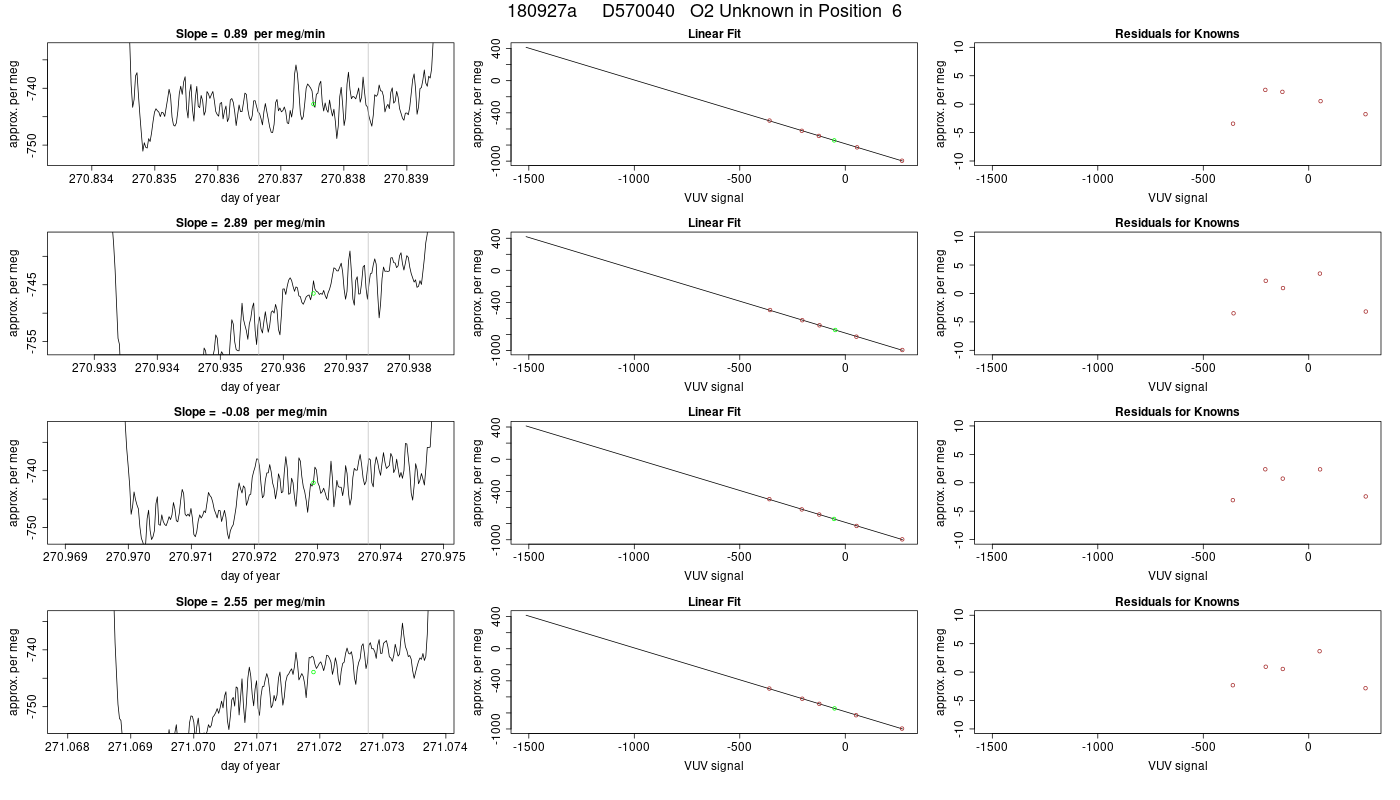

6 D570040    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.838 405.323 0.011 -700.96 2.72 405.523 0.011
270.936 405.332 0.012 -703.95 3.20 405.532 0.012
270.973 405.337 0.012 -700.36 2.33 405.537 0.012
271.072 405.326 0.012 -702.38 2.78 405.527 0.012
271.108 405.318 0.010 -701.15 2.70 405.518 0.010
271.207 405.330 0.012 -702.68 2.39 405.531 0.012
271.244 405.330 0.014 -699.86 2.46 405.530 0.014
271.343 405.324 0.016 -701.27 2.45 405.524 0.016

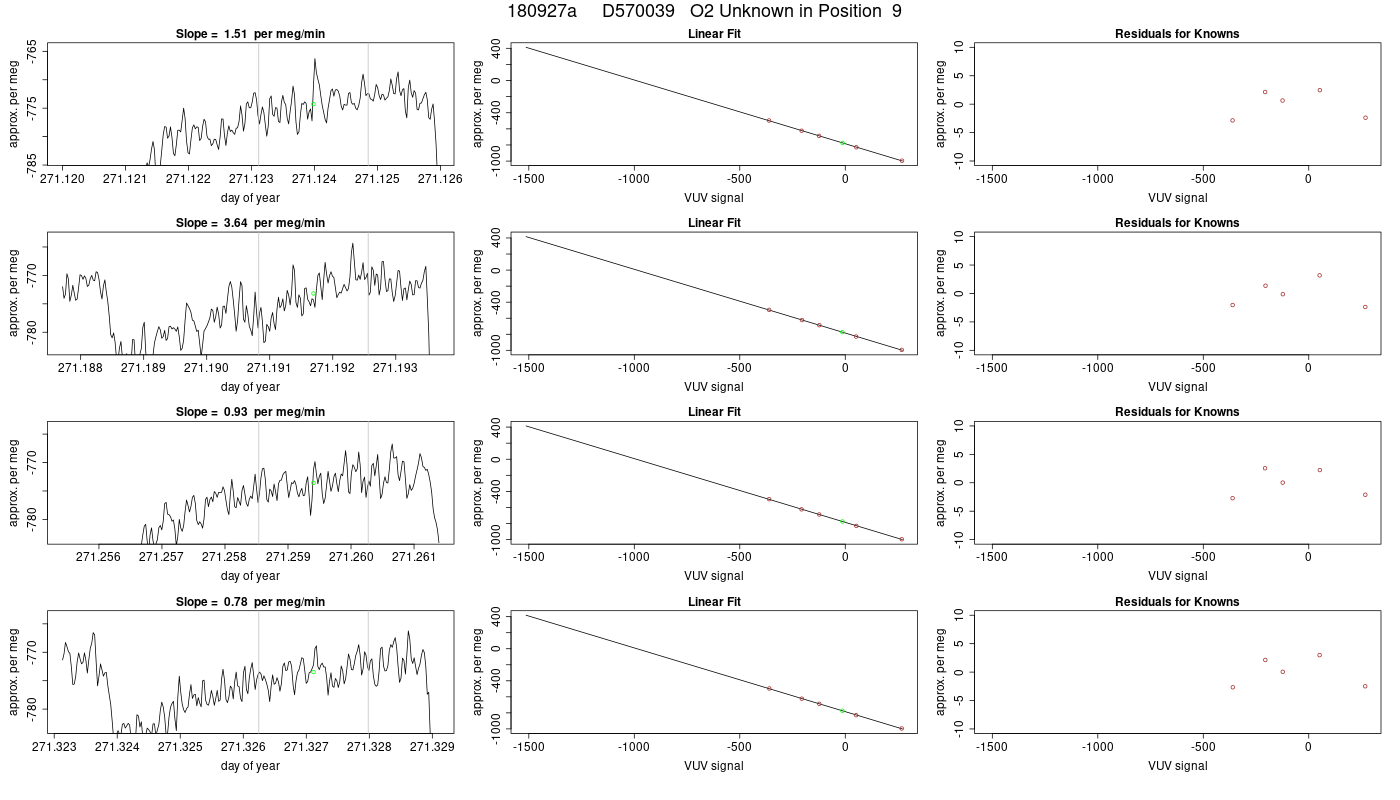

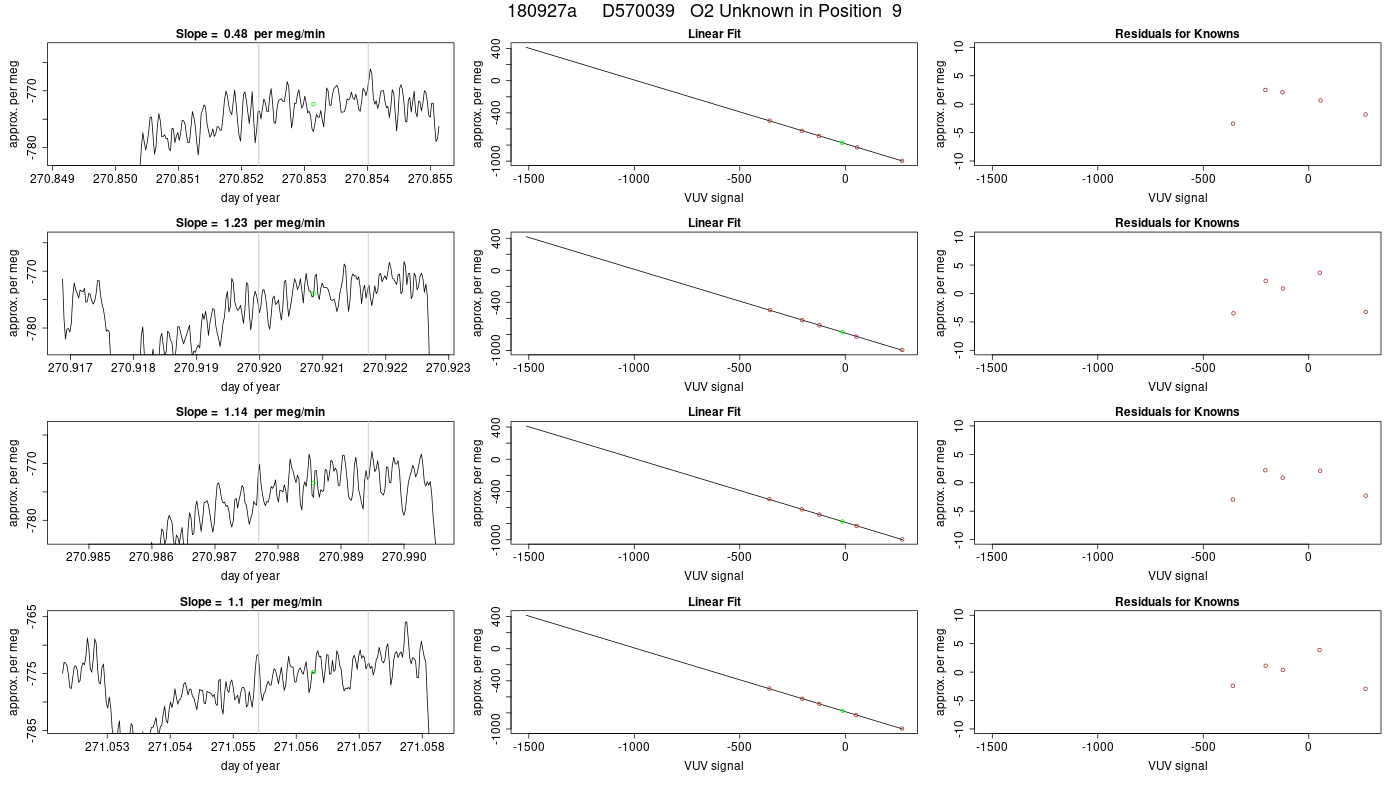

9 D570039    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.853 412.123 0.010 -723.66 2.05 412.314 0.010
270.921 412.133 0.016 -724.94 2.36 412.324 0.016
270.989 412.132 0.015 -724.83 2.56 412.323 0.015
271.056 412.136 0.011 -726.65 2.19 412.327 0.011
271.124 412.119 0.012 -726.62 2.59 412.310 0.012
271.192 412.131 0.013 -725.50 3.54 412.322 0.013
271.259 412.122 0.009 -726.06 2.20 412.313 0.009
271.327 412.129 0.013 -725.98 2.13 412.320 0.013

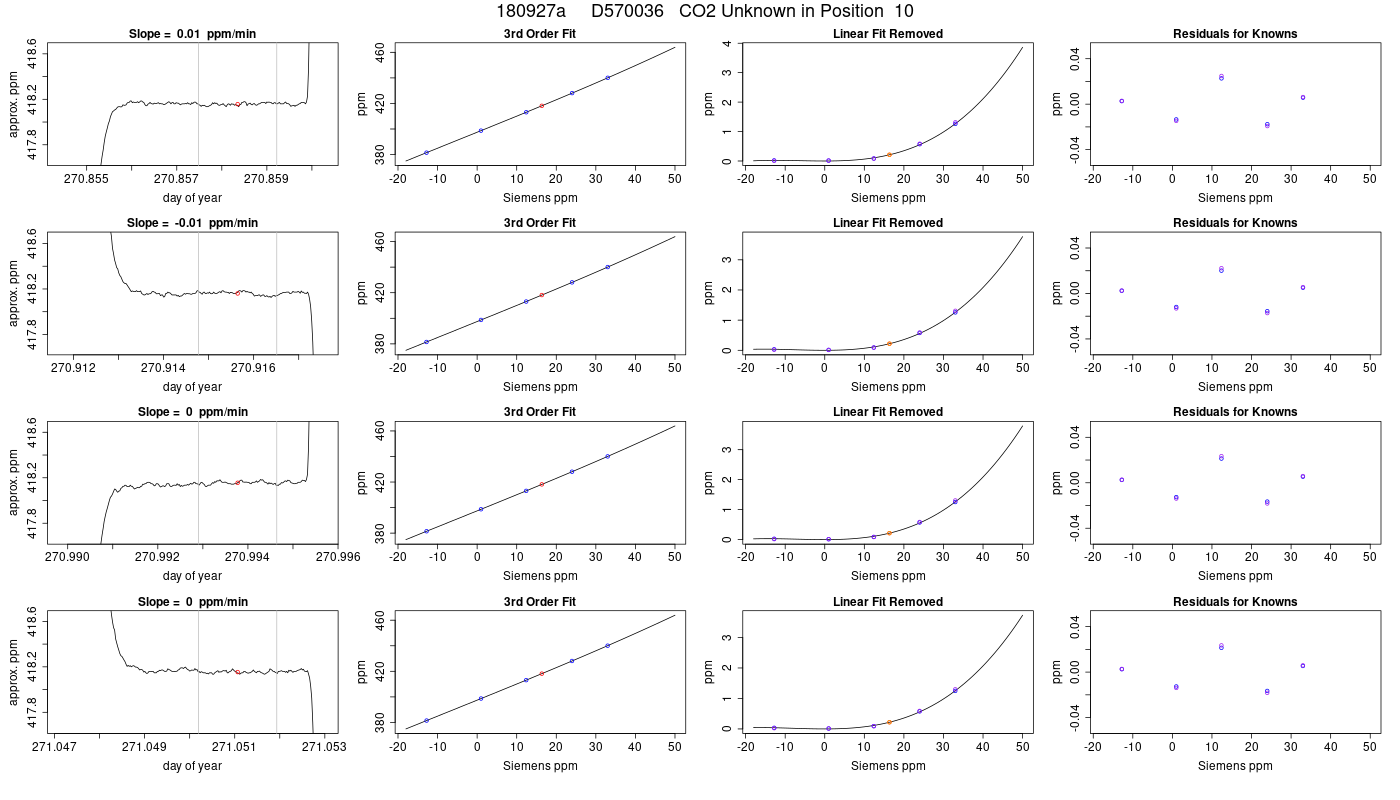

10 D570036    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.858 418.149 0.012 -720.52 2.30 418.334 0.012
270.916 418.165 0.016 -723.77 2.83 418.351 0.016
270.994 418.166 0.014 -724.13 3.41 418.352 0.014
271.051 418.172 0.011 -723.36 2.85 418.358 0.011
271.129 418.152 0.018 -724.68 3.24 418.338 0.018
271.186 418.183 0.013 -722.77 2.16 418.369 0.013
271.265 418.152 0.012 -722.65 2.34 418.337 0.012
271.322 418.171 0.013 -721.29 2.62 418.356 0.013

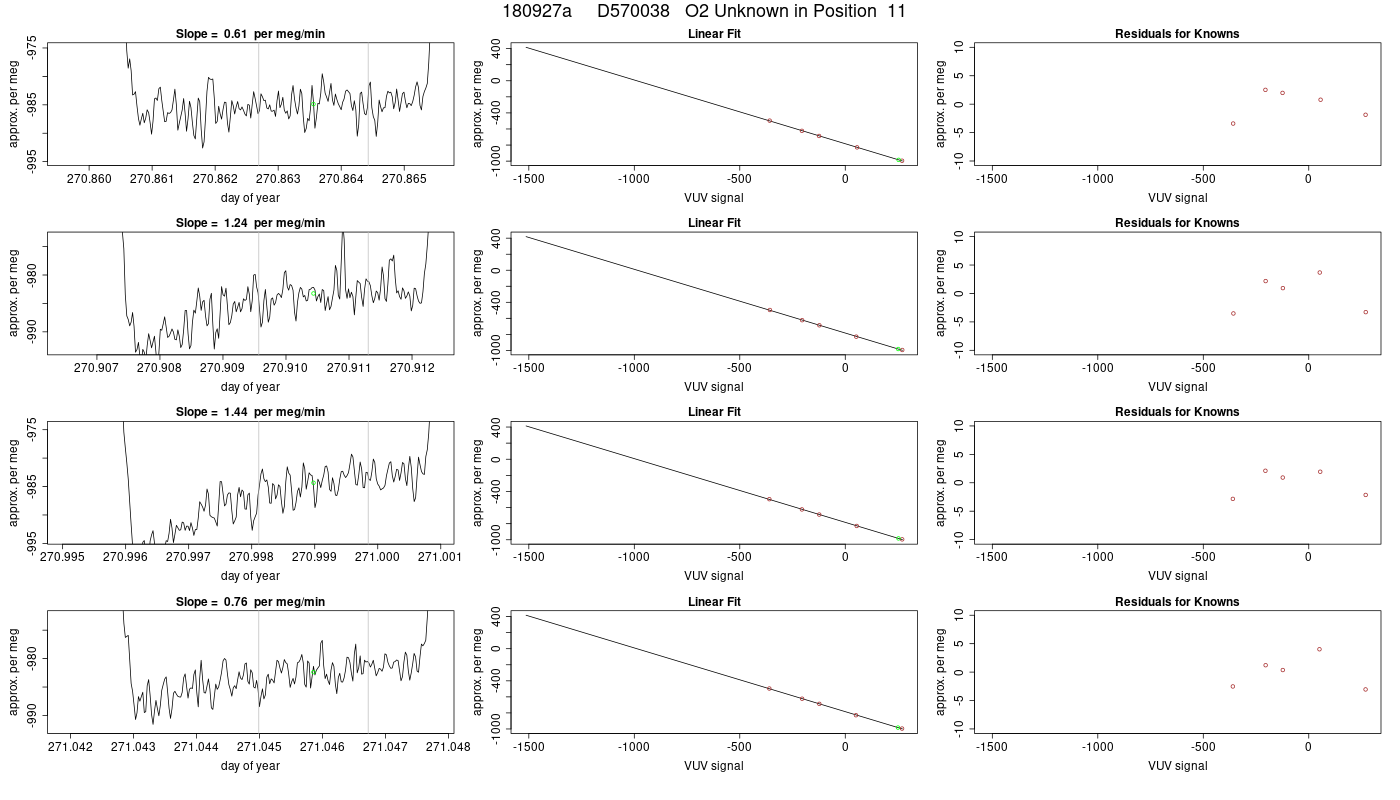

11 D570038    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.864 462.792 0.011 -886.04 2.10 463.146 0.011
270.910 462.721 0.011 -885.20 2.87 463.075 0.011
270.999 462.751 0.013 -885.42 2.30 463.105 0.013
271.046 462.693 0.010 -884.80 2.25 463.047 0.010
271.134 462.729 0.012 -886.32 2.55 463.083 0.012
271.181 462.721 0.014 -884.06 2.82 463.075 0.014
271.270 462.788 0.015 -885.04 2.72 463.143 0.015
271.317 462.695 0.014 -884.53 2.53 463.049 0.014

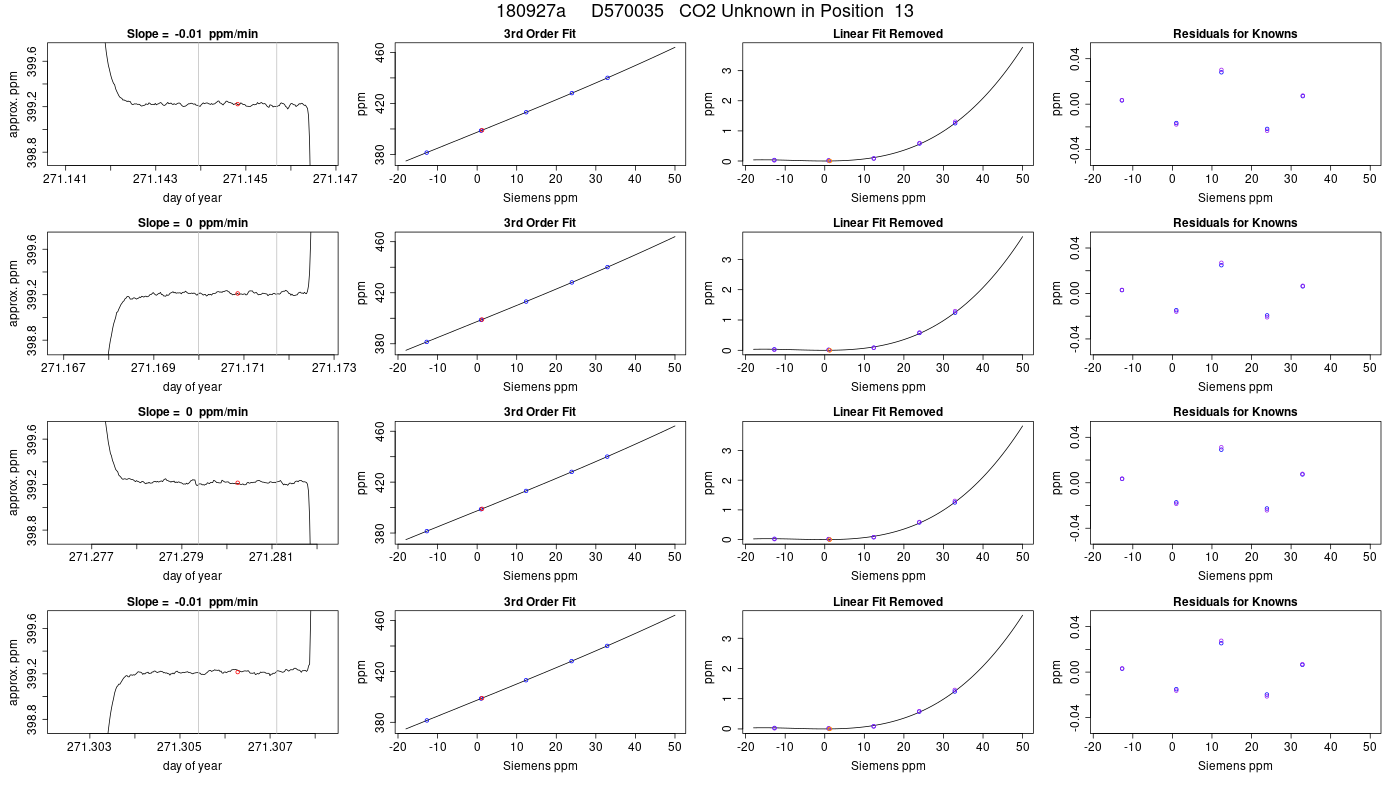

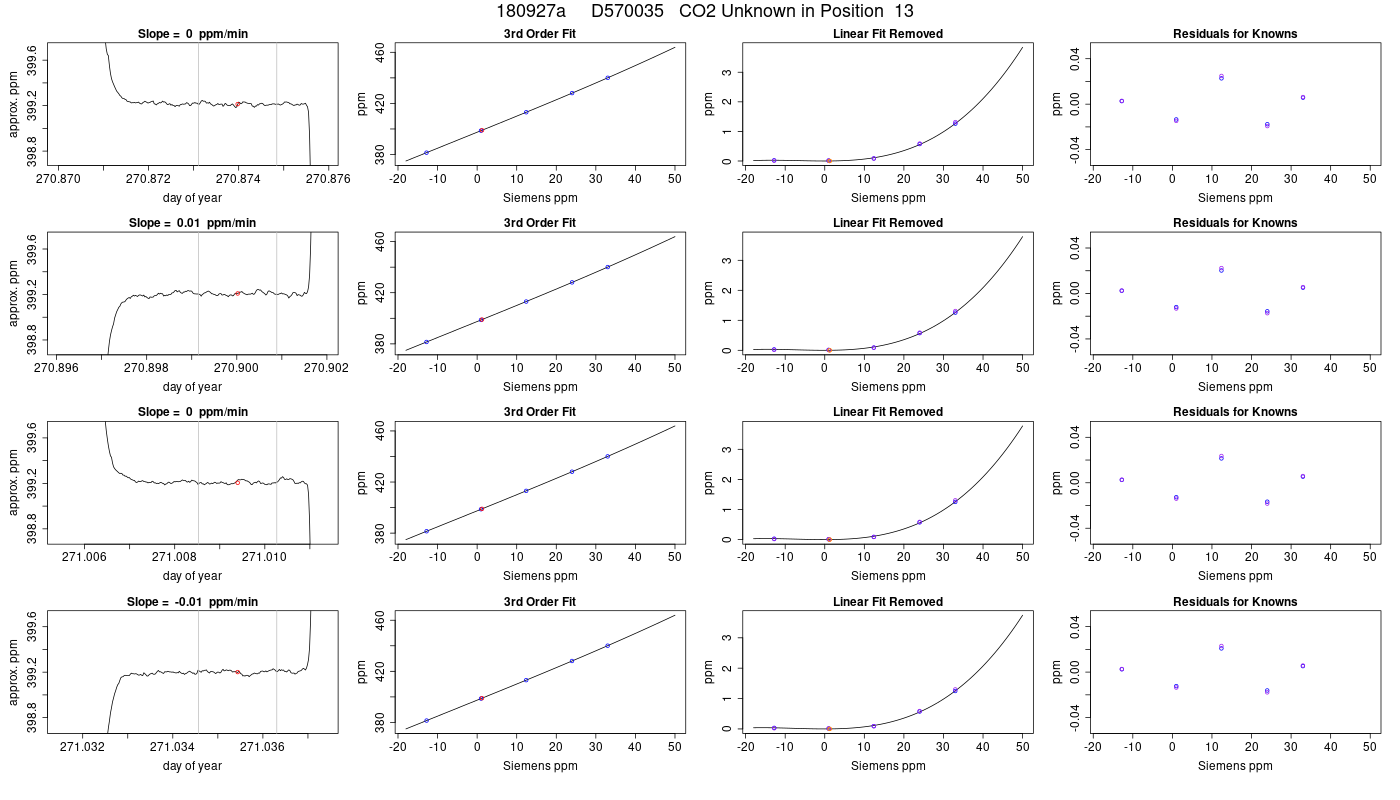

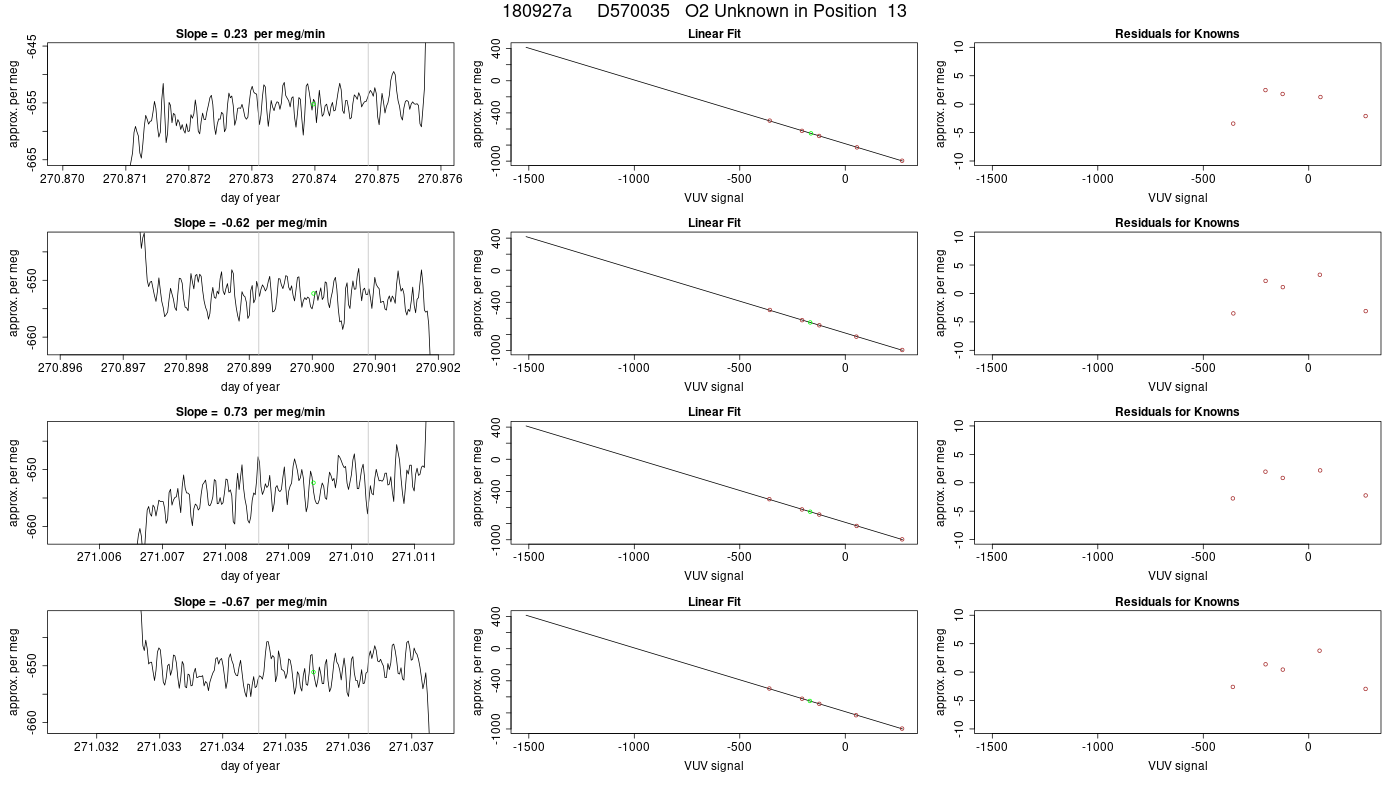

13 D570035    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.874 399.016 0.013 -619.20 1.95 399.226 0.013
270.900 399.011 0.014 -616.21 2.16 399.221 0.014
271.009 399.000 0.012 -616.82 2.51 399.210 0.012
271.035 398.994 0.016 -615.82 2.20 399.203 0.016
271.145 399.007 0.013 -616.27 2.32 399.216 0.013
271.171 398.998 0.012 -614.90 2.24 399.207 0.012
271.280 398.999 0.010 -615.83 2.53 399.208 0.010
271.306 398.997 0.013 -614.84 2.16 399.206 0.013

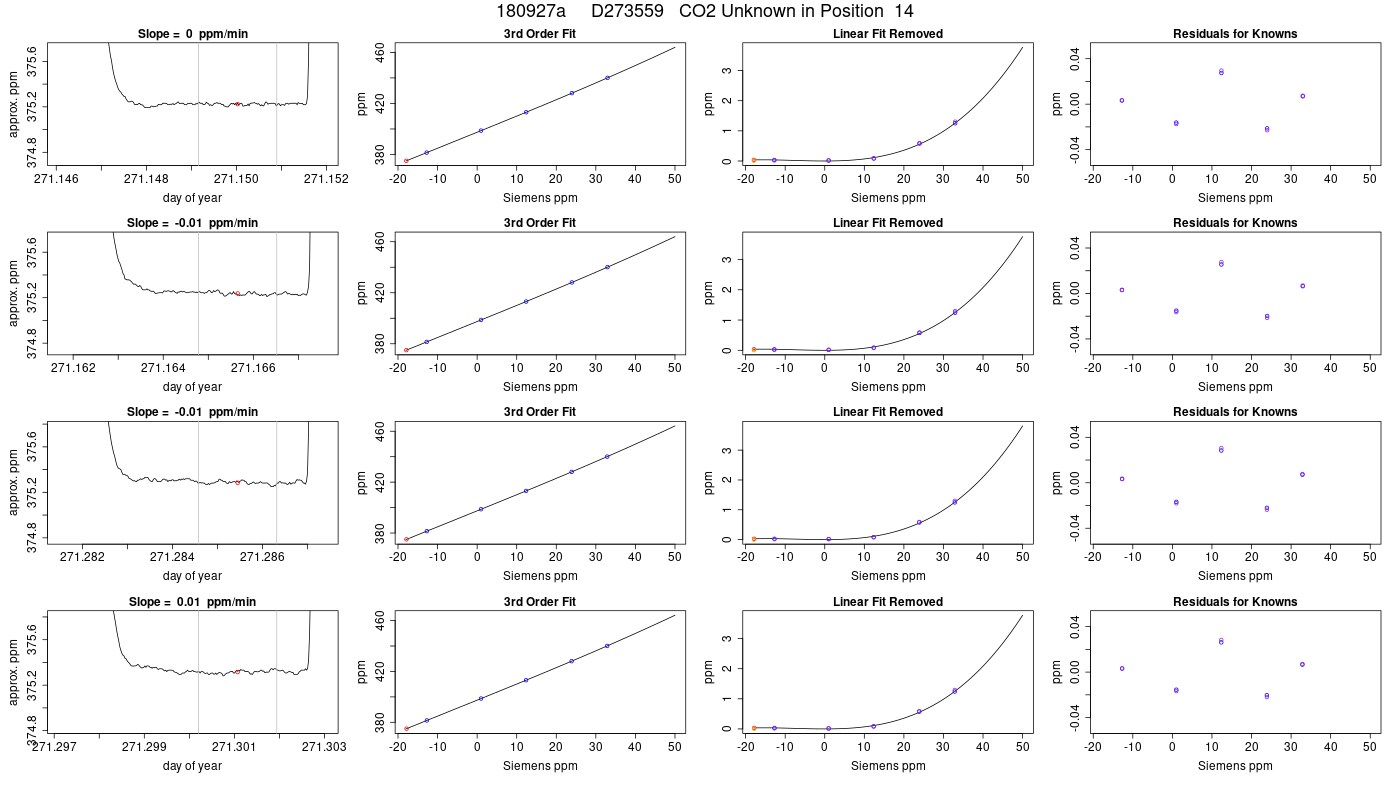

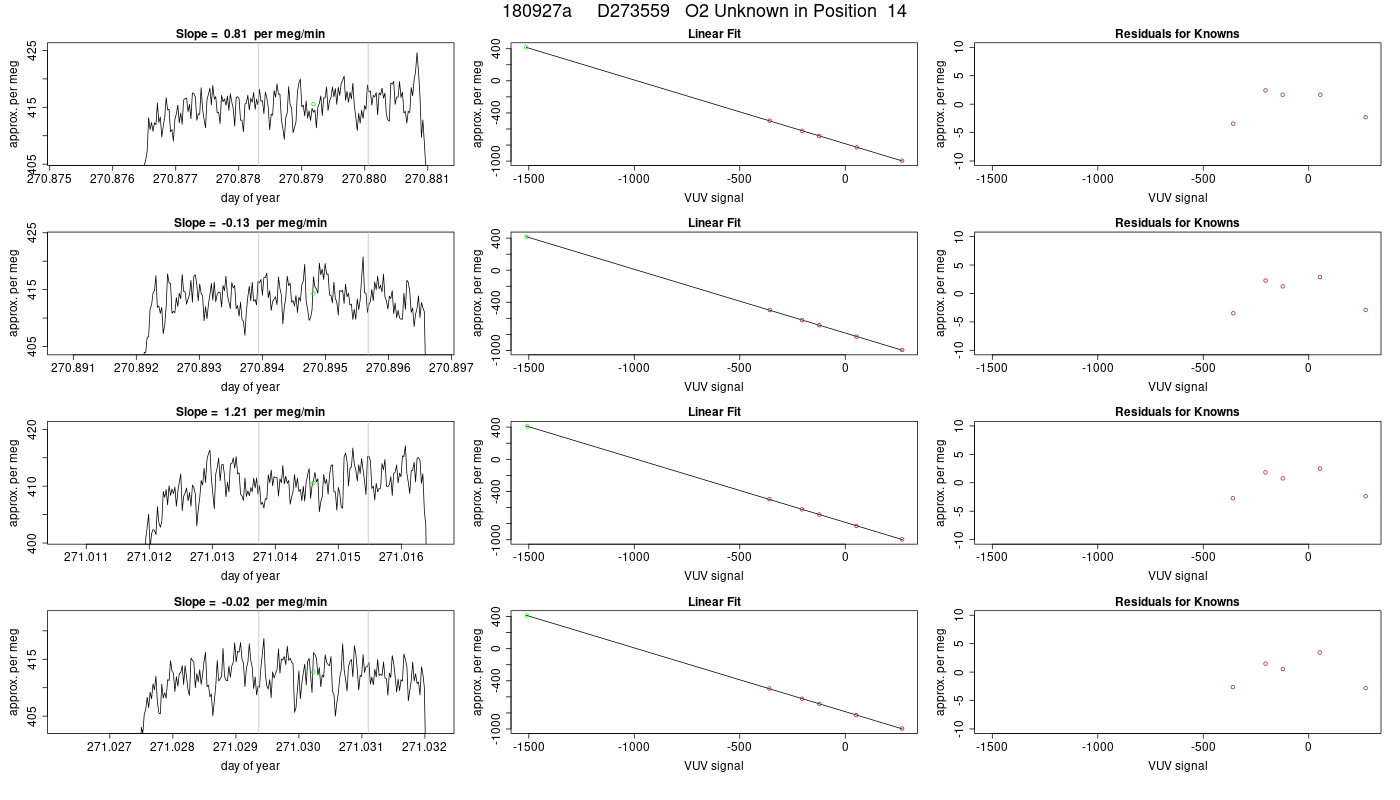

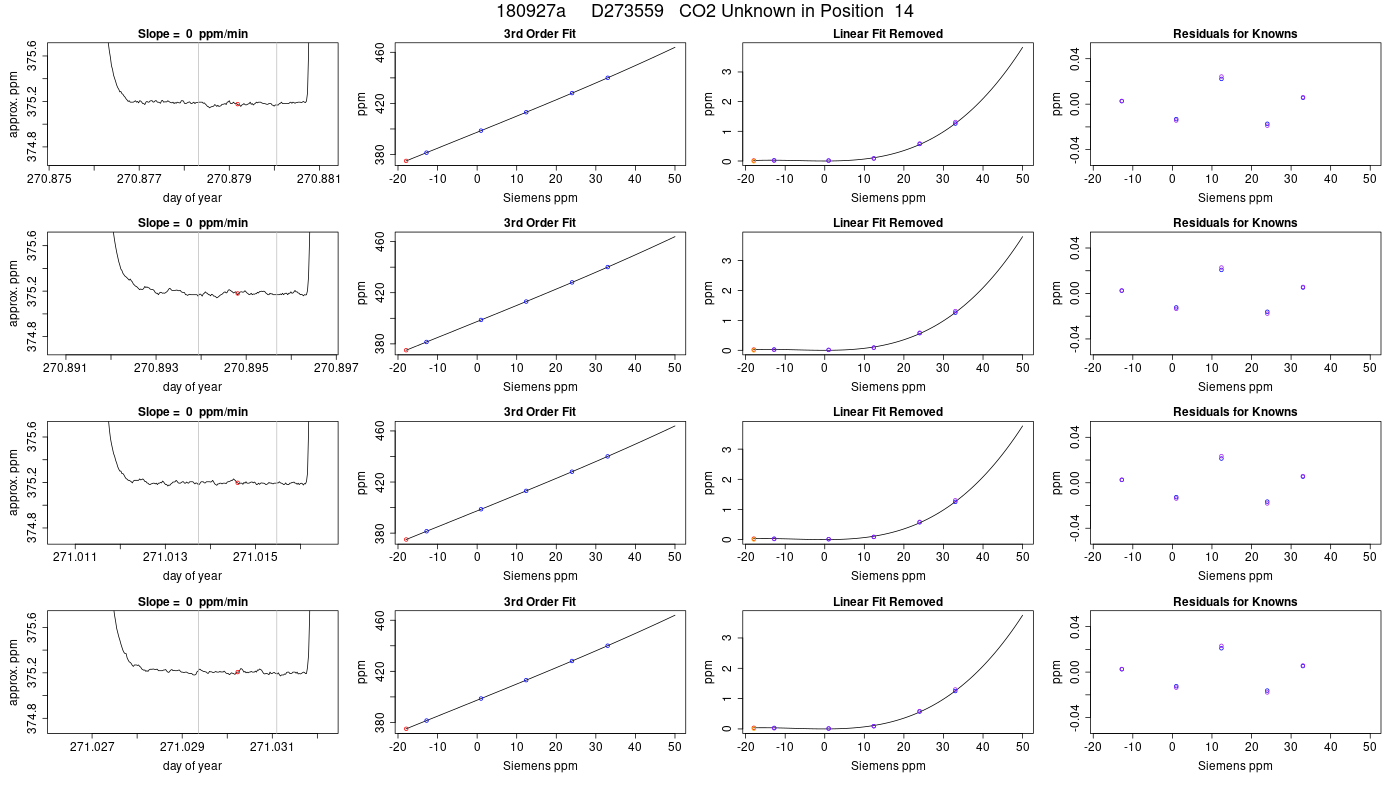

14 D273559    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.879 375.021 0.013 428.37 2.53 375.234 0.013
270.895 375.028 0.015 428.57 2.63 375.241 0.015
271.015 375.020 0.011 421.19 2.58 375.232 0.011
271.030 375.029 0.012 424.62 2.87 375.242 0.012
271.150 375.010 0.011 422.16 2.14 375.222 0.011
271.166 375.015 0.014 424.41 2.52 375.227 0.014
271.285 374.992 0.014 425.05 2.42 375.204 0.014
271.301 375.017 0.014 427.29 2.75 375.229 0.014

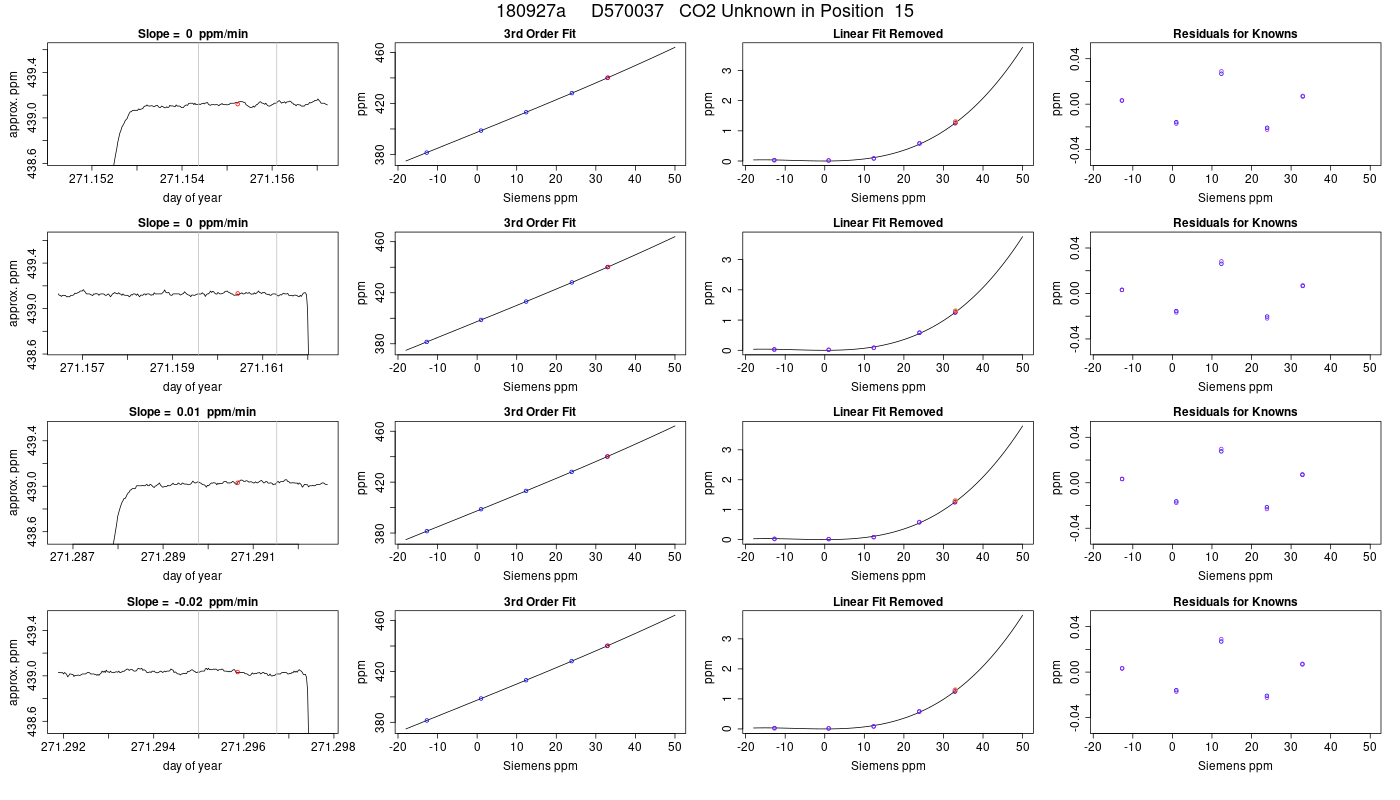

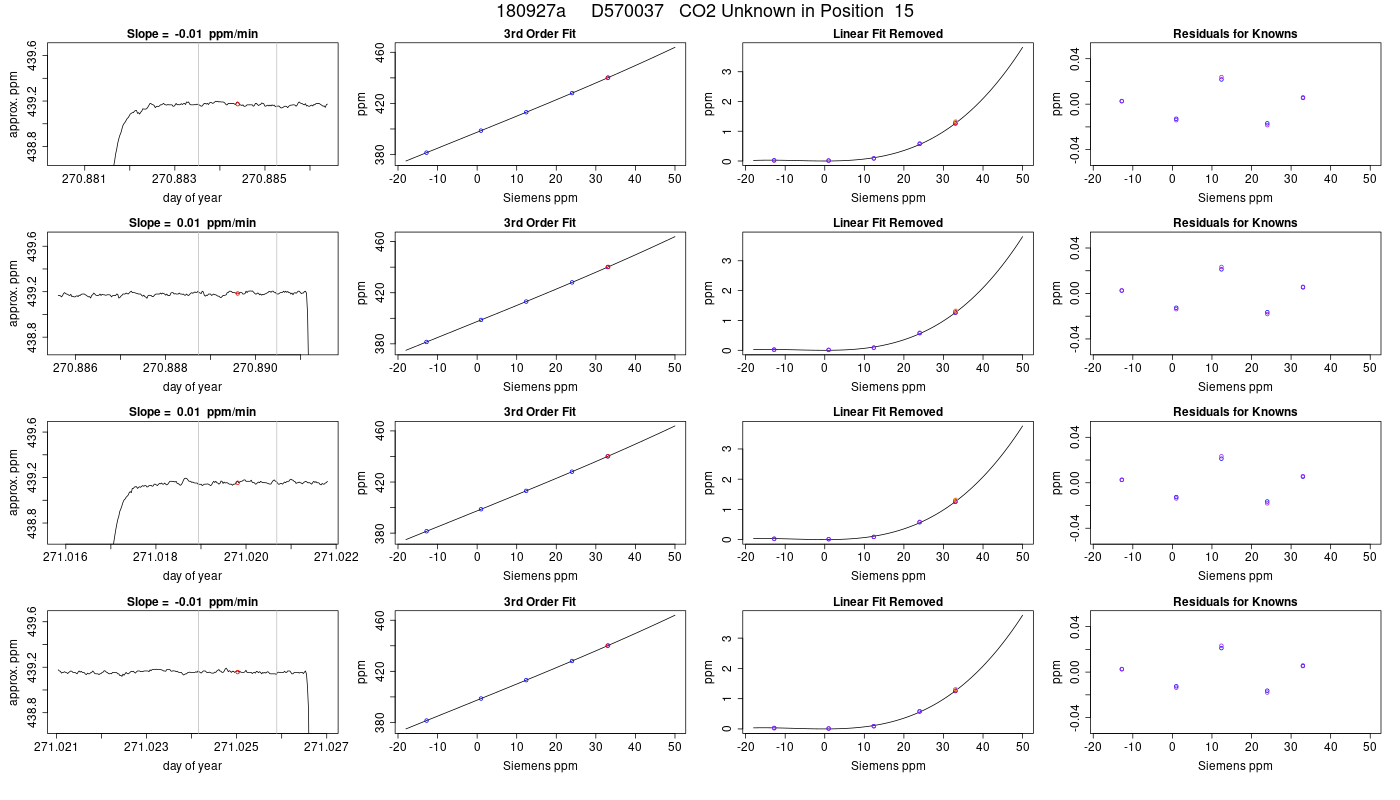

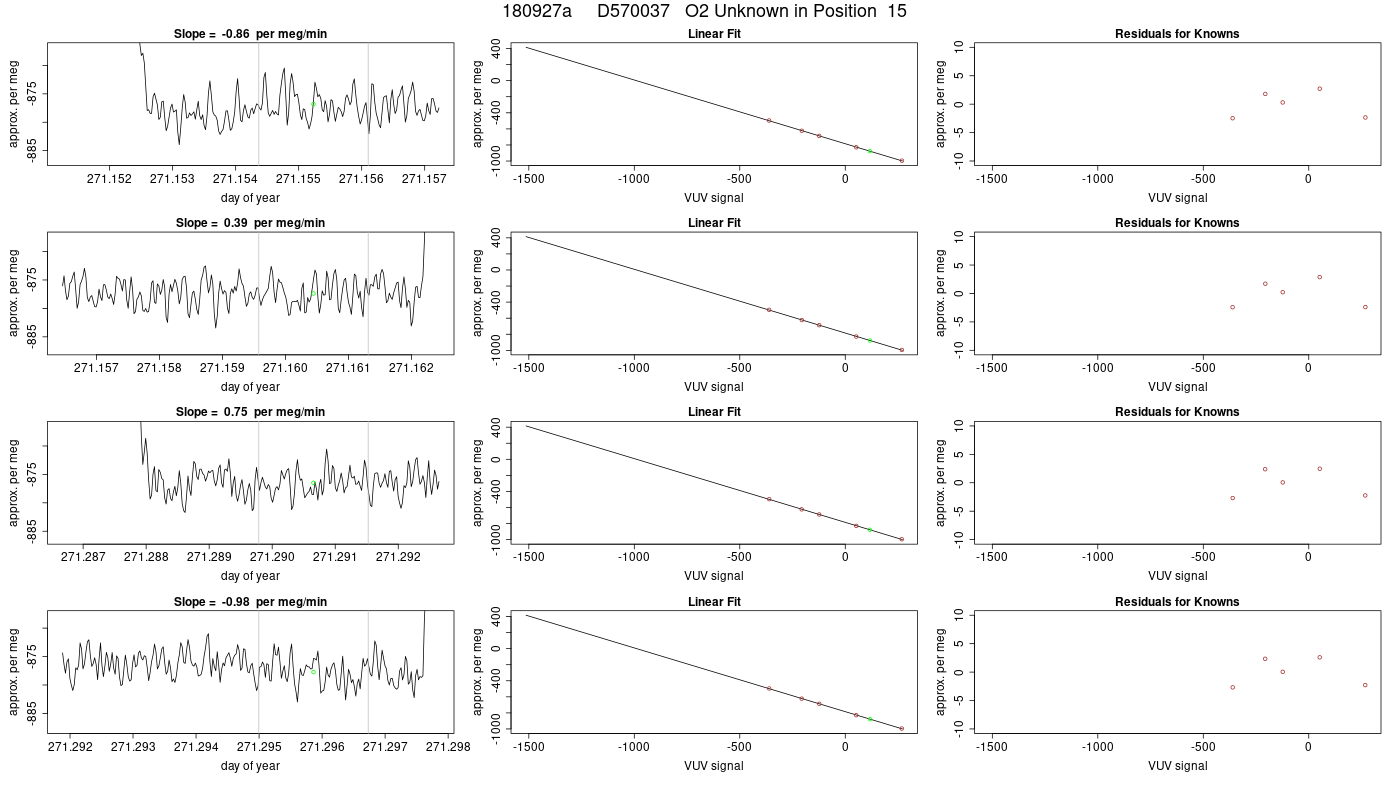

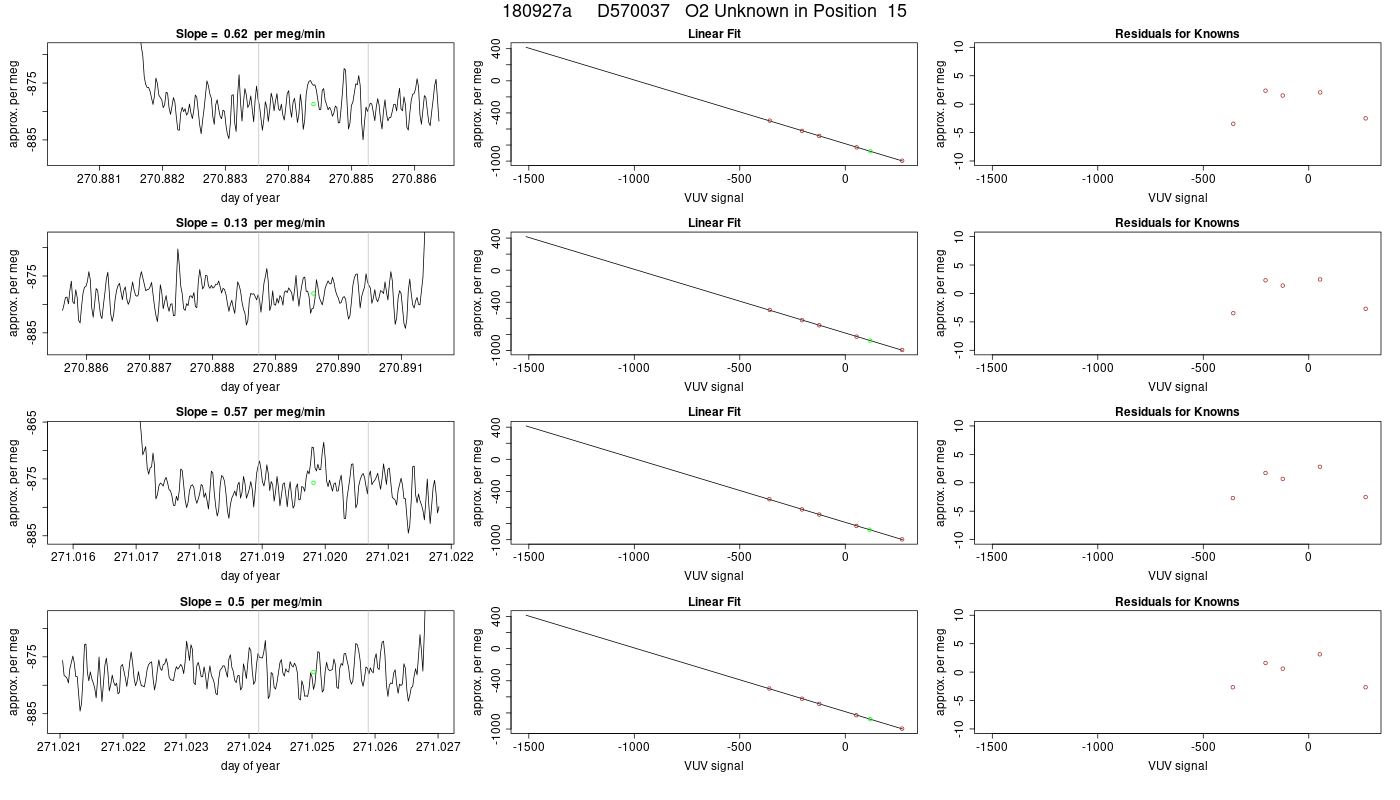

15 D570037    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.884 440.210 0.013 -802.41 2.61 440.421 0.013
270.890 440.224 0.014 -801.83 2.00 440.435 0.014
271.020 440.223 0.013 -799.64 2.73 440.434 0.013
271.025 440.227 0.010 -801.78 2.50 440.438 0.010
271.155 440.235 0.013 -801.44 2.48 440.446 0.013
271.160 440.251 0.010 -802.05 2.27 440.462 0.010
271.291 440.251 0.012 -801.36 1.99 440.462 0.012
271.296 440.259 0.018 -802.66 2.26 440.470 0.018
