UEA CRAM Lab O2 and CO2 calibration results
RUN = 180920a
PROCESSED: 16:57:21 Mon 21Aug2023

Notes
Logfile

Results

Using data from 263.931 to 264.539 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.140 0.011 0.013 382.360 0.011 0.013 9 -479.73 1.35 -6.71 9
6 D570040 405.317 0.006 -0.024 405.517 0.006 -0.024 9 -702.94 2.03 6.19 9
9 D570039 412.136 0.009 -0.005 412.327 0.009 -0.005 9 -722.72 0.37 0.35 9
10 D570036 418.181 0.022 -0.096 418.366 0.022 -0.096 9 -722.64 2.12 9.61 9
11 D570038 462.666 0.020 -0.060 463.020 0.020 -0.061 6 -886.02 1.22 2.14 9
13 D570035 399.001 0.008 0.007 399.210 0.008 0.007 9 -615.88 1.58 5.72 9
14 D273559 375.015 0.017 0.037 375.228 0.017 0.038 9 424.22 1.45 0.83 9
15 D570037 440.252 0.026 -0.013 440.463 0.026 -0.013 9 -802.21 0.52 0.26 9
WT D258964 397.151 0.010 -0.048 397.362 0.010 -0.048 117 -750.43 1.05 -5.50 117
Text File

Raw Data and Diagnostics Figures

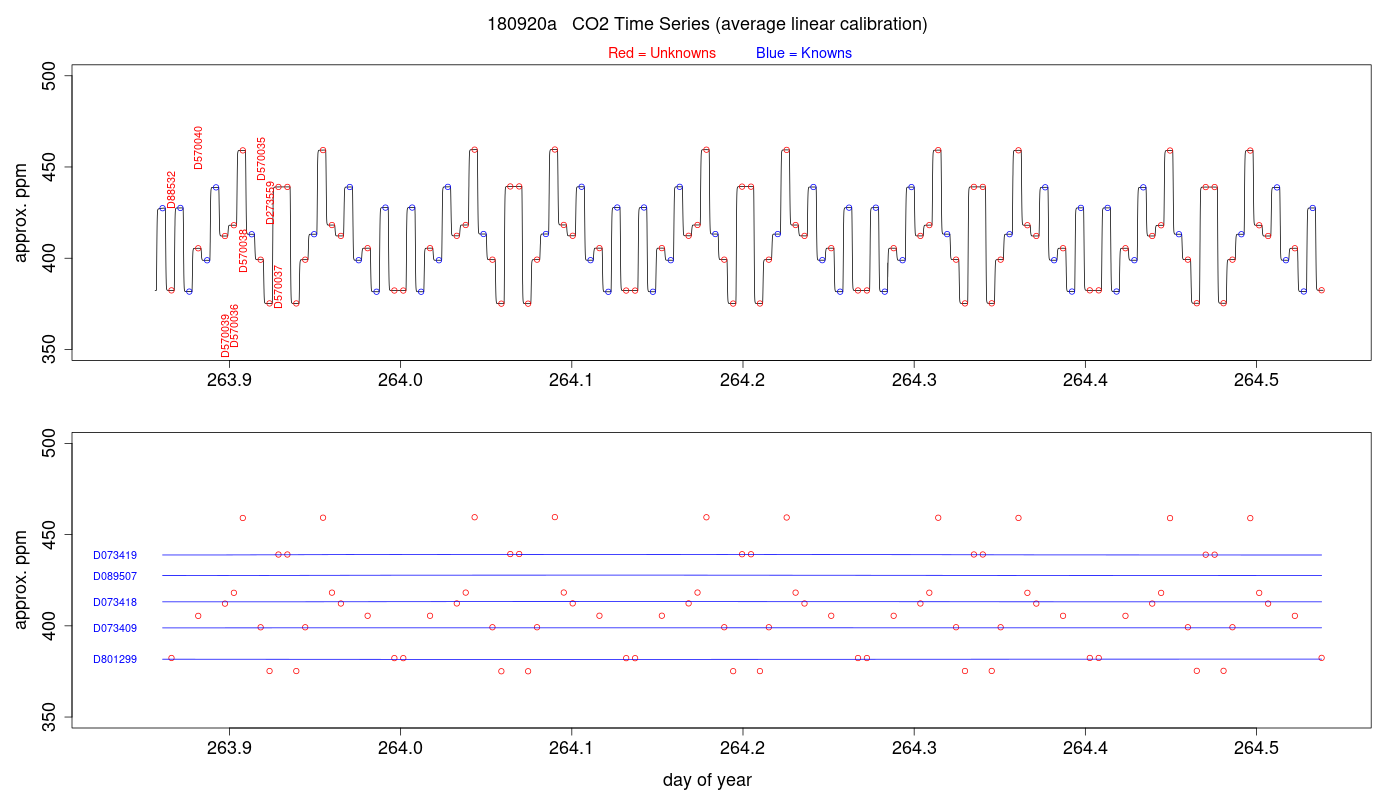

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

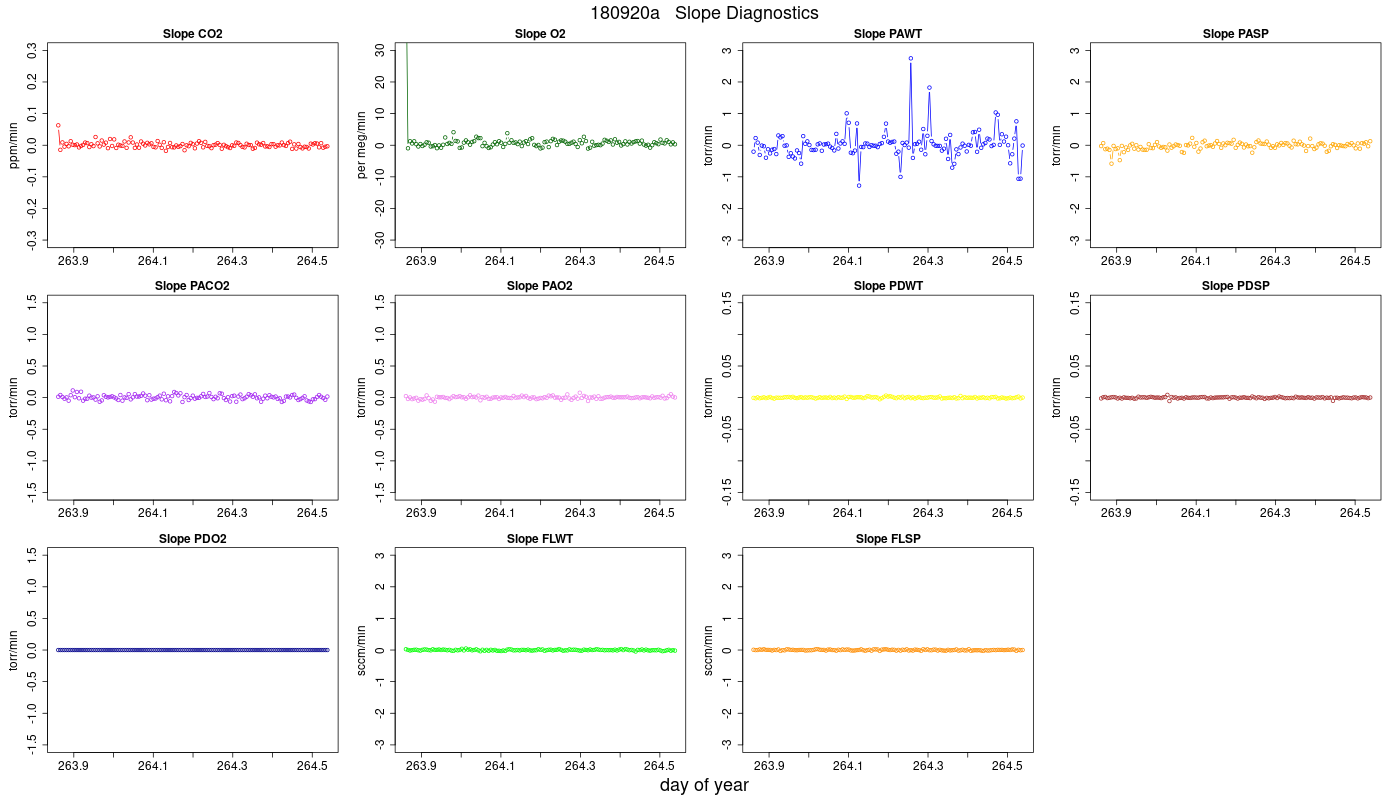

Jog Slope Diagnostics

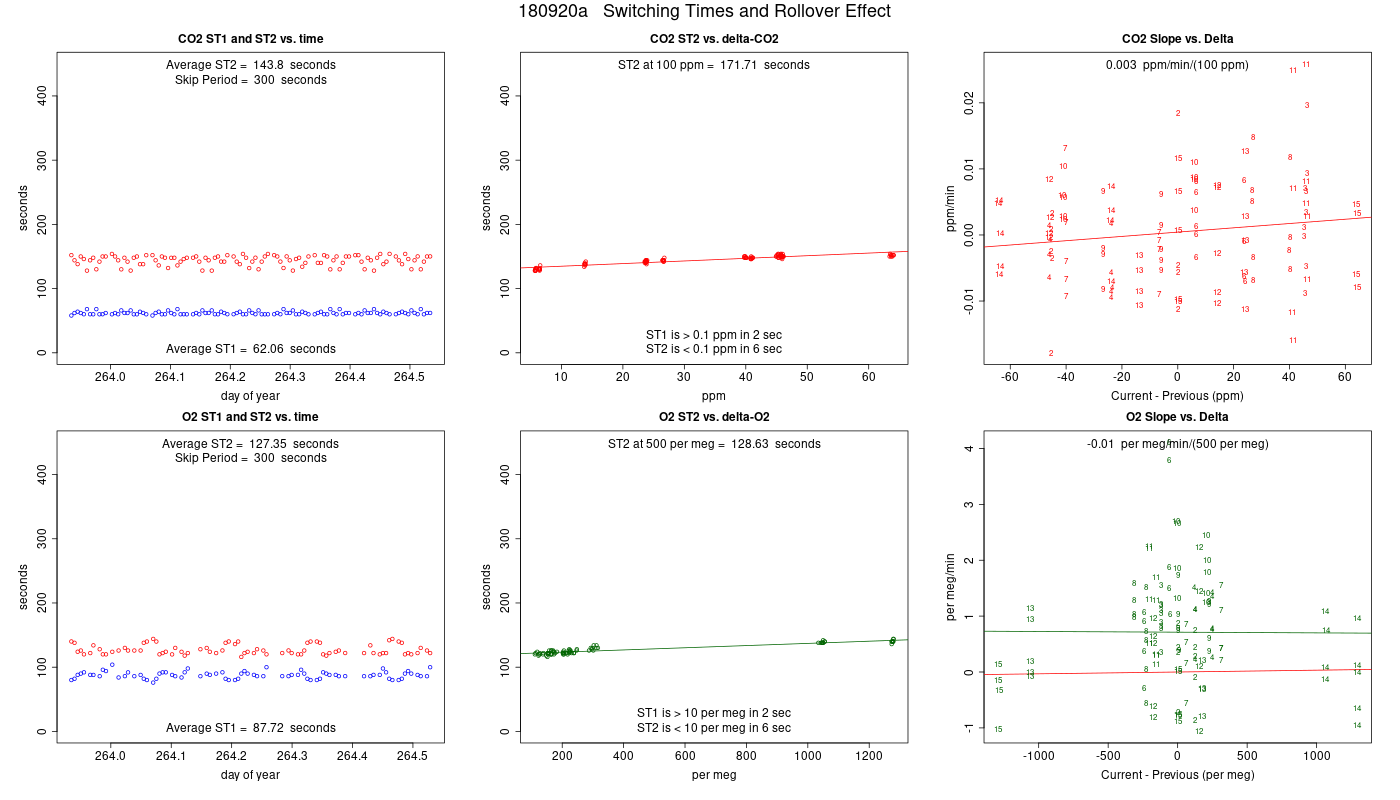

 Rollover Effect
 Flushing Effect
CO2 Parameters

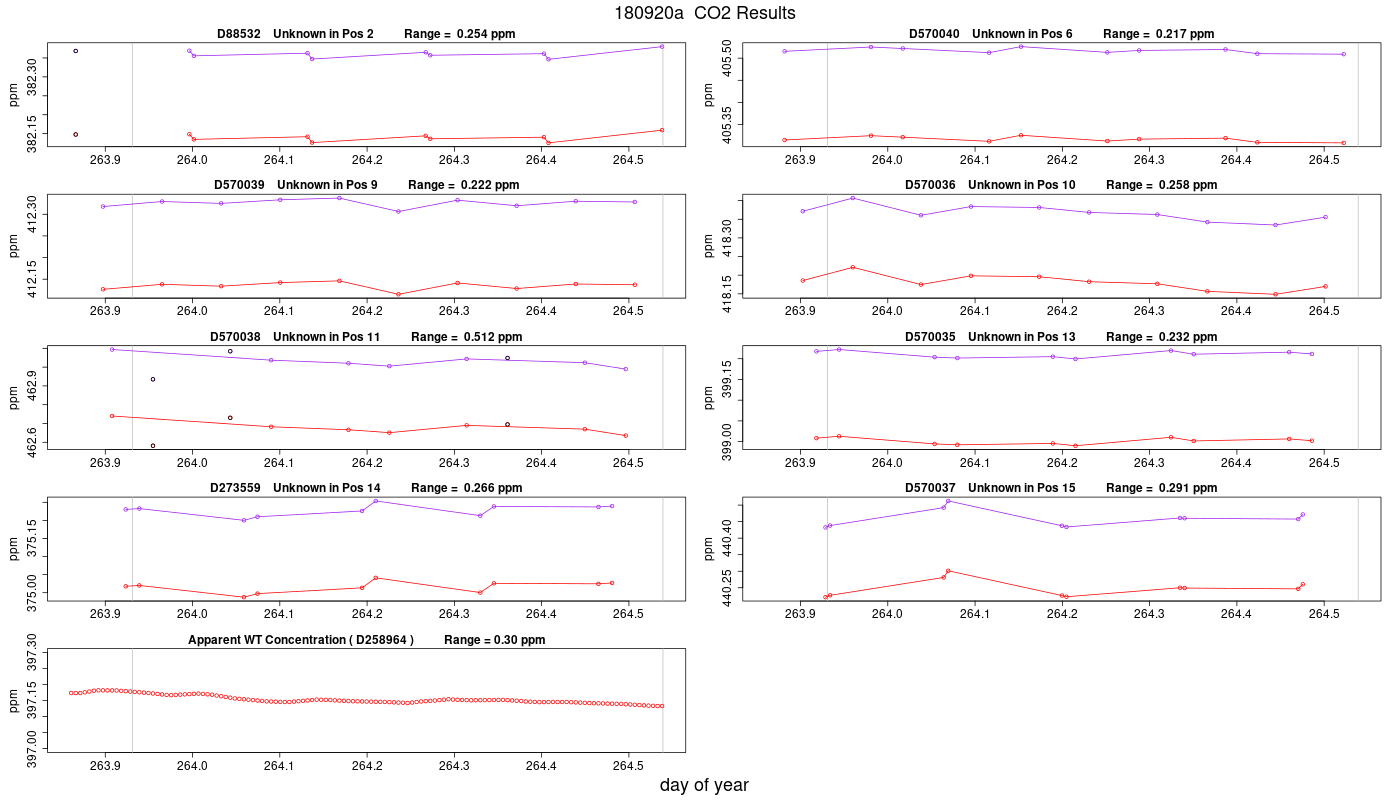

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters

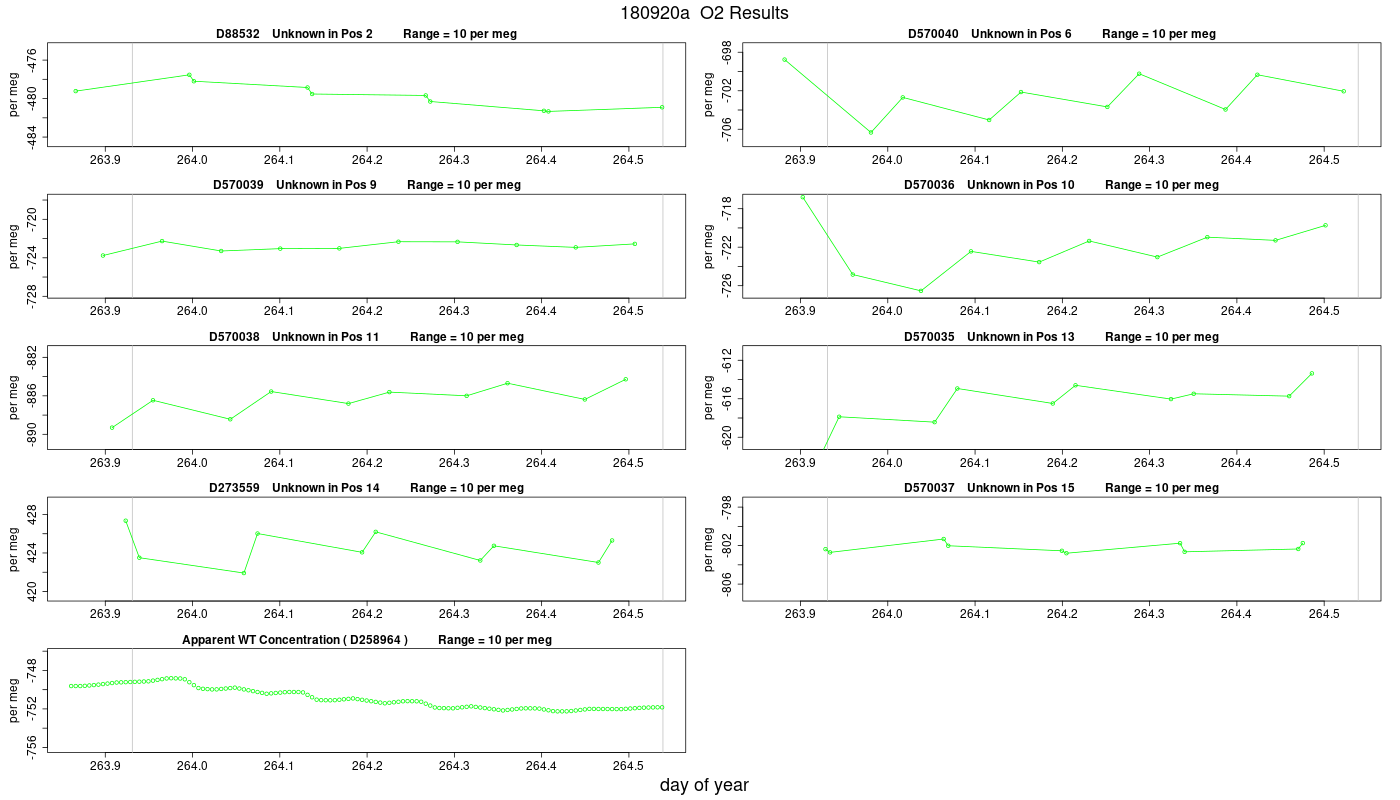

O2 Results

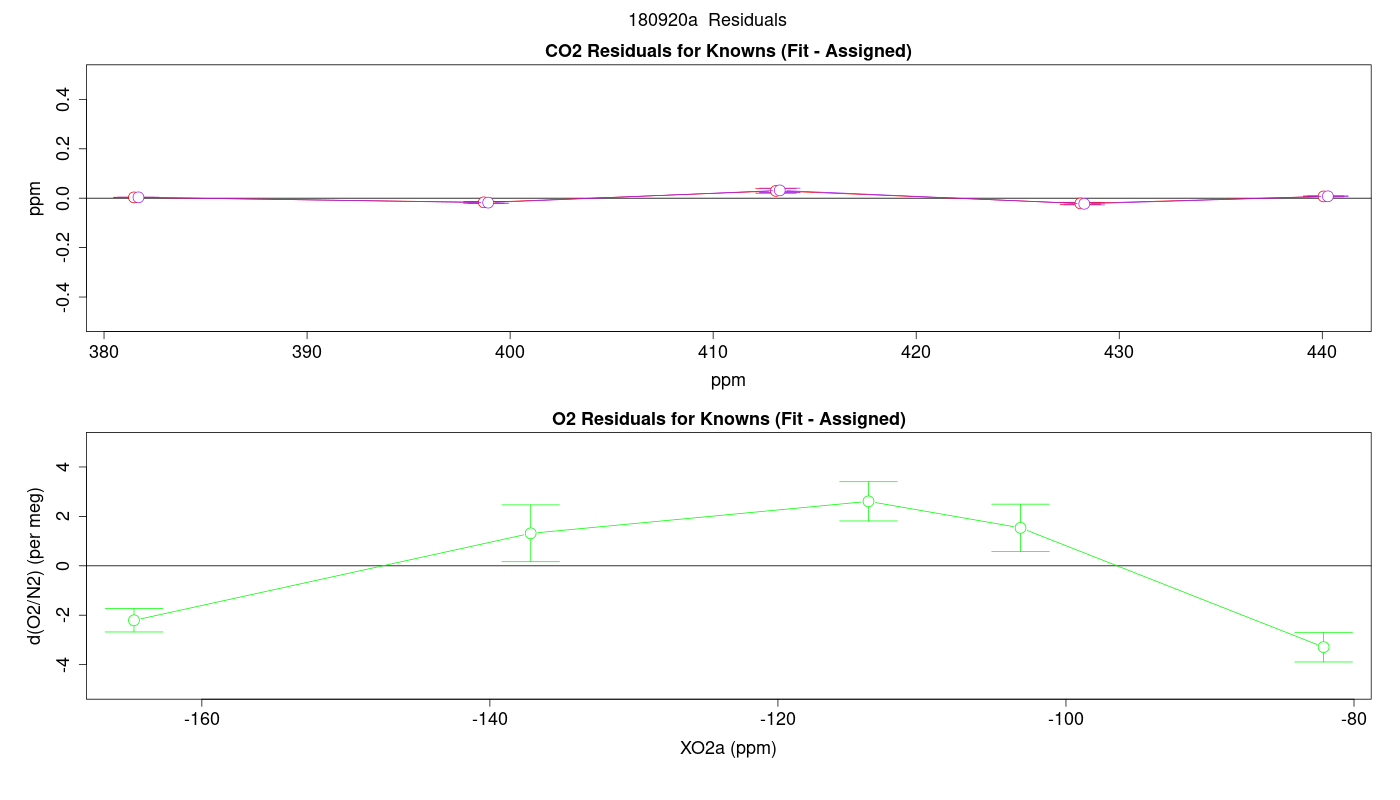

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

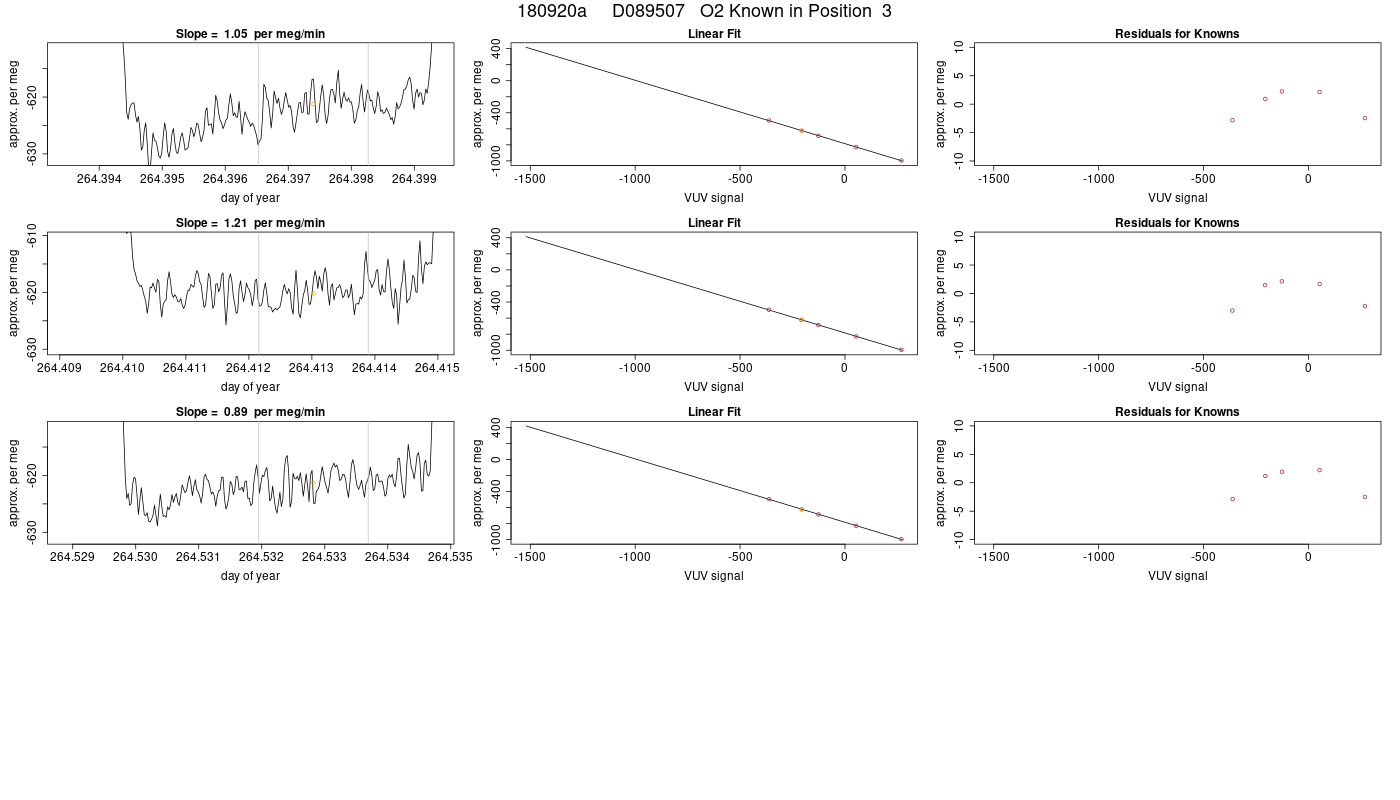

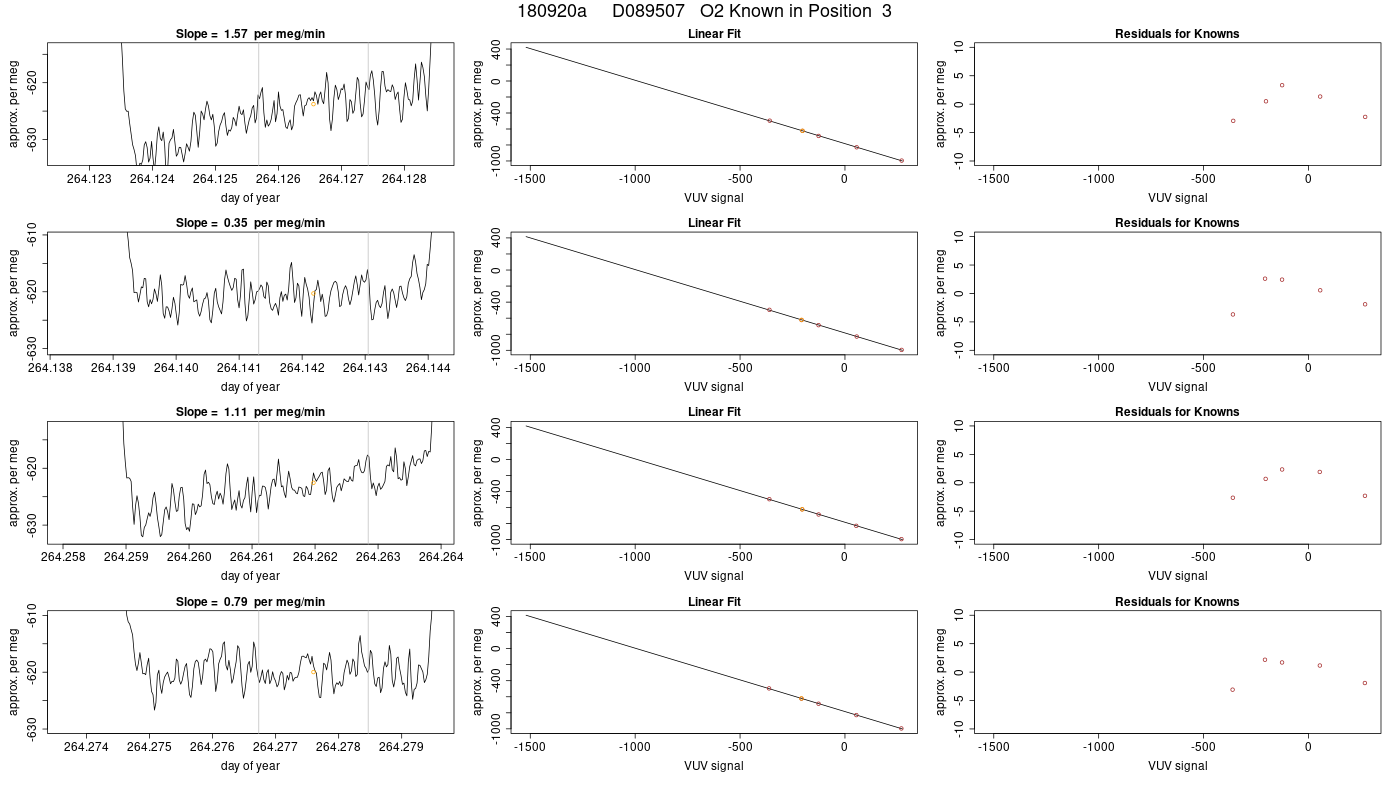

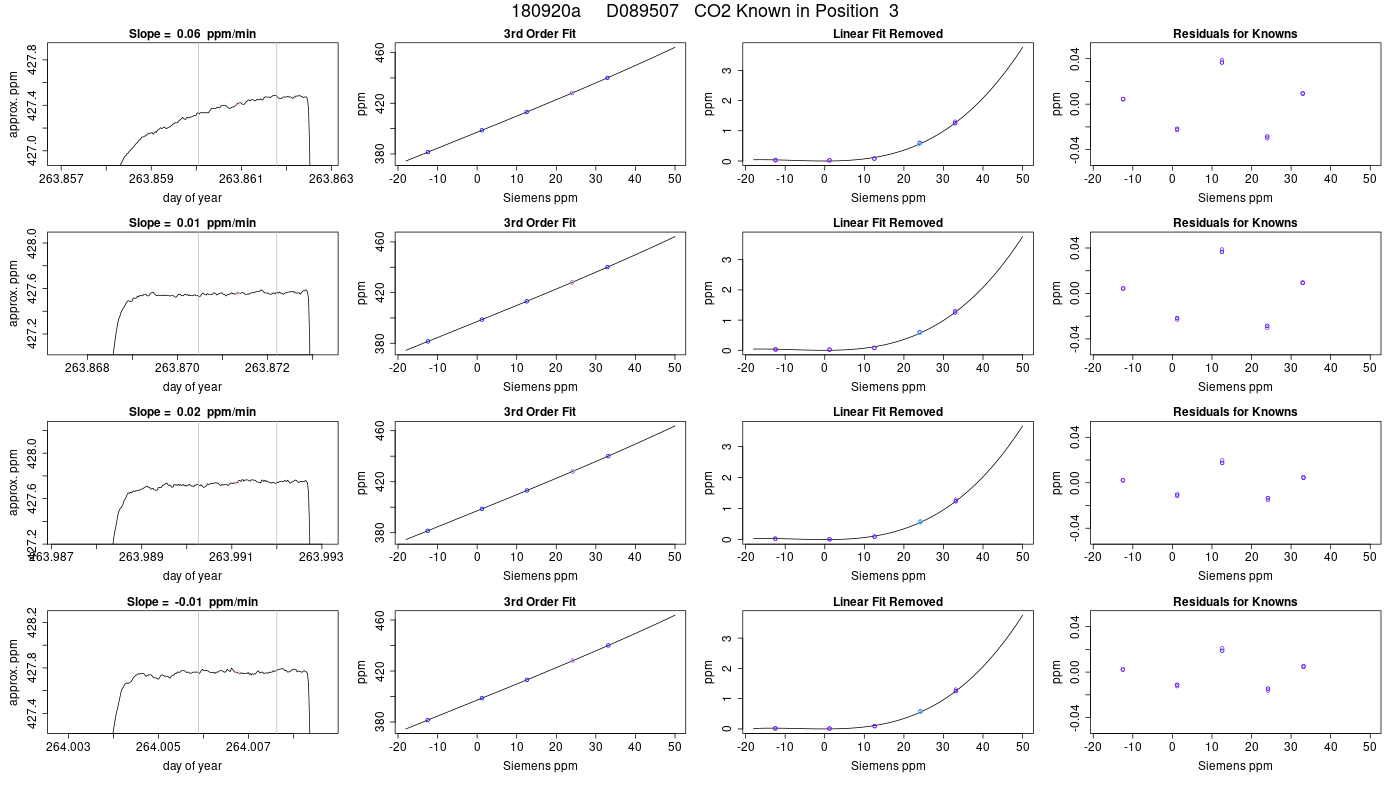

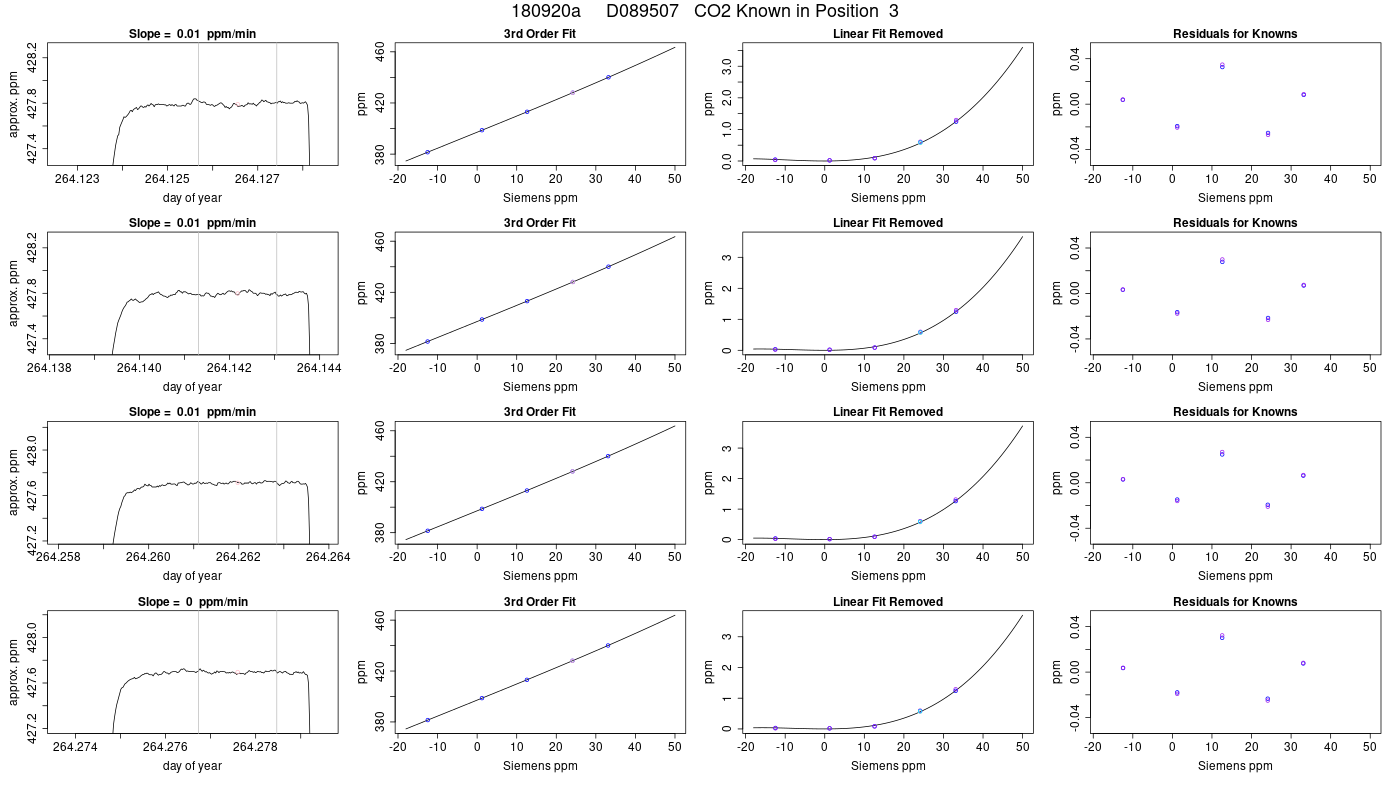

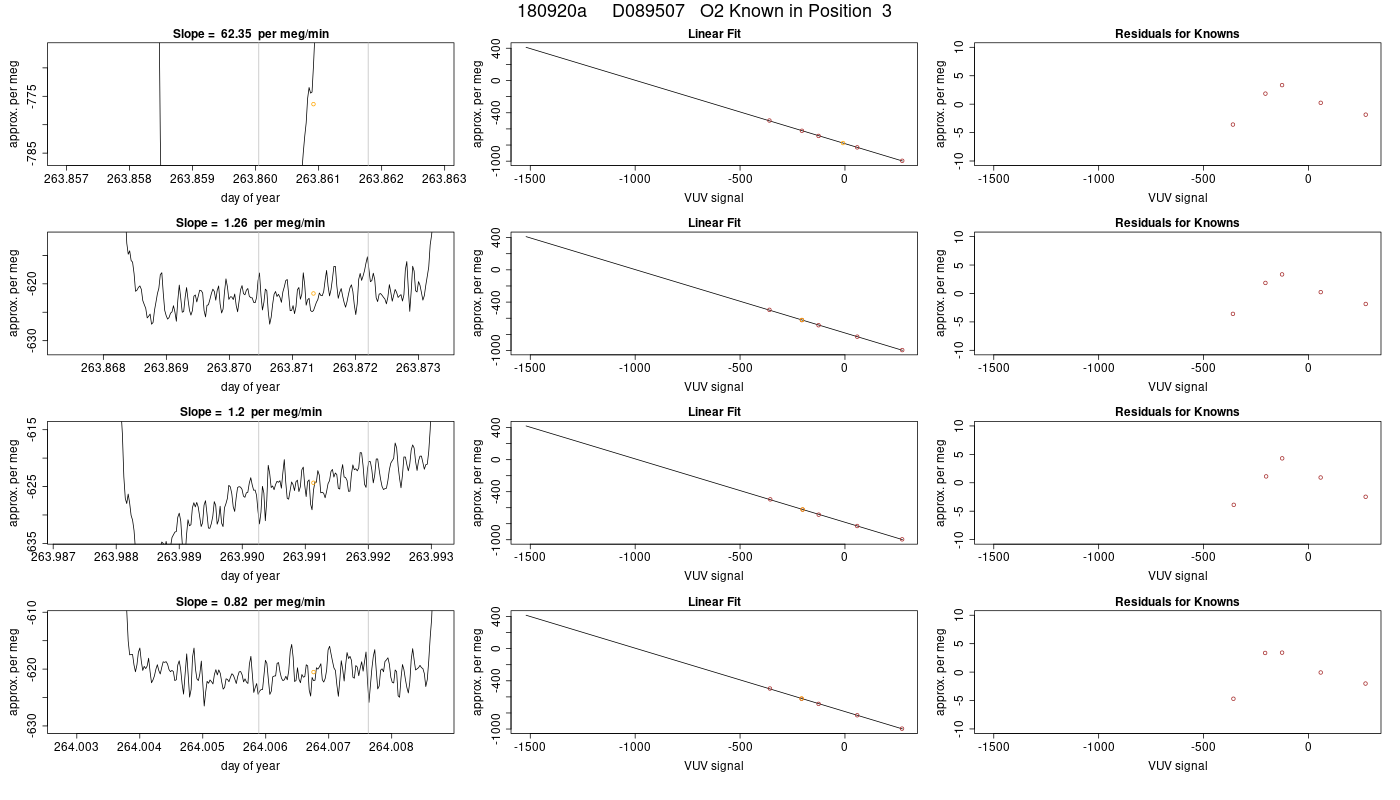

3 D089507 428.087 -0.021 0.004 428.275 -0.023 0.004 9 -559.23 1.54 0.96 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

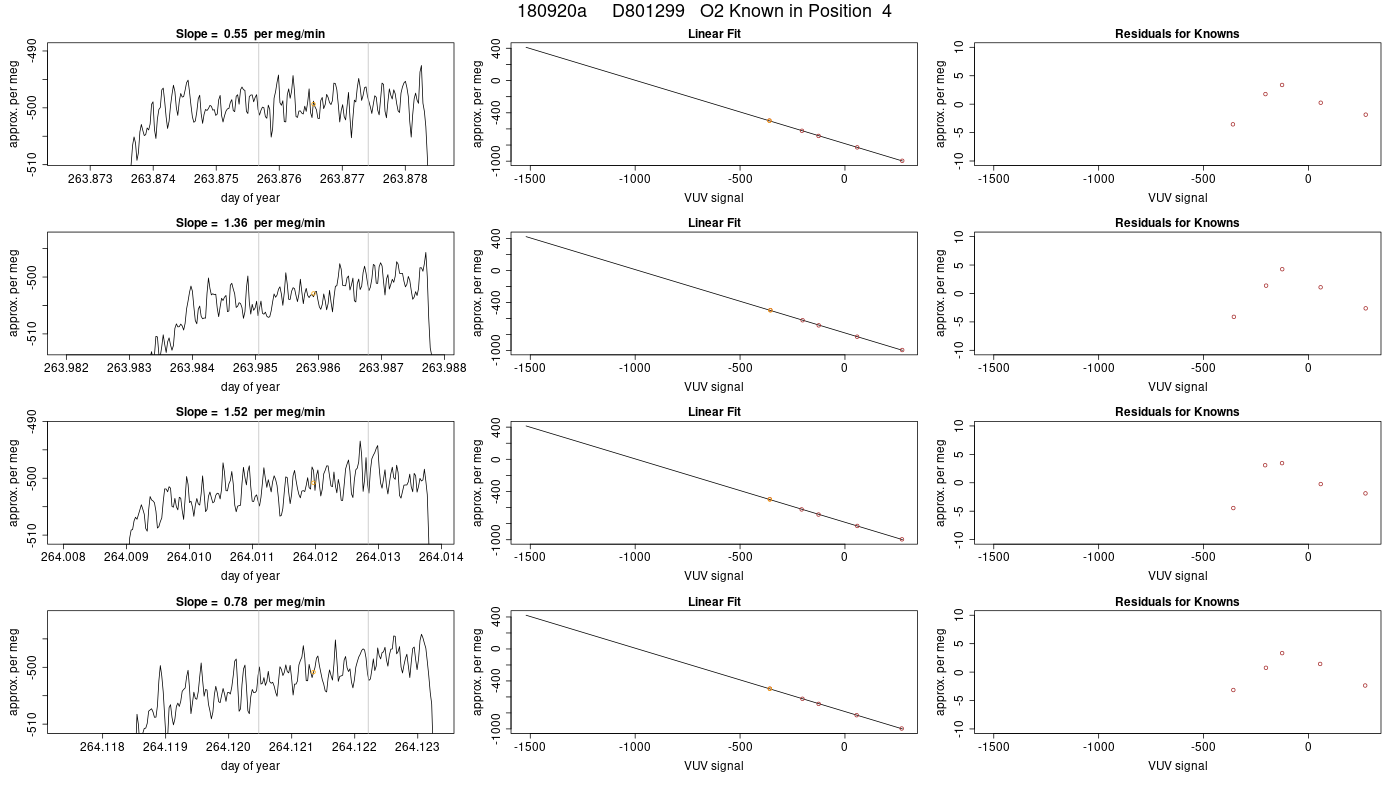

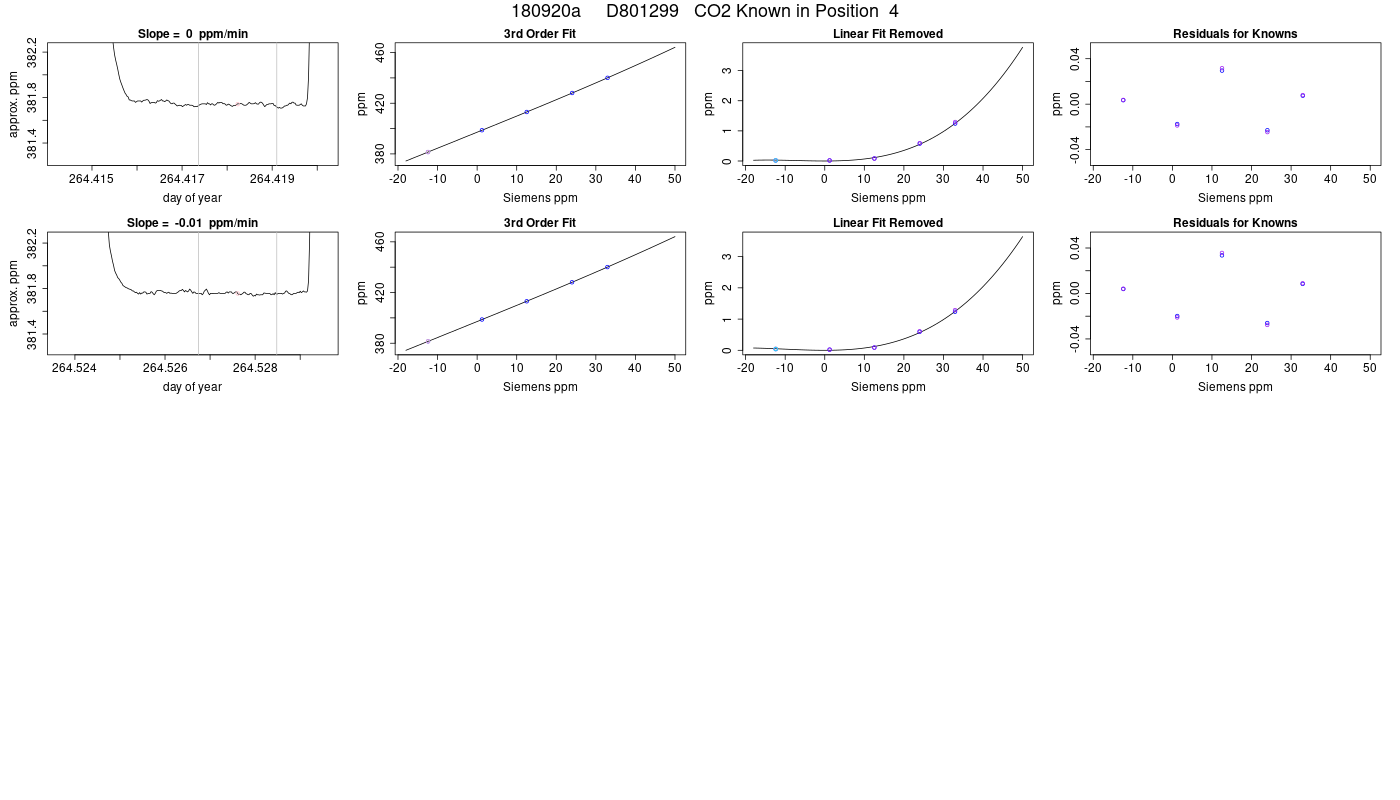

4 D801299 381.475 0.003 0.001 381.695 0.003 0.001 9 -477.75 -3.29 0.60 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

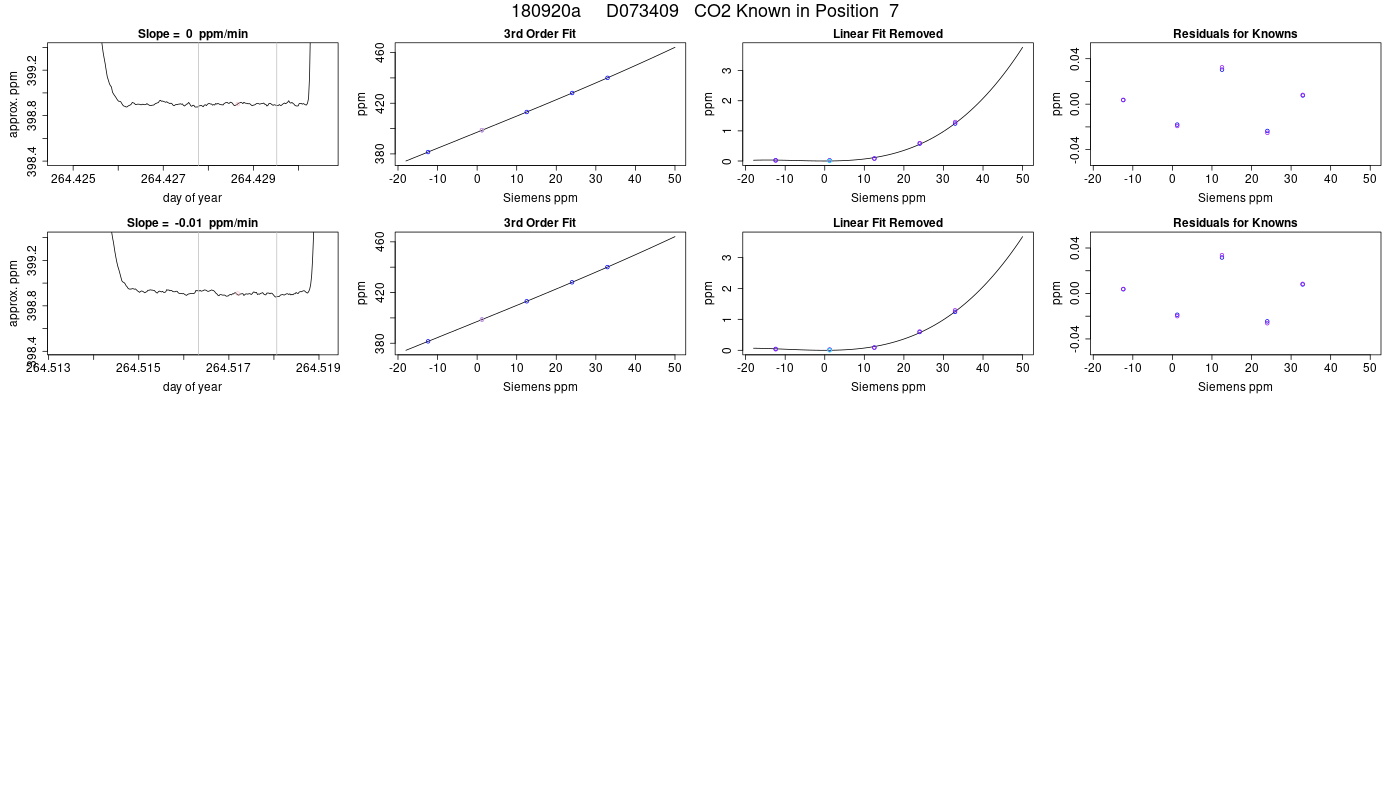

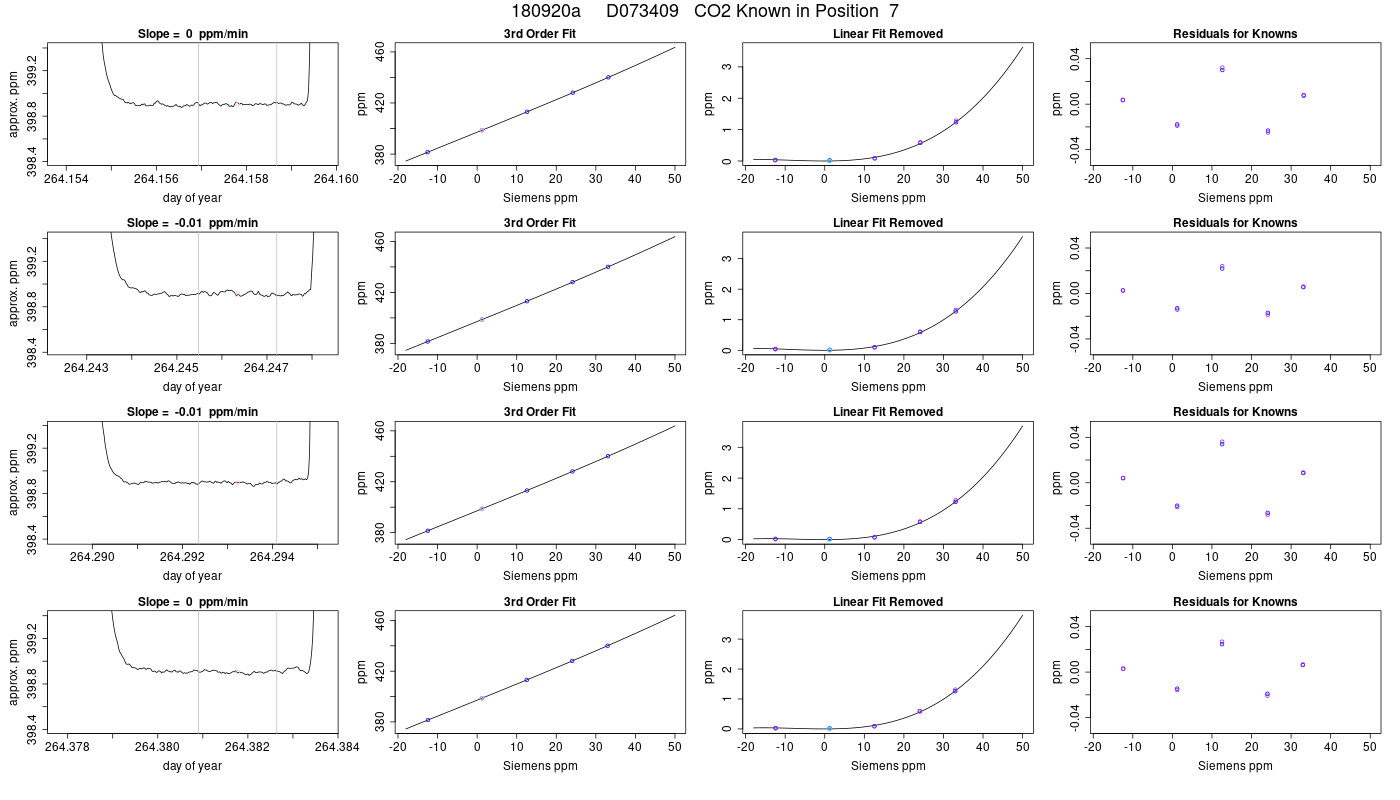

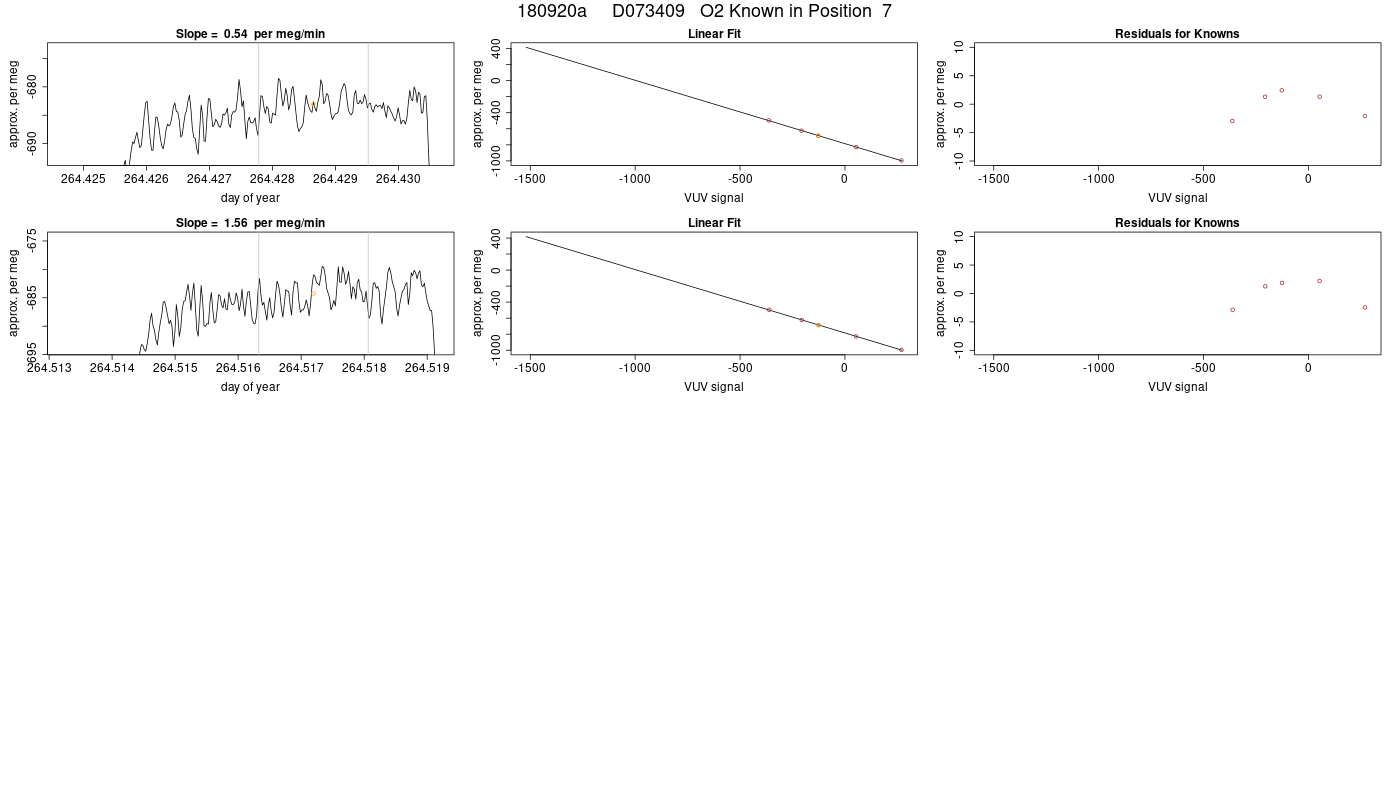

7 D073409 398.707 -0.017 0.004 398.918 -0.018 0.004 9 -651.78 2.61 0.79 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

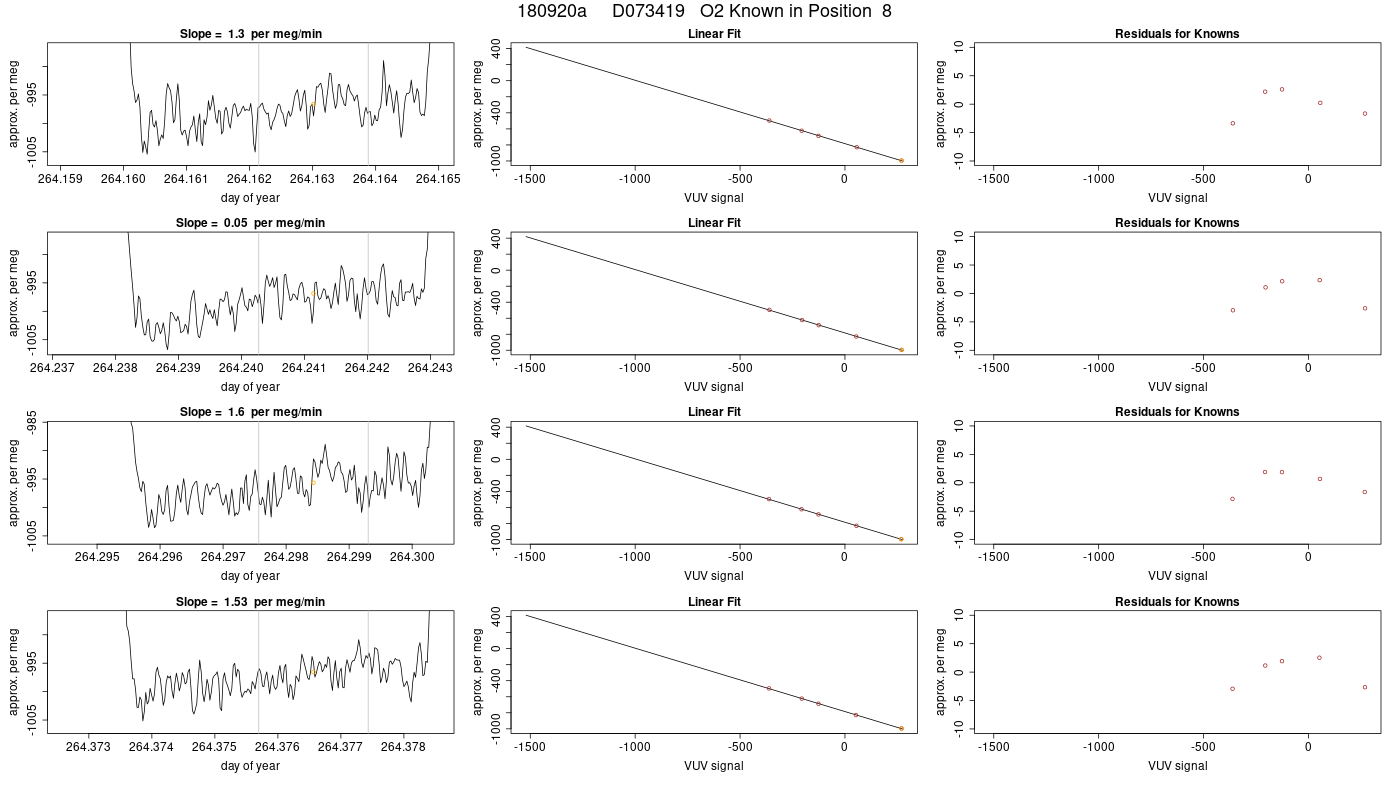

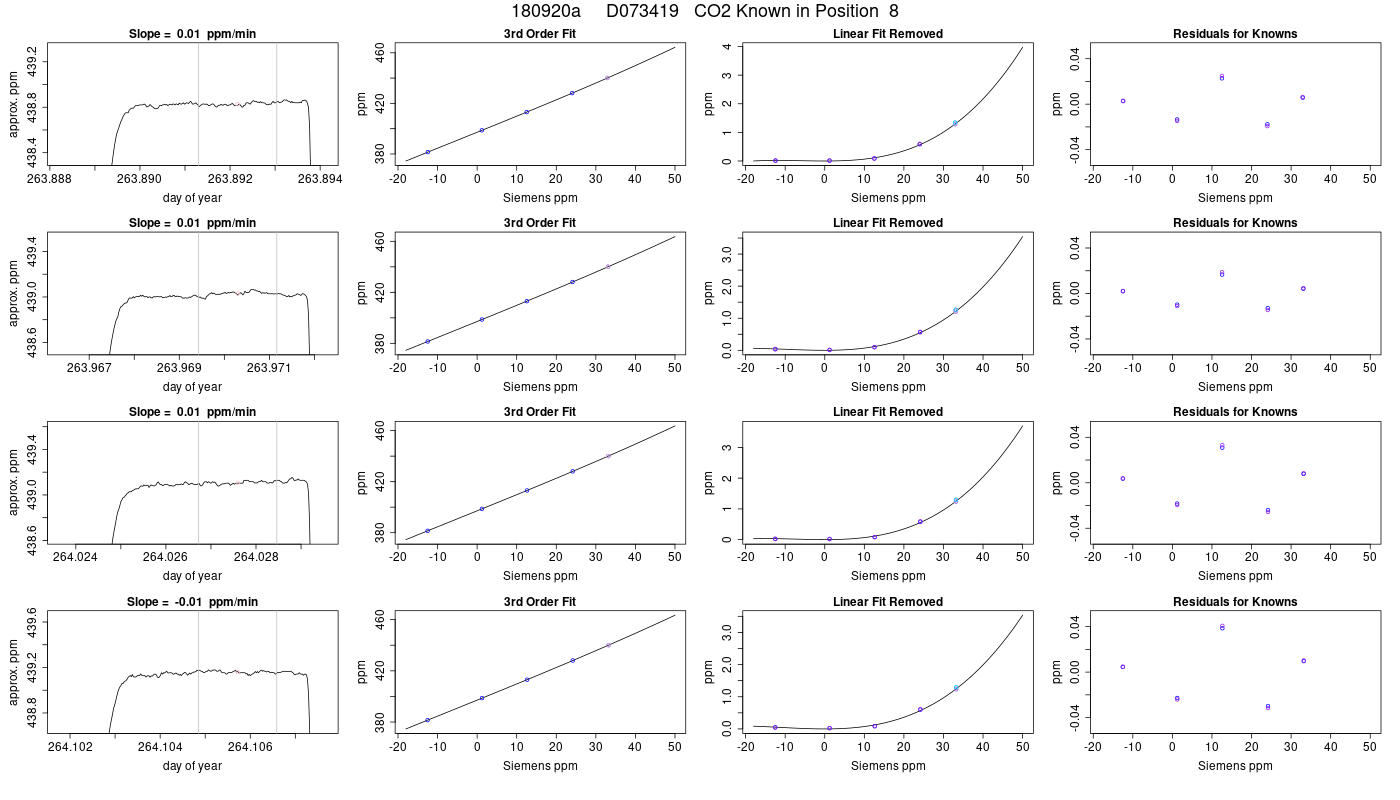

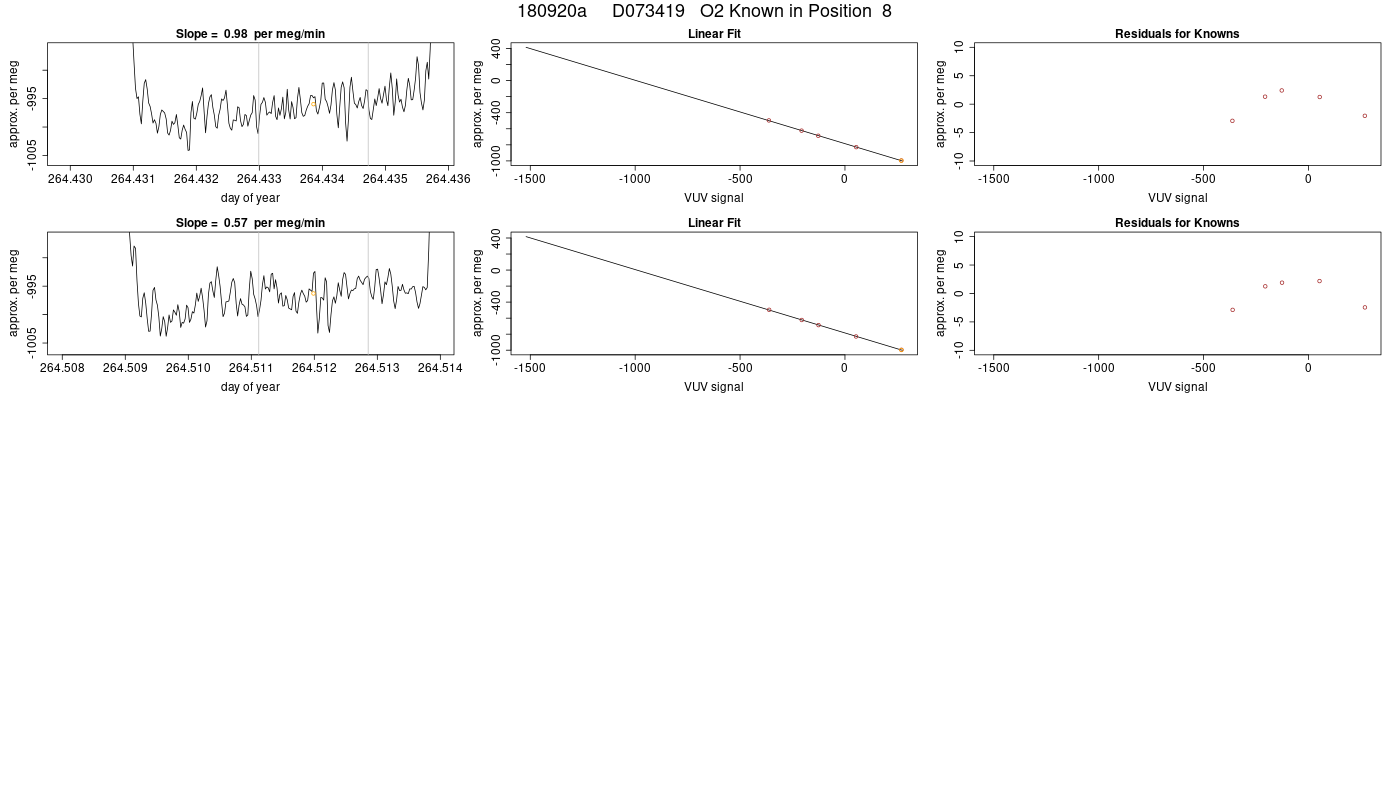

8 D073419 440.065 0.007 0.002 440.275 0.008 0.002 9 -919.32 -2.21 0.47 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

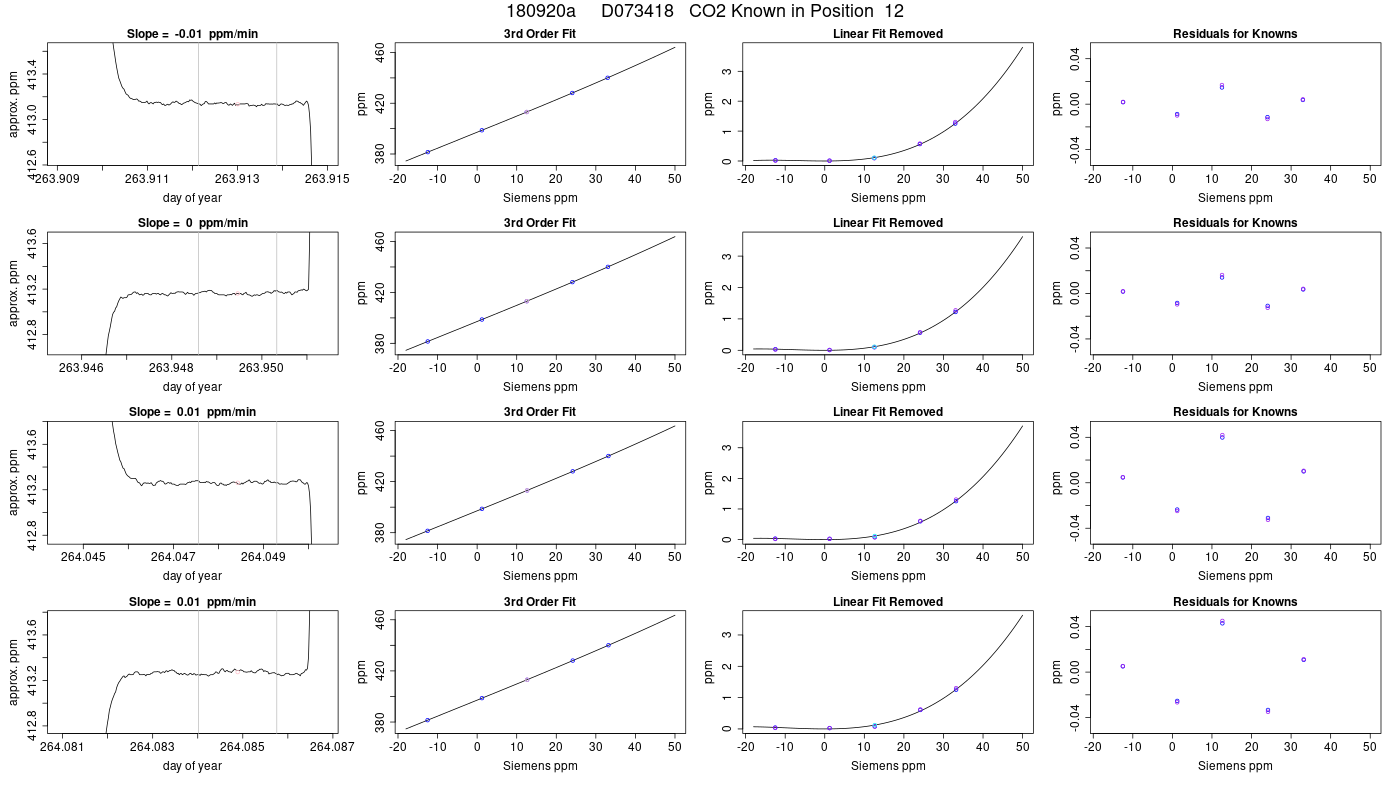

12 D073418 413.092 0.030 0.009 413.280 0.032 0.009 9 -779.40 1.31 1.15 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

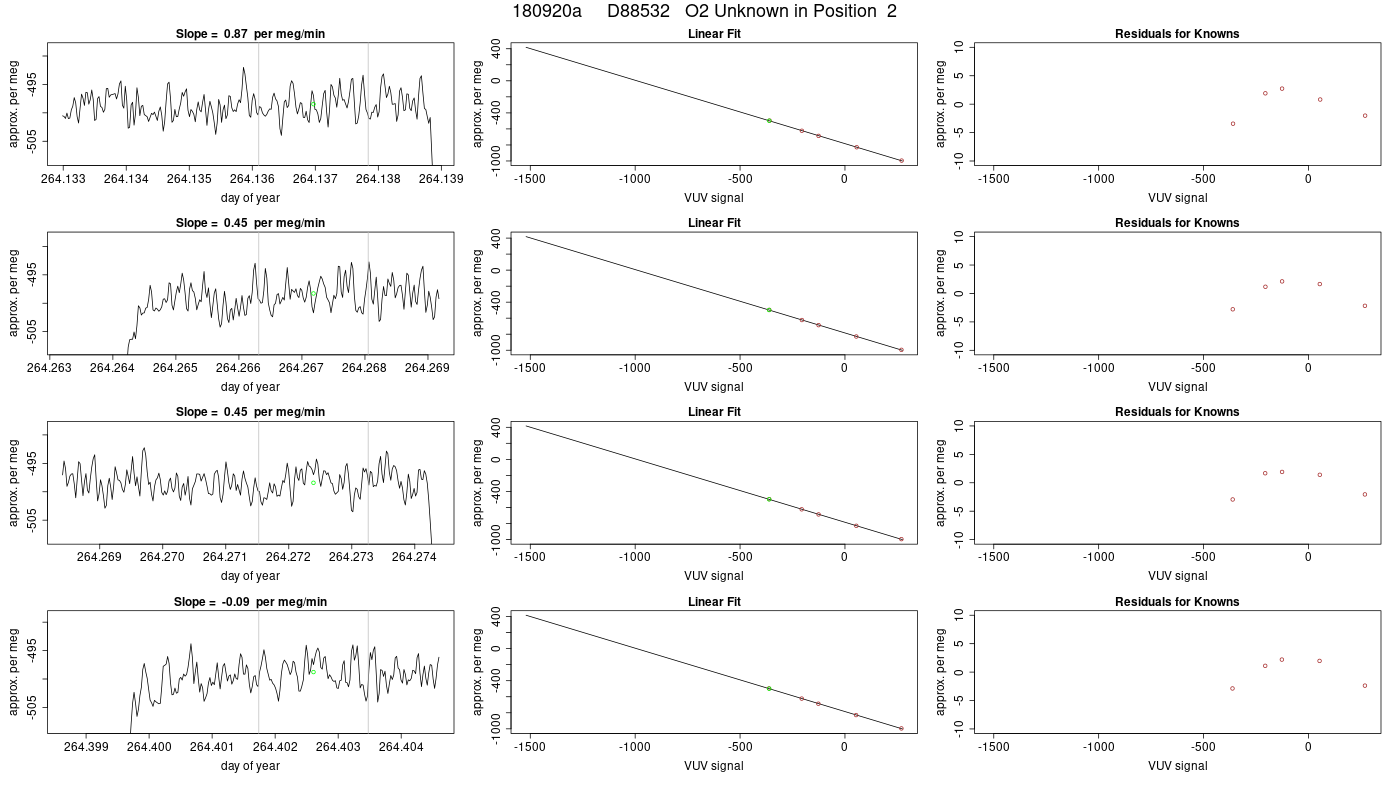

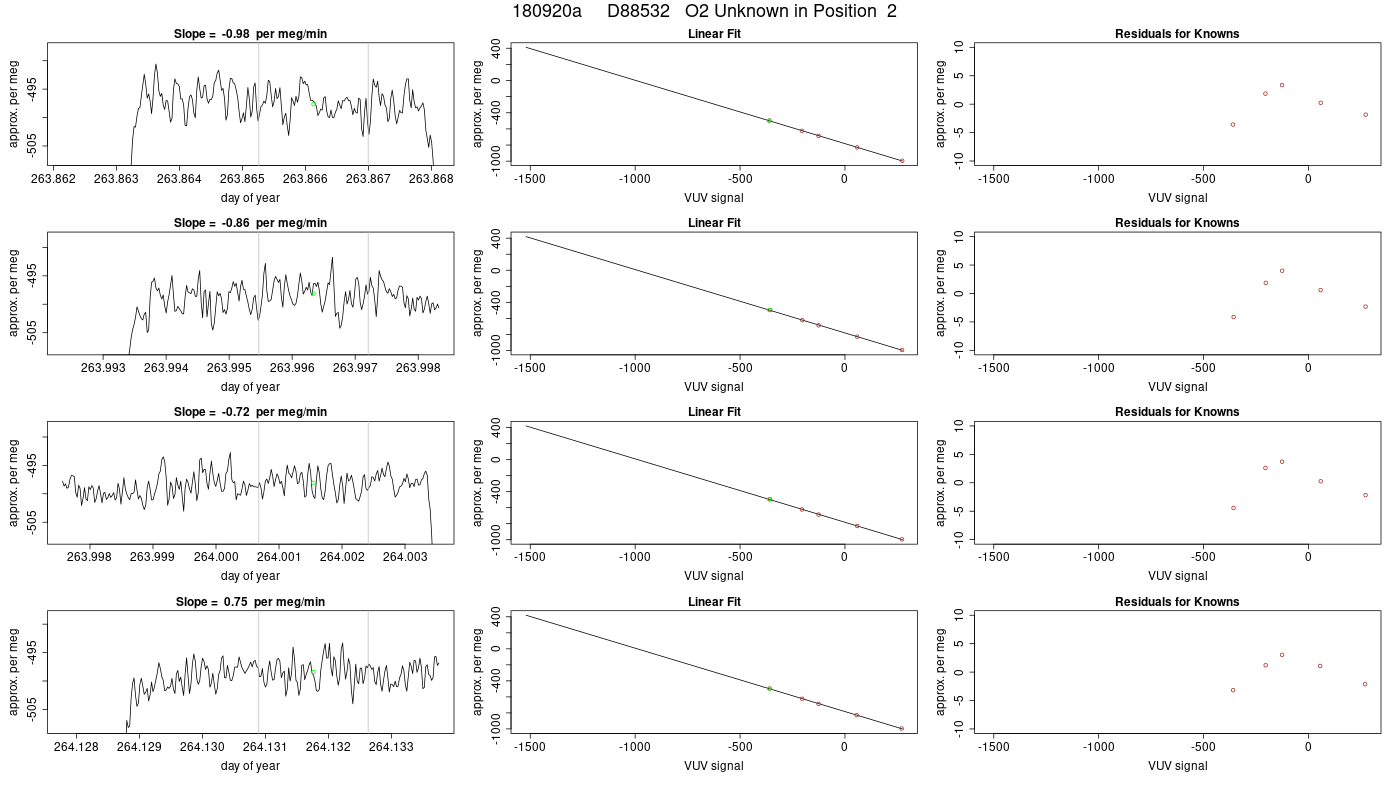

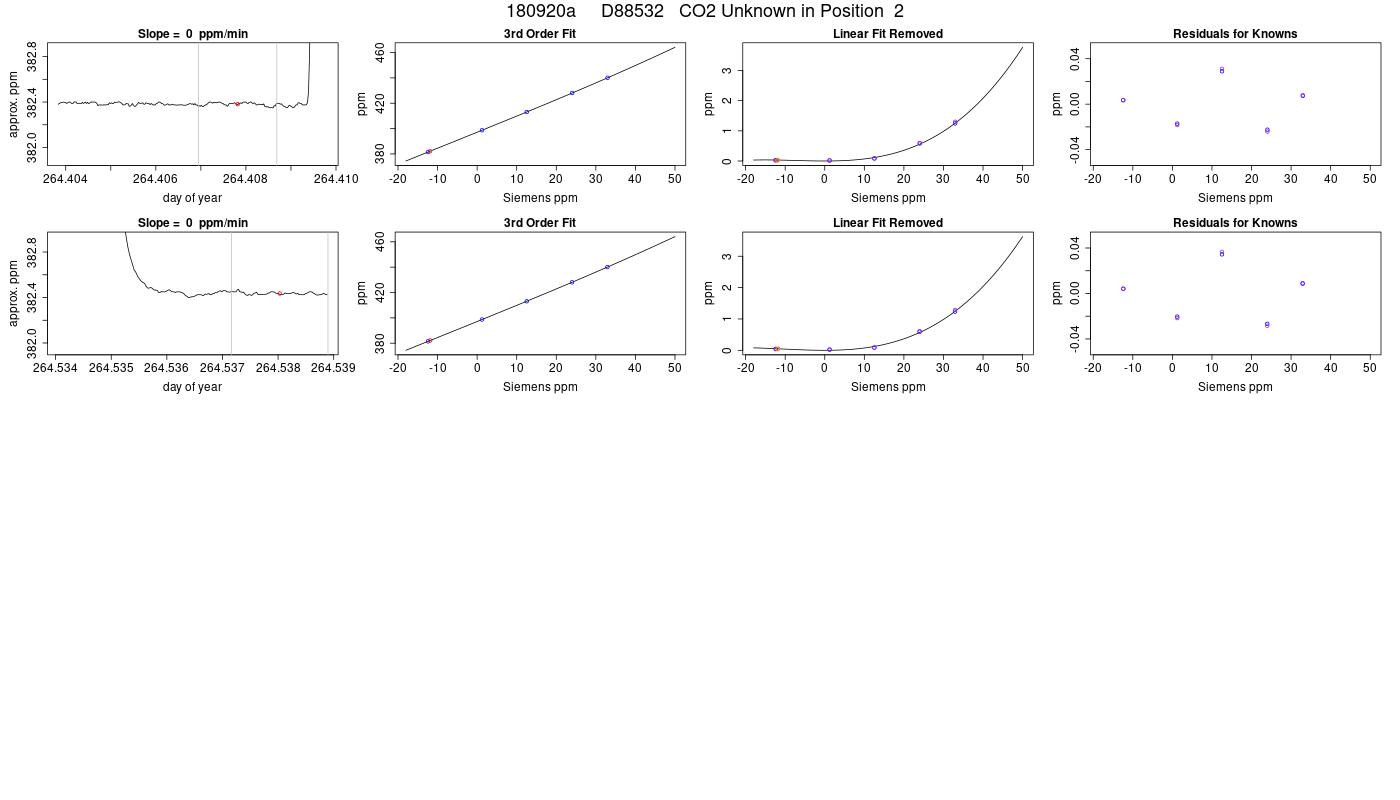

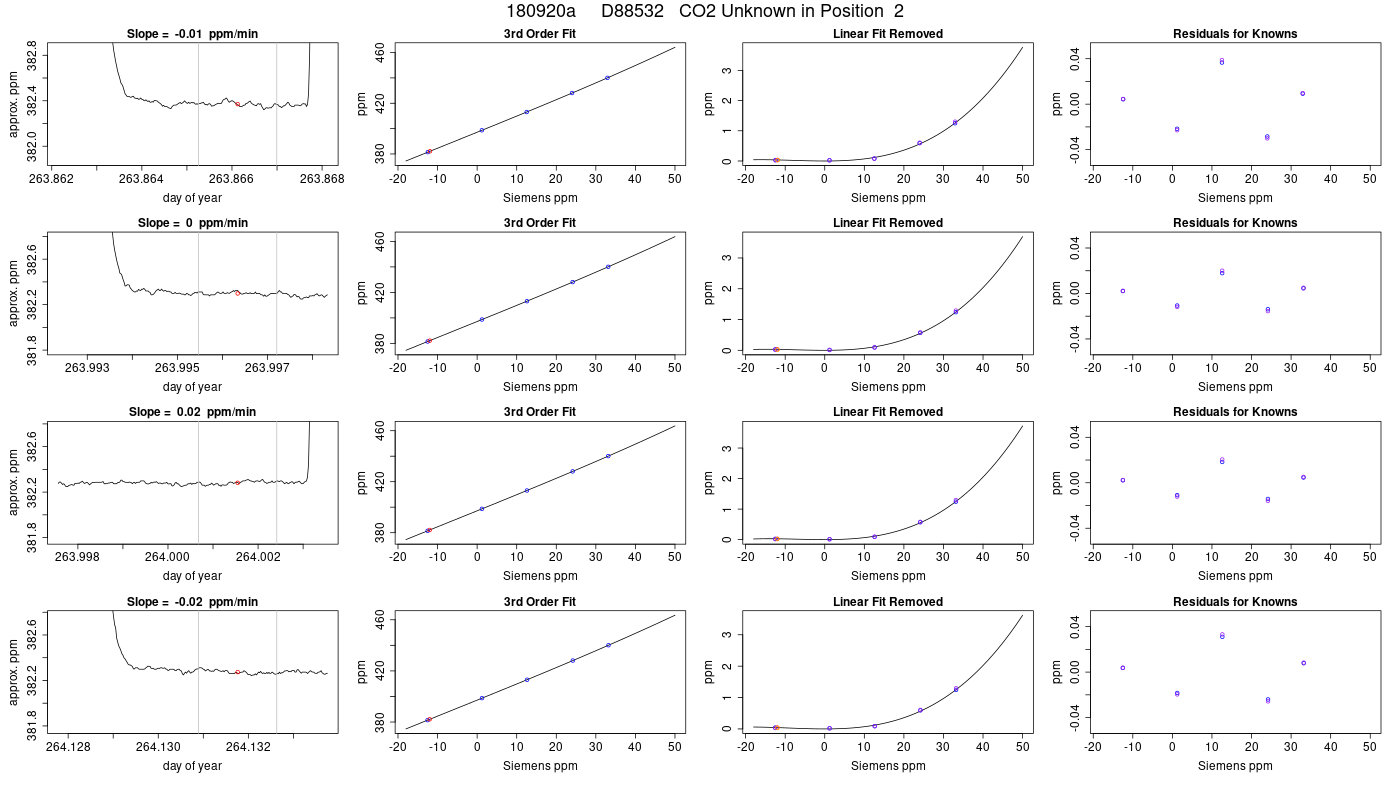

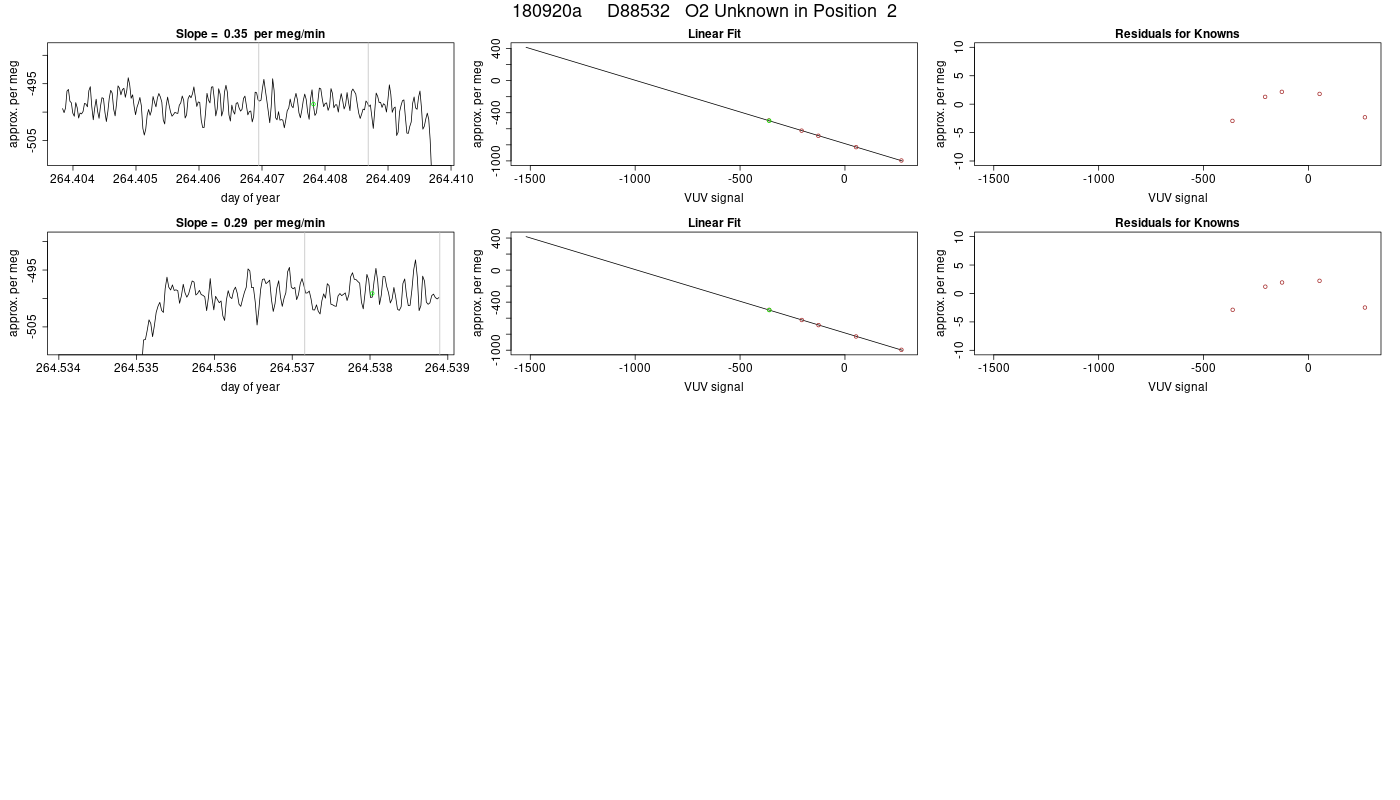

2 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.866 382.148 0.021 -479.23 2.21 382.368 0.021
263.996 382.148 0.012 -477.53 2.41 382.369 0.012
264.002 382.135 0.015 -478.20 1.90 382.356 0.015
264.132 382.142 0.017 -478.85 2.29 382.363 0.017
264.137 382.126 0.013 -479.53 2.28 382.347 0.013
264.267 382.144 0.013 -479.68 2.31 382.365 0.013
264.272 382.136 0.014 -480.31 2.22 382.357 0.014
264.403 382.141 0.010 -481.27 2.49 382.361 0.010
264.408 382.126 0.015 -481.34 1.86 382.346 0.015
264.538 382.159 0.011 -480.91 2.14 382.380 0.011

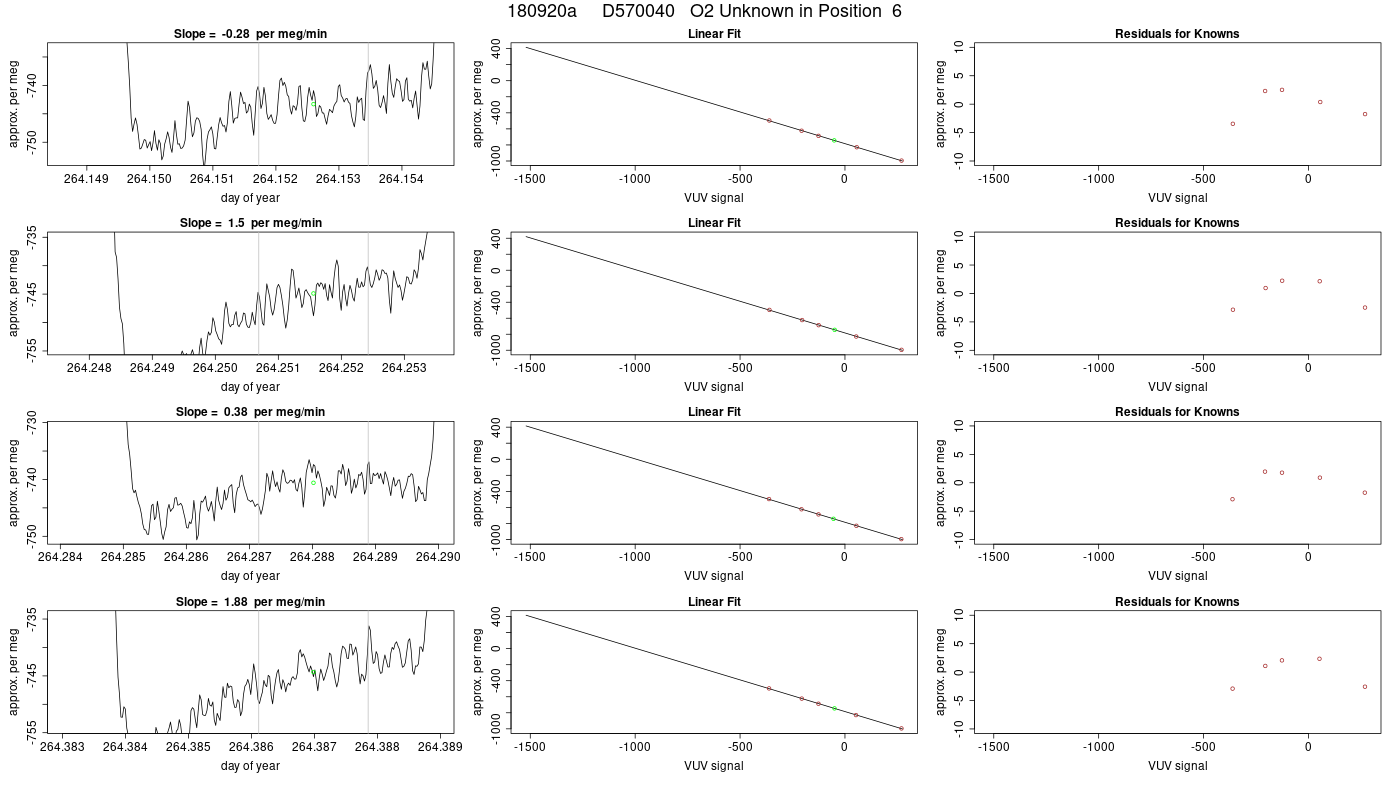

6 D570040    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.882 405.315 0.013 -698.76 2.47 405.515 0.013
263.981 405.325 0.014 -706.34 3.38 405.525 0.014
264.017 405.322 0.009 -702.69 2.32 405.522 0.009
264.116 405.312 0.010 -705.04 3.63 405.512 0.010
264.153 405.326 0.011 -702.13 2.25 405.526 0.011
264.252 405.313 0.014 -703.68 2.50 405.513 0.014
264.288 405.317 0.015 -700.23 2.06 405.517 0.015
264.387 405.319 0.012 -703.95 2.58 405.520 0.012
264.423 405.310 0.013 -700.34 2.80 405.510 0.013
264.522 405.309 0.012 -702.06 2.35 405.509 0.012

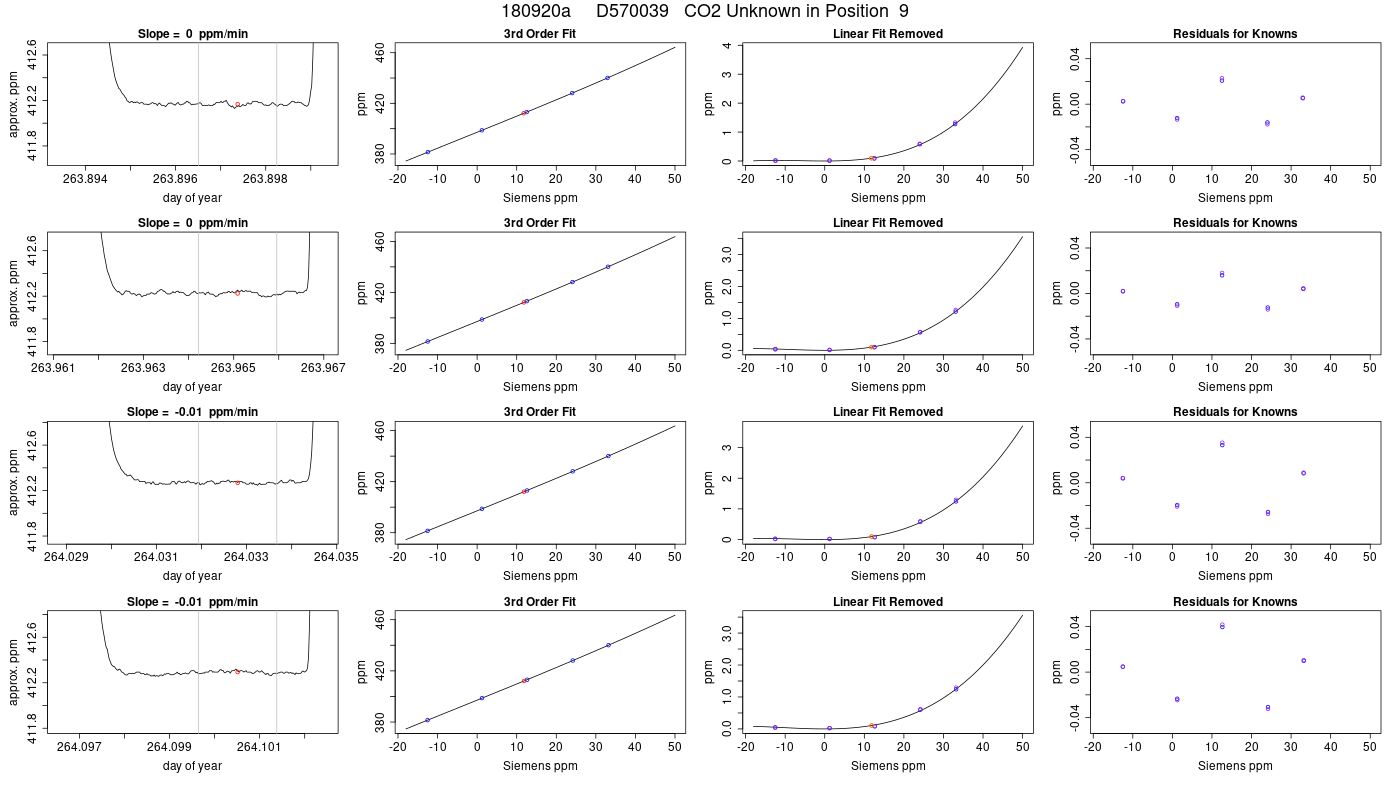

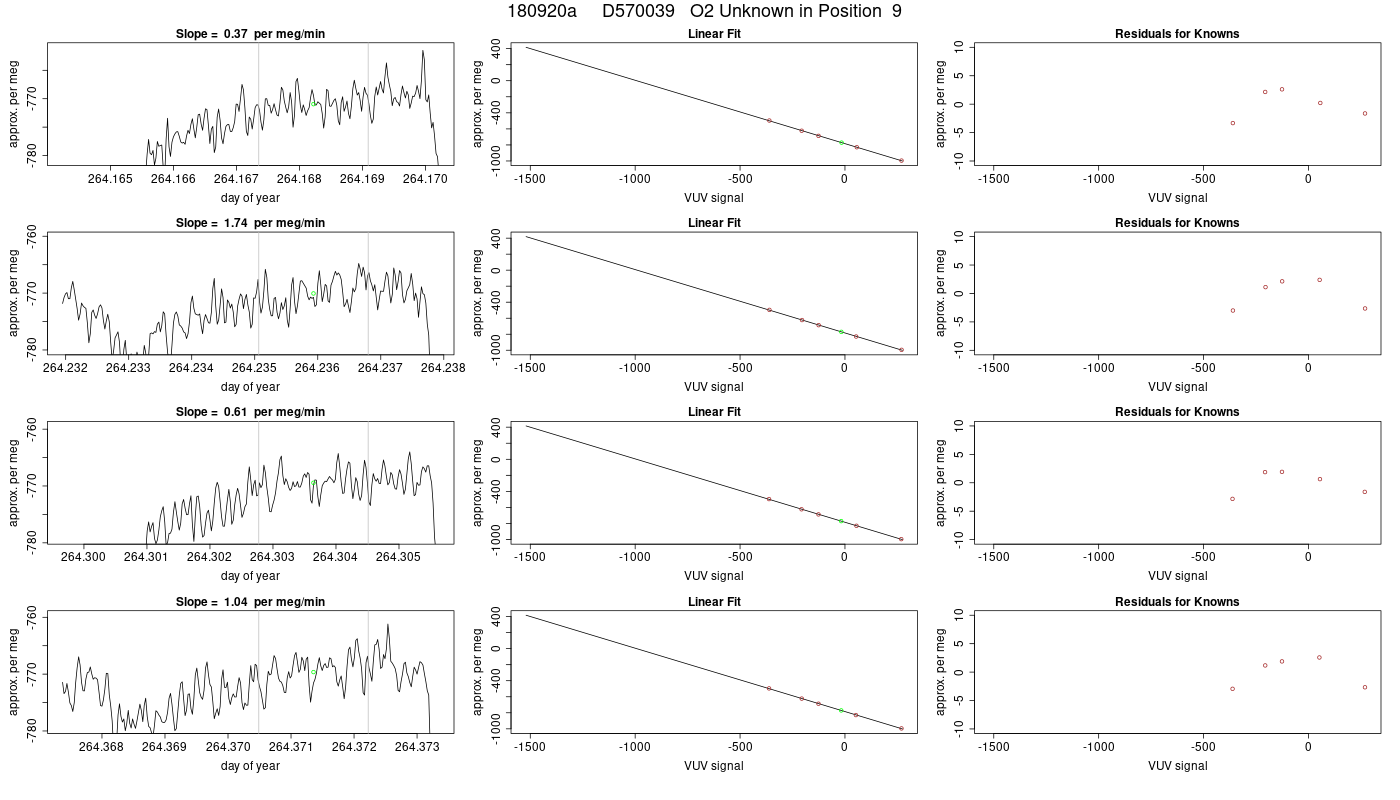

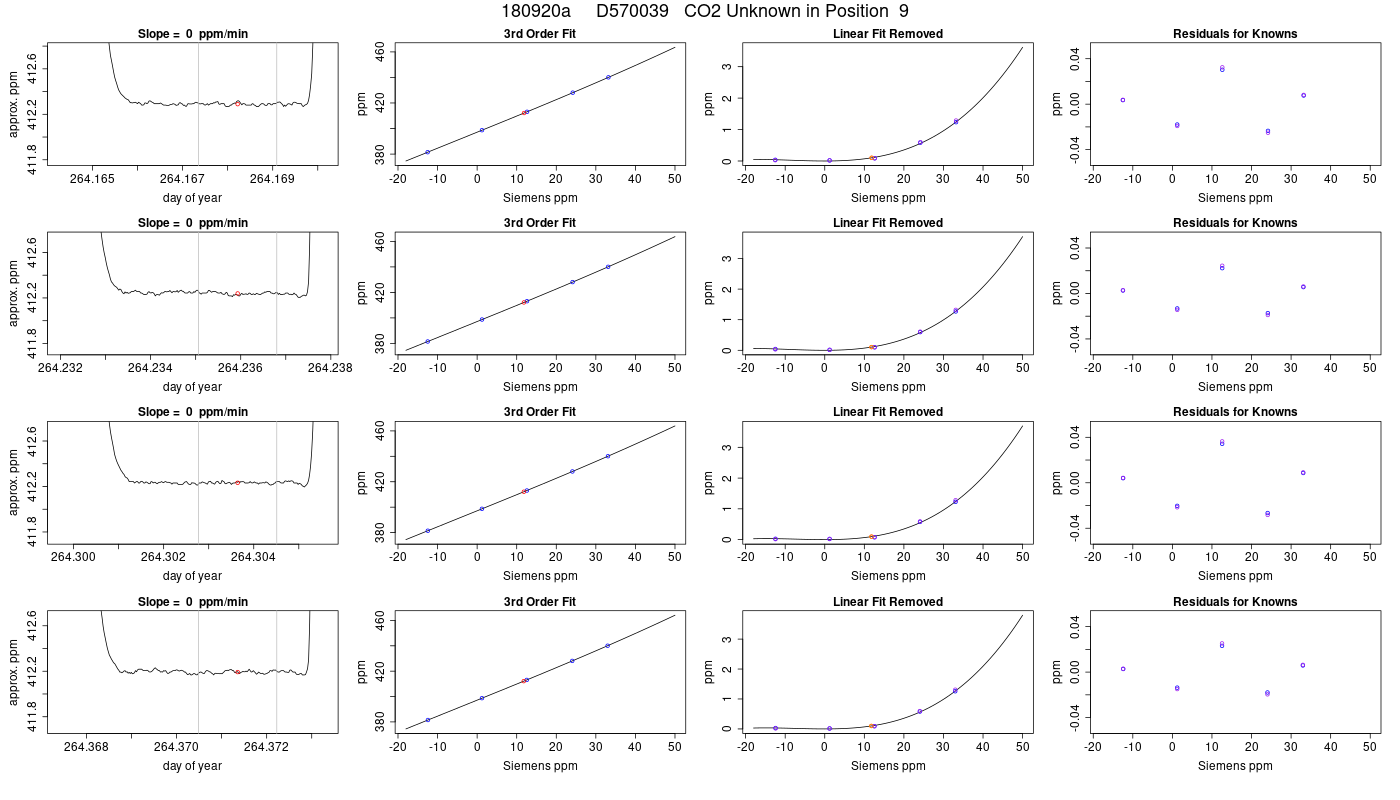

9 D570039    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.897 412.127 0.016 -723.76 1.96 412.318 0.016
263.965 412.138 0.017 -722.27 2.06 412.329 0.017
264.033 412.134 0.011 -723.29 2.39 412.325 0.011
264.101 412.142 0.012 -723.05 2.31 412.333 0.012
264.168 412.146 0.011 -723.02 1.98 412.337 0.011
264.236 412.115 0.012 -722.33 2.63 412.306 0.012
264.304 412.141 0.008 -722.34 2.19 412.333 0.008
264.371 412.128 0.012 -722.67 2.69 412.320 0.012
264.439 412.139 0.011 -722.92 2.34 412.330 0.011
264.507 412.137 0.009 -722.55 2.31 412.328 0.009

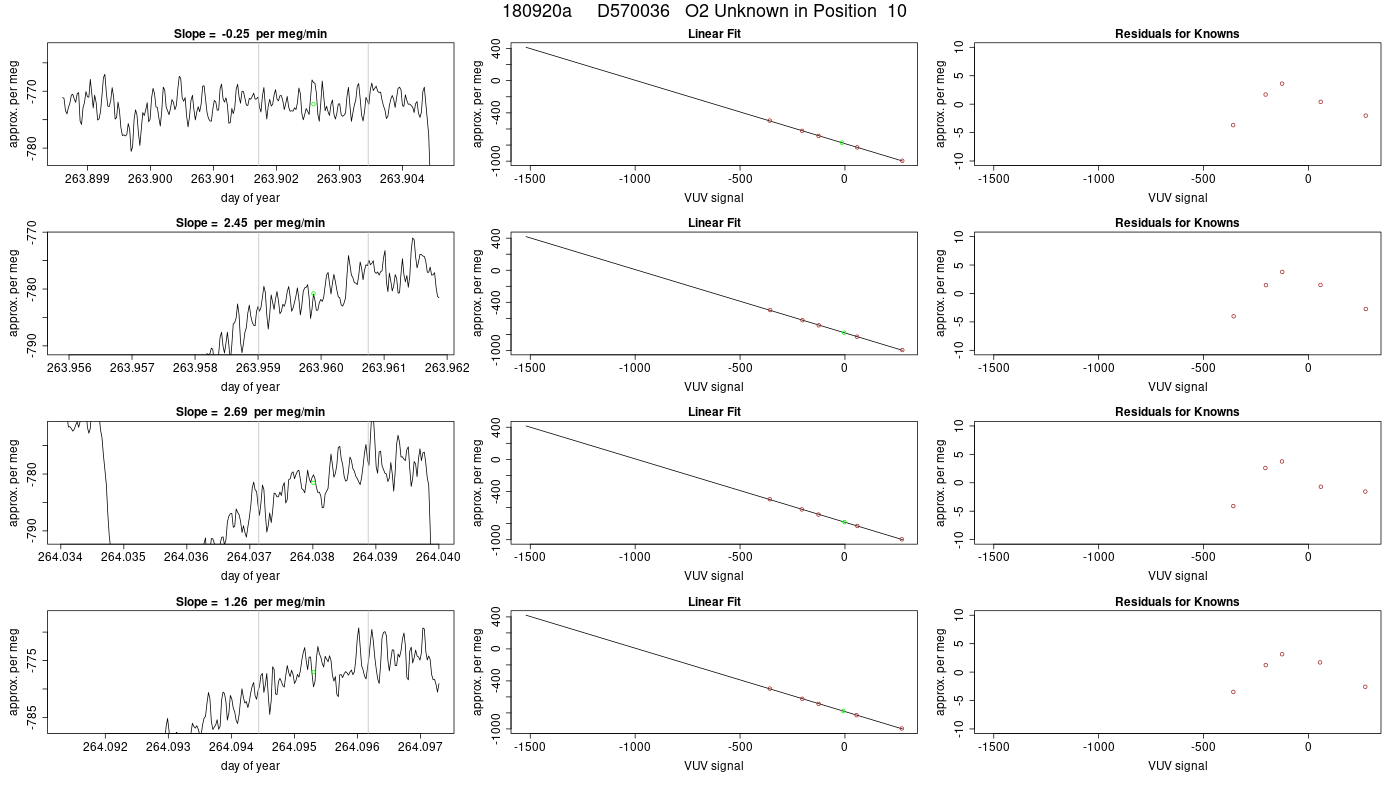

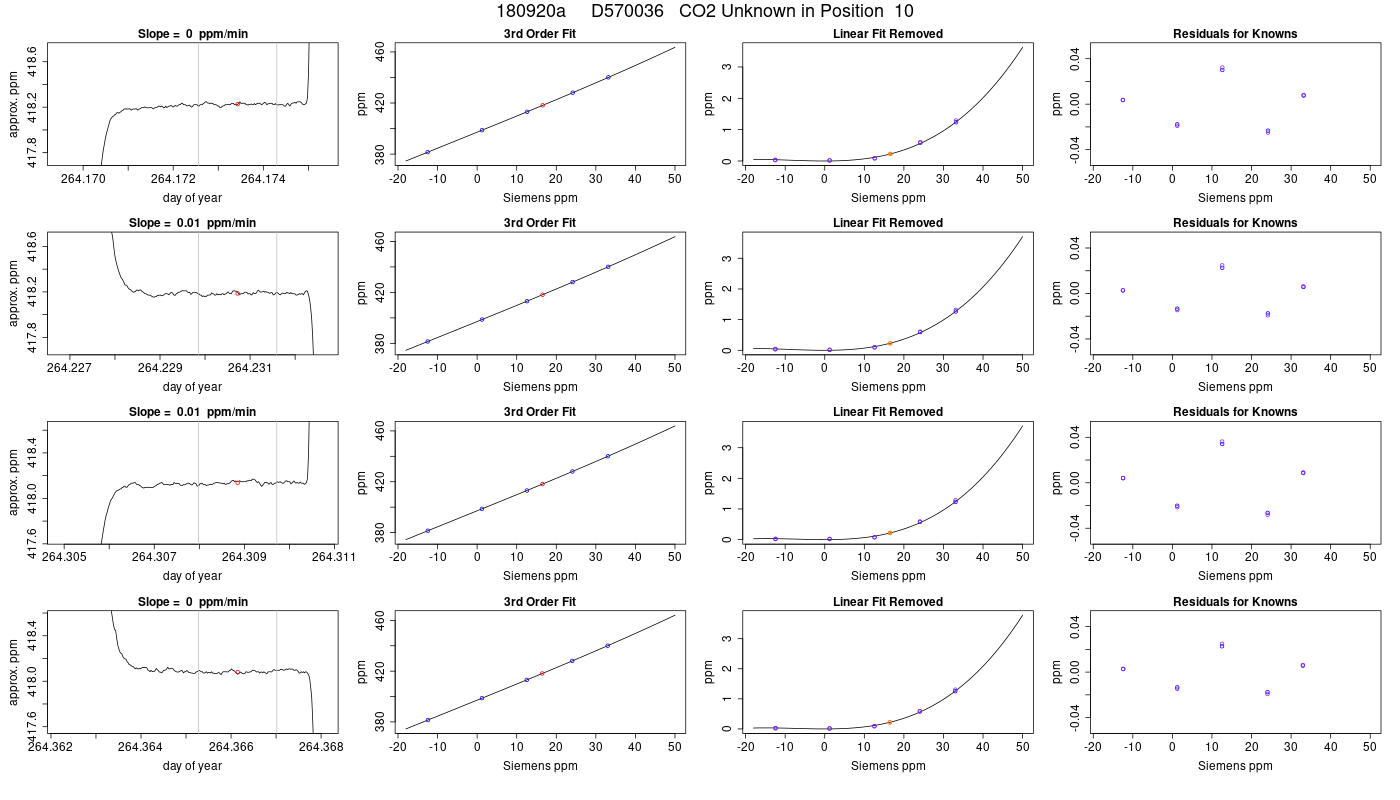

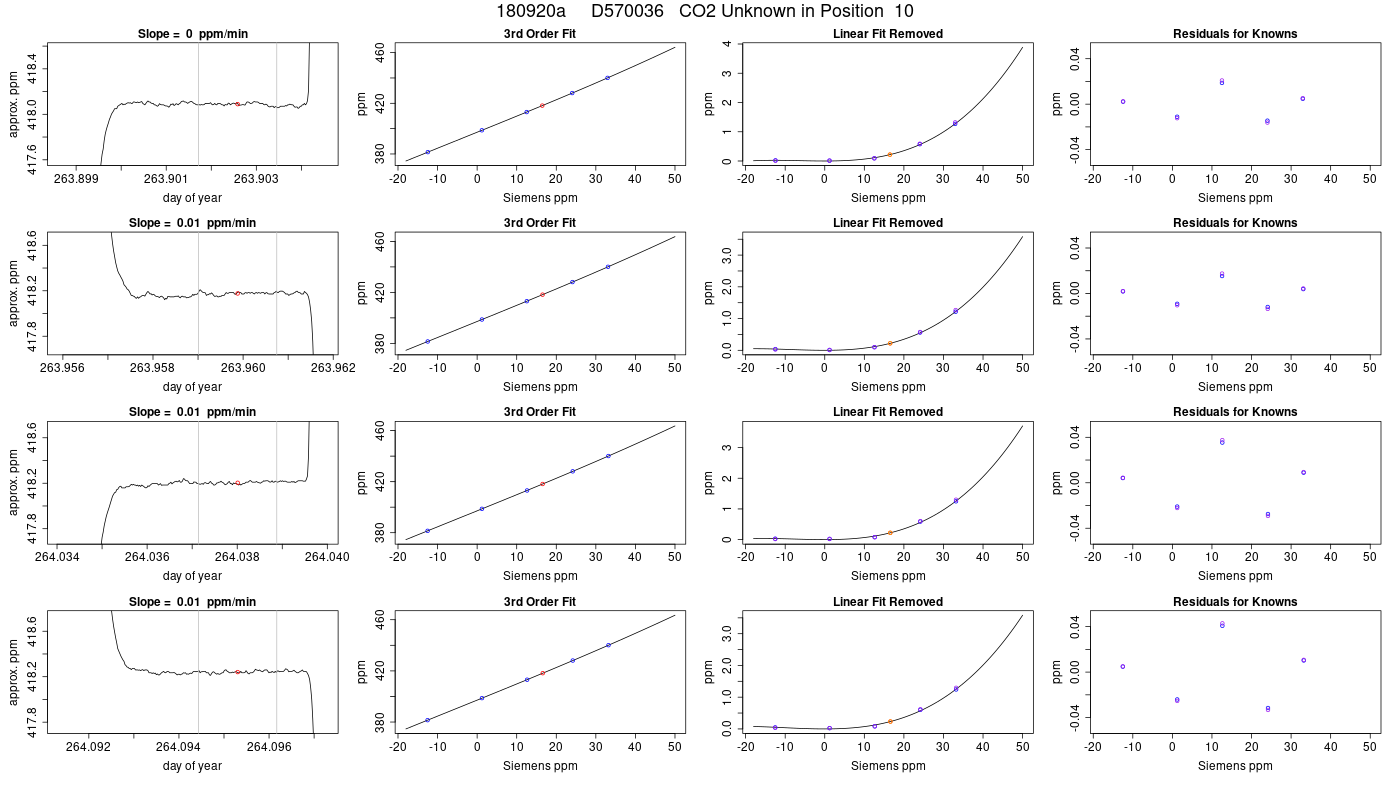

10 D570036    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.903 418.186 0.012 -716.80 1.85 418.371 0.012
263.960 418.221 0.012 -724.85 2.68 418.407 0.012
264.038 418.175 0.011 -726.54 3.22 418.361 0.011
264.095 418.198 0.011 -722.44 2.56 418.384 0.011
264.173 418.196 0.010 -723.55 2.45 418.382 0.010
264.231 418.183 0.013 -721.35 2.66 418.368 0.013
264.309 418.177 0.014 -723.03 2.61 418.363 0.014
264.366 418.157 0.010 -720.96 2.66 418.342 0.010
264.444 418.149 0.017 -721.29 2.57 418.335 0.017
264.502 418.170 0.010 -719.73 2.61 418.356 0.010

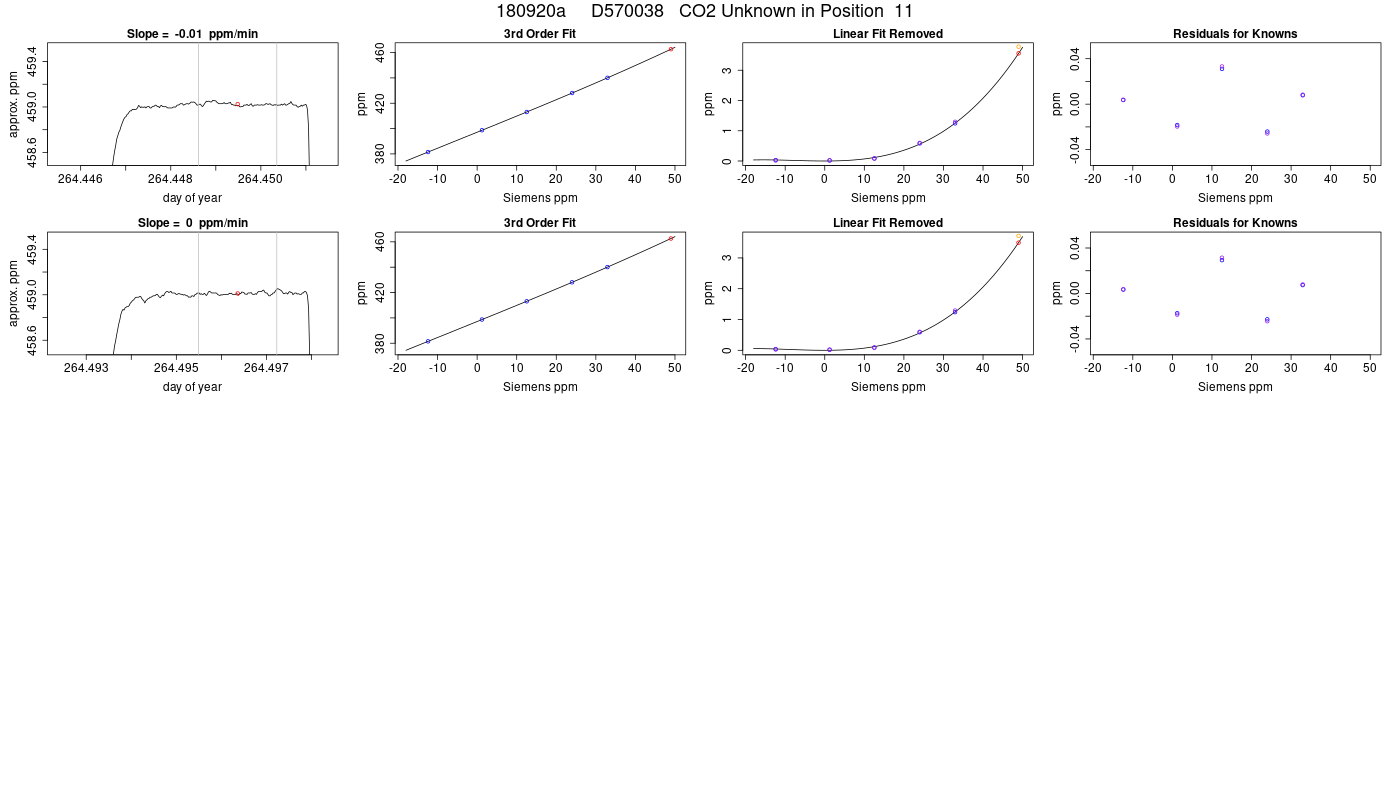

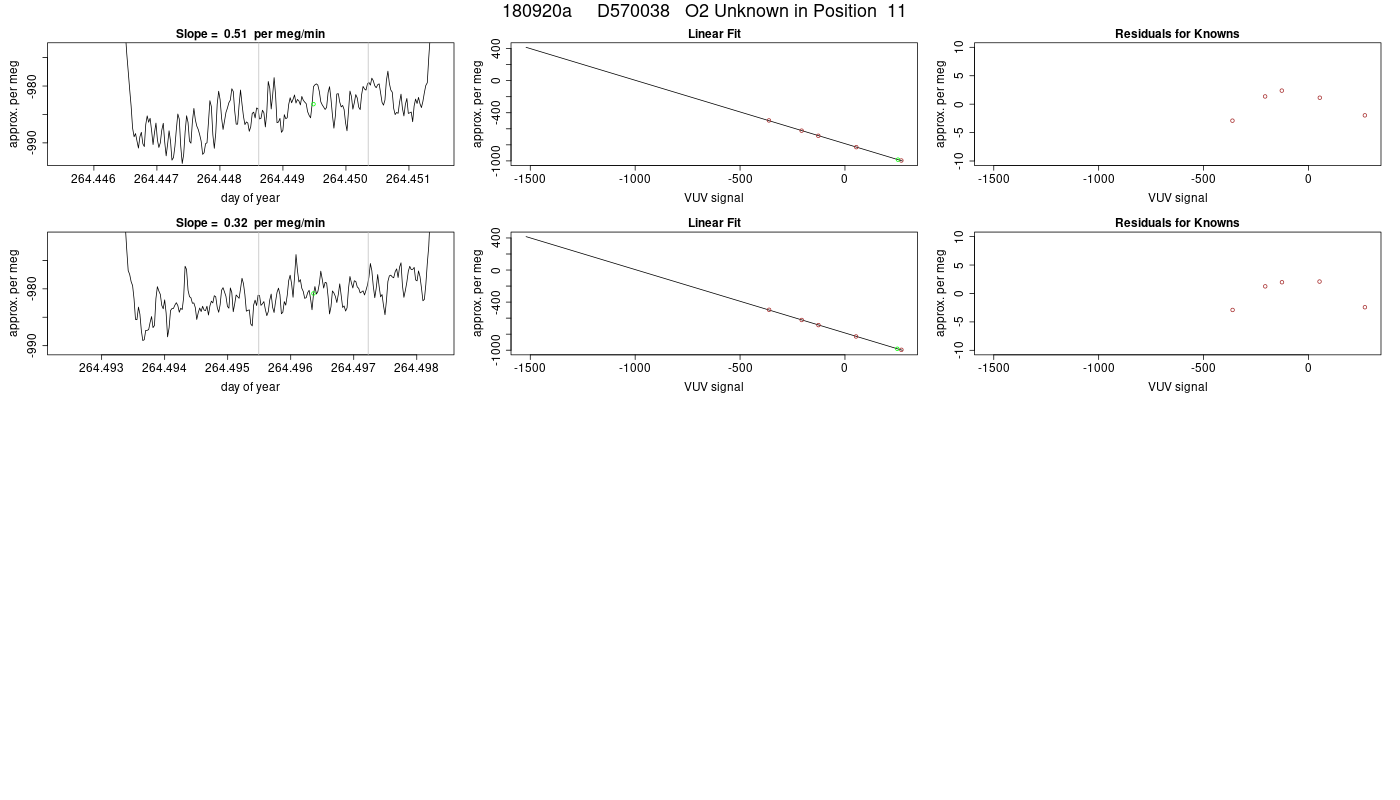

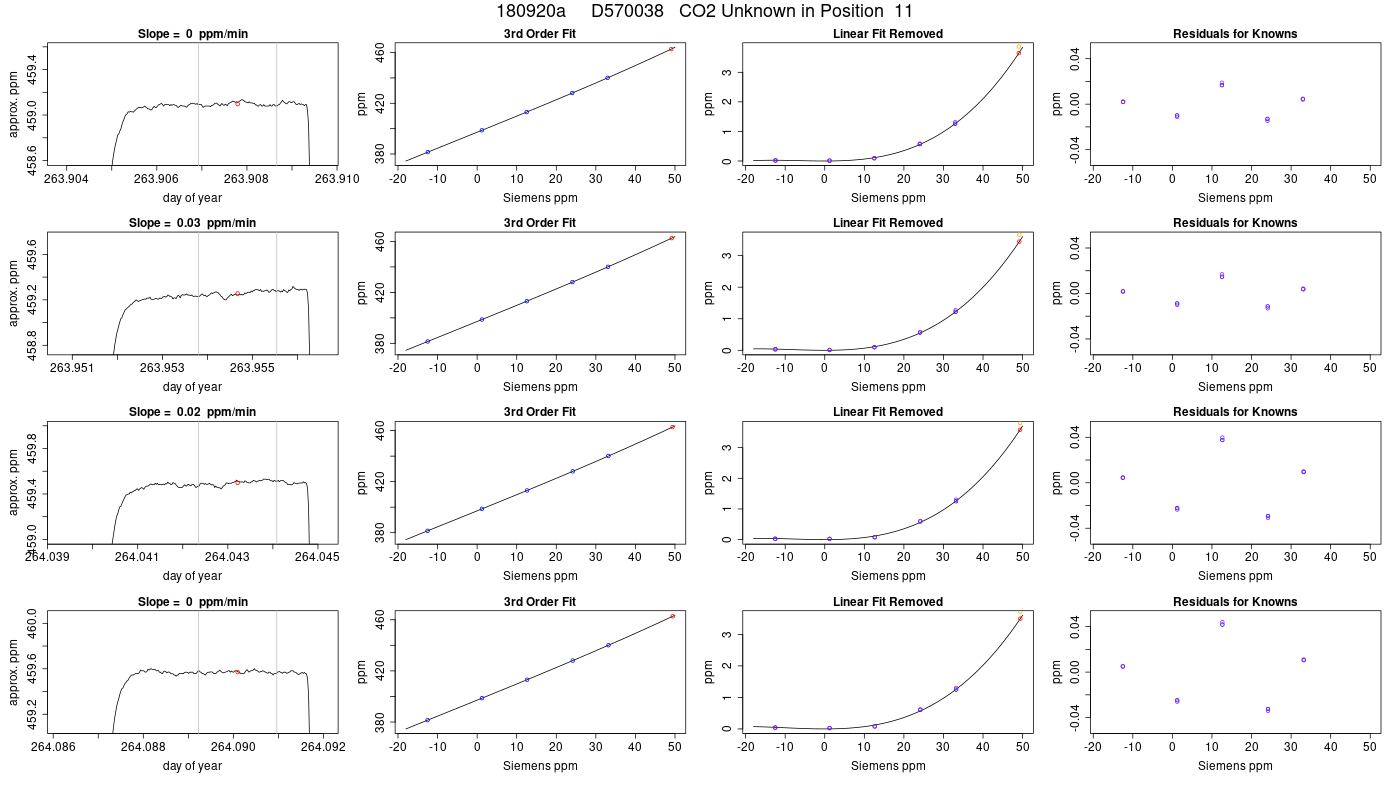

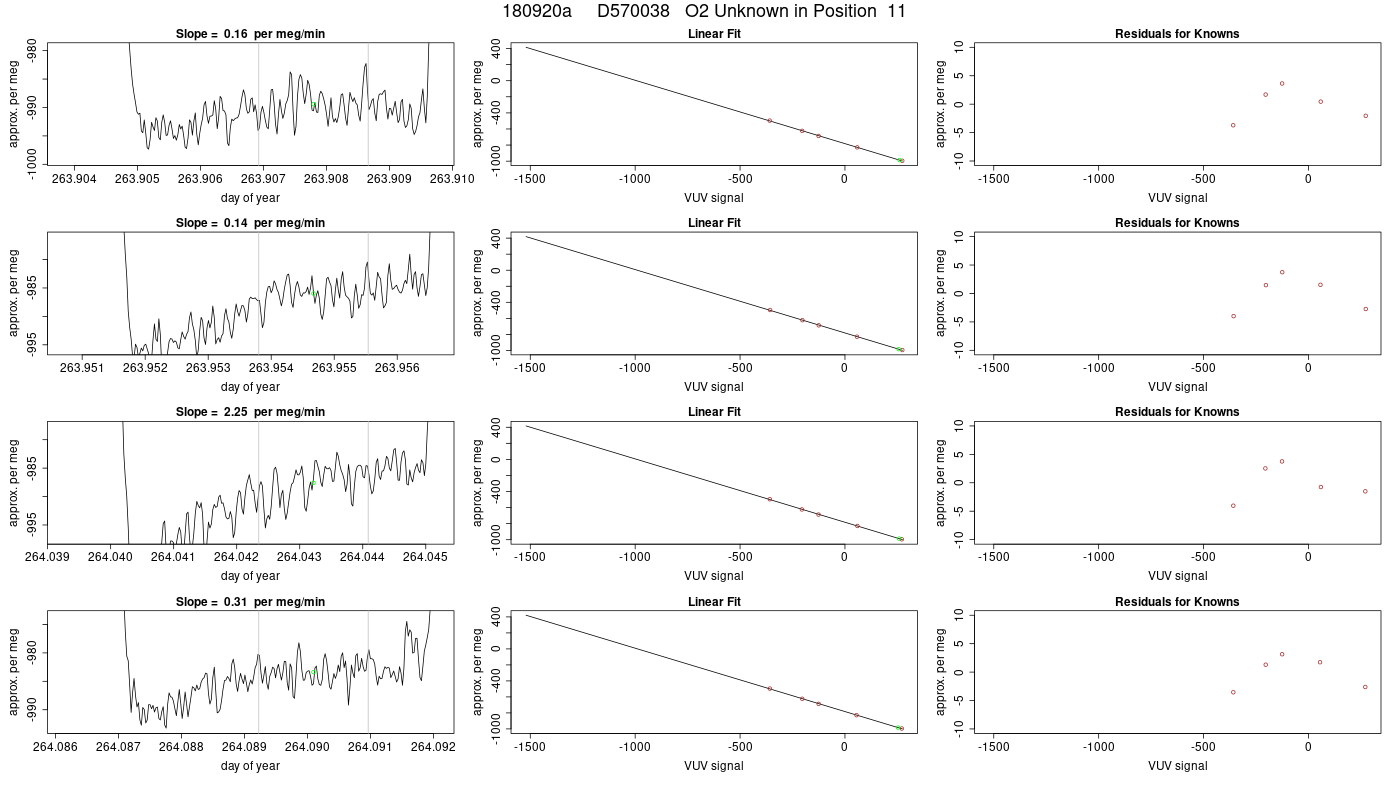

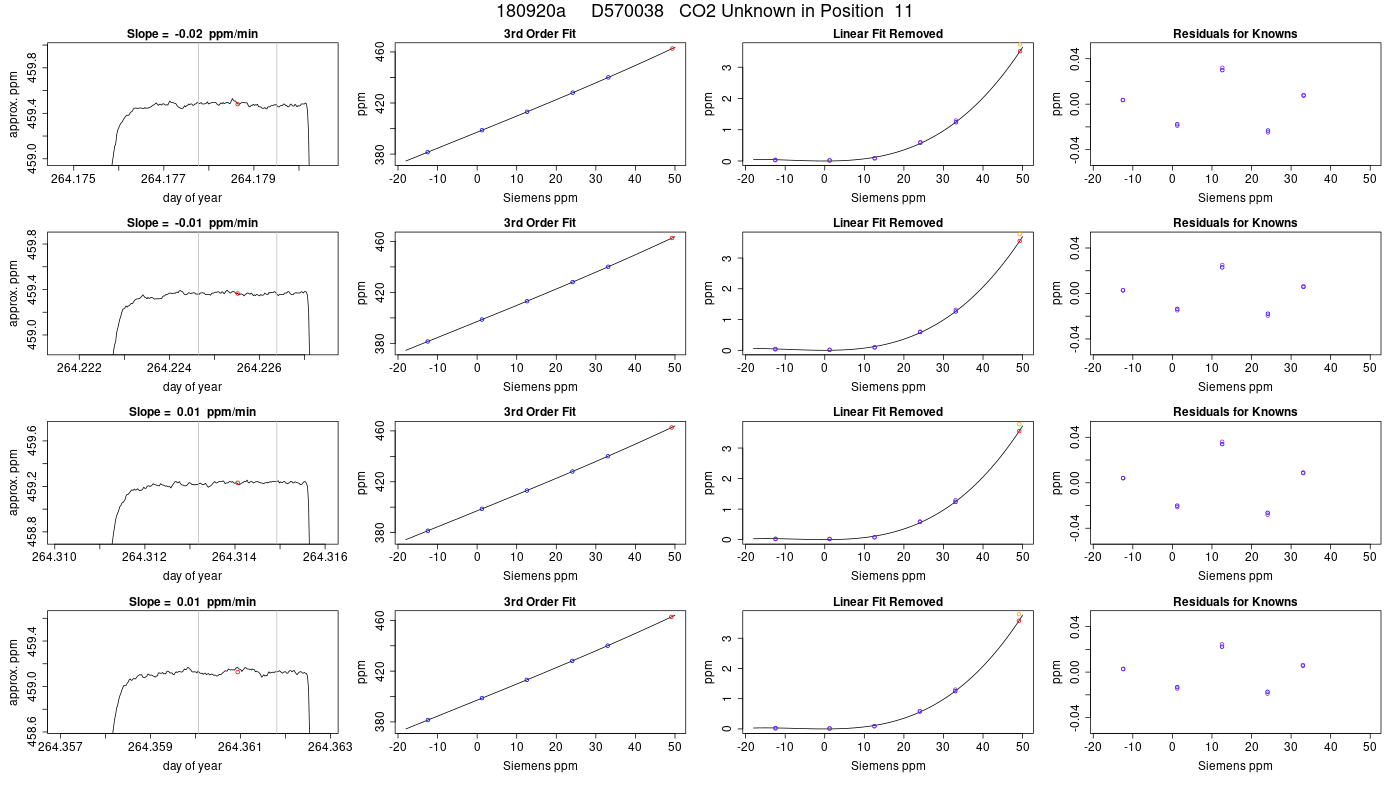

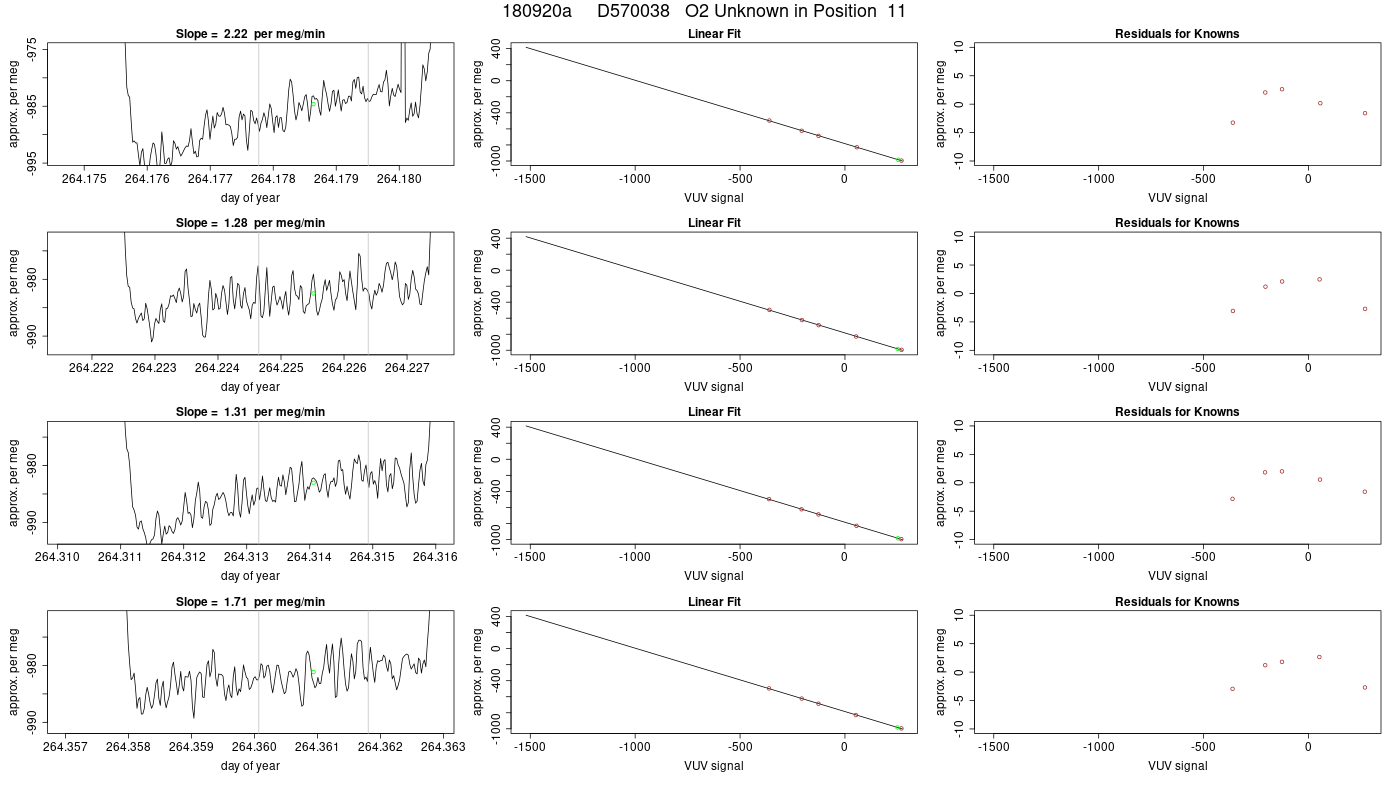

11 D570038    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.908 462.740 0.016 -889.30 2.81 463.094 0.016
263.955 462.582 0.023 -886.46 2.23 462.935 0.023
264.043 462.730 0.021 -888.44 3.08 463.084 0.021
264.090 462.683 0.011 -885.55 2.08 463.037 0.011
264.179 462.667 0.018 -886.81 2.47 463.021 0.018
264.226 462.651 0.011 -885.61 2.46 463.005 0.011
264.314 462.690 0.012 -886.00 2.14 463.044 0.012
264.361 462.695 0.022 -884.69 2.78 463.049 0.022
264.449 462.670 0.014 -886.37 2.27 463.024 0.014
264.496 462.636 0.012 -884.28 2.08 462.989 0.012

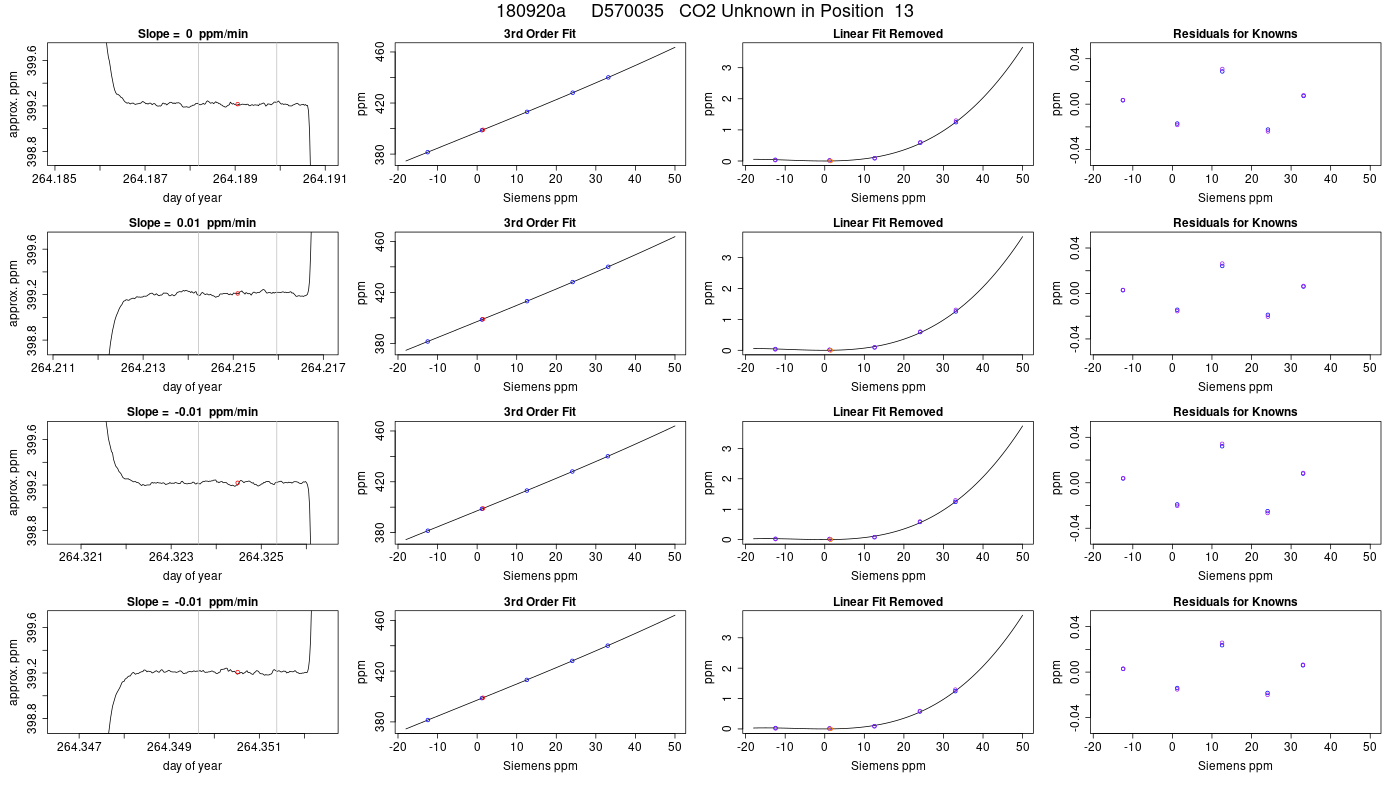

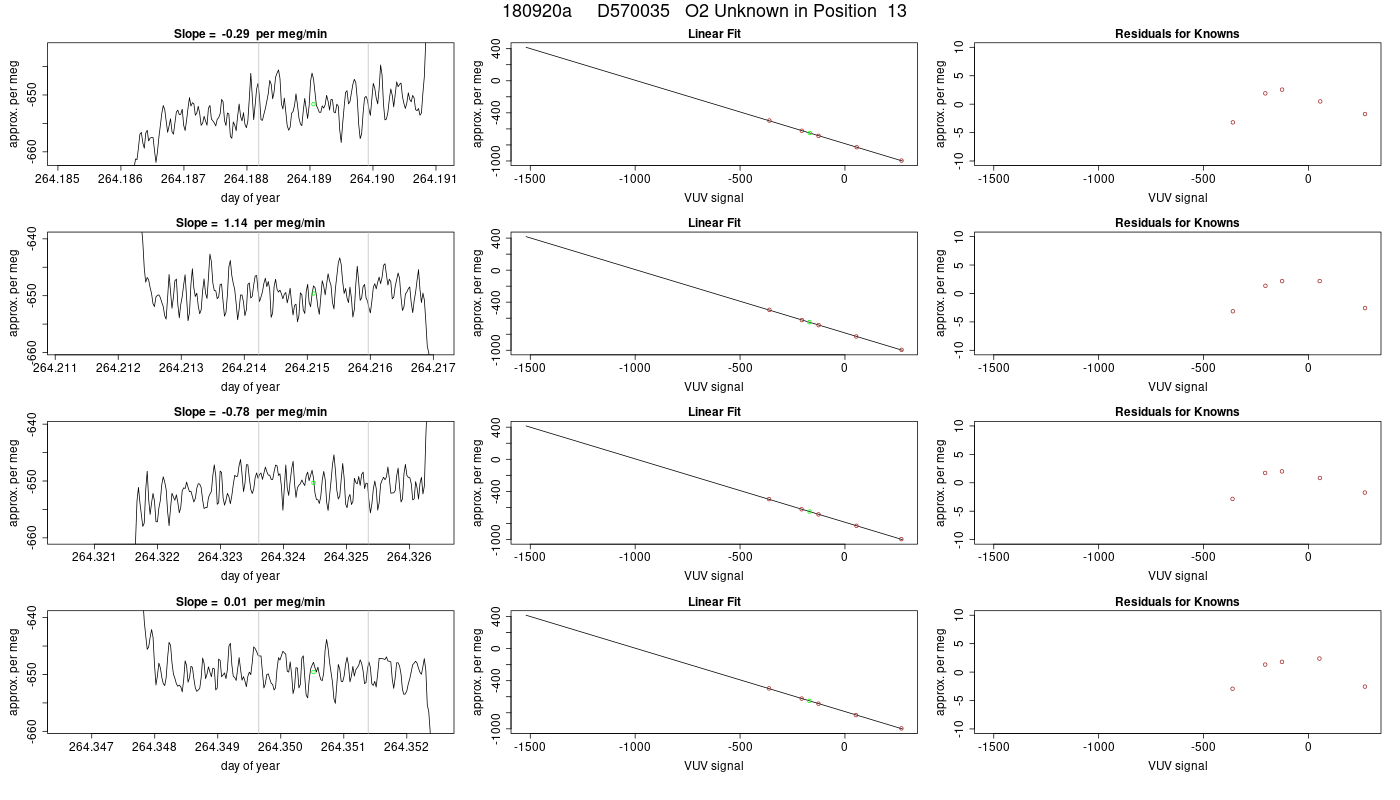

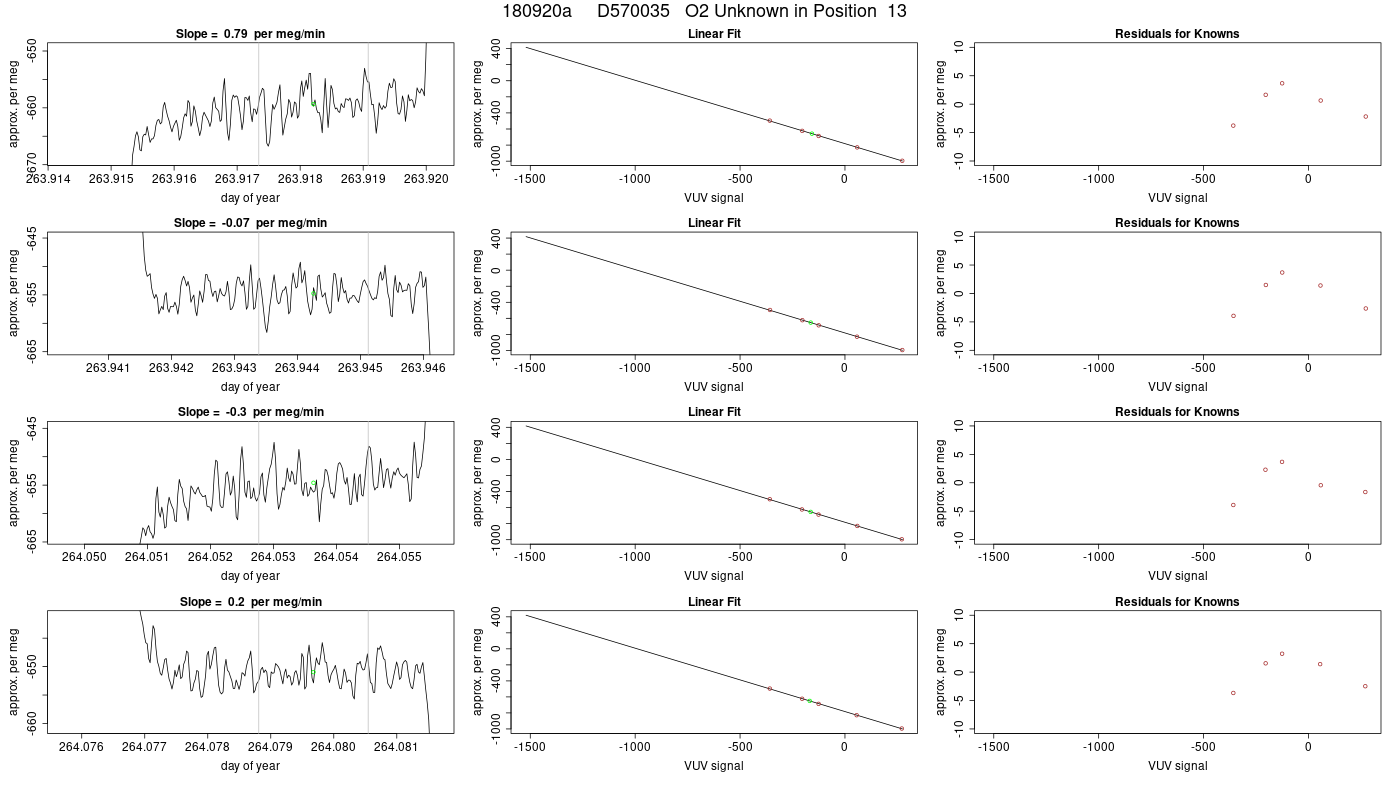

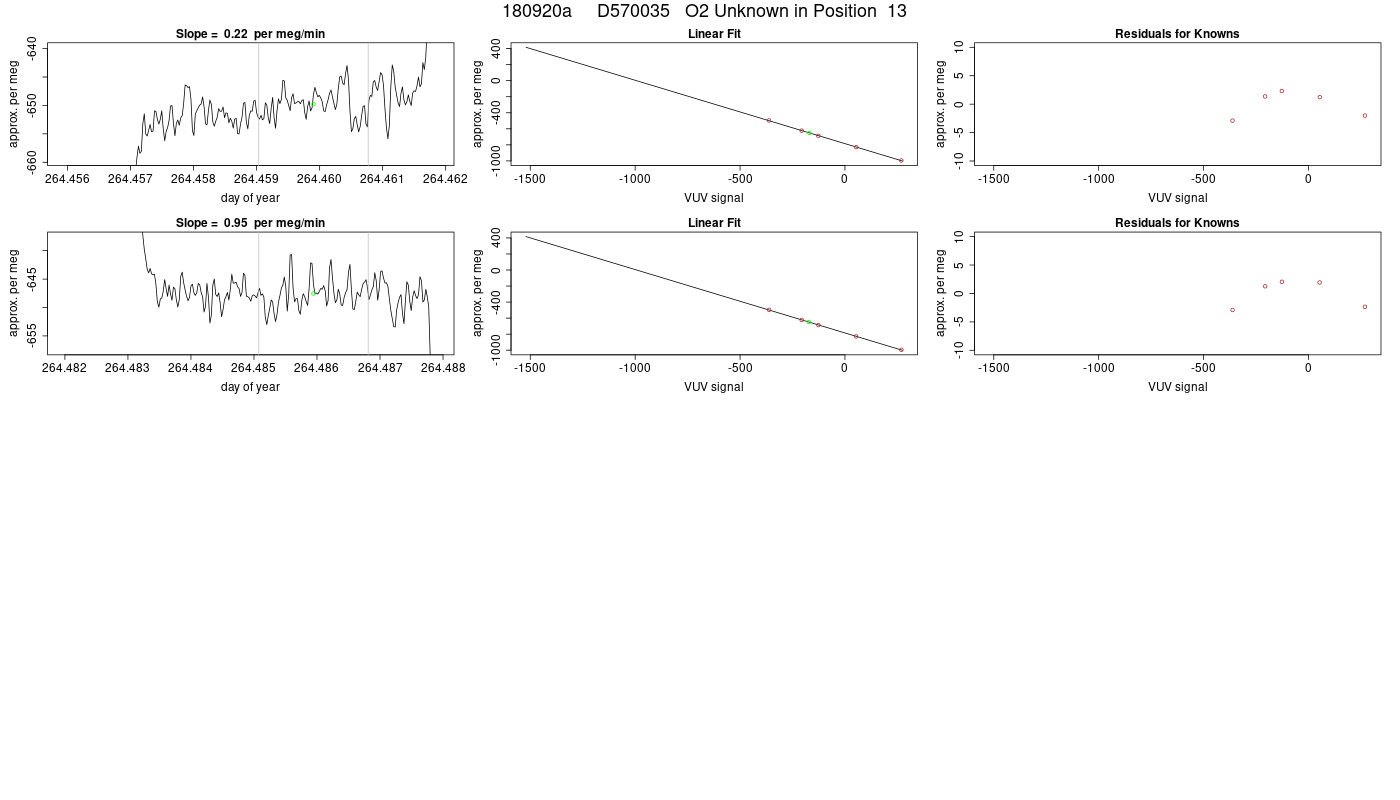

13 D570035    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.918 399.008 0.011 -622.83 2.83 399.218 0.011
263.944 399.013 0.014 -617.87 2.42 399.222 0.014
264.054 398.994 0.012 -618.43 2.62 399.204 0.012
264.080 398.992 0.016 -614.93 1.96 399.202 0.016
264.189 398.996 0.011 -616.49 2.80 399.205 0.011
264.215 398.990 0.013 -614.60 2.32 399.199 0.013
264.324 399.010 0.015 -616.04 2.22 399.220 0.015
264.351 399.002 0.015 -615.48 2.27 399.211 0.015
264.460 399.006 0.013 -615.73 2.54 399.216 0.013
264.486 399.002 0.010 -613.36 2.60 399.211 0.010

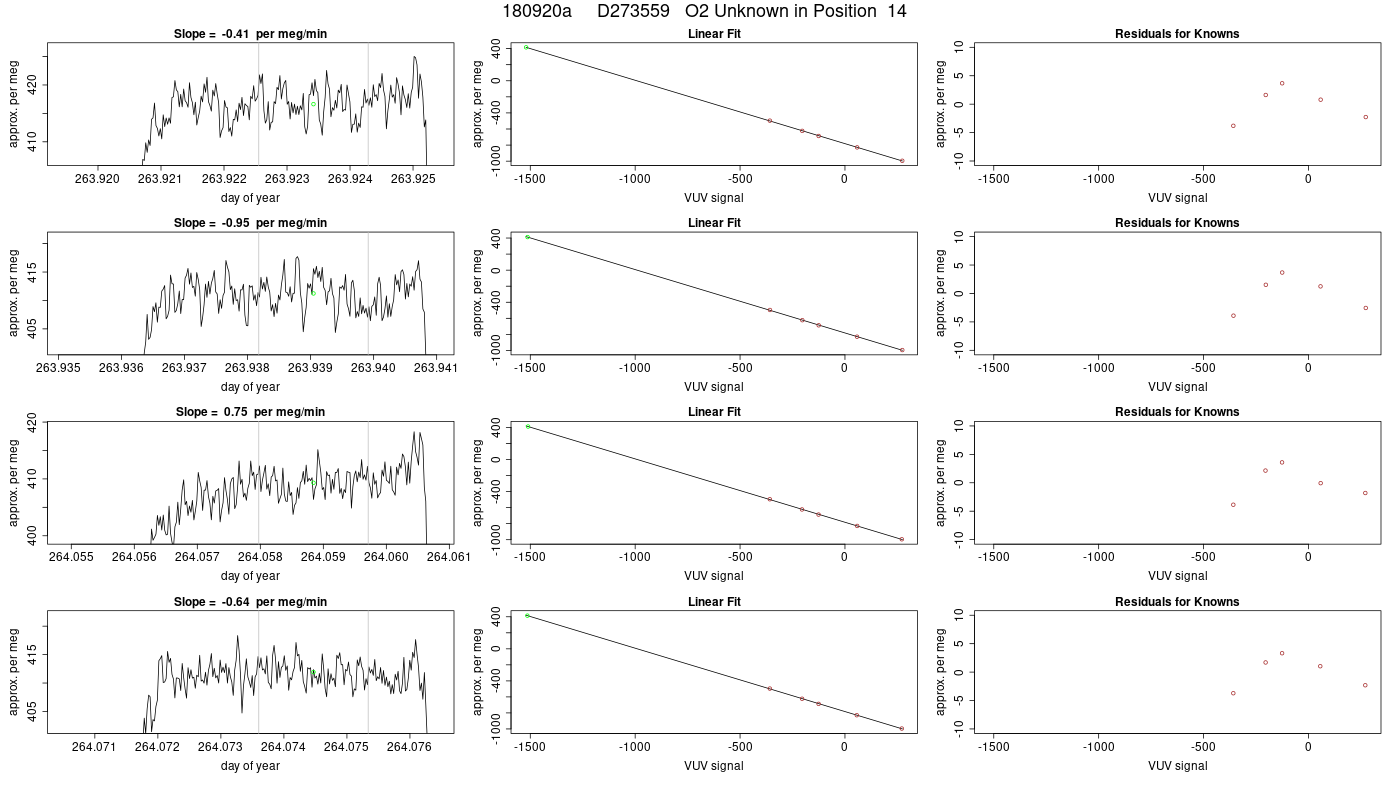

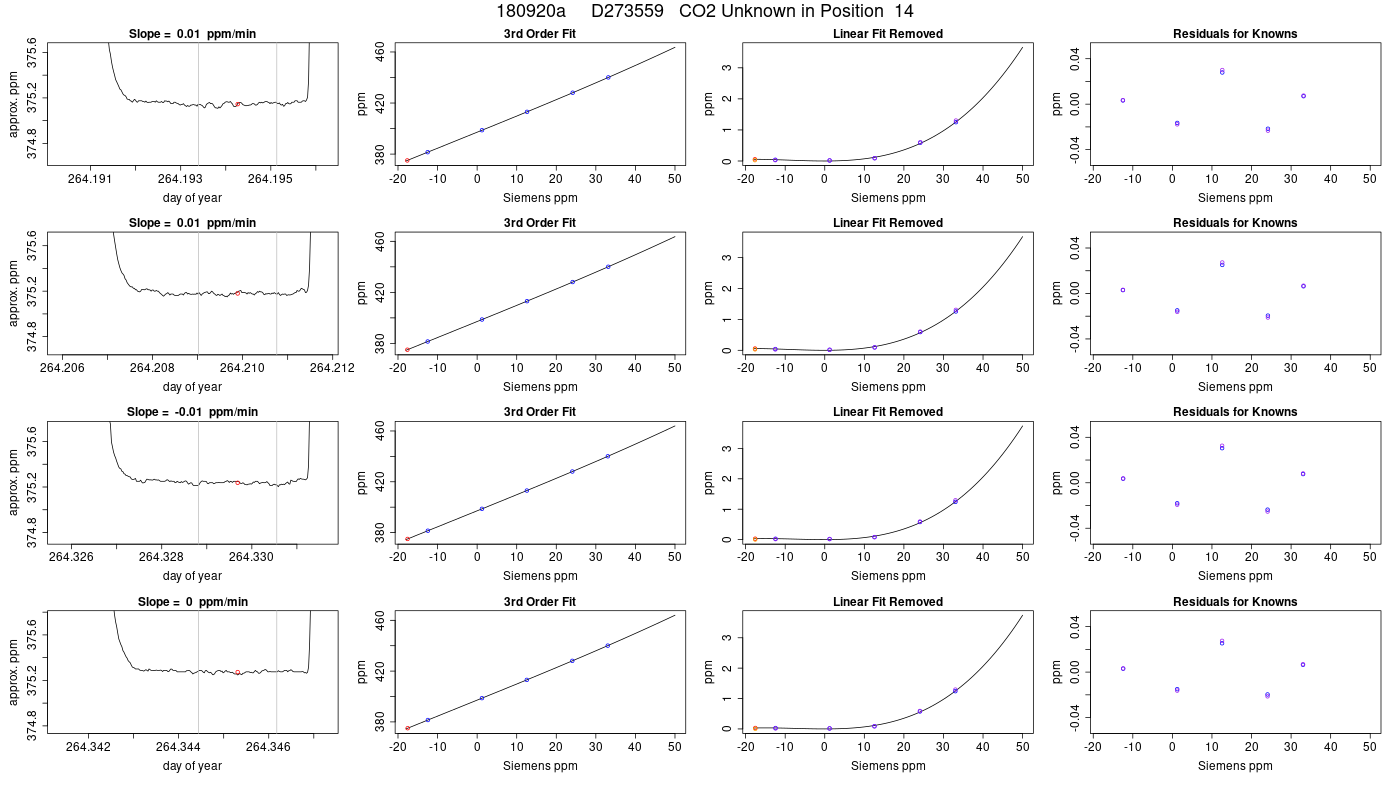

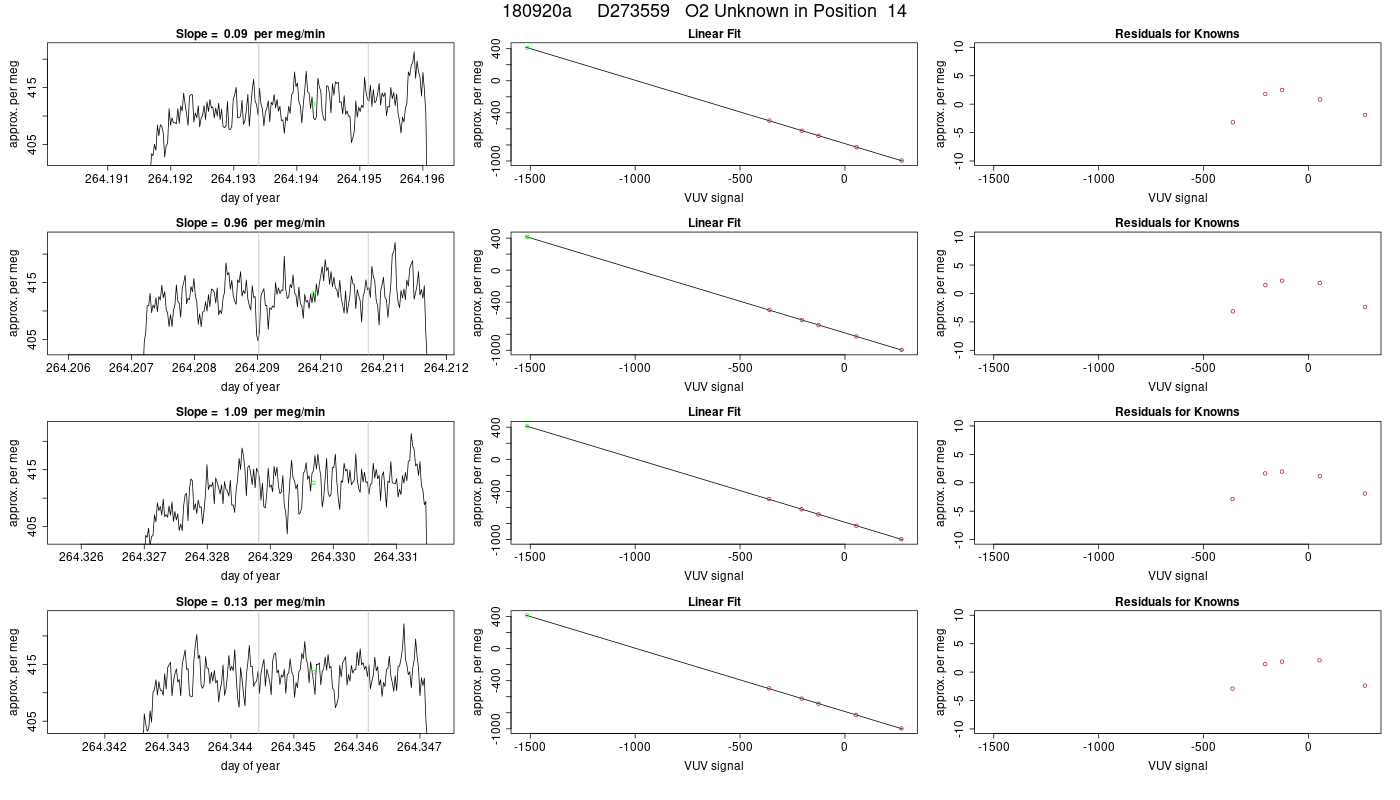

14 D273559    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.923 375.018 0.013 427.35 2.87 375.230 0.013
263.939 375.020 0.014 423.51 3.00 375.233 0.014
264.059 374.988 0.009 421.91 2.24 375.200 0.009
264.074 374.998 0.011 426.02 2.18 375.210 0.011
264.194 375.014 0.016 424.07 2.69 375.226 0.016
264.210 375.041 0.012 426.20 2.52 375.254 0.012
264.330 375.000 0.011 423.22 2.85 375.213 0.011
264.345 375.026 0.011 424.74 2.35 375.239 0.011
264.465 375.025 0.014 423.01 2.45 375.237 0.014
264.481 375.027 0.013 425.30 2.48 375.240 0.013

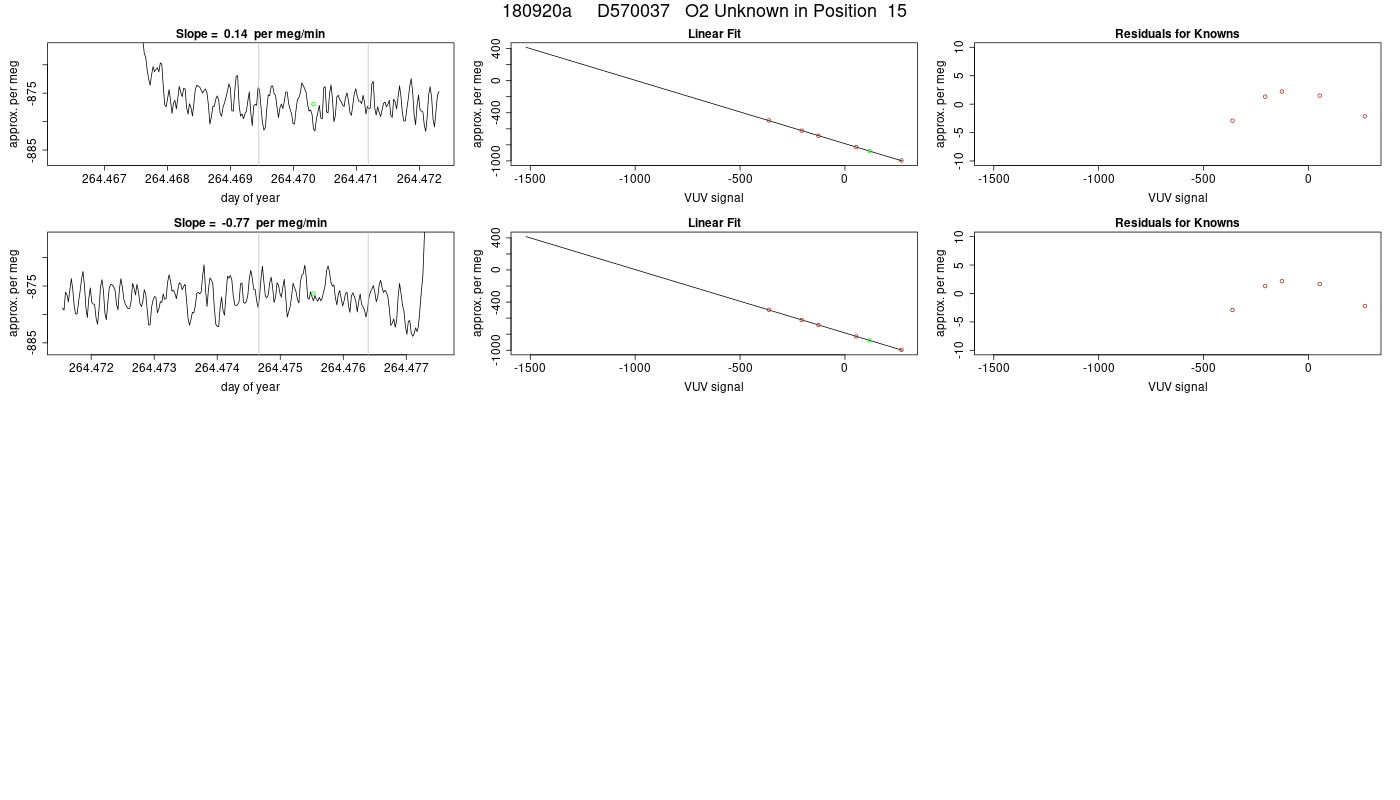

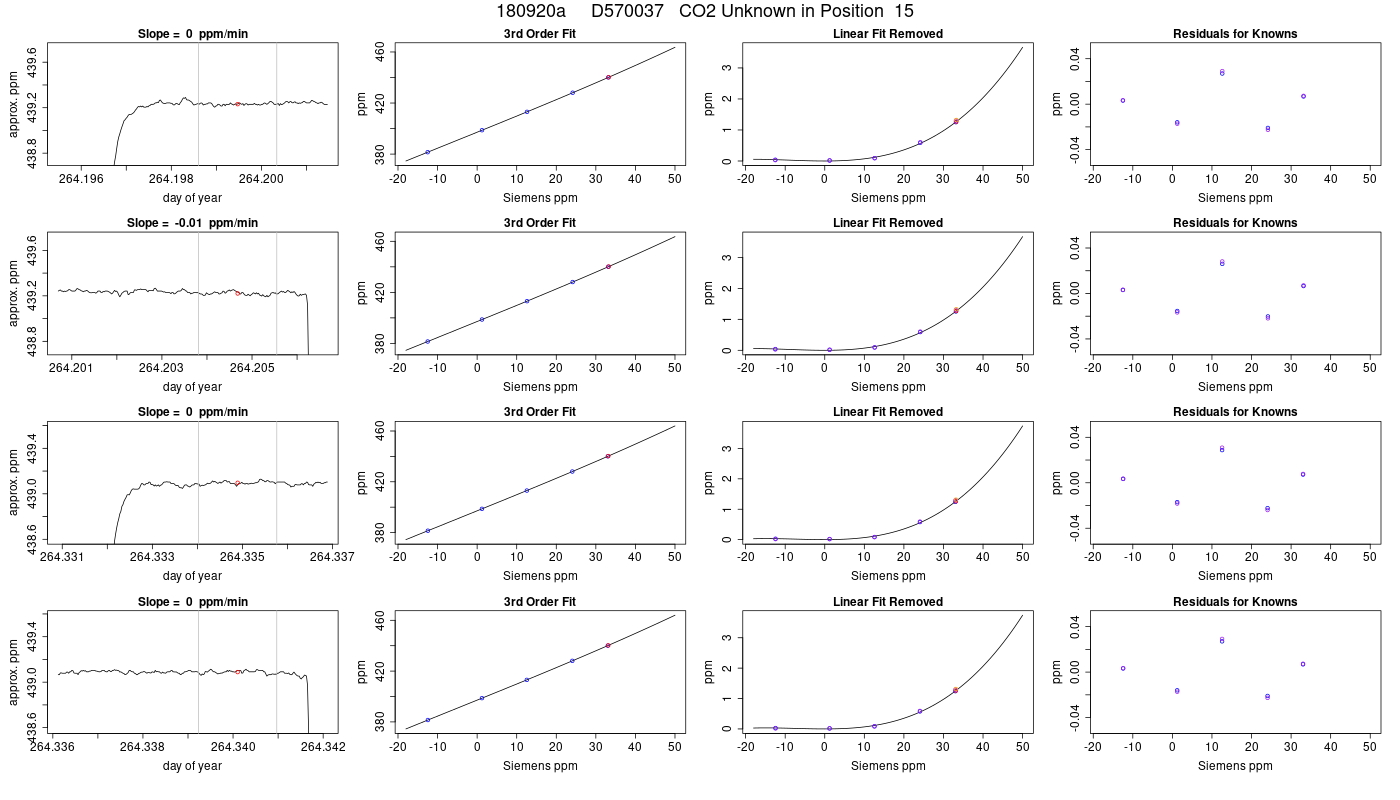

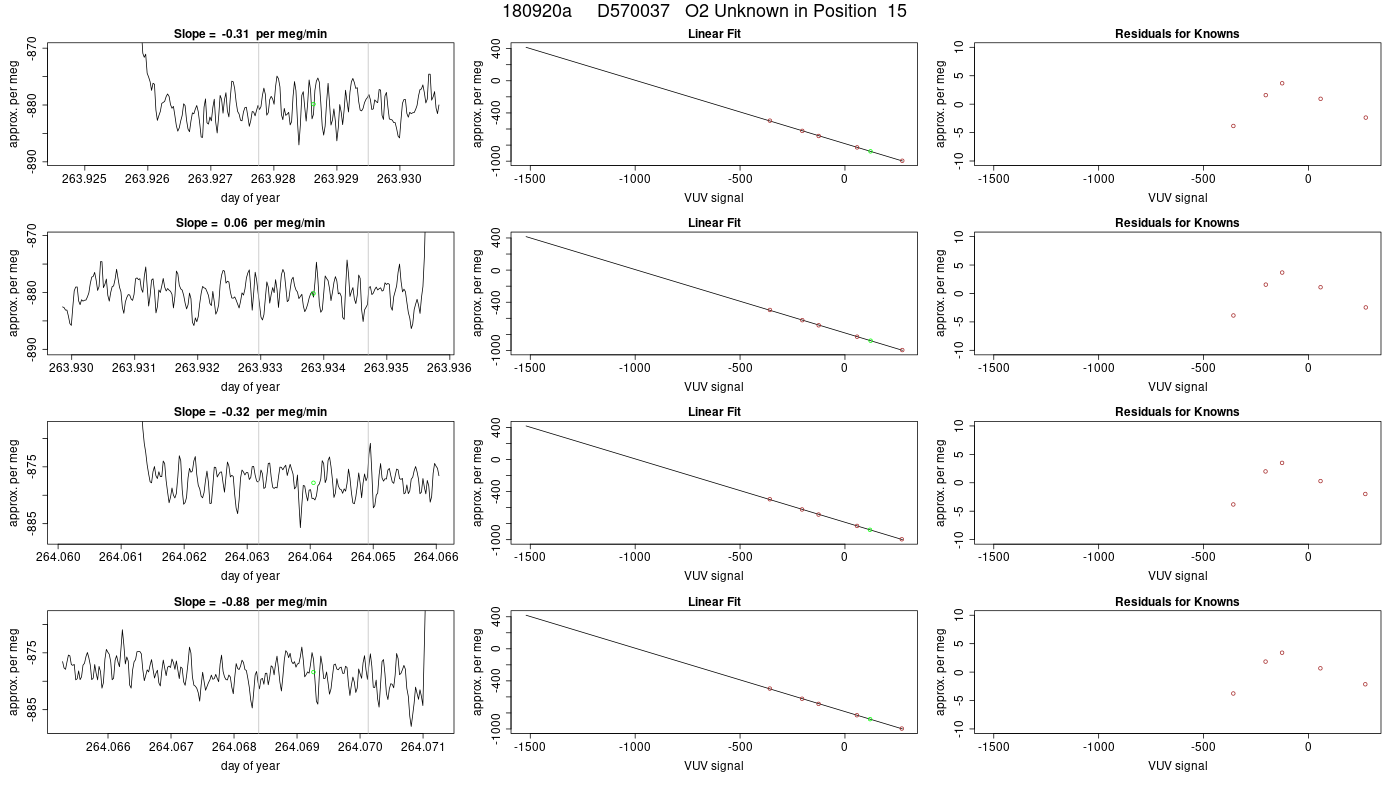

15 D570037    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
263.929 440.221 0.015 -802.37 2.85 440.432 0.015
263.934 440.227 0.010 -802.71 2.43 440.438 0.010
264.064 440.281 0.013 -801.31 2.30 440.492 0.013
264.069 440.301 0.014 -802.01 2.13 440.513 0.014
264.199 440.226 0.009 -802.54 2.39 440.437 0.009
264.205 440.223 0.015 -802.79 2.56 440.434 0.015
264.335 440.250 0.013 -801.75 2.51 440.461 0.013
264.340 440.249 0.015 -802.65 2.39 440.460 0.015
264.470 440.247 0.015 -802.35 2.11 440.458 0.015
264.476 440.260 0.012 -801.74 2.10 440.472 0.012
