UEA CRAM Lab O2 and CO2 calibration results
RUN = 180815a
PROCESSED: 16:53:27 Mon 21Aug2023

Notes
Logfile

Results

Using data from 227.732 to 228.241 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.140 0.008 0.028 382.361 0.008 0.028 7 -480.65 0.57 -1.69 7
5 CC203963 409.929 0.010 -0.018 410.123 0.010 -0.018 7 -569.59 0.56 0.36 7
6 D596274 416.081 0.010 -0.012 416.269 0.010 -0.012 7 -846.92 0.46 0.89 7
9 CC203987 356.025 0.071 0.072 356.151 0.071 0.072 7 -325.39 1.05 -2.57 7
10 D169300 398.538 0.006 -0.004 398.748 0.006 -0.004 7 -692.55 0.39 -0.78 7
11 D273555 443.416 0.011 -0.016 443.639 0.011 -0.016 7 -911.16 0.81 -0.99 7
13 D801298 406.715 0.007 -0.015 406.913 0.007 -0.015 7 -725.96 0.47 0.40 7
14 D273559 375.026 0.008 0.041 375.238 0.008 0.041 7 422.91 1.78 -2.81 7
15 D743656 378.880 0.010 0.041 379.098 0.010 0.041 7 -747.57 1.09 3.45 7
WT D258964 397.395 0.006 -0.034 397.607 0.006 -0.034 98 -750.83 0.30 -0.05 98
Text File

Raw Data and Diagnostics Figures

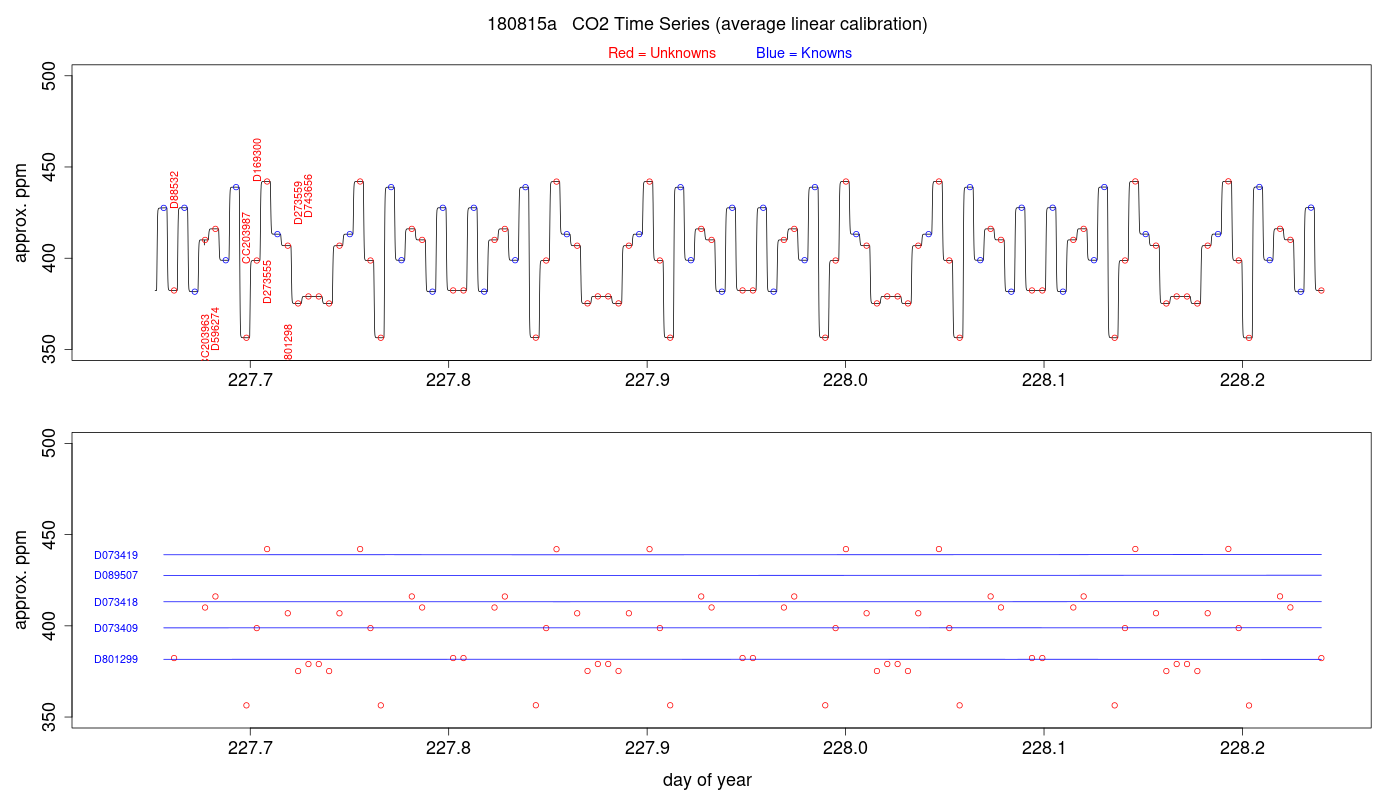

CO2 Timeseries

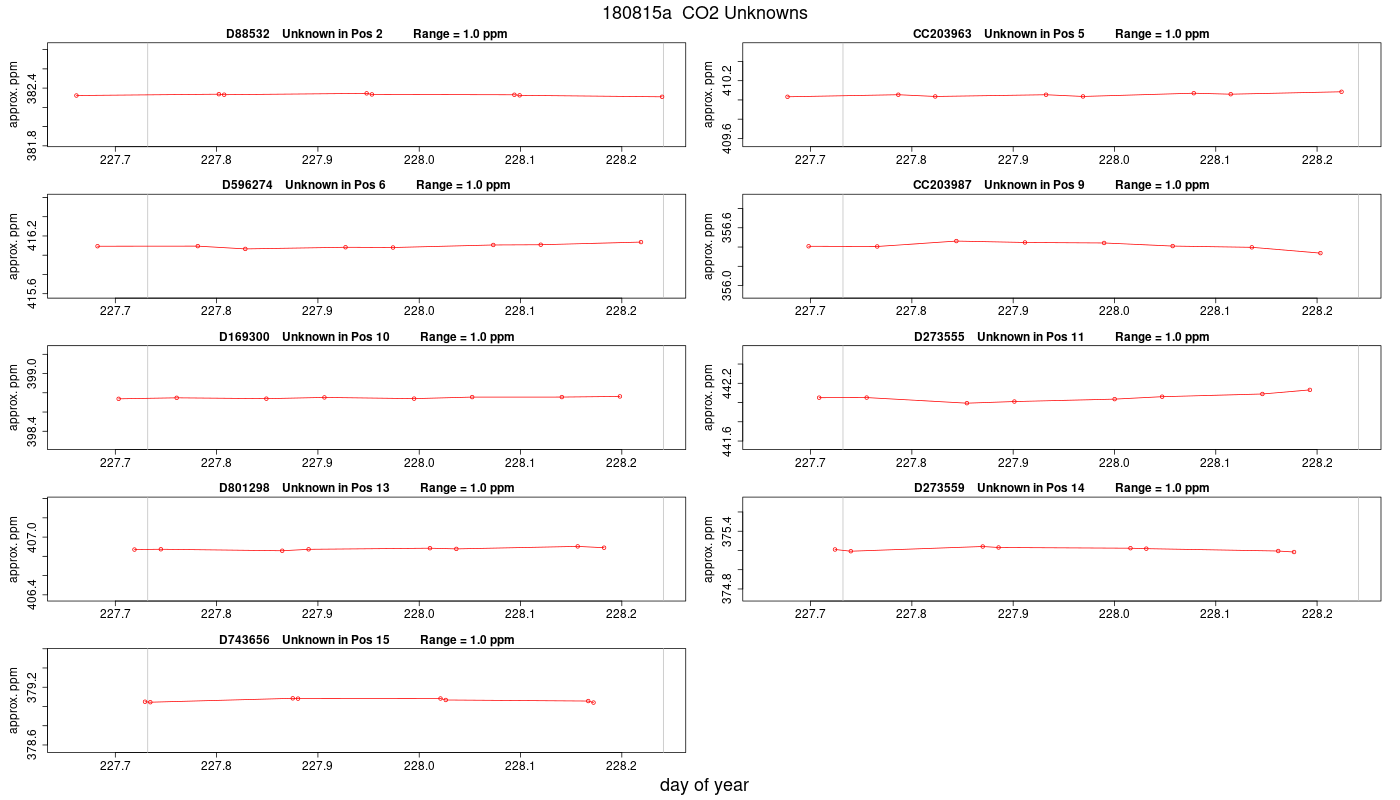

 CO2 Averages for Unknowns

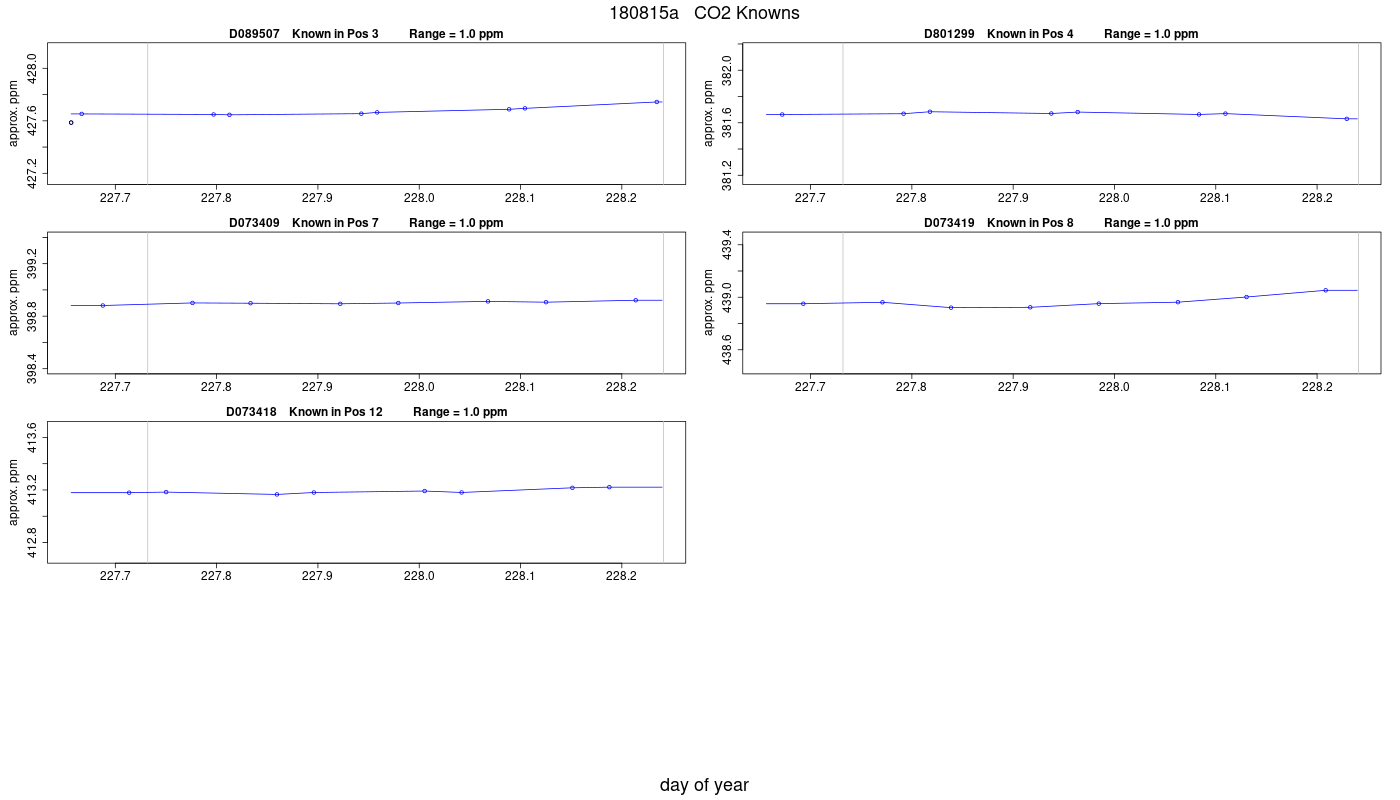

 CO2 Averages for Knowns

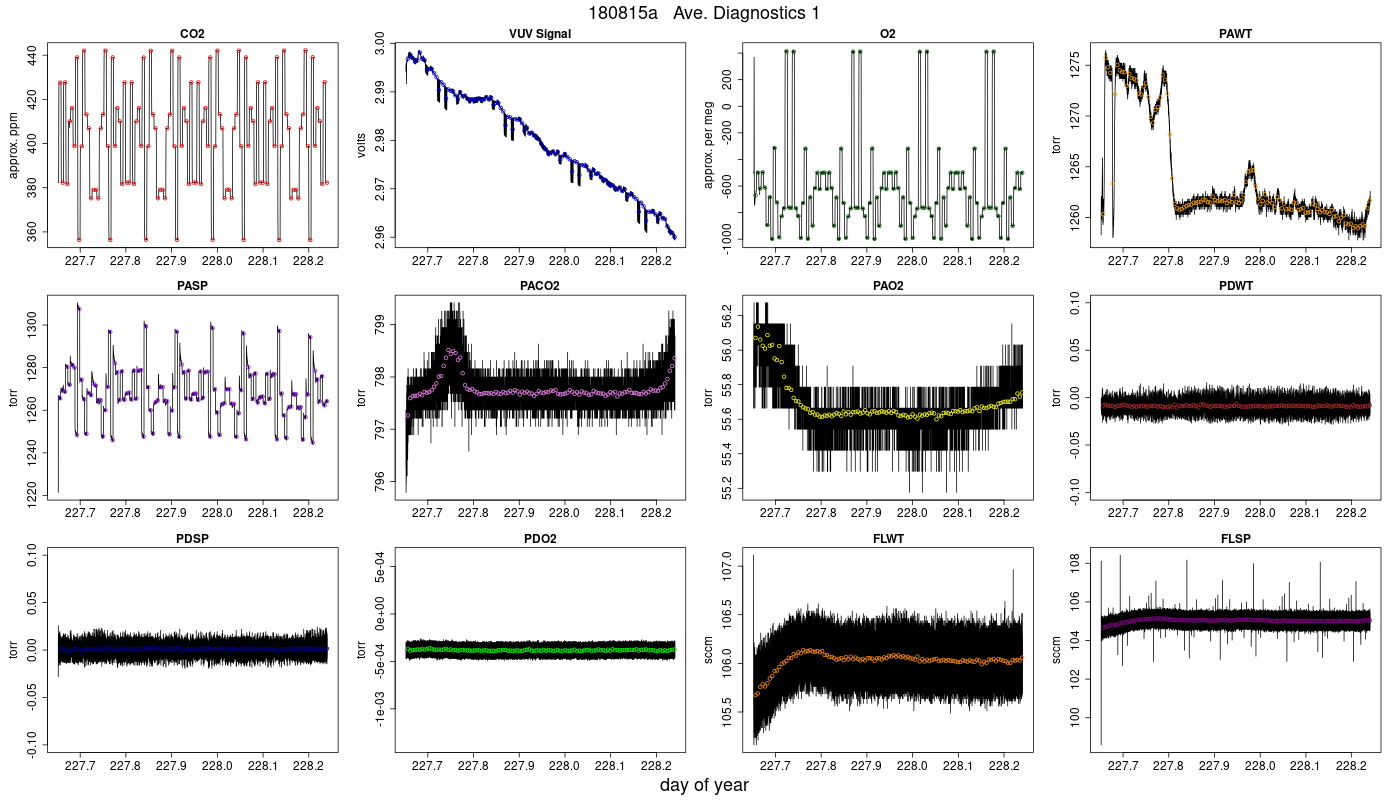

Jog Ave. Diagnostics 1

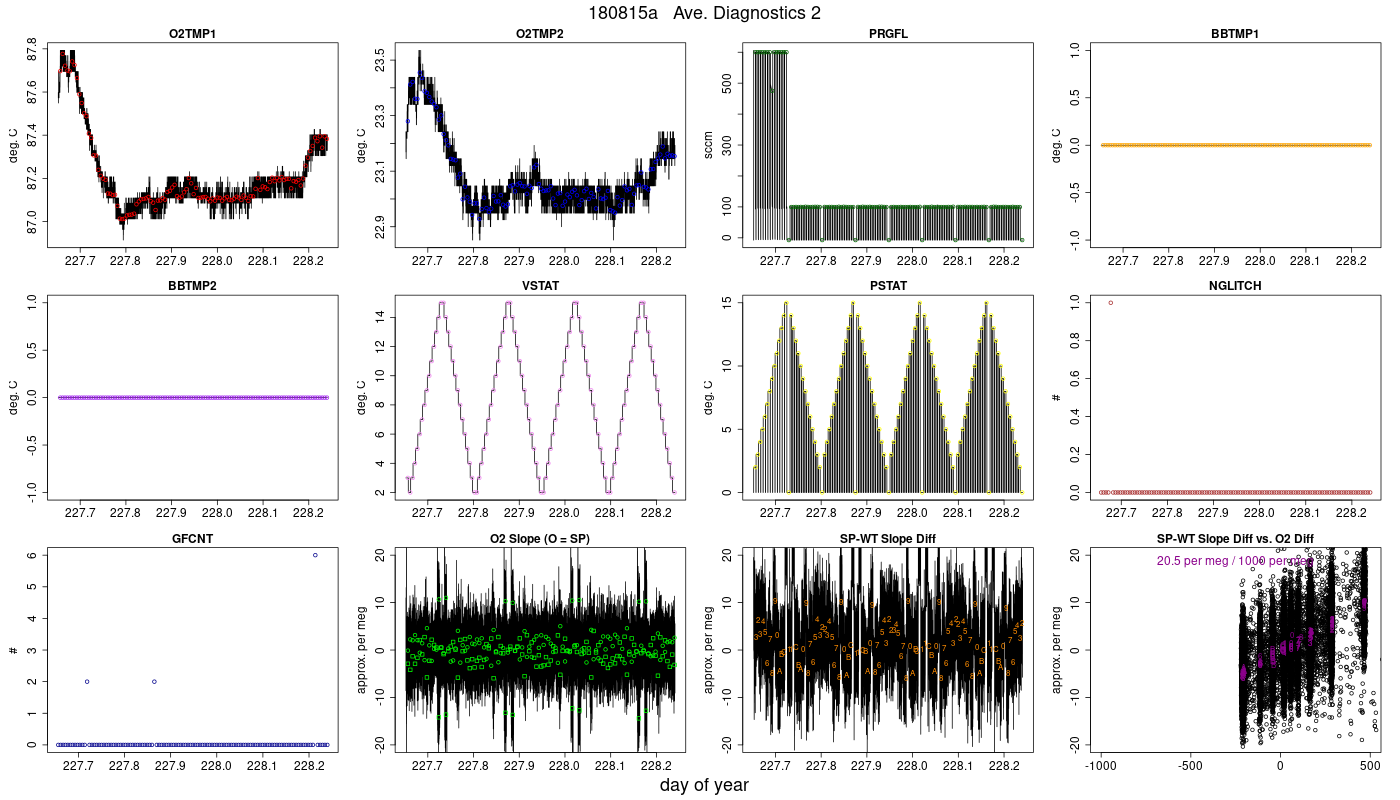

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

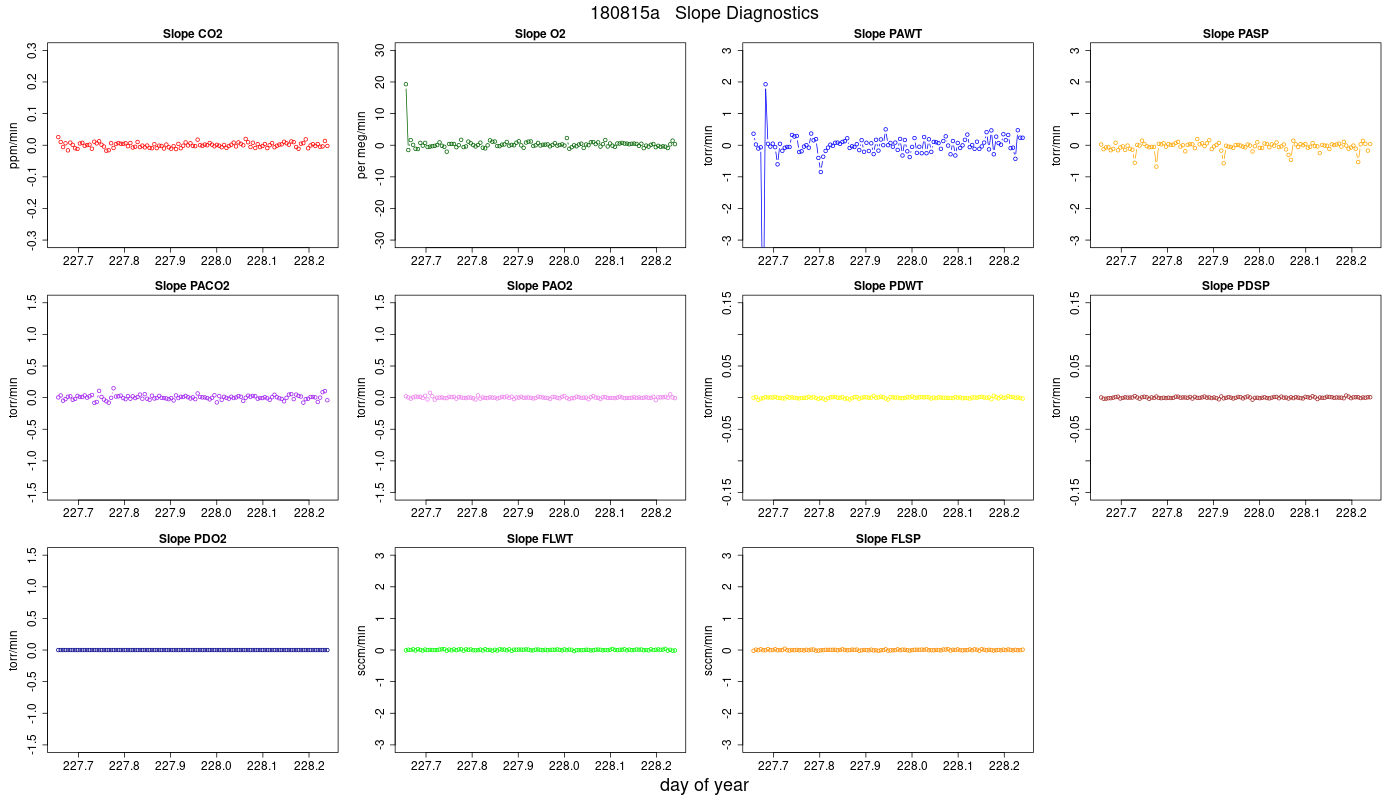

Jog Slope Diagnostics

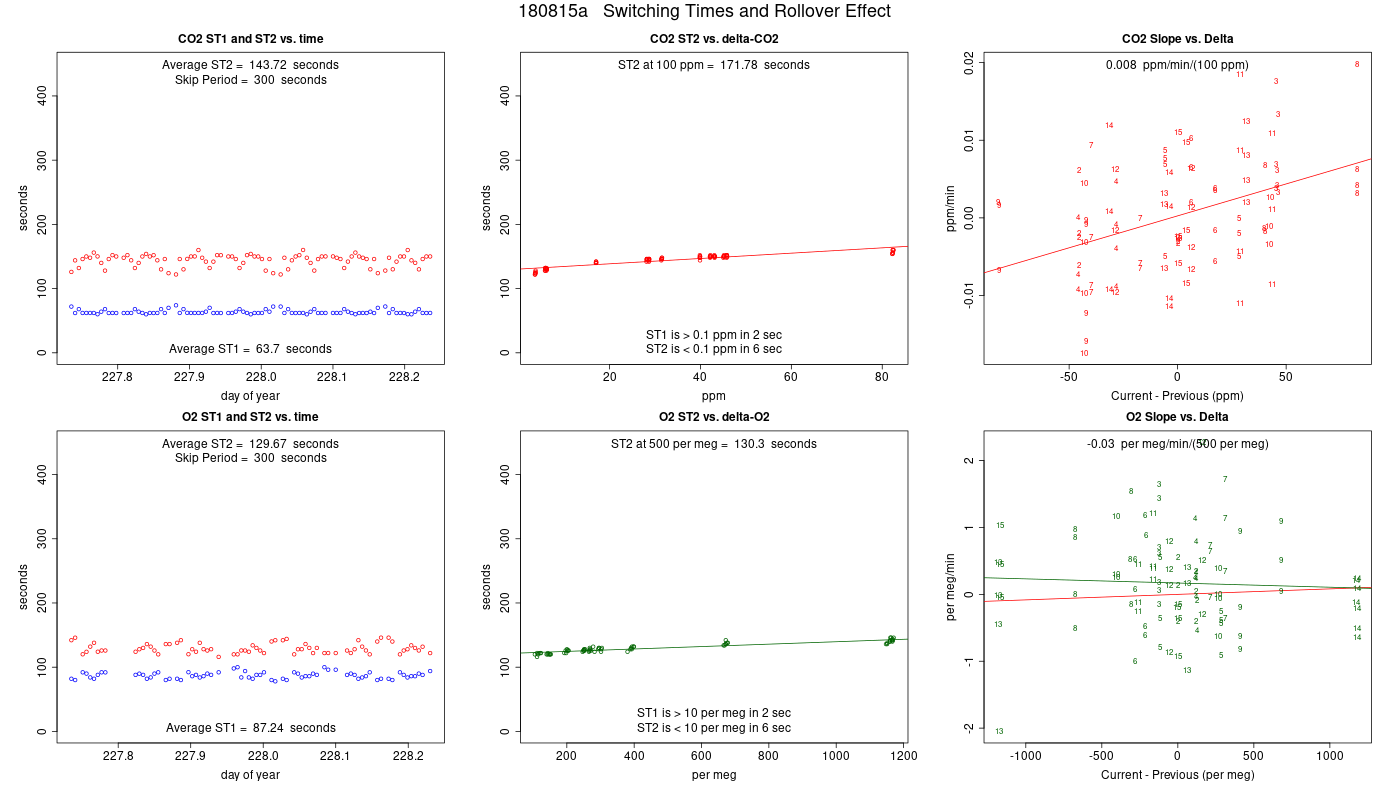

 Rollover Effect

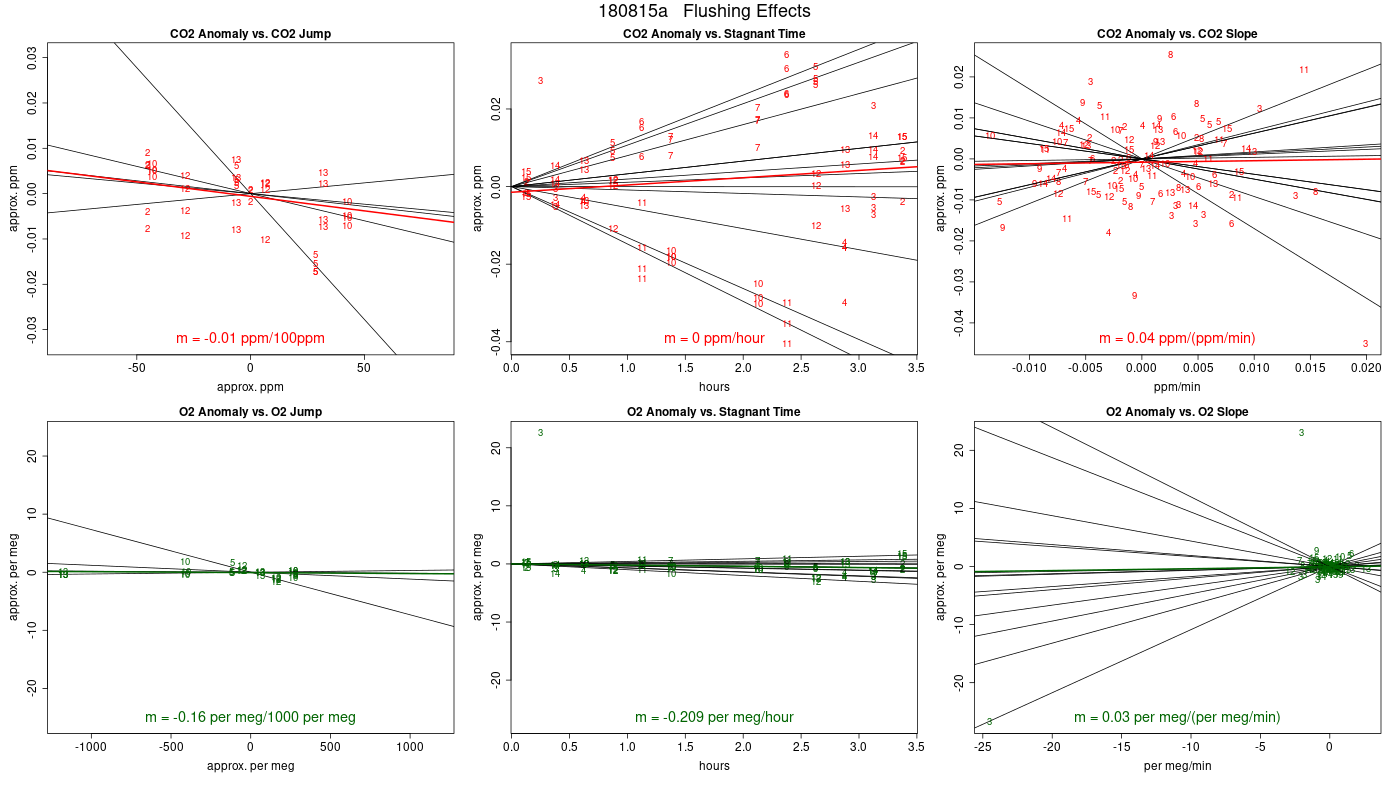

 Flushing Effect
CO2 Parameters

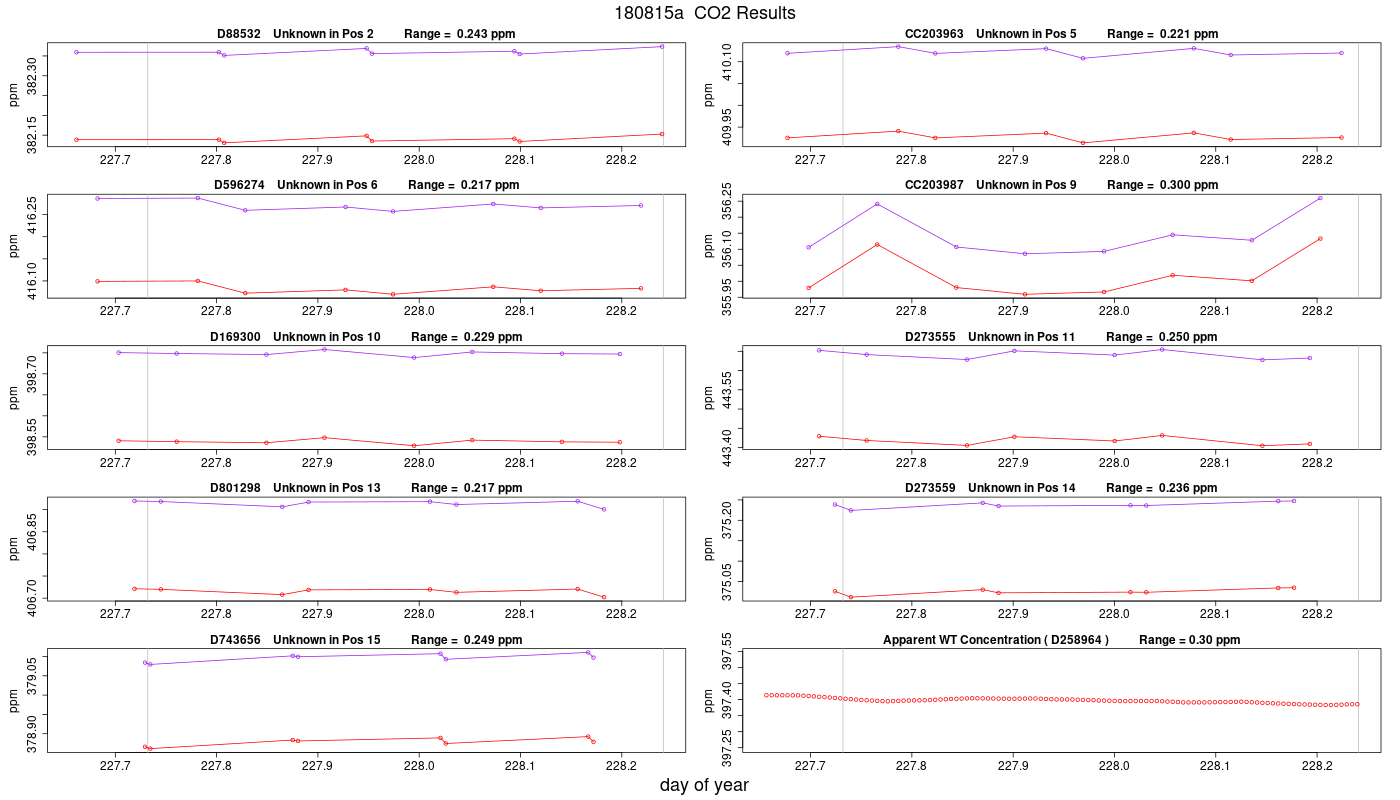

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

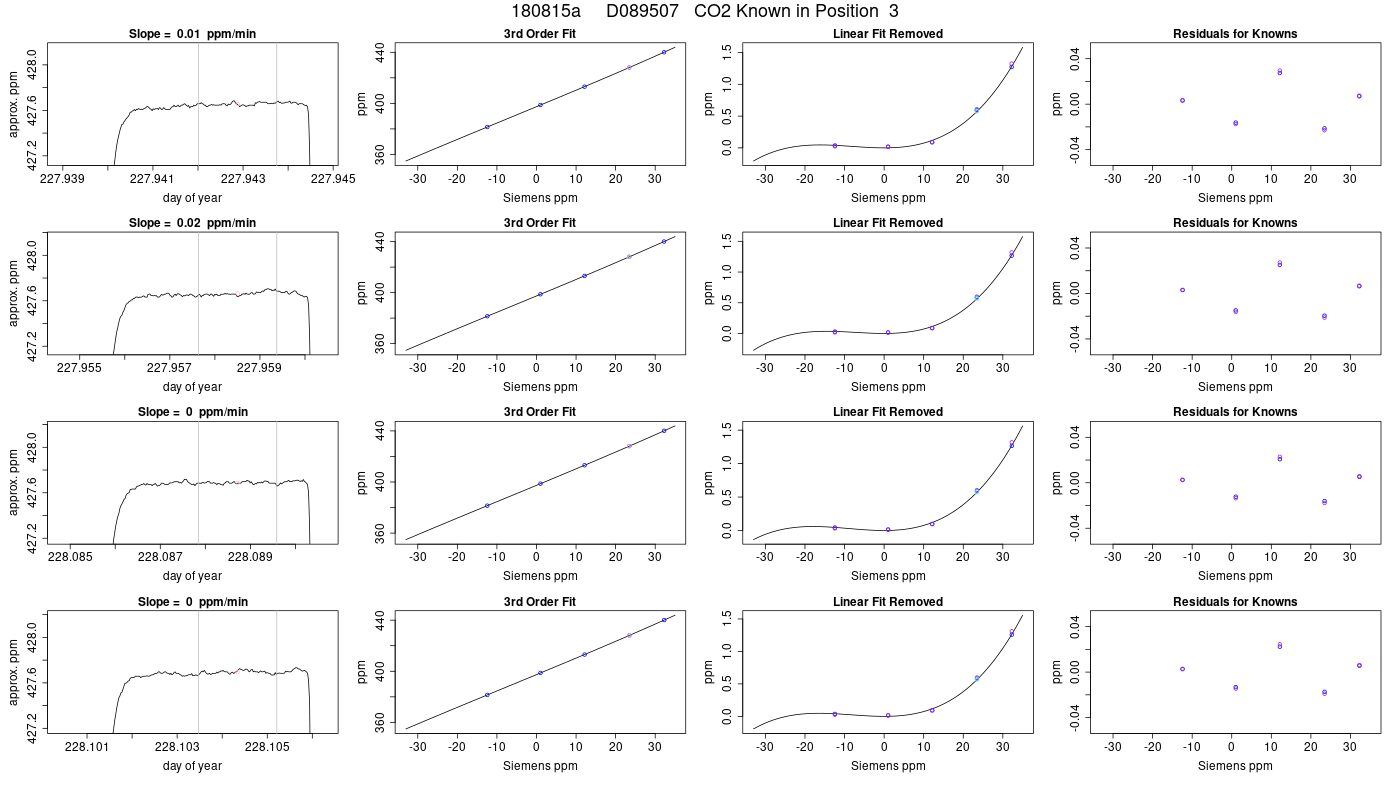

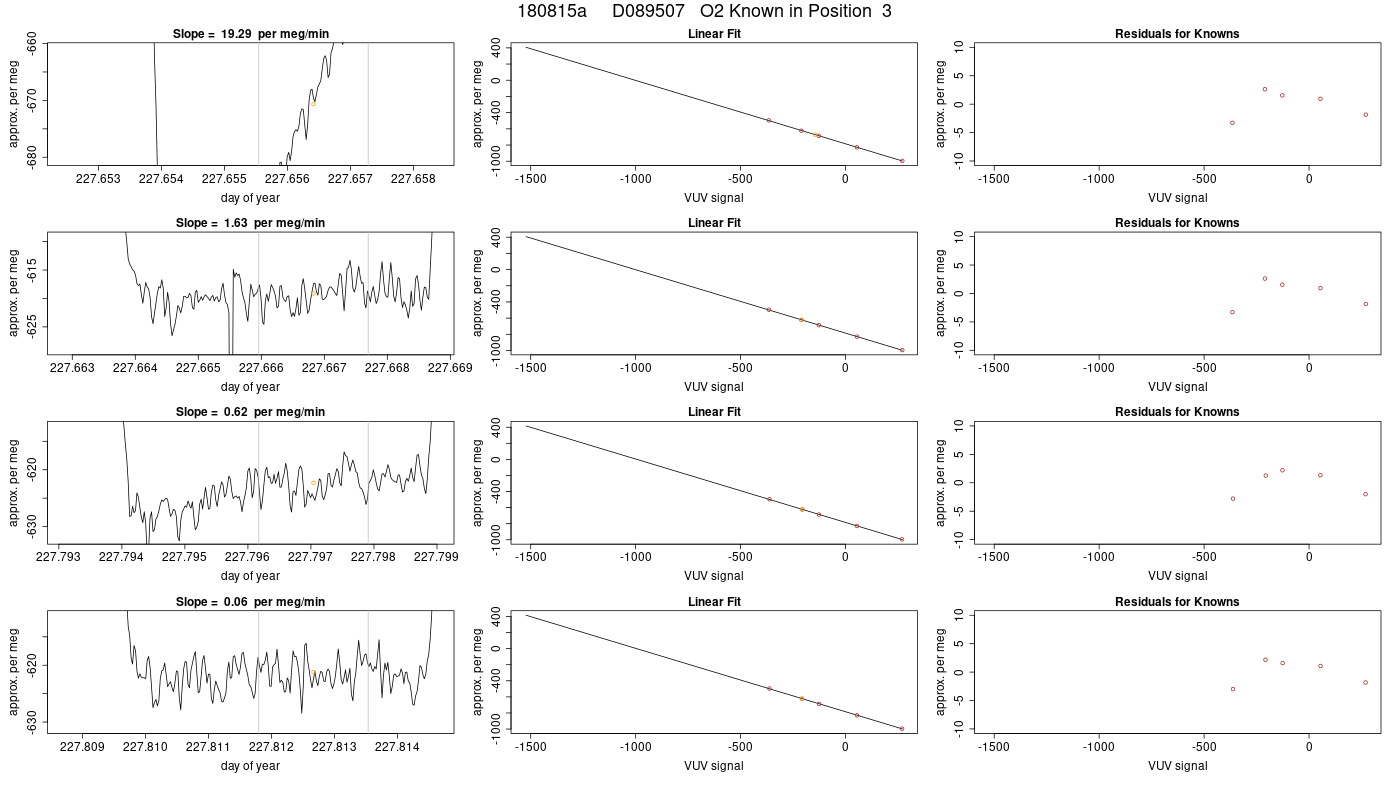

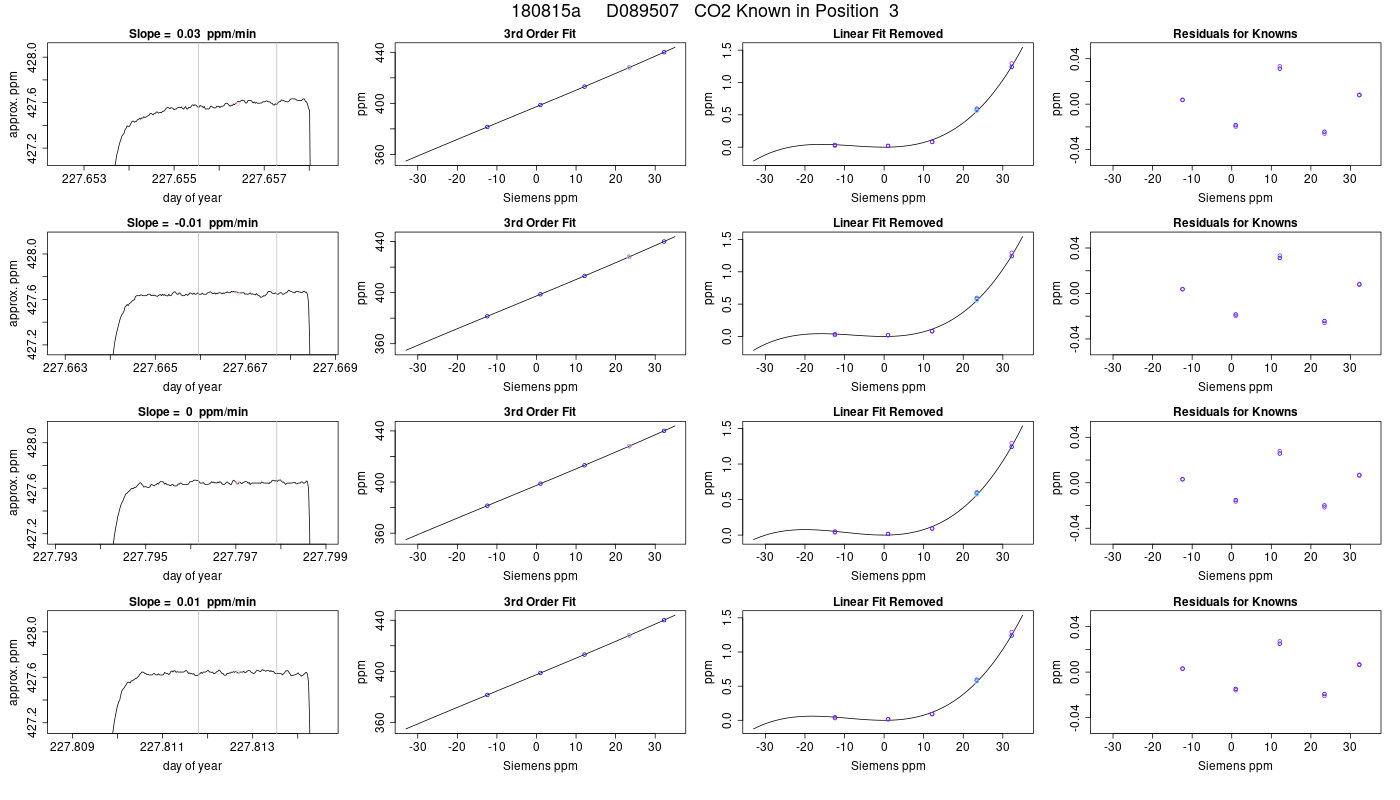

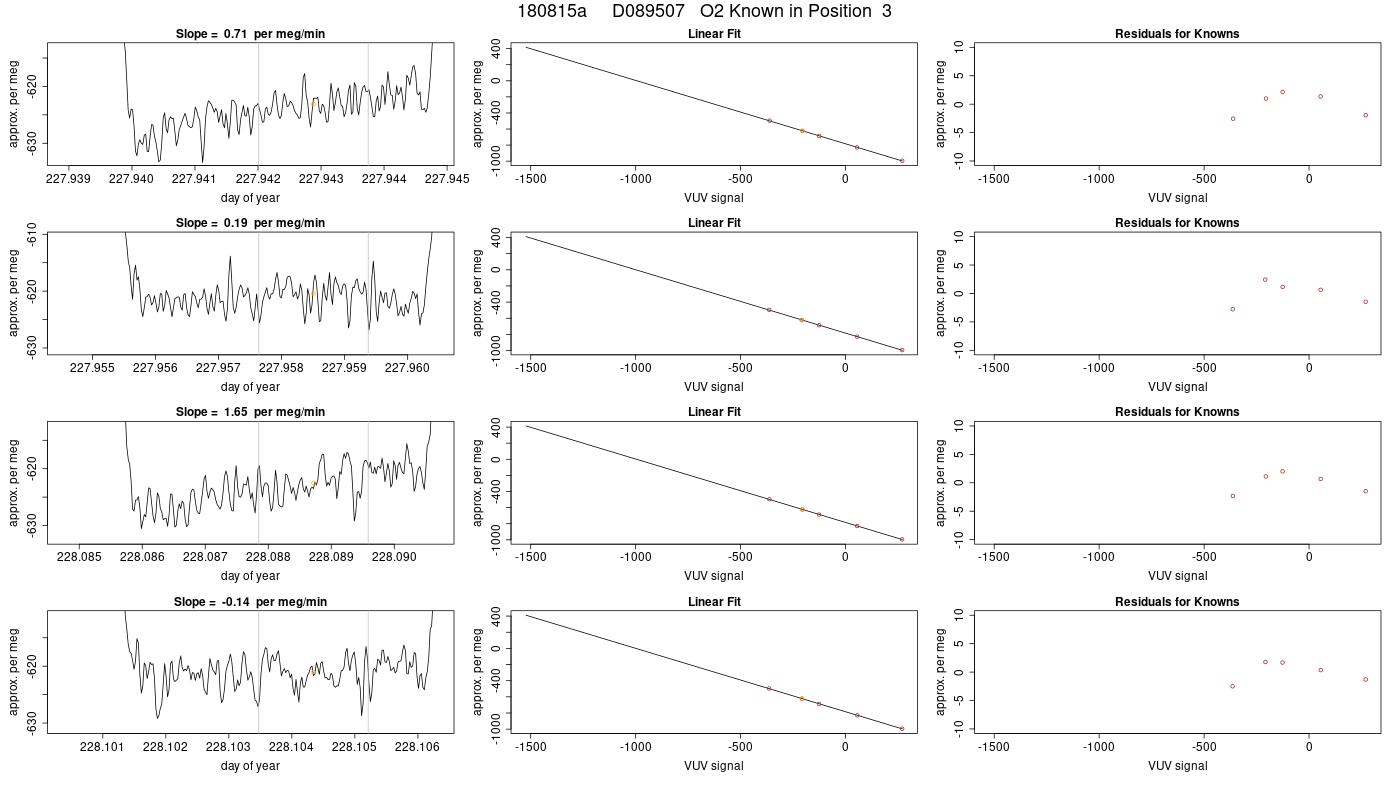

3 D089507 428.087 -0.018 0.003 428.275 -0.020 0.003 7 -559.23 1.60 0.54 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

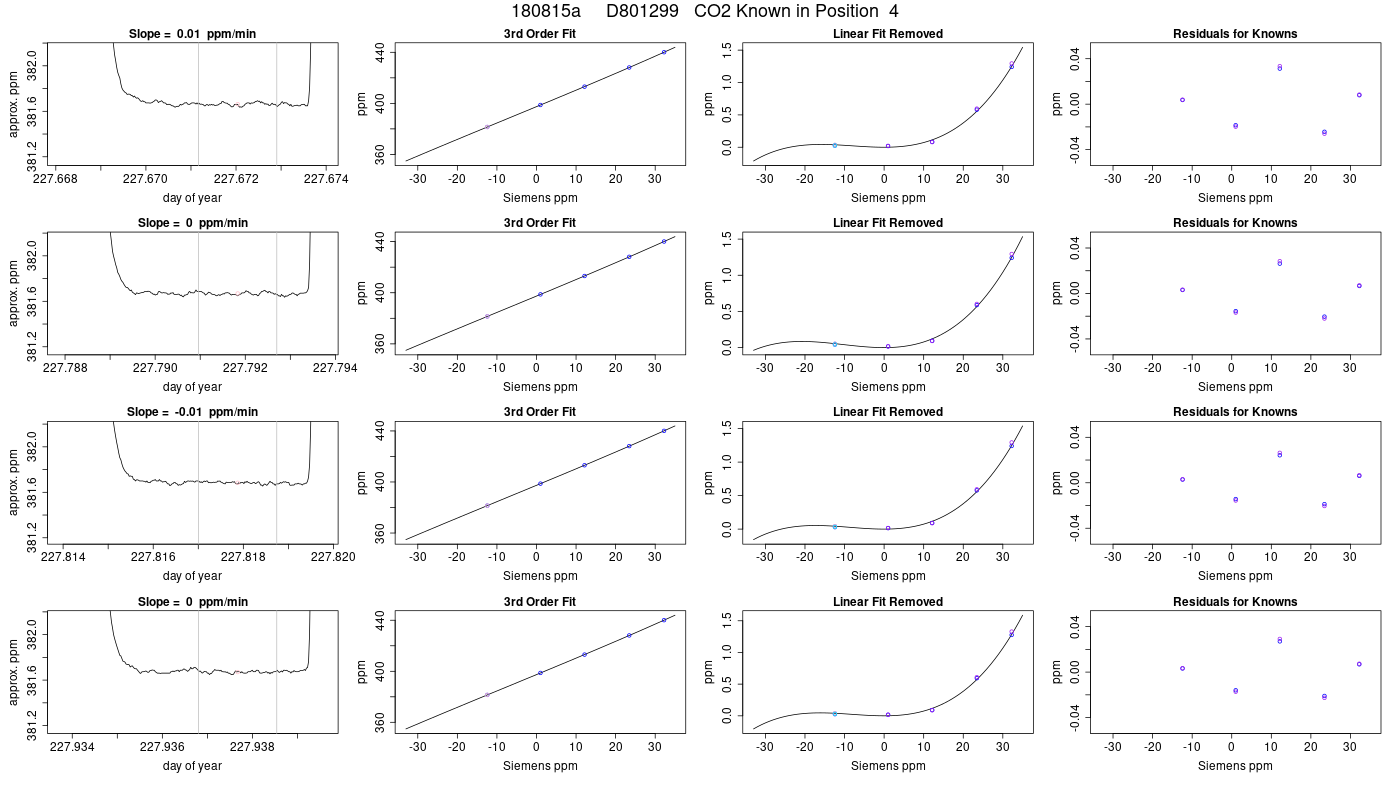

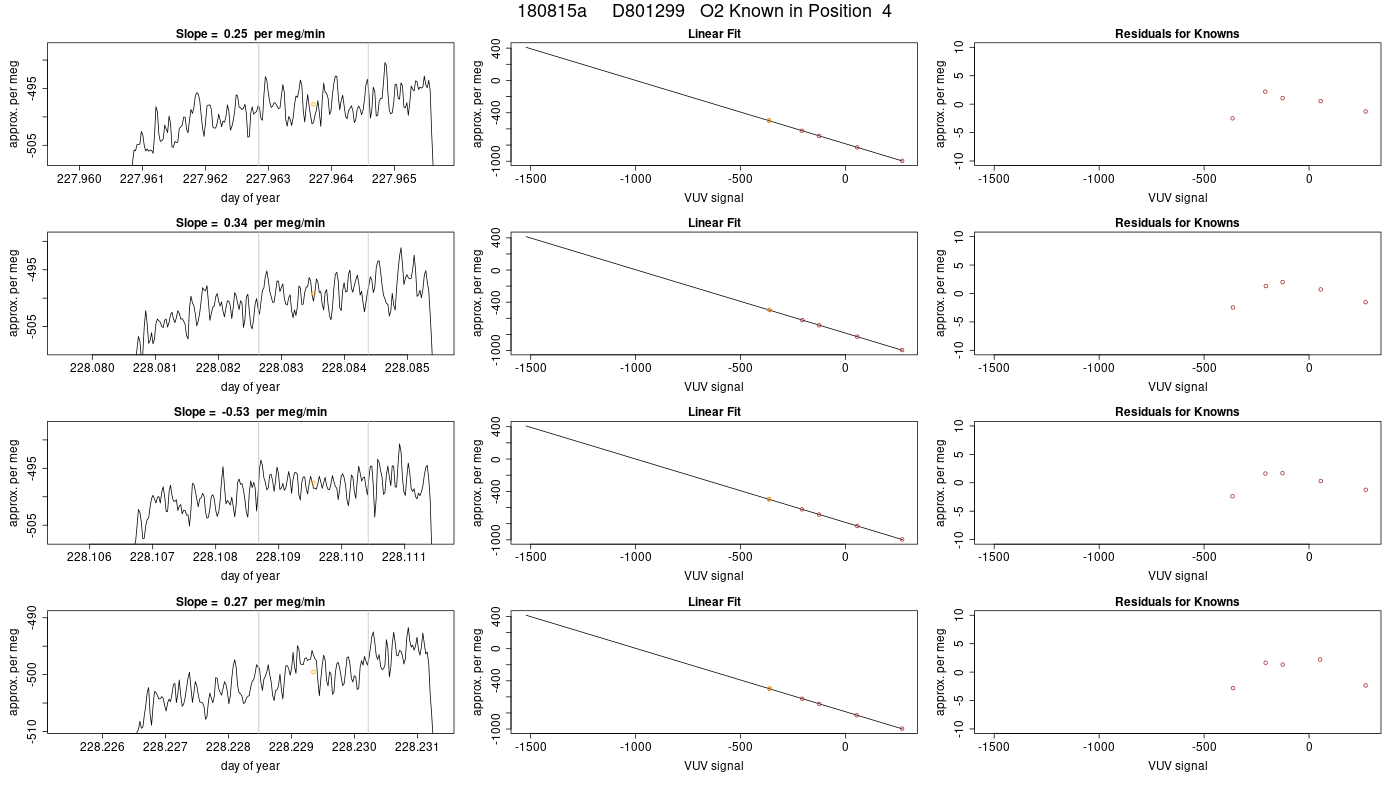

4 D801299 381.475 0.003 0.000 381.695 0.003 0.000 7 -477.75 -2.68 0.23 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

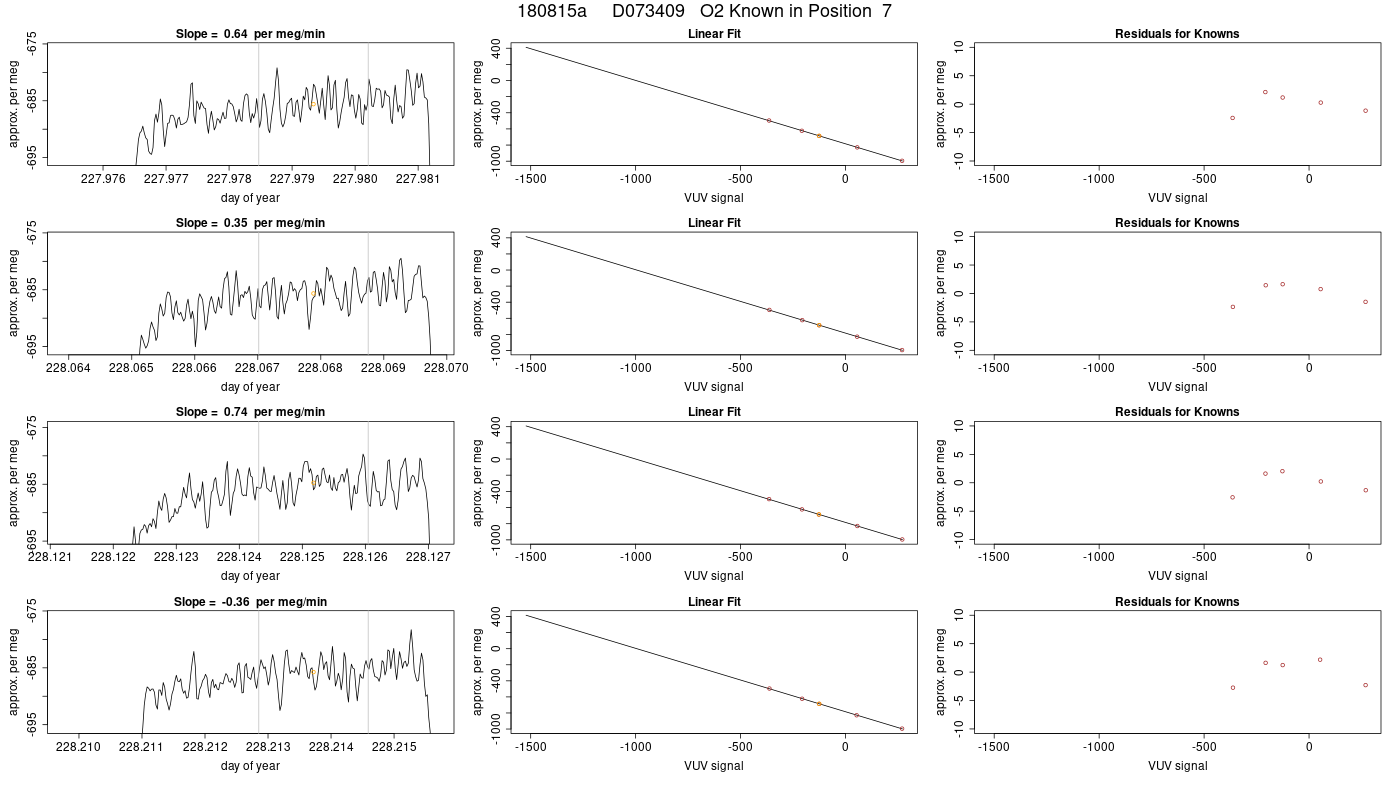

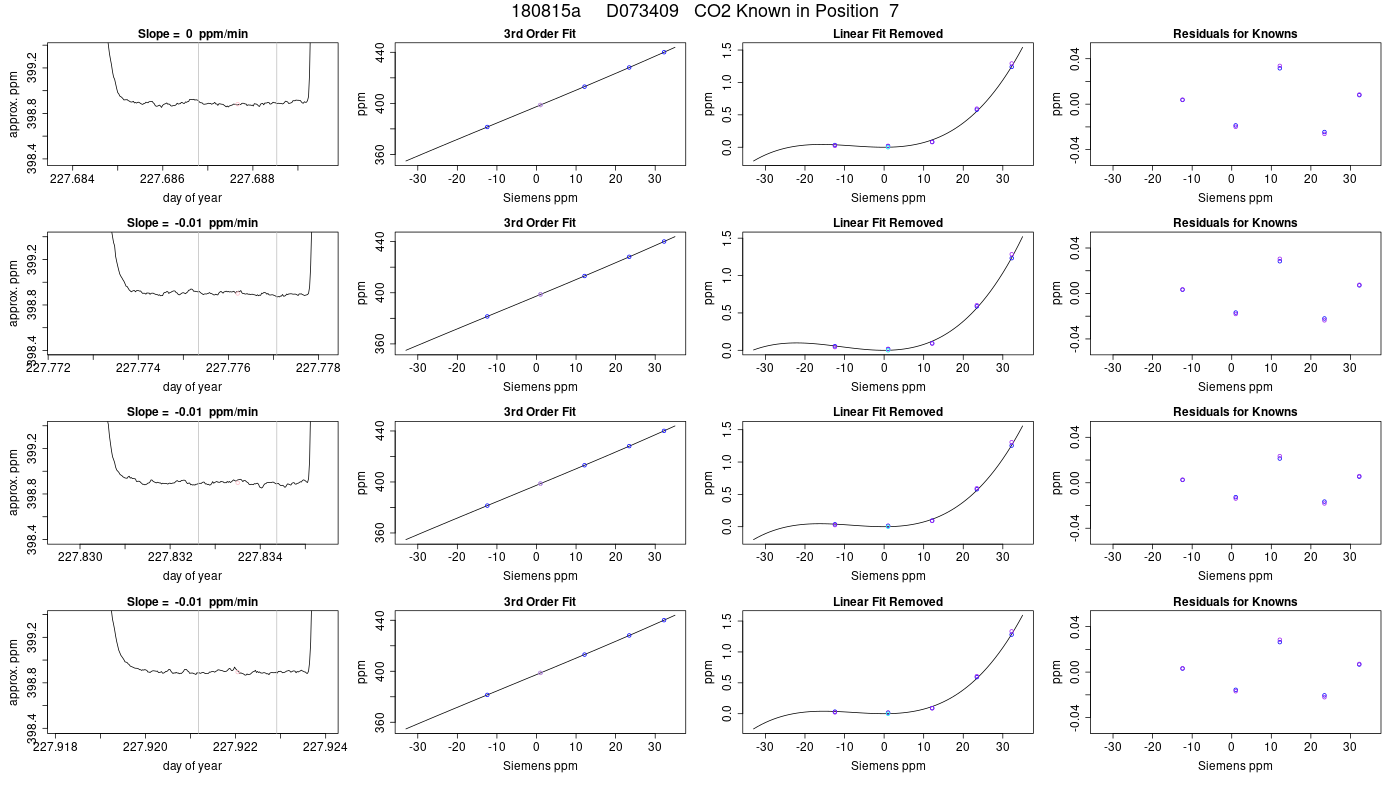

7 D073409 398.707 -0.014 0.002 398.918 -0.015 0.002 7 -651.78 1.69 0.52 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

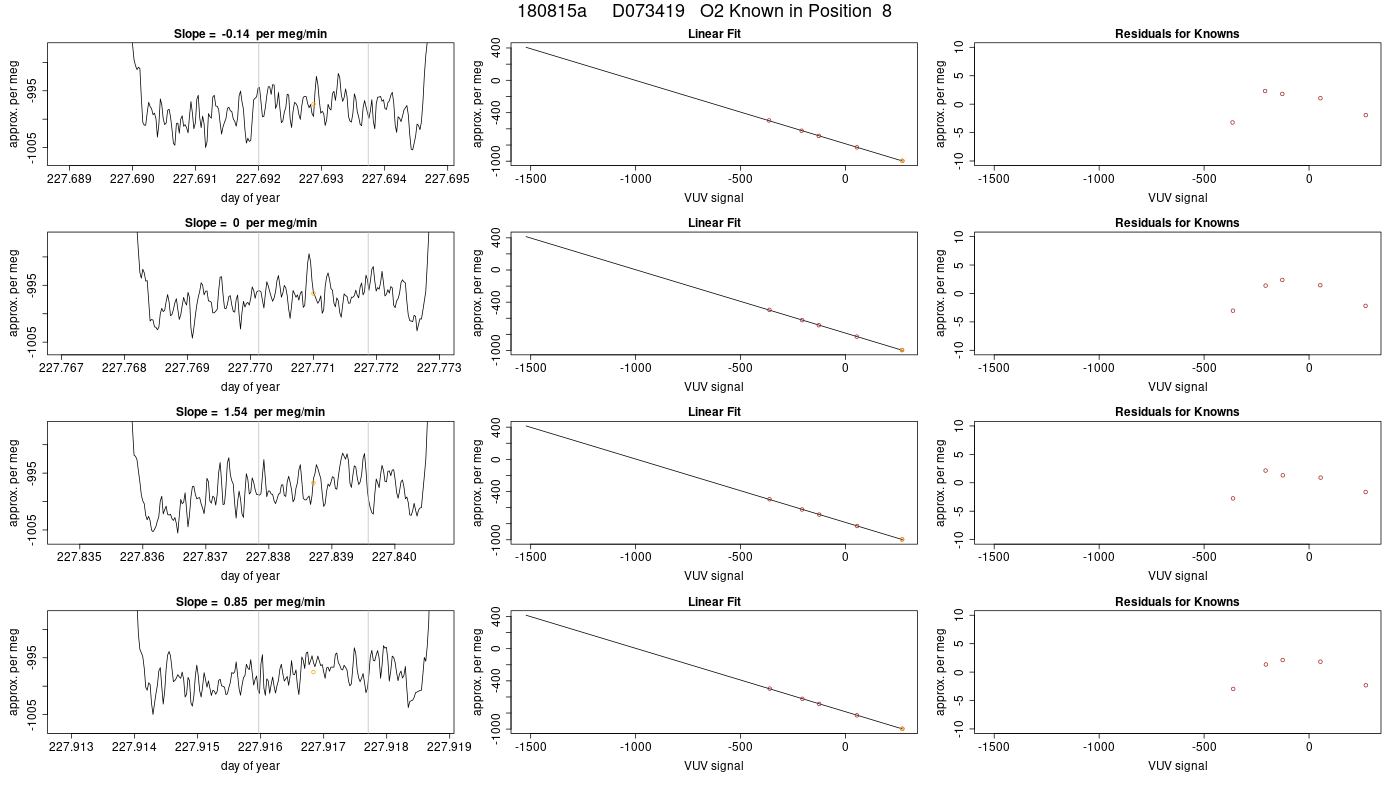

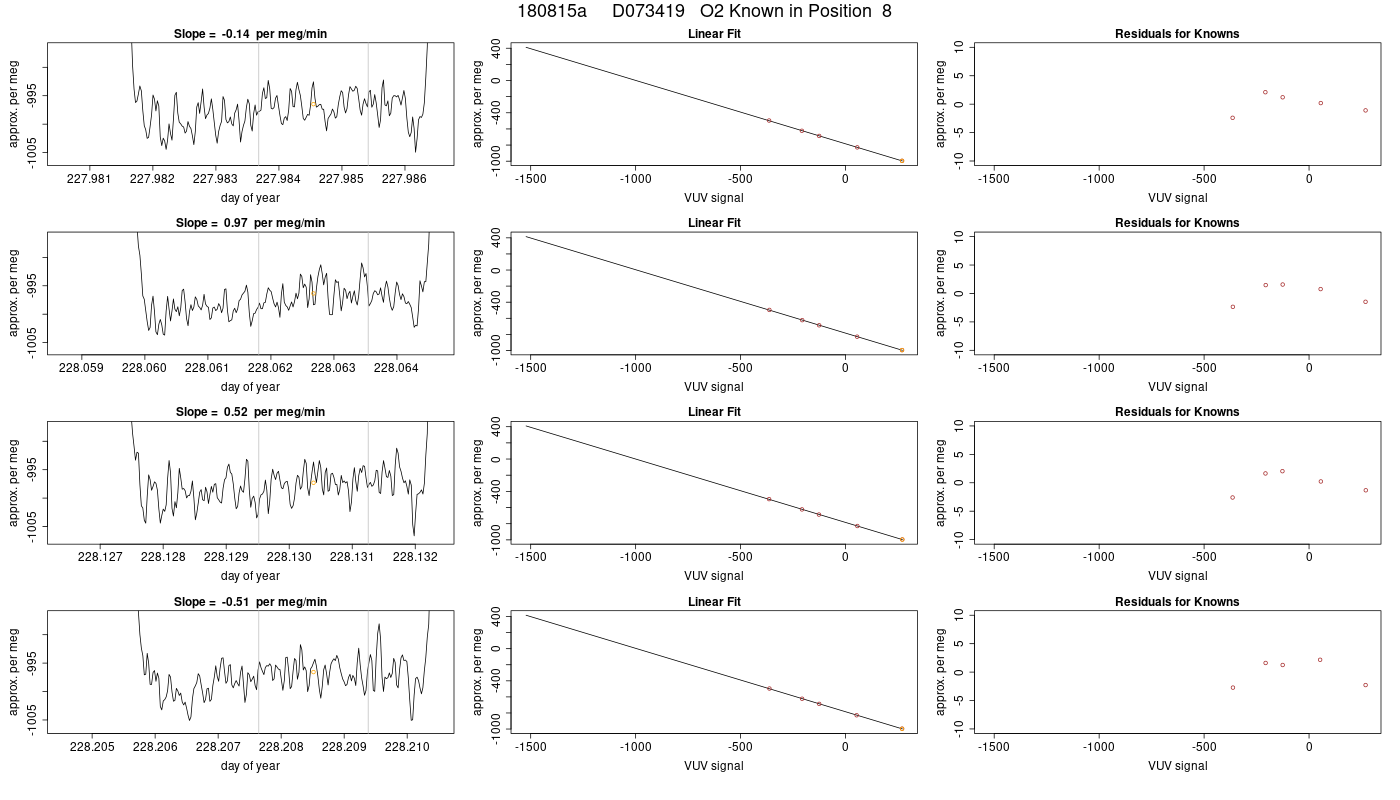

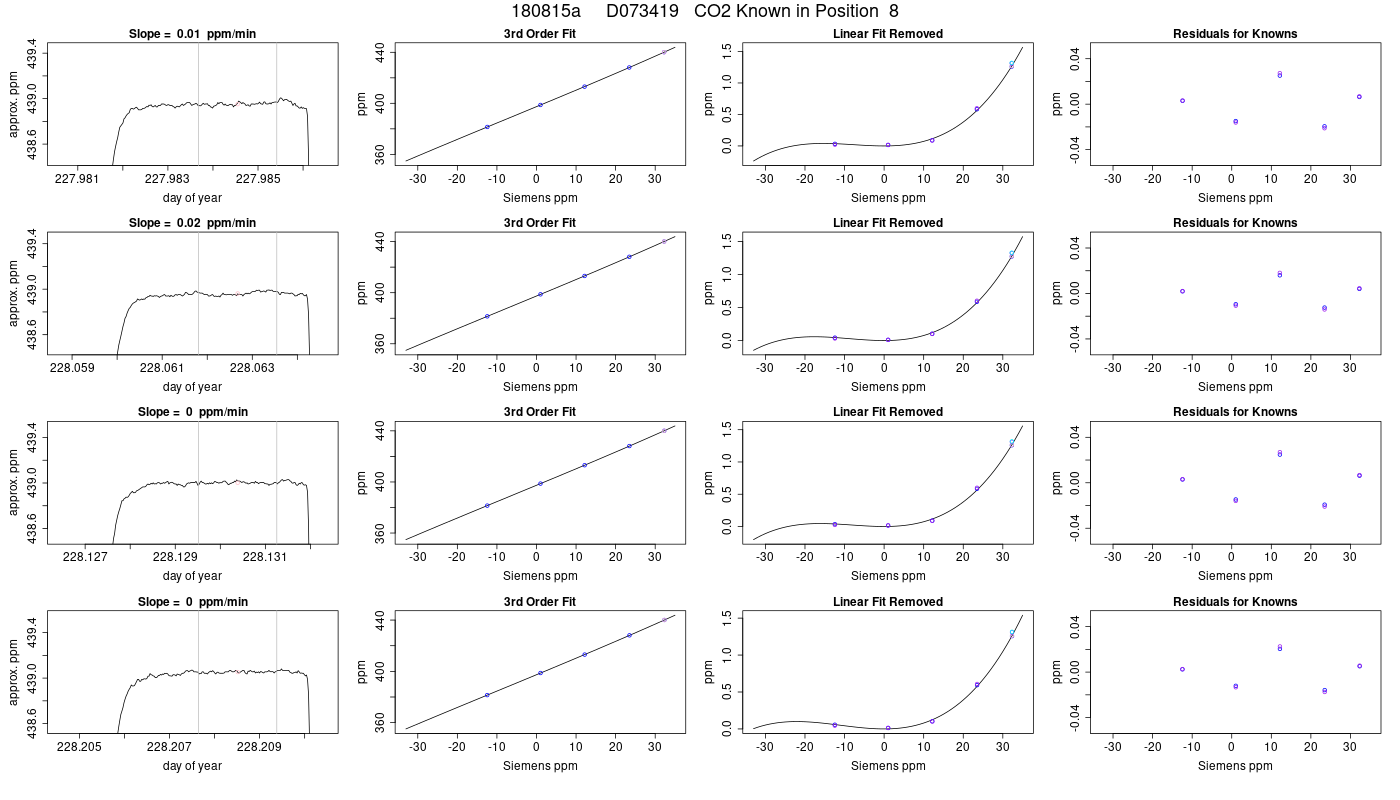

8 D073419 440.065 0.006 0.001 440.275 0.006 0.001 7 -919.32 -1.75 0.50 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

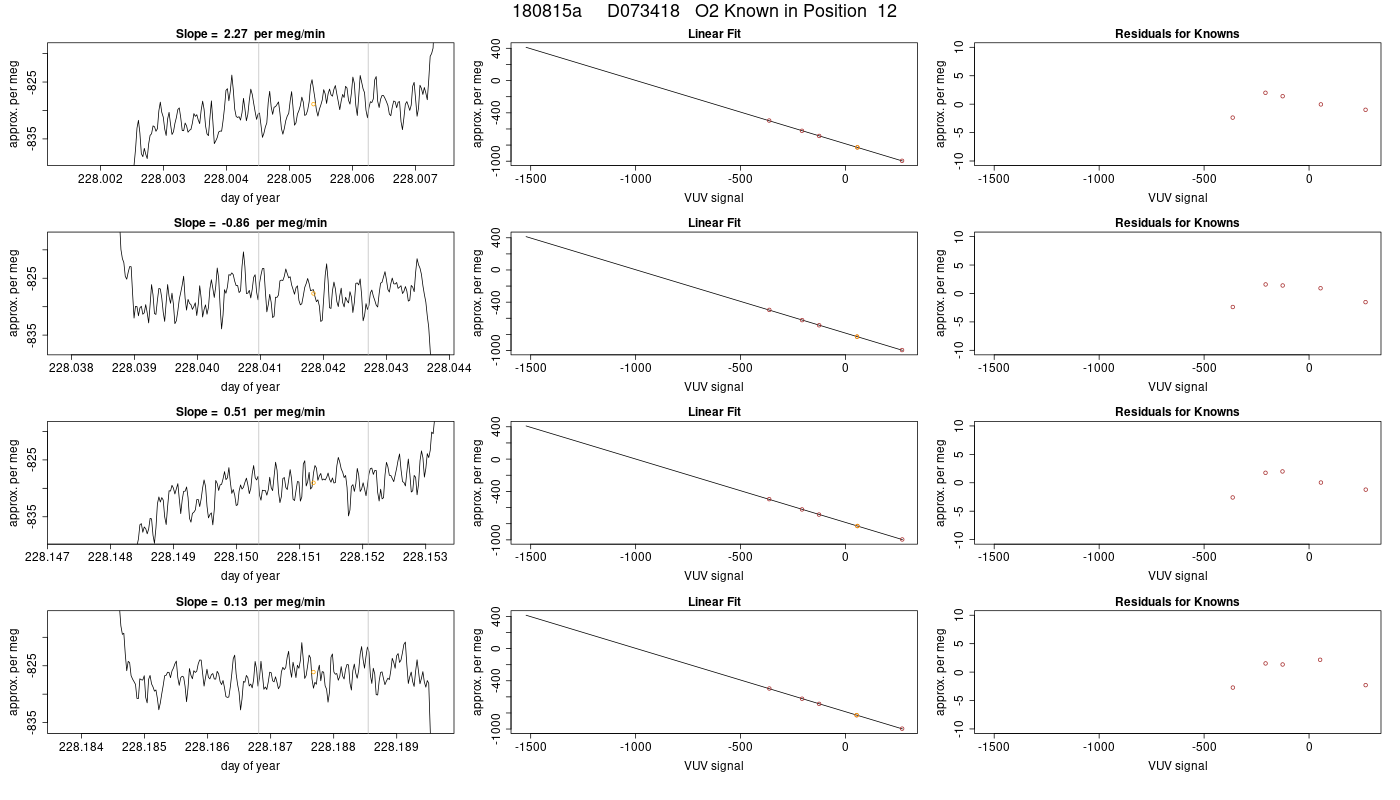

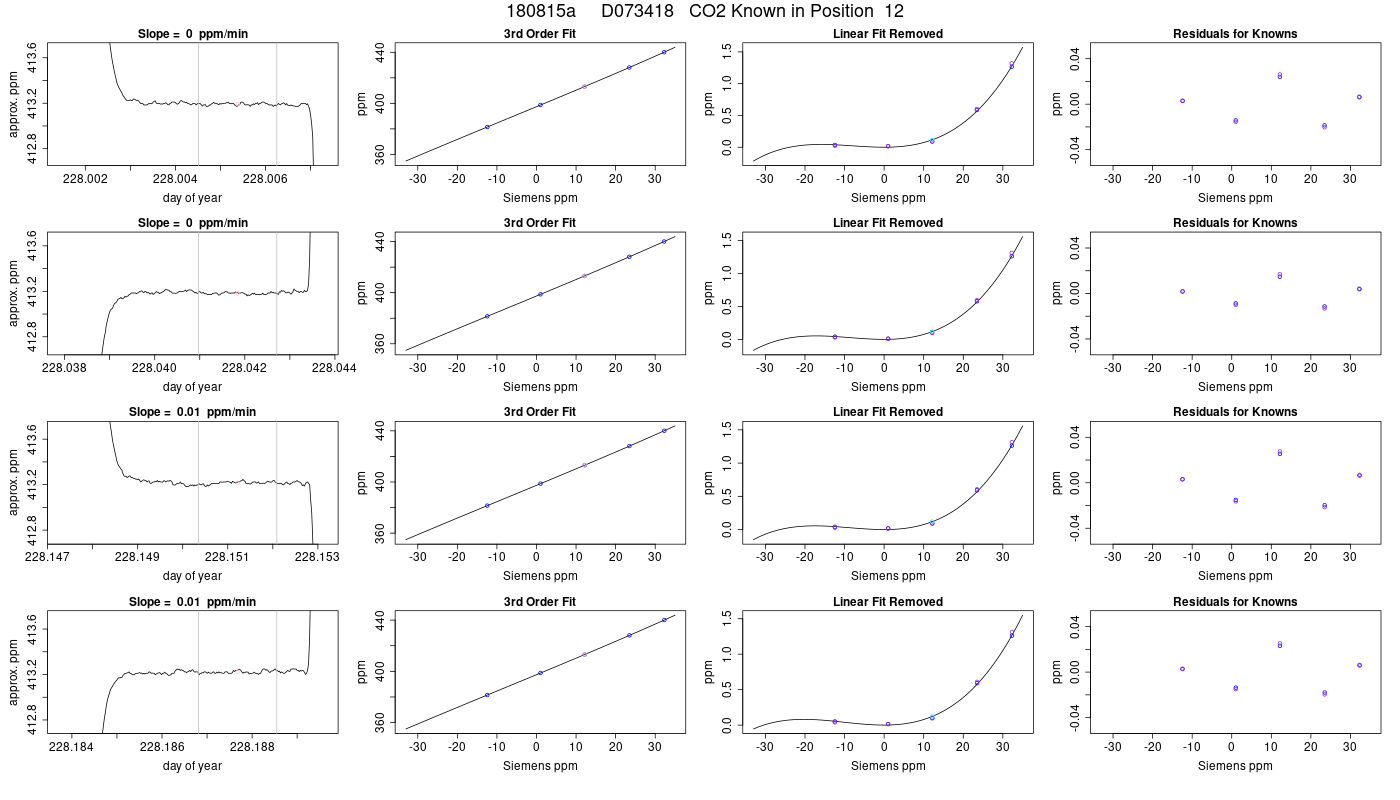

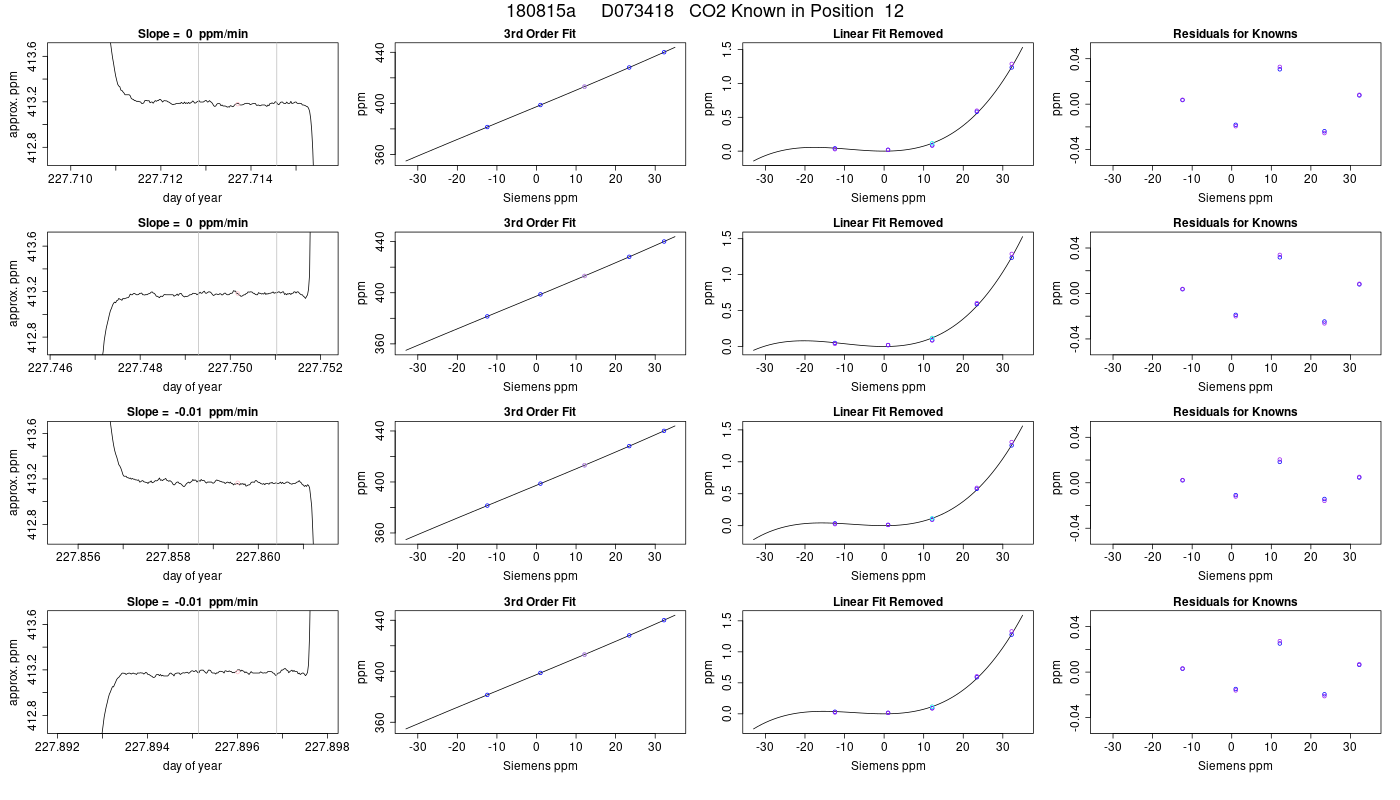

12 D073418 413.092 0.023 0.005 413.280 0.025 0.005 7 -779.40 1.10 0.91 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

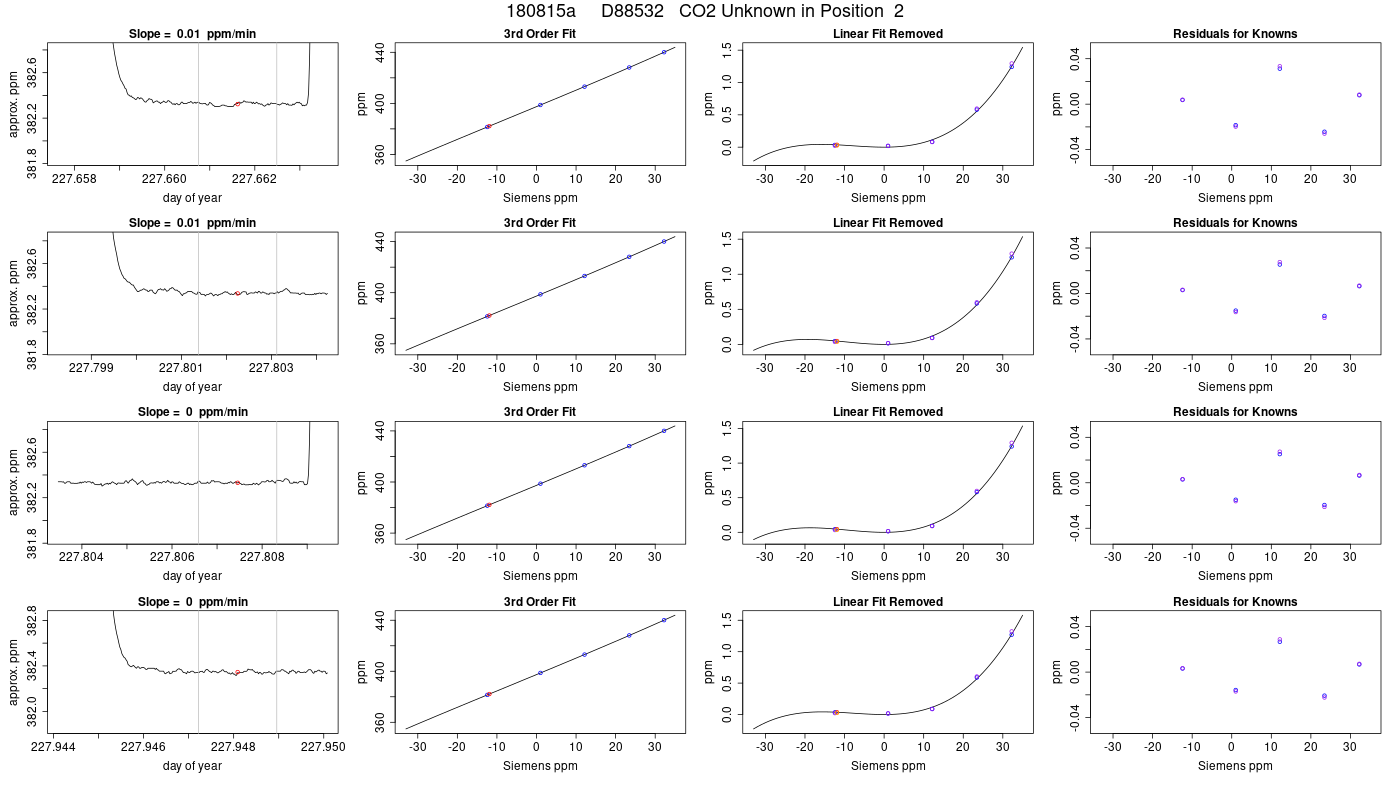

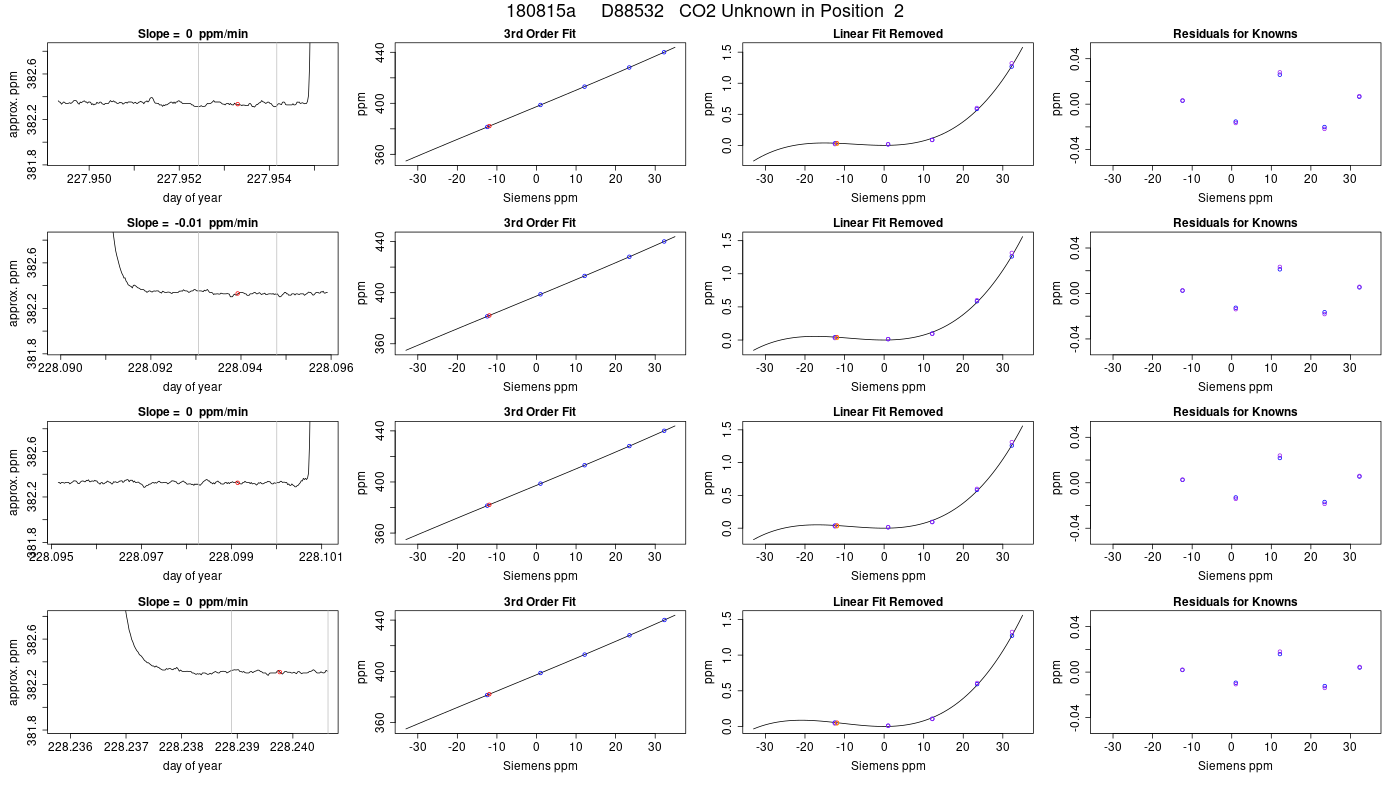

2 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.662 382.139 0.014 -482.84 2.75 382.359 0.014
227.802 382.139 0.010 -480.85 2.38 382.359 0.010
227.807 382.131 0.011 -479.89 2.47 382.351 0.011
227.948 382.148 0.012 -479.85 1.97 382.369 0.012
227.953 382.135 0.014 -481.06 2.15 382.356 0.014
228.094 382.141 0.013 -481.31 2.29 382.362 0.013
228.099 382.134 0.010 -480.61 2.14 382.355 0.010
228.240 382.153 0.011 -480.97 2.60 382.373 0.011

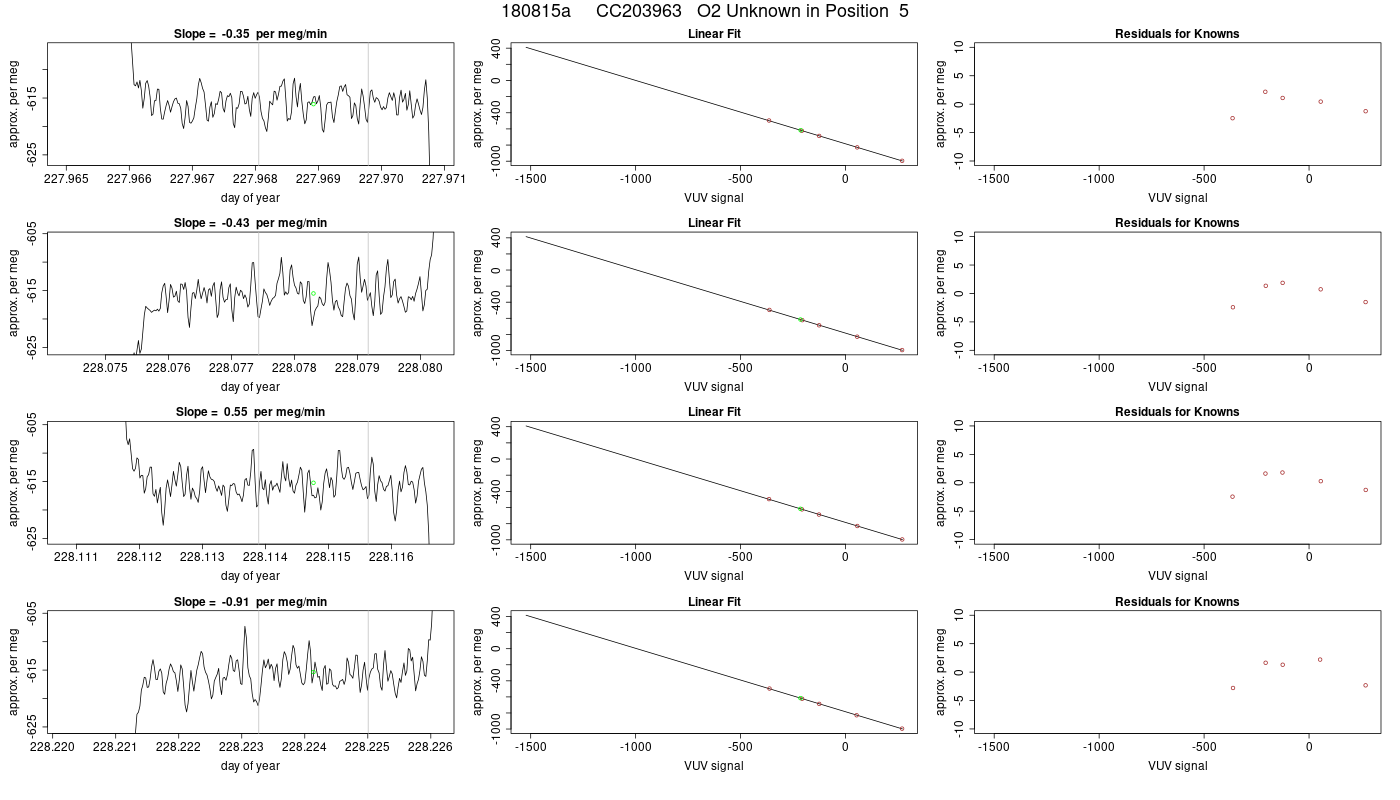

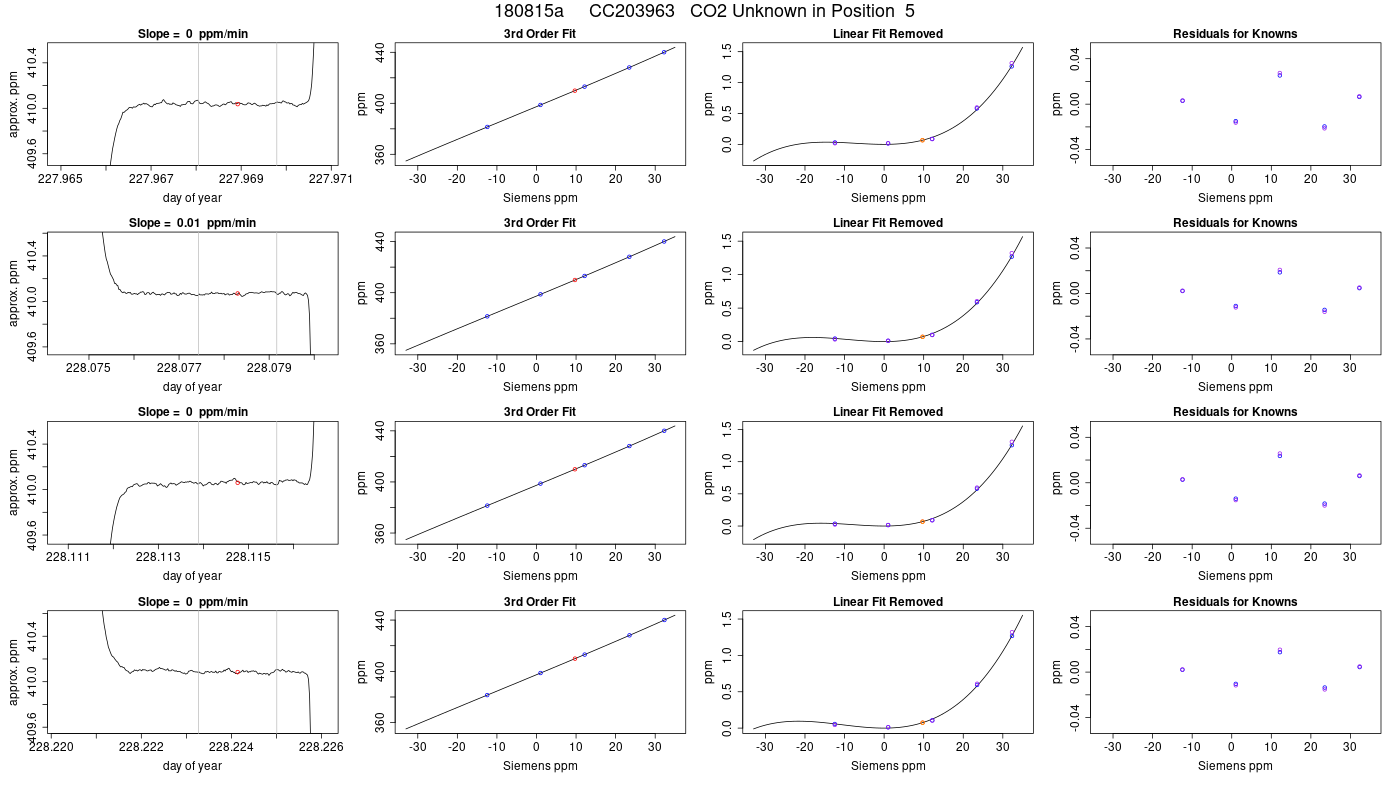

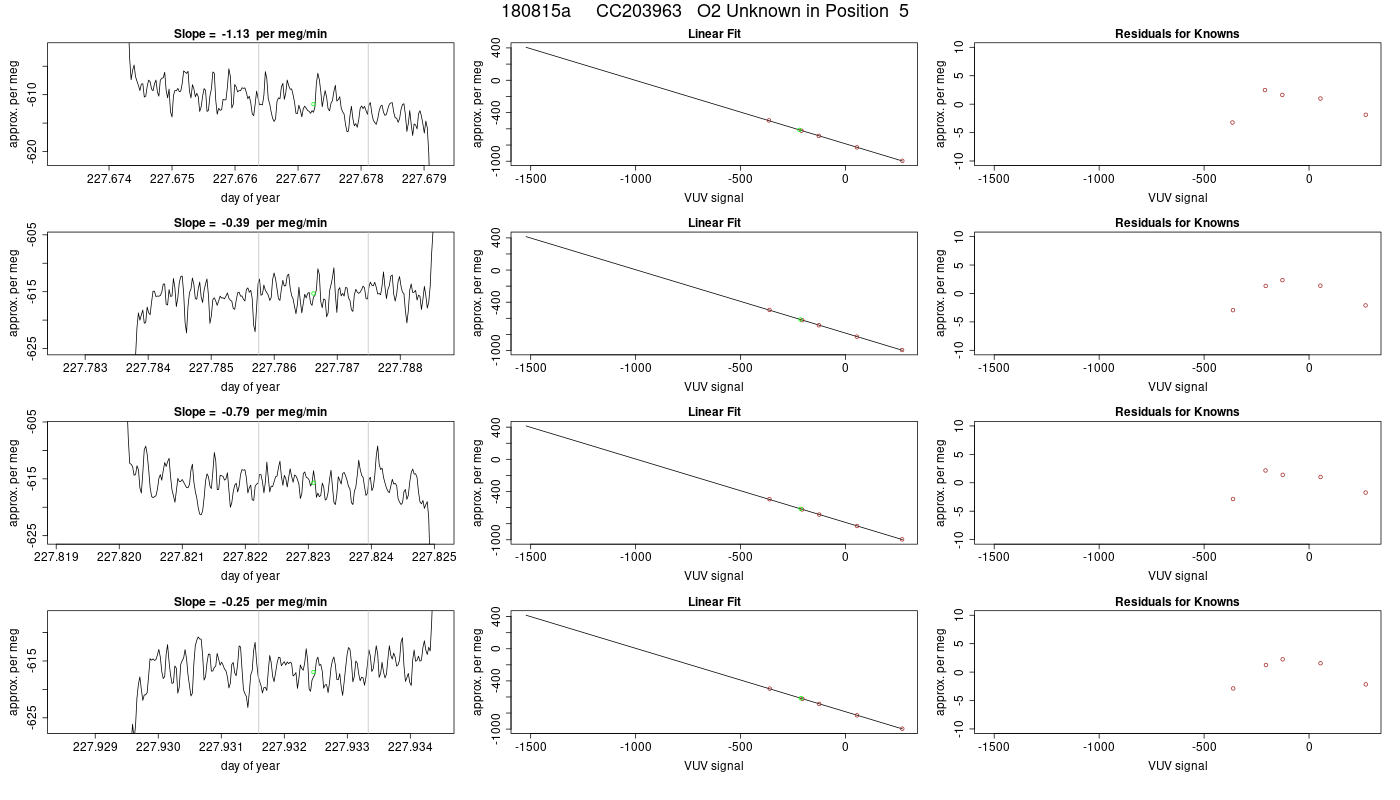

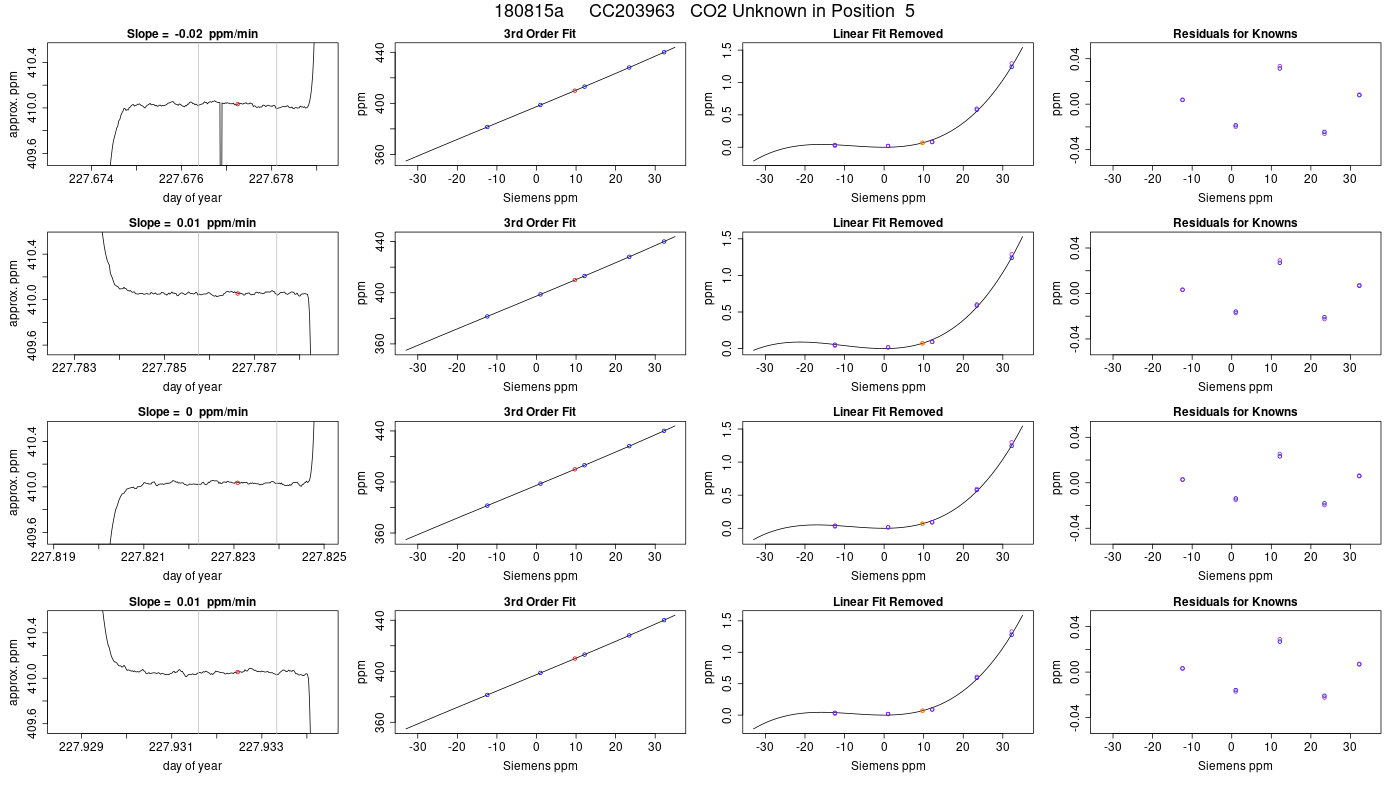

5 CC203963    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.677 409.925 0.015 -567.10 2.34 410.119 0.015
227.787 409.941 0.012 -569.16 1.88 410.135 0.012
227.823 409.925 0.009 -569.41 1.81 410.119 0.009
227.932 409.936 0.012 -569.97 2.07 410.130 0.012
227.969 409.914 0.011 -570.59 2.39 410.108 0.011
228.078 409.937 0.010 -569.09 2.66 410.131 0.010
228.115 409.921 0.013 -569.77 2.10 410.115 0.013
228.224 409.926 0.012 -569.13 2.16 410.120 0.012

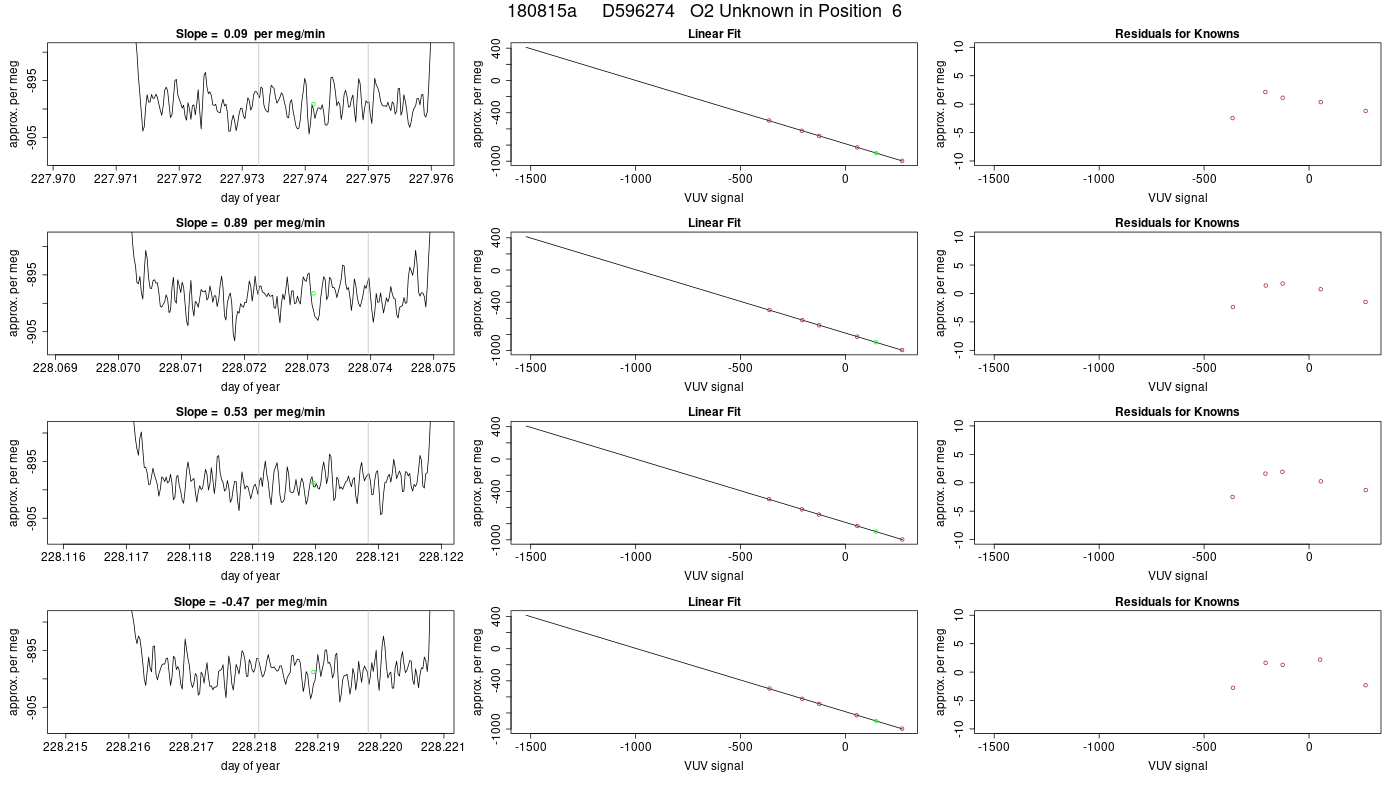

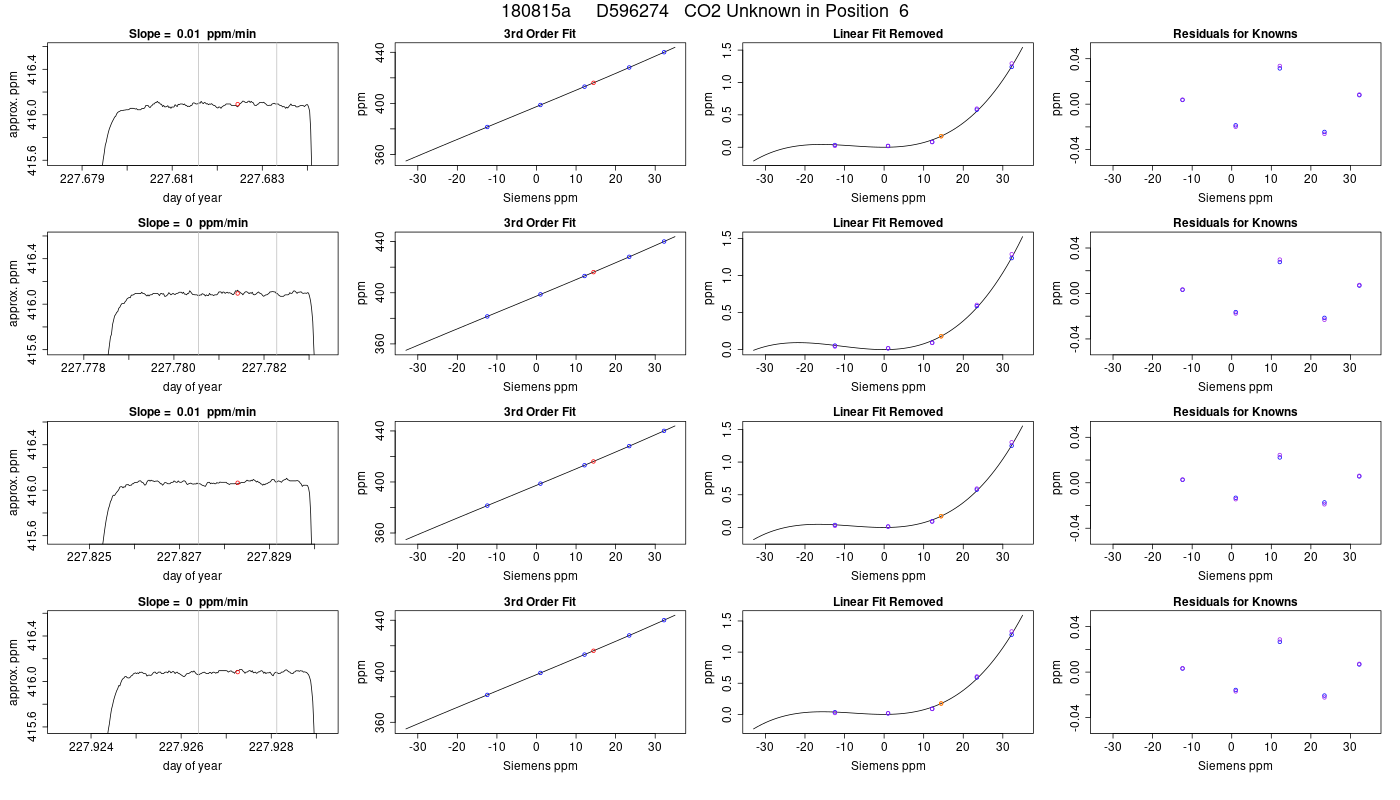

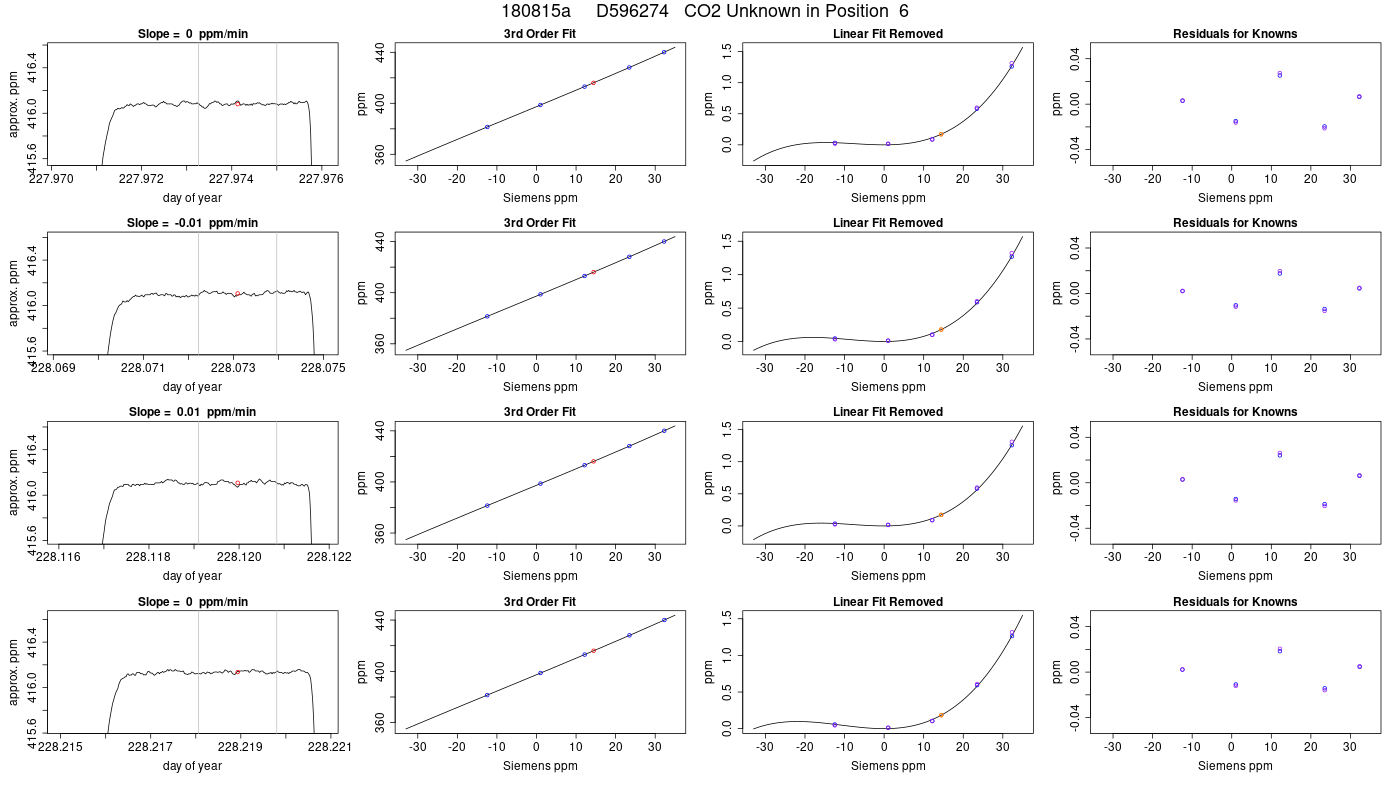

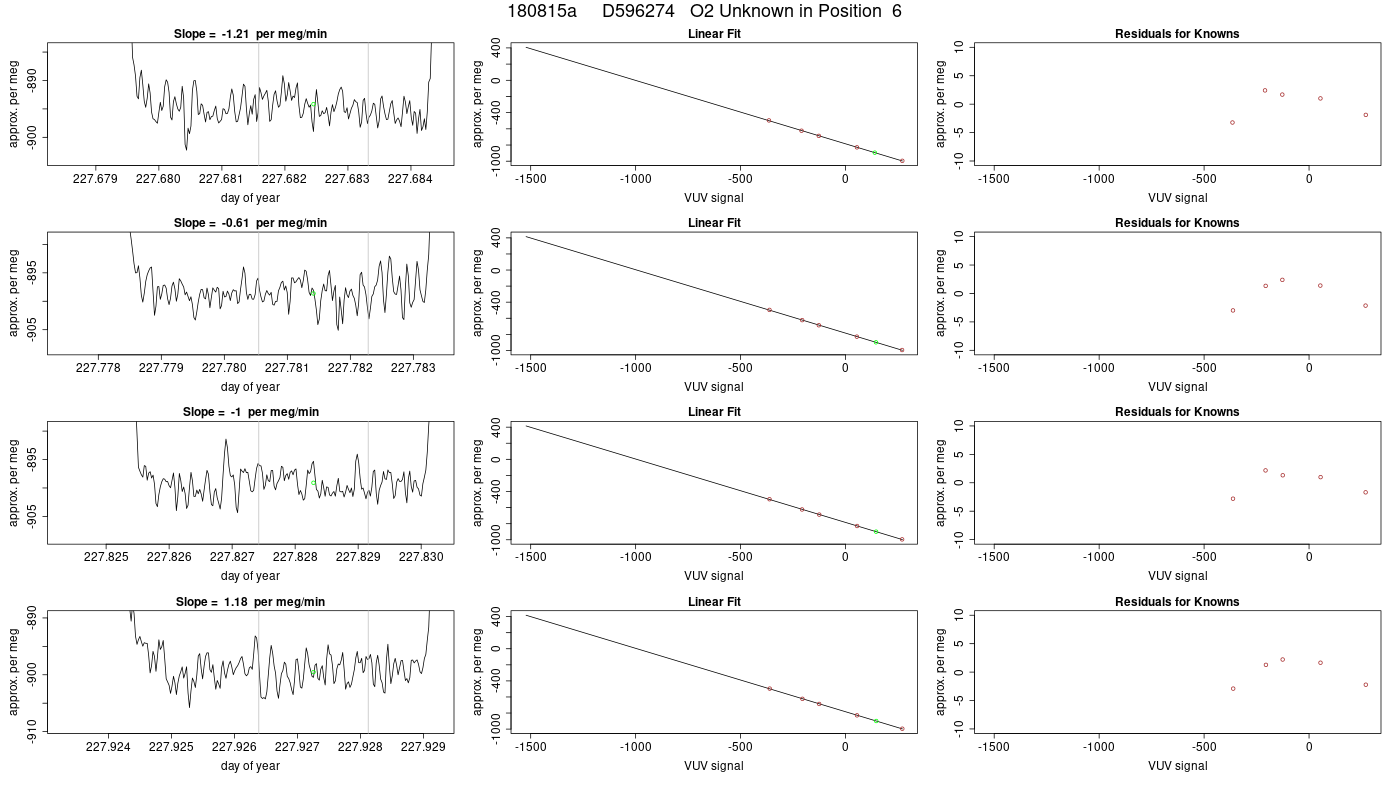

6 D596274    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.682 416.099 0.015 -842.23 2.07 416.286 0.015
227.781 416.100 0.012 -847.16 2.33 416.287 0.012
227.828 416.072 0.014 -847.09 1.97 416.260 0.014
227.927 416.080 0.011 -847.25 2.42 416.267 0.011
227.974 416.070 0.013 -847.01 2.37 416.257 0.013
228.073 416.087 0.013 -846.23 2.16 416.274 0.013
228.120 416.078 0.016 -846.31 2.03 416.265 0.016
228.219 416.083 0.011 -847.37 2.02 416.271 0.011

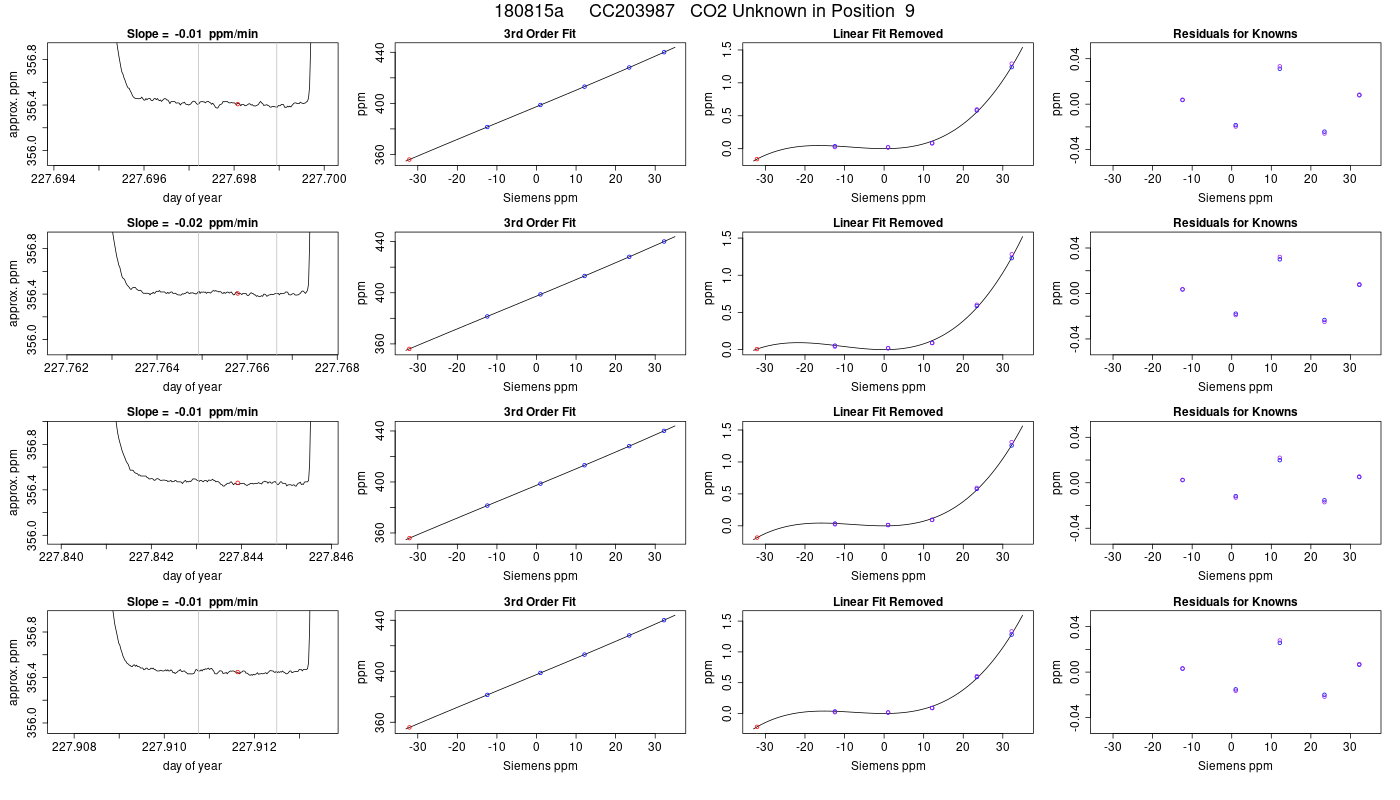

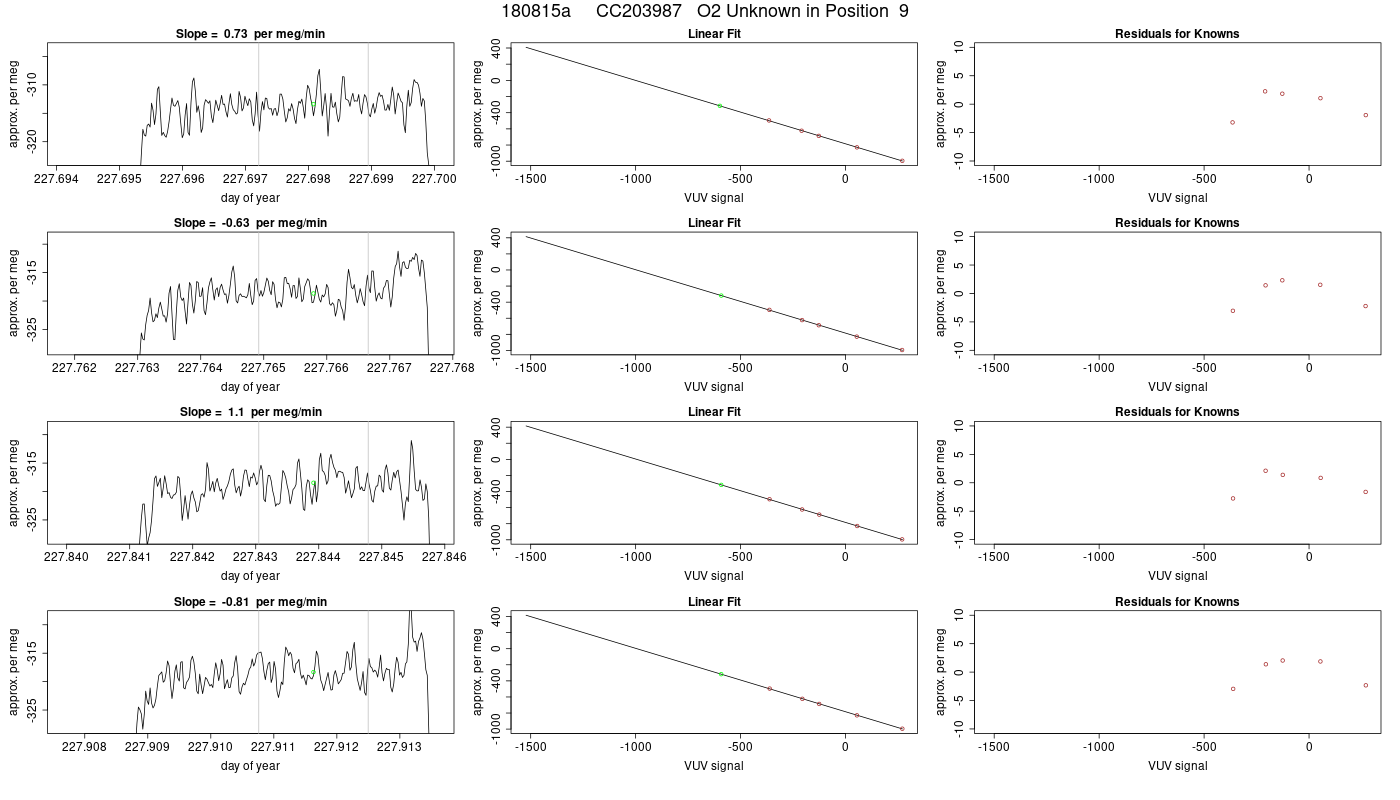

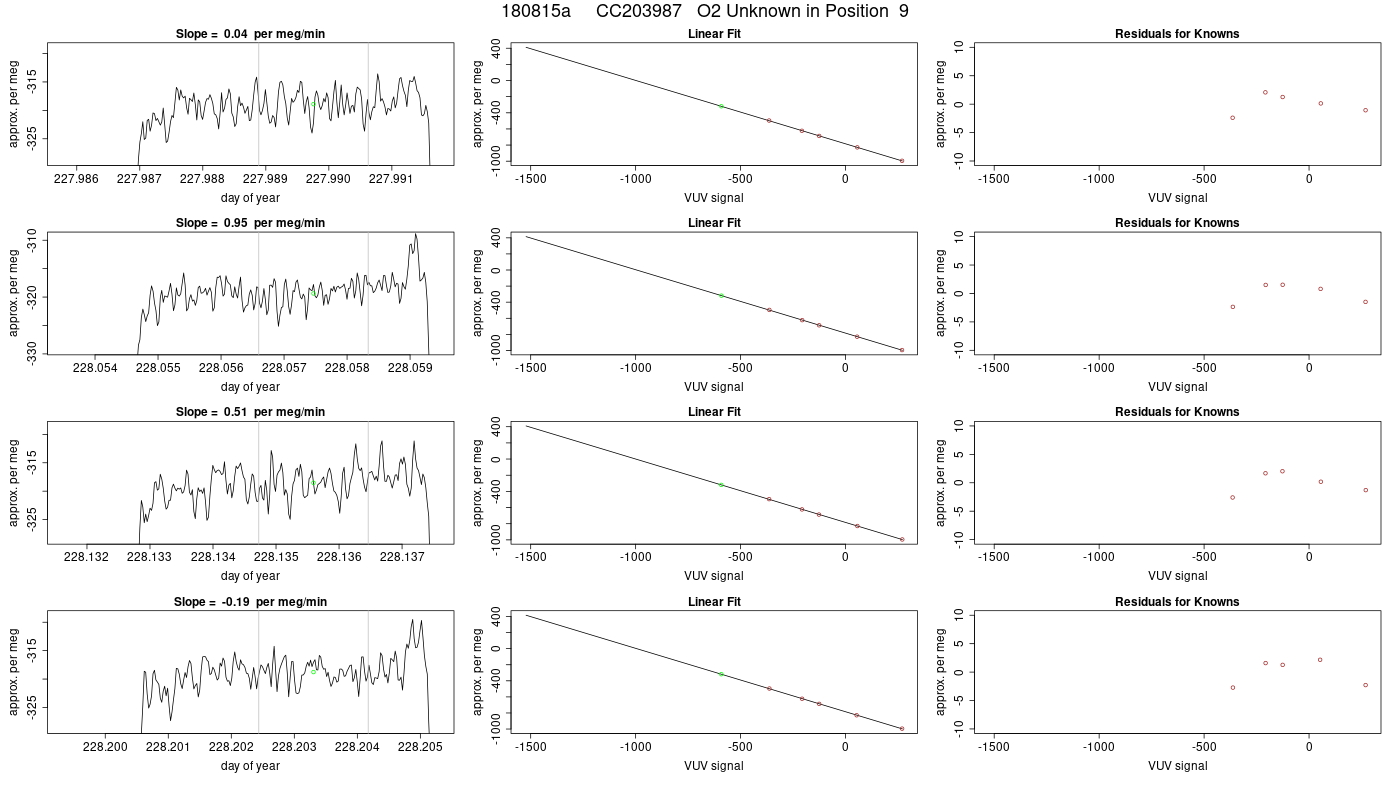

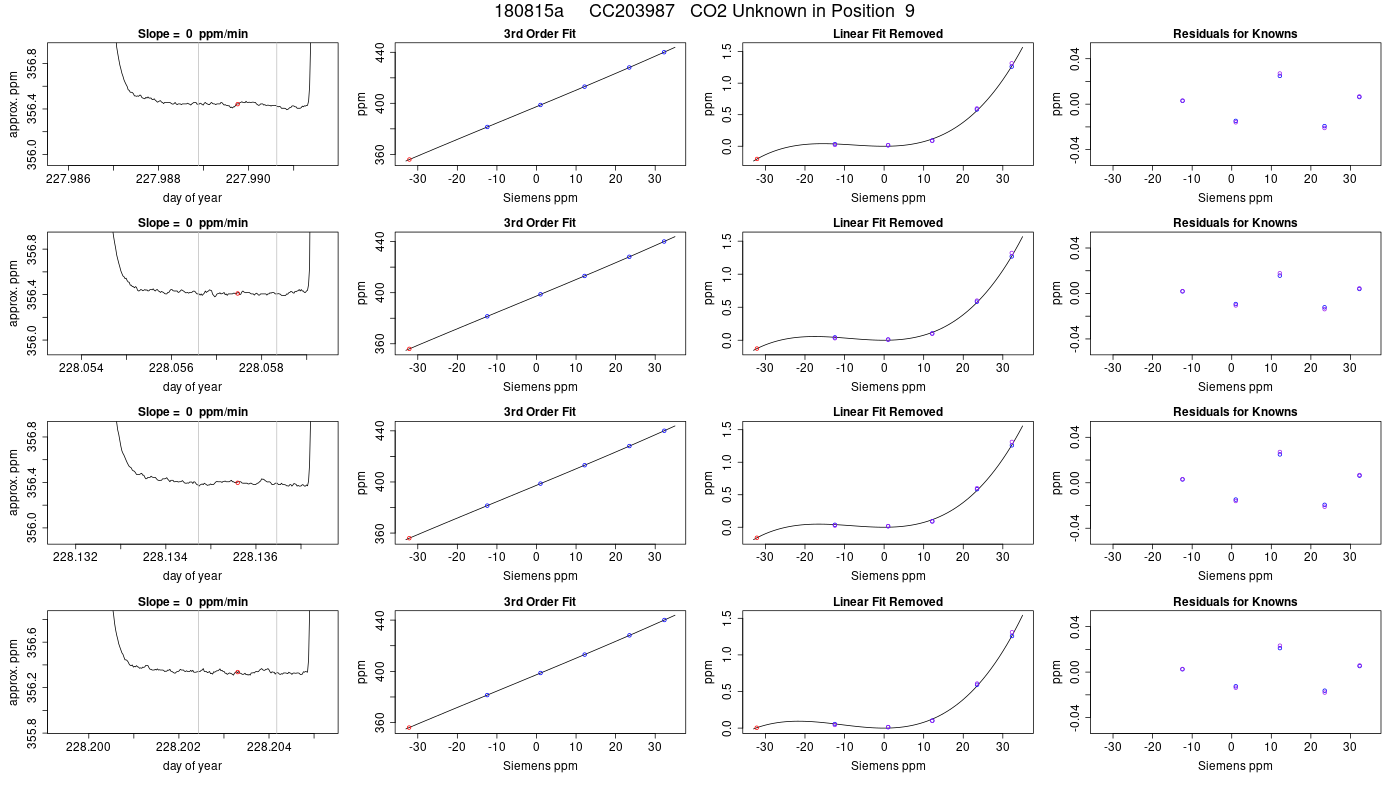

9 CC203987    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.698 355.979 0.016 -322.57 2.08 356.106 0.016
227.766 356.115 0.013 -325.34 1.85 356.241 0.013
227.844 355.980 0.014 -324.49 2.42 356.107 0.014
227.912 355.959 0.016 -323.90 2.28 356.086 0.016
227.990 355.967 0.013 -326.60 2.29 356.093 0.013
228.057 356.019 0.011 -325.69 1.97 356.145 0.011
228.136 356.001 0.013 -326.76 2.59 356.128 0.013
228.203 356.133 0.015 -324.94 1.84 356.260 0.015

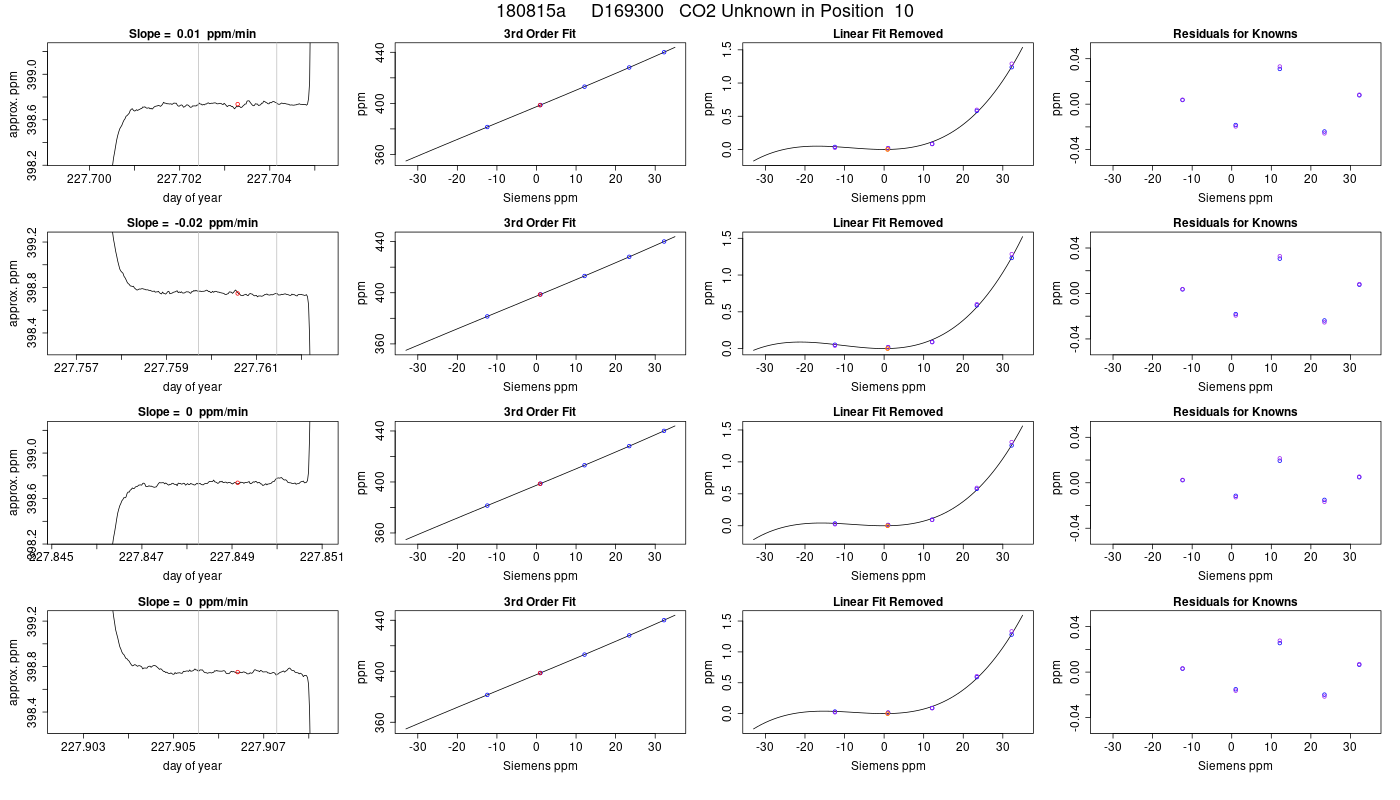

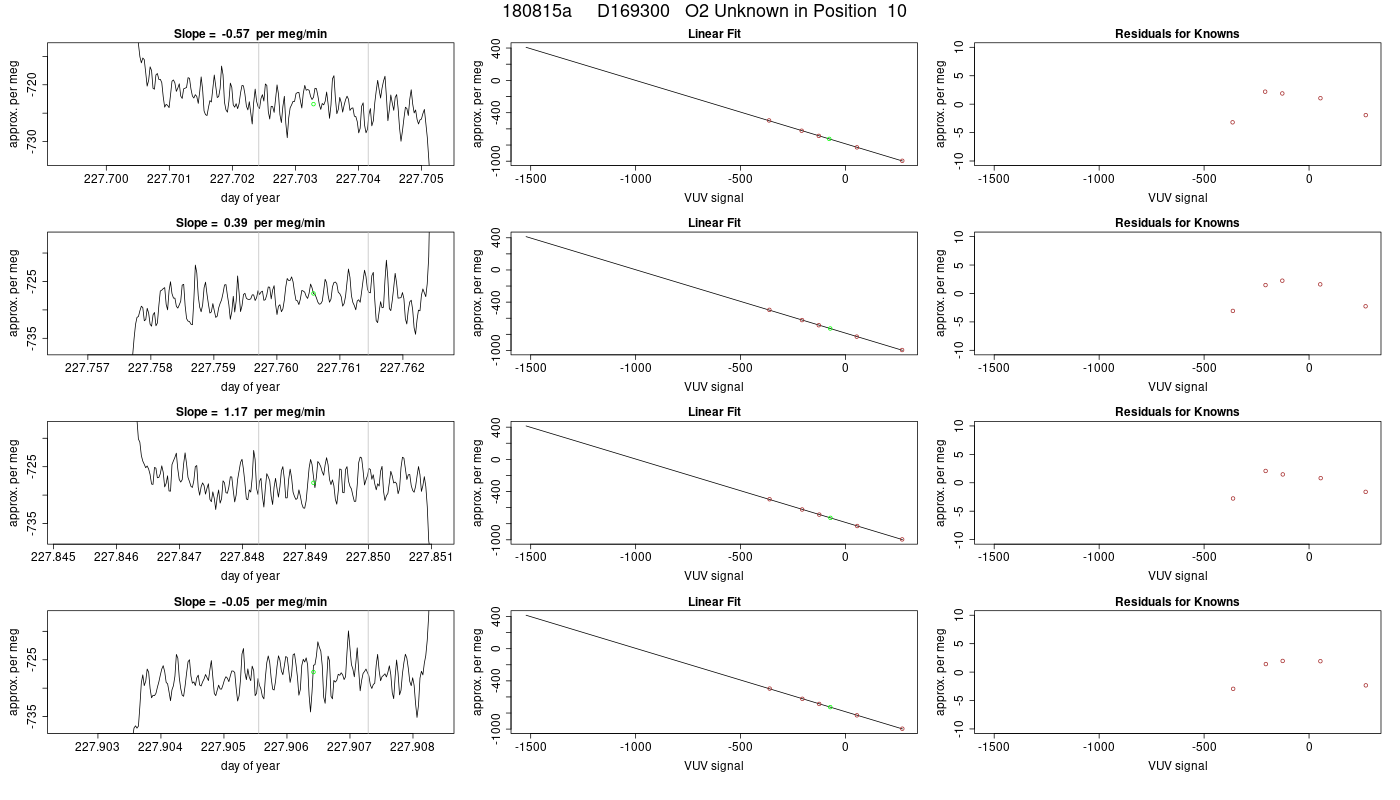

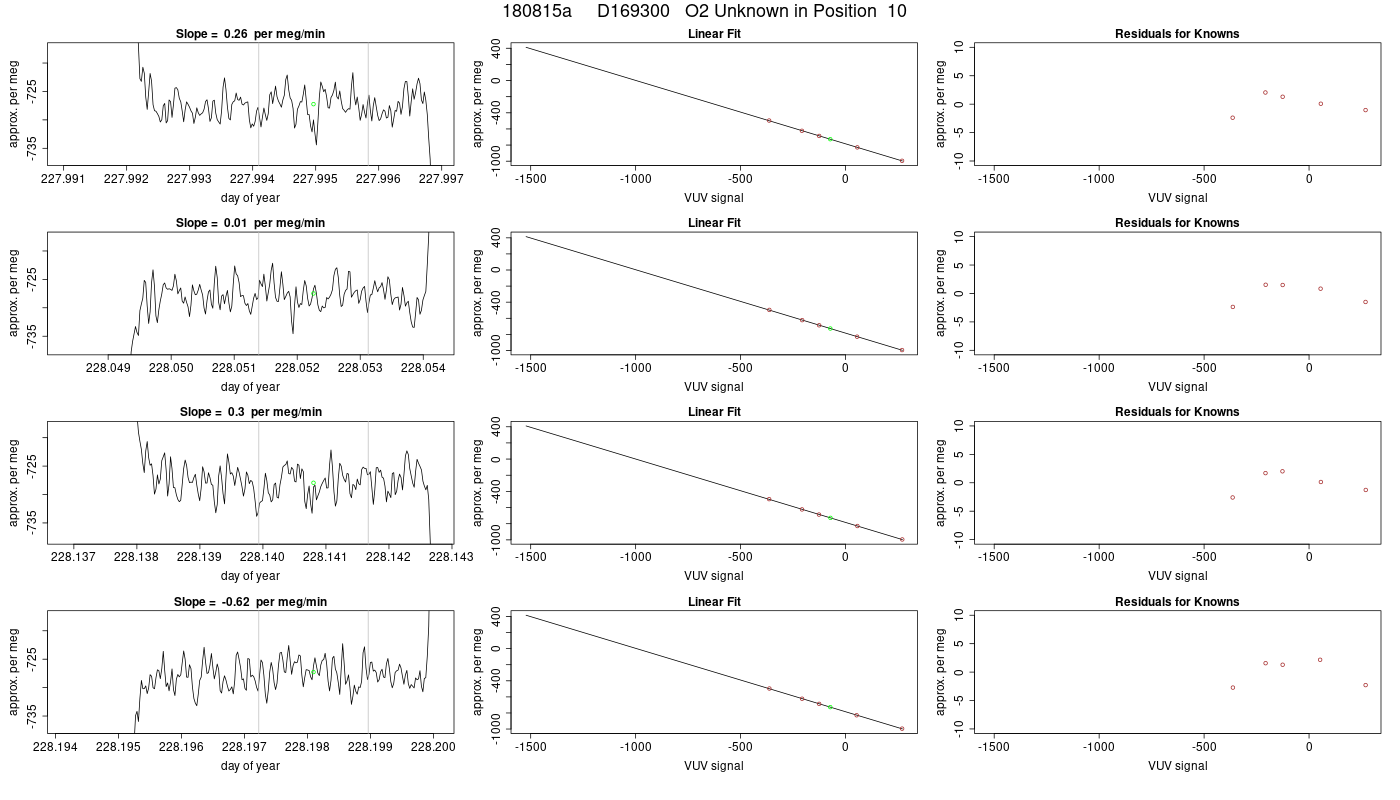

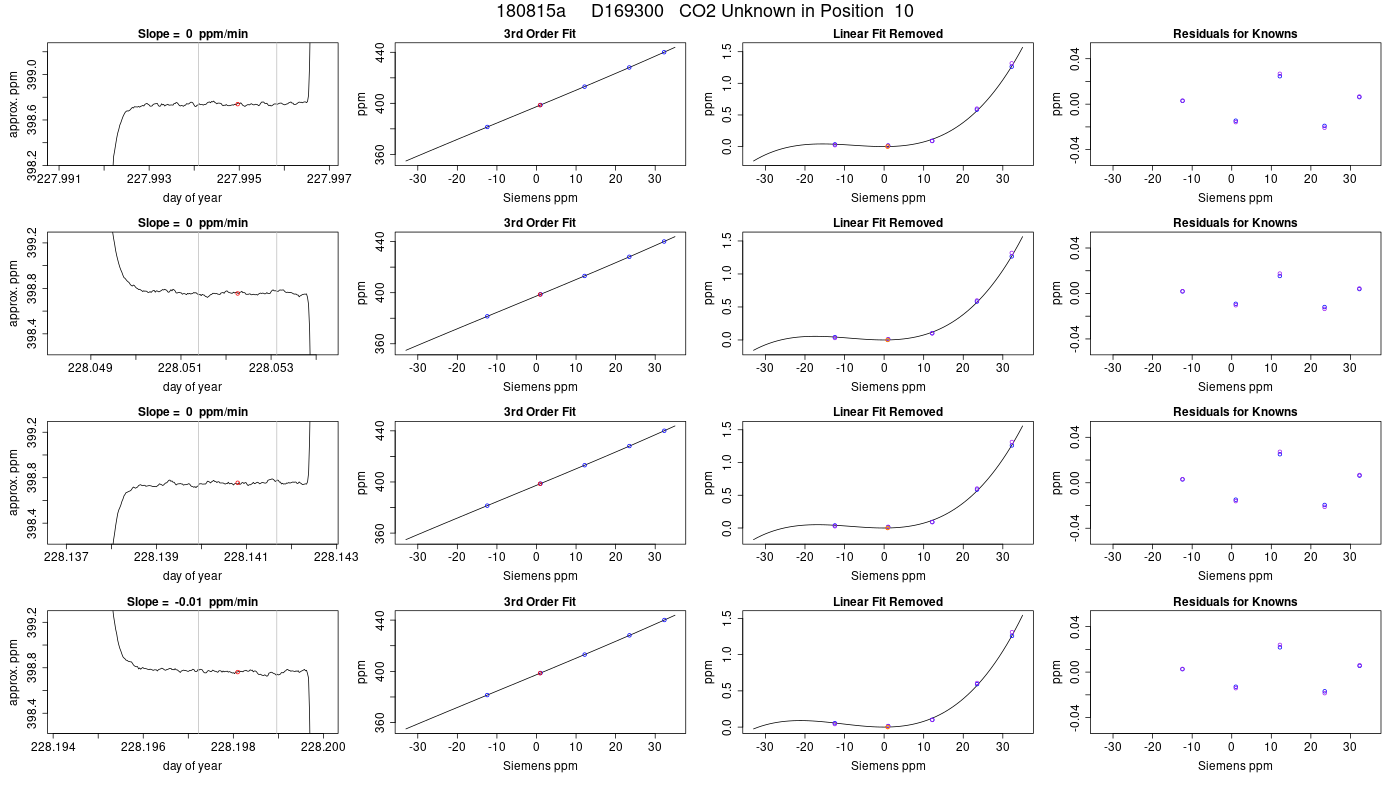

10 D169300    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.703 398.541 0.015 -689.27 2.27 398.751 0.015
227.761 398.538 0.015 -692.76 1.75 398.748 0.015
227.849 398.536 0.011 -692.55 2.45 398.746 0.011
227.906 398.548 0.010 -691.79 2.79 398.758 0.010
227.995 398.529 0.011 -692.47 2.48 398.739 0.011
228.052 398.542 0.013 -692.58 2.26 398.752 0.013
228.141 398.538 0.013 -693.06 2.38 398.748 0.013
228.198 398.537 0.014 -692.67 2.44 398.747 0.014

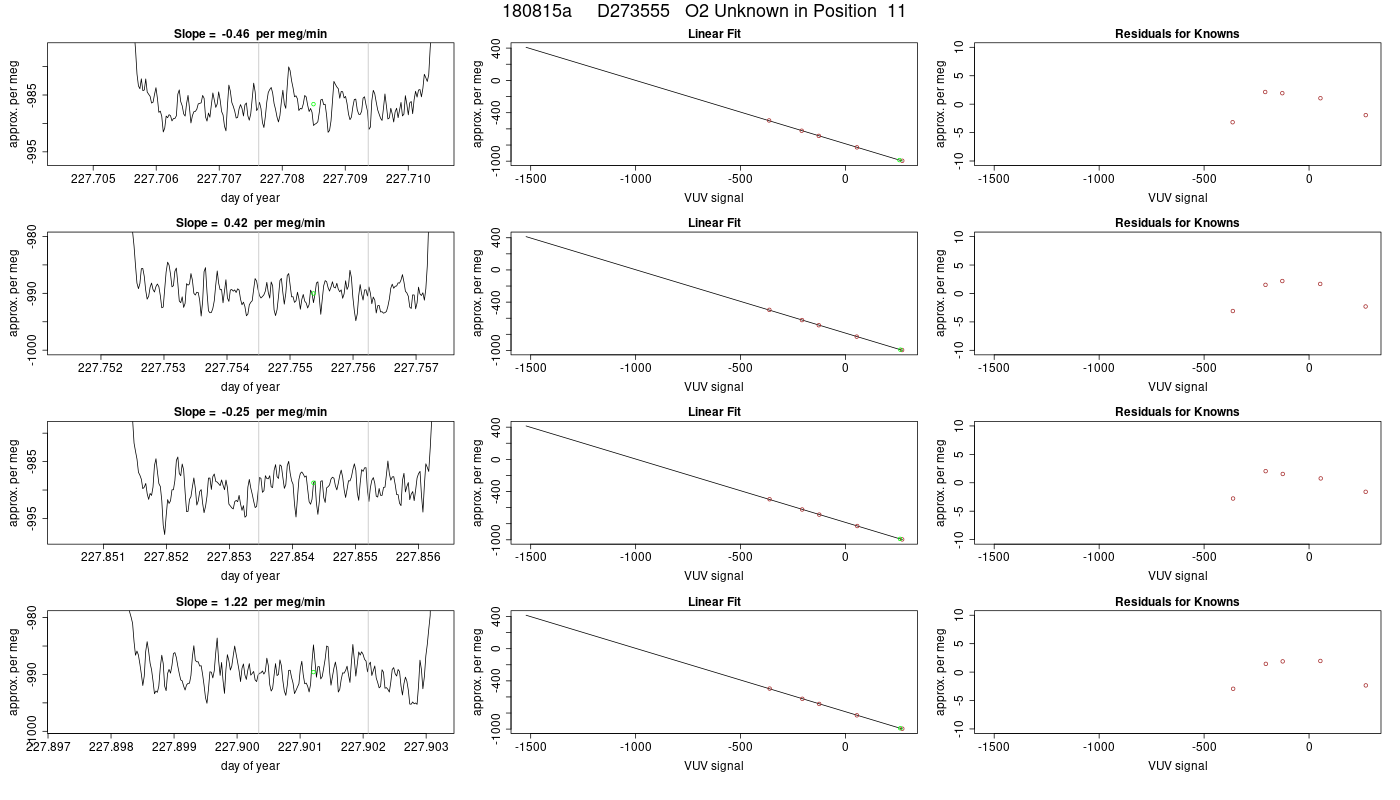

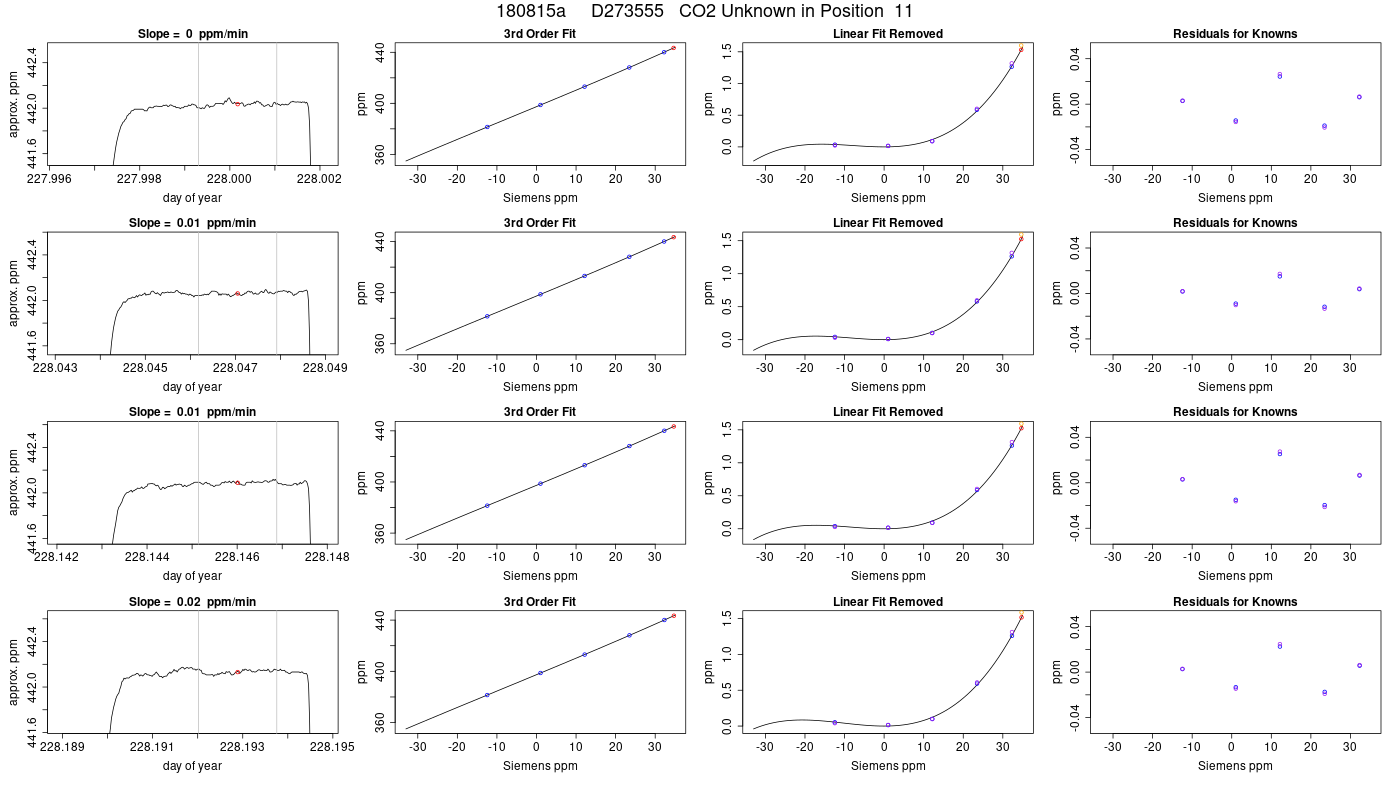

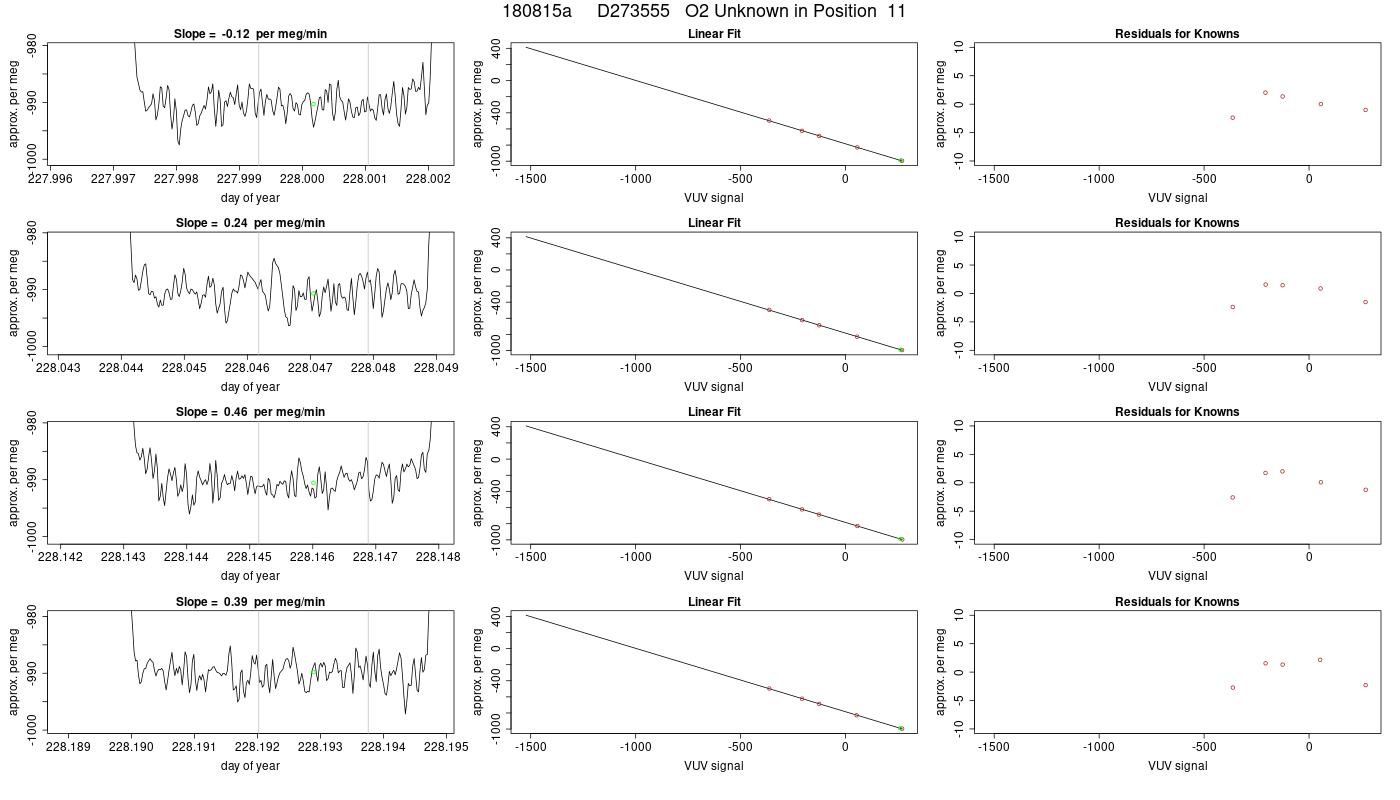

11 D273555    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.708 443.429 0.014 -907.64 2.35 443.652 0.014
227.755 443.418 0.012 -911.94 1.83 443.641 0.012
227.854 443.406 0.013 -909.71 2.13 443.629 0.013
227.901 443.428 0.013 -910.80 2.20 443.651 0.013
228.000 443.417 0.019 -911.13 1.80 443.640 0.019
228.047 443.431 0.014 -912.04 2.63 443.655 0.014
228.146 443.405 0.014 -910.90 1.84 443.628 0.014
228.193 443.409 0.017 -911.62 1.93 443.633 0.017

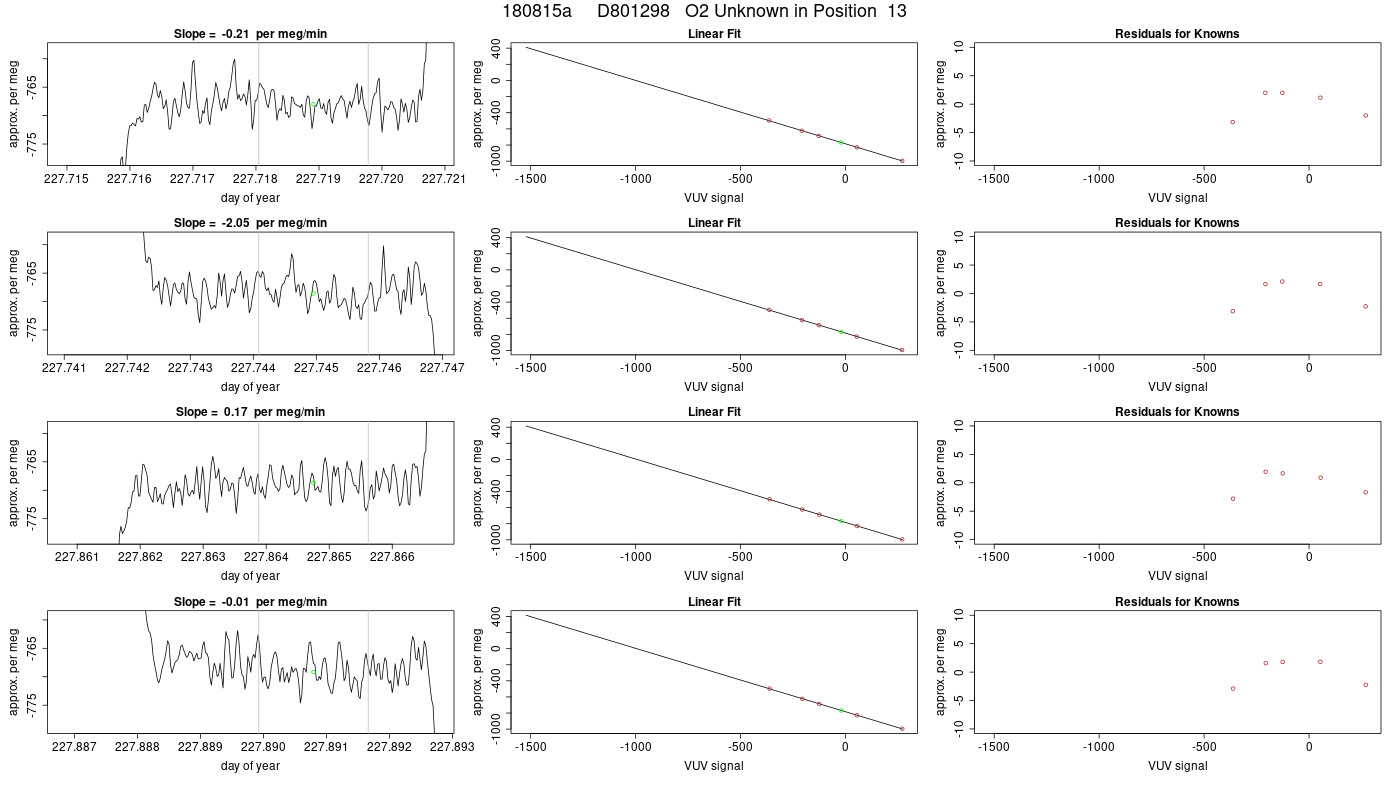

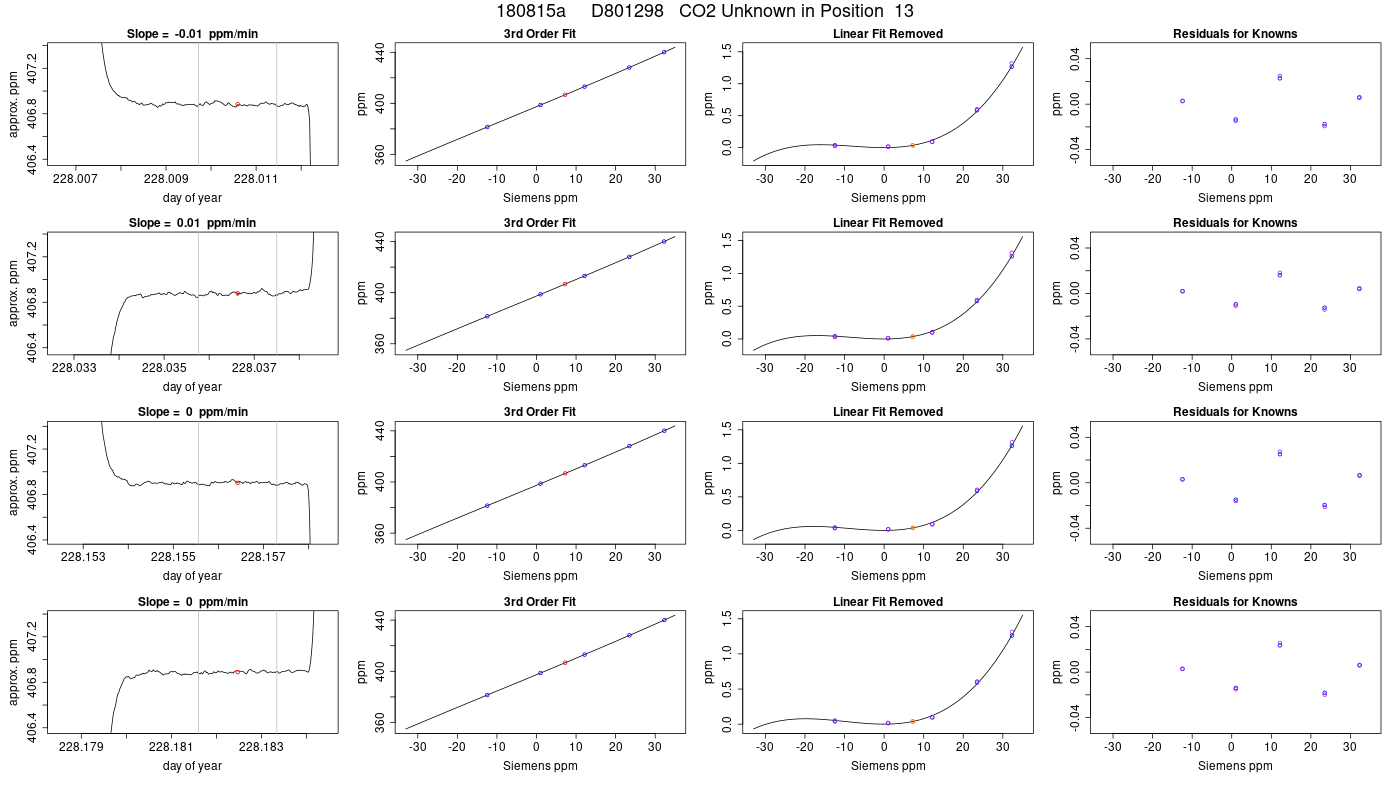

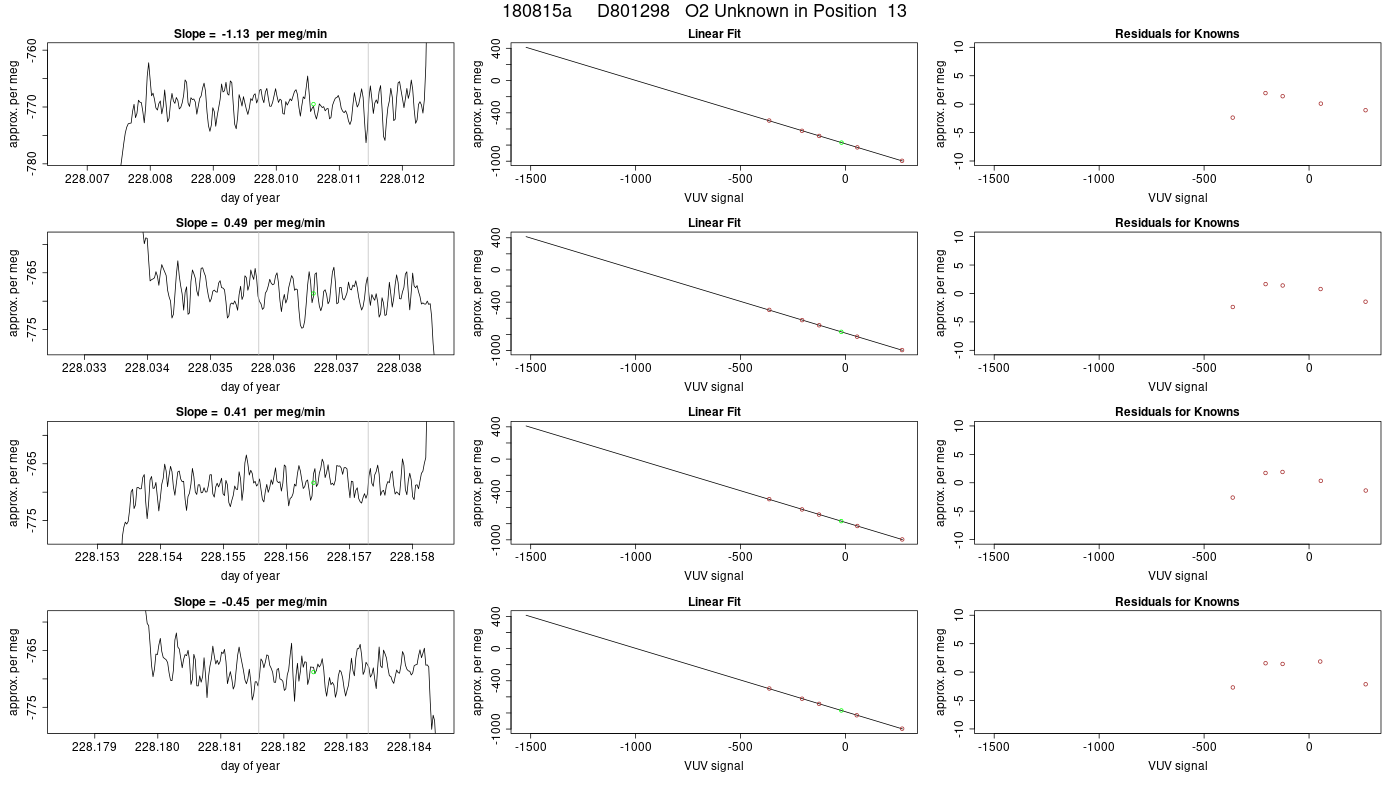

13 D801298    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.719 406.721 0.012 -725.67 1.72 406.920 0.012
227.745 406.720 0.012 -726.34 2.40 406.918 0.012
227.865 406.708 0.010 -725.38 2.25 406.906 0.010
227.891 406.719 0.014 -725.97 2.48 406.917 0.014
228.011 406.720 0.013 -726.59 1.92 406.918 0.013
228.037 406.713 0.015 -725.83 2.36 406.911 0.015
228.156 406.721 0.012 -725.36 2.07 406.919 0.012
228.182 406.702 0.009 -726.23 2.24 406.901 0.009

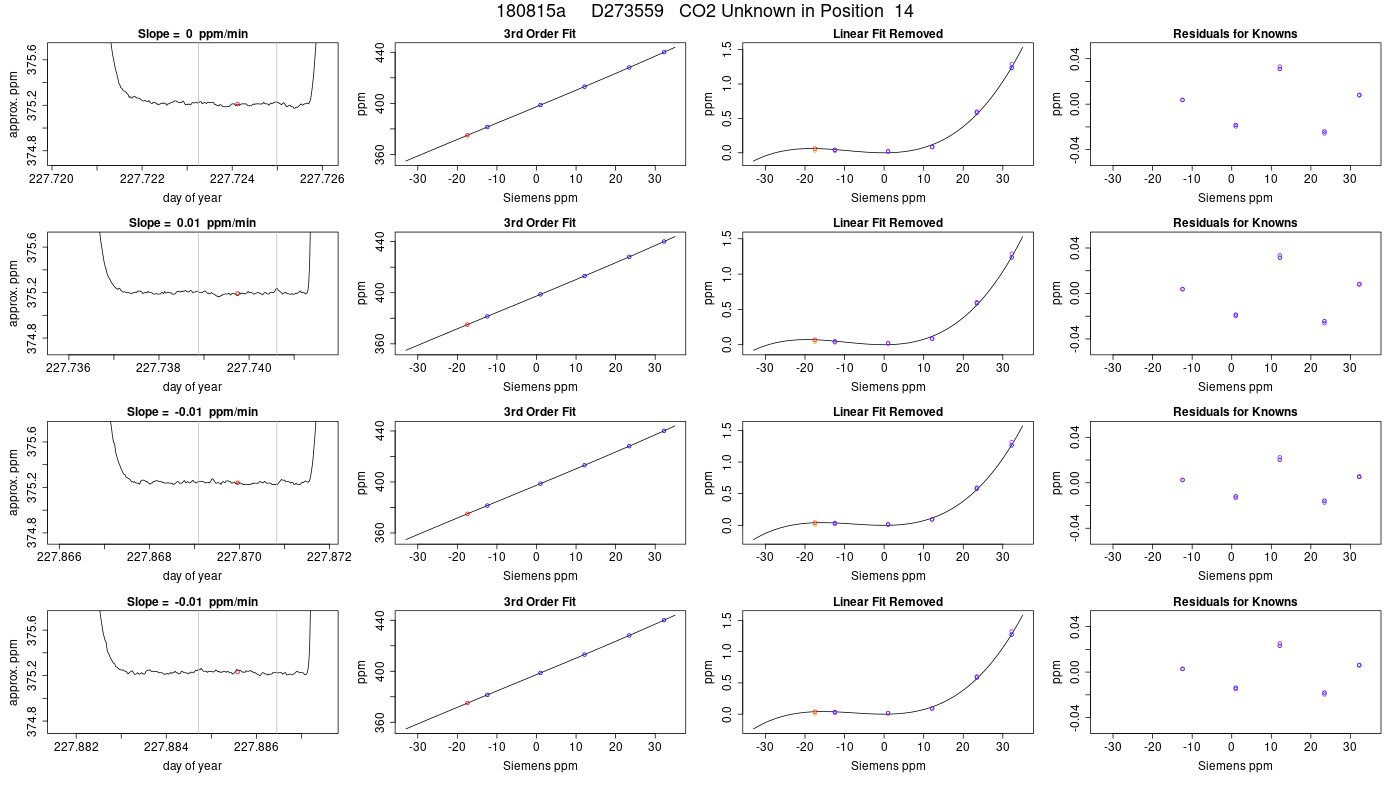

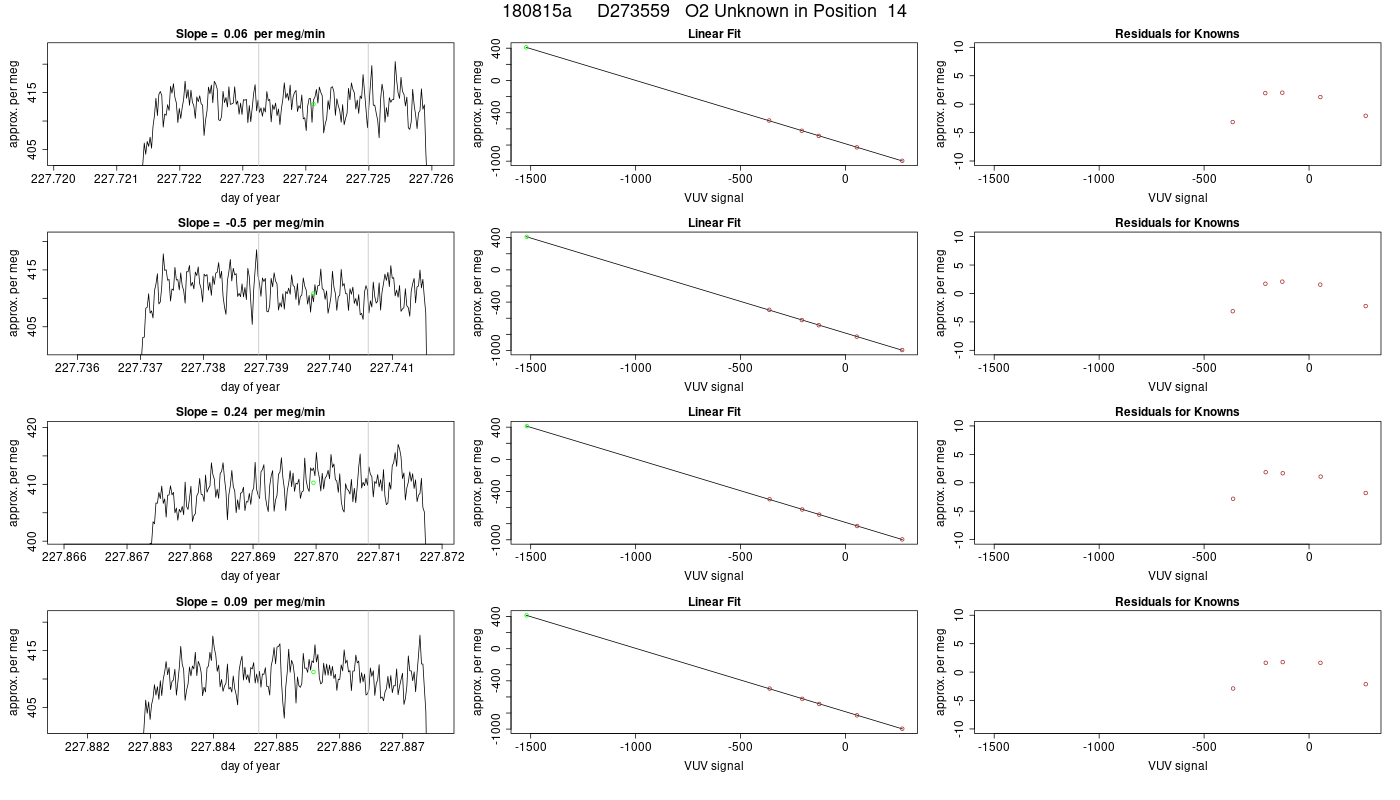

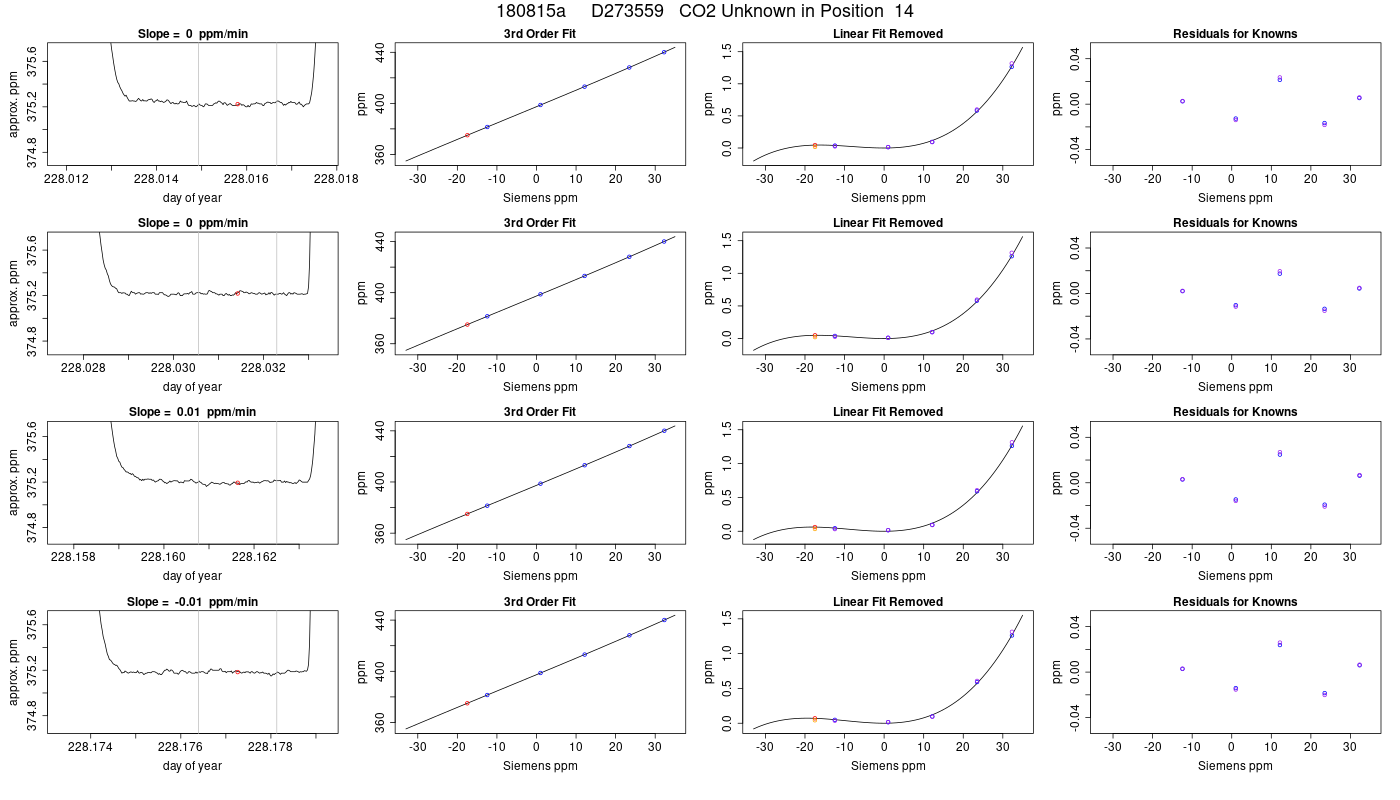

14 D273559    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.724 375.026 0.012 422.31 2.21 375.239 0.012
227.740 375.012 0.012 421.74 2.05 375.224 0.012
227.870 375.030 0.011 424.29 2.49 375.243 0.011
227.886 375.022 0.013 425.70 2.55 375.235 0.013
228.016 375.024 0.012 421.07 2.49 375.237 0.012
228.031 375.024 0.011 423.22 2.72 375.236 0.011
228.162 375.034 0.012 420.88 2.59 375.247 0.012
228.177 375.035 0.012 423.50 2.66 375.247 0.012

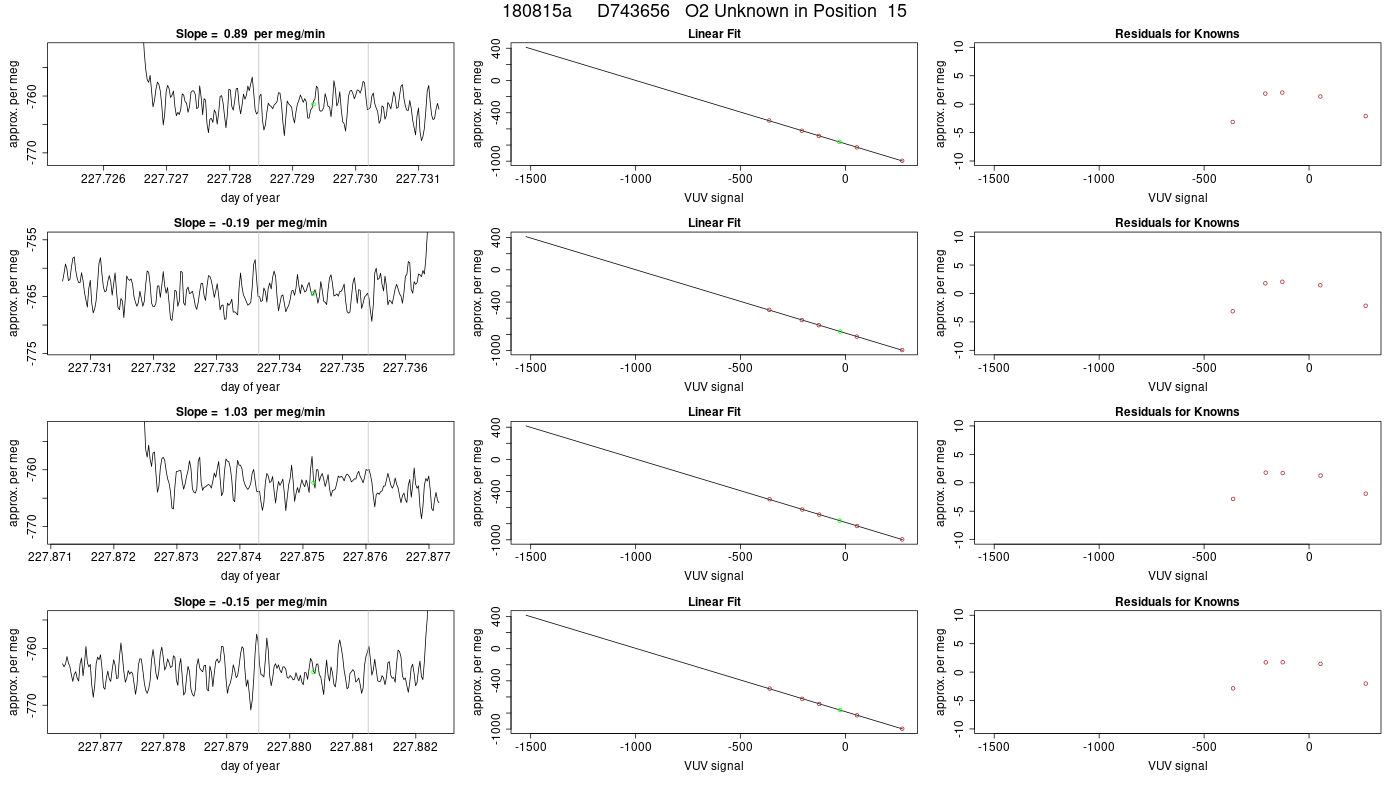

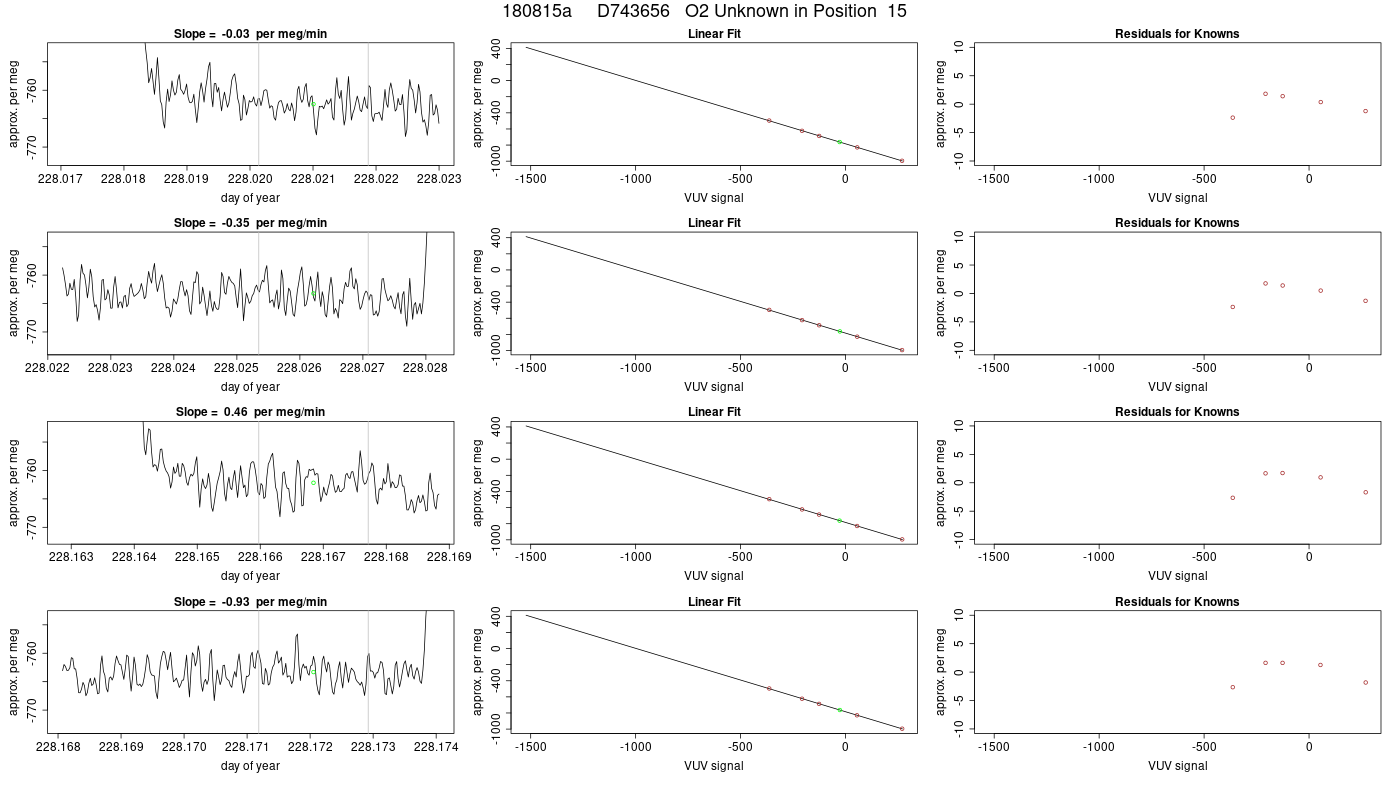

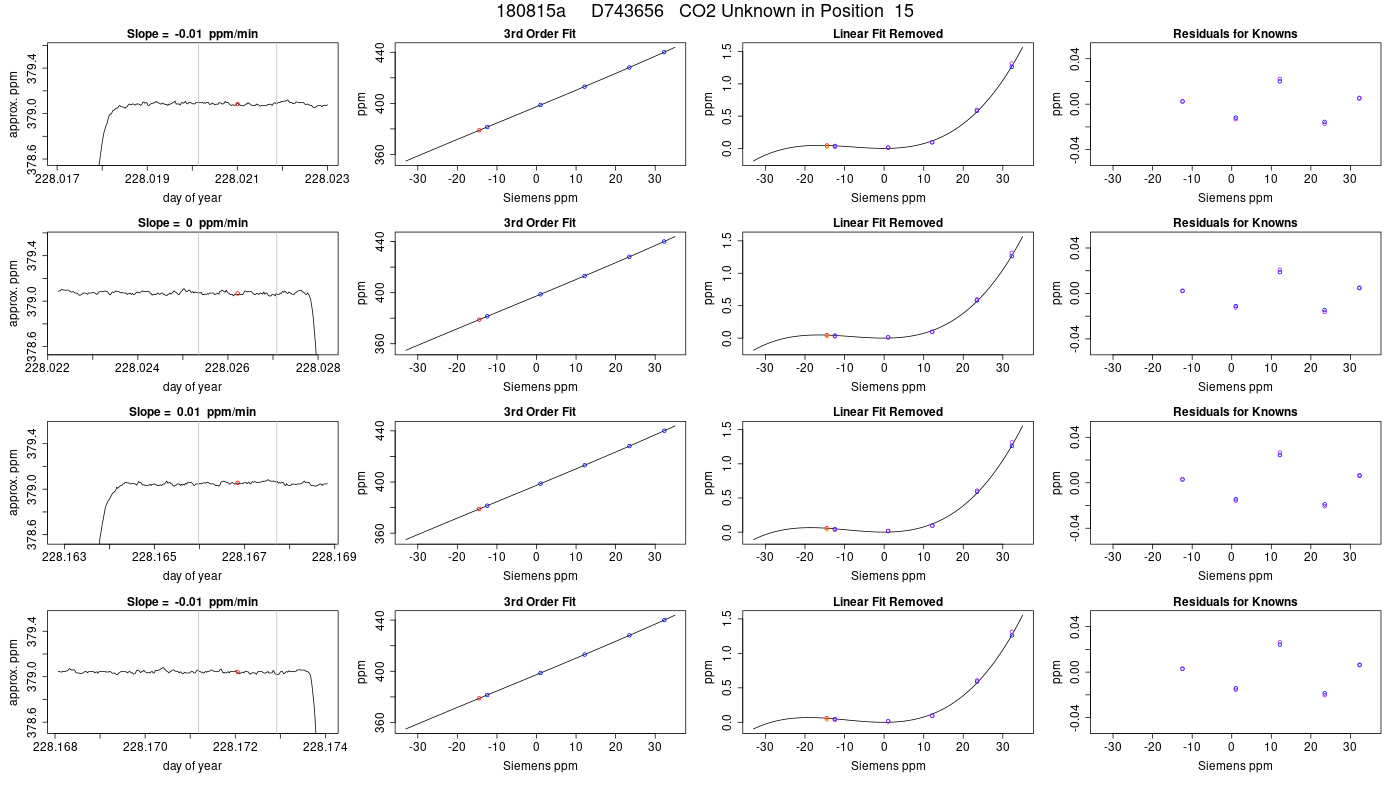

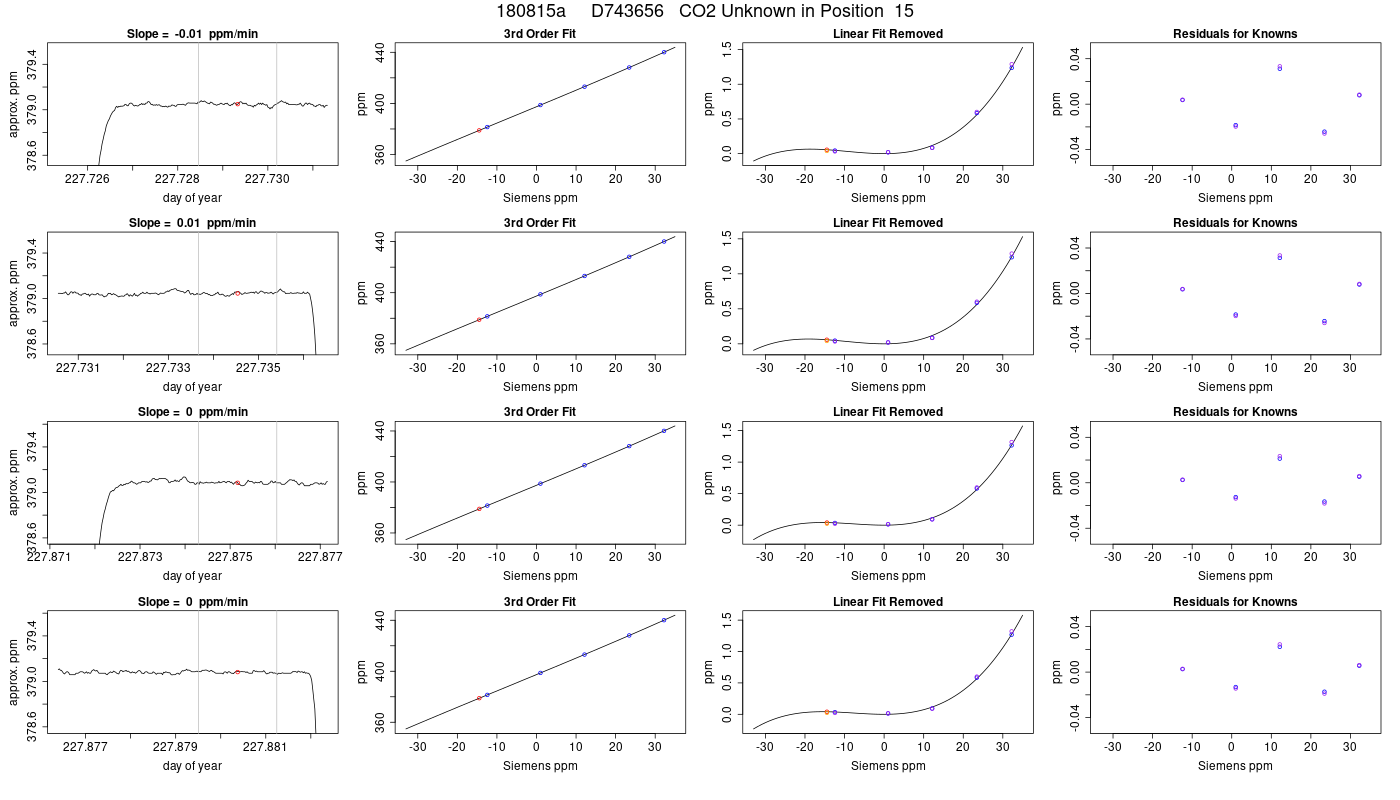

15 D743656    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
227.729 378.866 0.015 -746.45 2.11 379.084 0.015
227.735 378.861 0.011 -749.48 1.69 379.079 0.011
227.875 378.884 0.010 -746.28 1.75 379.102 0.010
227.880 378.881 0.009 -748.19 2.01 379.099 0.009
228.021 378.889 0.010 -746.86 1.92 379.107 0.010
228.026 378.875 0.012 -747.67 2.38 379.093 0.012
228.167 378.892 0.012 -746.62 2.46 379.111 0.012
228.172 378.879 0.009 -747.86 2.15 379.097 0.009
