UEA CRAM Lab O2 and CO2 calibration results
RUN = 180814a
PROCESSED: 16:52:55 Mon 21Aug2023

Notes
Logfile

Results

Using data from 226.224 to 226.733 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.146 0.005 -0.015 382.367 0.005 -0.015 7 -480.50 0.29 -0.42 7
5 CC203963 409.929 0.007 0.014 410.123 0.007 0.014 7 -568.71 0.88 -2.60 7
6 D596274 416.079 0.004 0.012 416.266 0.004 0.012 7 -846.04 0.36 0.74 7
9 CC203987 355.979 0.071 -0.211 356.105 0.071 -0.211 7 -324.34 1.42 -7.37 7
10 D169300 398.537 0.009 -0.011 398.747 0.009 -0.011 7 -692.15 0.52 -1.52 7
11 D273555 443.420 0.013 -0.022 443.644 0.013 -0.022 7 -910.69 0.64 2.46 7
13 D801298 406.715 0.008 0.017 406.913 0.008 0.017 7 -725.03 0.56 -2.64 7
14 D273559 375.021 0.015 -0.057 375.234 0.015 -0.057 7 421.98 2.05 -7.34 7
15 D743656 378.872 0.010 -0.016 379.091 0.010 -0.016 7 -746.76 1.07 -2.23 7
WT D258964 397.395 0.005 -0.010 397.607 0.005 -0.010 98 -750.38 0.28 -1.55 98
Text File

Raw Data and Diagnostics Figures

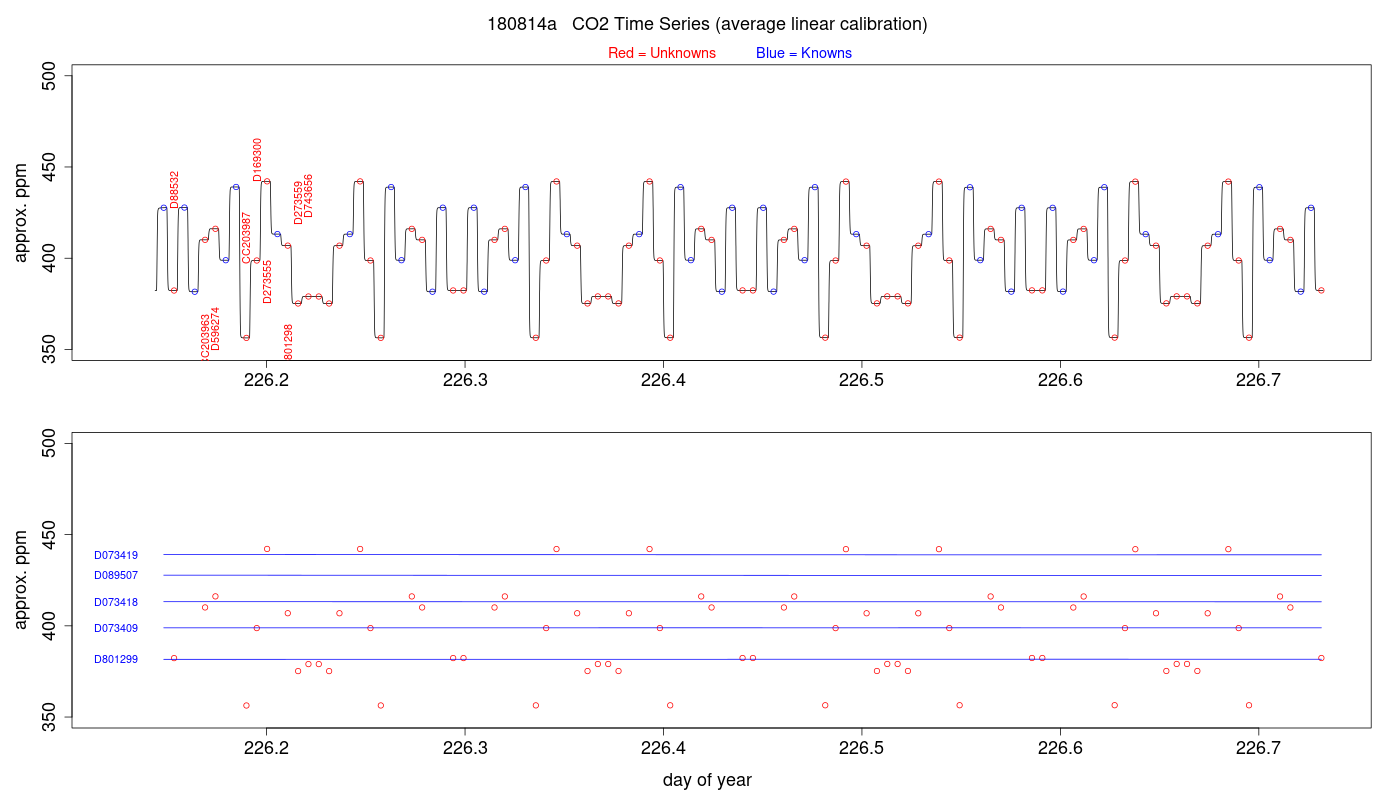

CO2 Timeseries

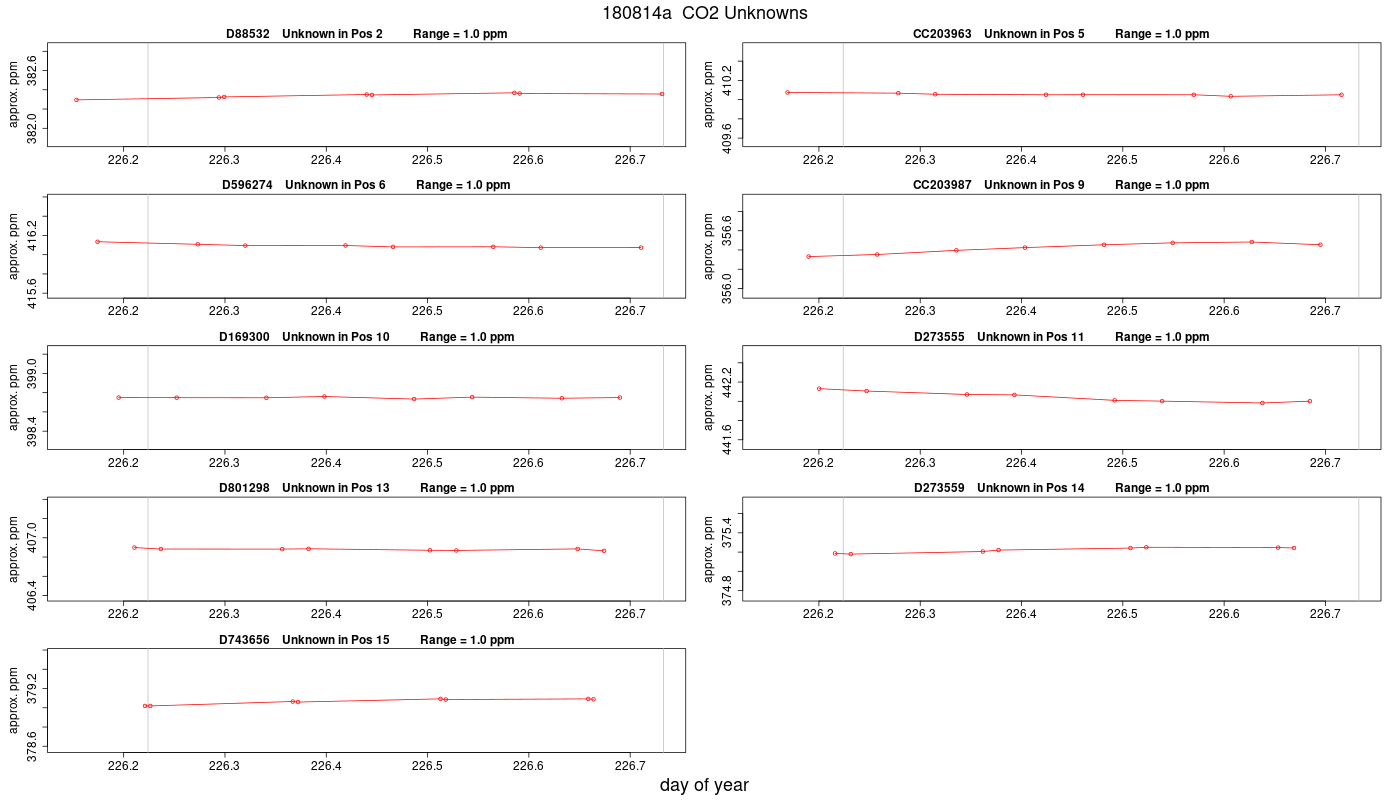

 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics

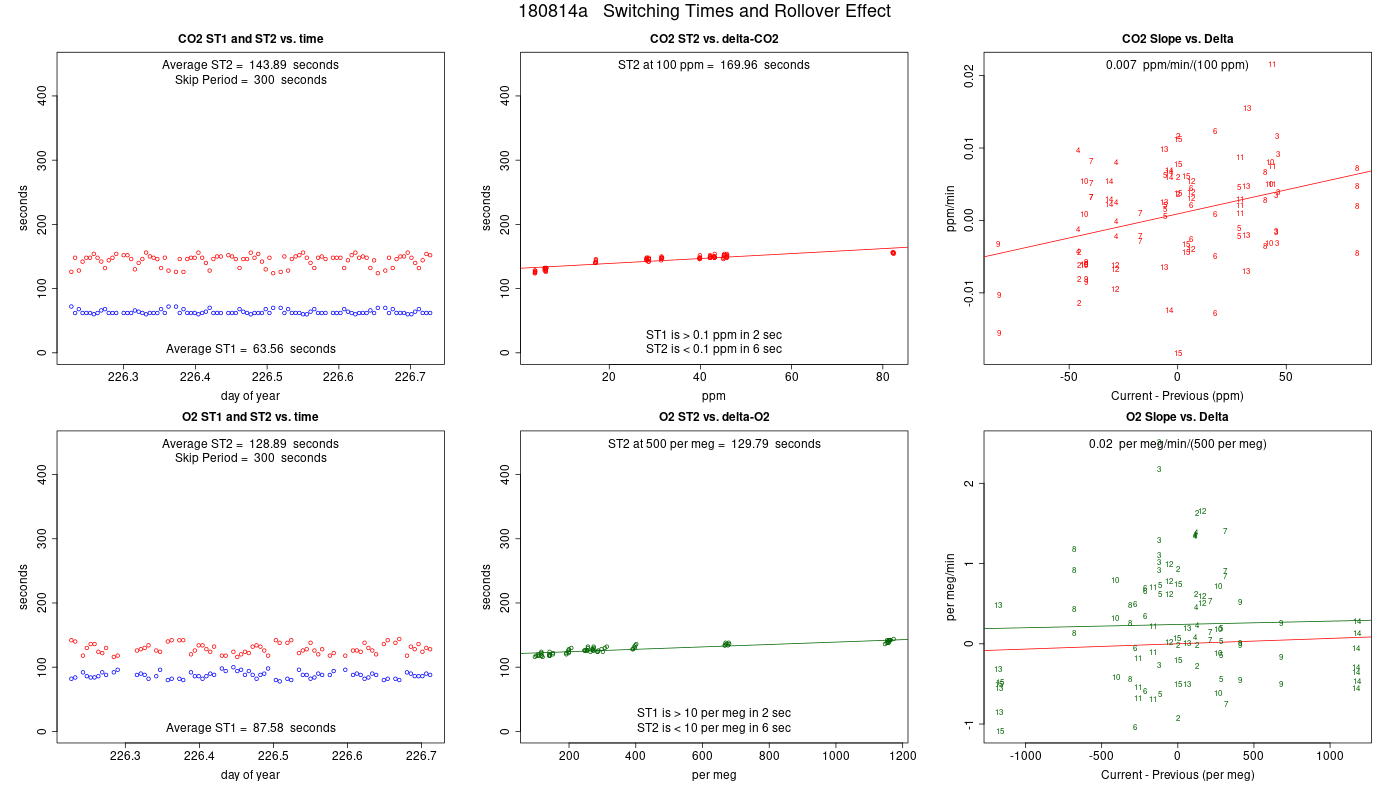

 Rollover Effect

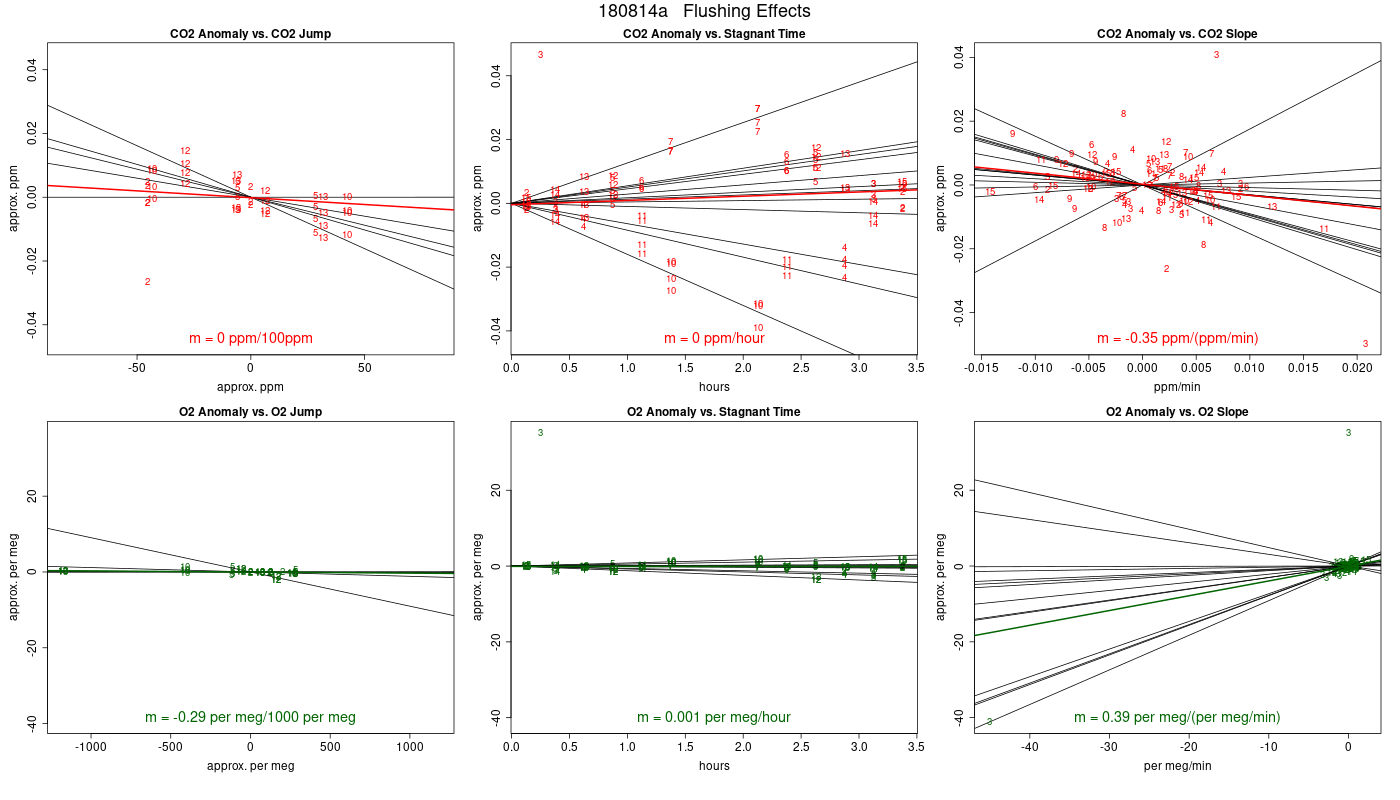

 Flushing Effect
CO2 Parameters

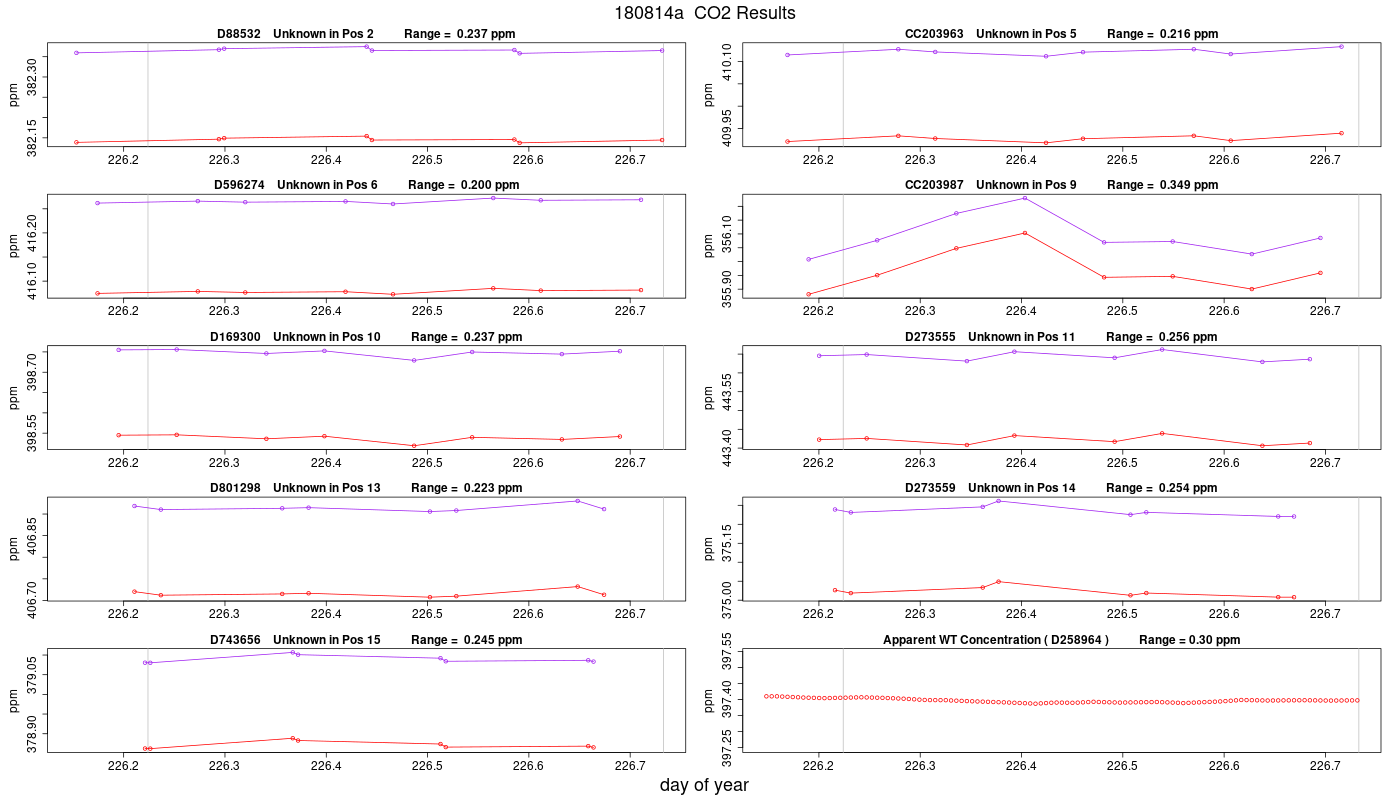

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

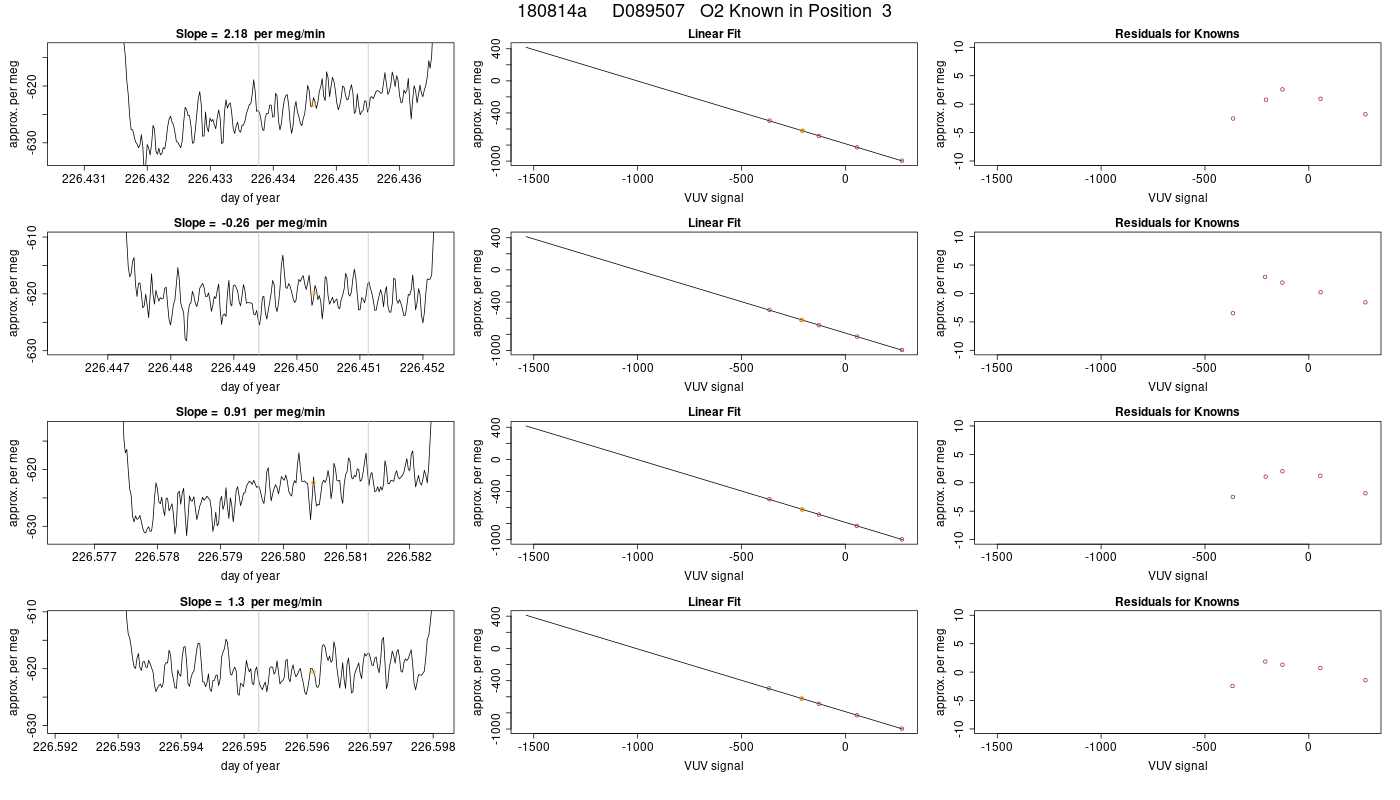

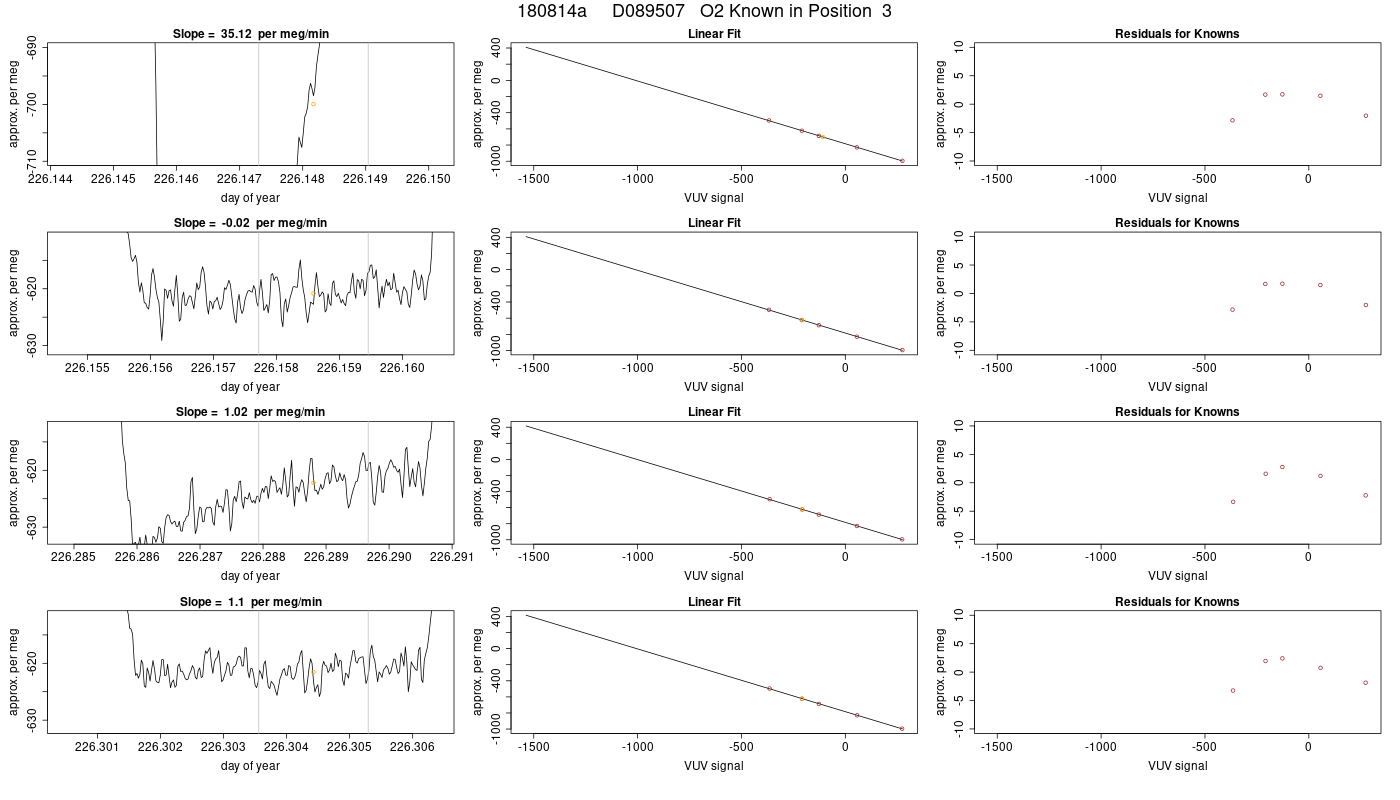

3 D089507 428.087 -0.016 0.002 428.275 -0.017 0.002 7 -559.23 1.59 0.72 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

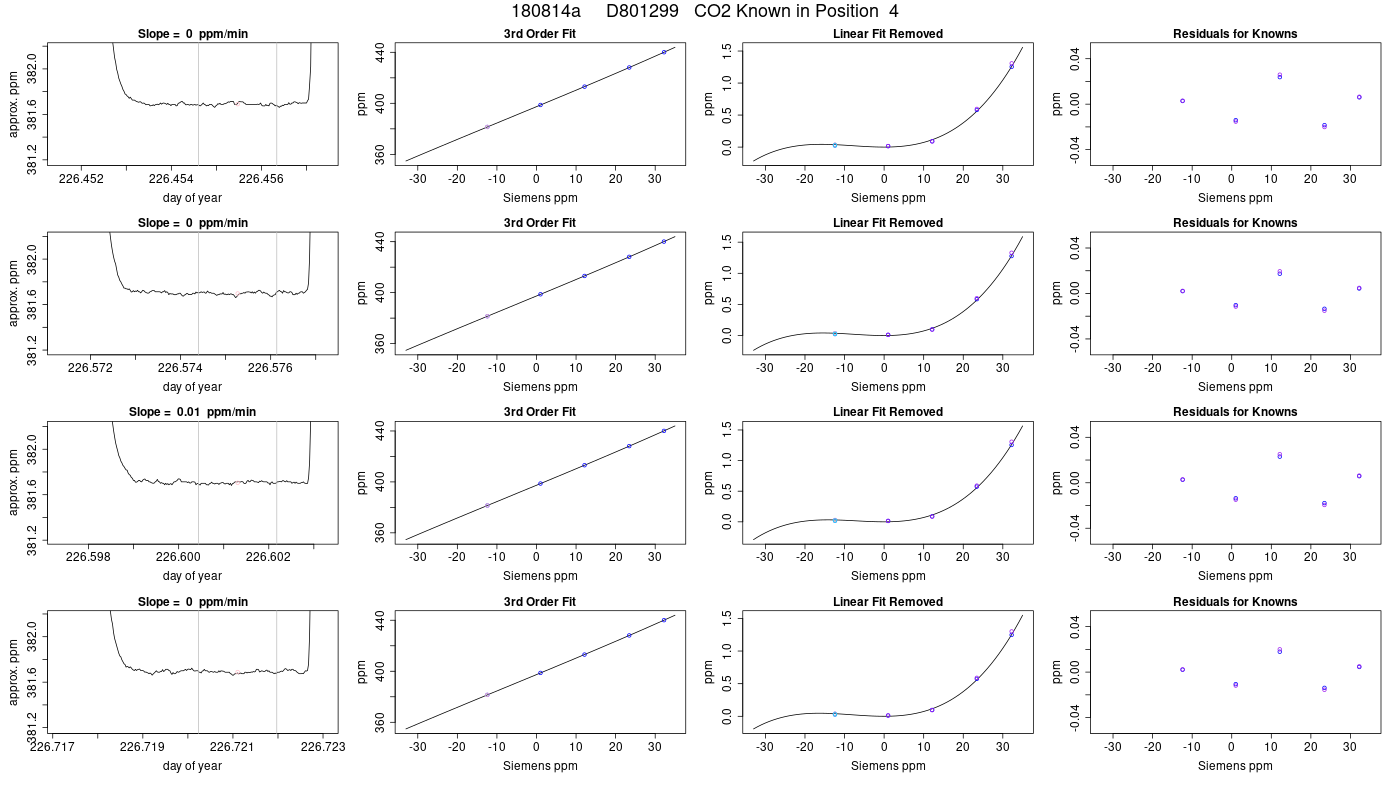

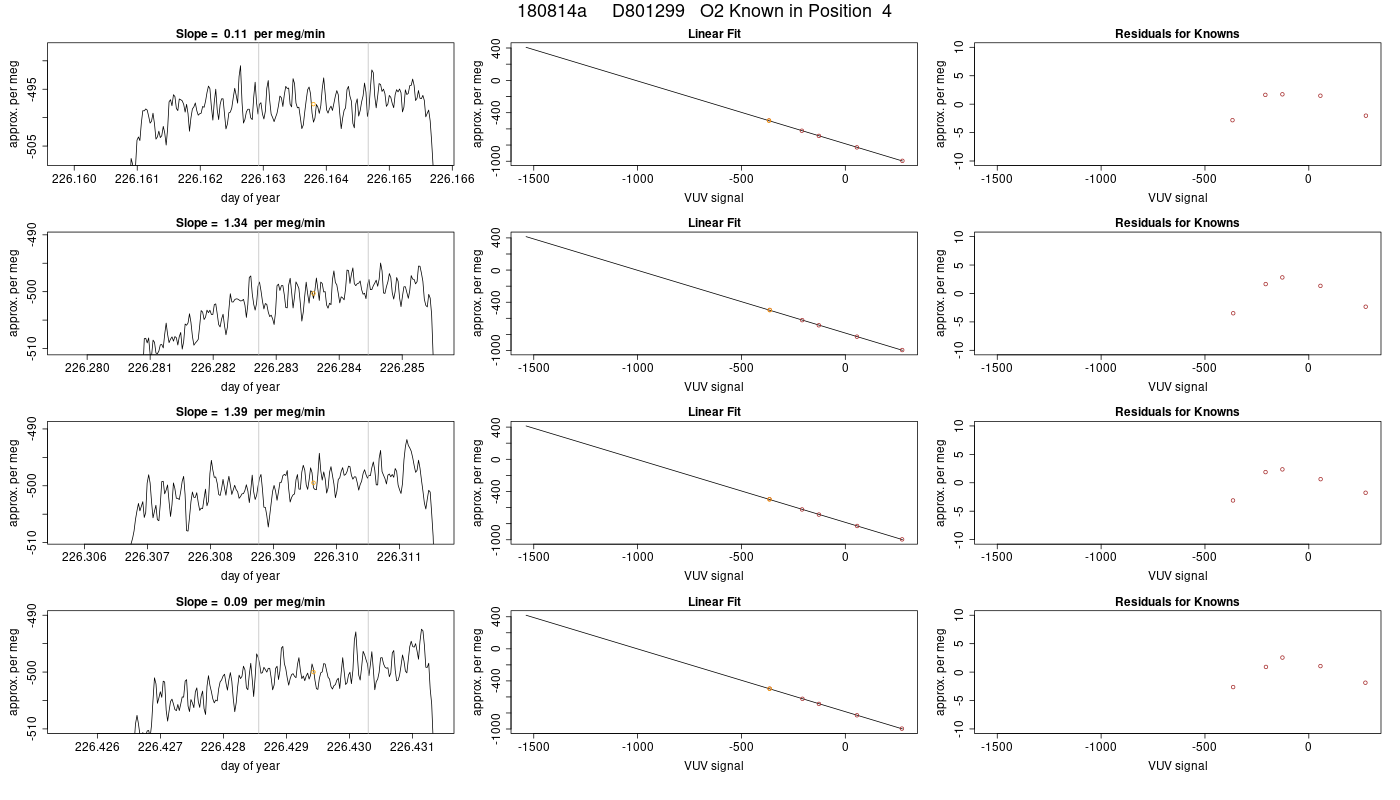

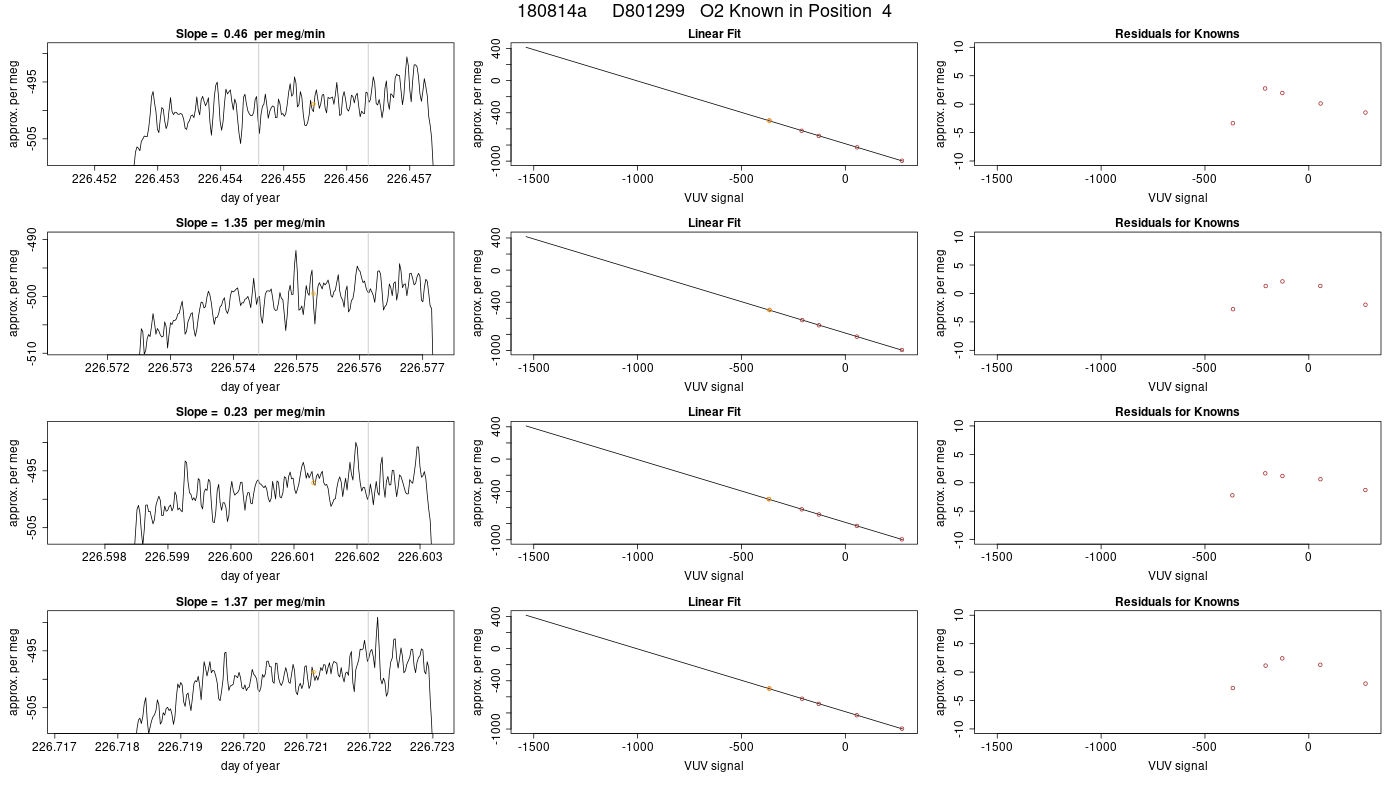

4 D801299 381.475 0.002 0.000 381.695 0.003 0.000 7 -477.75 -2.91 0.44 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

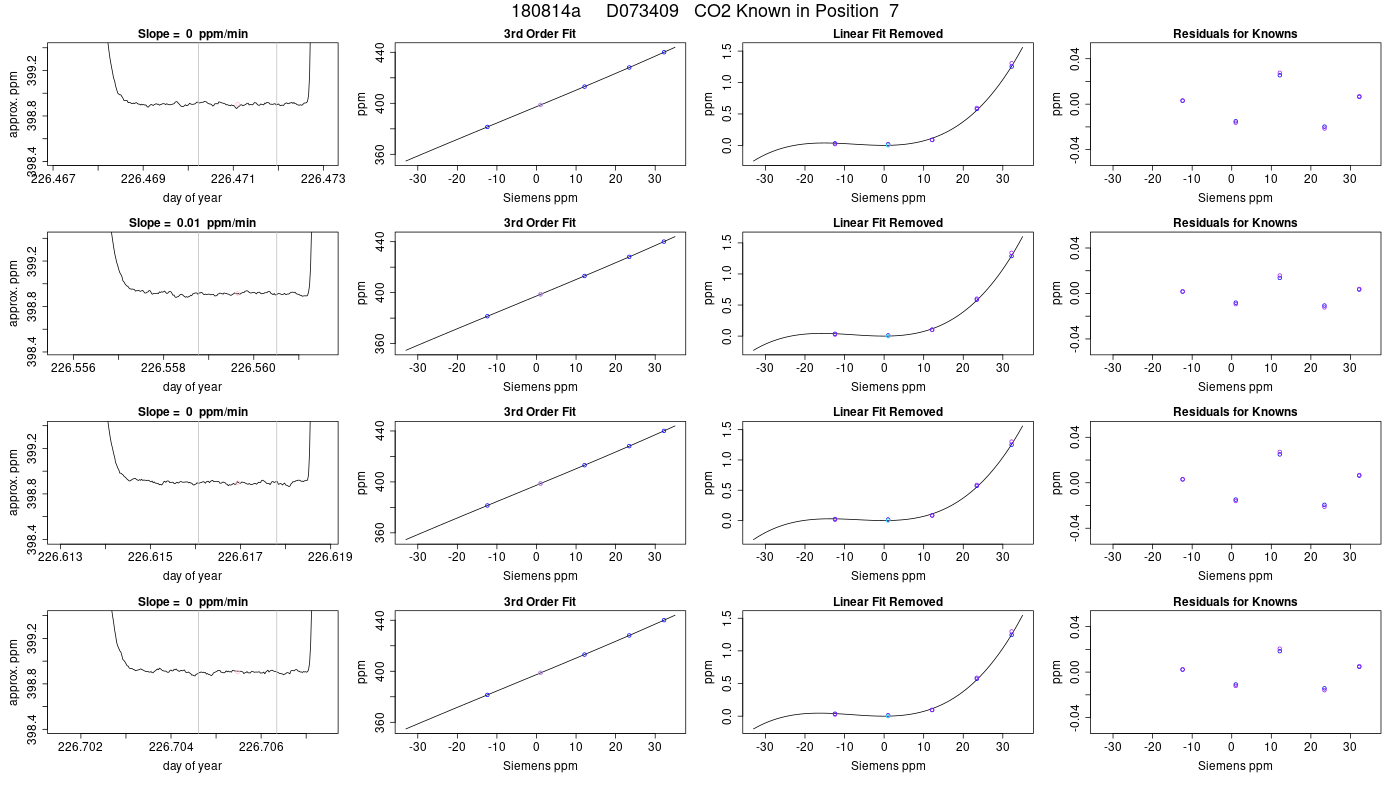

7 D073409 398.707 -0.012 0.003 398.918 -0.013 0.003 7 -651.78 2.17 0.45 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

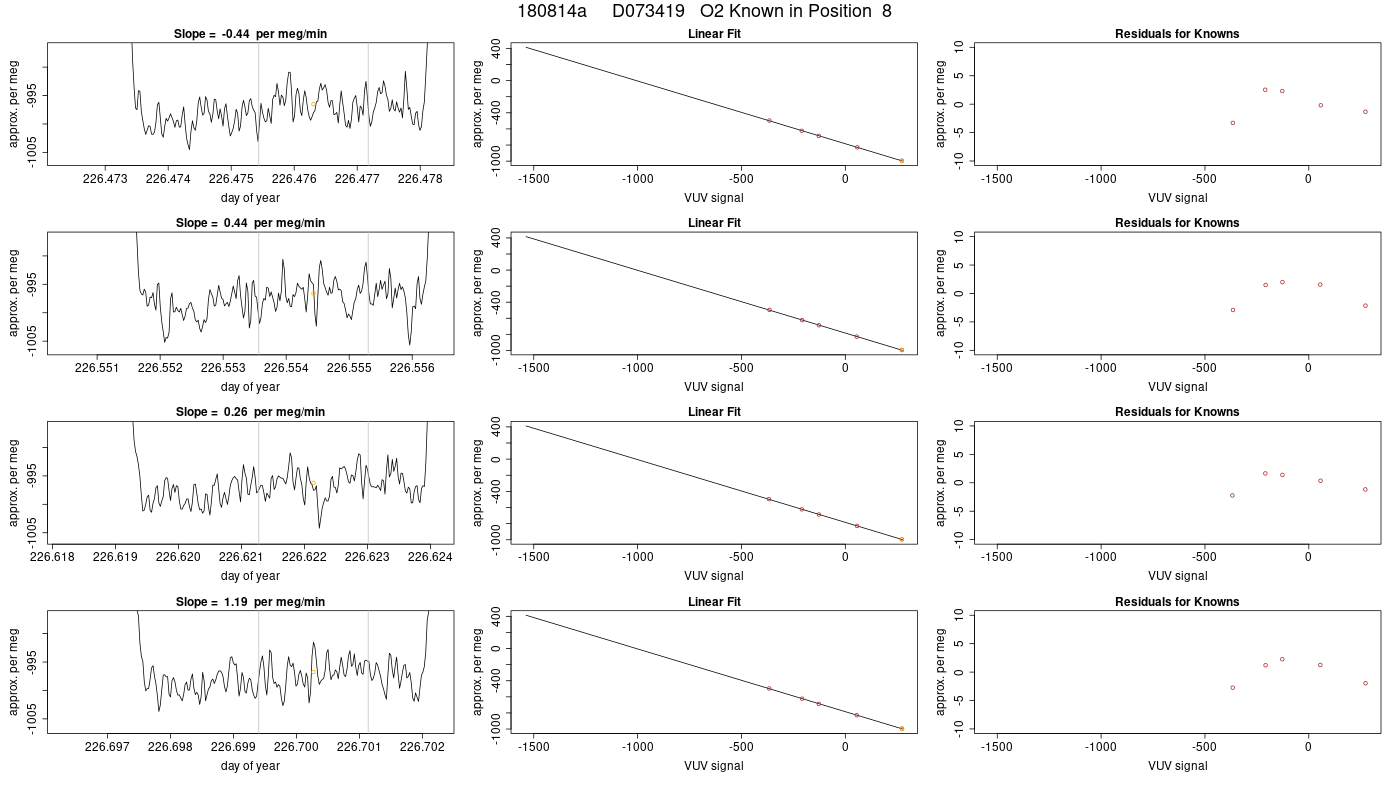

8 D073419 440.065 0.005 0.001 440.275 0.005 0.001 7 -919.32 -1.80 0.50 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

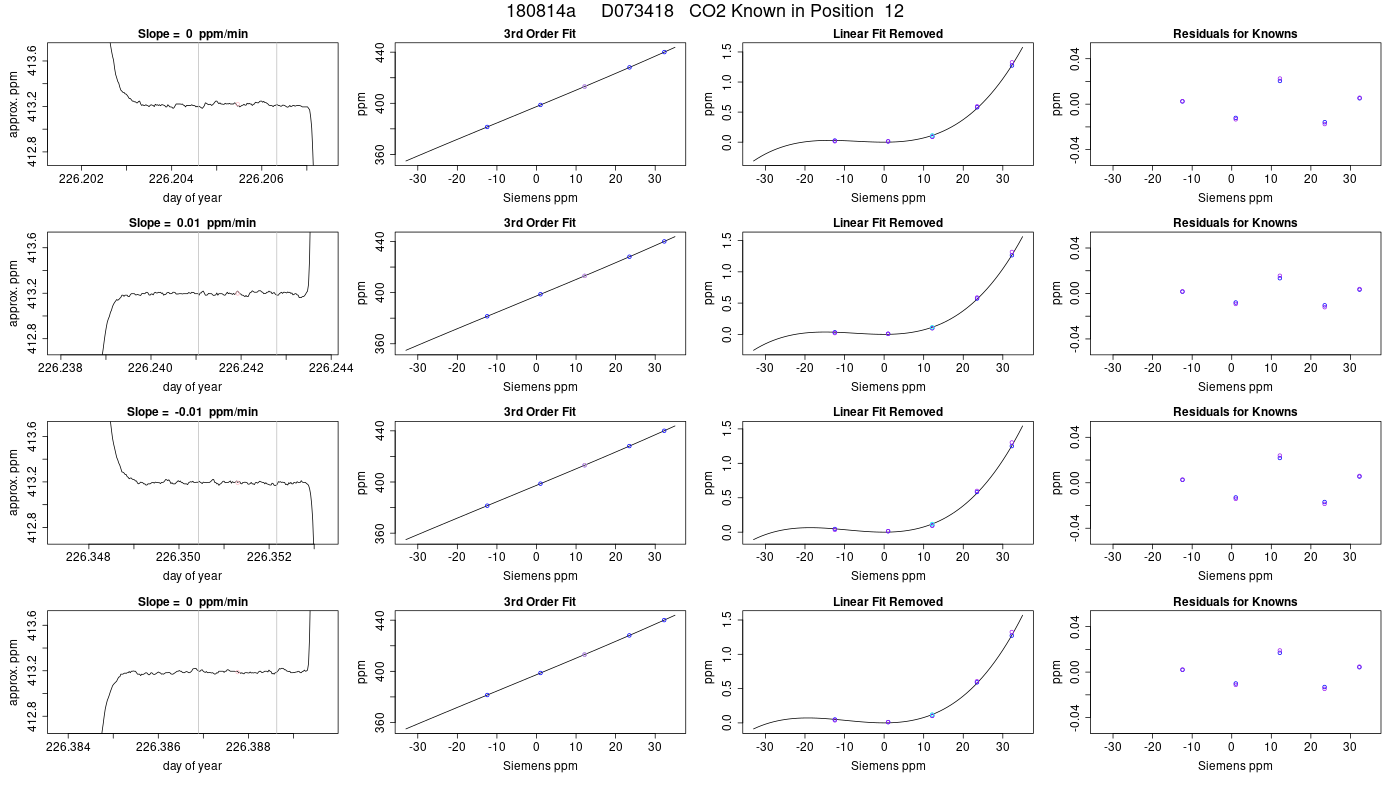

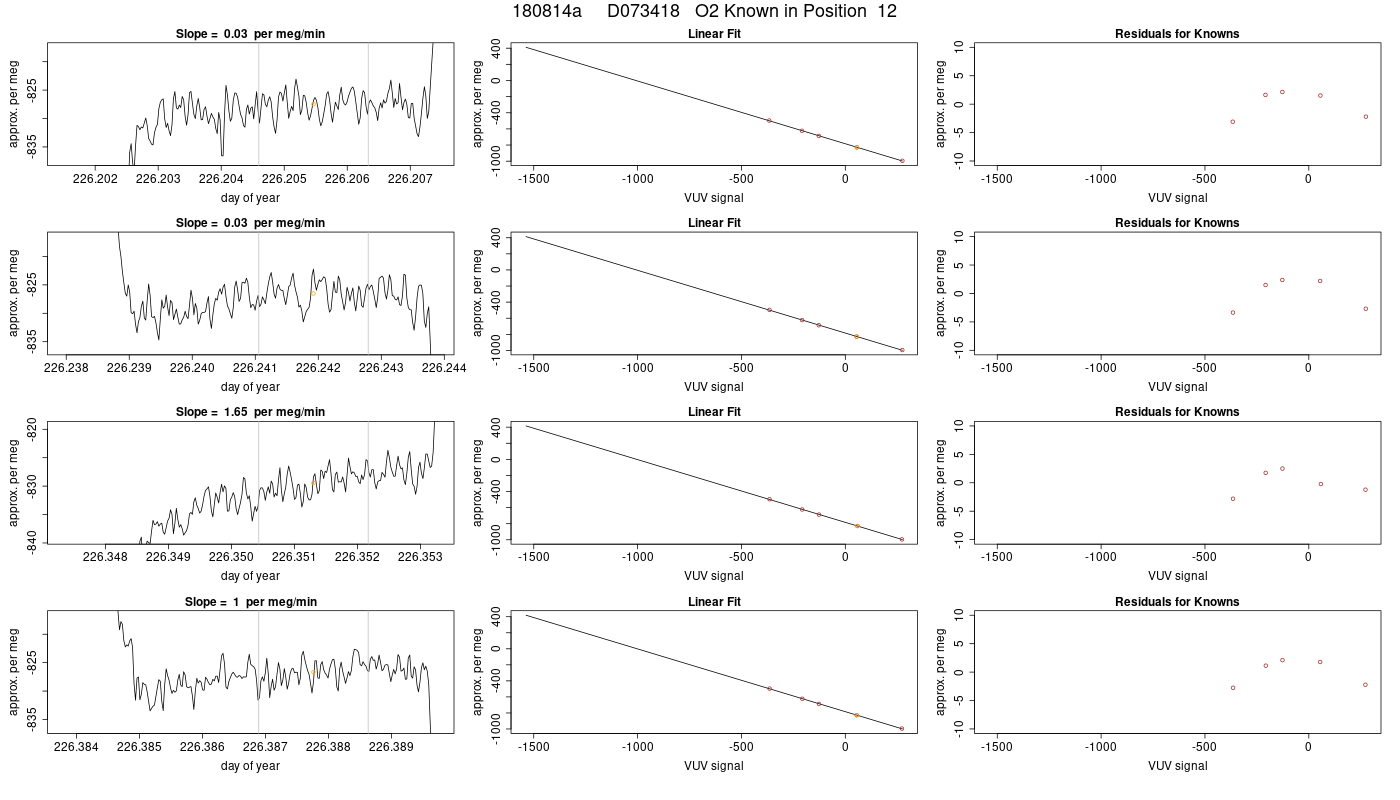

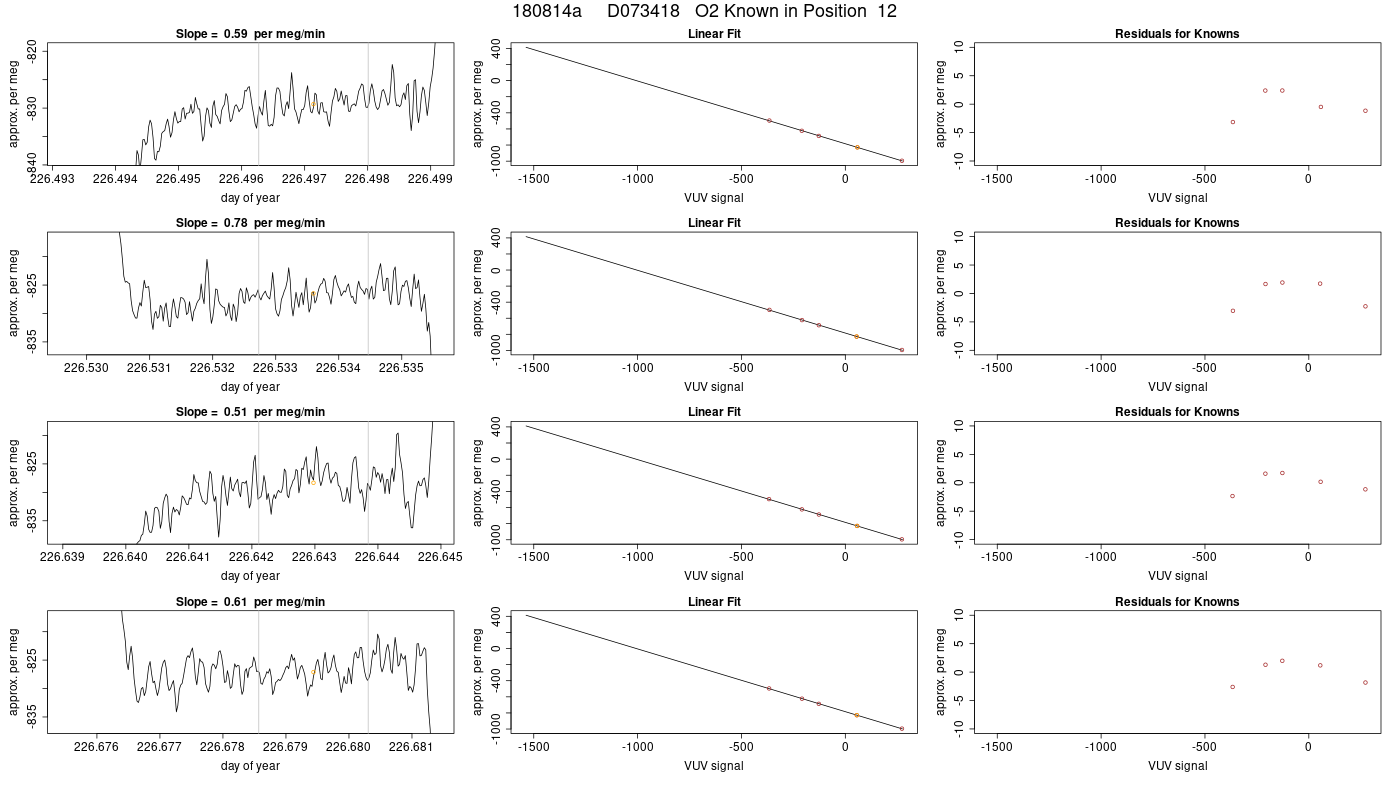

12 D073418 413.092 0.019 0.005 413.280 0.021 0.005 7 -779.40 0.93 1.07 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

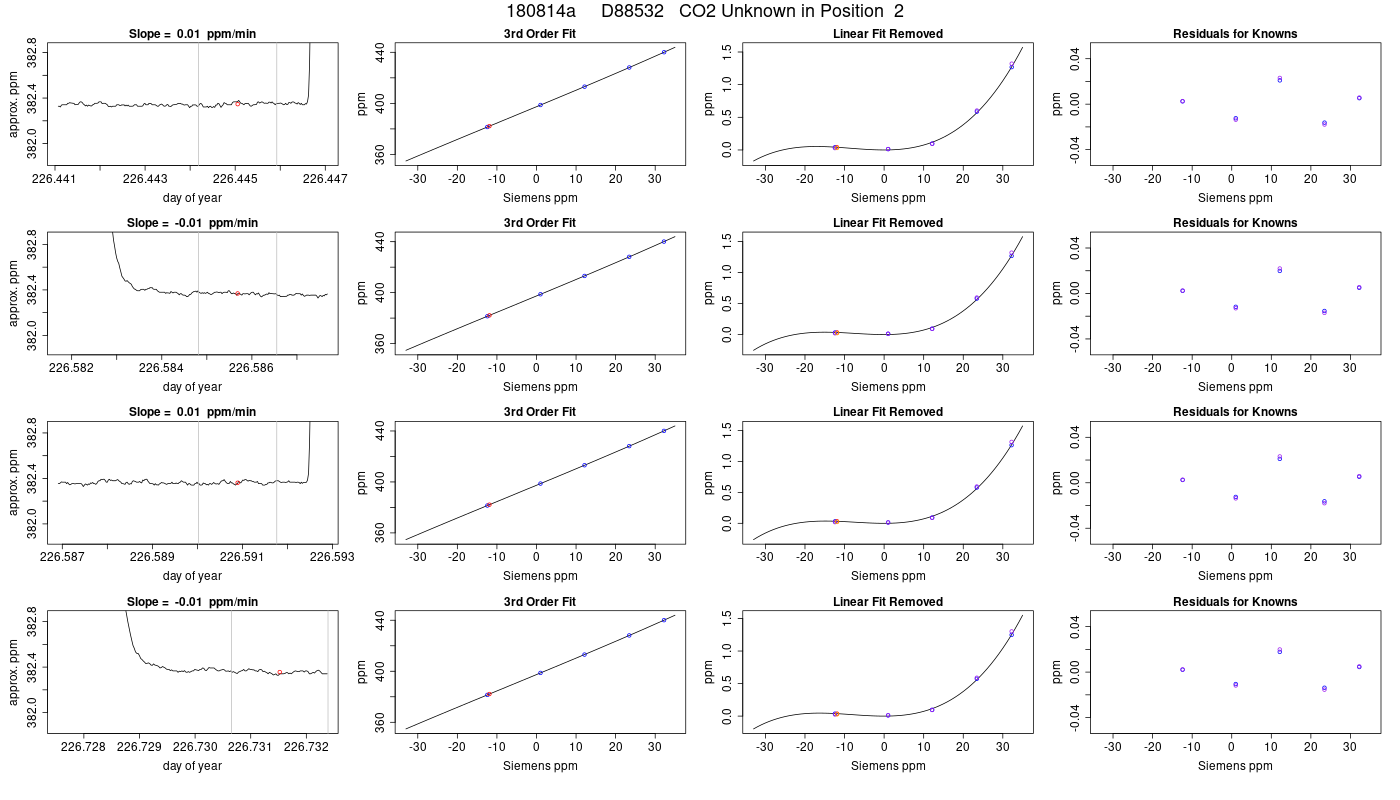

2 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.153 382.139 0.015 -481.91 2.02 382.359 0.015
226.294 382.147 0.012 -480.44 1.99 382.367 0.012
226.299 382.149 0.010 -480.28 2.08 382.370 0.010
226.440 382.154 0.011 -480.12 1.95 382.375 0.011
226.445 382.145 0.015 -480.75 2.72 382.365 0.015
226.586 382.146 0.010 -480.75 1.94 382.366 0.010
226.591 382.138 0.014 -480.87 1.62 382.358 0.014
226.732 382.145 0.014 -480.26 2.36 382.365 0.014

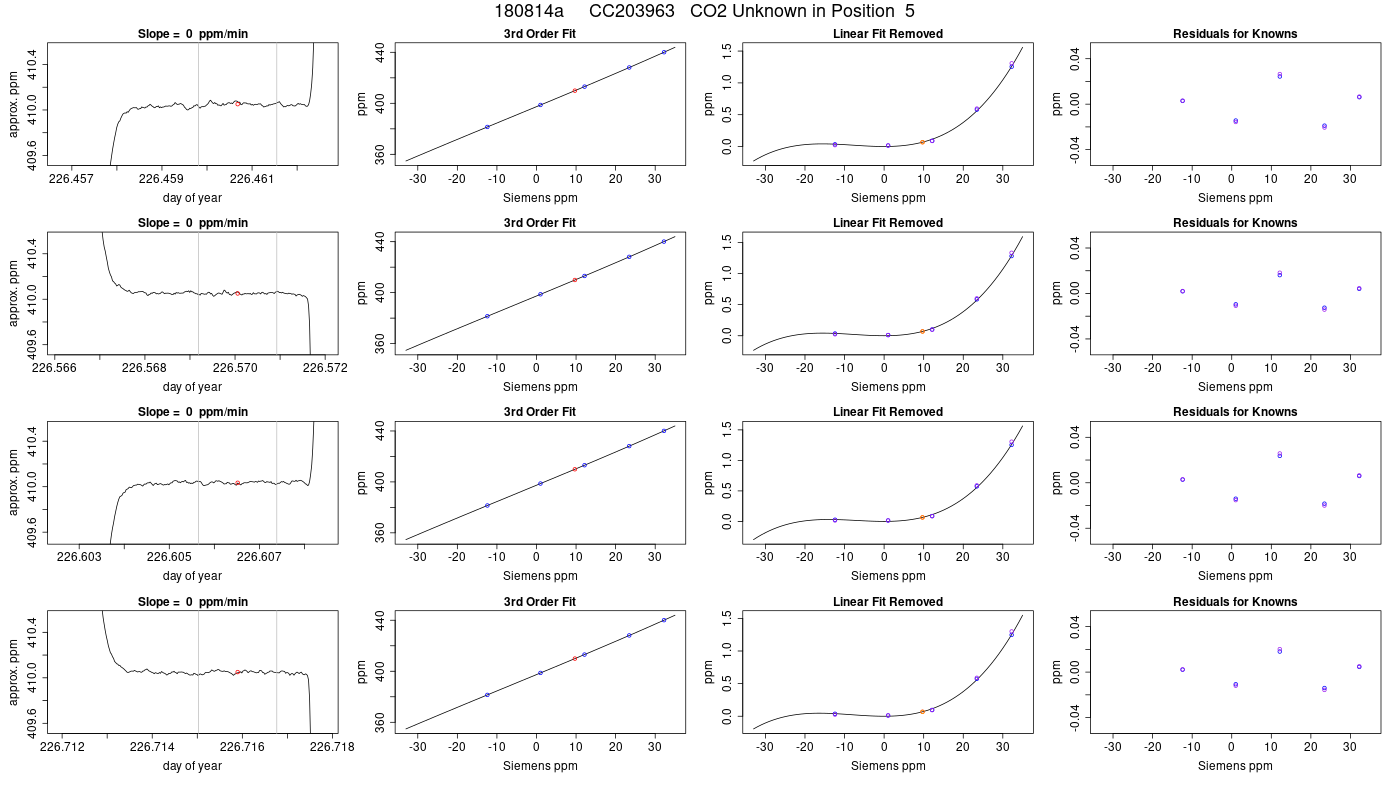

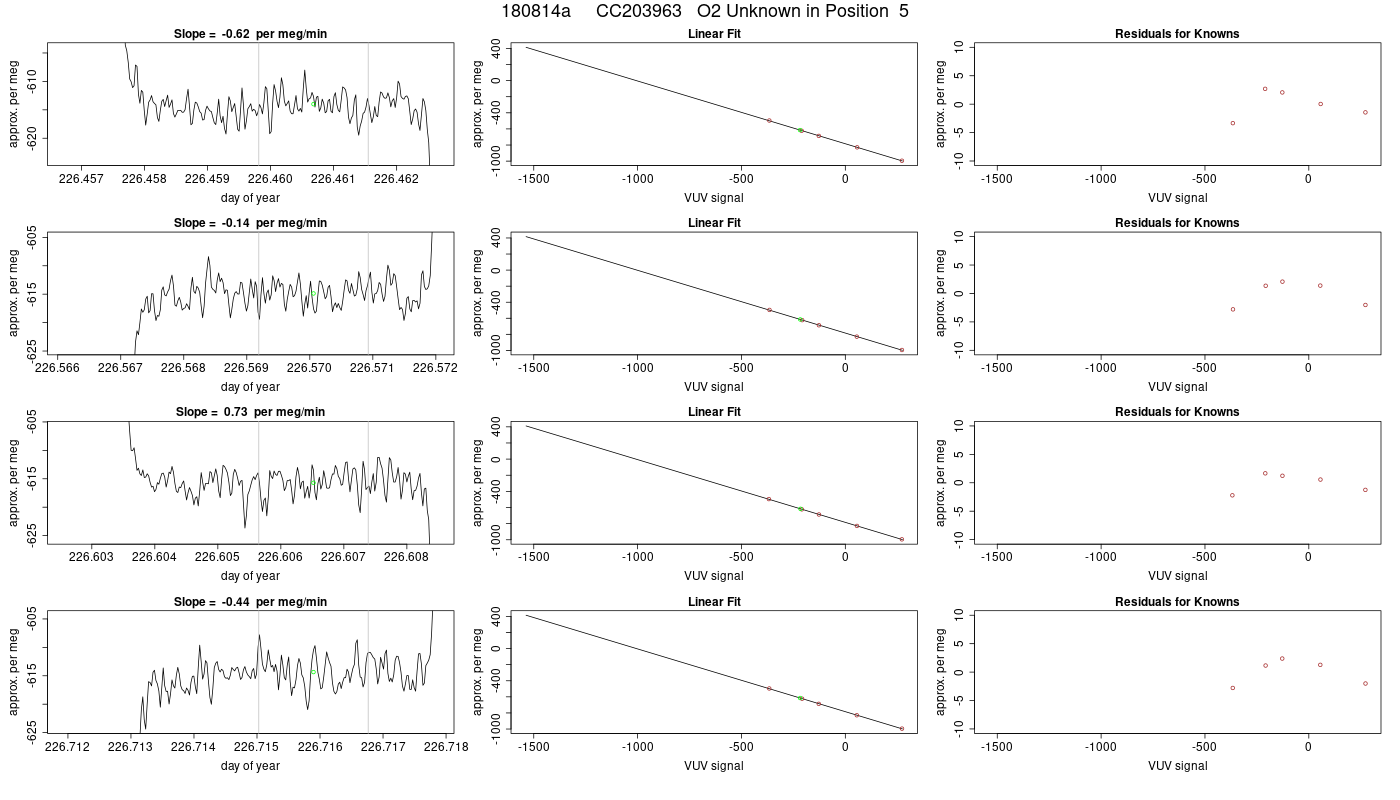

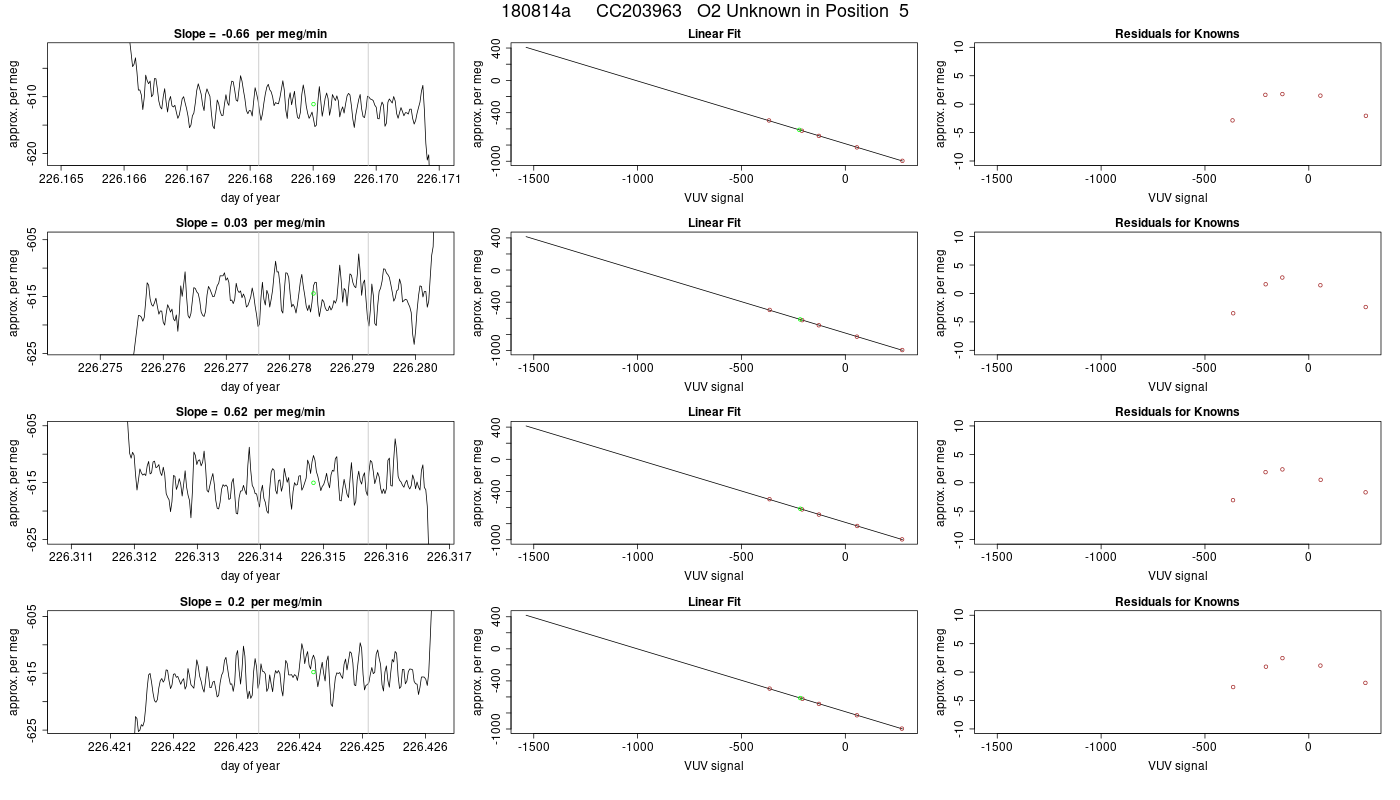

5 CC203963    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.169 409.921 0.011 -566.03 1.94 410.115 0.011
226.278 409.934 0.011 -567.99 2.64 410.127 0.011
226.315 409.928 0.014 -568.73 2.31 410.121 0.014
226.424 409.918 0.011 -568.01 2.34 410.112 0.011
226.461 409.927 0.014 -568.44 2.19 410.121 0.014
226.570 409.934 0.009 -568.59 1.91 410.128 0.009
226.607 409.923 0.011 -570.60 2.16 410.117 0.011
226.716 409.939 0.012 -568.61 2.64 410.133 0.012

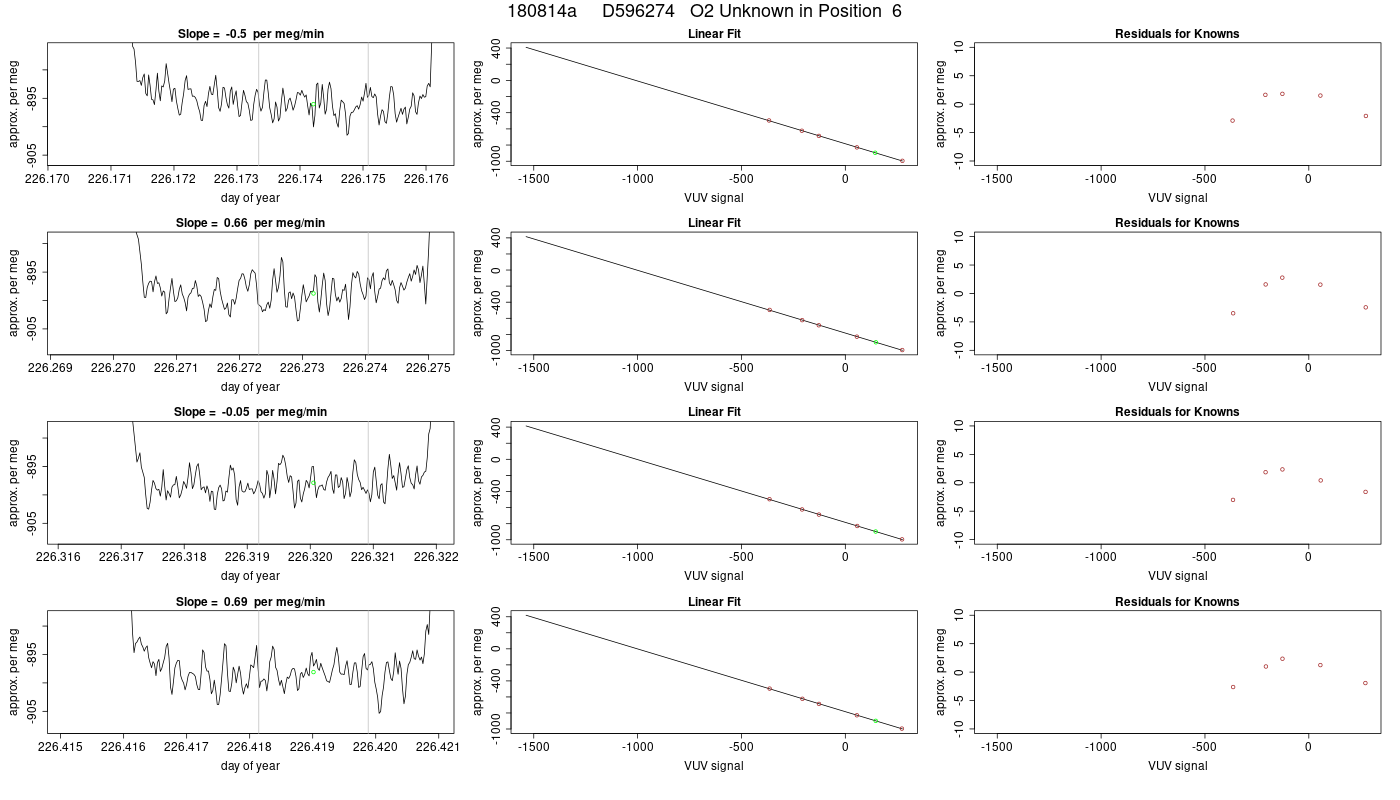

6 D596274    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.174 416.075 0.012 -843.44 2.16 416.262 0.012
226.273 416.079 0.014 -846.62 2.45 416.266 0.014
226.320 416.076 0.011 -845.58 2.01 416.264 0.011
226.419 416.078 0.009 -846.41 1.90 416.265 0.009
226.466 416.073 0.009 -846.02 2.25 416.260 0.009
226.565 416.085 0.016 -845.79 2.13 416.272 0.016
226.612 416.080 0.009 -845.83 2.15 416.268 0.009
226.711 416.081 0.018 -846.06 2.42 416.269 0.018

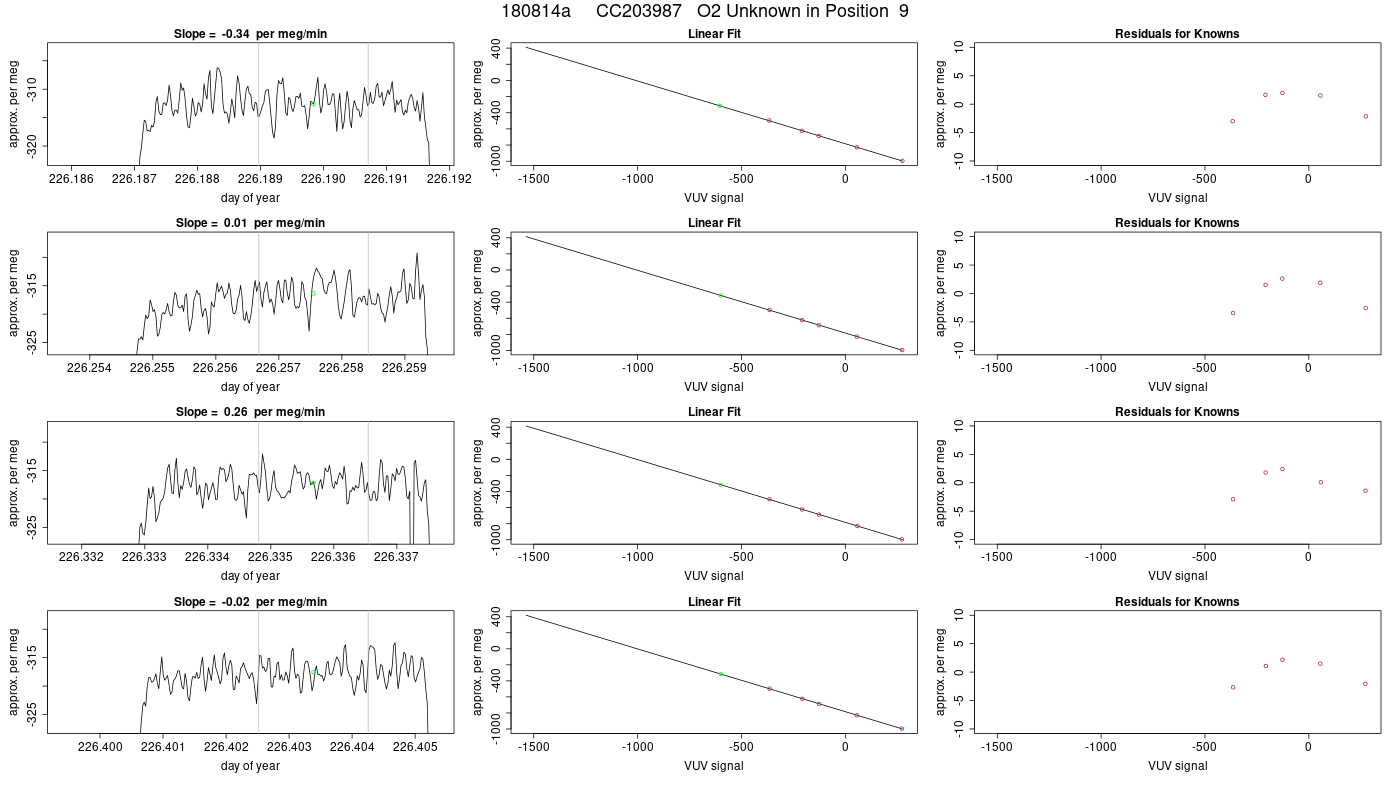

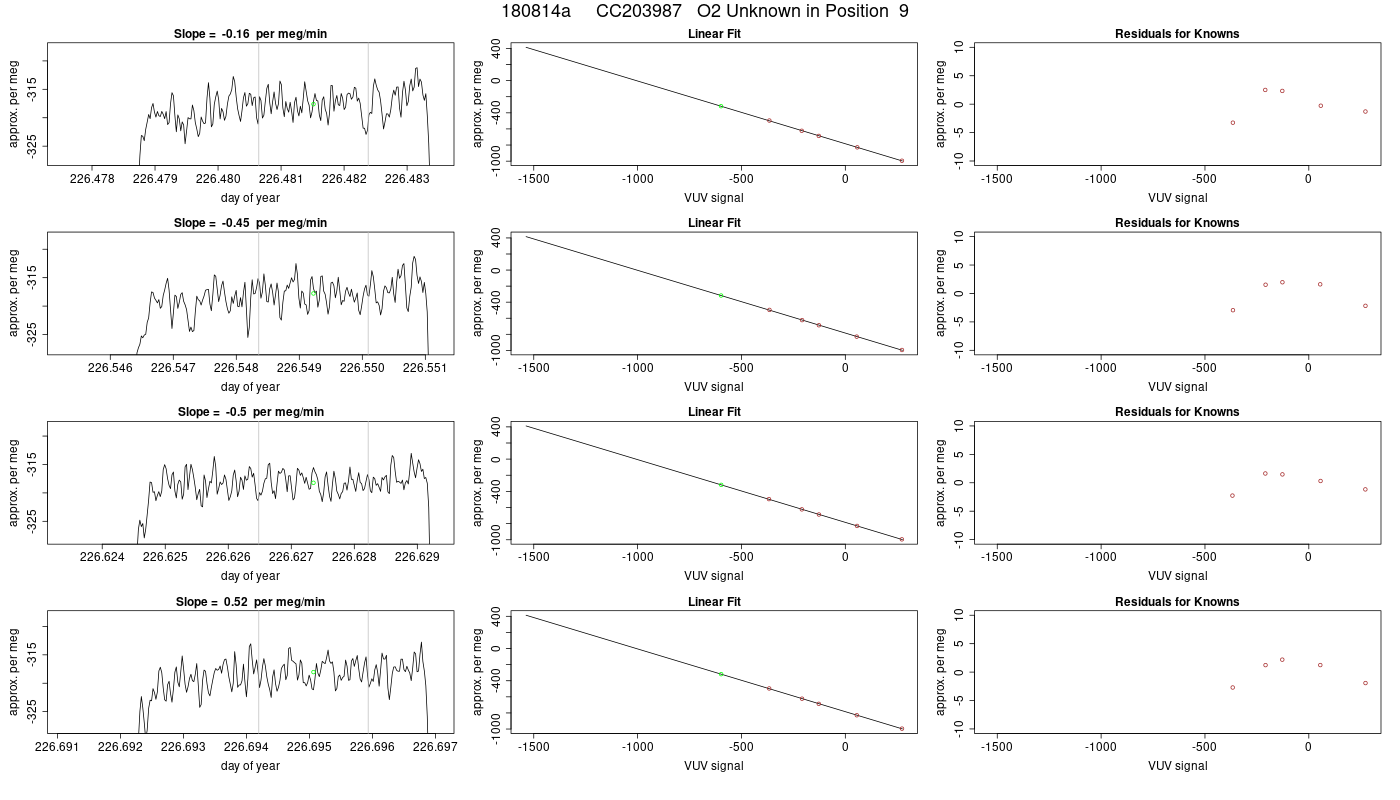

9 CC203987    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.190 355.881 0.013 -321.28 2.34 356.008 0.013
226.258 355.950 0.013 -323.15 2.45 356.077 0.013
226.336 356.048 0.014 -323.38 1.90 356.174 0.014
226.403 356.104 0.009 -322.59 1.97 356.230 0.009
226.482 355.943 0.014 -325.13 2.07 356.069 0.014
226.549 355.946 0.014 -324.13 2.02 356.073 0.014
226.627 355.900 0.014 -326.50 1.71 356.027 0.014
226.695 355.959 0.012 -325.53 1.99 356.085 0.012

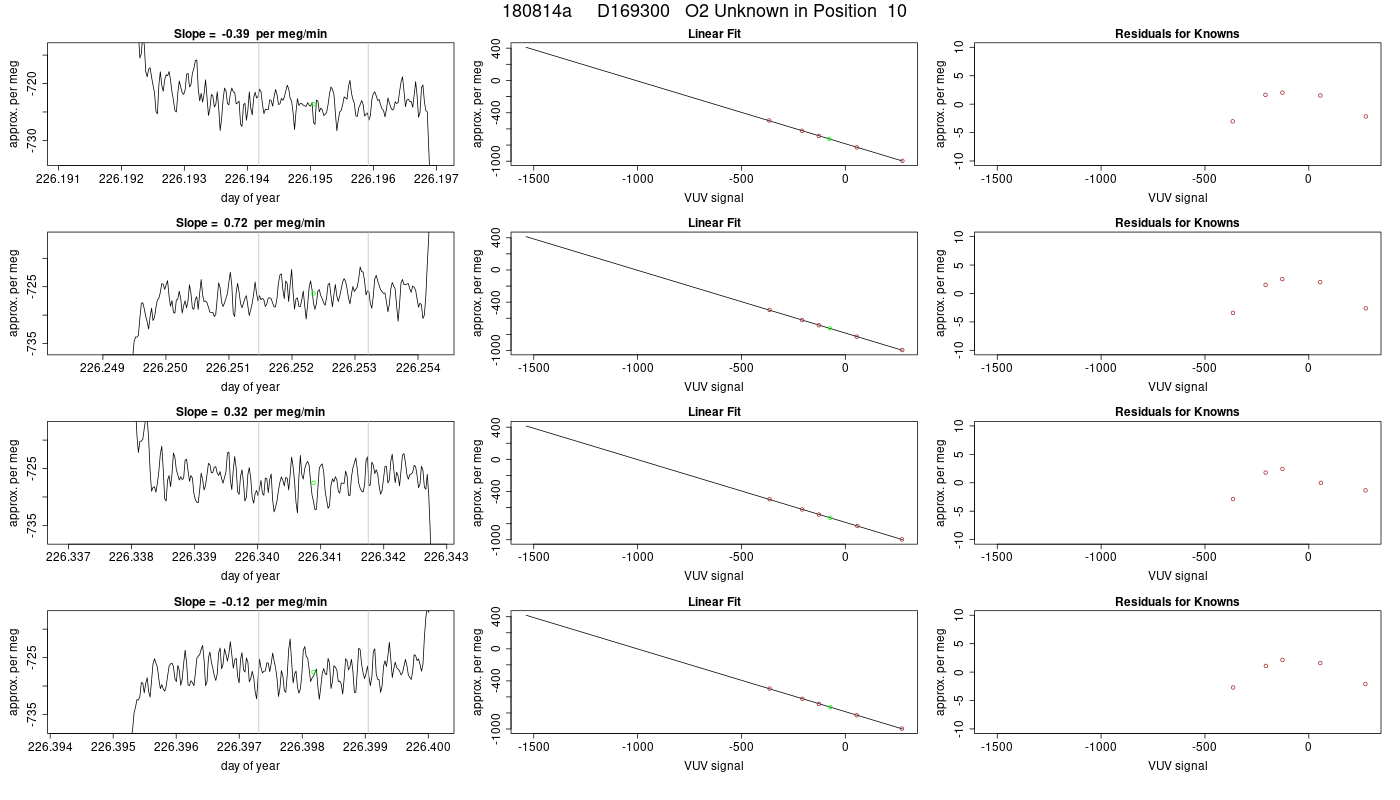

10 D169300    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.195 398.545 0.012 -688.84 1.77 398.755 0.012
226.252 398.546 0.011 -691.26 1.91 398.756 0.011
226.341 398.536 0.015 -692.19 2.53 398.746 0.015
226.398 398.543 0.013 -692.53 2.27 398.753 0.013
226.487 398.519 0.011 -692.15 2.10 398.729 0.011
226.544 398.540 0.010 -692.61 2.18 398.750 0.010
226.633 398.535 0.014 -691.68 2.05 398.745 0.014
226.690 398.542 0.011 -692.64 2.20 398.752 0.011

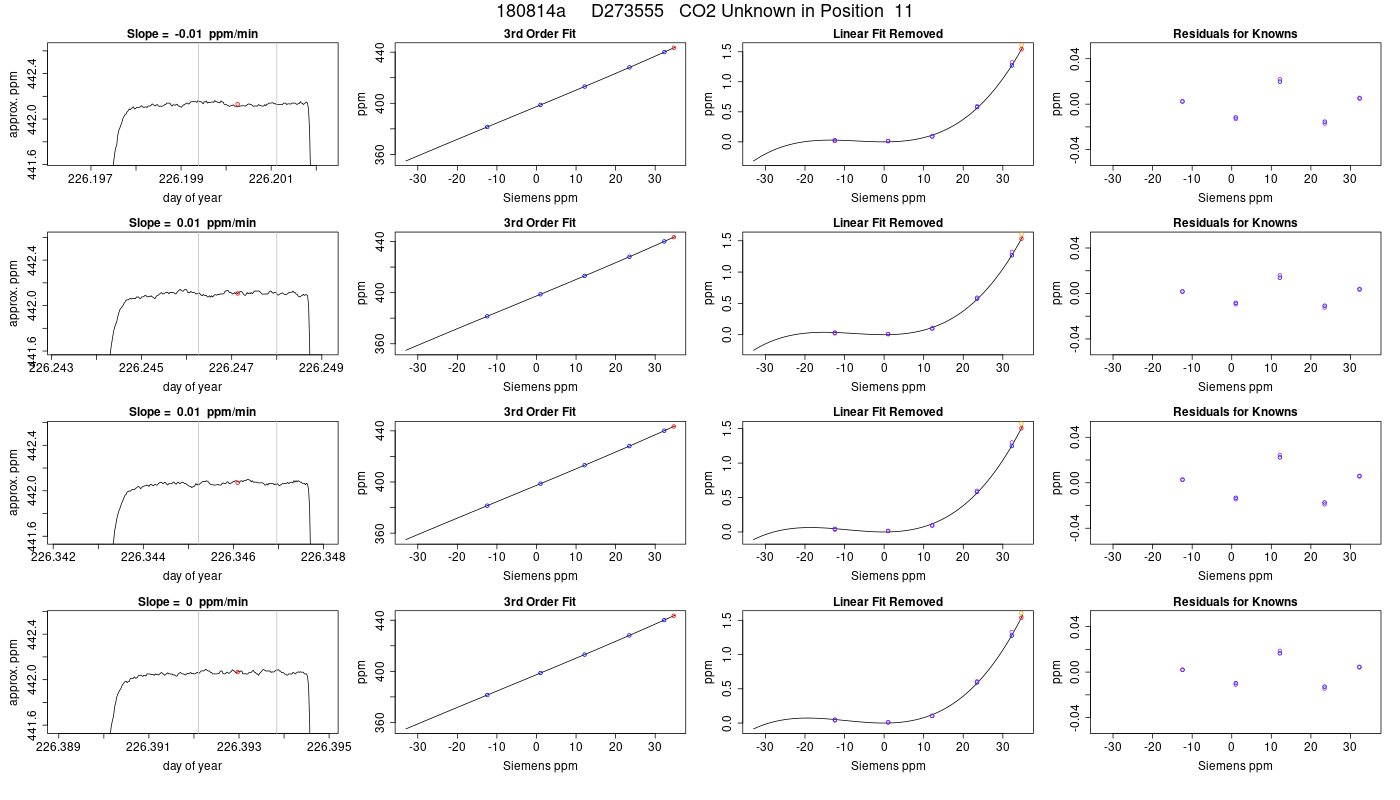

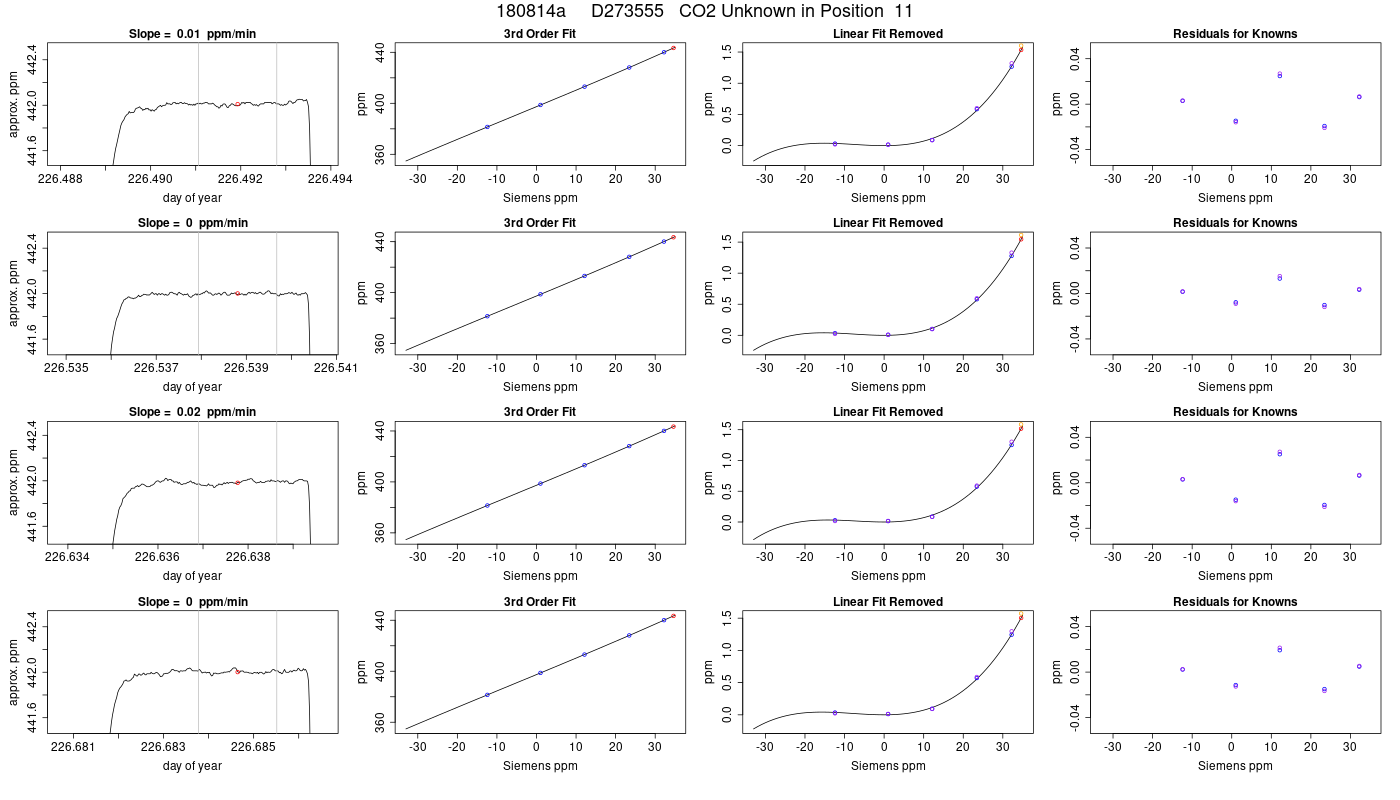

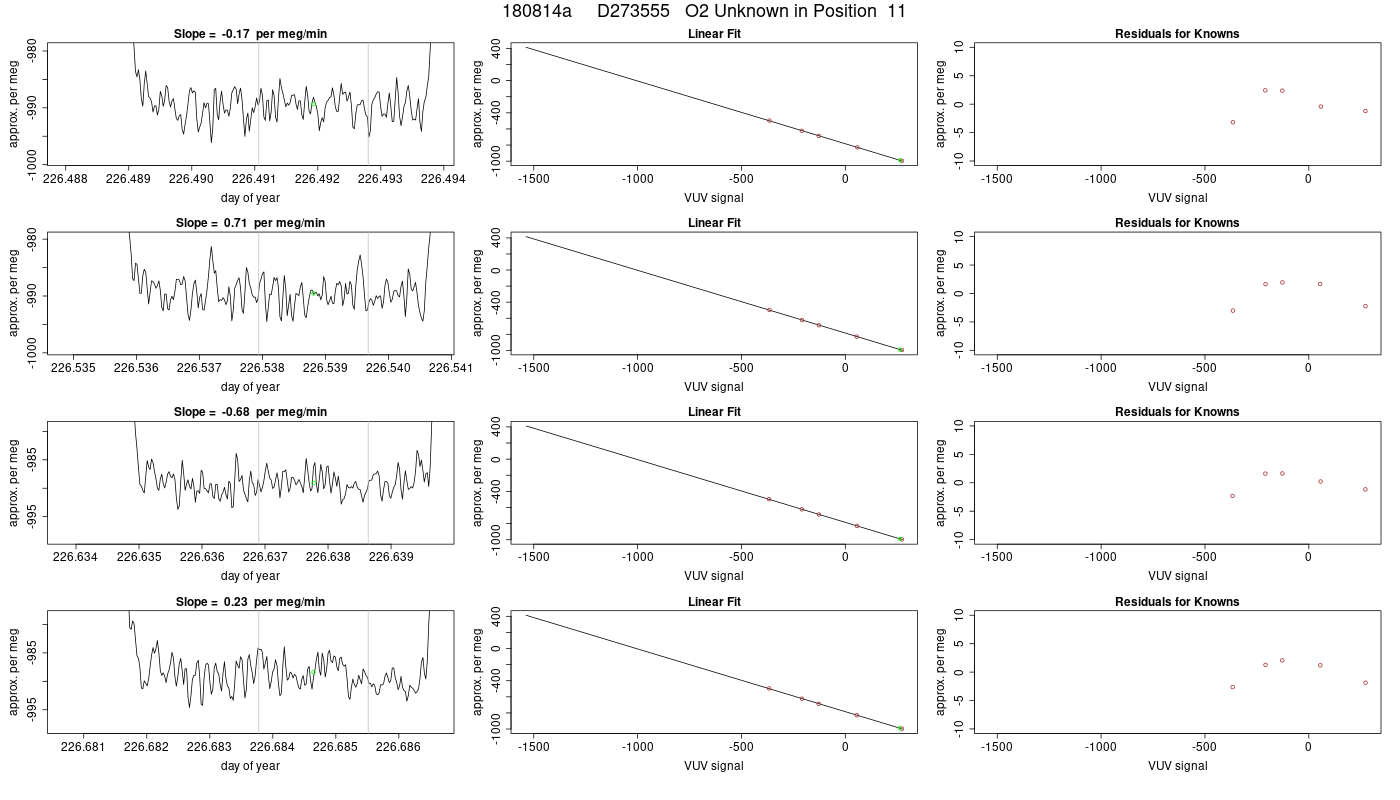

11 D273555    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.200 443.423 0.015 -908.90 2.11 443.646 0.015
226.247 443.426 0.015 -911.17 2.30 443.649 0.015
226.346 443.408 0.014 -910.51 2.35 443.631 0.014
226.393 443.433 0.012 -911.42 1.94 443.656 0.012
226.492 443.417 0.013 -910.28 1.96 443.640 0.013
226.539 443.439 0.010 -911.42 2.52 443.662 0.010
226.638 443.406 0.018 -910.16 1.73 443.629 0.018
226.685 443.413 0.014 -909.85 2.19 443.636 0.014

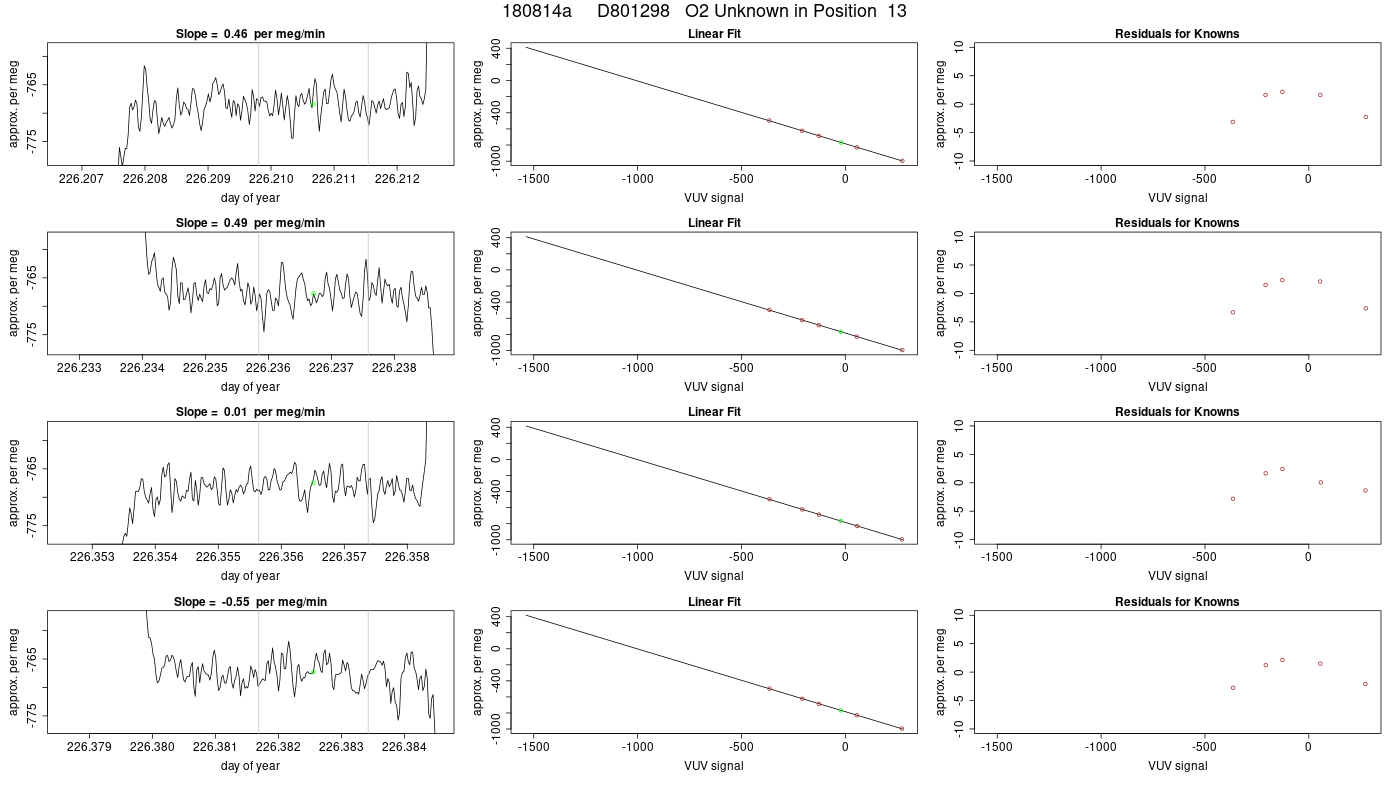

13 D801298    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.211 406.720 0.012 -725.46 2.22 406.919 0.012
226.237 406.712 0.015 -724.90 2.51 406.910 0.015
226.357 406.715 0.013 -724.16 1.94 406.913 0.013
226.383 406.717 0.011 -724.41 2.21 406.915 0.011
226.502 406.707 0.010 -725.42 2.10 406.906 0.010
226.528 406.710 0.013 -725.31 2.03 406.908 0.013
226.648 406.732 0.012 -725.37 1.98 406.930 0.012
226.674 406.713 0.009 -725.67 2.08 406.911 0.009

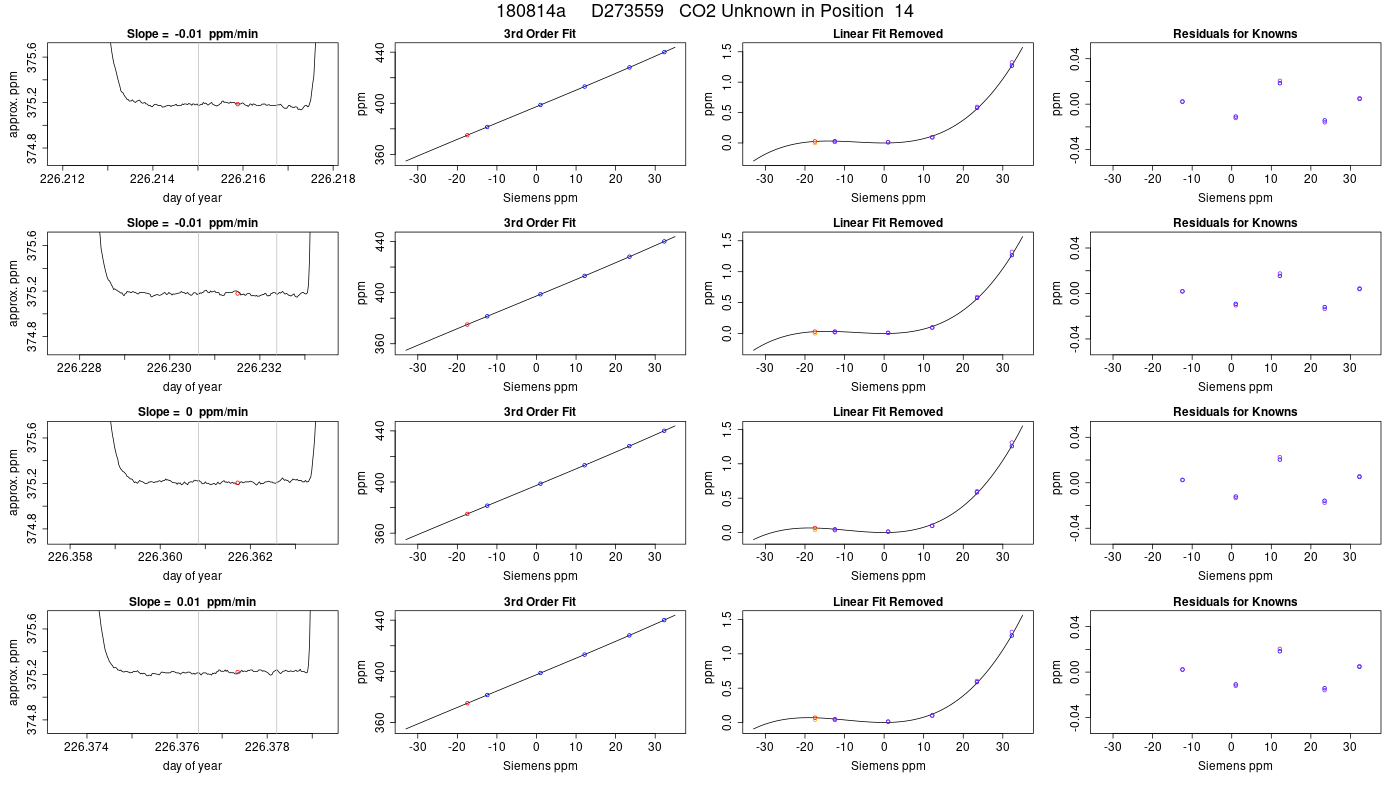

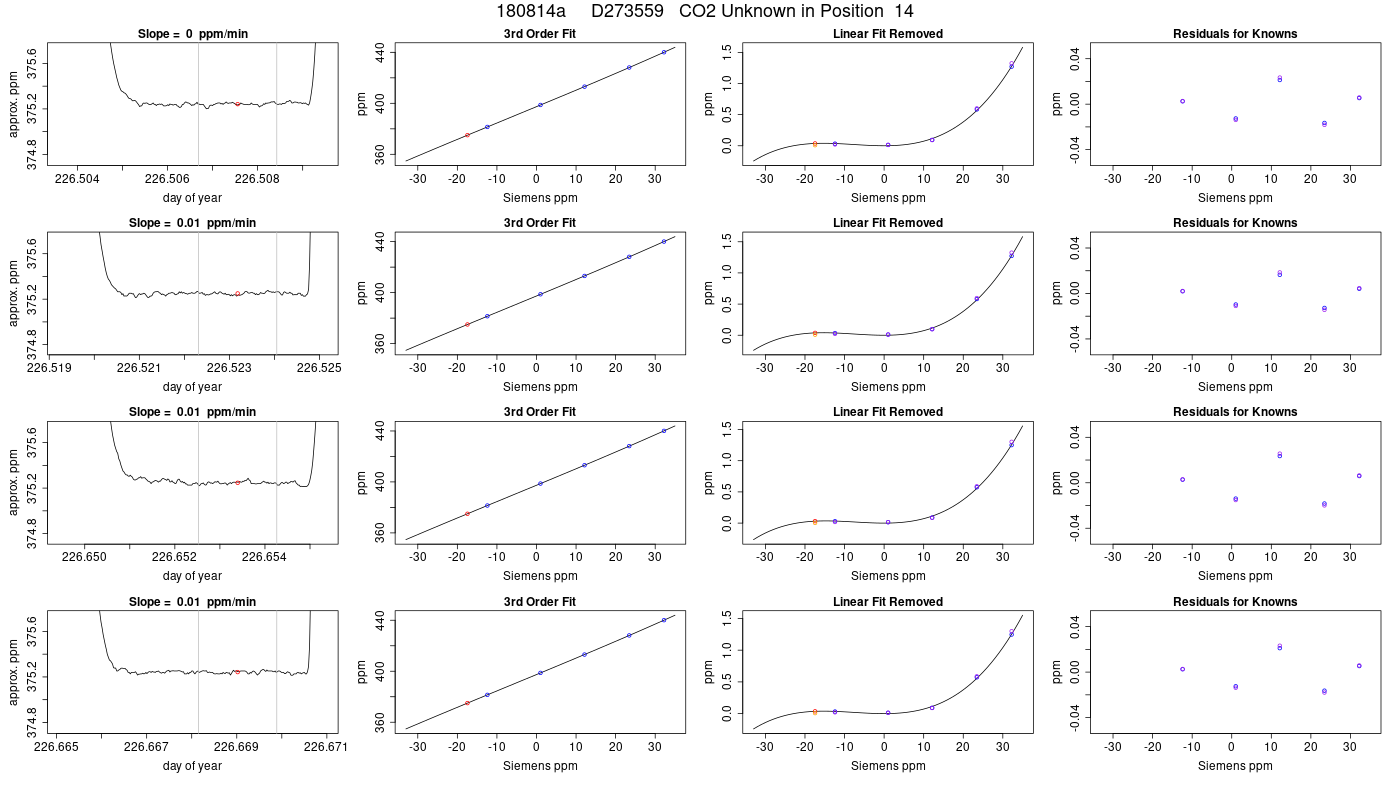

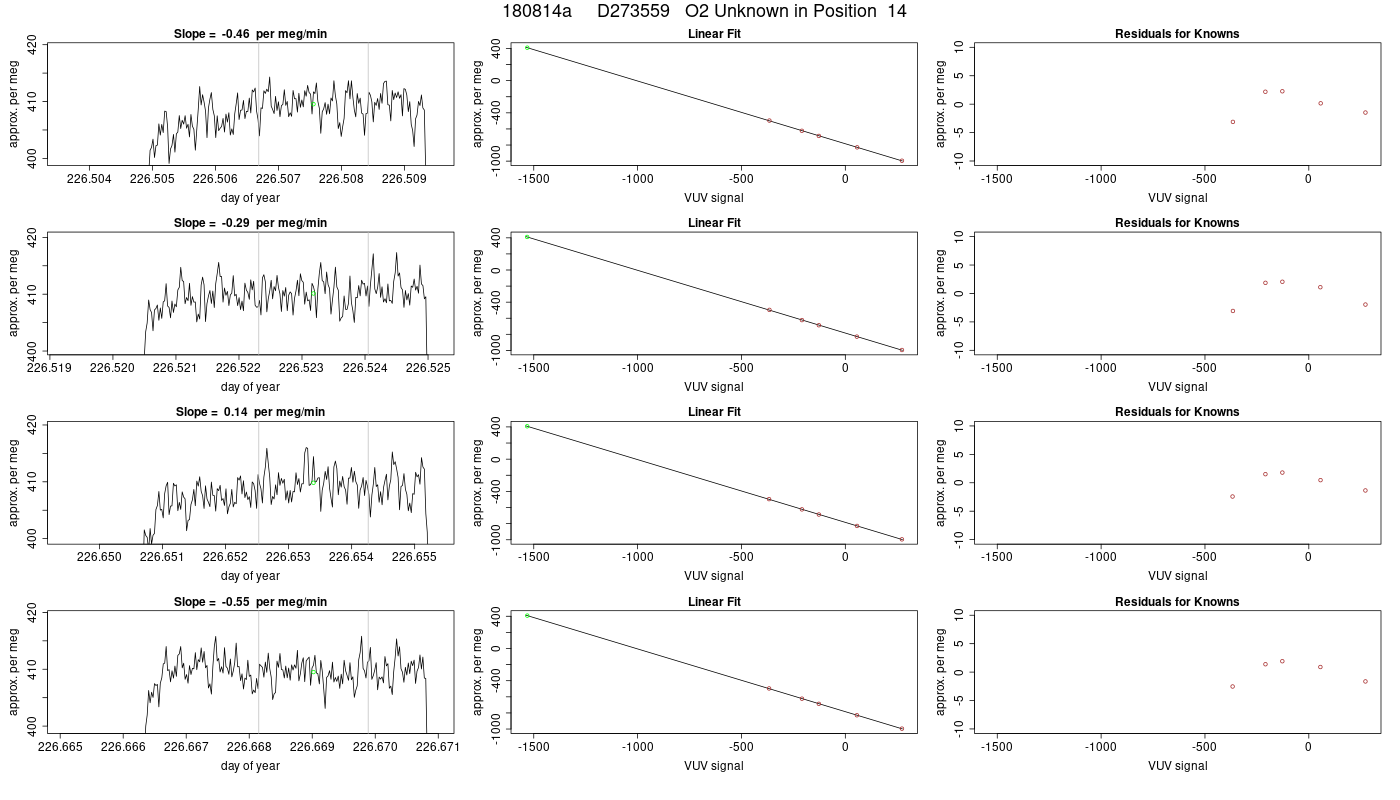

14 D273559    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.216 375.026 0.011 423.26 2.22 375.239 0.011
226.232 375.019 0.014 421.41 2.63 375.231 0.014
226.362 375.033 0.009 423.23 2.75 375.246 0.009
226.377 375.049 0.013 425.48 2.17 375.262 0.013
226.508 375.013 0.013 421.19 2.35 375.225 0.013
226.523 375.019 0.011 422.95 2.38 375.231 0.011
226.653 375.008 0.011 419.66 2.45 375.221 0.011
226.669 375.008 0.011 419.93 2.17 375.221 0.011

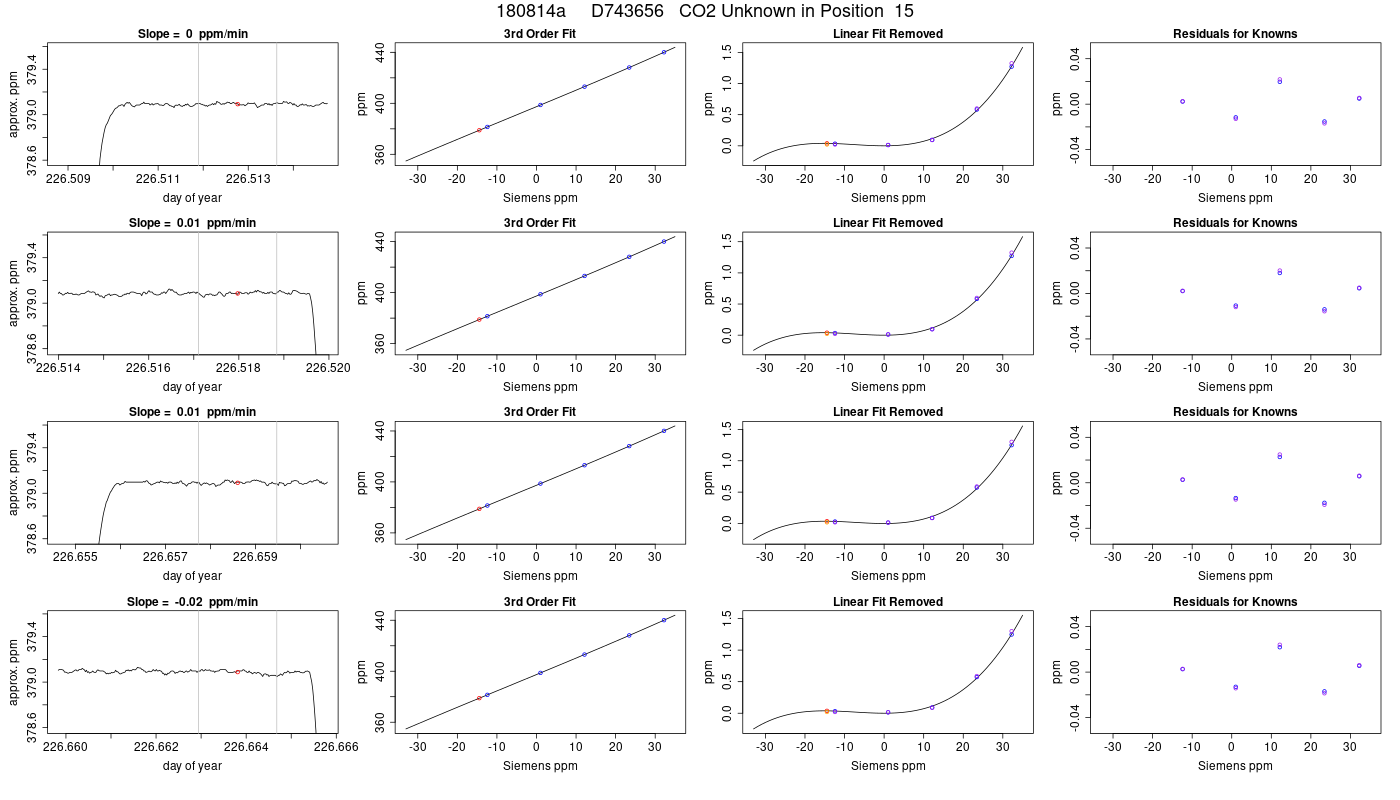

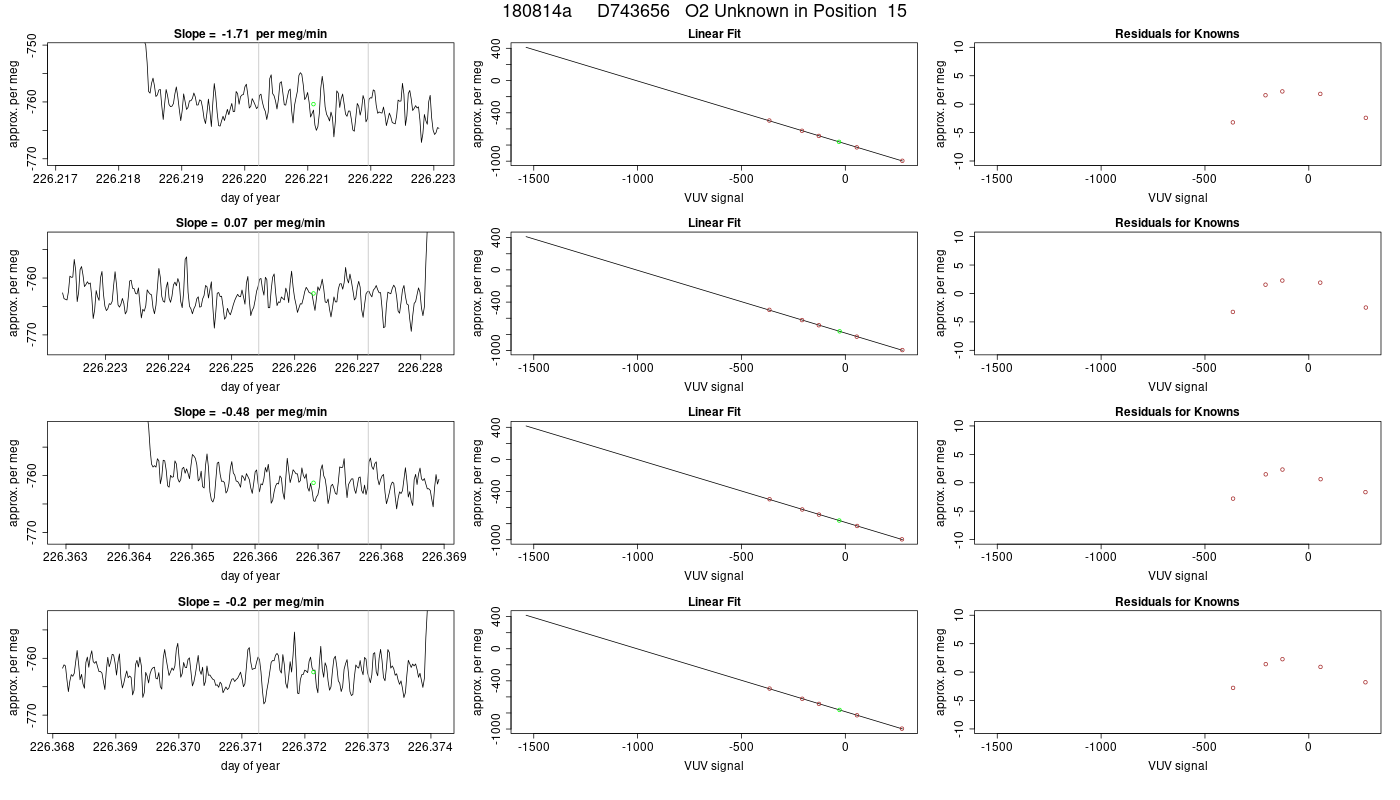

15 D743656    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
226.221 378.862 0.014 -744.79 2.63 379.081 0.014
226.226 378.862 0.012 -747.13 1.97 379.080 0.012
226.367 378.889 0.009 -745.40 1.90 379.107 0.009
226.372 378.883 0.011 -746.65 2.42 379.101 0.011
226.513 378.874 0.010 -745.65 2.40 379.092 0.010
226.518 378.866 0.012 -747.44 2.20 379.084 0.012
226.659 378.868 0.014 -746.54 2.05 379.087 0.014
226.664 378.865 0.017 -748.54 1.94 379.083 0.017
