UEA CRAM Lab O2 and CO2 calibration results
RUN = 180807a
PROCESSED: 16:51:13 Mon 21Aug2023

Notes
Logfile

Results

Using data from 219.906 to 220.342 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.144 0.009 0.023 382.364 0.009 0.023 6 -481.39 0.39 1.20 6
5 CC203963 409.923 0.008 -0.037 410.117 0.008 -0.037 6 -569.93 0.54 0.96 6
6 D596274 416.081 0.015 -0.087 416.269 0.015 -0.087 6 -846.13 0.82 -3.29 6
9 CC203987 355.994 0.039 -0.248 356.120 0.039 -0.249 6 -325.52 0.98 4.15 6
10 D169300 398.543 0.013 0.007 398.753 0.013 0.007 6 -692.28 0.64 1.57 6
11 D273555 443.394 0.030 0.122 443.617 0.030 0.122 6 -910.89 0.72 -1.74 6
13 D801298 406.712 0.005 -0.010 406.910 0.005 -0.010 6 -725.56 0.73 4.05 6
14 D273559 375.034 0.013 -0.021 375.247 0.013 -0.021 6 419.39 2.27 14.22 6
15 D743656 378.880 0.015 0.019 379.098 0.015 0.019 6 -747.29 0.64 1.78 6
WT D258964 397.415 0.008 -0.061 397.627 0.008 -0.061 84 -750.76 0.38 -2.50 84
Text File

Raw Data and Diagnostics Figures

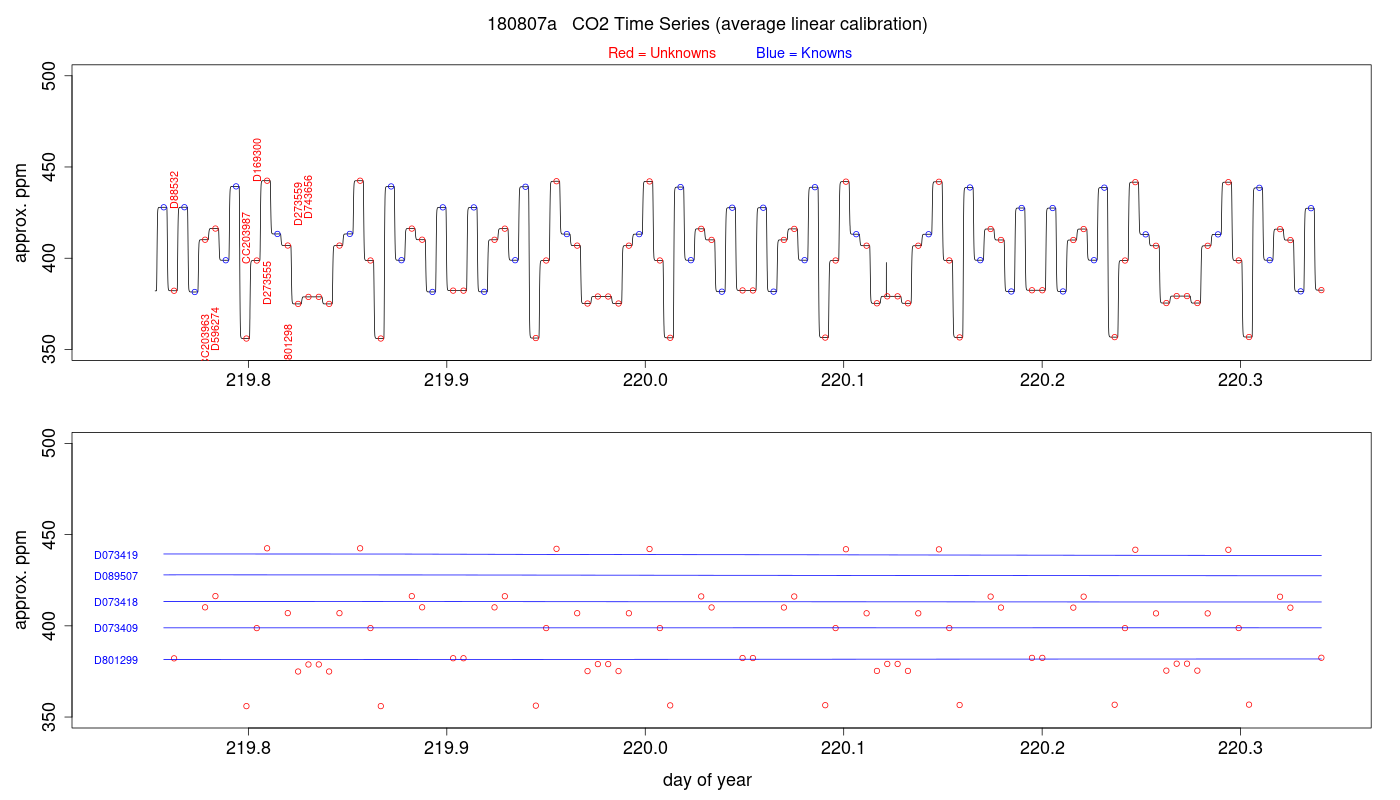

CO2 Timeseries

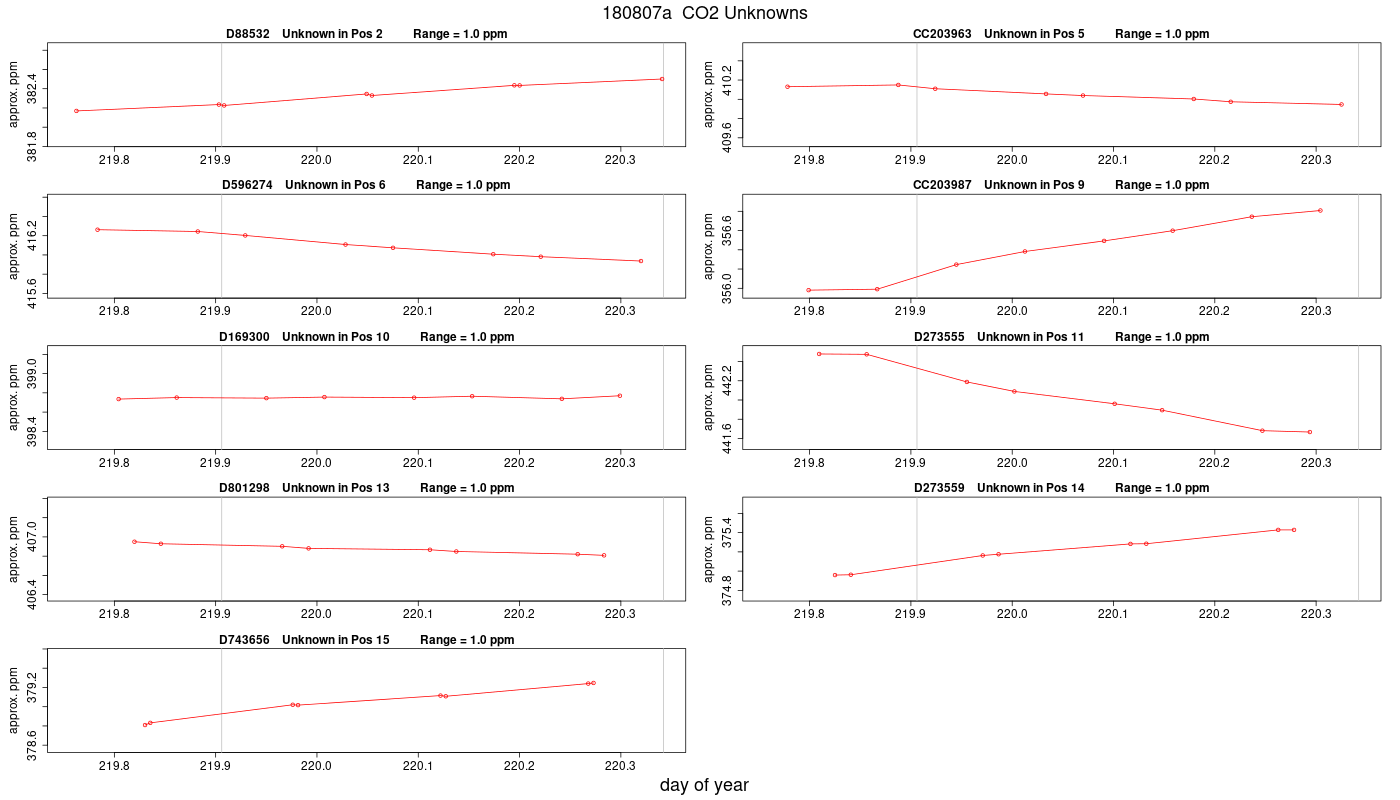

 CO2 Averages for Unknowns

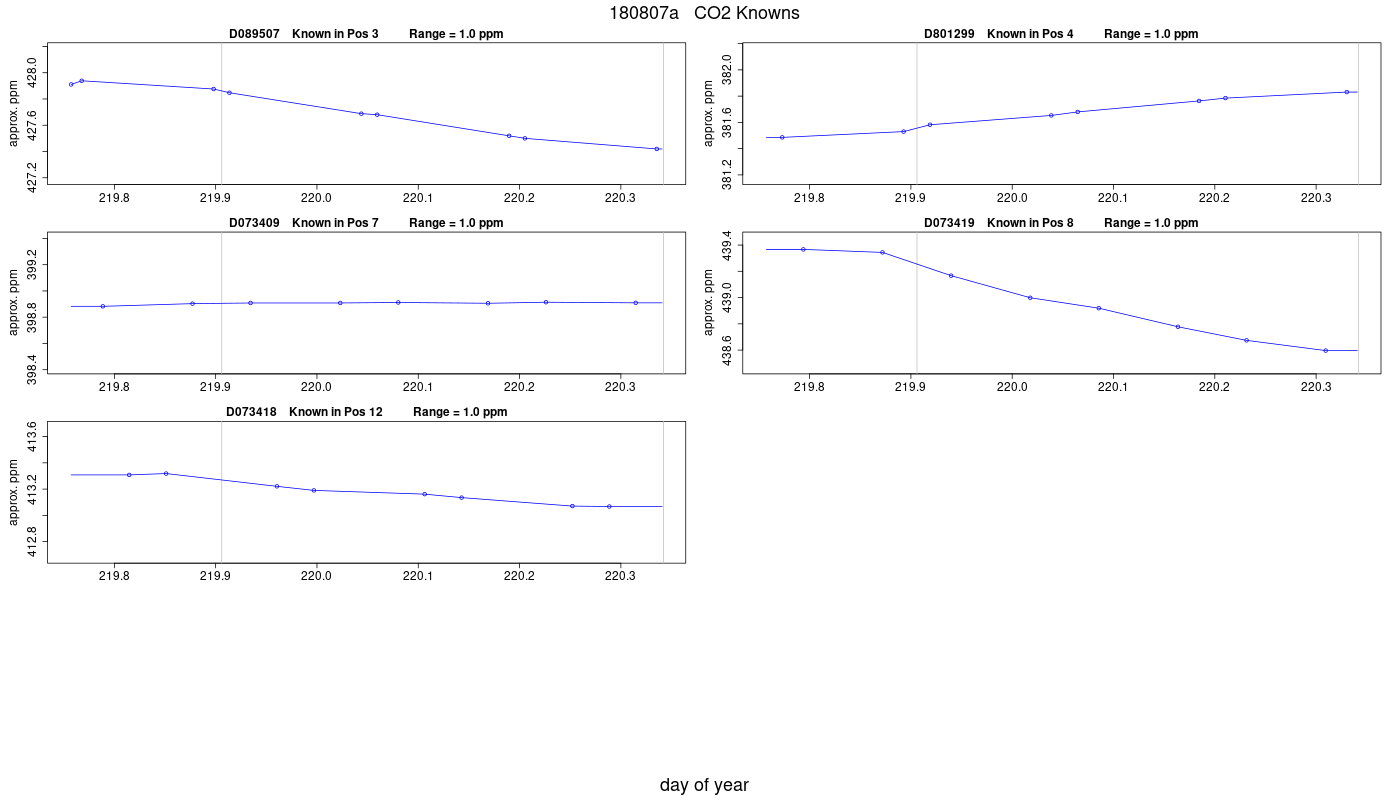

 CO2 Averages for Knowns
Jog Ave. Diagnostics 1

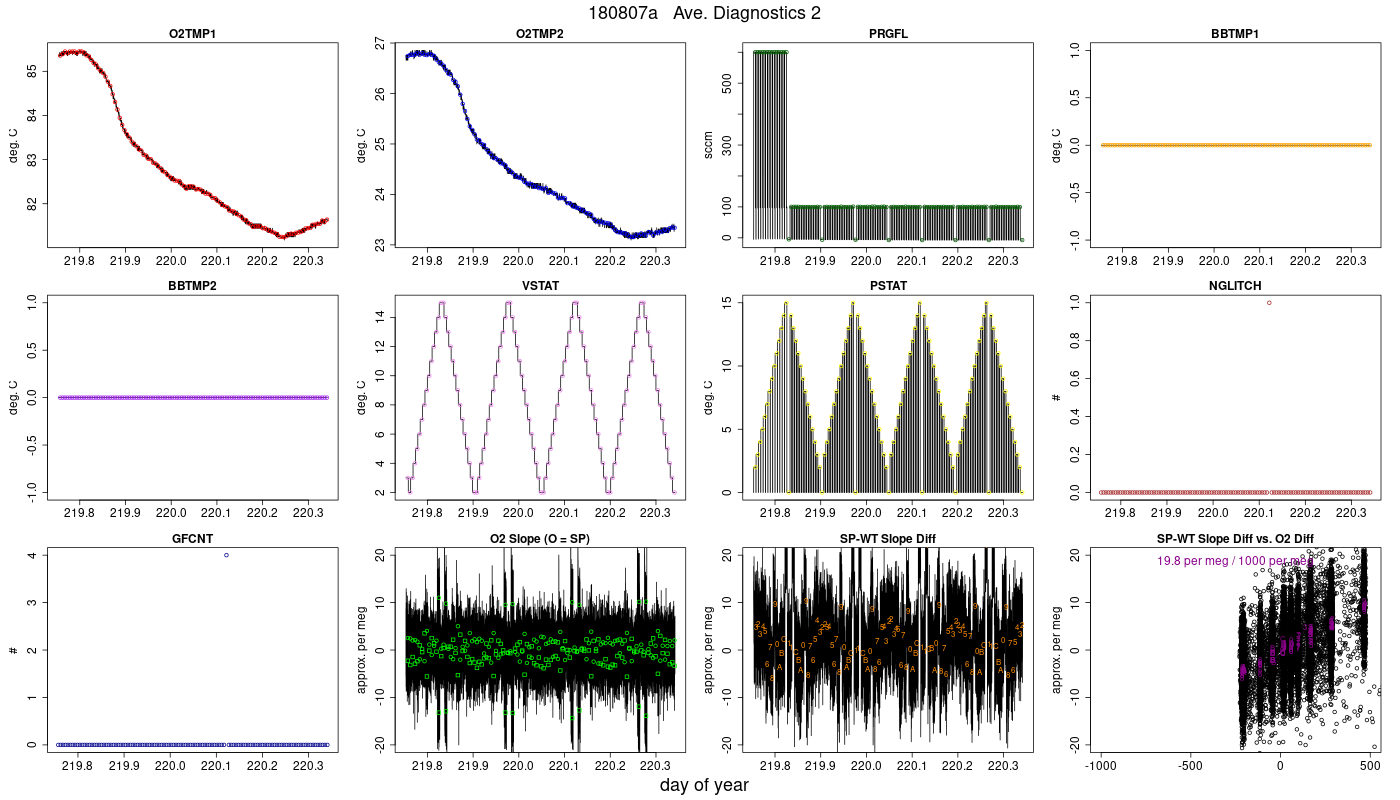

 Jog Ave. Diagnostics 2

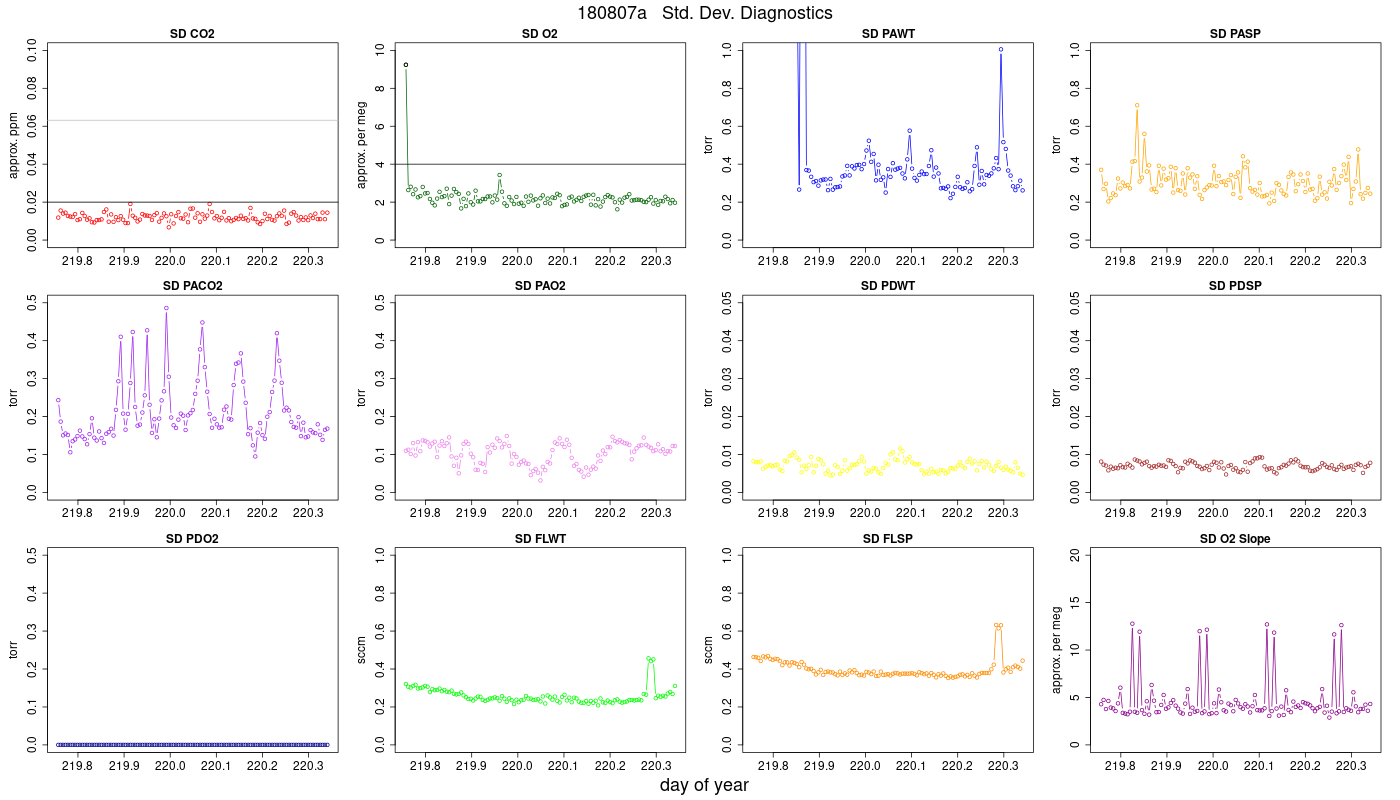

 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics

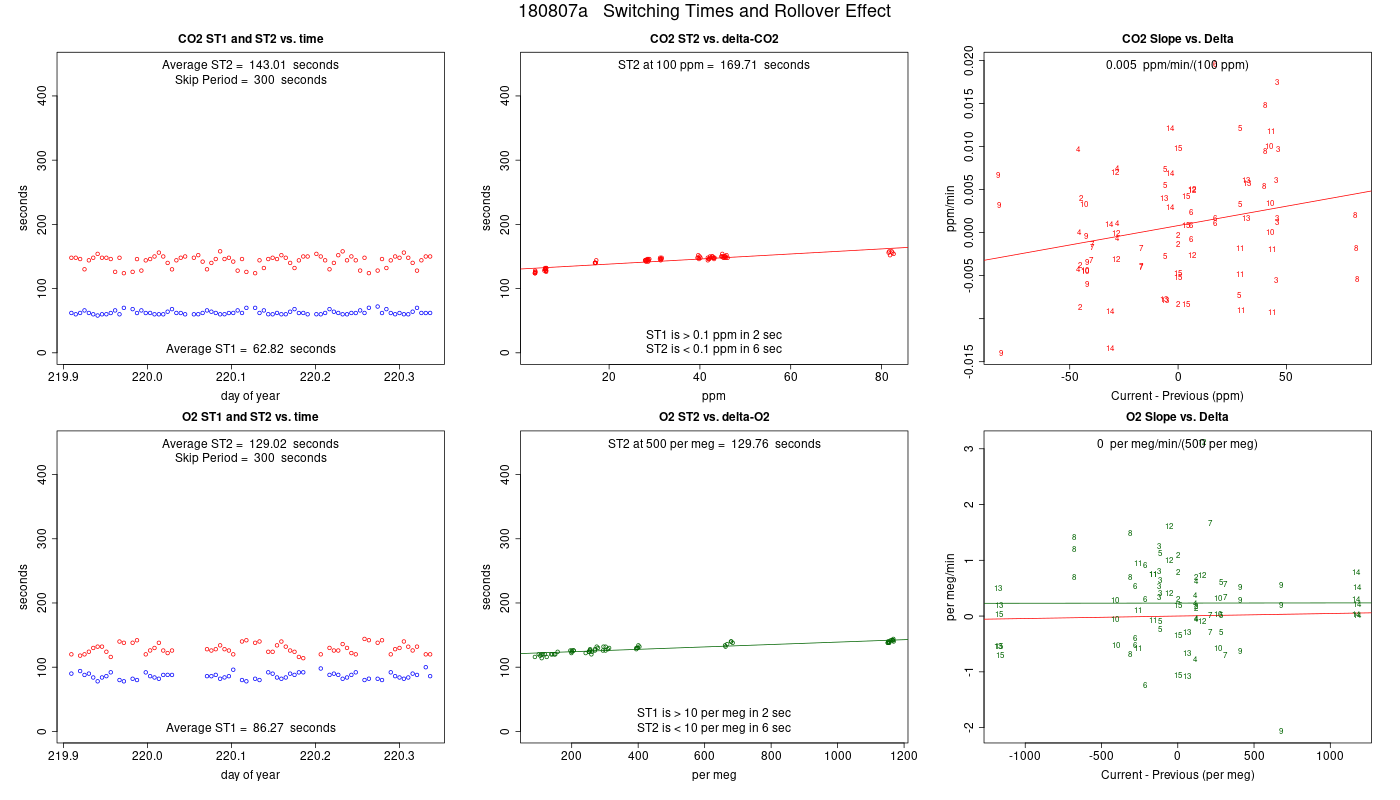

 Rollover Effect

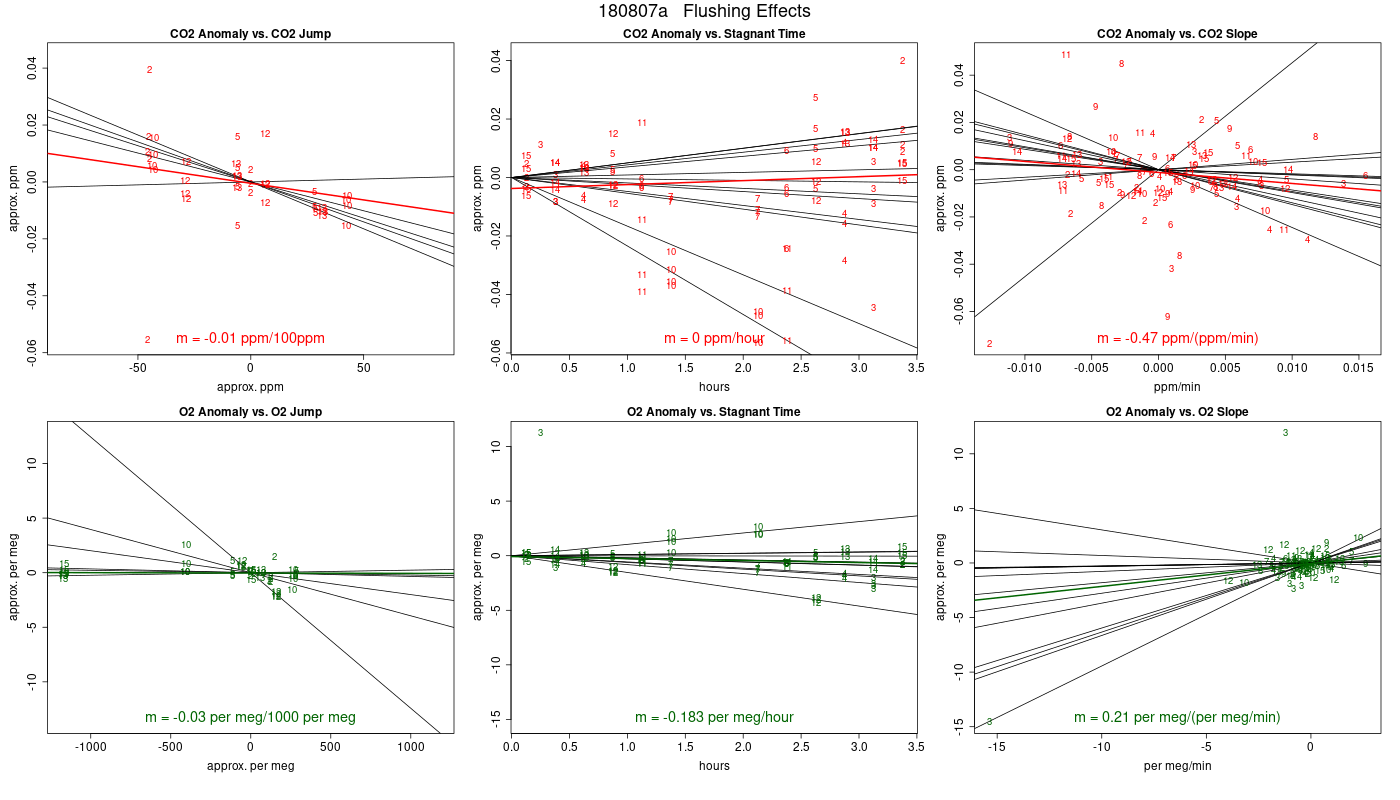

 Flushing Effect
CO2 Parameters

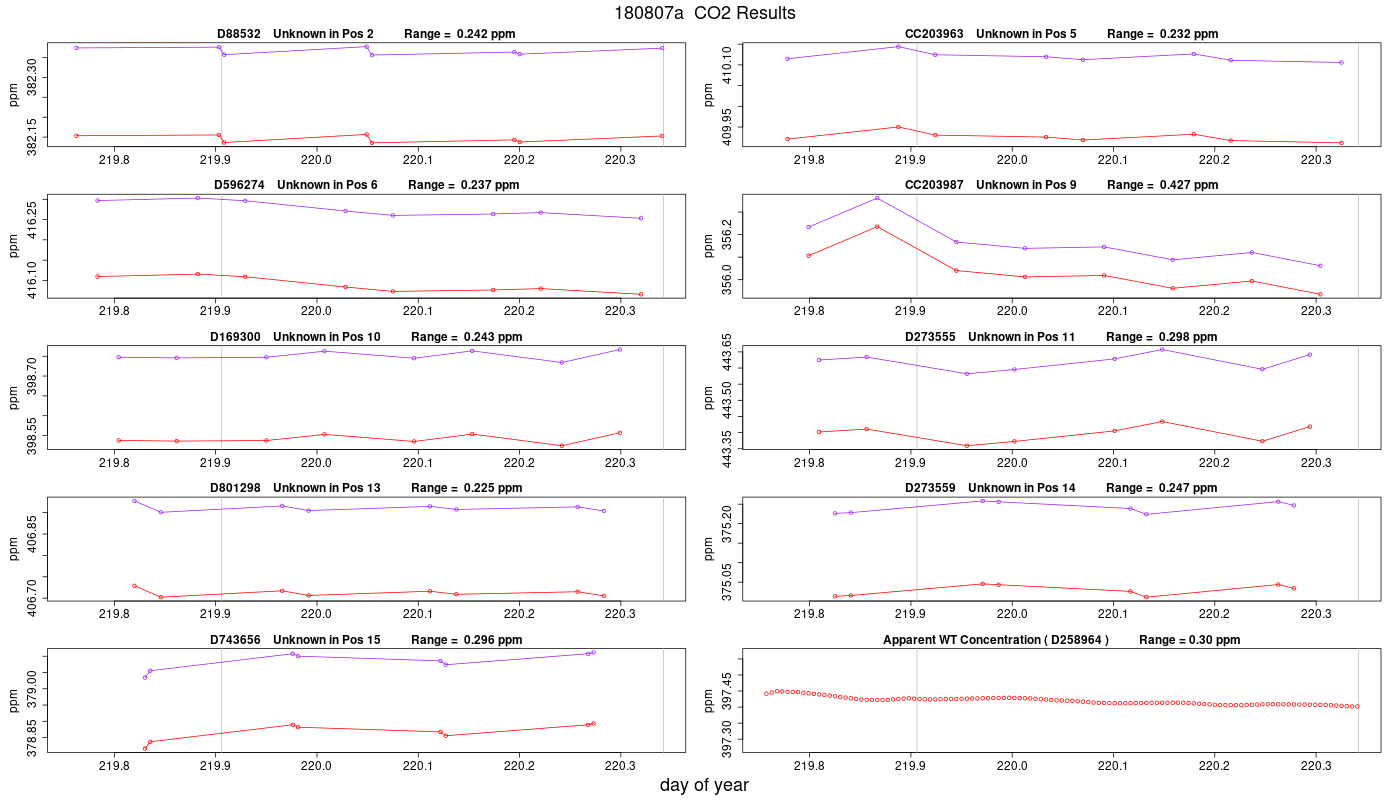

 CO2 Results

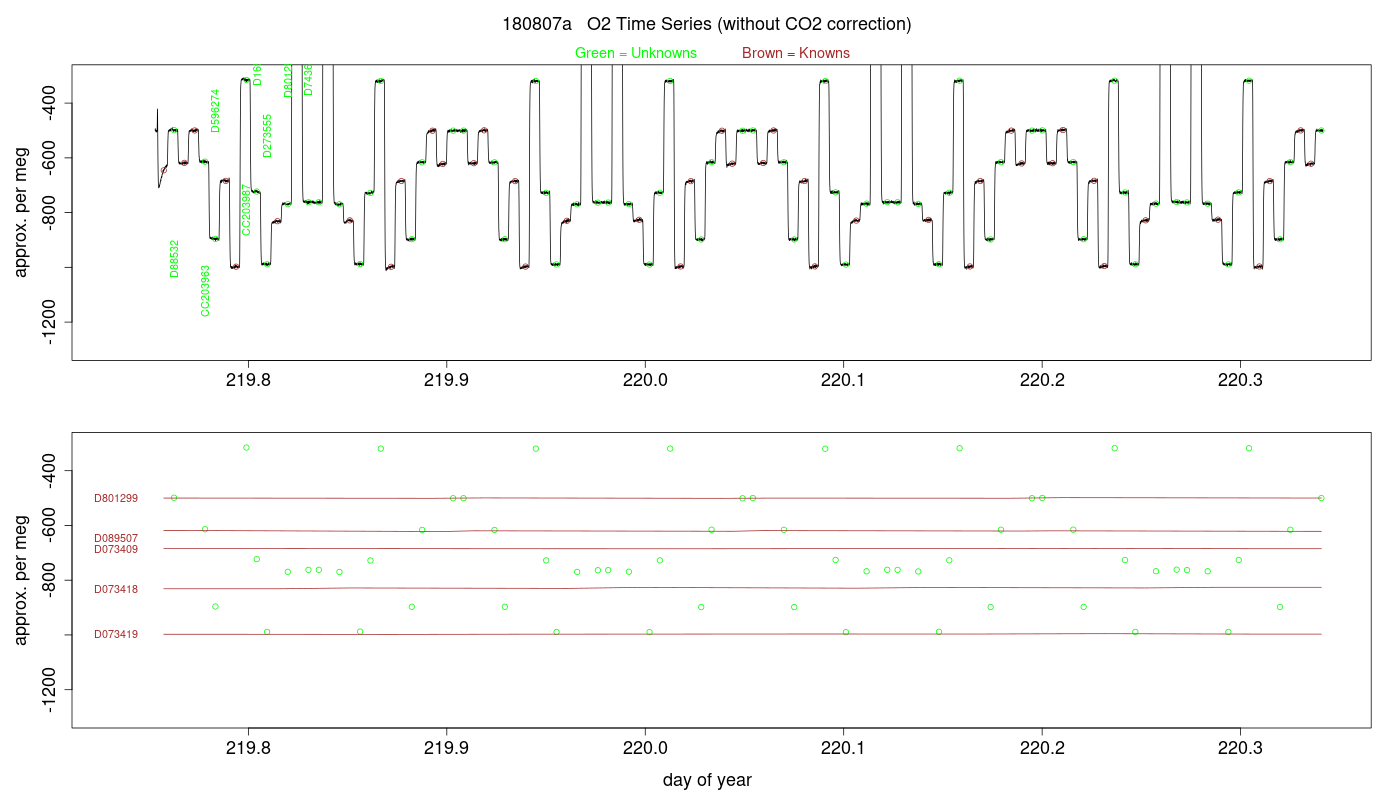

 O2 Timeseries

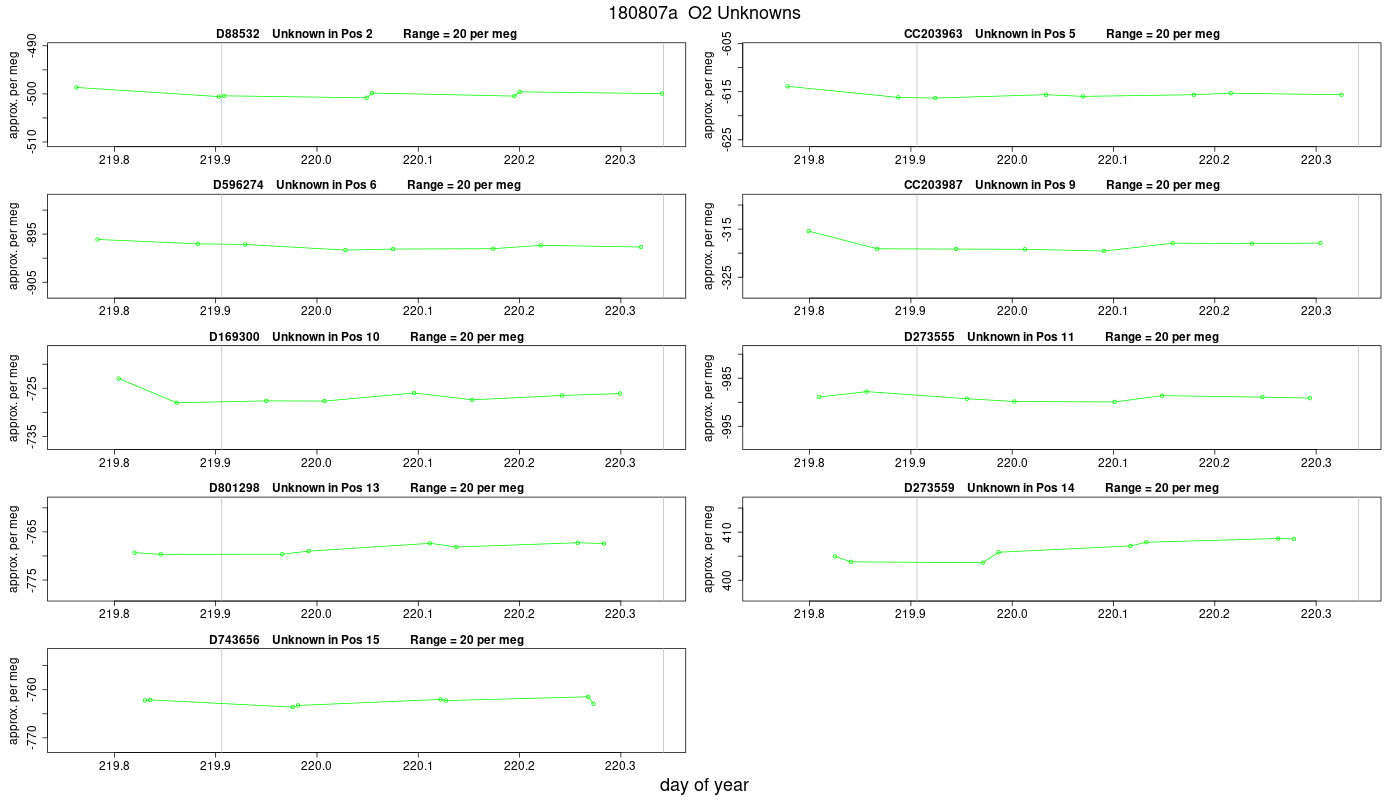

O2 Averages for Unknowns

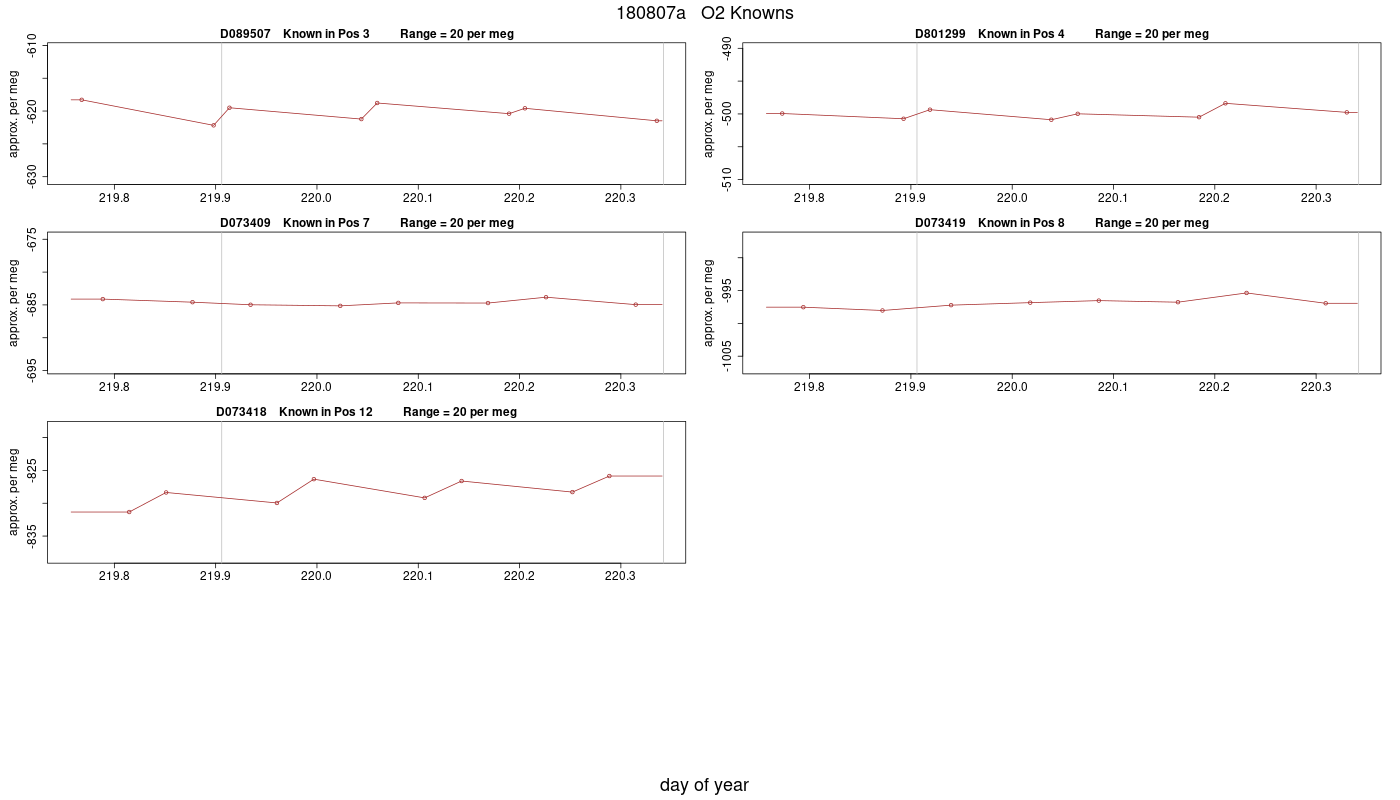

 O2 Averages for Knowns
 O2 Parameters
O2 Results

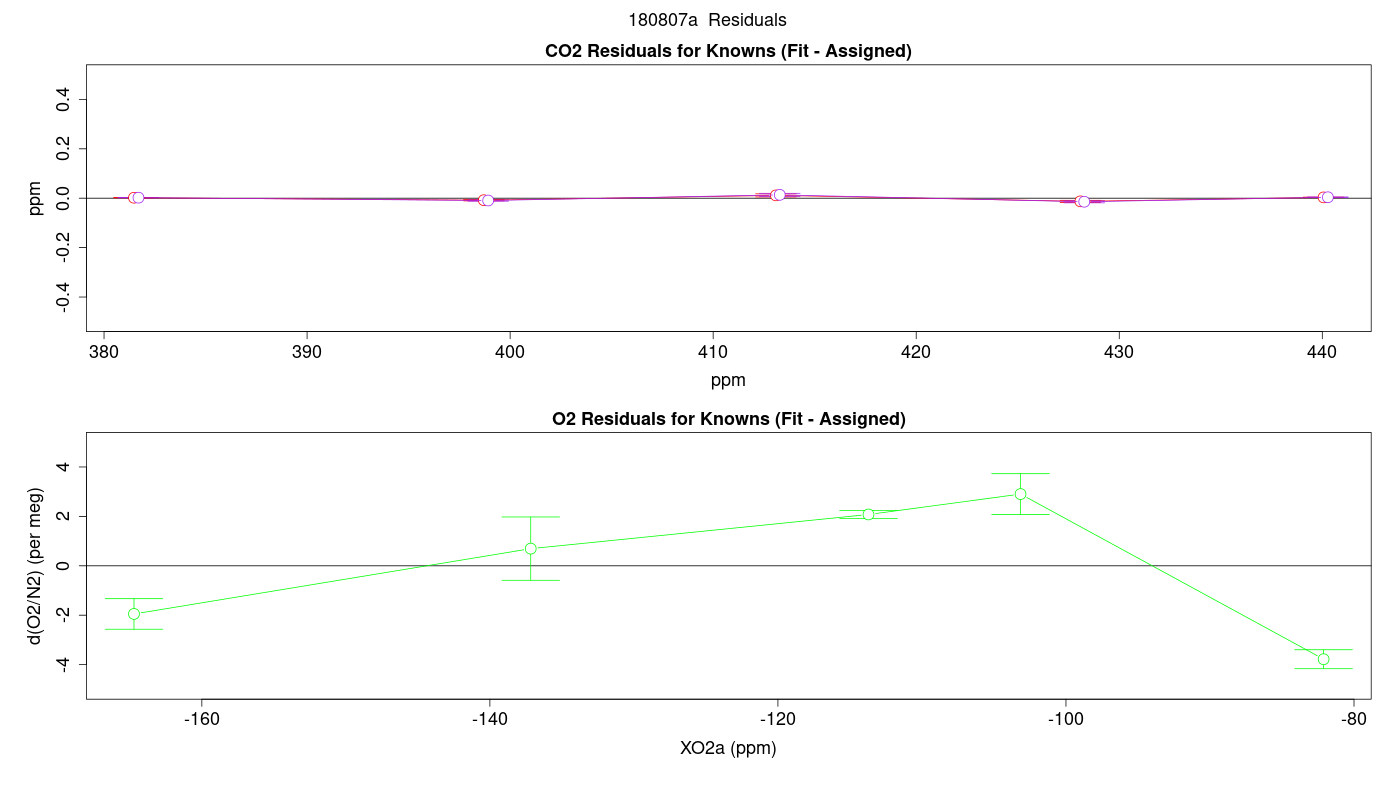

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

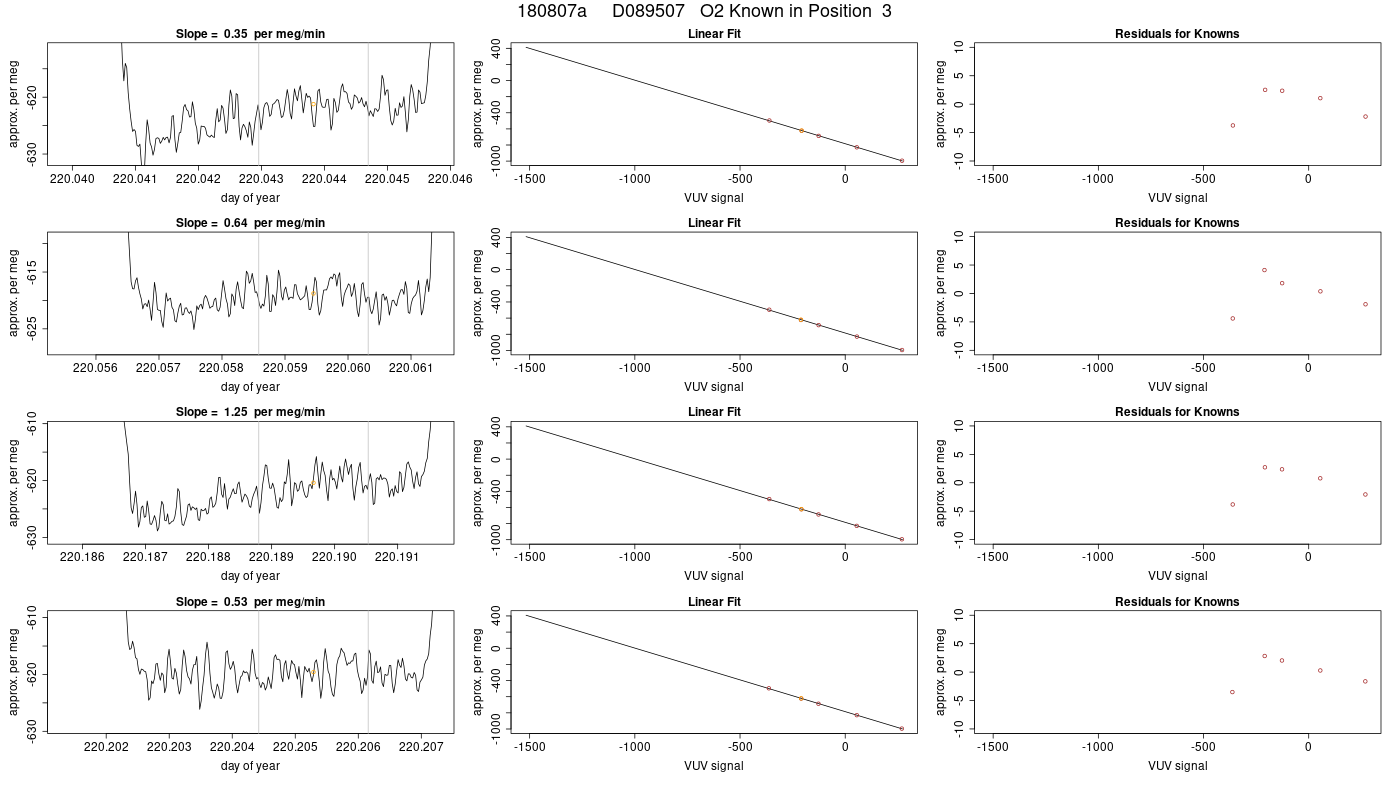

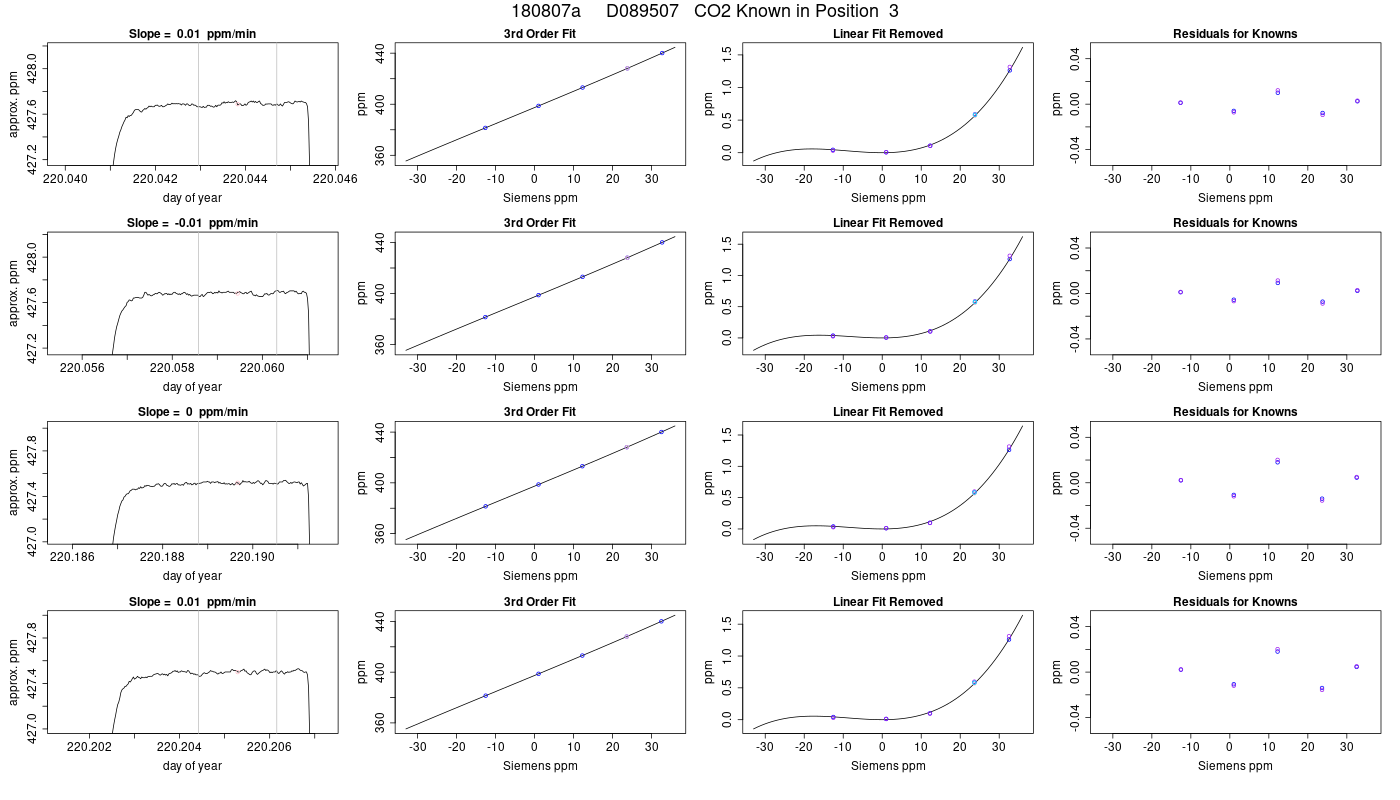

3 D089507 428.087 -0.013 0.004 428.275 -0.014 0.004 6 -559.23 2.90 0.83 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

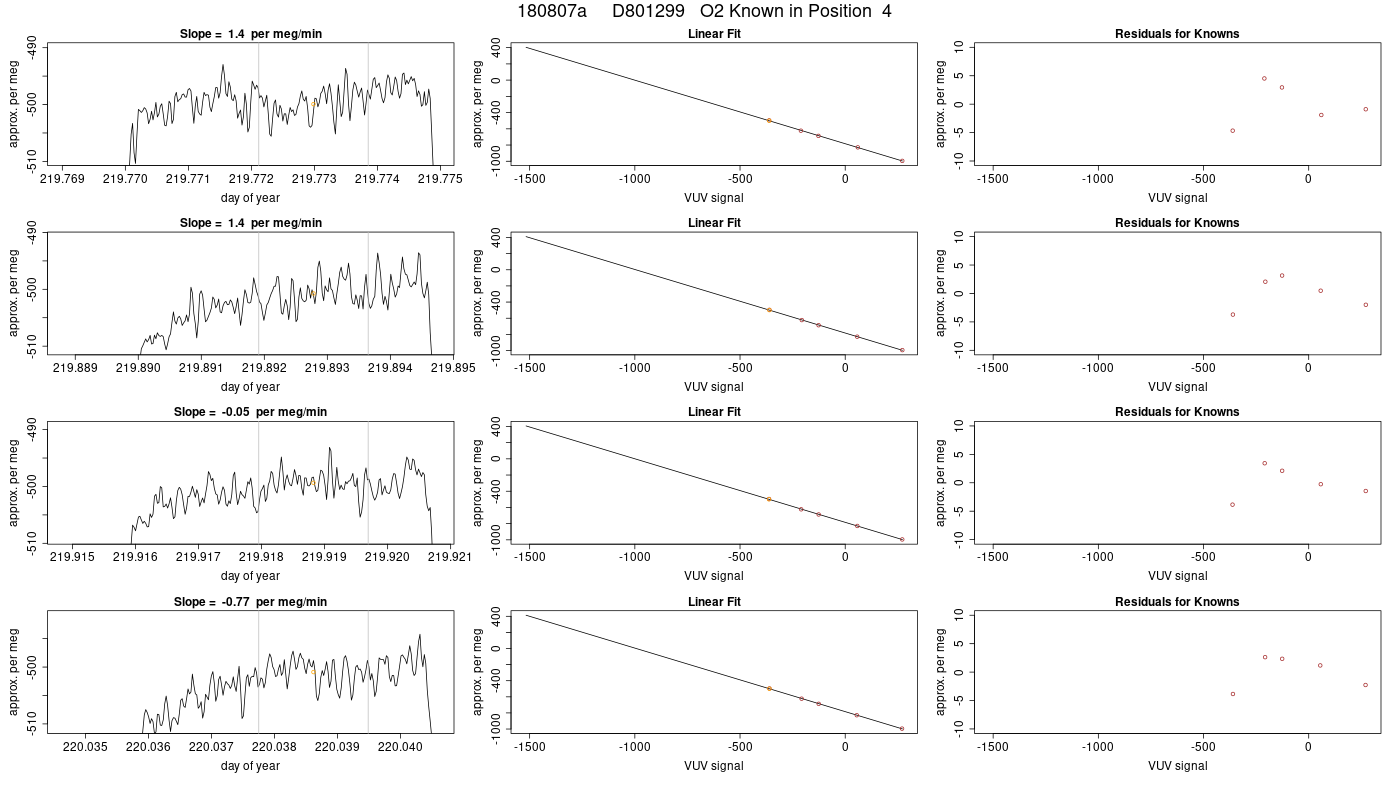

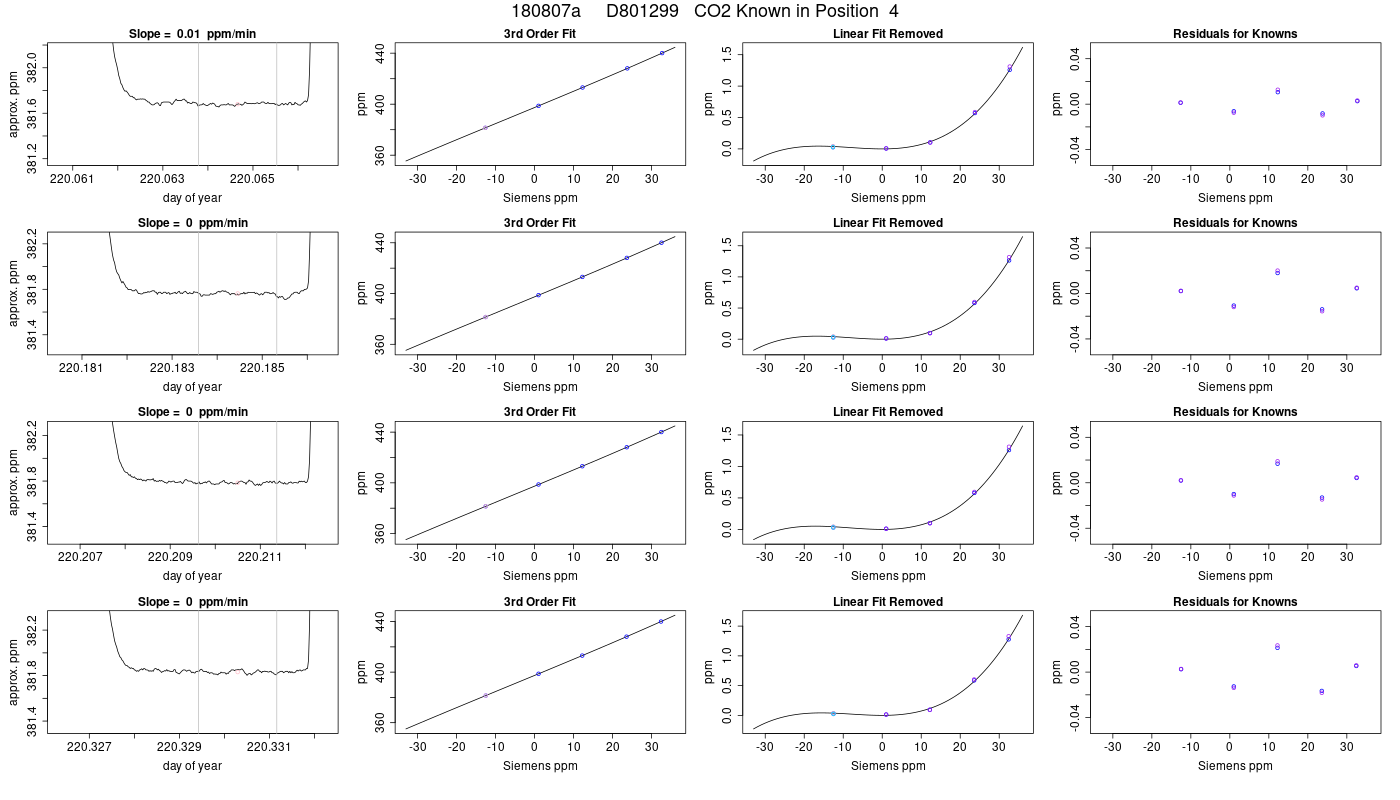

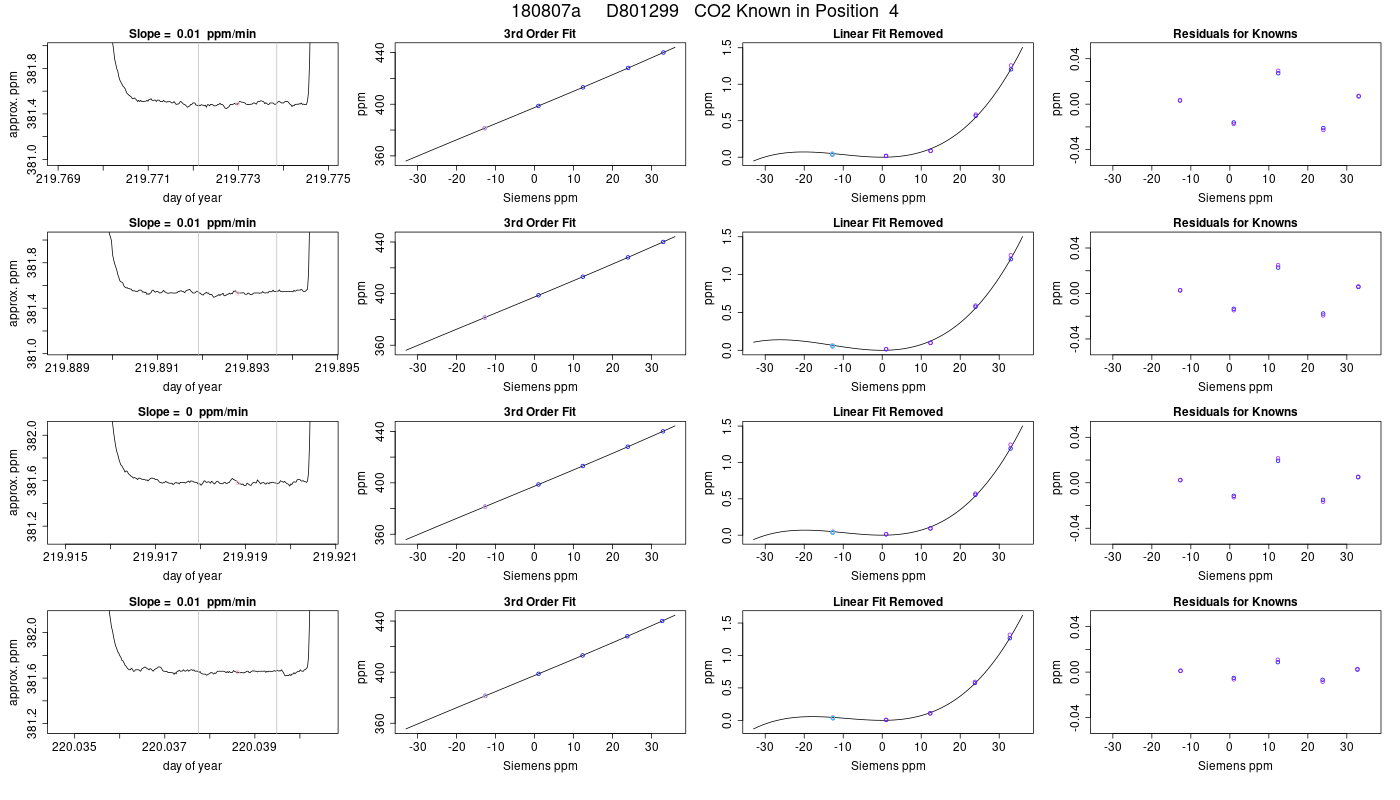

4 D801299 381.475 0.002 0.001 381.695 0.002 0.001 6 -477.75 -3.78 0.38 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

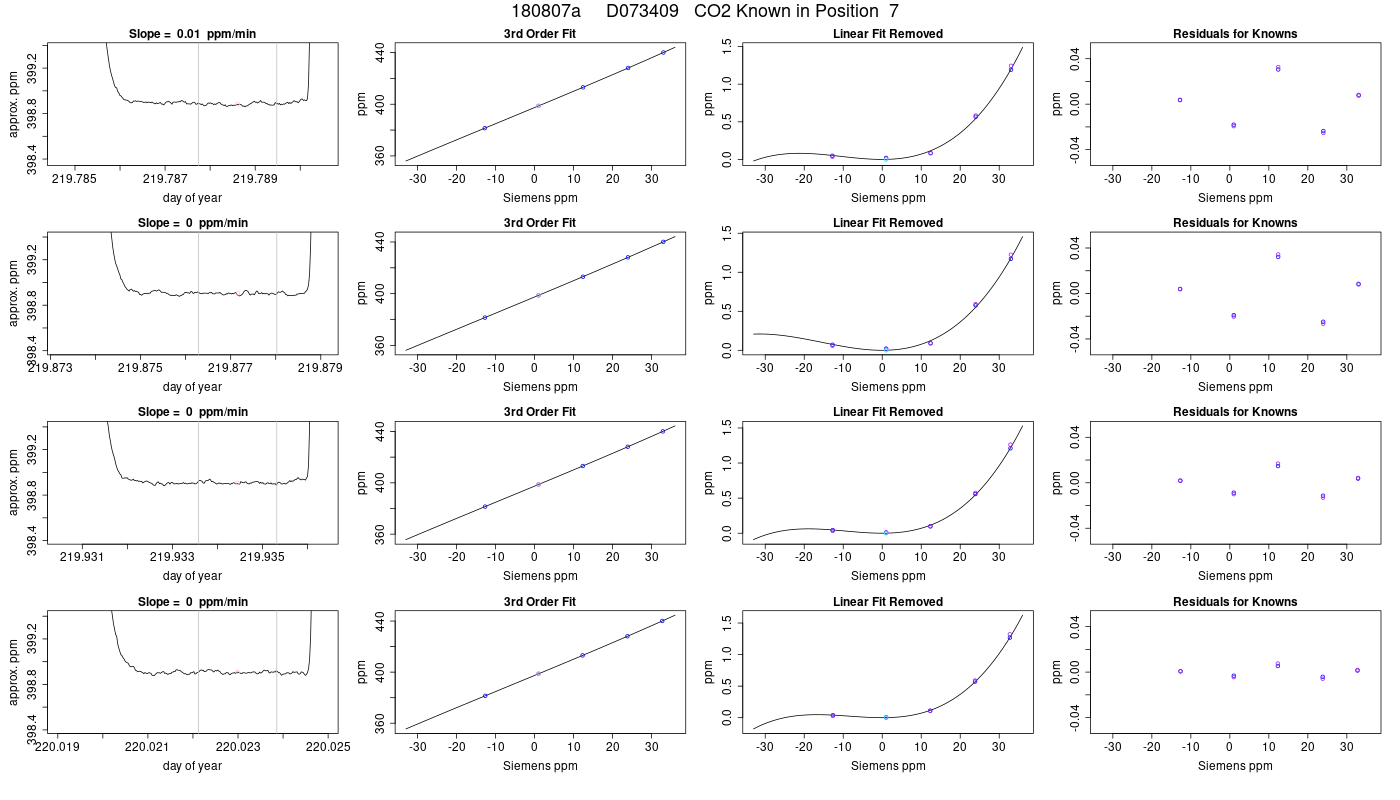

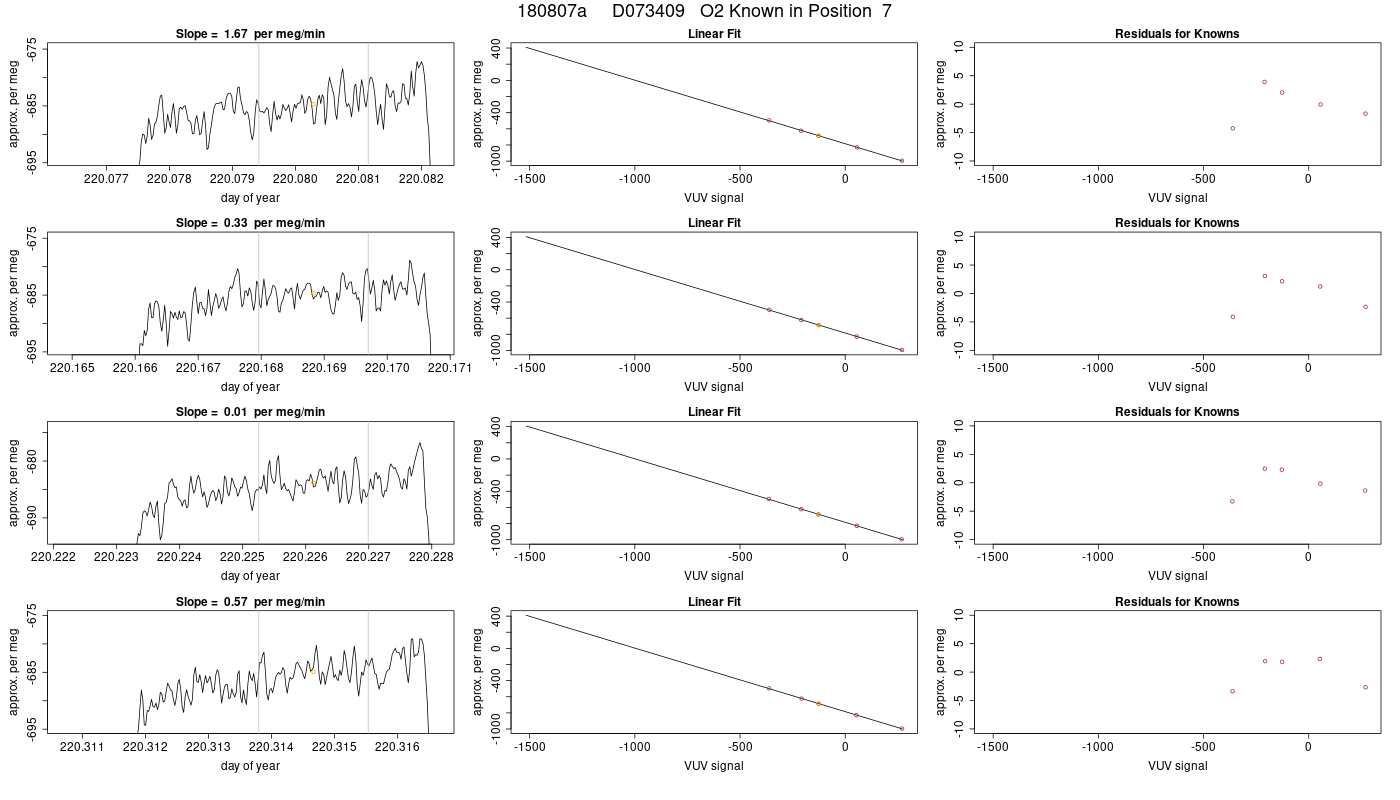

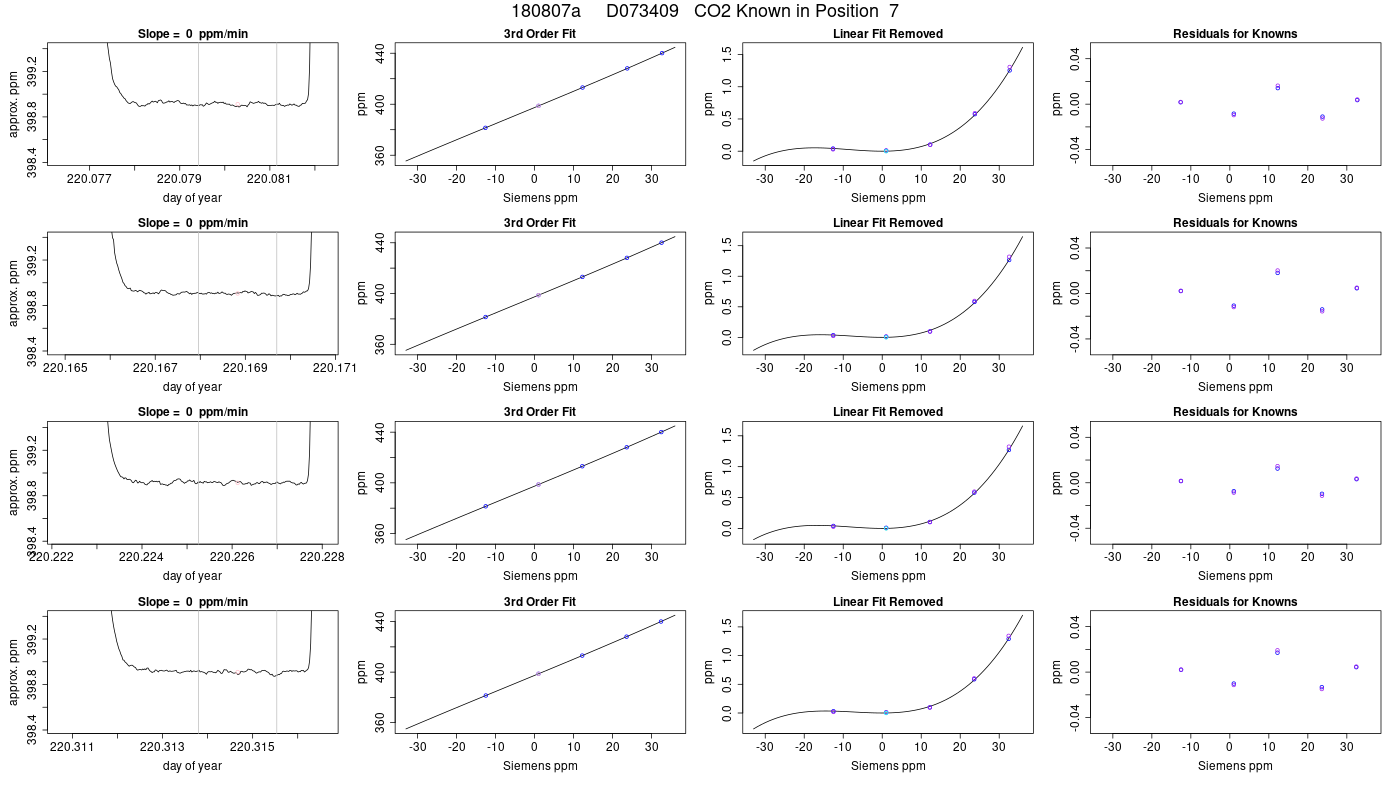

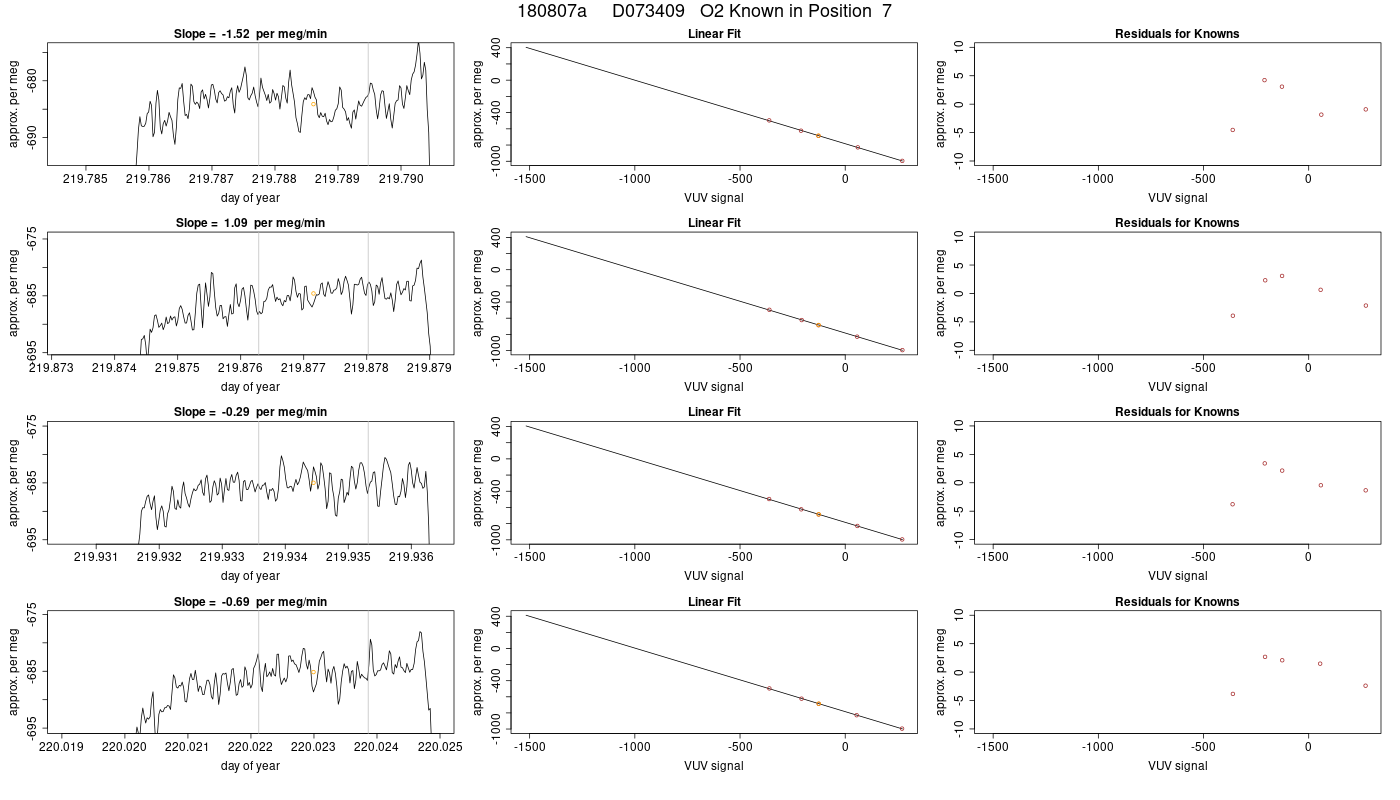

7 D073409 398.707 -0.008 0.003 398.918 -0.009 0.003 6 -651.78 2.08 0.16 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

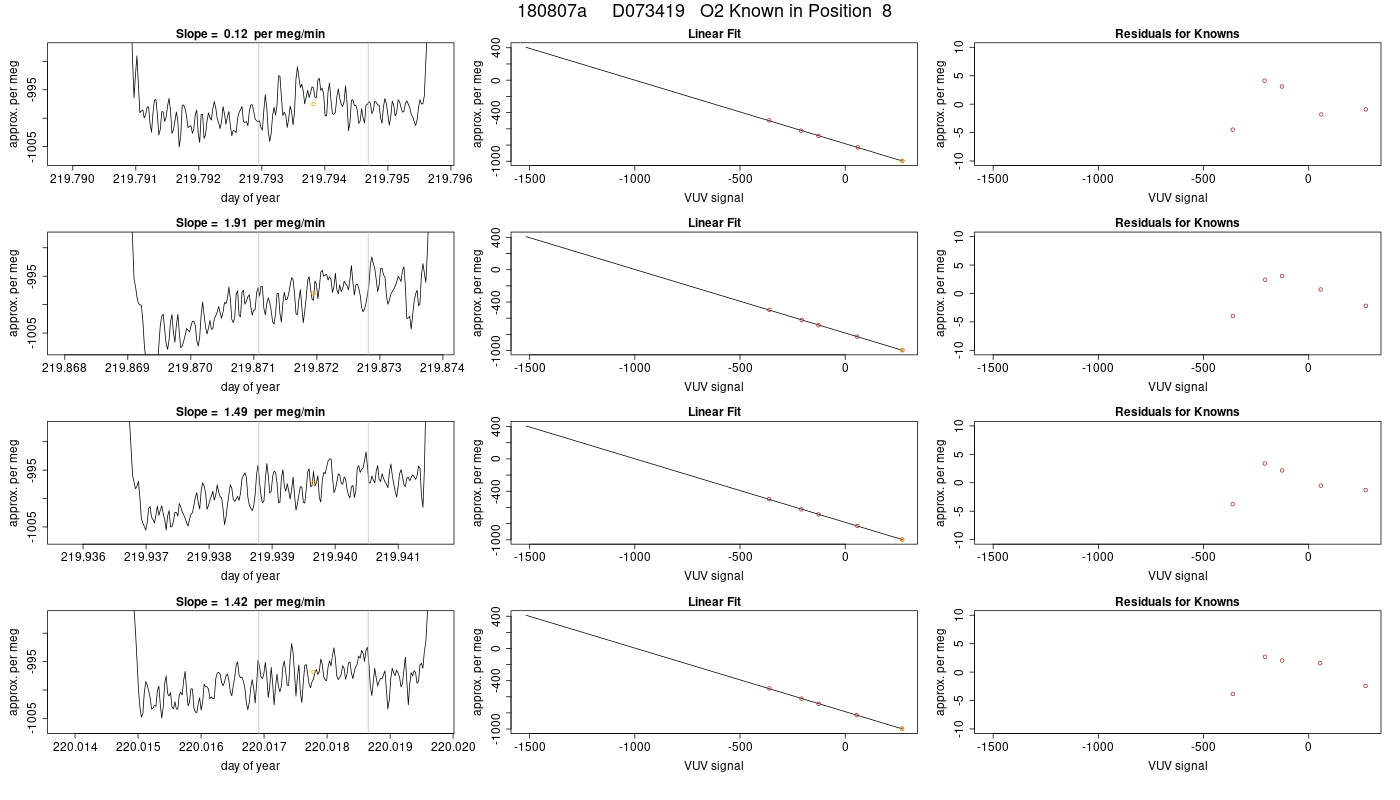

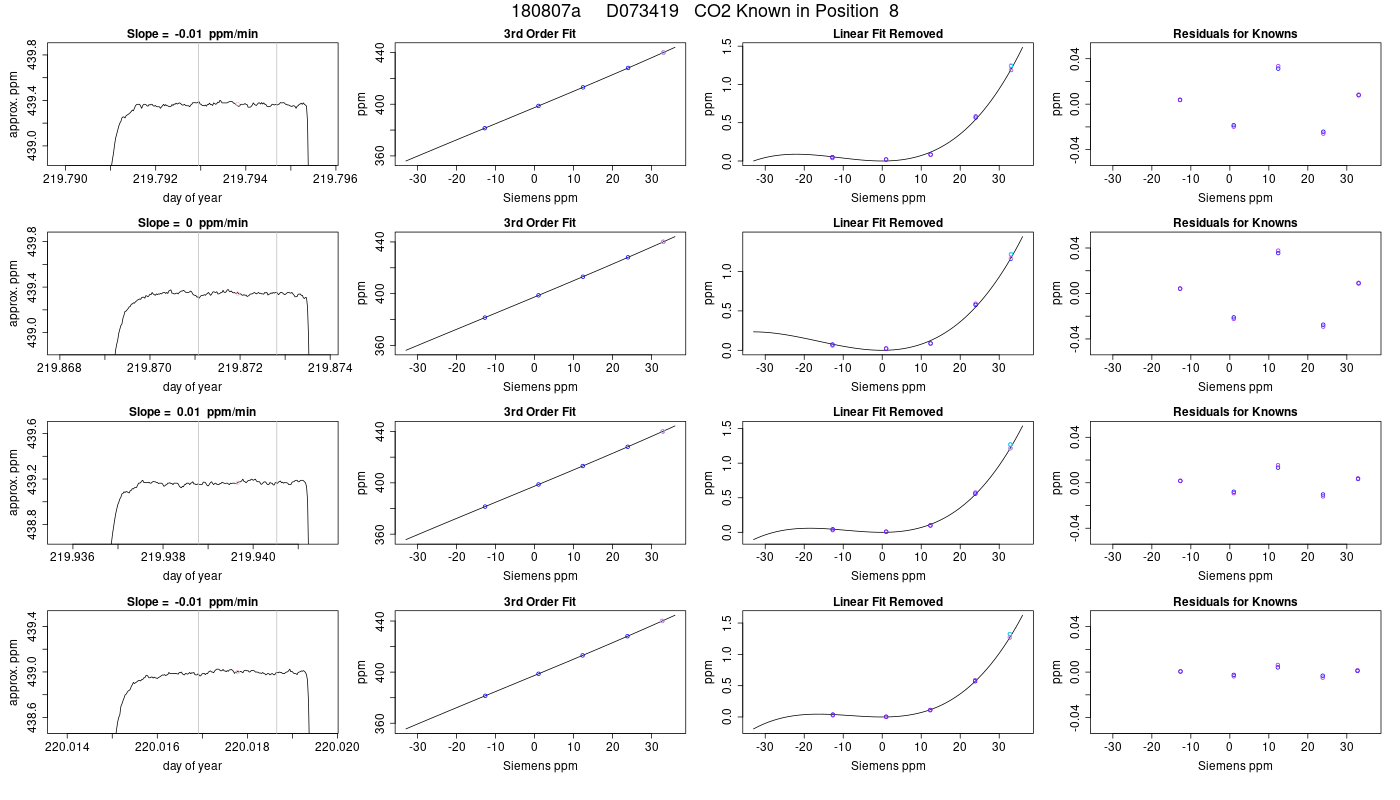

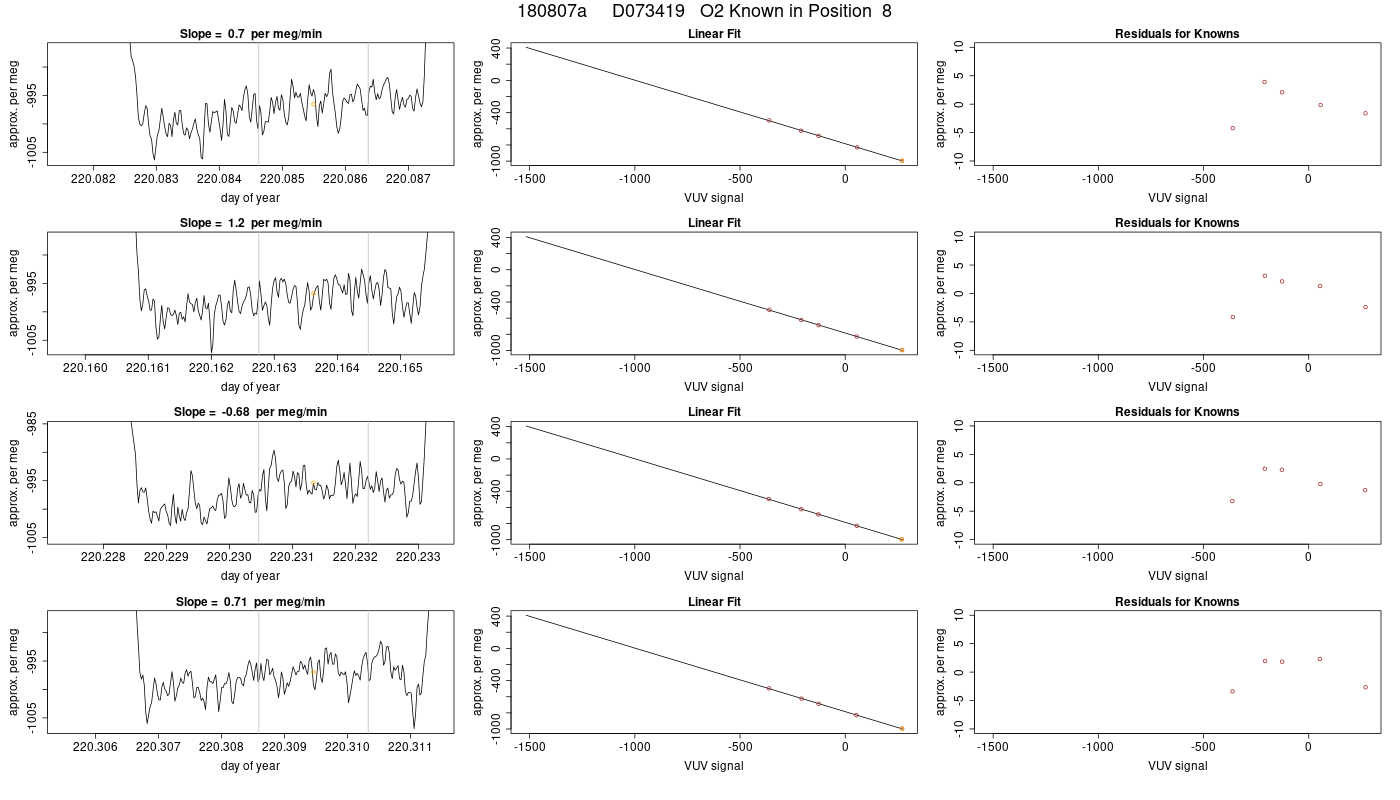

8 D073419 440.065 0.003 0.001 440.275 0.004 0.001 6 -919.32 -1.95 0.62 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

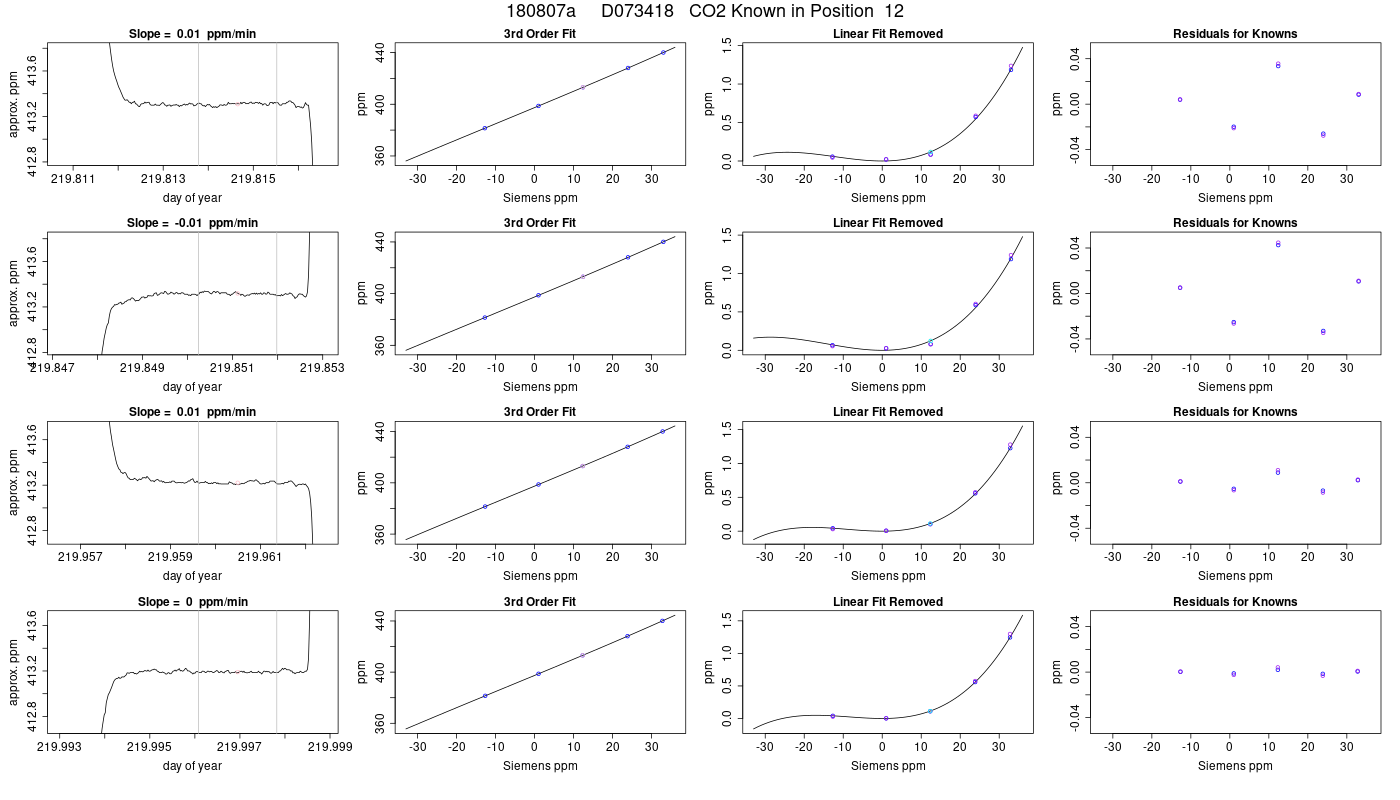

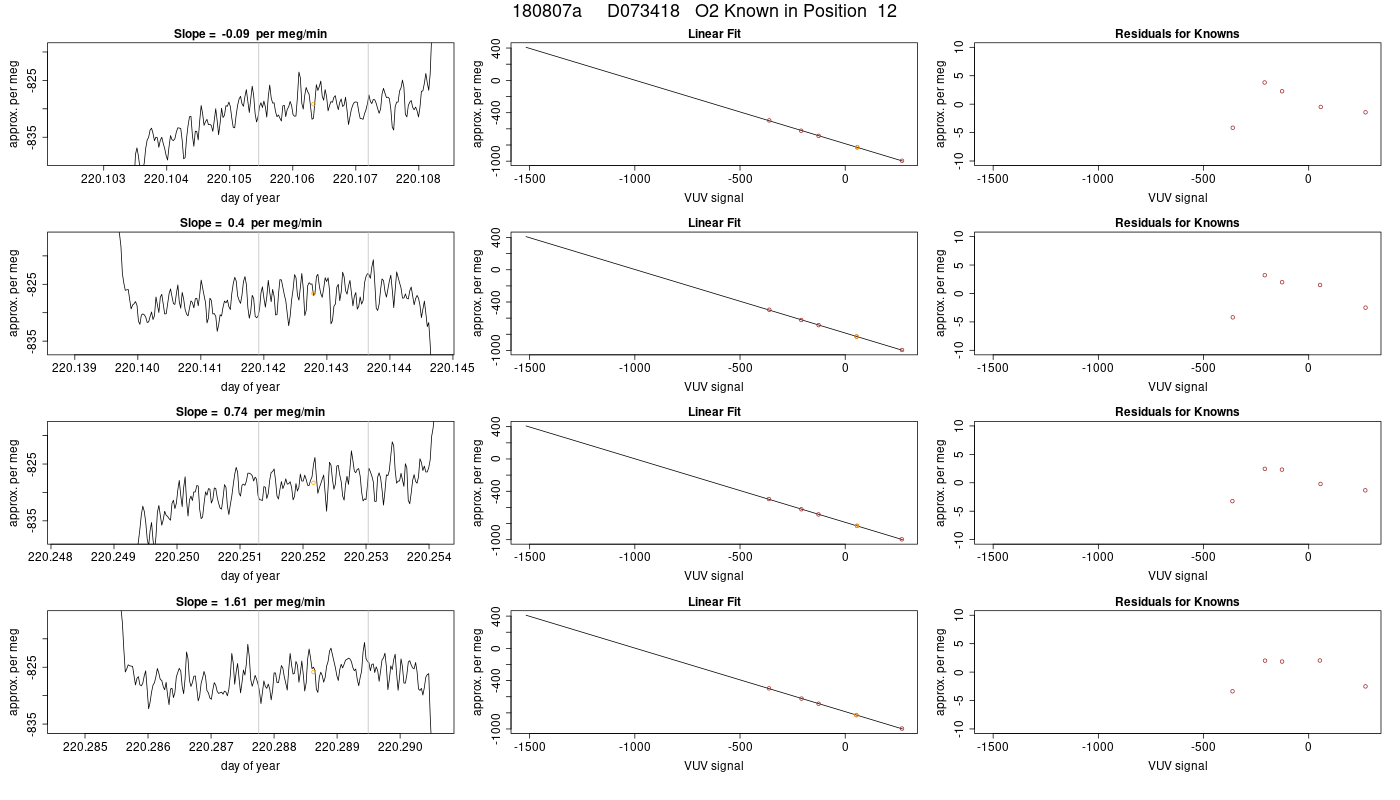

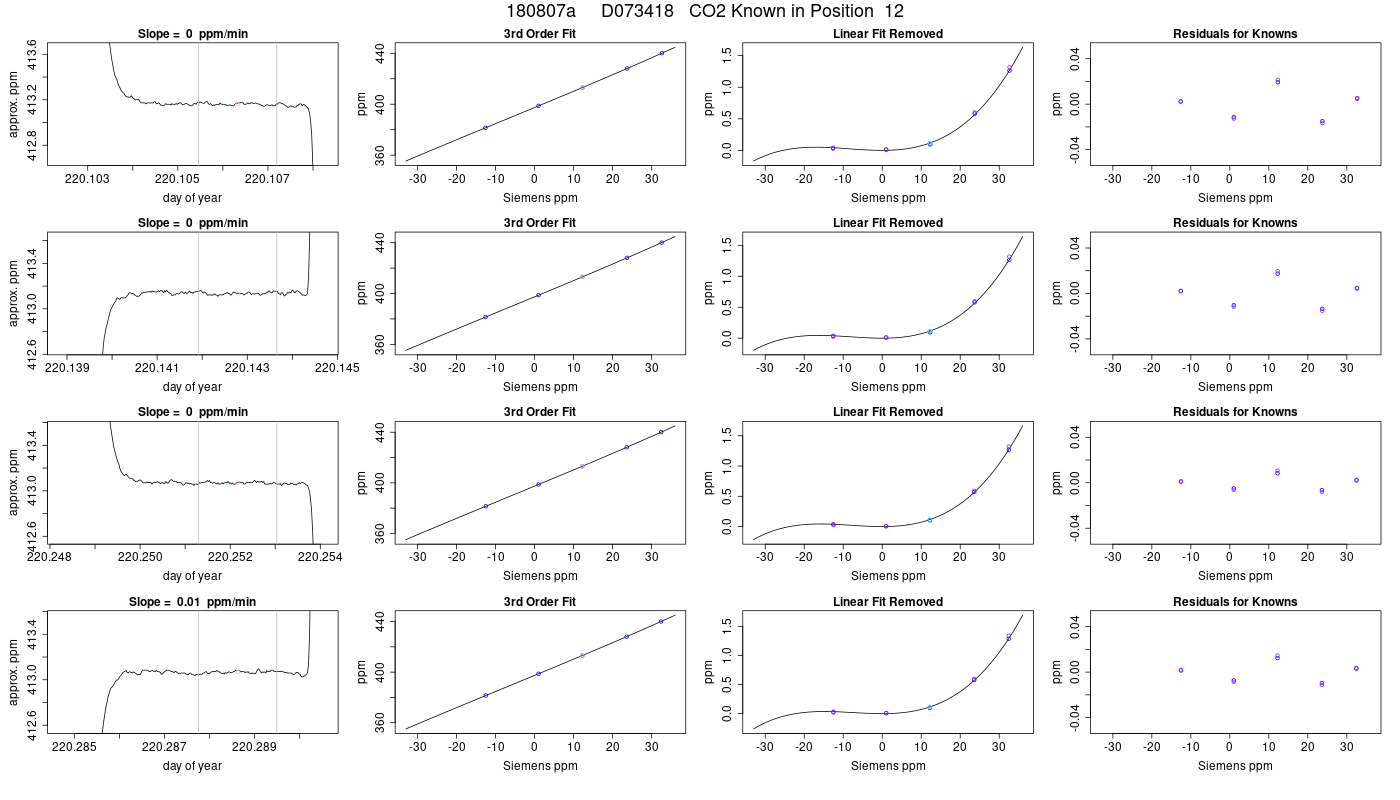

12 D073418 413.092 0.011 0.006 413.280 0.014 0.006 6 -779.40 0.69 1.28 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

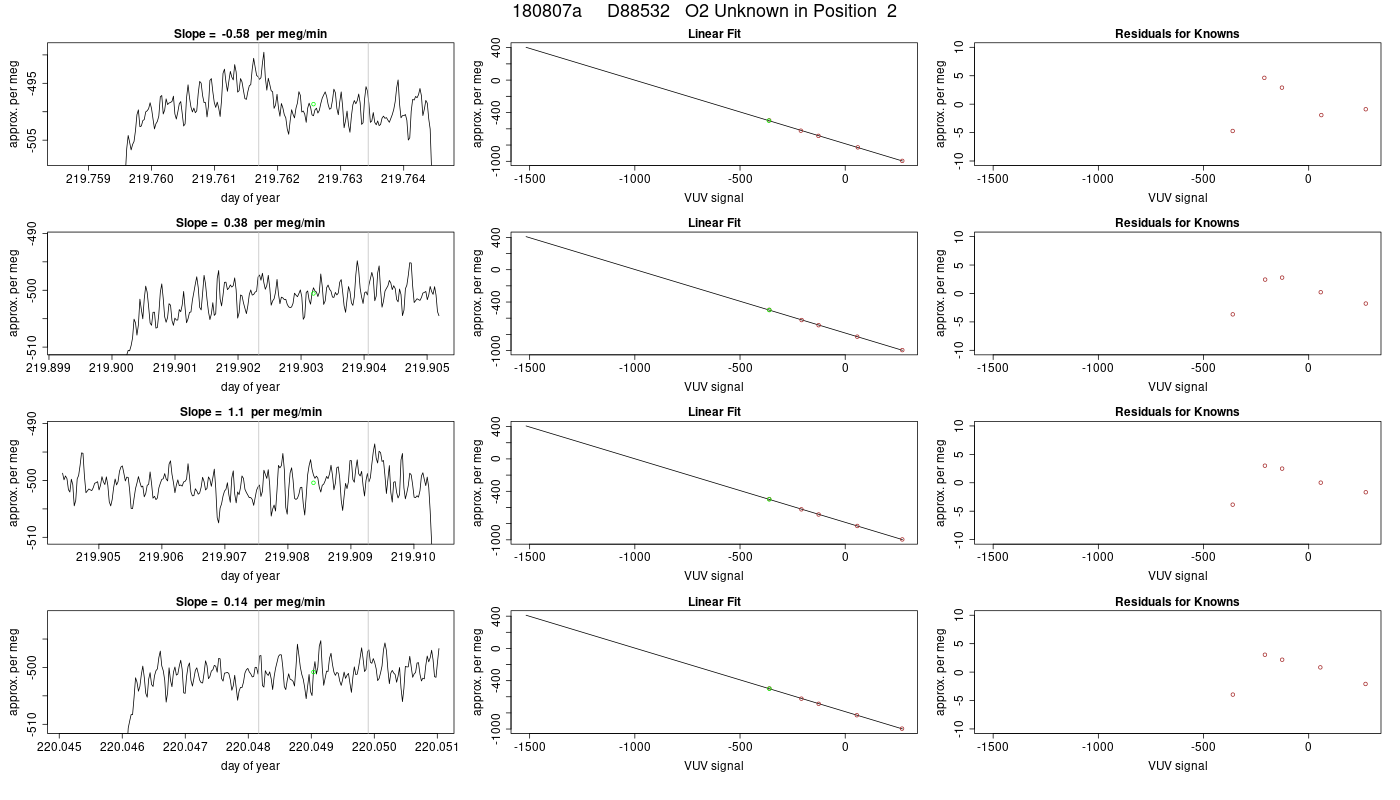

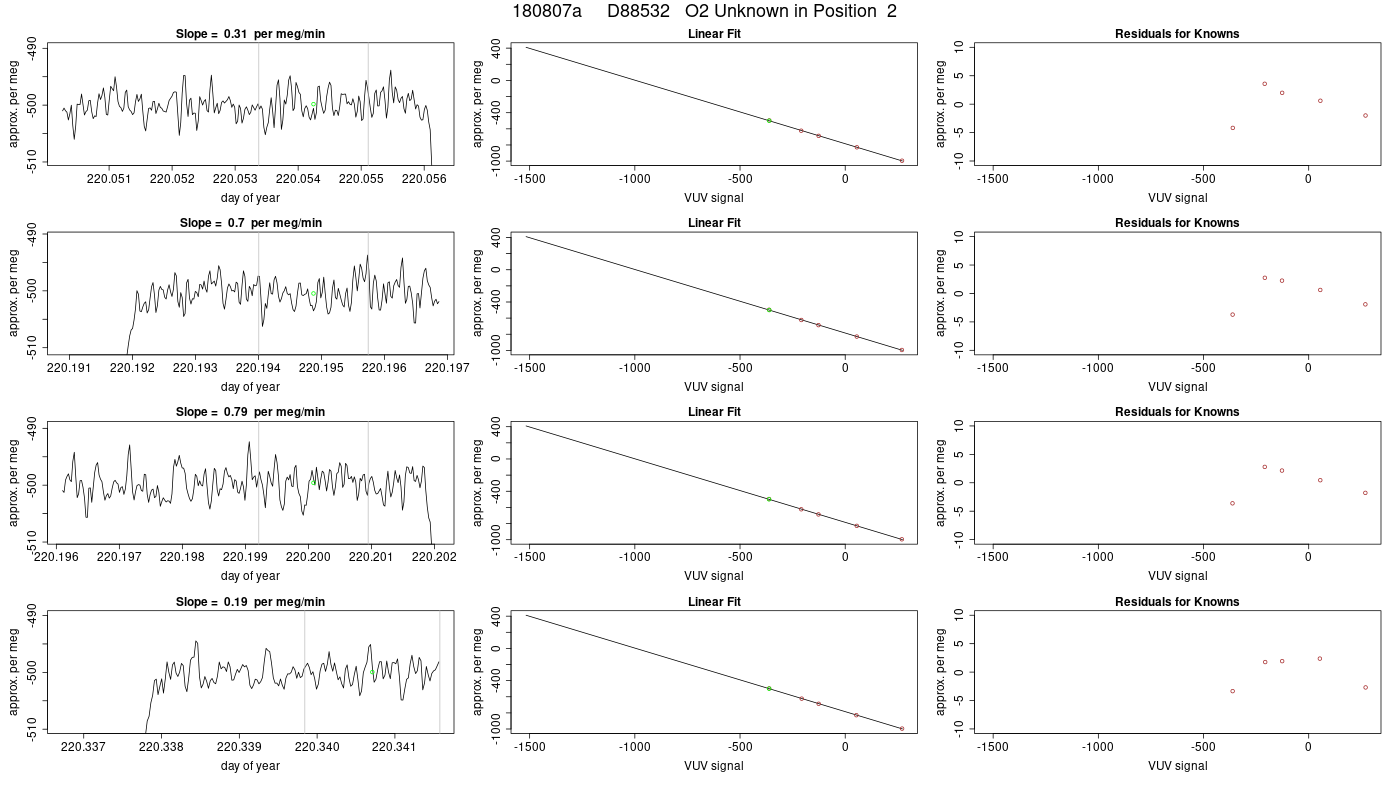

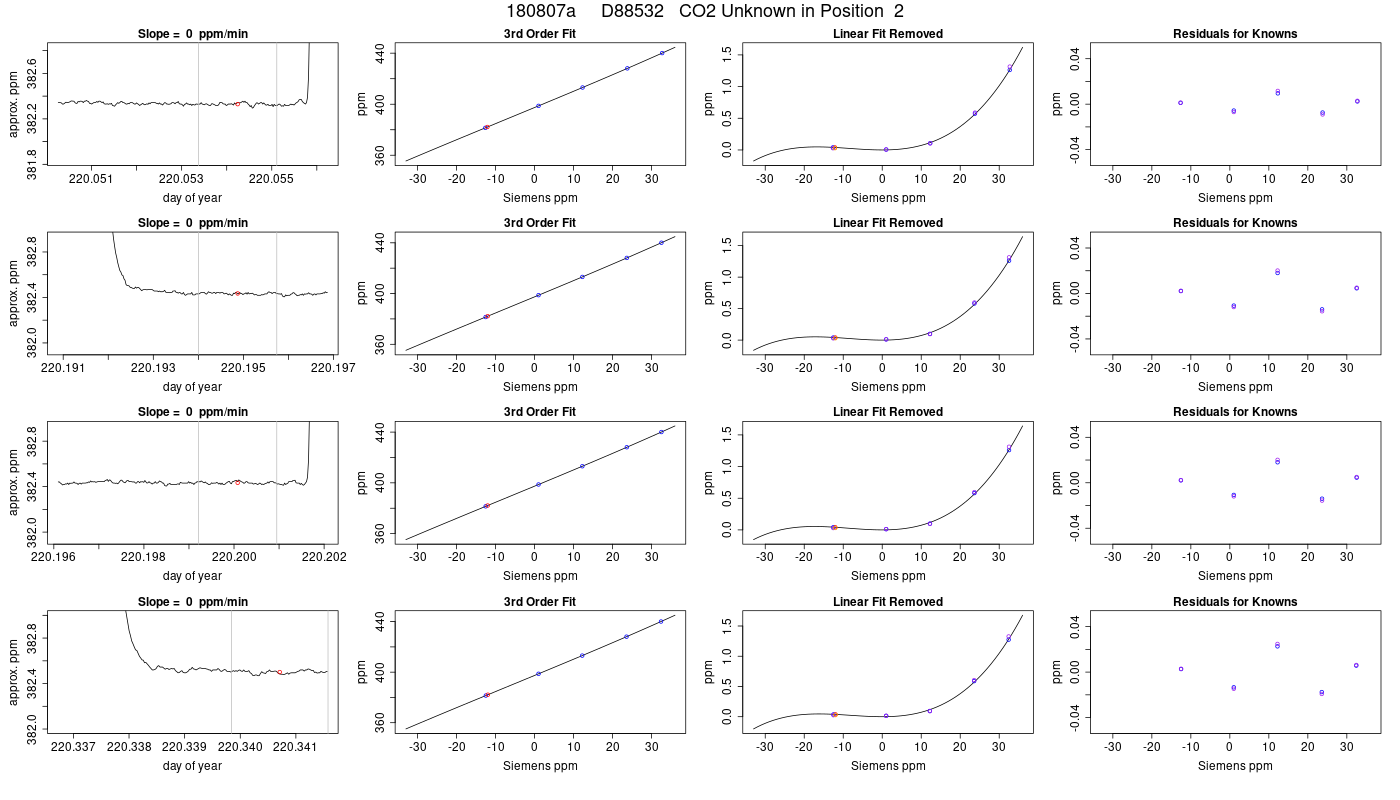

2 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.763 382.153 0.016 -480.79 2.63 382.374 0.016
219.903 382.155 0.009 -481.39 1.87 382.376 0.009
219.908 382.136 0.009 -481.70 2.60 382.357 0.009
220.049 382.157 0.017 -481.59 2.20 382.377 0.017
220.054 382.136 0.012 -481.01 2.35 382.356 0.012
220.195 382.143 0.008 -481.87 2.37 382.364 0.008
220.200 382.138 0.010 -481.31 2.29 382.358 0.010
220.341 382.153 0.014 -480.87 1.97 382.373 0.014

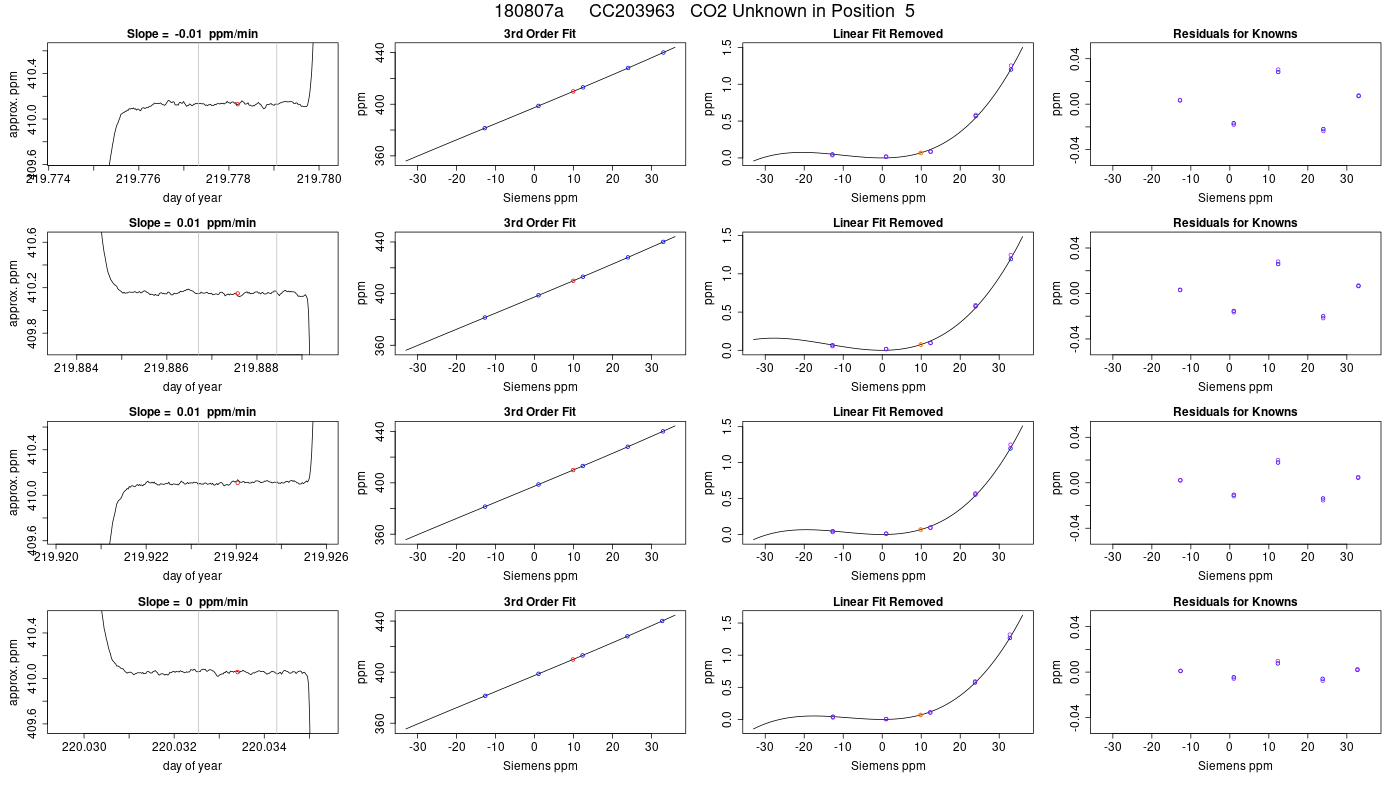

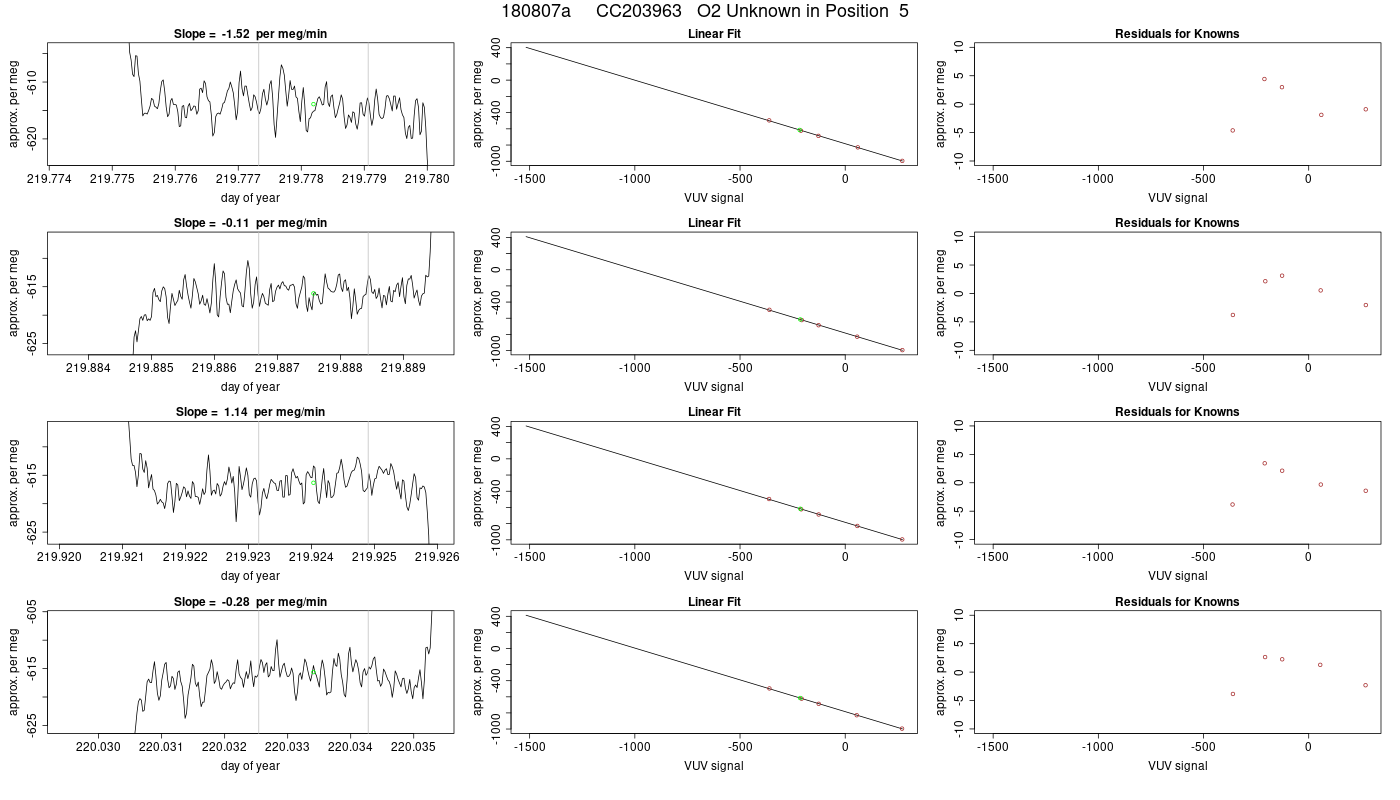

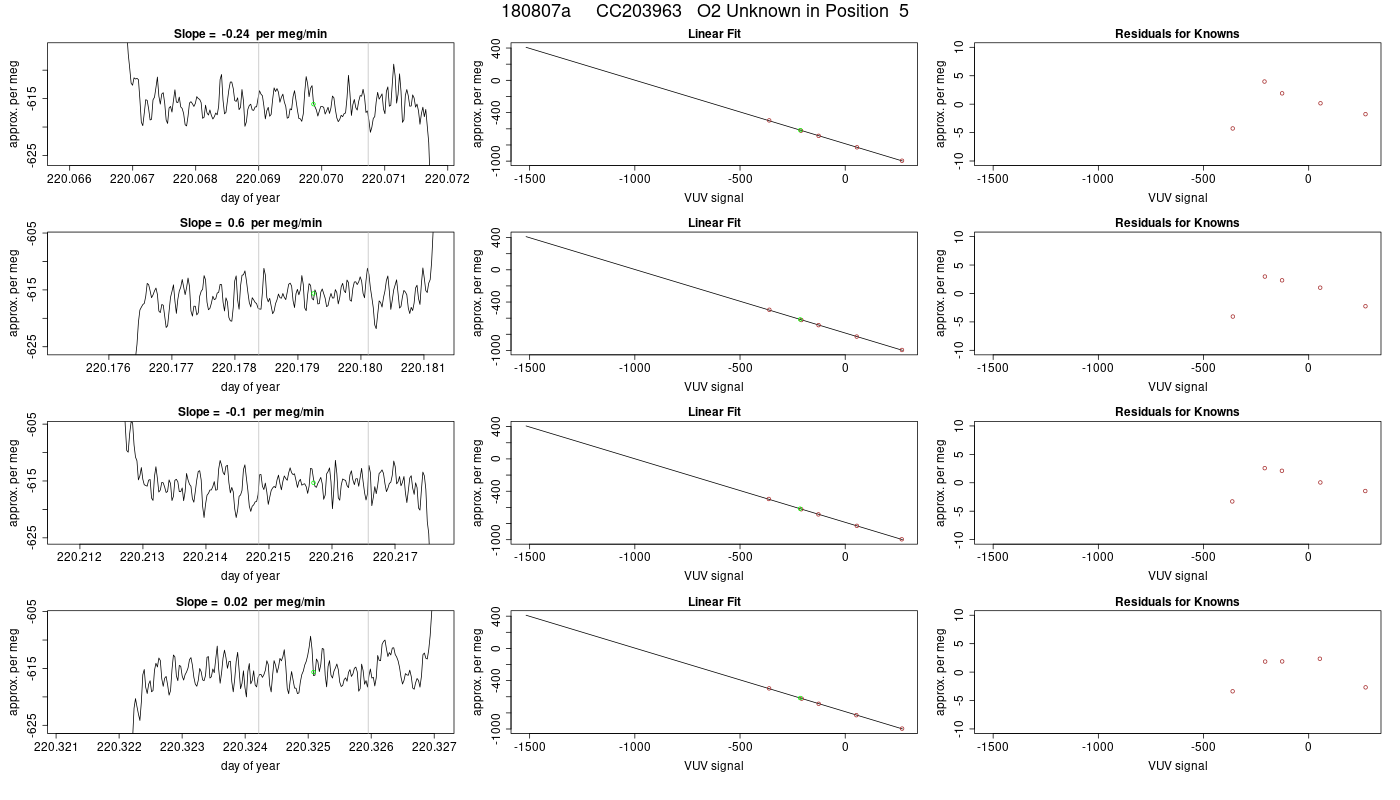

5 CC203963    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.778 409.921 0.013 -568.14 2.67 410.115 0.013
219.888 409.950 0.011 -569.39 1.79 410.144 0.011
219.924 409.931 0.012 -570.51 2.17 410.124 0.012
220.033 409.926 0.013 -569.12 2.09 410.120 0.013
220.070 409.919 0.014 -570.35 1.93 410.113 0.014
220.179 409.933 0.011 -569.61 1.77 410.127 0.011
220.216 409.917 0.013 -570.27 1.62 410.111 0.013
220.325 409.912 0.011 -569.70 2.16 410.106 0.011

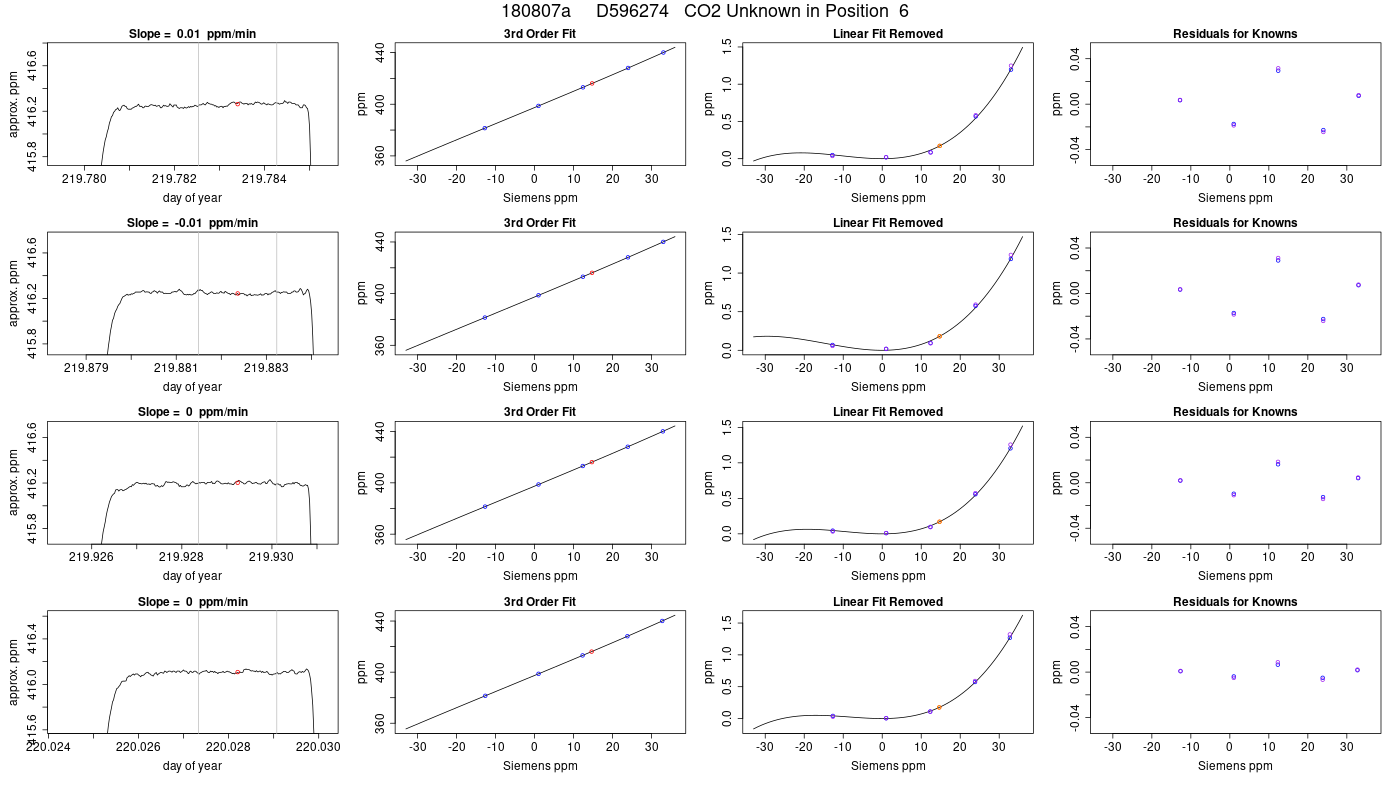

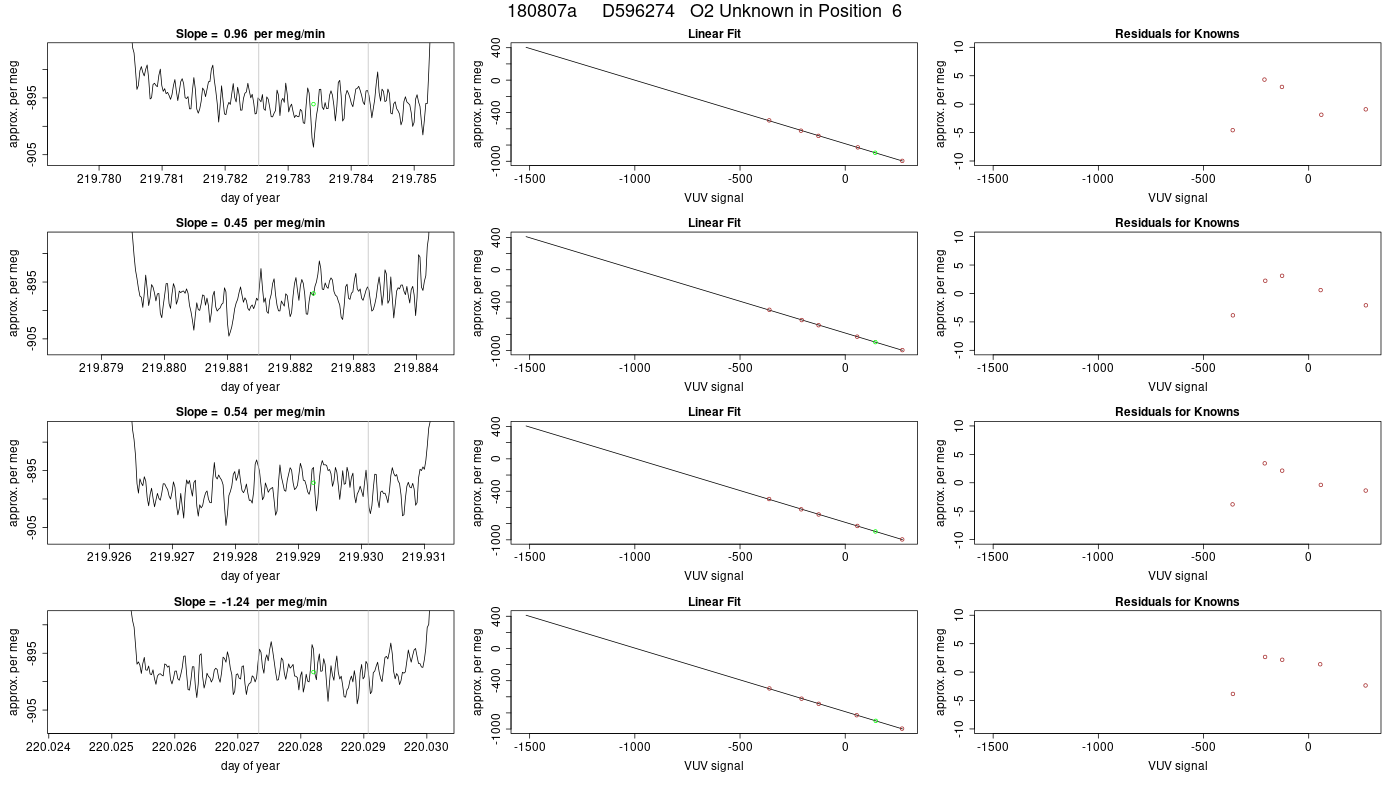

6 D596274    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.783 416.110 0.012 -843.00 2.26 416.297 0.012
219.882 416.116 0.012 -844.25 2.17 416.303 0.012
219.929 416.109 0.010 -844.50 2.16 416.296 0.010
220.028 416.084 0.011 -846.68 2.34 416.271 0.011
220.075 416.073 0.011 -846.36 2.25 416.260 0.011
220.174 416.076 0.017 -846.65 2.16 416.264 0.017
220.221 416.080 0.011 -846.25 2.13 416.267 0.011
220.320 416.066 0.011 -846.33 2.28 416.253 0.011

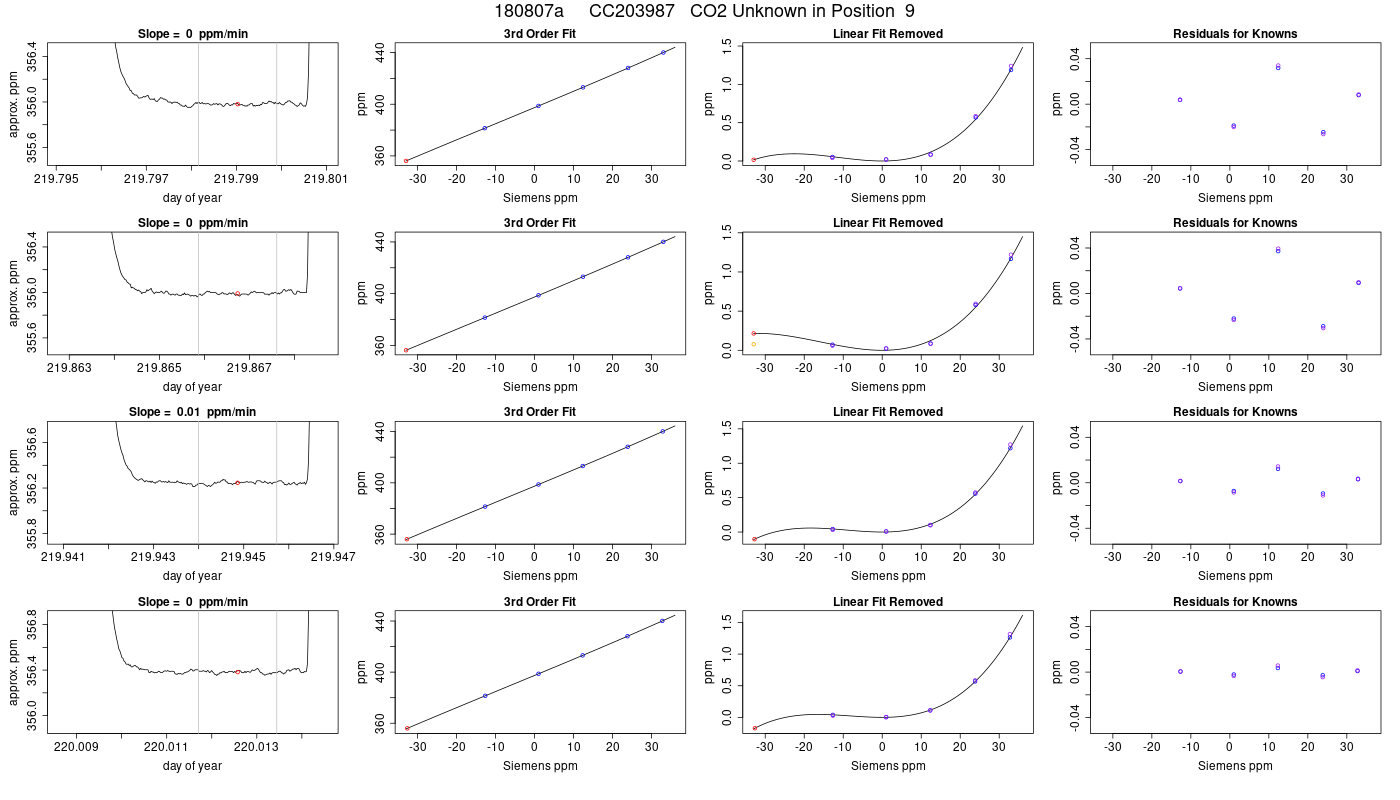

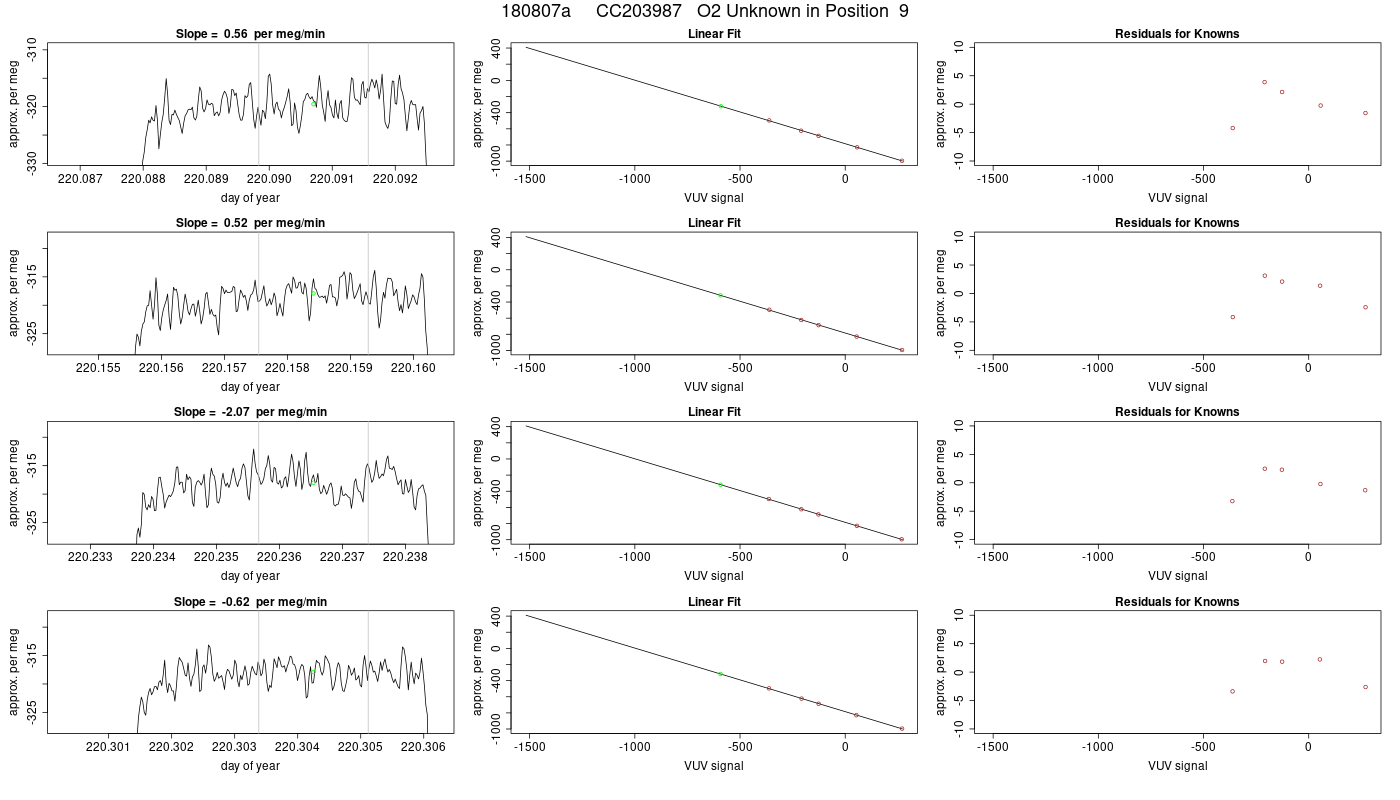

9 CC203987    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.799 356.106 0.011 -323.45 2.46 356.233 0.011
219.867 356.235 0.010 -325.50 2.53 356.362 0.010
219.945 356.040 0.013 -326.63 1.99 356.167 0.013
220.013 356.012 0.013 -325.09 1.81 356.139 0.013
220.091 356.019 0.015 -326.76 2.37 356.145 0.015
220.158 355.962 0.011 -324.48 1.87 356.088 0.011
220.237 355.994 0.014 -325.52 2.27 356.121 0.014
220.304 355.935 0.013 -324.66 1.85 356.062 0.013

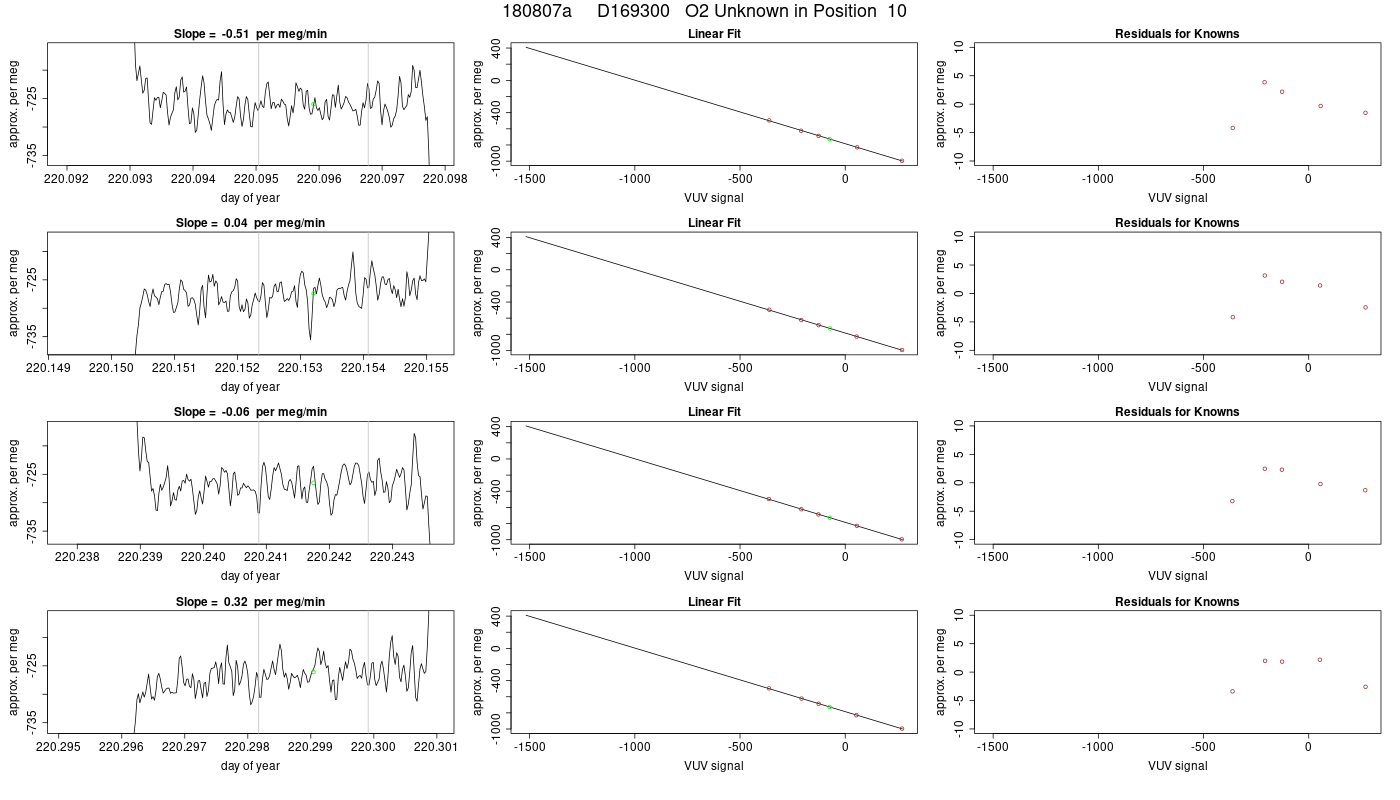

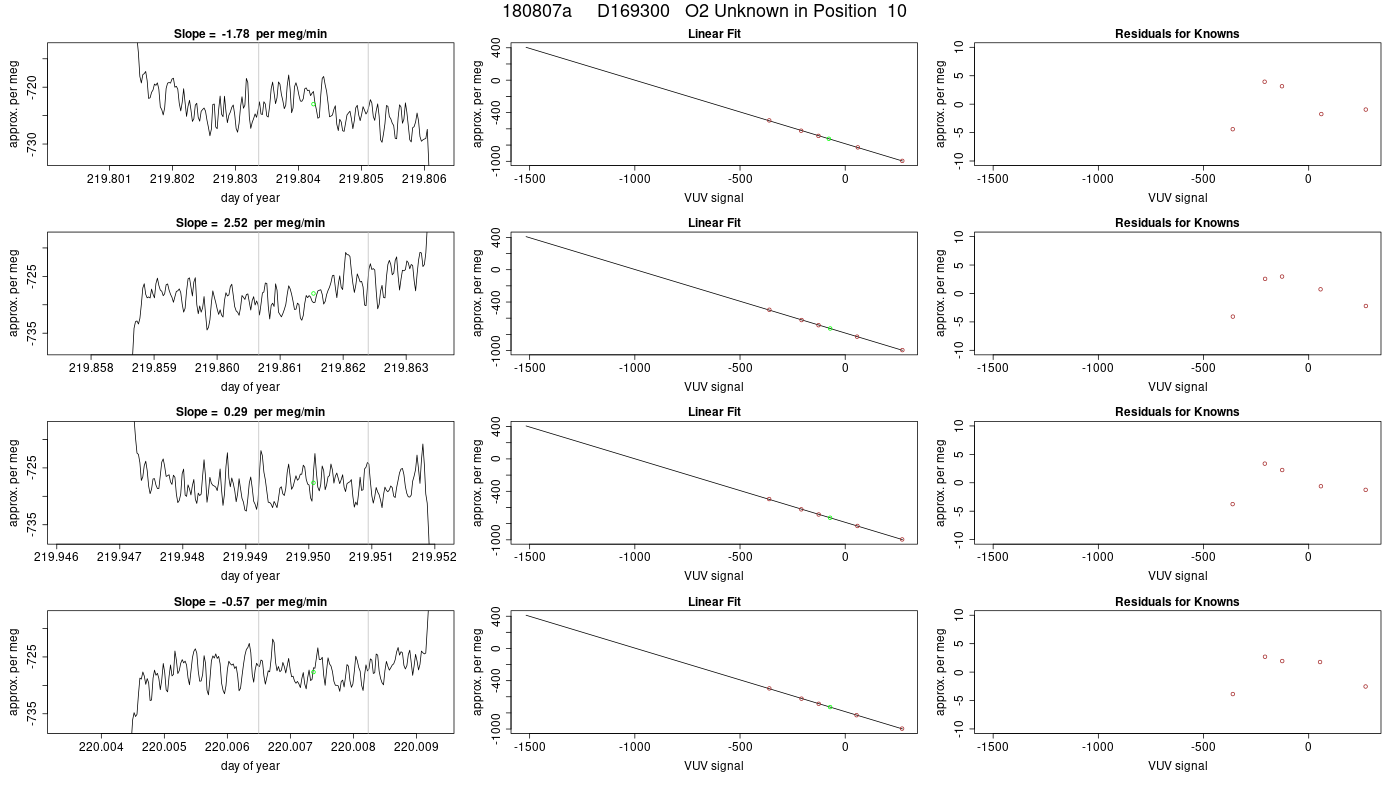

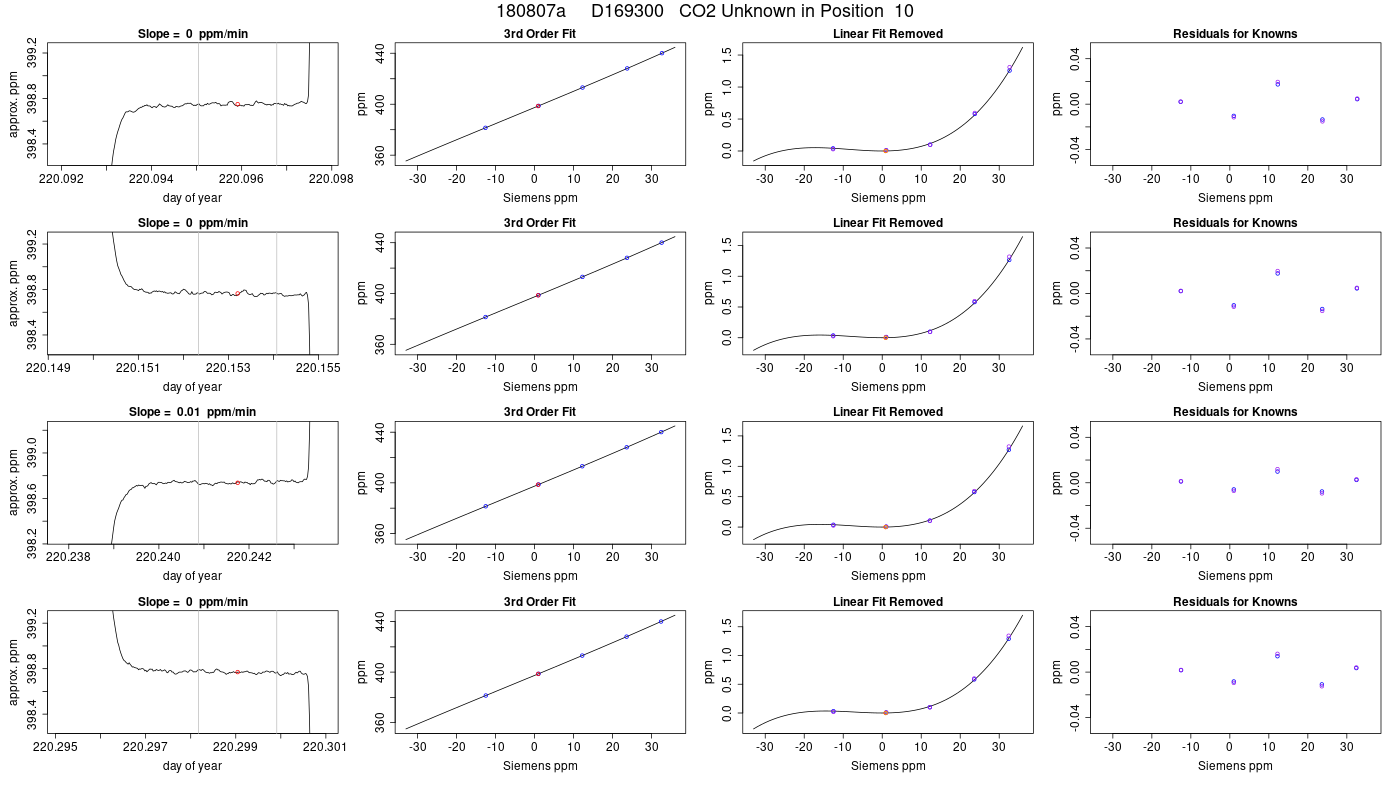

10 D169300    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.804 398.538 0.011 -687.67 2.48 398.748 0.011
219.862 398.536 0.016 -692.69 2.69 398.746 0.016
219.950 398.537 0.013 -692.47 2.35 398.747 0.013
220.007 398.553 0.009 -692.89 1.97 398.763 0.009
220.096 398.535 0.011 -691.28 1.79 398.745 0.011
220.153 398.554 0.013 -692.88 2.38 398.764 0.013
220.242 398.524 0.013 -692.39 2.42 398.734 0.013
220.299 398.557 0.010 -691.74 2.10 398.767 0.010

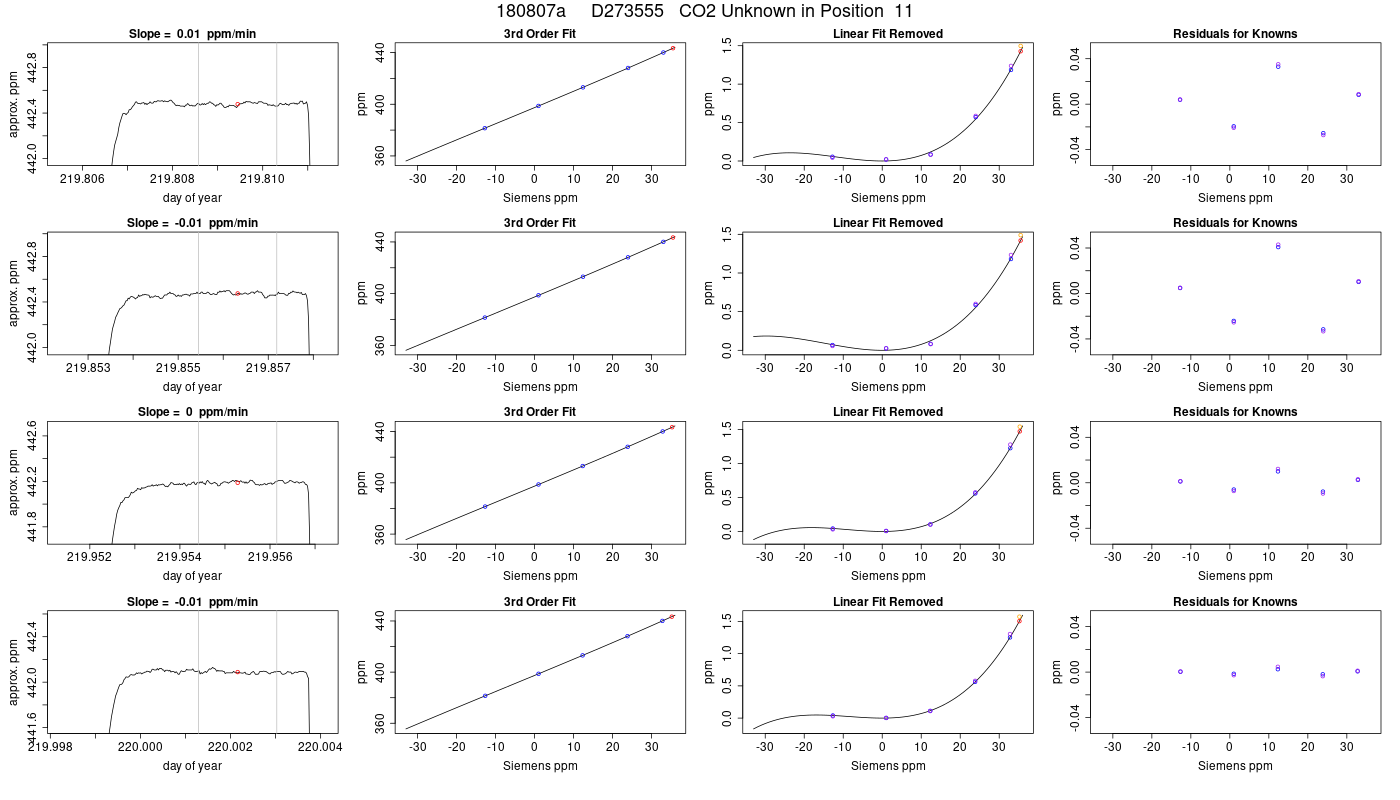

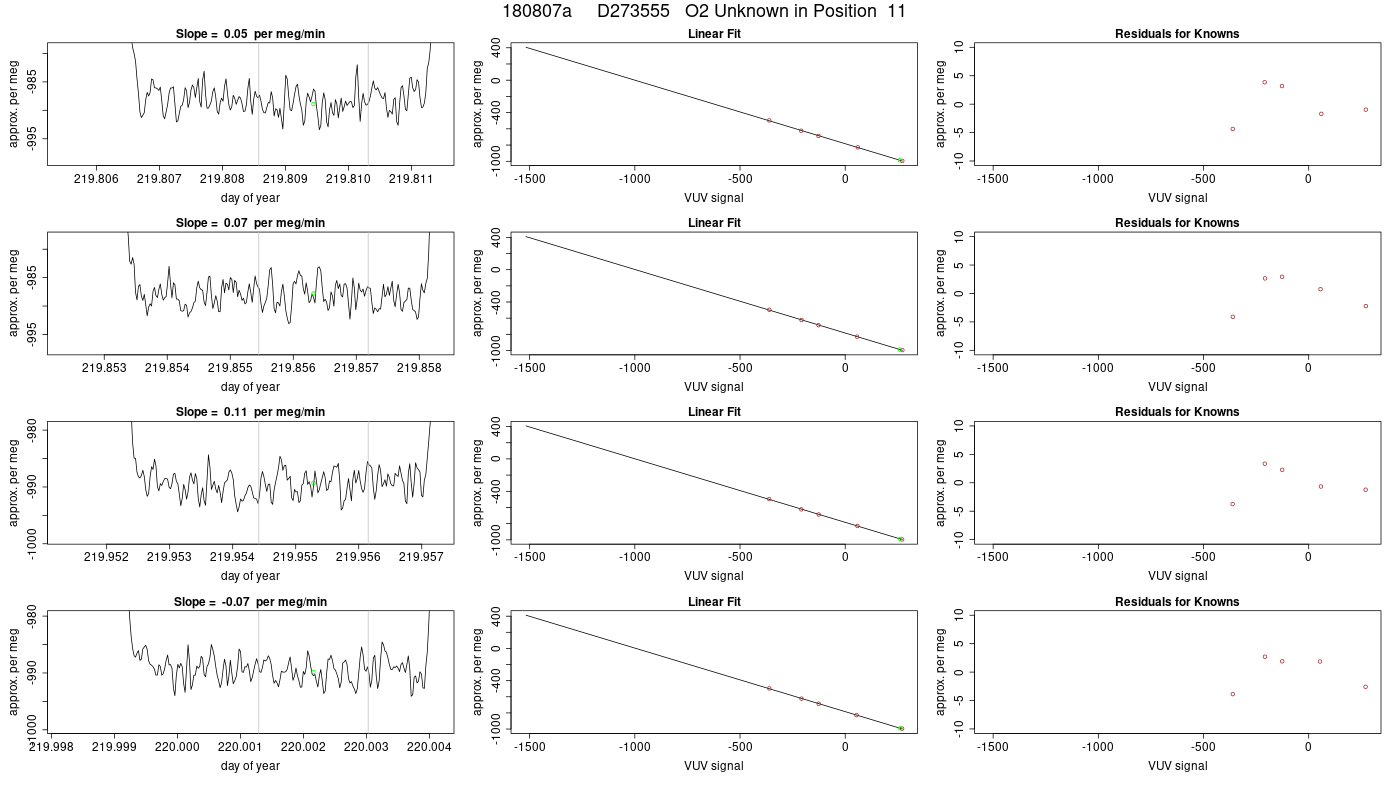

11 D273555    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.809 443.402 0.014 -908.55 2.17 443.625 0.014
219.856 443.411 0.015 -908.34 2.34 443.634 0.015
219.955 443.359 0.013 -909.66 2.13 443.582 0.013
220.002 443.373 0.014 -911.79 1.92 443.596 0.014
220.101 443.405 0.013 -911.10 1.85 443.628 0.013
220.148 443.434 0.011 -910.60 2.34 443.657 0.011
220.247 443.373 0.016 -910.87 2.09 443.596 0.016
220.294 443.419 0.012 -911.31 1.92 443.642 0.012

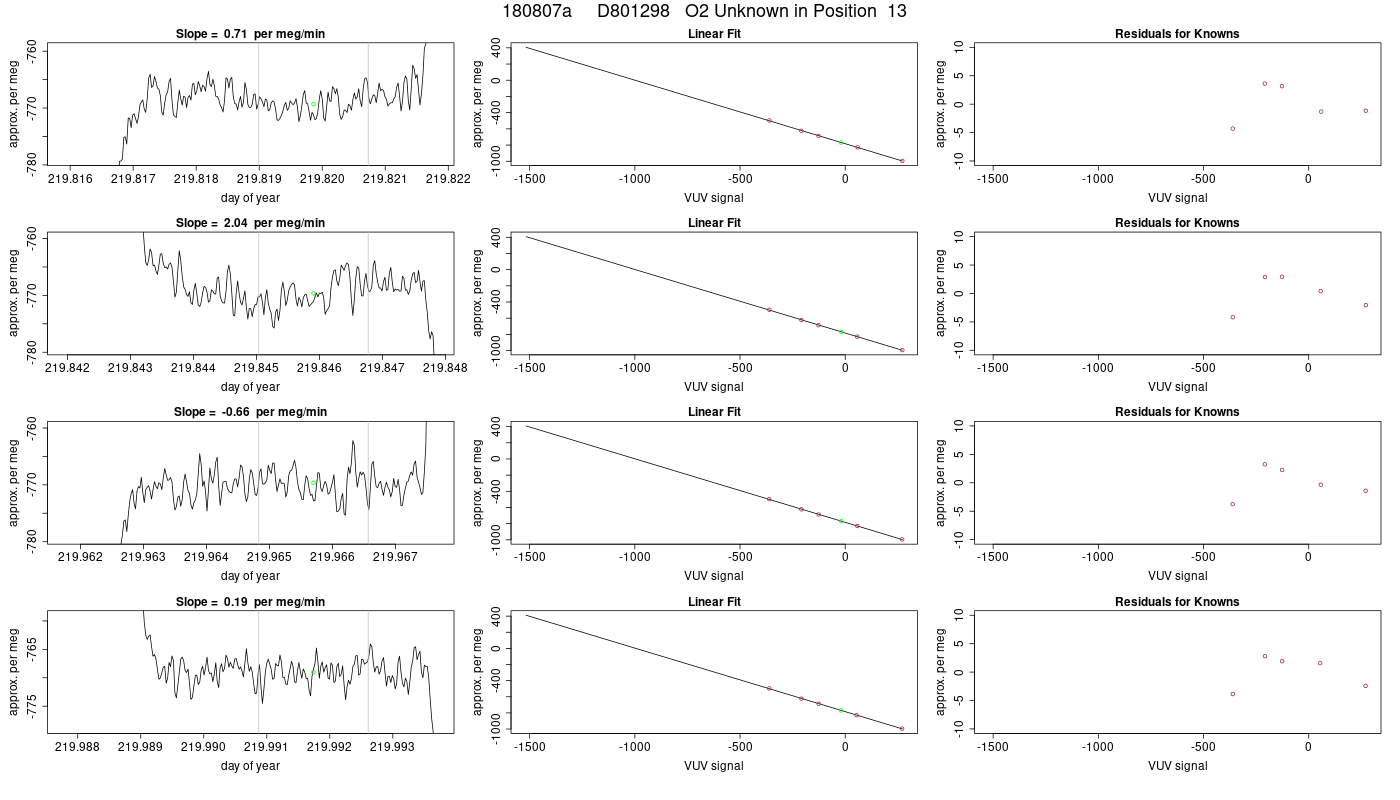

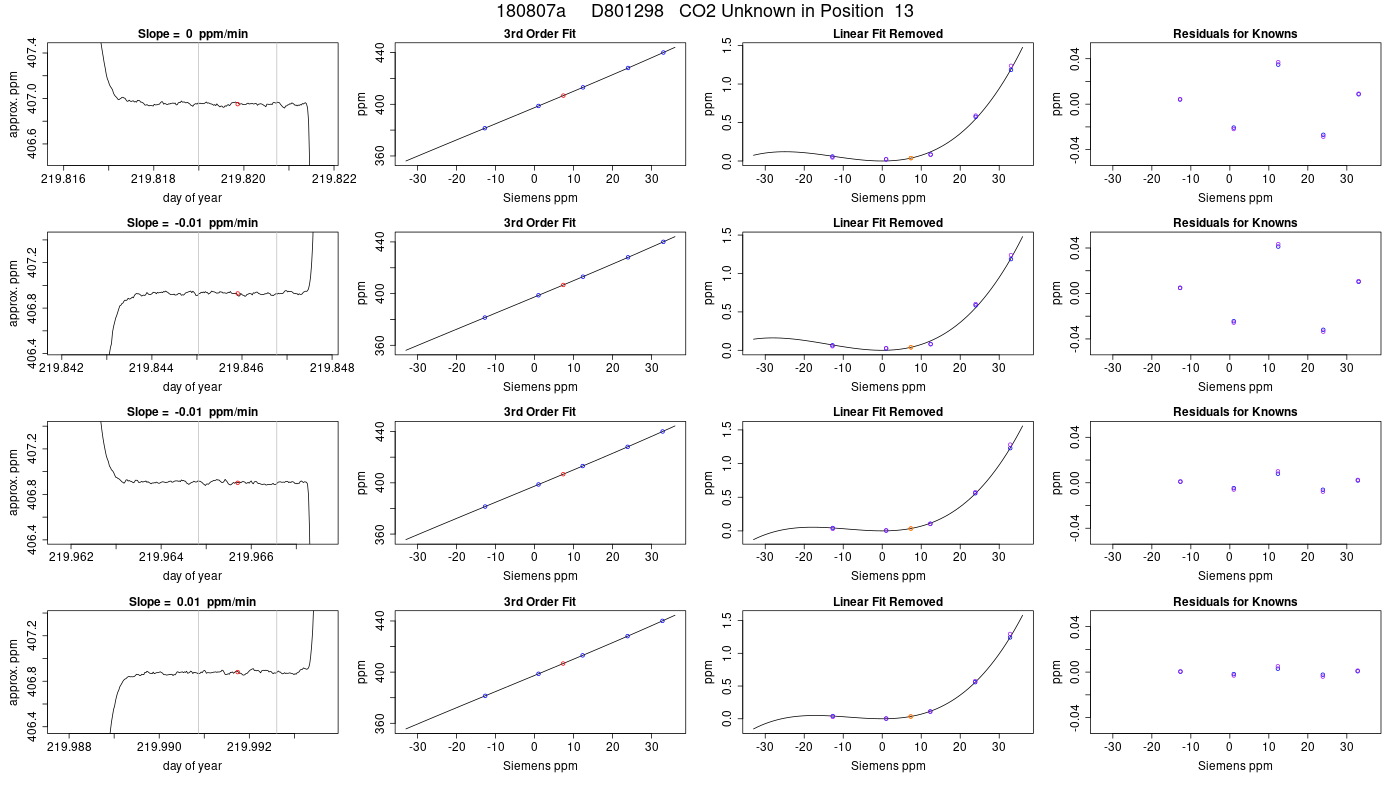

13 D801298    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.820 406.729 0.011 -725.76 1.83 406.927 0.011
219.846 406.702 0.011 -726.40 2.71 406.901 0.011
219.966 406.717 0.013 -726.44 2.55 406.916 0.013
219.992 406.706 0.013 -726.33 1.90 406.905 0.013
220.112 406.716 0.012 -724.62 2.23 406.915 0.012
220.138 406.709 0.011 -725.72 2.06 406.907 0.011
220.257 406.715 0.009 -725.00 2.13 406.913 0.009
220.283 406.705 0.012 -725.27 2.13 406.904 0.012

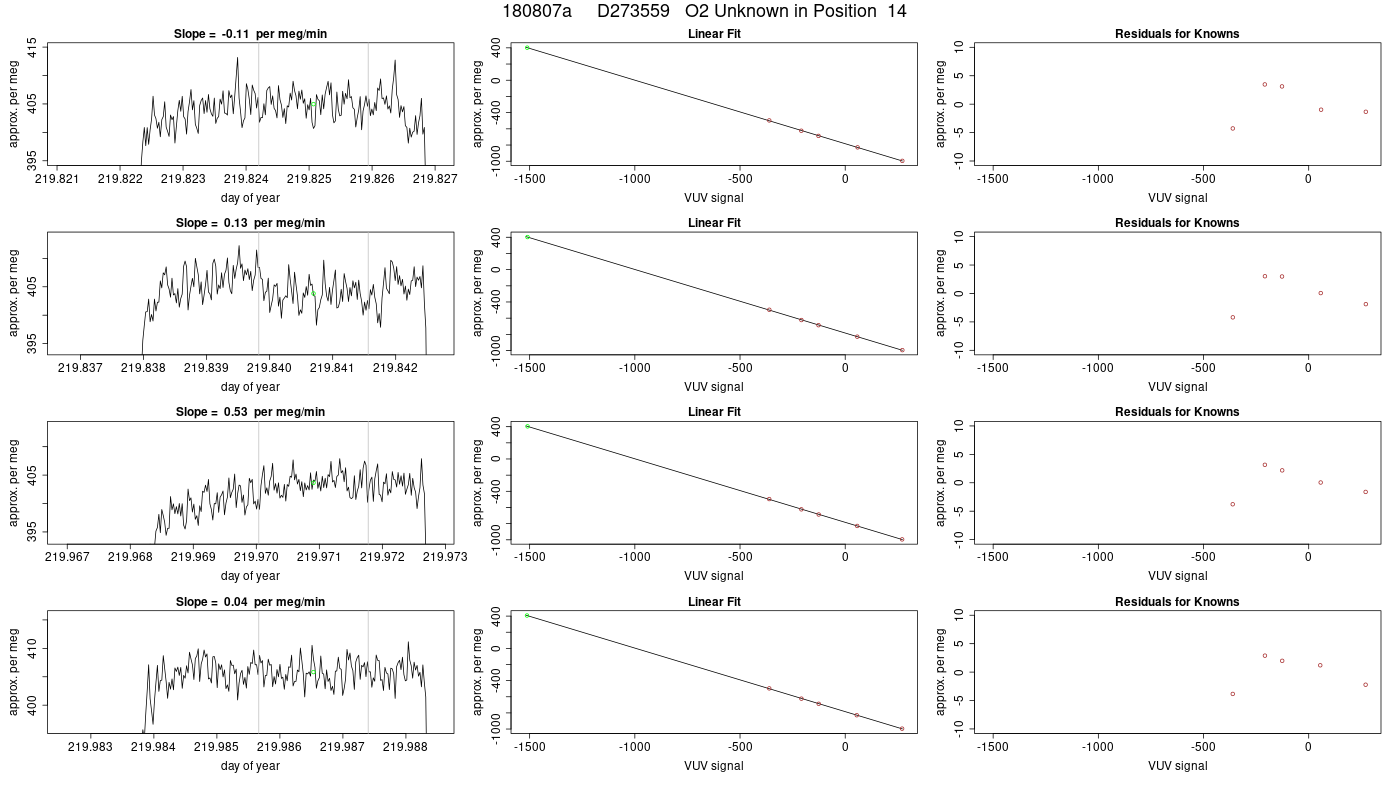

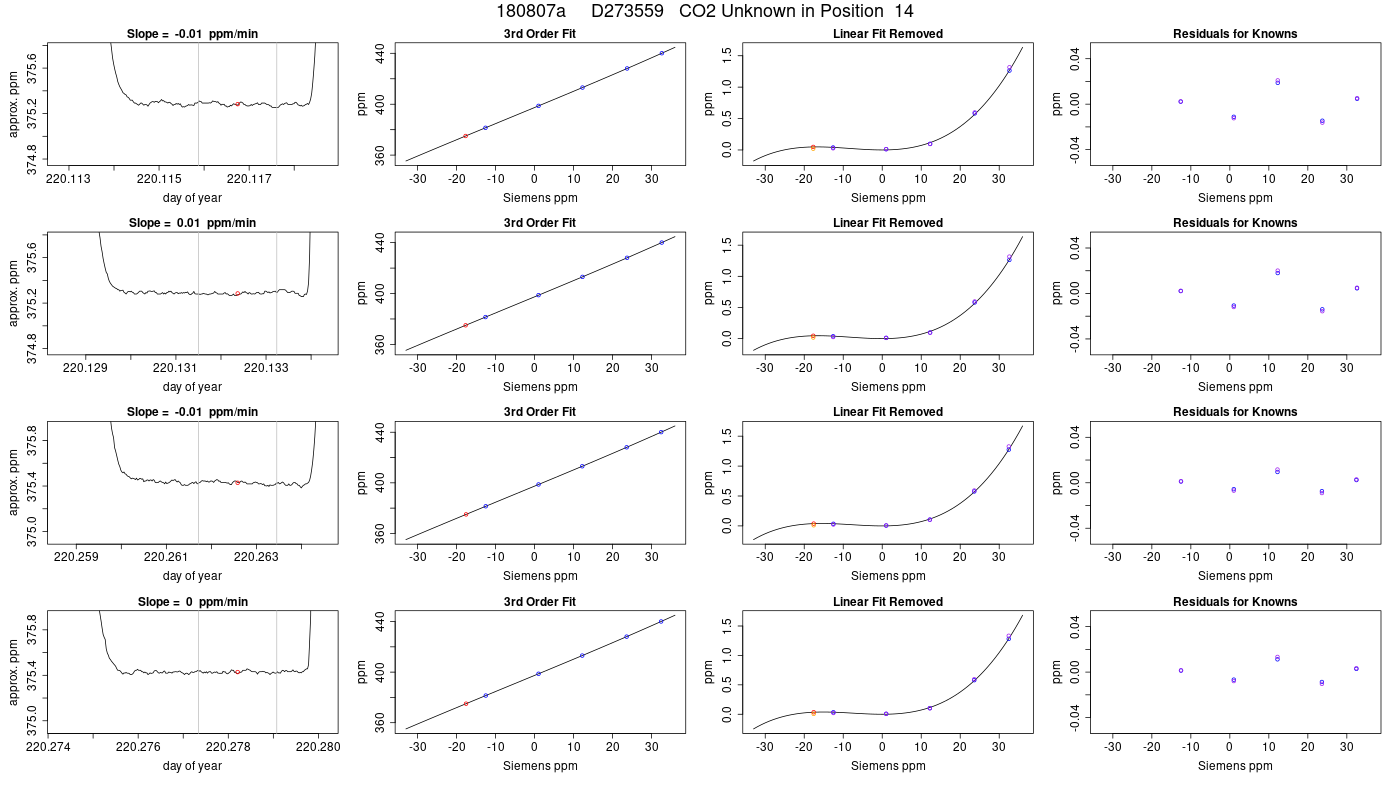

14 D273559    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.825 375.014 0.011 414.14 2.19 375.226 0.011
219.841 375.016 0.011 414.30 2.32 375.228 0.011
219.971 375.046 0.014 415.19 1.93 375.258 0.014
219.987 375.043 0.014 419.02 2.08 375.256 0.014
220.117 375.026 0.015 419.14 2.29 375.239 0.015
220.132 375.011 0.010 420.78 2.23 375.224 0.010
220.263 375.044 0.014 420.80 2.13 375.257 0.014
220.278 375.034 0.010 421.41 2.00 375.247 0.010

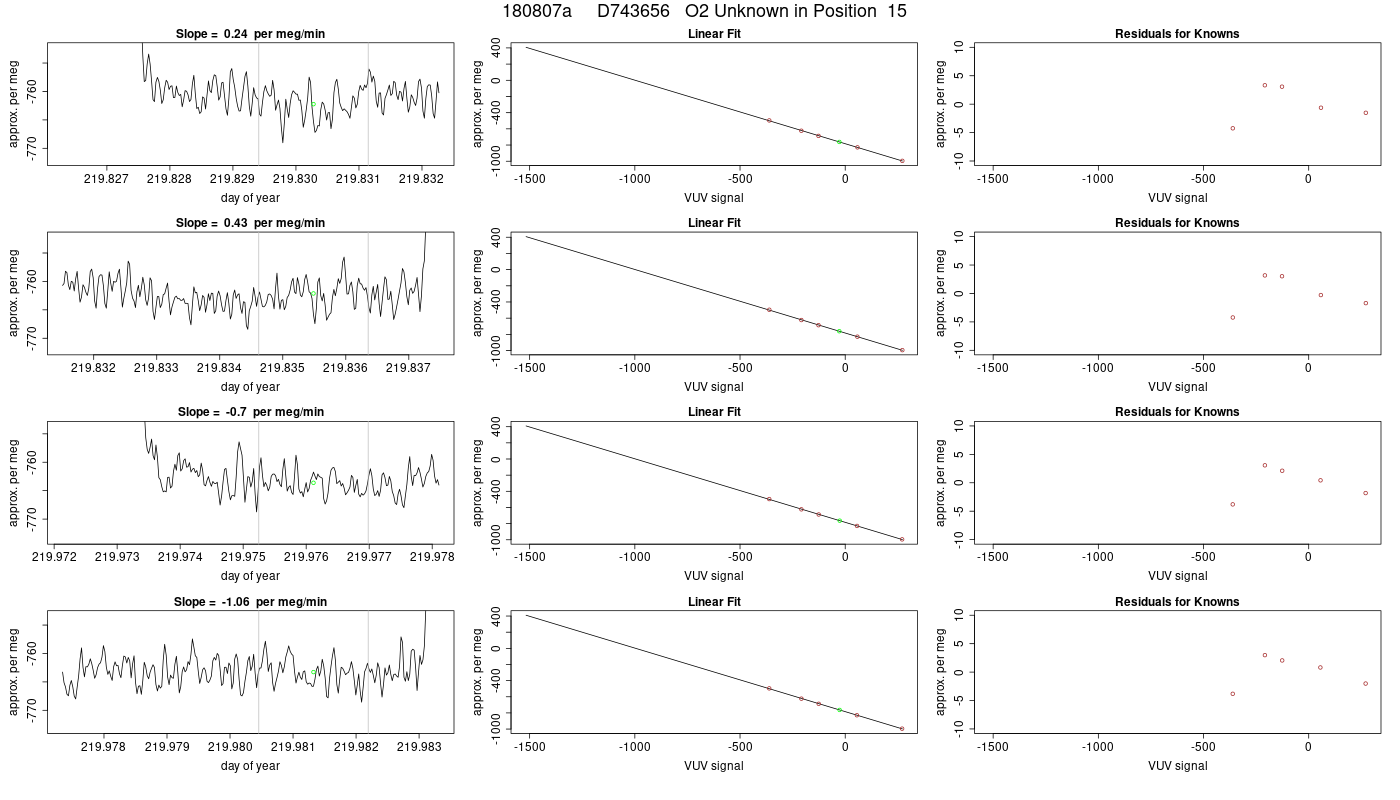

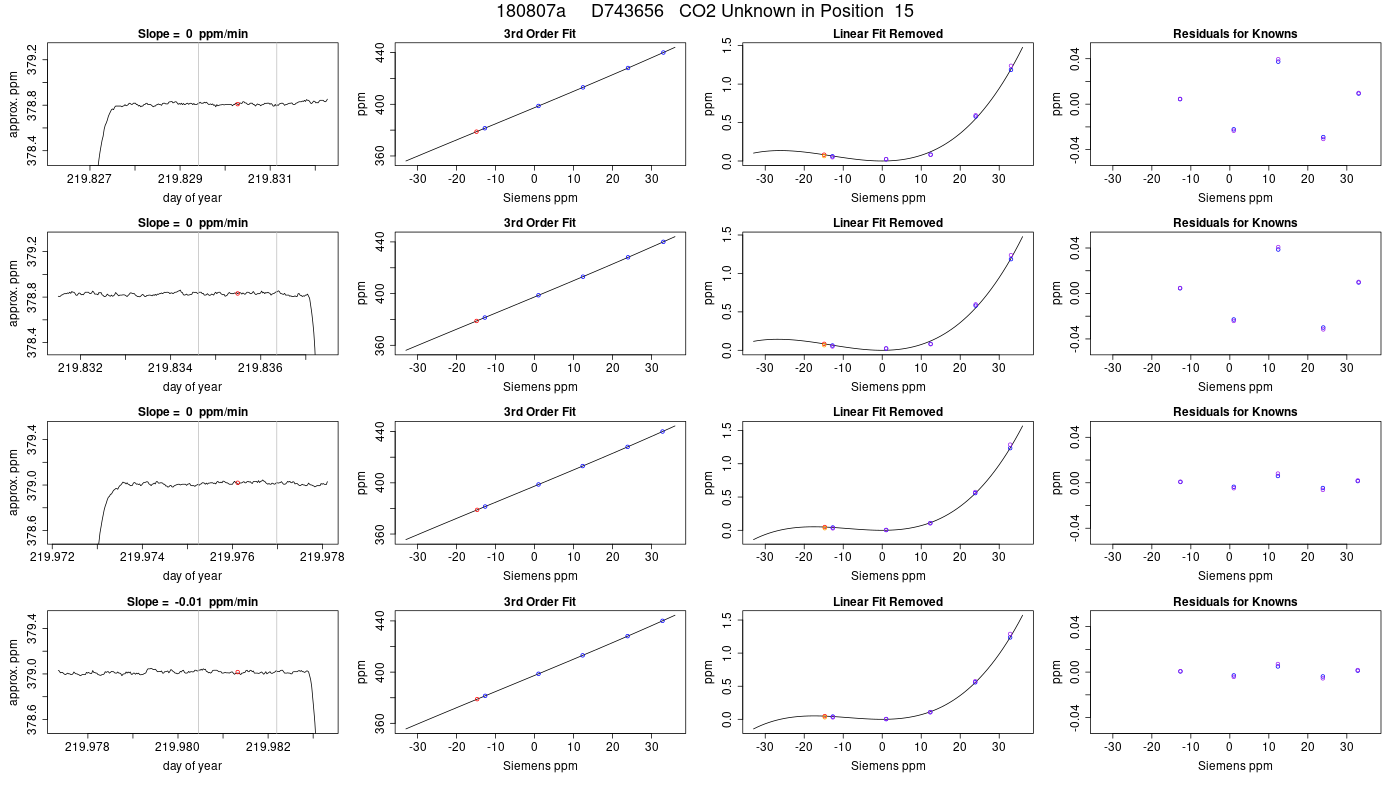

15 D743656    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
219.830 378.816 0.009 -746.16 2.54 379.034 0.009
219.835 378.837 0.009 -746.07 2.27 379.056 0.009
219.976 378.890 0.010 -747.90 1.80 379.108 0.010
219.981 378.882 0.012 -747.67 2.27 379.100 0.012
220.122 378.868 0.010 -746.69 2.03 379.086 0.010
220.127 378.856 0.012 -747.00 2.12 379.074 0.012
220.268 378.889 0.015 -746.52 2.10 379.108 0.015
220.273 378.894 0.013 -747.99 2.02 379.112 0.013
