UEA CRAM Lab O2 and CO2 calibration results
RUN = 180720a
PROCESSED: 16:49:46 Mon 21Aug2023

Notes
Logfile

Results

Using data from 201.874 to 202.091 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.158 0.012 -0.141 382.379 0.012 -0.141 3 -472.46 0.43 4.85 3
5 CC203963 409.937 0.012 -0.106 410.131 0.012 -0.106 3 -562.69 1.64 -0.28 3
6 D596274 416.091 0.011 -0.068 416.279 0.011 -0.067 3 -838.23 0.23 3.31 2
9 CC203987 356.012 0.081 0.472 356.138 0.081 0.471 3 -318.01 2.14 -19.62 3
10 D169300 398.544 0.019 -0.110 398.754 0.019 -0.110 3 -685.00 1.72 -14.20 3
11 D273555 443.423 0.021 -0.069 443.646 0.021 -0.069 3 -902.14 0.33 -1.86 3
13 D801298 406.729 0.011 -0.137 406.927 0.011 -0.137 3 -716.99 1.22 -13.85 3
14 D273559 375.014 0.002 0.003 375.227 0.002 0.003 3 427.41 1.01 -33.94 2
15 D743656 378.869 0.007 0.081 379.087 0.007 0.081 3 -737.27 1.31 -14.33 3
WT D258964 397.402 0.013 -0.159 397.613 0.013 -0.158 42 -742.58 0.85 -7.28 42
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns

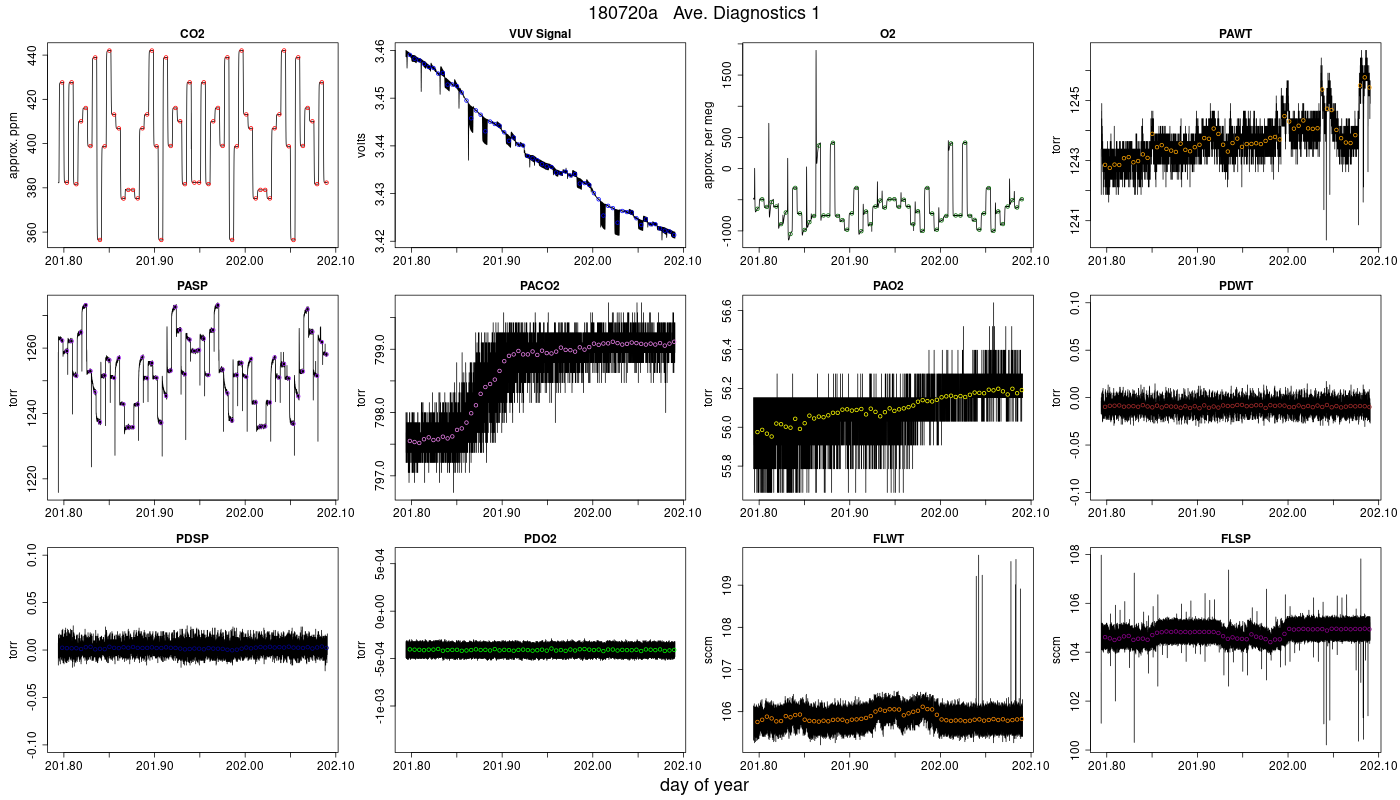

Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

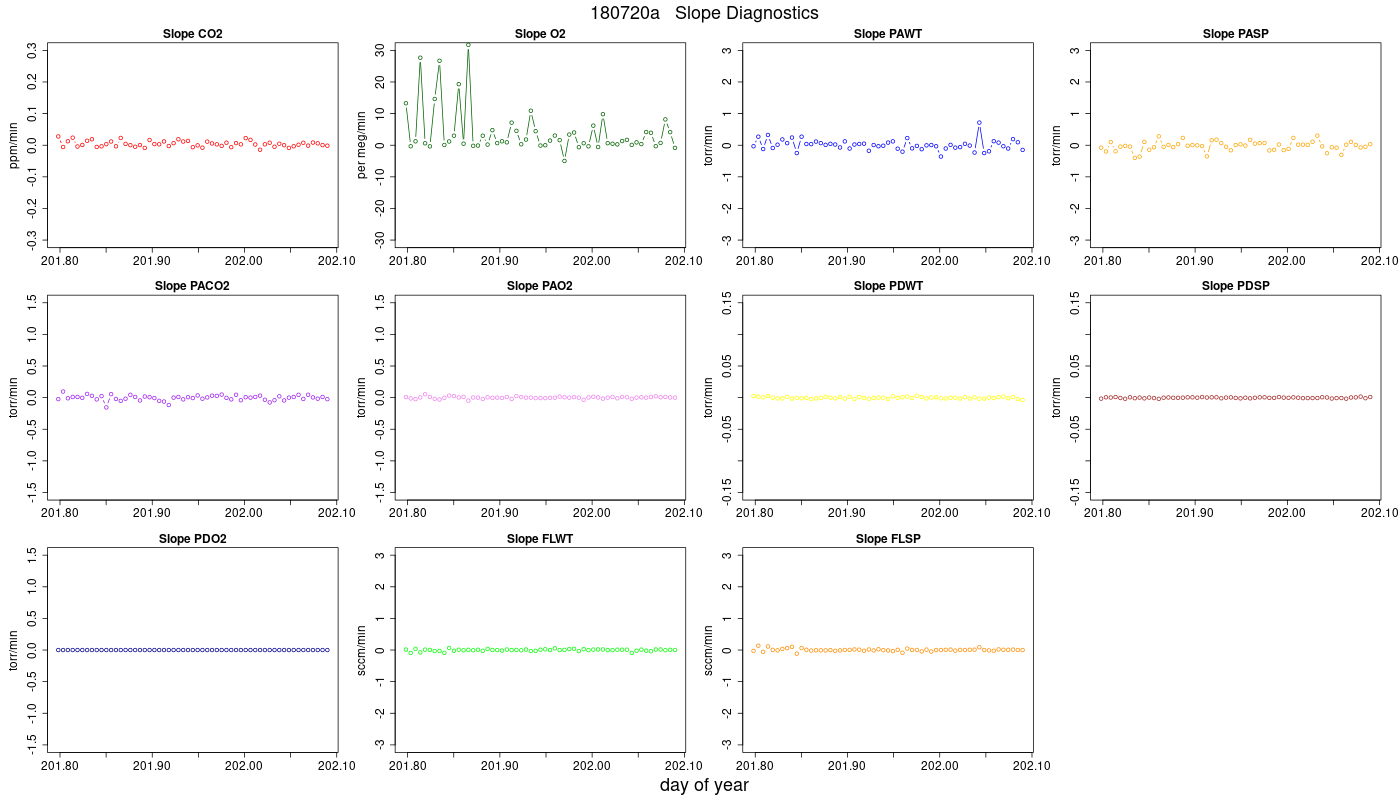

Jog Slope Diagnostics

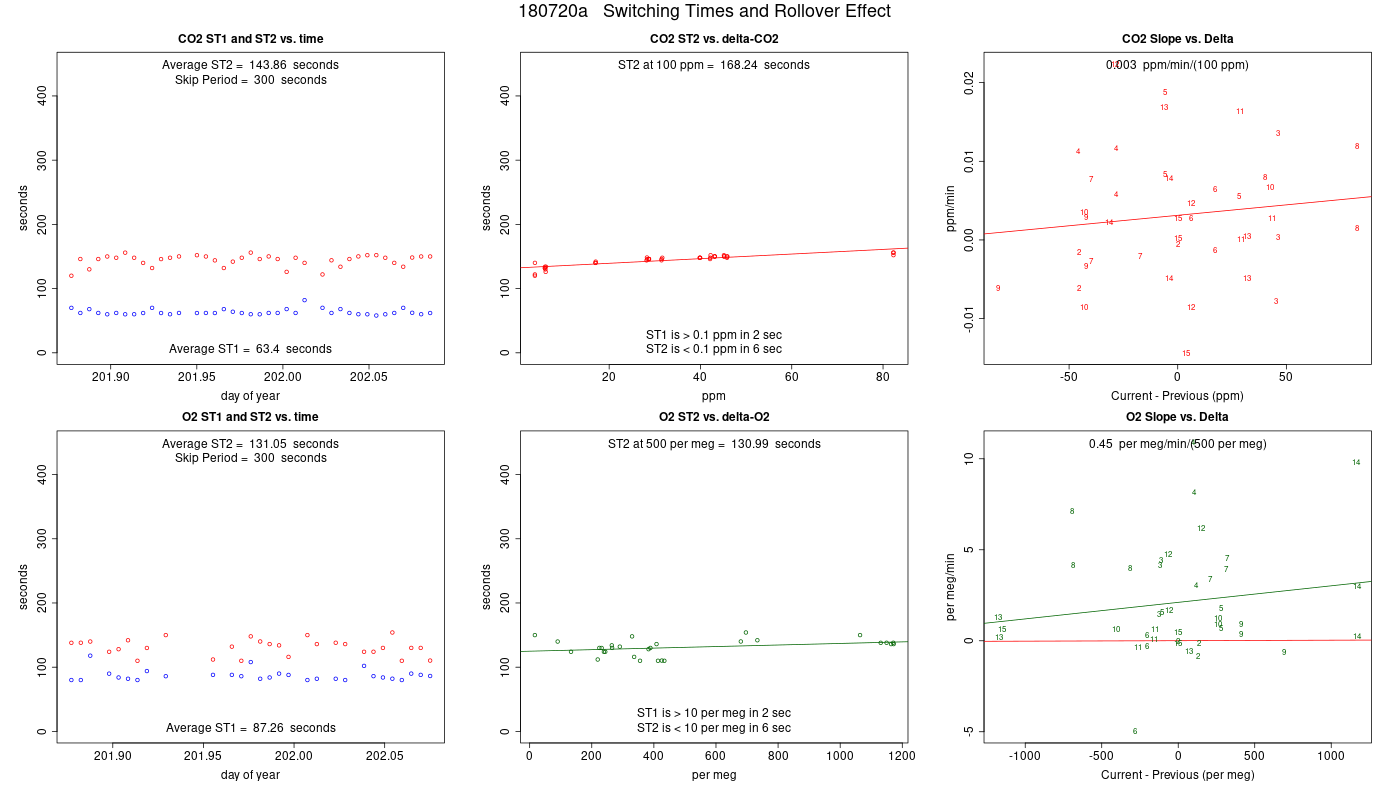

 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

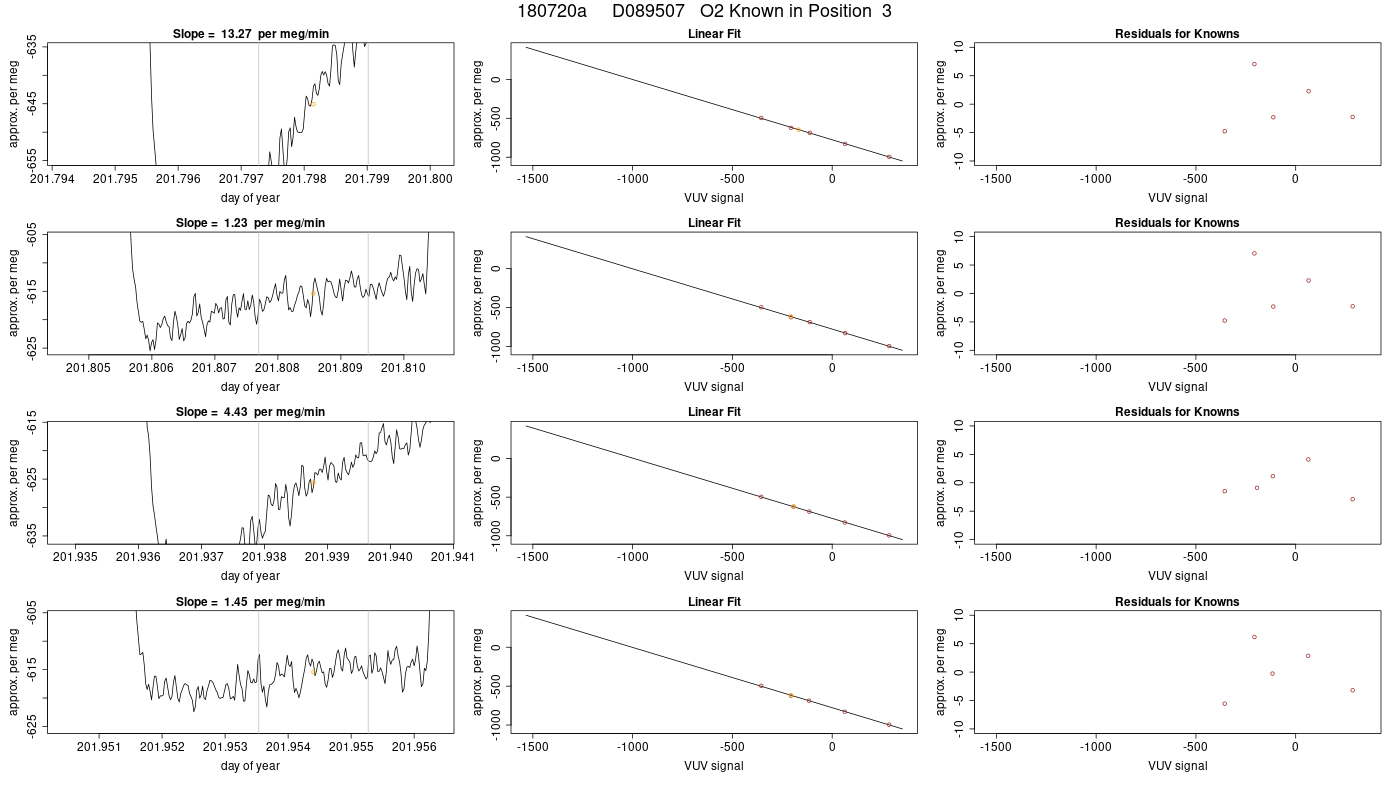

3 D089507 428.087 -0.004 0.002 428.275 -0.006 0.002 3 -559.23 1.73 3.86 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

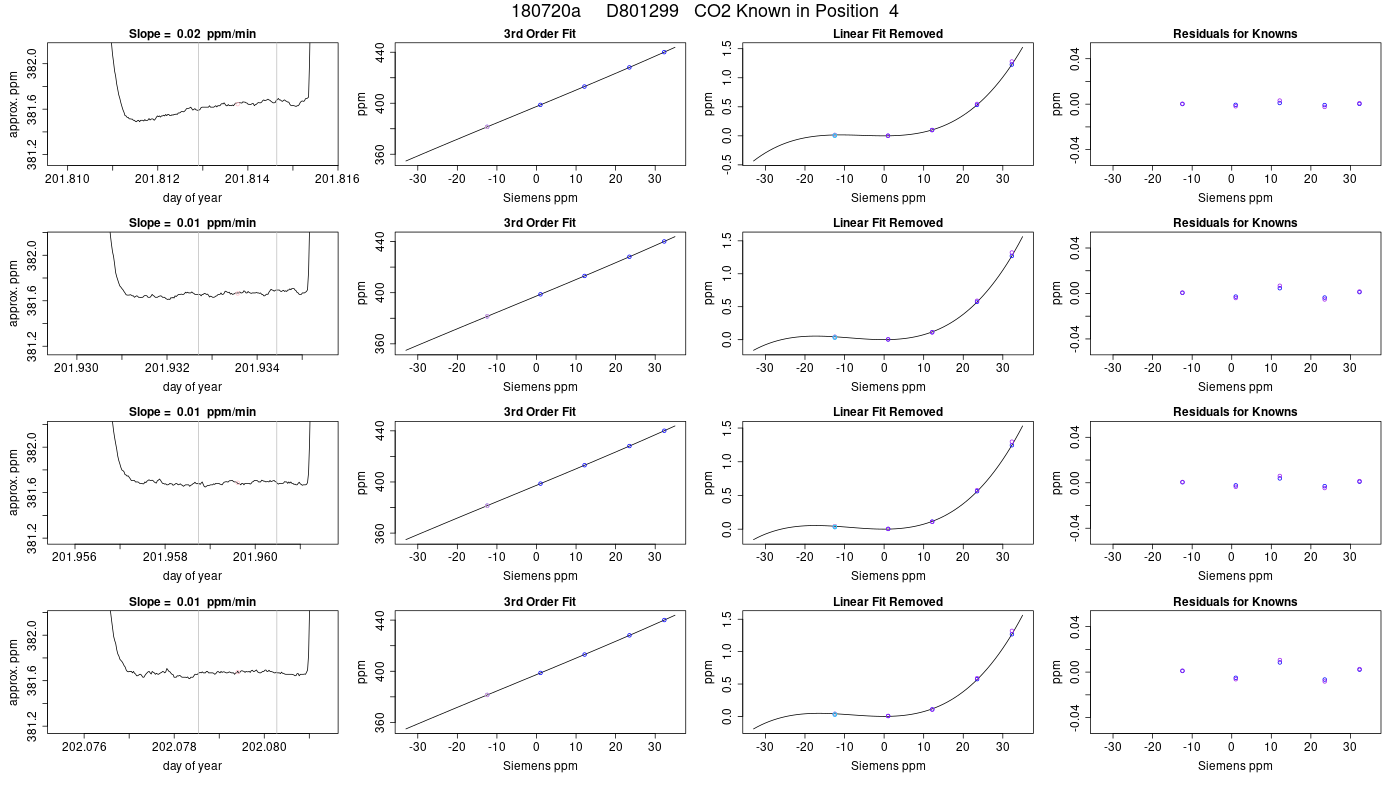

4 D801299 381.475 0.001 0.000 381.695 0.001 0.000 3 -477.75 -5.55 NA 1    CO2 Fits 1    O2 Fits 1
7 D073409 398.707 -0.003 0.002 398.918 -0.005 0.002 3 -651.78 0.43 0.86 3    CO2 Fits 1    O2 Fits 1

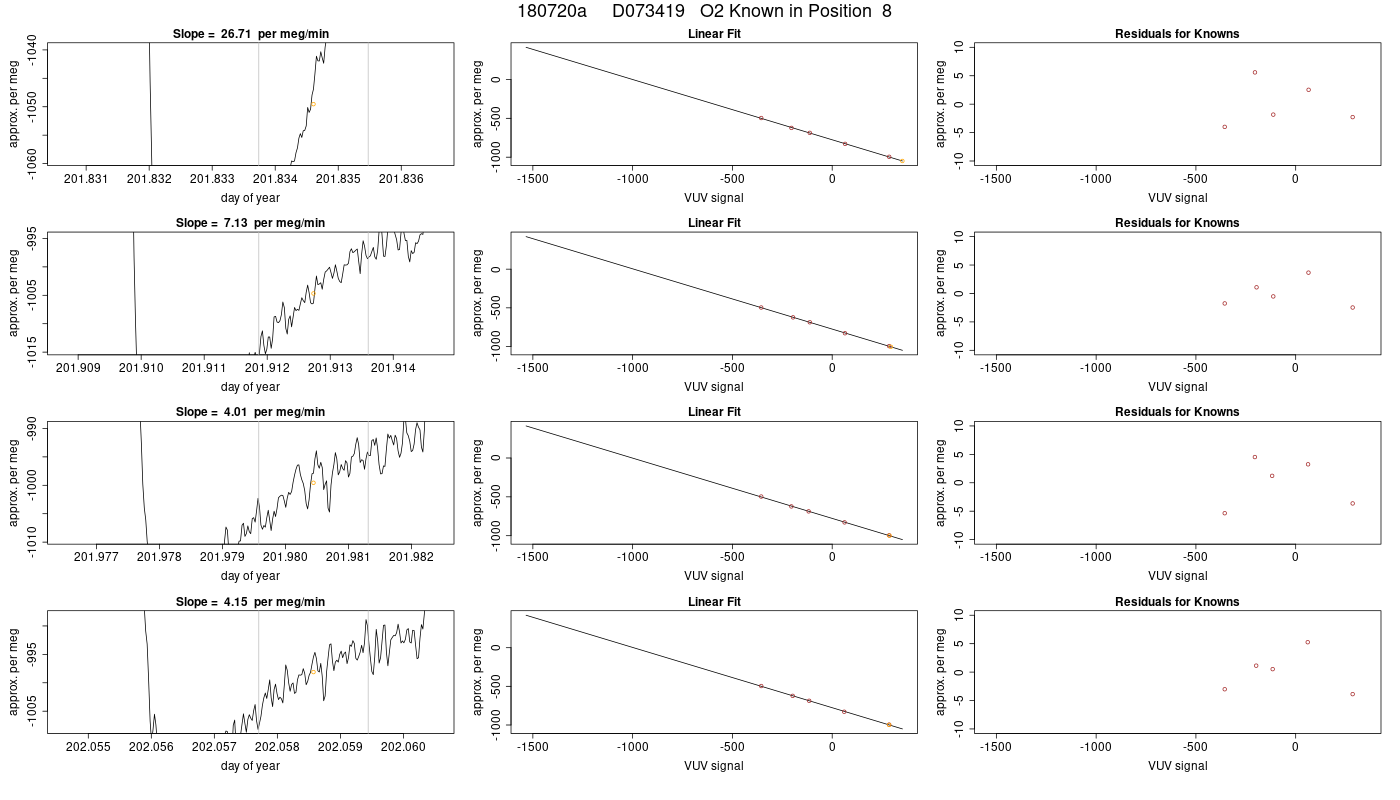

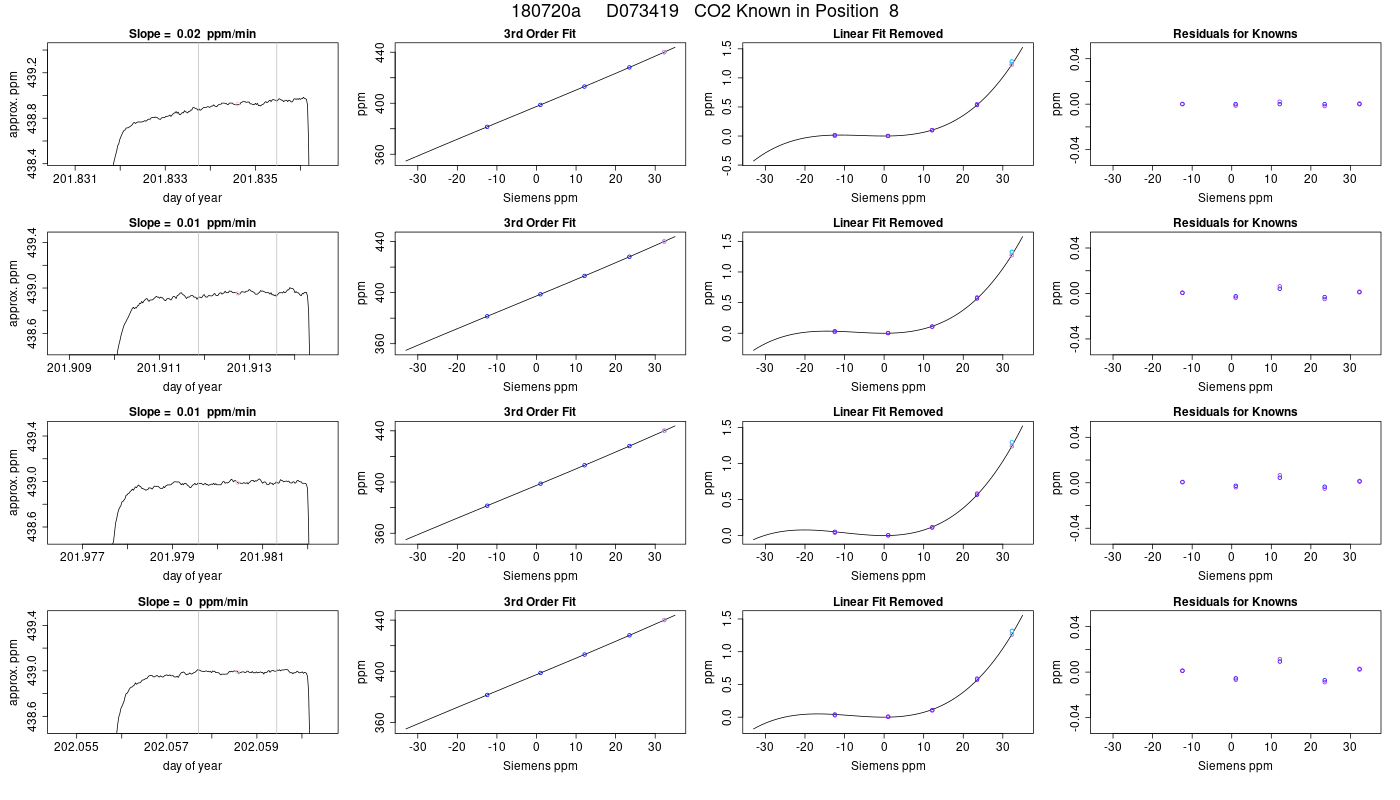

8 D073419 440.065 0.002 0.001 440.275 0.002 0.001 3 -919.32 -3.88 NA 1    CO2 Fits 1    O2 Fits 1

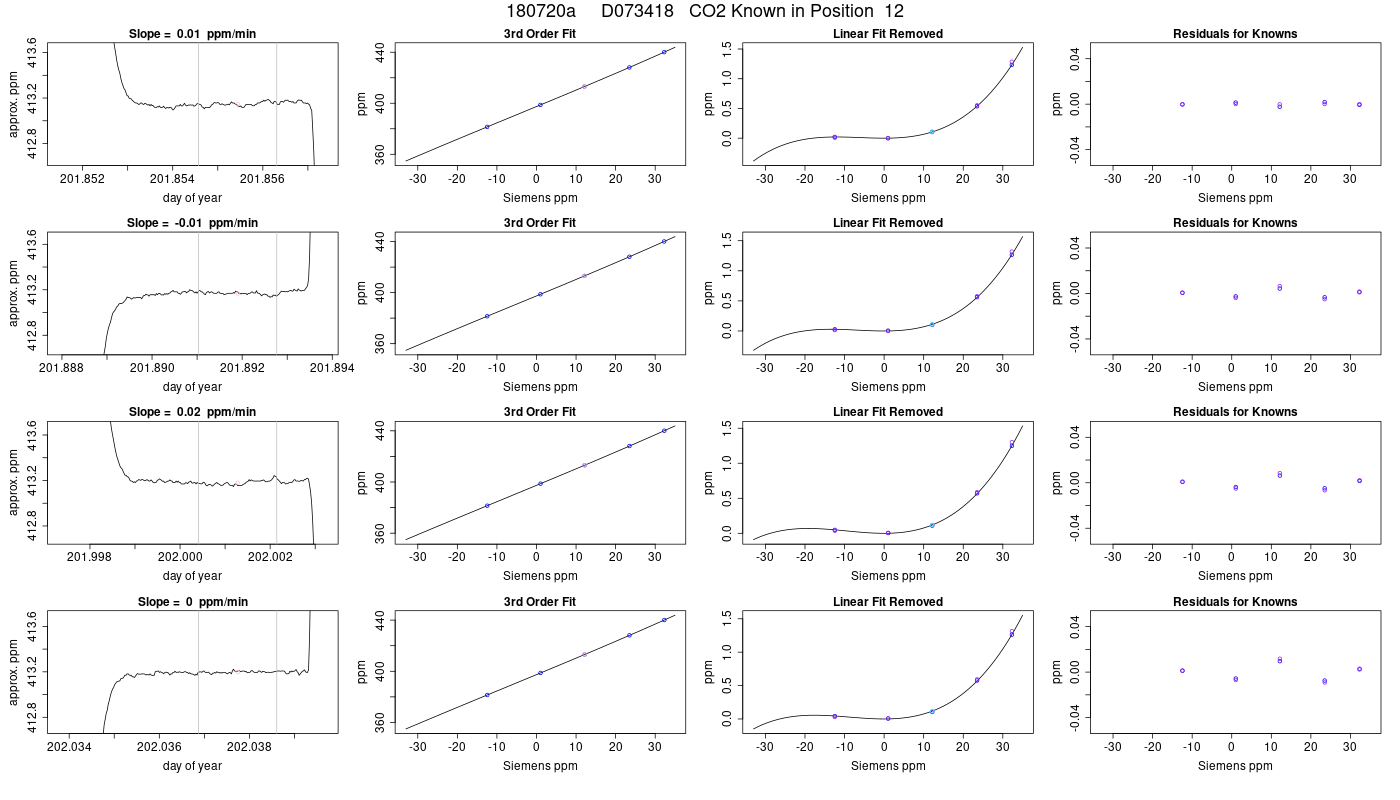

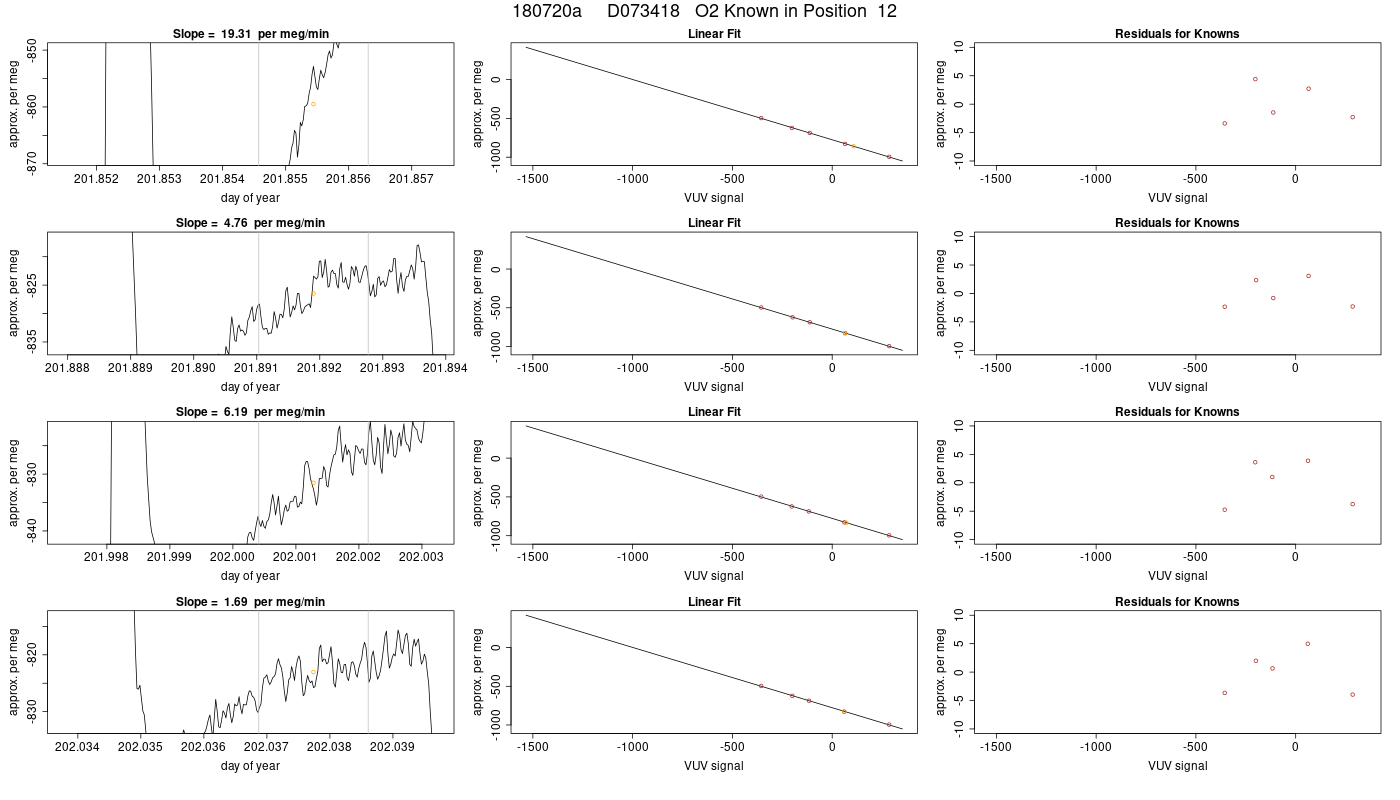

12 D073418 413.092 0.007 0.004 413.280 0.009 0.004 2 -779.40 4.04 1.34 2    CO2 Fits 1    O2 Fits 1

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

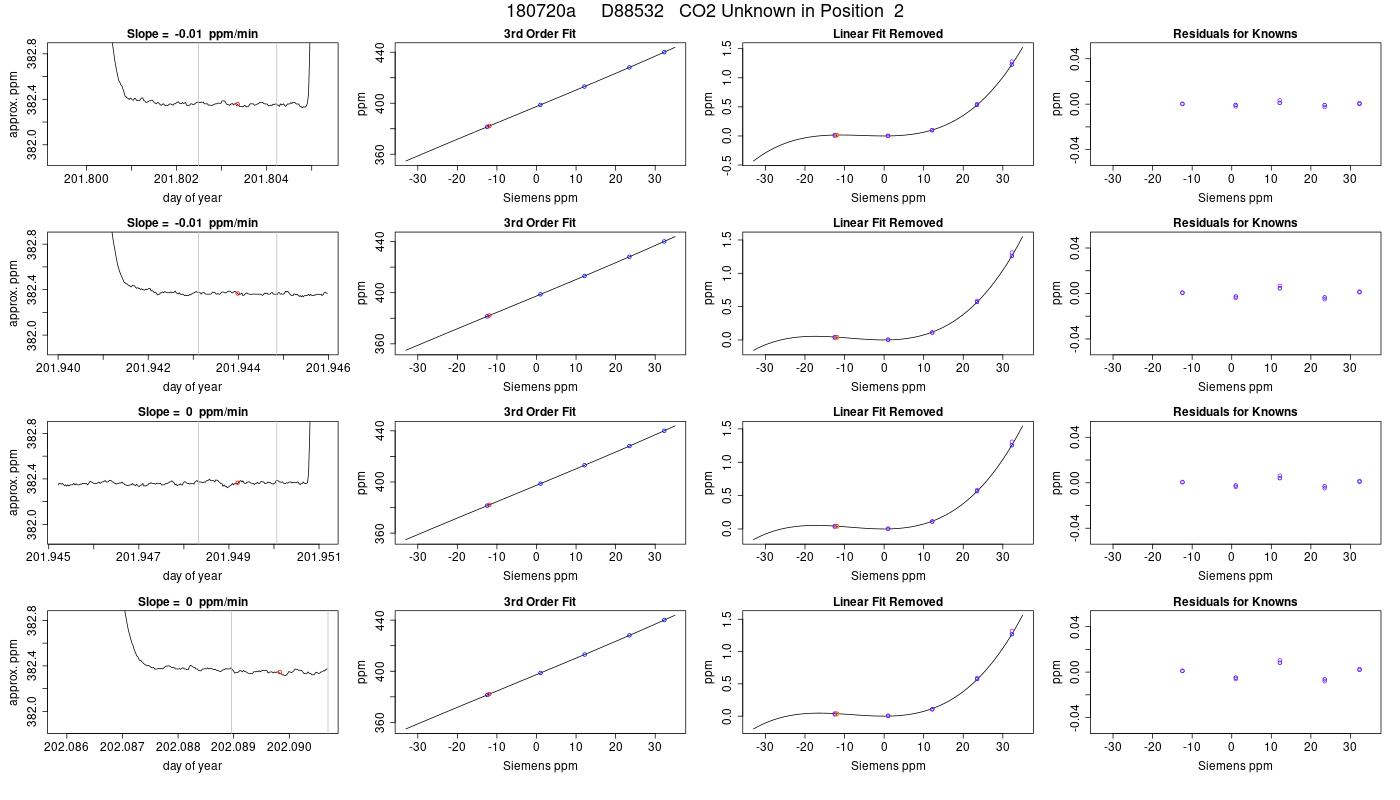

2 D88532    CO2 Fits 1   O2 Fits 1
201.803 382.170 0.012 -475.16 2.15 382.390 0.012
201.944 382.167 0.009 -472.86 2.43 382.388 0.009
201.949 382.163 0.016 -472.51 1.96 382.383 0.016
202.090 382.145 0.014 -472.00 2.13 382.366 0.014

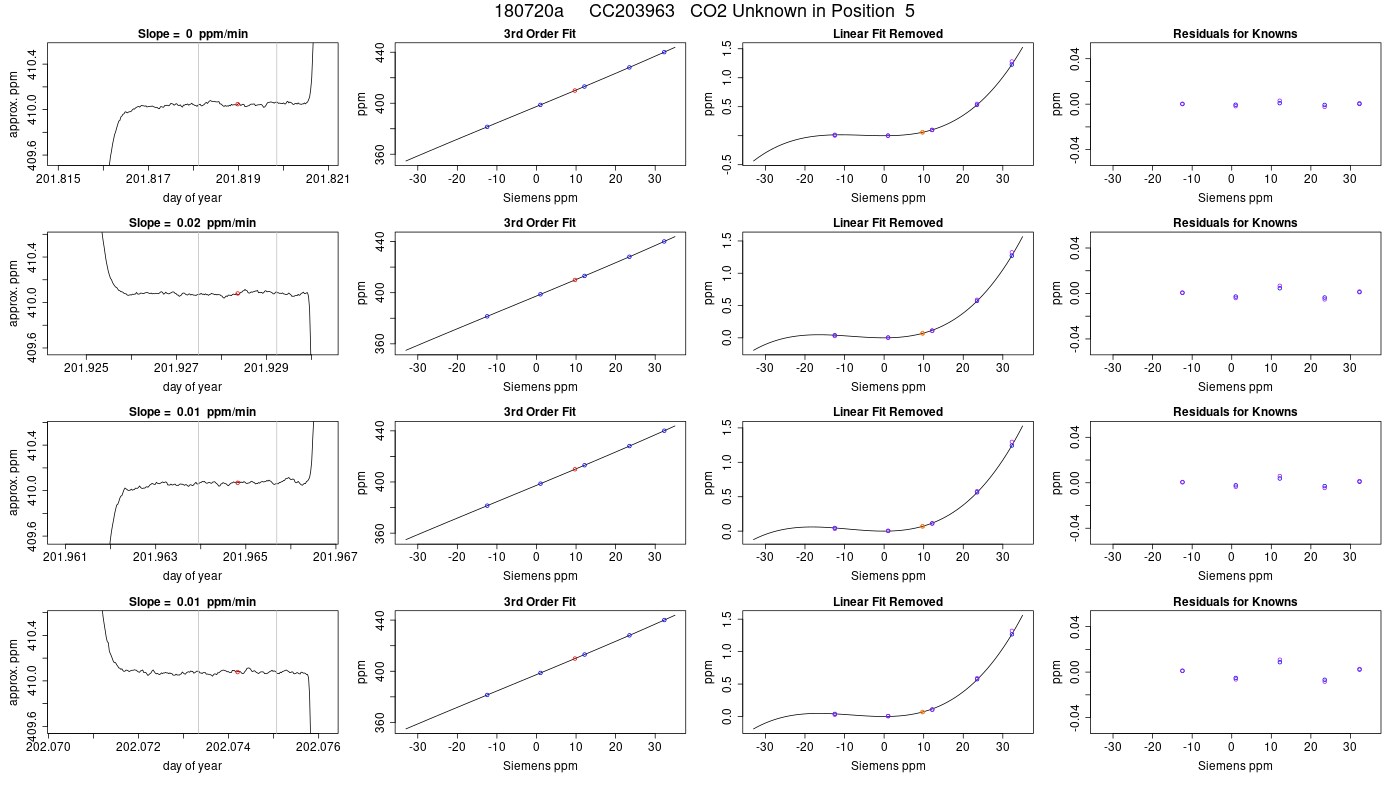

5 CC203963    CO2 Fits 1   O2 Fits 1
201.819 409.948 0.015 -563.43 2.24 410.142 0.015
201.928 409.951 0.016 -561.30 2.17 410.145 0.016
201.965 409.930 0.010 -564.50 2.15 410.124 0.010
202.074 409.931 0.014 -562.25 2.41 410.124 0.014

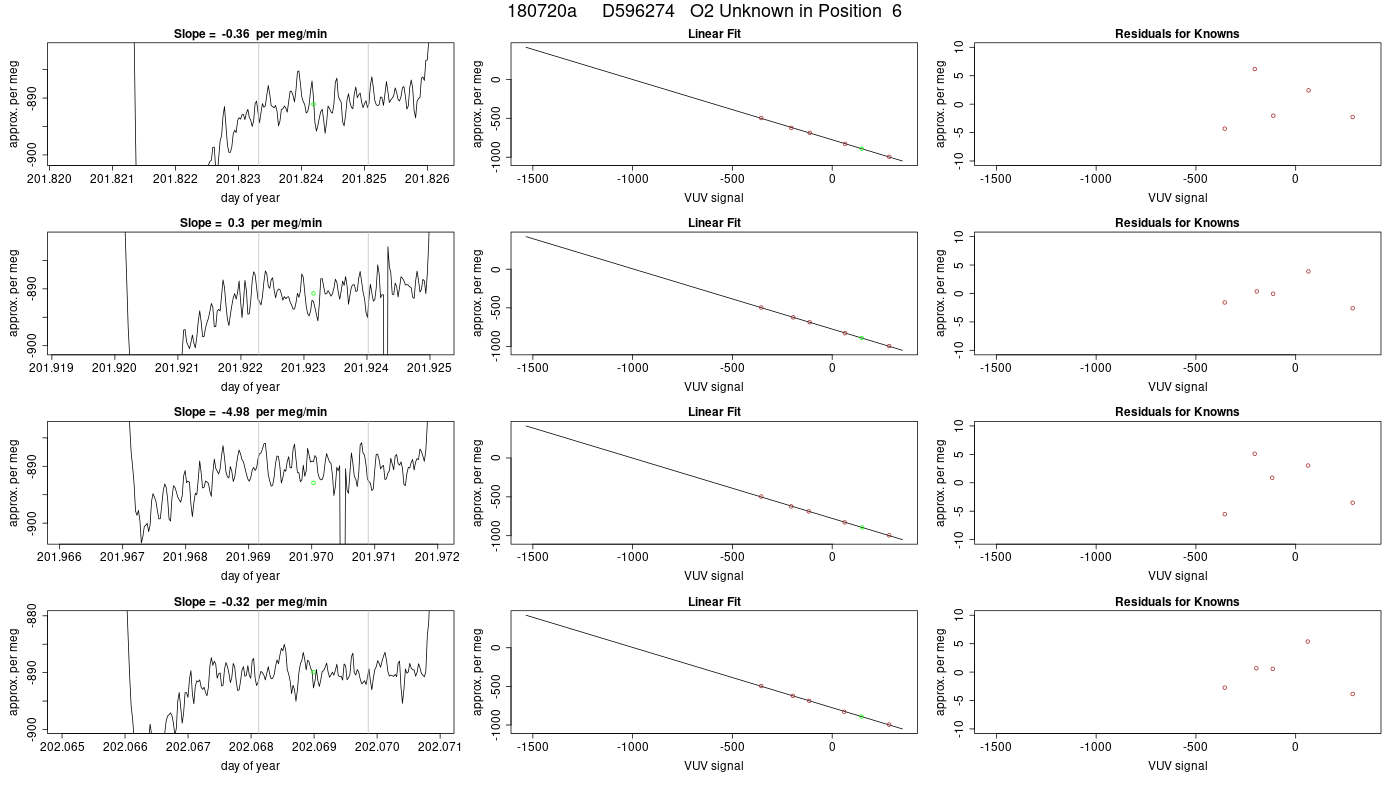

6 D596274    CO2 Fits 1   O2 Fits 1
201.824 416.098 0.010 -838.64 2.28 416.285 0.010
201.923 416.089 0.010 -838.07 2.04 416.276 0.010
201.970 416.103 0.009 -841.69 14.88 416.290 0.009
202.069 416.082 0.012 -838.39 1.90 416.270 0.012

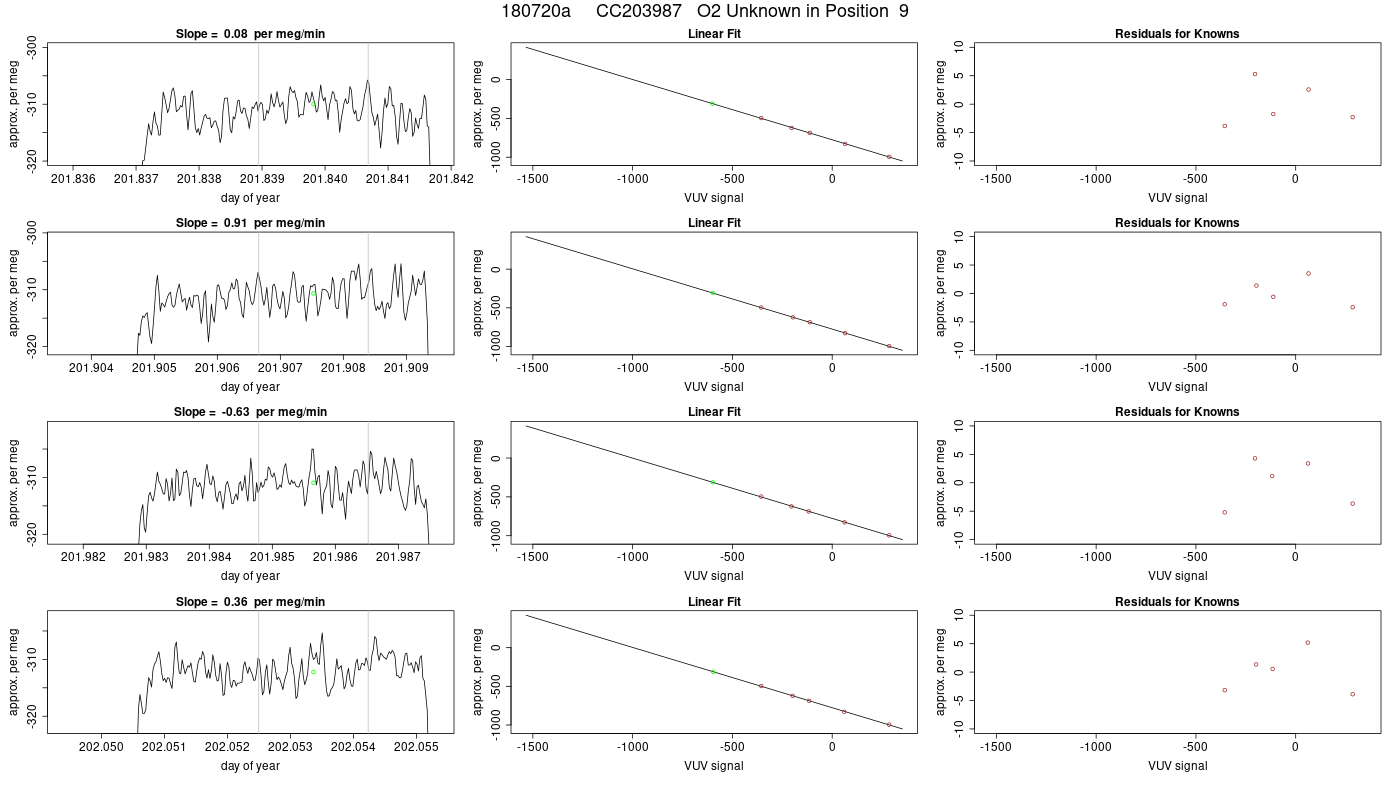

9 CC203987    CO2 Fits 1   O2 Fits 1
201.840 355.826 0.009 -317.88 1.86 355.953 0.009
201.908 355.937 0.014 -315.70 2.30 356.064 0.014
201.986 356.098 0.013 -319.91 2.31 356.224 0.013
202.053 356.000 0.012 -318.43 2.48 356.127 0.012

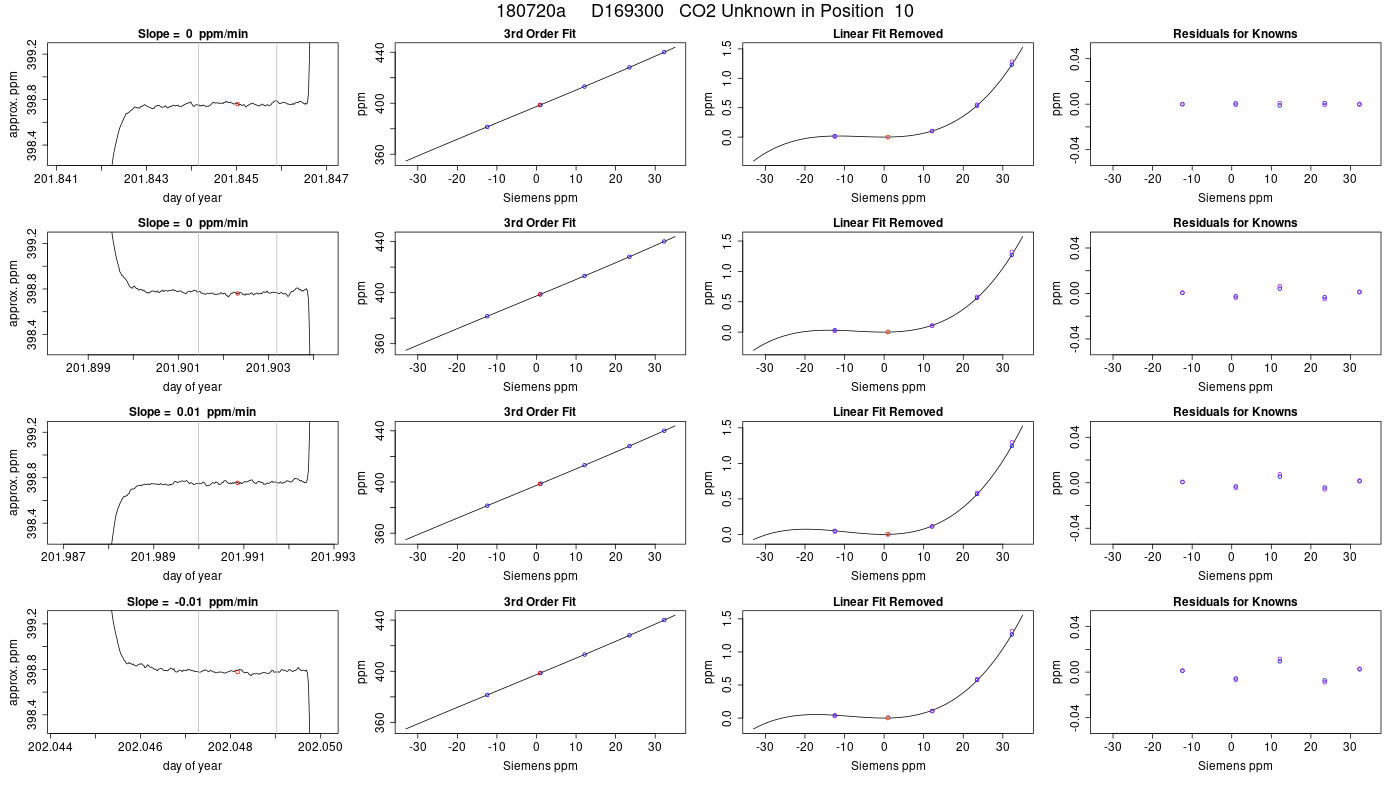

10 D169300    CO2 Fits 1   O2 Fits 1
201.845 398.579 0.013 -684.76 2.36 398.789 0.013
201.902 398.560 0.009 -683.27 1.92 398.770 0.009
201.991 398.524 0.011 -686.70 2.07 398.733 0.011
202.048 398.548 0.012 -685.01 2.29 398.758 0.012

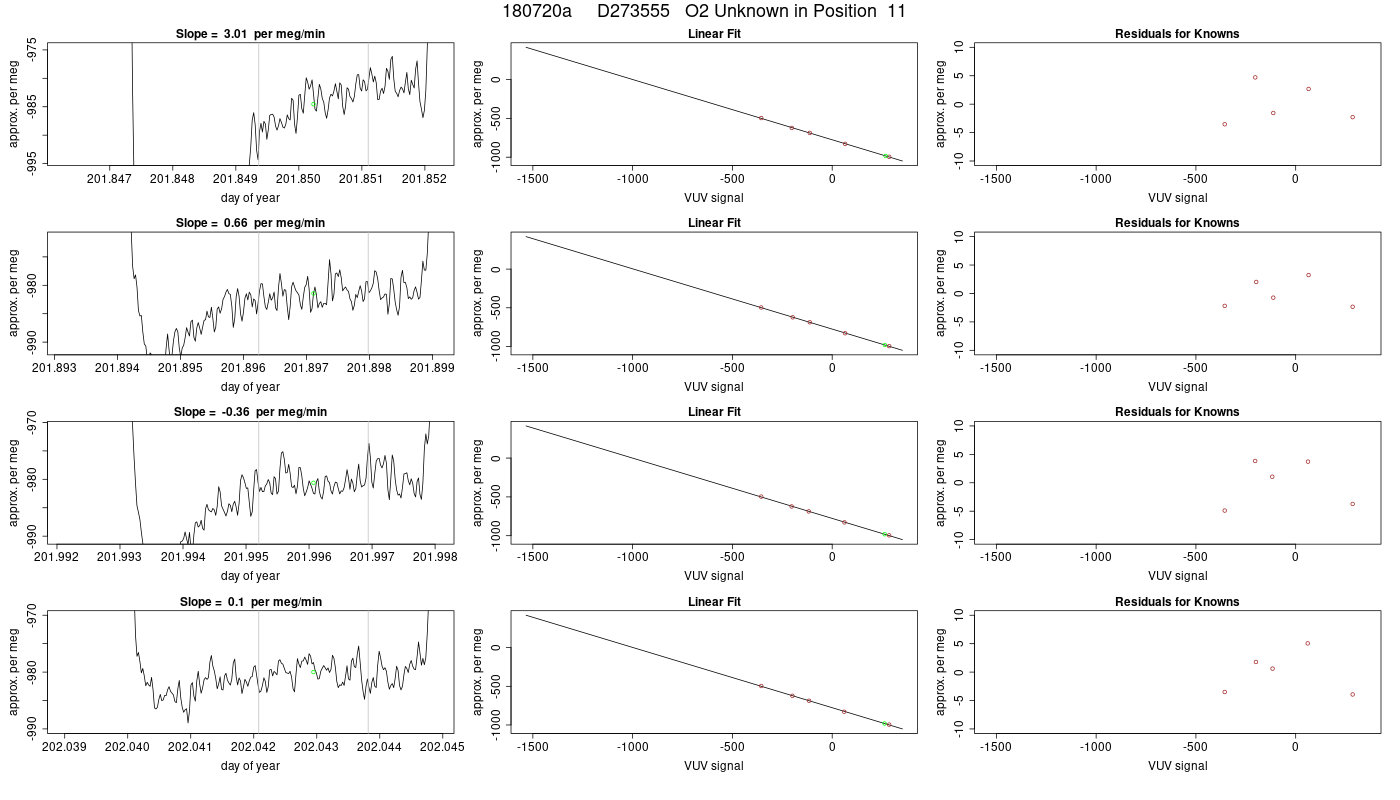

11 D273555    CO2 Fits 1   O2 Fits 1
201.850 443.414 0.014 -904.99 2.98 443.637 0.014
201.897 443.436 0.016 -901.87 2.06 443.659 0.016
201.996 443.399 0.014 -902.51 1.83 443.622 0.014
202.043 443.434 0.016 -902.02 1.97 443.657 0.016

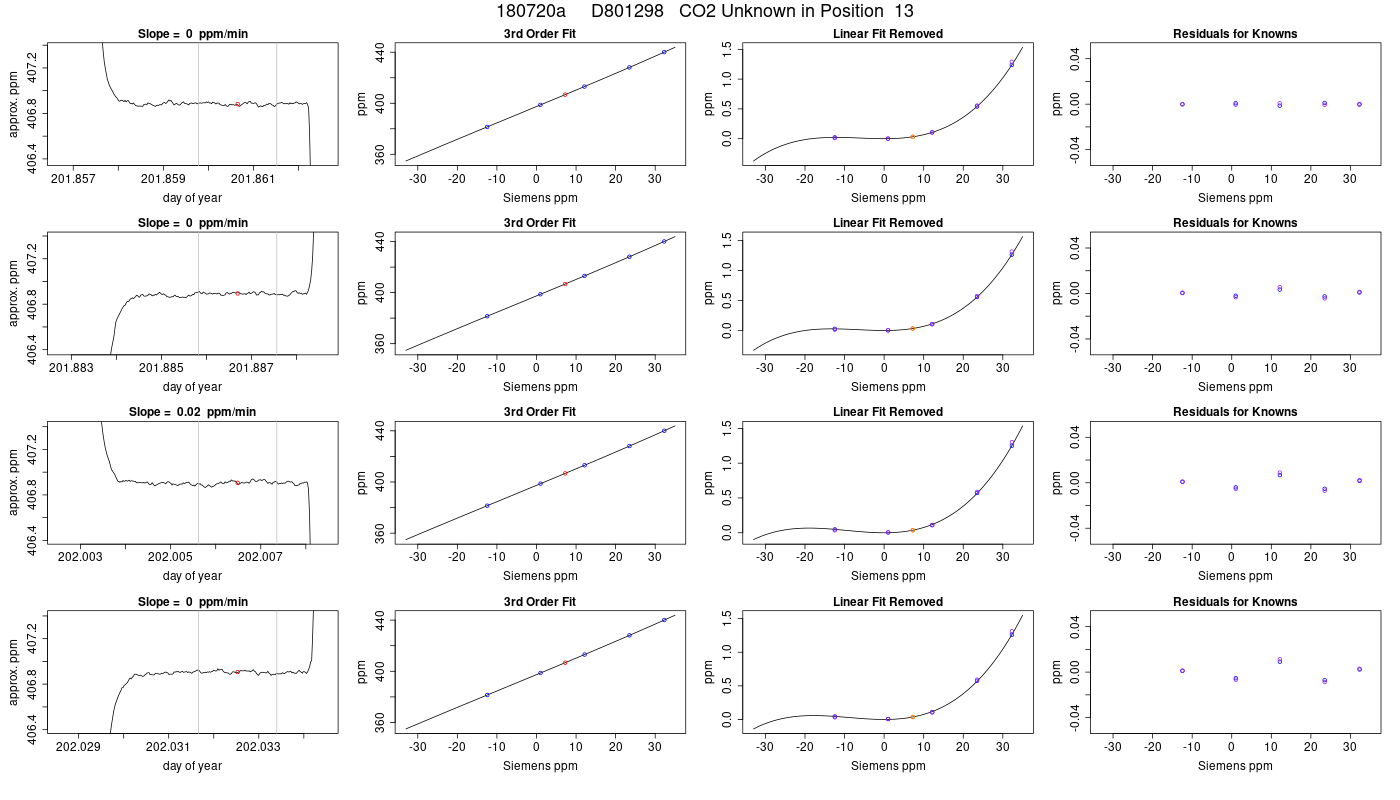

13 D801298    CO2 Fits 1   O2 Fits 1
201.861 406.740 0.012 -717.34 2.03 406.938 0.012
201.887 406.741 0.008 -715.65 2.01 406.940 0.008
202.006 406.724 0.018 -718.05 2.18 406.922 0.018
202.033 406.722 0.013 -717.27 2.01 406.920 0.013

14 D273559    CO2 Fits 1   O2 Fits 1
201.866 374.949 0.025 380.75 24.19 375.161 0.025
201.881 375.014 0.008 426.69 3.01 375.227 0.008
202.012 375.012 0.013 413.28 7.63 375.225 0.013
202.027 375.016 0.014 428.13 2.02 375.229 0.014

15 D743656    CO2 Fits 1   O2 Fits 1
201.871 378.863 0.015 -735.49 2.04 379.081 0.015
201.876 378.861 0.011 -735.92 1.89 379.079 0.011
202.017 378.876 0.014 -737.35 2.13 379.094 0.014
202.022 378.870 0.011 -738.54 1.97 379.088 0.011
