UEA CRAM Lab O2 and CO2 calibration results
RUN = 180719a
PROCESSED: 16:49:22 Mon 21Aug2023

Notes
Logfile

Results

Using data from 200.959 to 201.176 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88532 382.157 0.016 0.175 382.378 0.016 0.175 3 -477.24 2.64 -22.74 3
5 CC203963 409.929 0.011 -0.026 410.123 0.011 -0.026 3 -566.79 3.98 -32.85 3
6 D596274 416.094 0.007 0.095 416.281 0.007 0.095 3 -839.59 1.60 0.53 3
9 CC203987 355.948 0.053 0.496 356.074 0.053 0.497 3 -325.98 6.41 -68.63 3
10 D169300 398.561 0.015 -0.084 398.771 0.015 -0.084 3 -688.46 2.25 -28.02 3
11 D273555 443.447 0.014 -0.057 443.670 0.014 -0.057 3 -902.32 0.67 6.44 3
13 D801298 406.732 0.004 -0.035 406.930 0.004 -0.035 3 -719.54 1.29 -16.57 3
14 D273559 375.012 0.003 -0.033 375.225 0.003 -0.033 3 408.70 4.03 -97.75 2
15 D743656 378.873 0.011 0.121 379.091 0.011 0.121 3 -740.57 1.42 -12.70 3
WT D258964 397.414 0.008 -0.094 397.626 0.008 -0.094 42 -744.98 1.01 -14.94 42
Text File

Raw Data and Diagnostics Figures

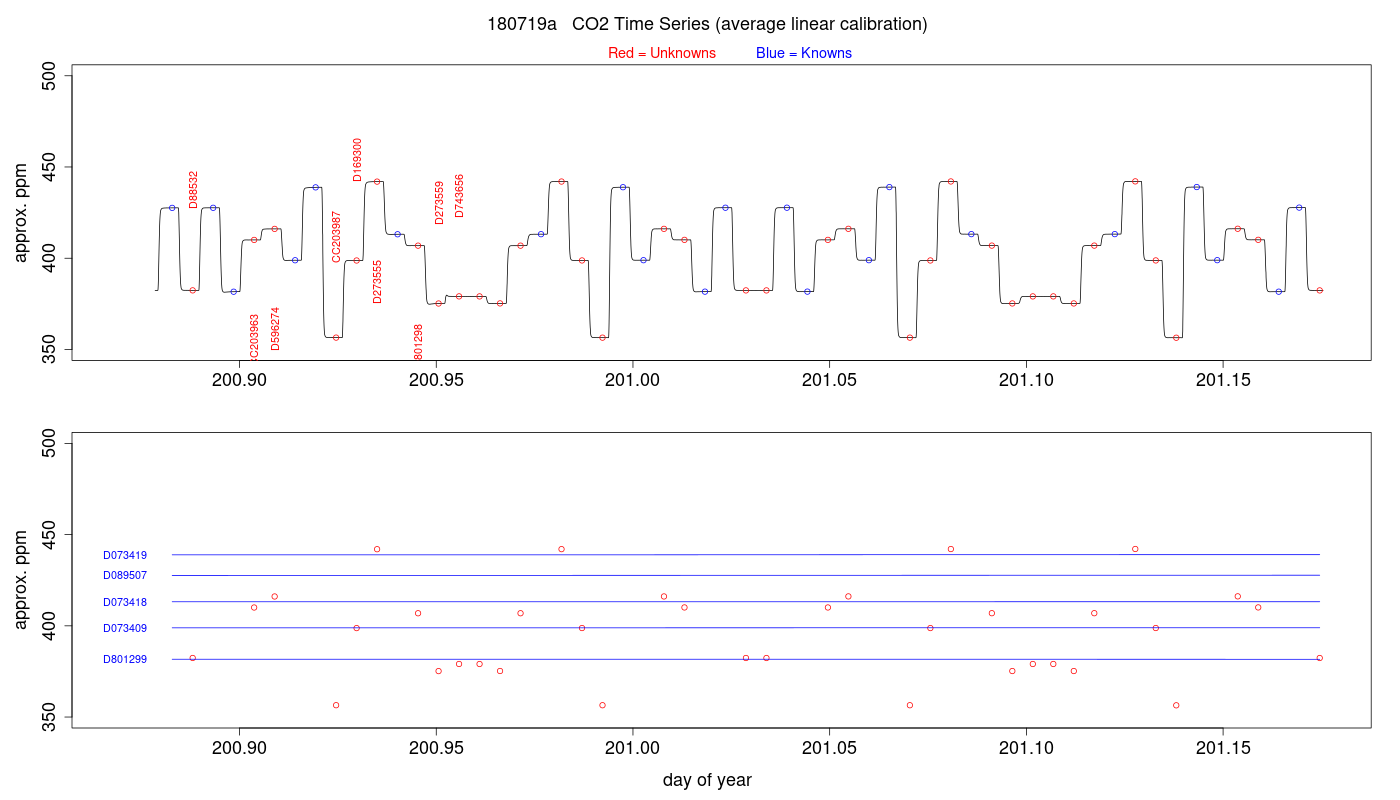

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns

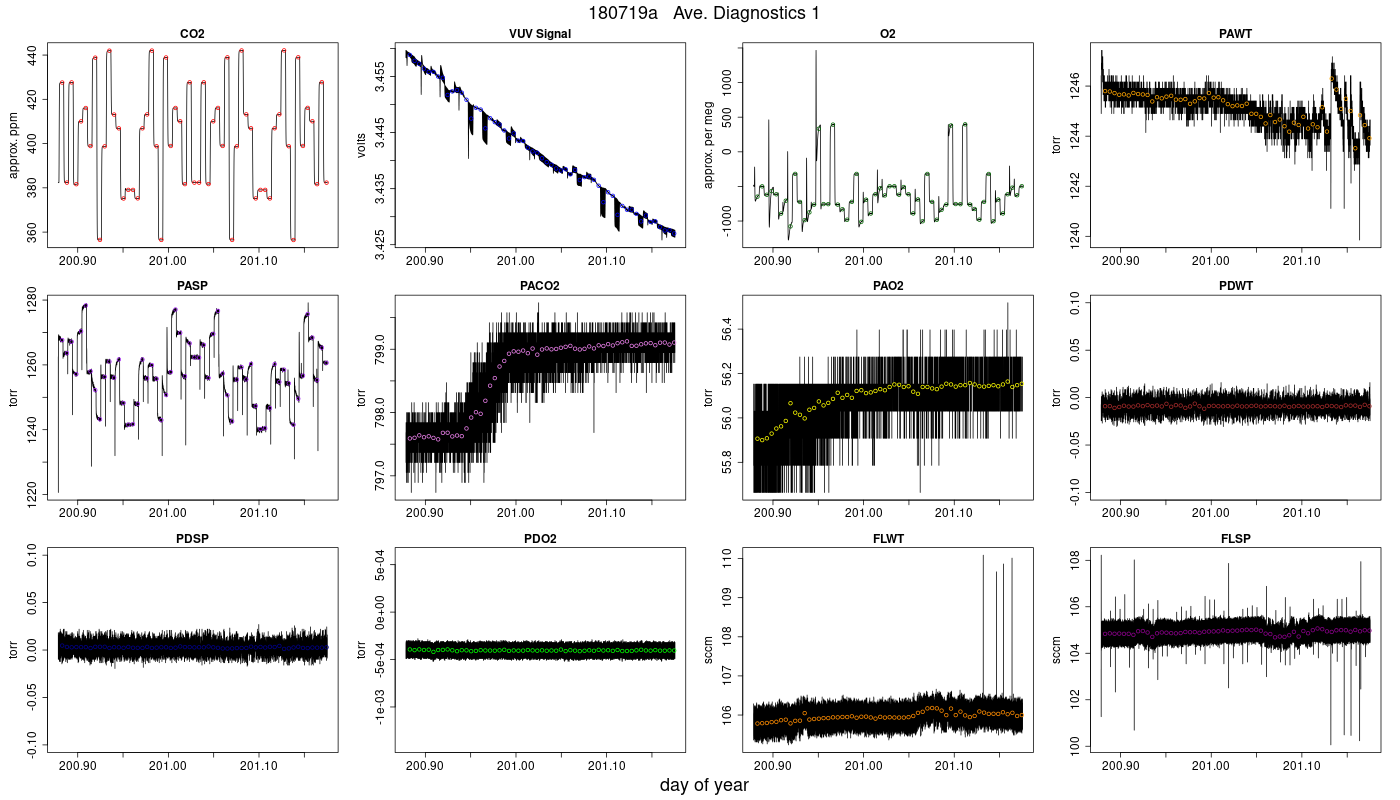

Jog Ave. Diagnostics 1

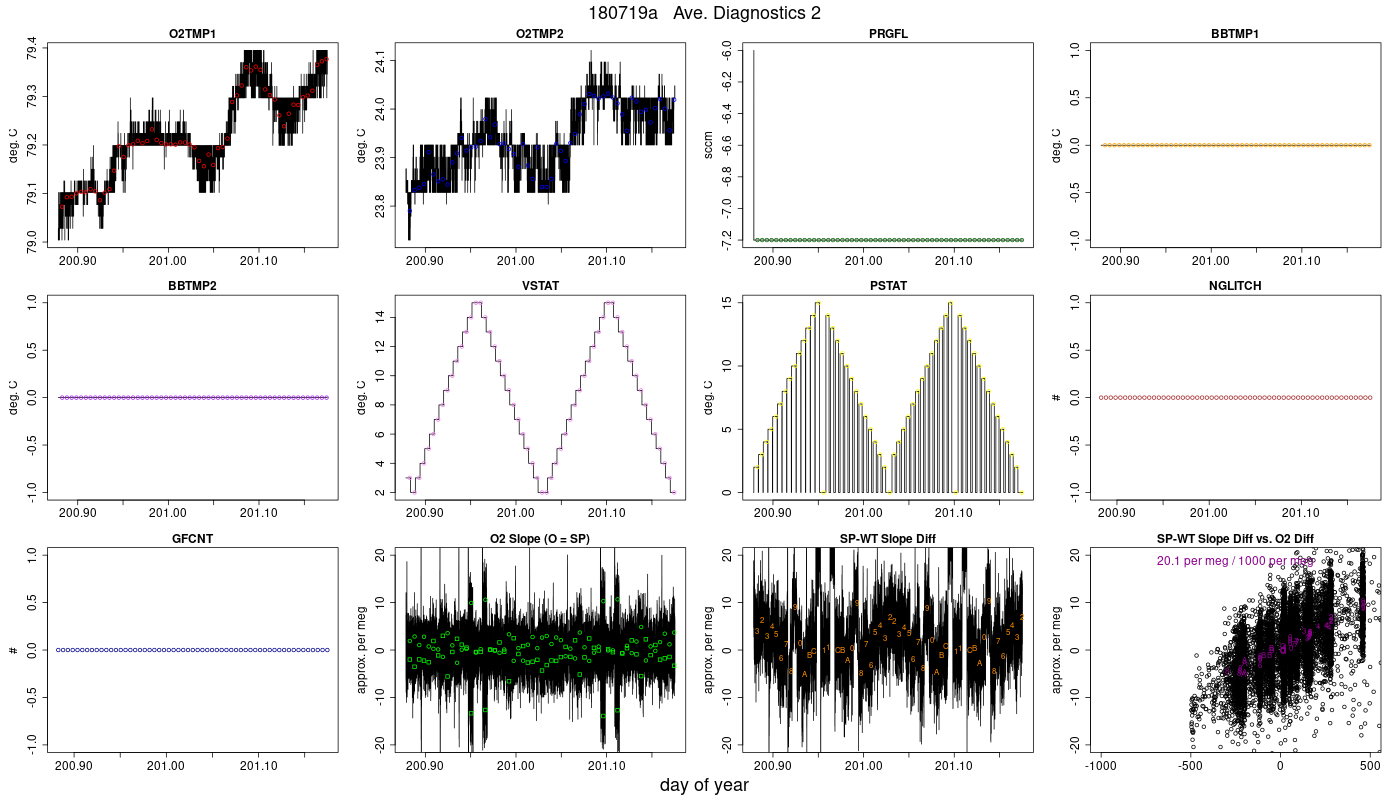

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

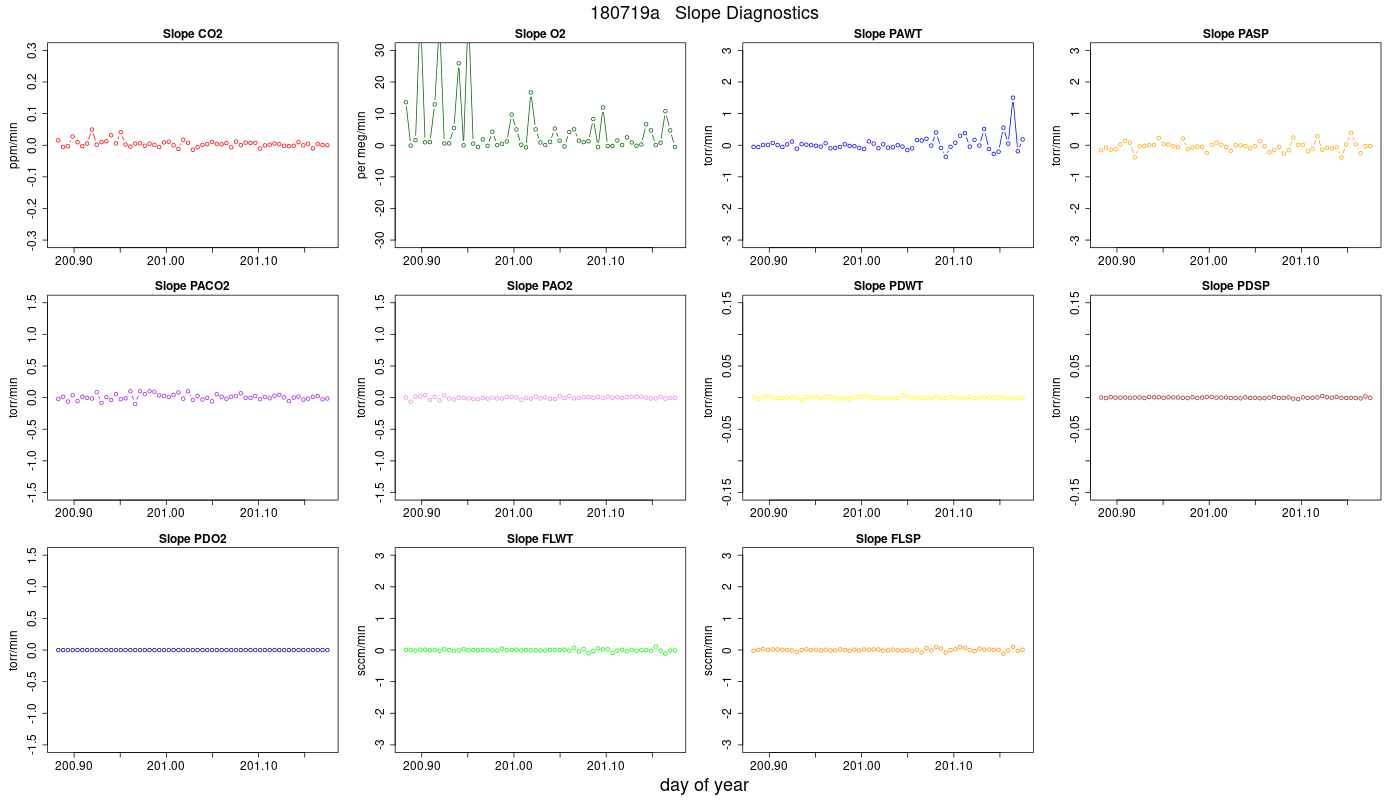

Jog Slope Diagnostics

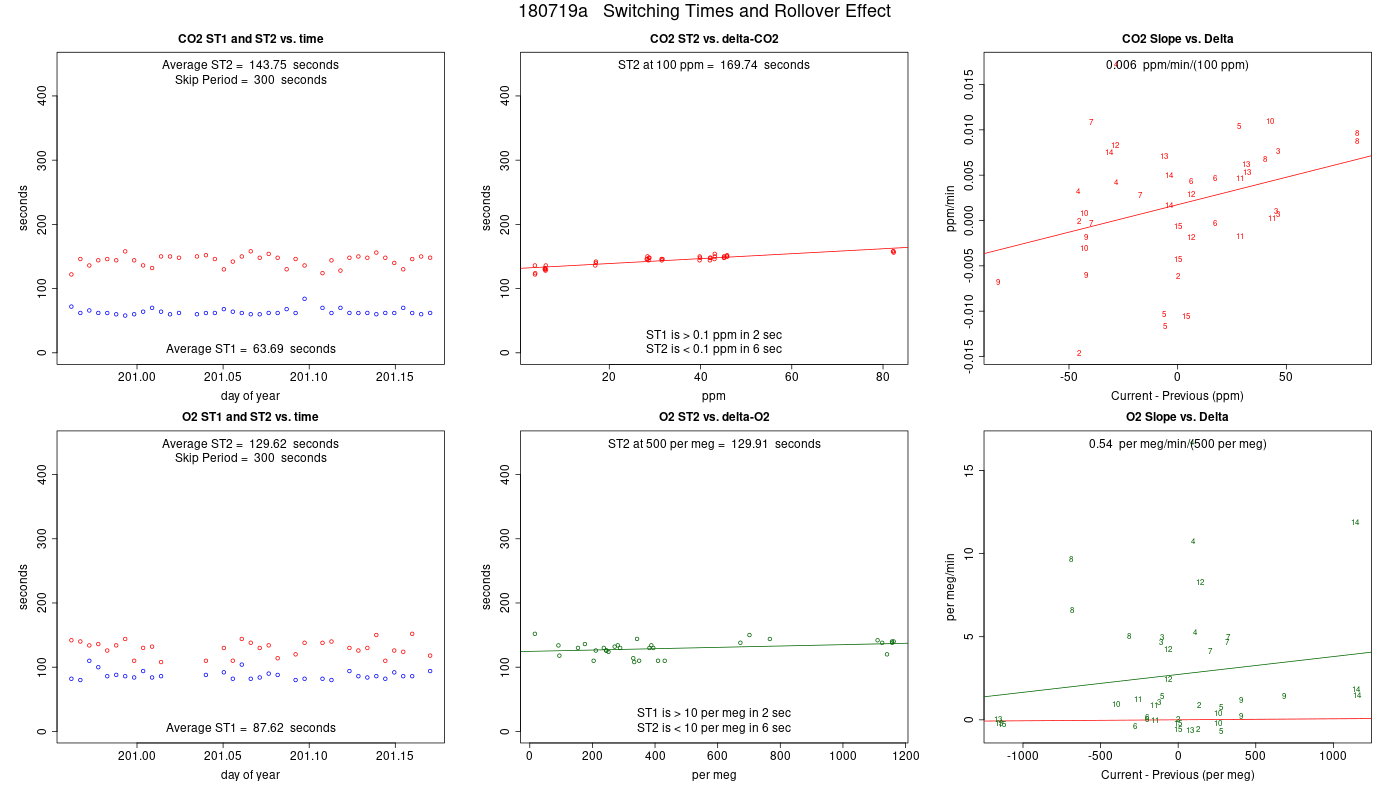

 Rollover Effect

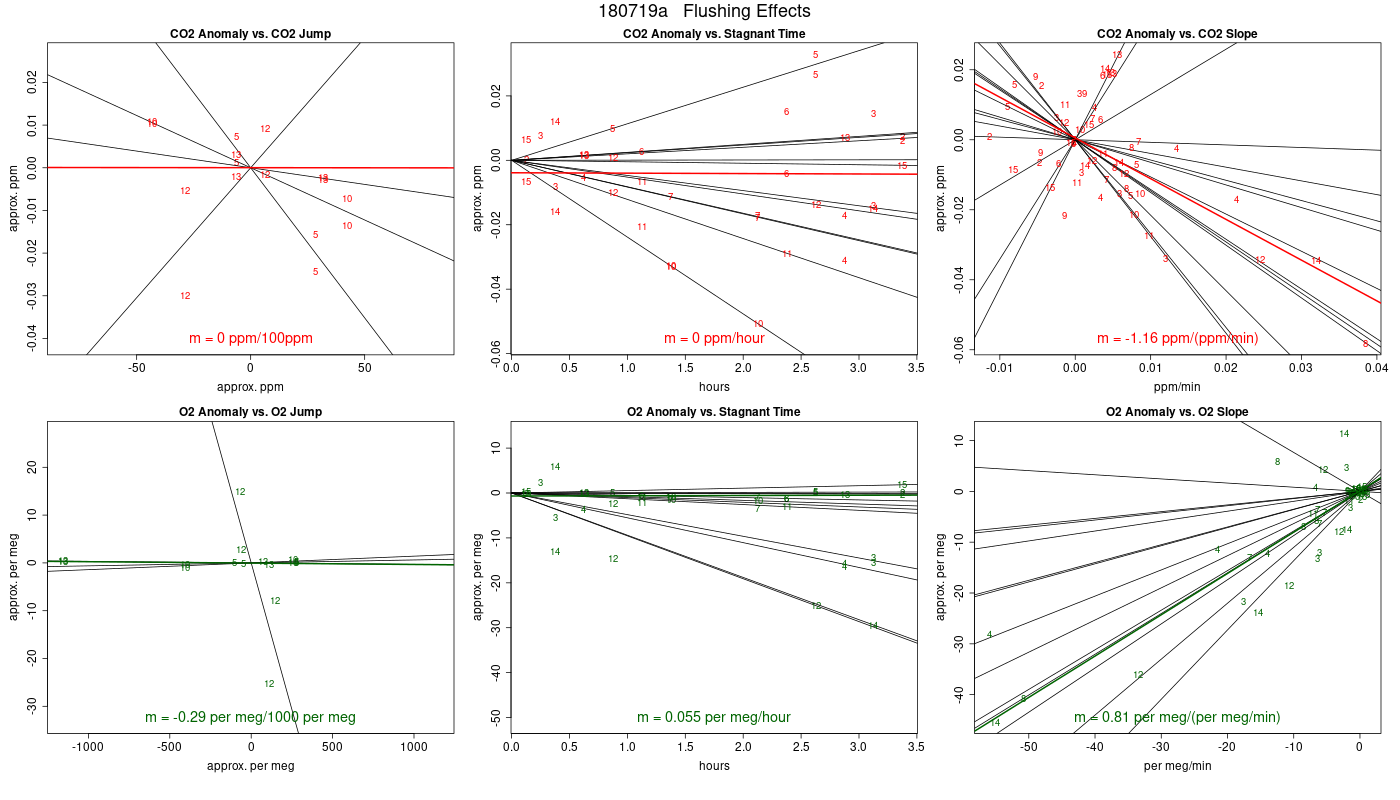

 Flushing Effect

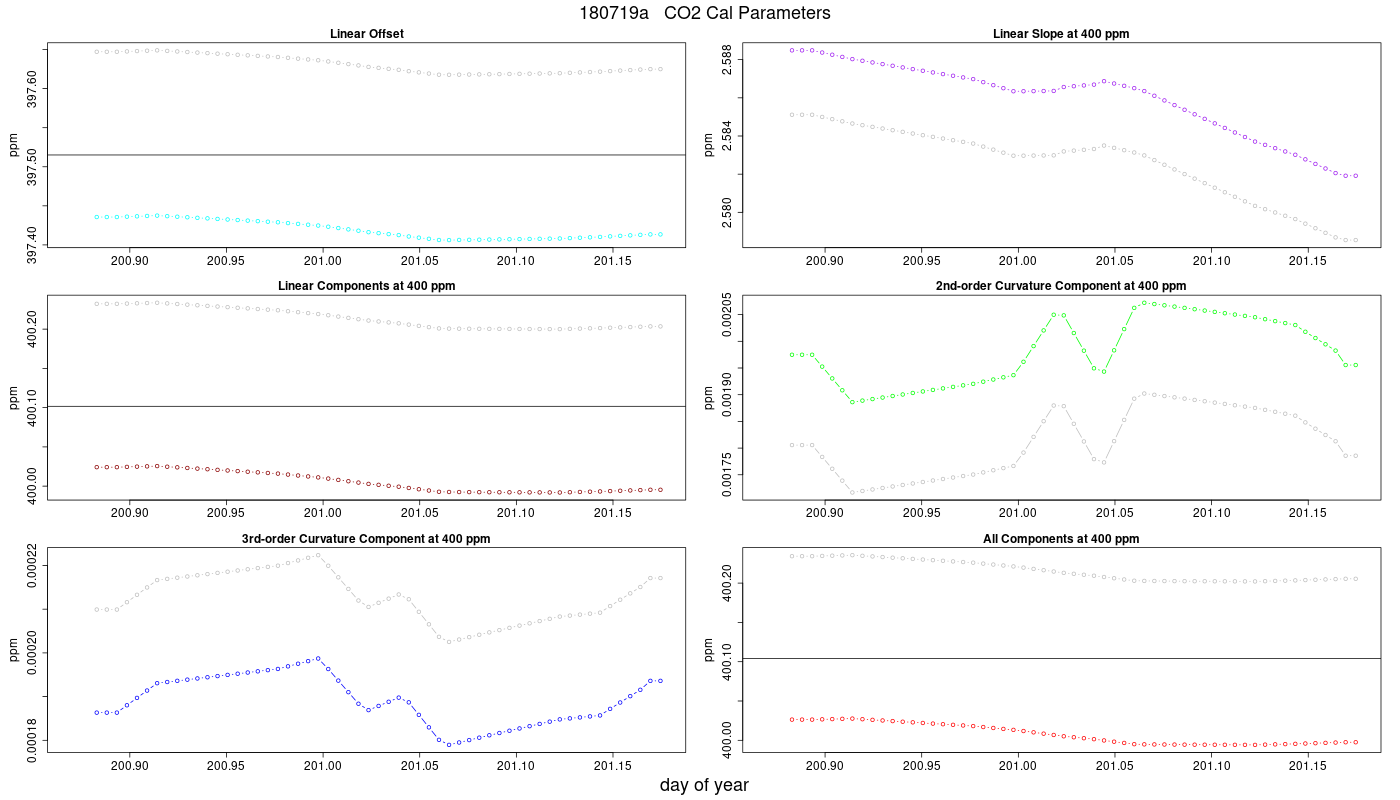

CO2 Parameters

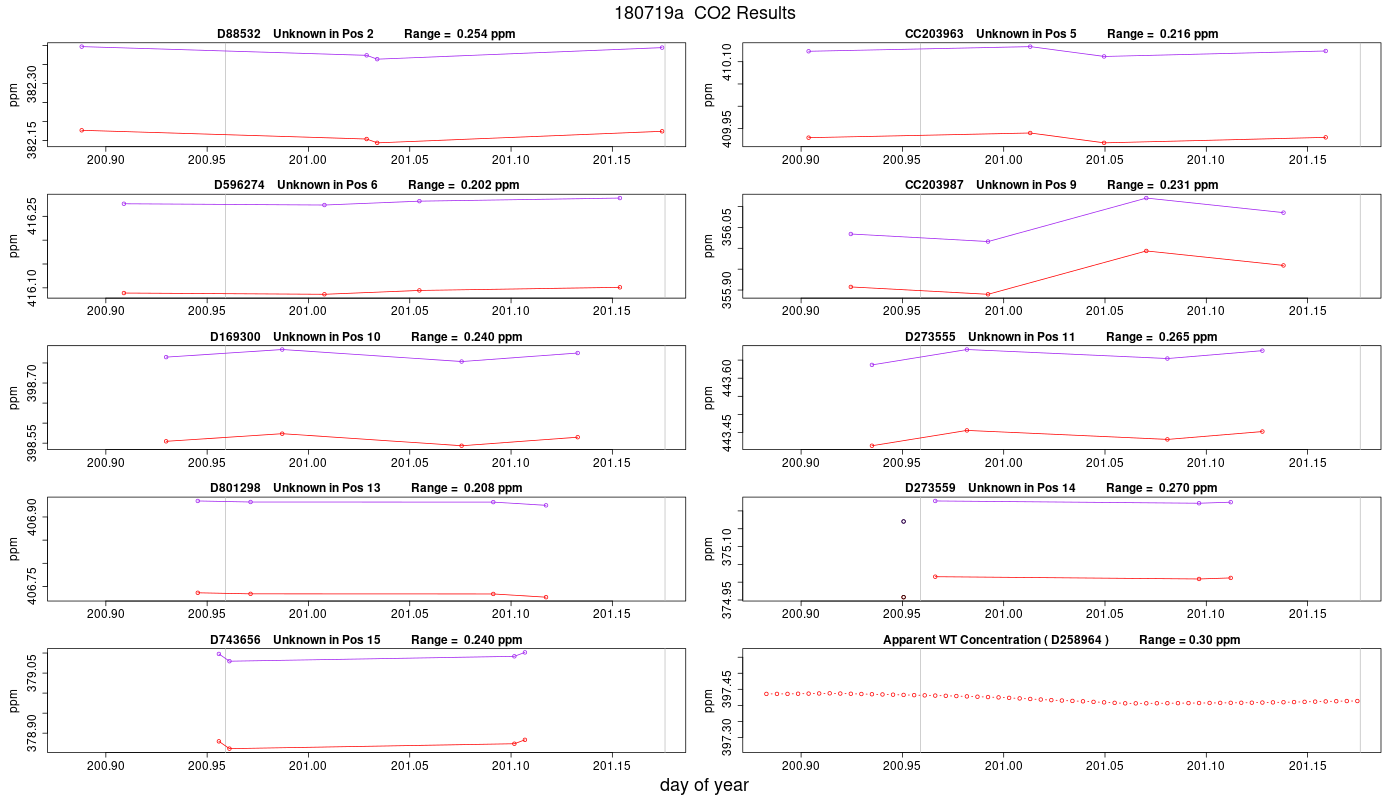

 CO2 Results

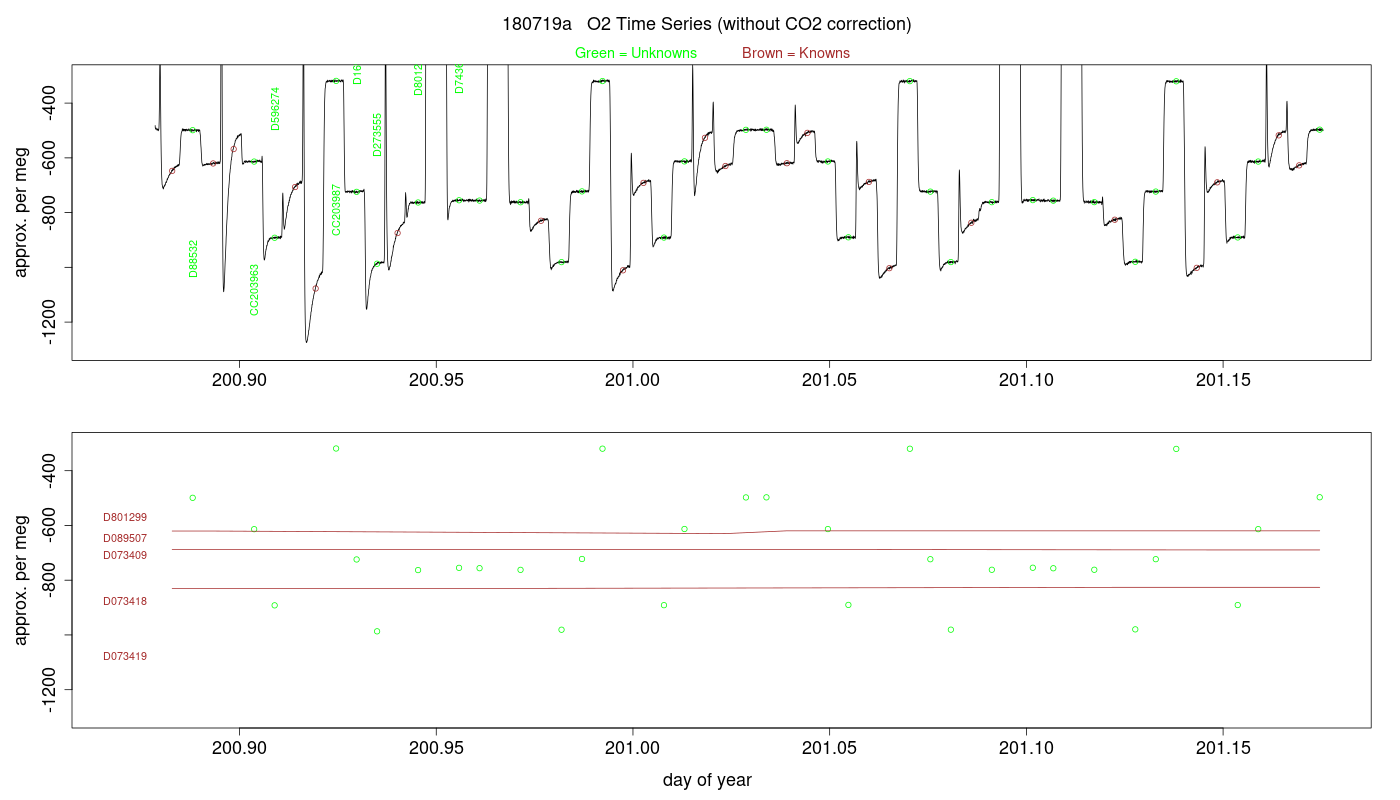

 O2 Timeseries

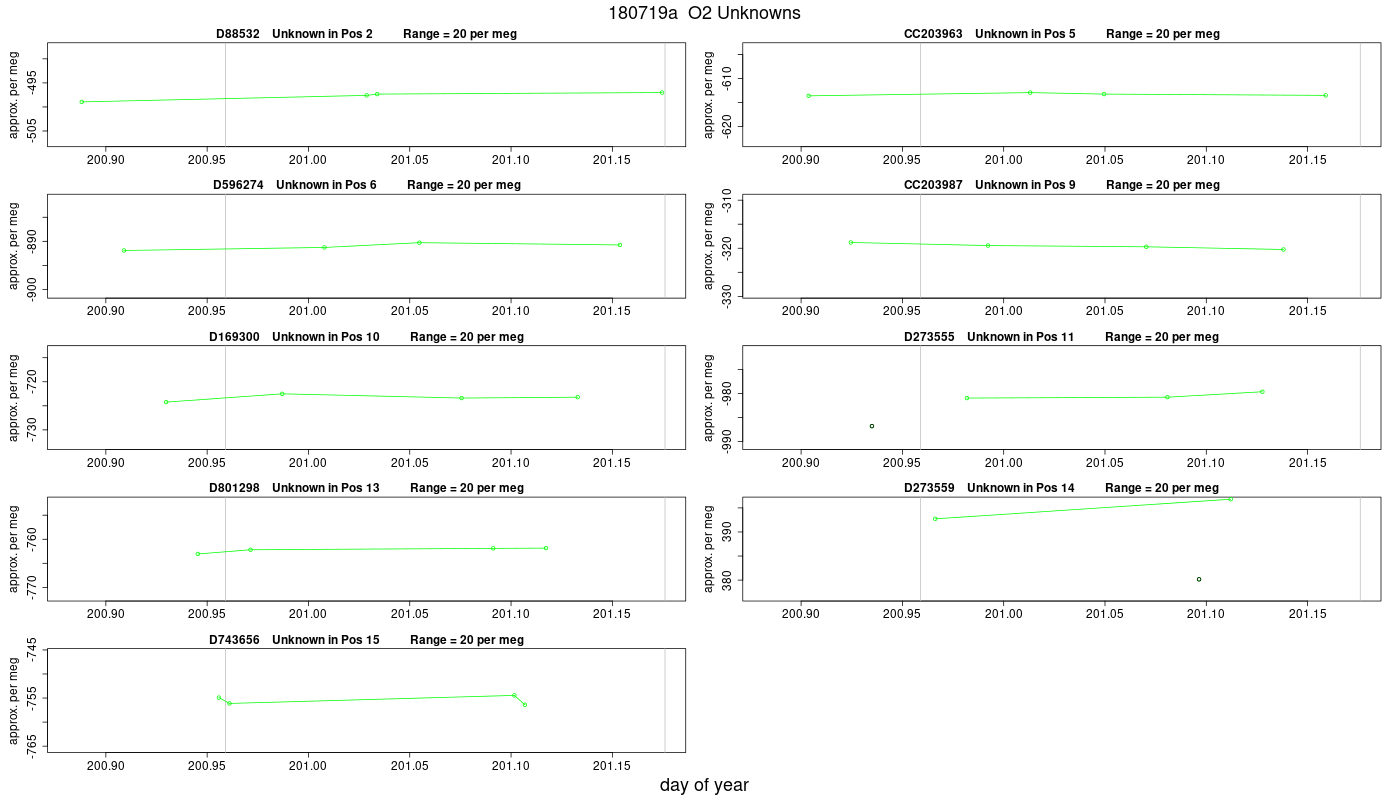

O2 Averages for Unknowns
 O2 Averages for Knowns

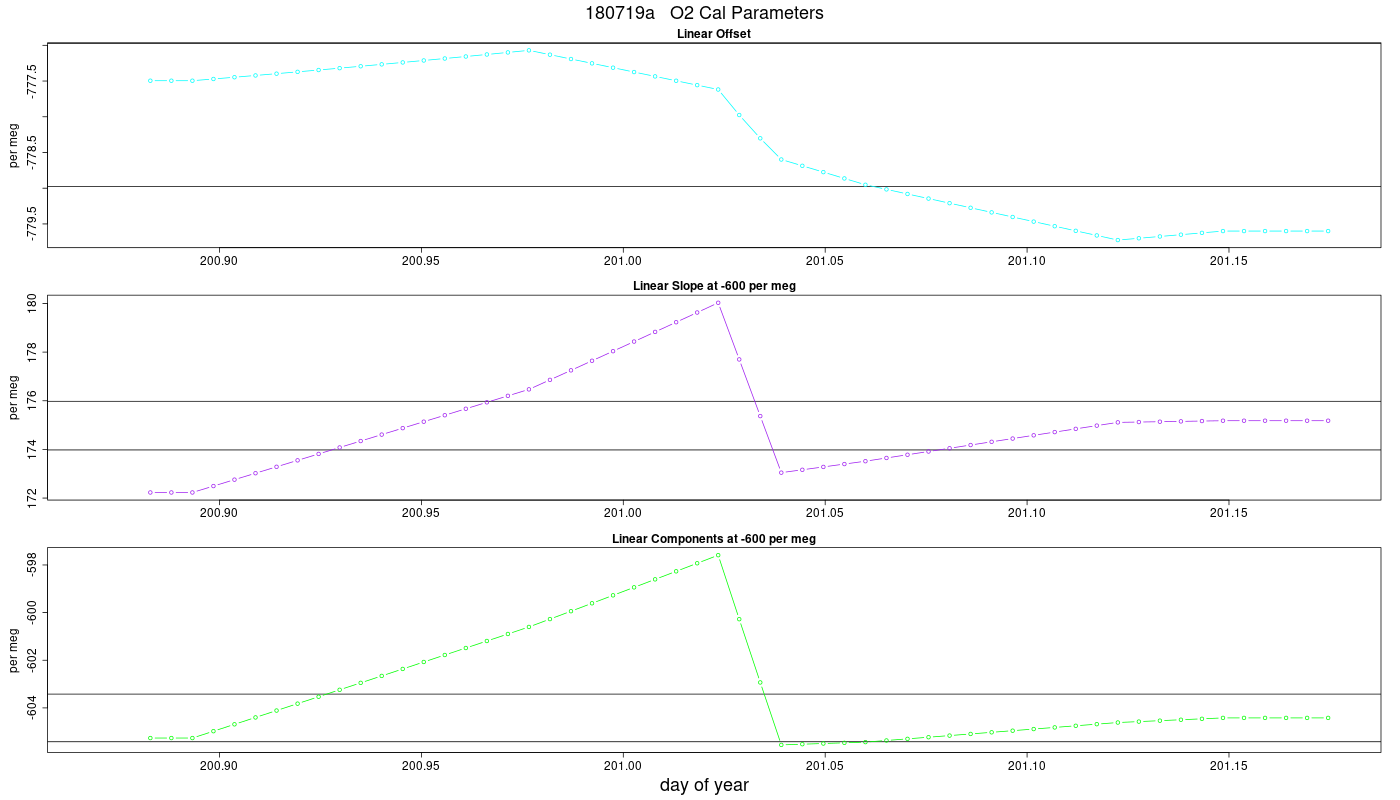

 O2 Parameters

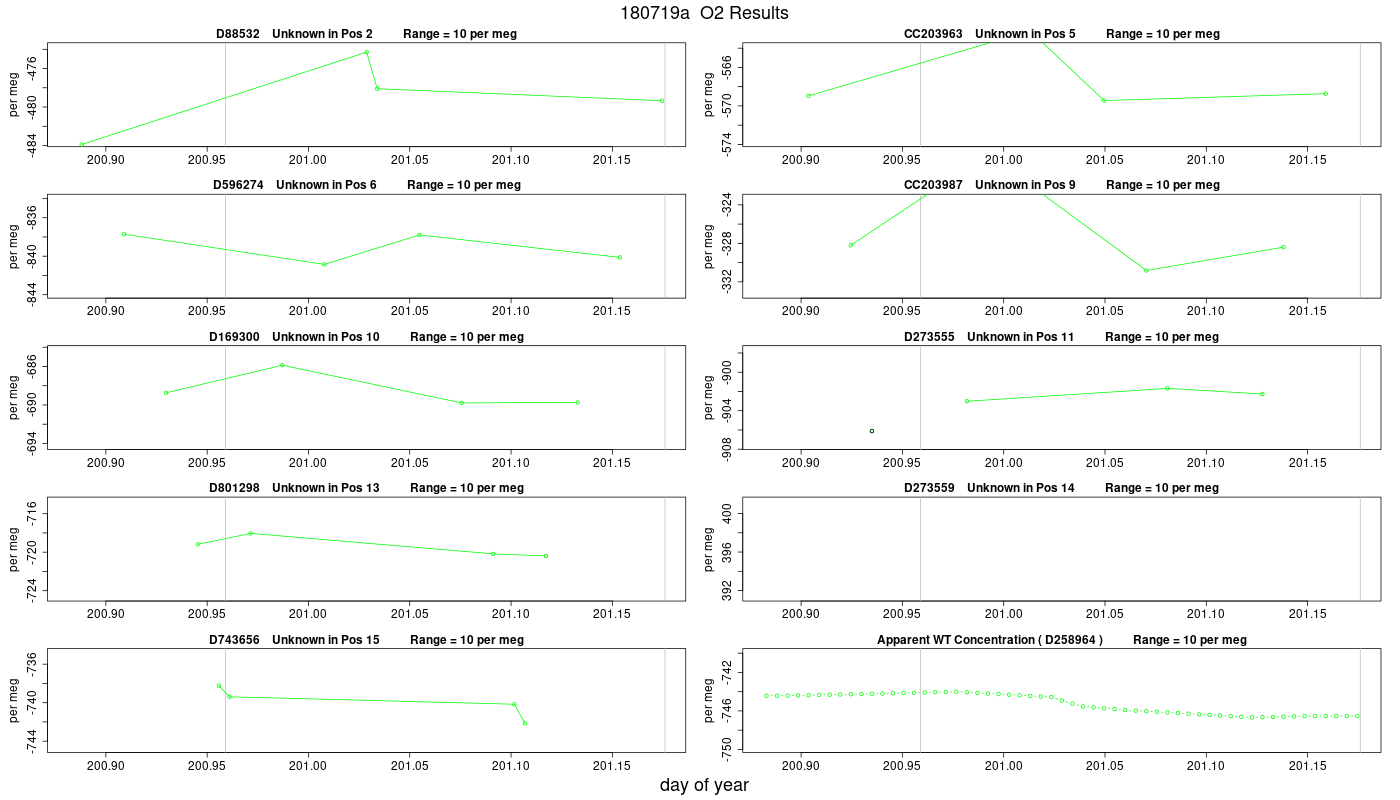

O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

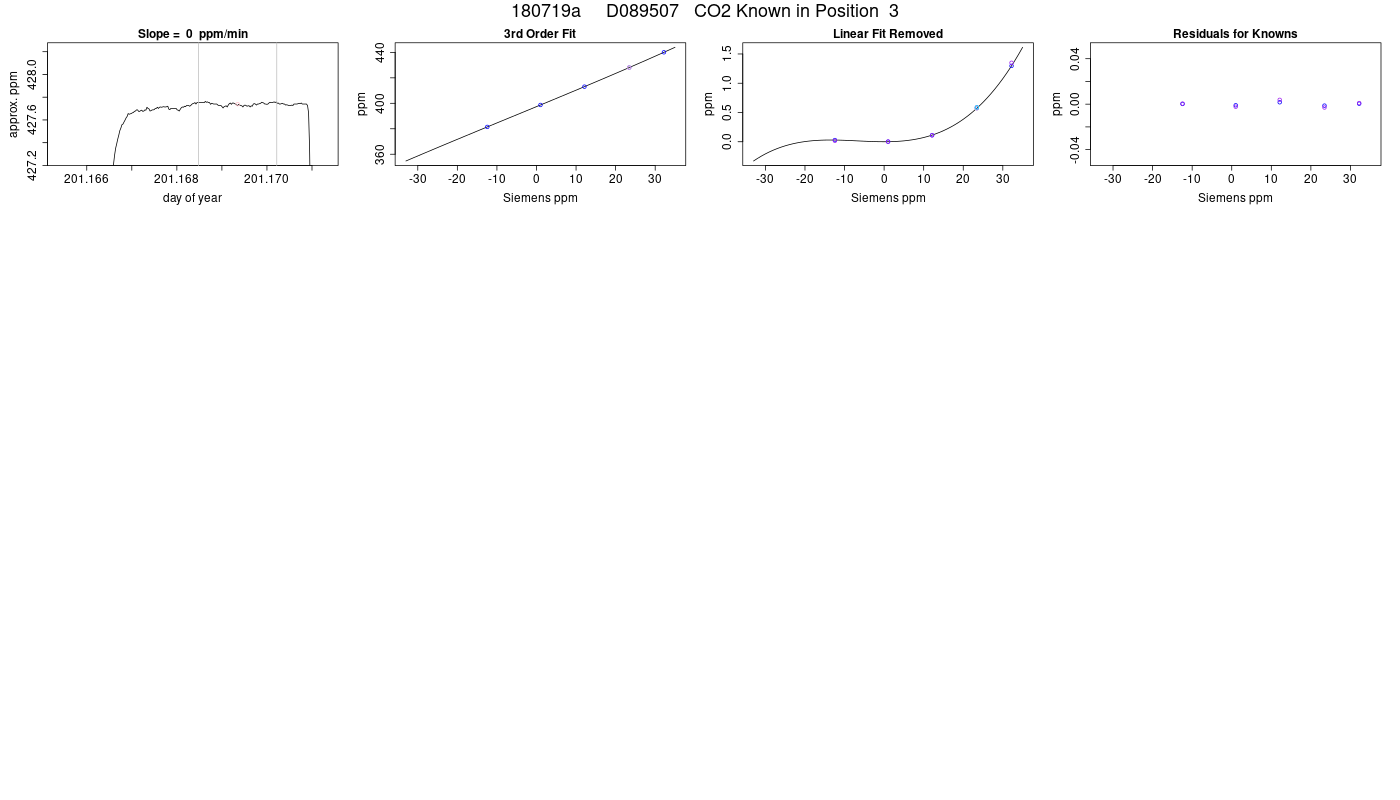

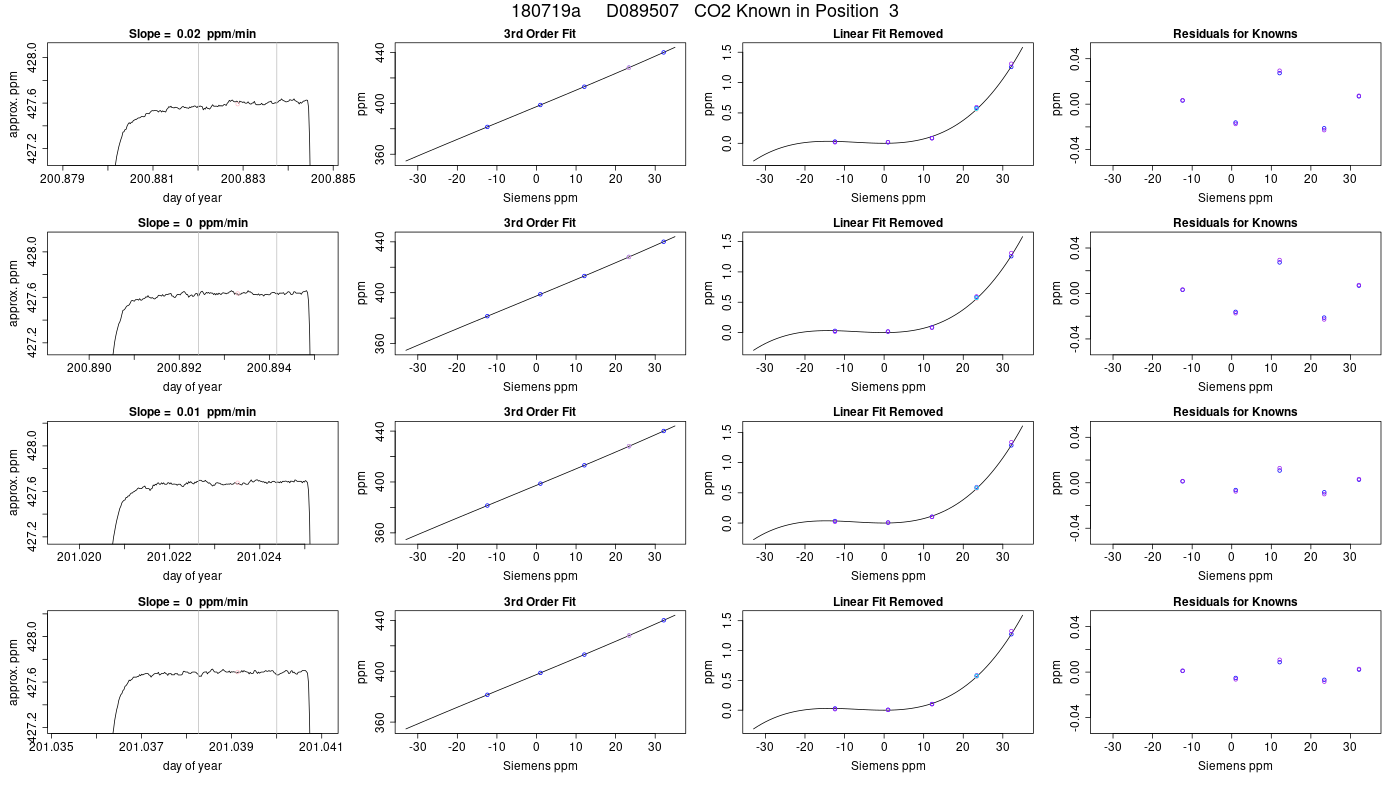

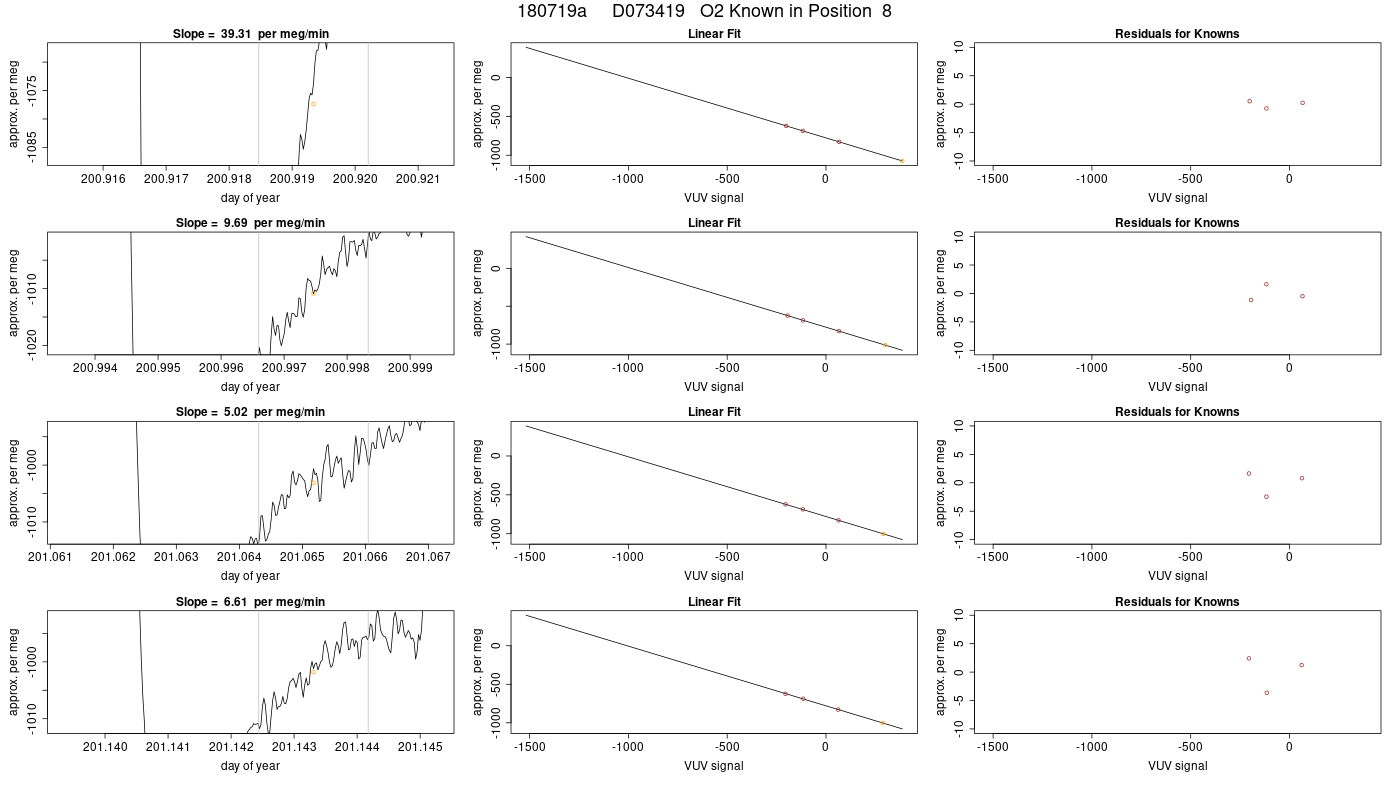

3 D089507 428.087 -0.005 0.004 428.275 -0.007 0.004 3 -559.23 -0.08 2.24 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

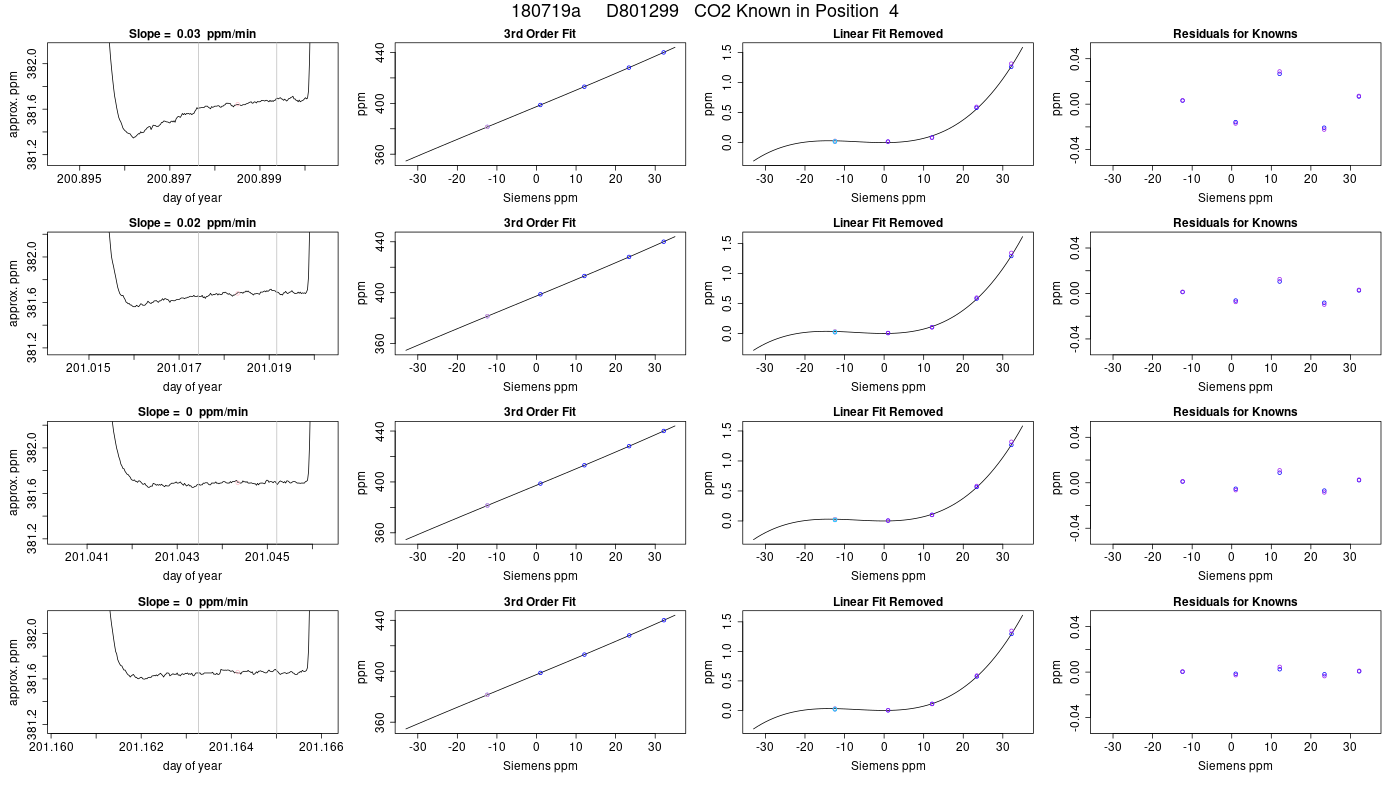

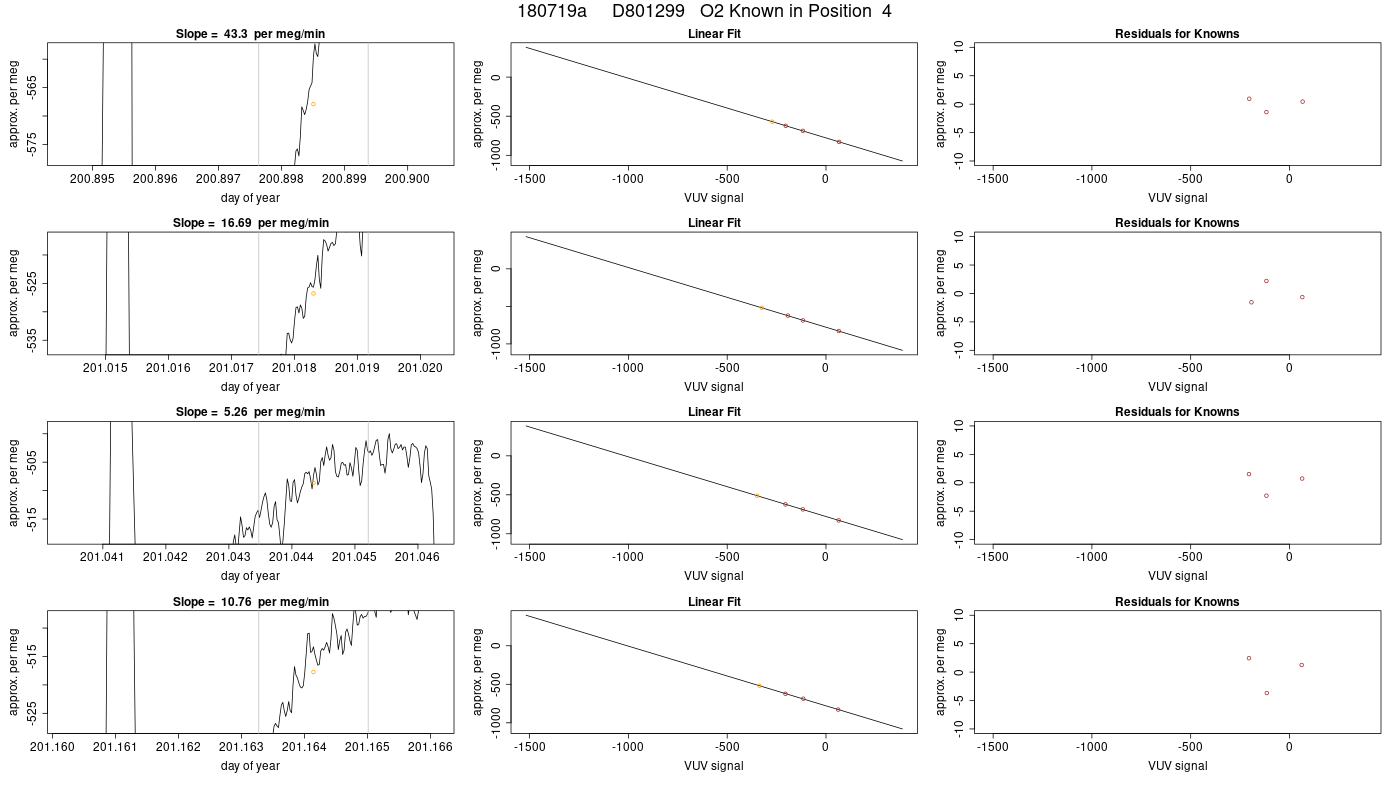

4 D801299 381.475 0.001 0.000 381.695 0.001 0.000 3 NA NA NA 0    CO2 Fits 1    O2 Fits 1
7 D073409 398.707 -0.005 0.002 398.918 -0.006 0.002 3 -651.78 -3.03 0.94 2    CO2 Fits 1    O2 Fits 1
8 D073419 440.065 0.002 0.001 440.275 0.003 0.001 3 NA NA NA 0    CO2 Fits 1    O2 Fits 1

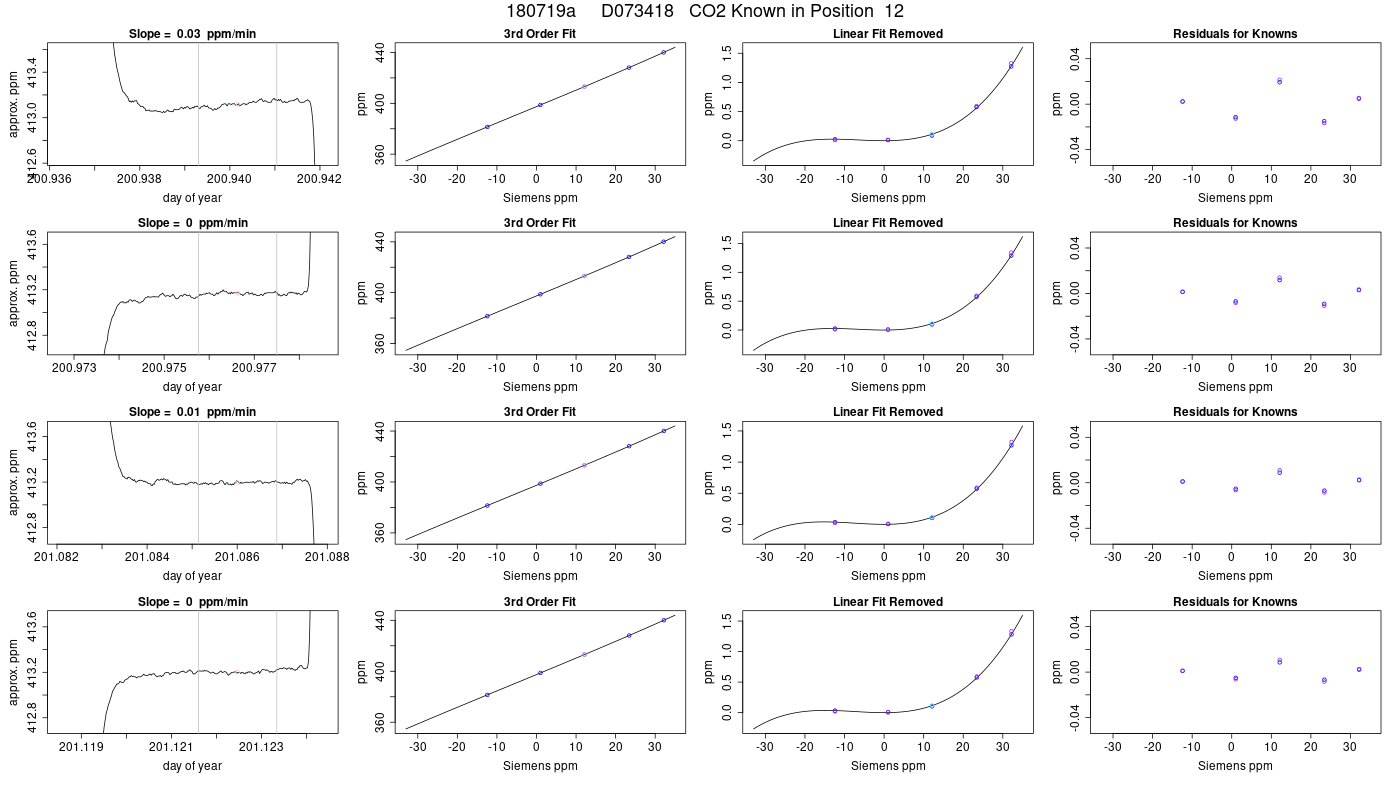

12 D073418 413.092 0.010 0.002 413.280 0.012 0.002 3 -779.40 0.42 1.03 2    CO2 Fits 1    O2 Fits 1

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

2 D88532    CO2 Fits 1   O2 Fits 1
200.888 382.177 0.011 -483.89 1.79 382.397 0.011
201.029 382.154 0.016 -474.29 1.70 382.374 0.016
201.034 382.144 0.014 -478.10 1.97 382.364 0.014
201.175 382.174 0.012 -479.35 2.37 382.395 0.012

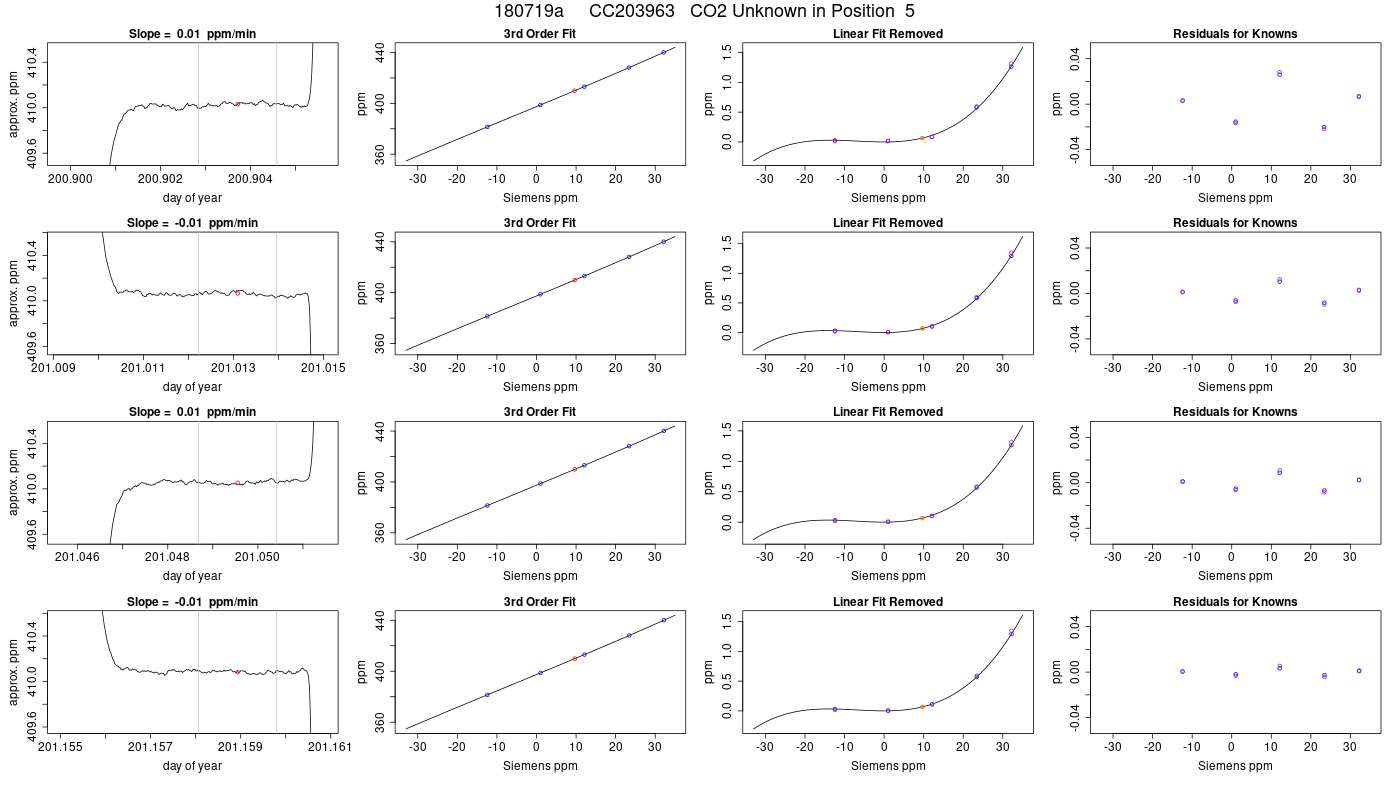

5 CC203963    CO2 Fits 1   O2 Fits 1
200.904 409.929 0.015 -568.95 2.00 410.123 0.015
201.013 409.940 0.017 -562.21 2.27 410.134 0.017
201.050 409.918 0.014 -569.44 2.12 410.112 0.014
201.159 409.930 0.012 -568.73 1.66 410.124 0.012

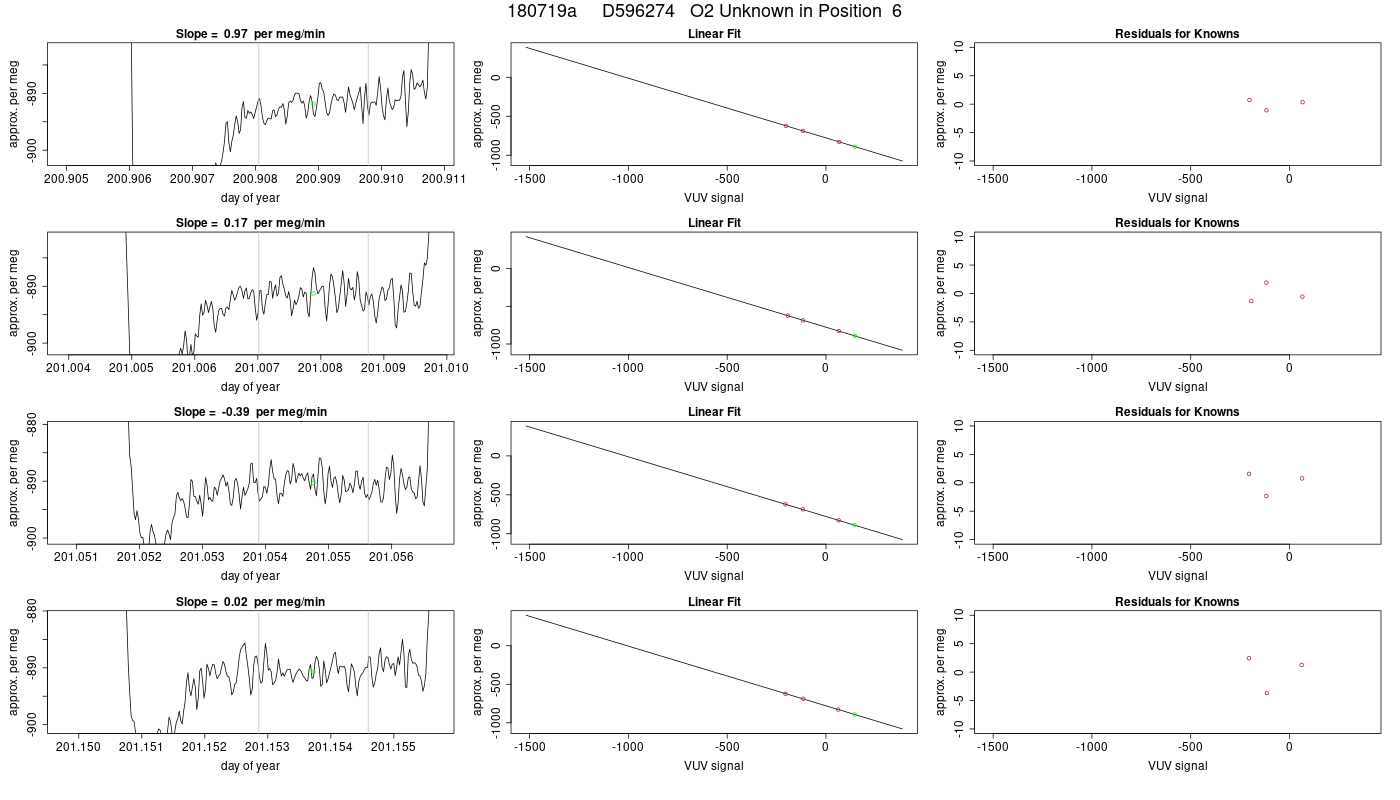

6 D596274    CO2 Fits 1   O2 Fits 1
200.909 416.089 0.015 -837.71 1.81 416.276 0.015
201.008 416.086 0.013 -840.85 2.10 416.274 0.013
201.055 416.095 0.013 -837.79 1.93 416.282 0.013
201.154 416.101 0.009 -840.13 1.65 416.288 0.009

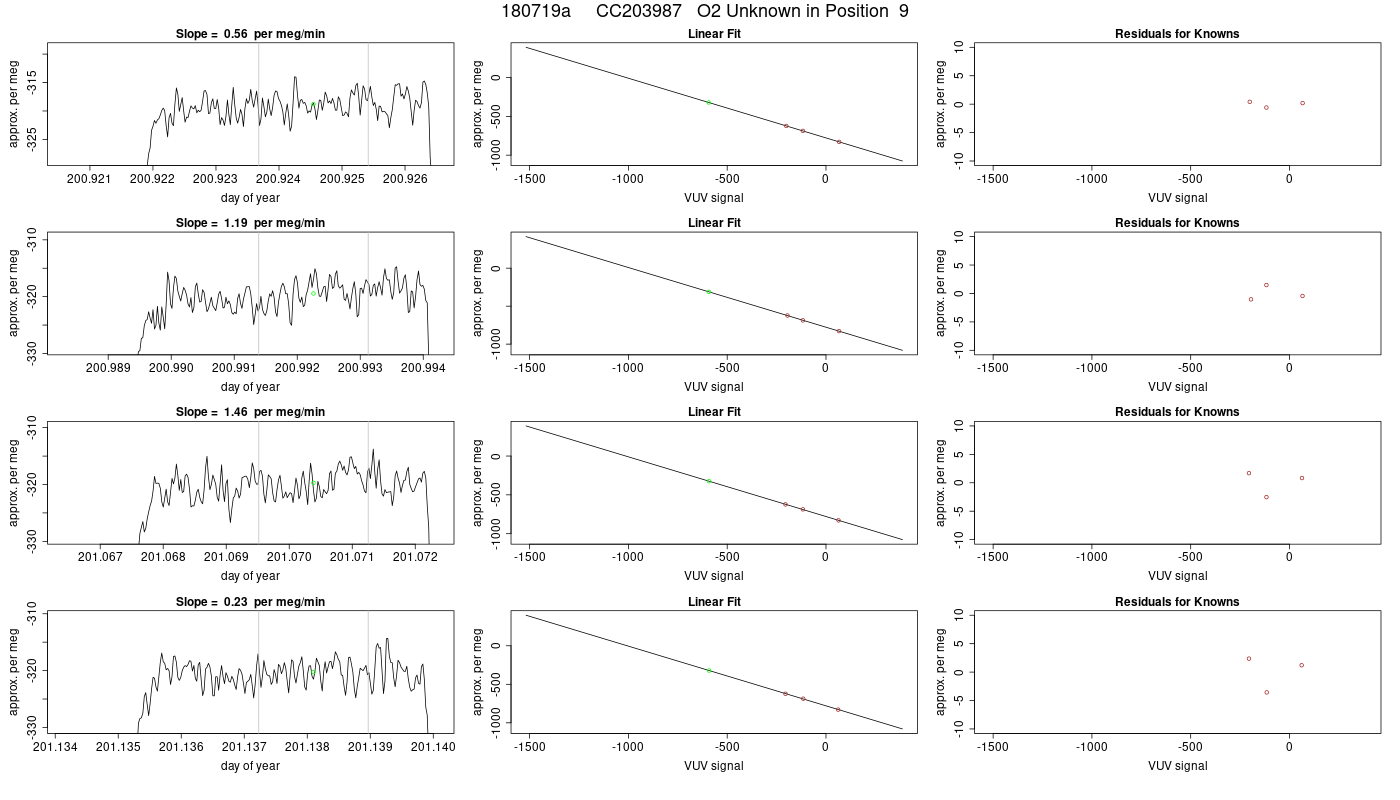

9 CC203987    CO2 Fits 1   O2 Fits 1
200.925 355.907 0.011 -328.20 1.91 356.034 0.011
200.992 355.890 0.009 -318.71 2.21 356.016 0.009
201.070 355.994 0.010 -330.82 2.21 356.120 0.010
201.138 355.959 0.008 -328.39 1.82 356.085 0.008

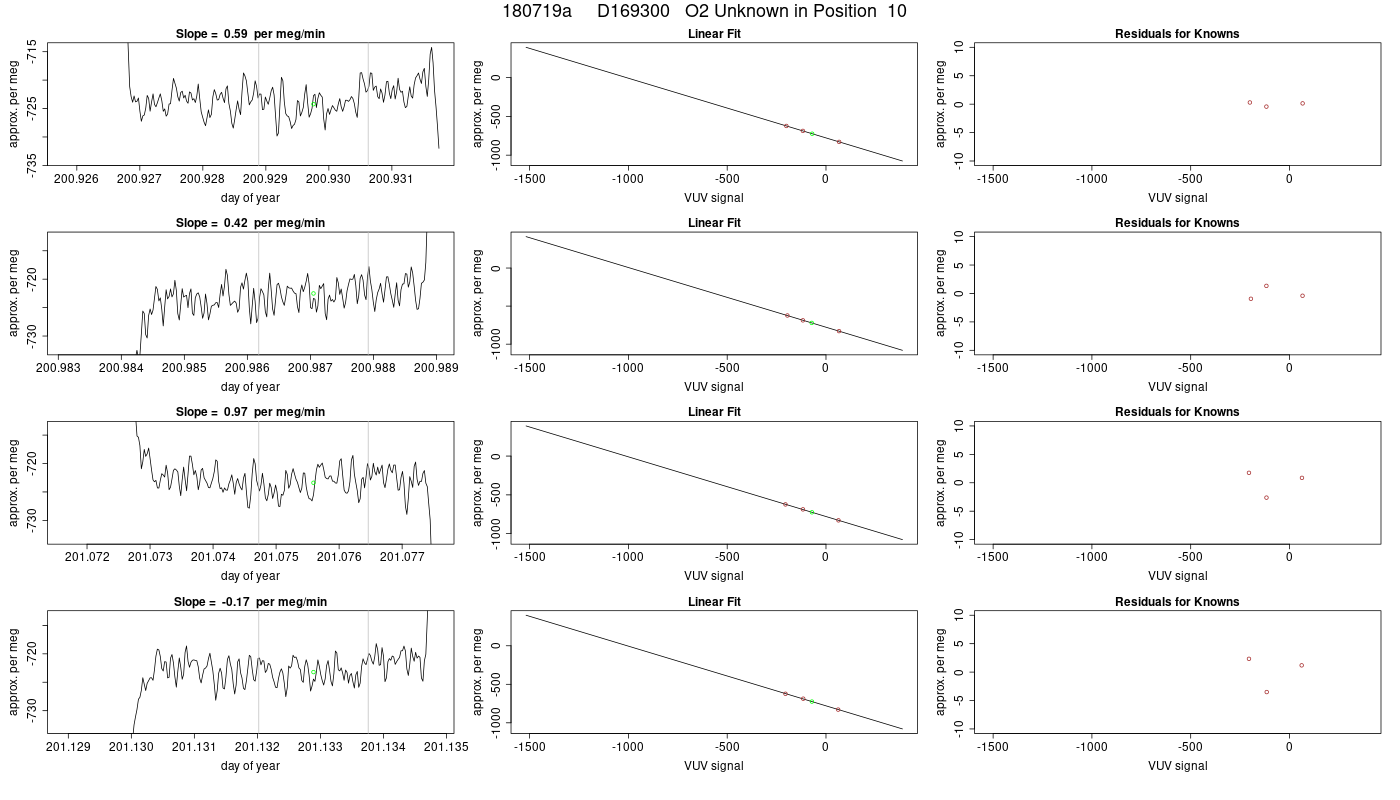

10 D169300    CO2 Fits 1   O2 Fits 1
200.930 398.555 0.011 -688.74 2.34 398.765 0.011
200.987 398.574 0.012 -685.87 2.00 398.784 0.012
201.076 398.544 0.012 -689.79 2.11 398.754 0.012
201.133 398.565 0.011 -689.74 1.78 398.775 0.011

11 D273555    CO2 Fits 1   O2 Fits 1
200.935 443.414 0.018 -906.12 4.66 443.637 0.018
200.982 443.456 0.011 -903.02 1.60 443.679 0.011
201.081 443.431 0.011 -901.68 1.97 443.654 0.011
201.128 443.453 0.008 -902.27 1.86 443.676 0.008

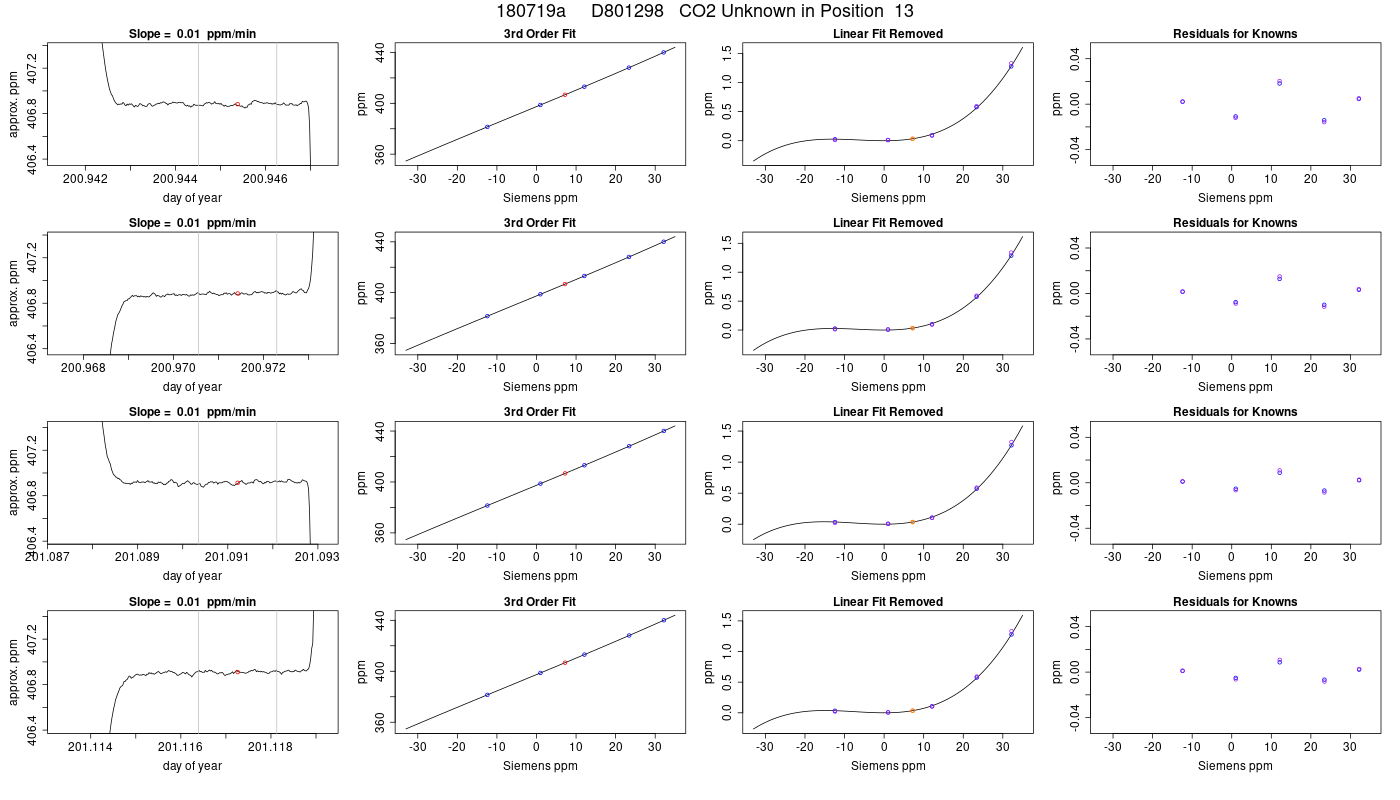

13 D801298    CO2 Fits 1   O2 Fits 1
200.945 406.736 0.015 -719.18 2.00 406.935 0.015
200.971 406.734 0.010 -718.05 1.91 406.932 0.010
201.091 406.734 0.014 -720.18 1.79 406.932 0.014
201.117 406.727 0.011 -720.39 2.60 406.925 0.011

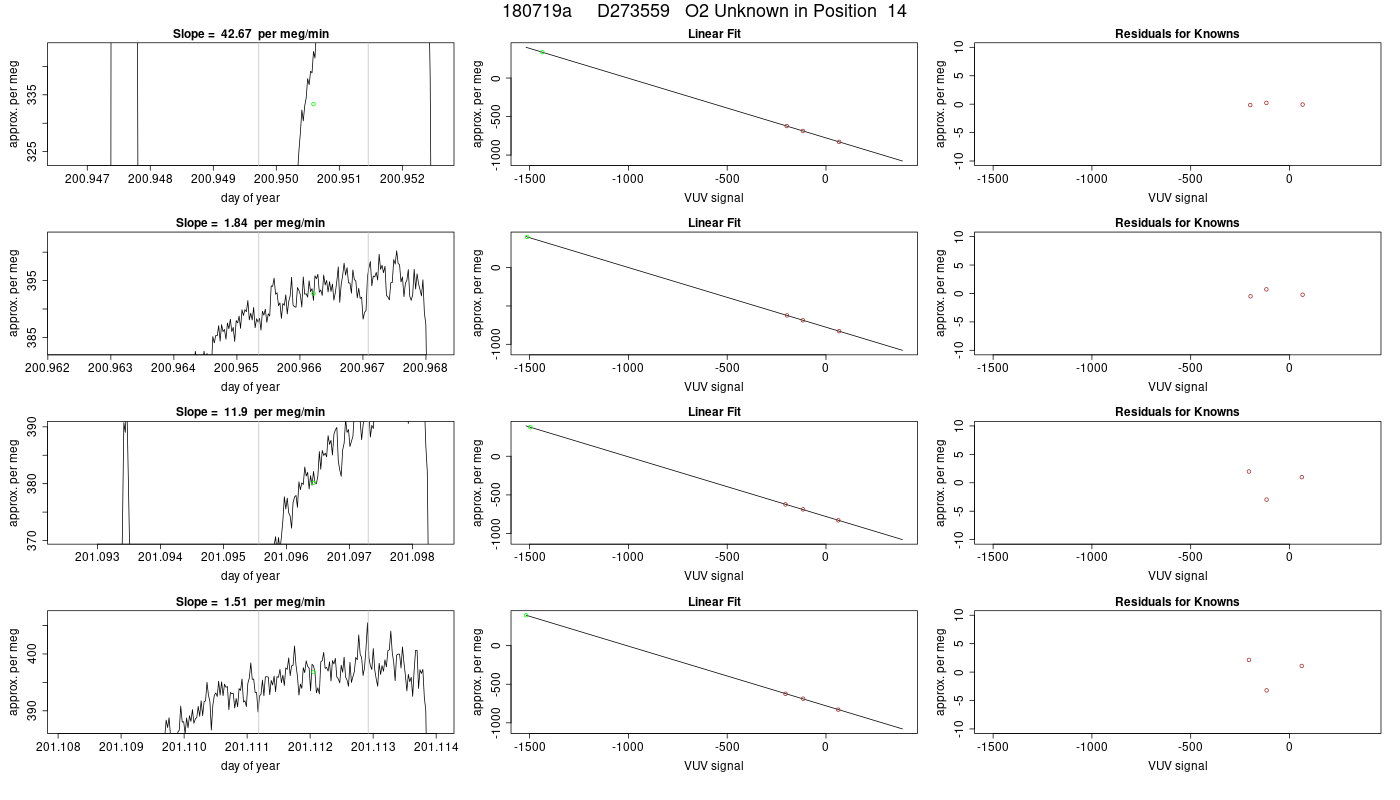

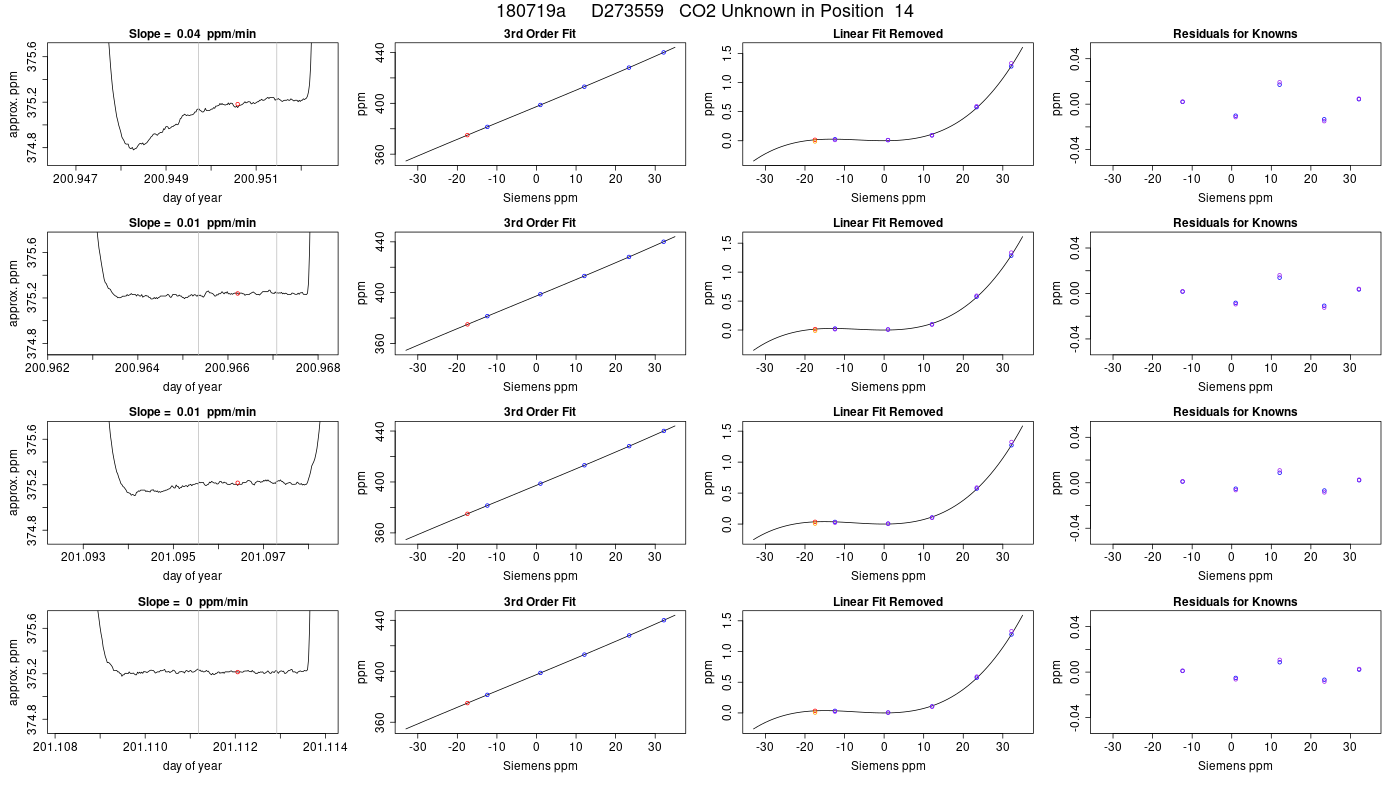

14 D273559    CO2 Fits 1   O2 Fits 1
200.951 374.958 0.035 346.67 32.23 375.170 0.035
200.966 375.015 0.012 411.55 2.59 375.228 0.012
201.096 375.009 0.012 386.77 9.40 375.222 0.012
201.112 375.012 0.009 405.85 2.47 375.225 0.009

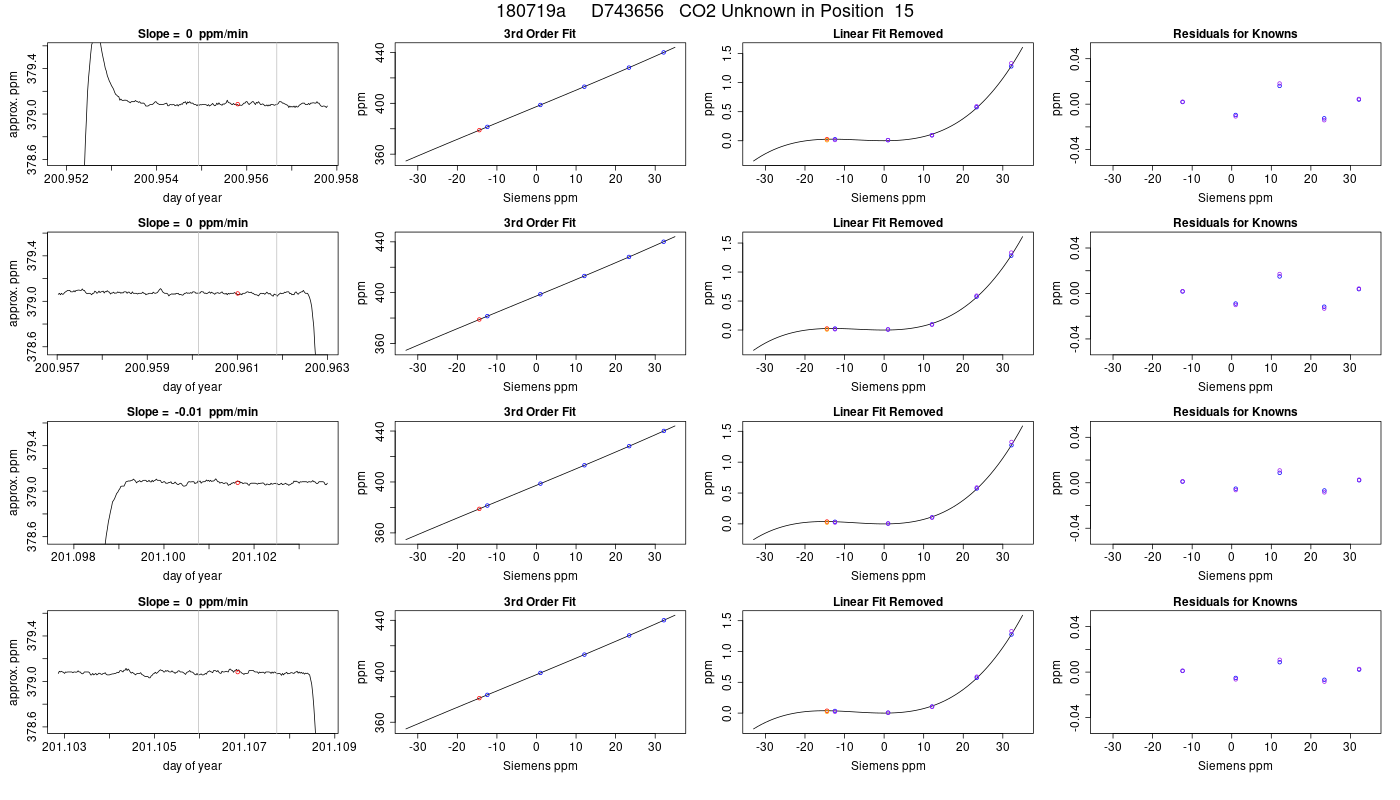

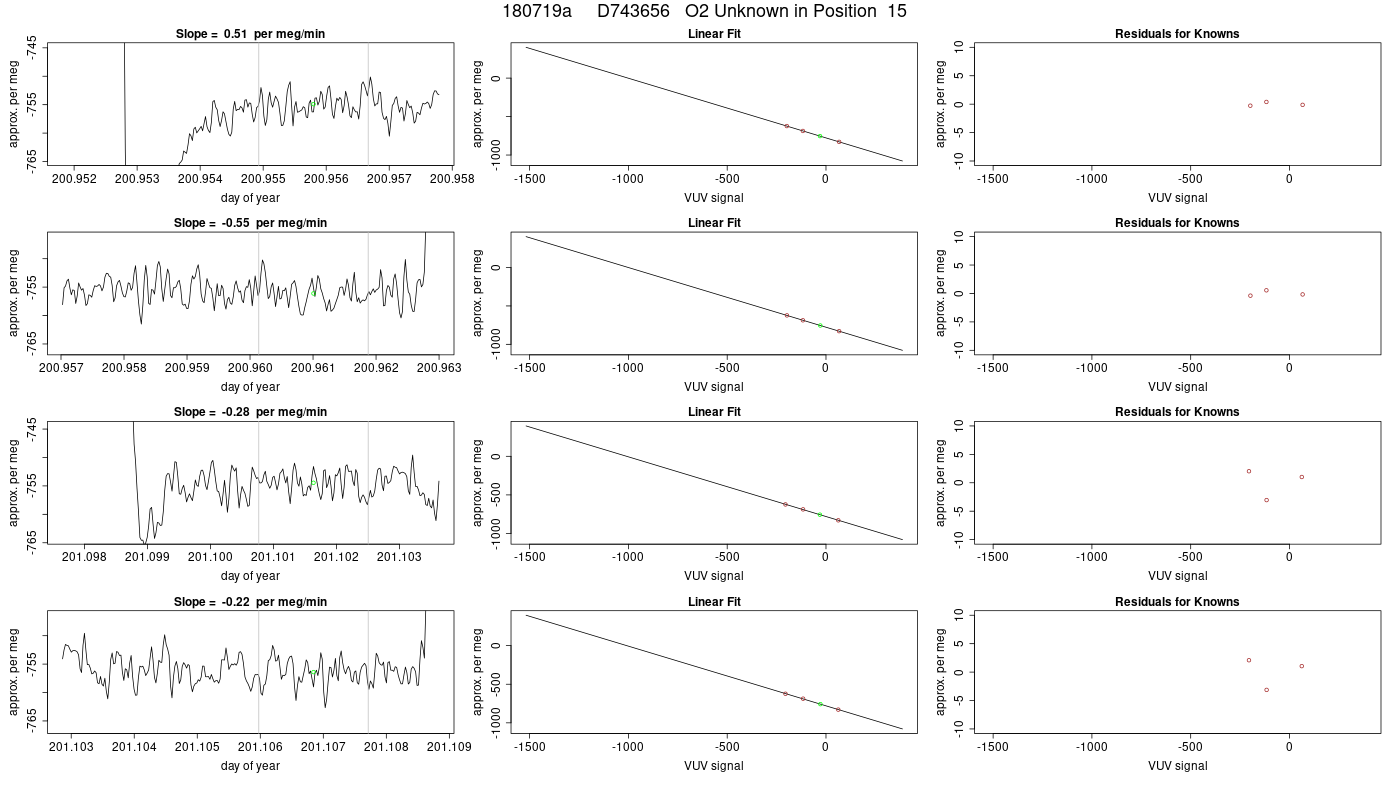

15 D743656    CO2 Fits 1   O2 Fits 1
200.956 378.880 0.011 -738.22 1.94 379.098 0.011
200.961 378.861 0.009 -739.39 2.02 379.080 0.009
201.102 378.874 0.012 -740.16 1.88 379.092 0.012
201.107 378.883 0.012 -742.15 2.19 379.102 0.012
