UEA CRAM Lab O2 and CO2 calibration results
RUN = 180213a
PROCESSED: 16:46:30 Mon 21Aug2023

Notes
Logfile

Results

Using data from 44.595 to 45.068 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88471 380.238 0.007 -0.021 380.457 0.007 -0.021 7 -416.15 2.78 -17.58 7
4 D88534 416.304 0.005 -0.018 416.491 0.005 -0.018 7 -744.24 1.61 -9.54 7
6 D88474 409.350 0.006 0.000 409.544 0.006 0.000 7 -536.33 0.93 -2.86 7
7 D596277 398.246 0.006 0.007 398.457 0.006 0.007 7 -749.69 2.26 -14.62 7
8 D88535 439.201 0.011 -0.011 439.408 0.011 -0.011 7 -508.04 2.78 -18.66 7
10 D548337 341.035 0.146 -0.847 341.007 0.146 -0.847 6 -163.13 1.52 7.26 6
11 D88536 397.210 0.005 -0.015 397.422 0.005 -0.015 7 -601.60 2.81 -18.60 7
14 D842554 397.679 0.007 0.017 397.890 0.007 0.017 7 -908.88 3.44 -3.00 7
WT D258964 397.427 0.007 -0.049 397.638 0.007 -0.049 91 -746.99 1.40 -9.86 91
Text File

Raw Data and Diagnostics Figures

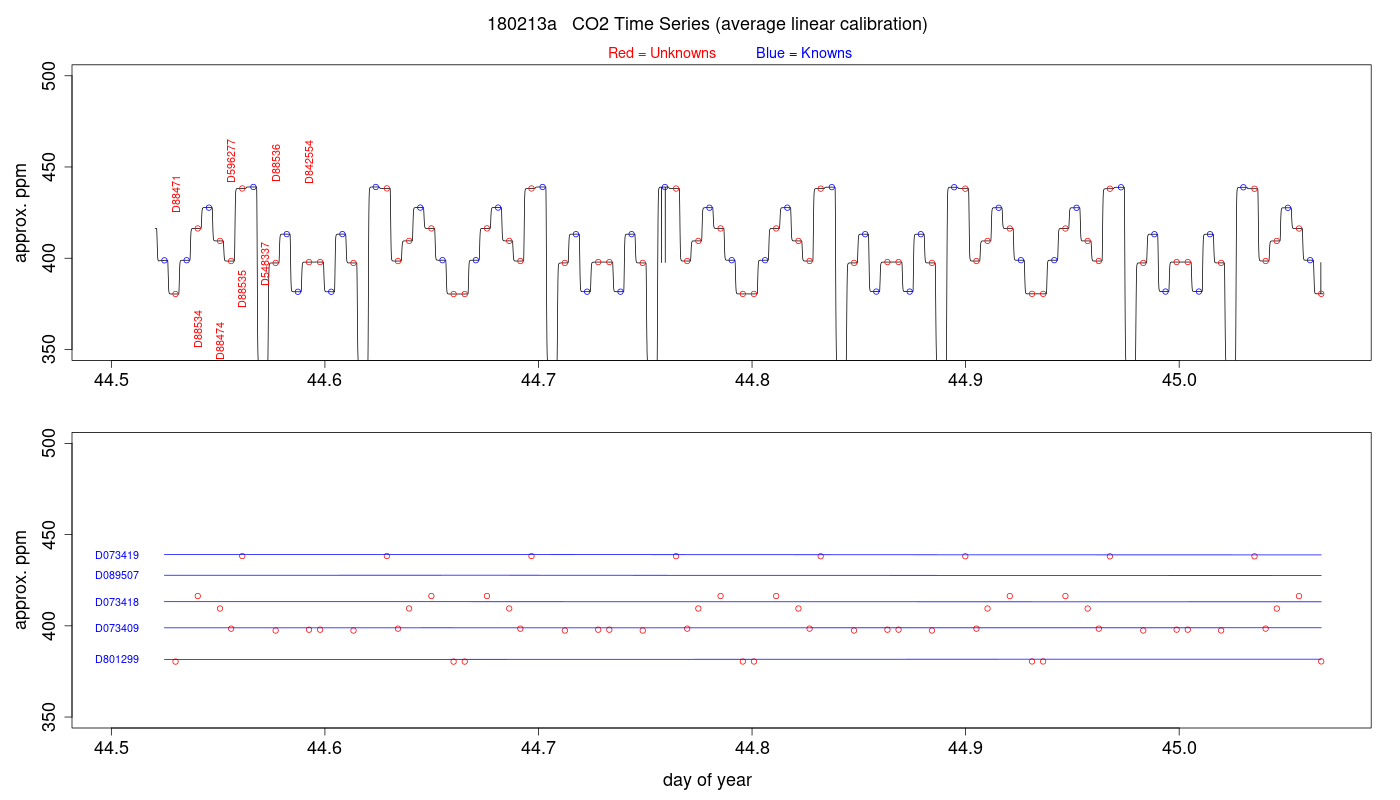

CO2 Timeseries

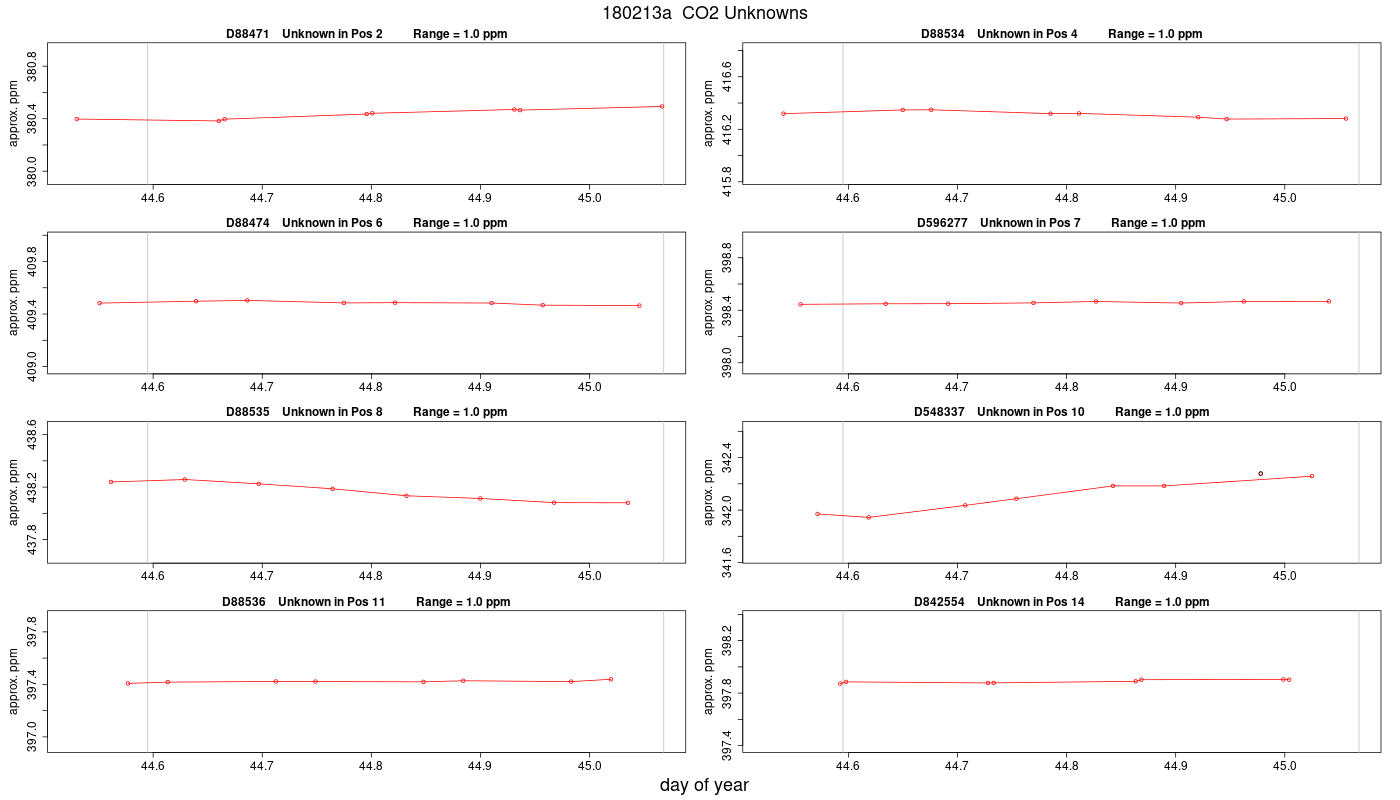

 CO2 Averages for Unknowns
 CO2 Averages for Knowns

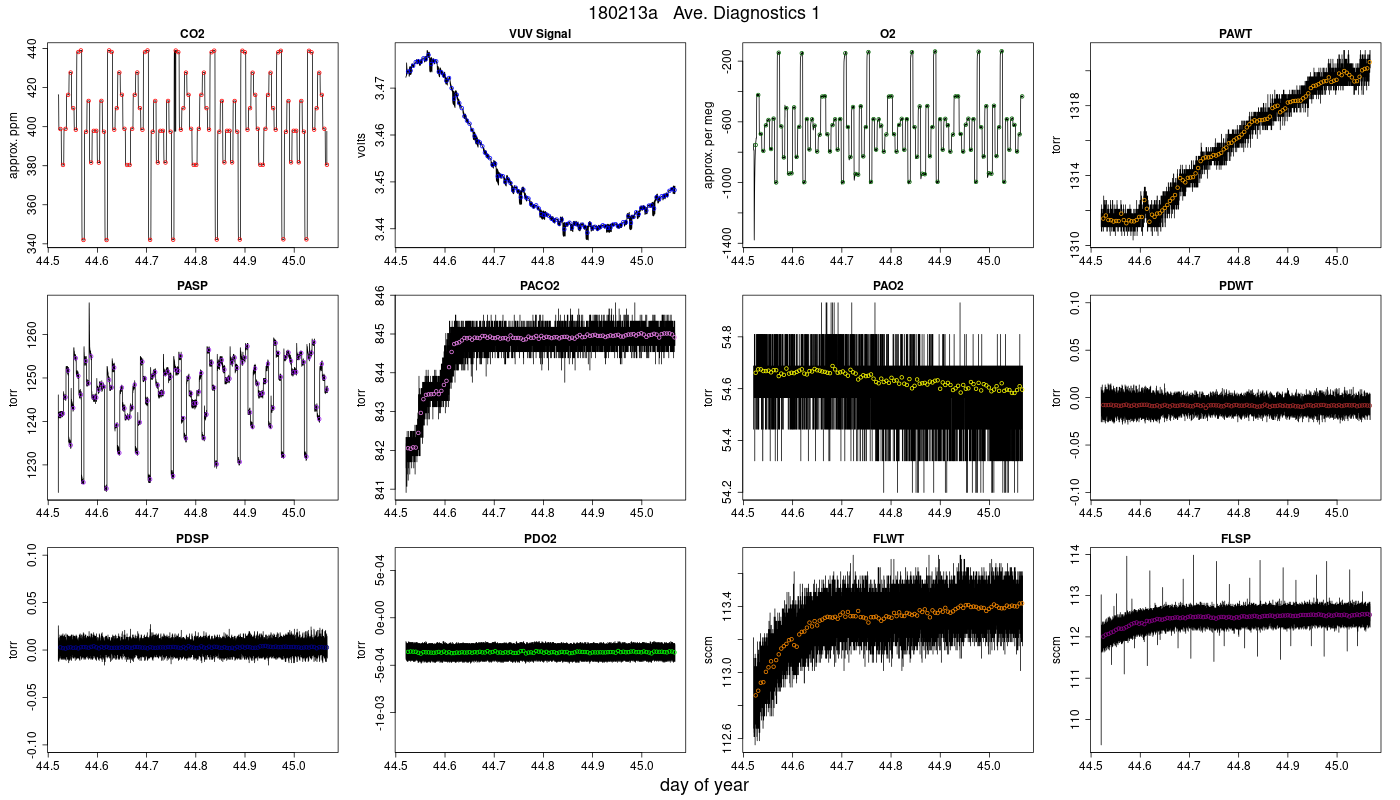

Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2

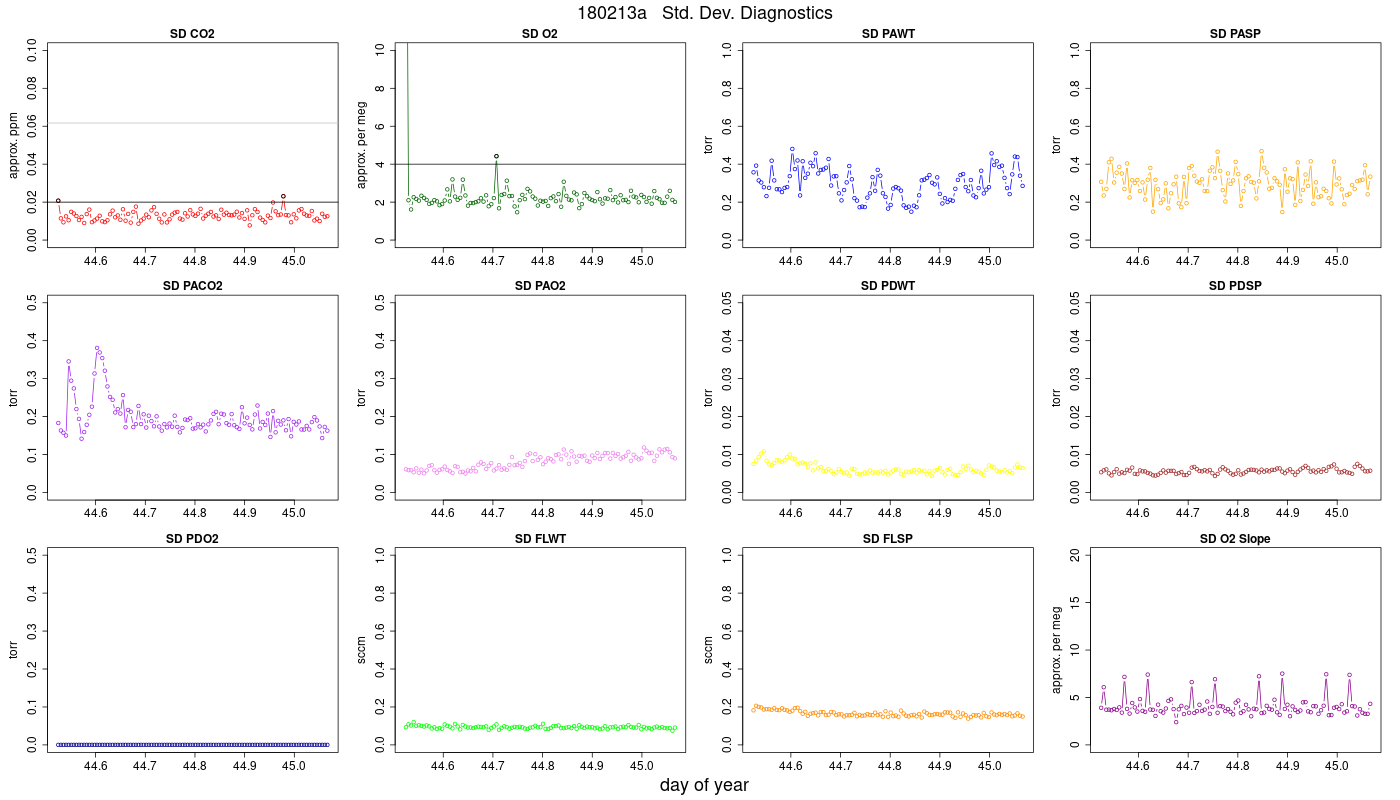

 Jog Std. Dev. Diagnostics

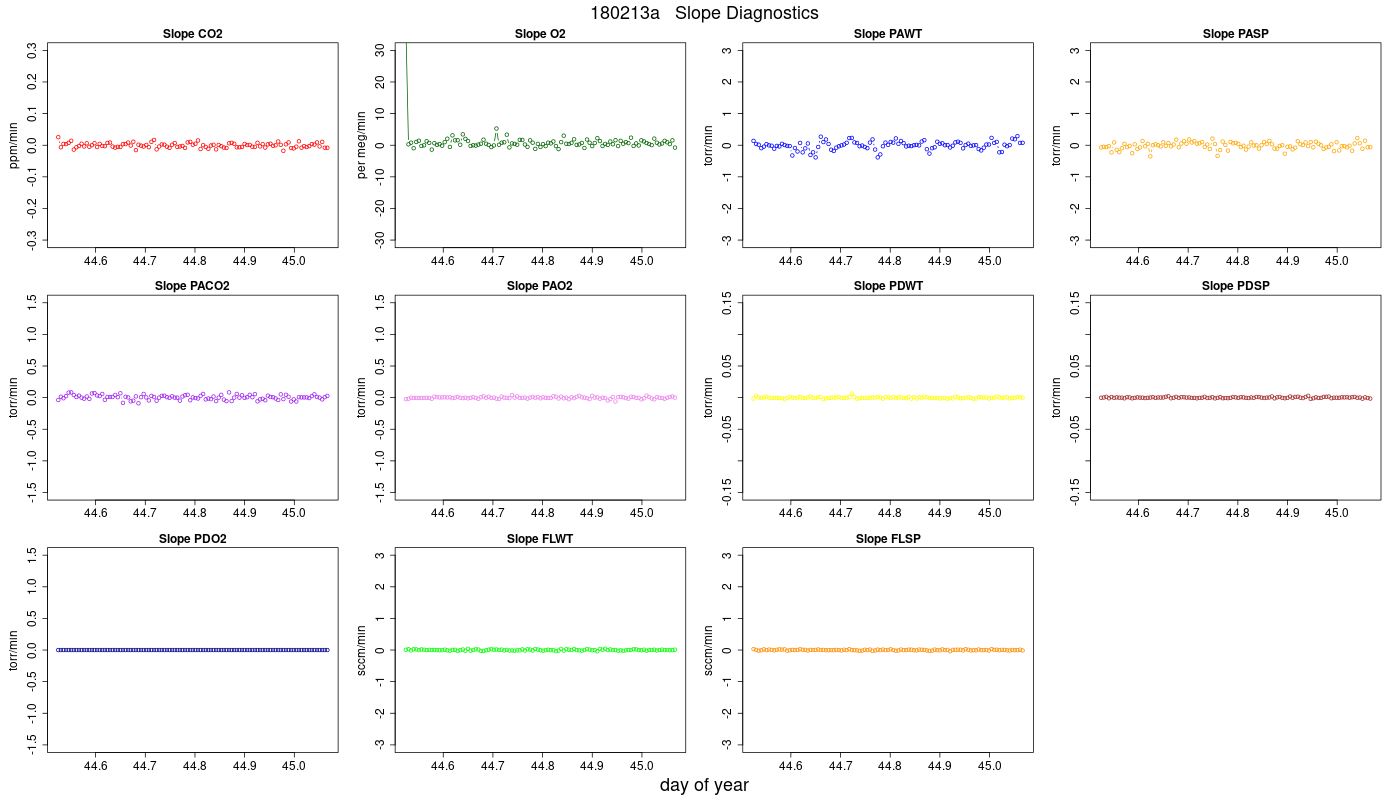

Jog Slope Diagnostics

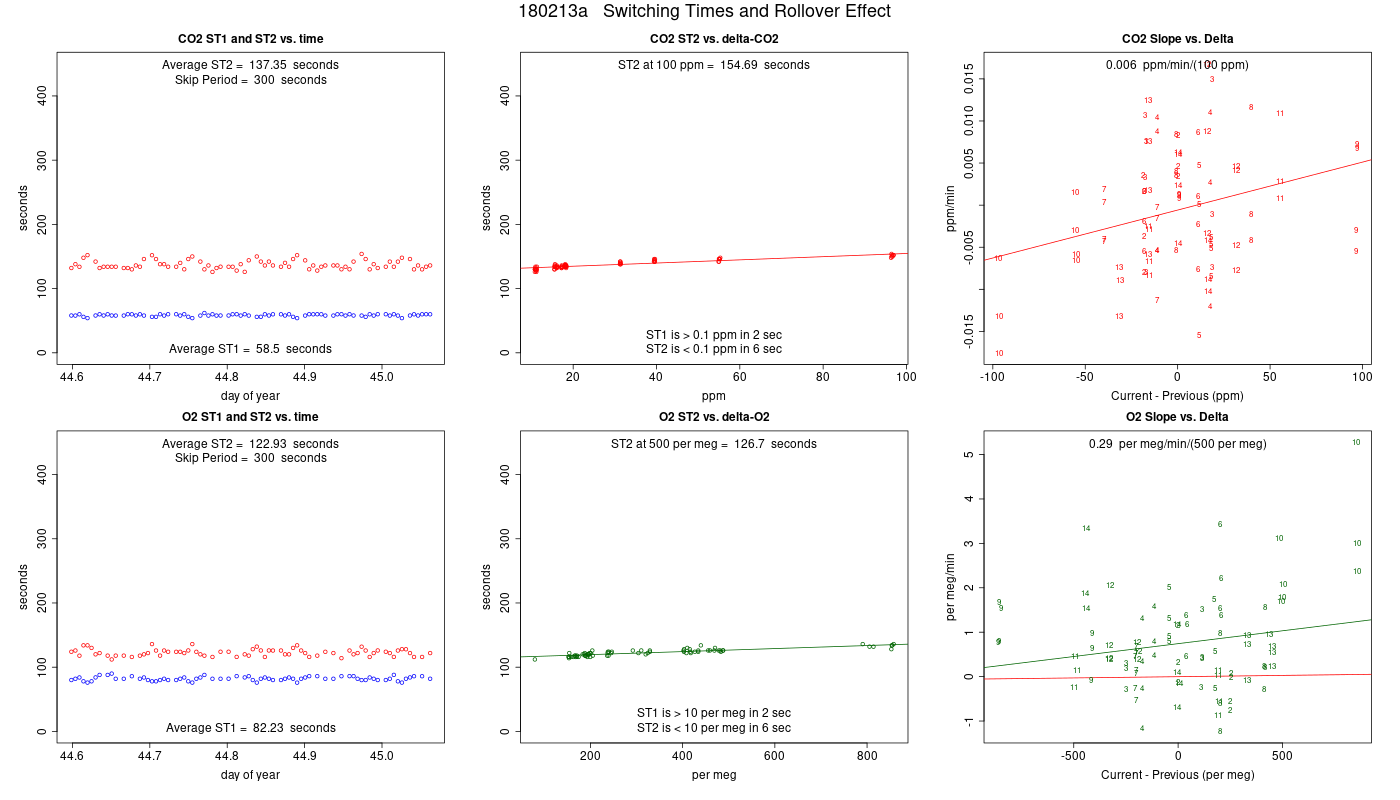

 Rollover Effect

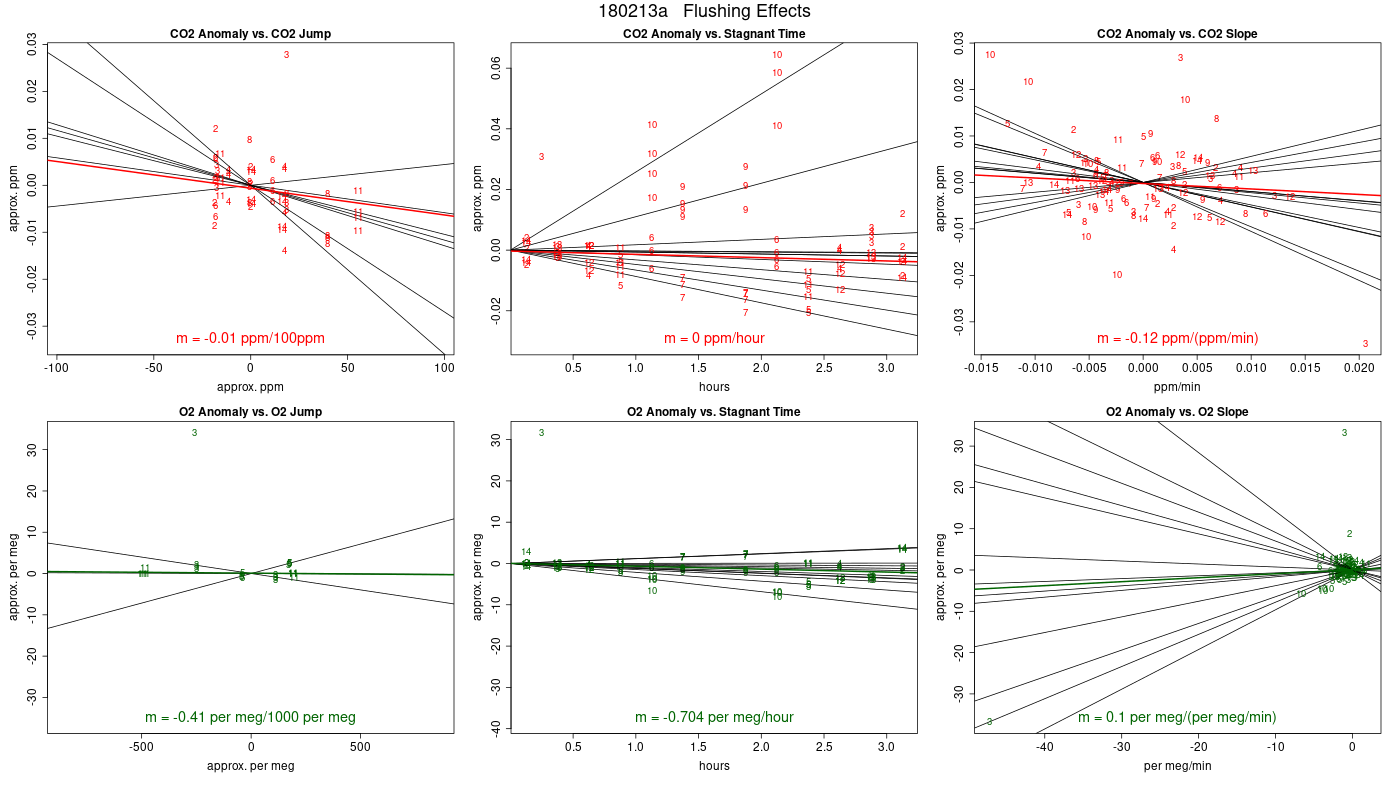

 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters

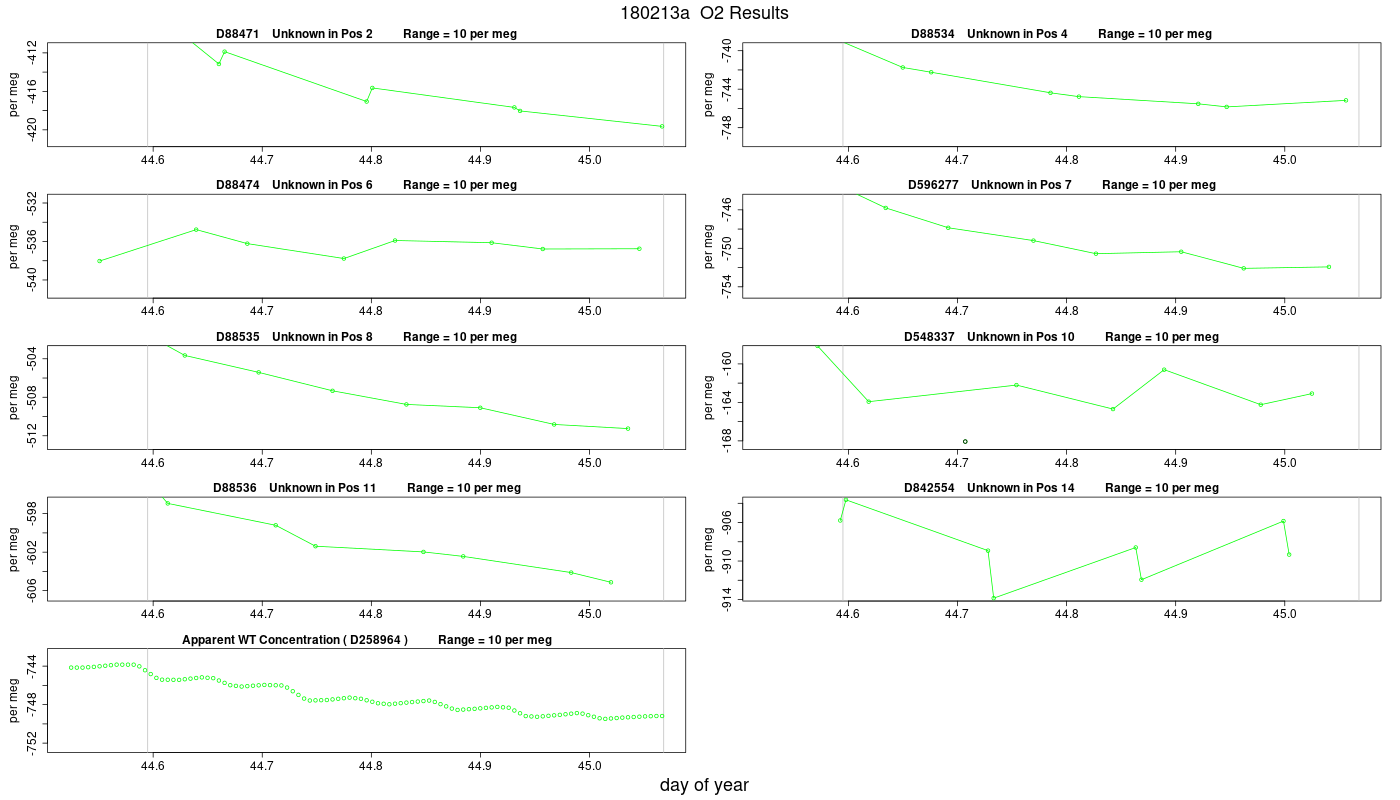

O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

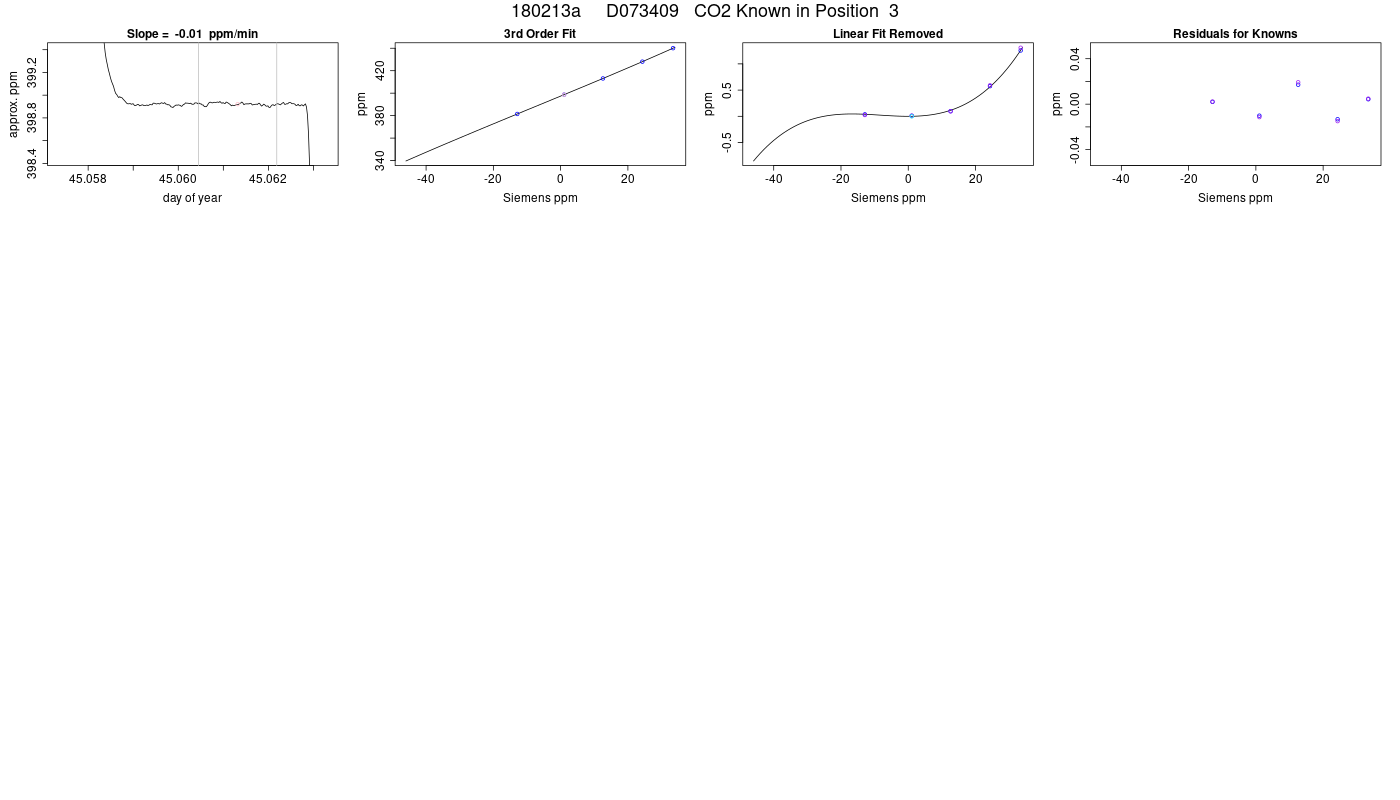

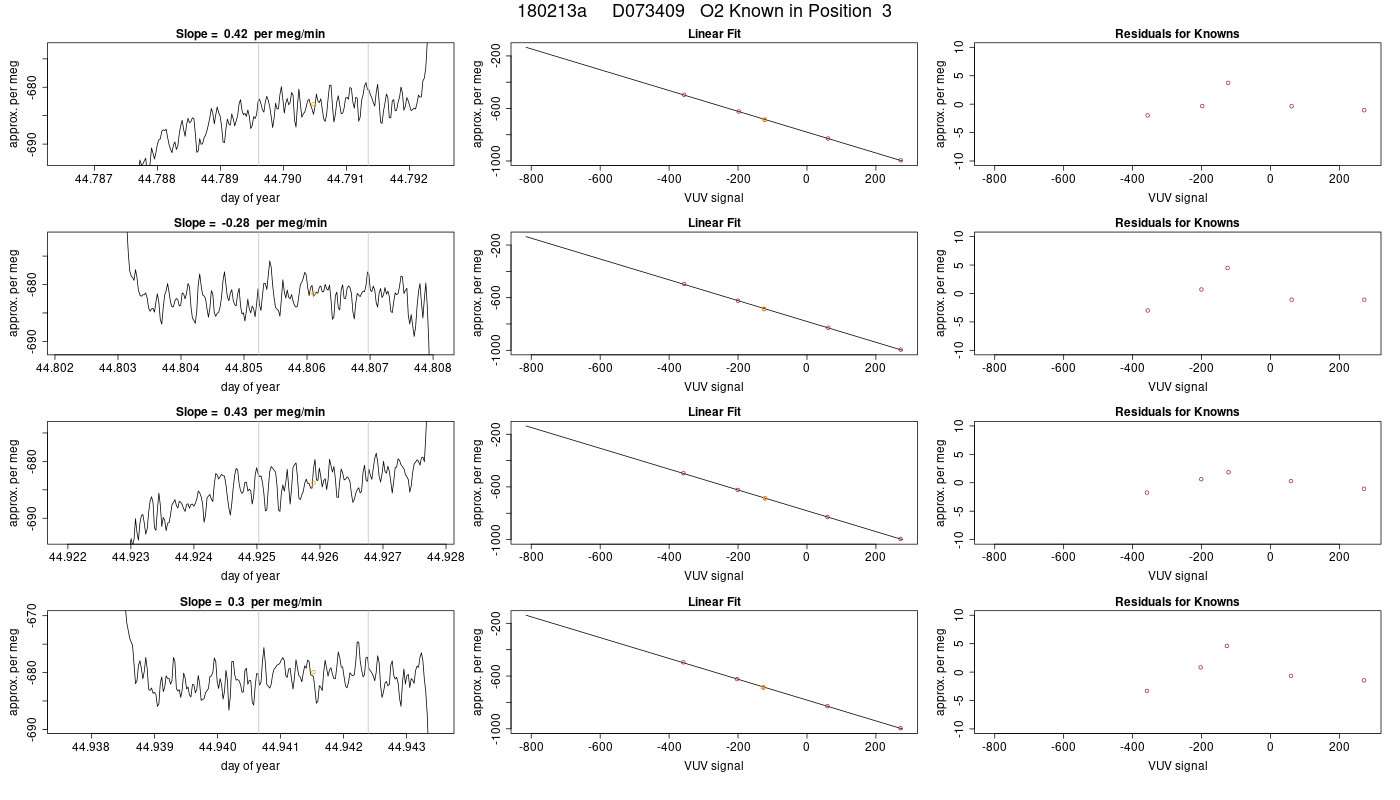

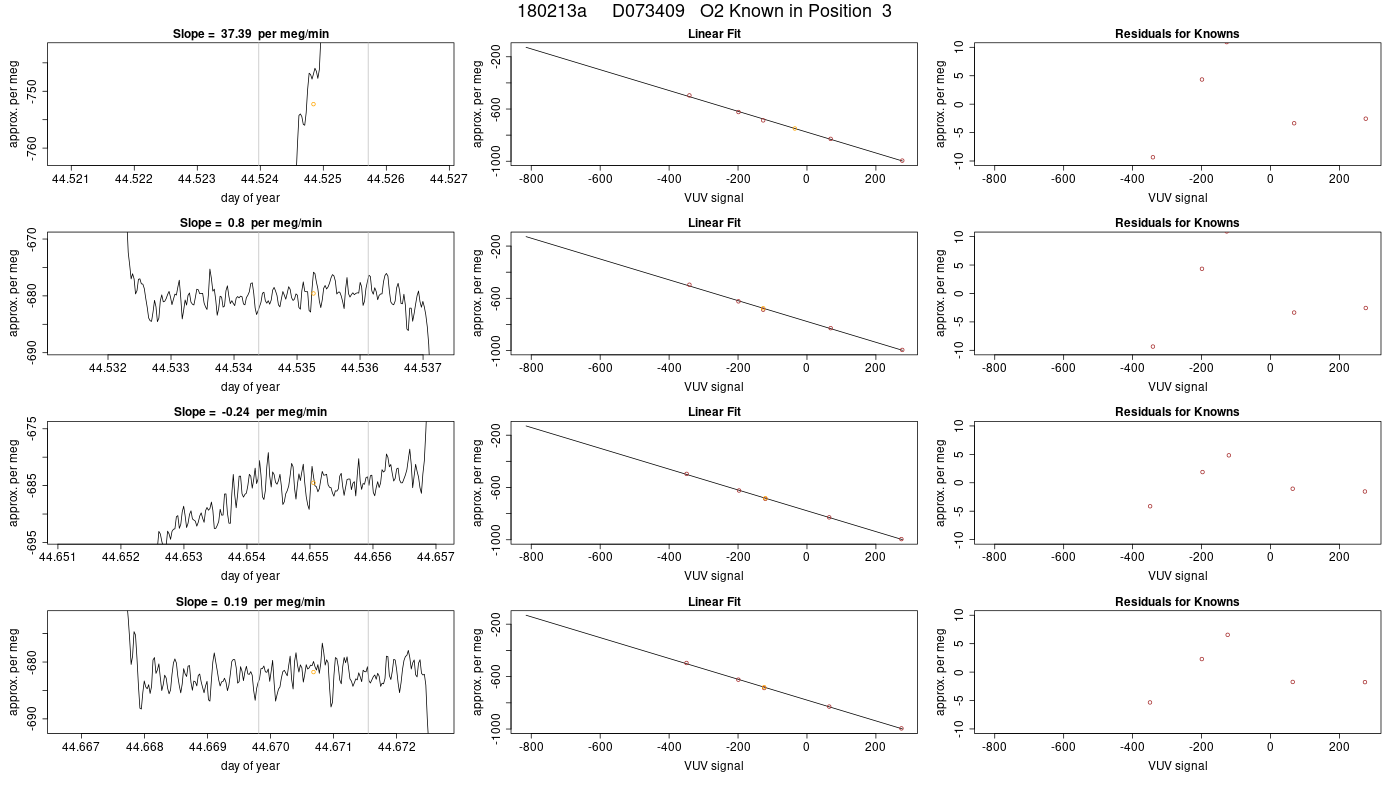

3 D073409 398.707 -0.007 0.002 398.918 -0.008 0.002 7 -651.78 4.00 1.66 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

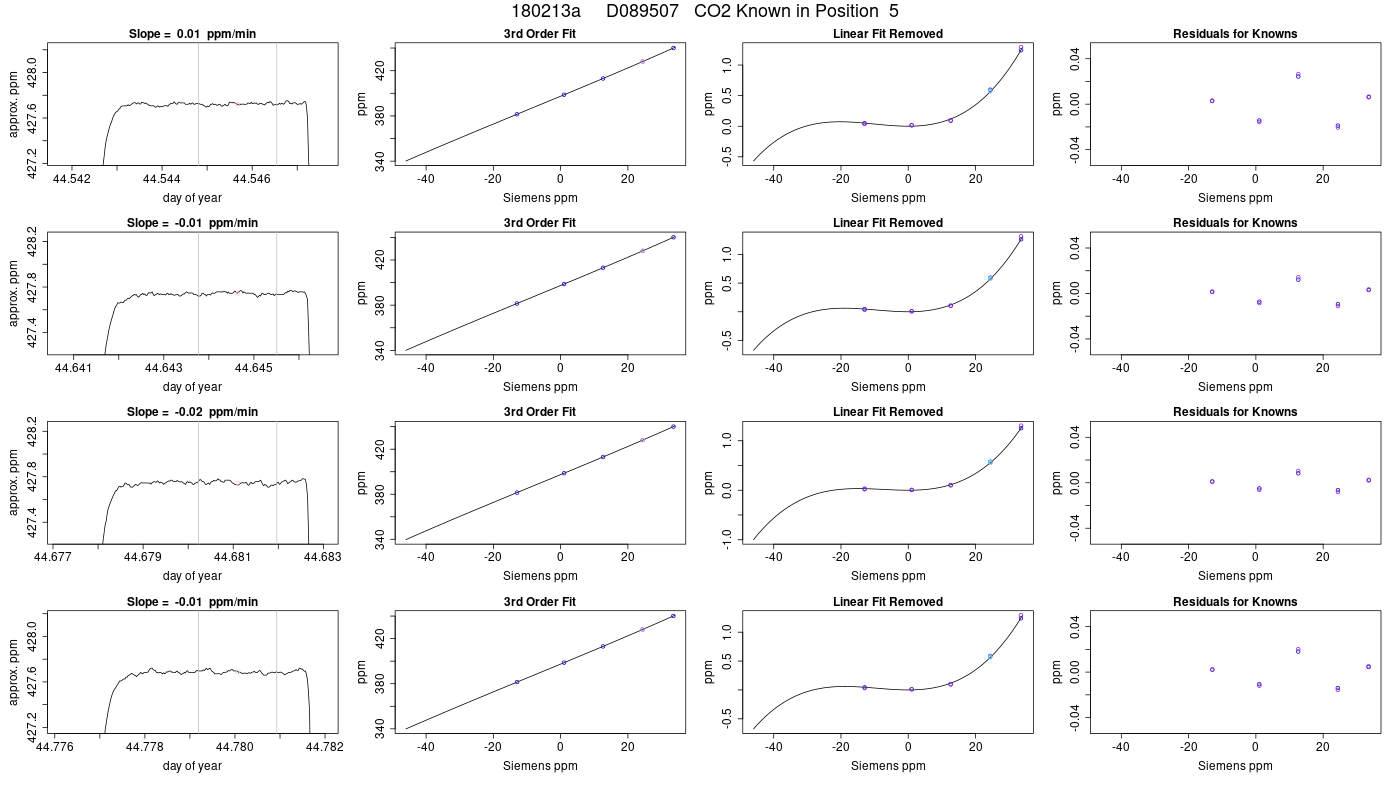

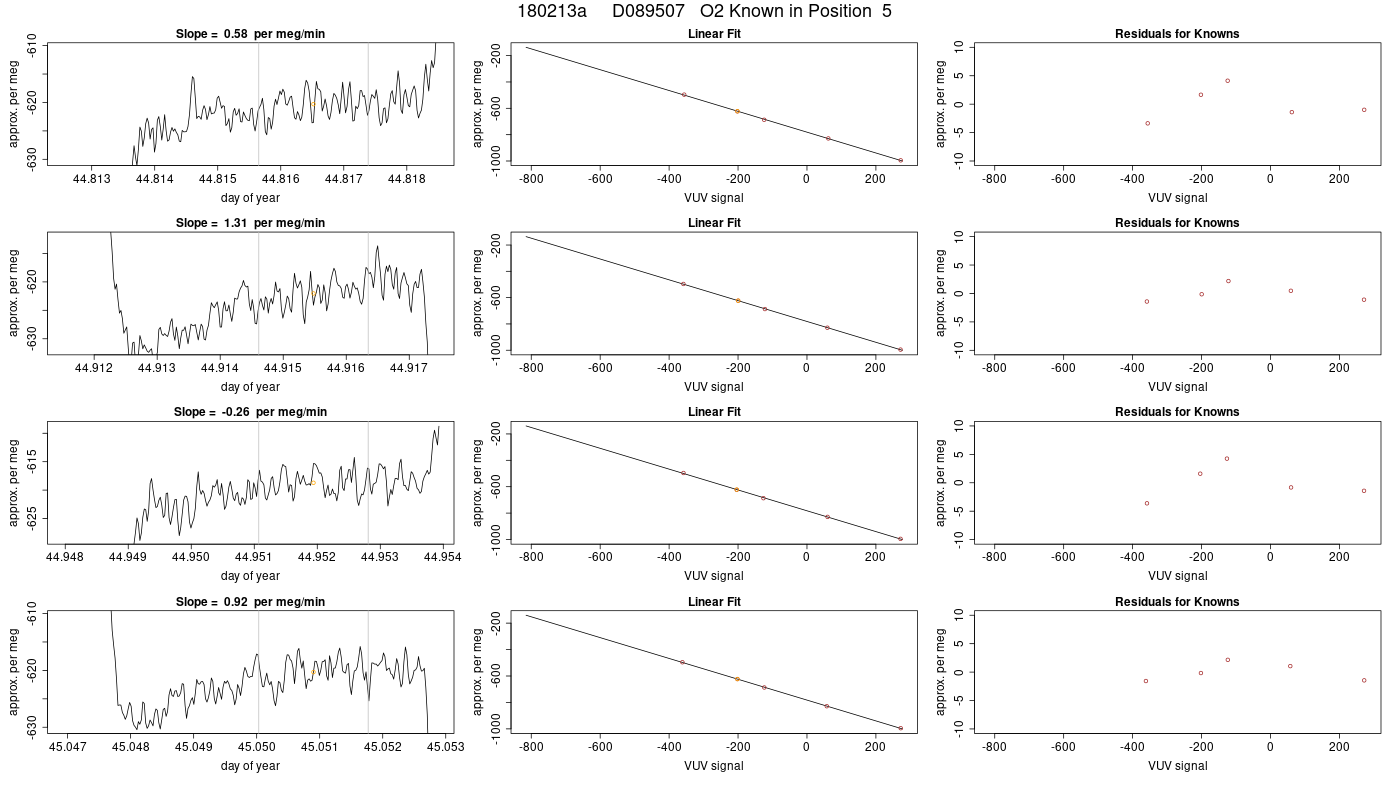

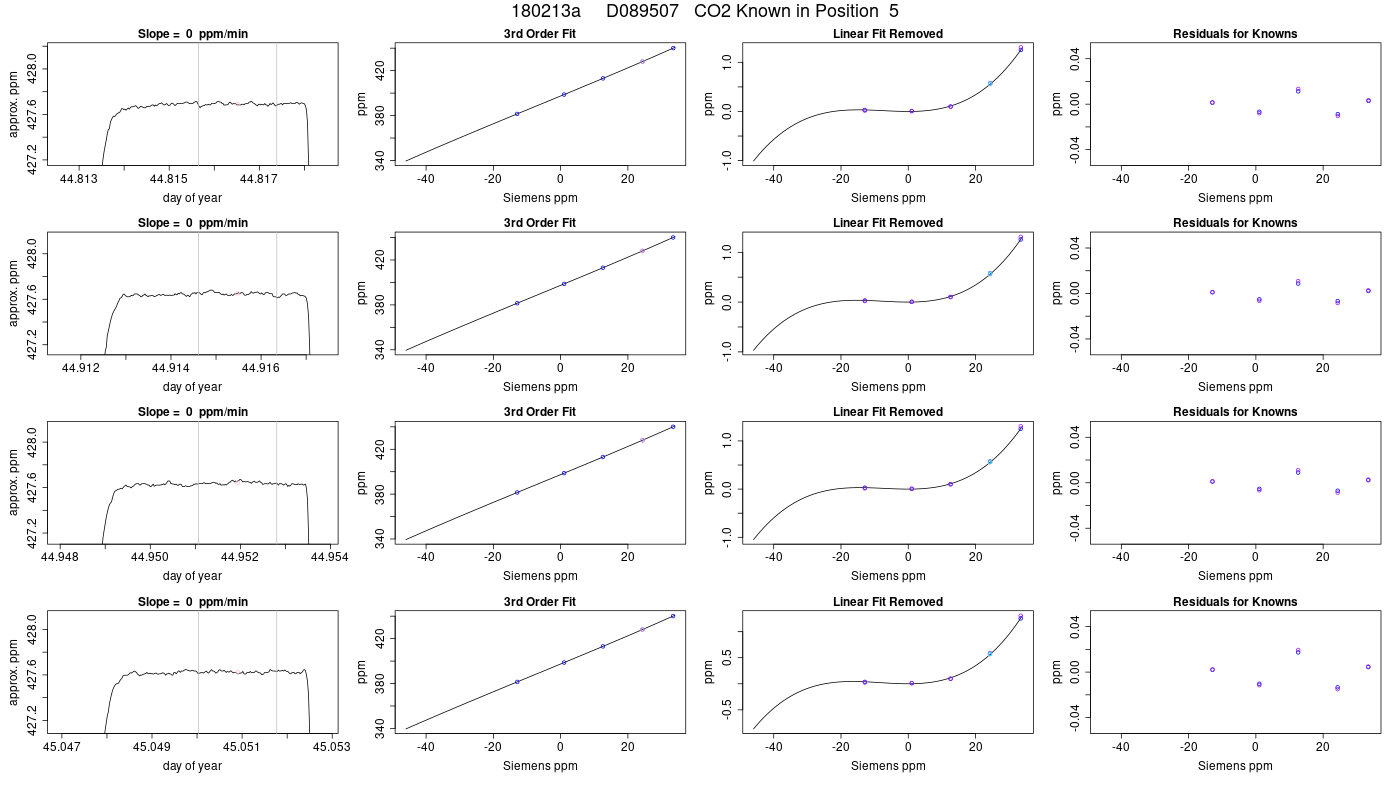

5 D089507 428.087 -0.009 0.003 428.275 -0.011 0.003 7 -559.23 0.81 1.45 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

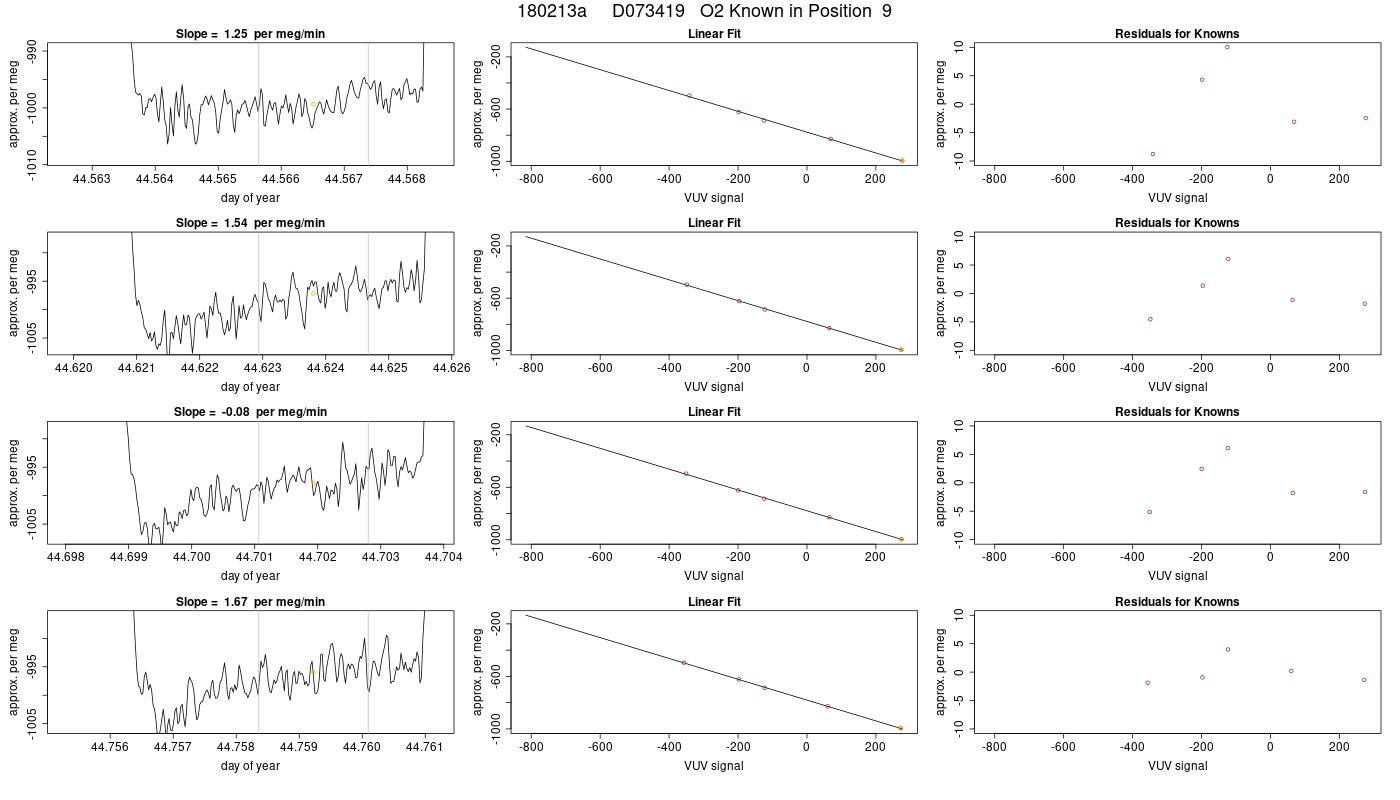

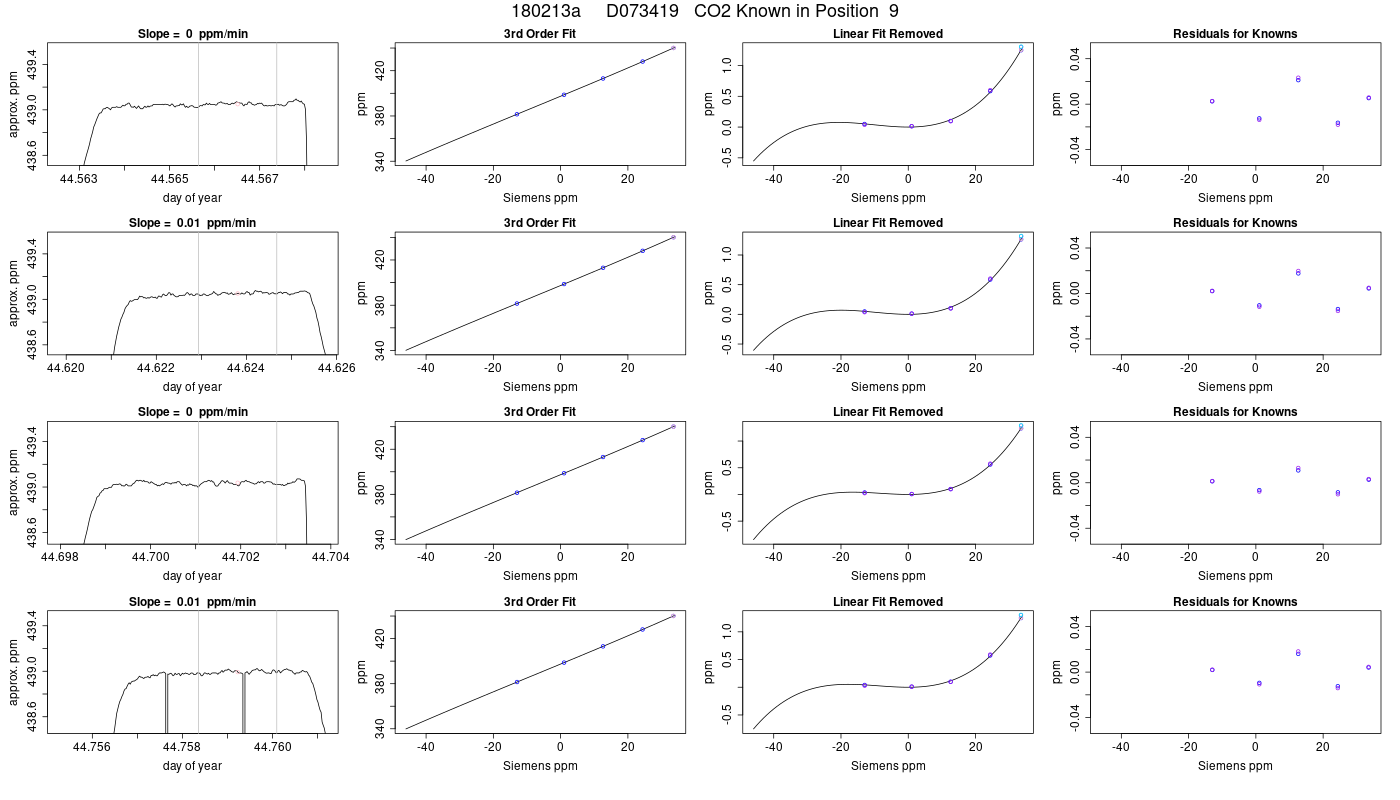

9 D073419 440.065 0.003 0.001 440.275 0.004 0.001 7 -919.32 -1.36 0.33 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

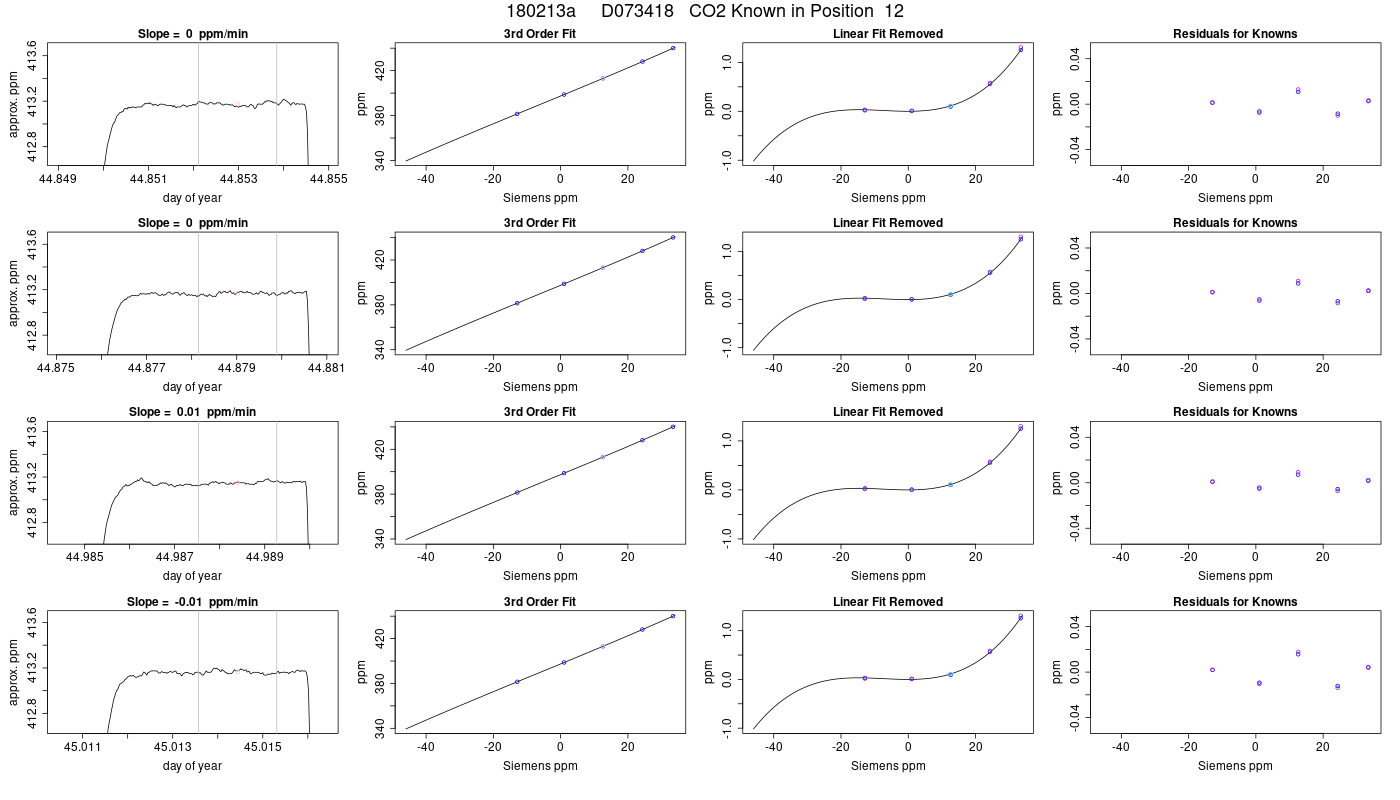

12 D073418 413.092 0.013 0.005 413.280 0.015 0.005 7 -779.40 -0.52 1.19 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

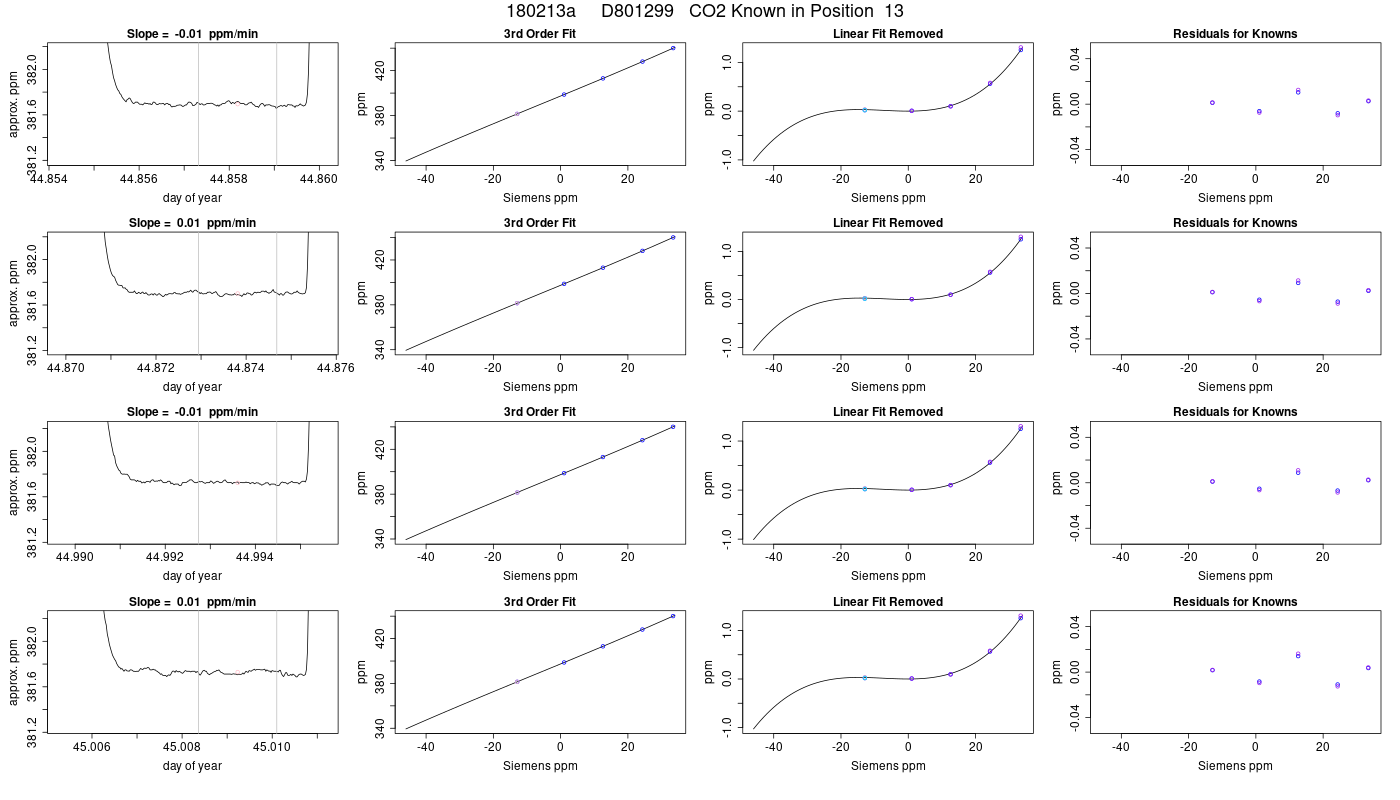

13 D801299 381.475 0.002 0.000 381.695 0.002 0.000 7 -477.75 -3.15 1.33 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

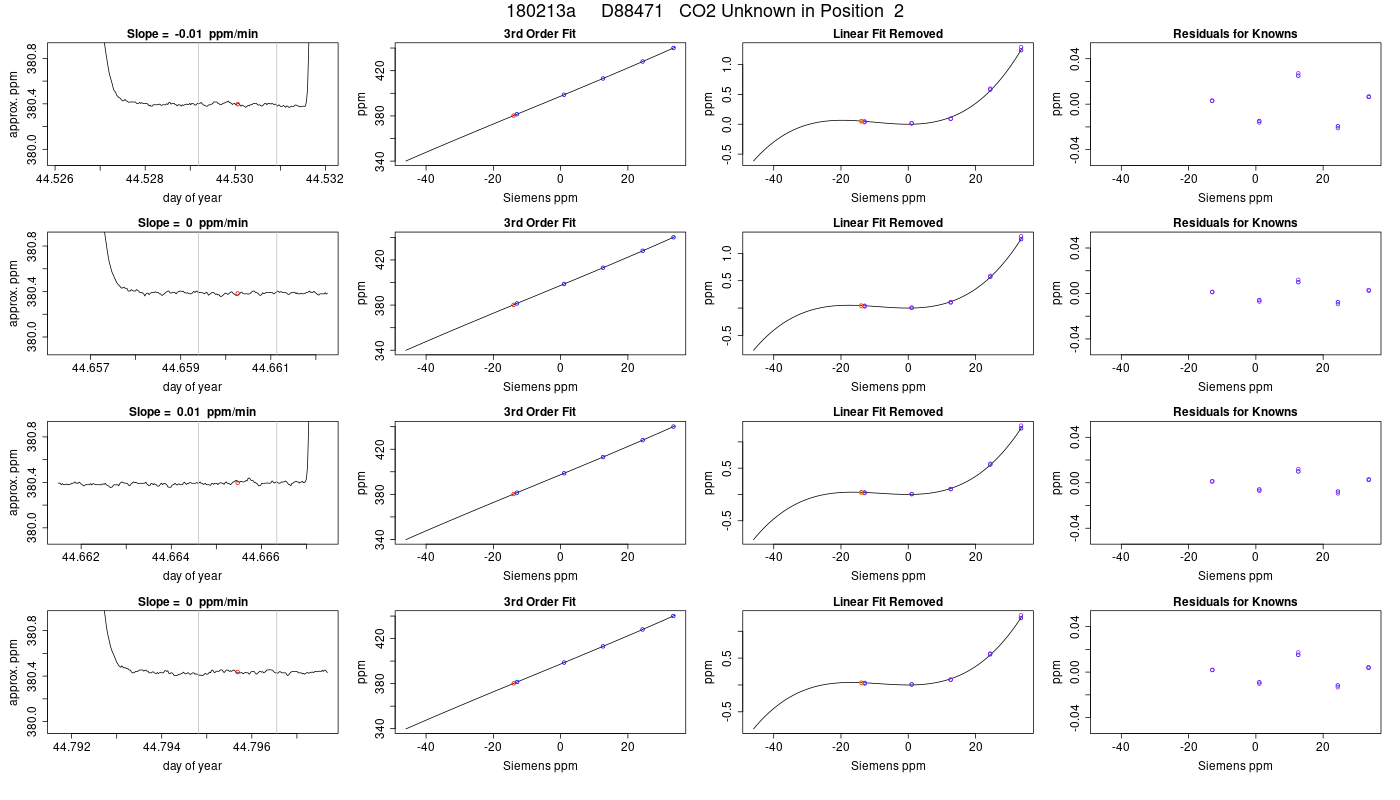

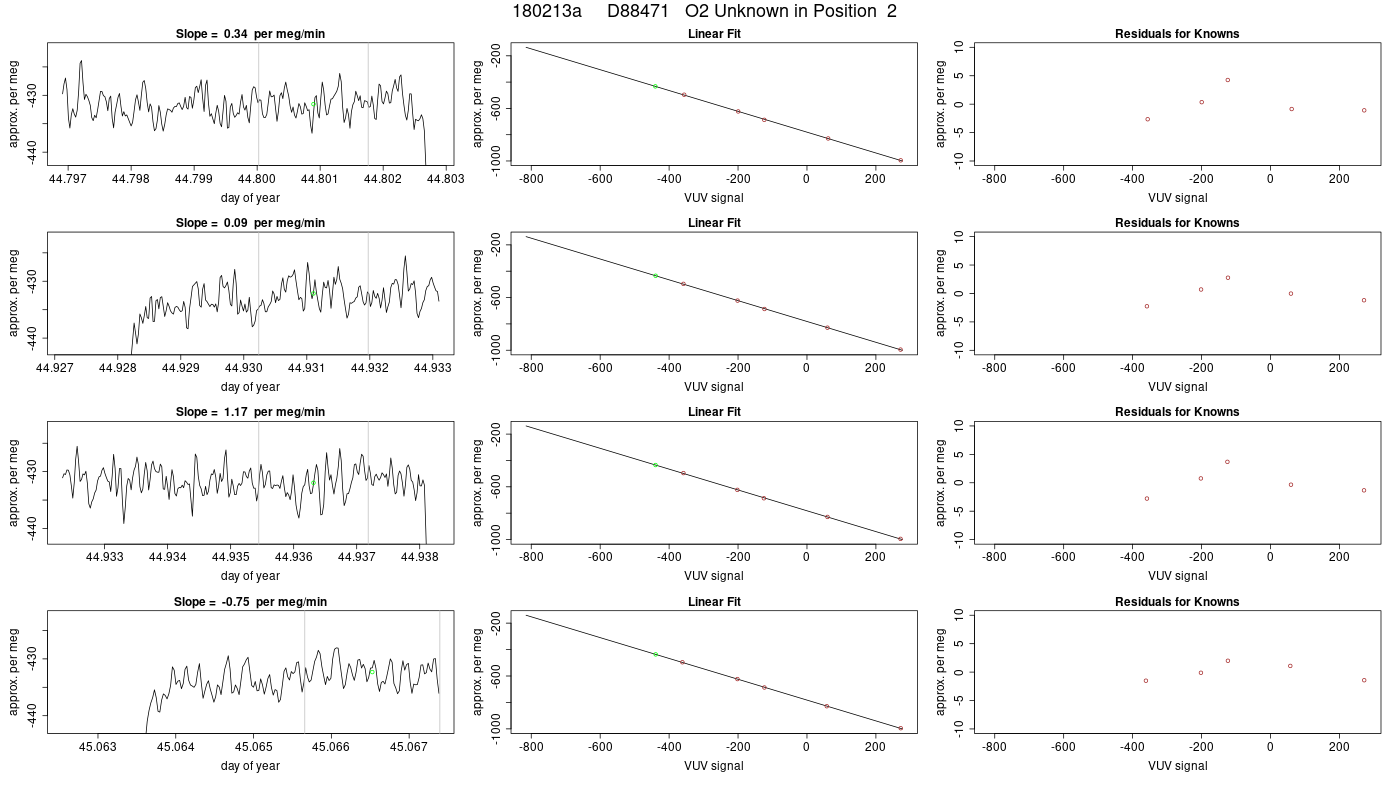

2 D88471    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.530 380.273 0.011 -401.21 2.10 380.493 0.011
44.660 380.235 0.010 -413.16 1.95 380.454 0.010
44.665 380.246 0.014 -411.87 2.00 380.465 0.014
44.796 380.242 0.014 -417.06 2.07 380.461 0.014
44.801 380.245 0.013 -415.64 2.03 380.464 0.013
44.931 380.232 0.012 -417.67 2.18 380.451 0.012
44.936 380.226 0.011 -418.03 2.63 380.445 0.011
45.067 380.238 0.013 -419.64 2.01 380.458 0.013

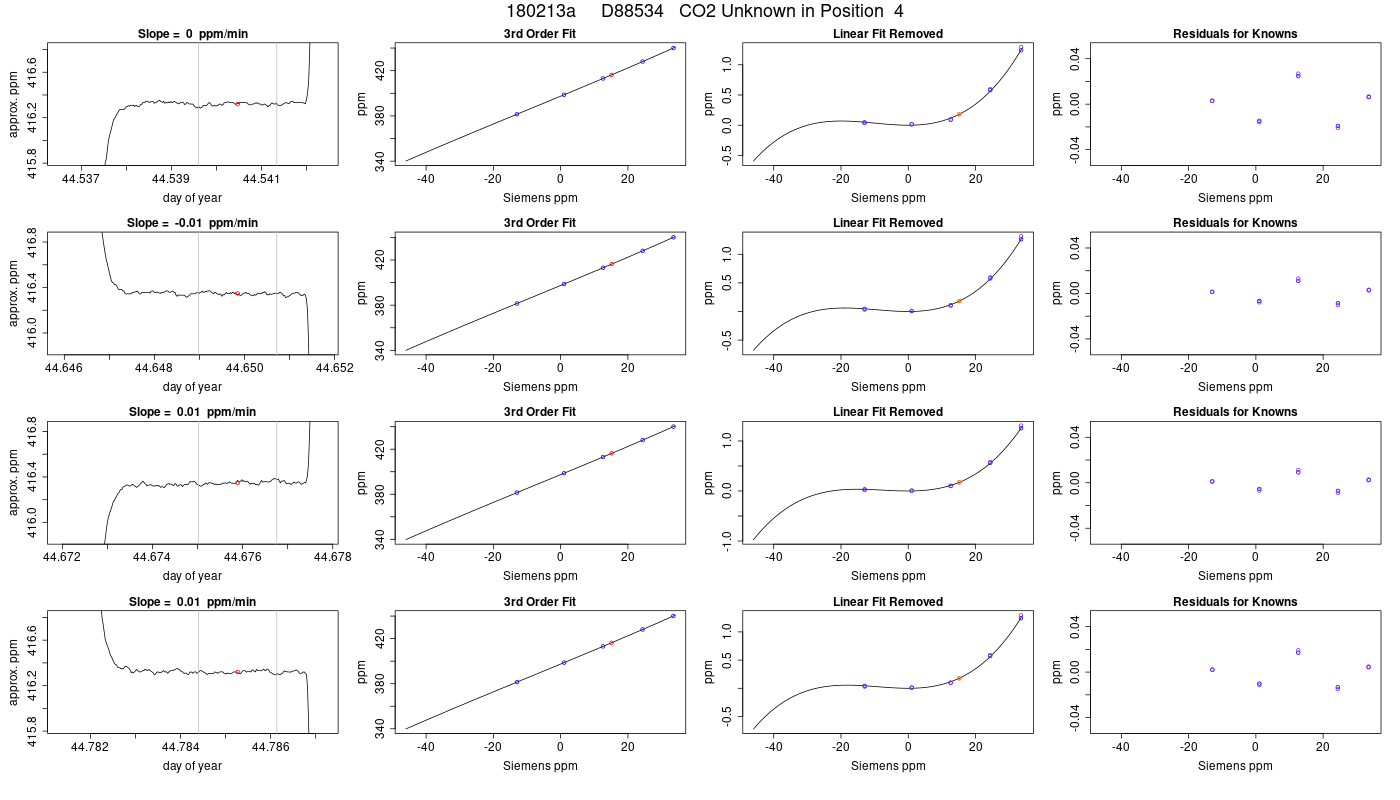

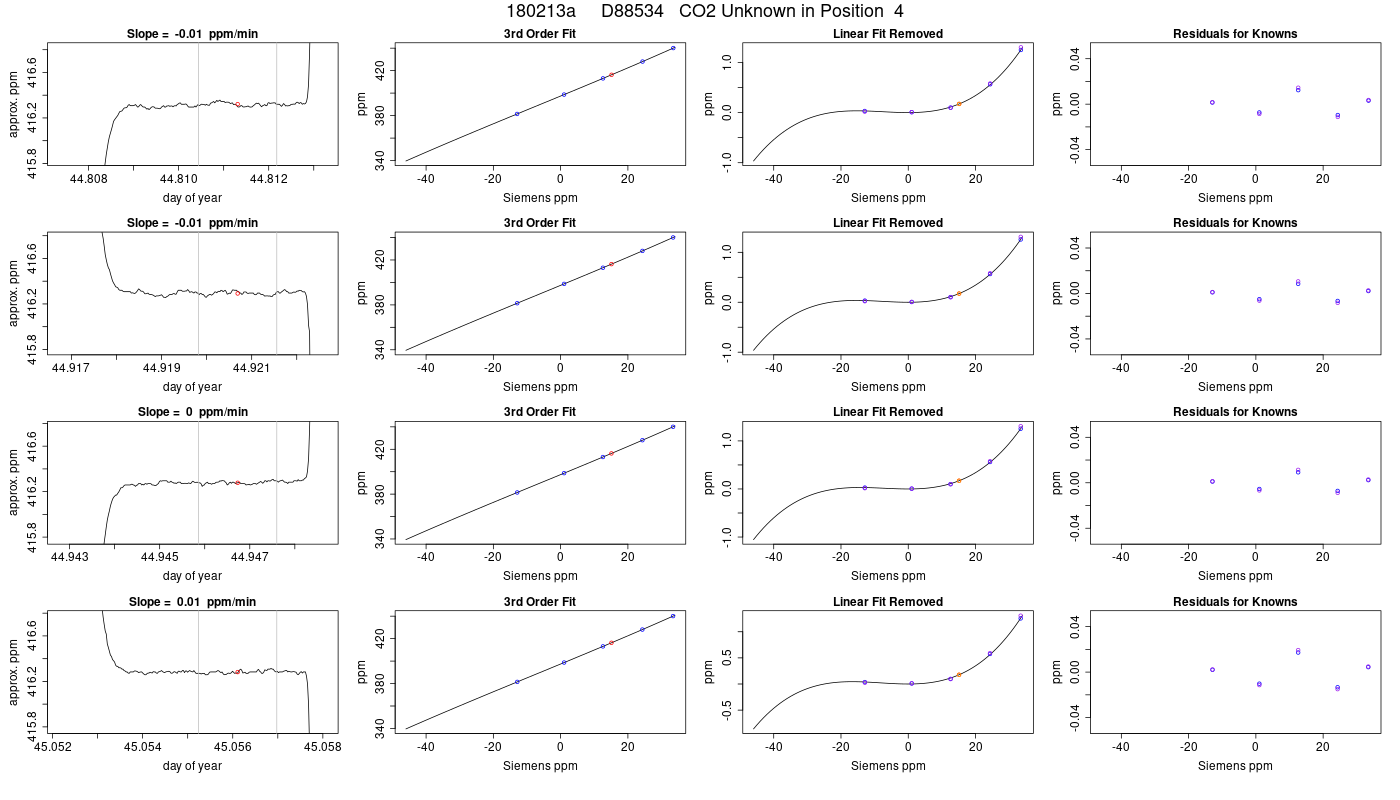

4 D88534    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.540 416.292 0.013 -736.48 2.26 416.479 0.013
44.650 416.304 0.011 -741.75 1.81 416.491 0.011
44.676 416.307 0.015 -742.24 2.21 416.494 0.015
44.785 416.309 0.012 -744.38 2.18 416.496 0.012
44.811 416.310 0.016 -744.78 1.80 416.497 0.016
44.921 416.303 0.016 -745.52 1.92 416.490 0.016
44.947 416.294 0.013 -745.84 2.27 416.481 0.013
45.056 416.302 0.014 -745.16 2.60 416.489 0.014

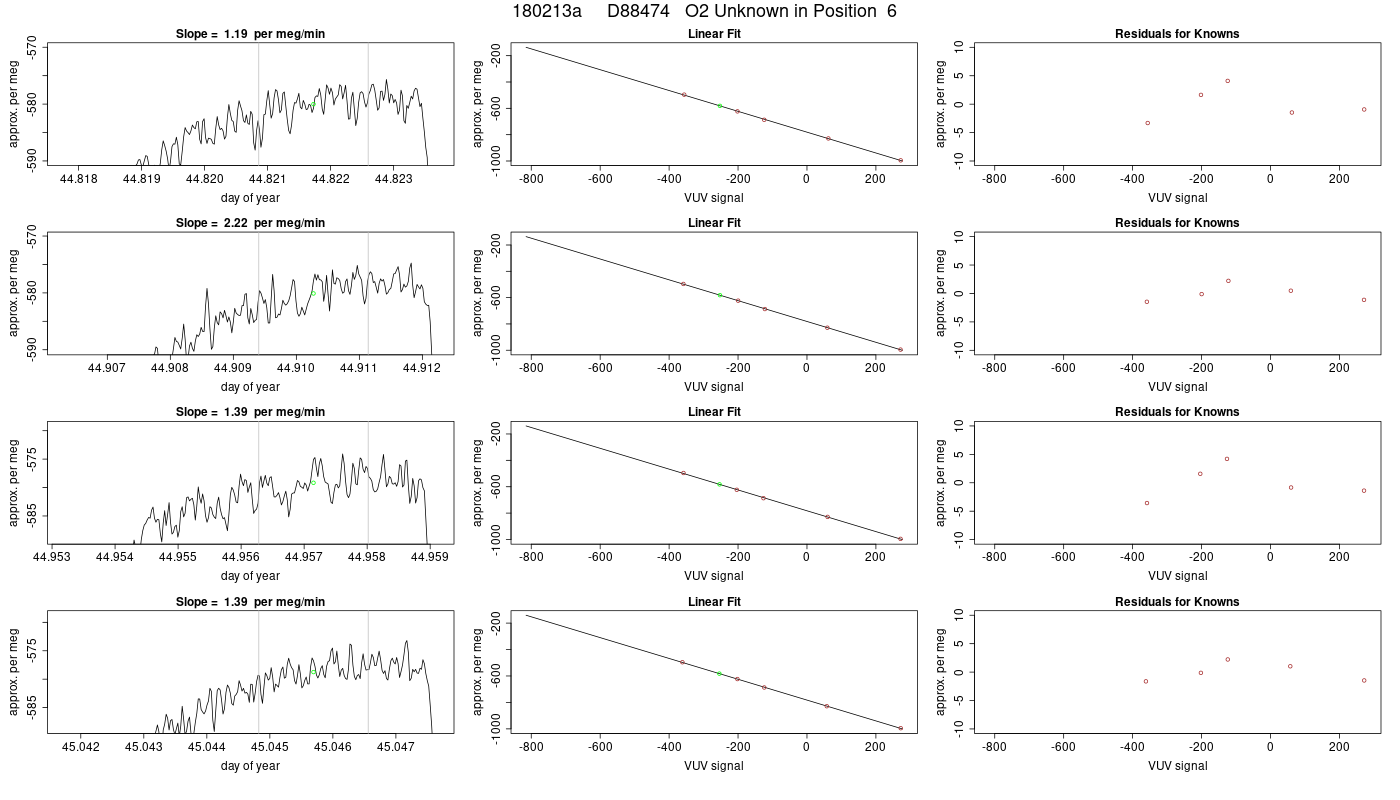

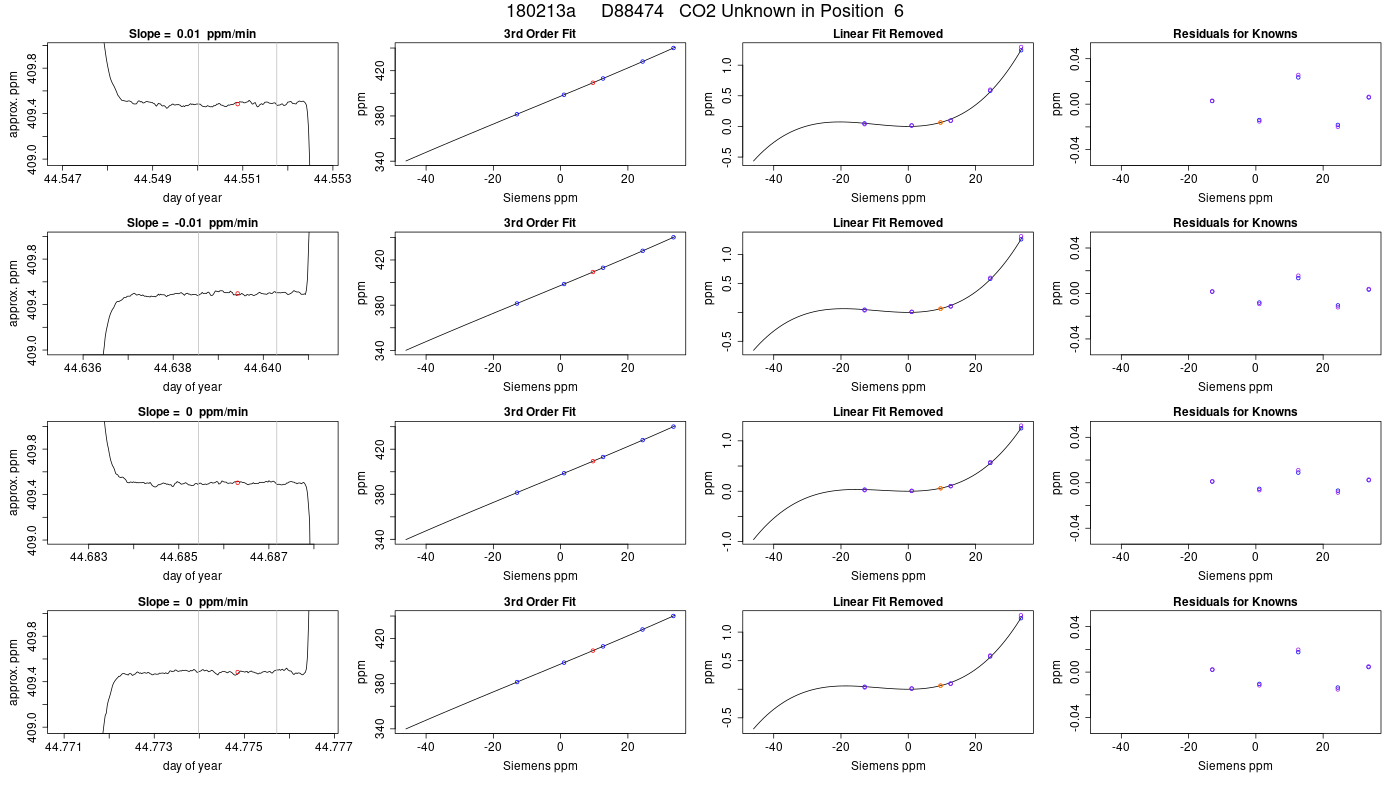

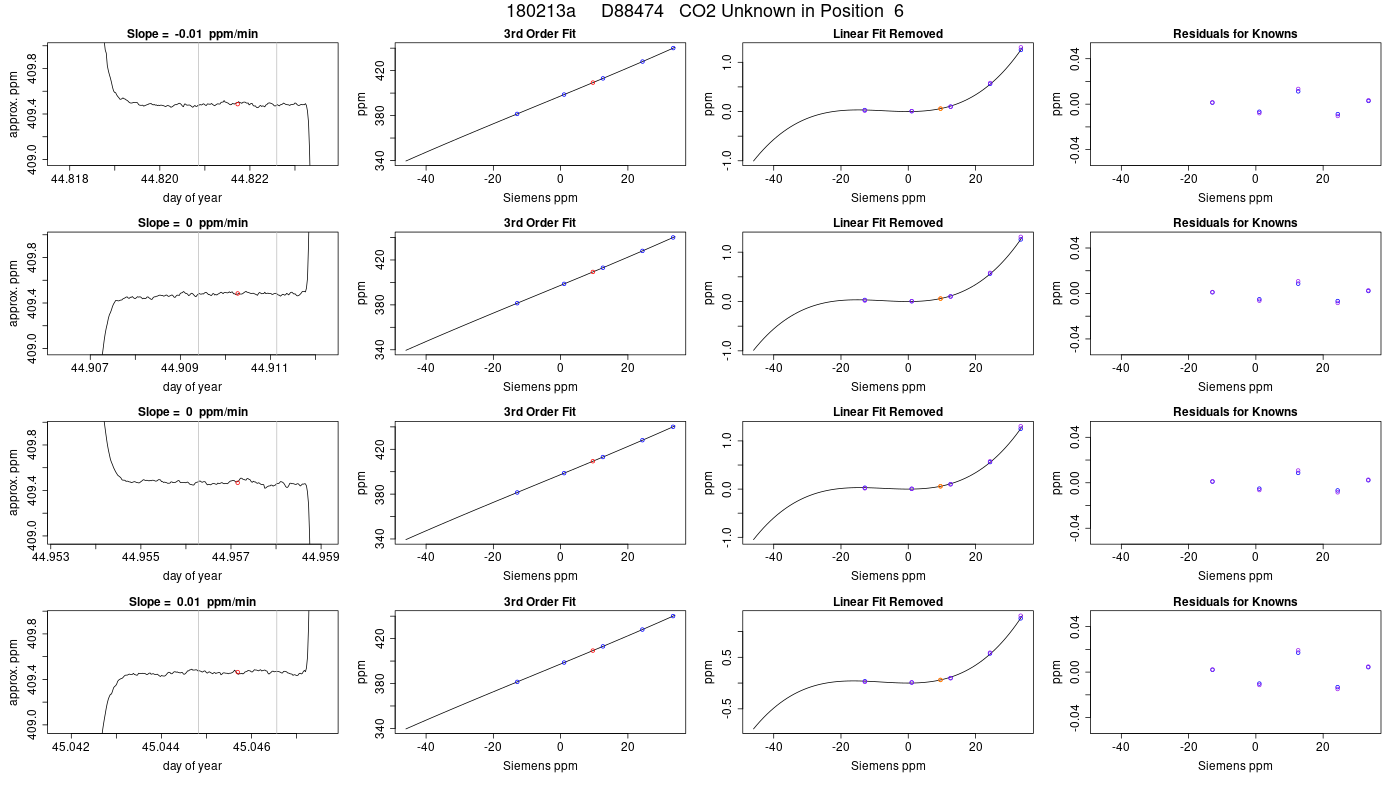

6 D88474    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.551 409.343 0.015 -538.03 2.08 409.538 0.015
44.639 409.342 0.012 -534.77 3.19 409.537 0.012
44.686 409.355 0.009 -536.22 2.36 409.549 0.009
44.775 409.348 0.011 -537.77 2.57 409.543 0.011
44.822 409.353 0.013 -535.90 2.30 409.547 0.013
44.910 409.359 0.008 -536.13 2.53 409.554 0.008
44.957 409.350 0.020 -536.78 2.36 409.544 0.020
45.046 409.342 0.011 -536.75 1.96 409.537 0.011

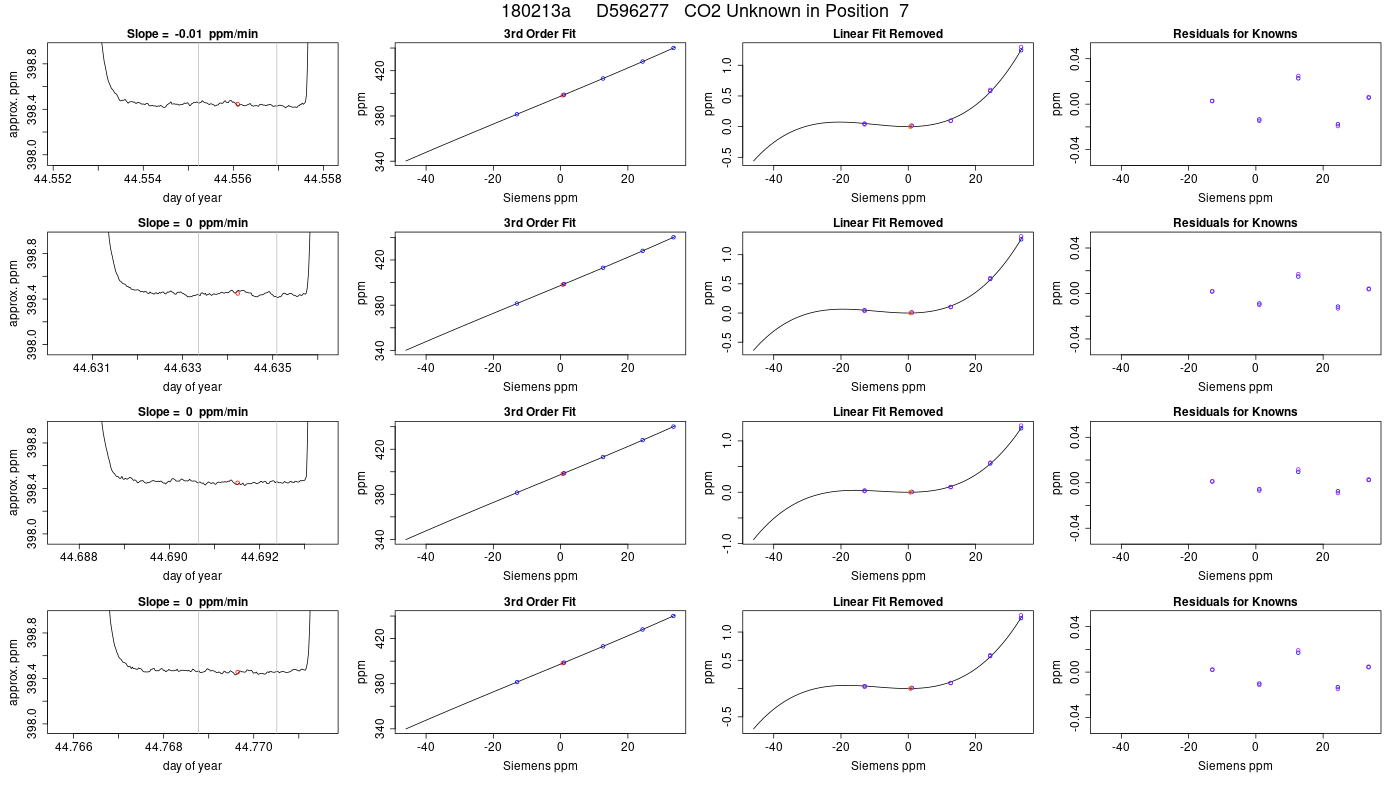

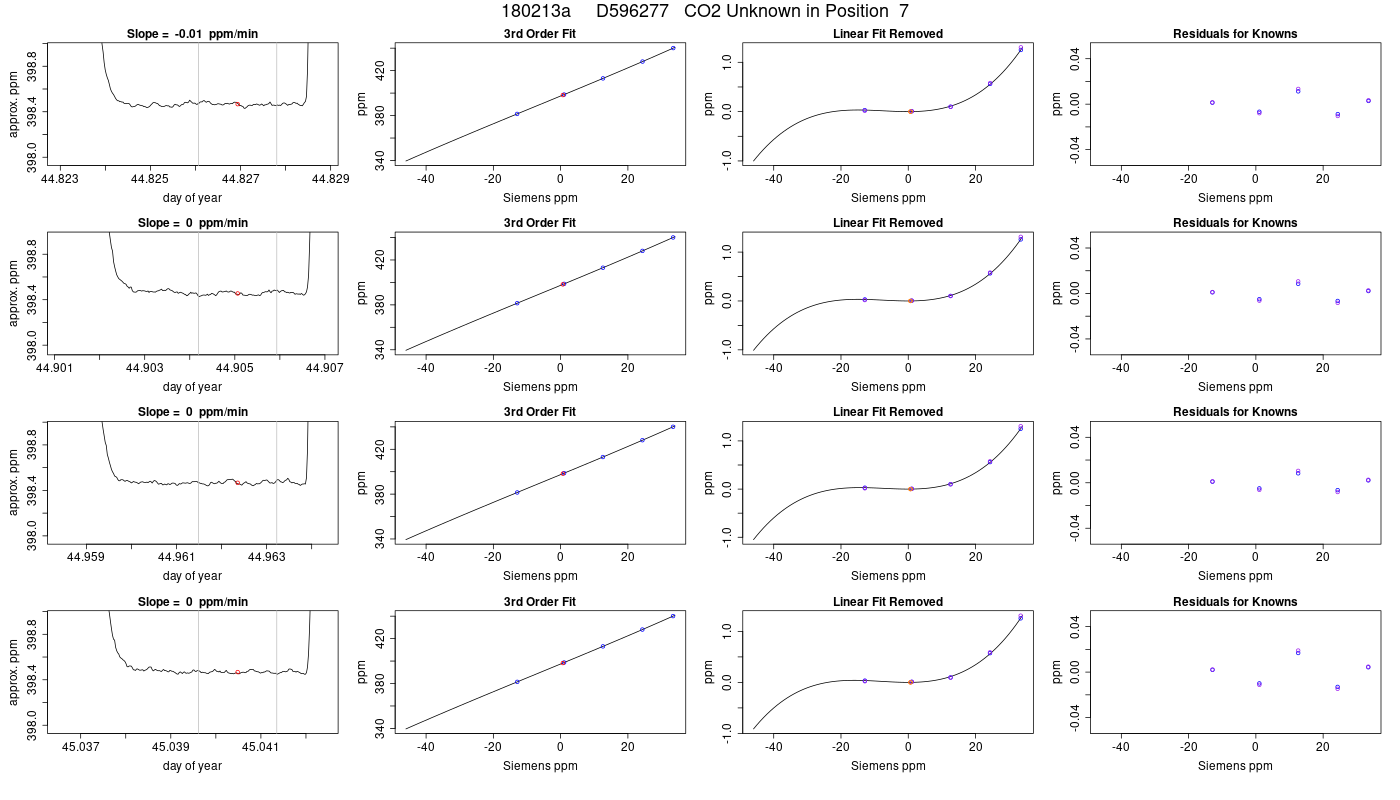

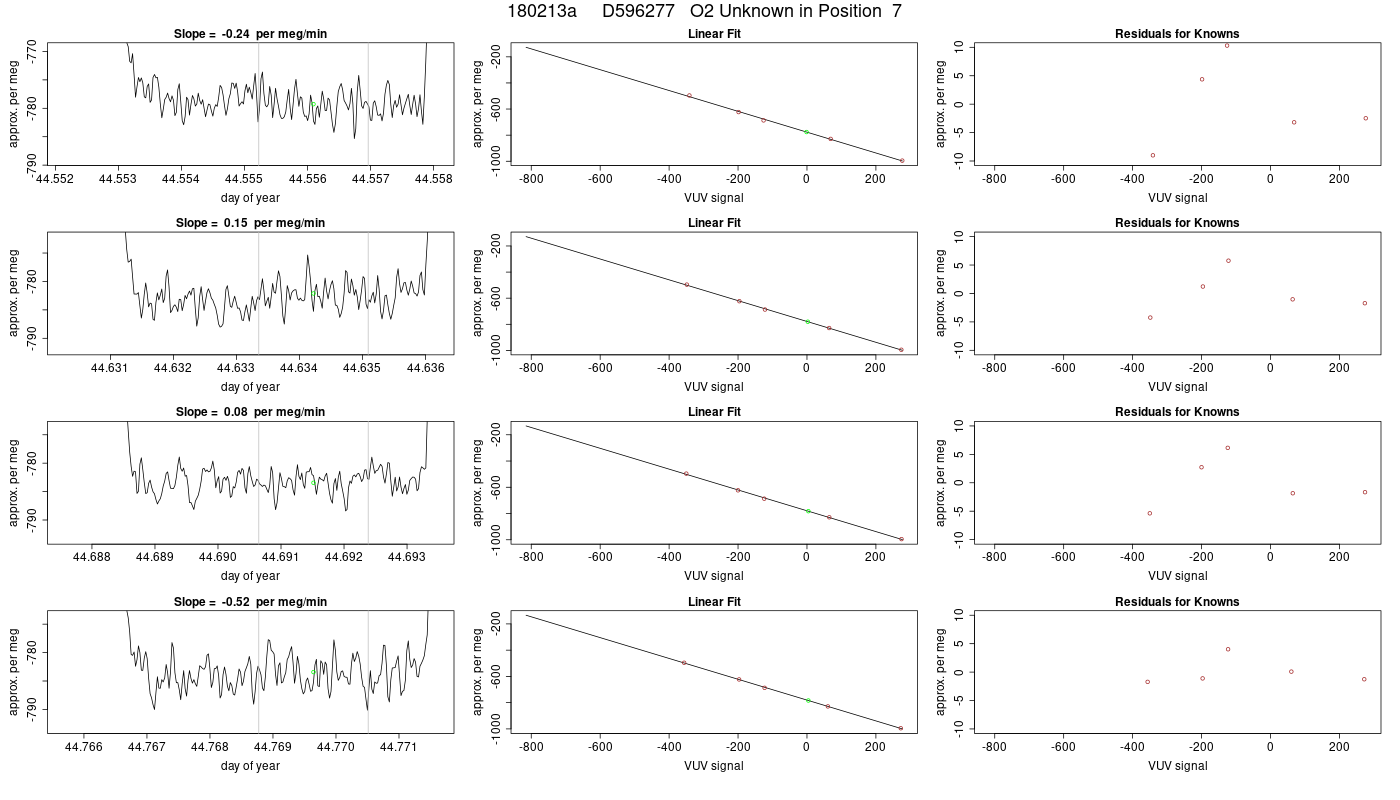

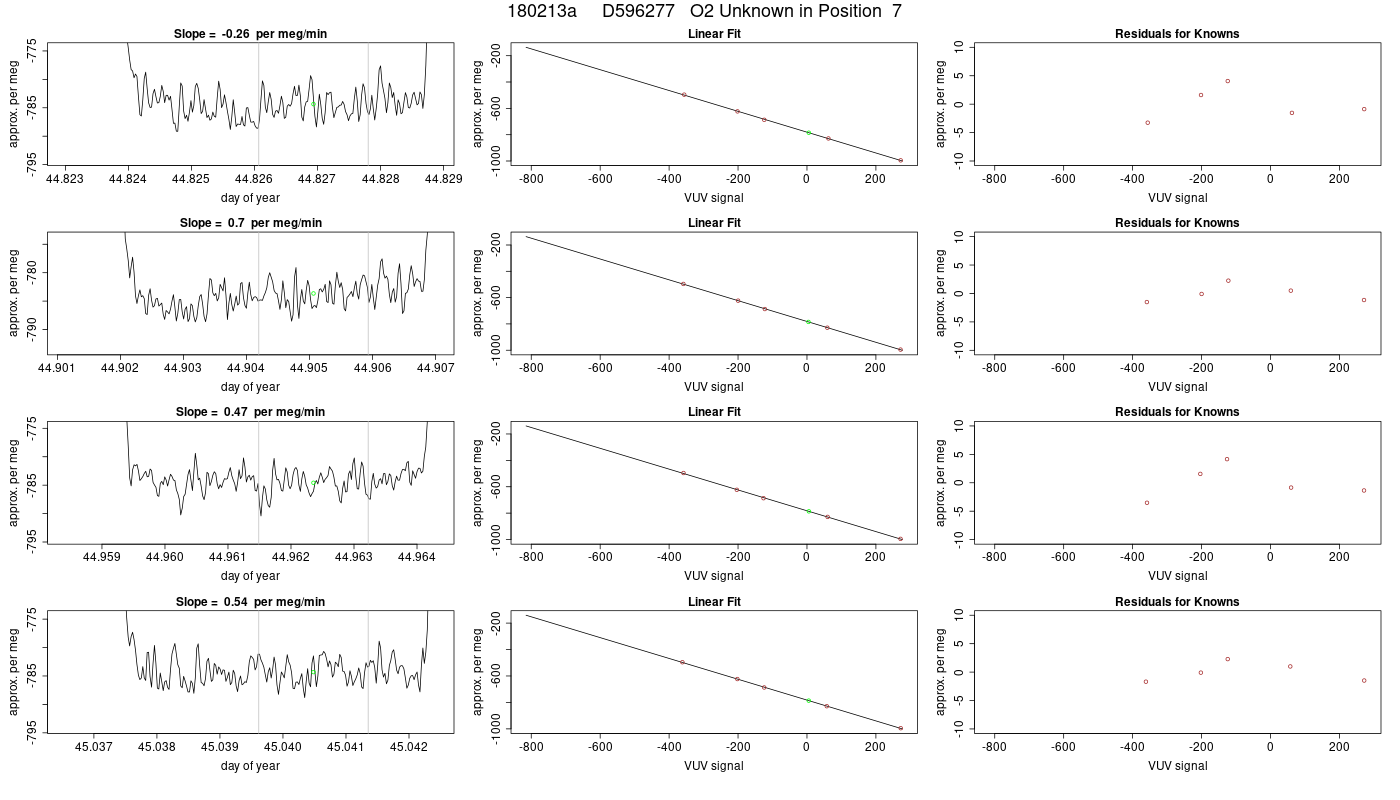

7 D596277    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.556 398.250 0.014 -741.61 2.33 398.460 0.014
44.634 398.240 0.016 -745.80 2.23 398.451 0.016
44.692 398.247 0.010 -747.87 1.78 398.457 0.010
44.770 398.245 0.011 -749.20 2.70 398.455 0.011
44.827 398.256 0.014 -750.56 2.05 398.467 0.014
44.905 398.239 0.016 -750.36 2.05 398.450 0.016
44.962 398.253 0.015 -752.08 2.10 398.464 0.015
45.040 398.243 0.010 -751.93 1.96 398.453 0.010

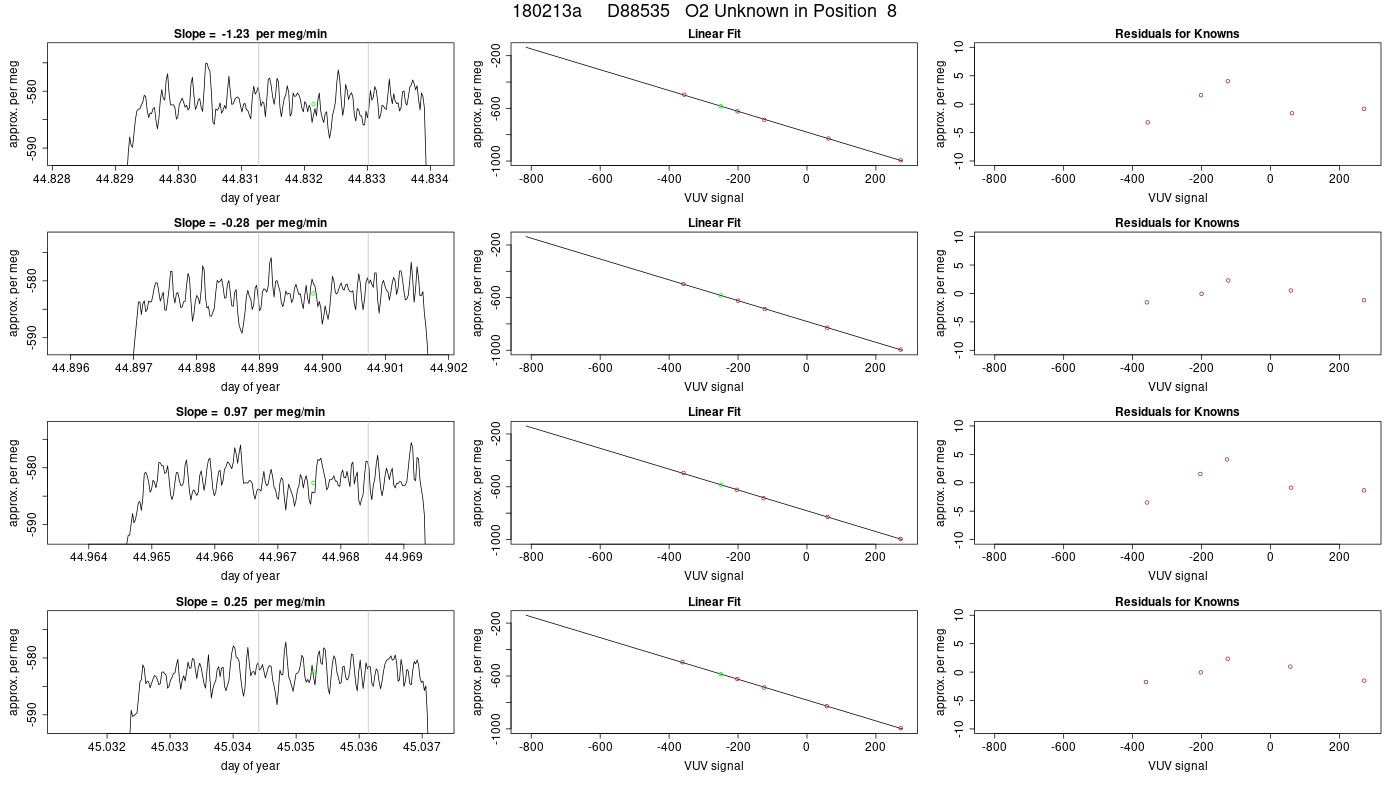

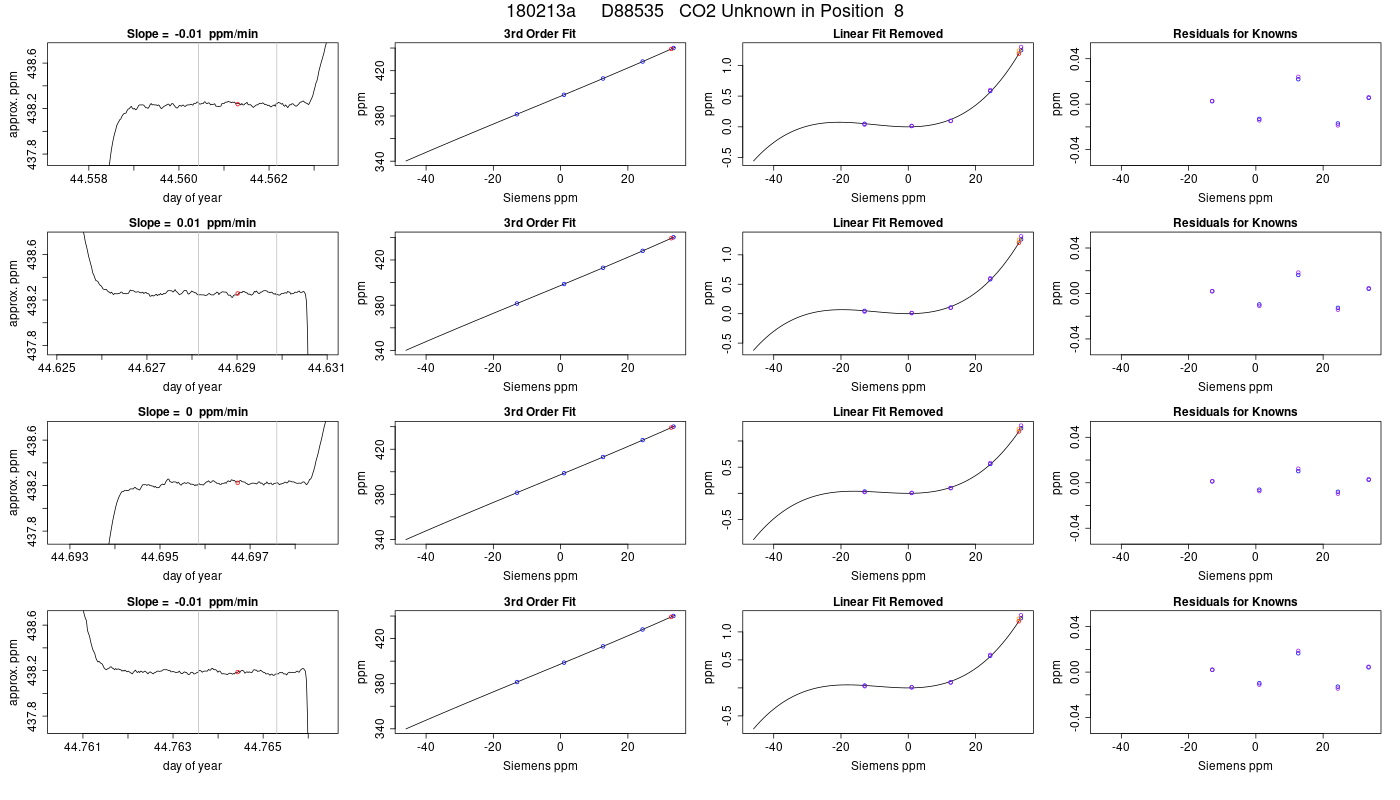

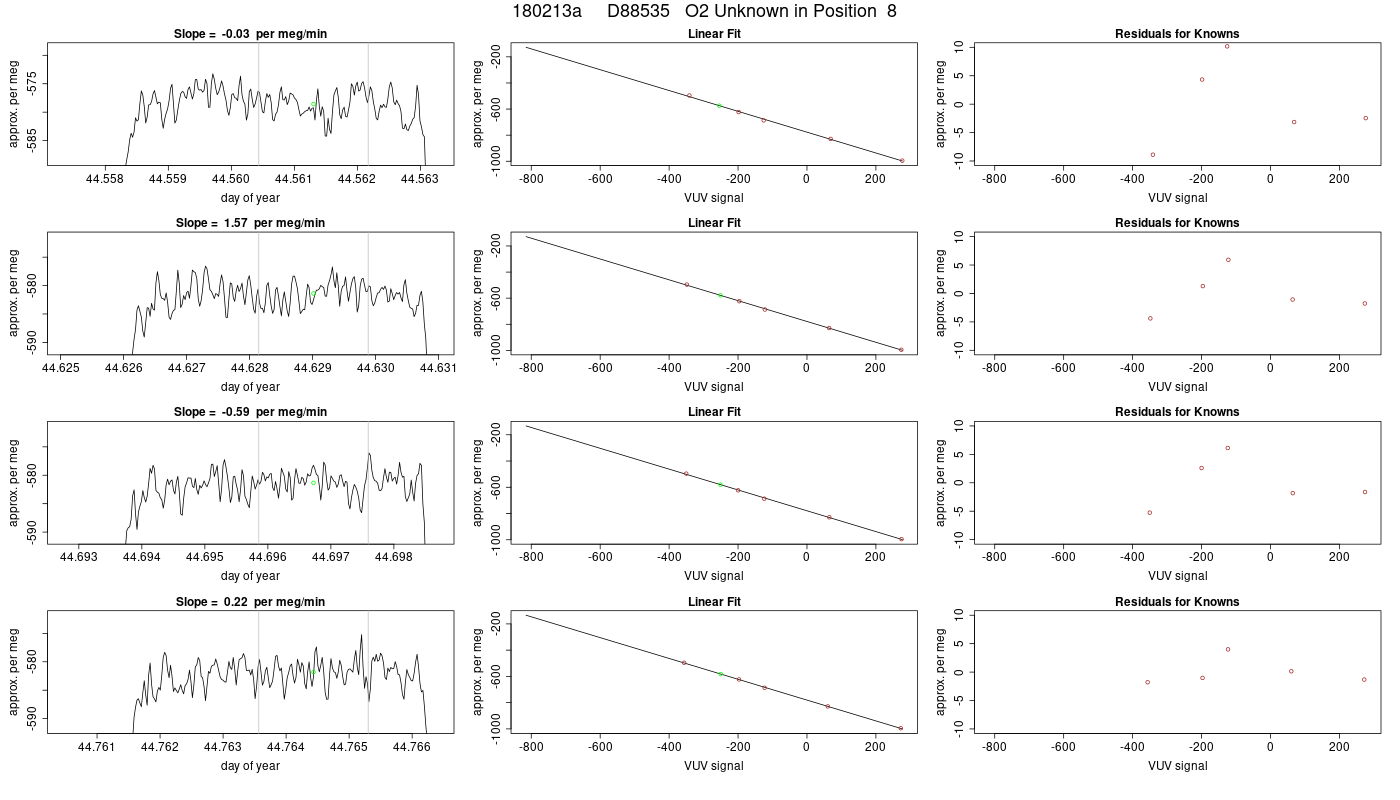

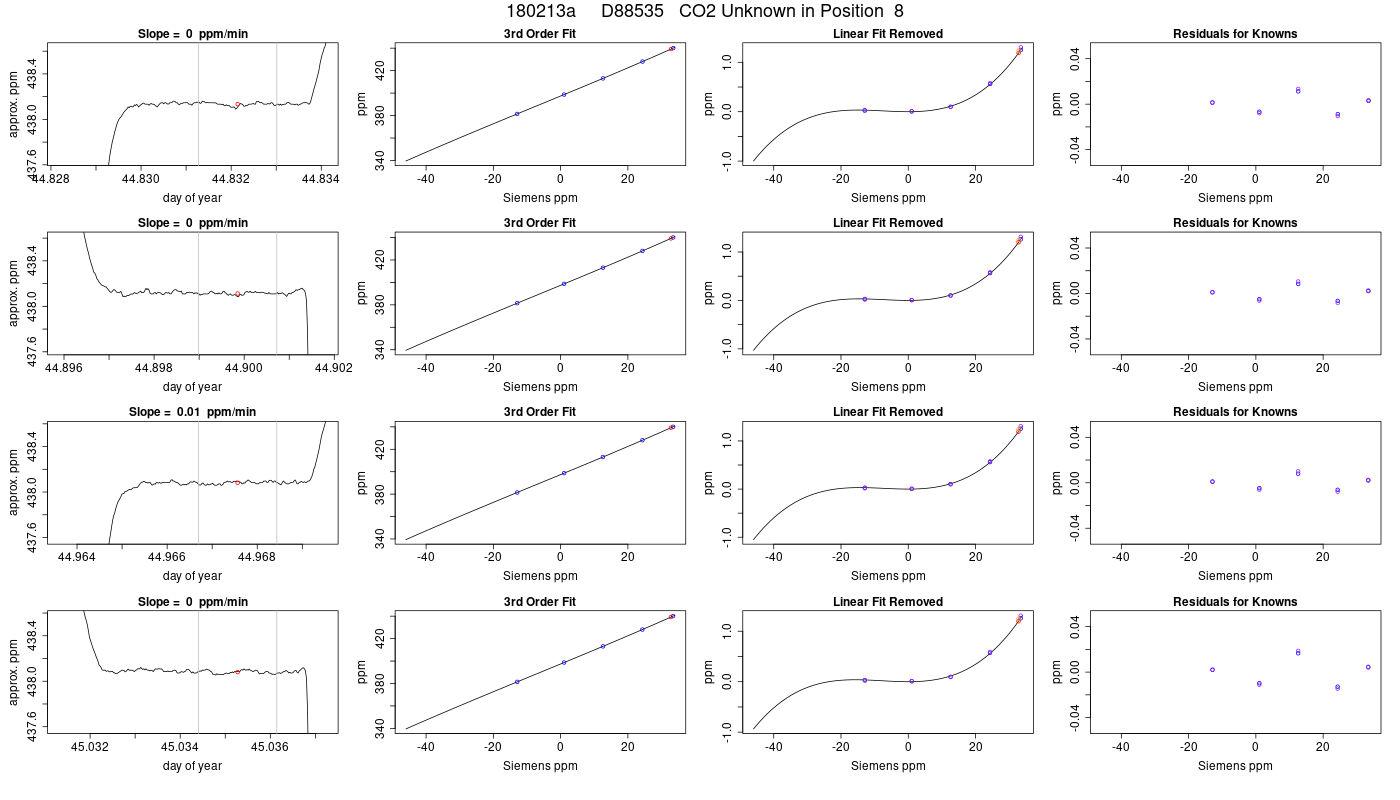

8 D88535    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.561 439.199 0.013 -499.43 2.22 439.407 0.013
44.629 439.216 0.014 -503.66 2.12 439.424 0.014
44.697 439.192 0.011 -505.42 1.89 439.400 0.011
44.764 439.204 0.015 -507.33 2.16 439.412 0.015
44.832 439.181 0.015 -508.74 2.42 439.389 0.015
44.900 439.207 0.011 -509.09 2.11 439.415 0.011
44.968 439.197 0.013 -510.82 2.12 439.405 0.013
45.035 439.205 0.015 -511.26 2.15 439.413 0.015

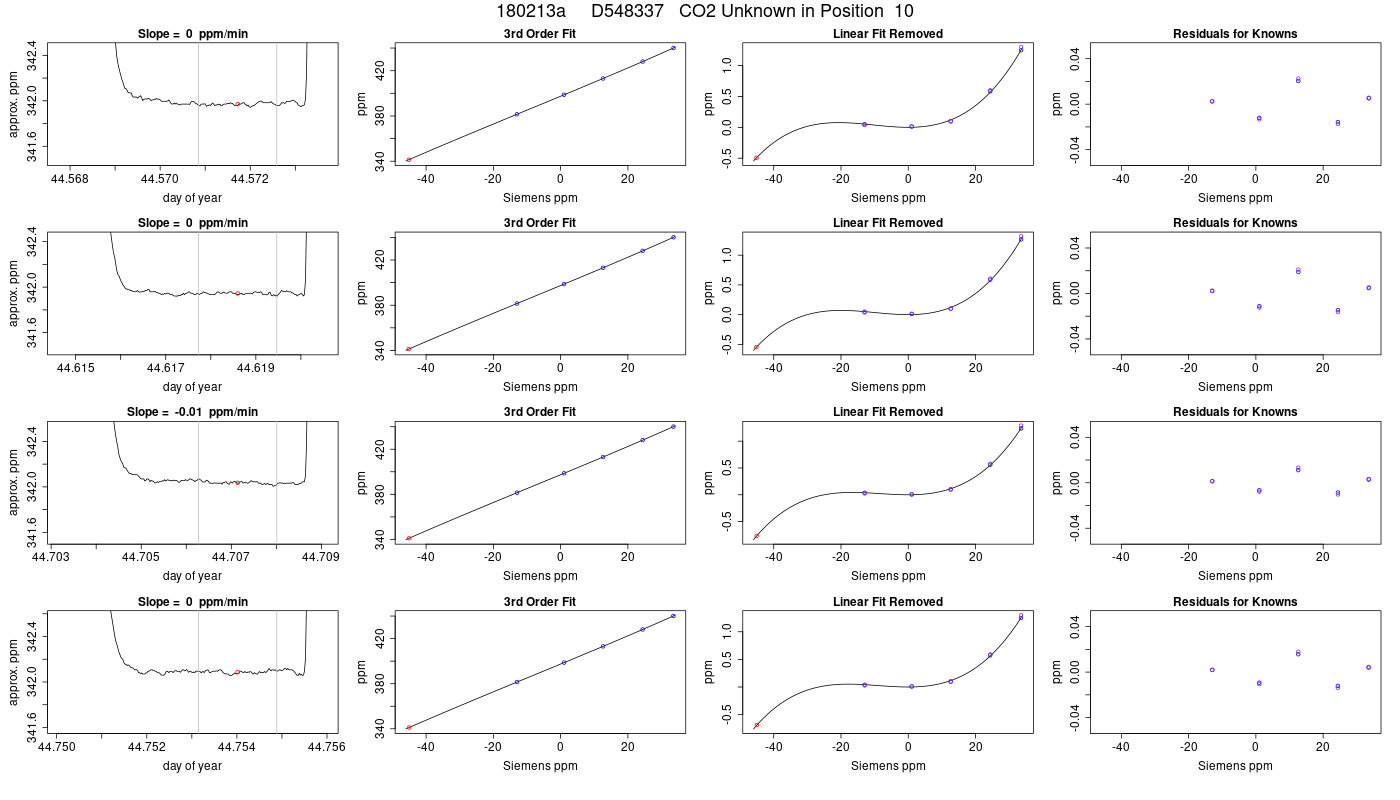

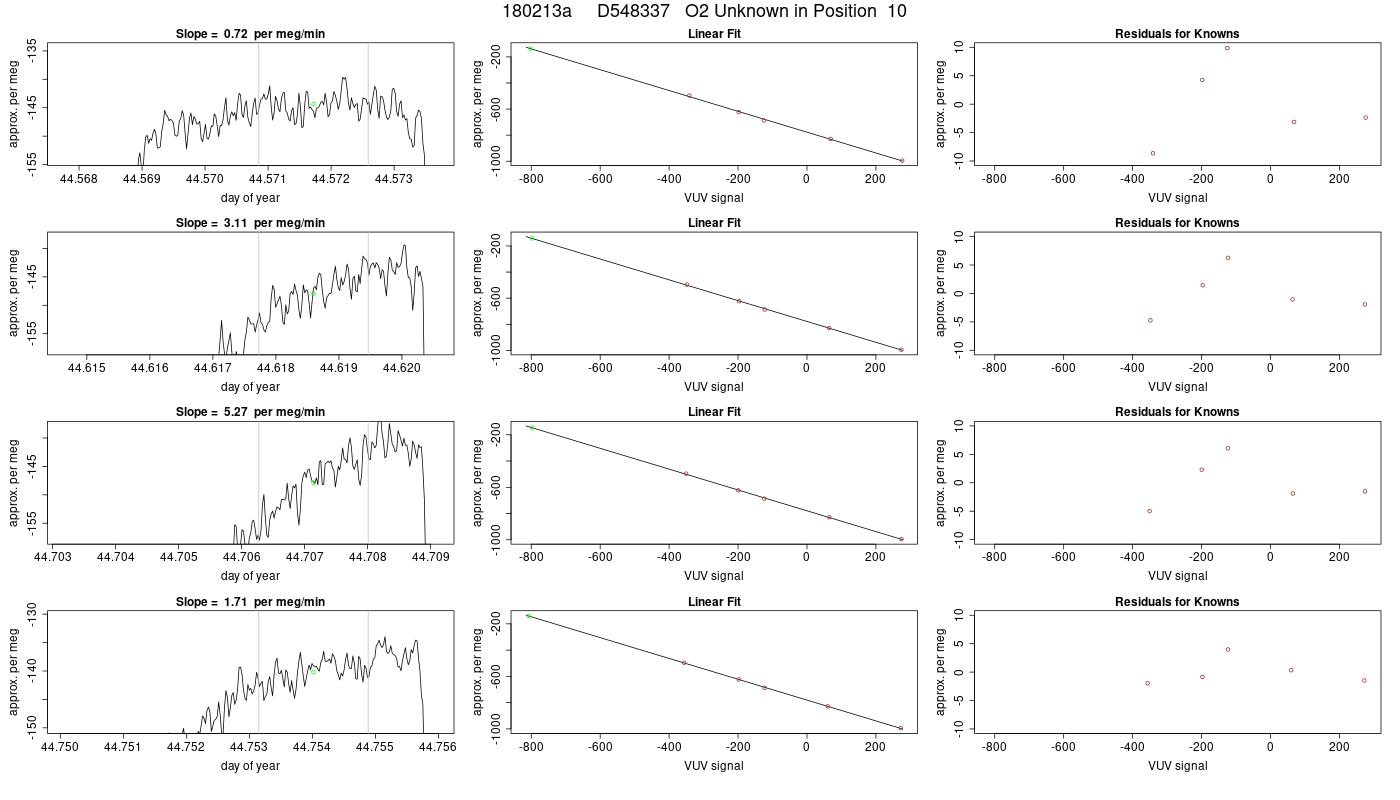

10 D548337    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.572 341.330 0.012 -158.13 1.91 341.303 0.012
44.619 341.250 0.009 -163.93 3.20 341.222 0.009
44.707 341.066 0.012 -168.07 4.42 341.038 0.012
44.754 341.145 0.013 -162.20 2.10 341.118 0.013
44.843 340.951 0.013 -164.70 3.07 340.924 0.013
44.889 340.861 0.012 -160.60 2.31 340.833 0.012
44.978 340.920 0.023 -164.24 2.60 340.893 0.023
45.025 340.938 0.013 -163.09 2.58 340.910 0.013

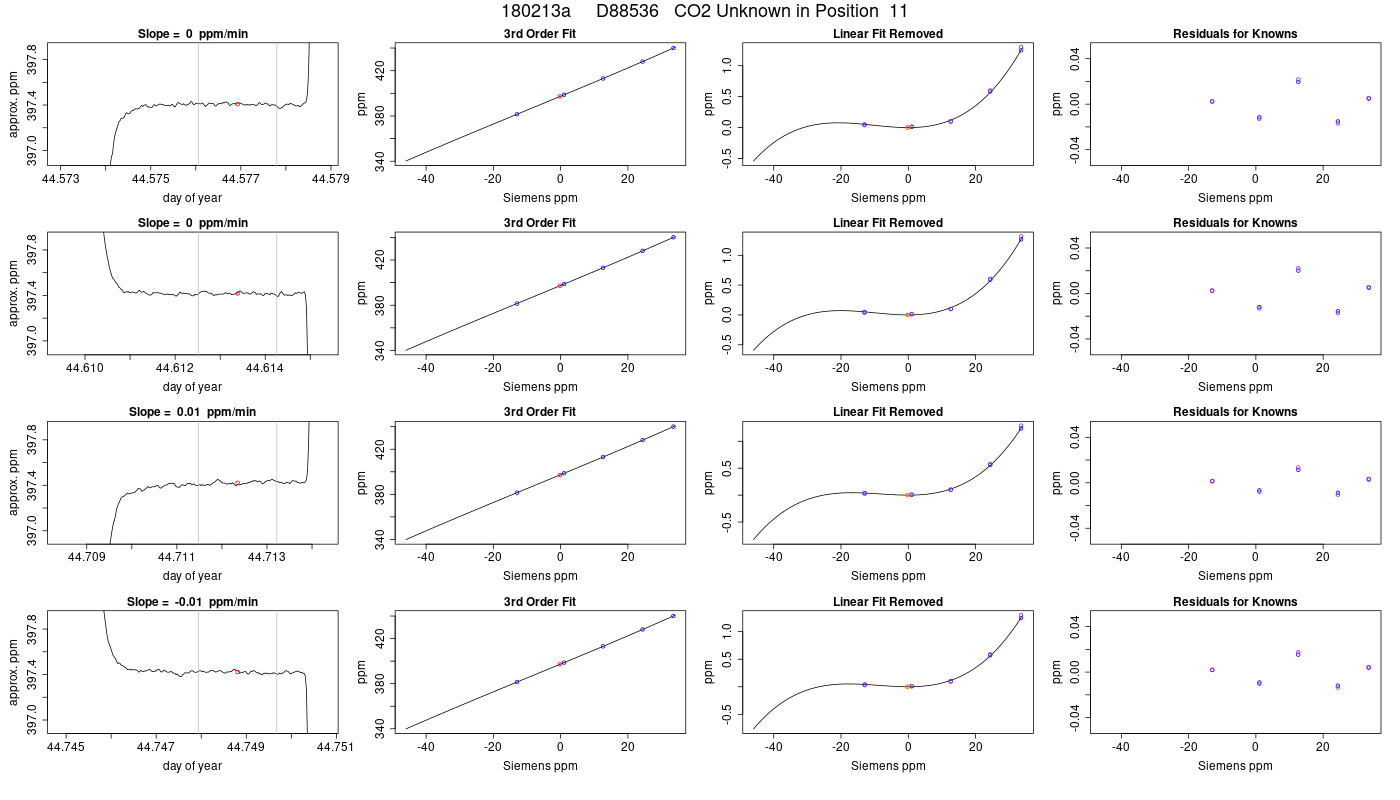

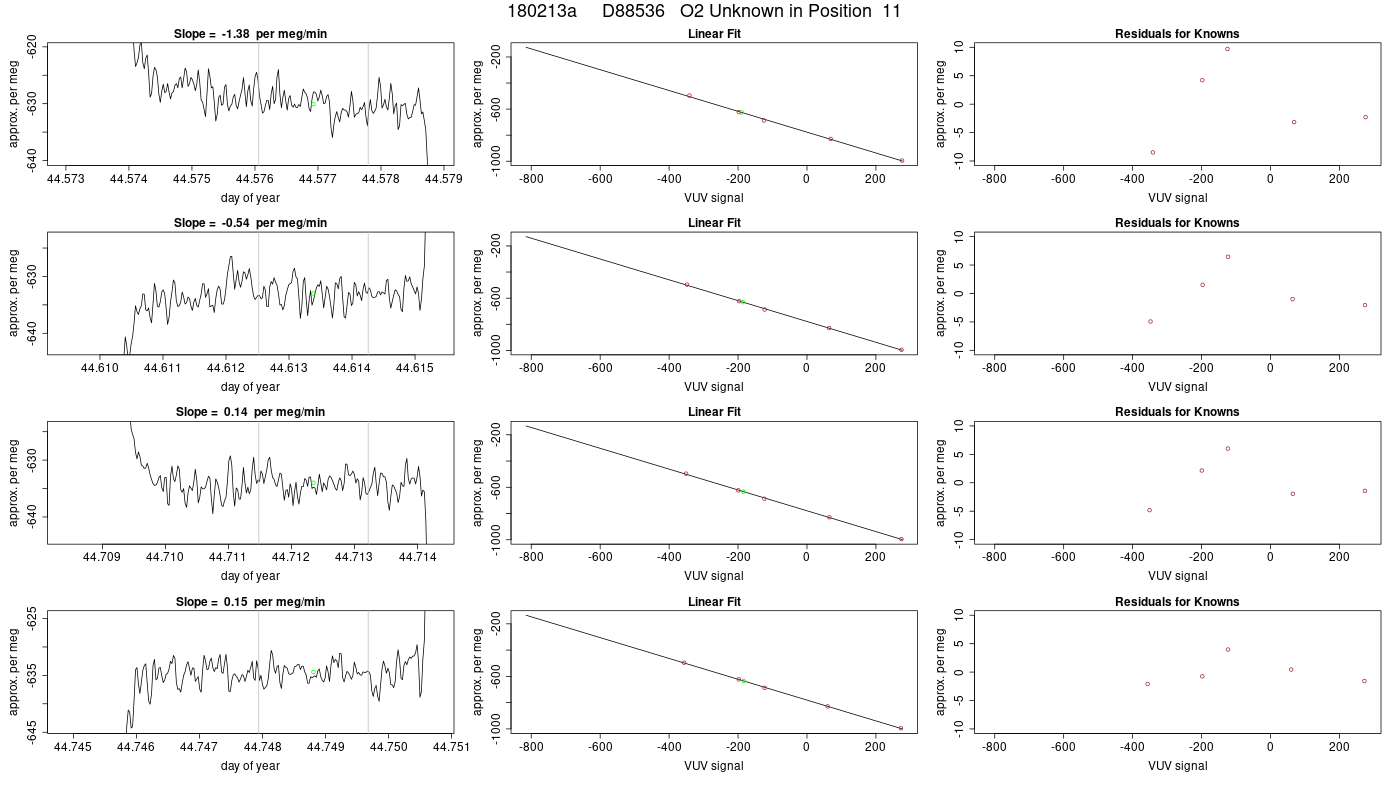

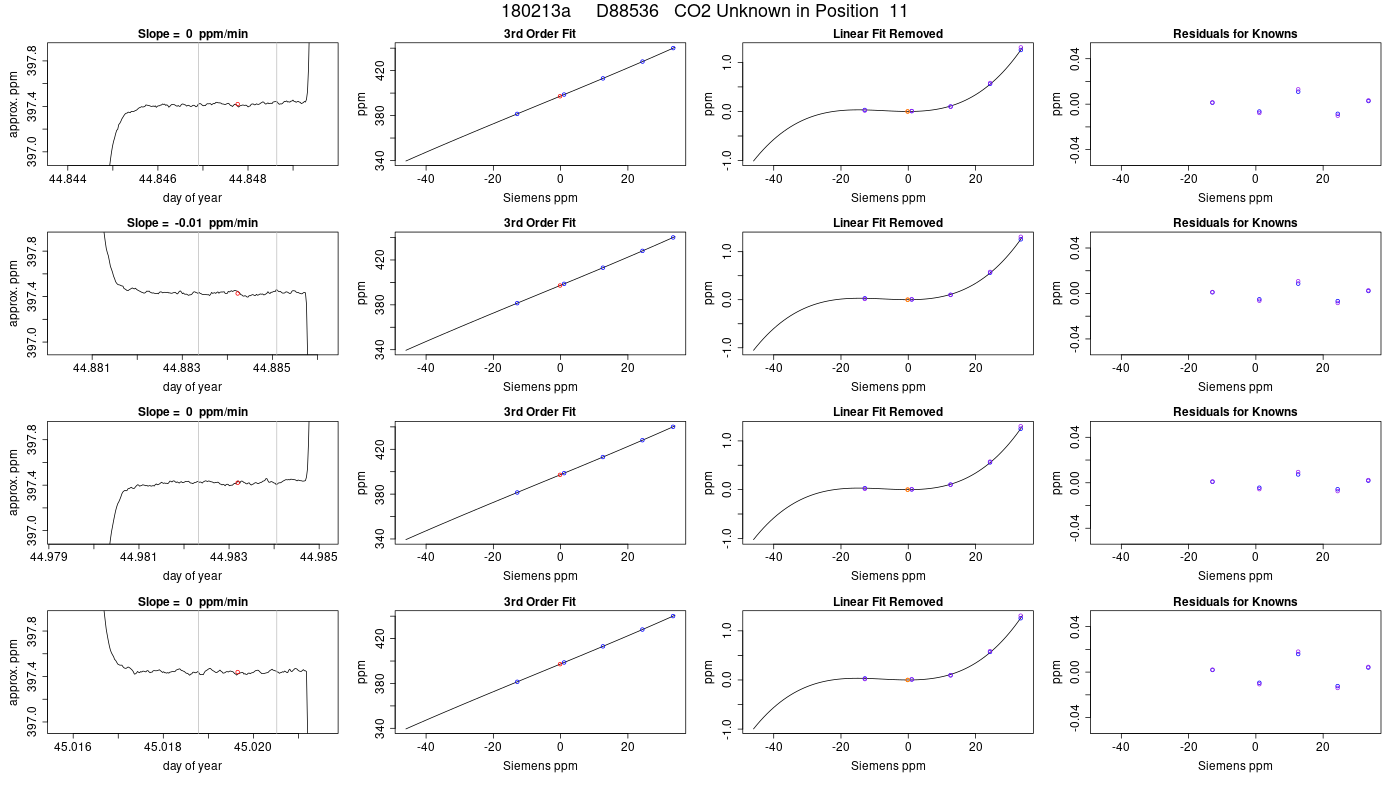

11 D88536    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.577 397.210 0.009 -592.18 1.96 397.422 0.009
44.613 397.211 0.010 -596.94 2.04 397.423 0.010
44.712 397.217 0.016 -599.21 1.67 397.429 0.016
44.749 397.211 0.011 -601.38 1.47 397.423 0.011
44.848 397.205 0.011 -601.98 2.33 397.417 0.011
44.884 397.211 0.015 -602.44 2.48 397.423 0.015
44.983 397.202 0.013 -604.12 2.29 397.414 0.013
45.020 397.212 0.014 -605.13 1.92 397.424 0.014

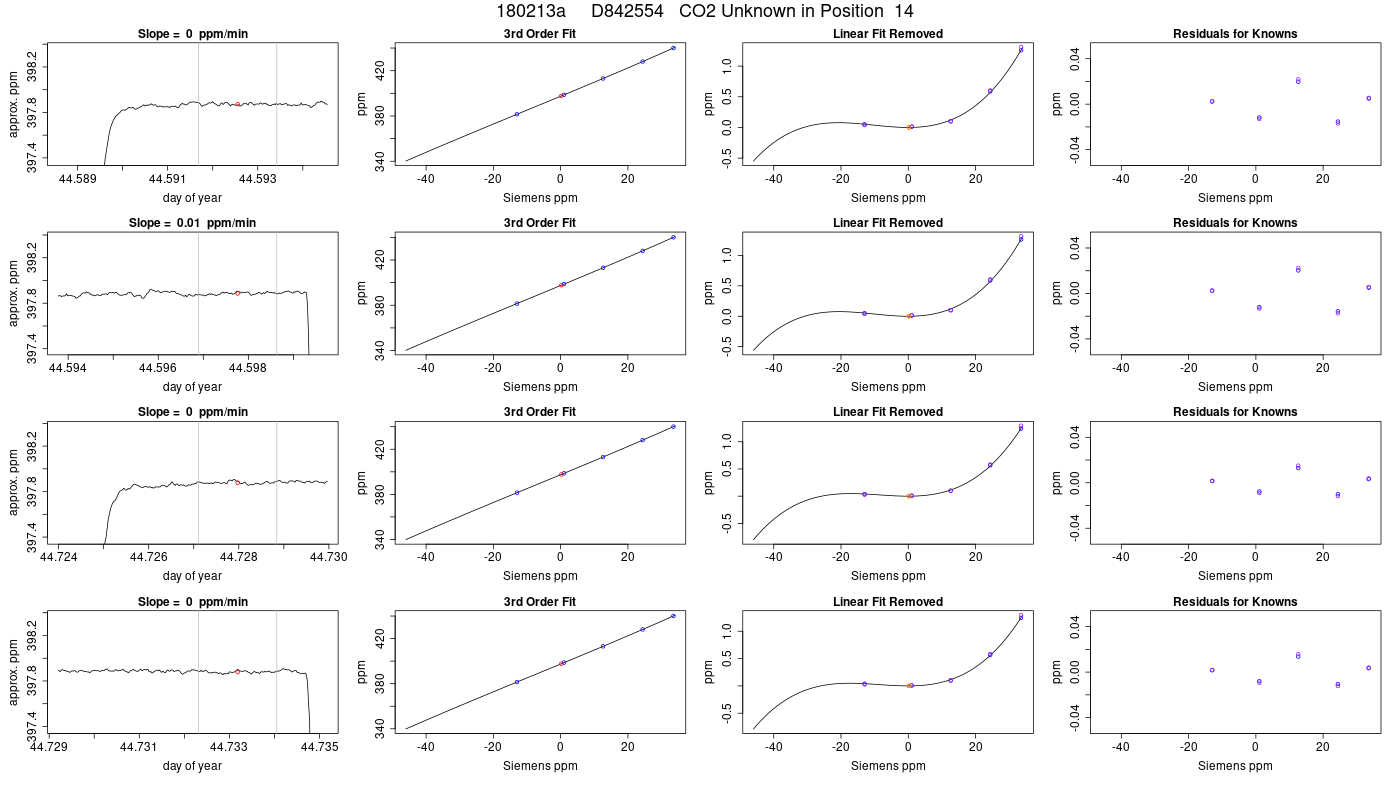

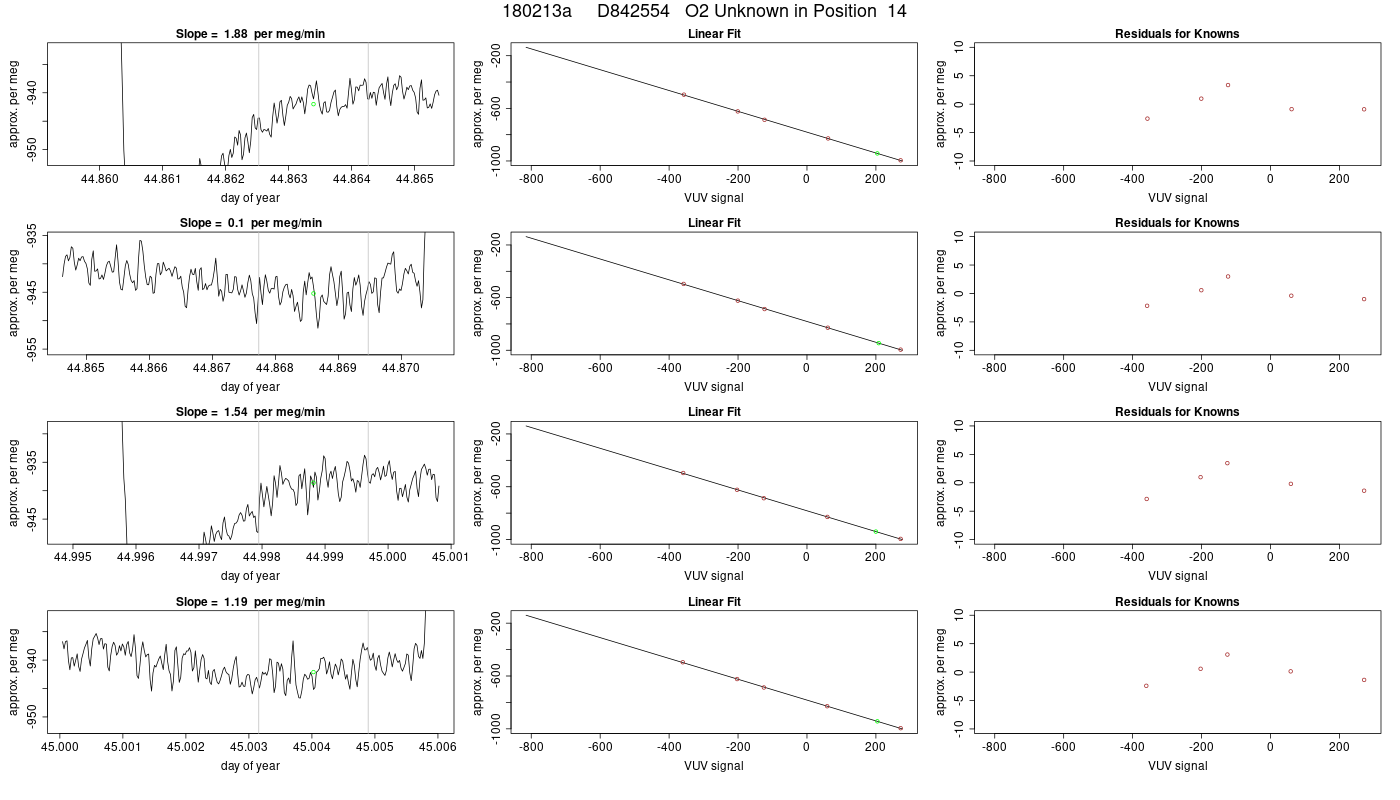

14 D842554    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
44.593 397.671 0.009 -905.79 1.84 397.882 0.009
44.598 397.683 0.010 -903.64 1.90 397.894 0.010
44.728 397.670 0.011 -908.92 3.13 397.881 0.011
44.733 397.670 0.009 -913.86 2.32 397.881 0.009
44.863 397.676 0.014 -908.59 2.51 397.887 0.014
44.869 397.688 0.013 -911.94 2.41 397.899 0.013
44.999 397.684 0.014 -905.85 2.38 397.895 0.014
45.004 397.681 0.011 -909.33 2.27 397.892 0.011
