UEA CRAM Lab O2 and CO2 calibration results
RUN = 180110a
PROCESSED: 16:43:27 Mon 21Aug2023

Notes
Logfile

Results

Using data from 10.55 to 10.886 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88471 380.177 0.025 0.177 380.396 0.025 0.177 5 -426.02 1.61 5.92 5
4 D88534 416.296 0.003 -0.024 416.483 0.003 -0.024 5 -745.92 0.93 -0.68 4
6 D88474 409.349 0.009 -0.018 409.544 0.009 -0.018 5 -536.70 0.93 -7.96 5
7 D596277 398.232 0.005 0.035 398.443 0.005 0.035 5 -752.87 1.22 5.20 5
8 D88535 439.217 0.014 -0.035 439.424 0.014 -0.035 5 -514.04 0.81 4.89 5
10 D548337 340.838 0.067 -0.542 340.810 0.066 -0.540 5 -169.41 1.51 8.24 5
11 D88536 397.204 0.003 0.010 397.416 0.003 0.010 5 -607.24 0.87 5.48 5
14 D842554 397.688 0.006 0.003 397.899 0.006 0.003 5 -896.11 4.67 -26.35 5
WT D258964 397.450 0.005 -0.036 397.661 0.005 -0.036 65 -751.30 1.60 14.27 65
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2

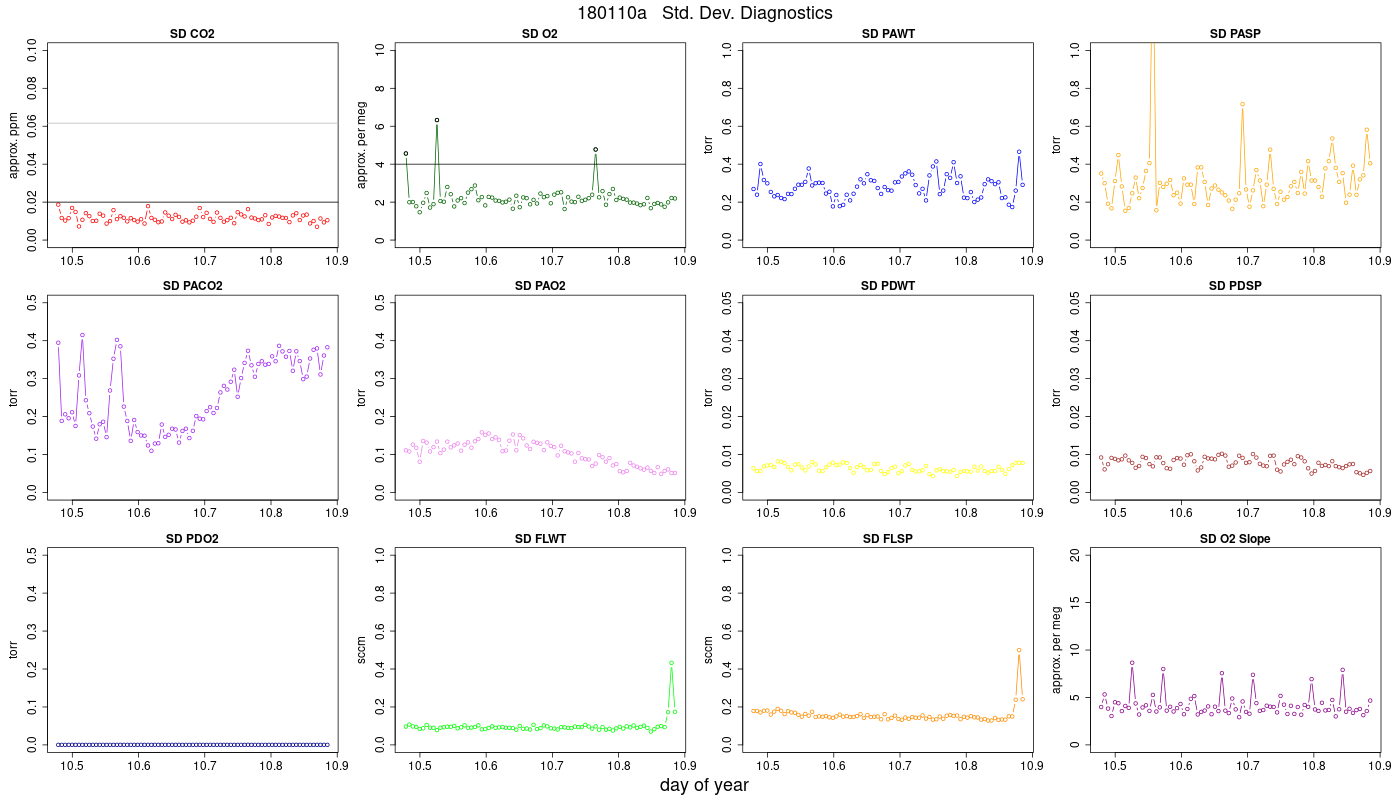

 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics

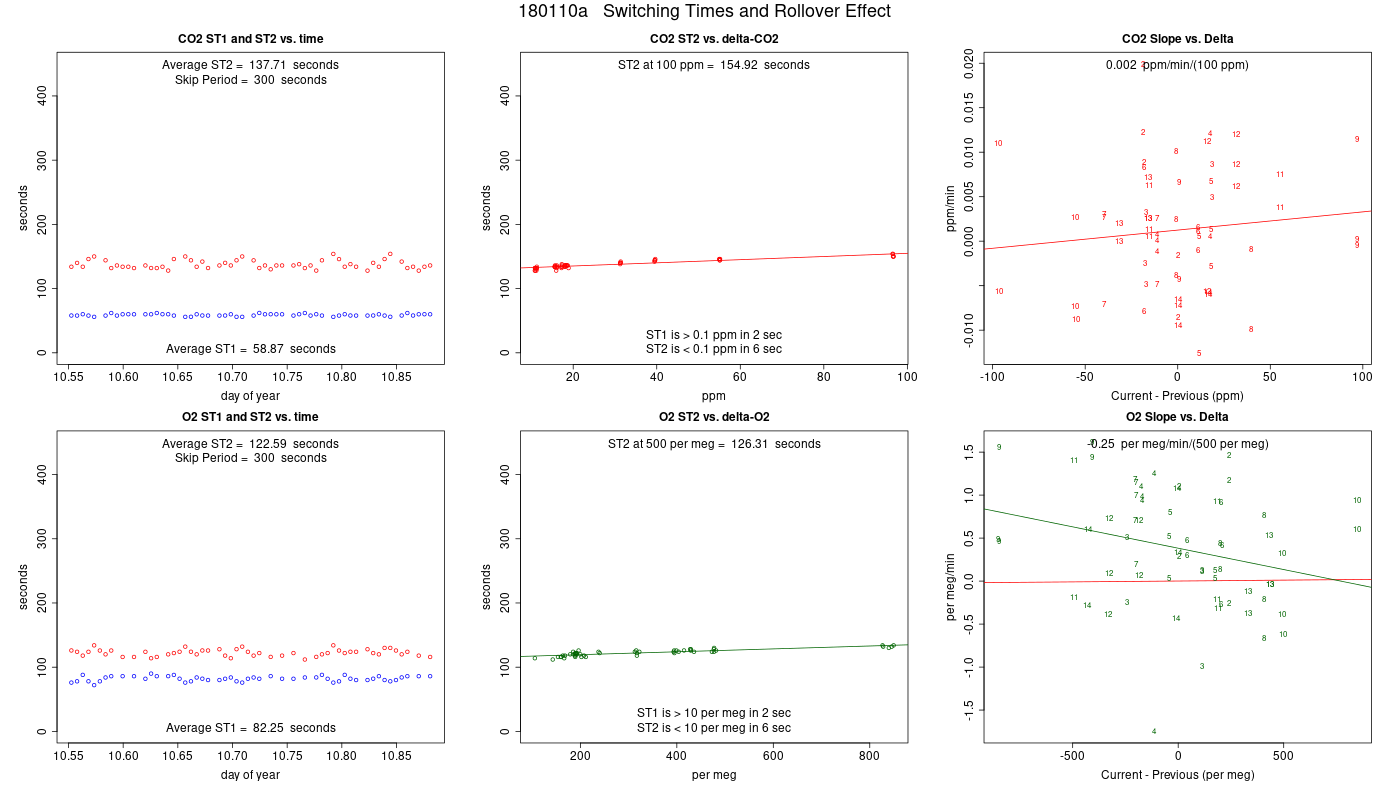

 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

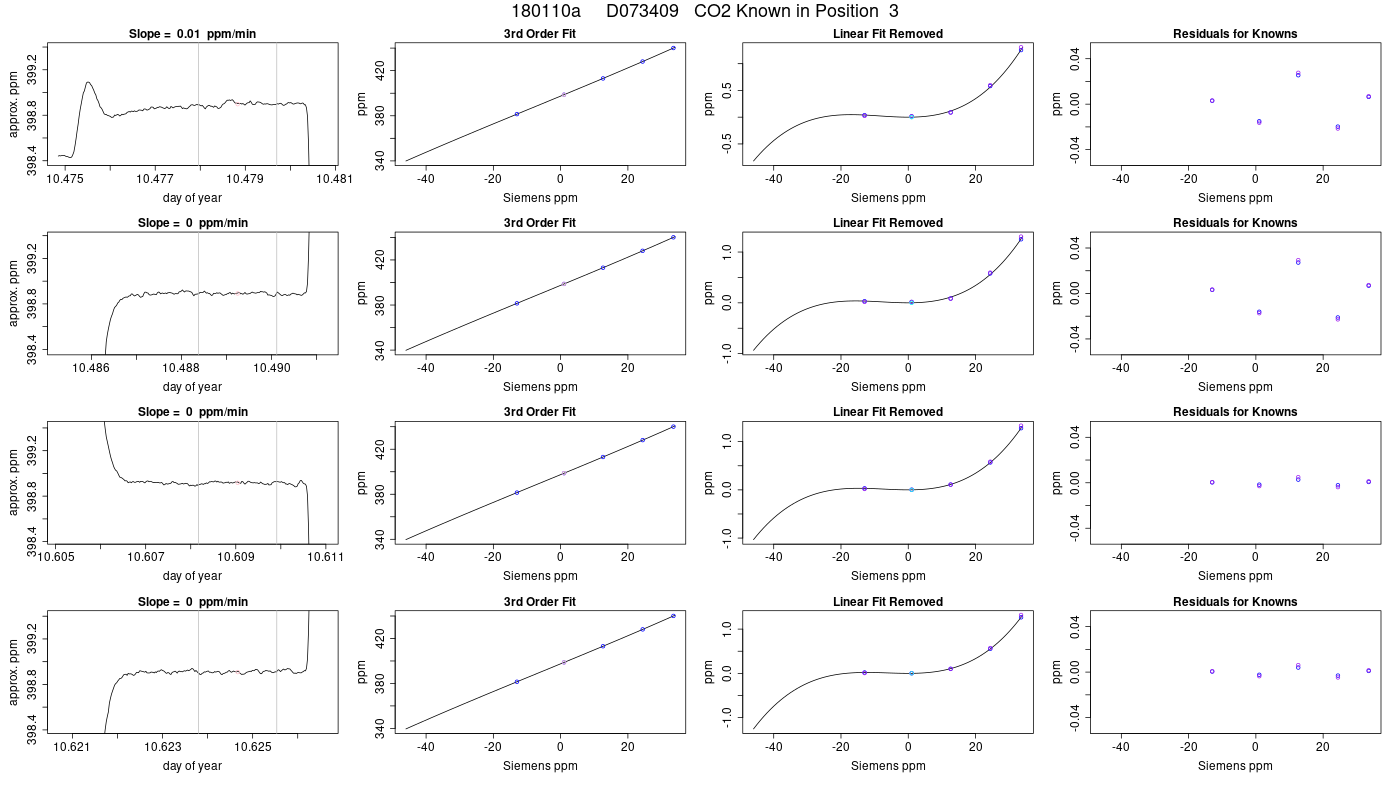

3 D073409 398.707 -0.005 0.003 398.918 -0.006 0.003 5 -651.78 2.28 0.44 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
5 D089507 428.087 -0.006 0.004 428.275 -0.008 0.004 5 -559.23 -1.02 0.62 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

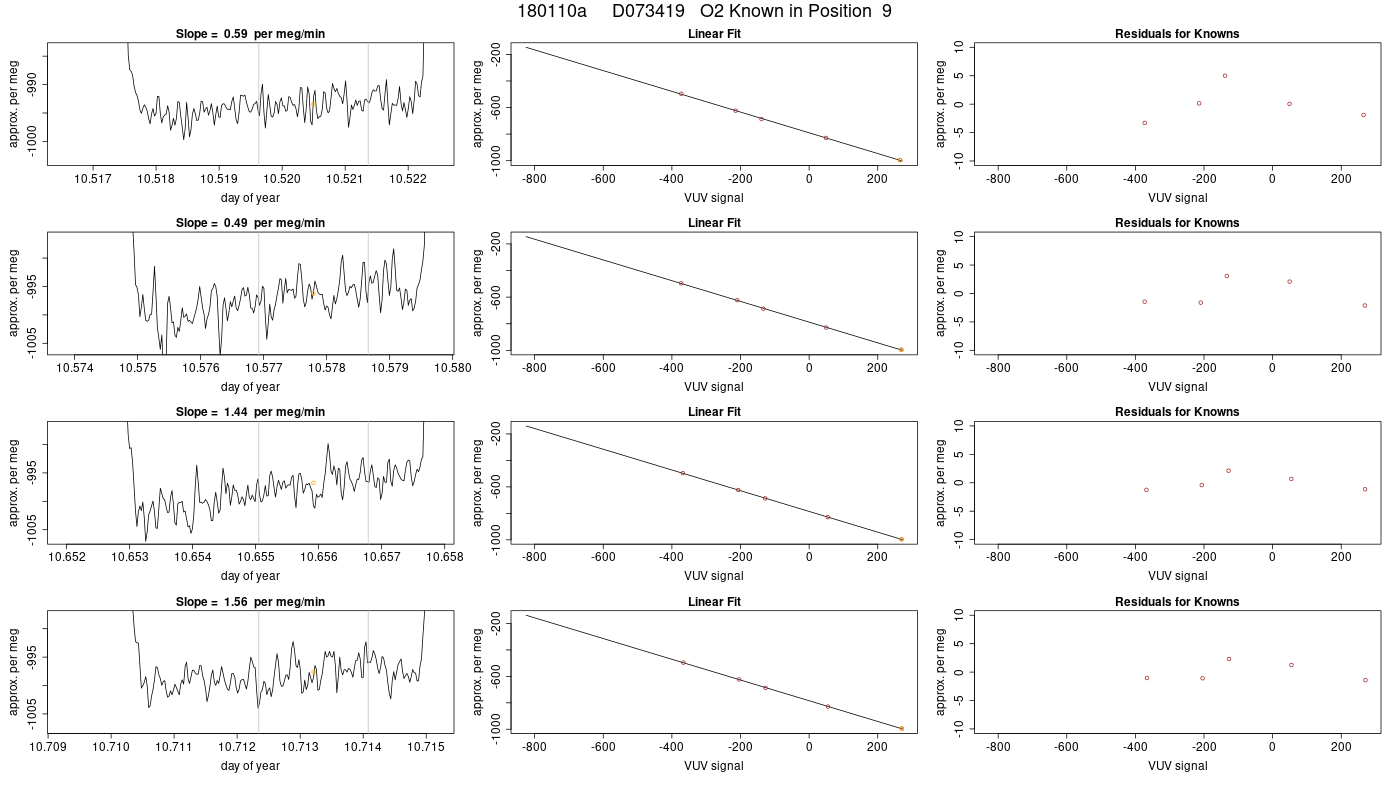

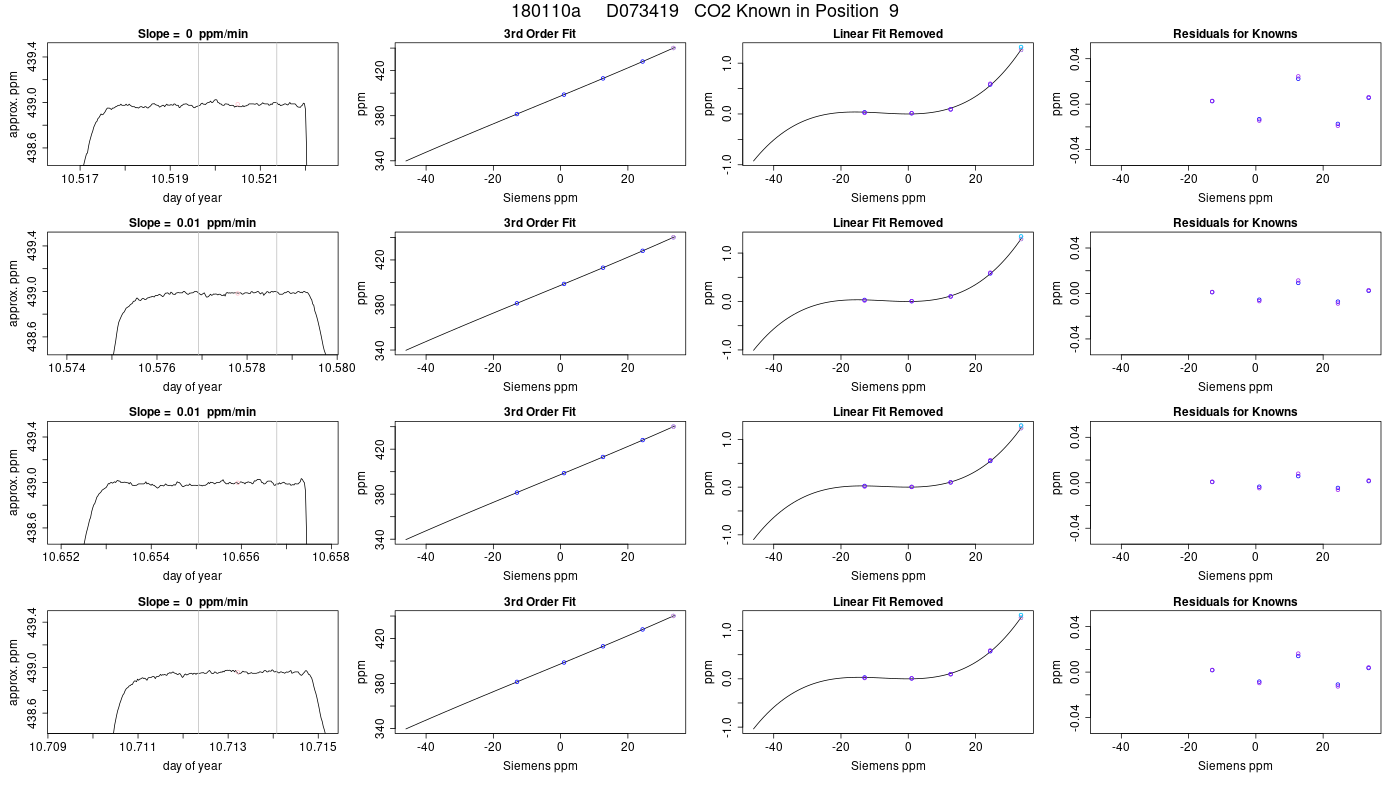

9 D073419 440.065 0.002 0.001 440.275 0.003 0.001 5 -919.32 -1.63 0.41 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
12 D073418 413.092 0.010 0.004 413.280 0.012 0.004 5 -779.40 1.25 0.85 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

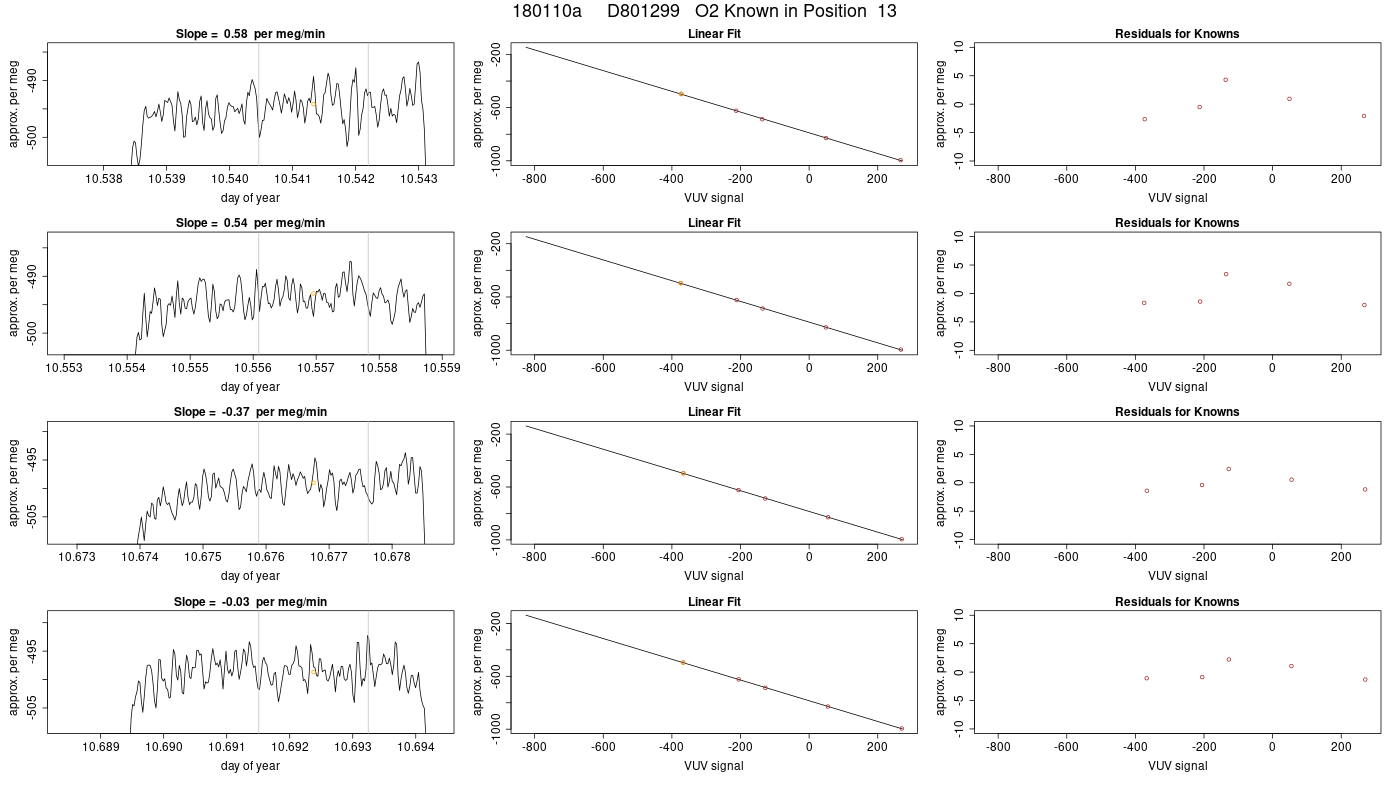

13 D801299 381.475 0.001 0.000 381.695 0.001 0.000 5 -477.75 -1.54 0.38 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

2 D88471    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.484 380.194 0.012 -418.15 1.99 380.414 0.012
10.614 380.140 0.018 -428.57 2.08 380.359 0.018
10.619 380.169 0.012 -425.62 2.07 380.389 0.012
10.750 380.176 0.015 -425.72 2.13 380.395 0.015
10.755 380.202 0.014 -424.14 2.21 380.422 0.014
10.885 380.198 0.010 -426.05 2.19 380.417 0.010

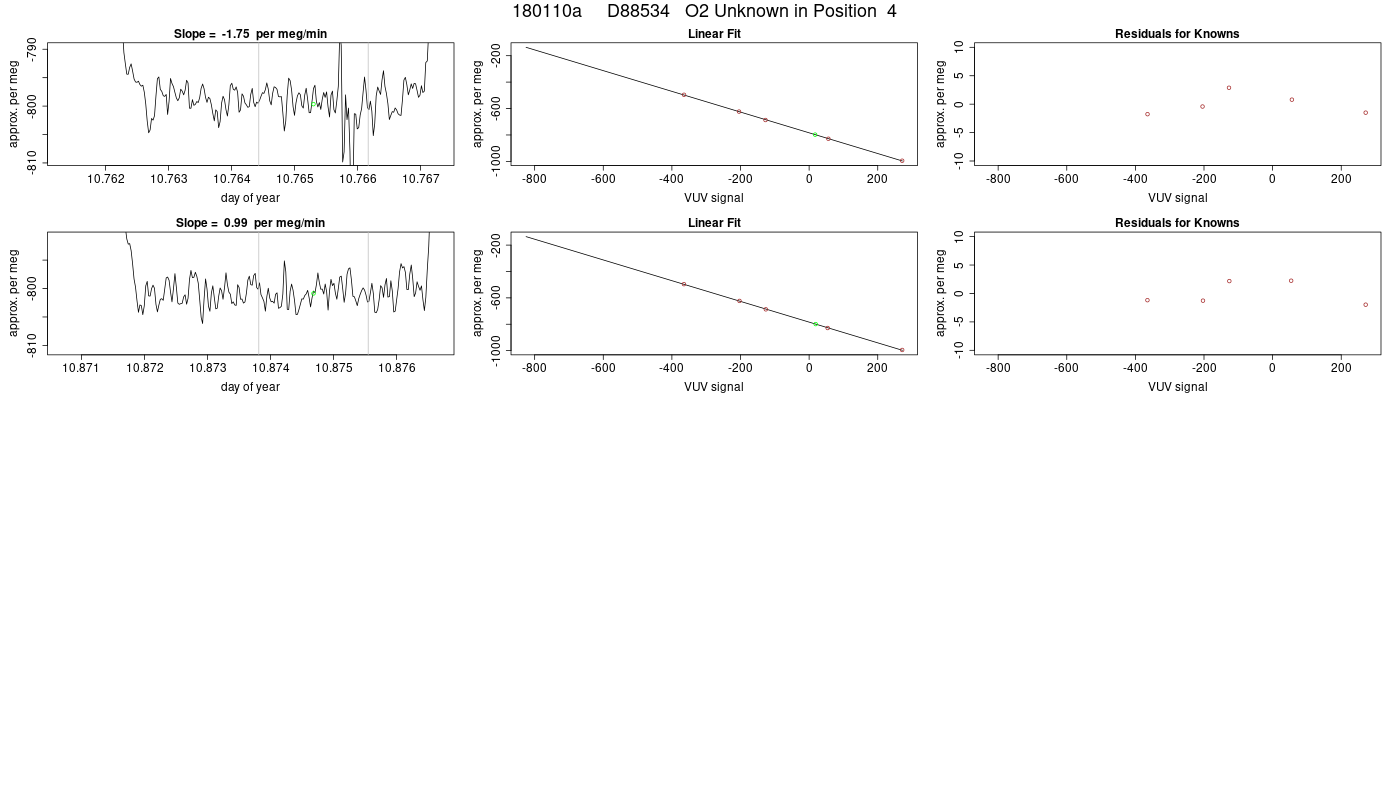

4 D88534    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.494 416.274 0.012 -741.94 1.78 416.461 0.012
10.604 416.300 0.011 -746.01 2.28 416.487 0.011
10.630 416.297 0.009 -746.32 2.02 416.484 0.009
10.739 416.297 0.012 -744.59 2.28 416.485 0.012
10.765 416.294 0.016 -745.40 4.77 416.481 0.016
10.875 416.292 0.011 -746.74 1.99 416.479 0.011

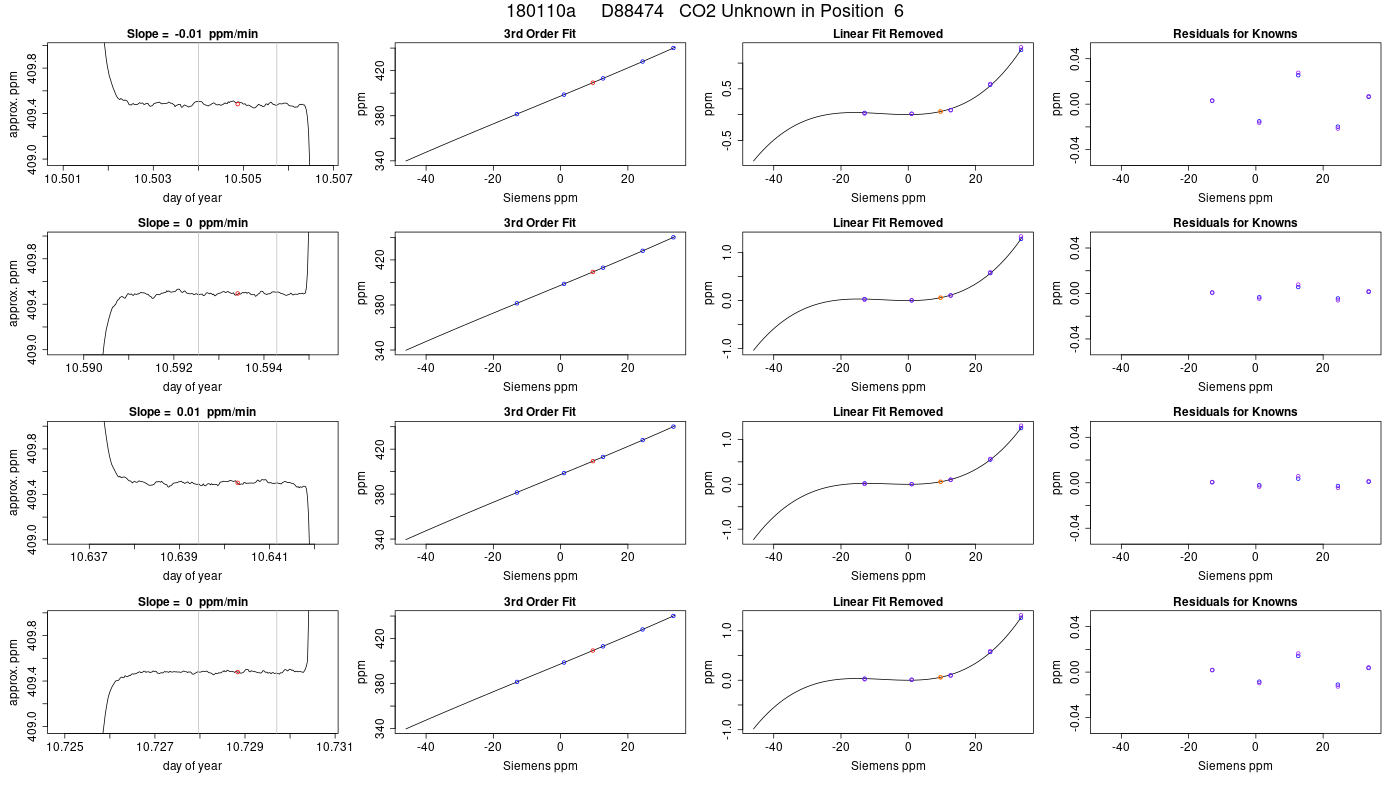

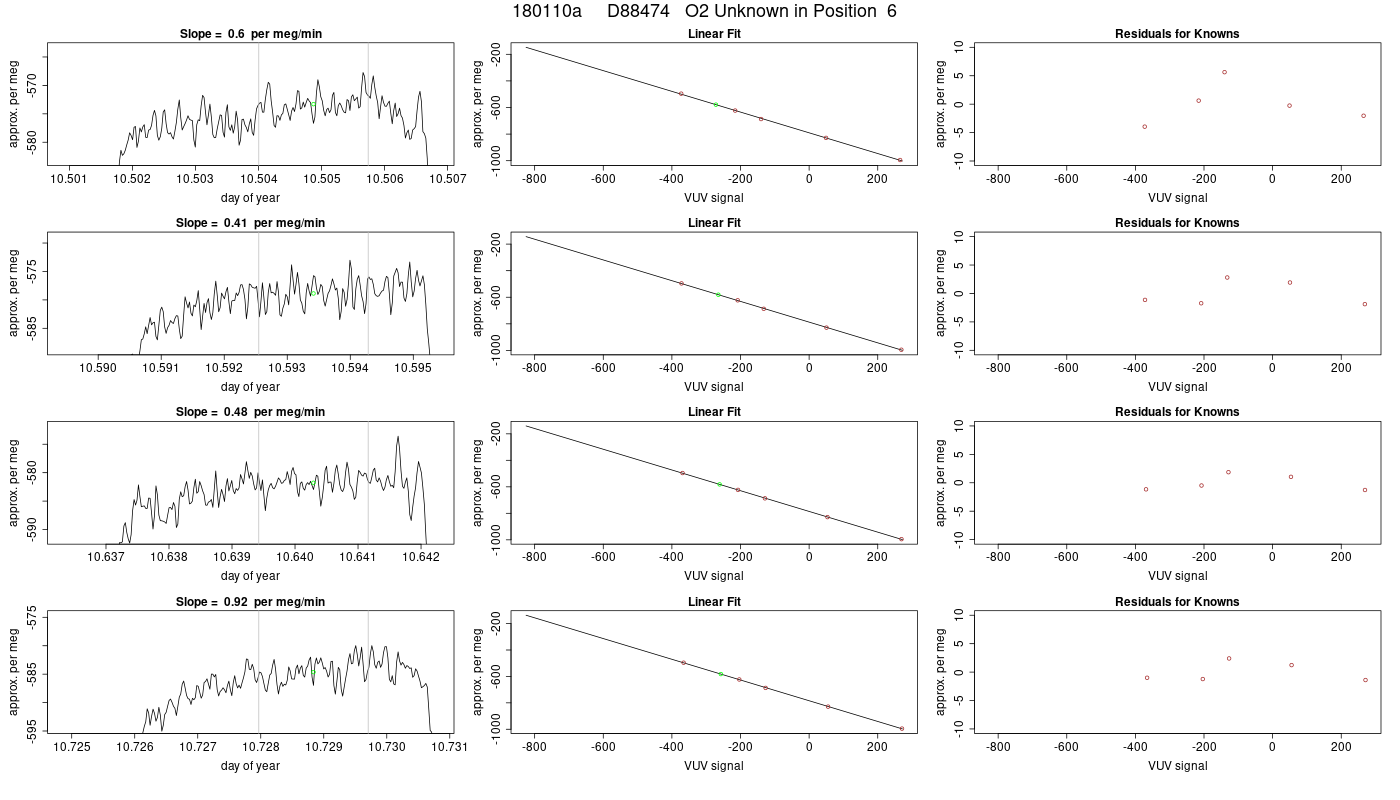

6 D88474    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.505 409.348 0.015 -533.42 1.96 409.542 0.015
10.593 409.345 0.011 -535.55 2.27 409.540 0.011
10.640 409.359 0.015 -536.36 1.65 409.554 0.015
10.729 409.340 0.010 -536.90 2.03 409.535 0.010
10.776 409.358 0.011 -536.58 2.58 409.553 0.011
10.864 409.342 0.010 -538.10 1.88 409.537 0.010

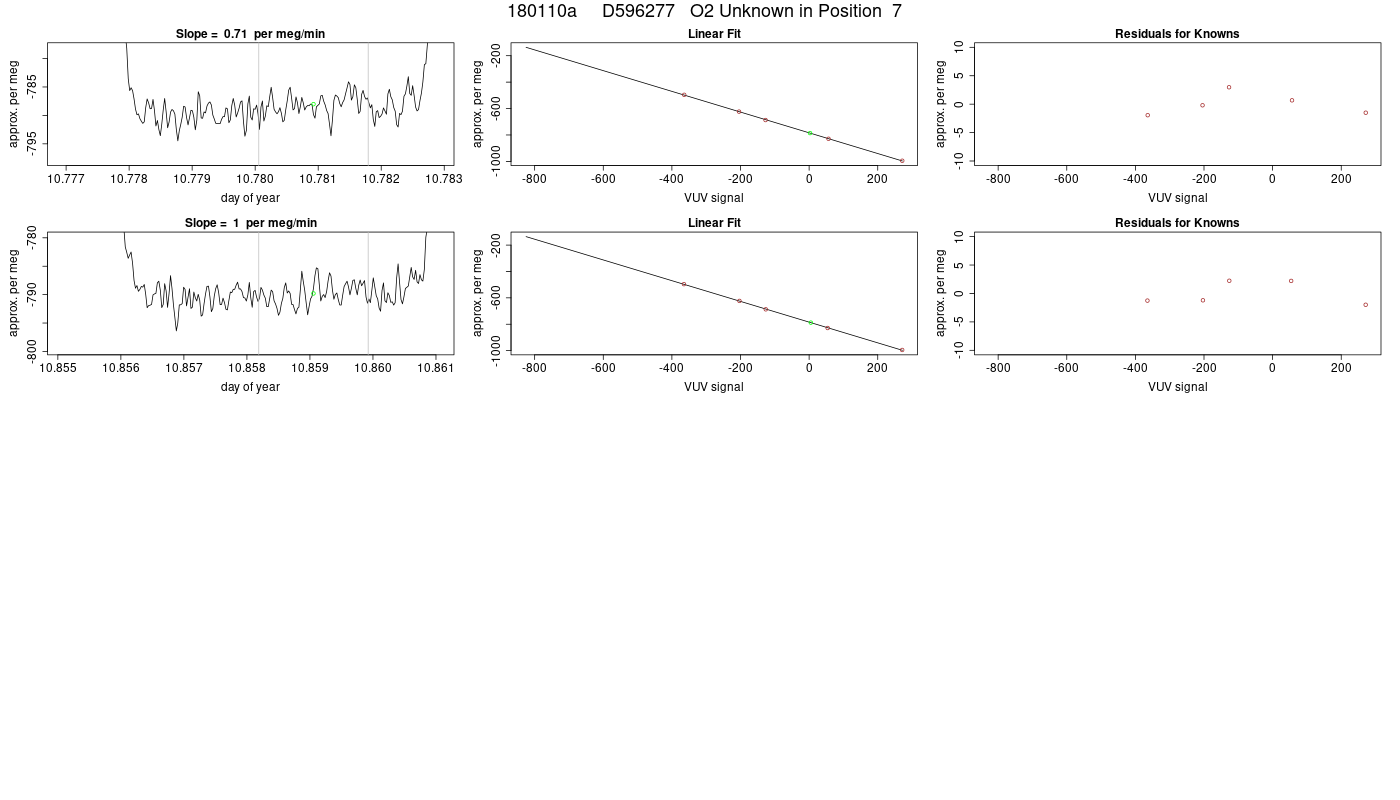

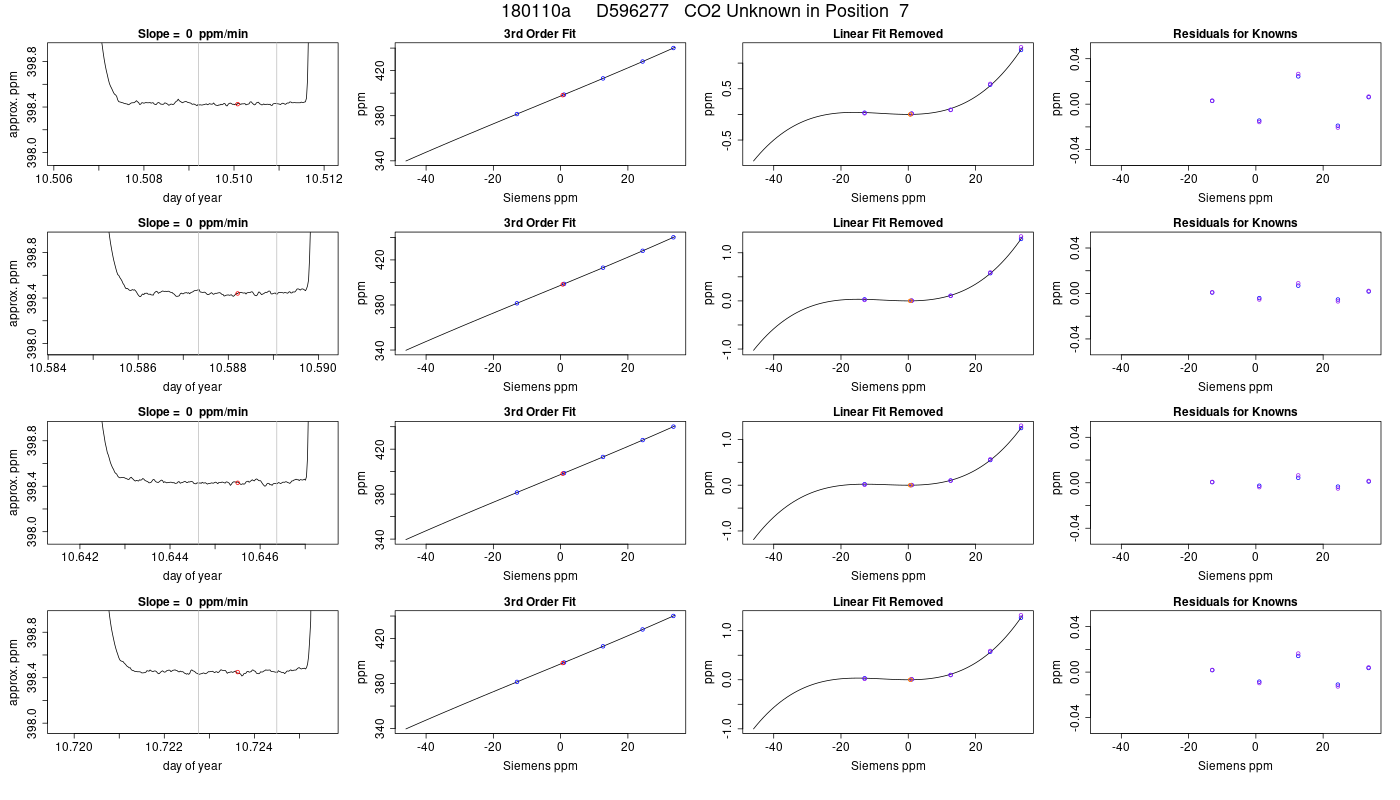

7 D596277    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.510 398.221 0.007 -750.12 2.48 398.431 0.007
10.588 398.230 0.012 -754.58 2.10 398.440 0.012
10.646 398.225 0.013 -752.60 2.34 398.436 0.013
10.724 398.235 0.012 -752.58 2.26 398.445 0.012
10.781 398.238 0.011 -751.23 1.86 398.448 0.011
10.859 398.235 0.009 -753.35 1.95 398.445 0.009

8 D88535    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.515 439.208 0.011 -510.87 1.71 439.415 0.011
10.583 439.236 0.010 -515.35 2.87 439.444 0.010
10.651 439.203 0.011 -513.96 1.73 439.410 0.011
10.718 439.216 0.015 -513.63 1.63 439.424 0.015
10.786 439.204 0.011 -513.19 2.42 439.411 0.011
10.854 439.224 0.013 -514.08 1.90 439.432 0.013

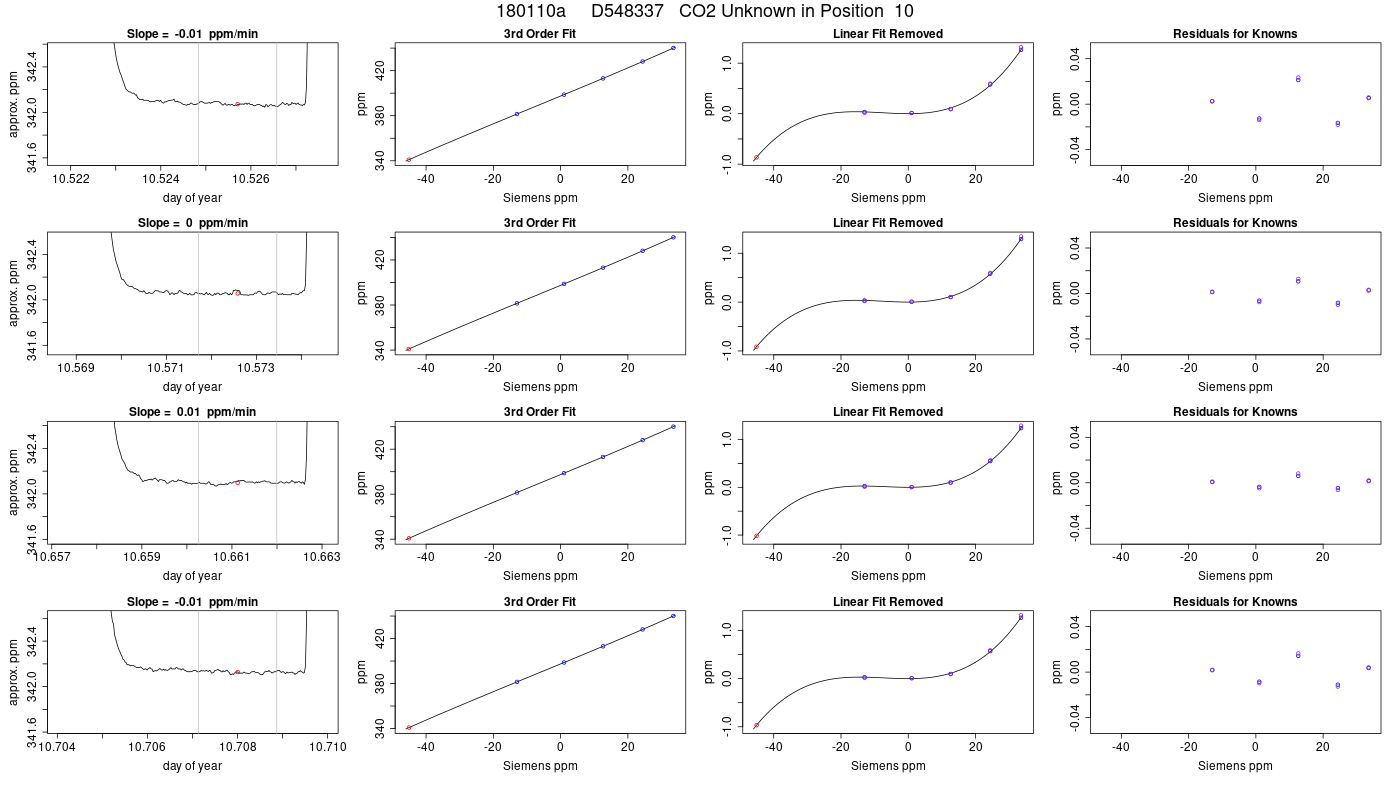

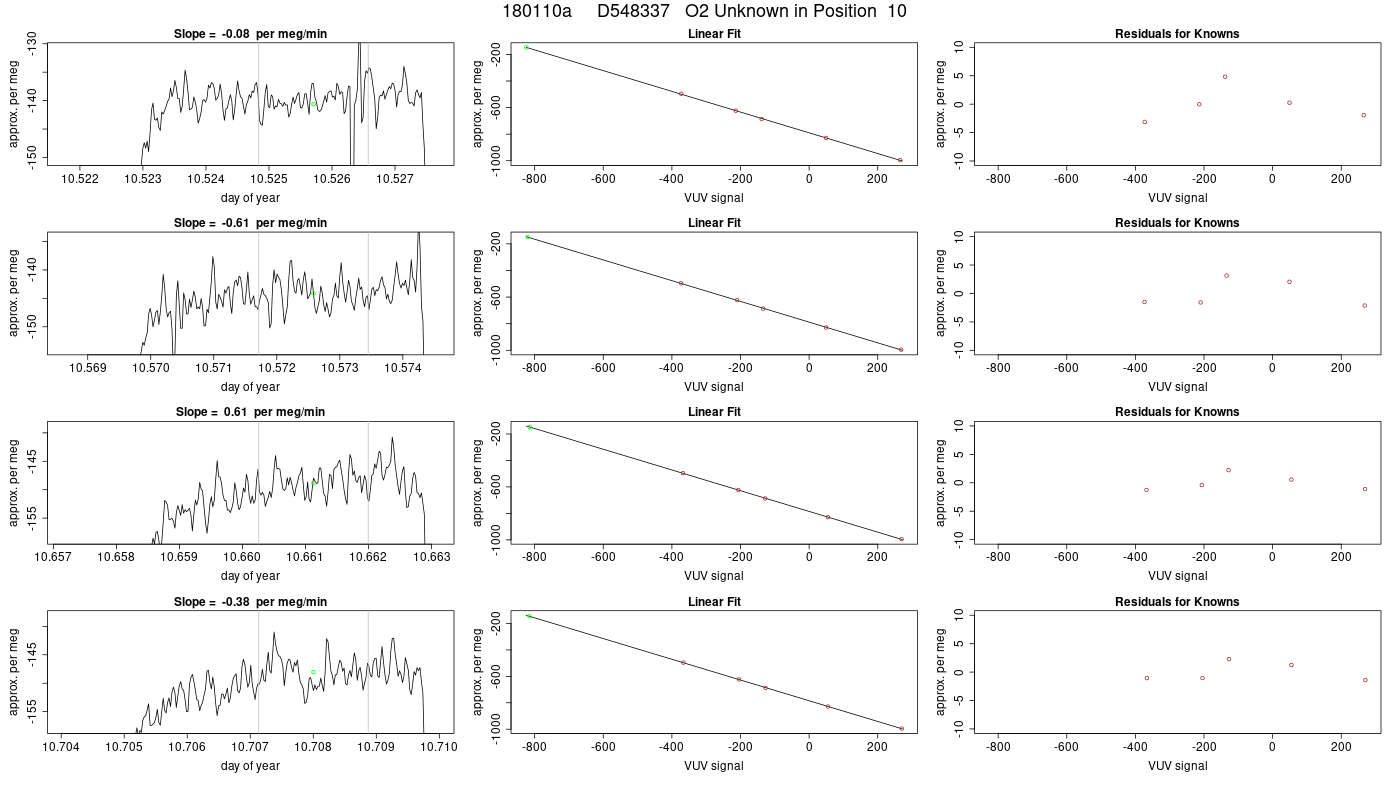

10 D548337    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.526 340.968 0.013 -168.76 6.32 340.940 0.013
10.573 340.929 0.013 -171.61 2.50 340.900 0.013
10.661 340.819 0.012 -169.77 2.21 340.791 0.012
10.708 340.880 0.011 -167.43 2.49 340.852 0.011
10.797 340.803 0.008 -169.25 2.11 340.775 0.008
10.843 340.760 0.011 -169.01 2.22 340.732 0.011

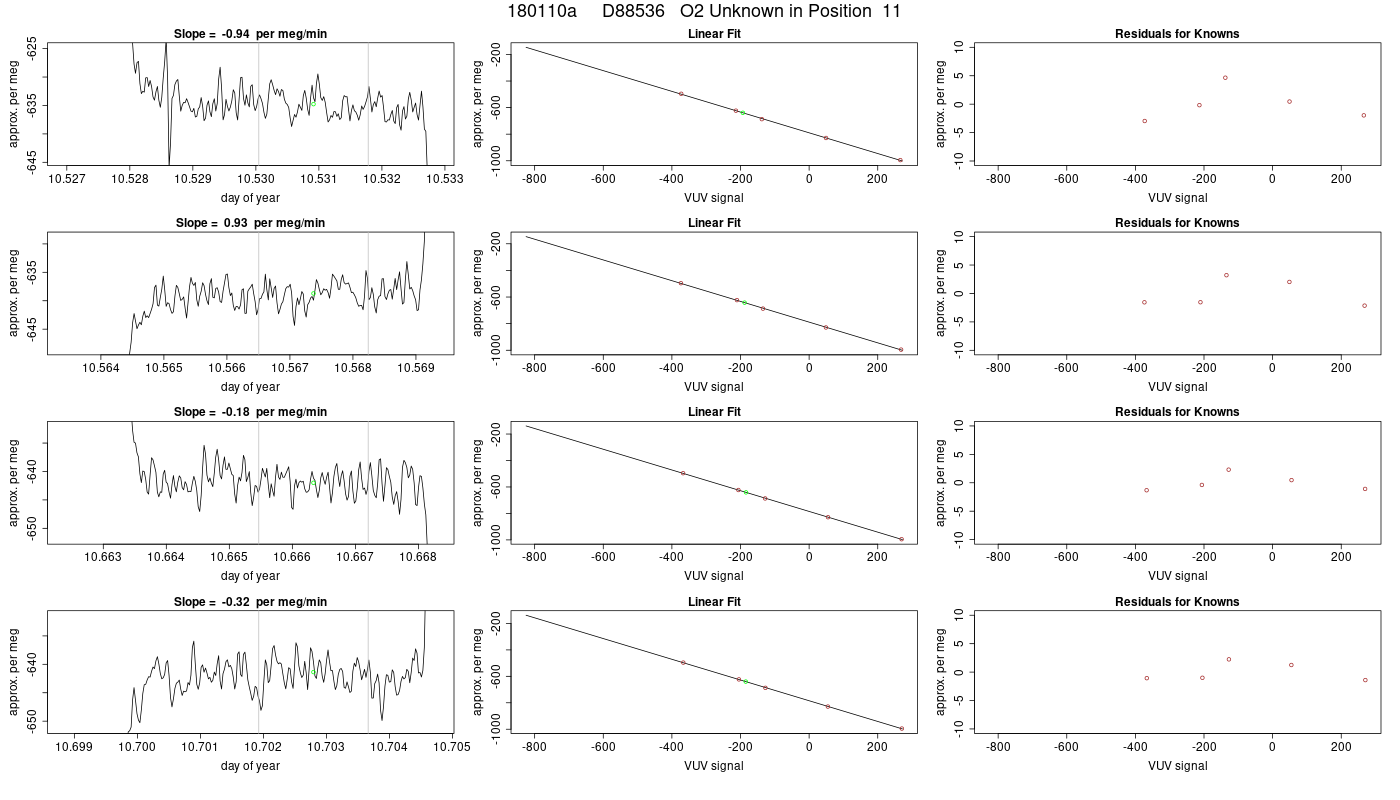

11 D88536    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.531 397.189 0.010 -605.66 2.06 397.401 0.010
10.567 397.206 0.011 -608.56 1.95 397.417 0.011
10.666 397.201 0.010 -607.50 1.89 397.412 0.010
10.703 397.202 0.014 -606.30 2.39 397.414 0.014
10.802 397.204 0.012 -606.71 2.24 397.416 0.012
10.838 397.208 0.014 -607.11 1.89 397.420 0.014

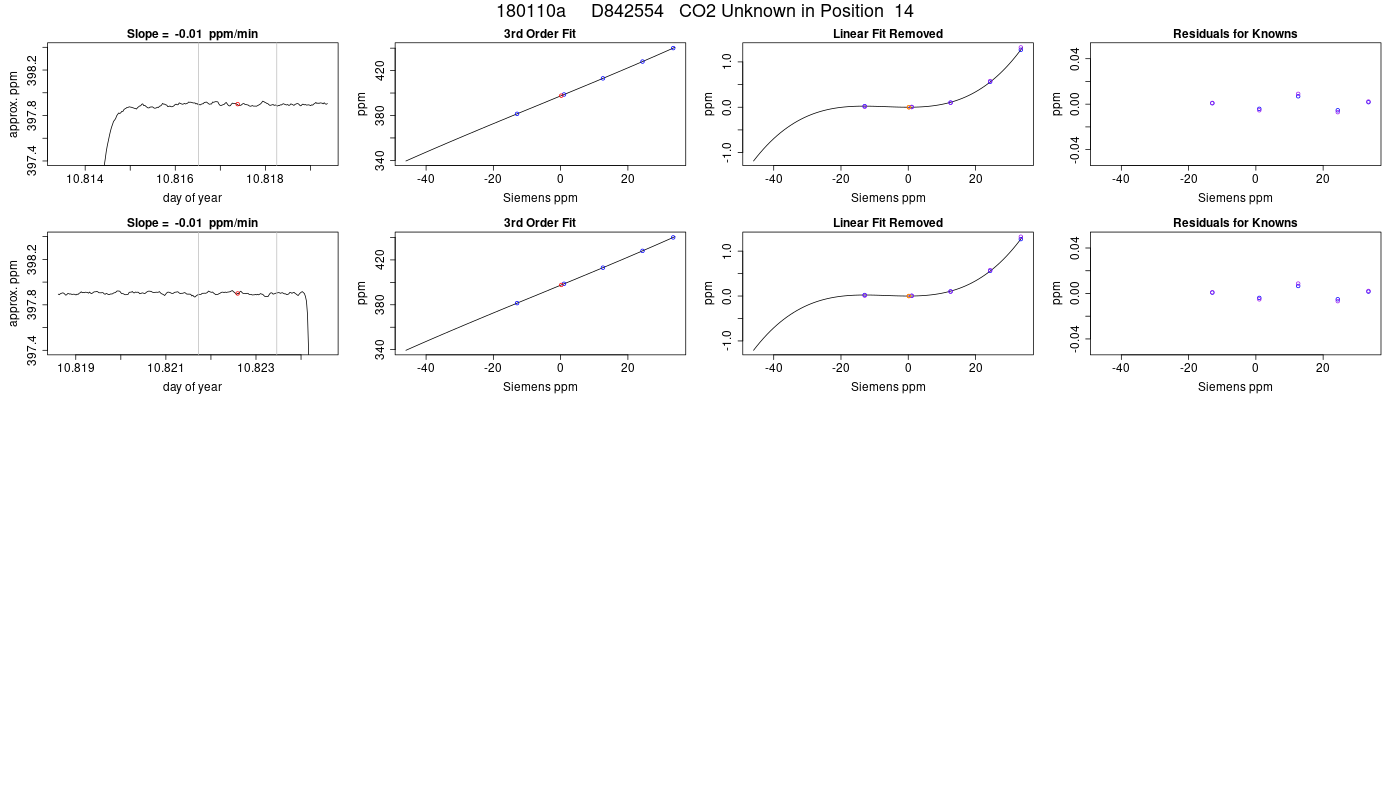

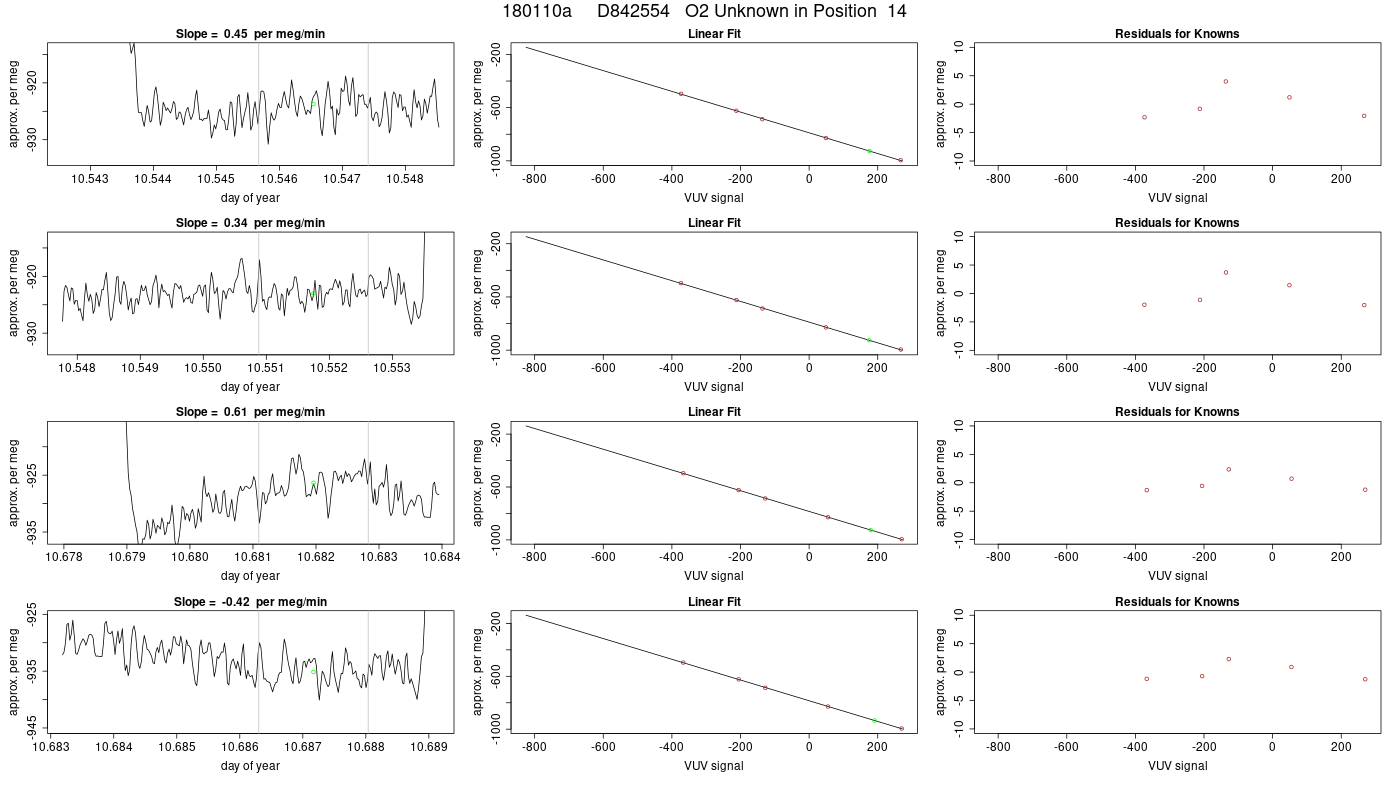

14 D842554    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
10.547 397.681 0.013 -892.52 2.42 397.893 0.013
10.552 397.682 0.009 -891.57 1.77 397.893 0.009
10.682 397.697 0.010 -891.42 2.45 397.908 0.010
10.687 397.690 0.012 -900.24 2.26 397.901 0.012
10.817 397.686 0.012 -895.98 1.98 397.897 0.012
10.823 397.686 0.012 -901.36 1.97 397.897 0.012
