UEA CRAM Lab O2 and CO2 calibration results
RUN = 171218a
PROCESSED: 16:41:27 Mon 21Aug2023

Notes
Logfile

Results

Using data from 353.04 to 353.549 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88471 380.191 0.018 -0.079 380.411 0.018 -0.079 6 -407.95 7.61 -41.24 7
4 D88534 416.300 0.007 -0.003 416.487 0.007 -0.003 7 -740.47 2.33 -13.58 7
6 D88474 409.297 0.022 0.081 409.492 0.022 0.081 7 -530.82 6.60 -26.40 7
7 D596277 398.224 0.014 0.081 398.435 0.014 0.081 7 -747.35 1.32 -8.12 7
8 D88535 439.203 0.014 0.028 439.411 0.014 0.028 7 -501.80 5.79 -34.74 7
10 D548337 340.936 0.163 -0.641 340.908 0.163 -0.642 6 -142.65 12.74 -77.08 7
11 D88536 397.207 0.009 0.006 397.419 0.009 0.006 7 -596.39 5.91 -35.87 7
14 D842554 397.688 0.035 -0.014 397.899 0.035 -0.014 7 -903.69 5.10 0.17 7
15 D548330 916.149 6.833 25.646 942.771 6.834 25.664 7 -1448.05 24.95 134.21 7
WT D258964 397.435 0.008 -0.051 397.646 0.008 -0.051 98 -742.23 2.05 -13.25 98
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1

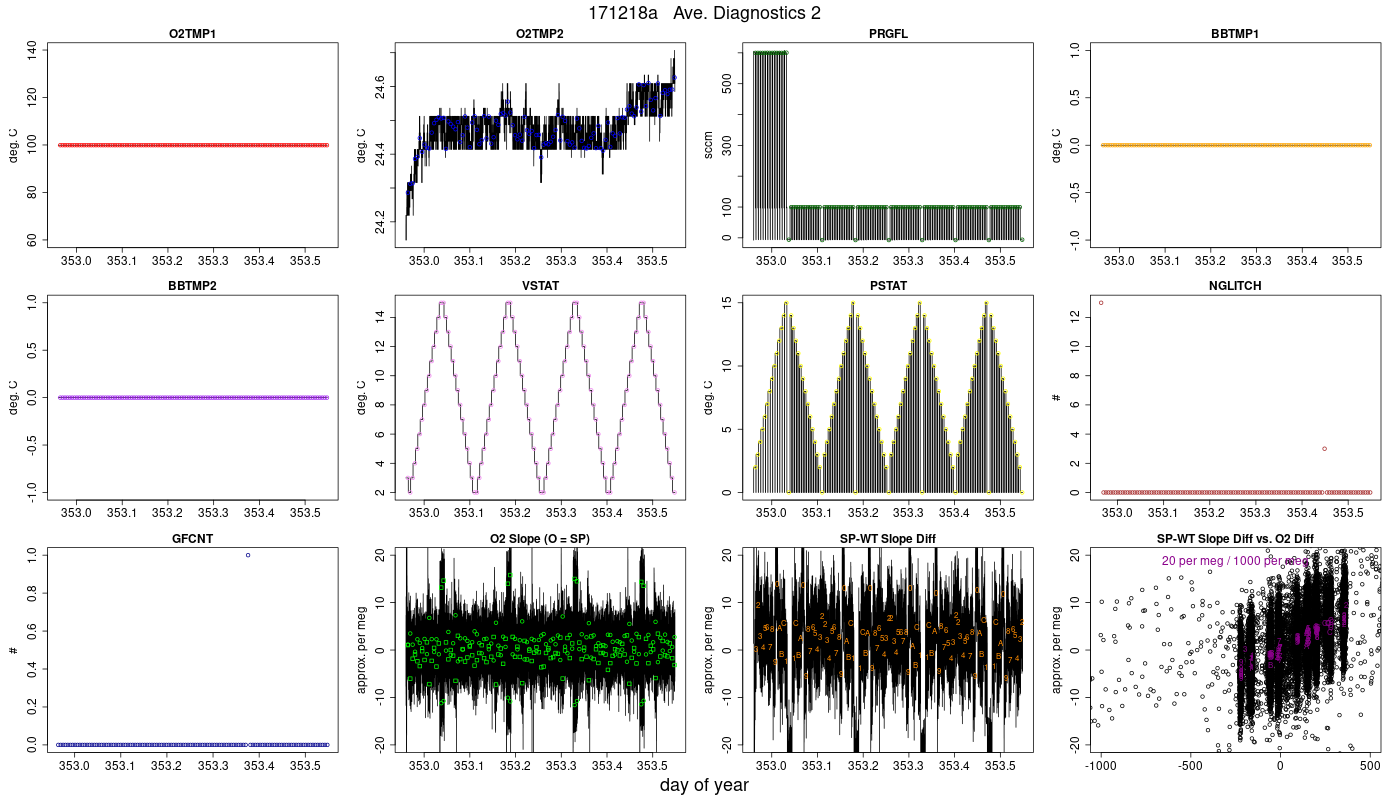

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect

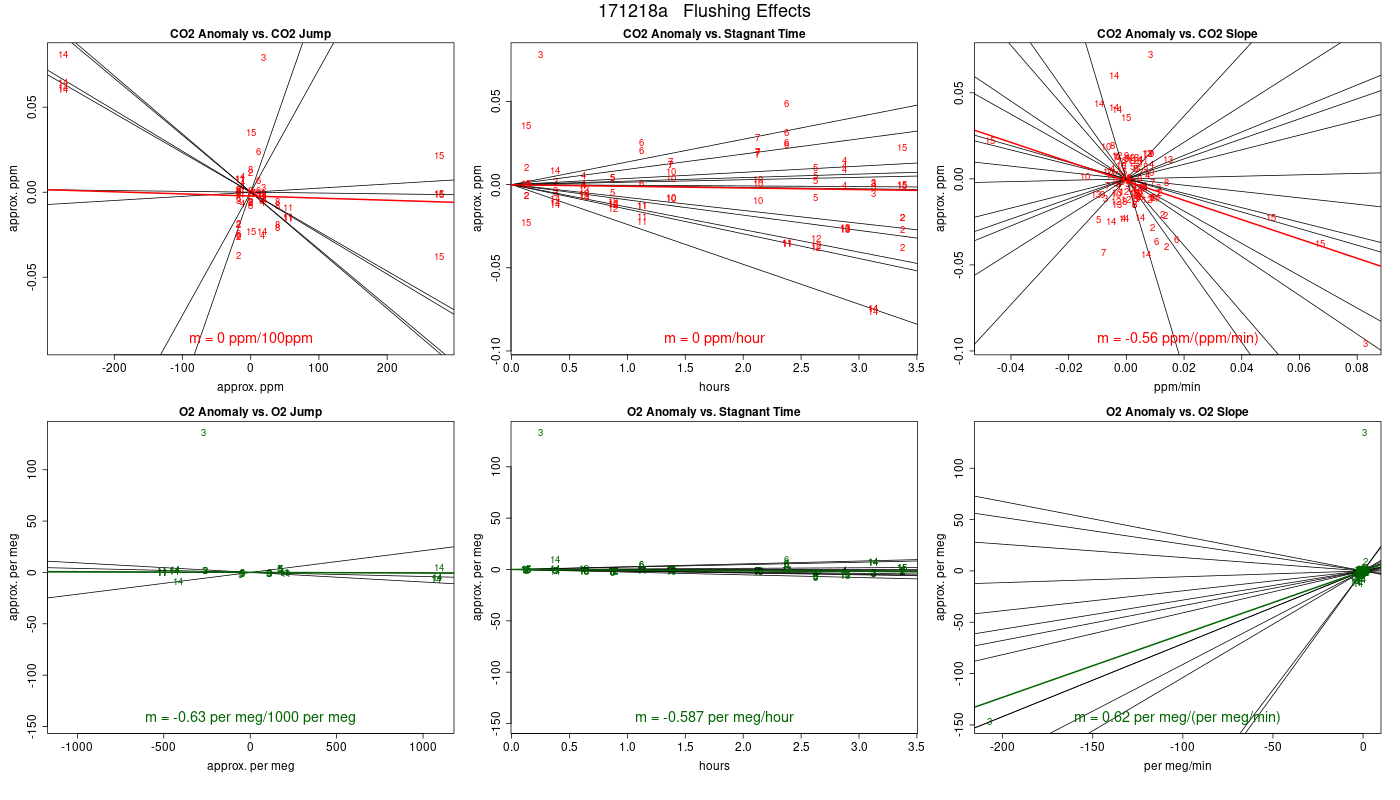

 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters

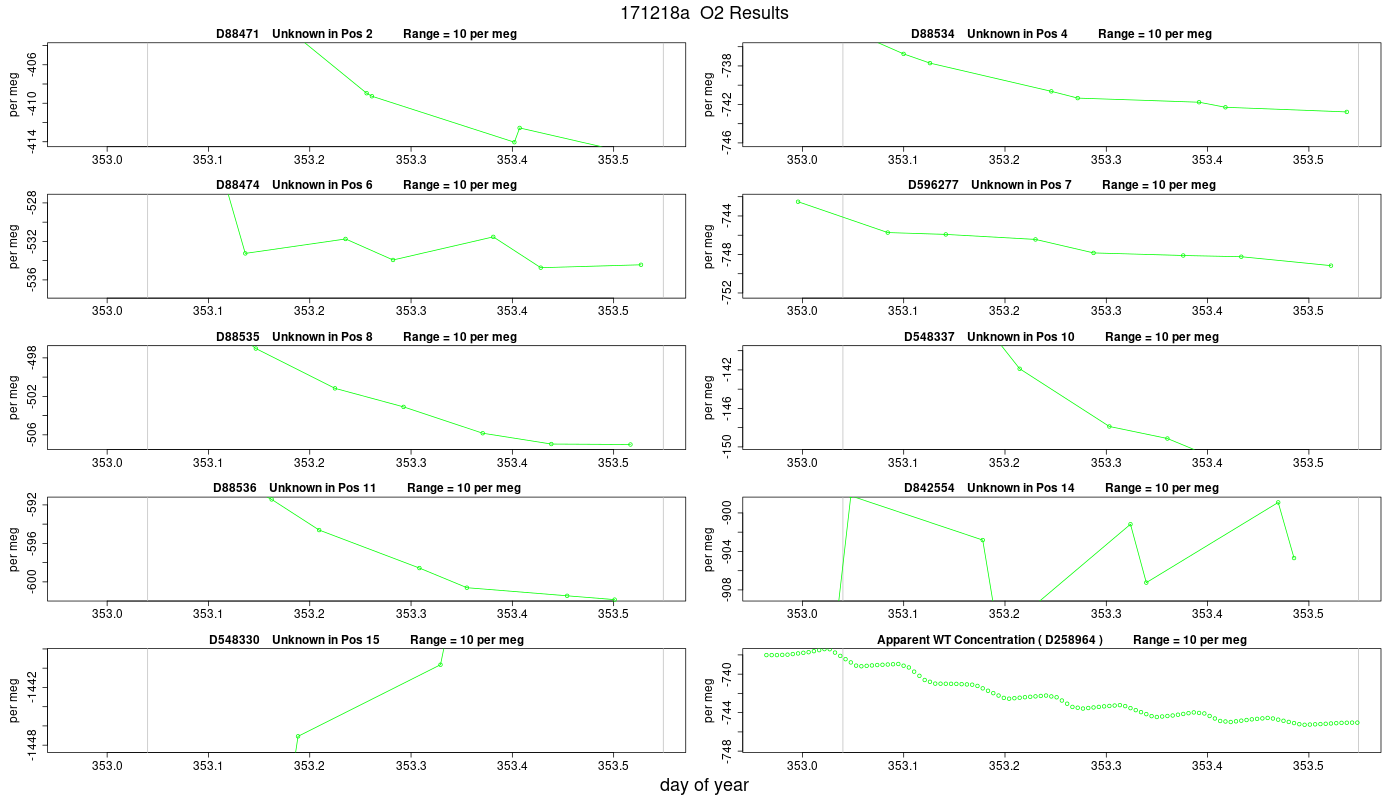

O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

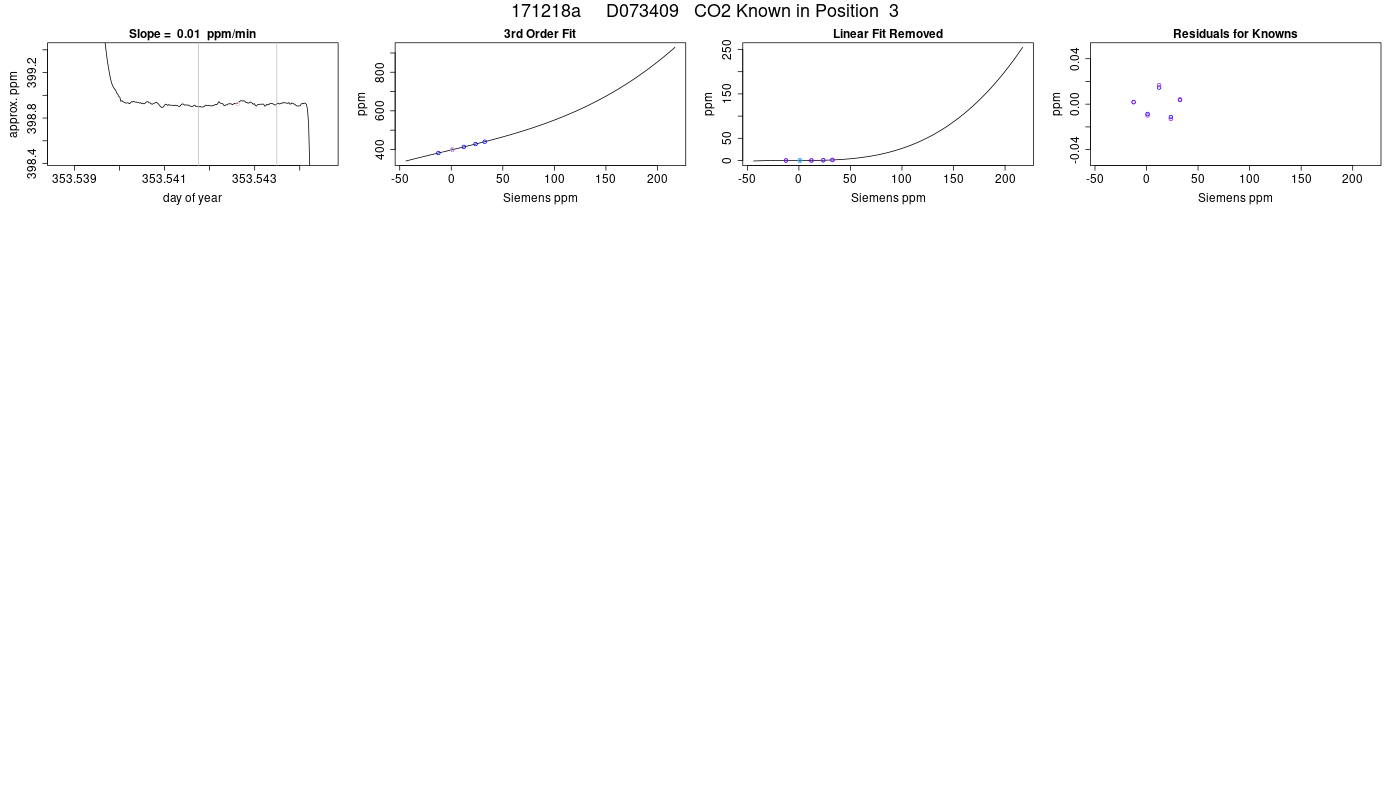

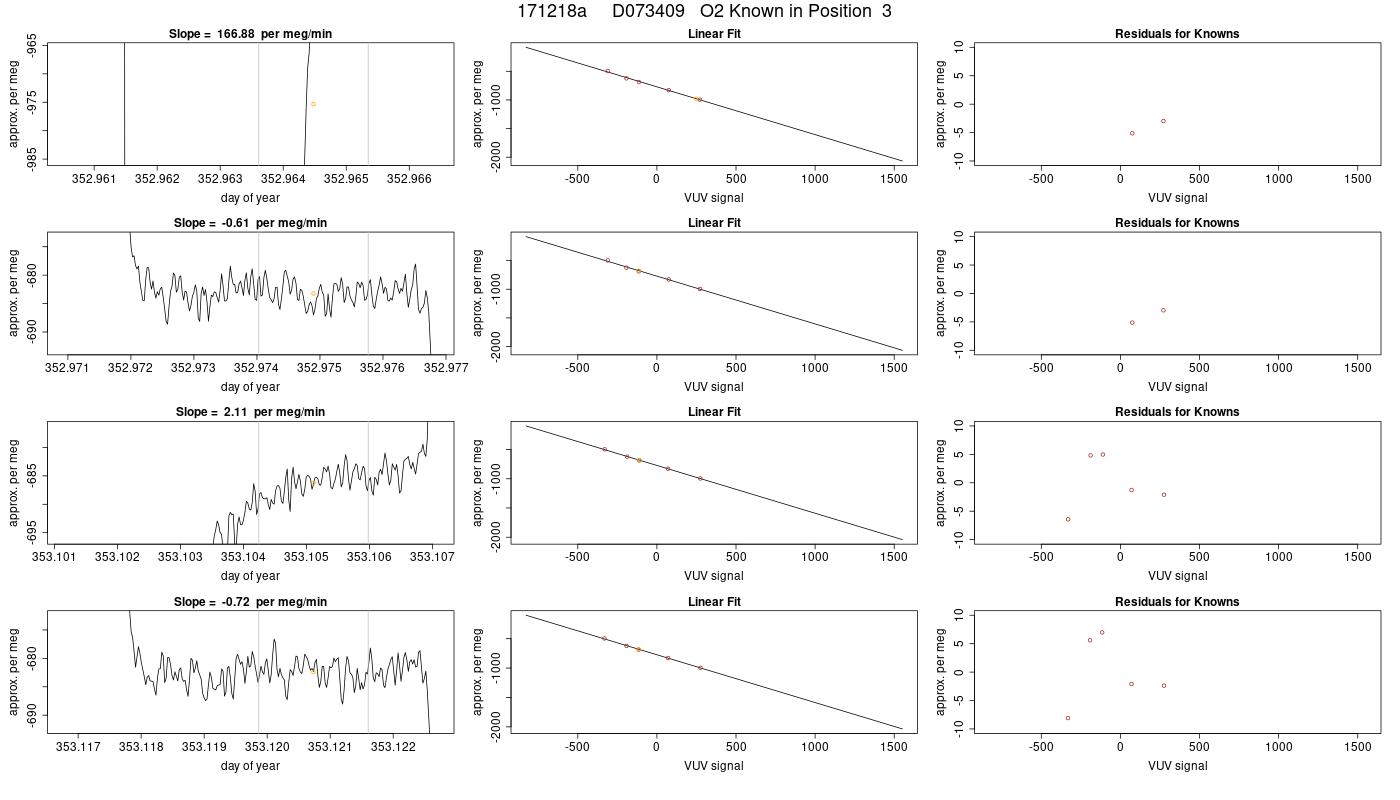

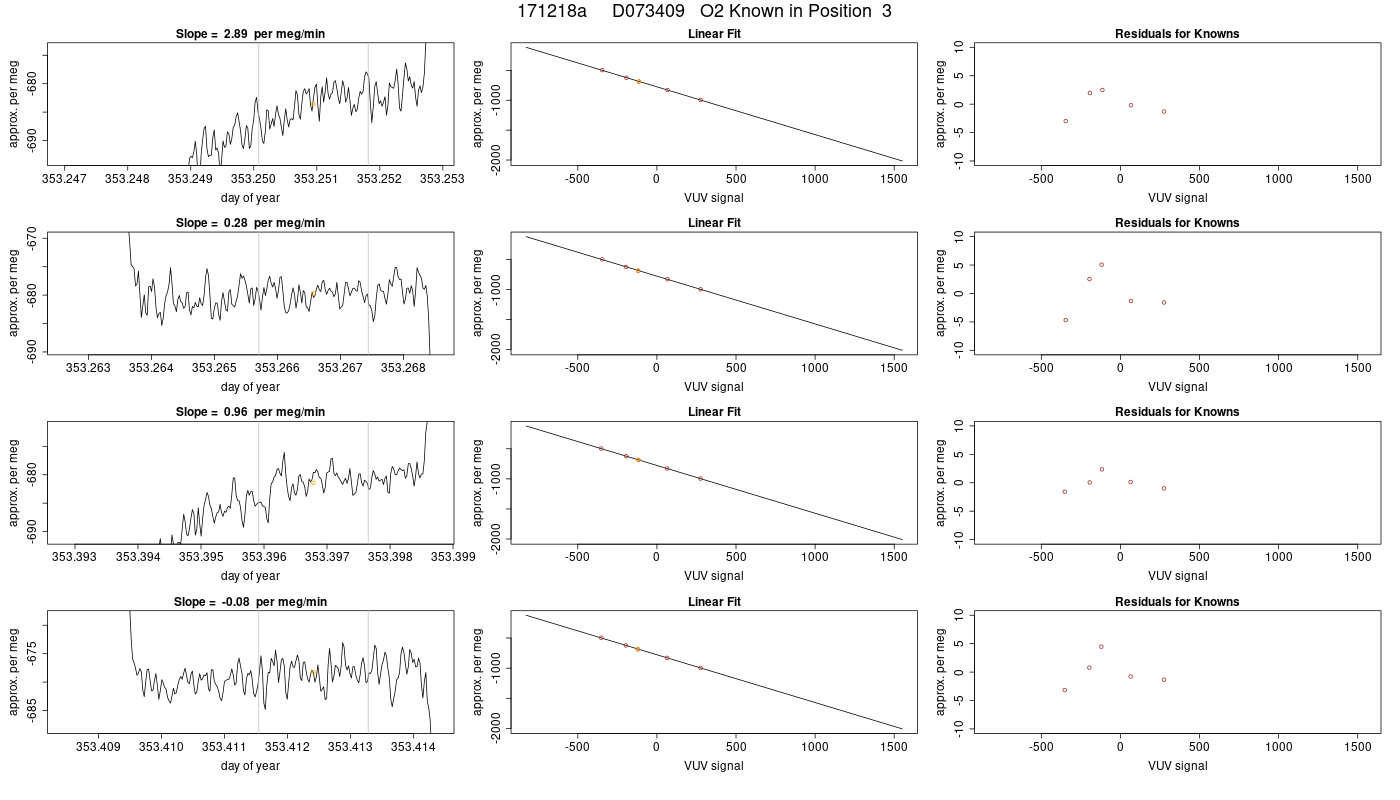

3 D073409 398.707 -0.008 0.002 398.918 -0.010 0.002 7 -651.78 4.11 1.74 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

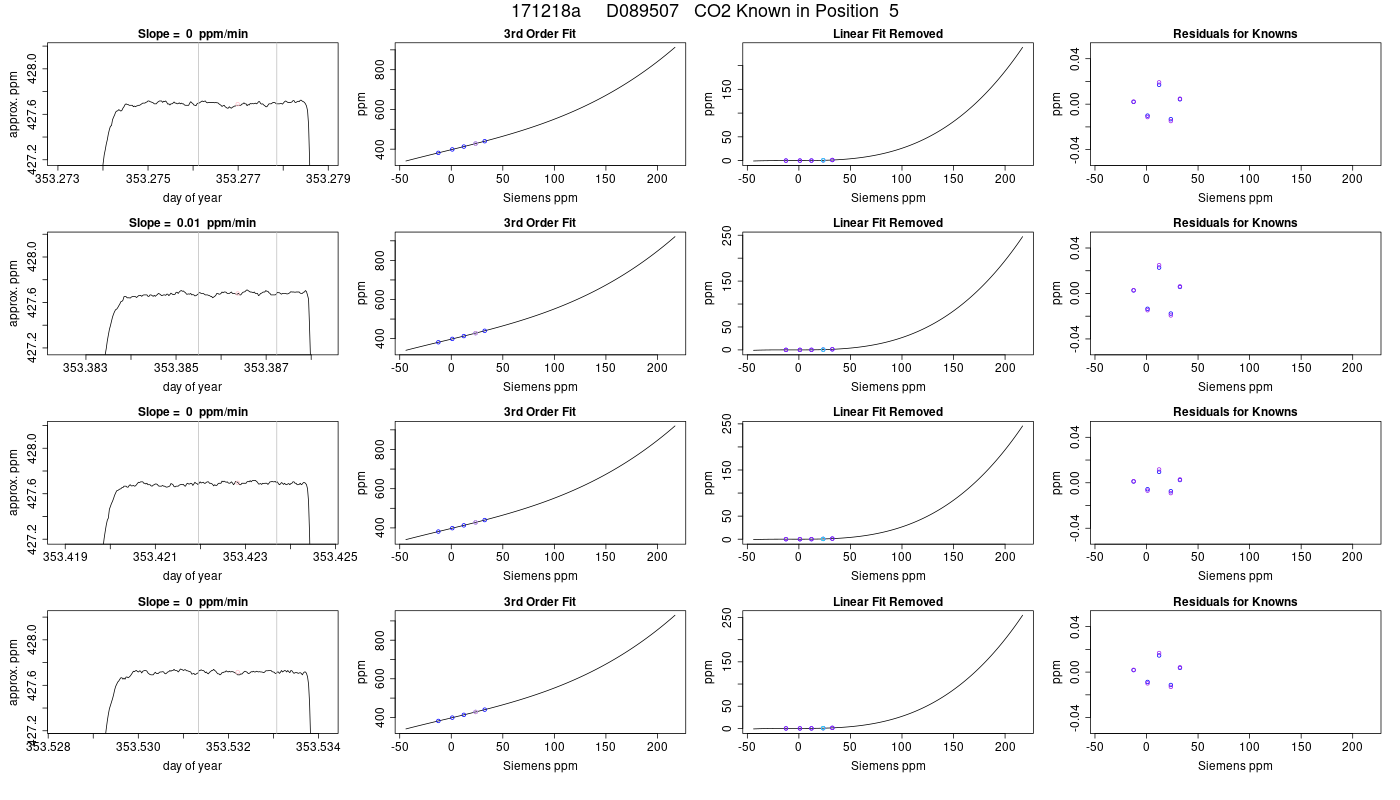

5 D089507 428.087 -0.011 0.004 428.275 -0.013 0.004 7 -559.23 2.14 2.70 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
9 D073419 440.065 0.004 0.001 440.275 0.004 0.001 7 -919.32 -1.58 0.50 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

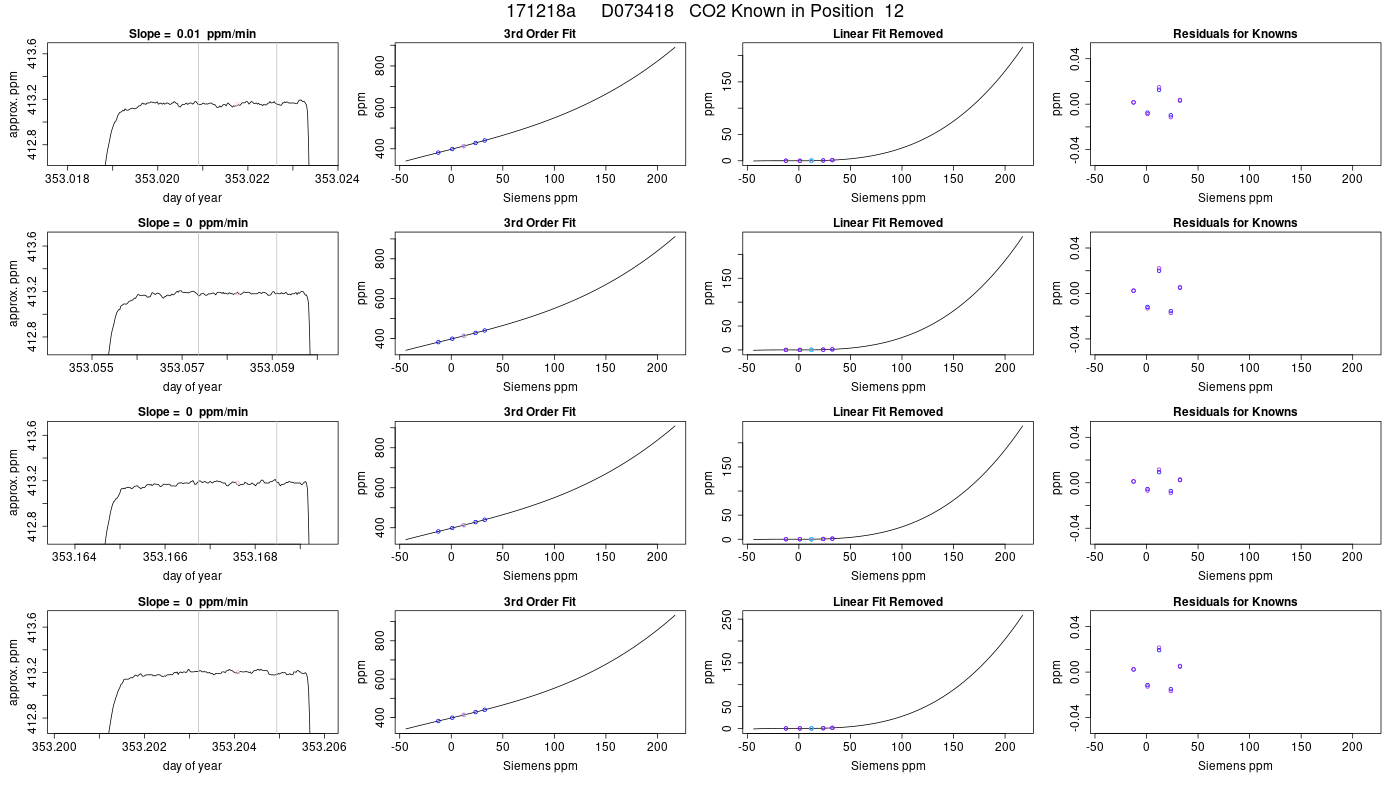

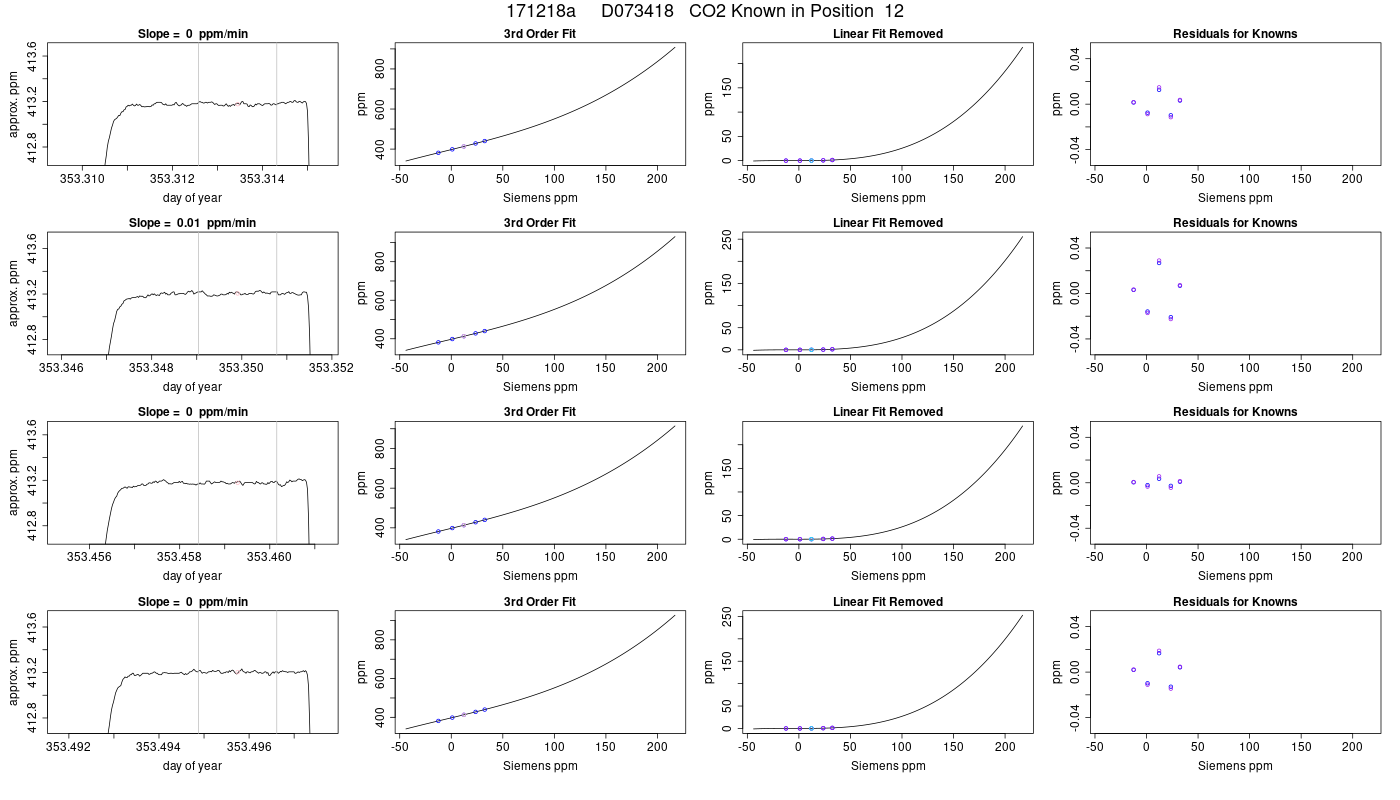

12 D073418 413.092 0.015 0.008 413.280 0.018 0.008 7 -779.40 -0.74 1.25 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
13 D801299 381.475 0.002 0.001 381.695 0.002 0.001 7 -477.75 -4.18 2.48 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

2 D88471    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
352.970 380.229 0.012 -377.16 1.96 380.449 0.012
353.110 380.158 0.021 -397.95 2.13 380.377 0.021
353.116 380.207 0.010 -396.89 2.32 380.427 0.010
353.256 380.185 0.017 -408.96 2.14 380.404 0.017
353.261 380.199 0.010 -409.27 2.64 380.418 0.010
353.402 380.192 0.015 -414.05 2.15 380.412 0.015
353.407 380.206 0.015 -412.57 2.00 380.425 0.015
353.548 380.160 0.015 -415.96 1.97 380.379 0.015

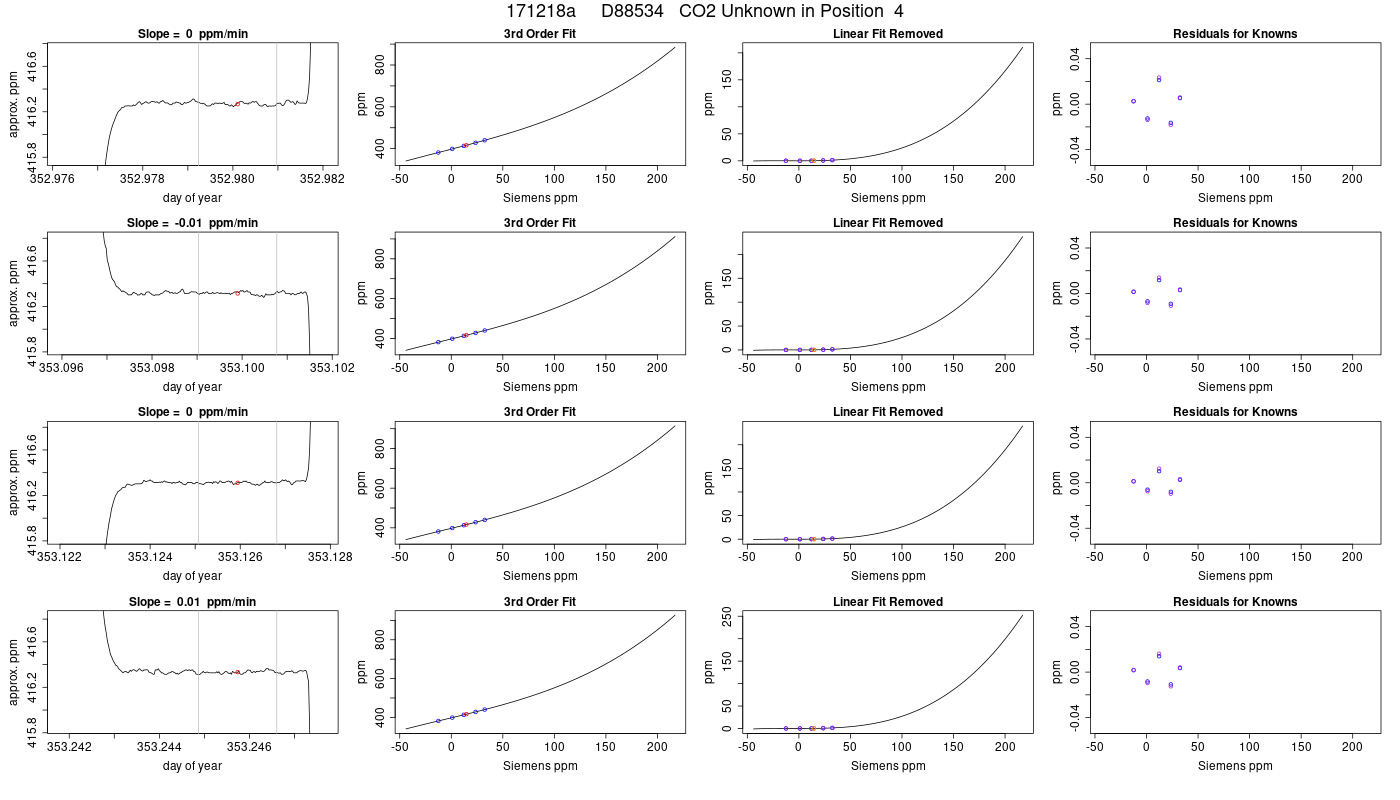

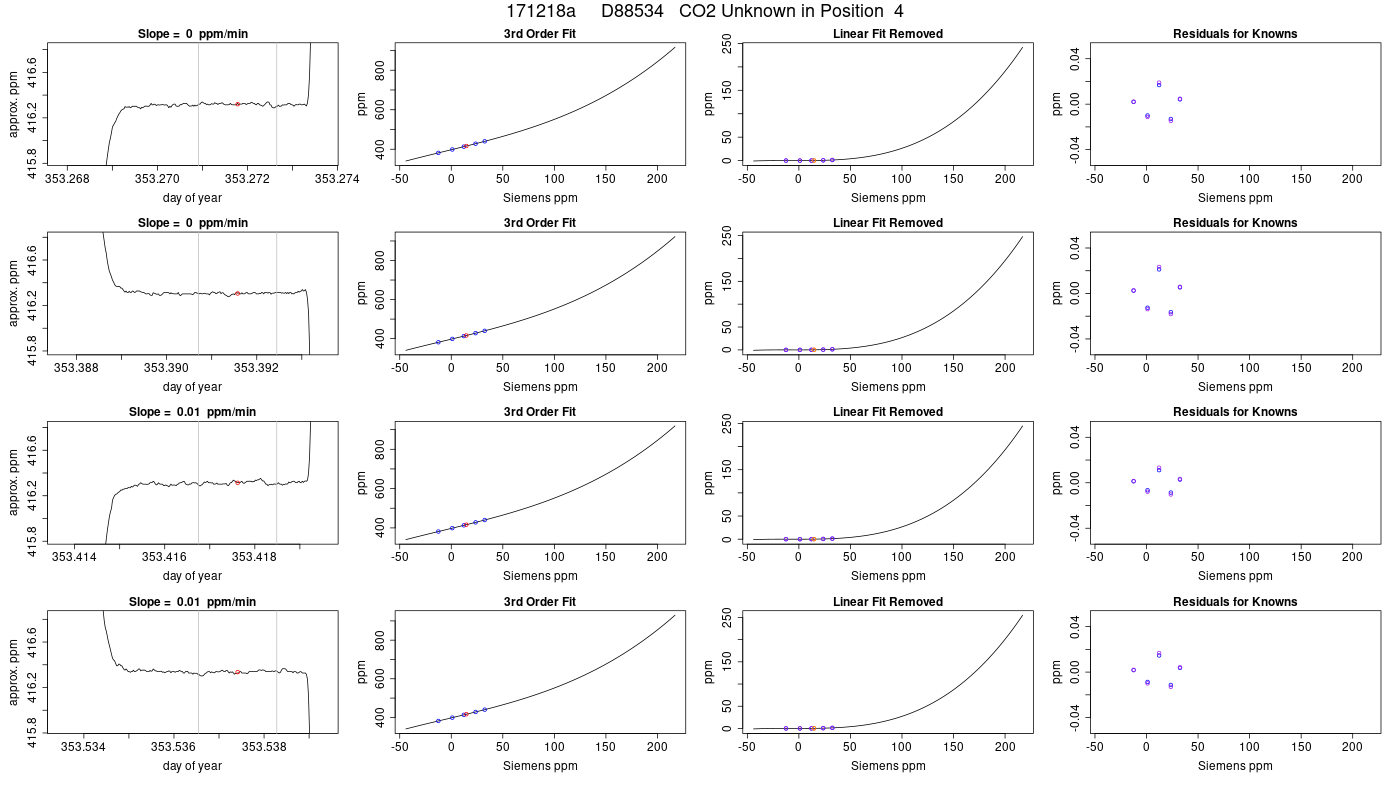

4 D88534    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
352.980 416.290 0.013 -731.23 1.73 416.477 0.013
353.100 416.299 0.013 -736.75 2.07 416.486 0.013
353.126 416.294 0.010 -737.71 1.98 416.481 0.010
353.246 416.310 0.012 -740.64 2.08 416.498 0.012
353.272 416.307 0.011 -741.34 2.07 416.494 0.011
353.392 416.290 0.009 -741.77 1.76 416.477 0.009
353.418 416.295 0.015 -742.30 2.11 416.482 0.015
353.537 416.302 0.012 -742.78 1.92 416.489 0.012

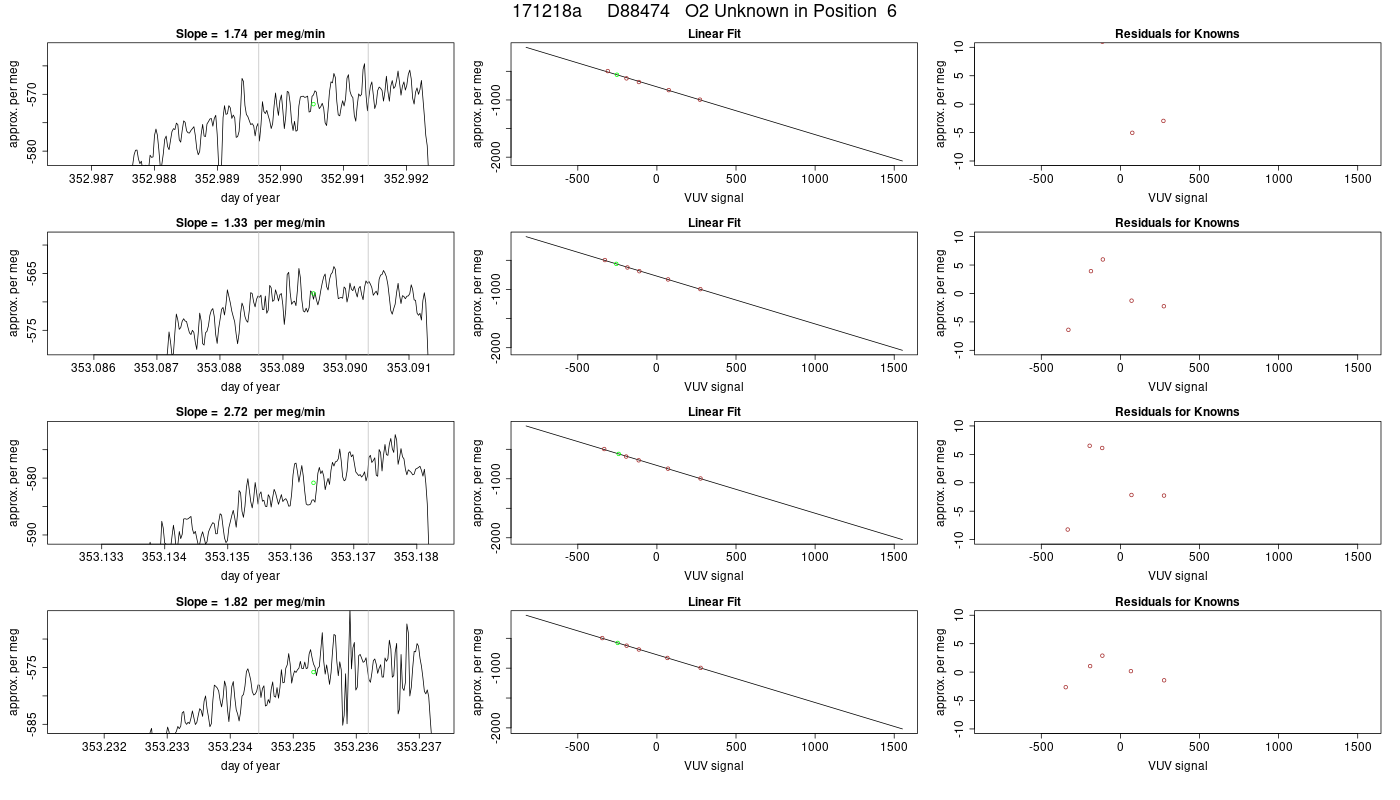

6 D88474    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
352.991 409.288 0.015 -514.72 2.74 409.483 0.015
353.089 409.310 0.008 -516.12 2.11 409.505 0.008
353.136 409.255 0.018 -533.25 2.91 409.450 0.018
353.235 409.278 0.013 -531.75 3.59 409.472 0.013
353.282 409.302 0.012 -533.93 3.07 409.496 0.012
353.381 409.310 0.011 -531.53 2.27 409.505 0.011
353.428 409.308 0.012 -534.73 2.58 409.503 0.012
353.527 409.316 0.011 -534.43 2.62 409.511 0.011

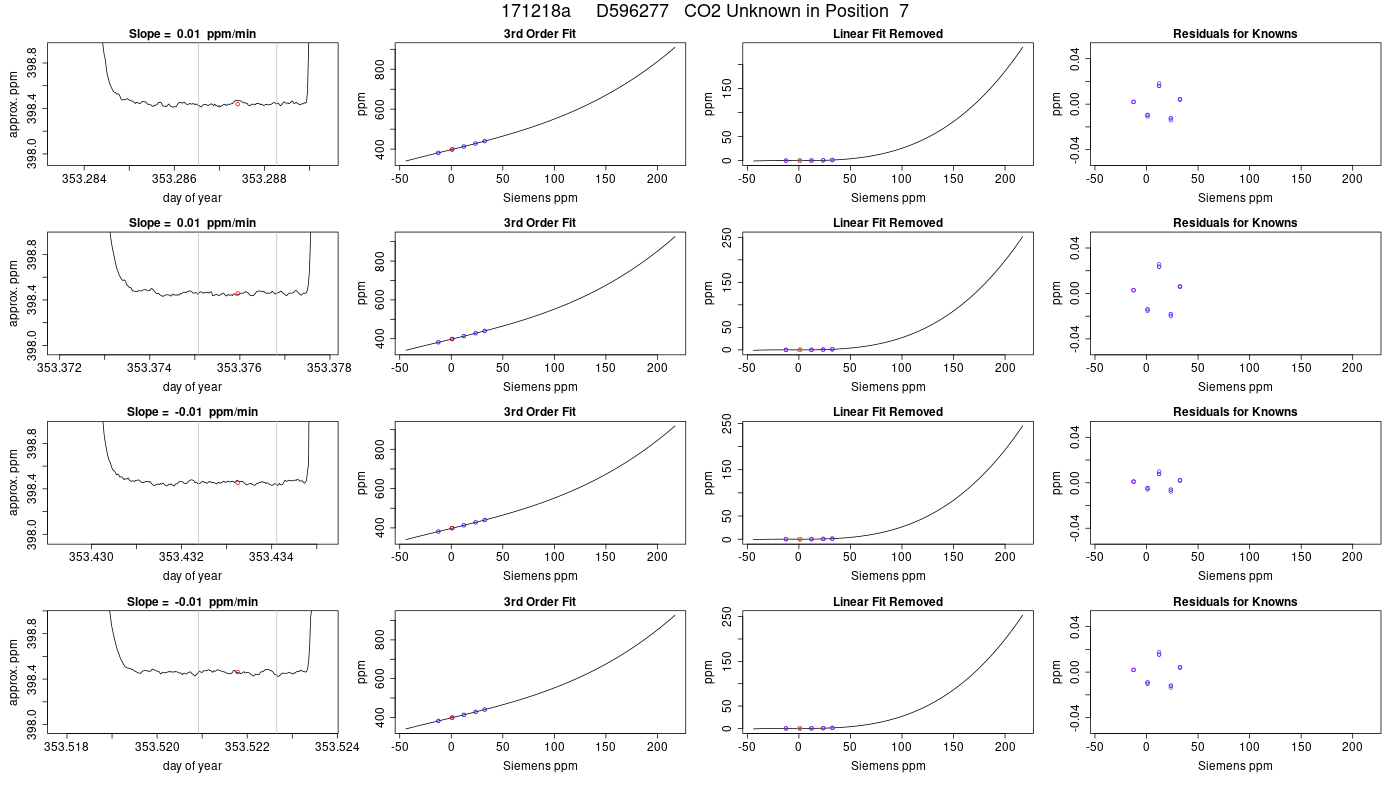

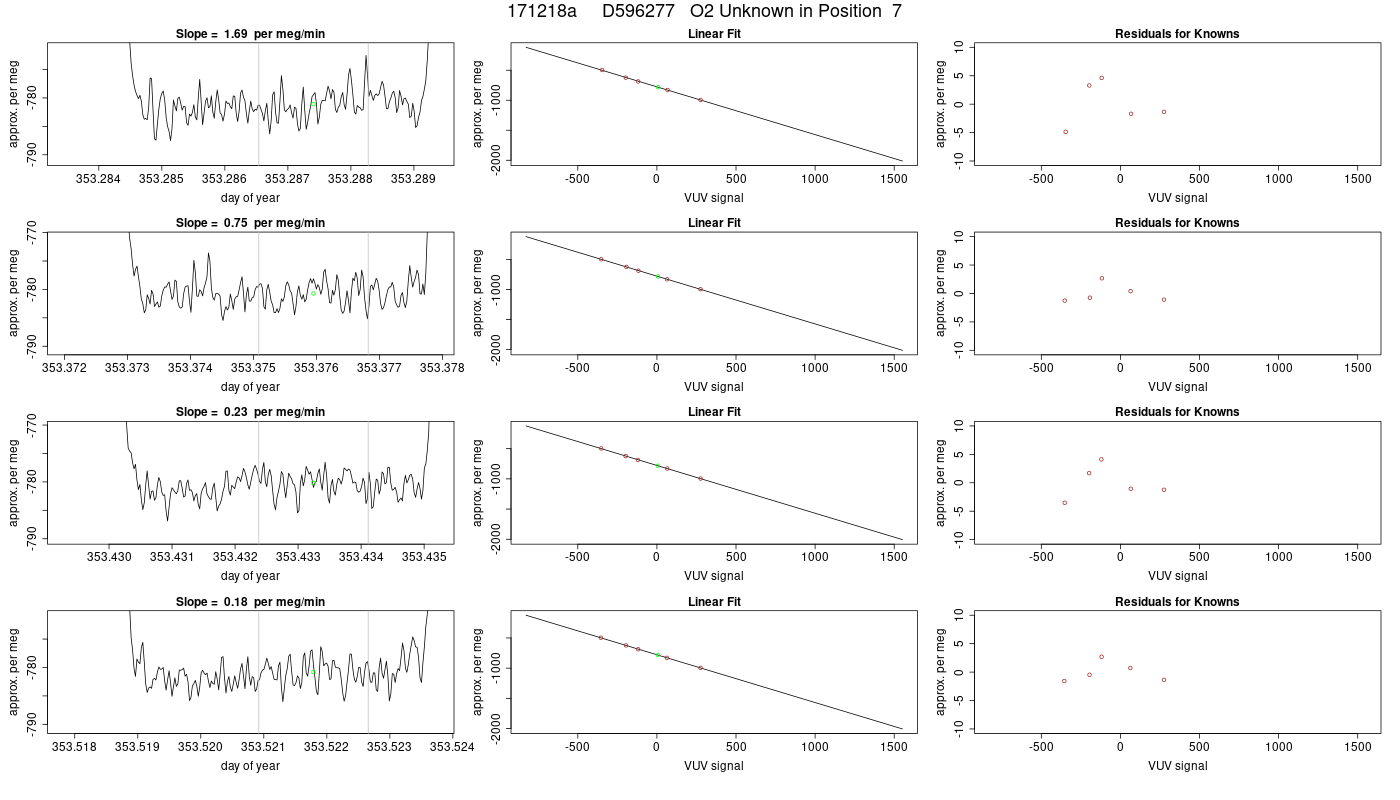

7 D596277    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
352.996 398.134 0.015 -742.52 2.17 398.345 0.015
353.084 398.202 0.011 -745.73 1.79 398.413 0.011
353.142 398.211 0.014 -745.92 2.09 398.422 0.014
353.230 398.222 0.012 -746.44 1.91 398.433 0.012
353.287 398.227 0.013 -747.84 2.63 398.437 0.013
353.376 398.238 0.012 -748.11 2.15 398.448 0.012
353.433 398.234 0.011 -748.24 1.97 398.444 0.011
353.522 398.237 0.014 -749.16 2.17 398.447 0.014

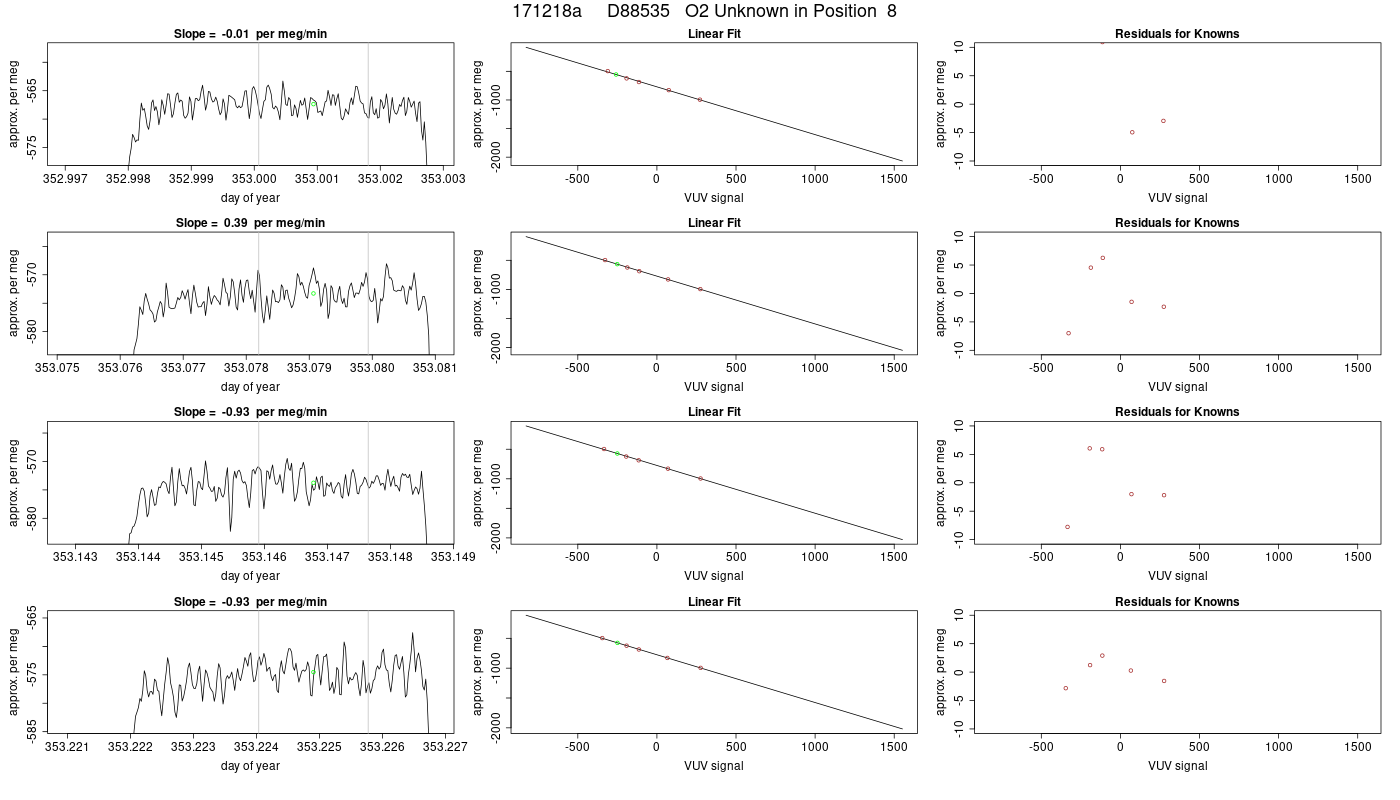

8 D88535    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
353.001 439.207 0.014 -480.59 1.62 439.414 0.014
353.079 439.207 0.011 -491.48 2.05 439.415 0.011
353.147 439.178 0.018 -497.03 1.94 439.385 0.018
353.225 439.205 0.011 -501.17 2.31 439.413 0.011
353.293 439.204 0.011 -503.10 2.42 439.412 0.011
353.371 439.223 0.012 -505.83 2.32 439.431 0.012
353.438 439.193 0.015 -506.96 2.20 439.400 0.015
353.517 439.210 0.013 -507.00 2.33 439.417 0.013

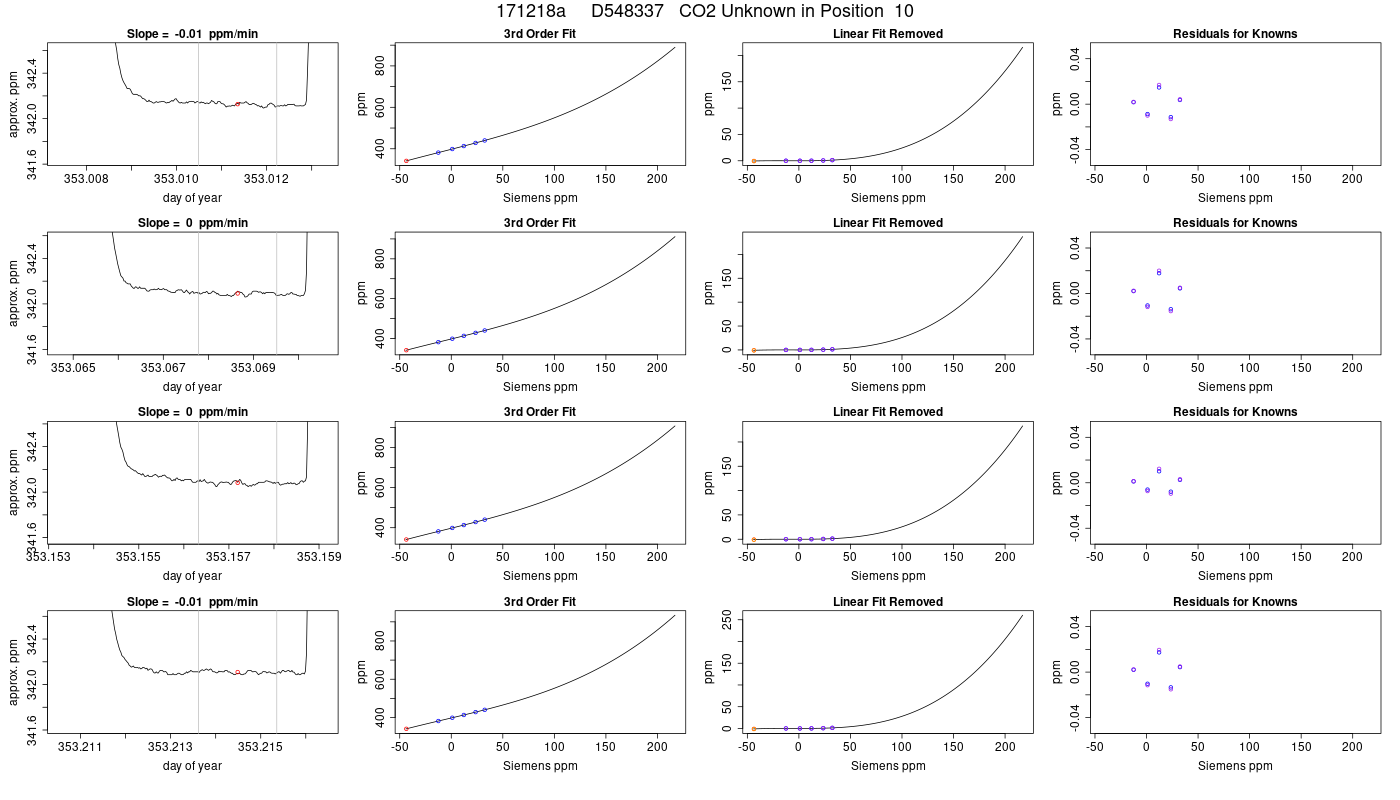

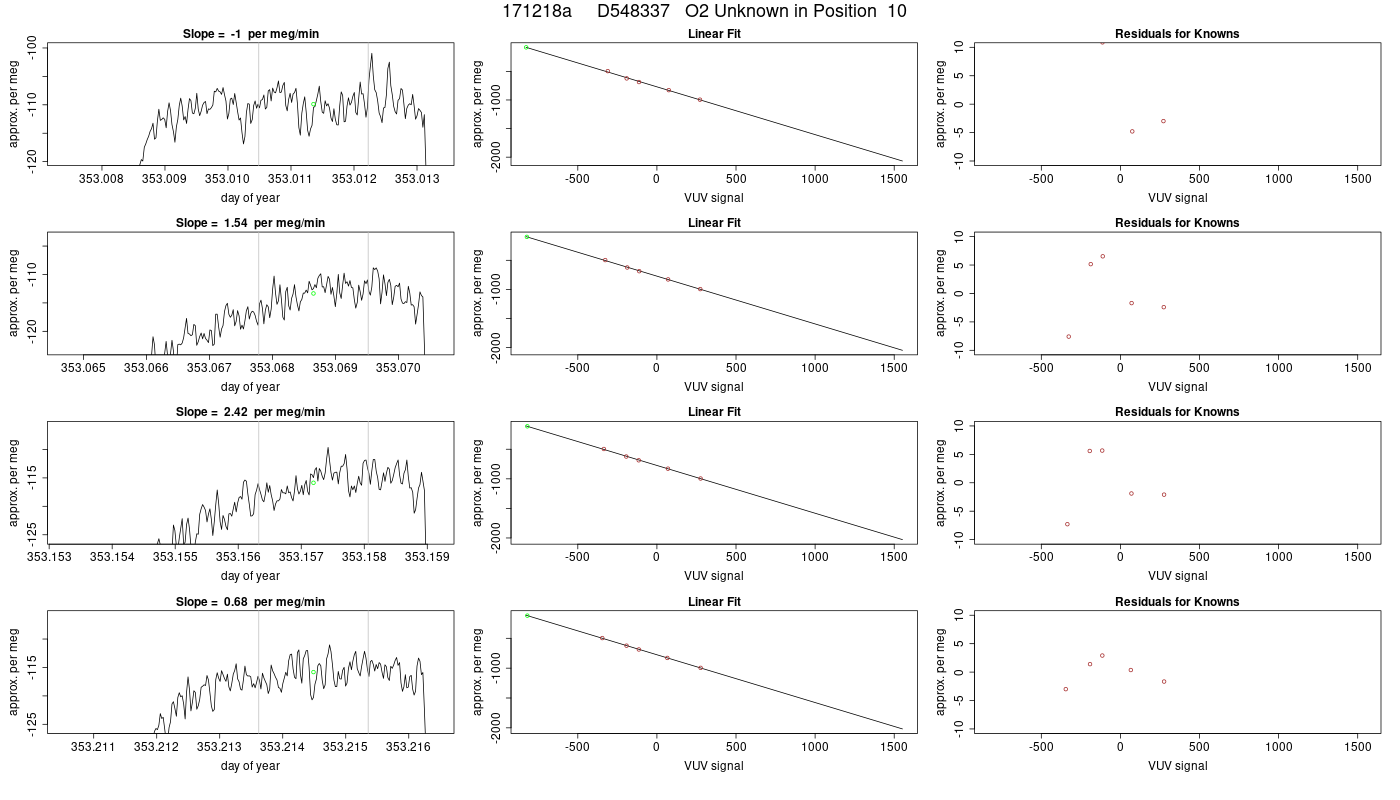

10 D548337    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
353.011 341.479 0.016 -101.79 2.29 341.452 0.016
353.069 341.057 0.014 -118.29 2.07 341.030 0.014
353.157 341.092 0.015 -134.25 2.37 341.064 0.015
353.214 340.771 0.013 -141.88 2.34 340.743 0.013
353.303 341.098 0.016 -147.88 2.47 341.070 0.016
353.360 340.836 0.010 -149.13 2.41 340.808 0.010
353.449 340.993 0.023 -152.98 2.83 340.964 0.023
353.506 340.761 0.013 -154.15 2.88 340.733 0.013

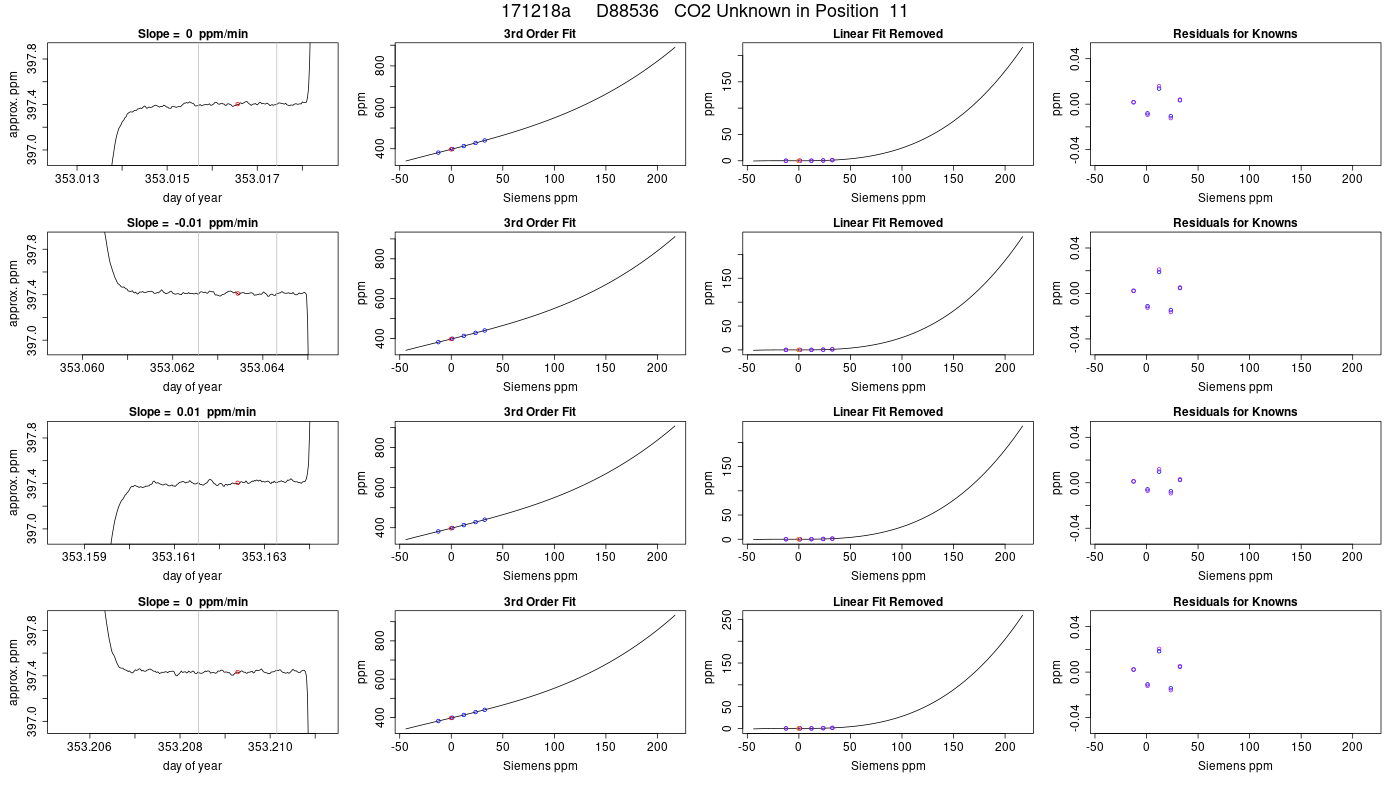

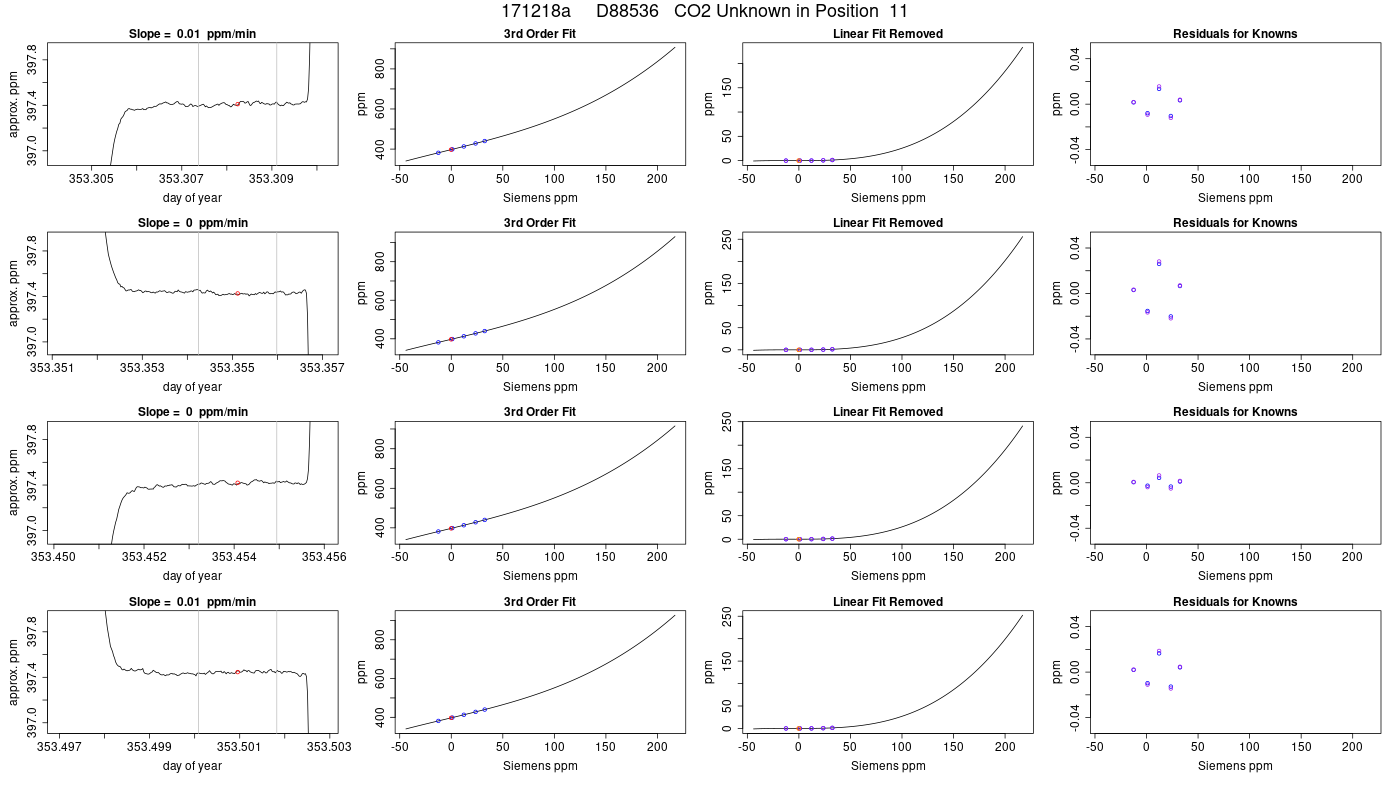

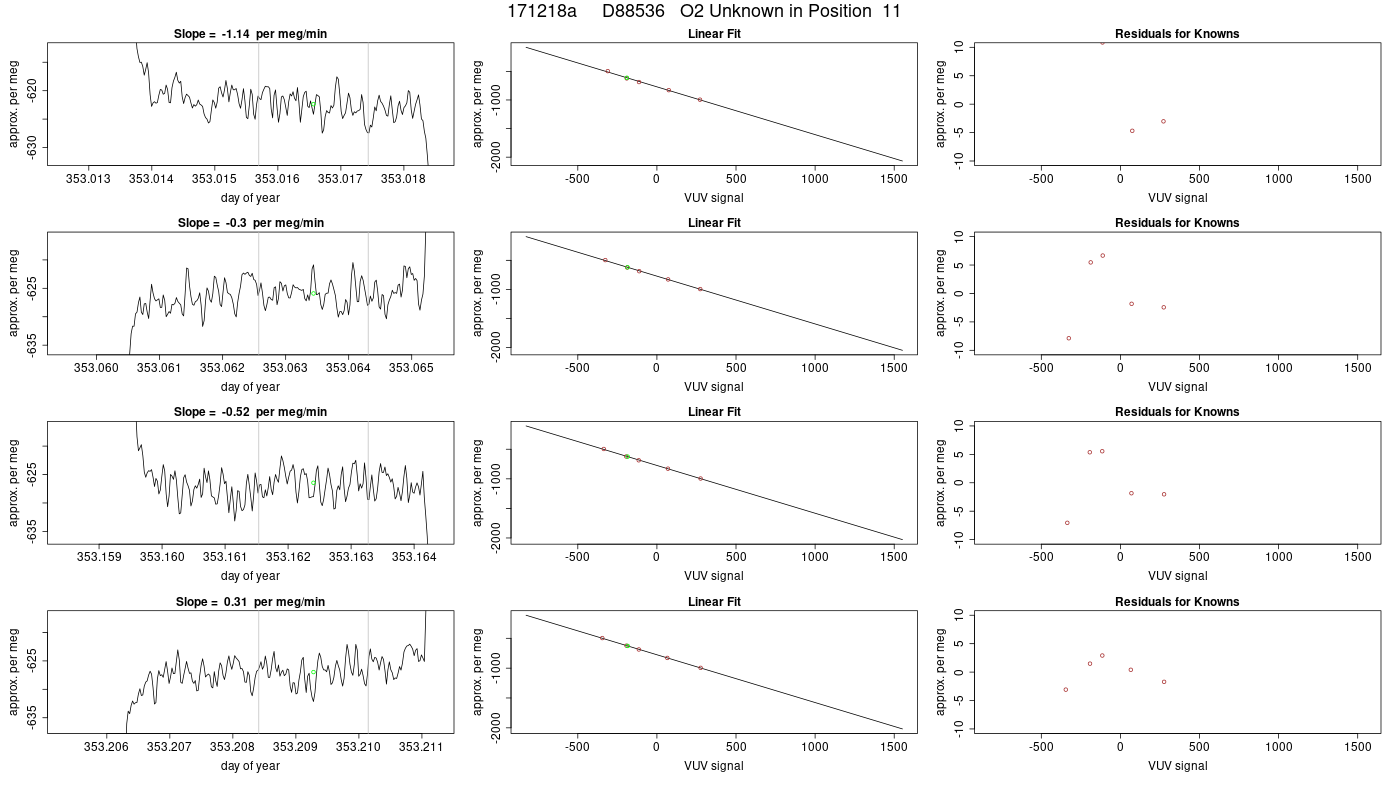

11 D88536    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
353.017 397.212 0.009 -578.50 2.16 397.424 0.009
353.063 397.207 0.012 -586.19 2.04 397.419 0.012
353.162 397.200 0.014 -591.43 2.25 397.411 0.014
353.209 397.219 0.011 -594.62 2.13 397.431 0.011
353.308 397.198 0.015 -598.57 2.16 397.410 0.015
353.355 397.204 0.011 -600.61 2.35 397.416 0.011
353.454 397.201 0.012 -601.45 2.03 397.412 0.012
353.501 397.219 0.010 -601.85 1.71 397.430 0.010

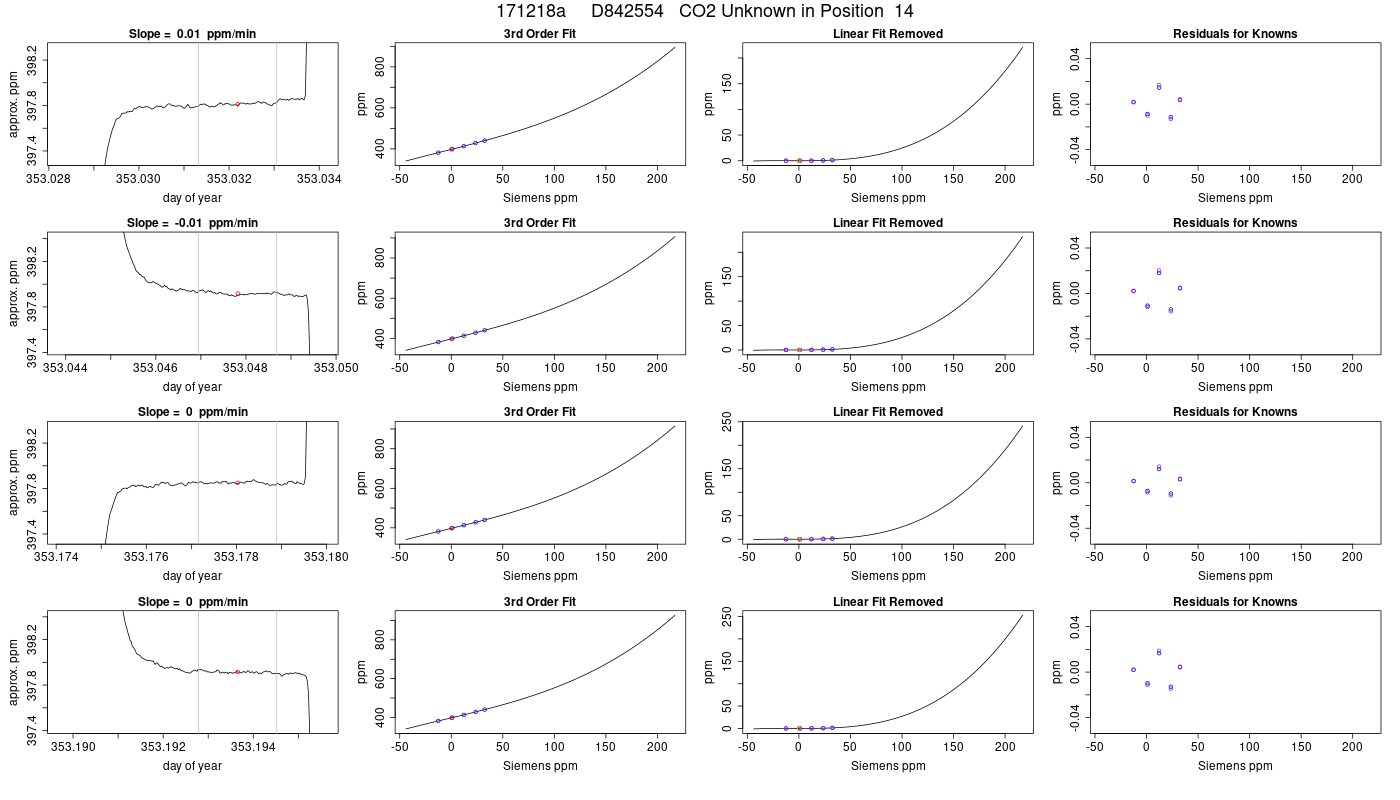

14 D842554    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
353.032 397.618 0.011 -912.59 2.53 397.829 0.011
353.048 397.719 0.013 -898.22 2.34 397.930 0.013
353.178 397.642 0.010 -902.82 1.87 397.854 0.010
353.194 397.702 0.009 -912.76 3.22 397.913 0.009
353.324 397.655 0.012 -901.17 2.18 397.866 0.012
353.339 397.721 0.014 -907.24 2.74 397.932 0.014
353.470 397.659 0.015 -898.91 2.12 397.871 0.015
353.485 397.720 0.013 -904.69 2.33 397.931 0.013

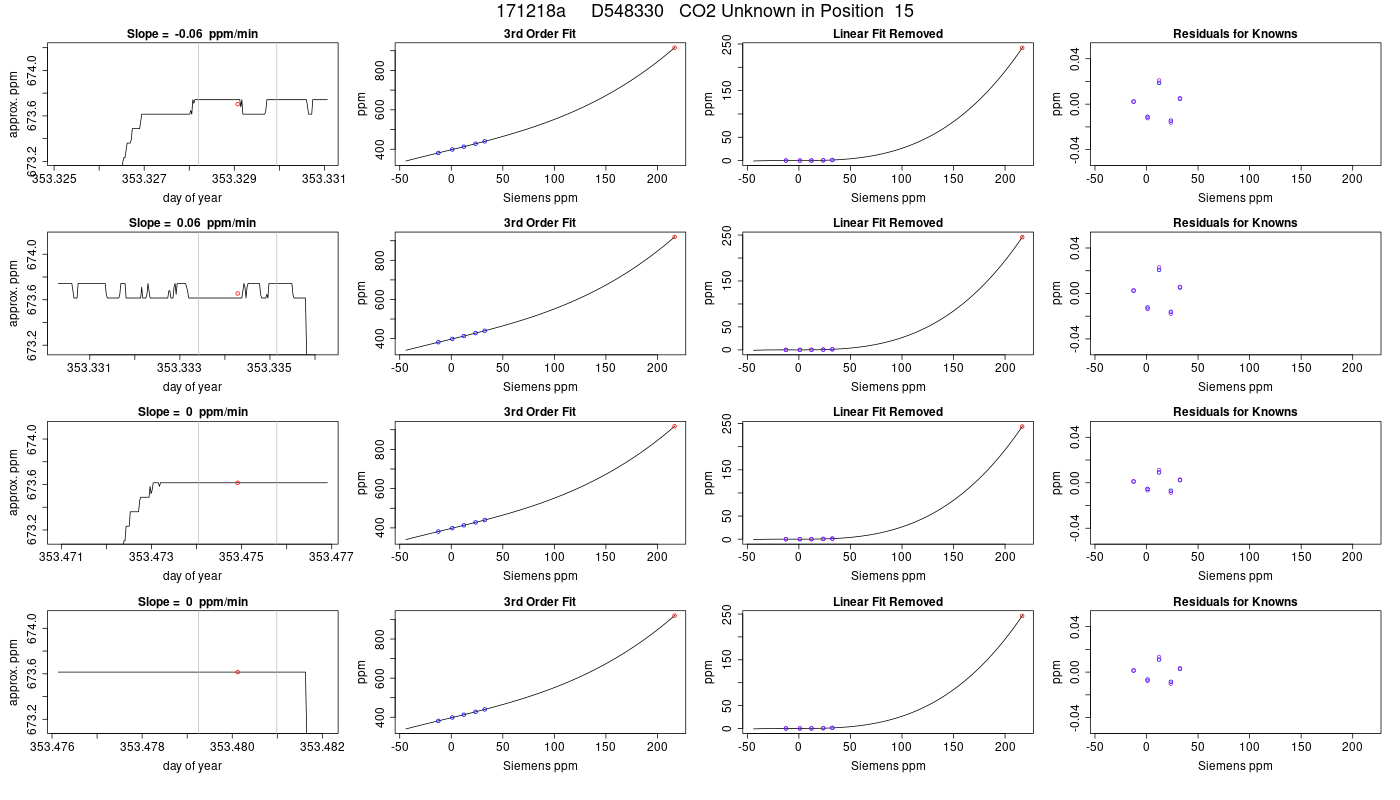

15 D548330    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
353.037 897.261 0.062 -1509.10 2.40 923.854 0.062
353.043 901.255 0.000 -1501.79 2.16 927.869 0.000
353.183 917.767 0.000 -1450.72 2.28 944.375 0.000
353.188 921.673 0.000 -1447.08 2.43 948.288 0.000
353.329 915.779 0.059 -1439.64 2.13 942.424 0.059
353.334 919.265 0.058 -1436.97 2.25 945.902 0.058
353.475 917.469 0.000 -1430.26 2.40 944.086 0.000
353.480 919.836 0.000 -1429.93 2.16 946.449 0.000
