UEA CRAM Lab O2 and CO2 calibration results
RUN = 171204a
PROCESSED: 16:40:56 Mon 21Aug2023

Notes
Logfile

Results

Using data from 338.961 to 339.47 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88489 400.128 0.005 0.015 400.335 0.005 0.015 7 -464.12 0.74 -2.58 7
4 D88531 401.614 0.005 0.002 401.820 0.005 0.002 7 -646.90 0.40 -0.54 7
6 D88471 380.236 0.010 0.010 380.455 0.010 0.010 7 -422.72 0.47 -1.85 7
7 D88530 426.151 0.009 -0.016 426.336 0.009 -0.016 7 -600.23 0.34 -0.18 7
8 D88528 403.556 0.005 -0.005 403.759 0.005 -0.005 7 -680.54 0.50 -0.37 7
10 D743661 438.085 0.020 -0.008 438.290 0.020 -0.008 7 -469.71 0.75 -1.07 7
11 D88537 375.596 0.017 0.160 375.810 0.017 0.161 4 -398.91 1.02 9.76 4
14 D88472 409.604 0.010 -0.002 409.798 0.010 -0.002 7 -1184.13 3.92 -2.76 7
15 D743653 421.057 0.004 -0.025 421.242 0.004 -0.025 7 -750.65 0.90 0.07 7
WT D258964 397.435 0.004 -0.006 397.646 0.004 -0.006 98 -747.95 0.25 0.25 98
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns

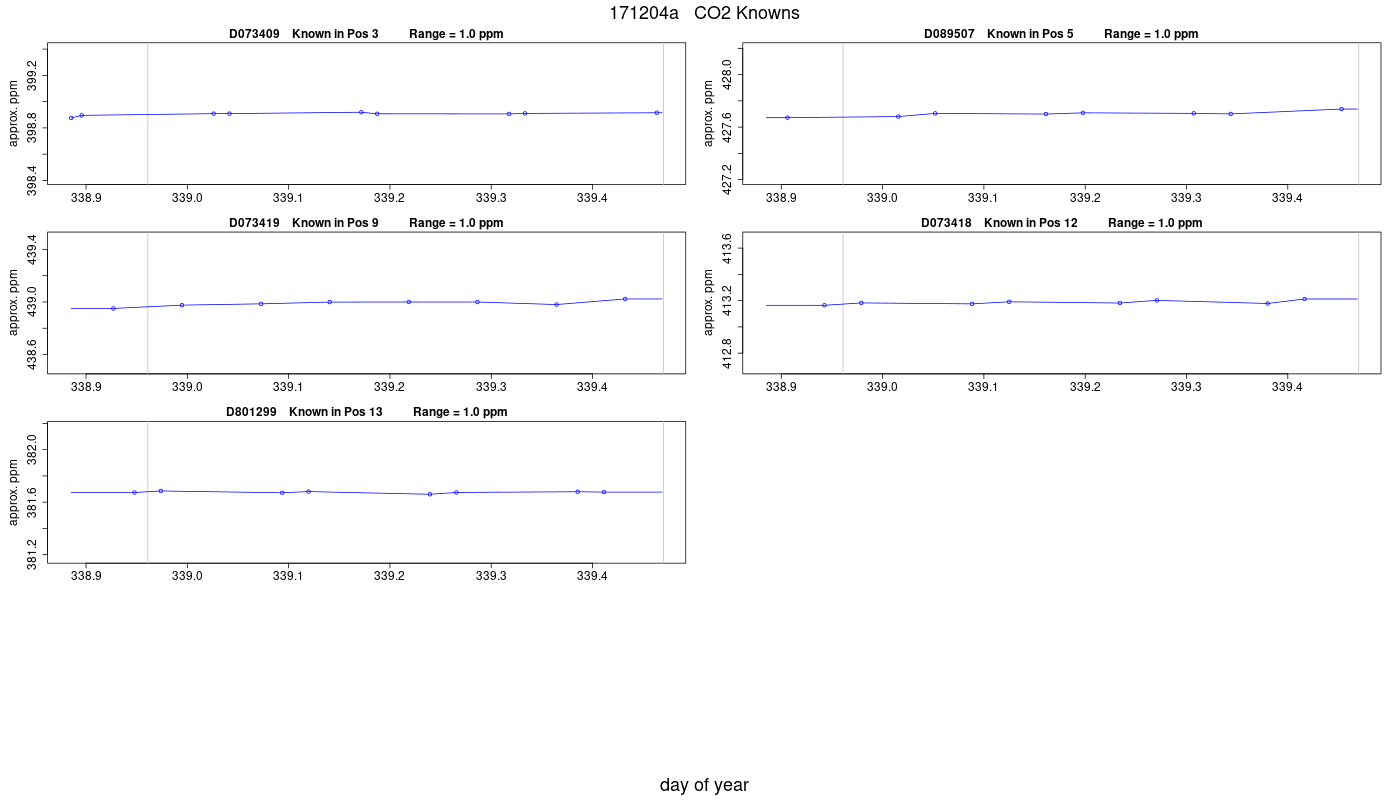

 CO2 Averages for Knowns

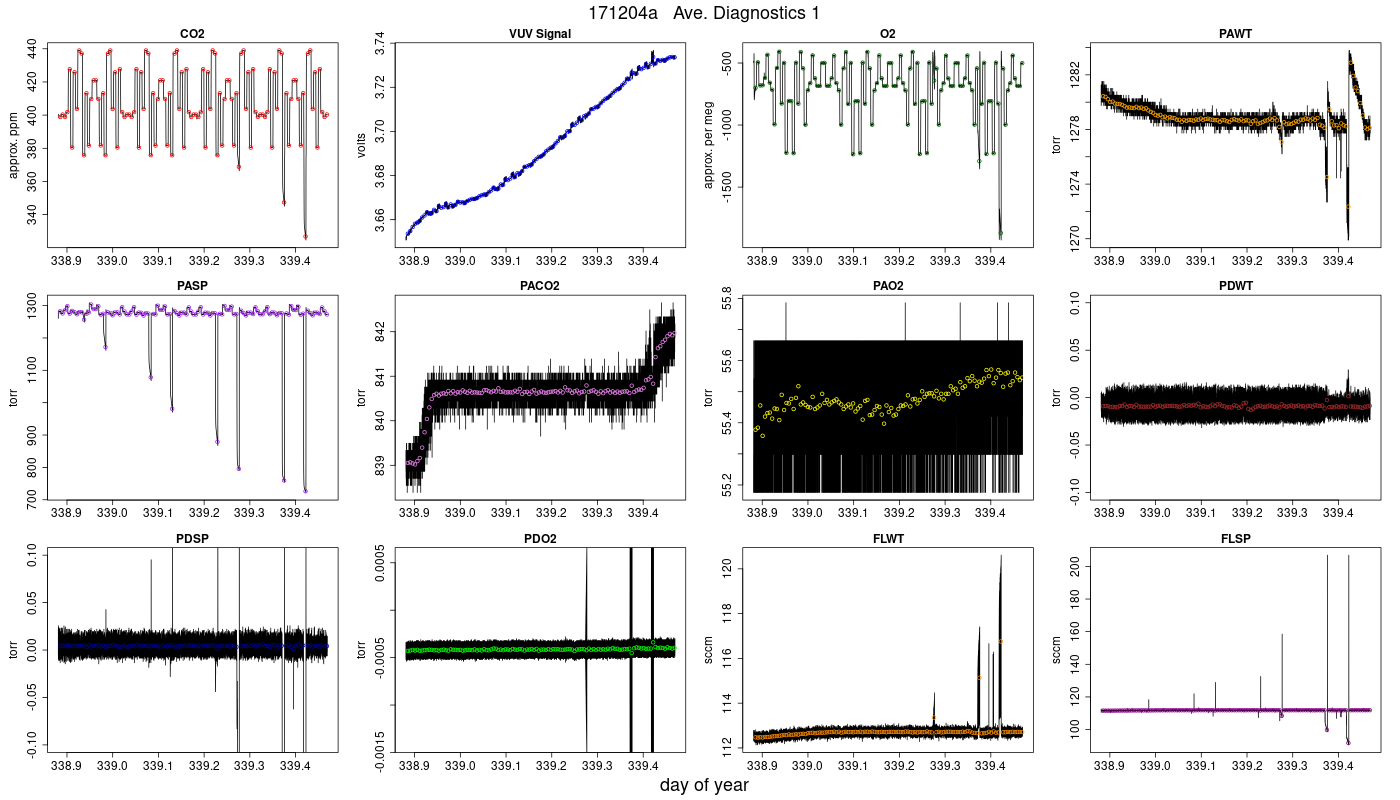

Jog Ave. Diagnostics 1

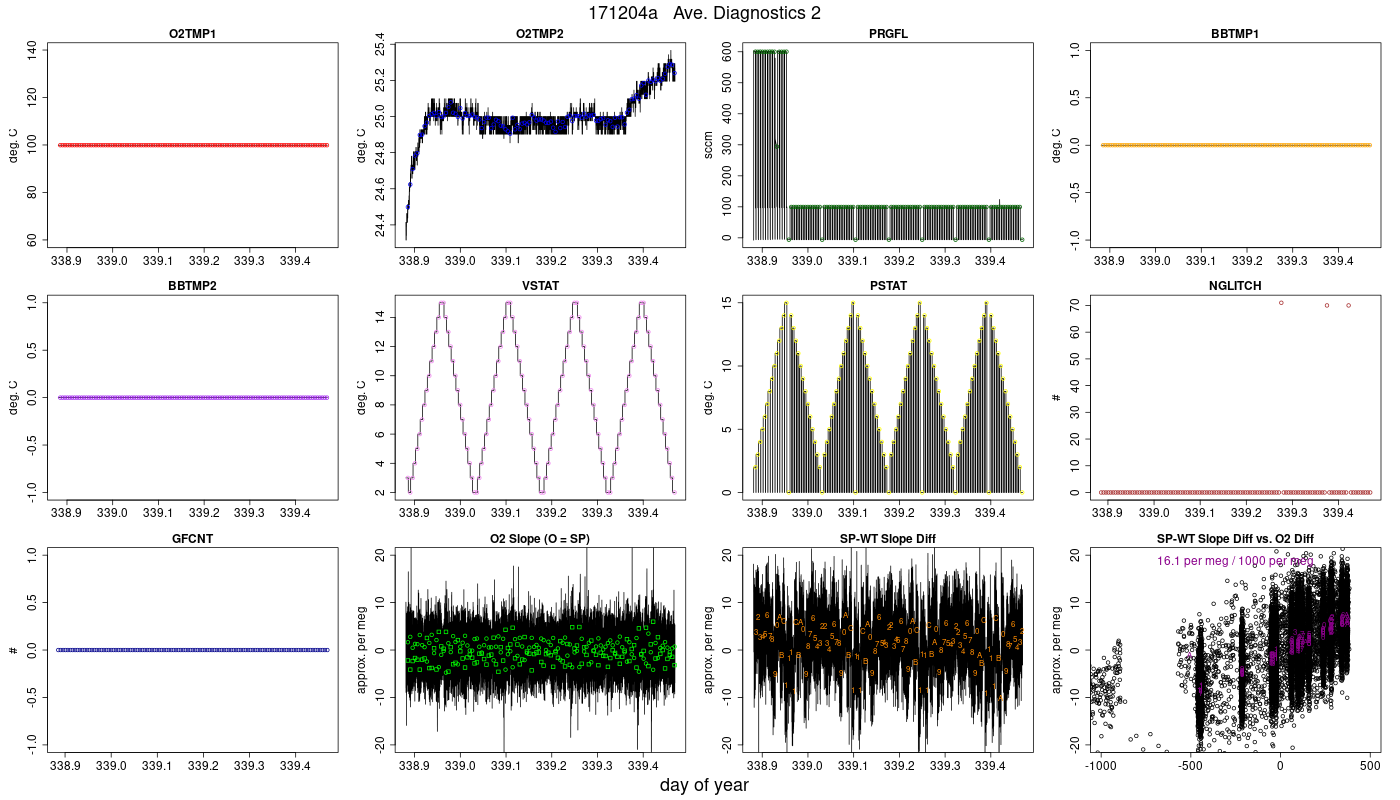

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

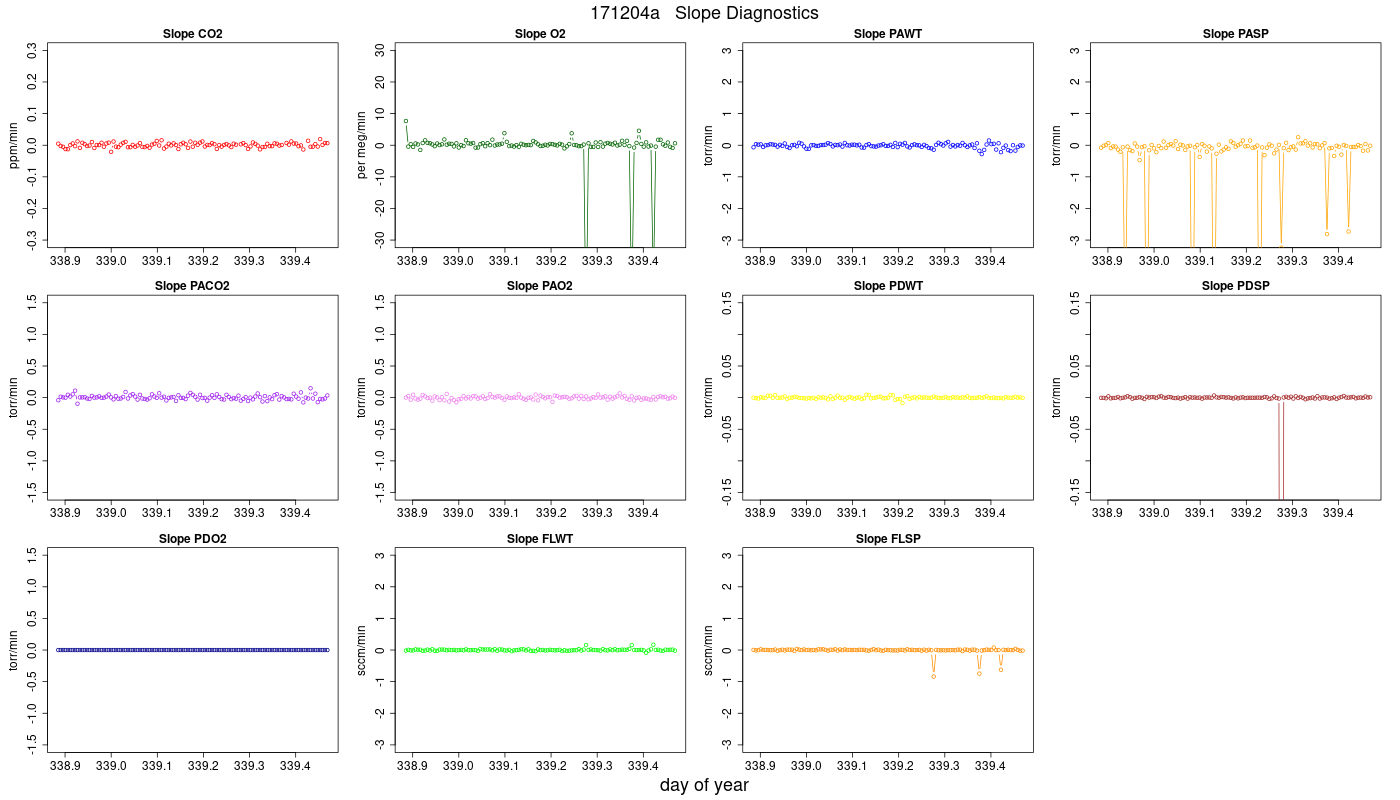

Jog Slope Diagnostics

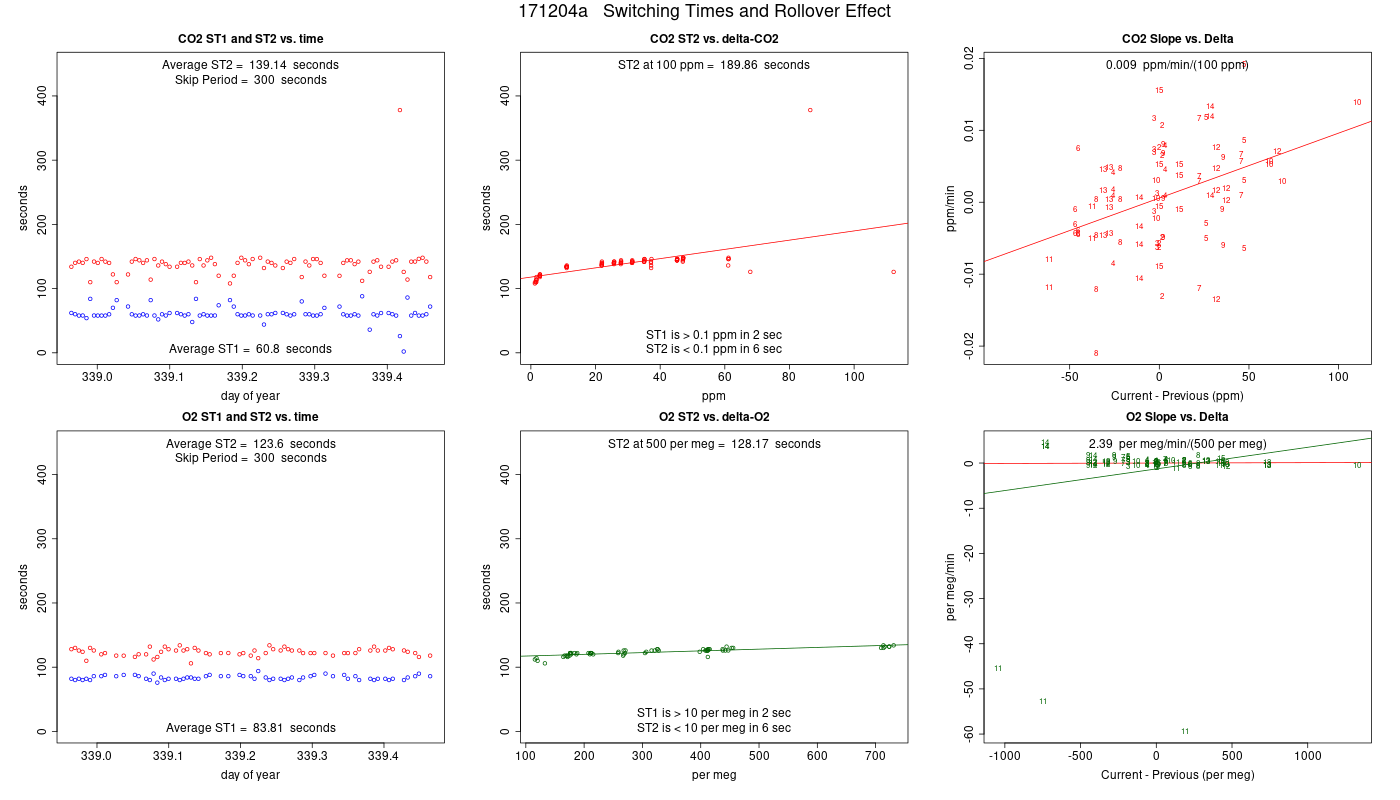

 Rollover Effect
 Flushing Effect

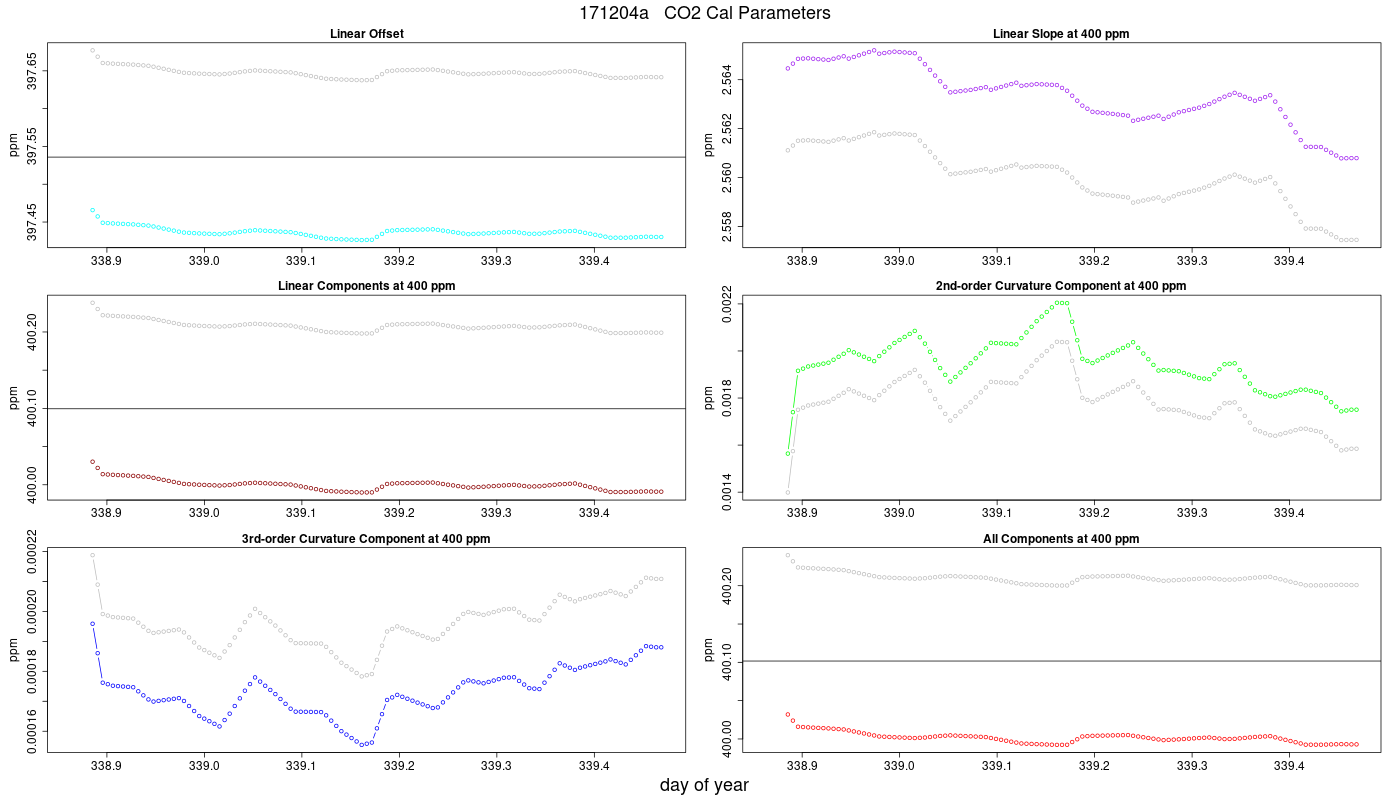

CO2 Parameters

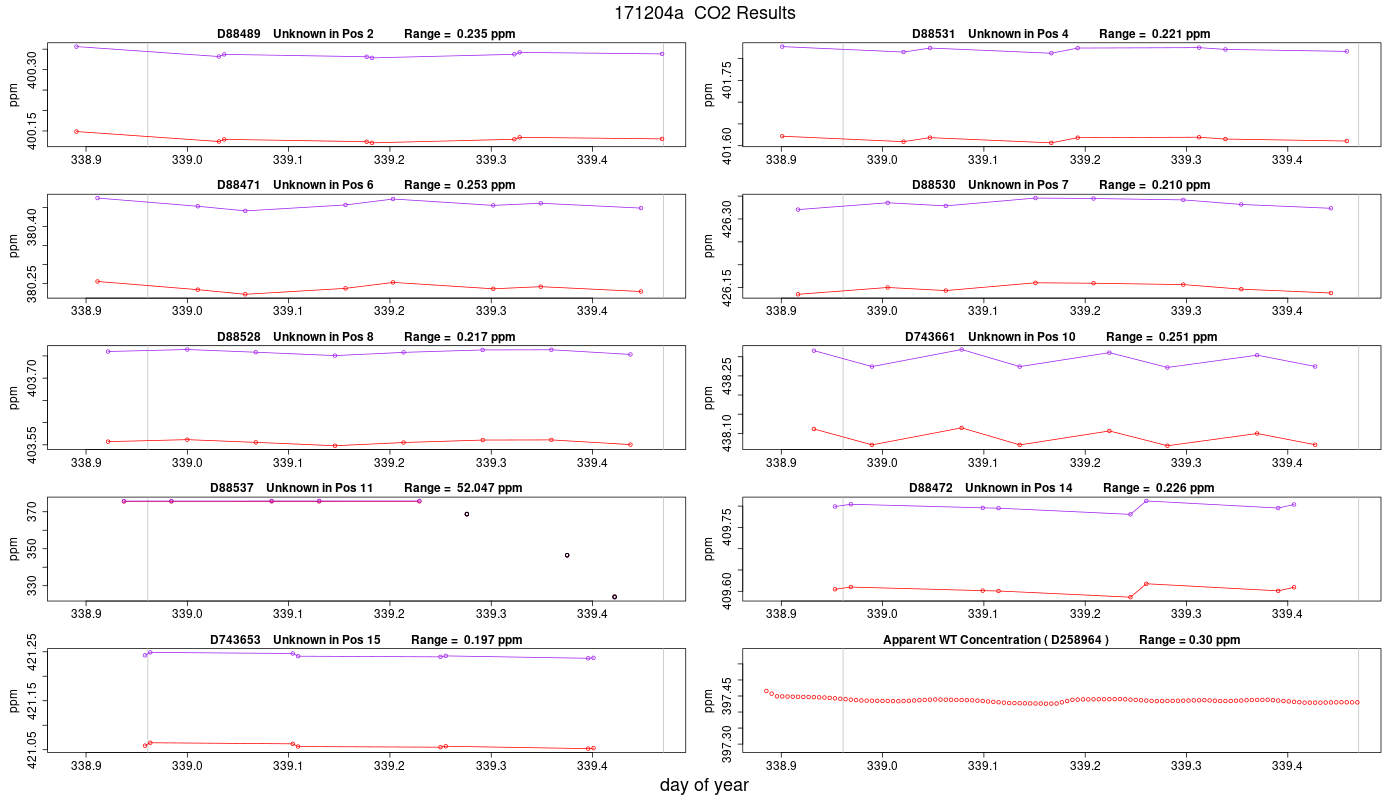

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns

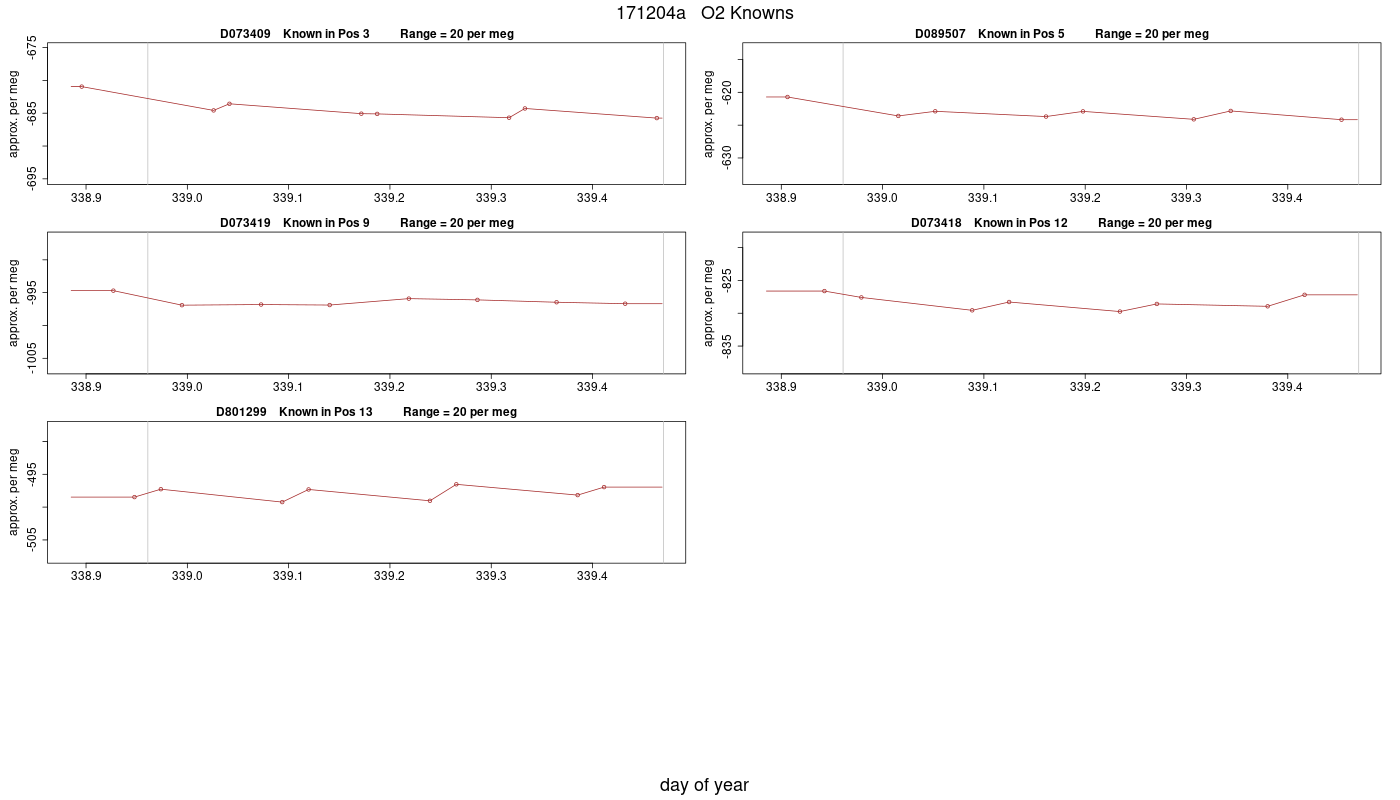

 O2 Averages for Knowns

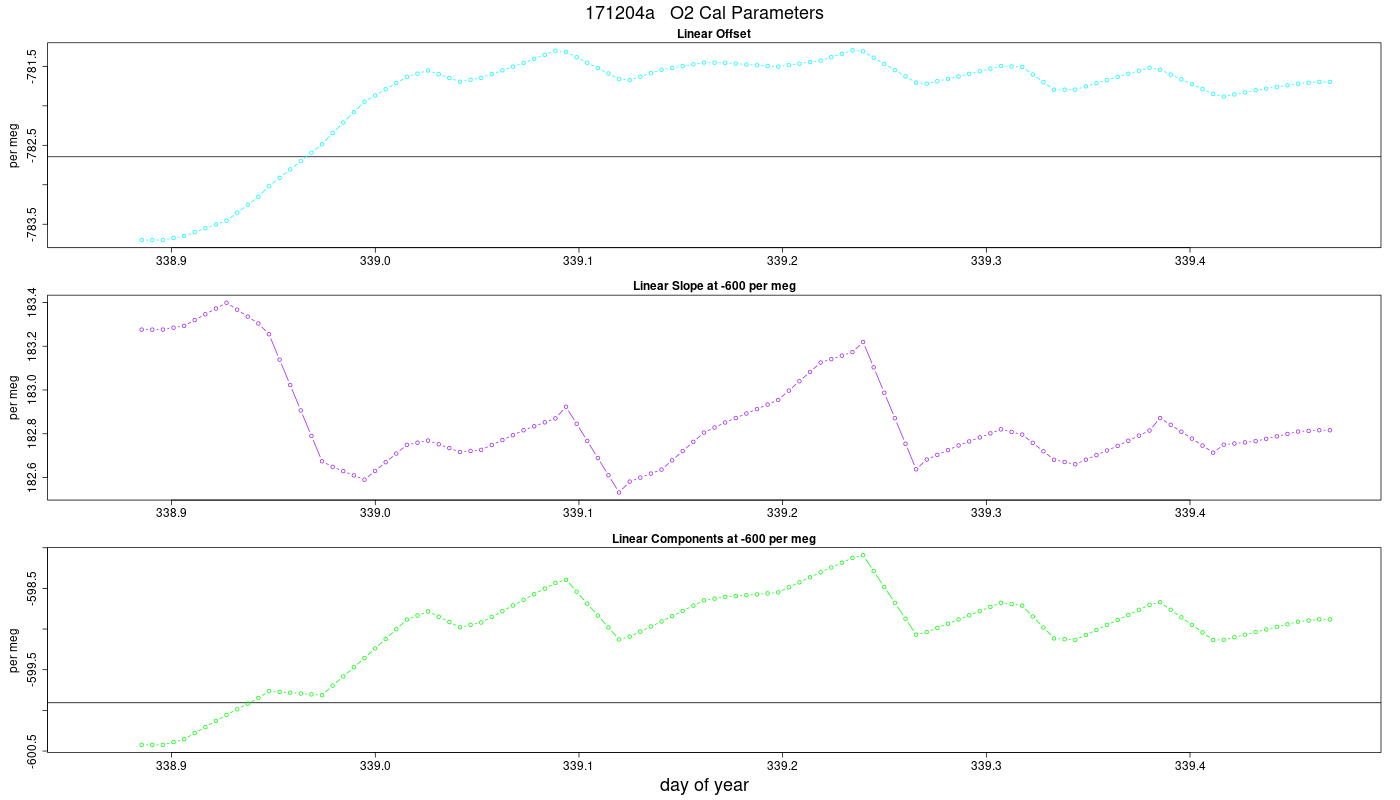

 O2 Parameters

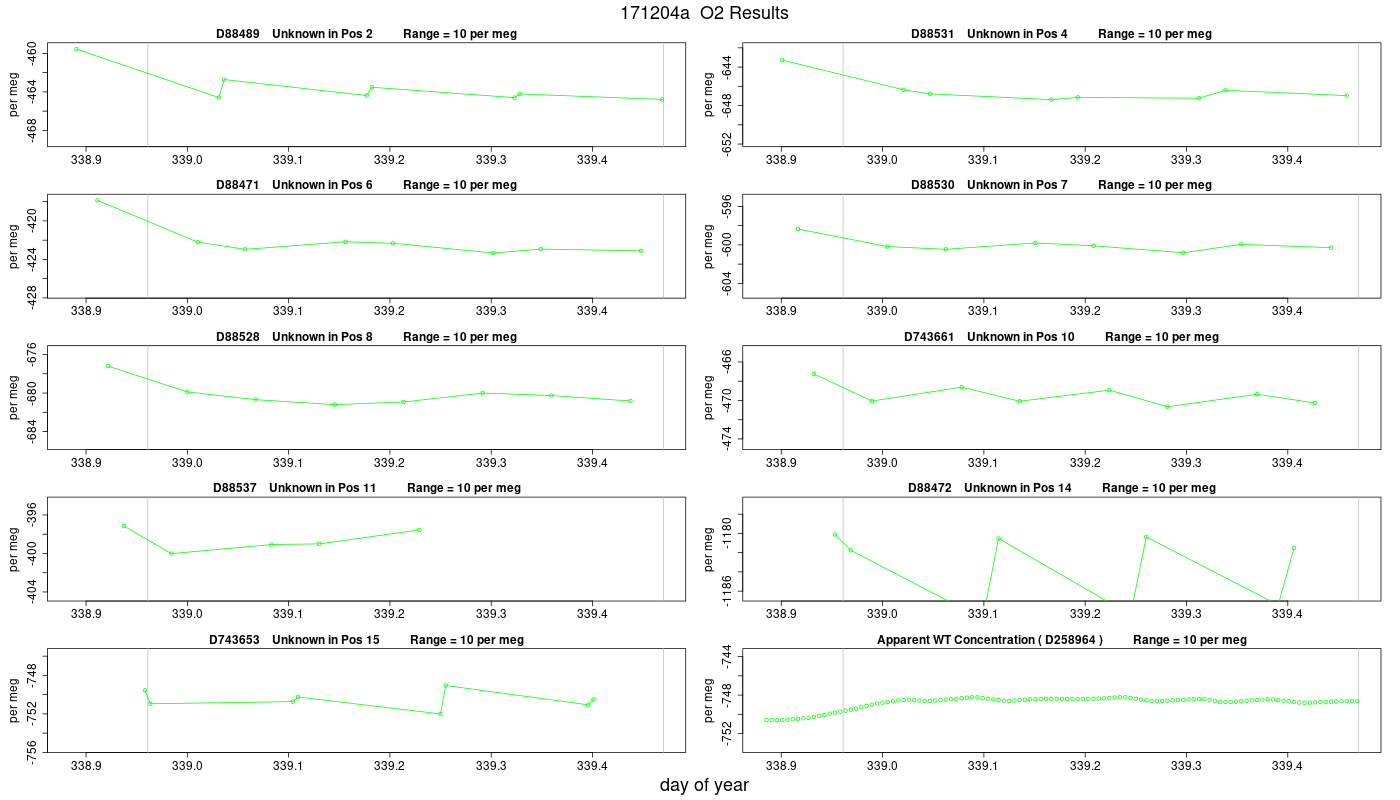

O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

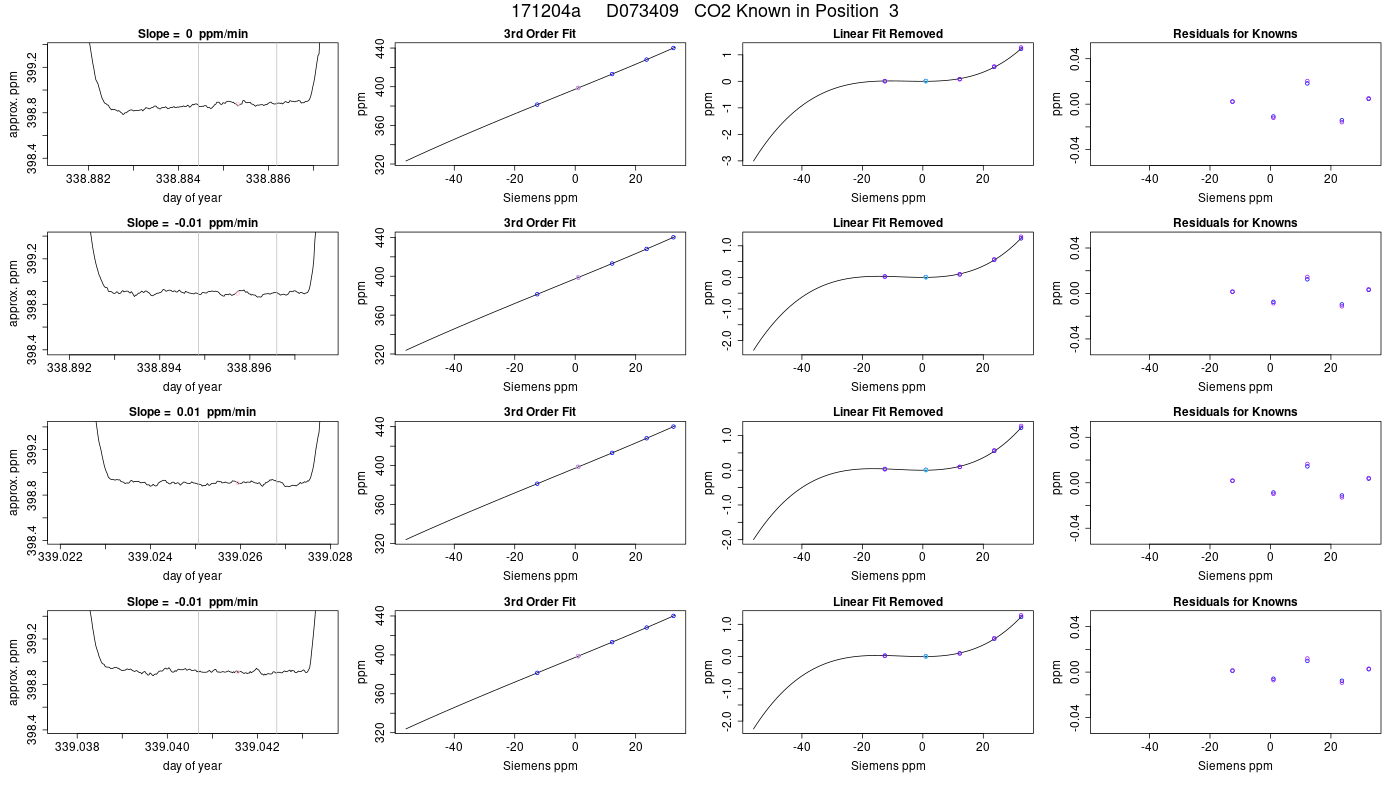

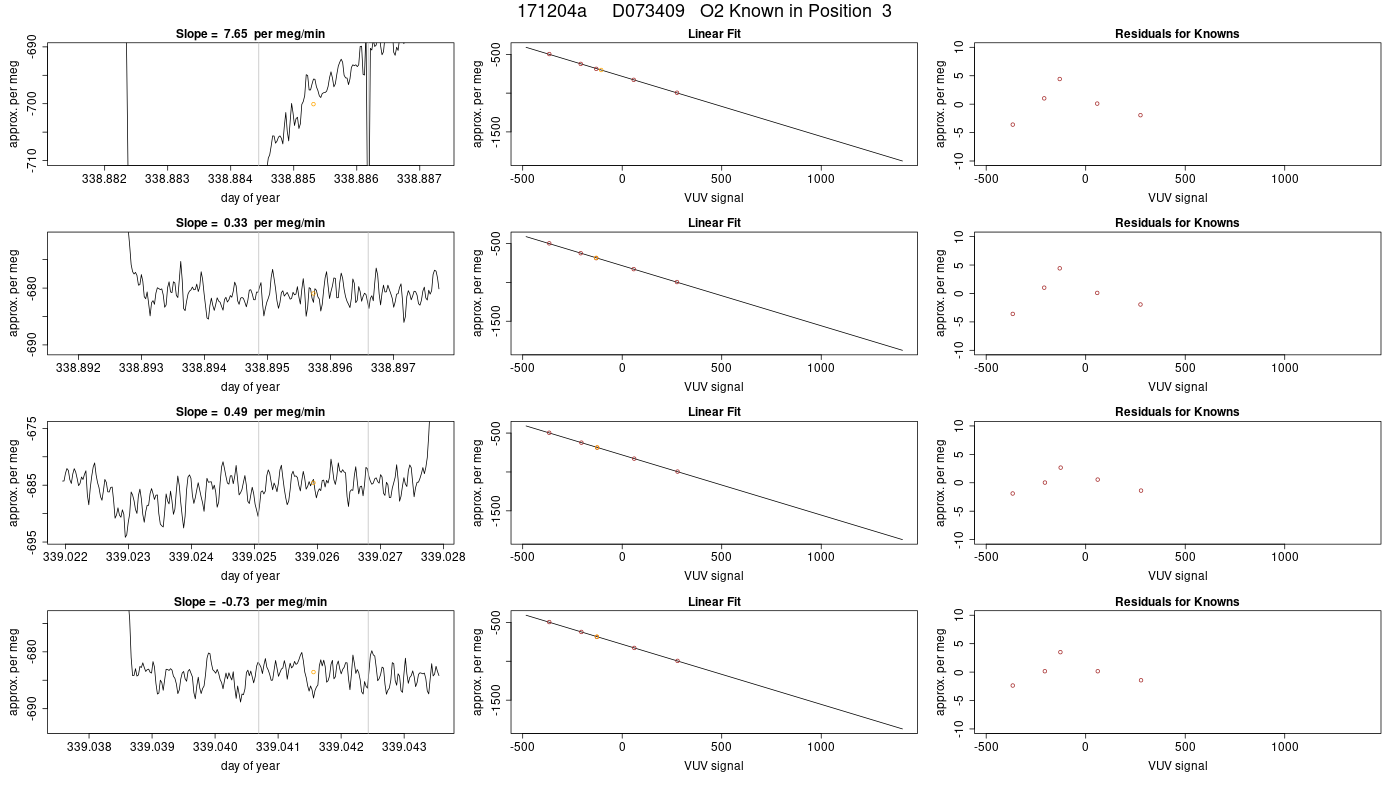

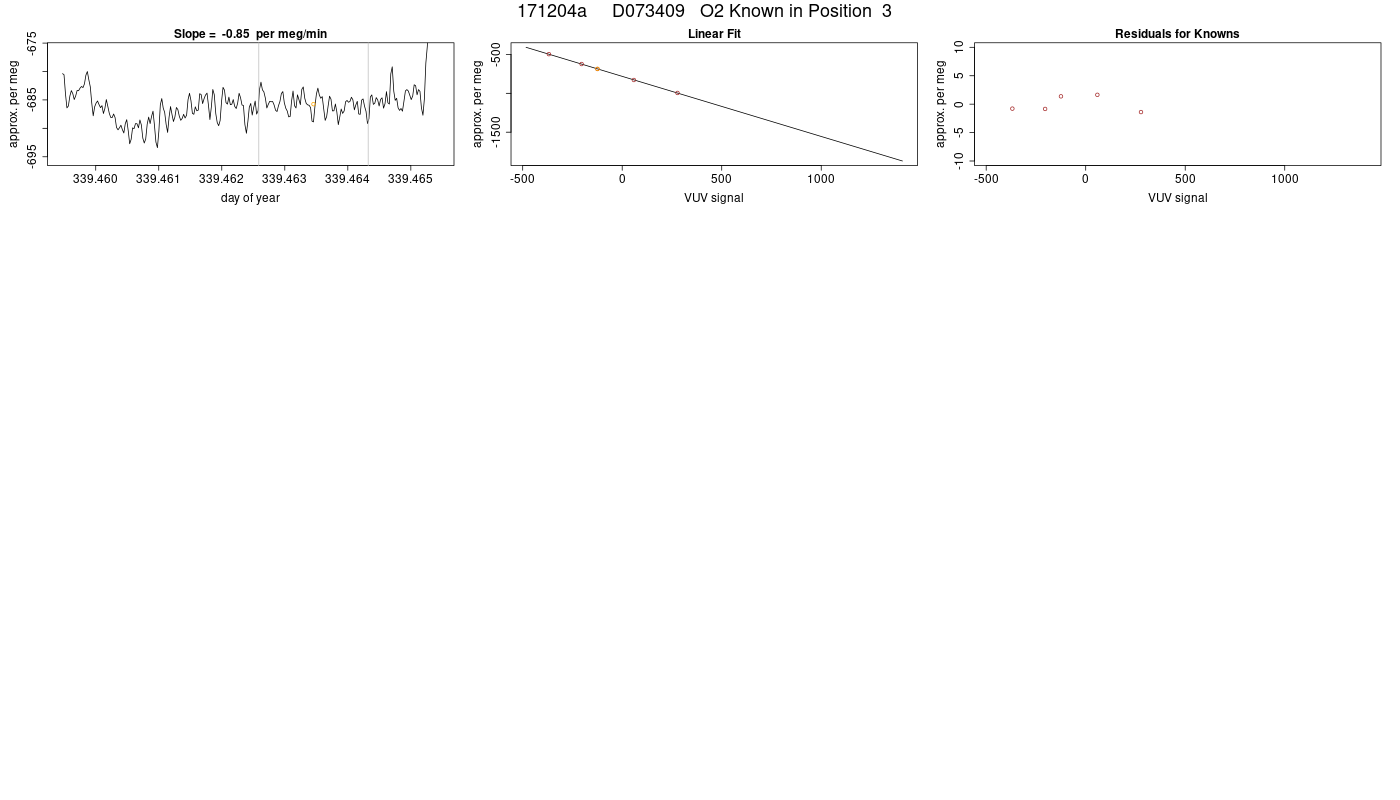

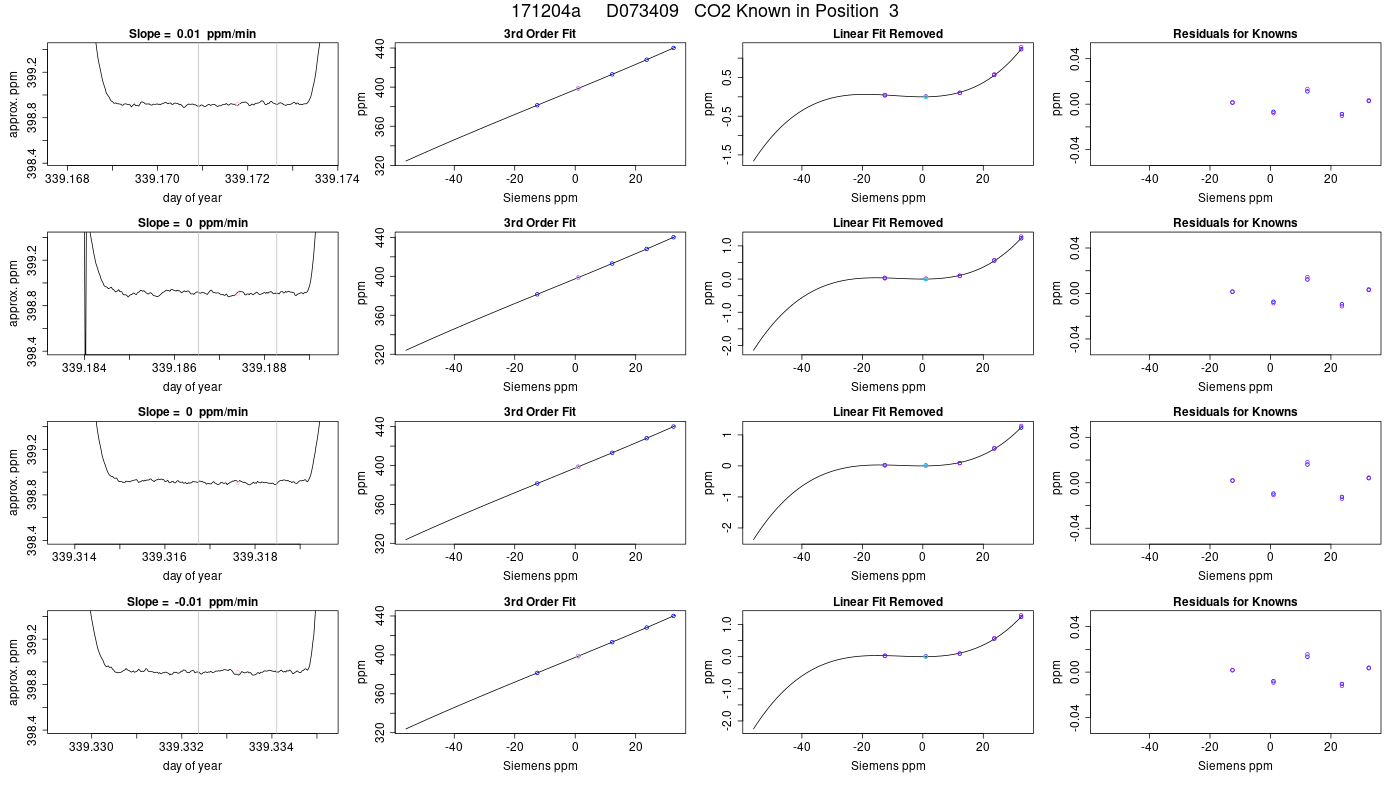

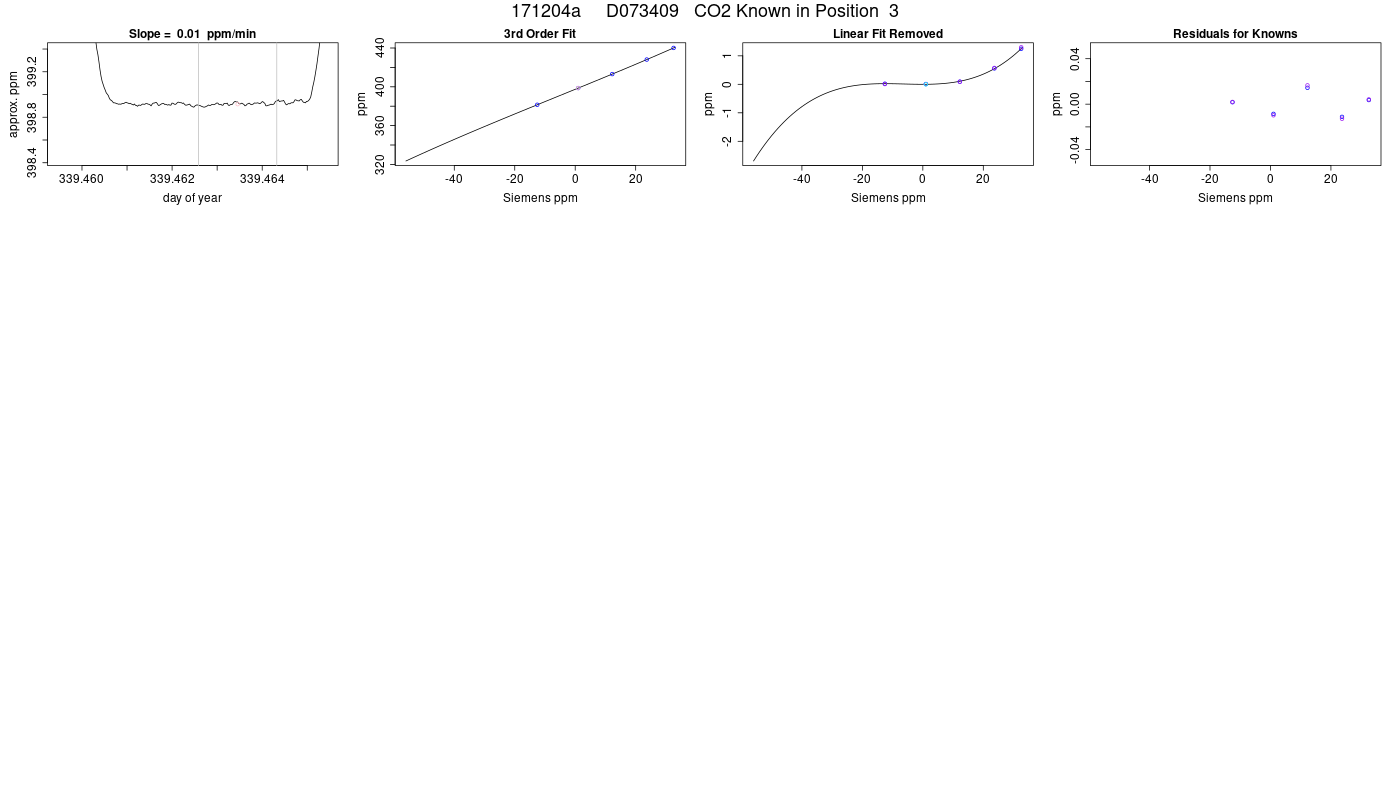

3 D073409 398.707 -0.008 0.001 398.918 -0.009 0.001 7 -651.78 2.34 0.71 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
5 D089507 428.087 -0.010 0.003 428.275 -0.012 0.003 7 -559.23 -0.07 0.57 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

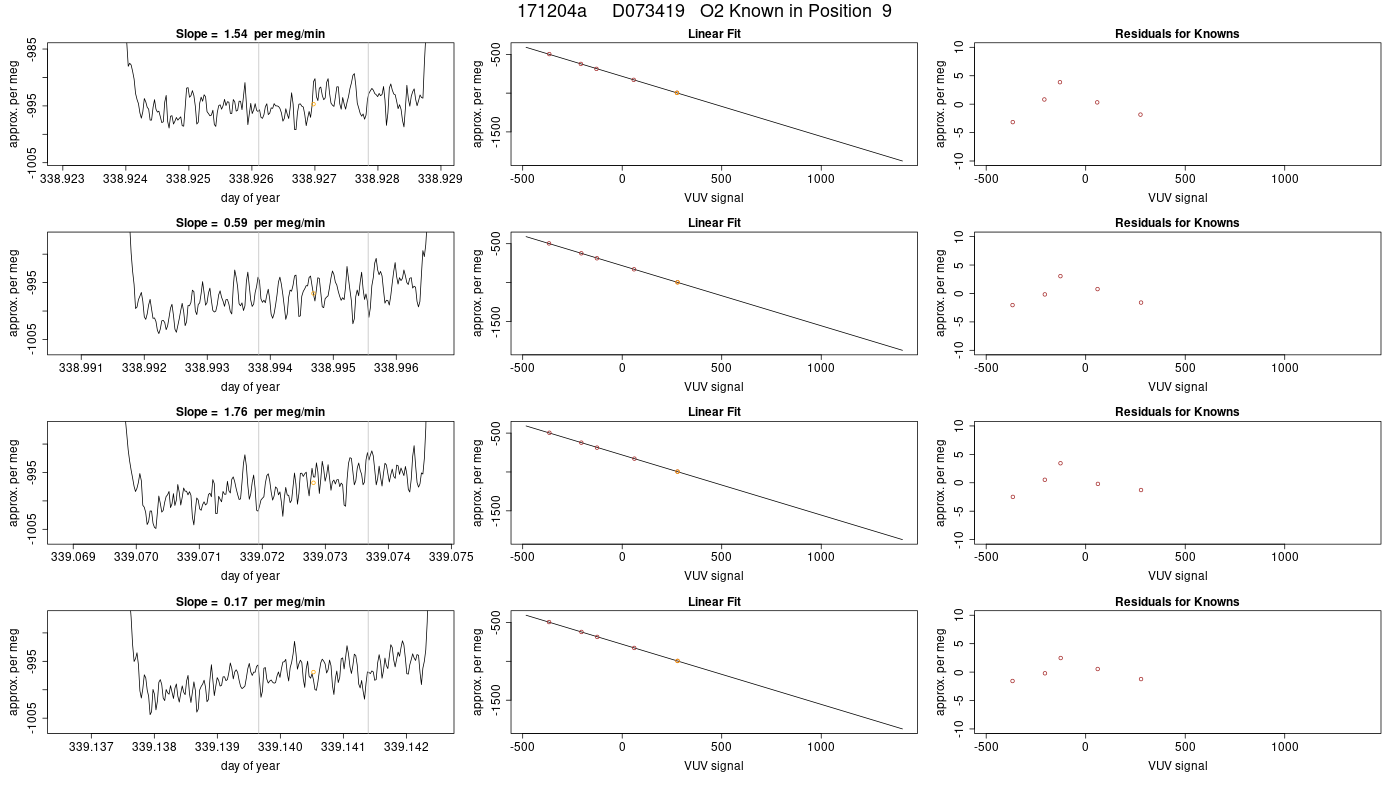

9 D073419 440.065 0.003 0.001 440.275 0.004 0.001 7 -919.32 -1.13 0.36 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

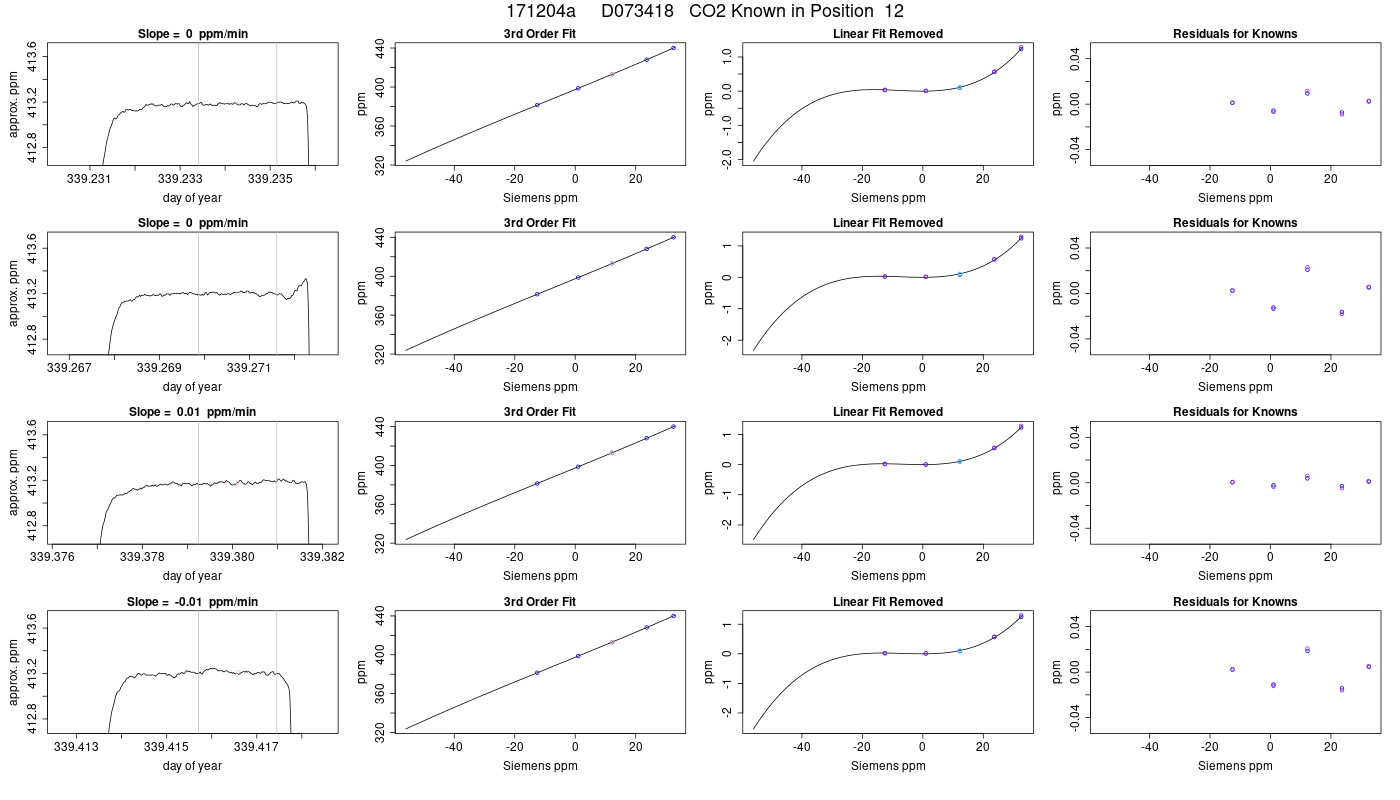

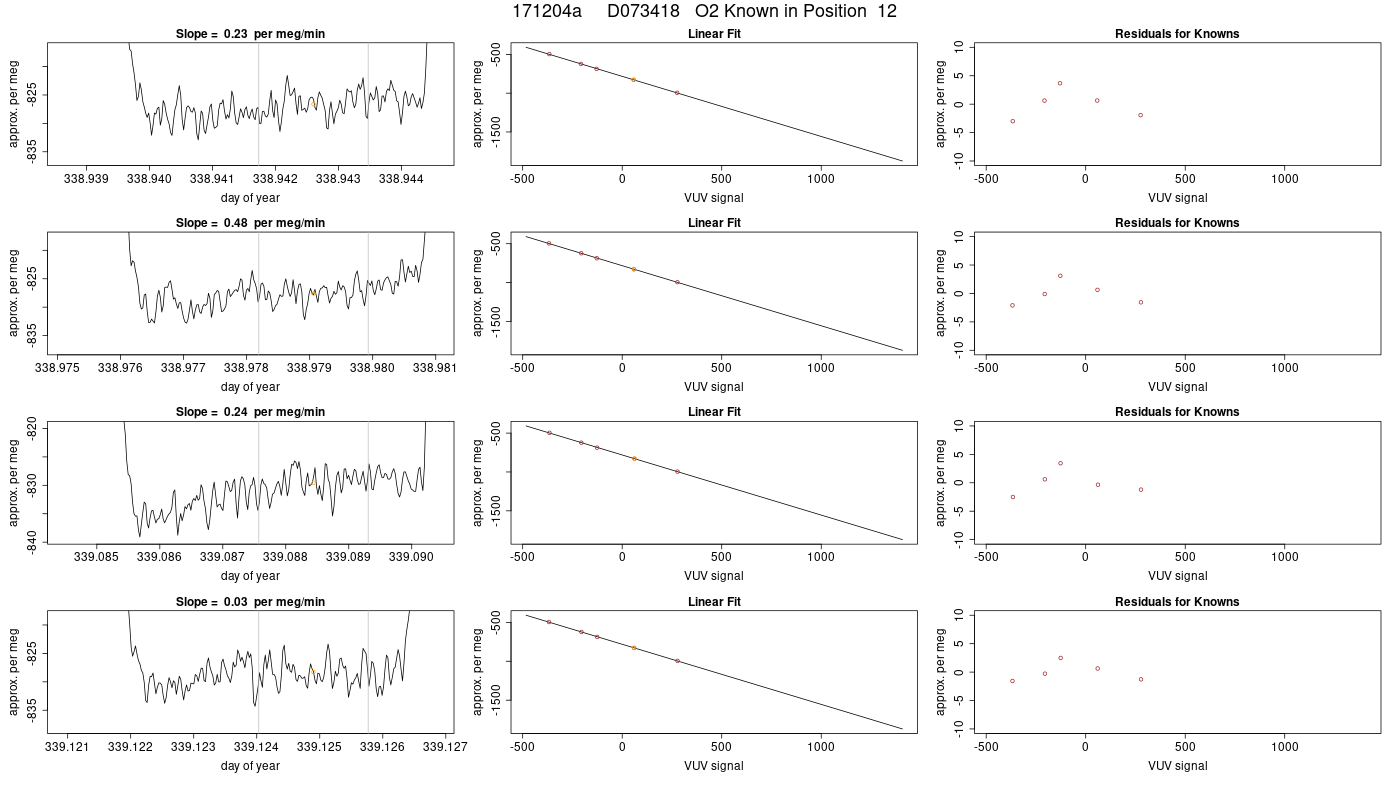

12 D073418 413.092 0.013 0.007 413.280 0.015 0.007 7 -779.40 0.32 0.70 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

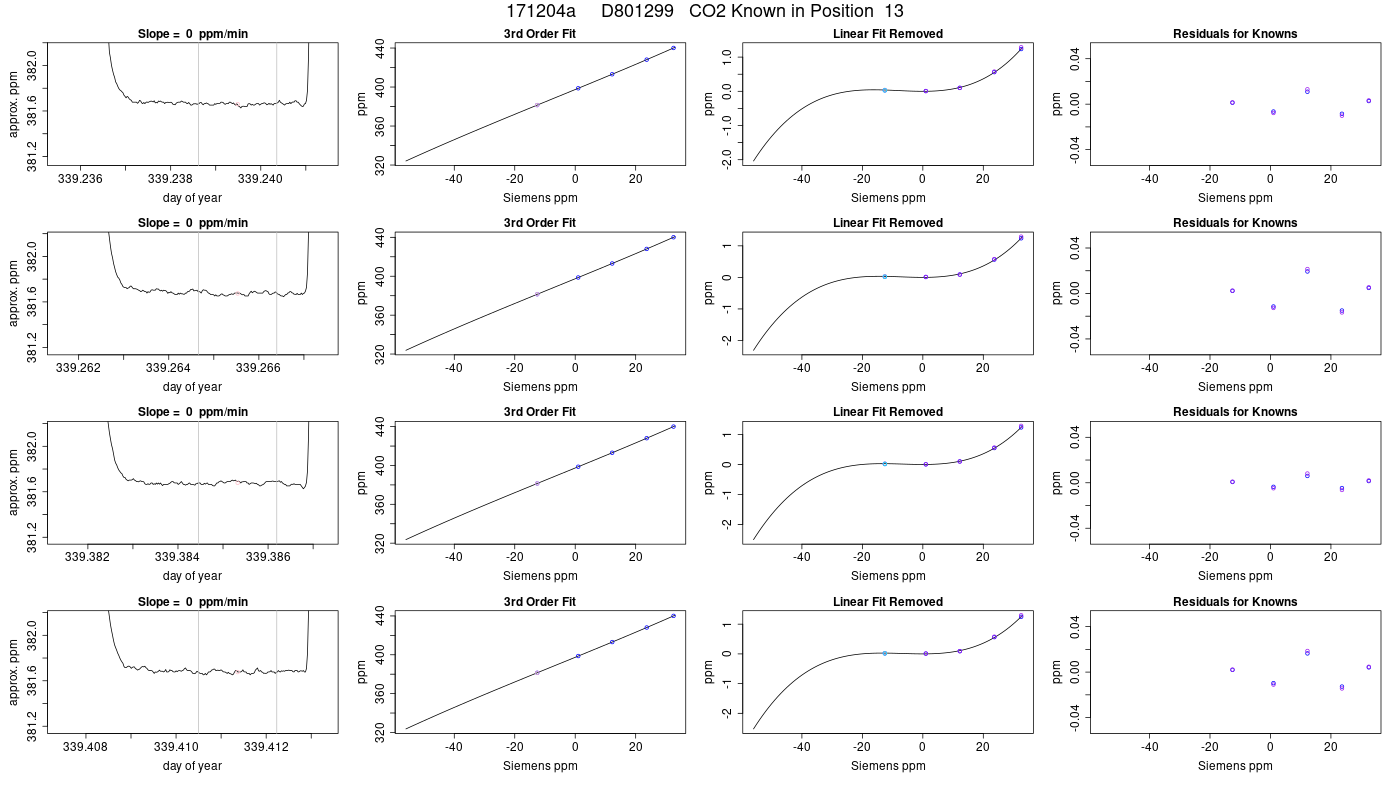

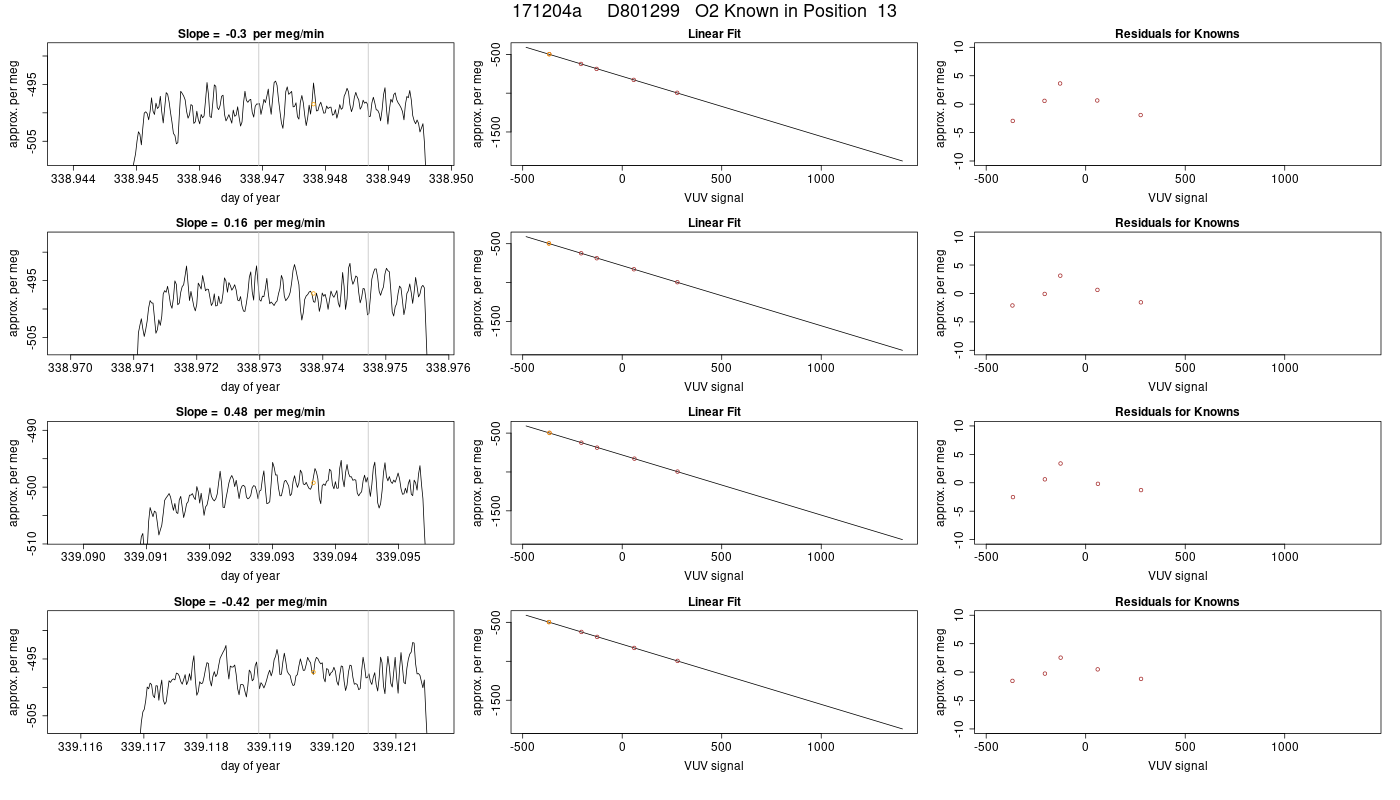

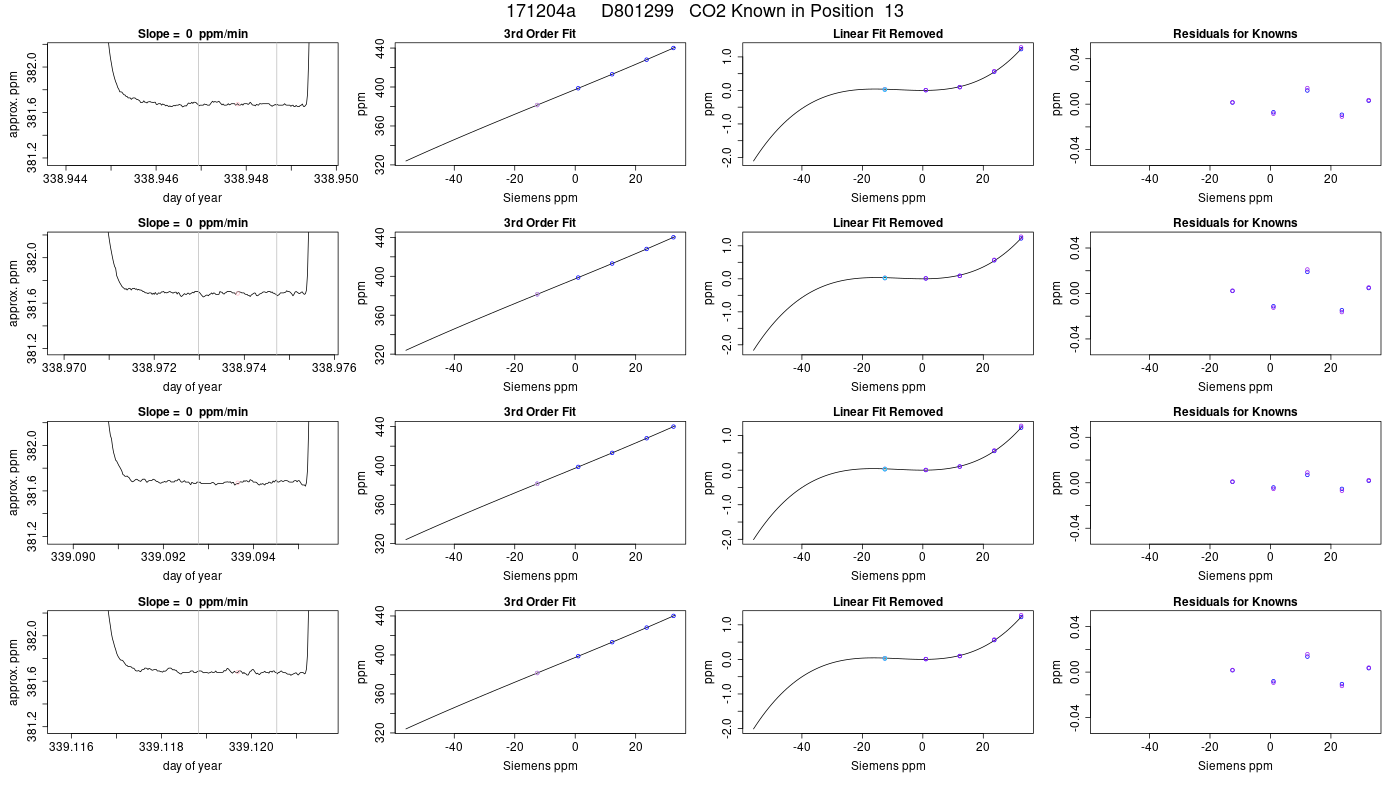

13 D801299 381.475 0.002 0.001 381.695 0.002 0.001 7 -477.75 -1.65 0.63 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

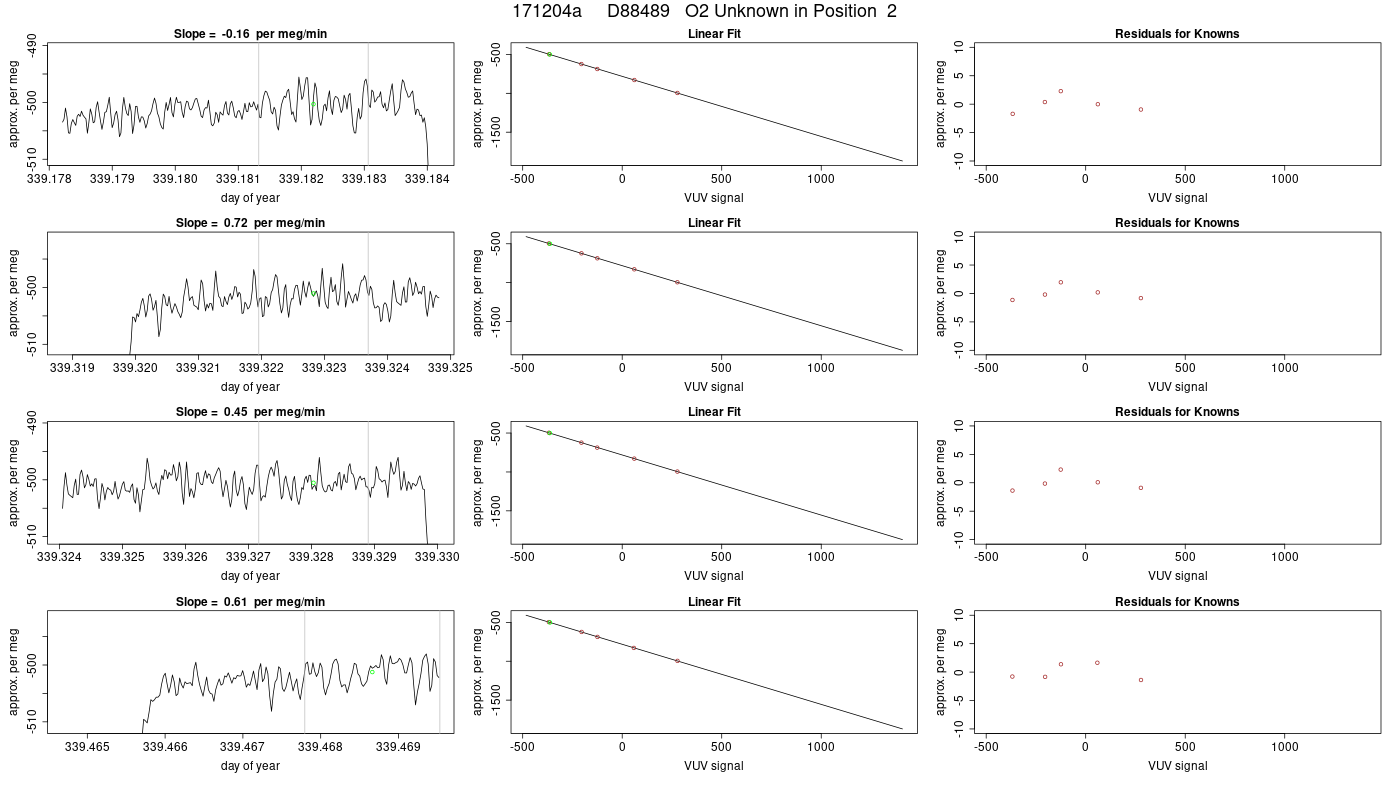

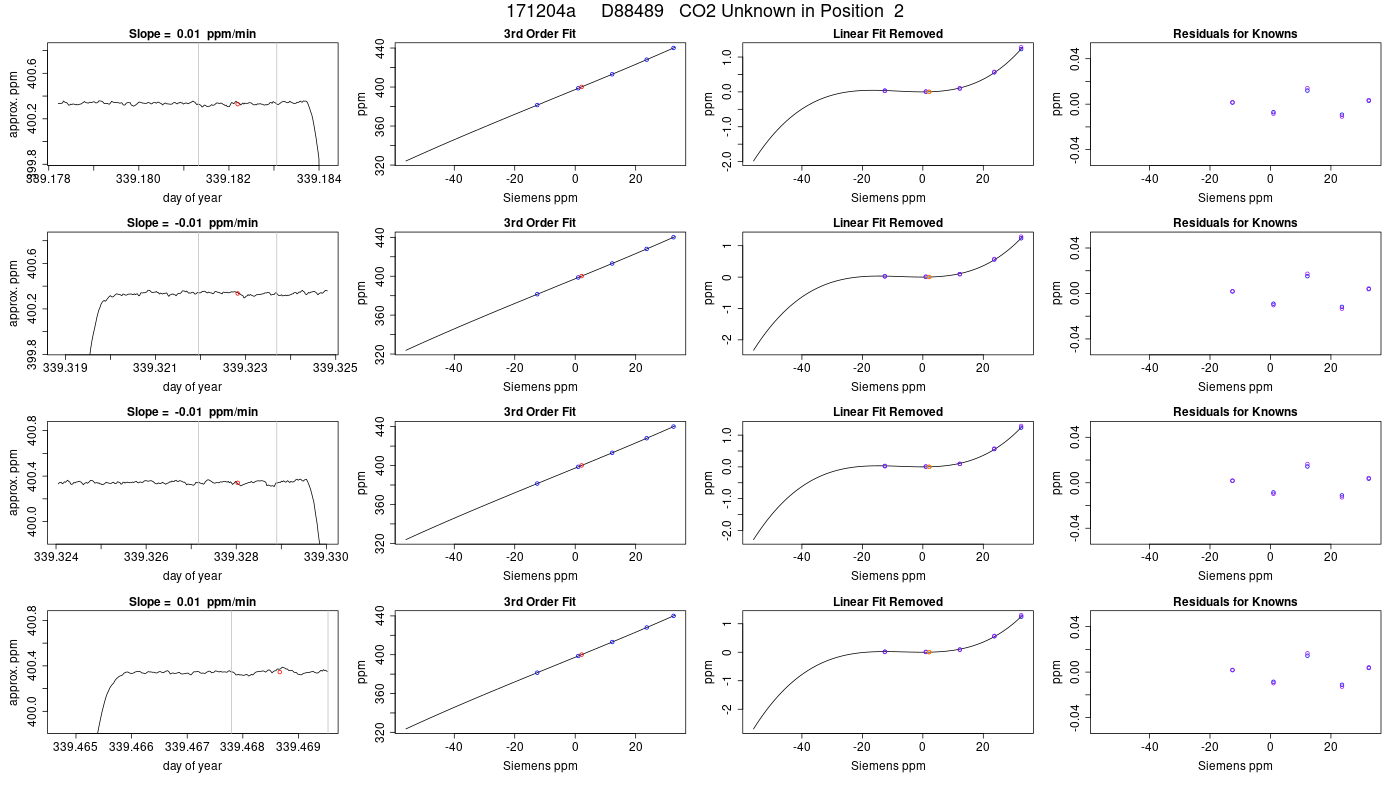

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.891 400.149 0.010 -459.56 1.99 400.356 0.010
339.031 400.124 0.013 -464.59 1.89 400.332 0.013
339.036 400.130 0.010 -462.72 1.74 400.337 0.010
339.177 400.124 0.012 -464.38 1.98 400.331 0.012
339.182 400.121 0.012 -463.52 2.42 400.329 0.012
339.323 400.130 0.013 -464.60 1.96 400.337 0.013
339.328 400.134 0.014 -464.21 1.78 400.342 0.014
339.469 400.131 0.018 -464.79 2.01 400.338 0.018

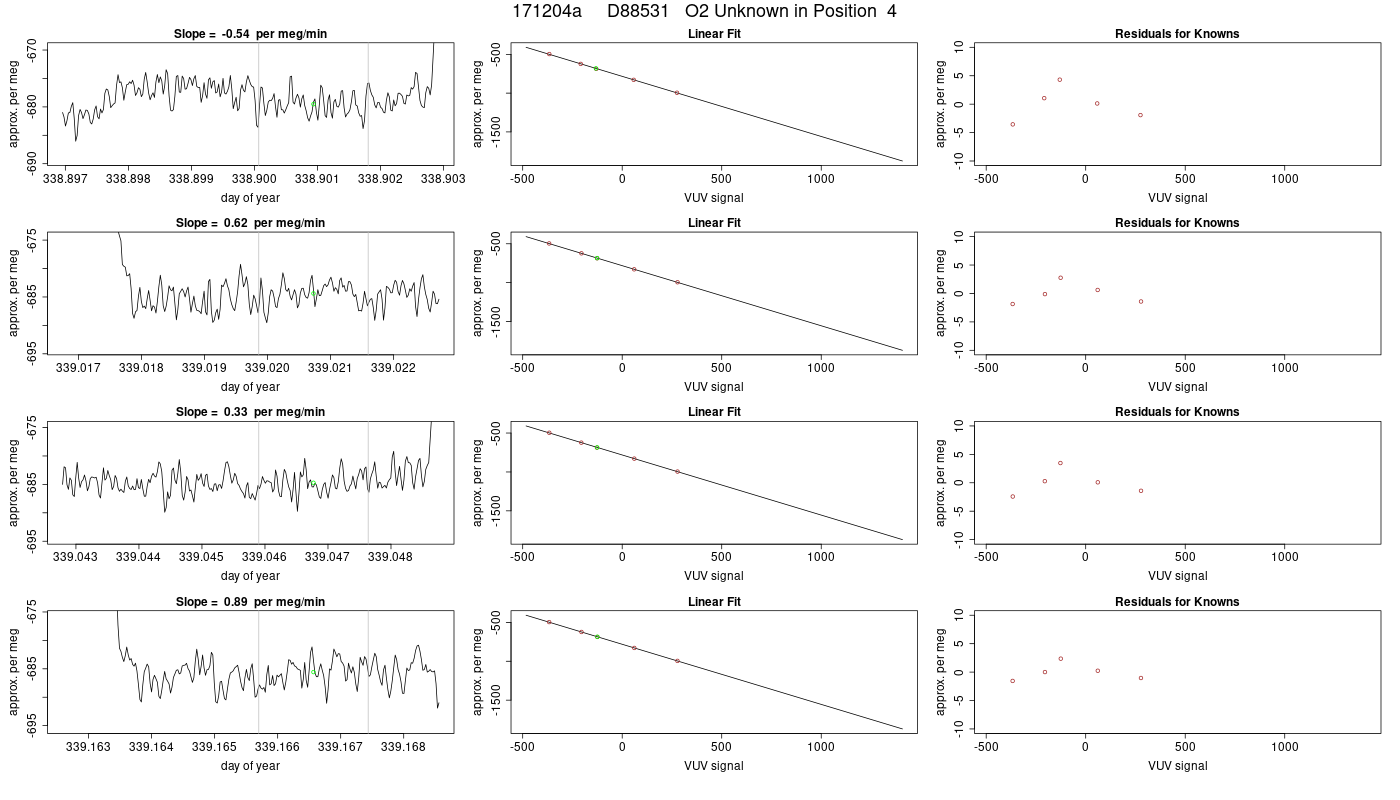

4 D88531    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.901 401.622 0.014 -643.28 1.87 401.827 0.014
339.021 401.609 0.013 -646.37 1.83 401.815 0.013
339.047 401.619 0.009 -646.78 1.74 401.824 0.009
339.167 401.607 0.010 -647.38 2.09 401.812 0.010
339.193 401.618 0.012 -647.16 1.72 401.824 0.012
339.312 401.619 0.020 -647.24 1.92 401.825 0.020
339.338 401.615 0.011 -646.41 2.13 401.821 0.011
339.458 401.611 0.016 -646.97 1.71 401.816 0.016

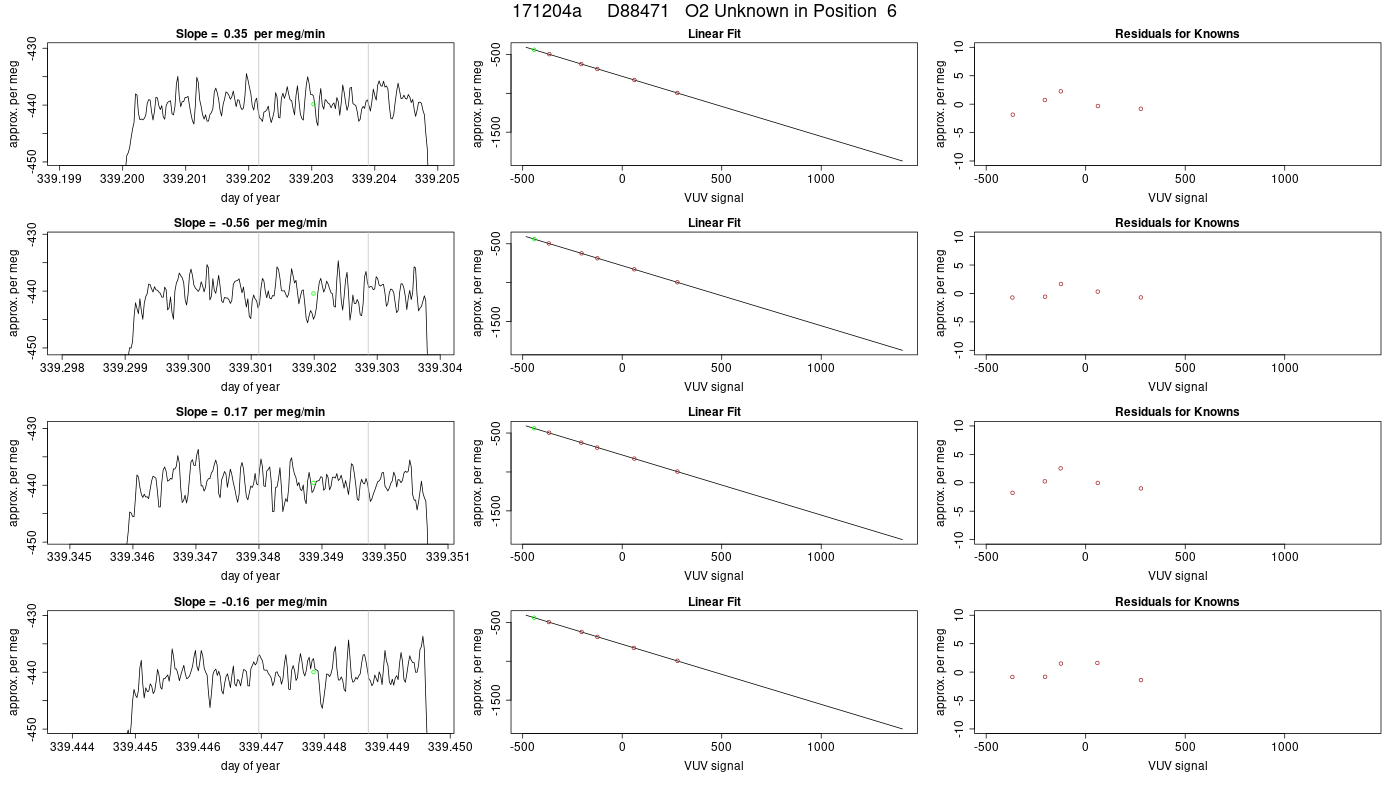

6 D88471    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.911 380.255 0.010 -417.87 1.75 380.475 0.010
339.010 380.234 0.010 -422.21 2.13 380.453 0.010
339.057 380.222 0.010 -422.95 1.66 380.441 0.010
339.156 380.237 0.017 -422.17 1.91 380.457 0.017
339.203 380.253 0.011 -422.32 1.92 380.472 0.011
339.302 380.236 0.012 -423.33 2.48 380.456 0.012
339.349 380.242 0.009 -422.93 2.06 380.461 0.009
339.448 380.229 0.010 -423.11 2.19 380.448 0.010

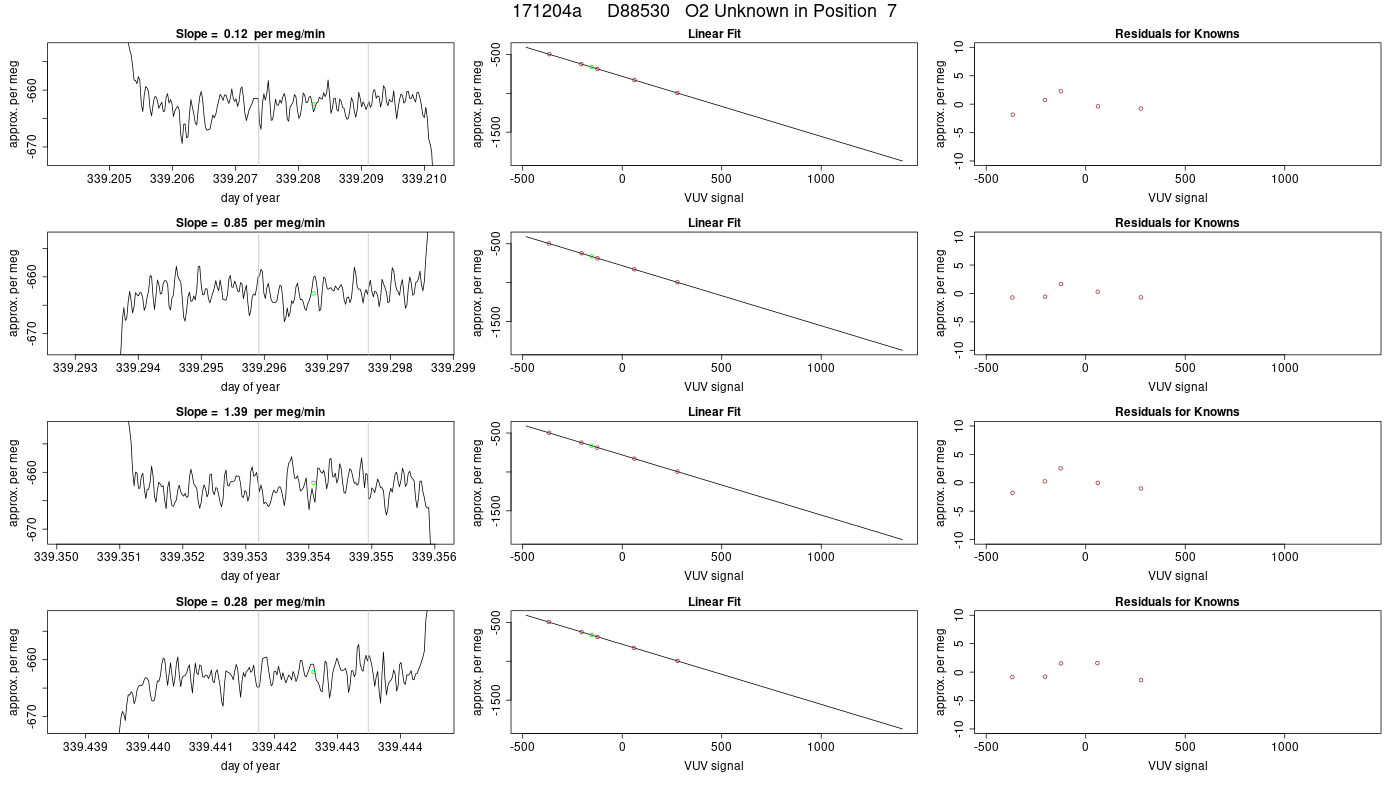

7 D88530    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.917 426.135 0.013 -598.36 2.35 426.321 0.013
339.005 426.150 0.013 -600.17 1.77 426.335 0.013
339.062 426.144 0.013 -600.46 1.88 426.329 0.013
339.151 426.161 0.015 -599.80 2.17 426.346 0.015
339.208 426.160 0.017 -600.09 1.66 426.345 0.017
339.297 426.157 0.017 -600.82 1.99 426.342 0.017
339.354 426.147 0.012 -599.95 2.29 426.332 0.012
339.443 426.138 0.010 -600.29 1.82 426.323 0.010

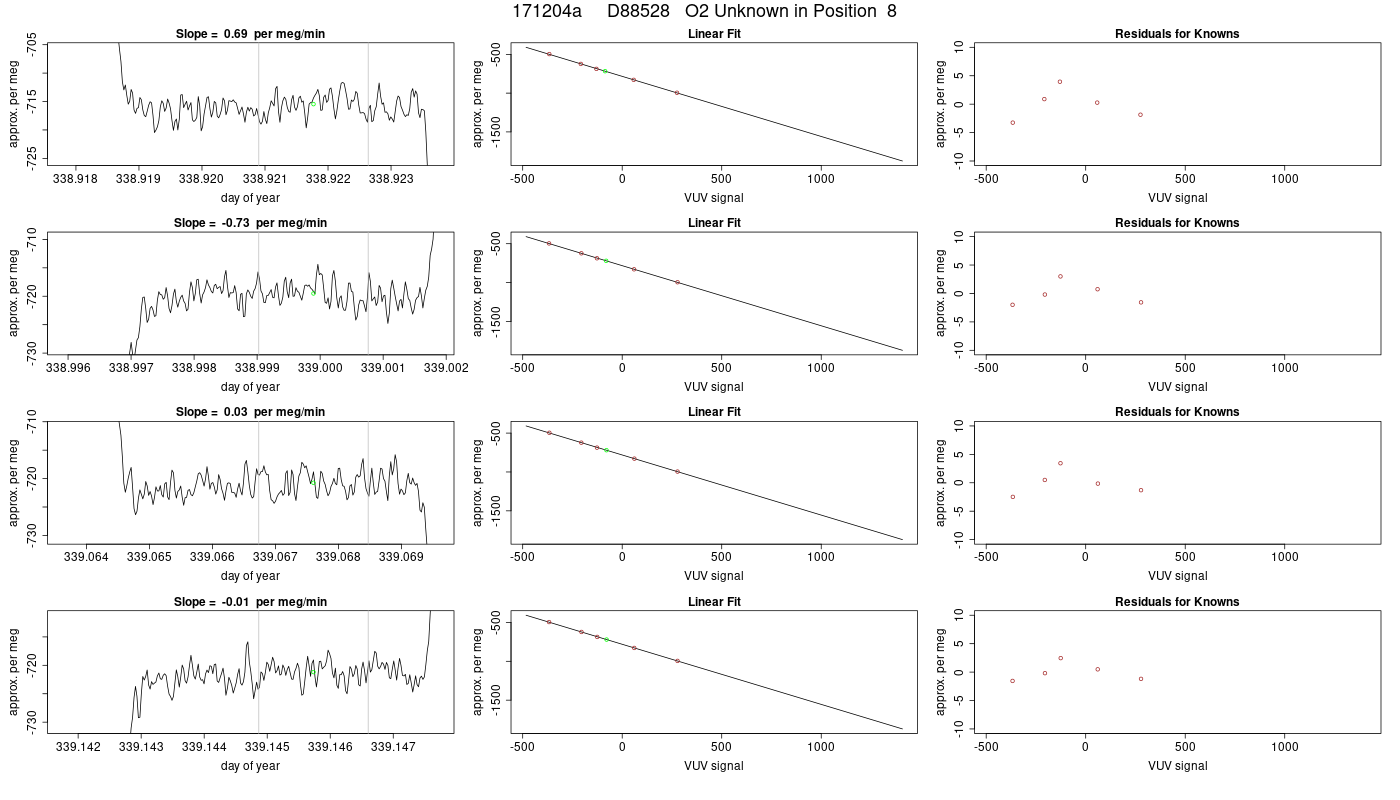

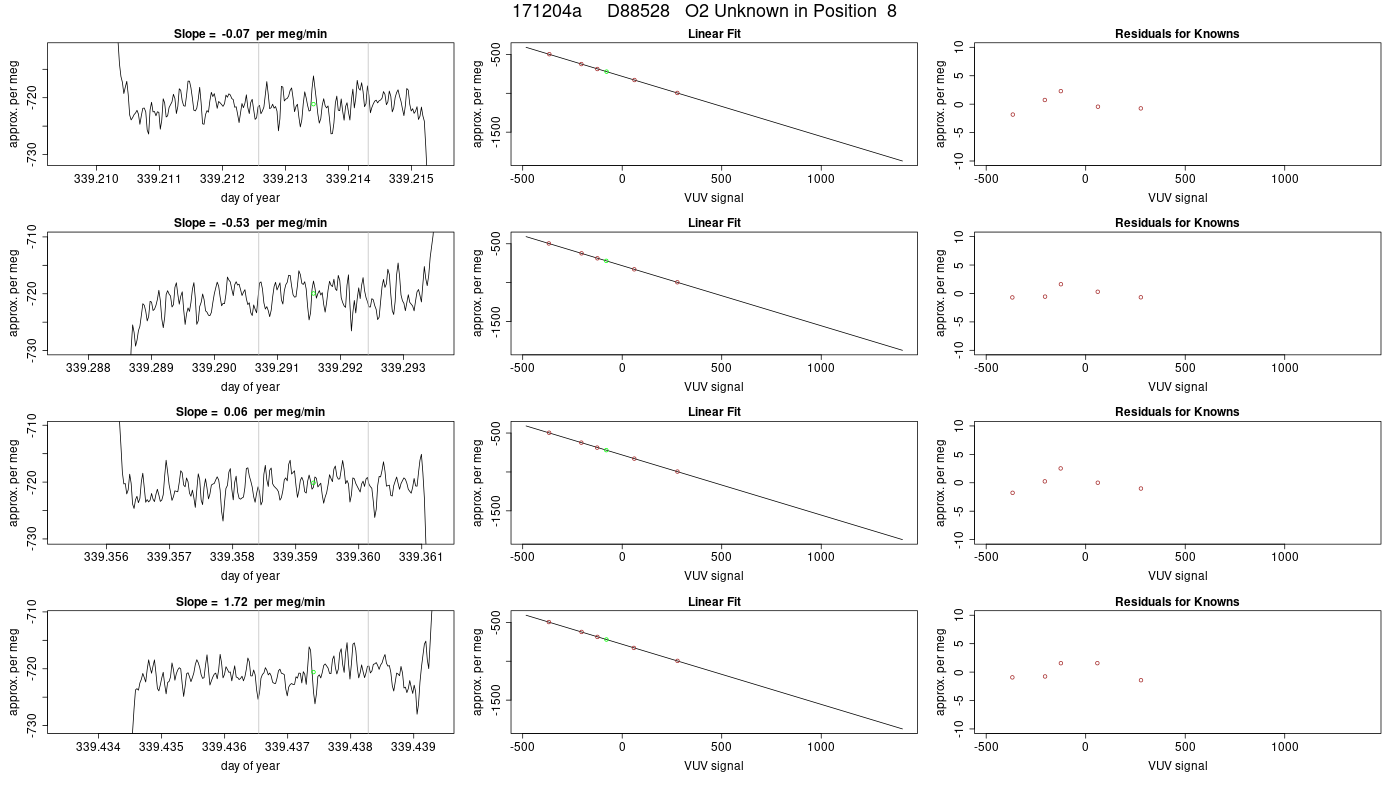

8 D88528    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.922 403.557 0.009 -677.21 1.90 403.760 0.009
339.000 403.562 0.018 -679.88 1.97 403.764 0.018
339.068 403.555 0.012 -680.69 2.00 403.758 0.012
339.146 403.548 0.015 -681.21 1.69 403.751 0.015
339.213 403.555 0.014 -680.93 2.22 403.758 0.014
339.292 403.561 0.010 -680.00 2.17 403.763 0.010
339.359 403.561 0.012 -680.26 1.77 403.764 0.012
339.437 403.550 0.017 -680.83 2.18 403.753 0.017

10 D743661    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.932 438.111 0.015 -467.25 2.39 438.316 0.015
338.989 438.070 0.011 -470.06 1.76 438.274 0.011
339.078 438.114 0.011 -468.62 1.95 438.319 0.011
339.135 438.070 0.012 -470.08 2.04 438.274 0.012
339.224 438.106 0.012 -468.93 1.63 438.311 0.012
339.281 438.068 0.017 -470.65 2.33 438.272 0.017
339.370 438.100 0.015 -469.36 2.10 438.304 0.015
339.427 438.070 0.017 -470.27 1.78 438.275 0.017

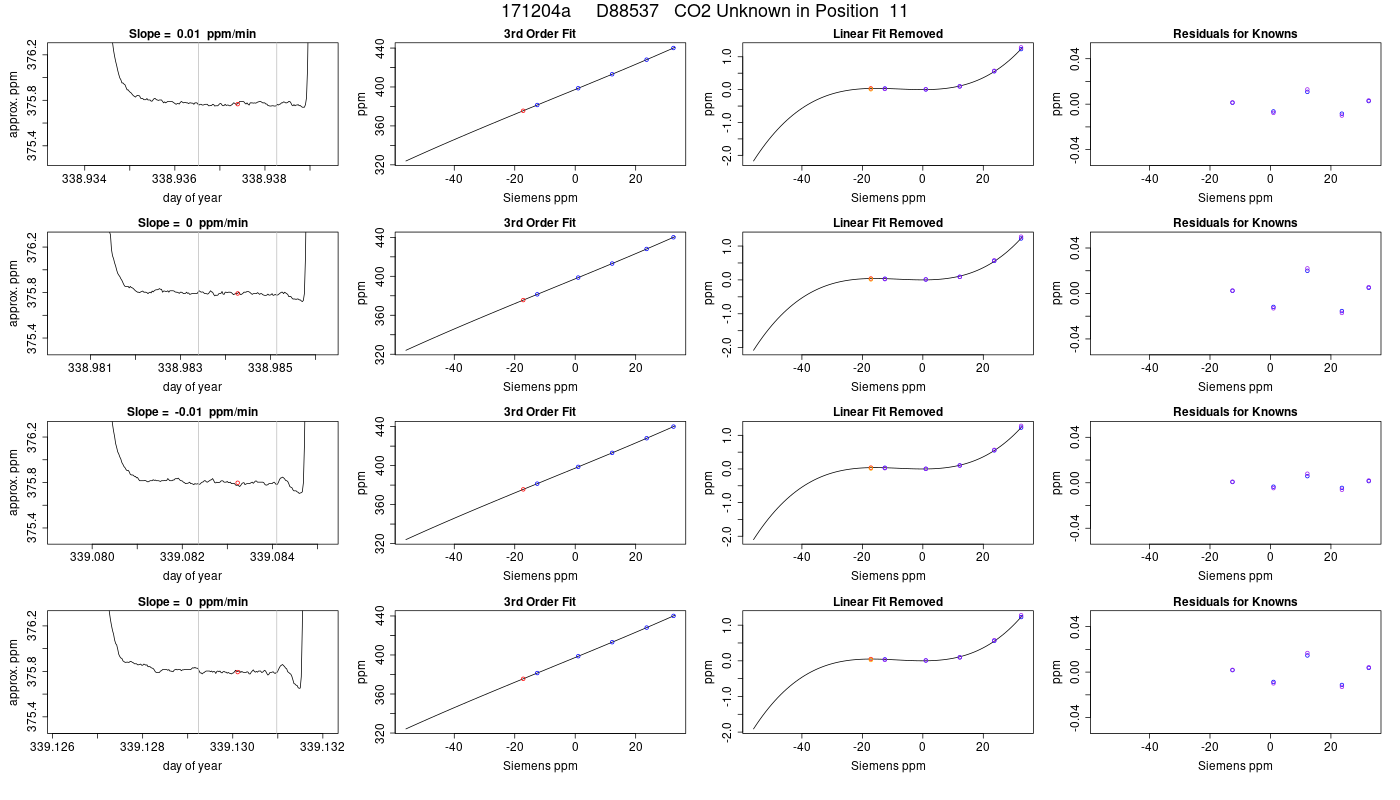

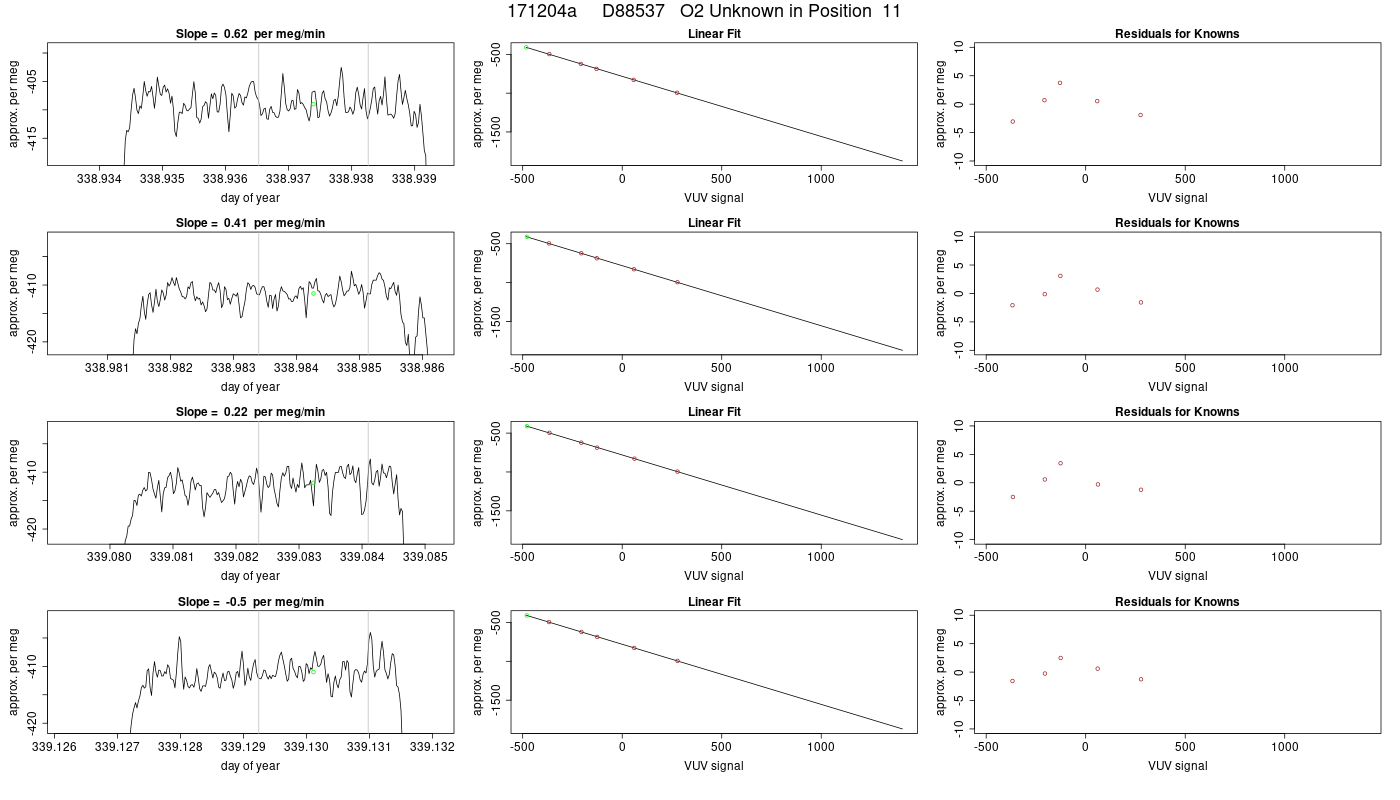

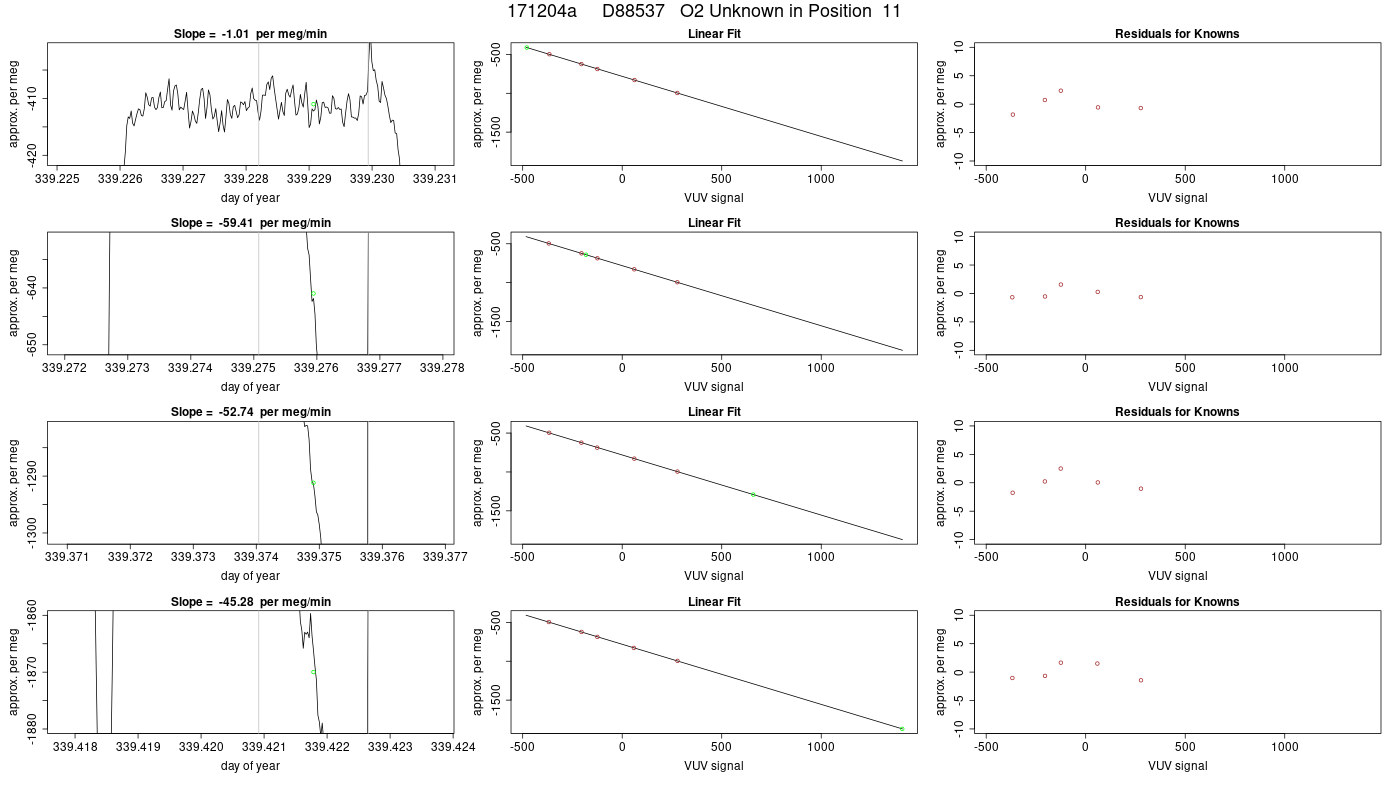

11 D88537    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.937 375.560 0.013 -397.15 2.01 375.773 0.013
338.984 375.577 0.011 -400.02 1.48 375.791 0.011
339.083 375.596 0.013 -399.07 2.38 375.809 0.013
339.130 375.592 0.009 -399.00 1.76 375.805 0.009
339.229 375.619 0.017 -397.55 2.09 375.833 0.017
339.276 368.611 0.087 -635.49 43.07 368.806 0.087
339.375 346.444 0.089 -1307.15 38.32 346.484 0.089
339.422 324.092 0.073 -1908.11 33.23 323.786 0.073

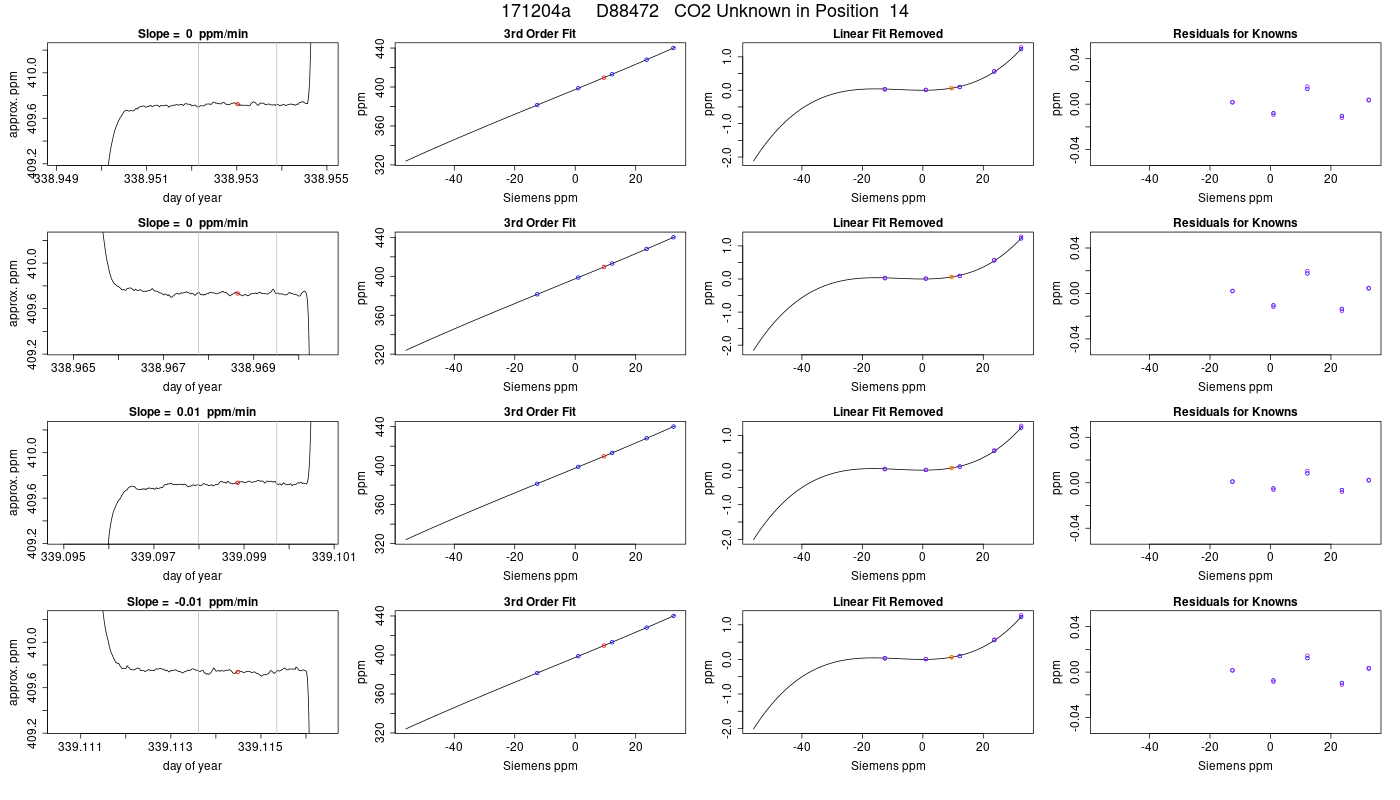

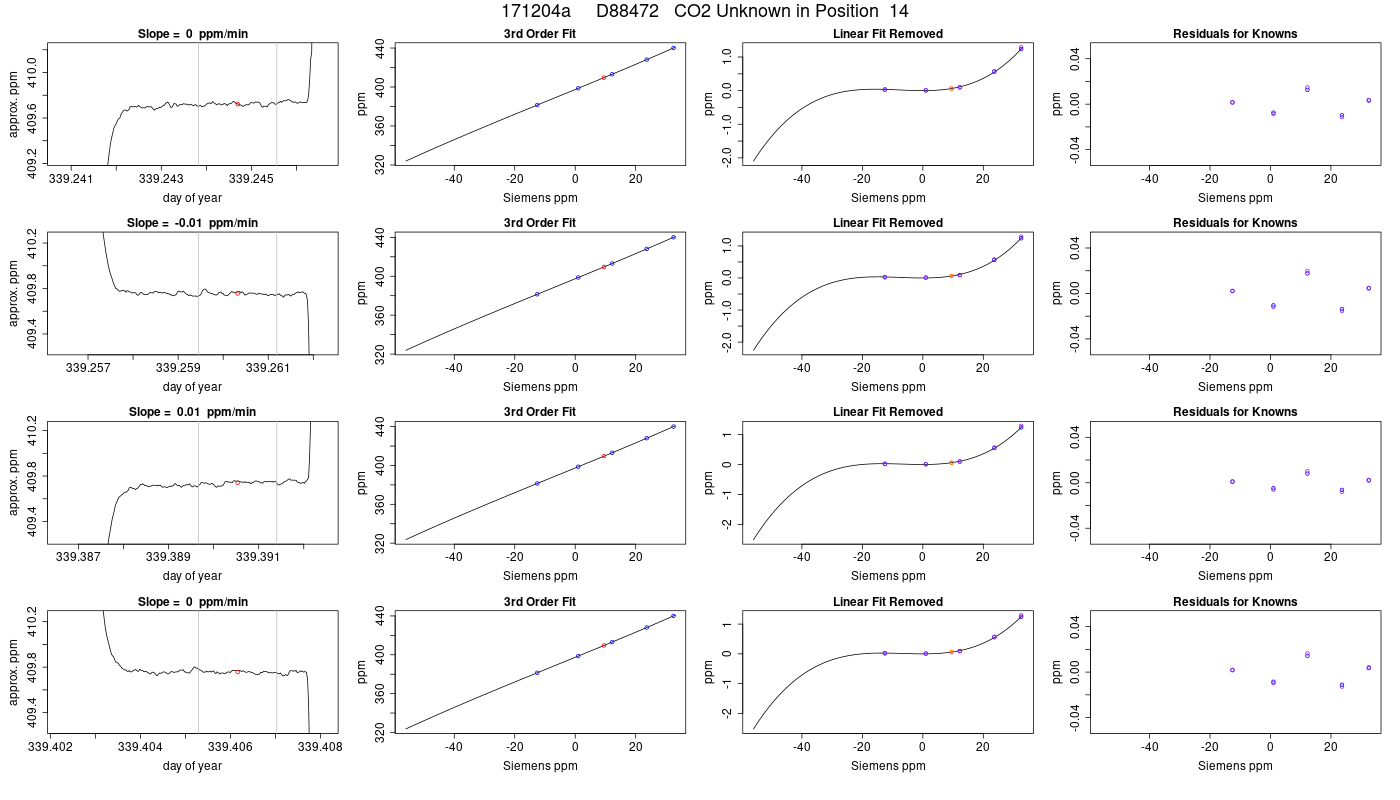

14 D88472    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.953 409.605 0.010 -1180.10 2.06 409.799 0.010
338.969 409.610 0.011 -1181.76 2.39 409.804 0.011
339.099 409.602 0.013 -1188.89 3.44 409.796 0.013
339.114 409.601 0.014 -1180.53 1.58 409.795 0.014
339.245 409.586 0.013 -1188.46 3.58 409.781 0.013
339.260 409.618 0.013 -1180.37 1.85 409.812 0.013
339.391 409.601 0.014 -1187.44 3.91 409.795 0.014
339.406 409.609 0.010 -1181.49 2.16 409.804 0.010

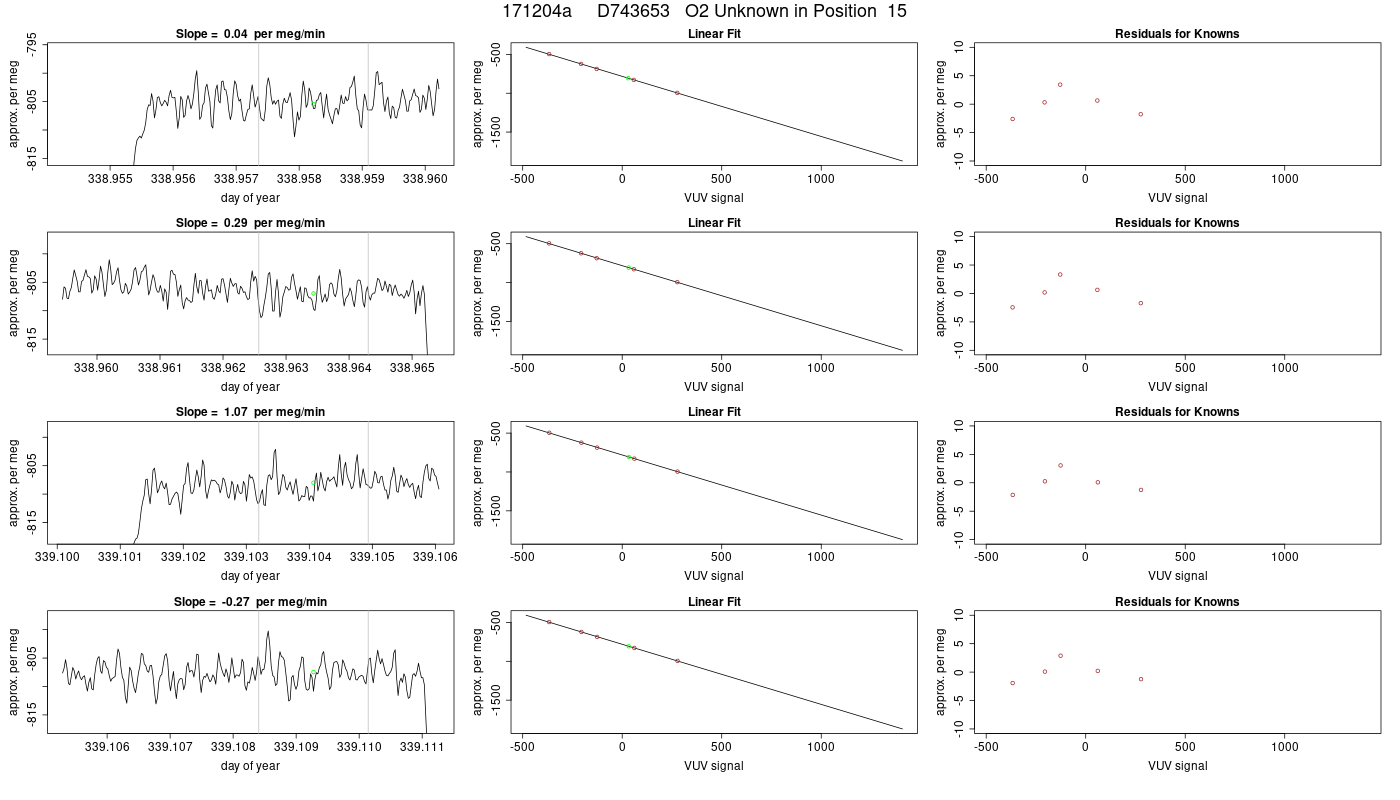

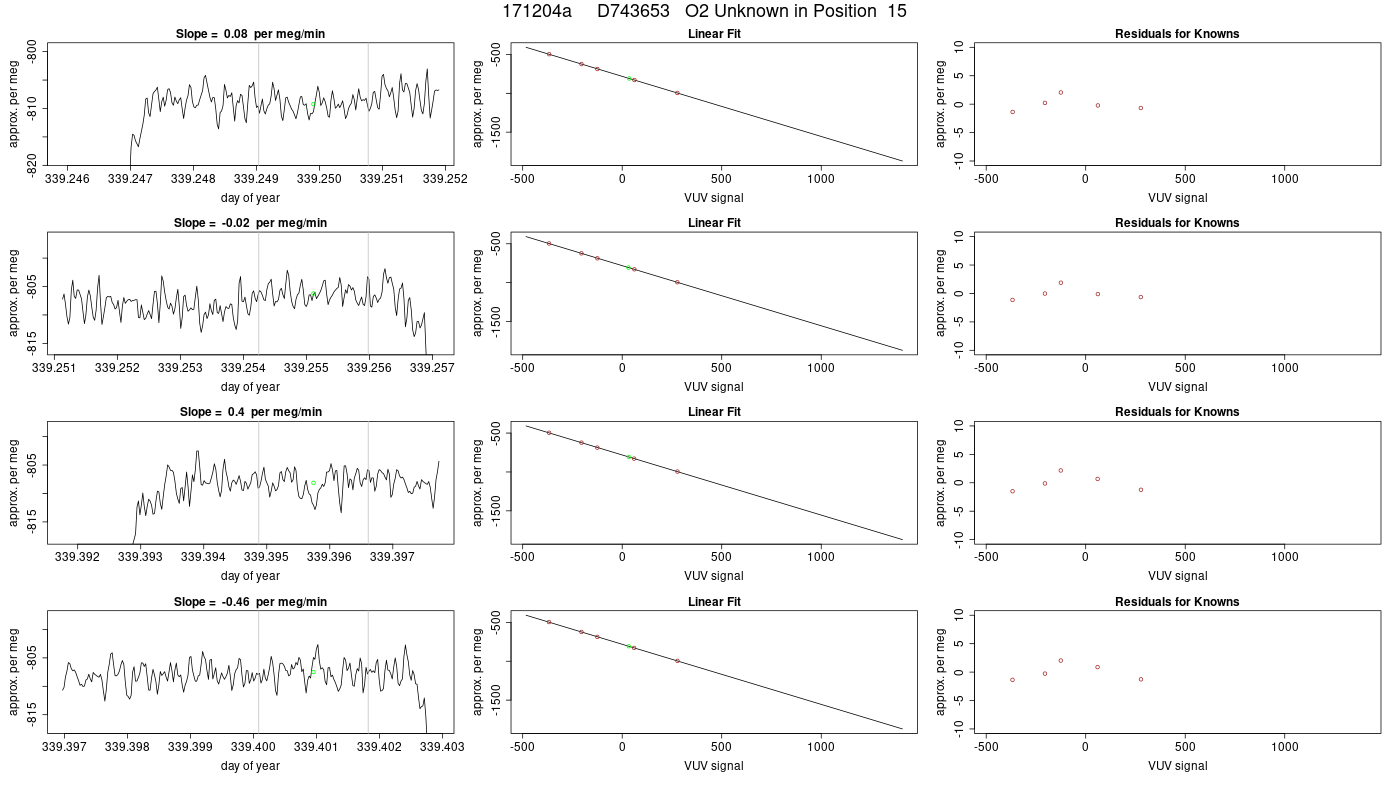

15 D743653    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
338.958 421.058 0.014 -749.56 2.18 421.243 0.014
338.963 421.064 0.013 -750.95 1.97 421.249 0.013
339.104 421.062 0.012 -750.72 2.10 421.246 0.012
339.109 421.056 0.015 -750.24 2.26 421.241 0.015
339.250 421.055 0.010 -752.01 1.48 421.240 0.010
339.255 421.057 0.013 -749.05 1.51 421.242 0.013
339.396 421.052 0.012 -751.06 2.00 421.237 0.012
339.401 421.053 0.010 -750.50 1.86 421.238 0.010
