UEA CRAM Lab O2 and CO2 calibration results
RUN = 171018a
PROCESSED: 16:31:16 Mon 21Aug2023

Notes
Logfile

Results

Using data from 291.782 to 292.254 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88489 400.133 0.007 -0.008 400.340 0.007 -0.008 7 -456.76 3.09 -19.71 7
4 D88531 401.613 0.006 0.009 401.818 0.006 0.009 7 -641.40 2.23 -14.34 7
7 D88530 426.151 0.004 -0.010 426.336 0.004 -0.010 7 -595.24 2.73 -17.67 7
8 D88528 403.553 0.007 0.028 403.756 0.007 0.028 7 -678.64 1.44 -9.41 7
10 D743661 438.094 0.011 -0.029 438.298 0.011 -0.029 7 -464.55 2.82 -18.50 7
11 D88537 375.530 0.016 -0.075 375.743 0.016 -0.075 7 -392.69 4.04 -26.85 7
14 D88472 409.595 0.014 0.008 409.790 0.014 0.008 7 -1185.02 4.06 6.54 6
15 D743653 421.029 0.008 0.015 421.214 0.008 0.015 7 -748.28 2.02 -10.84 7
WT D258964 397.540 0.006 -0.022 397.751 0.006 -0.022 91 -744.70 1.39 -9.82 91
Text File

Raw Data and Diagnostics Figures

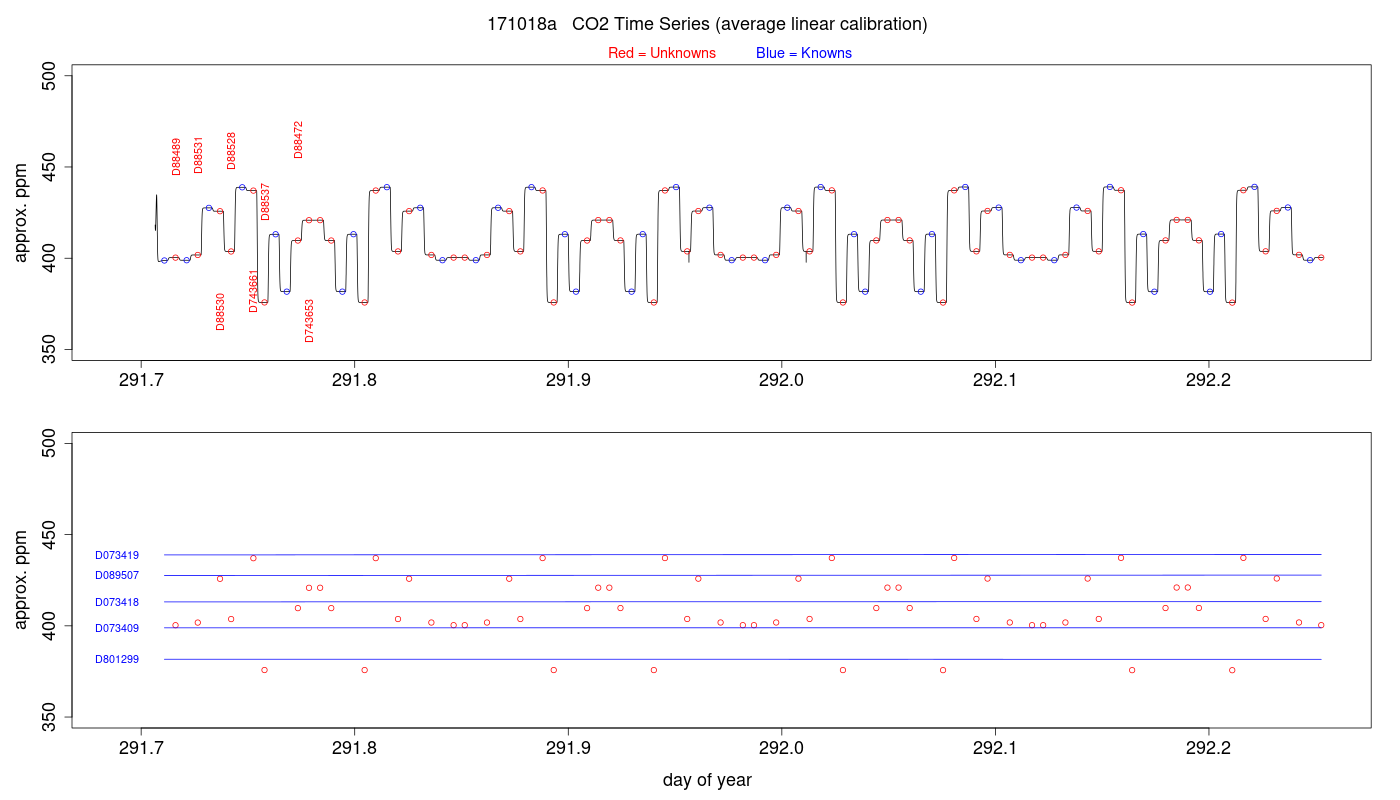

CO2 Timeseries

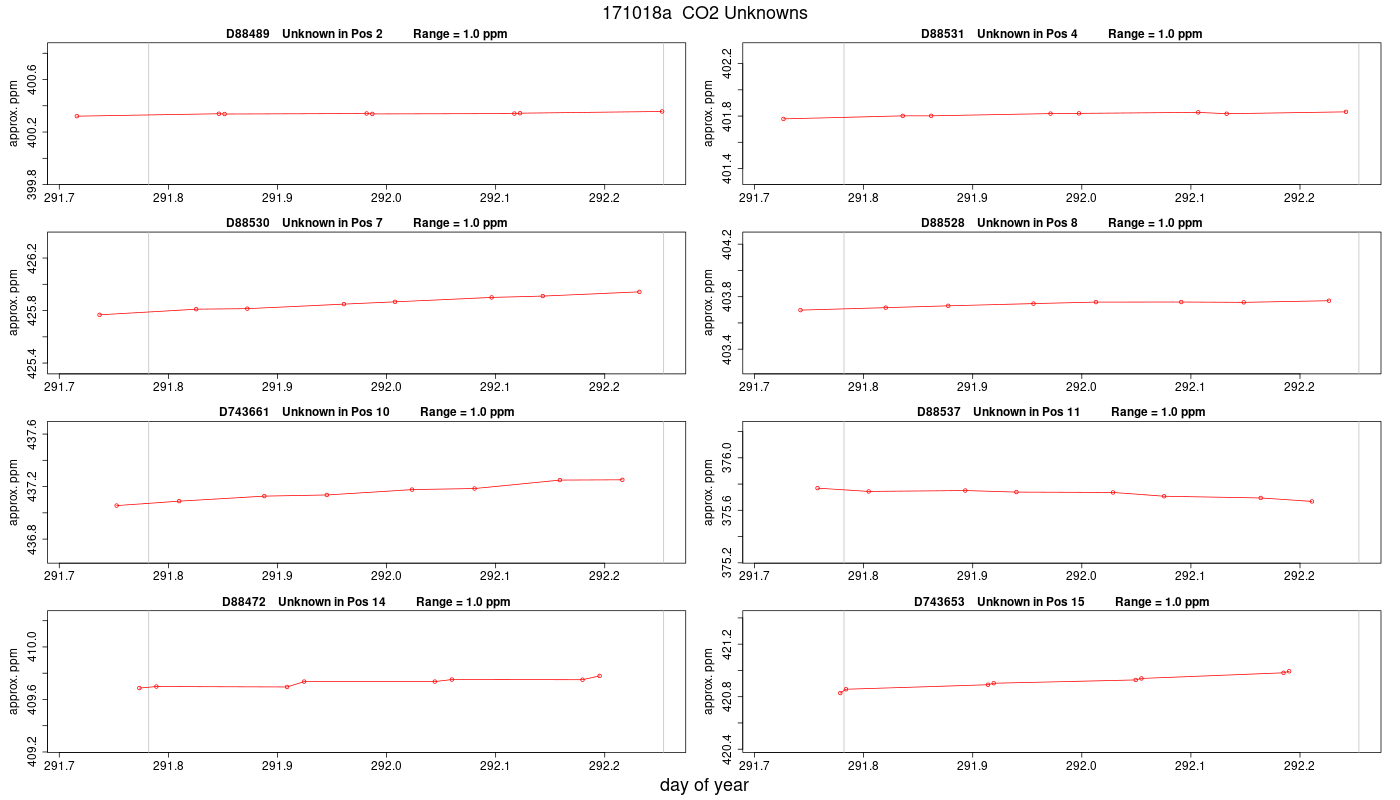

 CO2 Averages for Unknowns

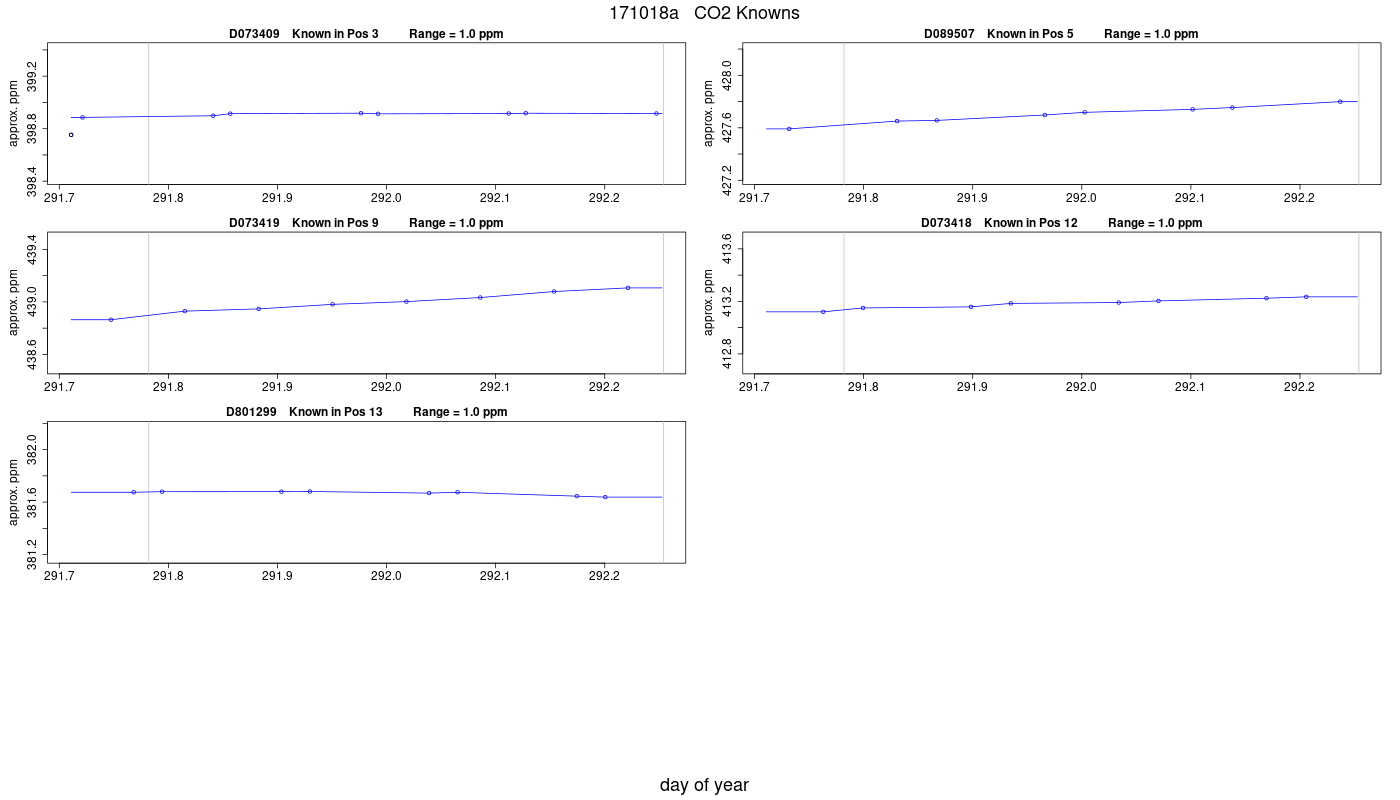

 CO2 Averages for Knowns

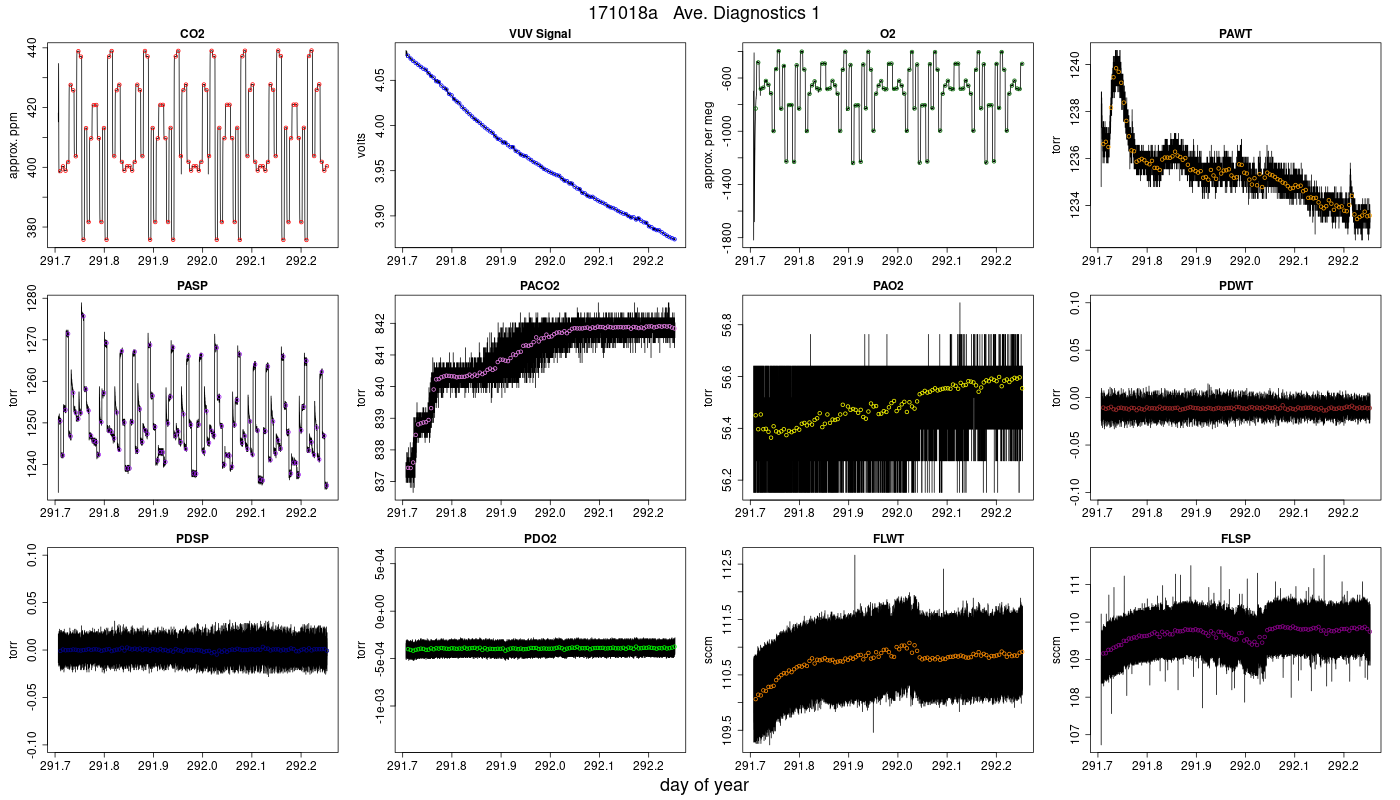

Jog Ave. Diagnostics 1

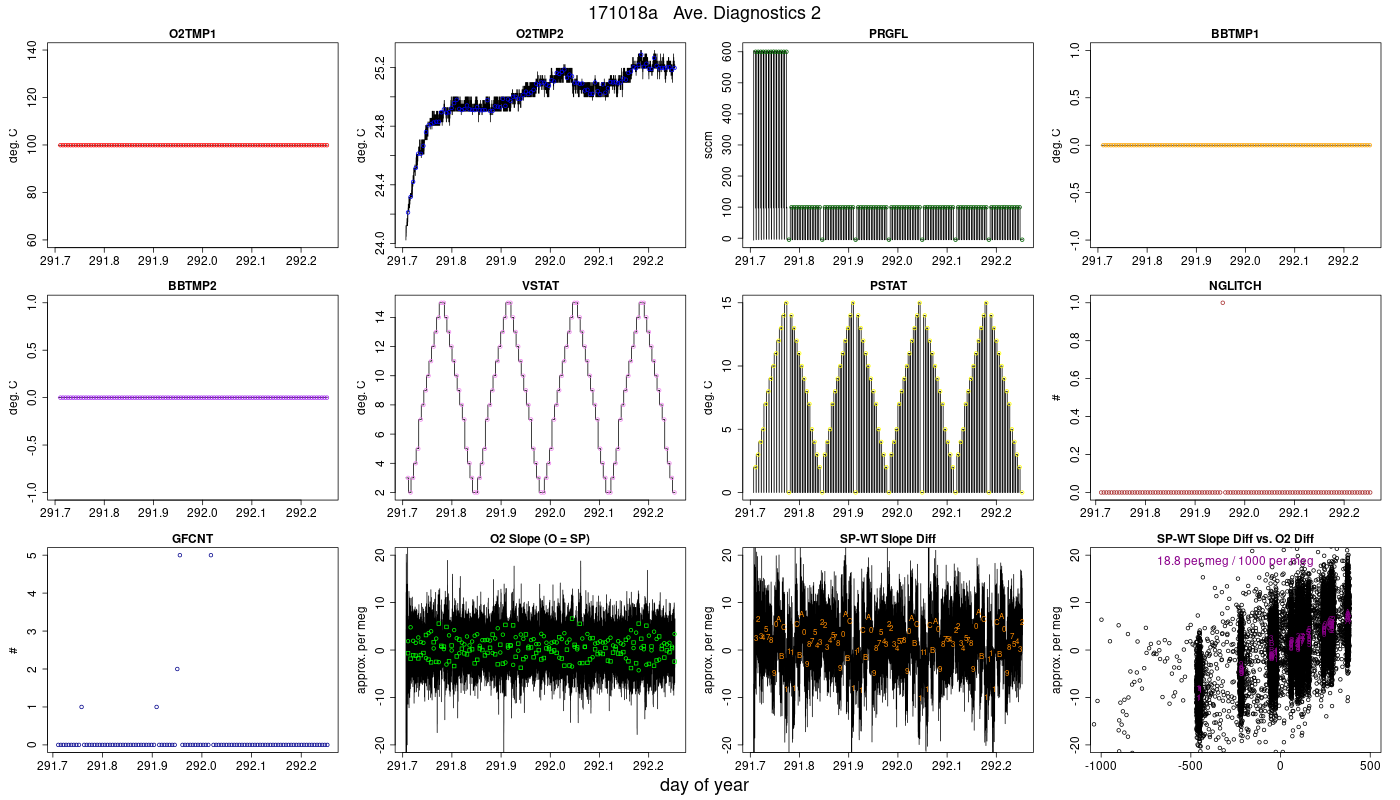

 Jog Ave. Diagnostics 2

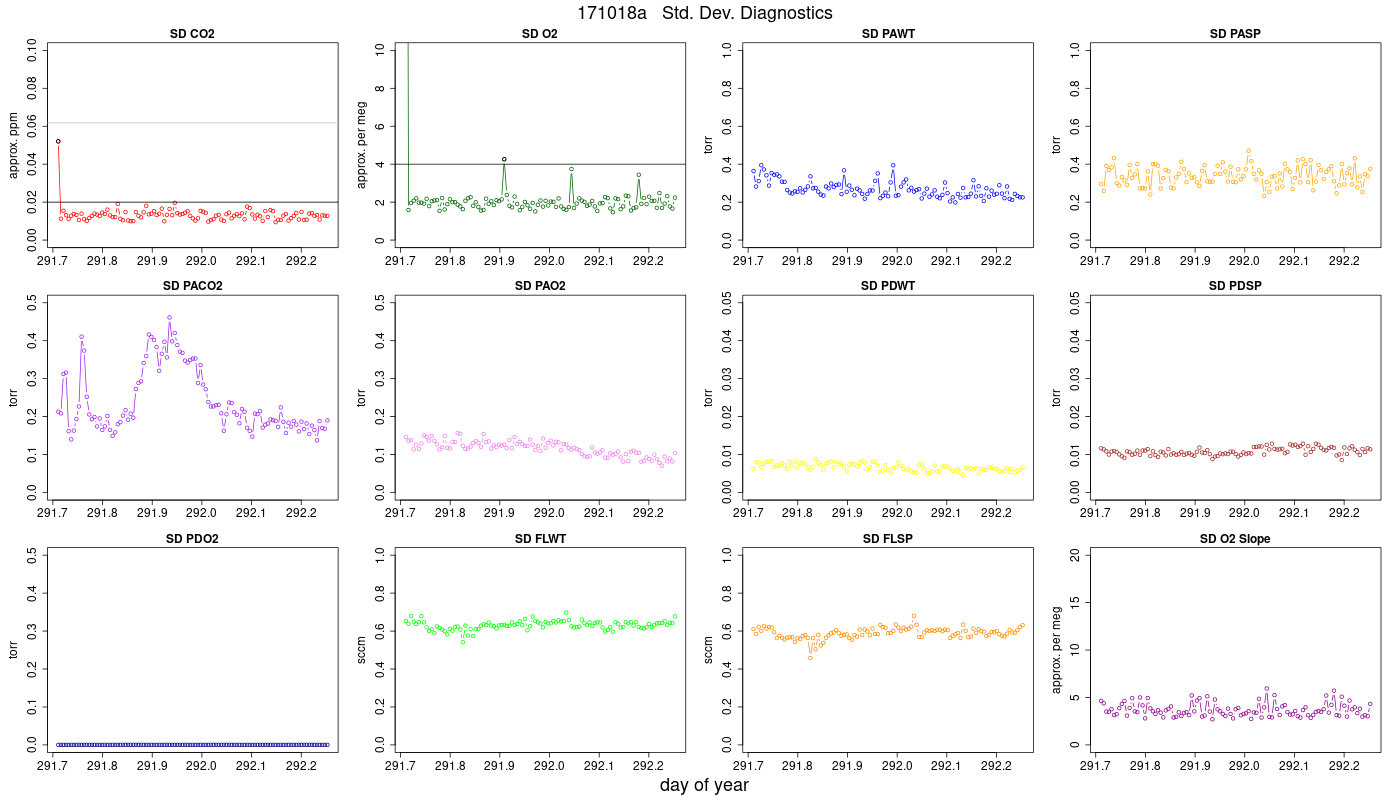

 Jog Std. Dev. Diagnostics

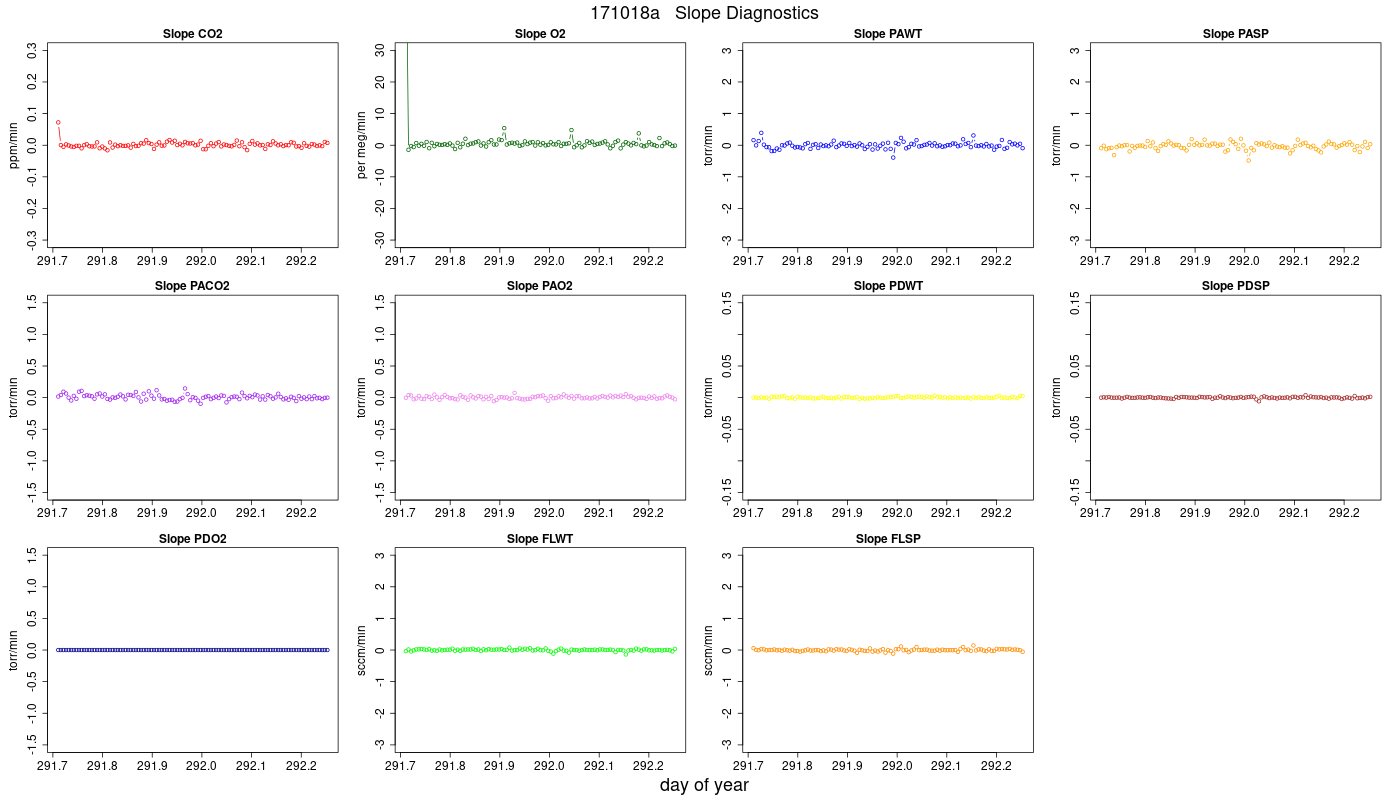

Jog Slope Diagnostics

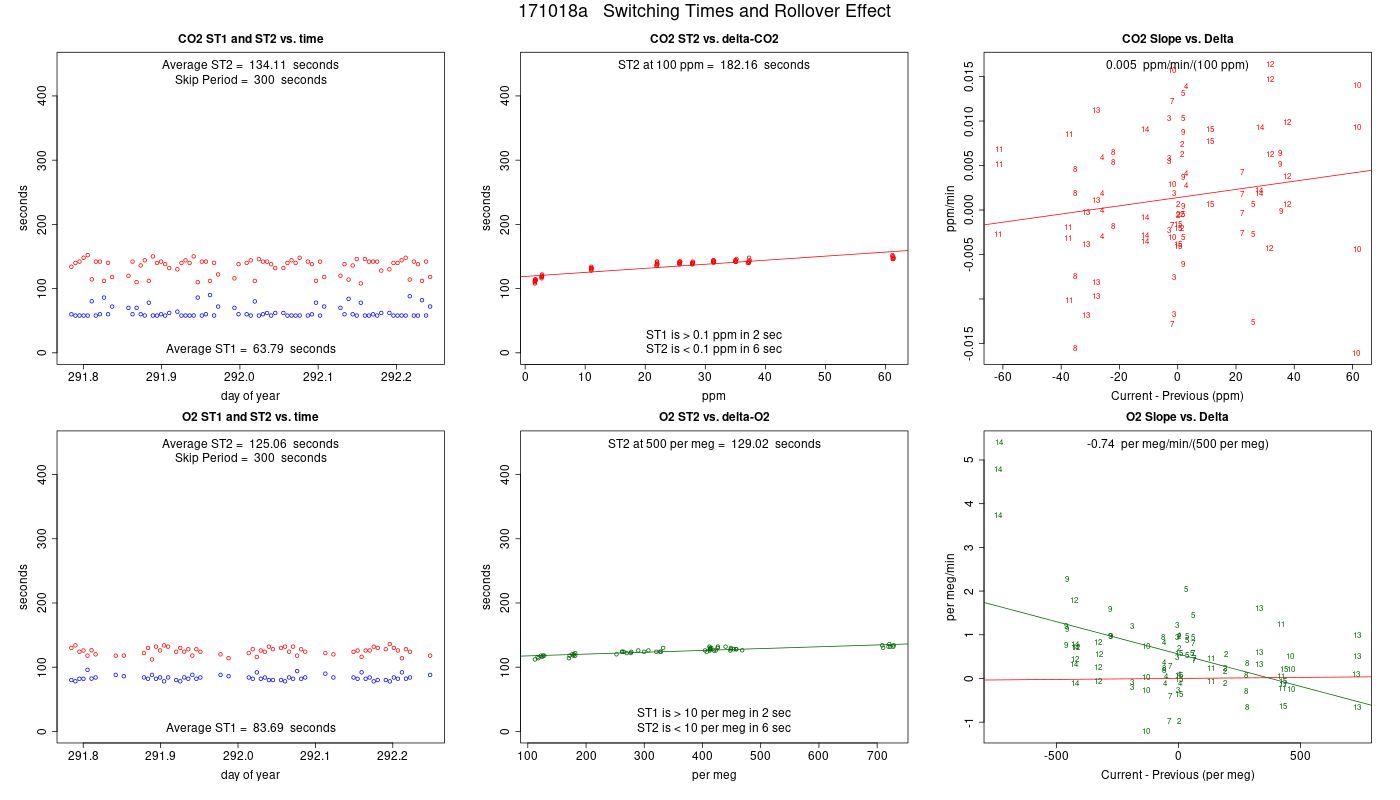

 Rollover Effect

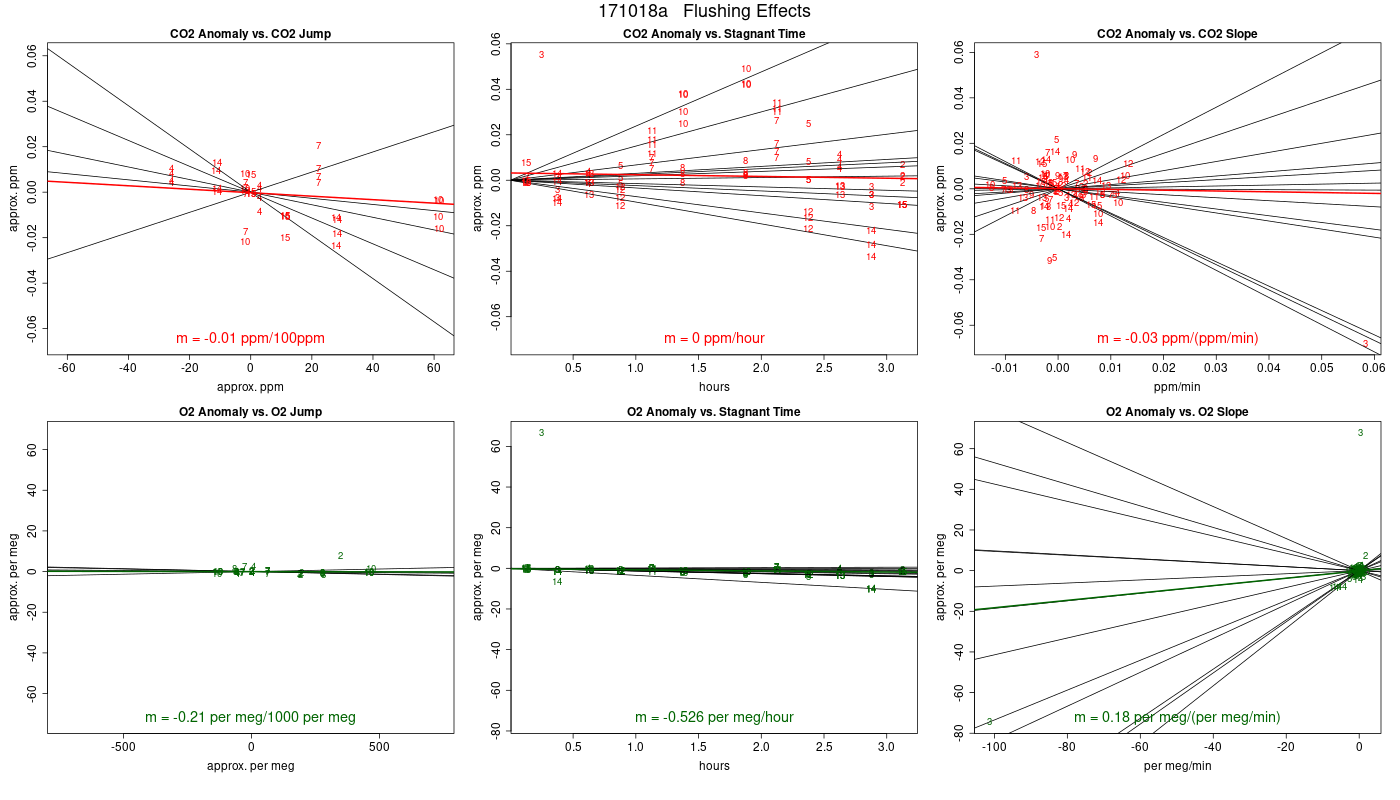

 Flushing Effect
CO2 Parameters

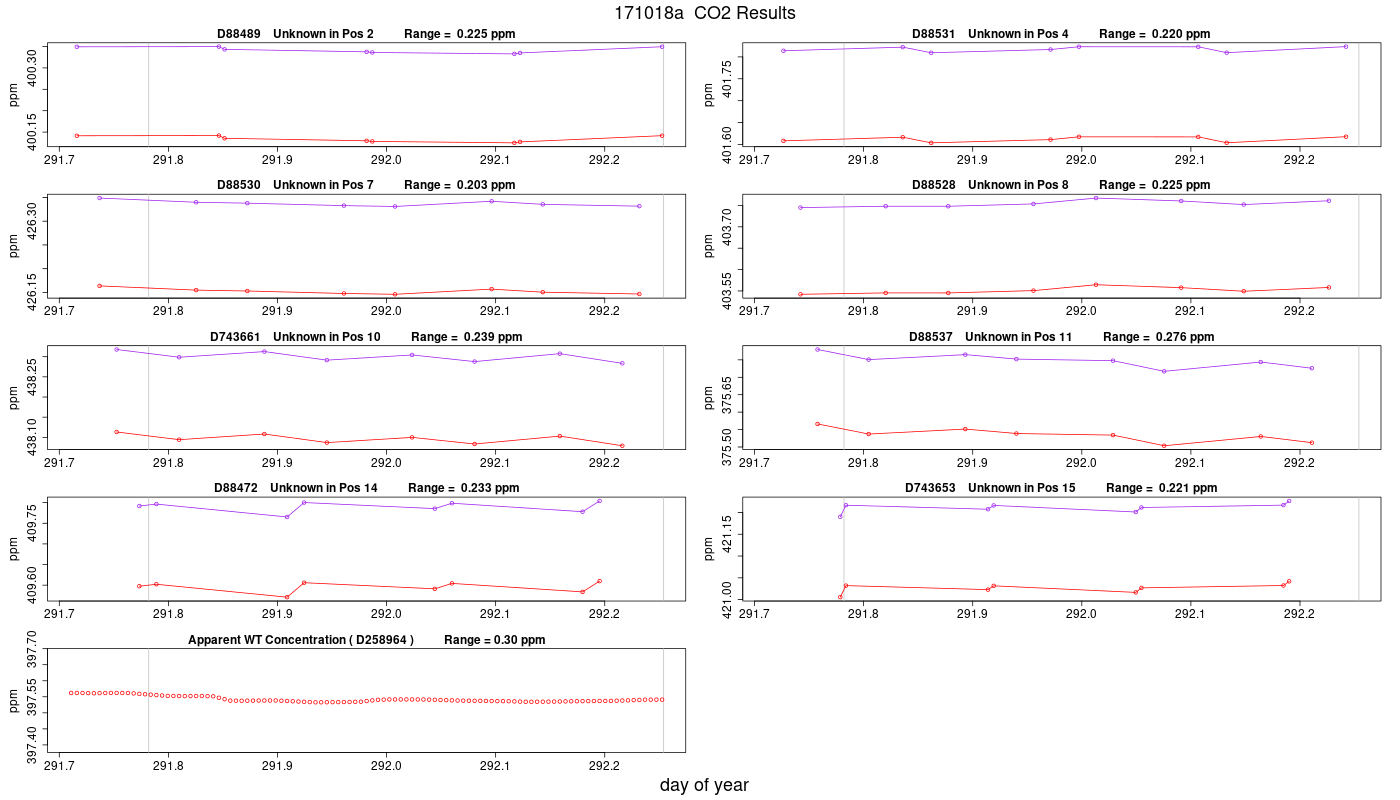

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

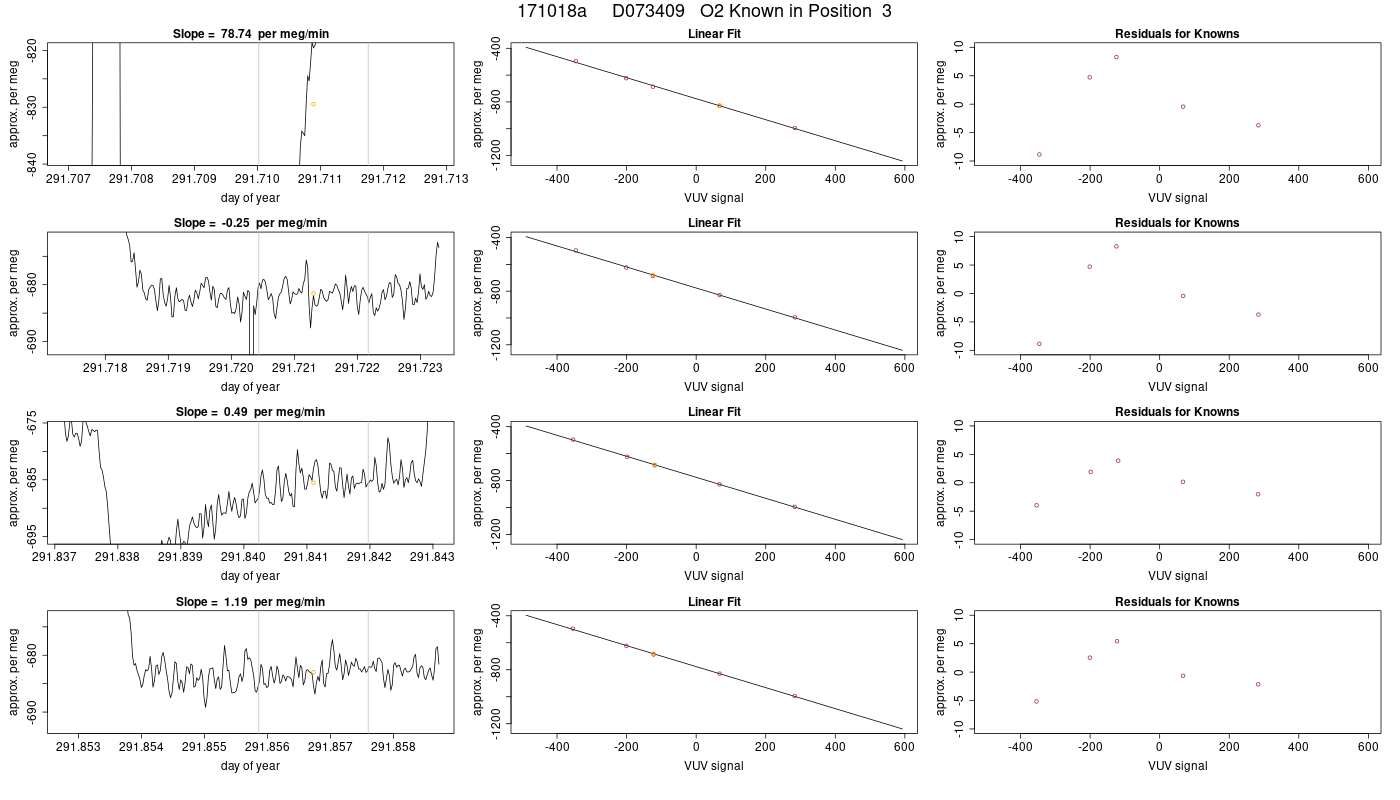

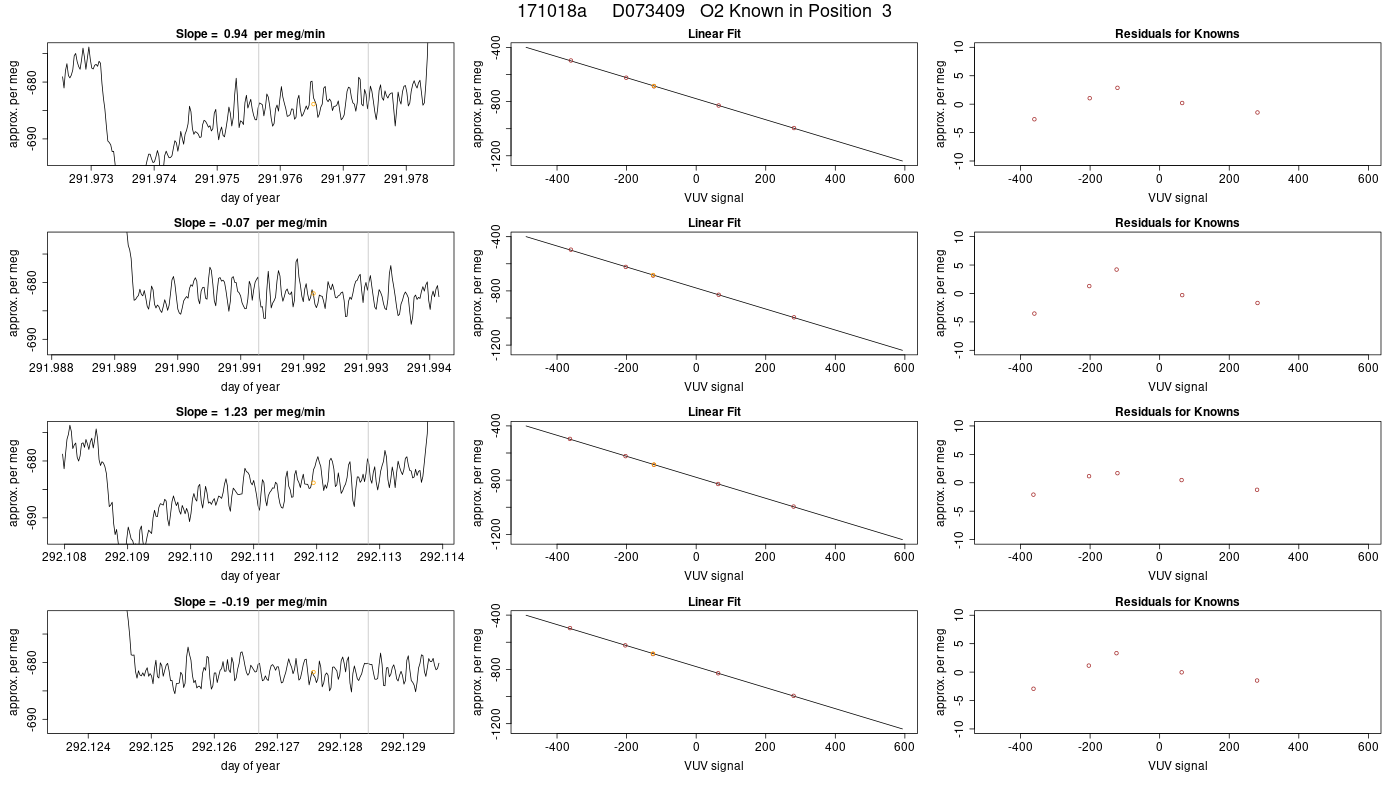

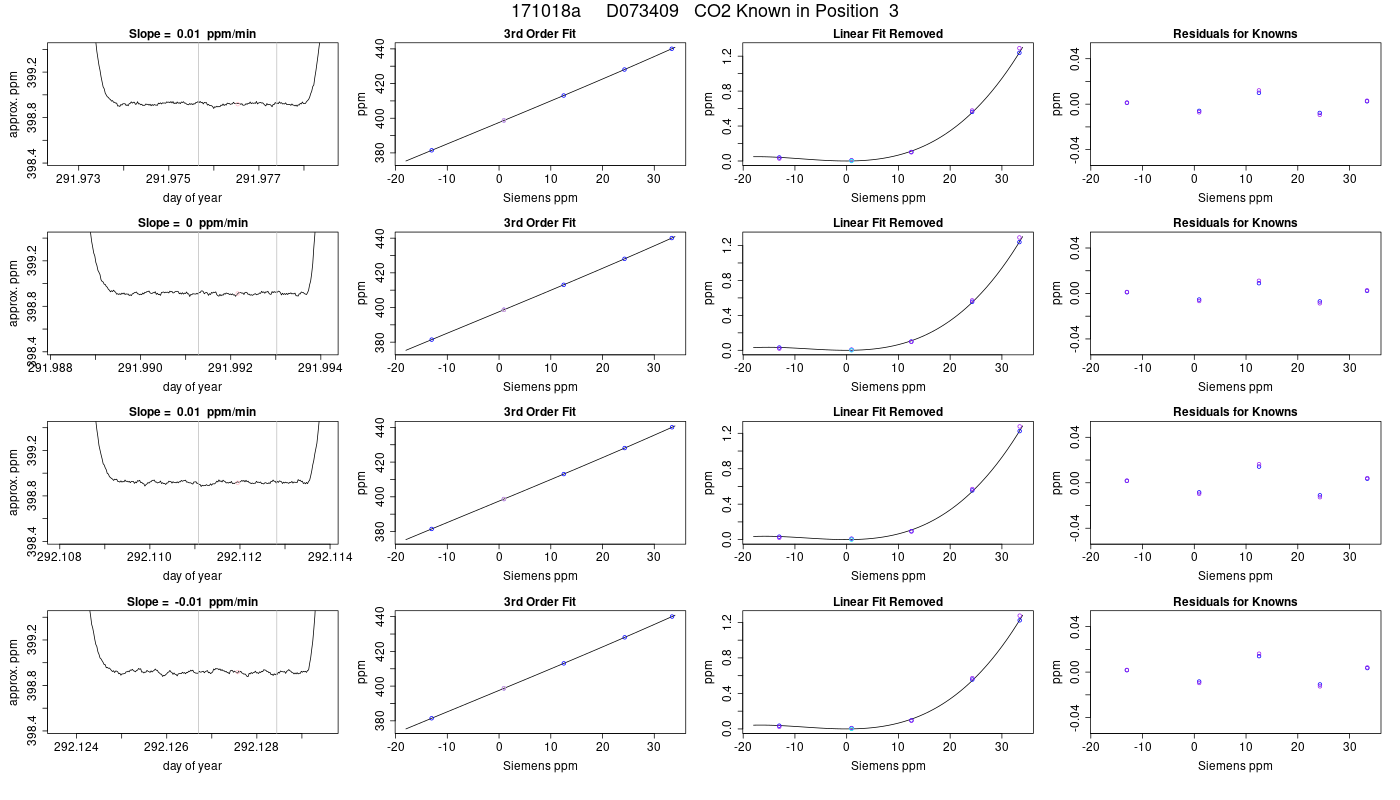

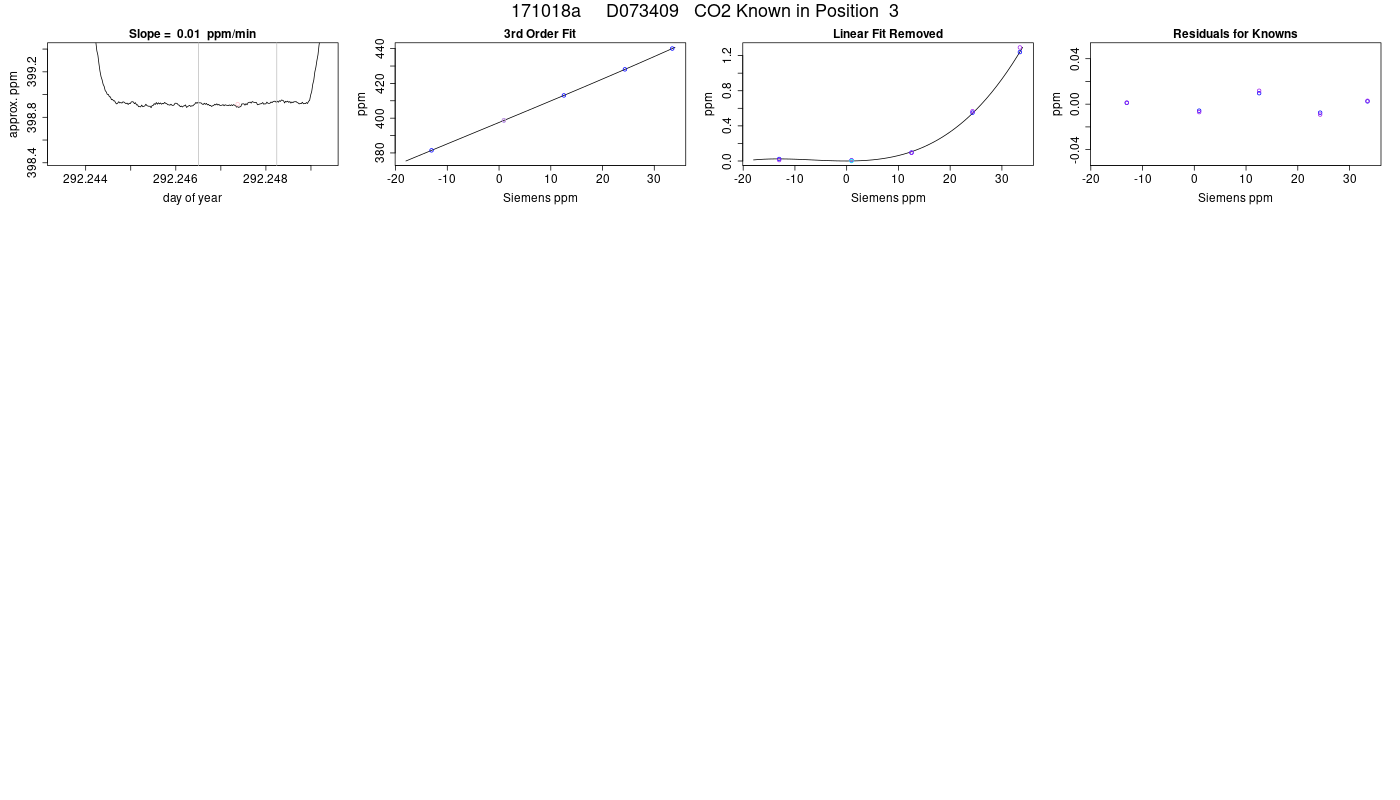

3 D073409 398.707 -0.007 0.001 398.918 -0.008 0.001 7 -651.78 3.29 1.36 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

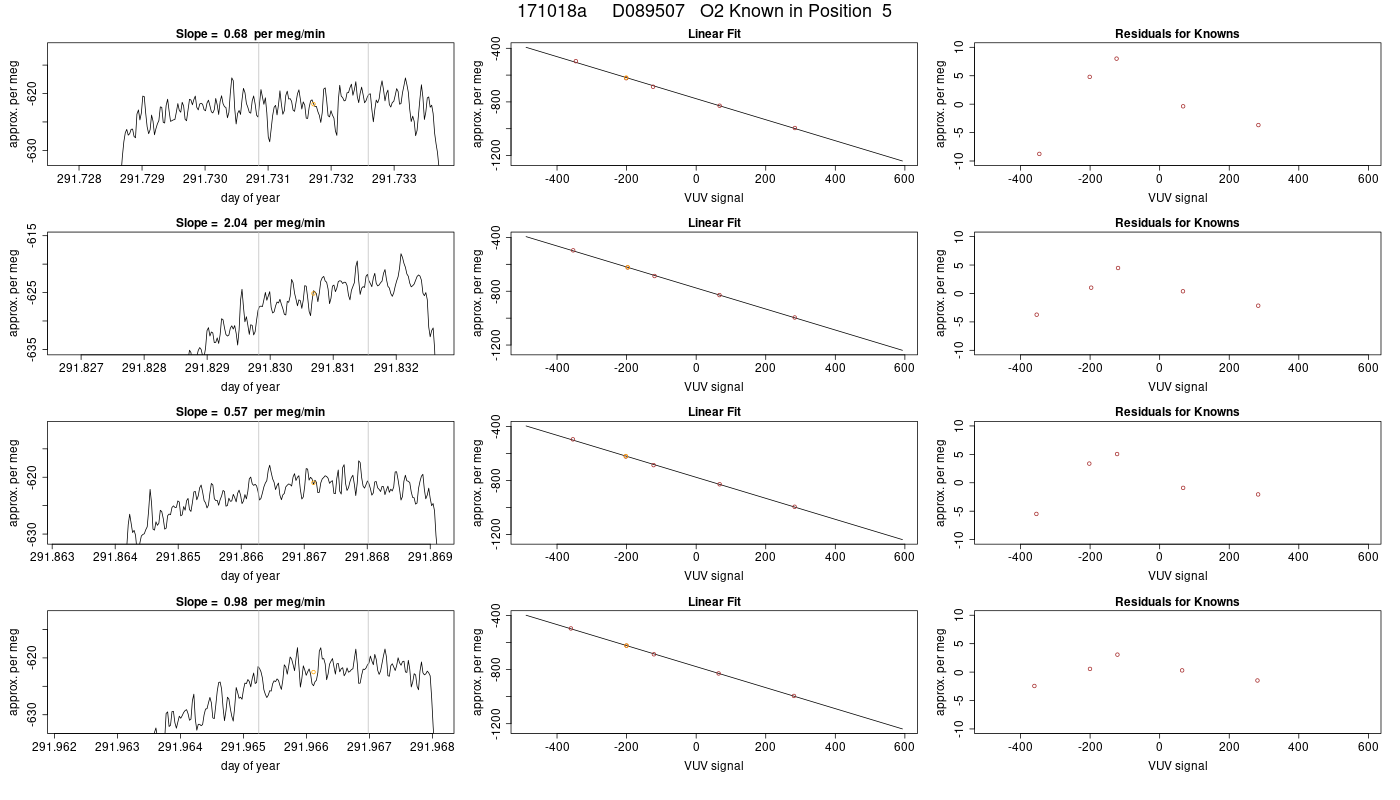

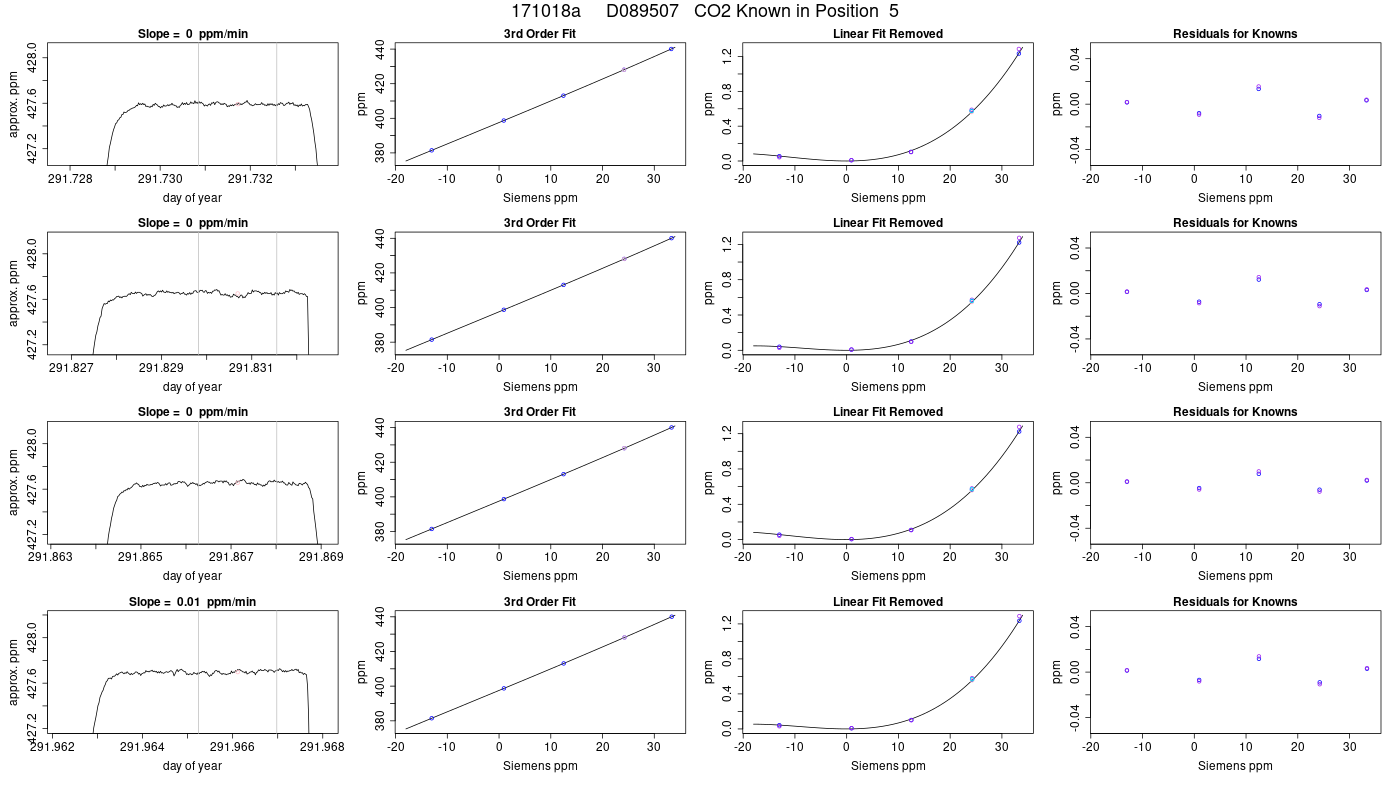

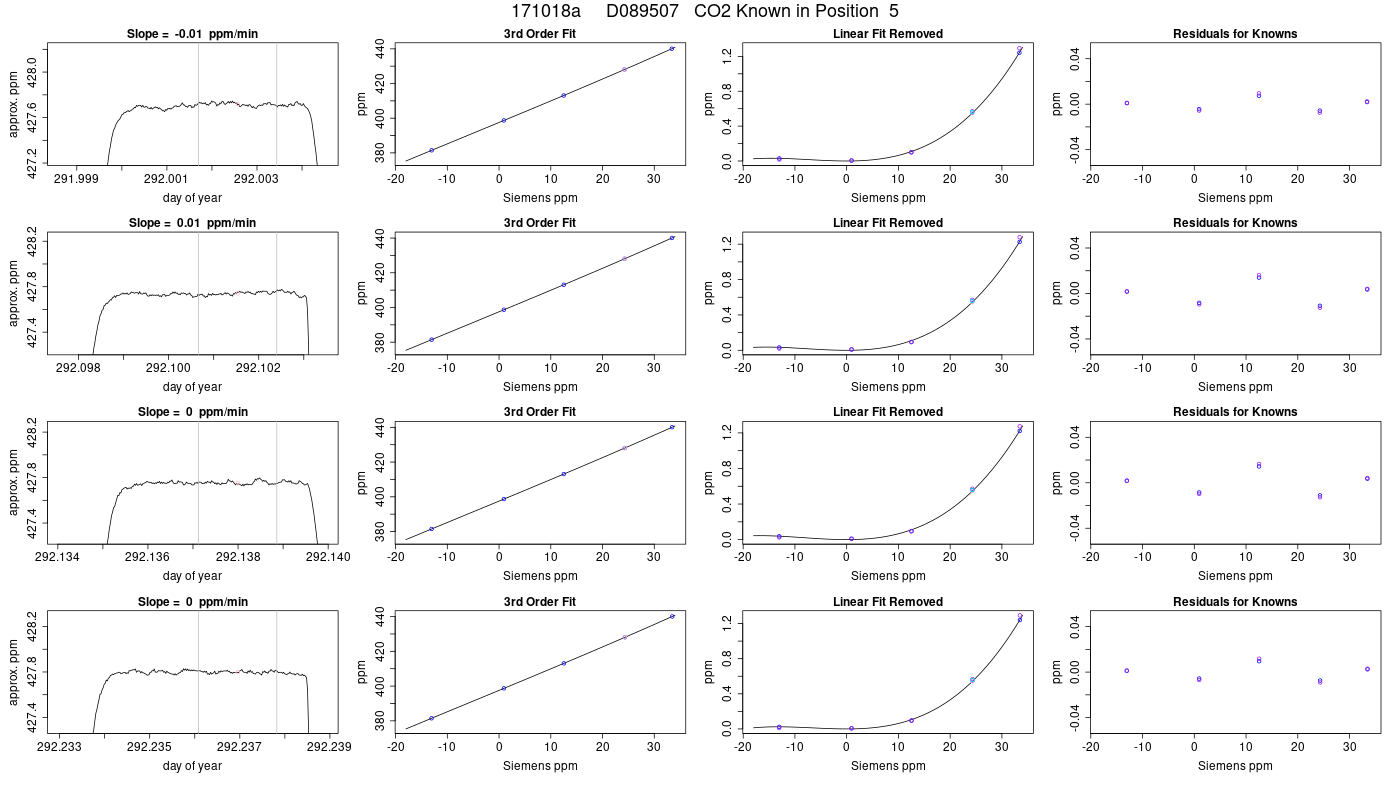

5 D089507 428.087 -0.009 0.002 428.275 -0.010 0.002 7 -559.23 1.30 1.07 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

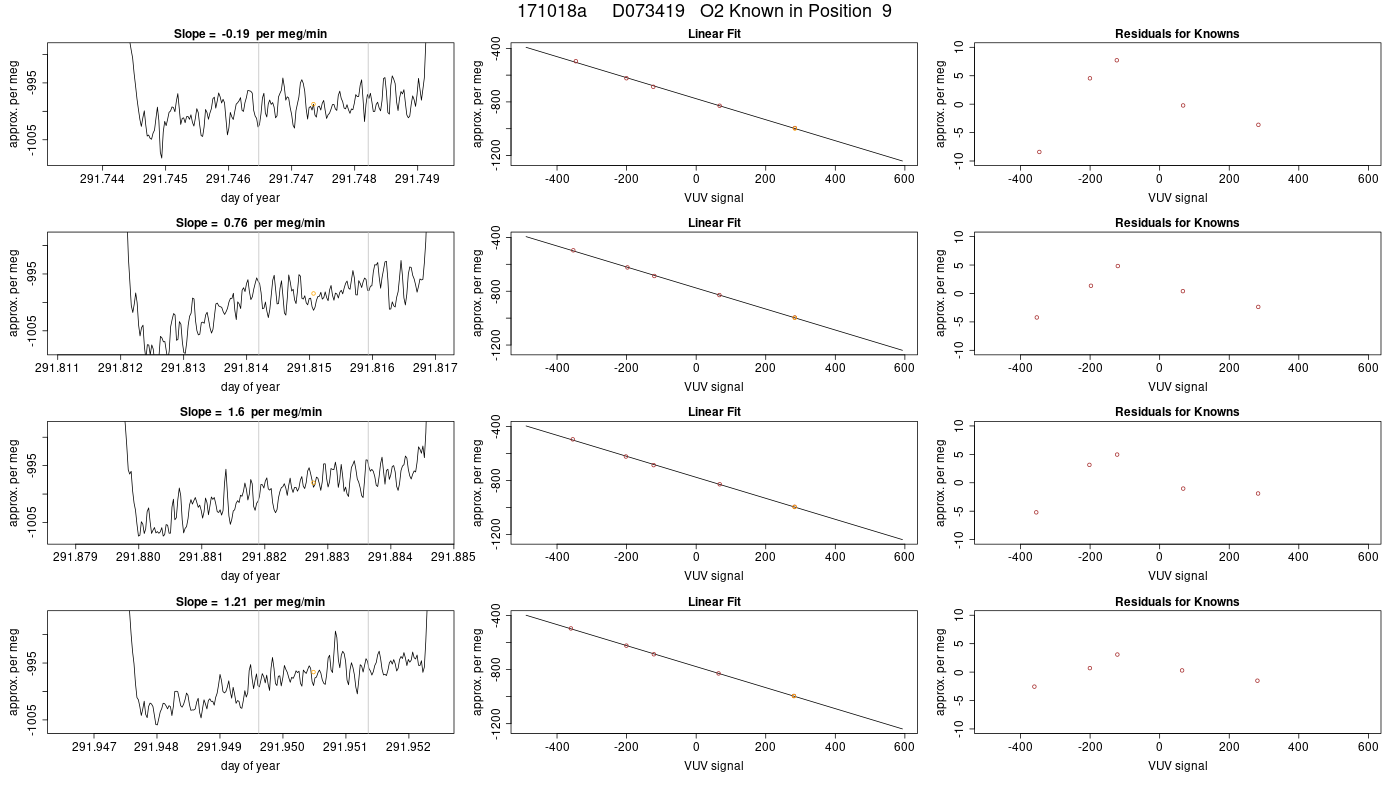

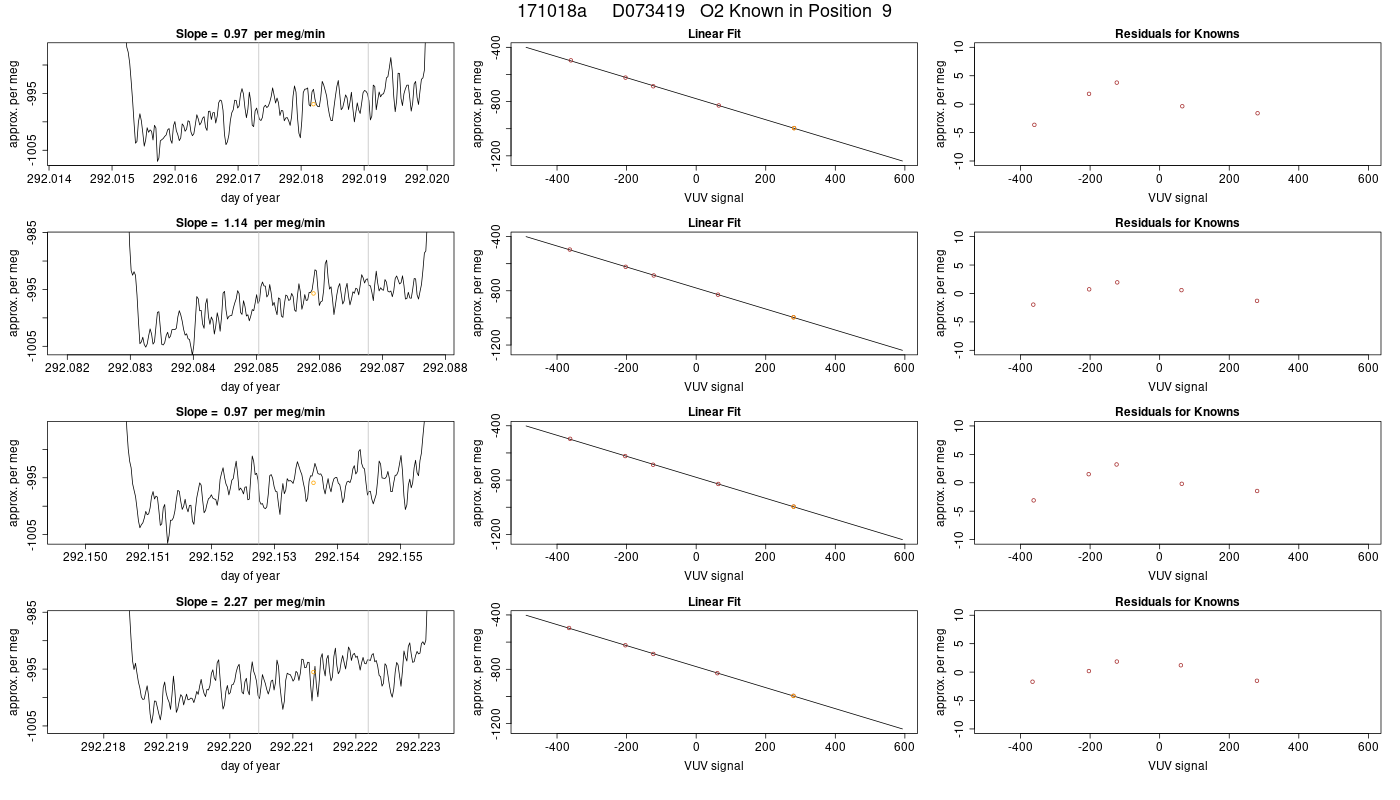

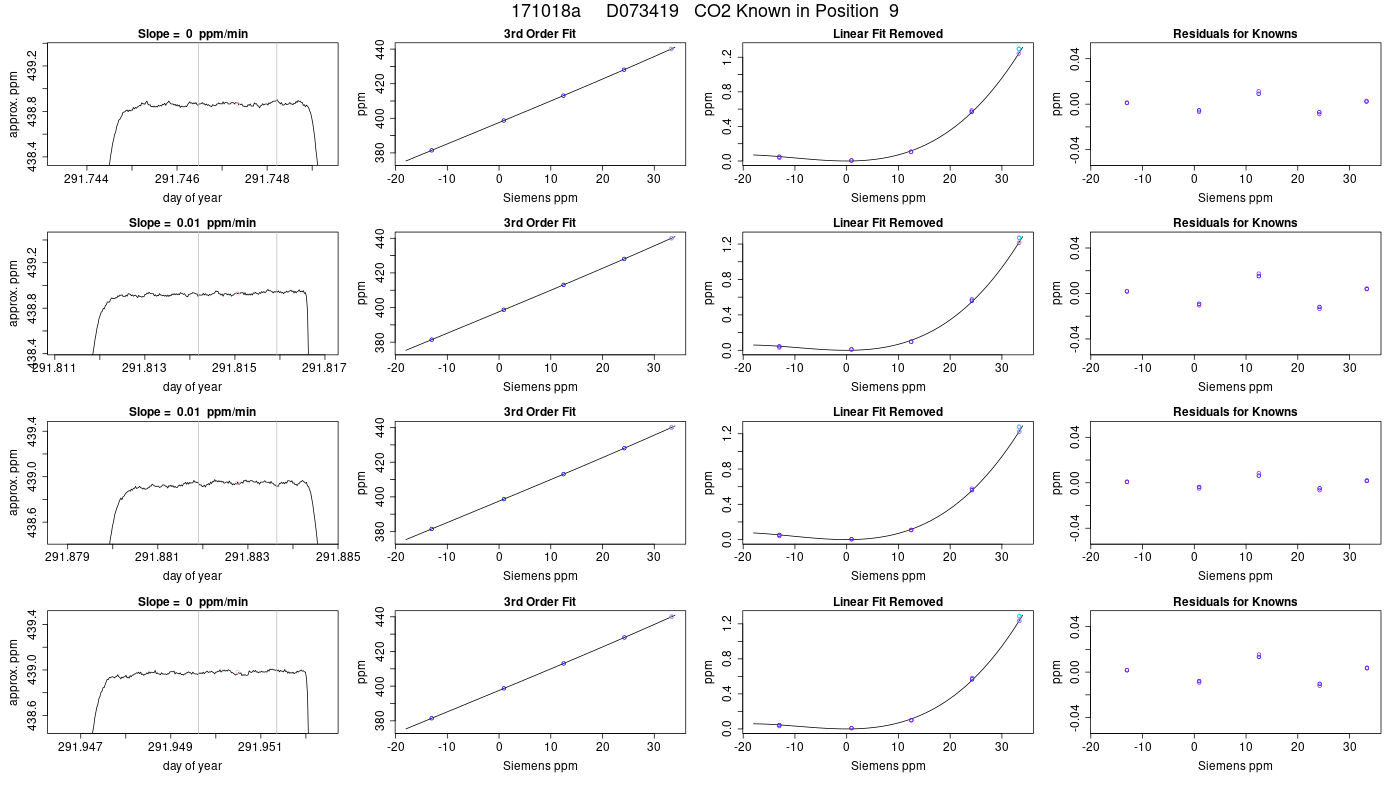

9 D073419 440.065 0.003 0.001 440.275 0.003 0.001 7 -919.32 -1.66 0.36 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

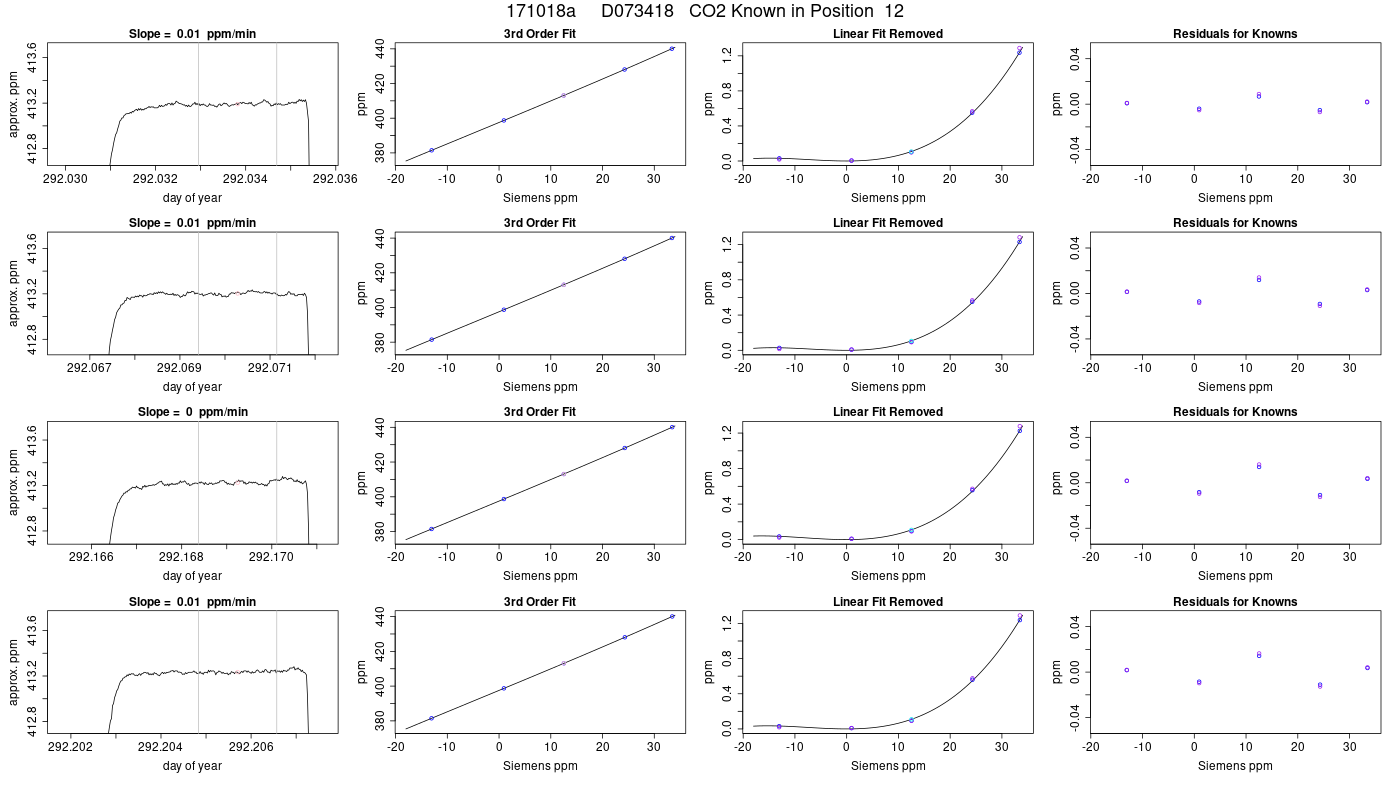

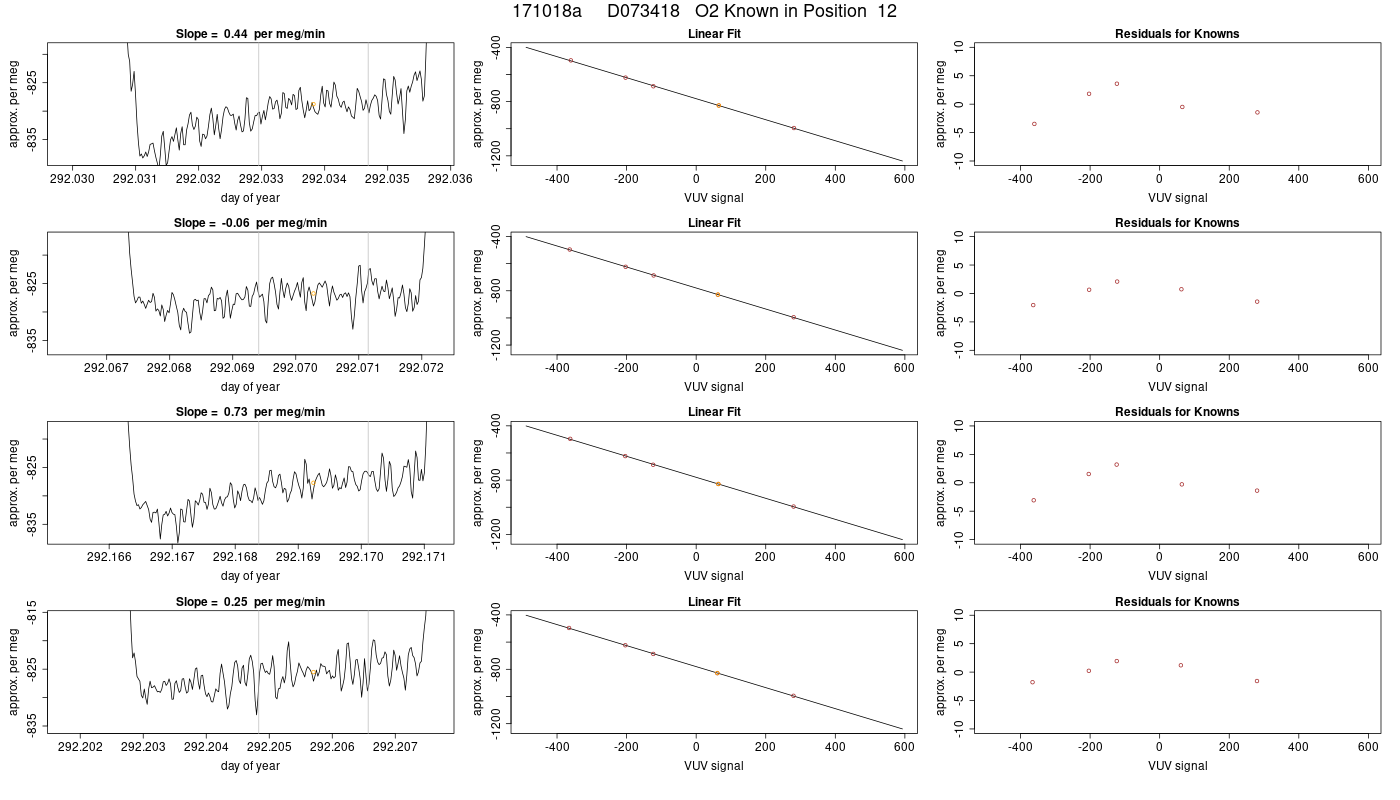

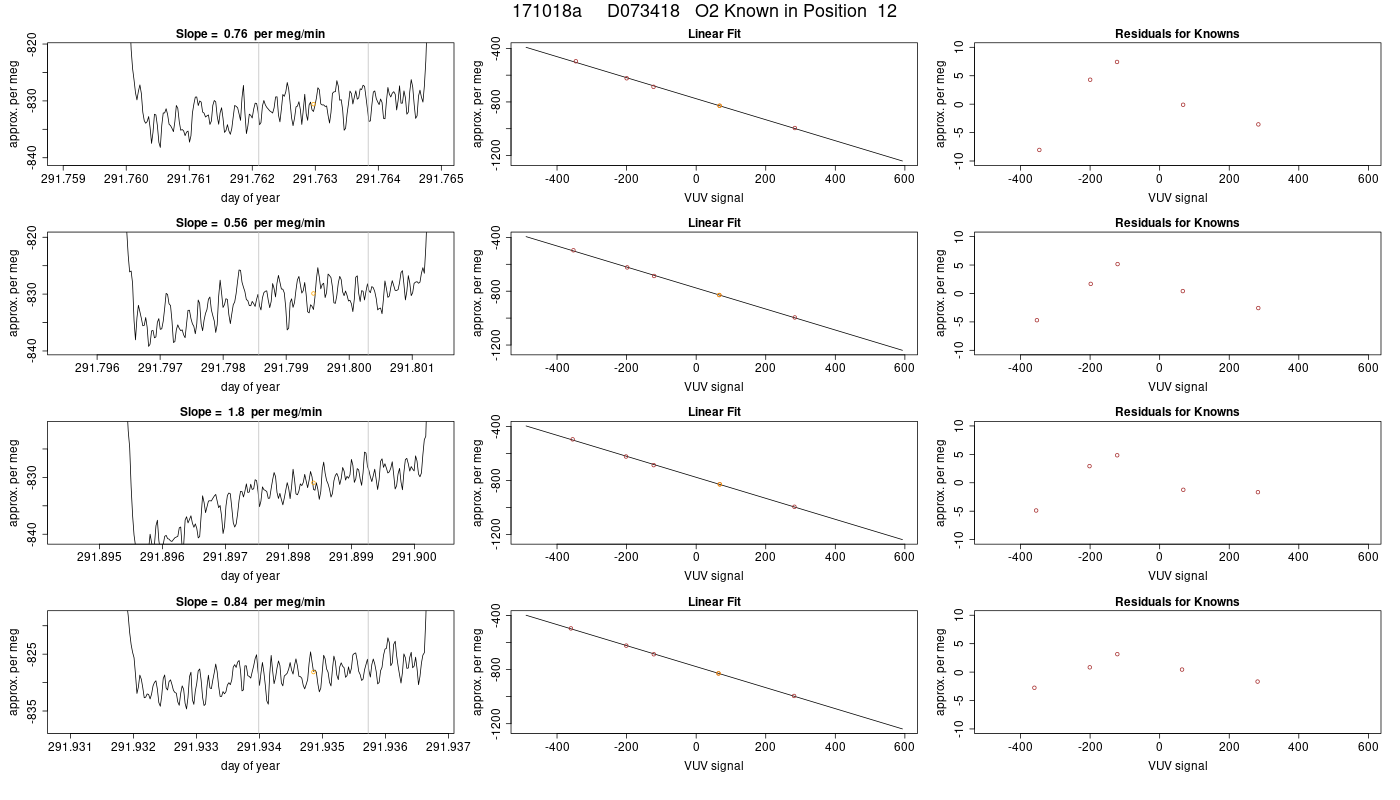

12 D073418 413.092 0.012 0.004 413.280 0.014 0.004 7 -779.40 0.13 0.83 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

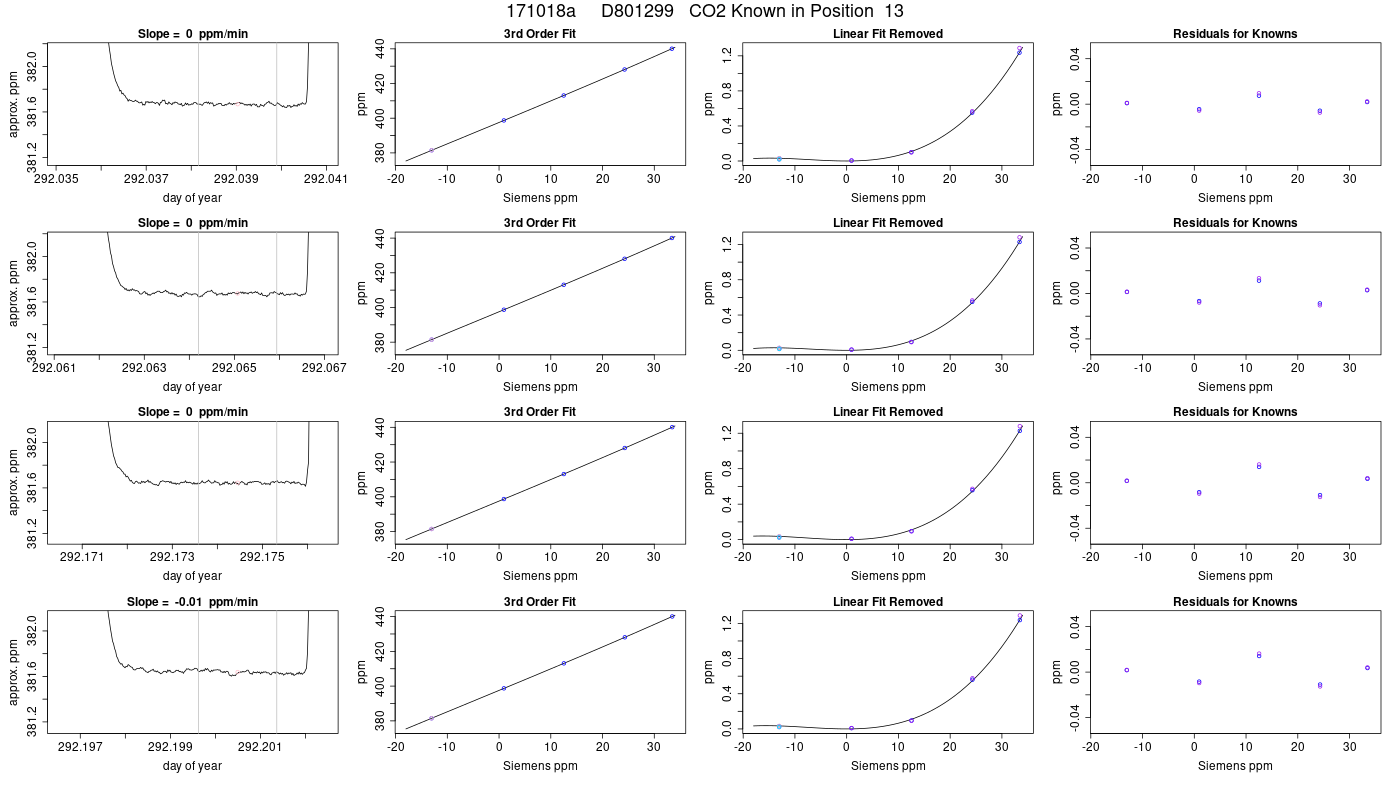

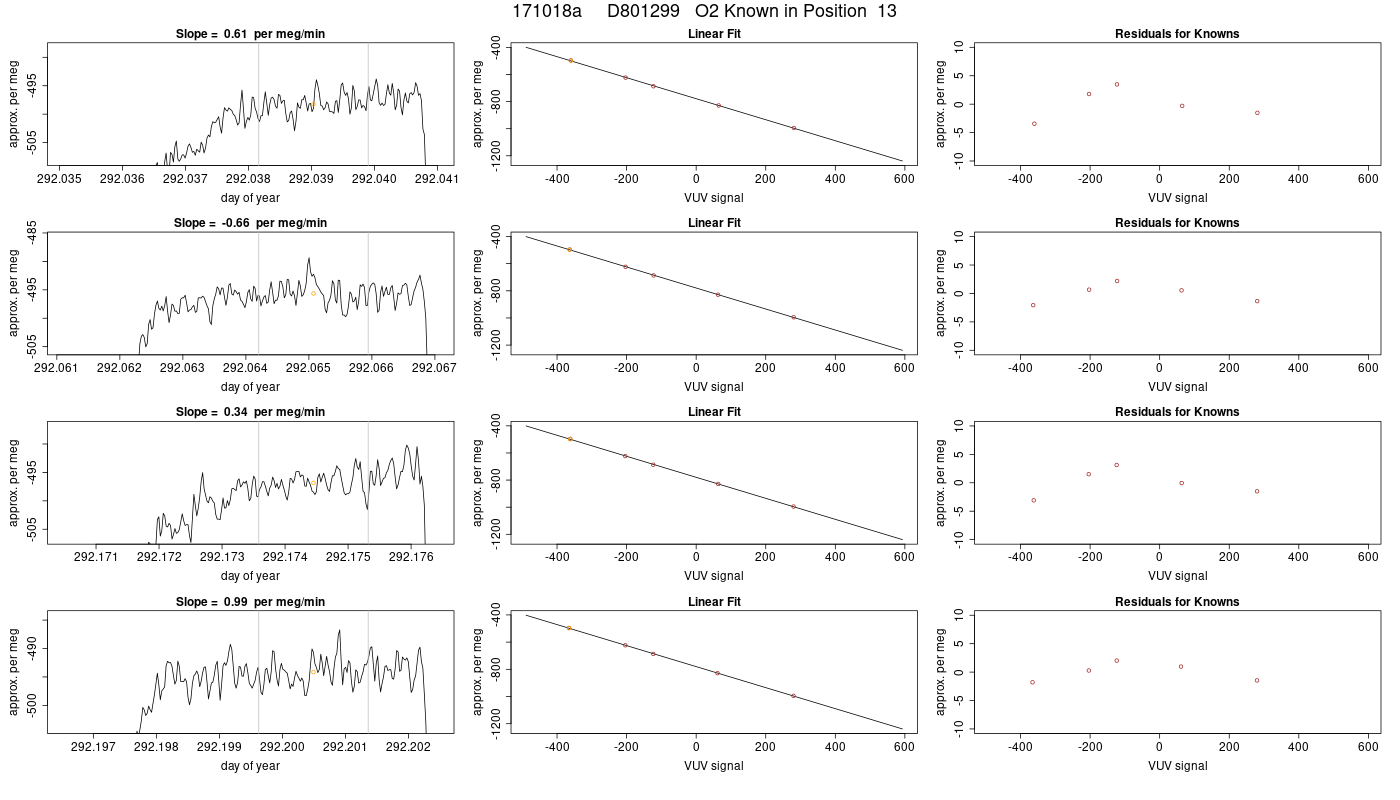

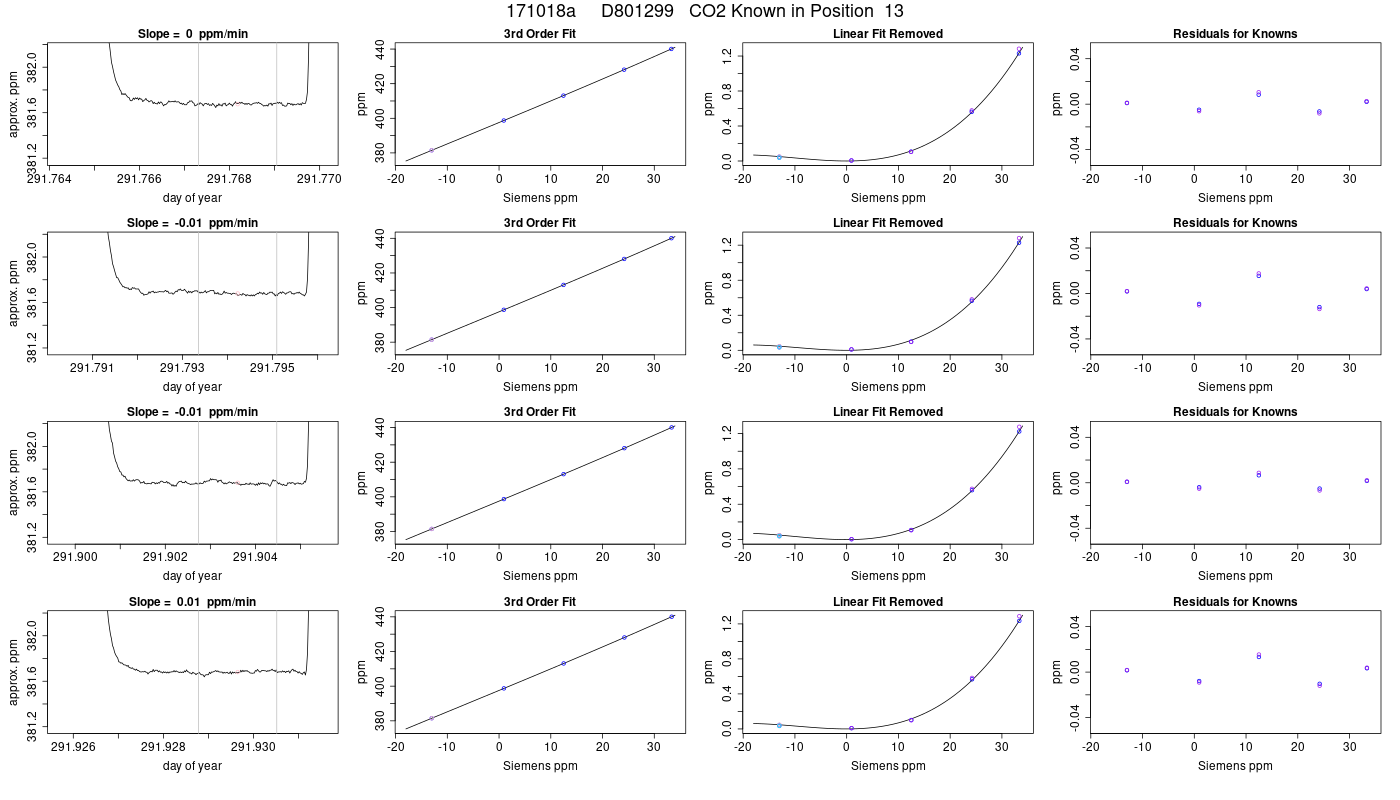

13 D801299 381.475 0.001 0.000 381.695 0.002 0.000 7 -477.75 -3.26 1.21 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

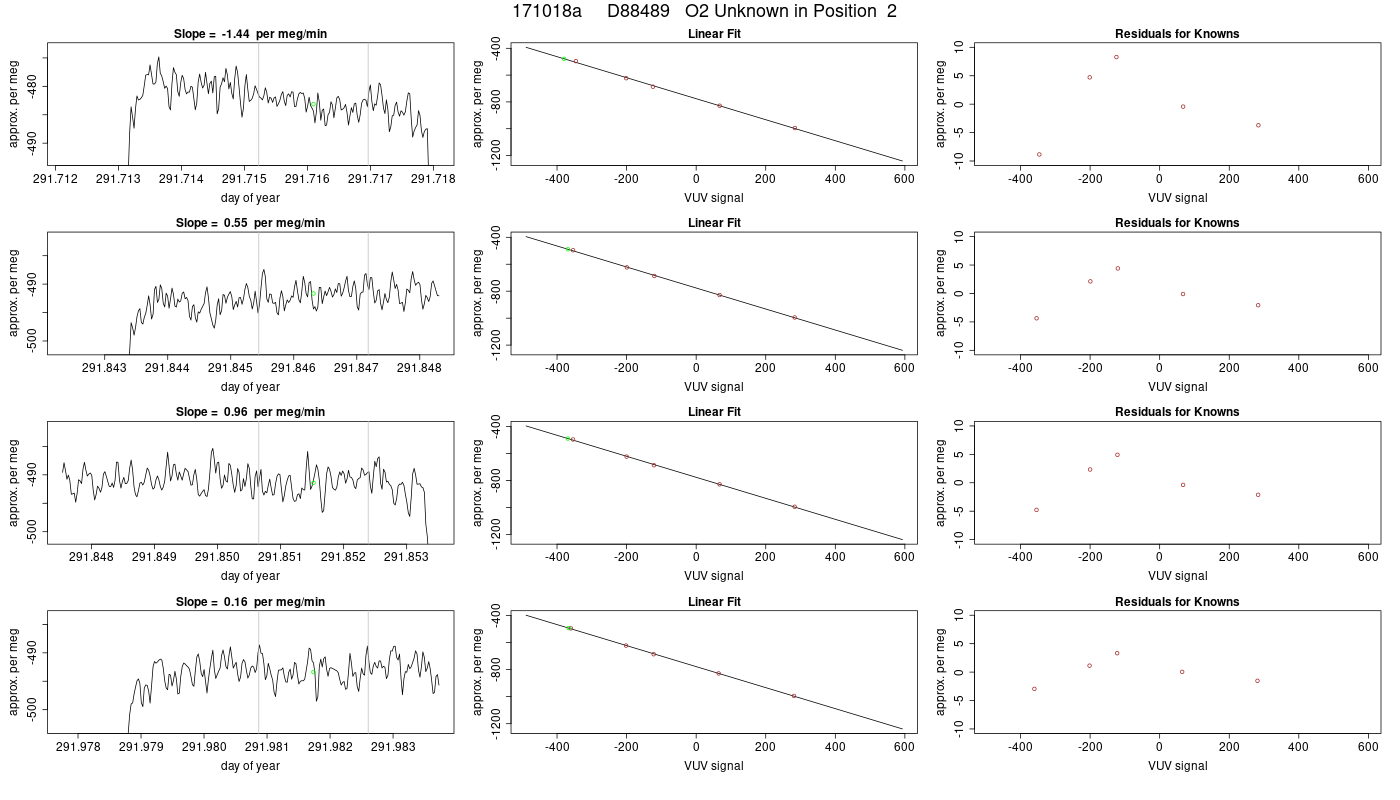

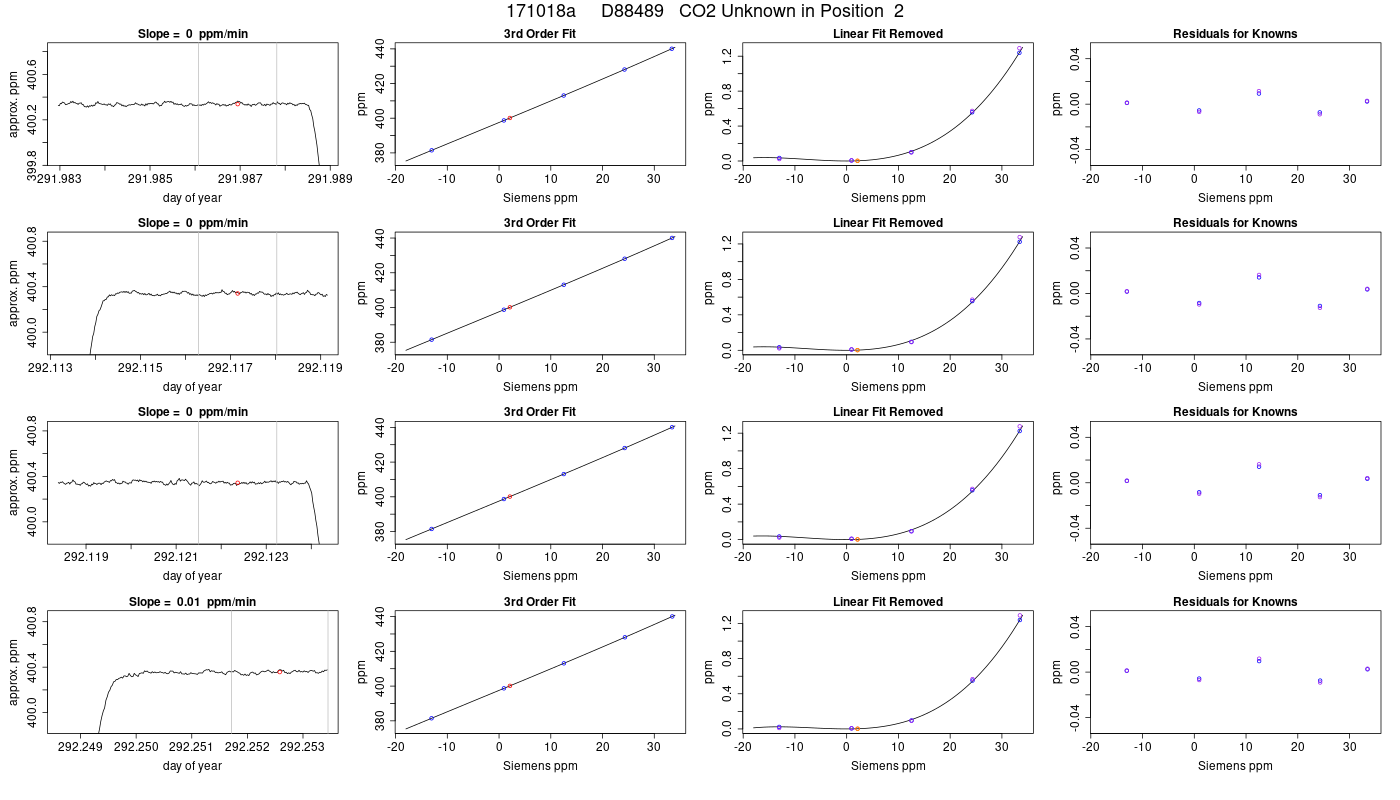

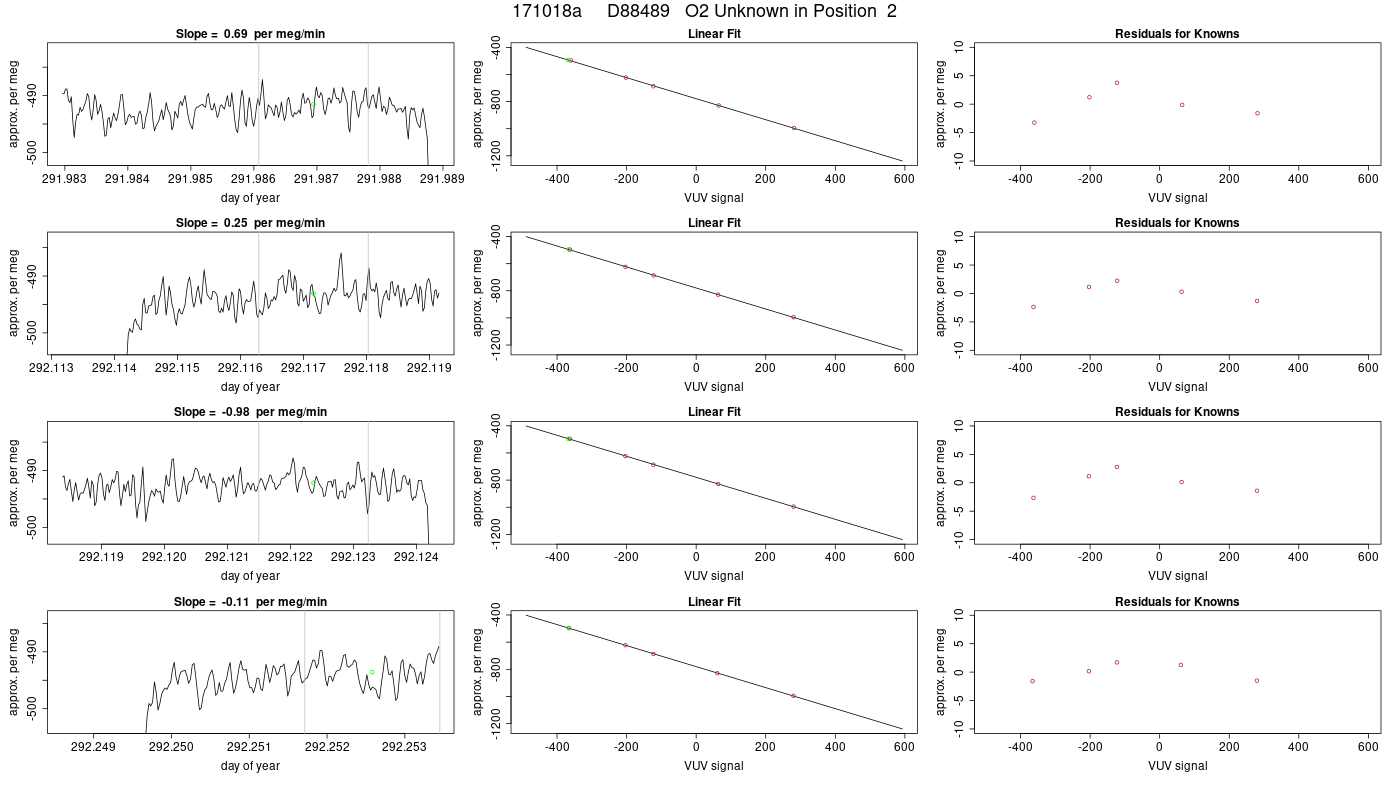

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.716 400.142 0.011 -442.11 1.59 400.349 0.011
291.846 400.142 0.015 -452.56 1.80 400.350 0.015
291.852 400.136 0.010 -452.81 1.99 400.343 0.010
291.982 400.130 0.011 -457.78 2.09 400.337 0.011
291.987 400.128 0.010 -456.20 1.76 400.336 0.010
292.117 400.125 0.013 -458.95 2.21 400.333 0.013
292.122 400.127 0.010 -458.27 1.67 400.335 0.010
292.253 400.142 0.013 -460.72 2.24 400.349 0.013

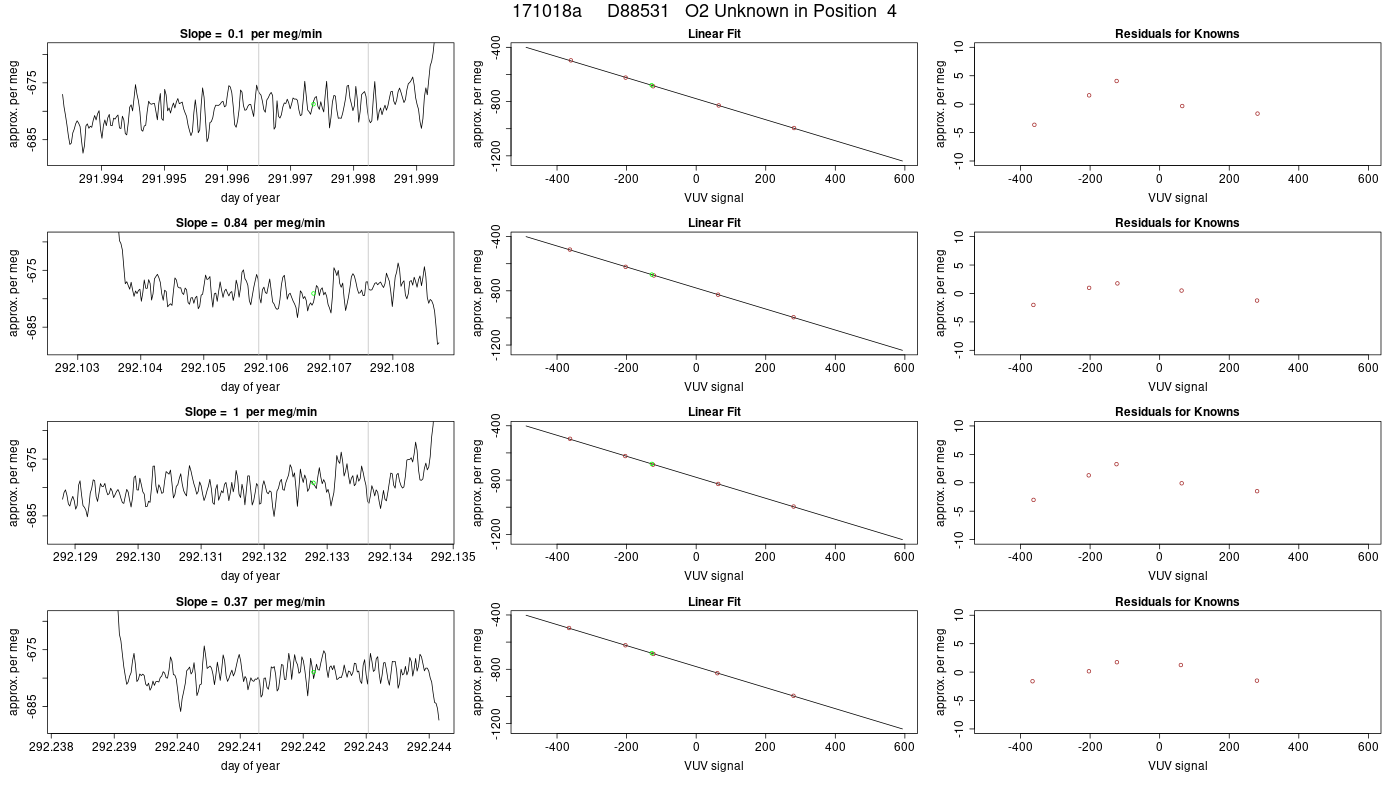

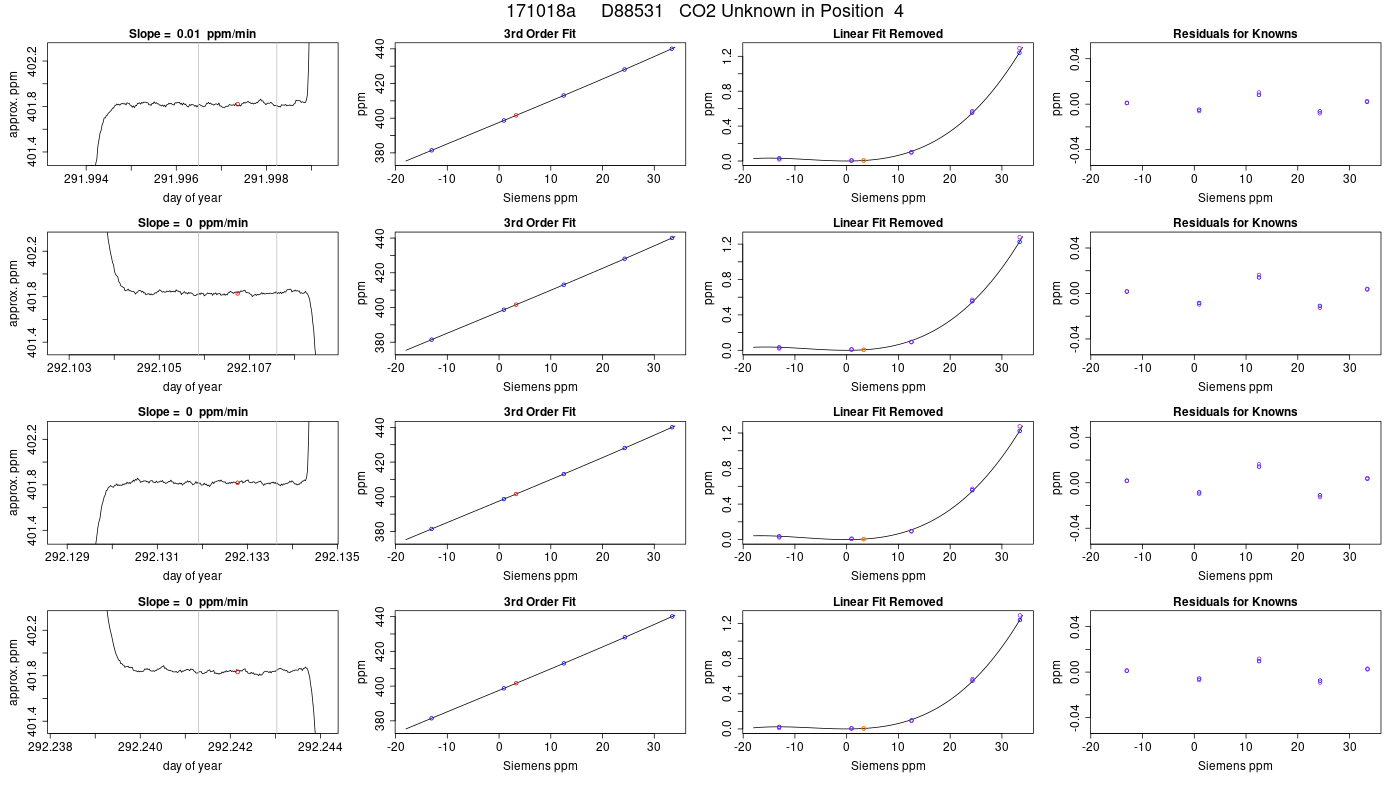

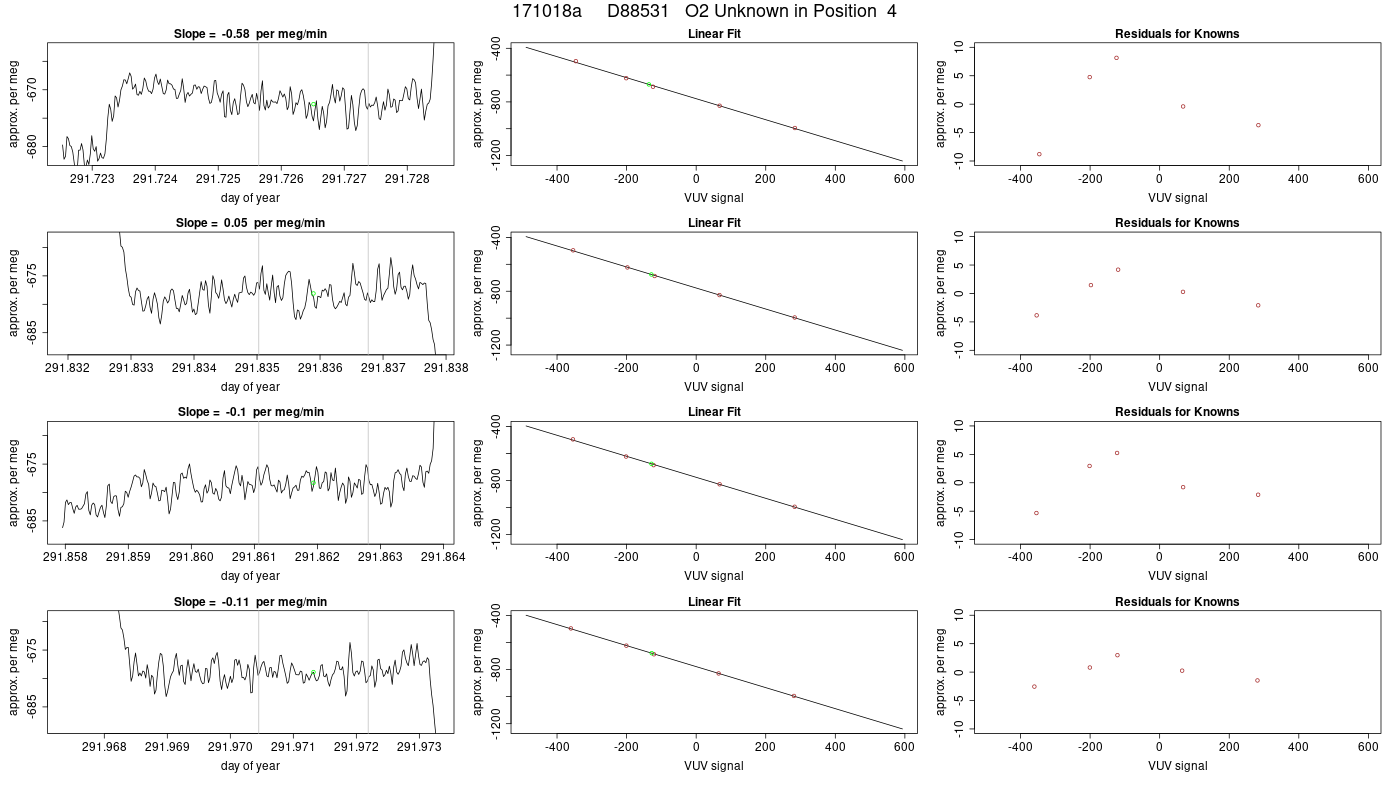

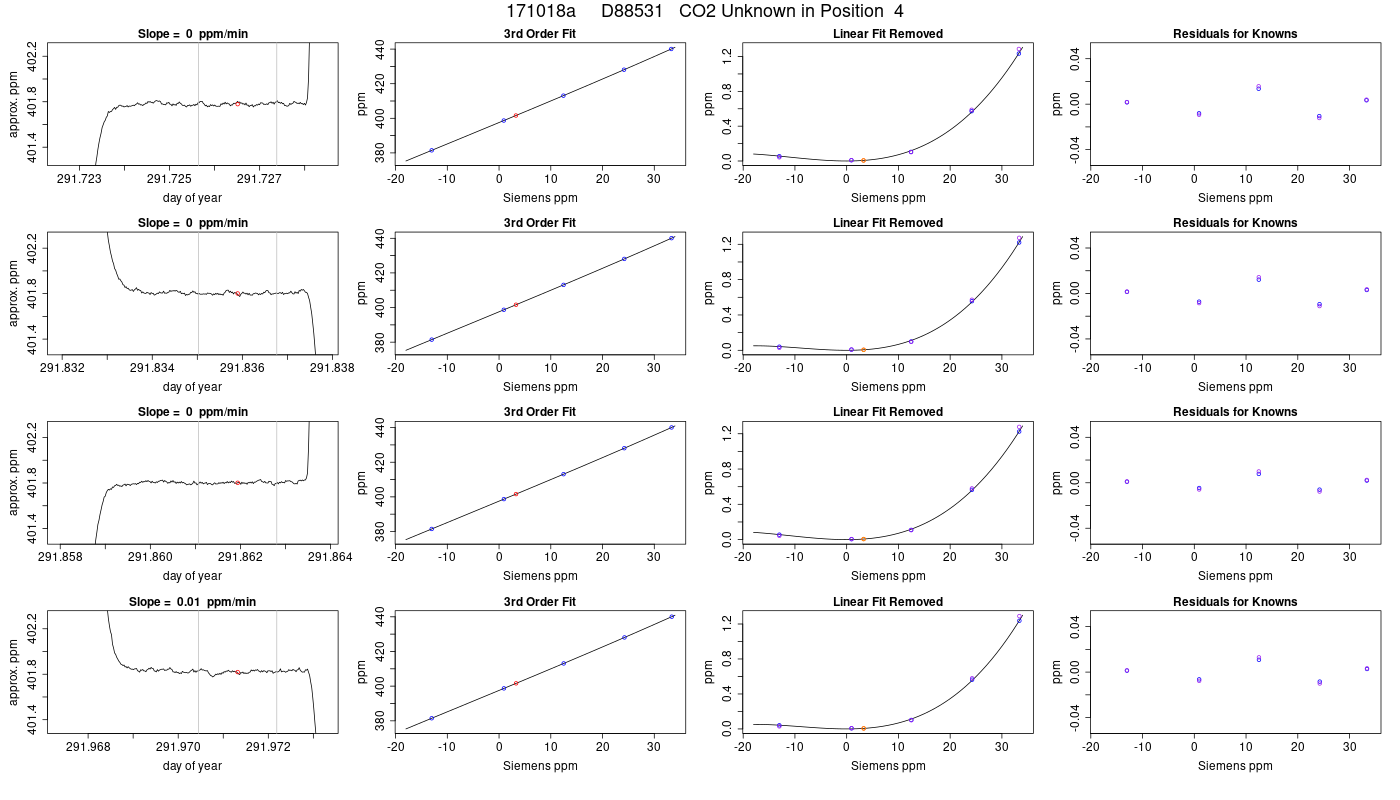

4 D88531    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.727 401.608 0.013 -631.77 2.07 401.814 0.013
291.836 401.617 0.011 -637.69 2.21 401.822 0.011
291.862 401.604 0.010 -639.21 1.55 401.809 0.010
291.971 401.611 0.015 -641.23 1.51 401.817 0.015
291.997 401.618 0.015 -641.83 1.82 401.823 0.015
292.107 401.617 0.011 -642.73 1.95 401.823 0.011
292.133 401.604 0.012 -643.35 2.20 401.810 0.012
292.242 401.618 0.013 -643.75 1.77 401.823 0.013

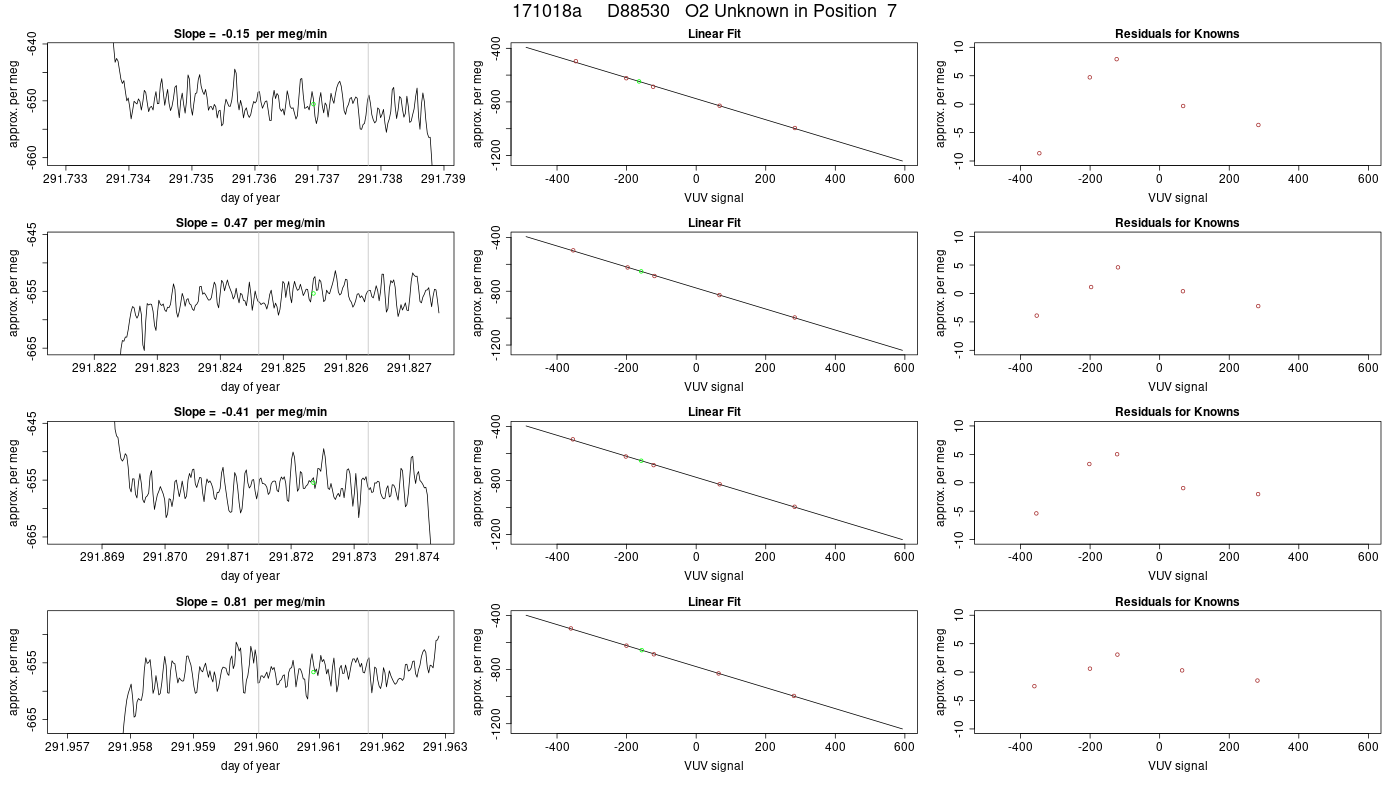

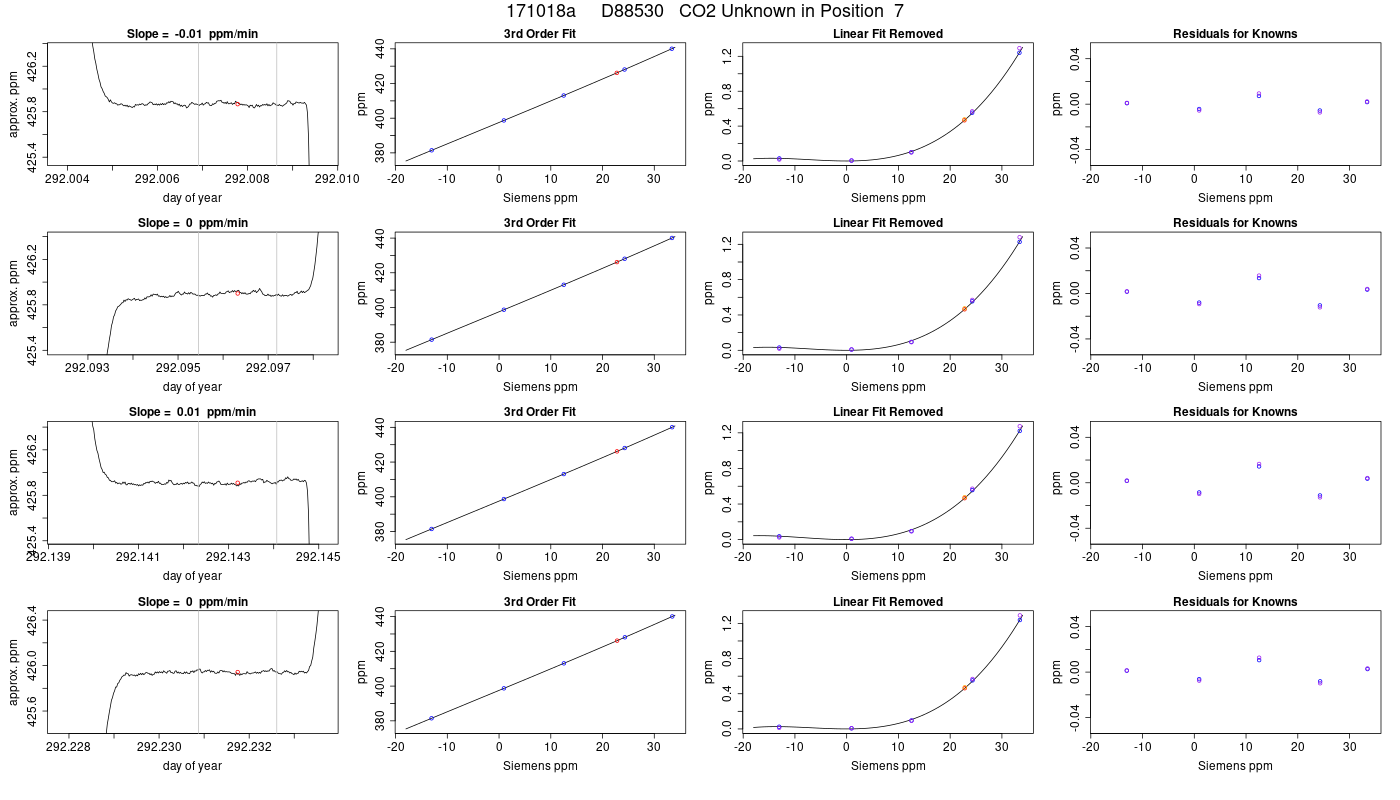

7 D88530    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.737 426.164 0.013 -585.42 1.97 426.349 0.013
291.825 426.155 0.012 -590.75 1.63 426.340 0.012
291.872 426.153 0.013 -592.46 2.18 426.338 0.013
291.961 426.148 0.014 -594.93 1.65 426.333 0.014
292.008 426.146 0.014 -596.13 2.02 426.331 0.014
292.096 426.157 0.017 -596.52 1.54 426.342 0.017
292.143 426.150 0.015 -598.00 1.63 426.335 0.015
292.232 426.147 0.013 -597.85 1.92 426.332 0.013

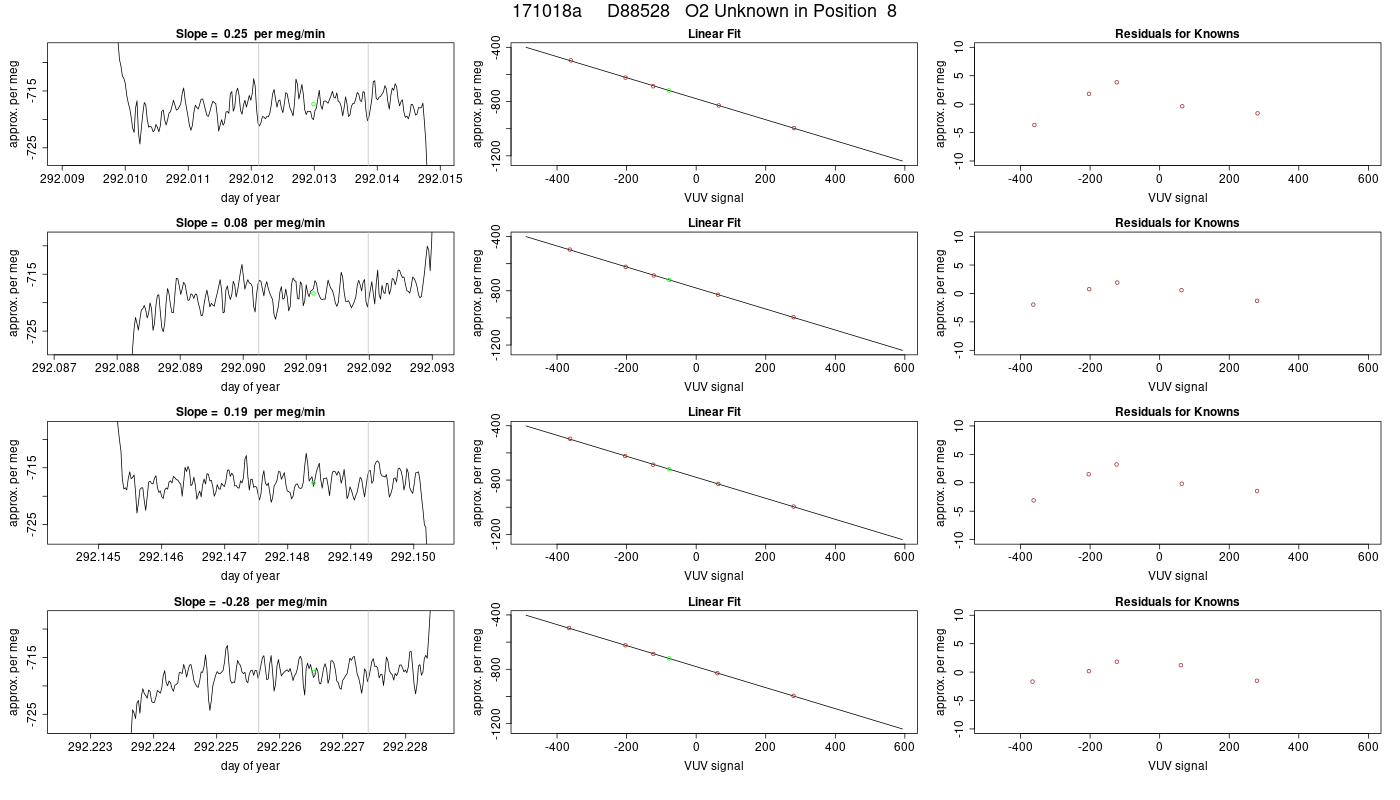

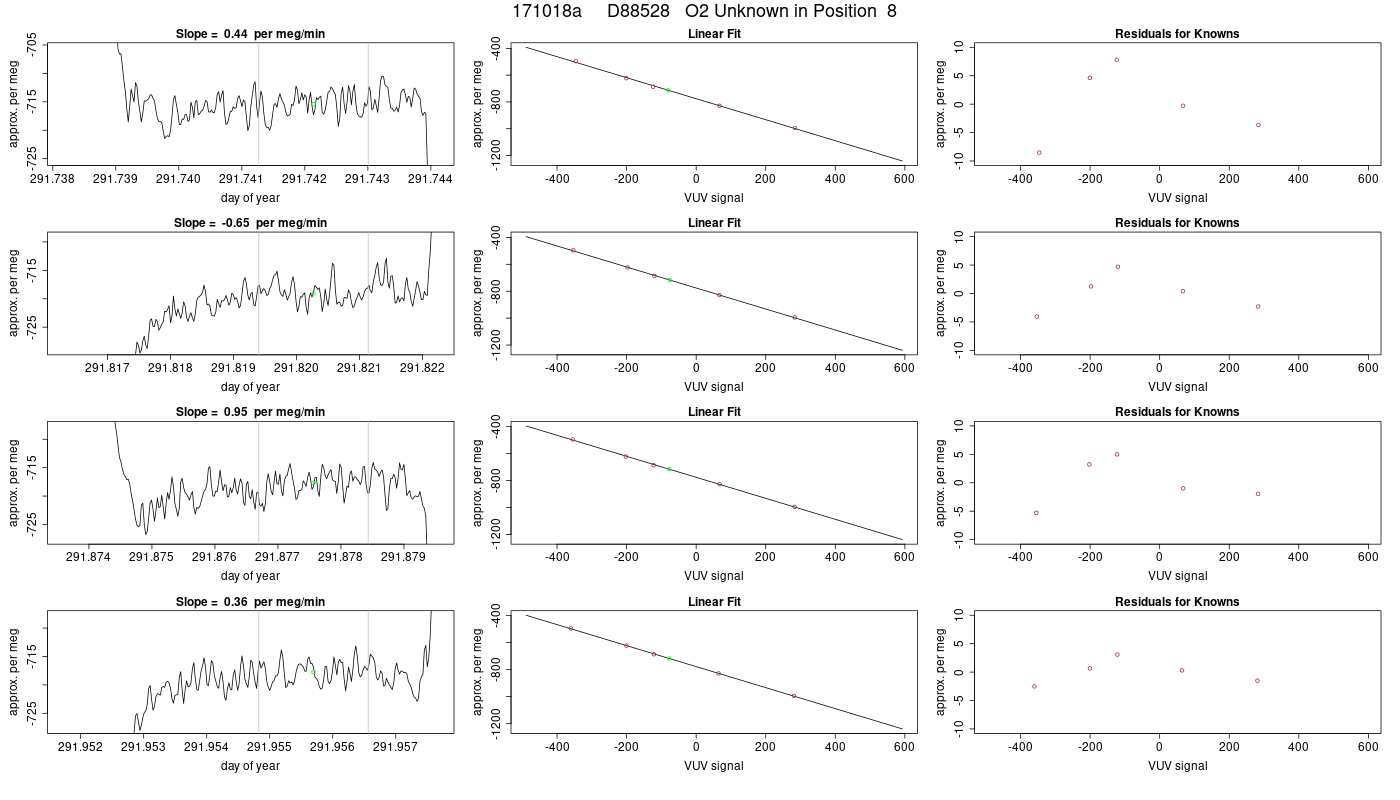

8 D88528    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.742 403.542 0.014 -672.96 1.97 403.745 0.014
291.820 403.545 0.012 -676.97 1.77 403.748 0.012
291.878 403.545 0.012 -676.83 1.91 403.748 0.012
291.956 403.551 0.013 -678.19 1.83 403.754 0.013
292.013 403.564 0.010 -678.36 1.75 403.767 0.010
292.091 403.558 0.018 -680.12 1.77 403.760 0.018
292.148 403.549 0.009 -679.69 1.77 403.752 0.009
292.227 403.558 0.013 -680.33 1.69 403.761 0.013

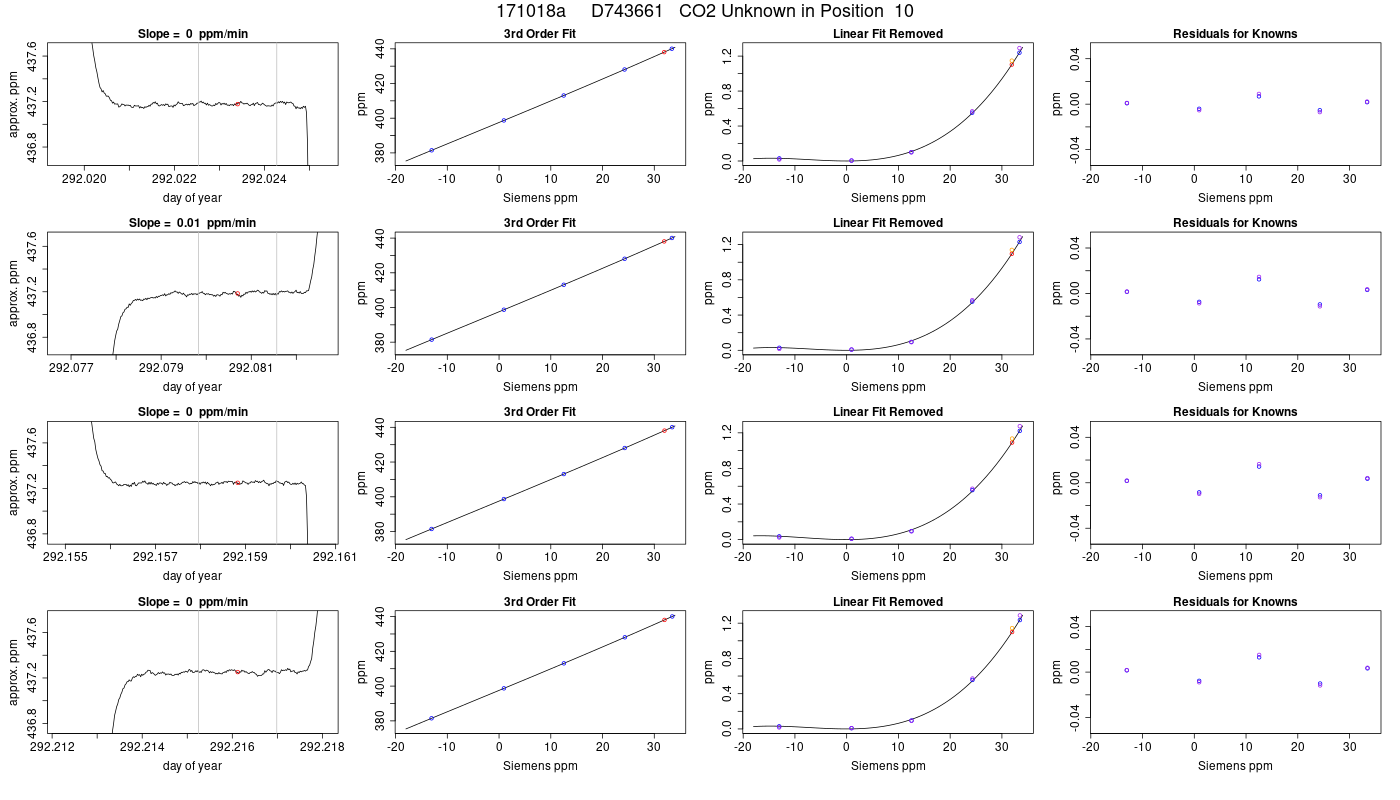

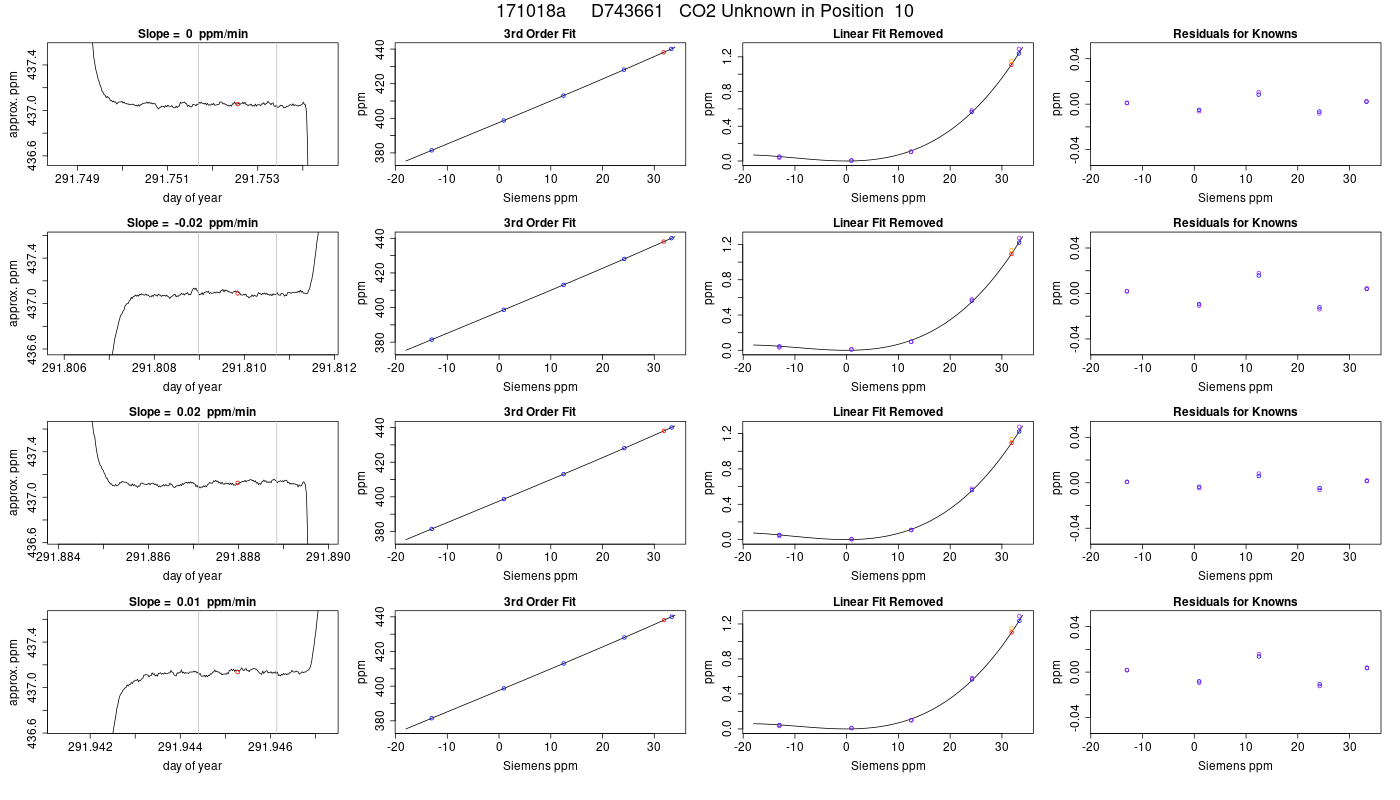

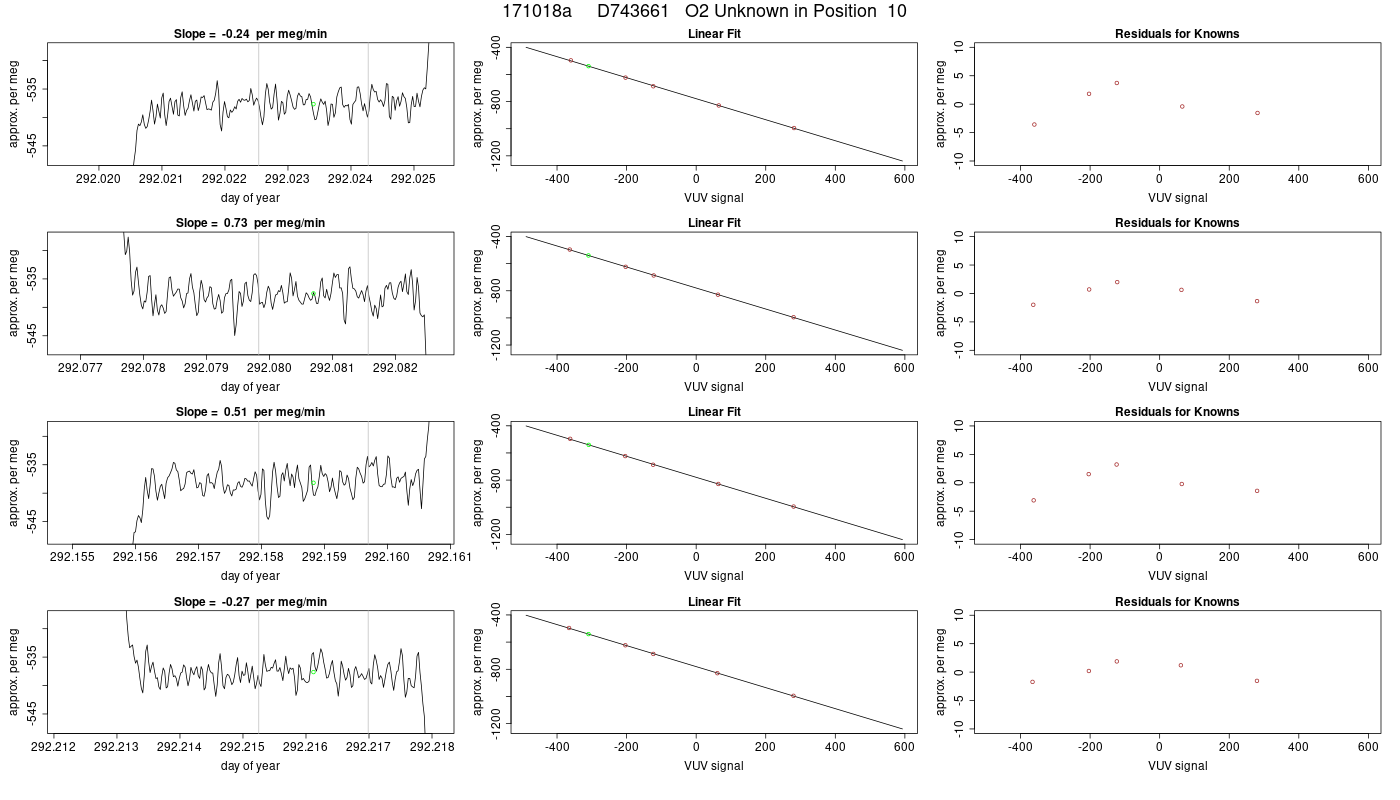

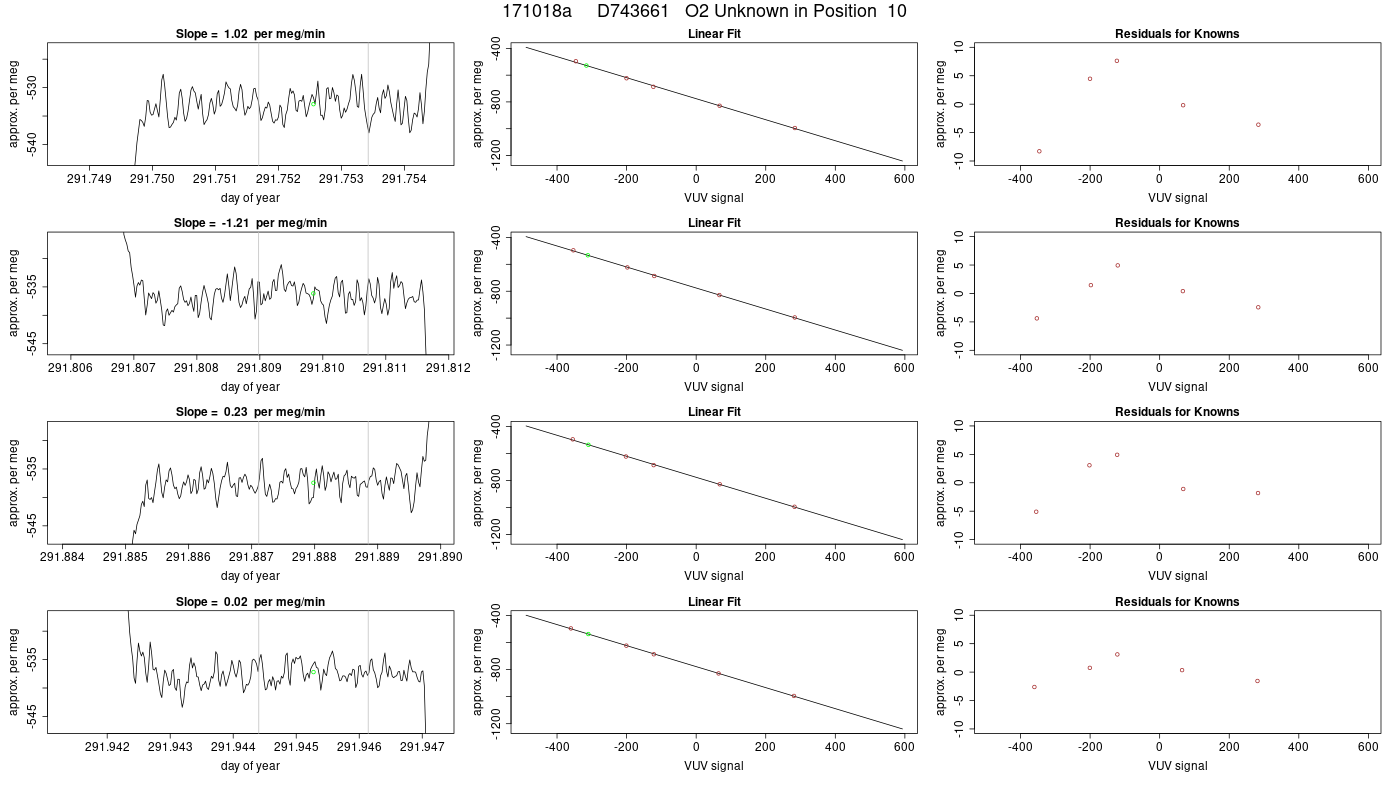

10 D743661    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.753 438.113 0.011 -454.56 2.18 438.318 0.011
291.810 438.094 0.016 -459.41 2.00 438.299 0.016
291.888 438.108 0.018 -462.62 1.85 438.313 0.018
291.945 438.087 0.020 -463.97 1.75 438.291 0.020
292.023 438.100 0.011 -465.34 1.77 438.304 0.011
292.081 438.083 0.014 -466.09 1.87 438.288 0.014
292.159 438.103 0.011 -466.92 2.31 438.308 0.011
292.216 438.079 0.014 -467.48 1.70 438.284 0.014

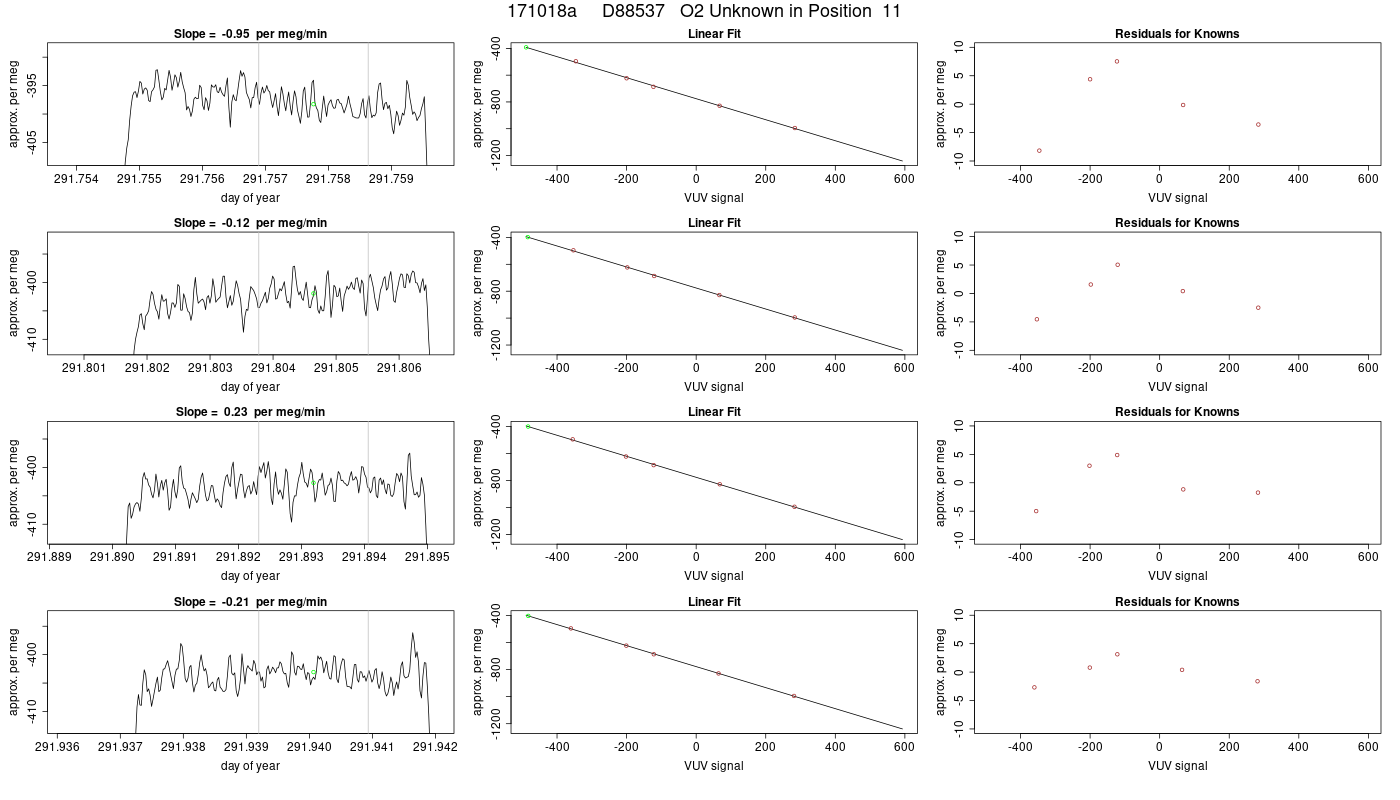

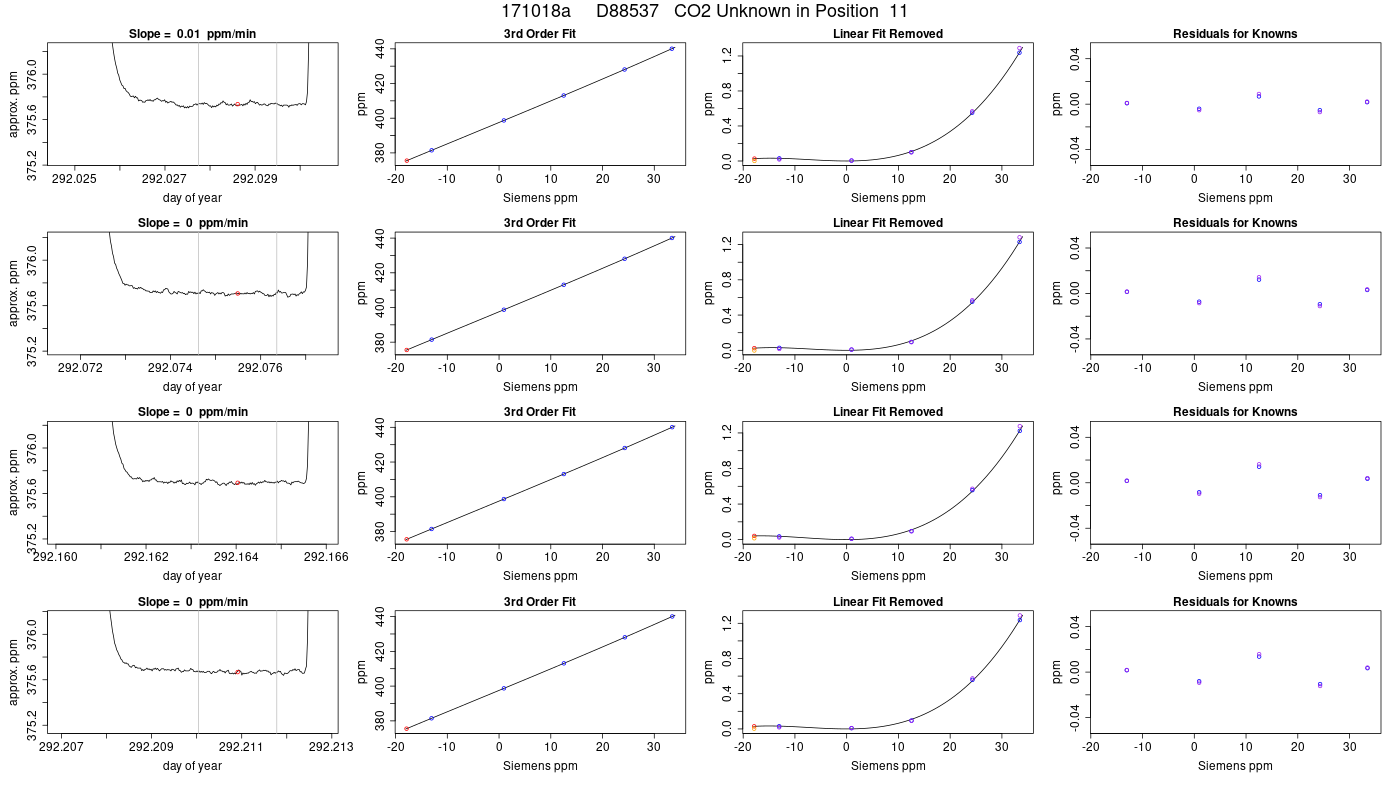

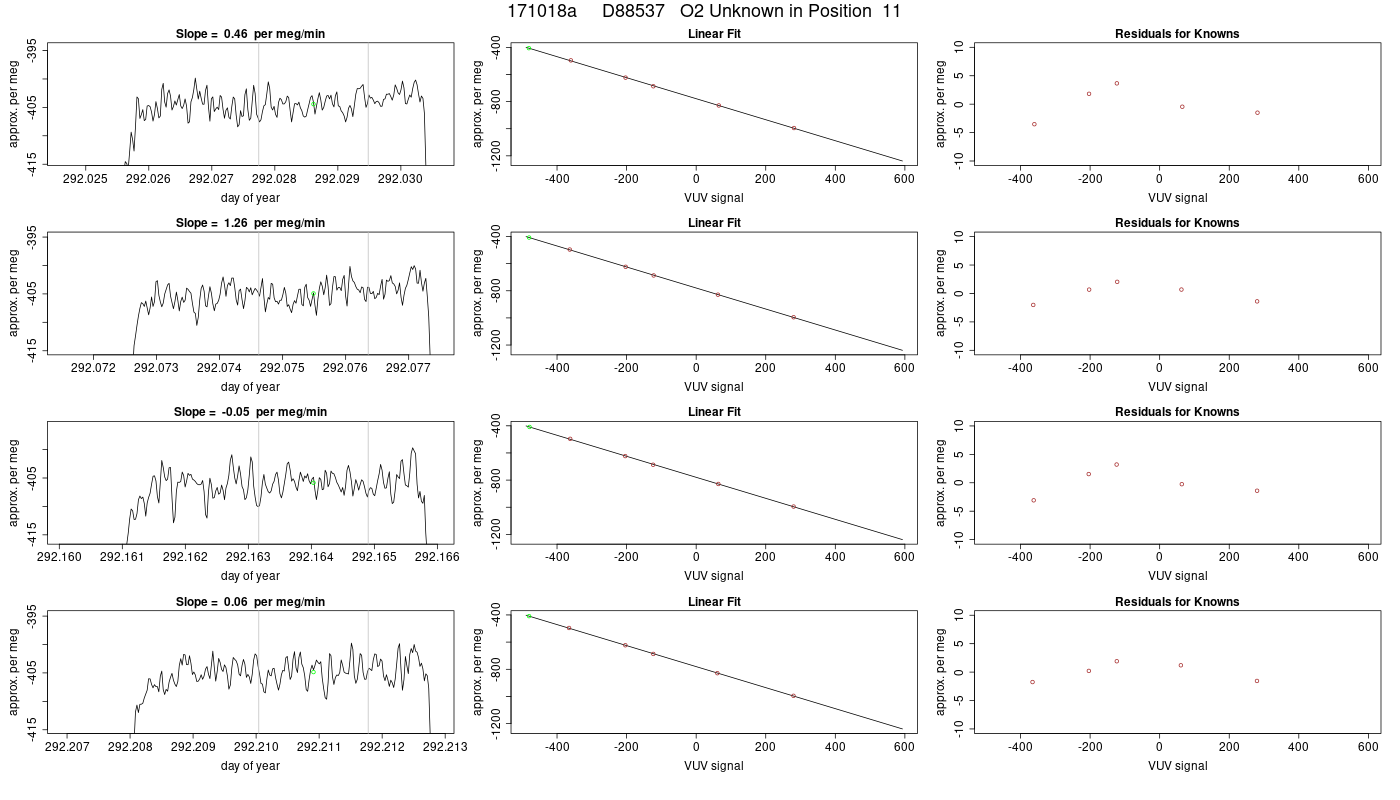

11 D88537    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.758 375.566 0.014 -379.75 1.79 375.780 0.014
291.805 375.537 0.014 -385.97 2.00 375.751 0.014
291.893 375.551 0.014 -389.16 2.10 375.765 0.014
291.940 375.539 0.013 -391.38 1.57 375.752 0.013
292.029 375.534 0.013 -393.82 1.64 375.748 0.013
292.075 375.504 0.013 -395.36 1.81 375.717 0.013
292.164 375.530 0.013 -396.37 1.56 375.744 0.013
292.211 375.512 0.011 -396.78 2.07 375.726 0.011

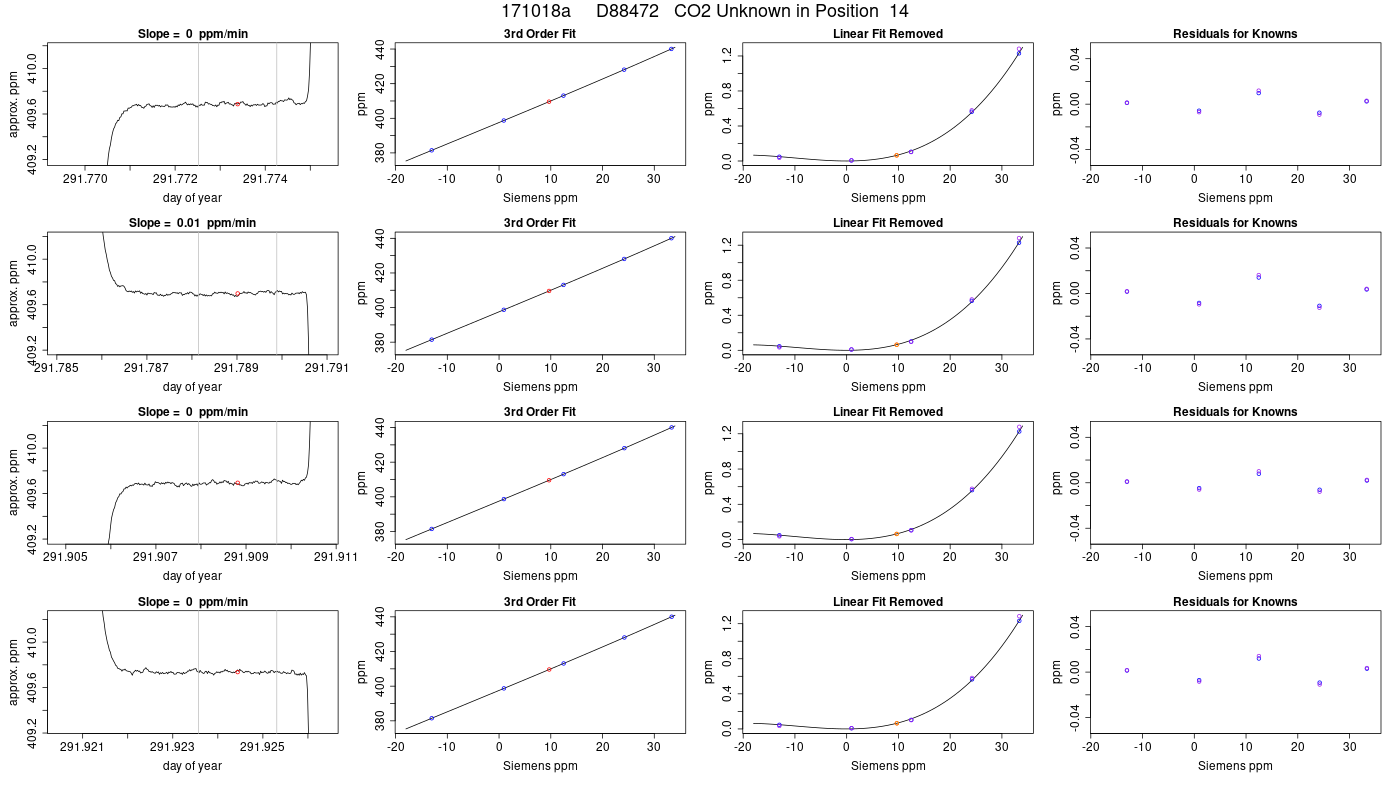

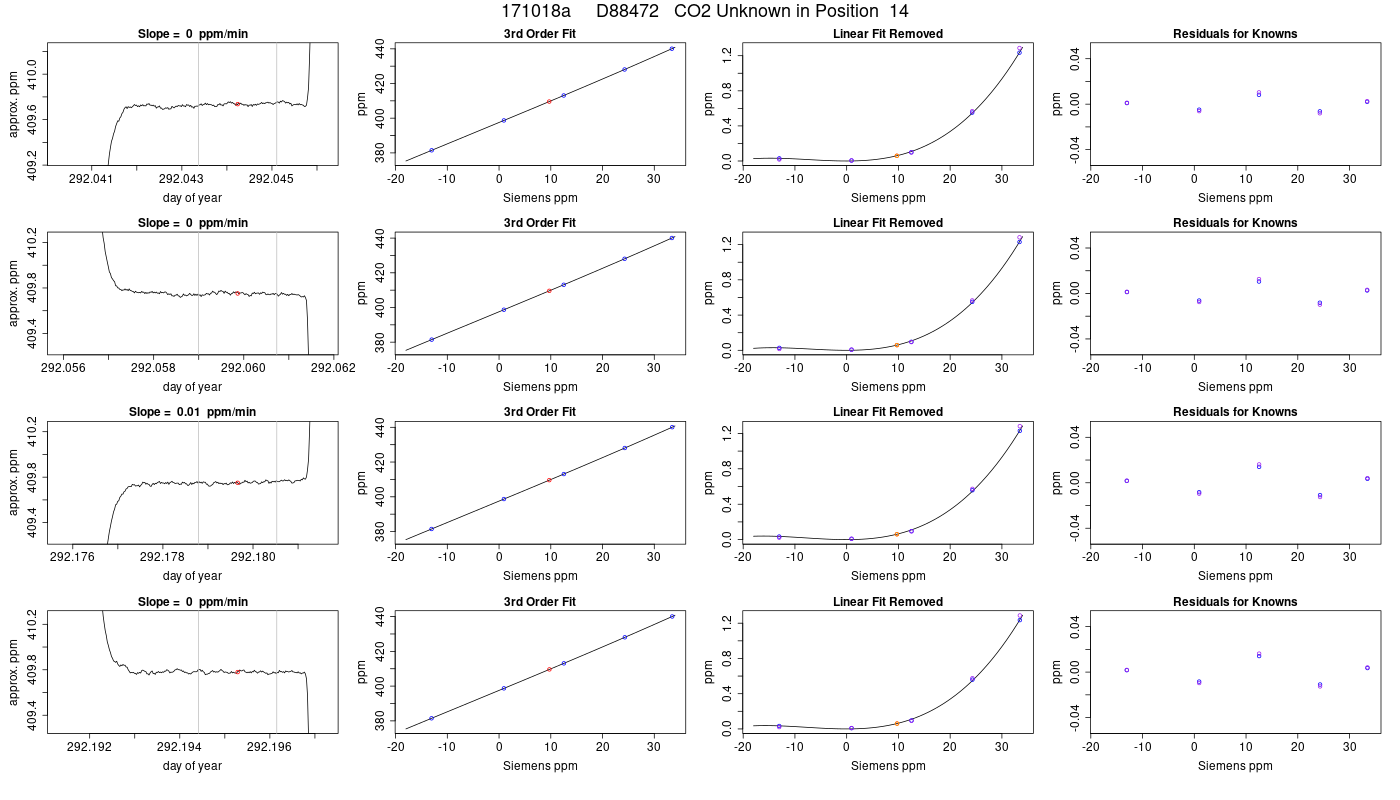

14 D88472    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.773 409.597 0.012 -1184.11 2.10 409.792 0.012
291.789 409.602 0.013 -1185.53 1.61 409.796 0.013
291.909 409.571 0.013 -1192.84 4.26 409.765 0.013
291.924 409.606 0.010 -1183.28 1.72 409.800 0.010
292.044 409.591 0.010 -1190.01 3.74 409.785 0.010
292.060 409.604 0.011 -1181.20 2.20 409.799 0.011
292.180 409.584 0.012 -1189.50 3.44 409.778 0.012
292.195 409.610 0.011 -1180.60 1.89 409.804 0.011

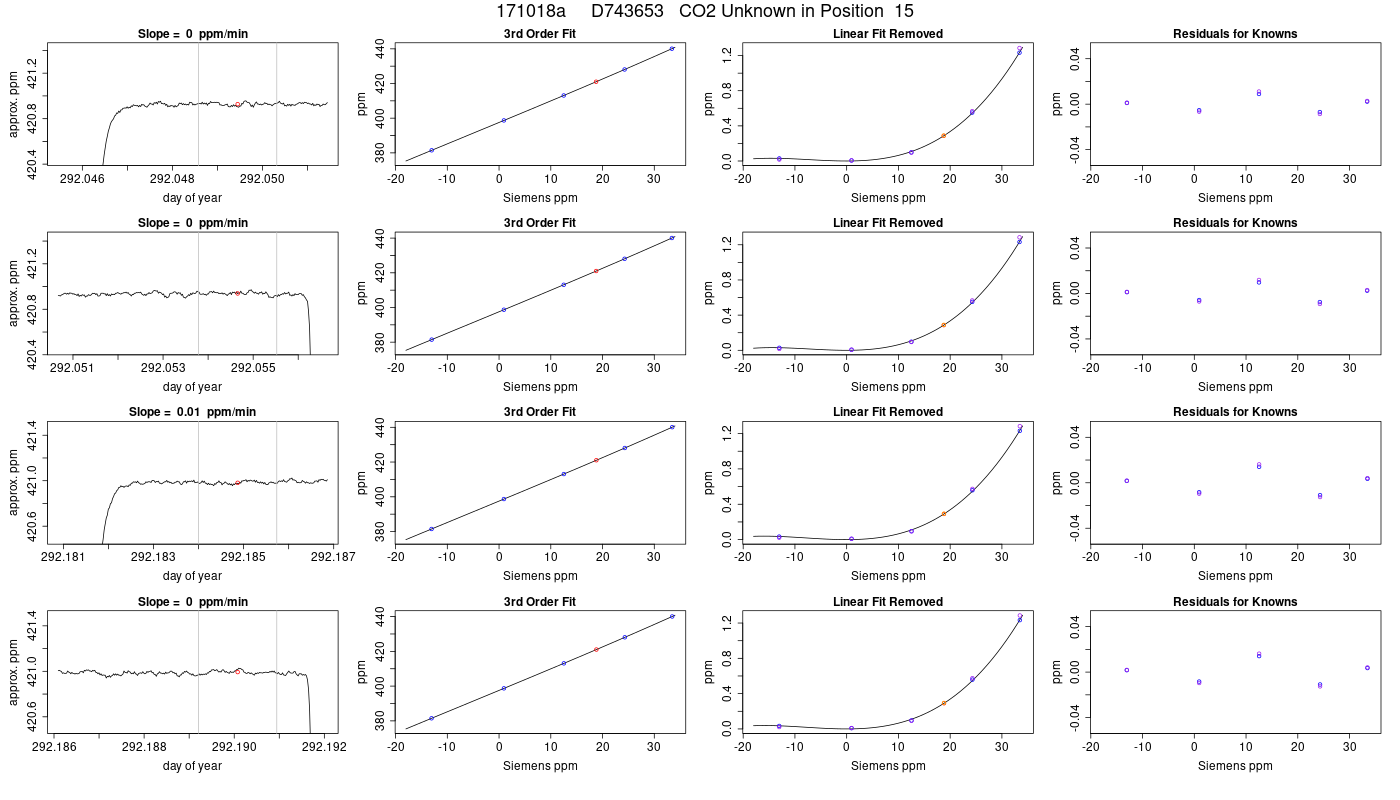

15 D743653    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
291.779 421.006 0.013 -744.47 1.54 421.190 0.013
291.784 421.032 0.014 -744.18 2.22 421.217 0.014
291.914 421.023 0.014 -748.90 2.38 421.207 0.014
291.919 421.032 0.017 -747.54 1.81 421.216 0.017
292.049 421.017 0.014 -749.93 1.70 421.201 0.014
292.055 421.027 0.014 -748.21 1.92 421.211 0.014
292.185 421.032 0.013 -750.16 1.91 421.217 0.013
292.190 421.042 0.014 -749.05 2.22 421.226 0.014
