UEA CRAM Lab O2 and CO2 calibration results
RUN = 171013a
PROCESSED: 16:30:45 Mon 21Aug2023

Notes
Logfile

Results

Using data from 286.845 to 287.354 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88489 400.133 0.007 -0.004 400.340 0.007 -0.004 7 -447.94 6.49 -38.36 7
4 D88531 401.619 0.004 0.001 401.825 0.004 0.001 7 -634.63 5.02 -30.47 7
6 D88471 NA NA NA NA NA NA 0 NA NA NA 0
7 D88530 426.134 0.010 0.021 426.319 0.010 0.021 7 -589.56 4.74 -29.35 7
8 D88528 403.544 0.013 0.074 403.747 0.013 0.074 7 -674.19 2.92 -17.99 7
10 D743661 438.091 0.012 -0.013 438.296 0.012 -0.013 7 -456.53 5.96 -36.90 7
11 D88537 375.535 0.018 -0.081 375.749 0.018 -0.081 7 -382.58 8.02 -49.27 7
14 D88472 409.588 0.016 0.019 409.782 0.016 0.019 7 -1191.09 9.33 43.41 5
15 D743653 421.040 0.013 -0.032 421.224 0.013 -0.032 7 -742.09 4.95 -28.70 7
WT D258964 397.519 0.004 -0.025 397.730 0.004 -0.025 98 -740.17 3.04 -19.93 98
Text File

Raw Data and Diagnostics Figures

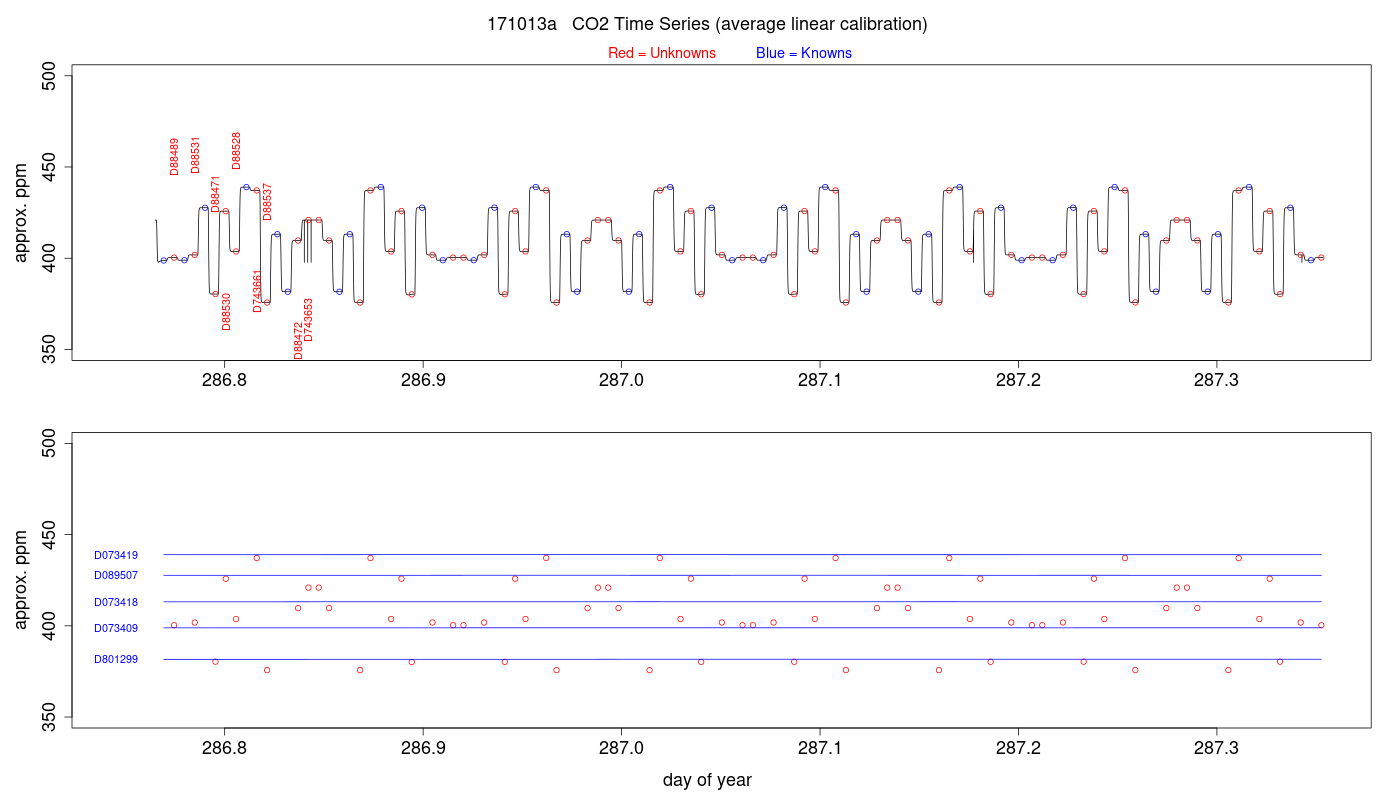

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1

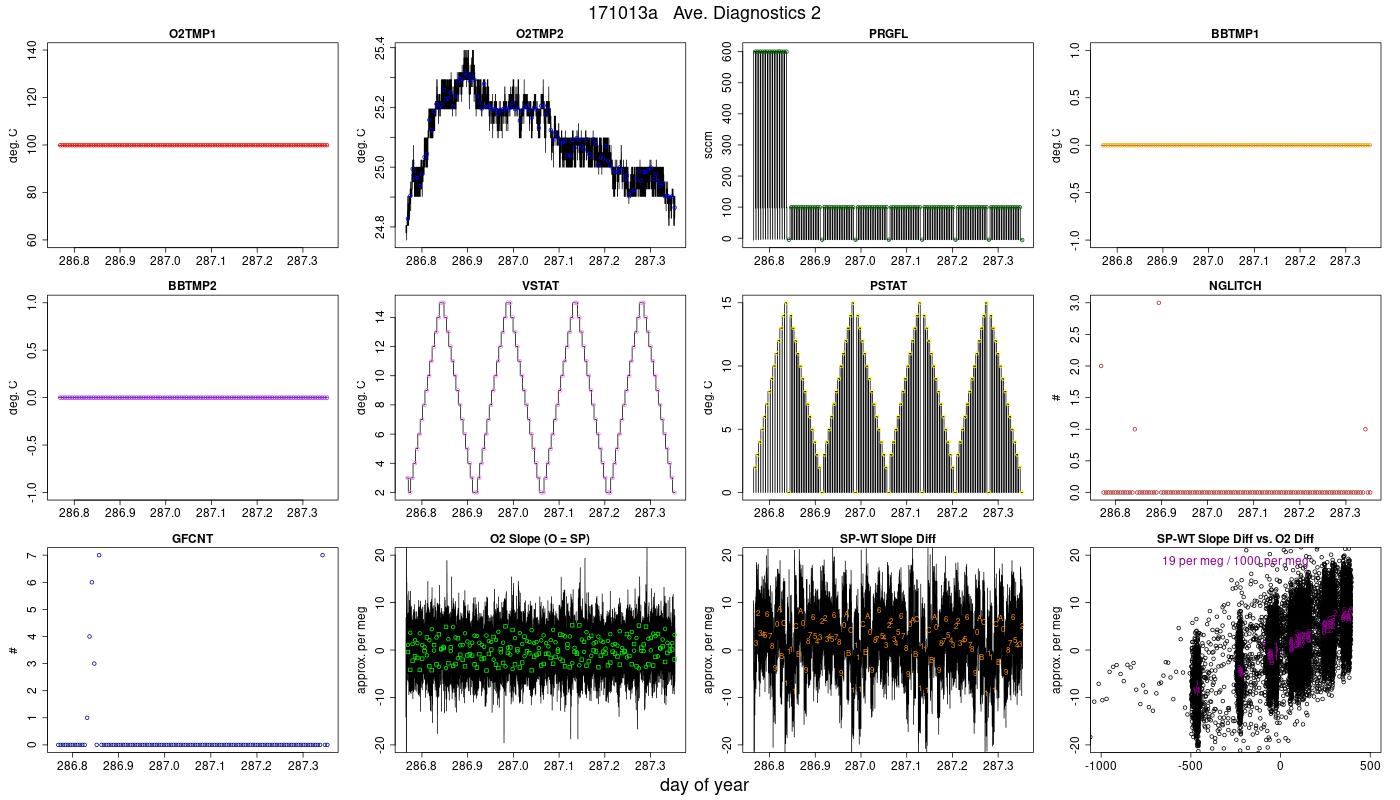

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

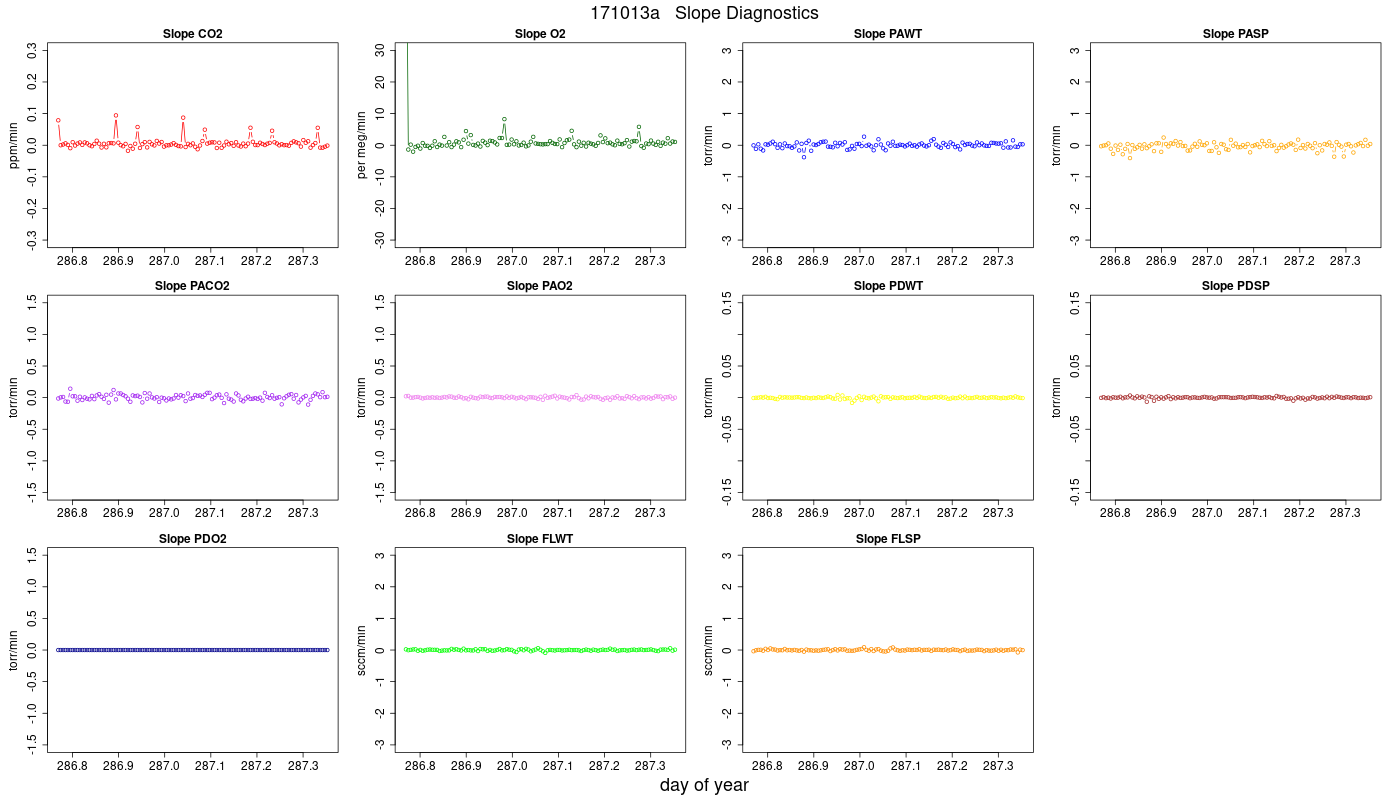

Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

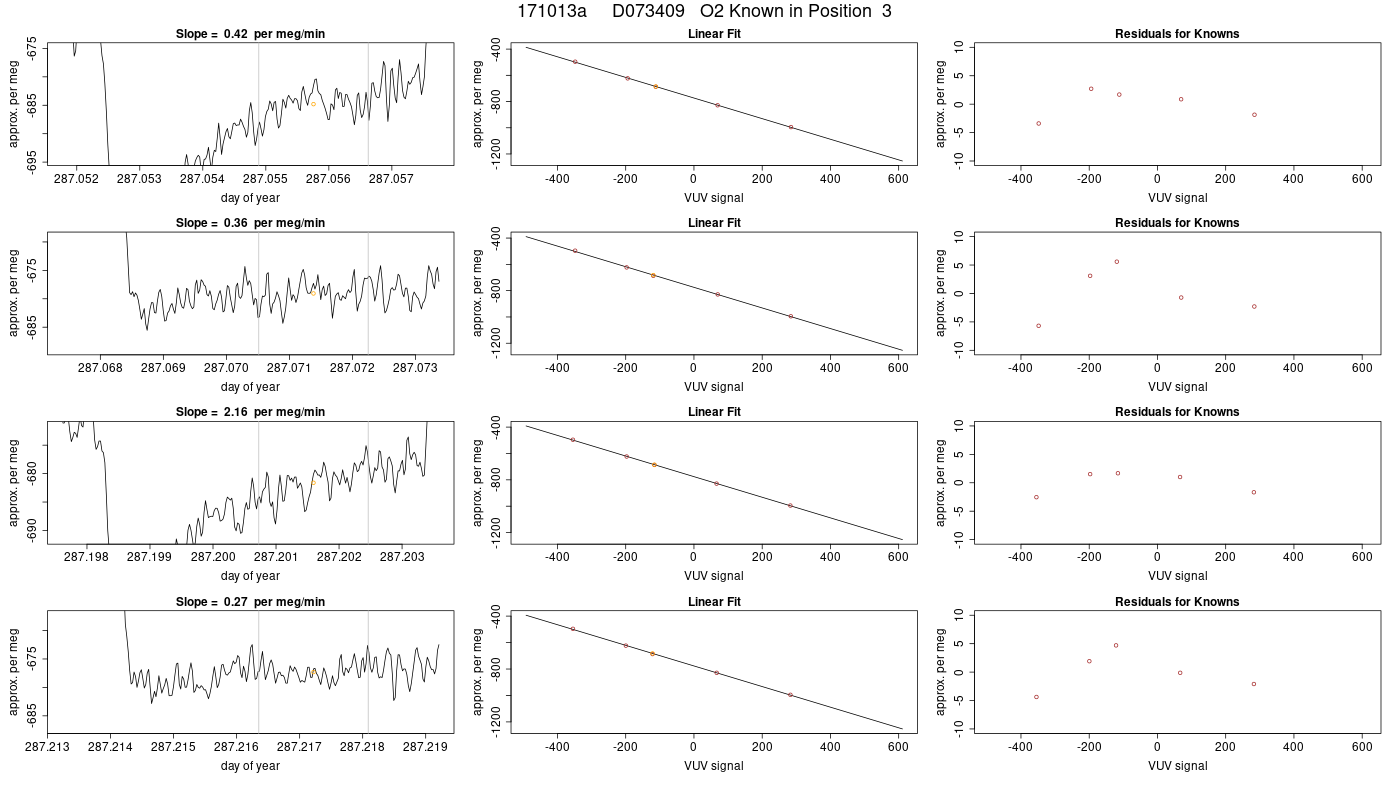

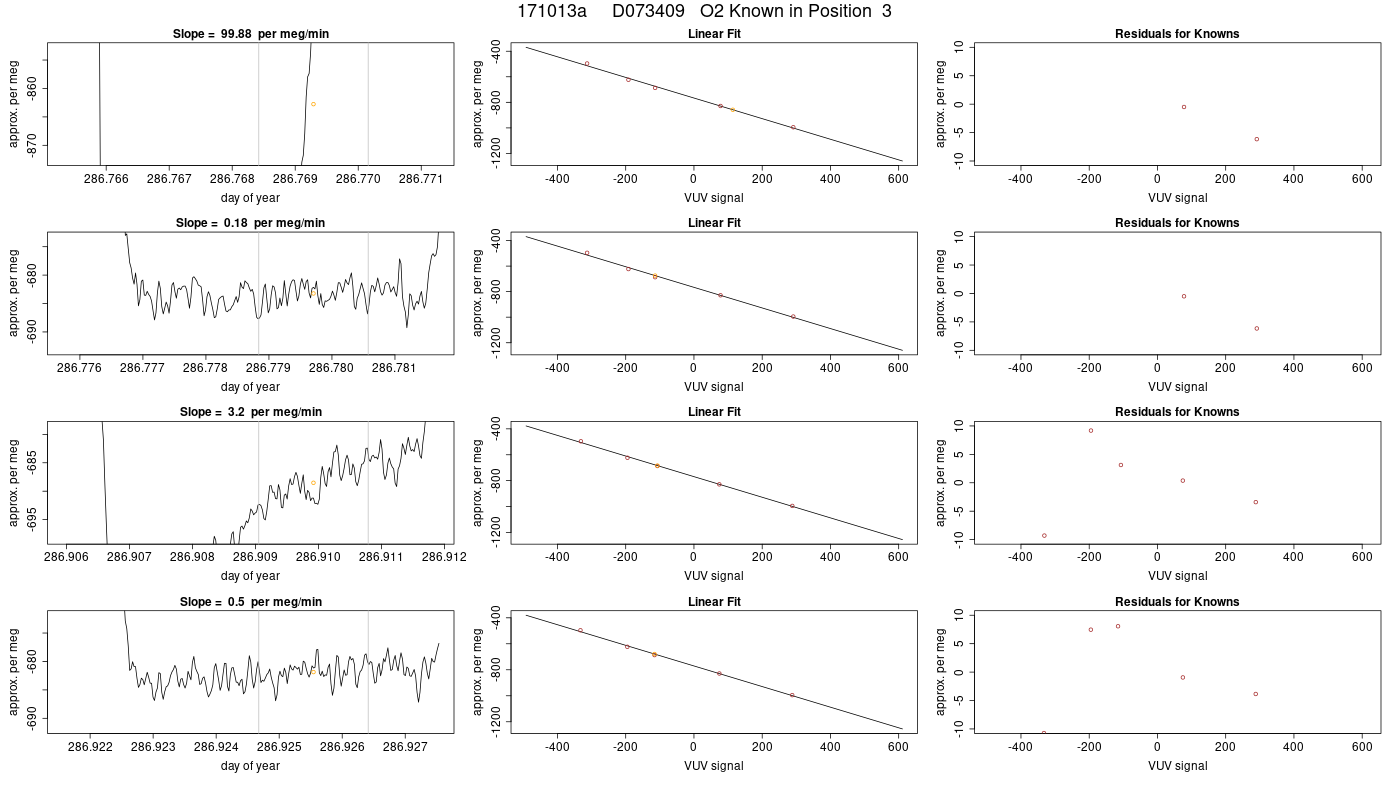

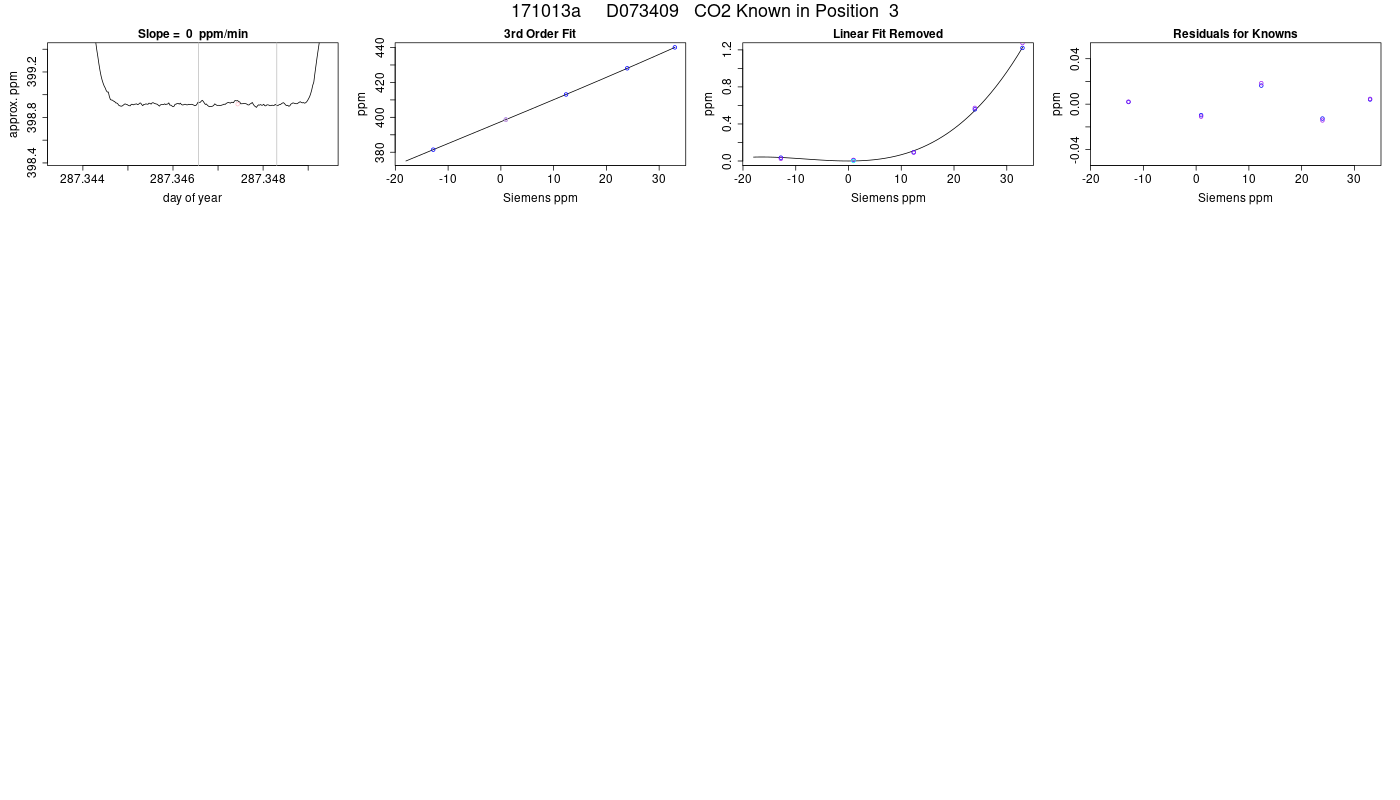

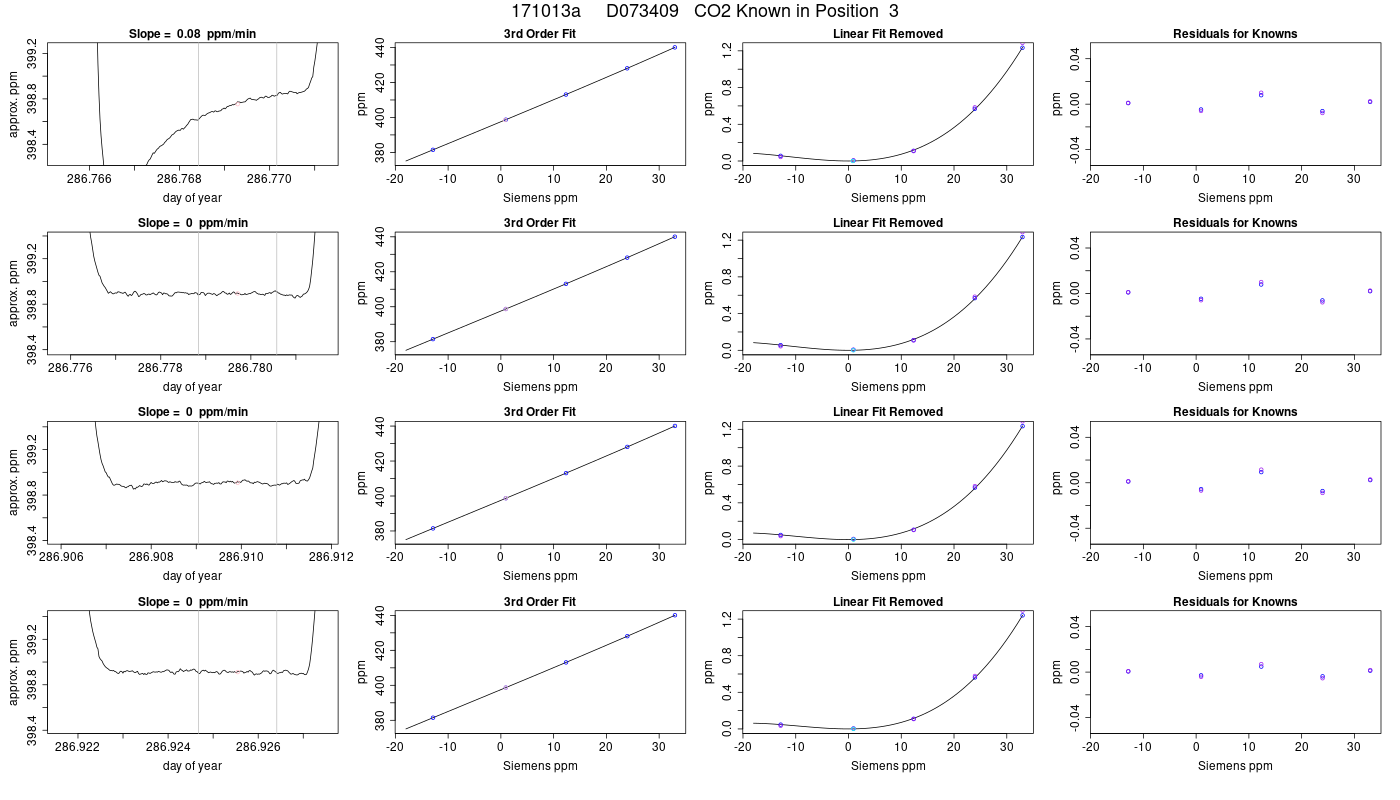

3 D073409 398.707 -0.007 0.003 398.918 -0.008 0.003 7 -651.78 3.81 2.43 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

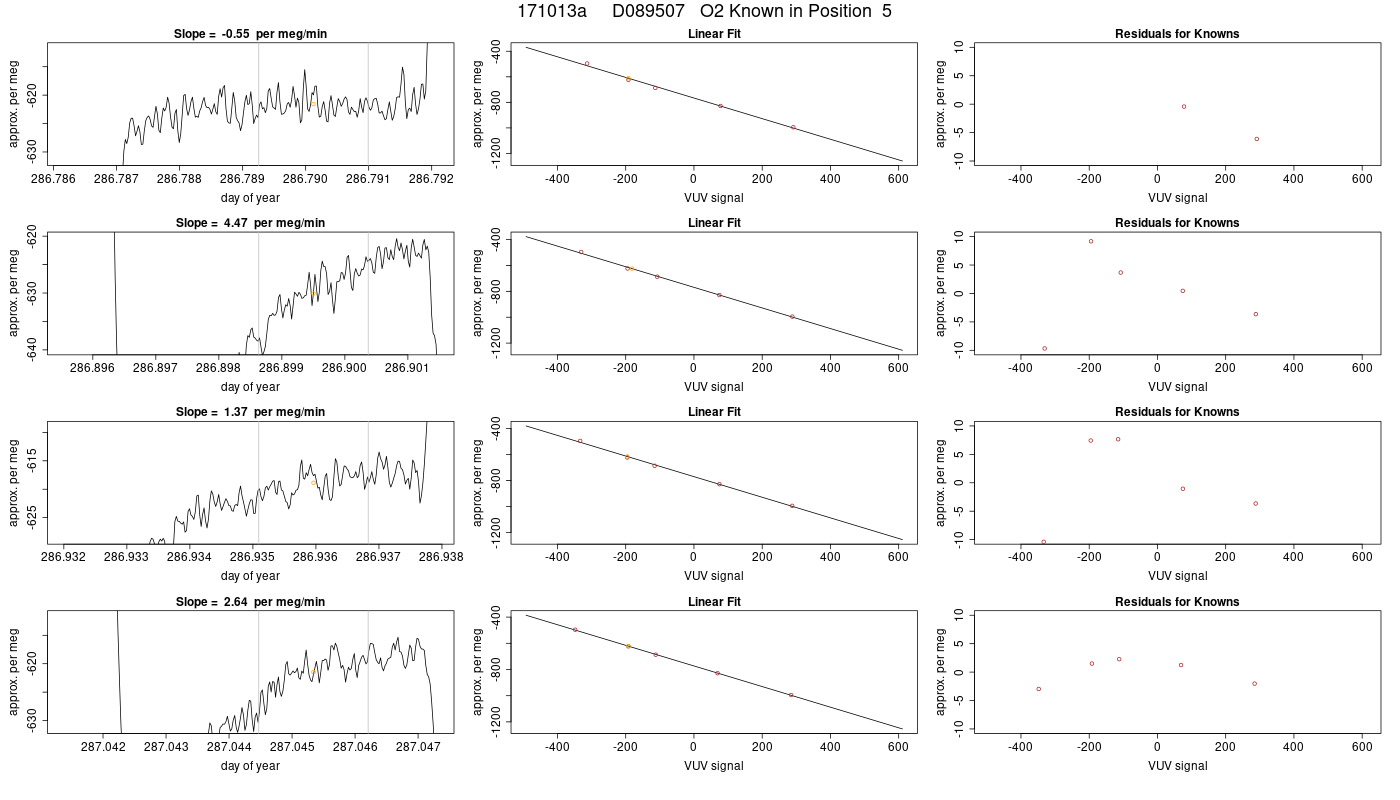

5 D089507 428.087 -0.009 0.005 428.275 -0.011 0.005 7 -559.23 2.82 2.71 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

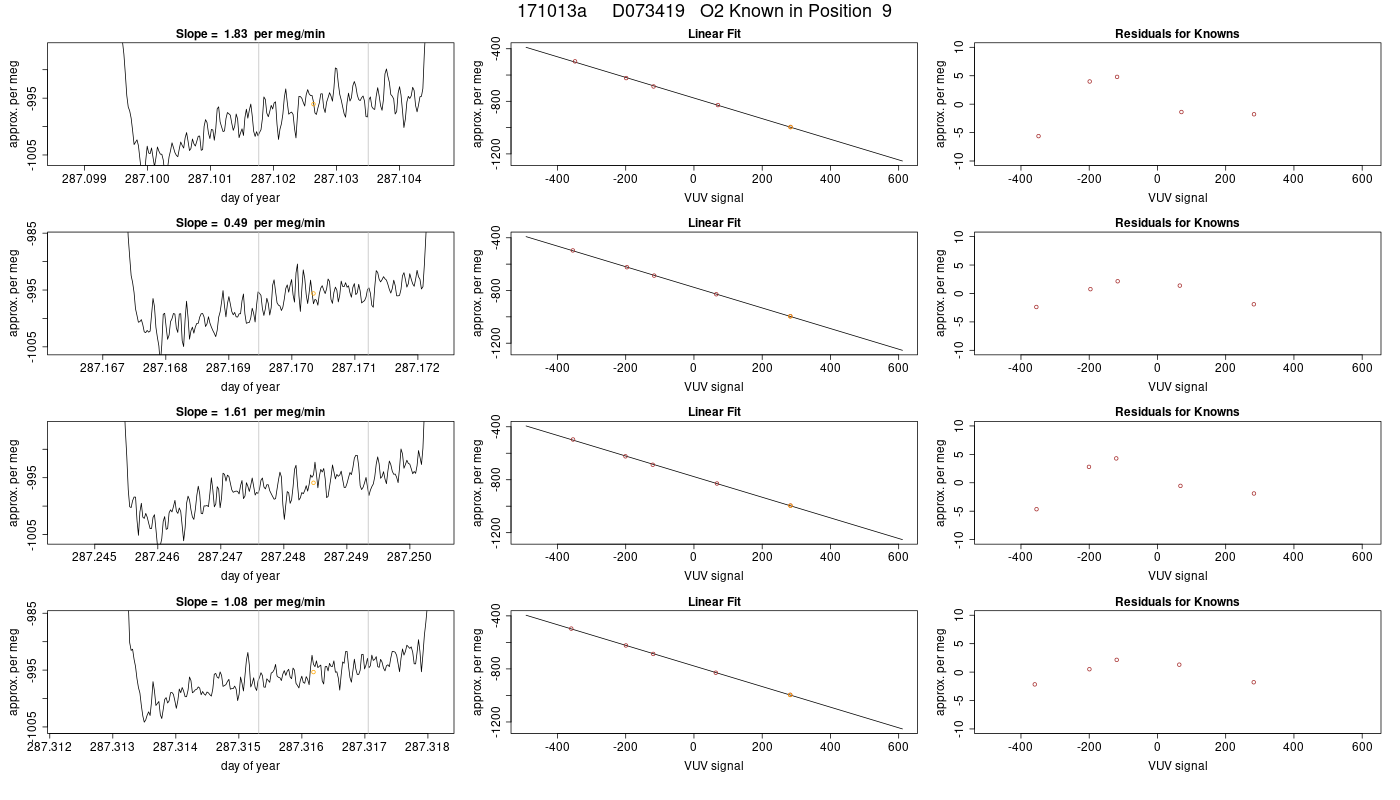

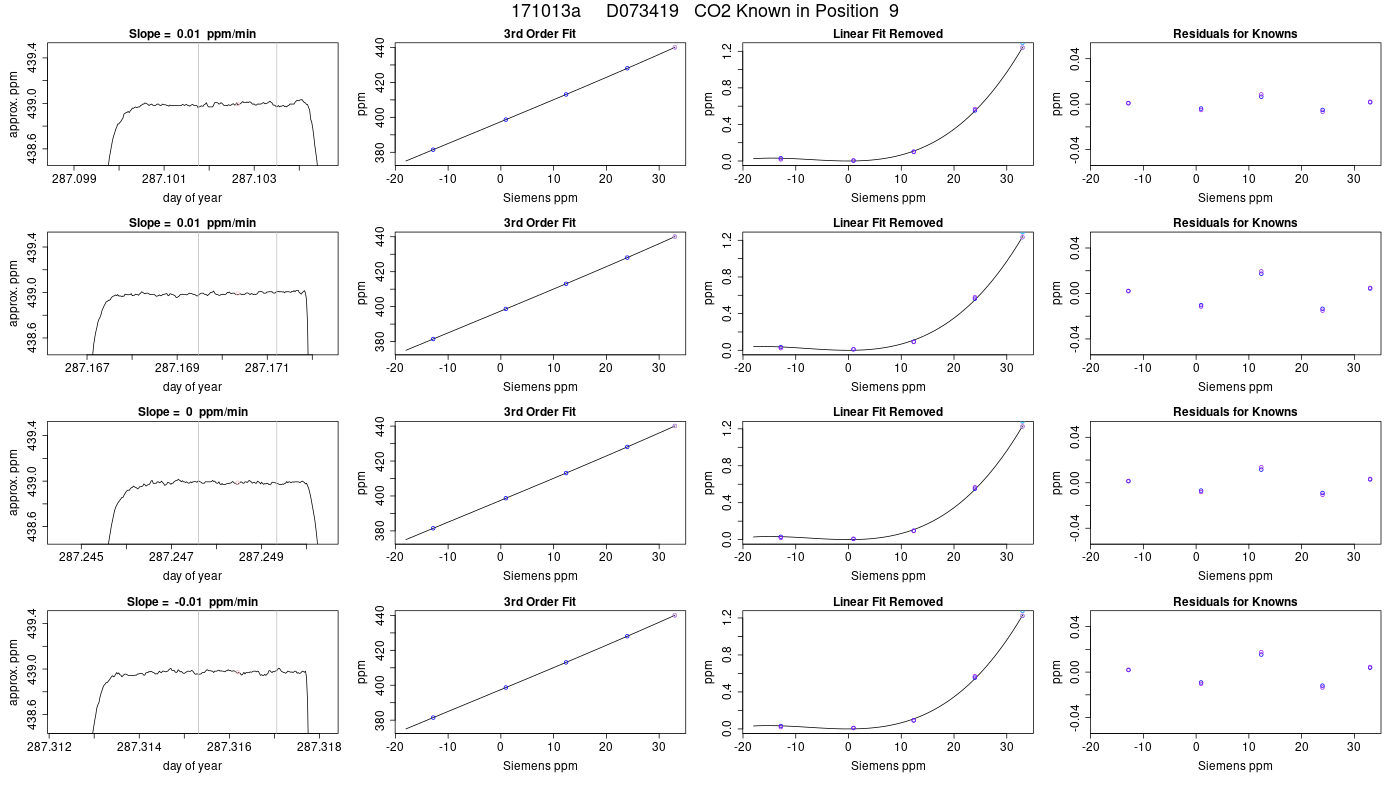

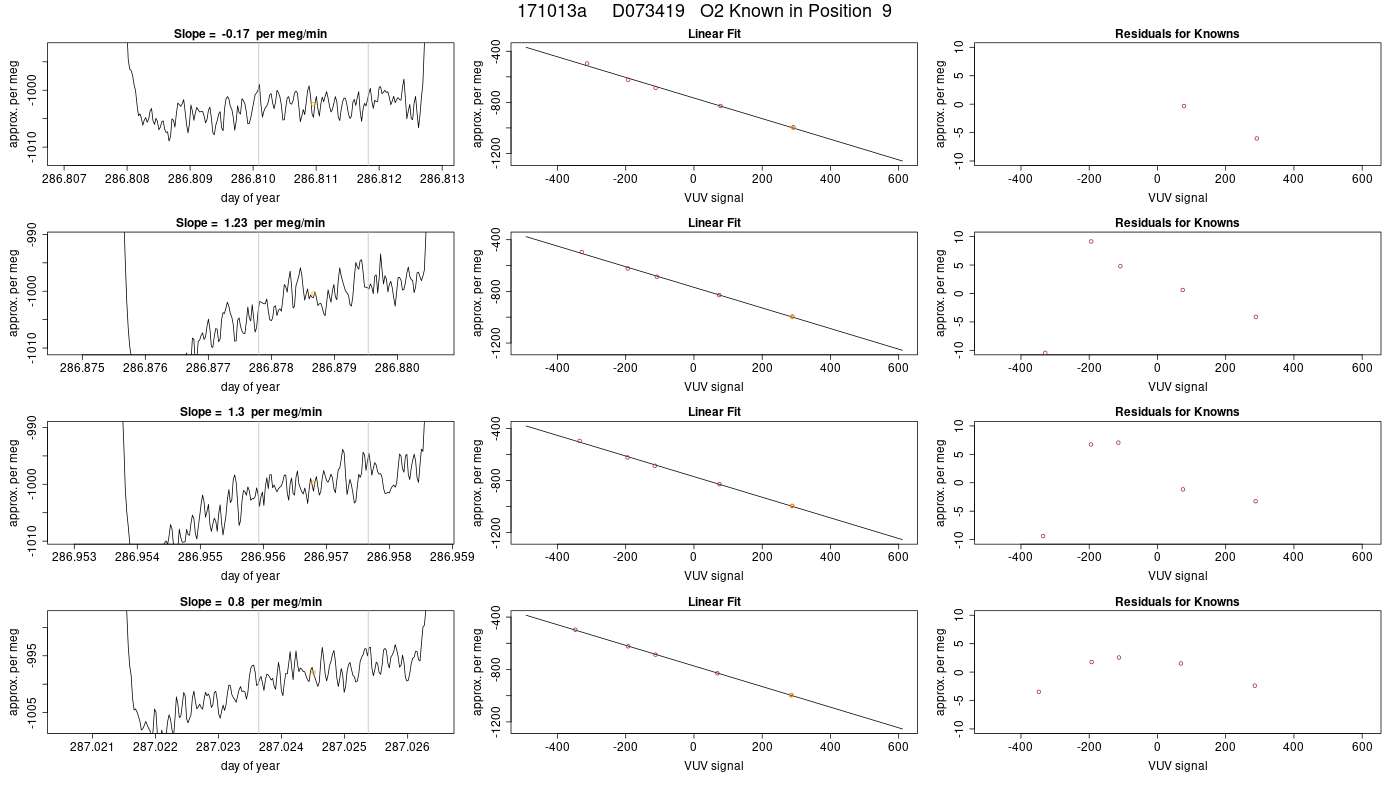

9 D073419 440.065 0.003 0.001 440.275 0.004 0.001 7 -919.32 -2.44 0.90 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

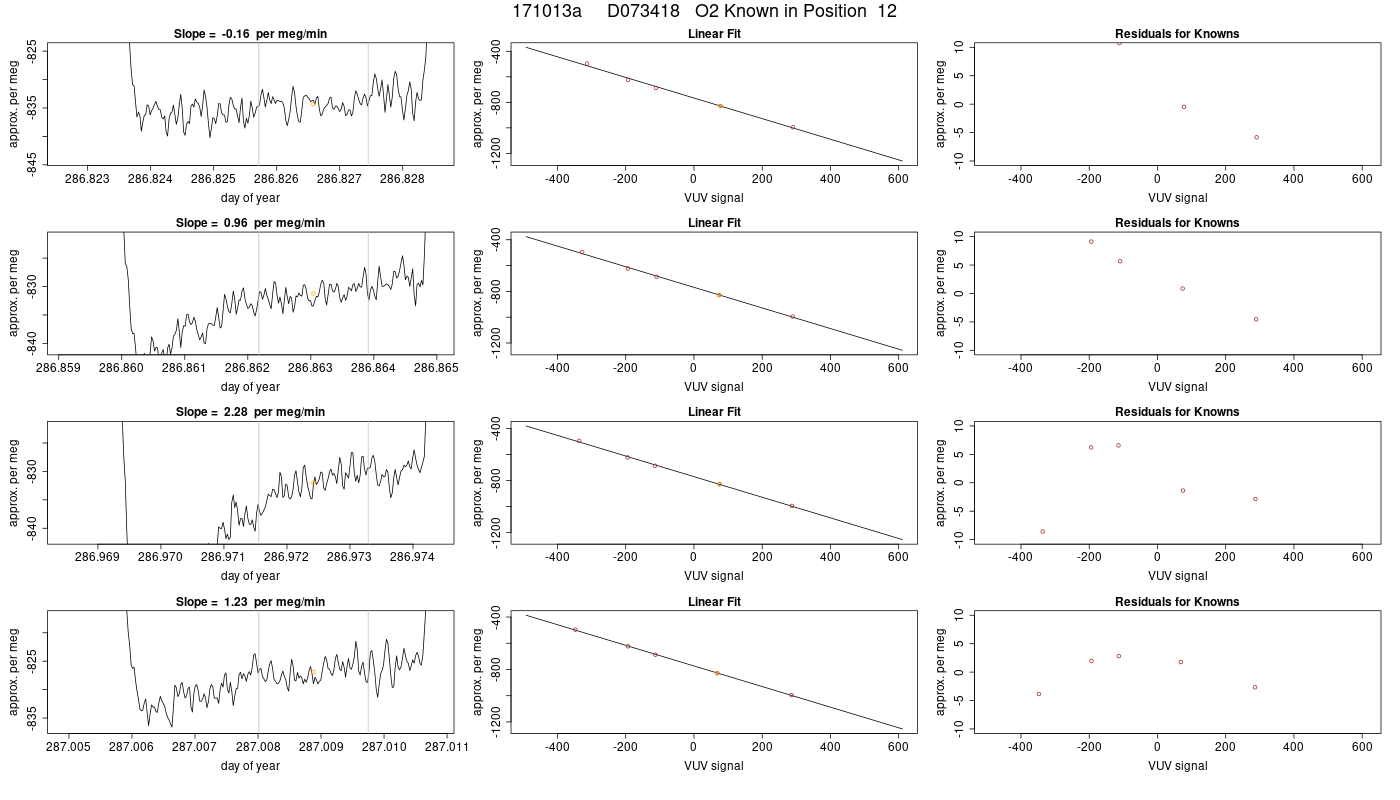

12 D073418 413.092 0.012 0.005 413.280 0.014 0.005 7 -779.40 0.28 1.42 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

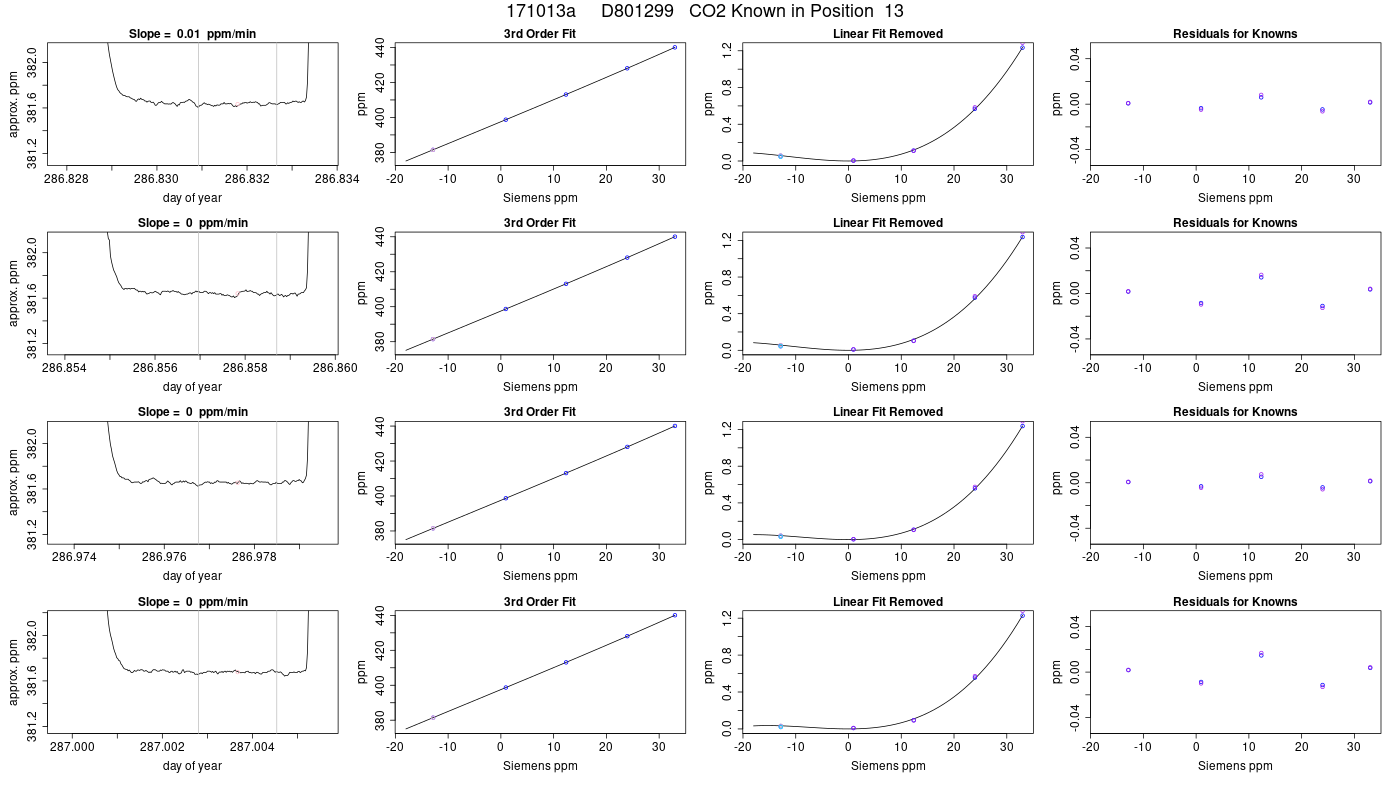

13 D801299 381.475 0.001 0.000 381.695 0.002 0.000 7 -477.75 -5.47 3.24 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

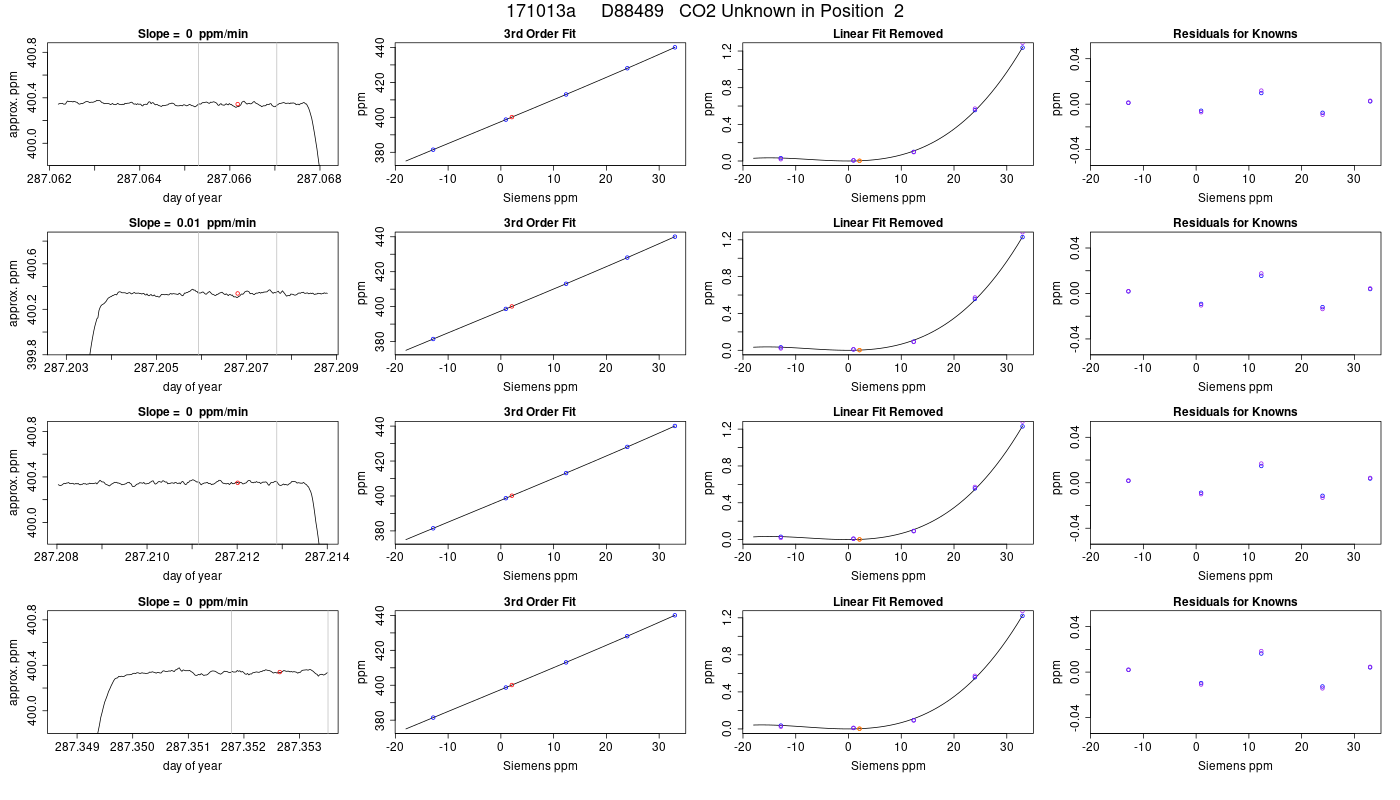

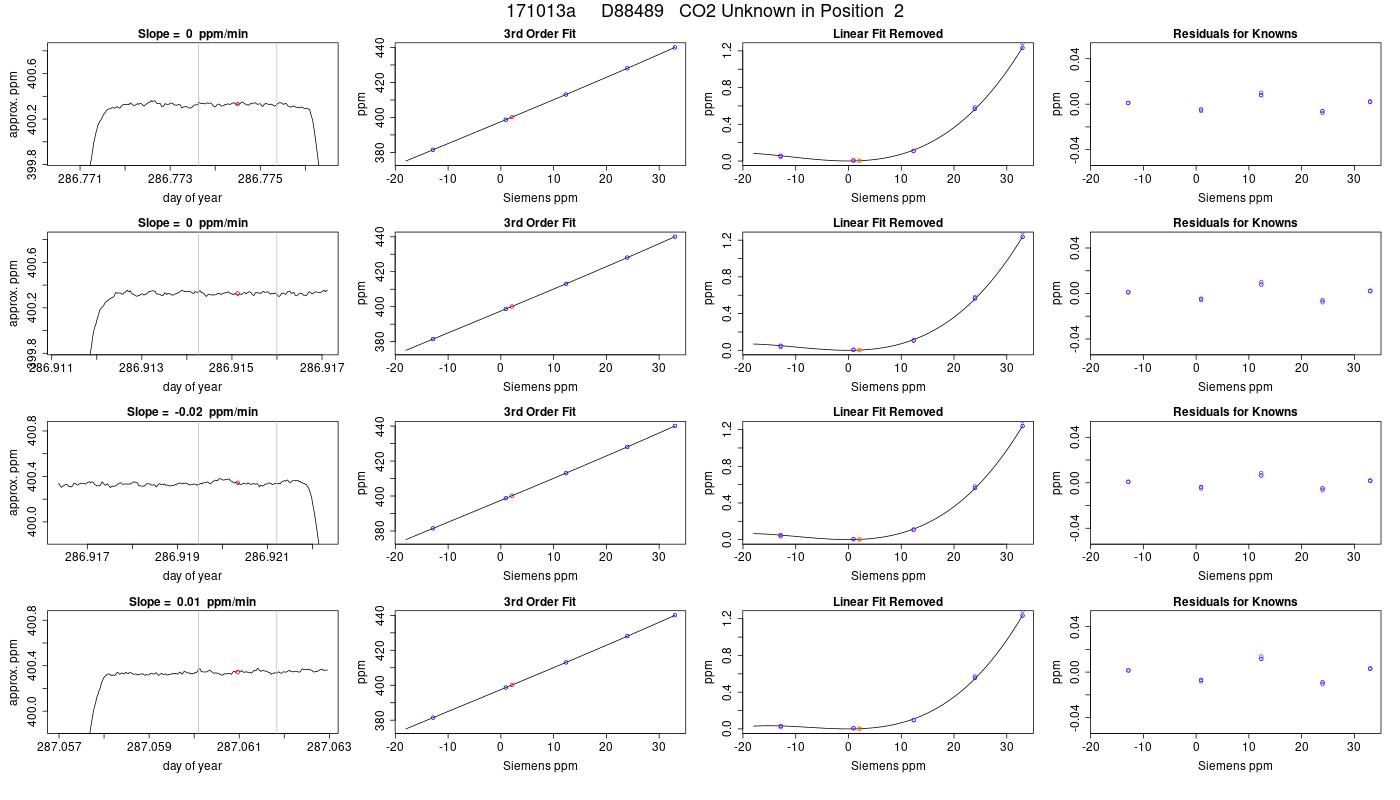

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.774 400.143 0.009 -421.31 1.95 400.351 0.009
286.915 400.123 0.010 -439.88 1.73 400.331 0.010
286.920 400.140 0.017 -438.43 1.81 400.348 0.017
287.061 400.134 0.013 -449.21 2.00 400.342 0.013
287.066 400.134 0.014 -447.90 2.25 400.342 0.014
287.207 400.131 0.014 -452.80 1.70 400.339 0.014
287.212 400.141 0.009 -451.87 1.83 400.349 0.009
287.353 400.126 0.013 -455.48 2.83 400.333 0.013

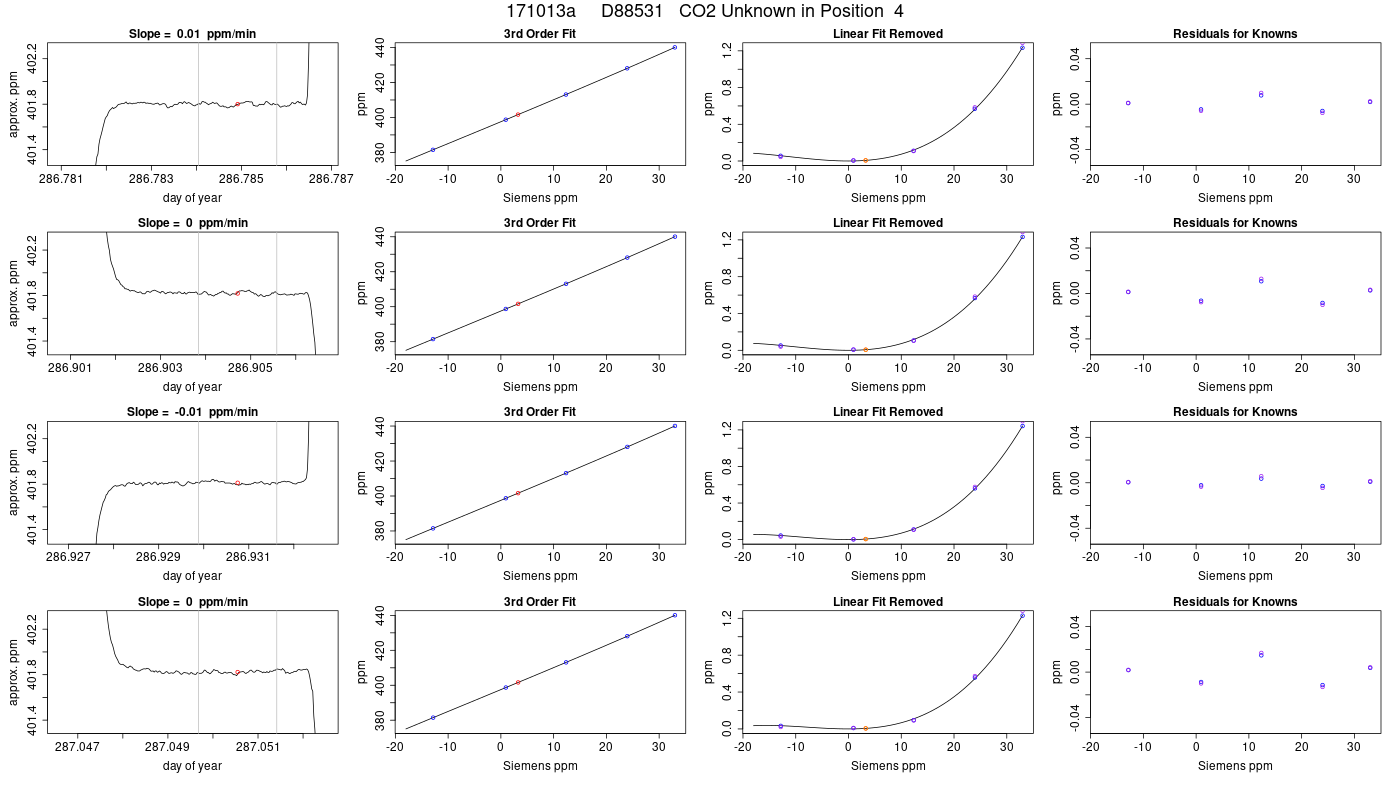

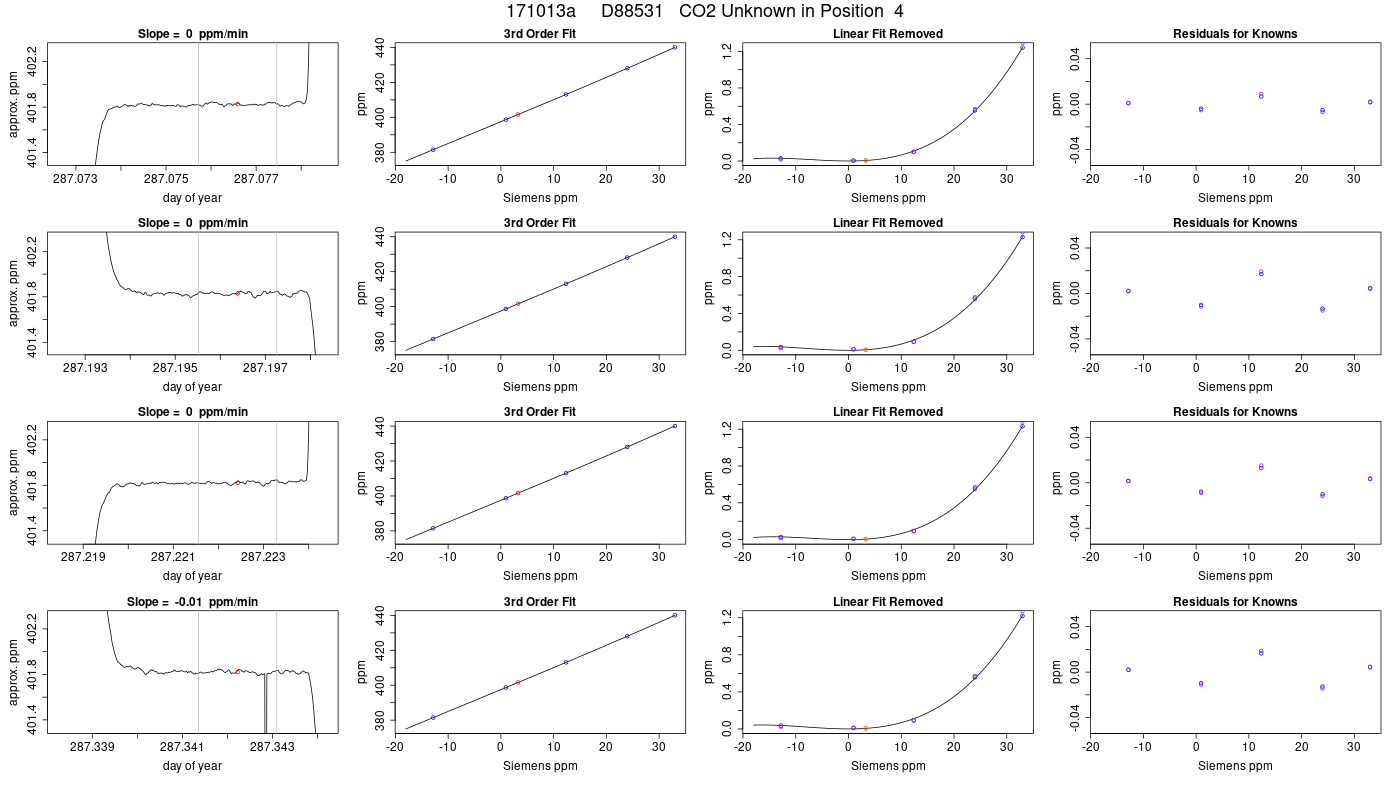

4 D88531    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.785 401.618 0.015 -616.28 2.50 401.823 0.015
286.905 401.620 0.015 -627.65 2.13 401.826 0.015
286.931 401.613 0.012 -628.31 1.84 401.819 0.012
287.051 401.619 0.012 -633.73 1.85 401.825 0.012
287.077 401.621 0.010 -635.72 1.53 401.826 0.010
287.196 401.625 0.014 -637.65 1.96 401.831 0.014
287.222 401.622 0.012 -639.13 1.84 401.827 0.012
287.342 401.613 0.013 -640.23 1.88 401.818 0.013

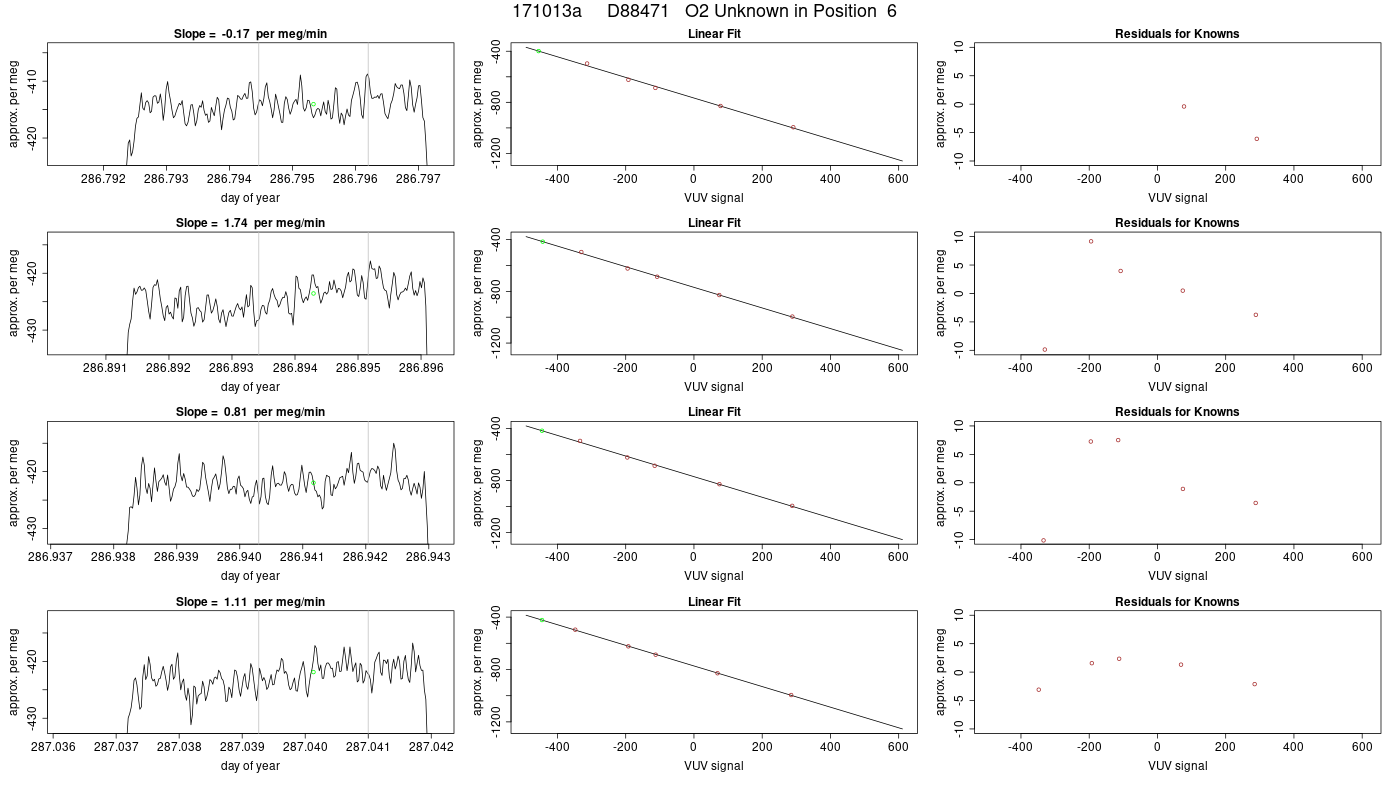

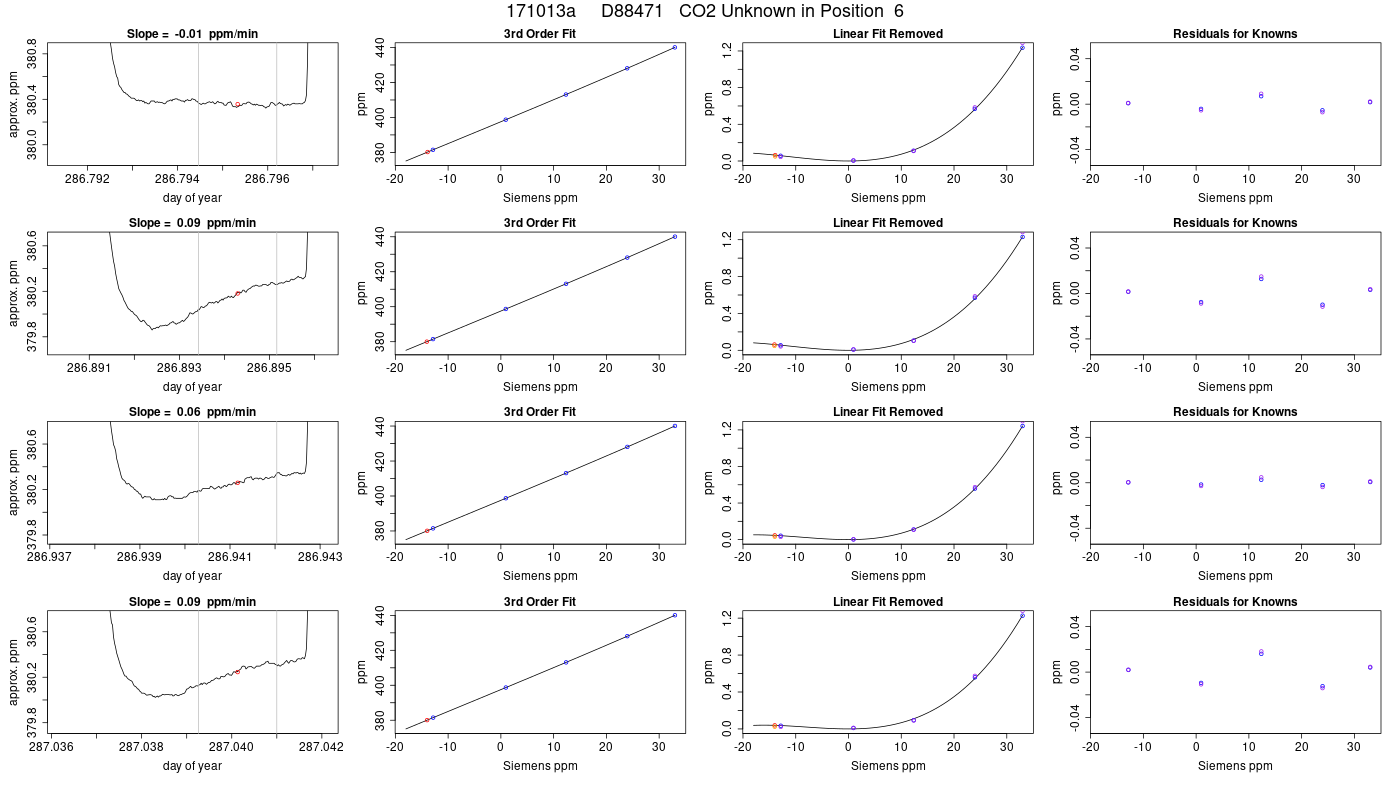

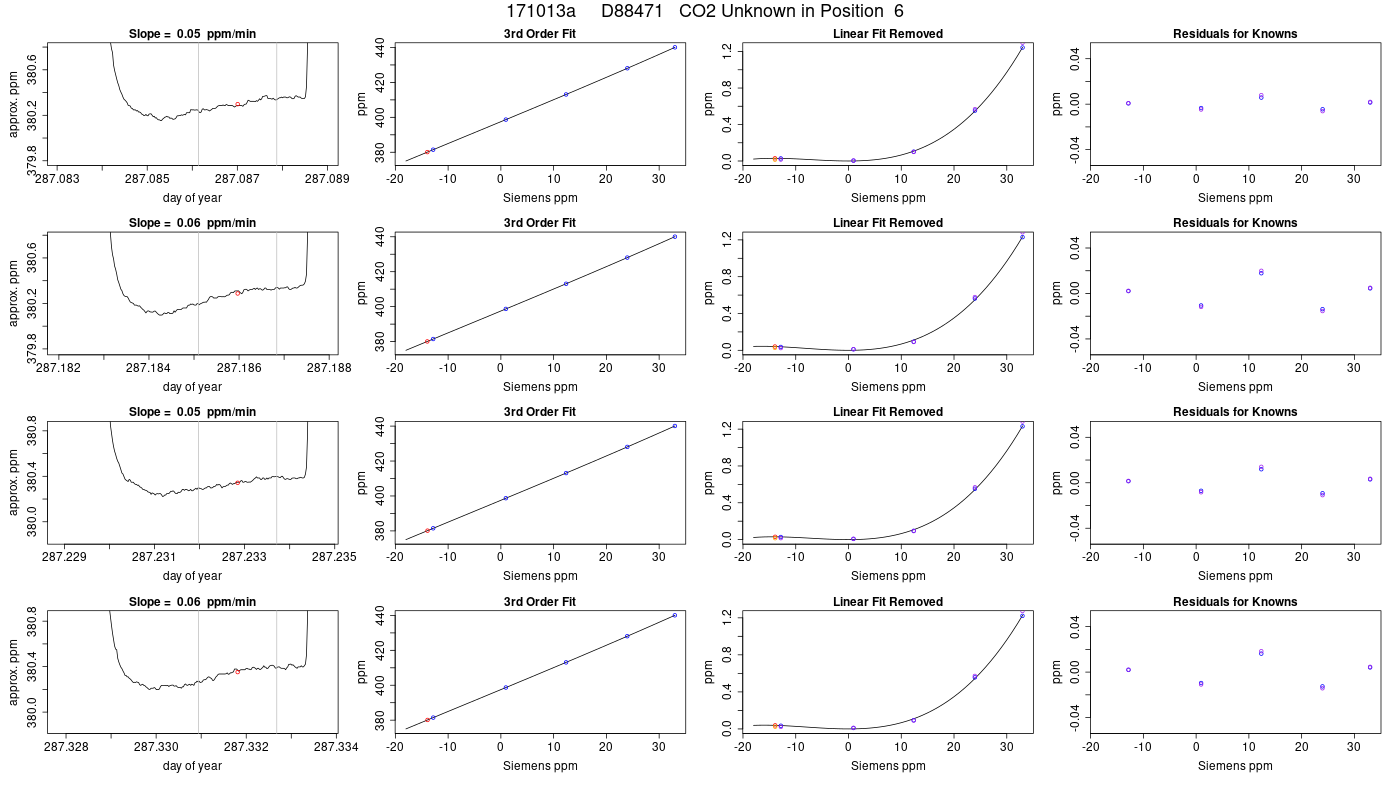

6 D88471    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.795 380.204 0.014 -381.97 2.10 380.424 0.014
286.894 380.017 0.067 -399.14 2.07 380.237 0.067
286.941 380.087 0.041 -401.26 1.98 380.306 0.041
287.040 380.045 0.063 -405.81 1.95 380.265 0.063
287.087 380.096 0.039 -409.35 2.30 380.315 0.039
287.186 380.085 0.042 -411.95 2.20 380.304 0.042
287.233 380.136 0.034 -412.52 1.87 380.355 0.034
287.332 380.130 0.042 -414.80 1.55 380.349 0.042

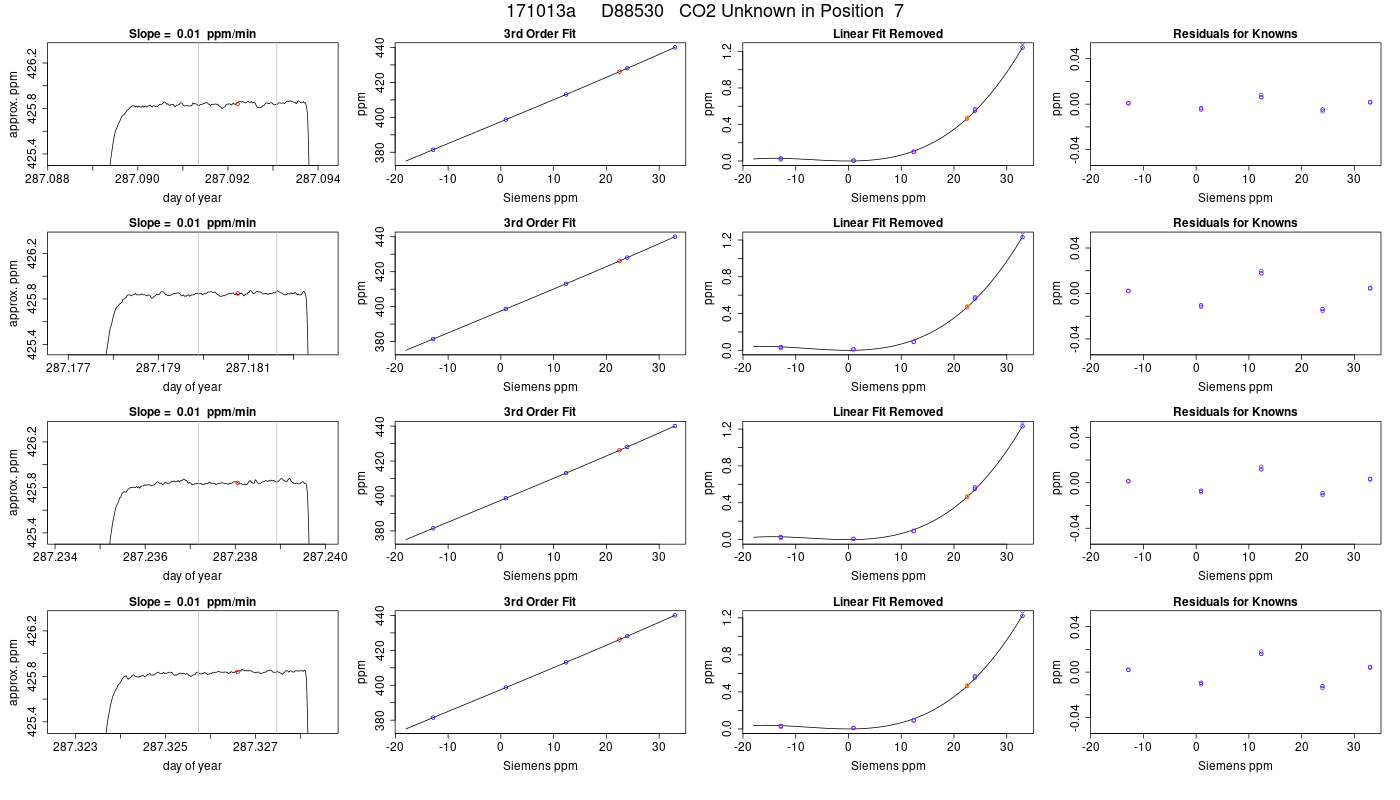

7 D88530    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.801 426.117 0.012 -573.65 1.79 426.302 0.012
286.889 426.136 0.016 -582.14 1.95 426.322 0.016
286.946 426.122 0.014 -584.78 1.80 426.307 0.014
287.035 426.143 0.012 -588.60 1.75 426.328 0.012
287.092 426.118 0.015 -591.09 1.65 426.303 0.015
287.181 426.141 0.011 -591.60 1.89 426.326 0.011
287.238 426.133 0.011 -593.03 1.84 426.318 0.011
287.327 426.142 0.010 -595.68 2.02 426.327 0.010

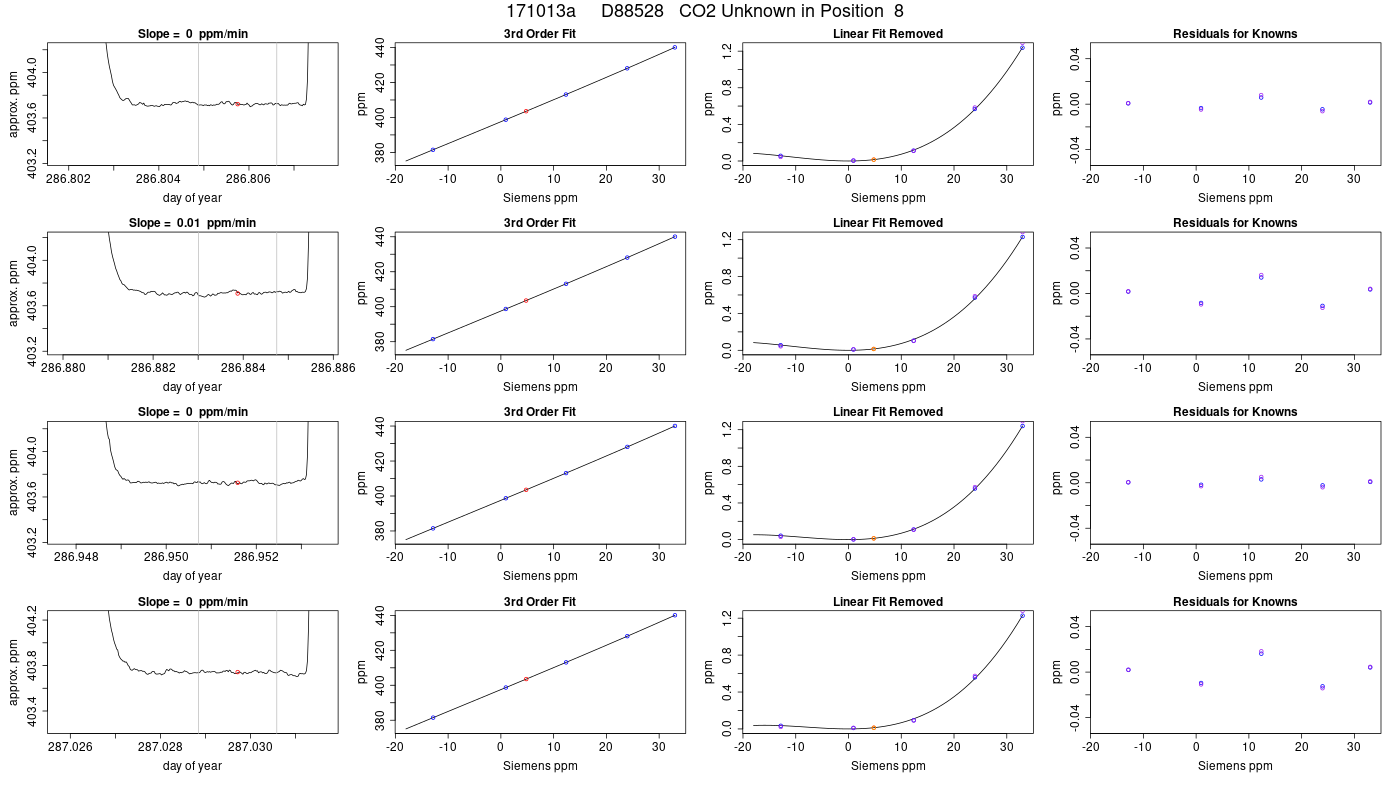

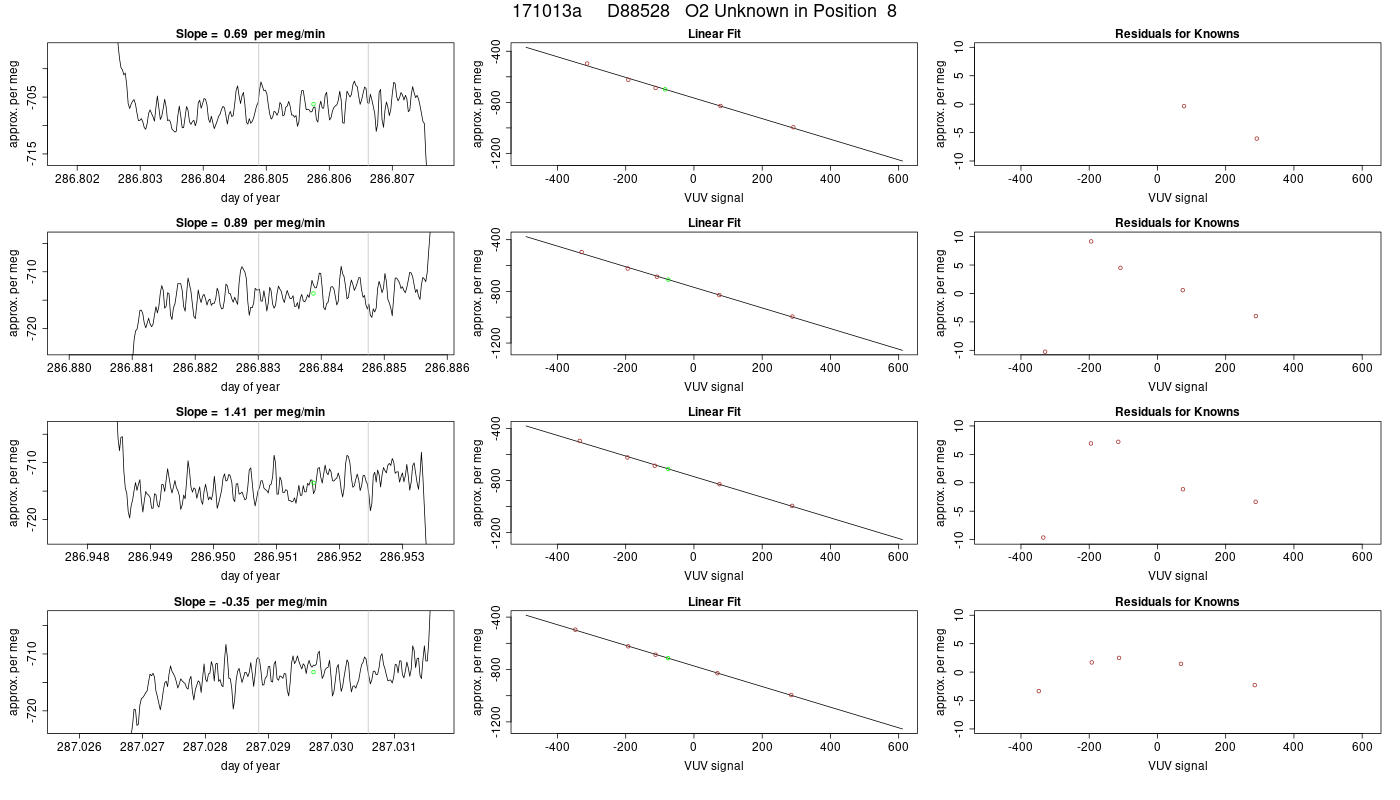

8 D88528    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.806 403.548 0.010 -658.19 1.99 403.751 0.010
286.884 403.521 0.015 -669.46 1.78 403.724 0.015
286.952 403.536 0.012 -671.29 1.96 403.738 0.012
287.030 403.548 0.009 -673.69 1.90 403.751 0.009
287.097 403.540 0.012 -675.03 1.88 403.742 0.012
287.176 403.553 0.009 -676.00 1.70 403.756 0.009
287.243 403.550 0.012 -676.07 2.12 403.753 0.012
287.321 403.560 0.013 -677.75 1.92 403.762 0.013

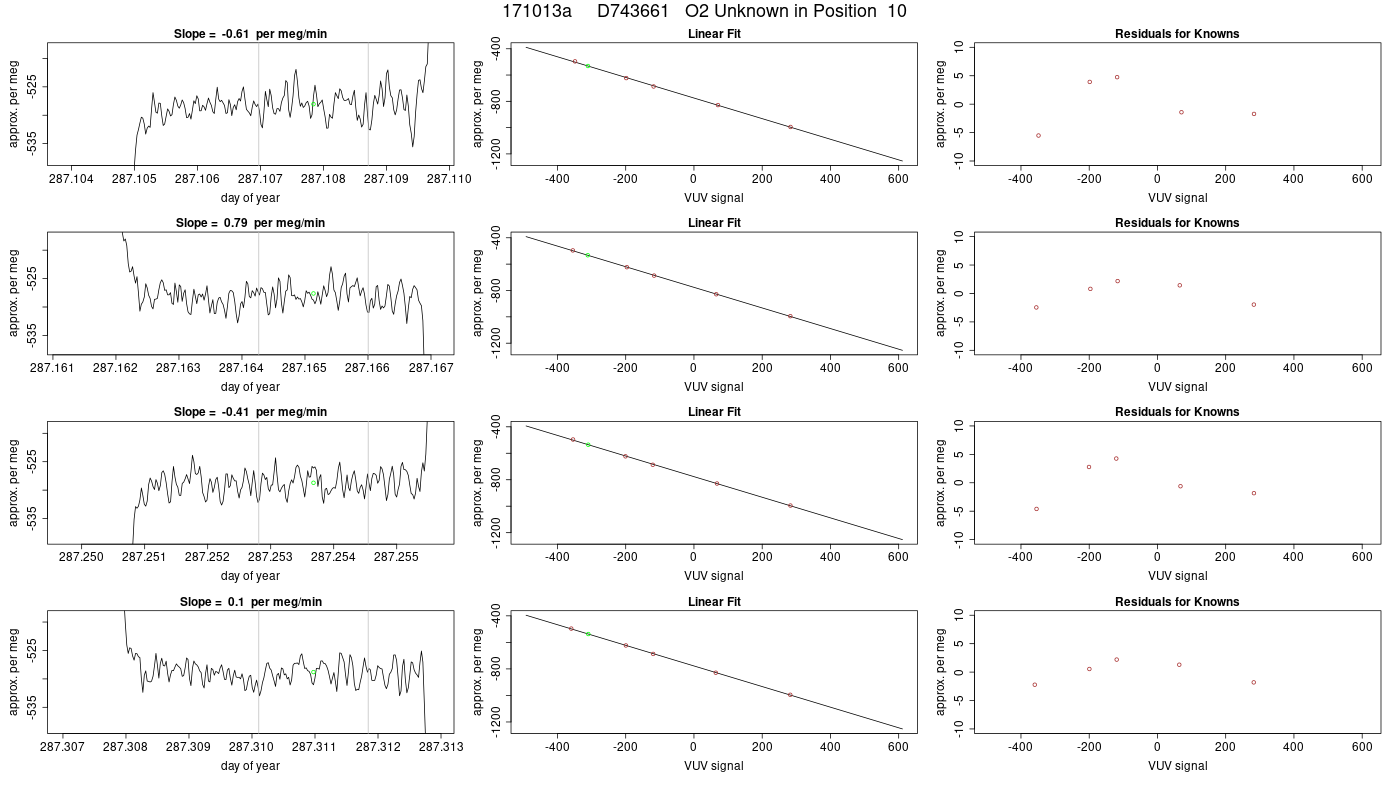

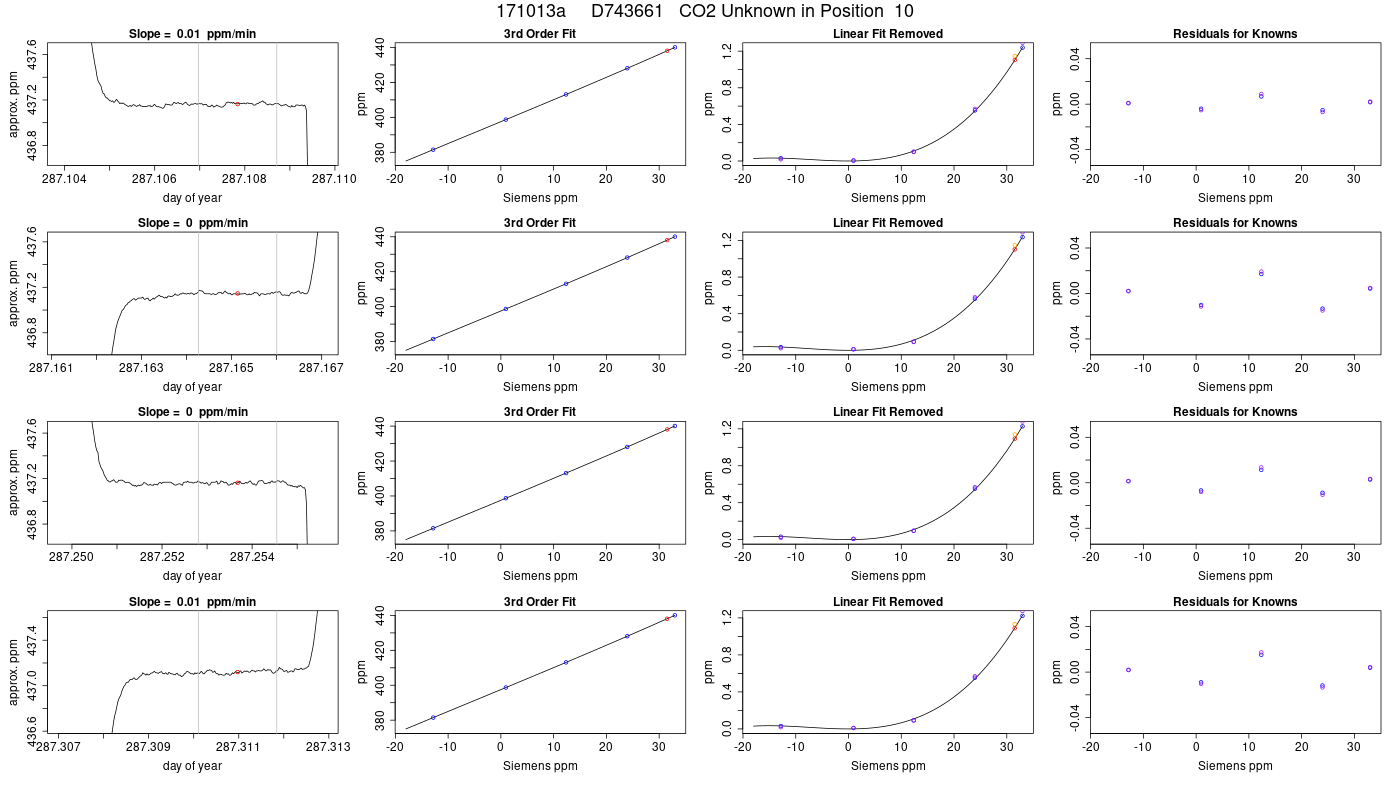

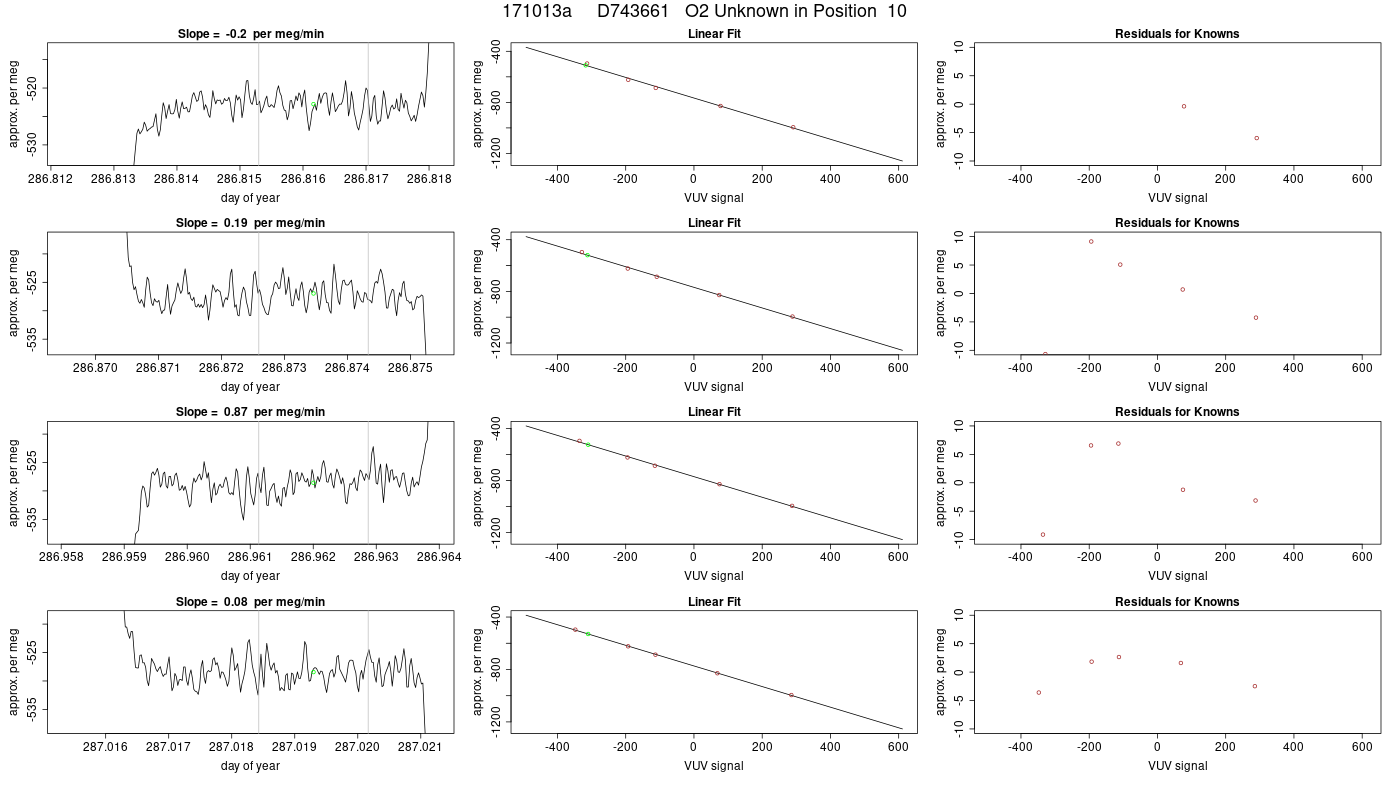

10 D743661    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.816 438.118 0.013 -436.43 1.83 438.322 0.013
286.873 438.086 0.013 -446.24 1.98 438.291 0.013
286.962 438.101 0.013 -451.76 1.81 438.305 0.013
287.019 438.090 0.011 -455.60 1.97 438.295 0.011
287.108 438.097 0.013 -457.72 2.18 438.301 0.013
287.165 438.083 0.009 -459.16 1.78 438.288 0.009
287.254 438.108 0.010 -461.75 1.79 438.312 0.010
287.311 438.073 0.014 -463.46 1.80 438.277 0.014

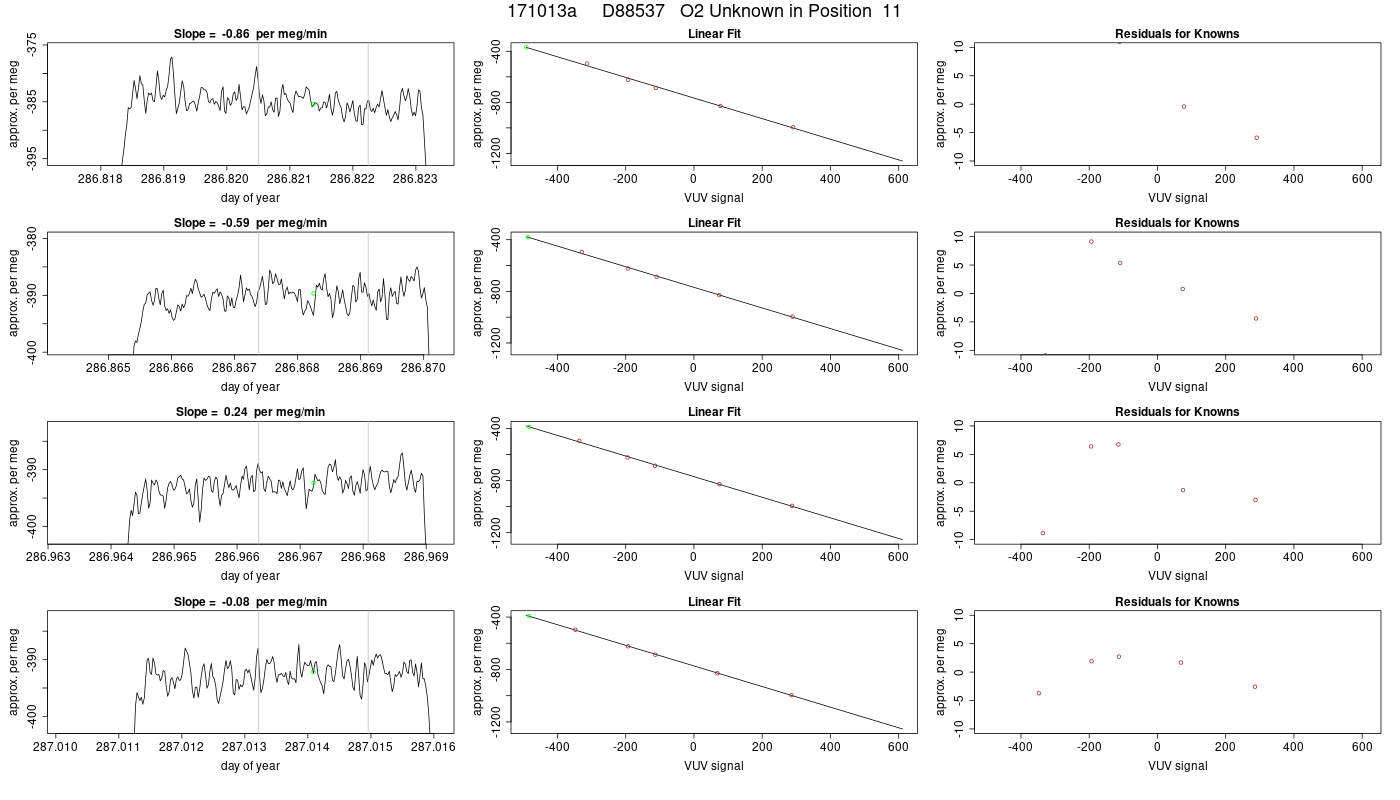

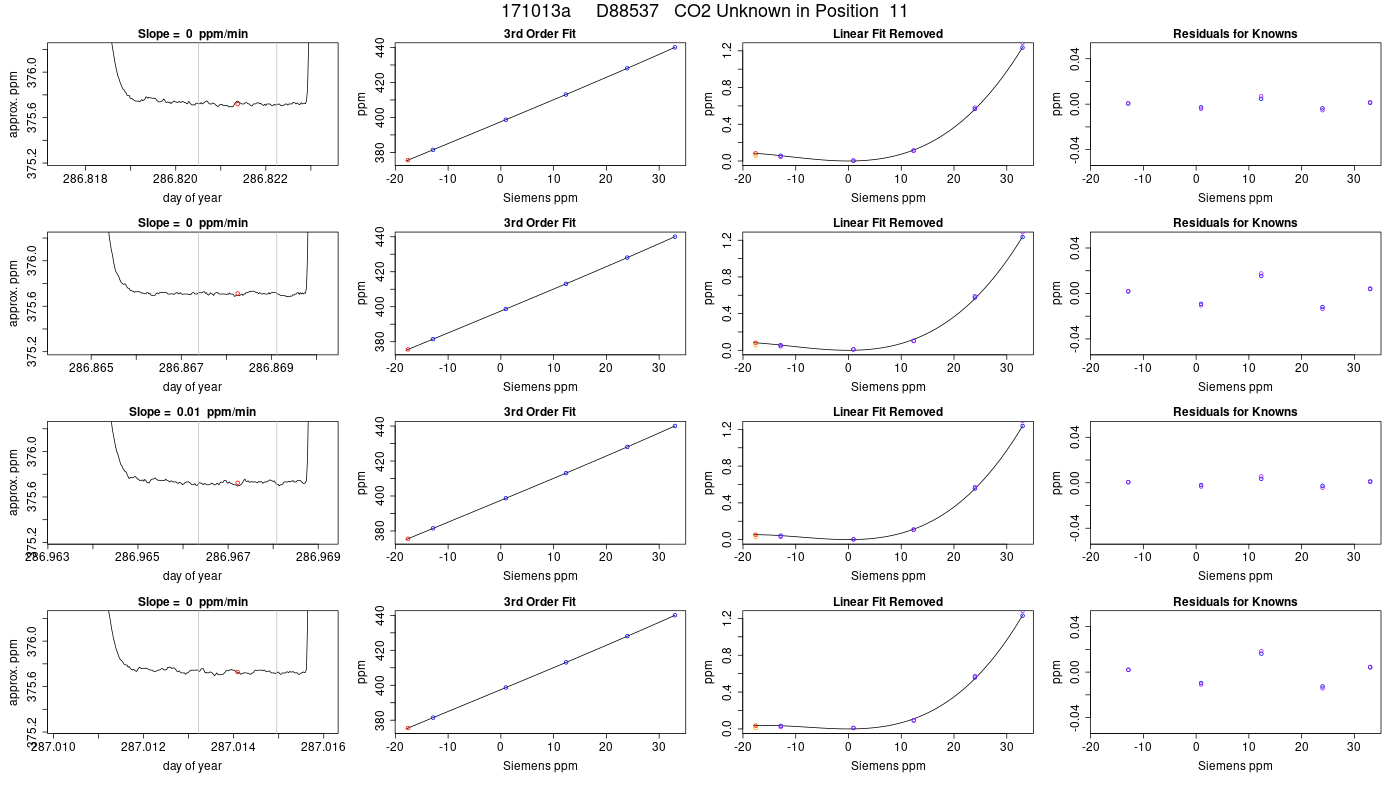

11 D88537    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.821 375.579 0.012 -356.92 1.59 375.792 0.012
286.868 375.566 0.011 -368.41 2.06 375.779 0.011
286.967 375.552 0.014 -376.39 1.65 375.766 0.014
287.014 375.520 0.015 -381.19 1.97 375.734 0.015
287.113 375.529 0.015 -384.79 1.72 375.743 0.015
287.160 375.528 0.015 -386.30 2.08 375.741 0.015
287.259 375.537 0.012 -389.72 2.06 375.751 0.012
287.306 375.516 0.011 -391.24 1.33 375.730 0.011

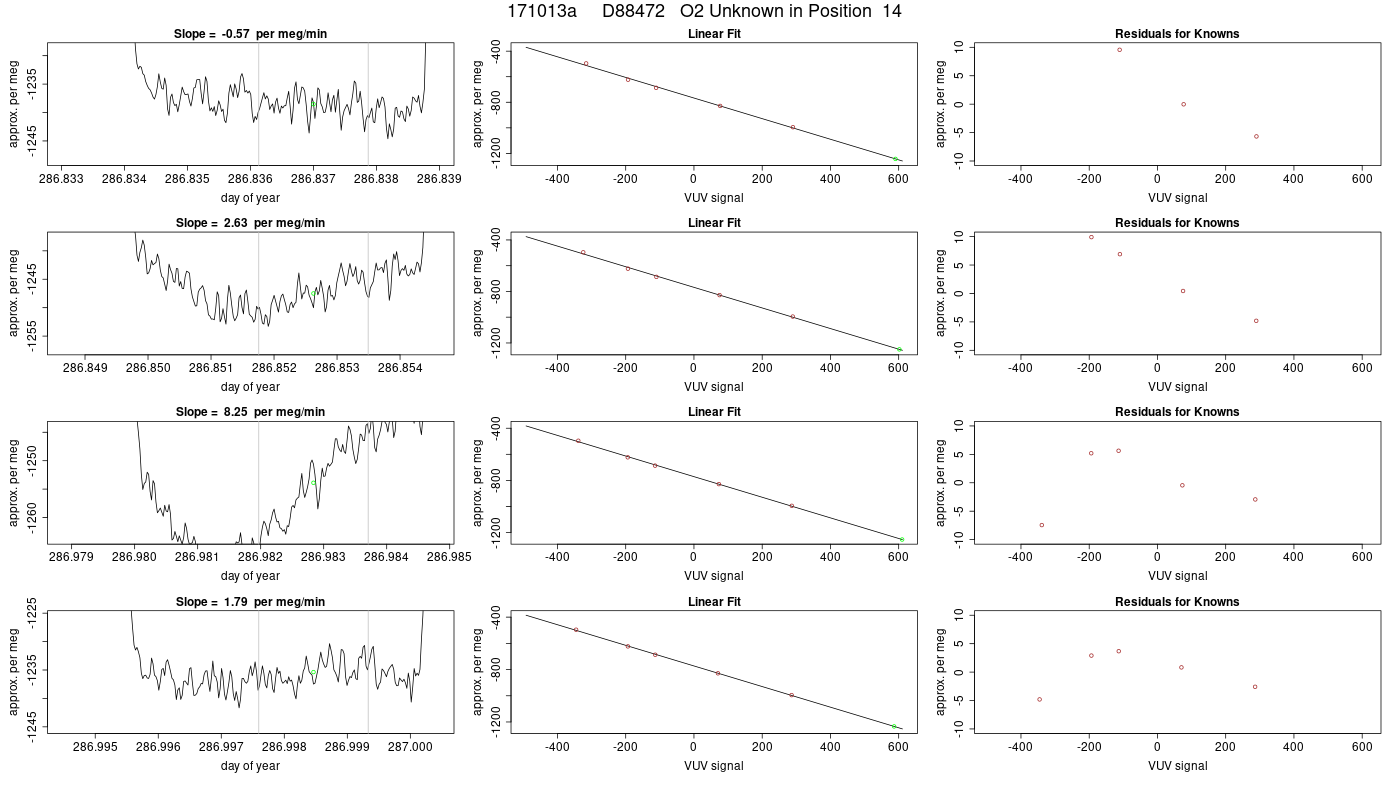

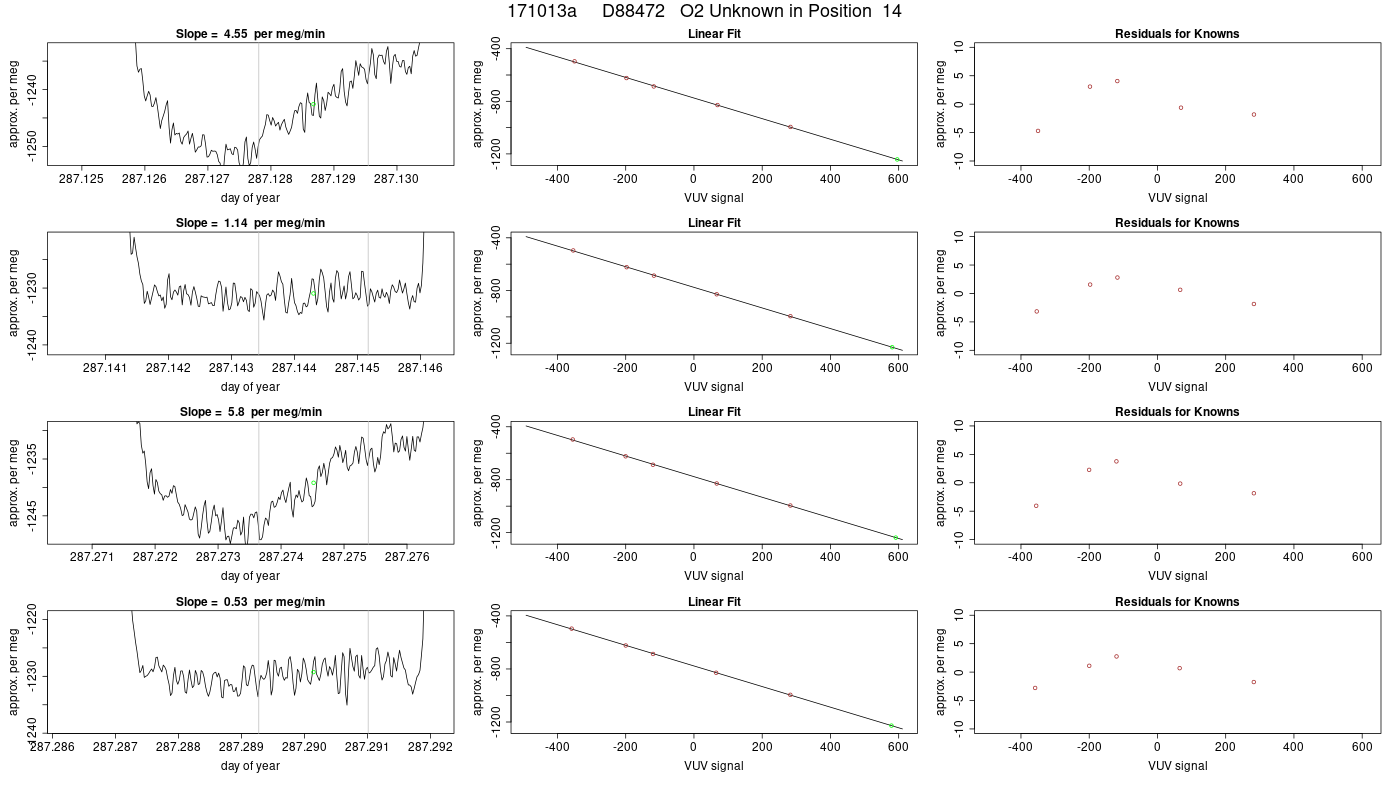

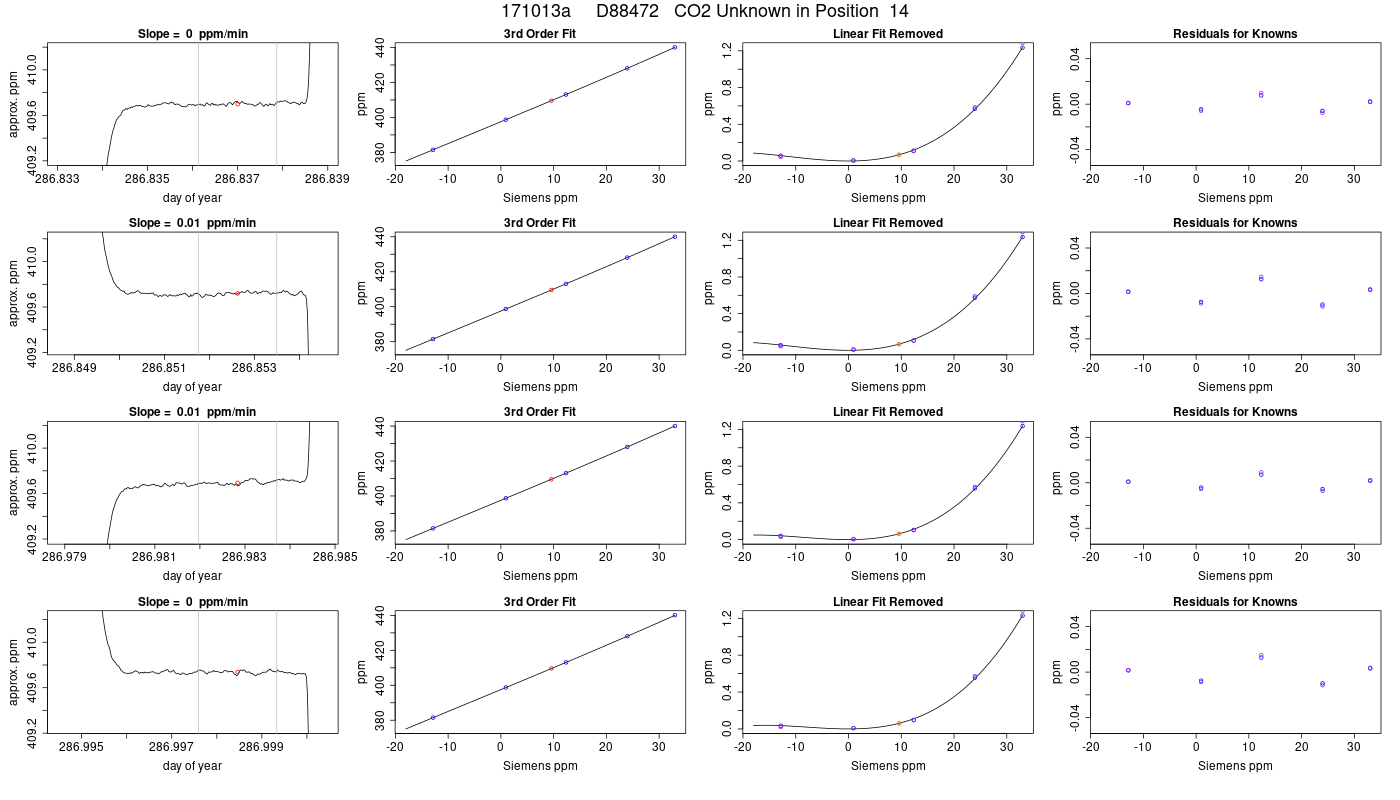

14 D88472    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.837 409.580 0.010 -1197.45 1.96 409.774 0.010
286.853 409.595 0.014 -1204.36 2.69 409.789 0.014
286.983 409.559 0.016 -1207.95 6.14 409.753 0.016
286.998 409.599 0.014 -1188.29 2.14 409.794 0.014
287.129 409.574 0.012 -1196.66 3.66 409.769 0.012
287.144 409.597 0.015 -1184.59 2.25 409.791 0.015
287.275 409.586 0.015 -1191.89 4.51 409.780 0.015
287.290 409.603 0.013 -1181.54 2.03 409.797 0.013

15 D743653    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
286.842 421.064 0.013 -731.74 2.05 421.249 0.013
286.847 421.065 0.012 -732.30 1.66 421.250 0.012
286.988 421.029 0.012 -740.27 1.60 421.214 0.012
286.993 421.037 0.011 -740.61 1.77 421.222 0.011
287.134 421.031 0.014 -744.61 1.73 421.216 0.014
287.139 421.034 0.010 -744.47 2.14 421.218 0.010
287.280 421.036 0.016 -746.47 1.51 421.220 0.016
287.285 421.046 0.013 -745.87 2.23 421.231 0.013
