UEA CRAM Lab O2 and CO2 calibration results
RUN = 170927a
PROCESSED: 16:22:08 Mon 21Aug2023

Notes
Logfile

Results

Using data from 270.71 to 271.341 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 D399093 415.226 0.008 0.004 415.414 0.007 0.004 8 -877.56 2.76 -25.48 4
2 D88489 400.131 0.008 0.003 400.339 0.008 0.003 9 -463.17 2.59 1.45 5
4 D399092 409.263 0.007 0.010 409.457 0.007 0.010 8 -682.02 2.43 -12.84 4
6 D548335 415.628 0.011 0.023 415.816 0.011 0.023 8 -694.02 2.08 13.50 4
7 D548334 488.680 0.227 0.469 489.388 0.228 0.471 8 -956.21 1.48 -24.09 4
8 D596276 439.479 0.004 0.000 439.687 0.004 0.000 8 -892.18 1.83 -9.38 4
10 D399094 404.470 0.010 -0.011 404.671 0.010 -0.011 8 -806.67 2.26 -17.87 3
11 D596278 390.930 0.008 0.019 391.148 0.008 0.019 8 -507.65 0.98 36.30 3
14 D88472 409.566 0.014 0.050 409.760 0.014 0.050 8 -1182.04 2.18 71.22 3
15 D548320 382.450 0.009 0.005 382.670 0.009 0.005 8 -525.02 1.41 -32.73 4
WT D258964 397.608 0.007 -0.021 397.819 0.007 -0.021 121 -748.33 0.34 1.84 121
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

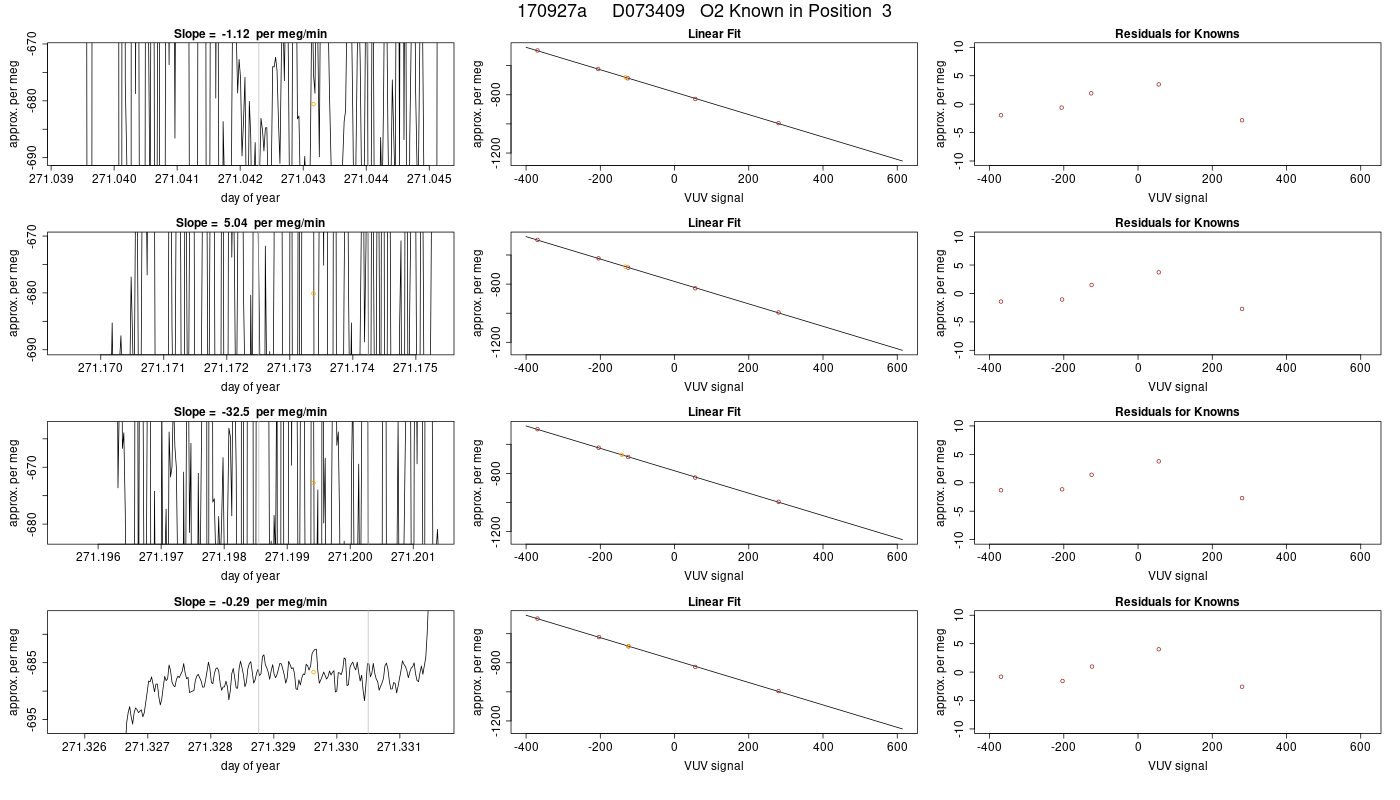

3 D073409 398.707 -0.008 0.003 398.918 -0.009 0.003 8 -651.78 1.44 0.88 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

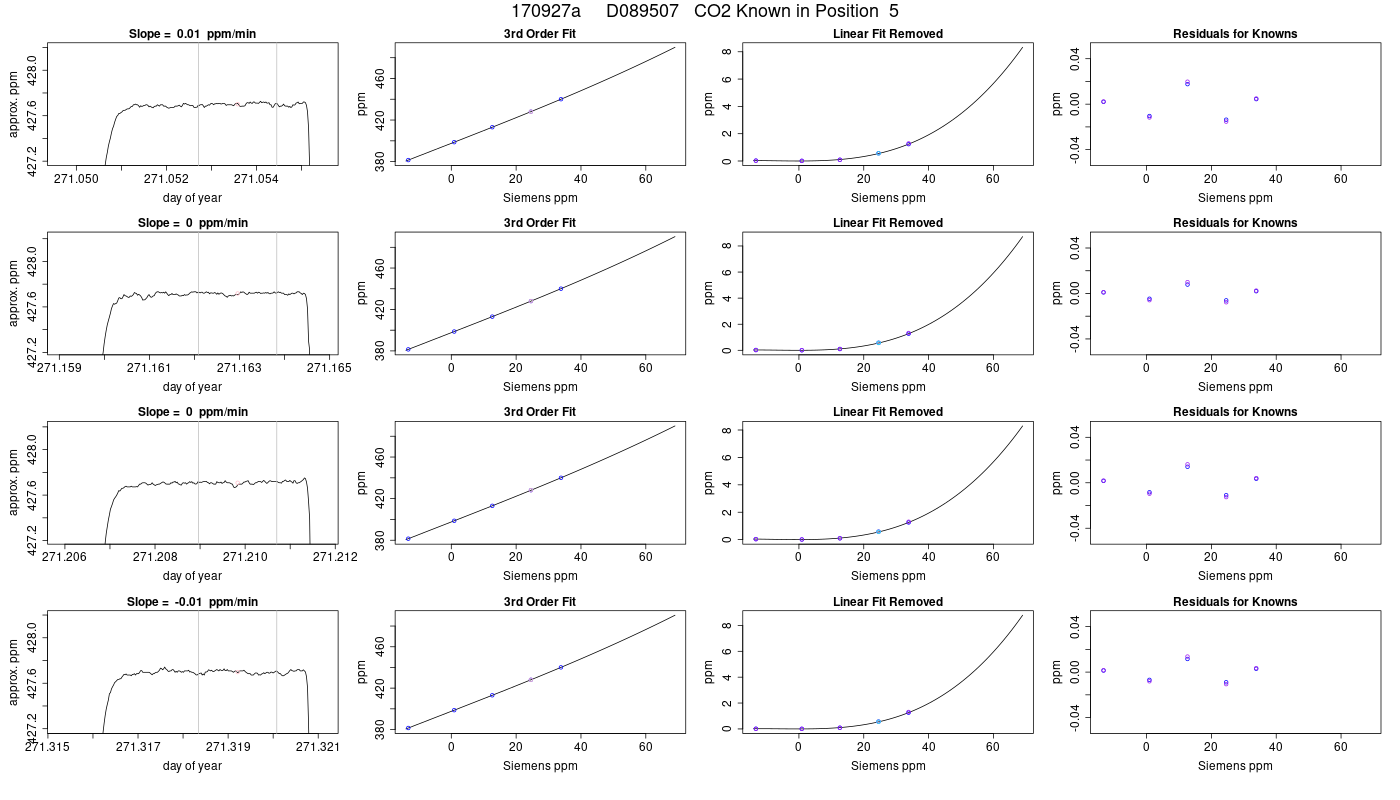

5 D089507 428.087 -0.011 0.004 428.275 -0.012 0.004 8 -559.23 -0.25 0.92 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

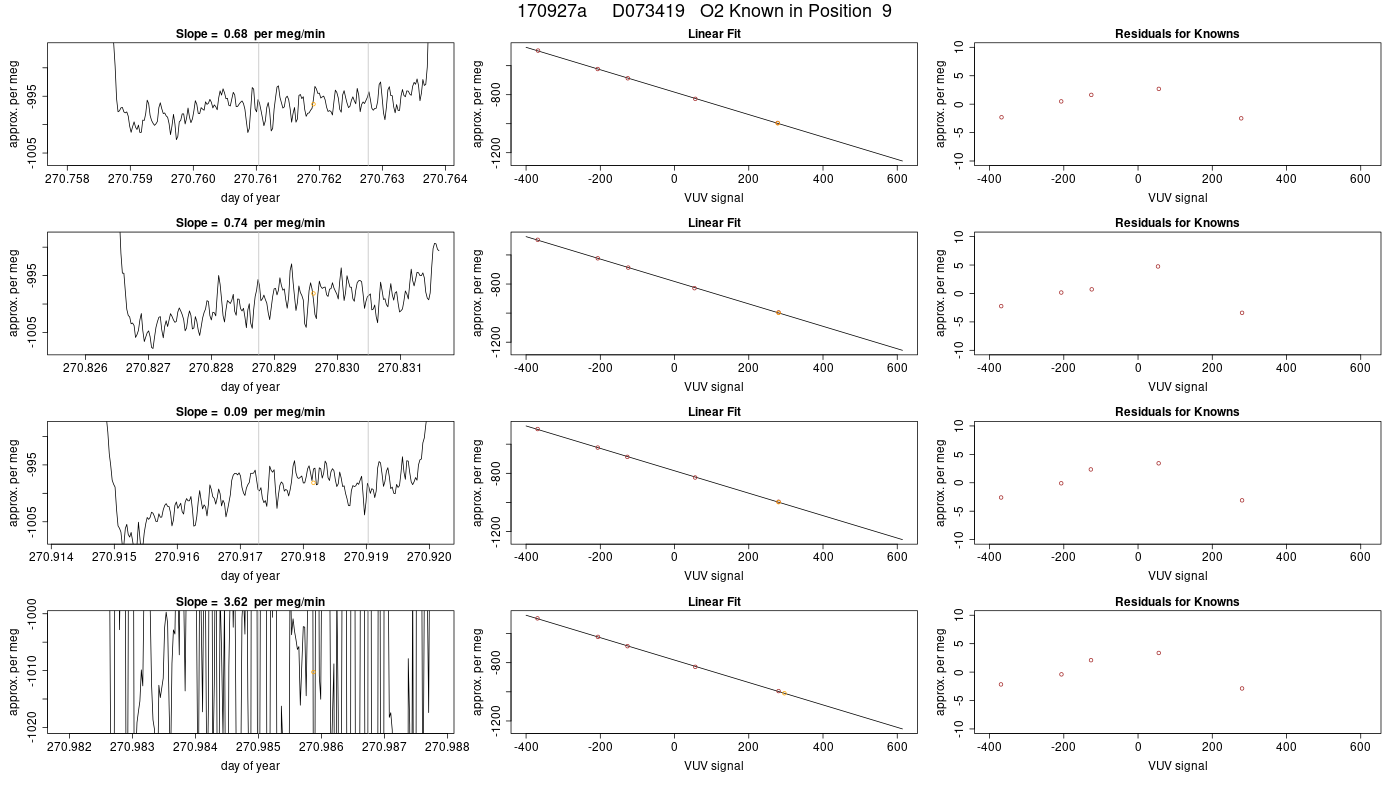

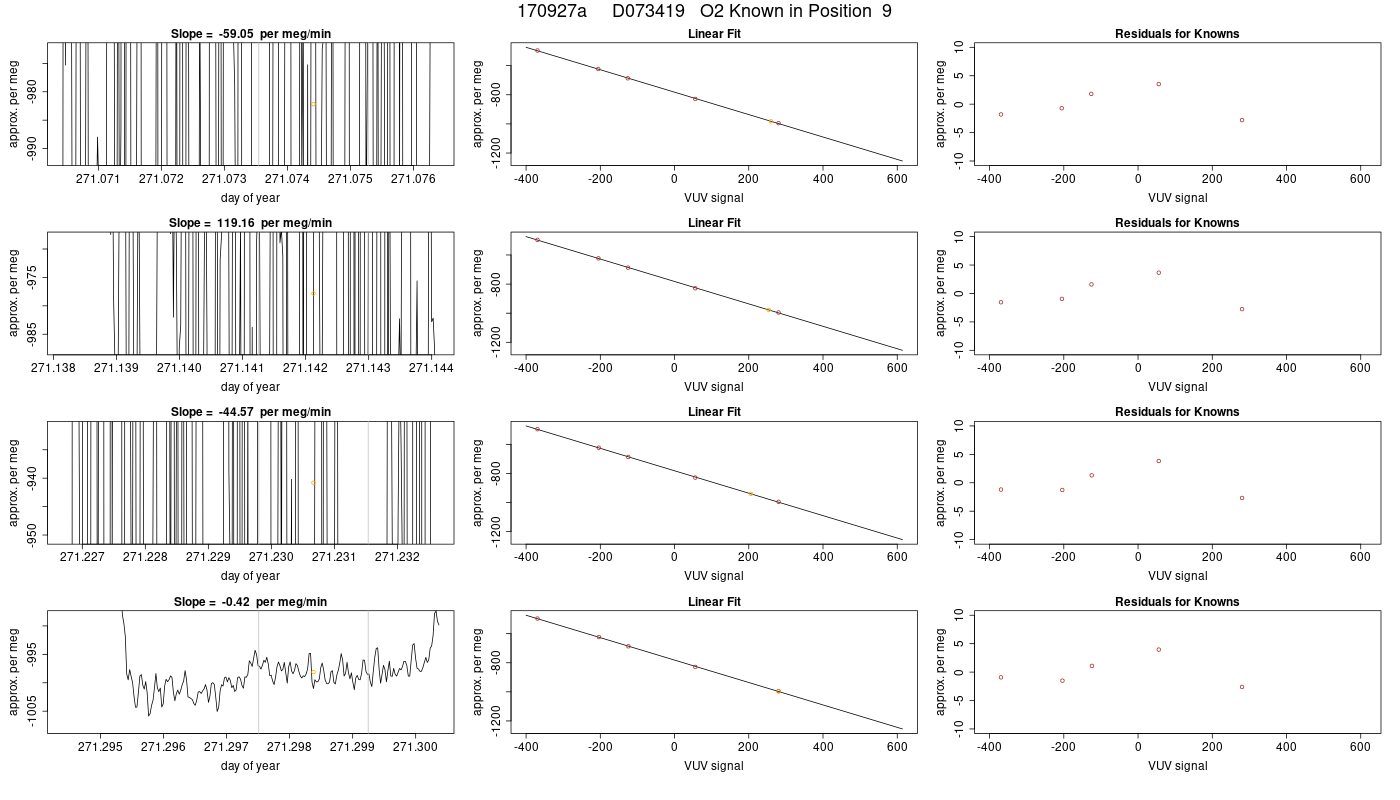

9 D073419 440.065 0.003 0.001 440.275 0.004 0.001 8 -919.32 -2.90 0.42 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

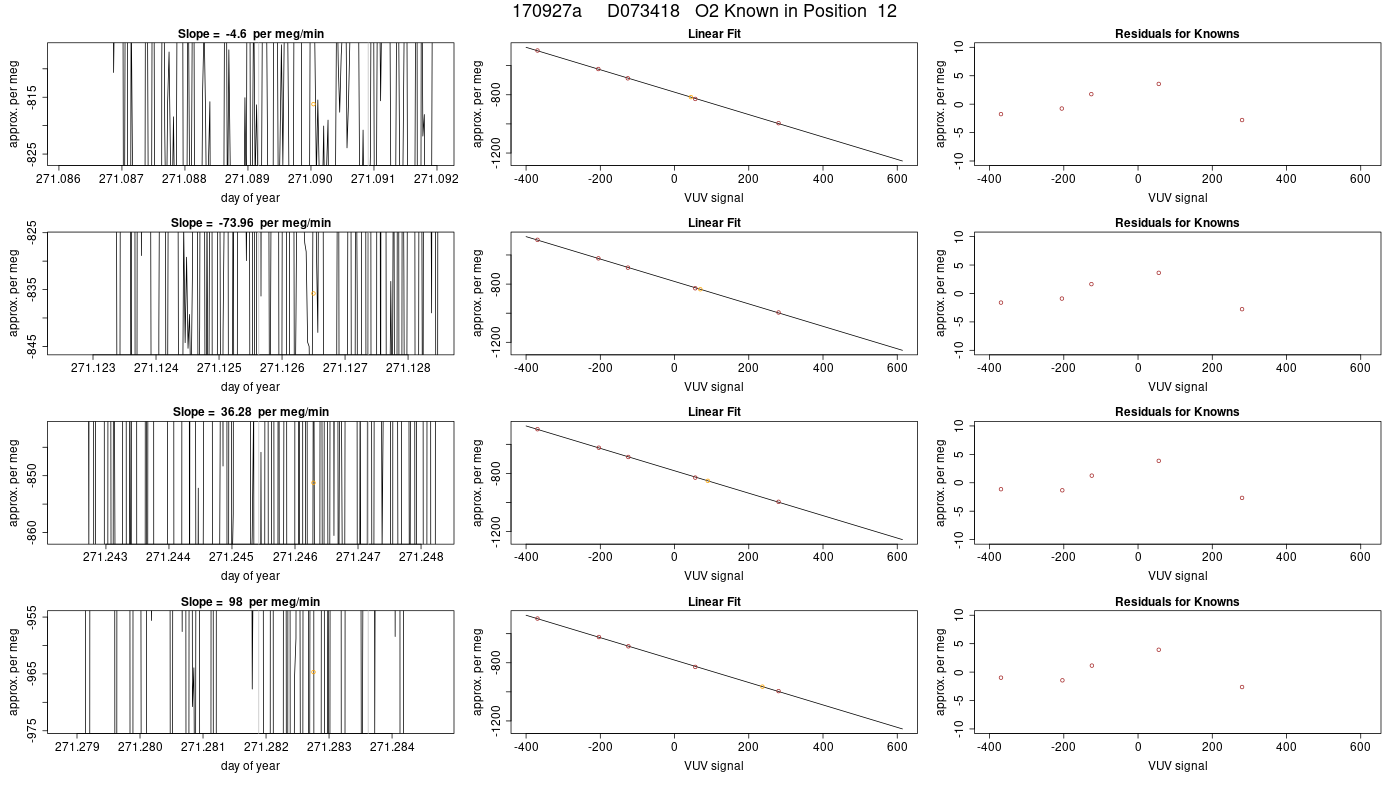

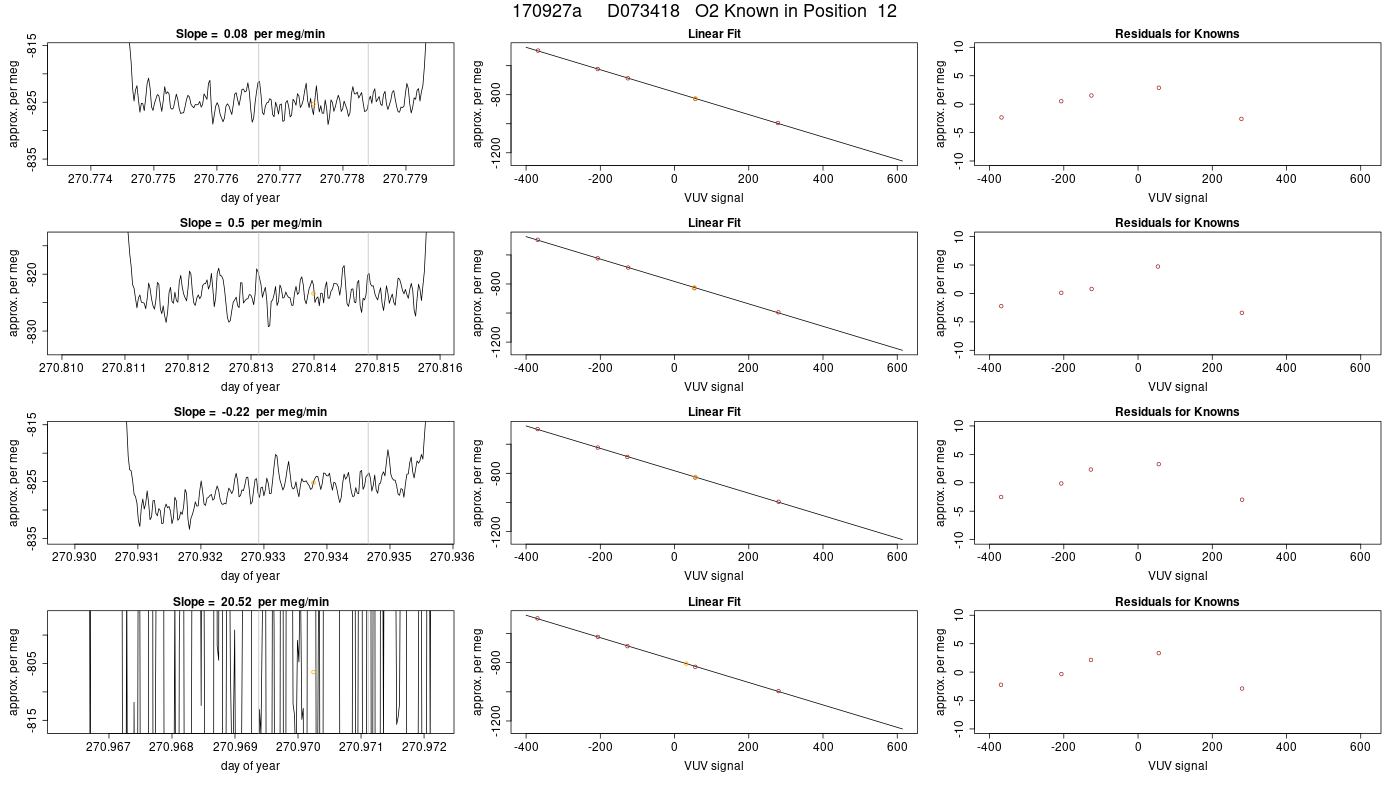

12 D073418 413.092 0.014 0.004 413.280 0.016 0.004 8 -779.40 3.65 0.98 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
13 D801299 381.475 0.002 0.000 381.695 0.002 0.000 8 -477.75 -2.32 0.12 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

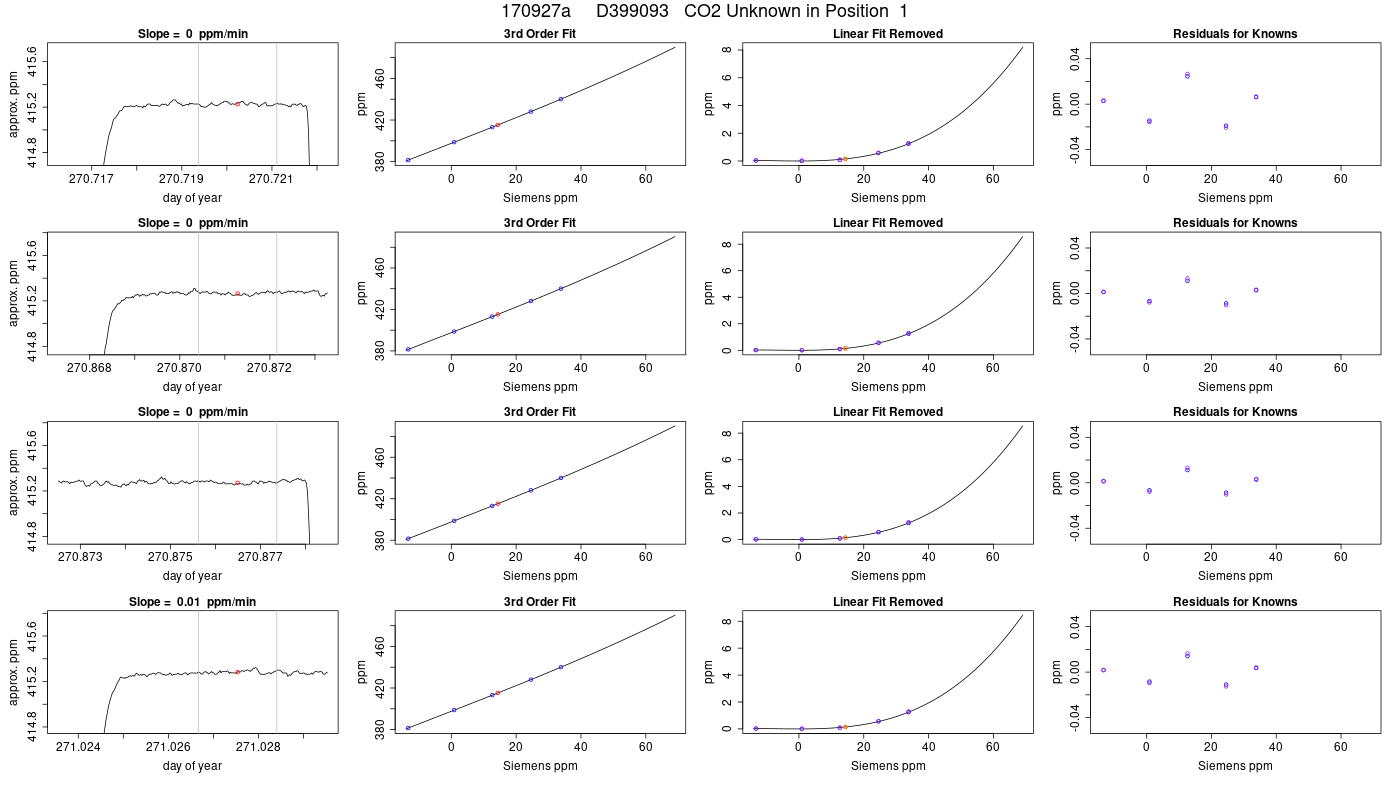

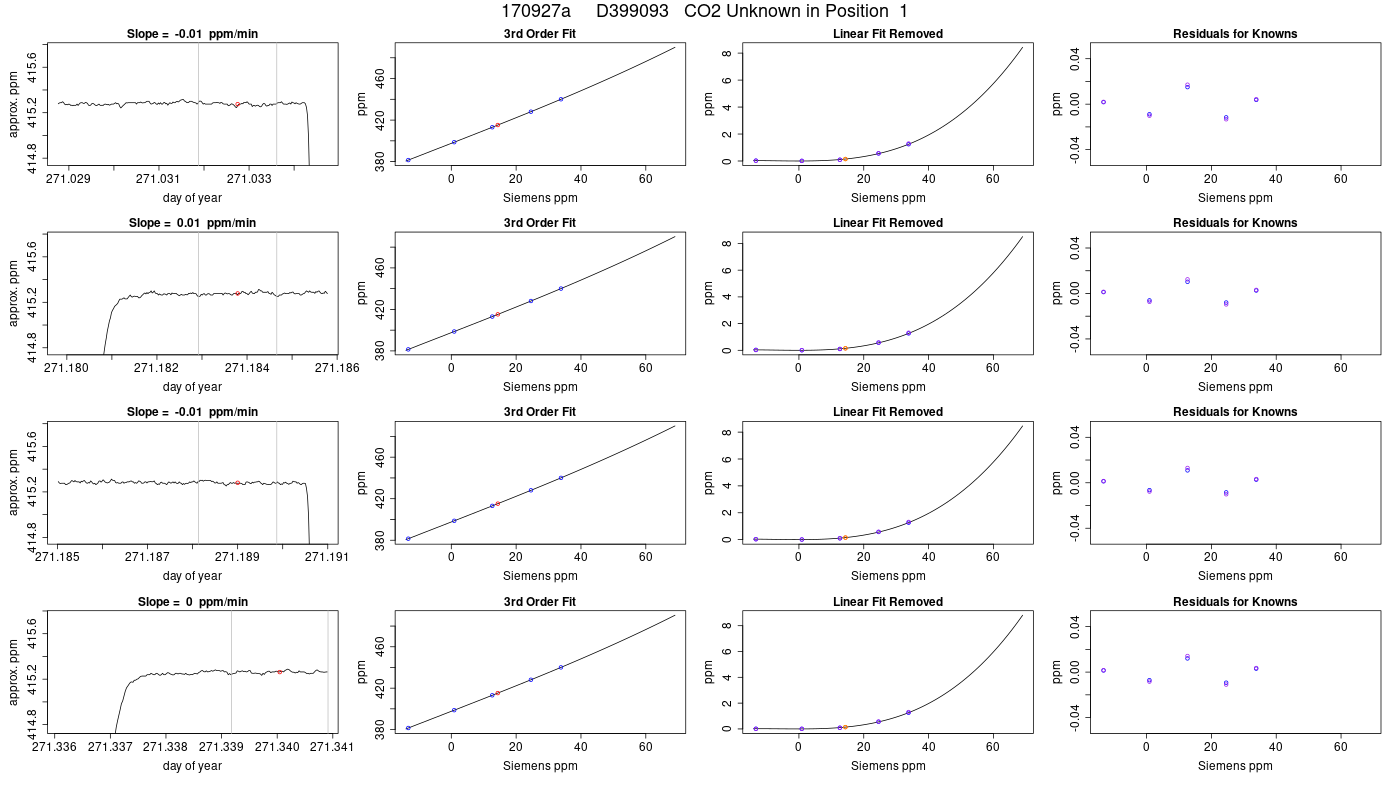

1 D399093    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.720 415.213 0.013 -874.87 1.54 415.401 0.013
270.871 415.226 0.012 -877.54 1.71 415.414 0.012
270.876 415.232 0.012 -876.48 1.98 415.420 0.012
271.028 415.238 0.014 -896.46 48.52 415.426 0.014
271.033 415.230 0.012 -860.17 59.23 415.418 0.012
271.184 415.222 0.012 -907.36 88.86 415.410 0.012
271.189 415.225 0.012 -882.07 17.65 415.413 0.012
271.340 415.222 0.011 -881.37 2.11 415.410 0.011

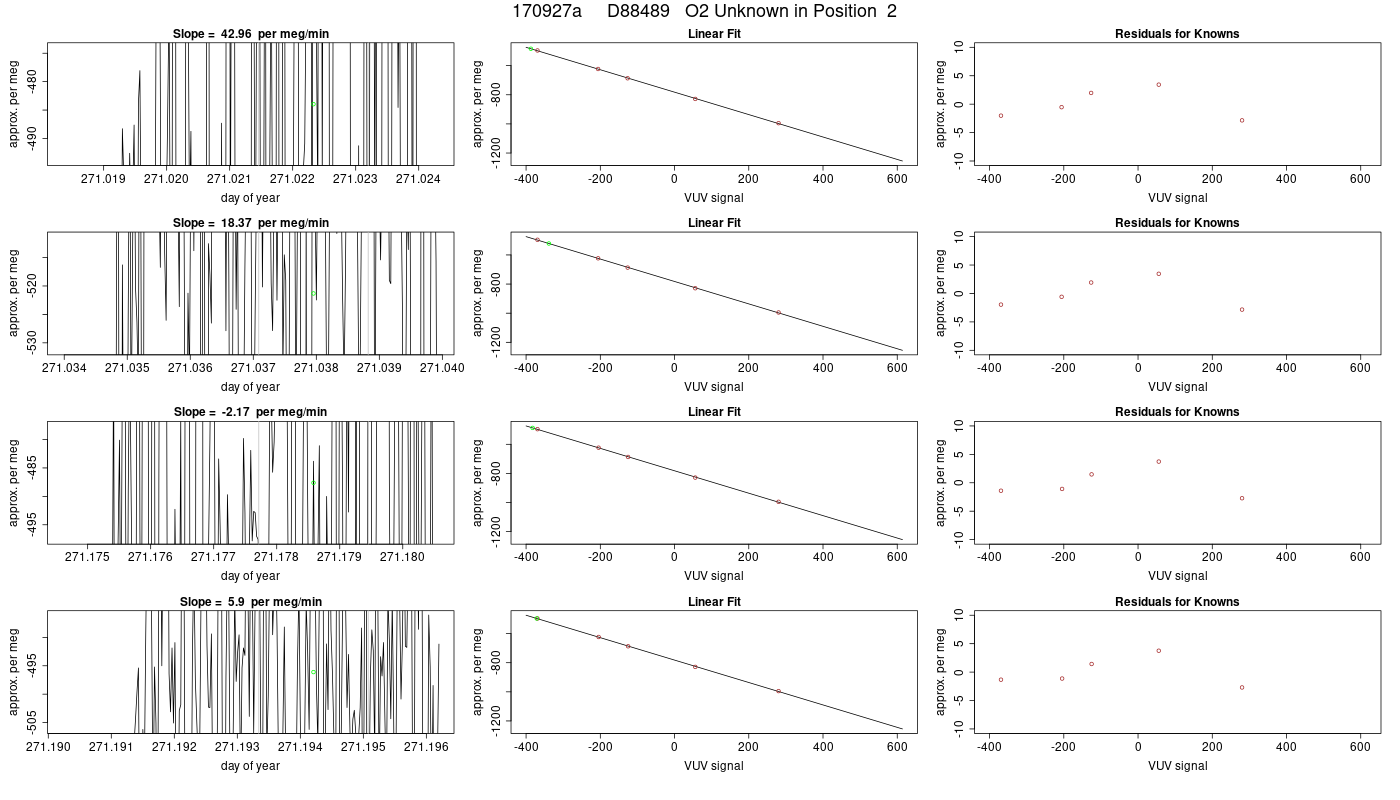

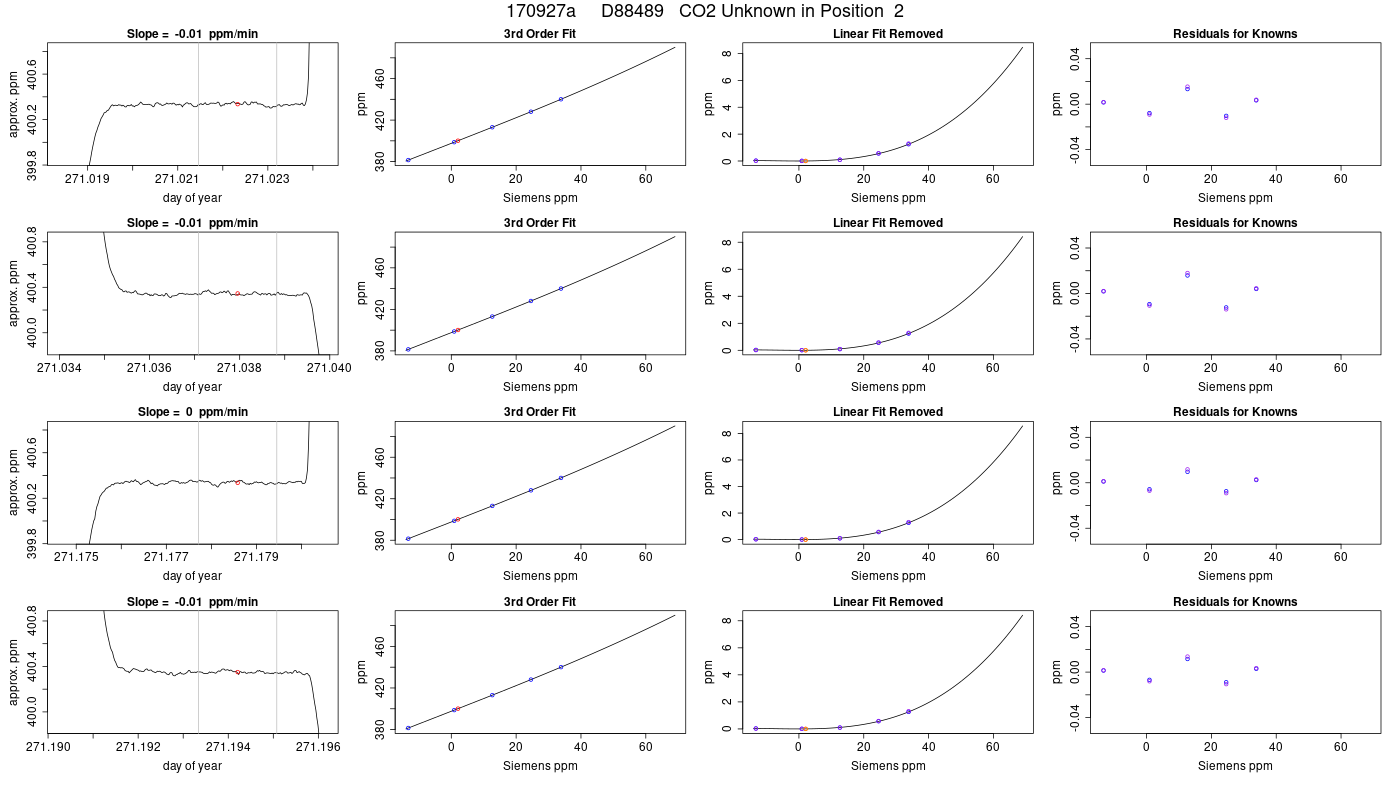

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
270.715 400.120 0.015 -461.48 3.24 400.327 0.015
270.725 400.139 0.012 -459.61 1.88 400.347 0.012
270.866 400.125 0.012 -465.50 2.22 400.333 0.012
270.882 400.140 0.015 -463.74 1.76 400.348 0.015
271.022 400.126 0.014 -448.06 124.02 400.334 0.014
271.038 400.137 0.012 -485.30 106.34 400.345 0.012
271.179 400.120 0.013 -451.08 61.44 400.327 0.013
271.194 400.132 0.011 -459.50 27.93 400.340 0.011
271.335 400.137 0.014 -465.54 2.15 400.345 0.014

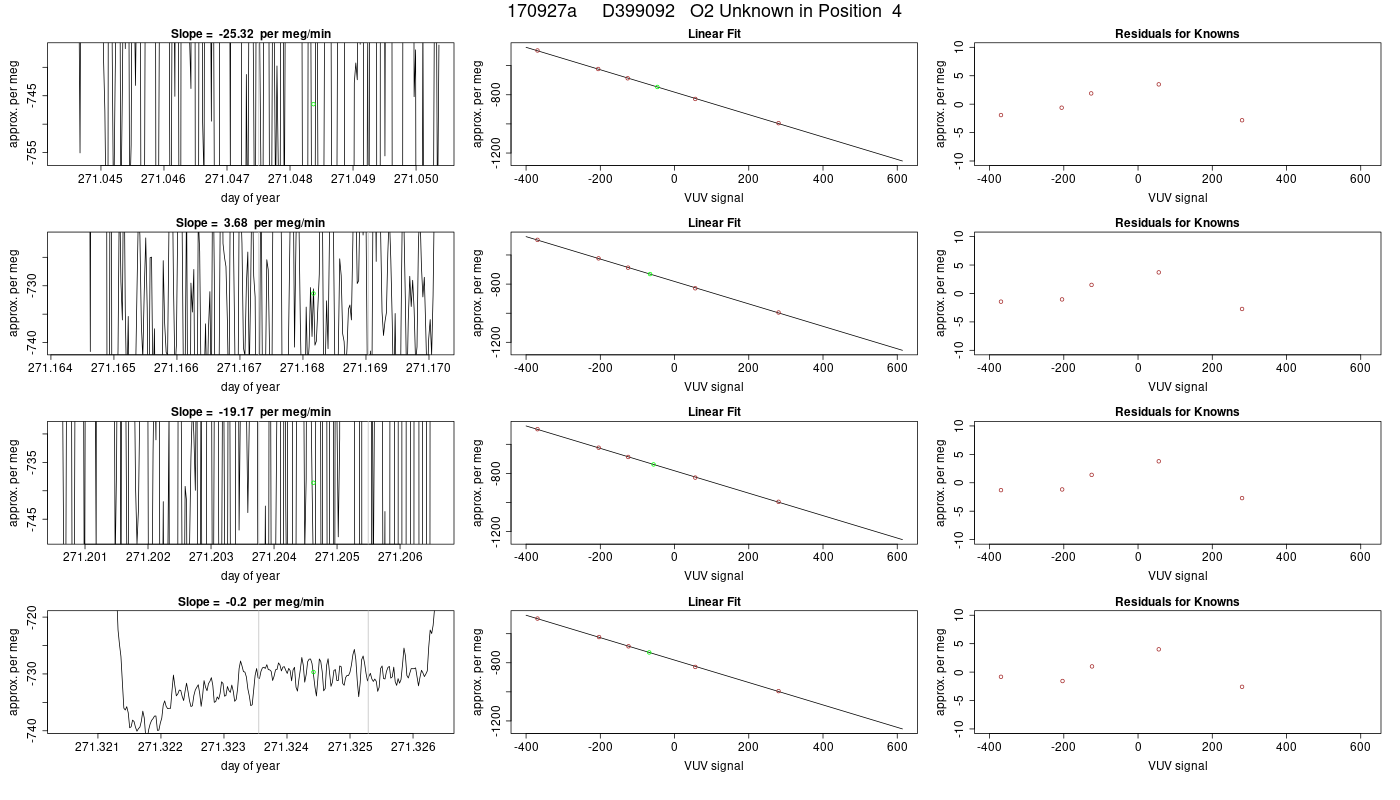

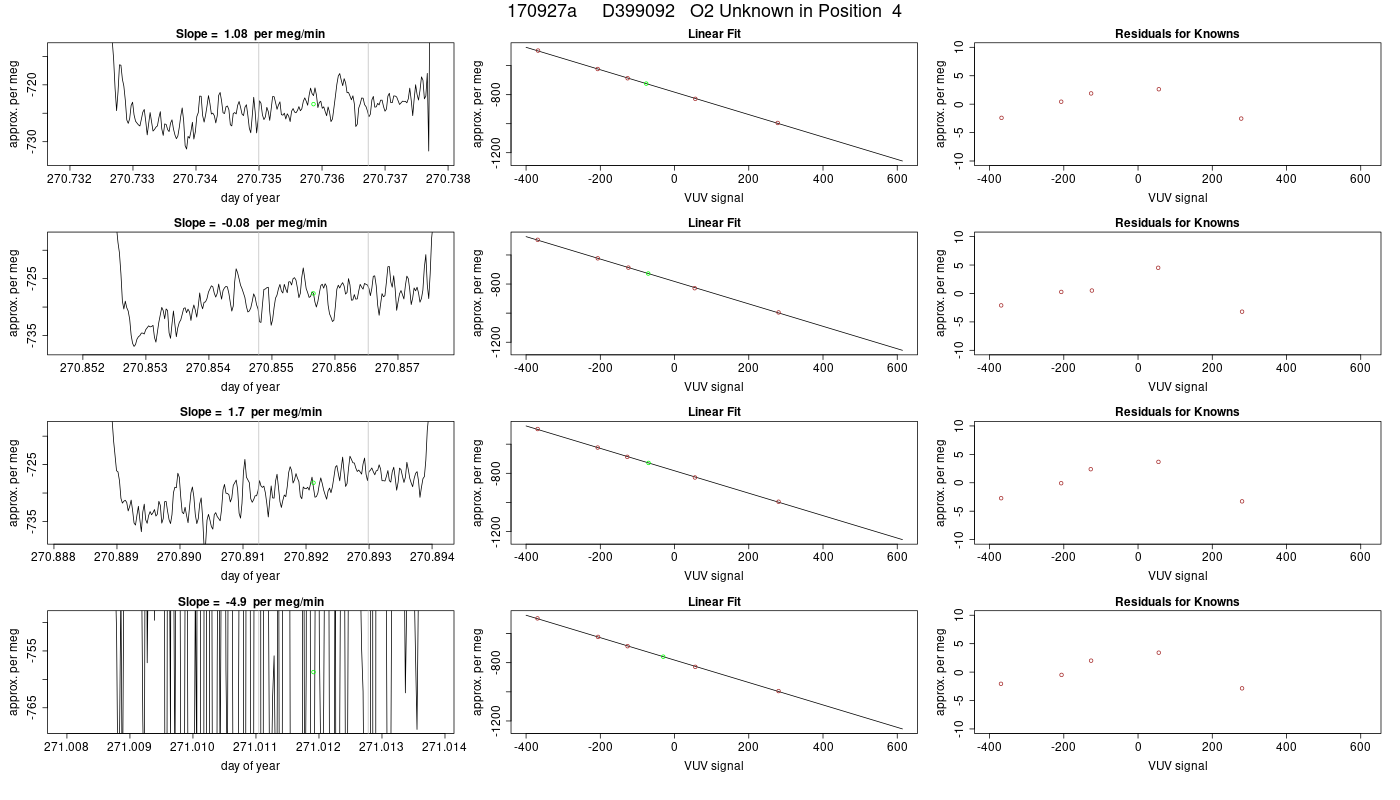

4 D399092    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.736 409.270 0.013 -678.47 2.03 409.464 0.013
270.856 409.261 0.011 -682.42 2.17 409.455 0.011
270.892 409.255 0.009 -683.42 2.28 409.450 0.009
271.012 409.258 0.013 -713.55 86.29 409.453 0.013
271.048 409.259 0.015 -701.24 76.31 409.453 0.015
271.168 409.265 0.014 -685.83 21.01 409.460 0.014
271.205 409.257 0.010 -692.98 365.97 409.452 0.010
271.324 409.276 0.010 -683.75 1.76 409.471 0.010

6 D548335    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.746 415.621 0.016 -691.10 2.08 415.809 0.016
270.845 415.636 0.012 -694.87 2.11 415.823 0.012
270.903 415.617 0.013 -695.94 2.60 415.804 0.013
271.001 415.622 0.018 -705.27 73.53 415.809 0.018
271.059 415.627 0.011 -685.18 174.20 415.814 0.011
271.158 415.644 0.013 -672.56 78.73 415.832 0.013
271.215 415.618 0.019 -690.12 33.60 415.806 0.019
271.314 415.642 0.011 -694.18 2.39 415.829 0.011

7 D548334    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.751 488.390 0.012 -954.15 2.05 489.097 0.012
270.840 488.862 0.018 -956.25 2.73 489.571 0.018
270.908 488.551 0.011 -956.86 1.53 489.258 0.011
270.996 488.781 0.013 -958.66 64.93 489.490 0.013
271.064 488.501 0.010 -958.20 115.23 489.209 0.010
271.153 488.913 0.015 -985.24 84.37 489.622 0.015
271.220 488.466 0.018 -965.97 35.73 489.174 0.018
271.309 488.972 0.012 -957.57 2.31 489.681 0.012

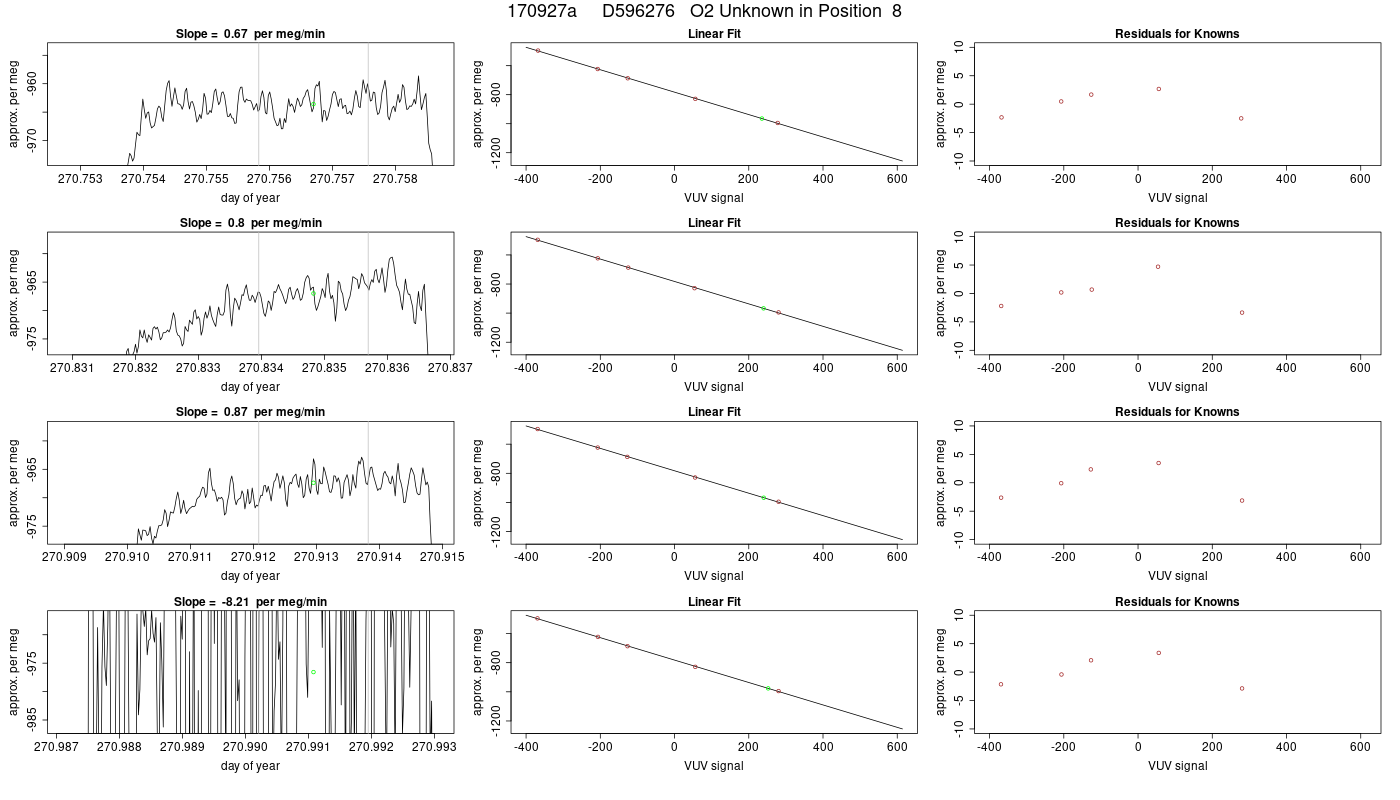

8 D596276    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.757 439.479 0.010 -889.73 2.03 439.688 0.010
270.835 439.484 0.013 -892.34 1.91 439.693 0.013
270.913 439.476 0.010 -892.53 1.83 439.685 0.010
270.991 439.478 0.018 -901.47 53.17 439.686 0.018
271.069 439.474 0.012 -859.07 168.29 439.683 0.012
271.147 439.475 0.012 -892.65 75.09 439.684 0.012
271.225 439.486 0.013 -906.87 59.23 439.695 0.013
271.304 439.478 0.013 -894.14 2.30 439.687 0.013

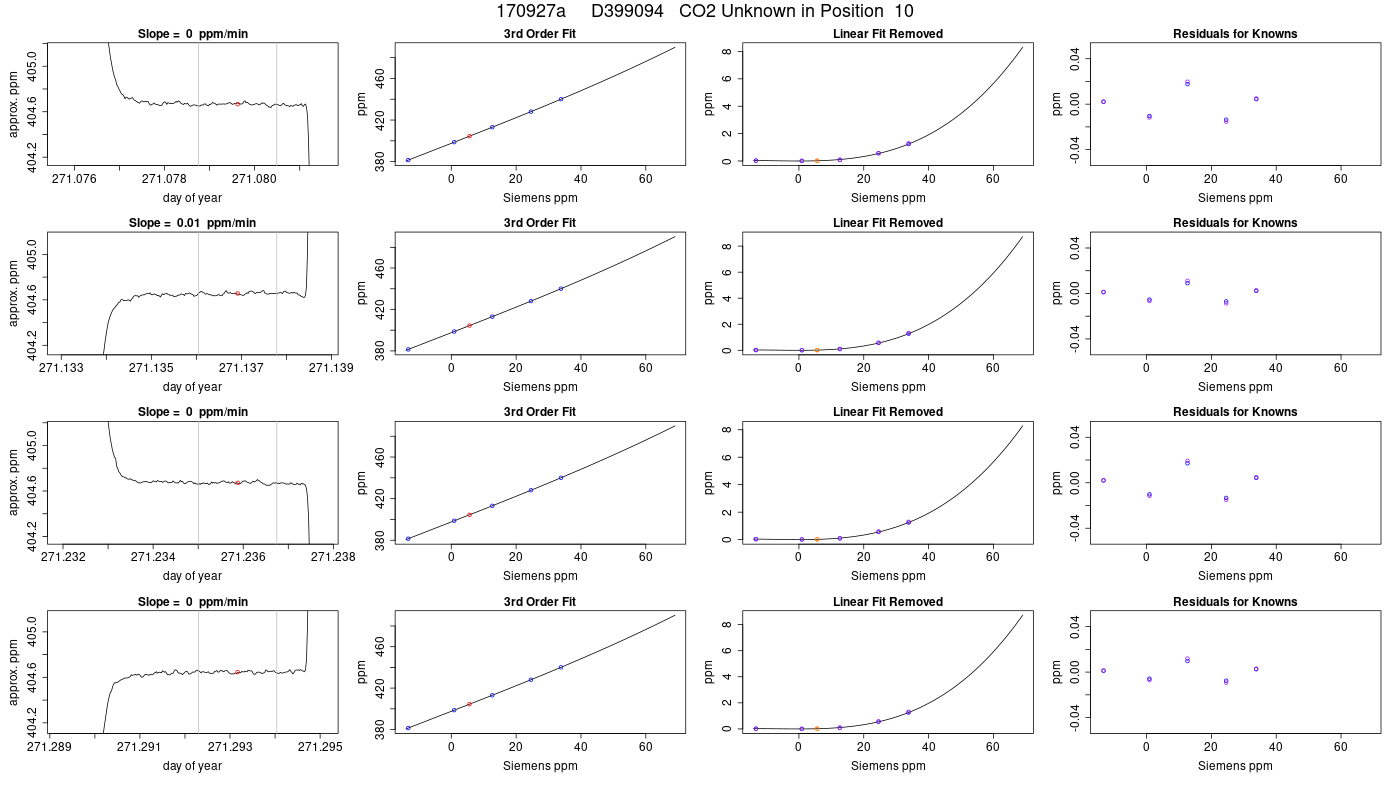

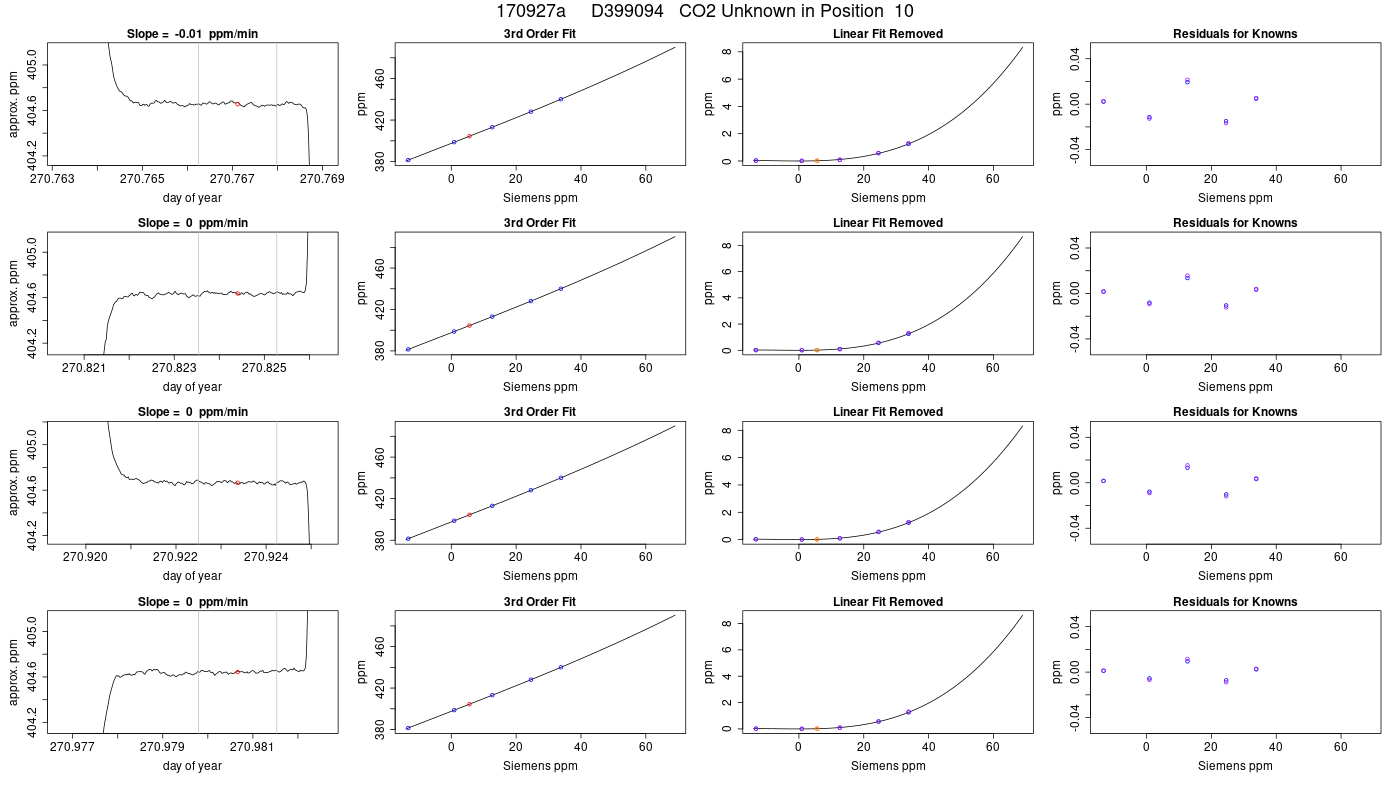

10 D399094    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.767 404.485 0.013 -804.22 2.06 404.686 0.013
270.824 404.460 0.011 -807.11 1.92 404.662 0.011
270.923 404.479 0.010 -808.67 2.46 404.681 0.010
270.981 404.456 0.009 -797.37 119.27 404.658 0.009
271.080 404.476 0.010 -798.86 153.12 404.677 0.010
271.137 404.462 0.012 -834.59 120.89 404.664 0.012
271.236 404.477 0.011 -803.07 262.24 404.679 0.011
271.293 404.464 0.010 -813.63 50.89 404.665 0.010

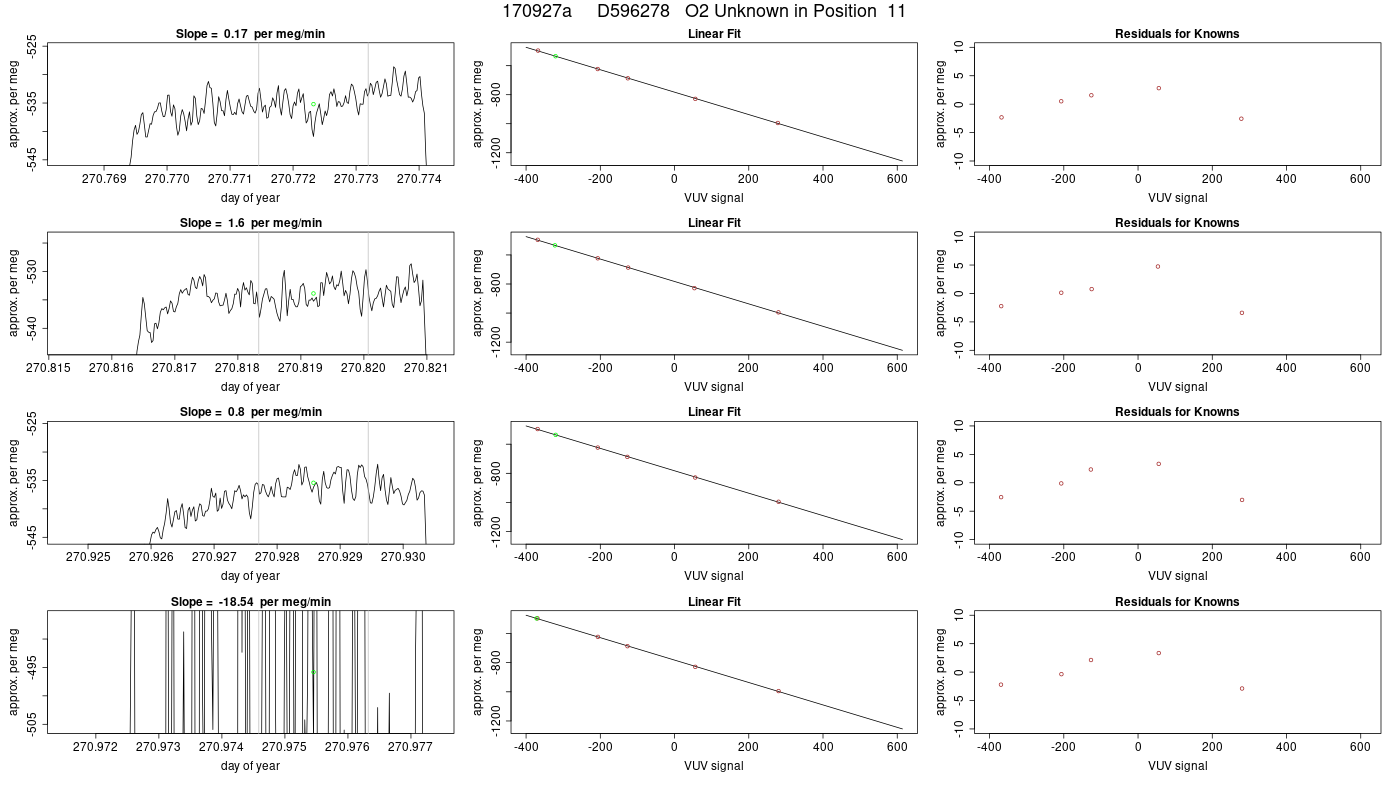

11 D596278    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.772 390.930 0.010 -507.57 1.94 391.148 0.010
270.819 390.922 0.015 -506.71 2.24 391.141 0.015
270.929 390.937 0.009 -508.67 1.91 391.155 0.009
270.975 390.921 0.012 -469.11 79.29 391.139 0.012
271.085 390.930 0.012 -510.99 126.27 391.149 0.012
271.132 390.919 0.011 -503.15 79.01 391.138 0.011
271.241 390.937 0.011 -459.47 560.19 391.155 0.011
271.288 390.942 0.011 -504.53 68.37 391.160 0.011

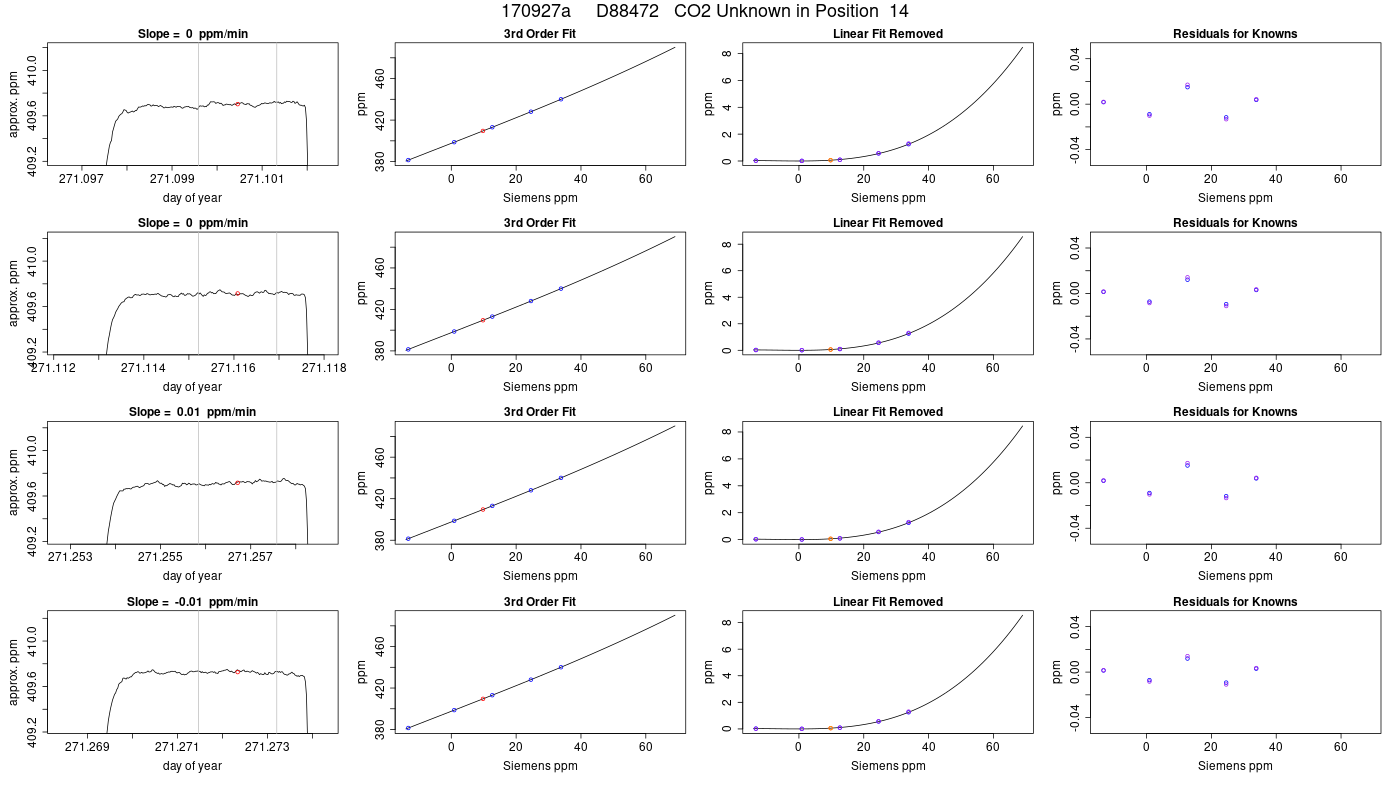

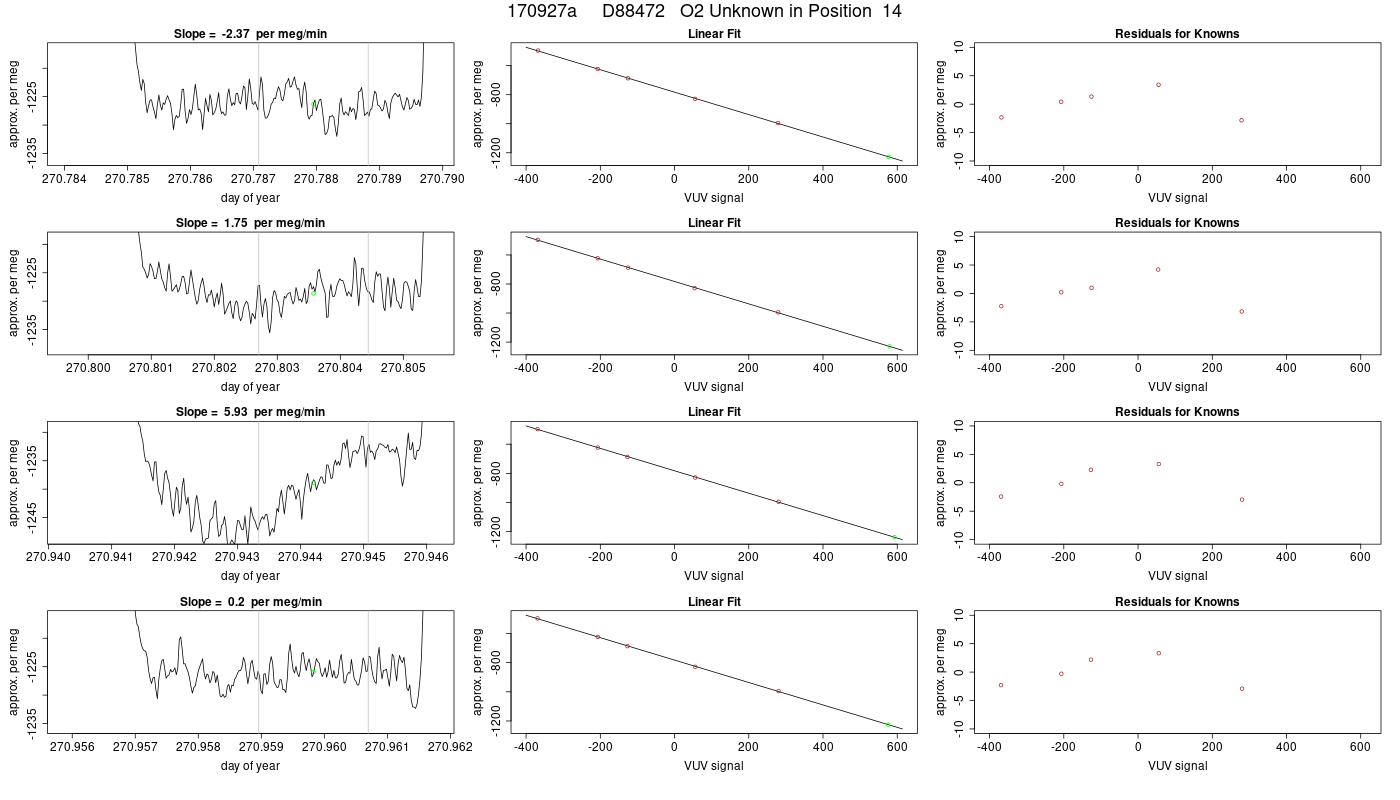

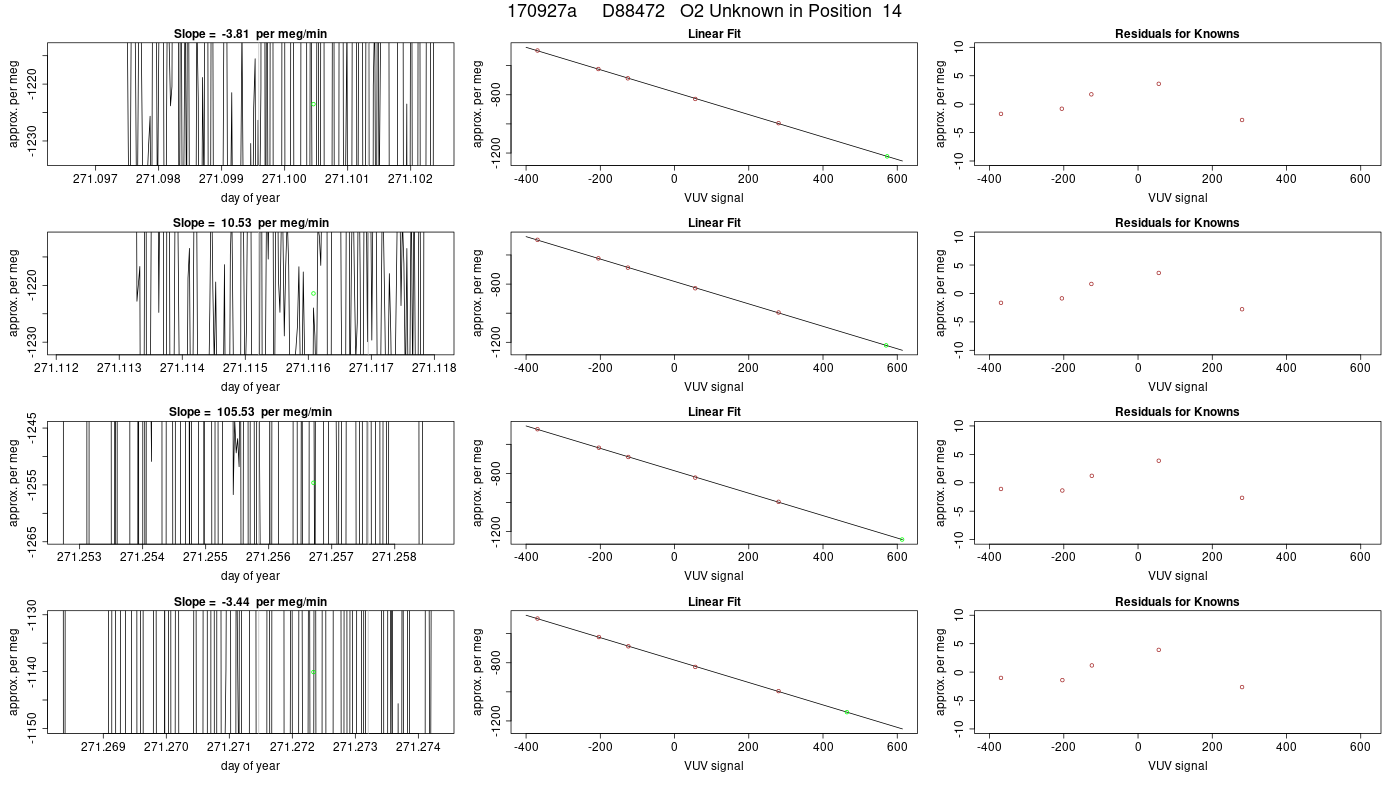

14 D88472    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.788 409.555 0.010 -1182.10 2.56 409.750 0.010
270.804 409.561 0.013 -1184.19 2.43 409.755 0.013
270.944 409.546 0.012 -1192.85 4.60 409.741 0.012
270.960 409.574 0.017 -1179.84 1.86 409.769 0.017
271.100 409.558 0.013 -1177.50 126.08 409.753 0.013
271.116 409.570 0.013 -1175.40 42.50 409.764 0.013
271.257 409.574 0.013 -1208.69 290.82 409.768 0.013
271.272 409.589 0.011 -1094.11 290.38 409.784 0.011

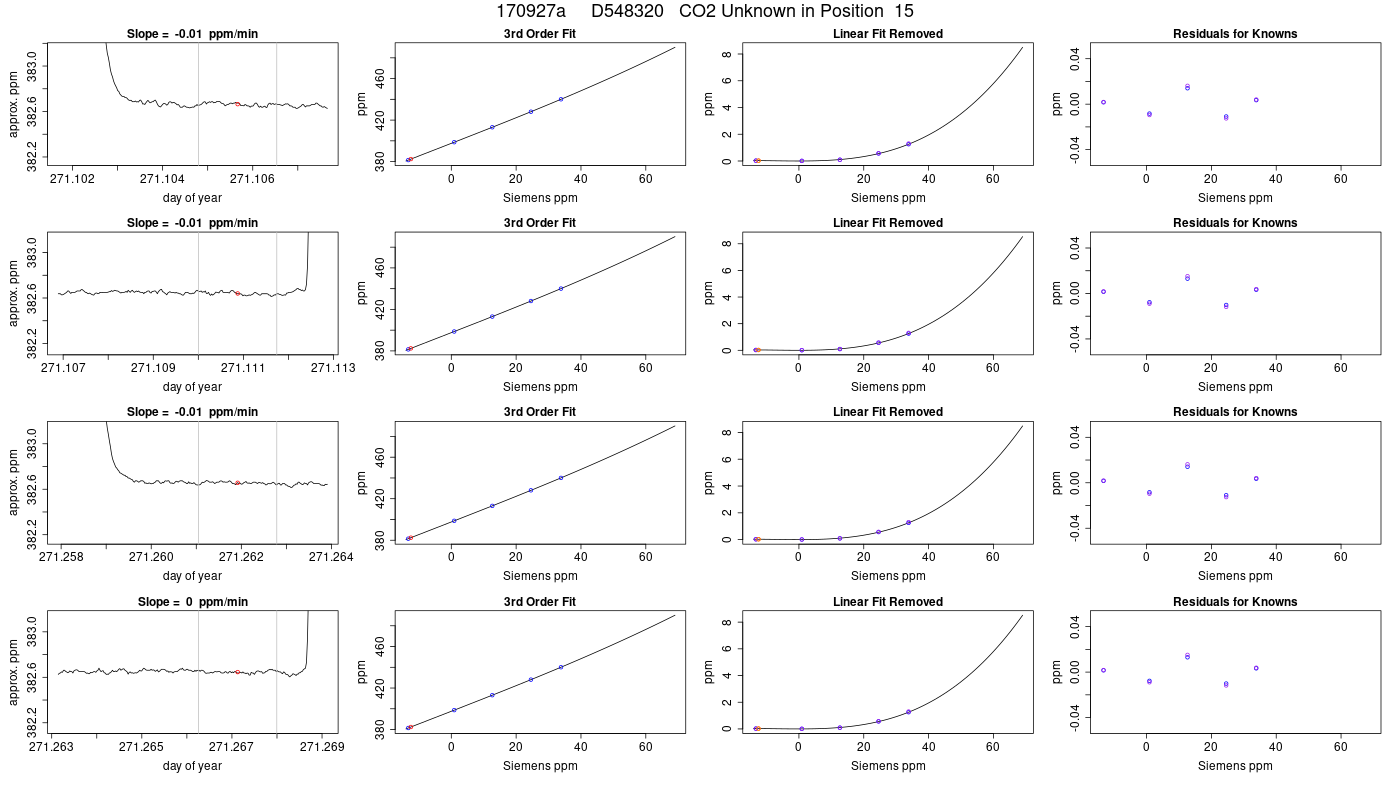

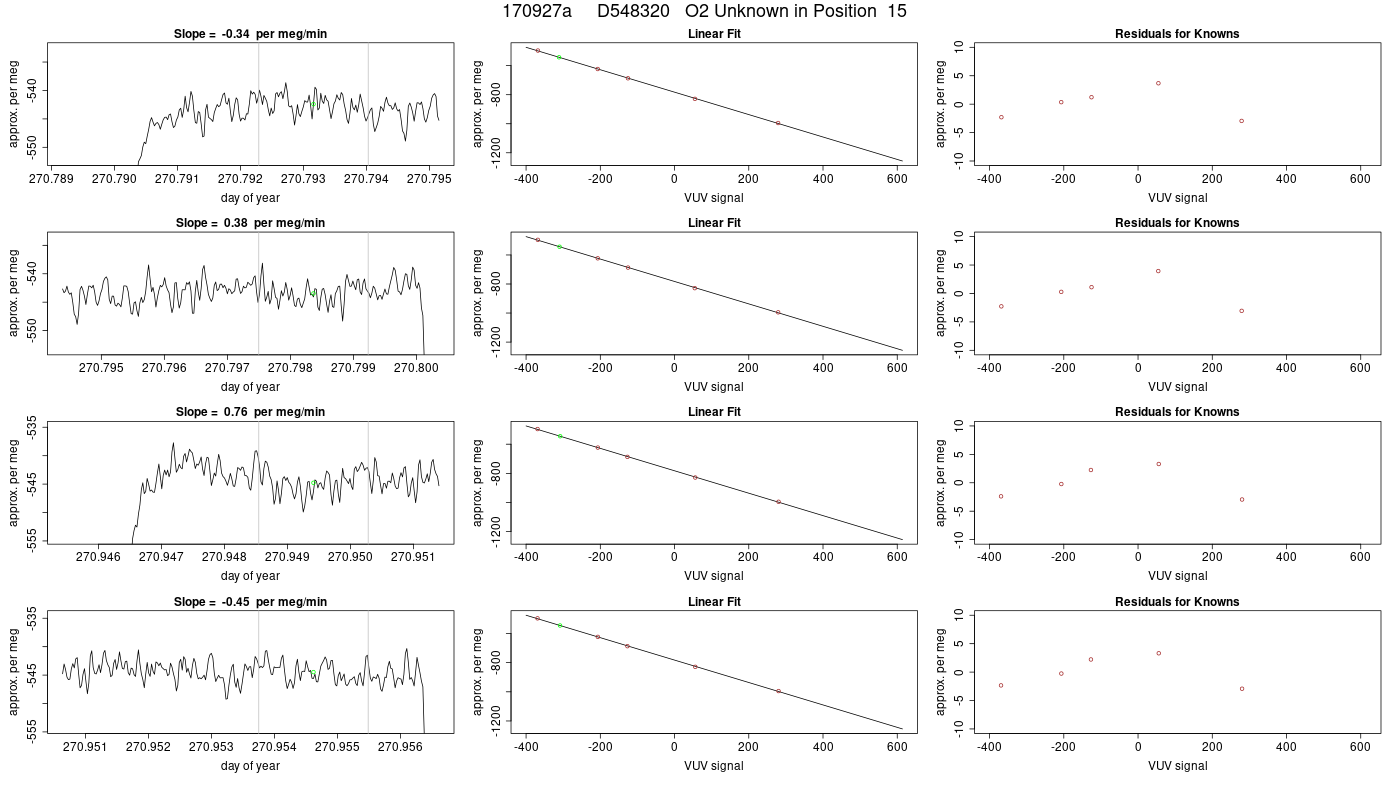

15 D548320    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
270.793 382.442 0.015 -523.30 1.64 382.663 0.015
270.798 382.444 0.013 -524.44 1.81 382.665 0.013
270.949 382.460 0.012 -526.30 2.08 382.680 0.012
270.955 382.455 0.011 -526.02 1.67 382.676 0.011
271.106 382.462 0.015 -503.41 190.91 382.683 0.015
271.111 382.438 0.014 -502.63 160.70 382.658 0.014
271.262 382.454 0.009 -480.12 221.63 382.675 0.009
271.267 382.442 0.011 -615.64 279.40 382.663 0.011
