UEA CRAM Lab O2 and CO2 calibration results
RUN = 170920a
PROCESSED: 16:19:21 Mon 21Aug2023

Notes
Logfile

Results

Using data from 263.783 to 264.172 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 D399093 415.223 0.017 -0.039 415.411 0.017 -0.039 5 -877.65 2.69 -3.95 4
2 D88489 400.104 0.020 0.011 400.311 0.020 0.011 5 -415.79 16.49 -134.58 4
4 D399092 409.273 0.006 -0.028 409.468 0.006 -0.028 5 -660.85 9.49 -78.72 4
6 D548335 415.634 0.011 -0.011 415.822 0.011 -0.011 5 -680.66 8.26 -64.81 5
7 D548334 488.287 0.279 1.627 488.994 0.279 1.633 5 -968.80 8.42 58.21 5
8 D596276 439.464 0.012 0.082 439.673 0.012 0.082 5 -889.85 1.04 5.13 5
10 D399094 404.470 0.010 -0.053 404.671 0.010 -0.053 5 -793.74 6.15 -46.37 5
11 D596278 390.910 0.010 0.048 391.129 0.010 0.048 5 -470.26 19.89 -152.32 5
14 D88472 409.572 0.025 -0.012 409.766 0.025 -0.012 5 -1227.47 38.91 200.68 3
15 D548320 382.429 0.007 -0.039 382.649 0.007 -0.039 5 -479.90 24.74 -180.22 5
WT D258964 397.634 0.011 -0.082 397.845 0.011 -0.082 75 -736.57 4.73 -40.11 75
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2

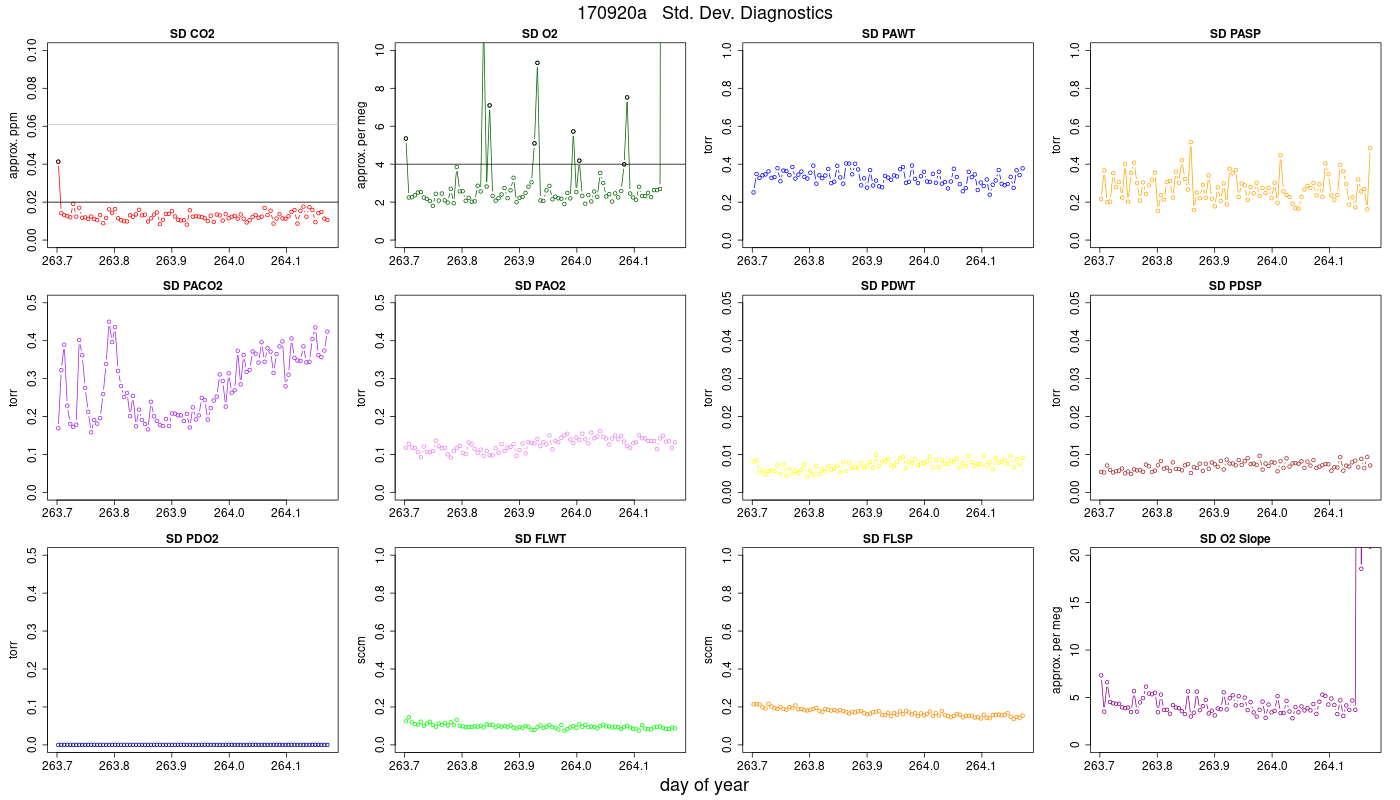

 Jog Std. Dev. Diagnostics

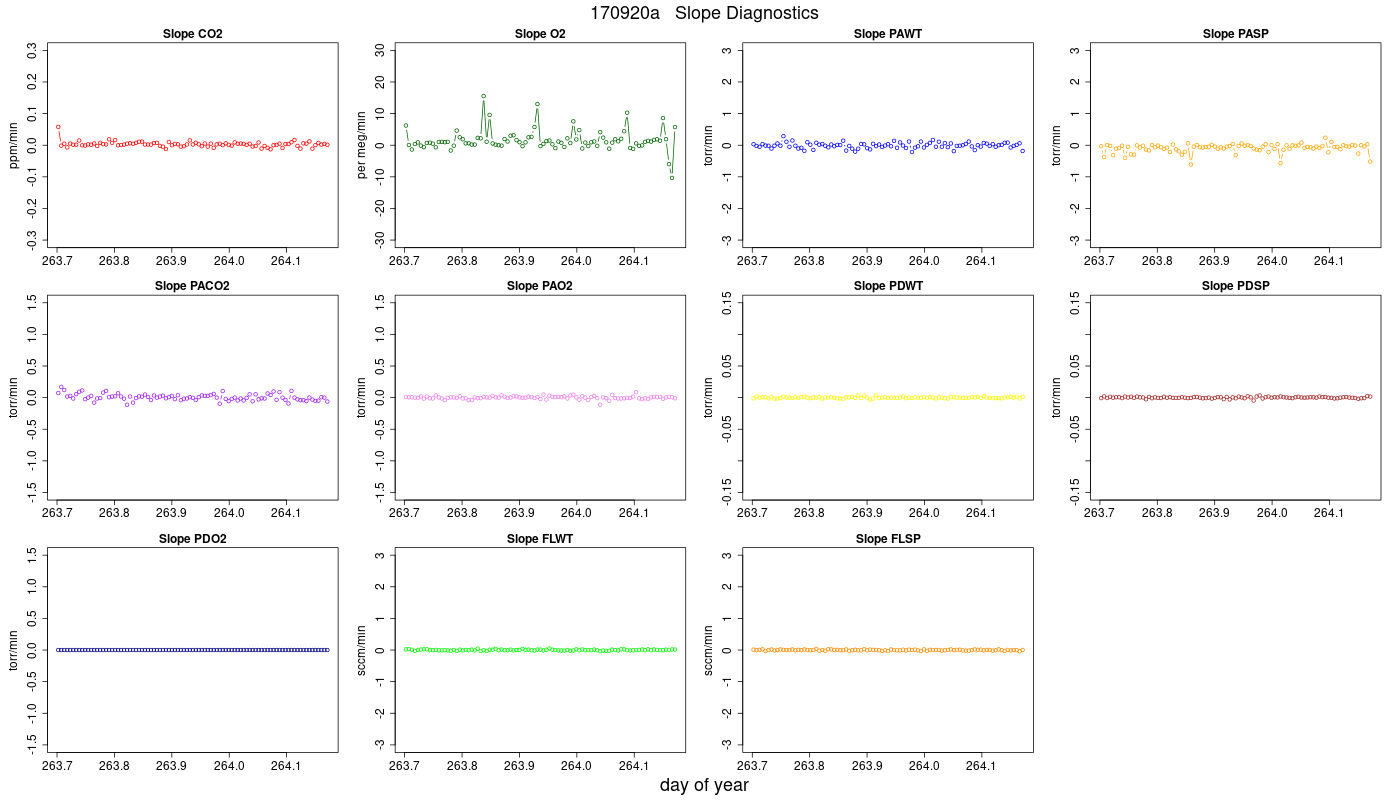

Jog Slope Diagnostics
 Rollover Effect

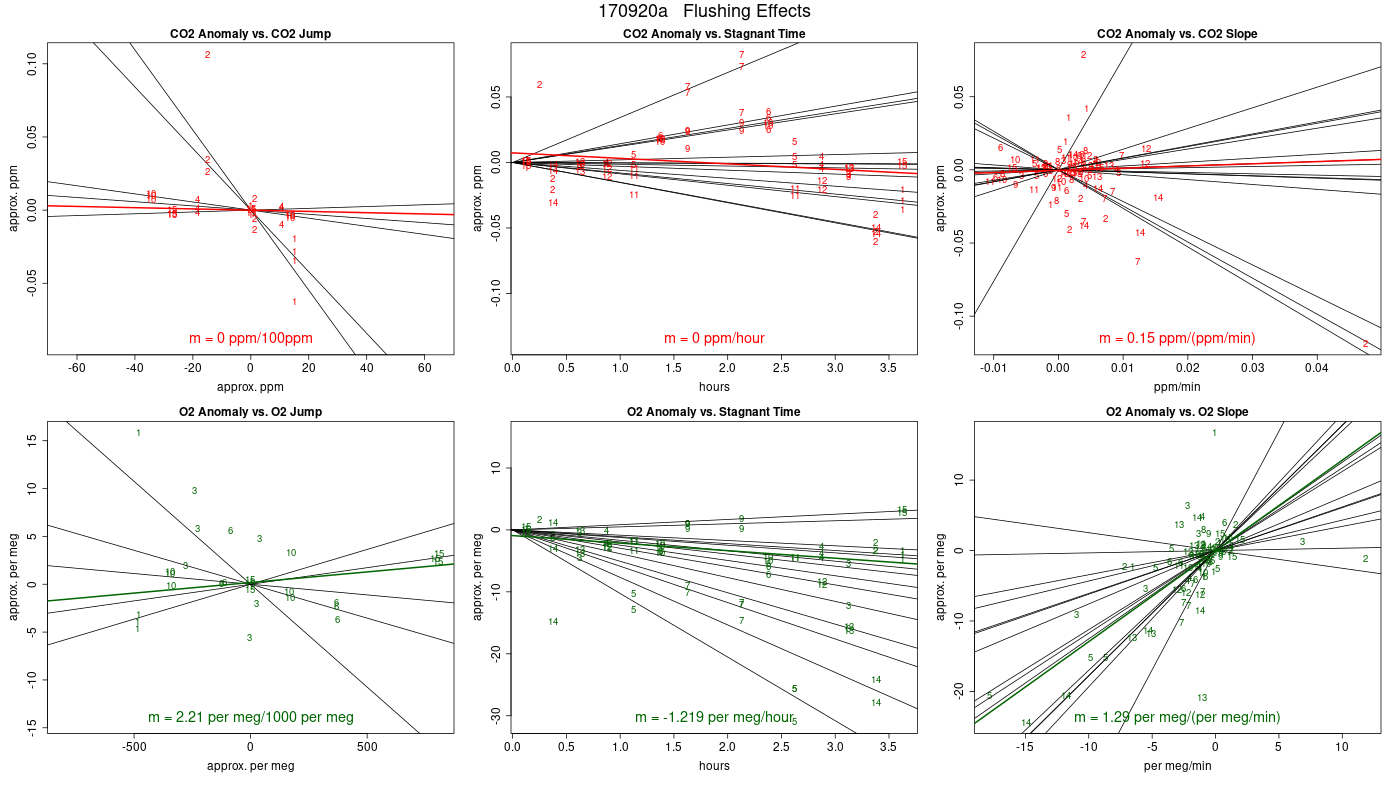

 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries

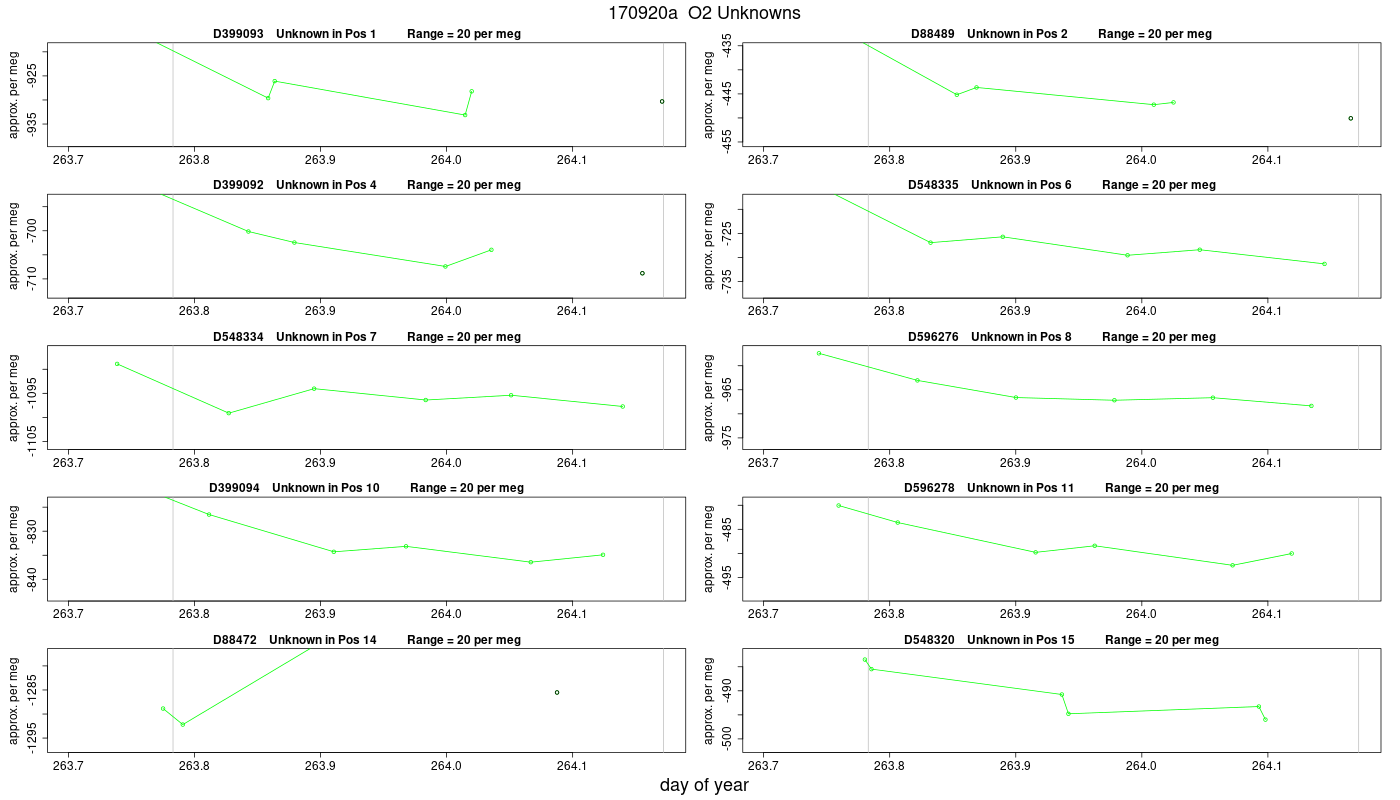

O2 Averages for Unknowns

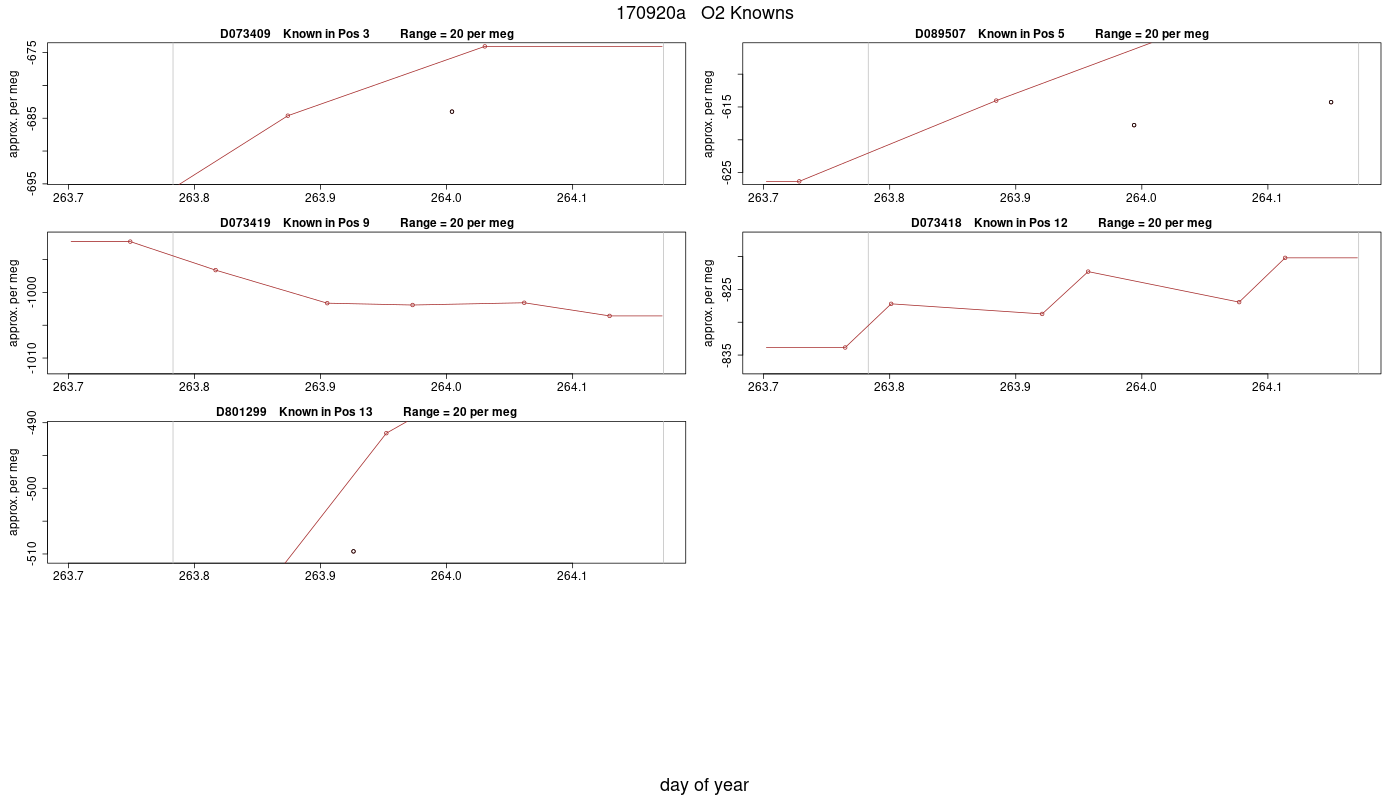

 O2 Averages for Knowns

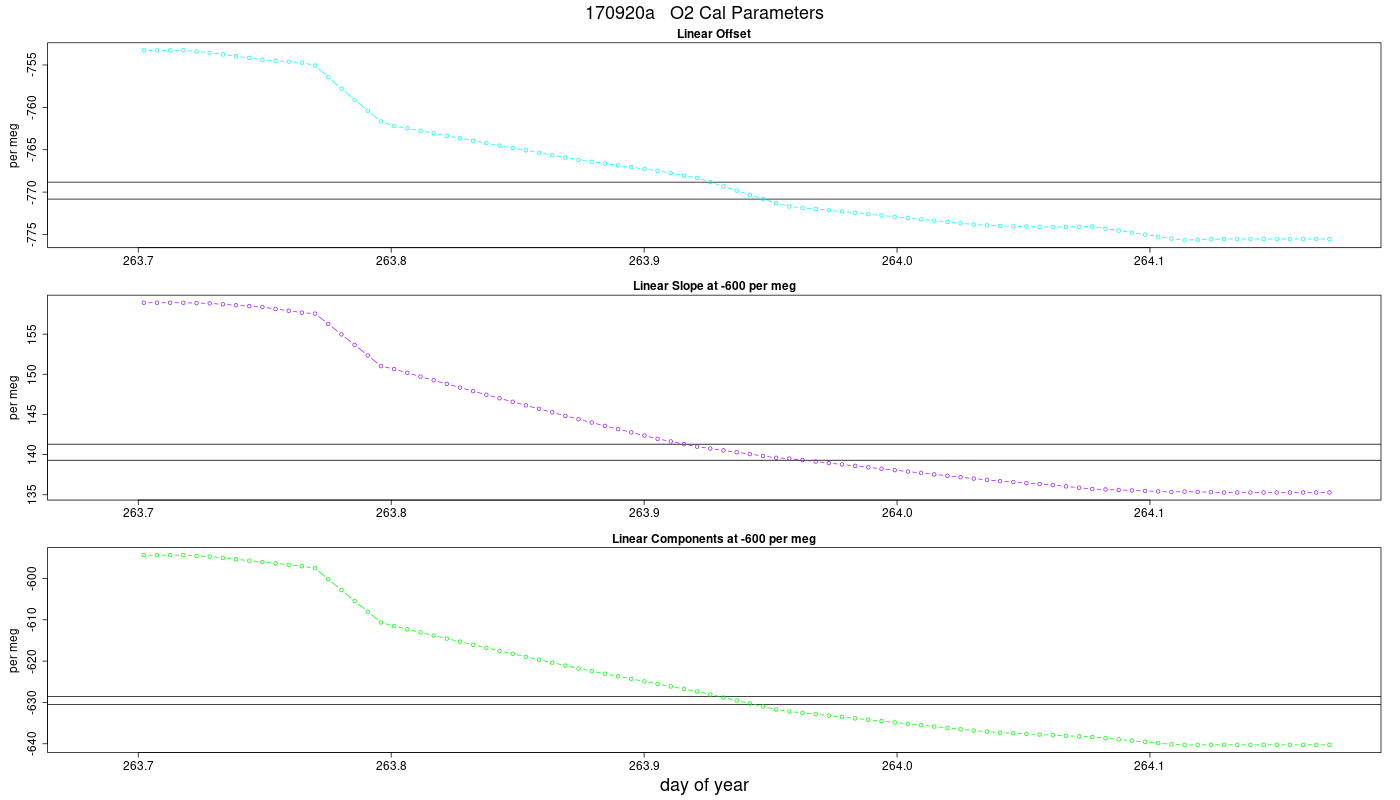

 O2 Parameters

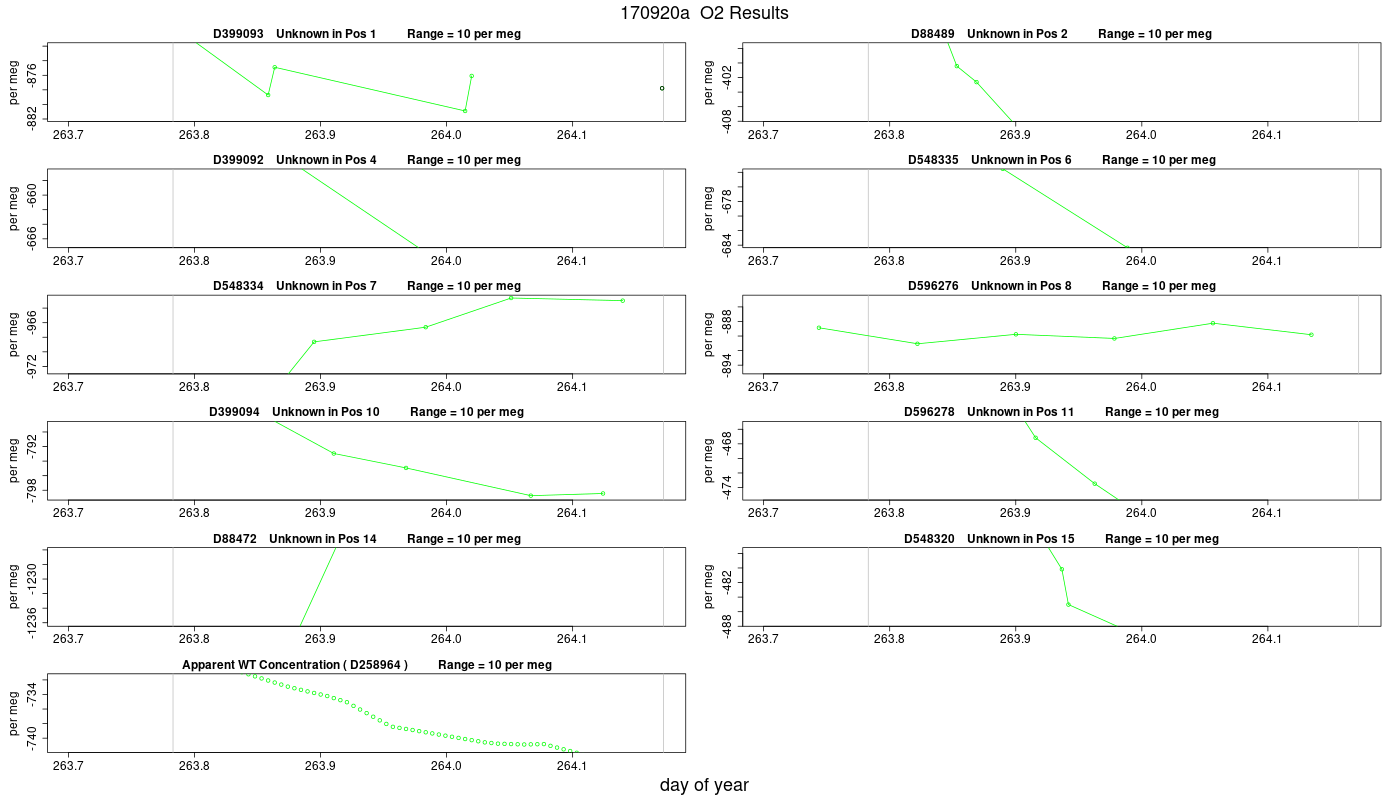

O2 Results

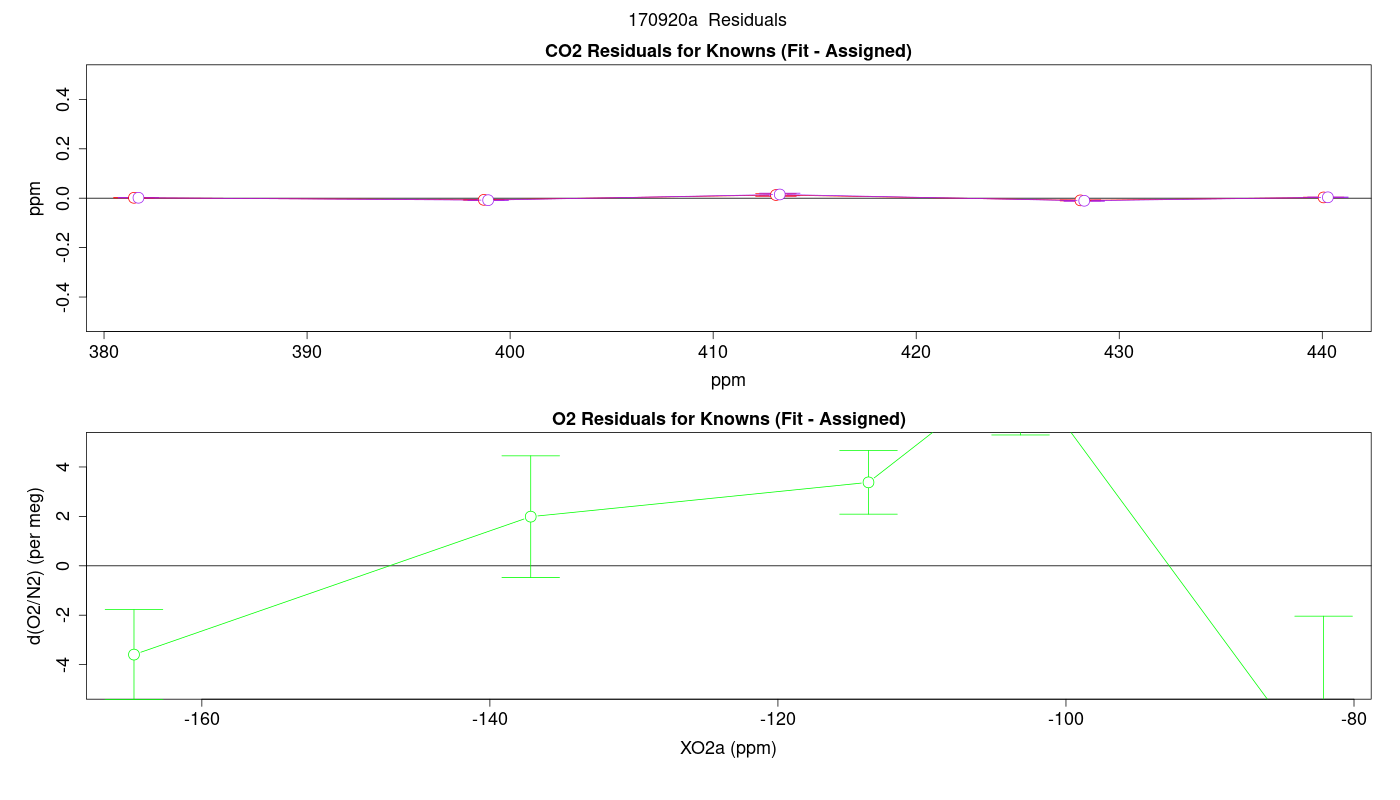

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

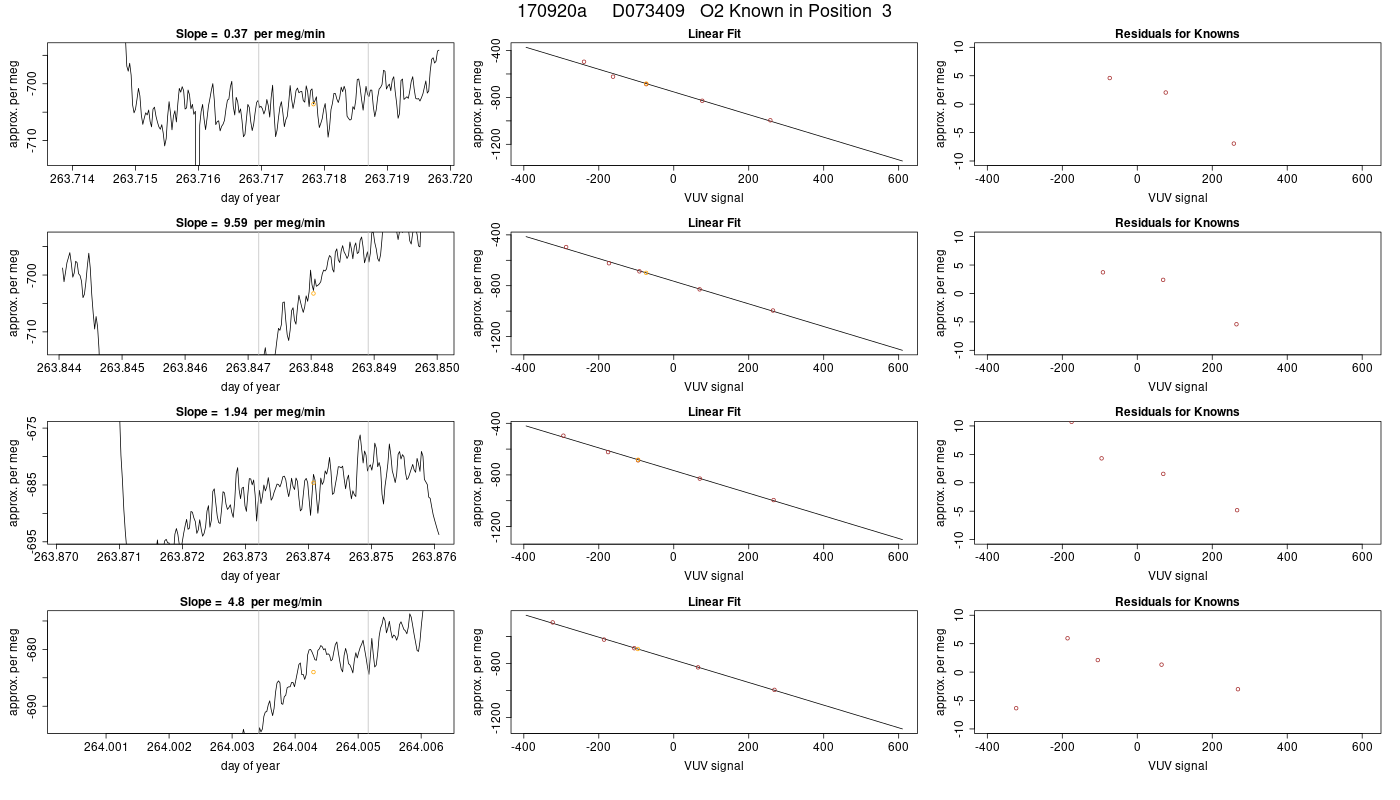

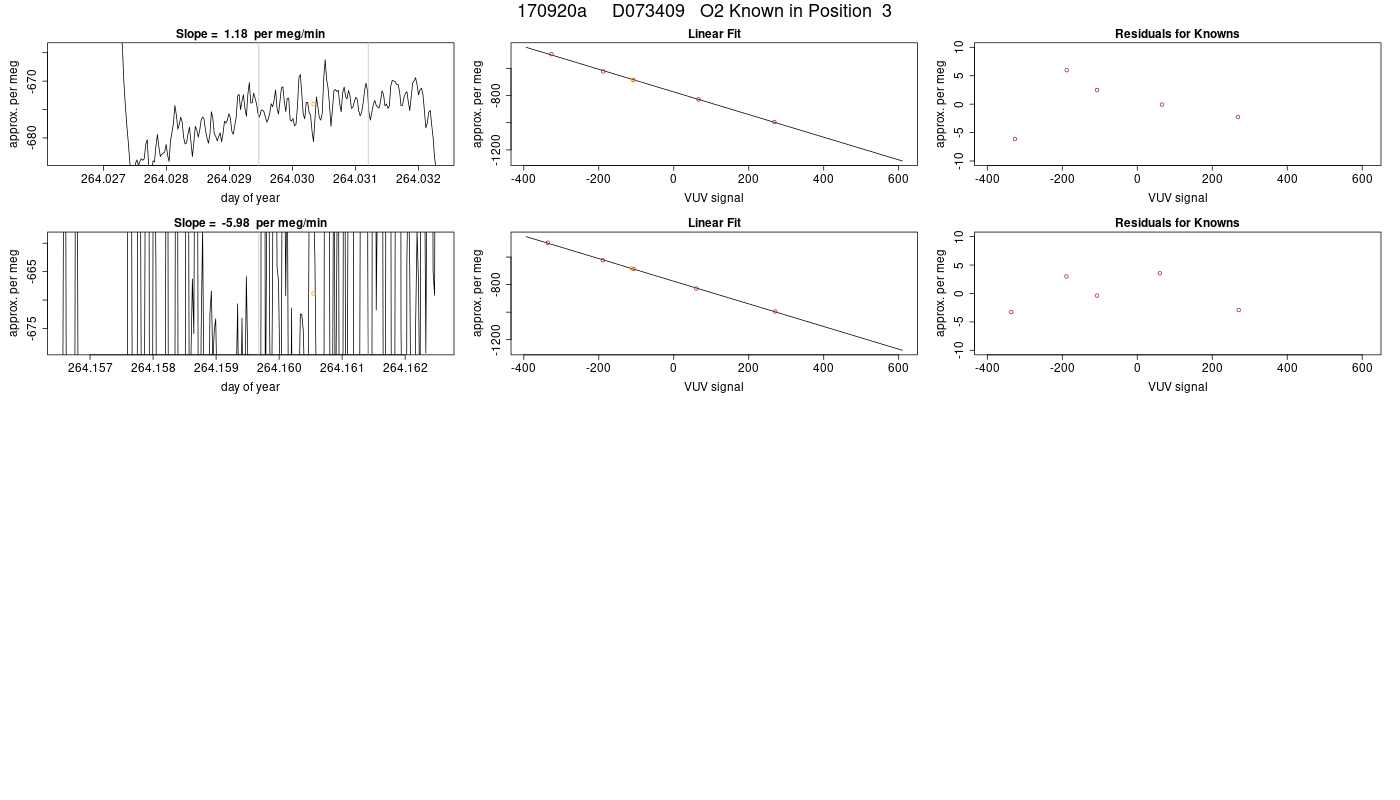

3 D073409 398.707 -0.007 0.001 398.918 -0.008 0.001 5 -651.78 3.38 1.29 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
5 D089507 428.087 -0.009 0.002 428.275 -0.010 0.002 5 -559.23 8.17 2.88 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

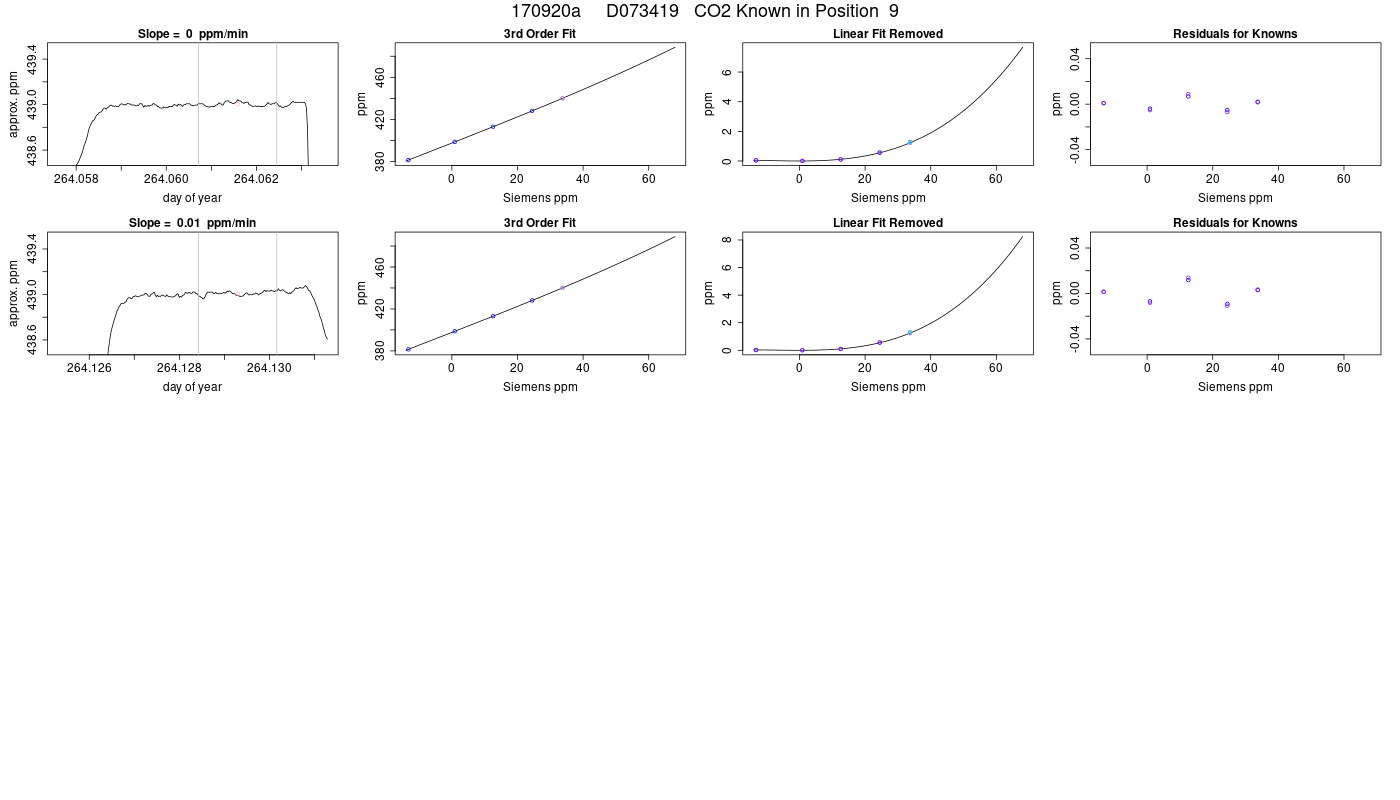

9 D073419 440.065 0.003 0.001 440.275 0.004 0.001 5 -919.32 -3.59 1.82 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
12 D073418 413.092 0.013 0.005 413.280 0.015 0.005 5 -779.40 1.99 2.46 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

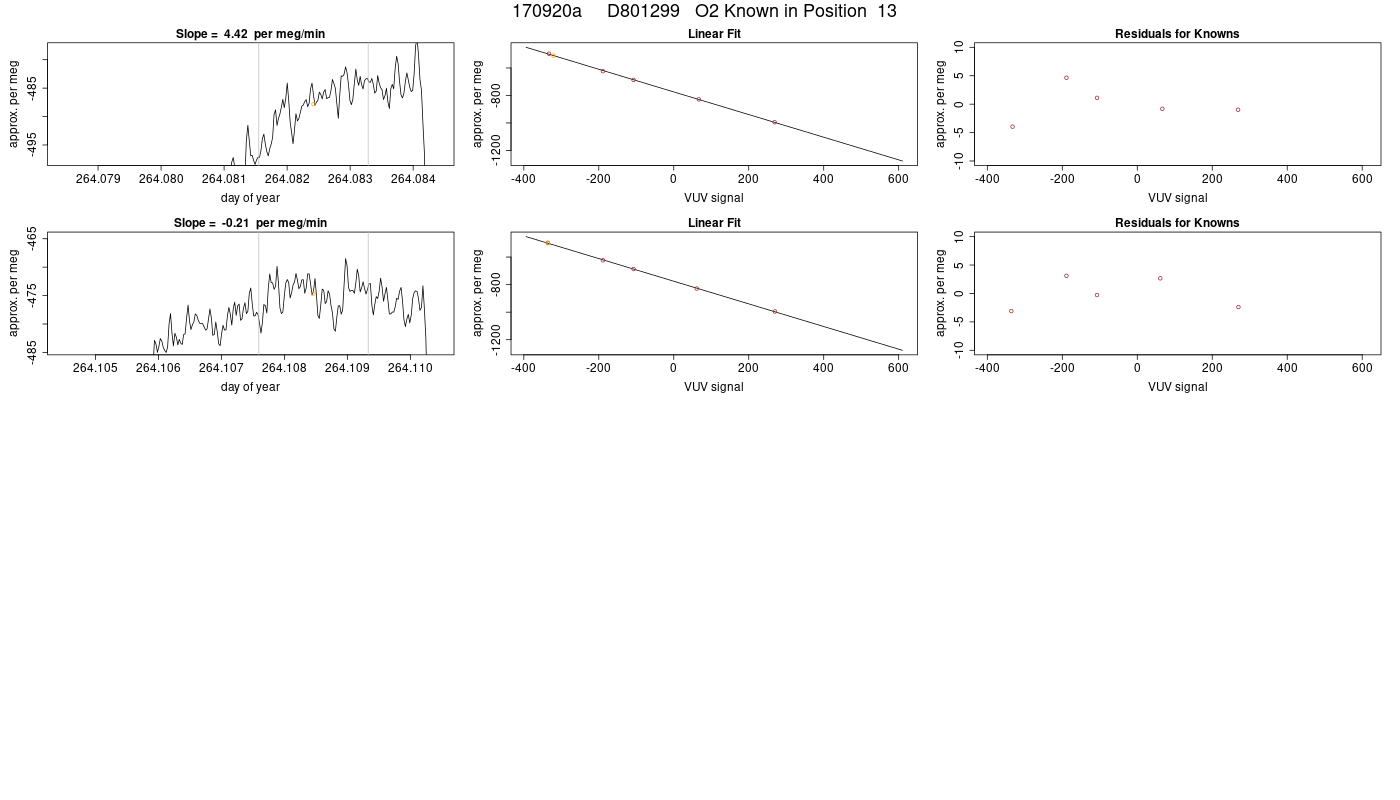

13 D801299 381.475 0.002 0.001 381.695 0.002 0.001 5 -477.75 -8.49 6.45 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

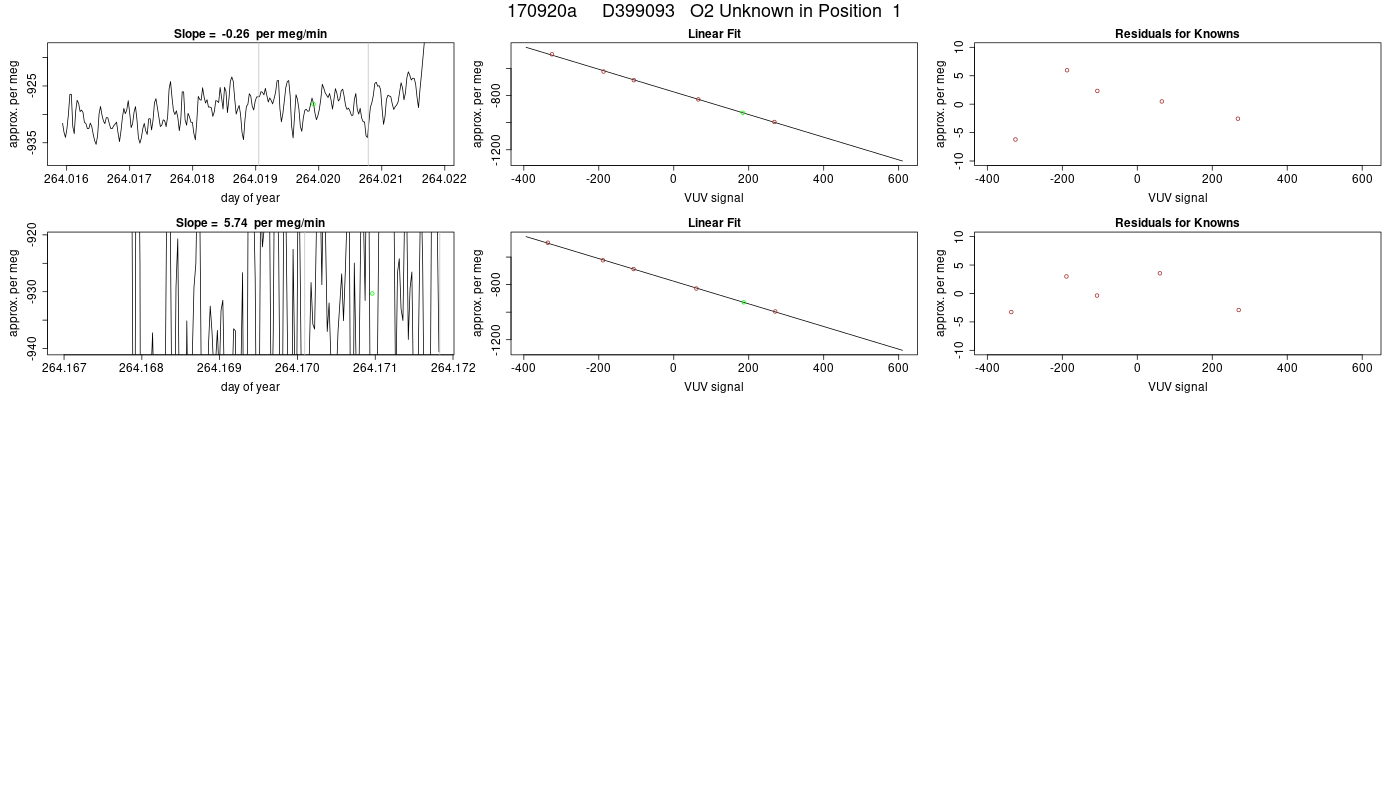

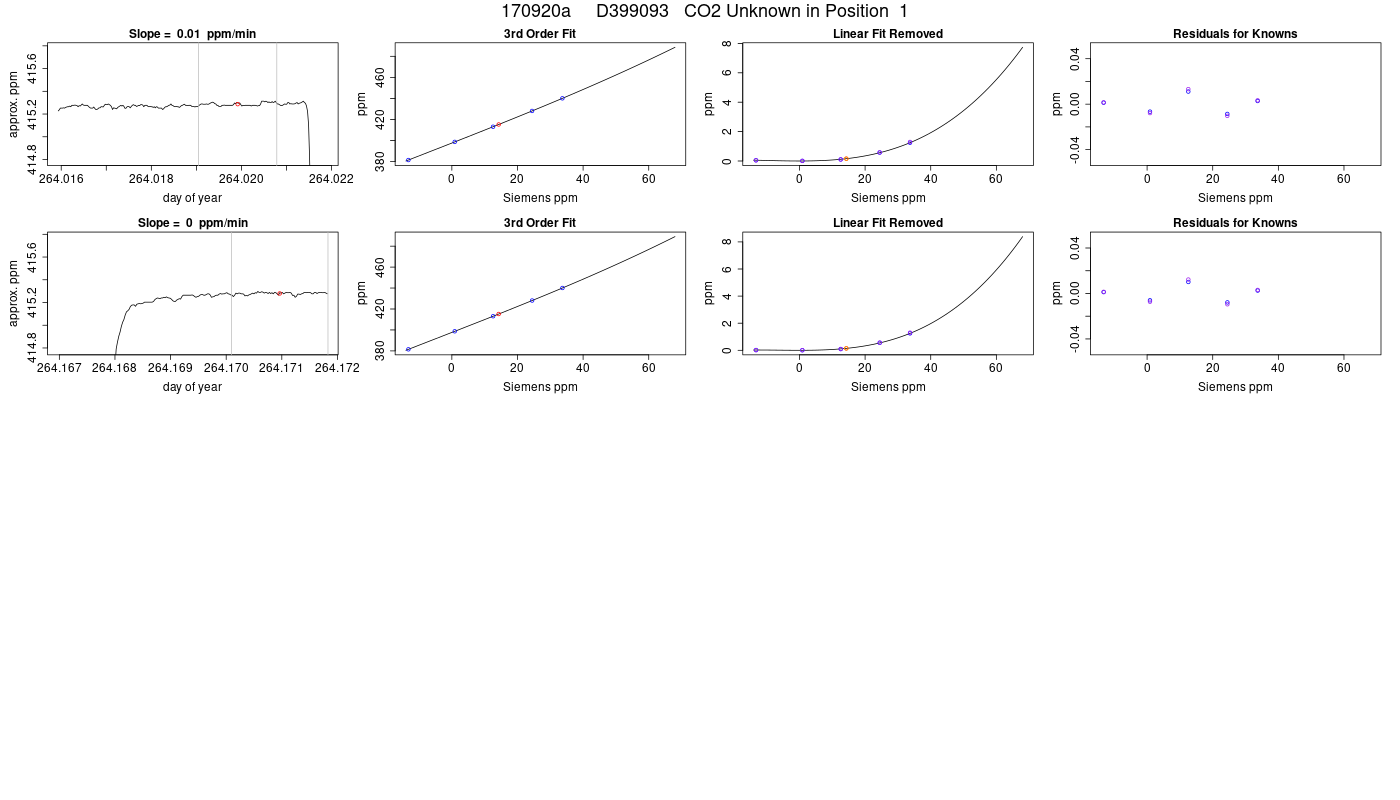

1 D399093    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.707 415.218 0.014 -859.73 2.24 415.407 0.014
263.858 415.215 0.010 -878.71 2.08 415.403 0.010
263.864 415.239 0.011 -874.90 2.21 415.427 0.011
264.015 415.203 0.011 -880.90 1.92 415.391 0.011
264.020 415.242 0.013 -876.09 2.37 415.430 0.013
264.171 415.214 0.011 -877.78 25.17 415.402 0.011

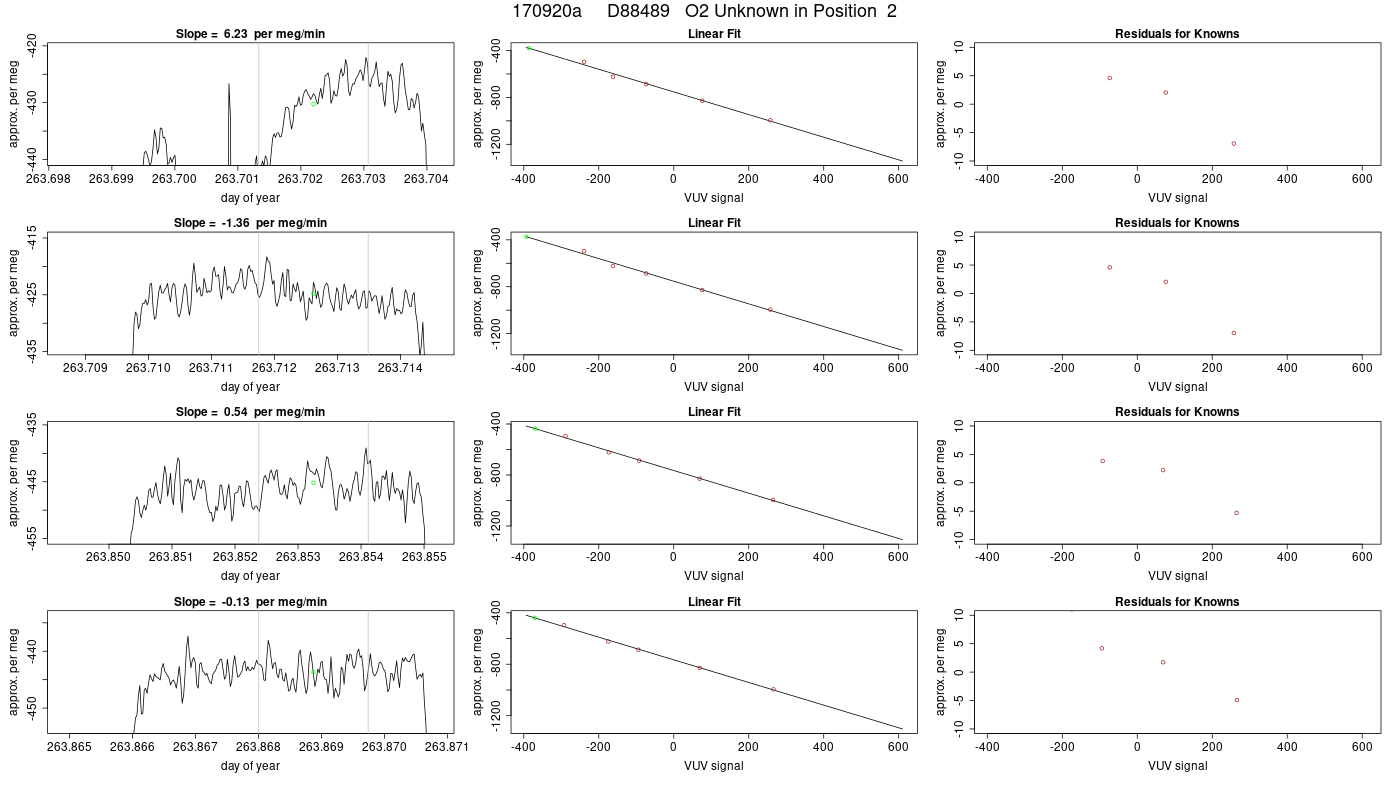

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.702 399.915 0.041 -343.60 5.35 400.123 0.041
263.713 400.120 0.013 -337.31 2.26 400.327 0.013
263.853 400.085 0.013 -400.43 2.33 400.292 0.013
263.869 400.129 0.013 -402.63 2.40 400.337 0.013
264.009 400.081 0.013 -429.47 2.33 400.289 0.013
264.025 400.112 0.011 -430.62 2.04 400.319 0.011
264.166 400.112 0.011 -439.86 40.70 400.319 0.011

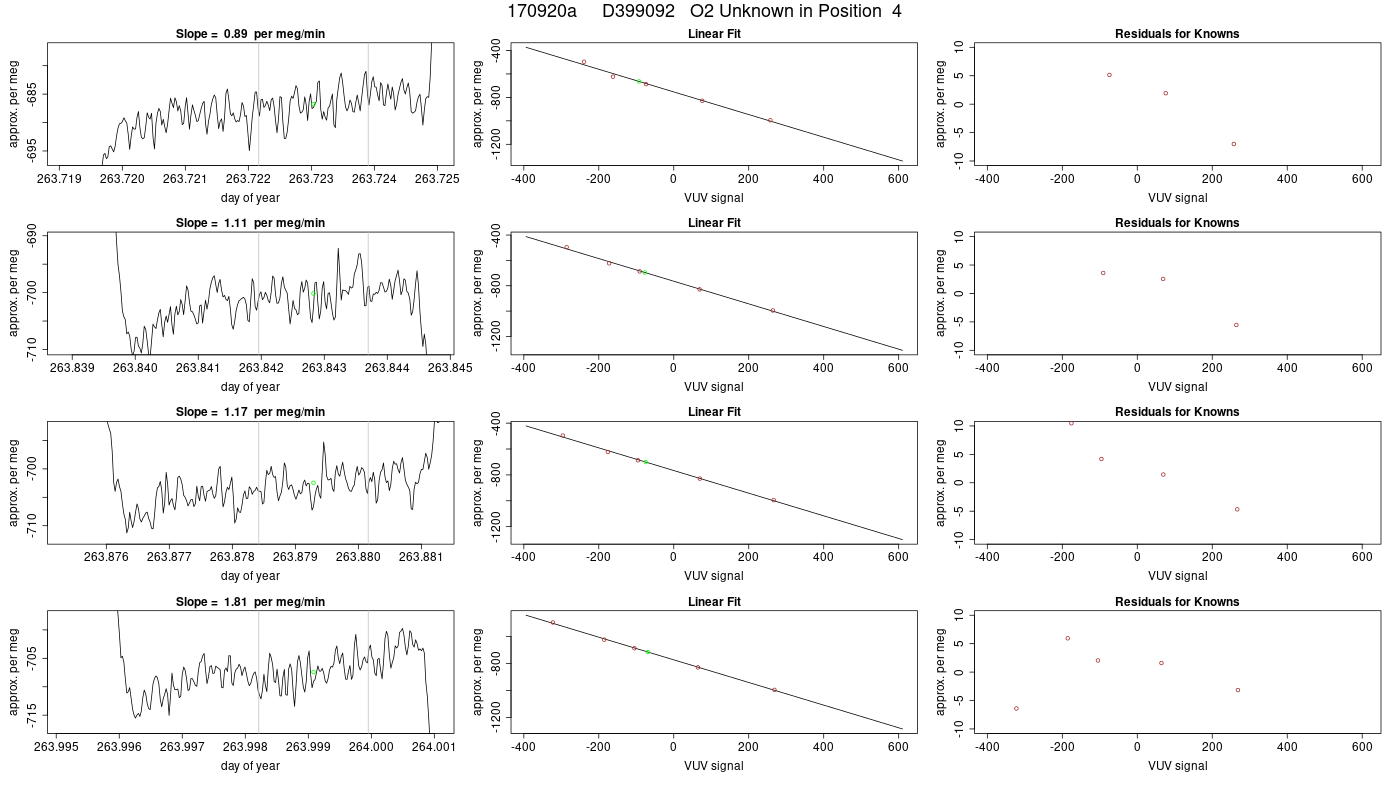

4 D399092    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.723 409.282 0.012 -618.59 2.50 409.477 0.012
263.843 409.281 0.016 -650.09 2.82 409.476 0.016
263.879 409.276 0.008 -655.72 2.21 409.471 0.008
263.999 409.265 0.011 -669.70 2.53 409.459 0.011
264.036 409.269 0.010 -667.91 2.28 409.464 0.010
264.155 409.273 0.014 -674.82 21.11 409.468 0.014

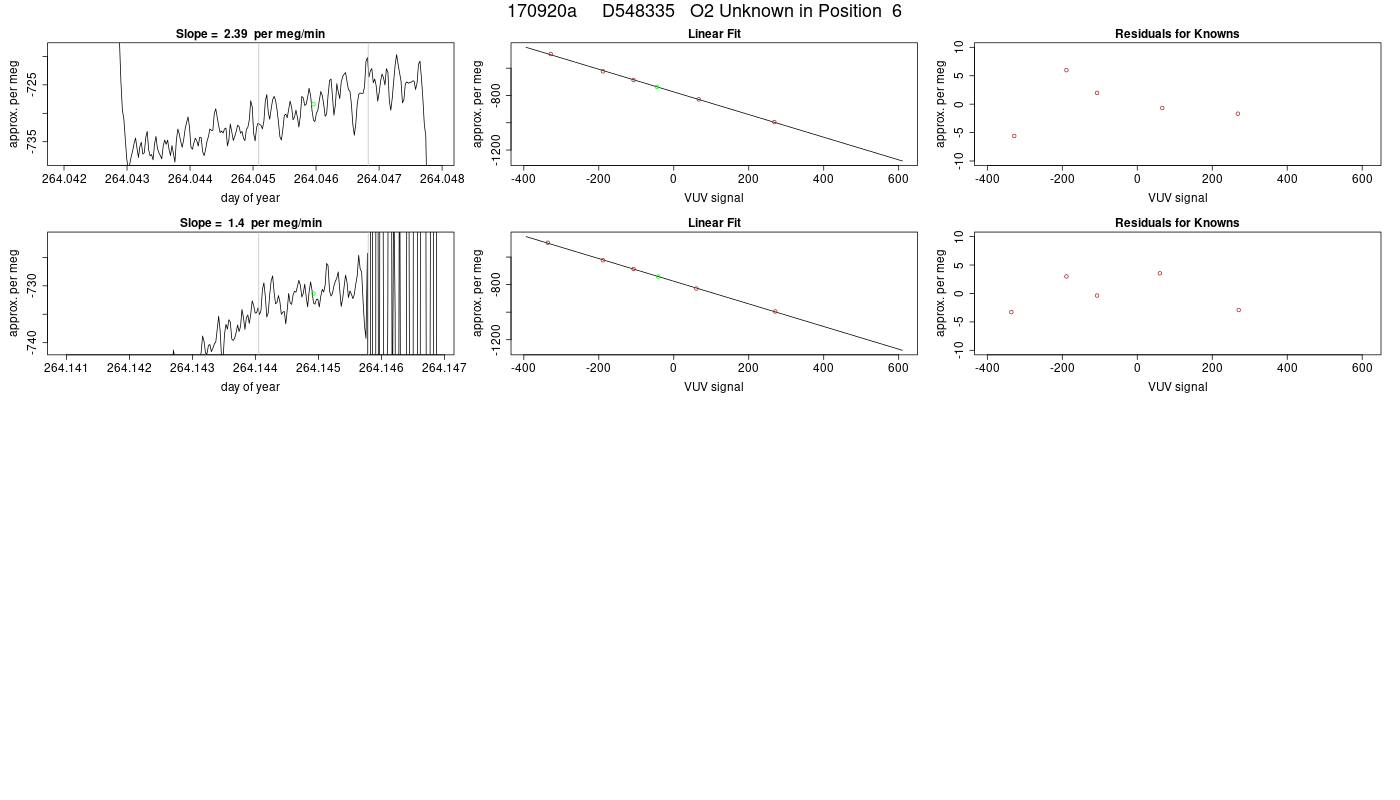

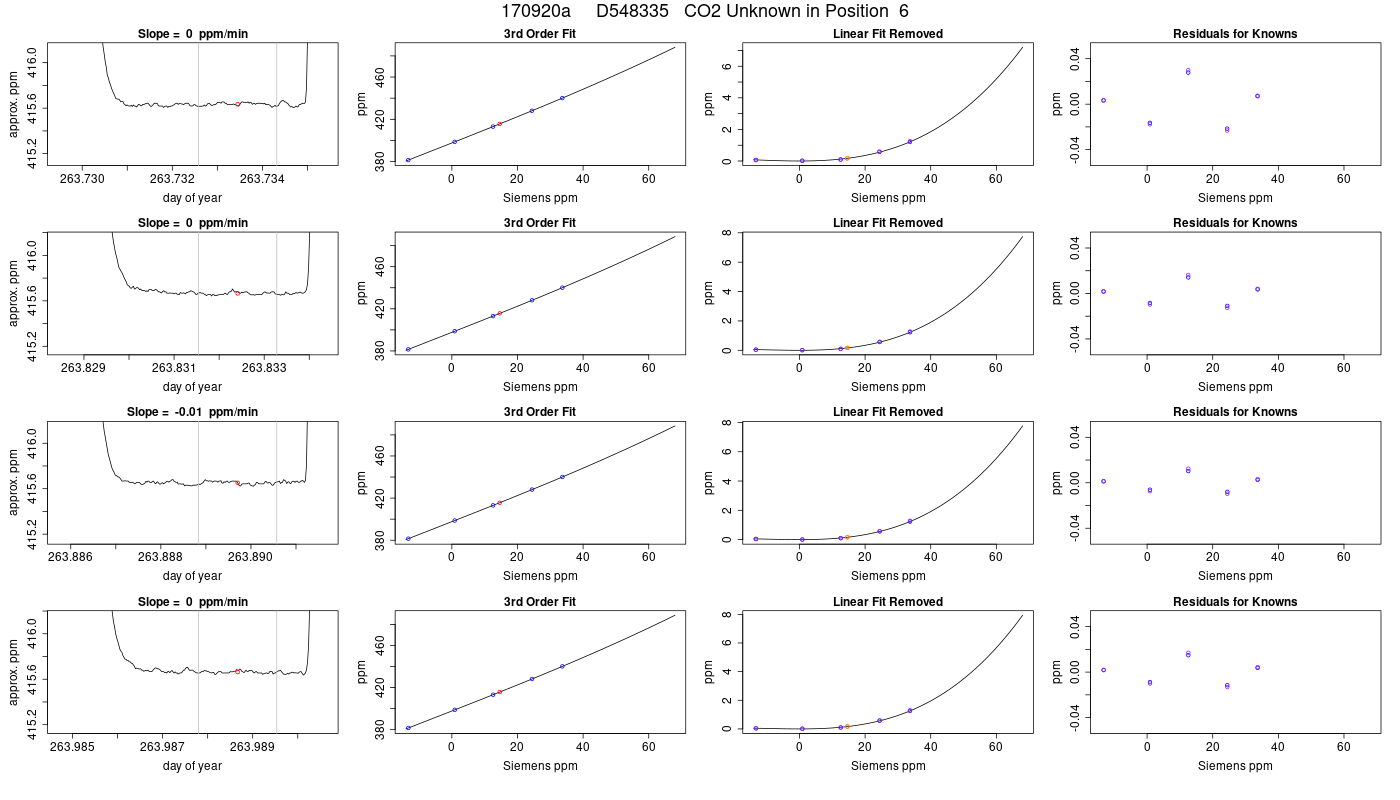

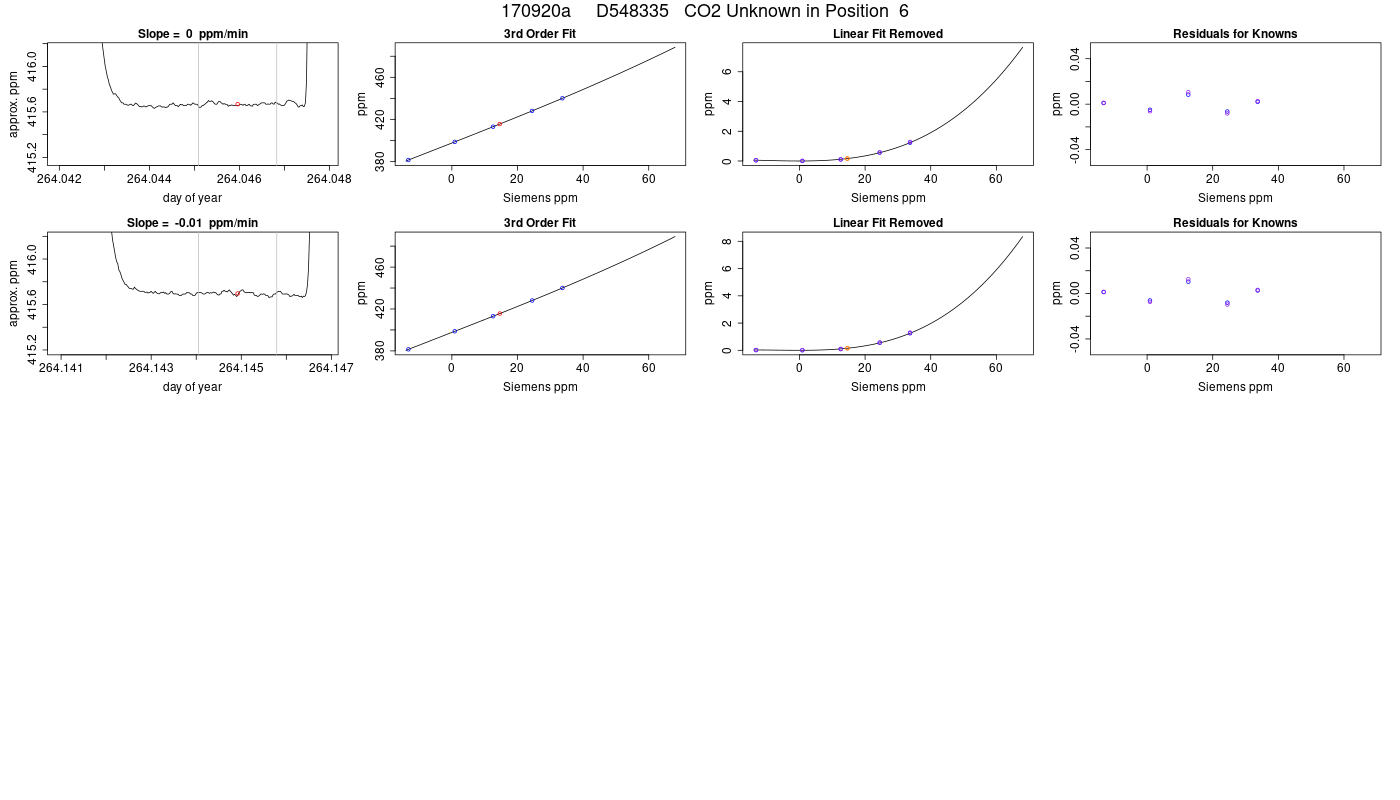

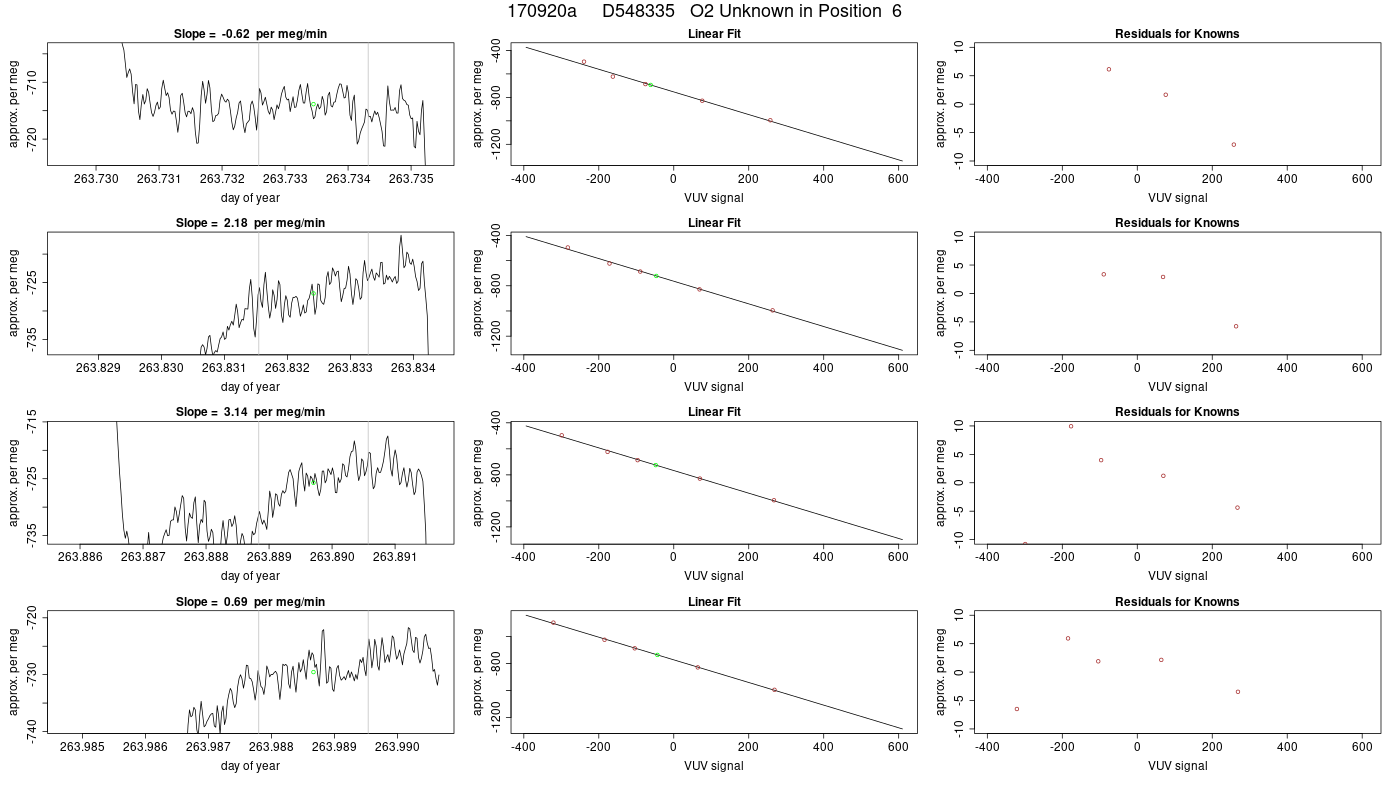

6 D548335    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.733 415.650 0.012 -642.74 2.24 415.838 0.012
263.832 415.650 0.012 -670.44 2.56 415.838 0.012
263.890 415.624 0.014 -673.52 3.28 415.812 0.014
263.989 415.626 0.010 -684.36 2.20 415.814 0.010
264.046 415.631 0.013 -685.17 3.01 415.819 0.013
264.145 415.641 0.016 -689.80 2.70 415.828 0.016

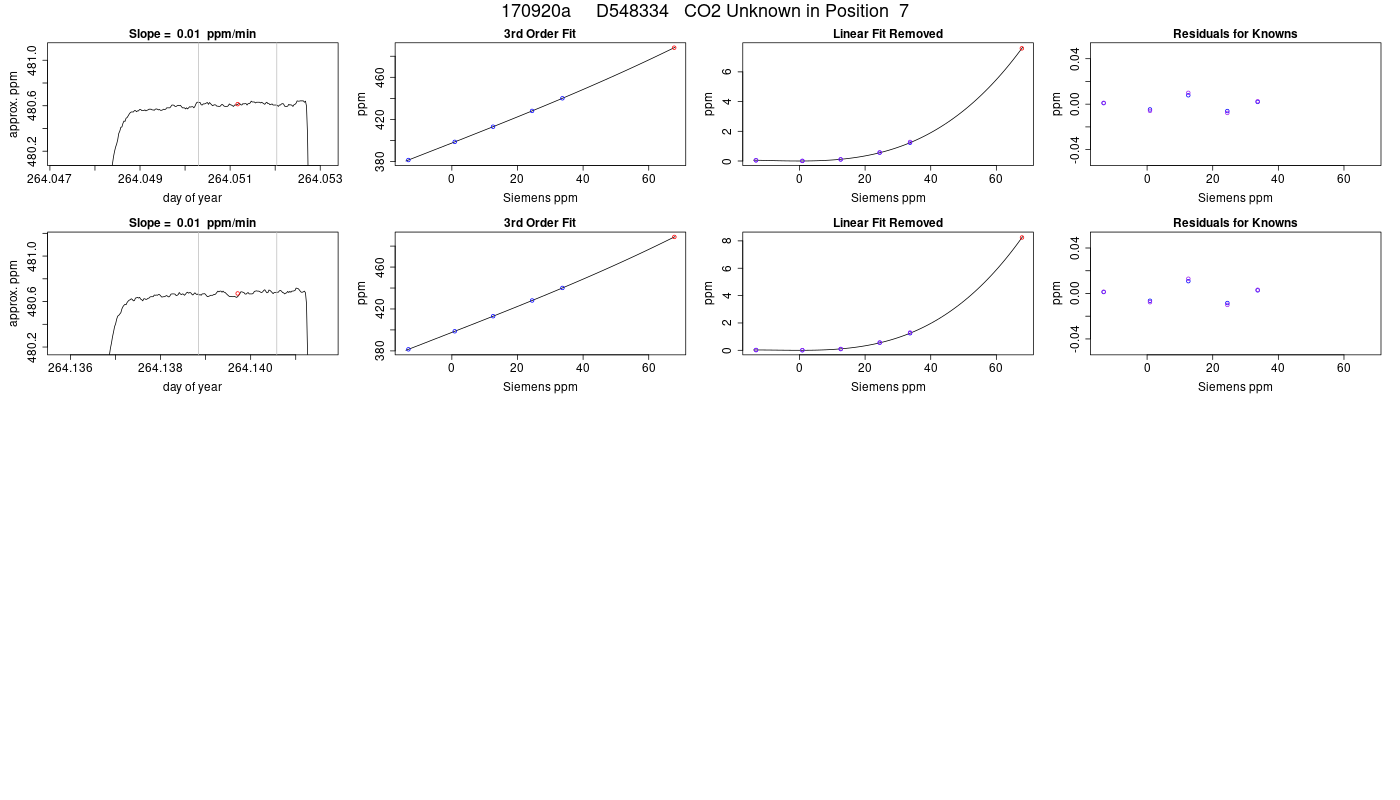

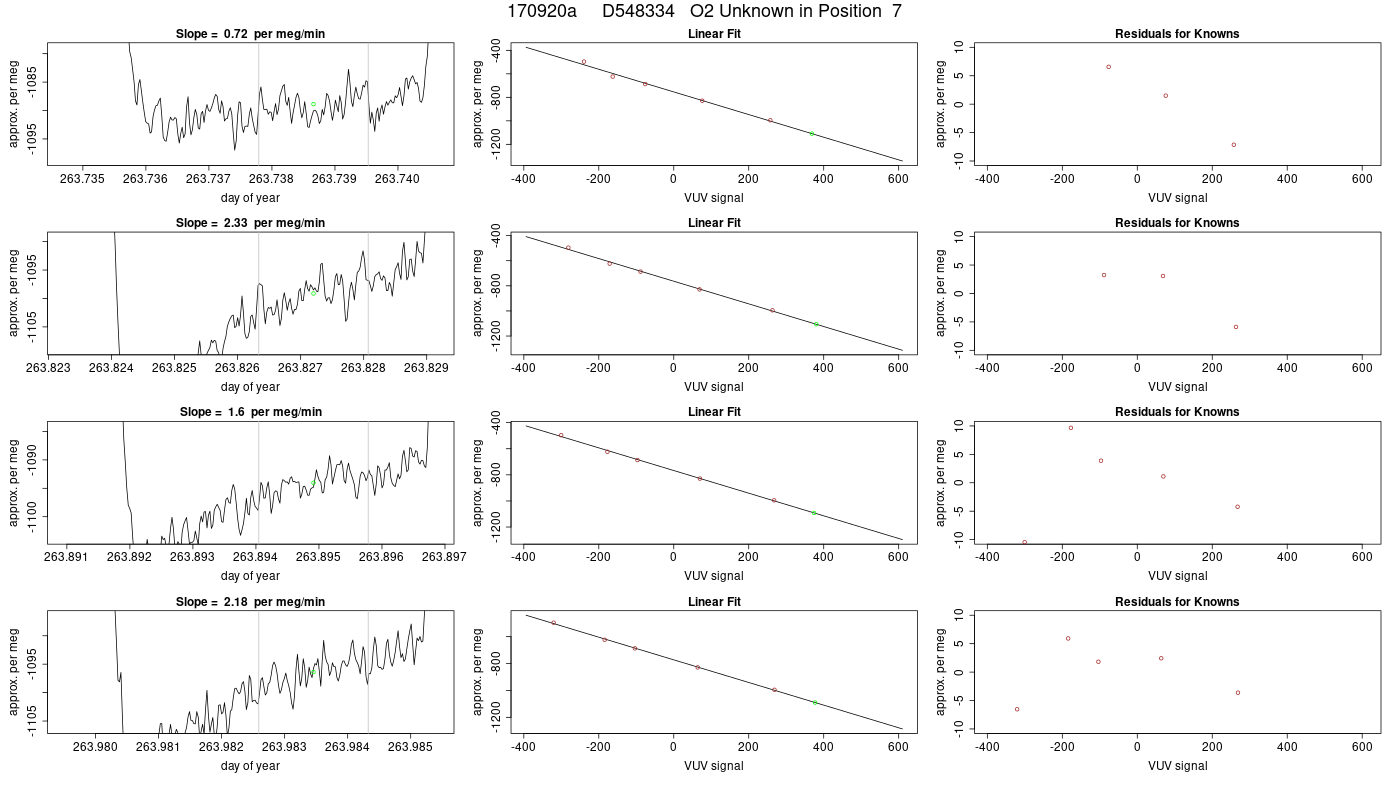

7 D548334    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.739 487.658 0.017 -986.31 2.17 488.363 0.017
263.827 488.118 0.013 -983.18 2.86 488.825 0.013
263.895 488.138 0.014 -968.63 1.99 488.844 0.014
263.983 488.332 0.013 -966.62 2.49 489.039 0.013
264.051 488.092 0.012 -962.61 2.30 488.799 0.012
264.140 488.756 0.017 -962.98 2.63 489.464 0.017

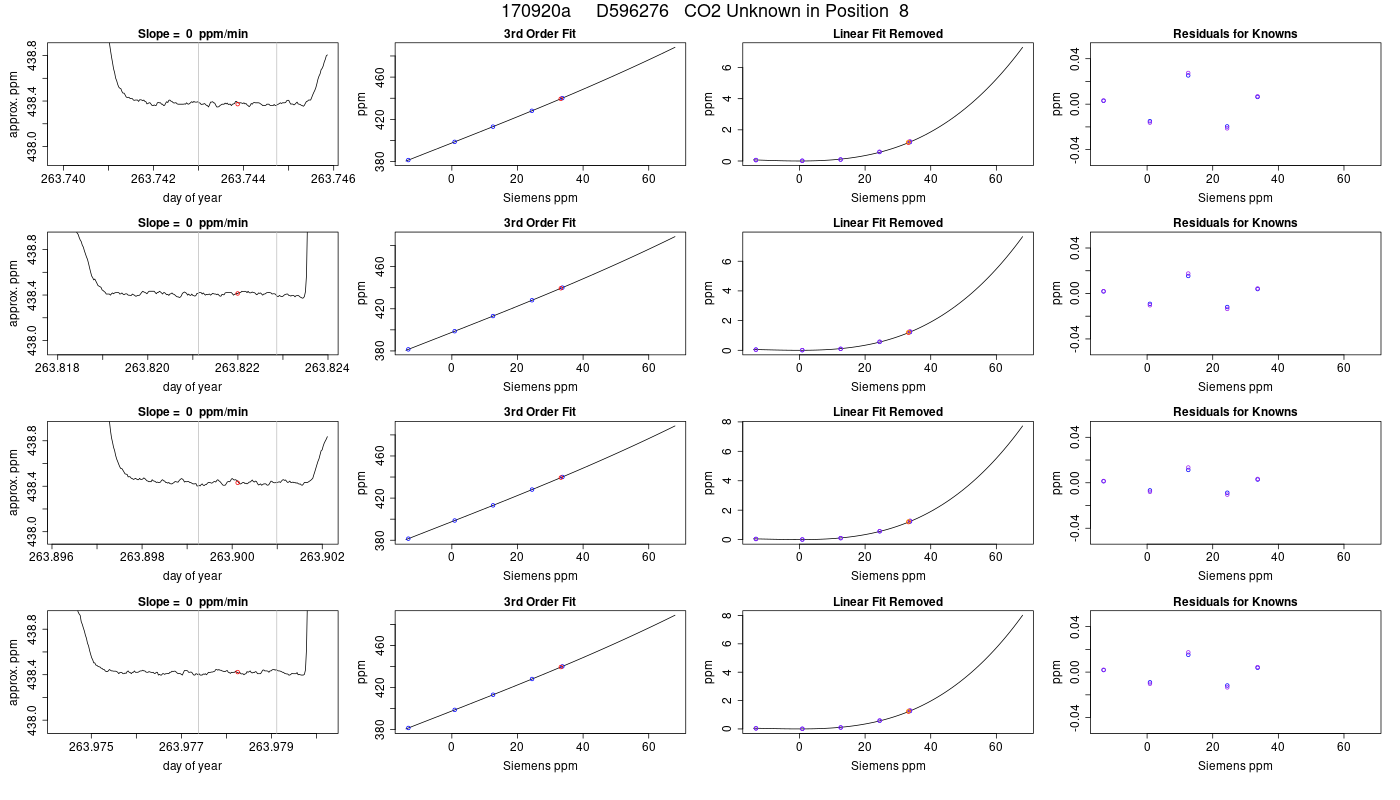

8 D596276    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.744 439.441 0.012 -888.87 2.06 439.650 0.012
263.822 439.455 0.010 -891.06 2.04 439.663 0.010
263.900 439.455 0.015 -889.77 2.23 439.664 0.015
263.978 439.466 0.013 -890.33 1.90 439.674 0.013
264.056 439.462 0.012 -888.24 2.42 439.670 0.012
264.135 439.483 0.012 -889.82 2.63 439.692 0.012

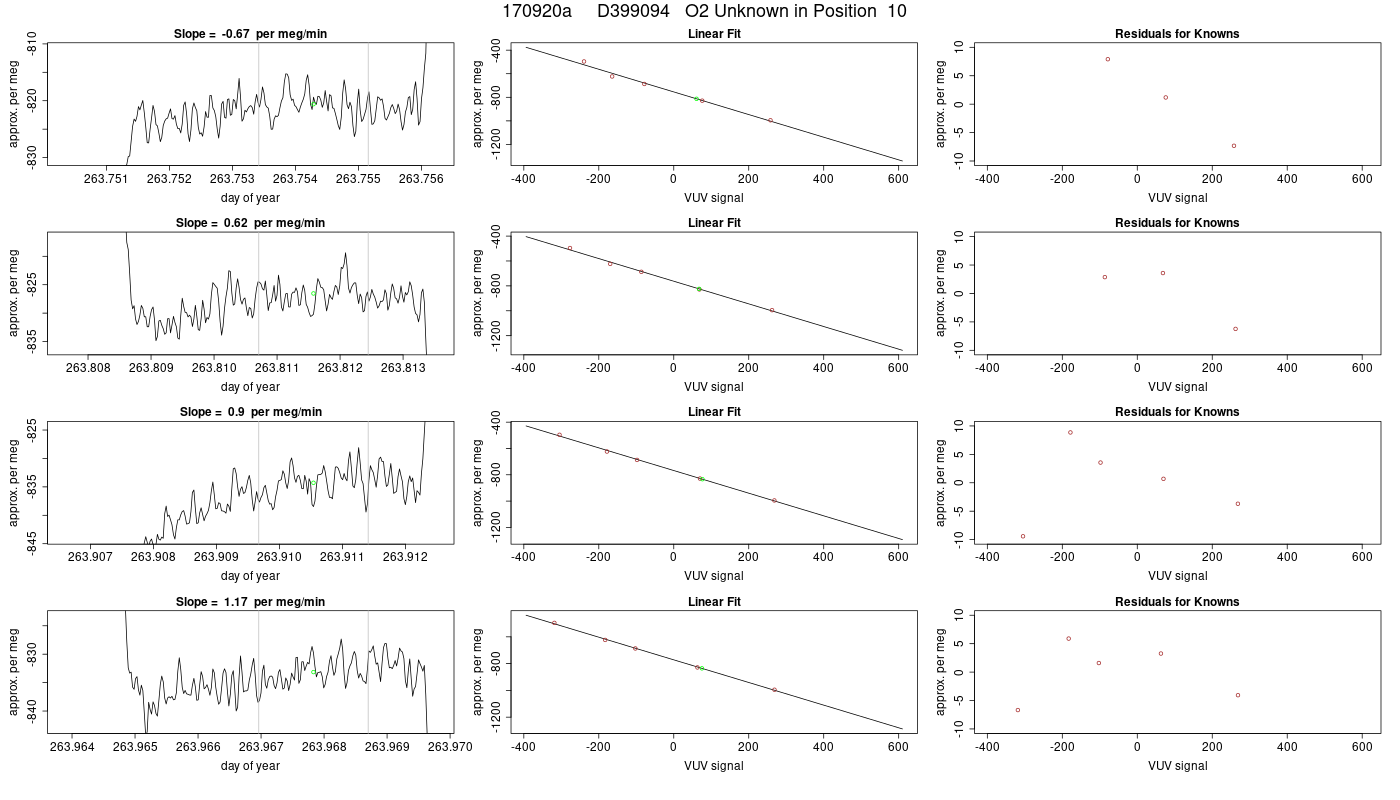

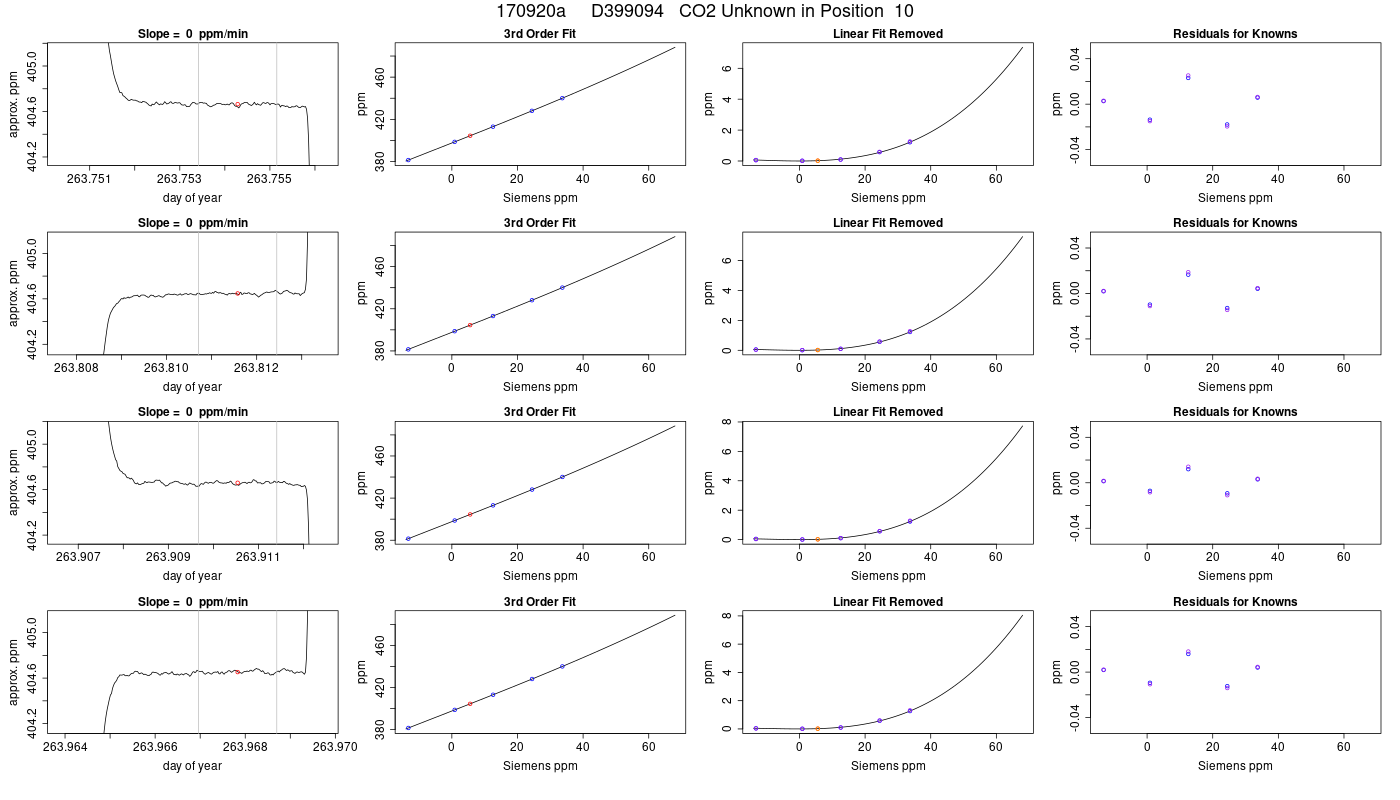

10 D399094    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.754 404.504 0.011 -772.25 2.44 404.706 0.011
263.812 404.480 0.010 -783.63 2.23 404.682 0.010
263.911 404.476 0.011 -792.96 2.49 404.677 0.011
263.968 404.459 0.013 -794.94 2.20 404.660 0.013
264.067 404.475 0.013 -798.74 2.46 404.677 0.013
264.124 404.458 0.015 -798.44 2.49 404.659 0.015

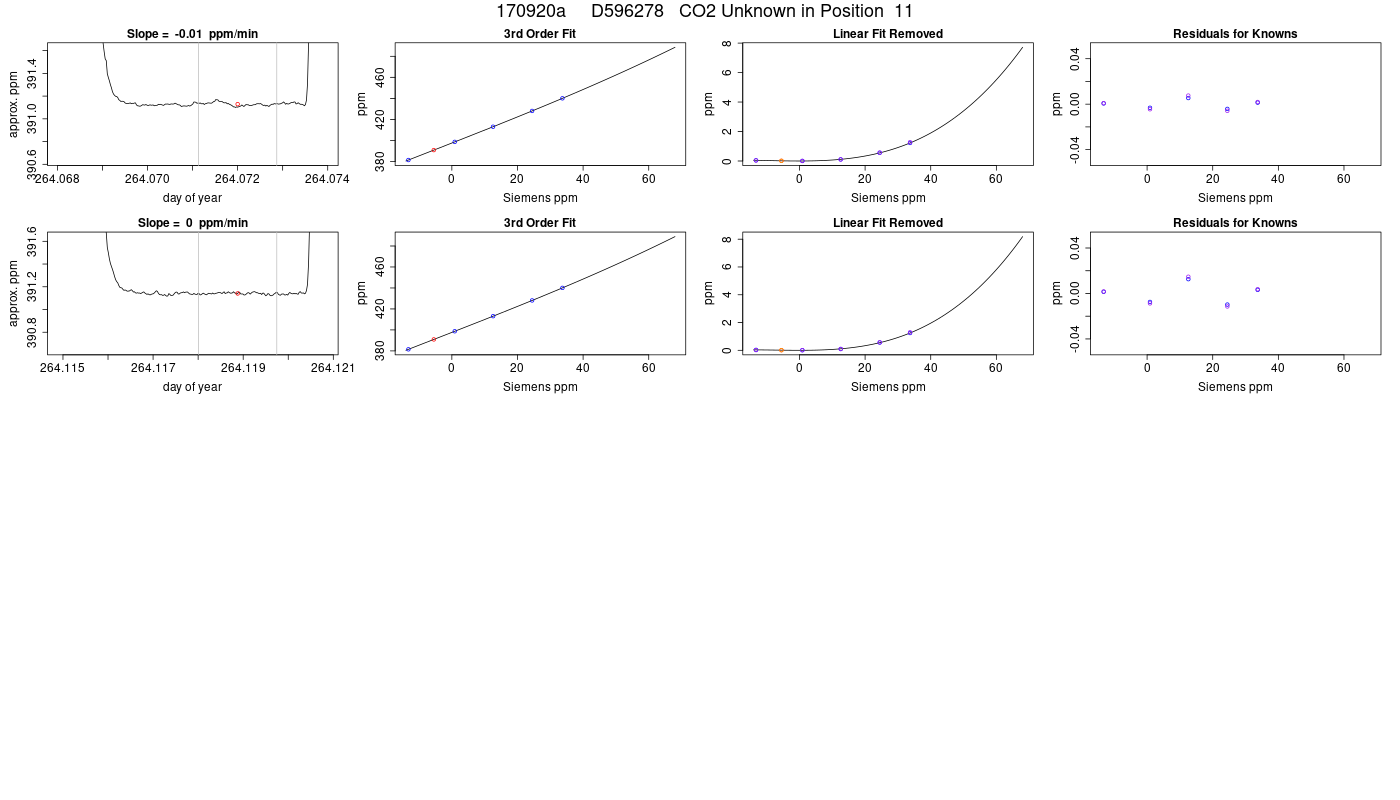

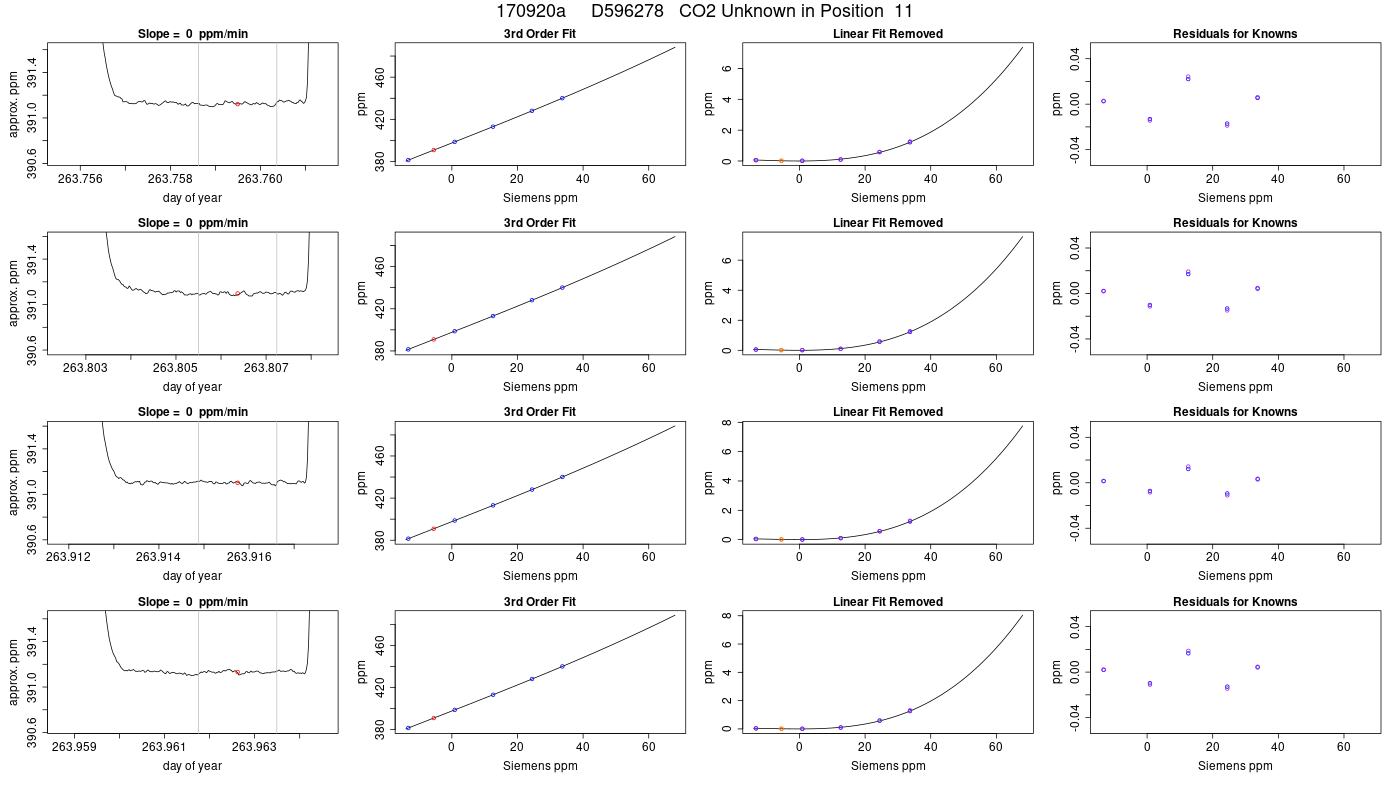

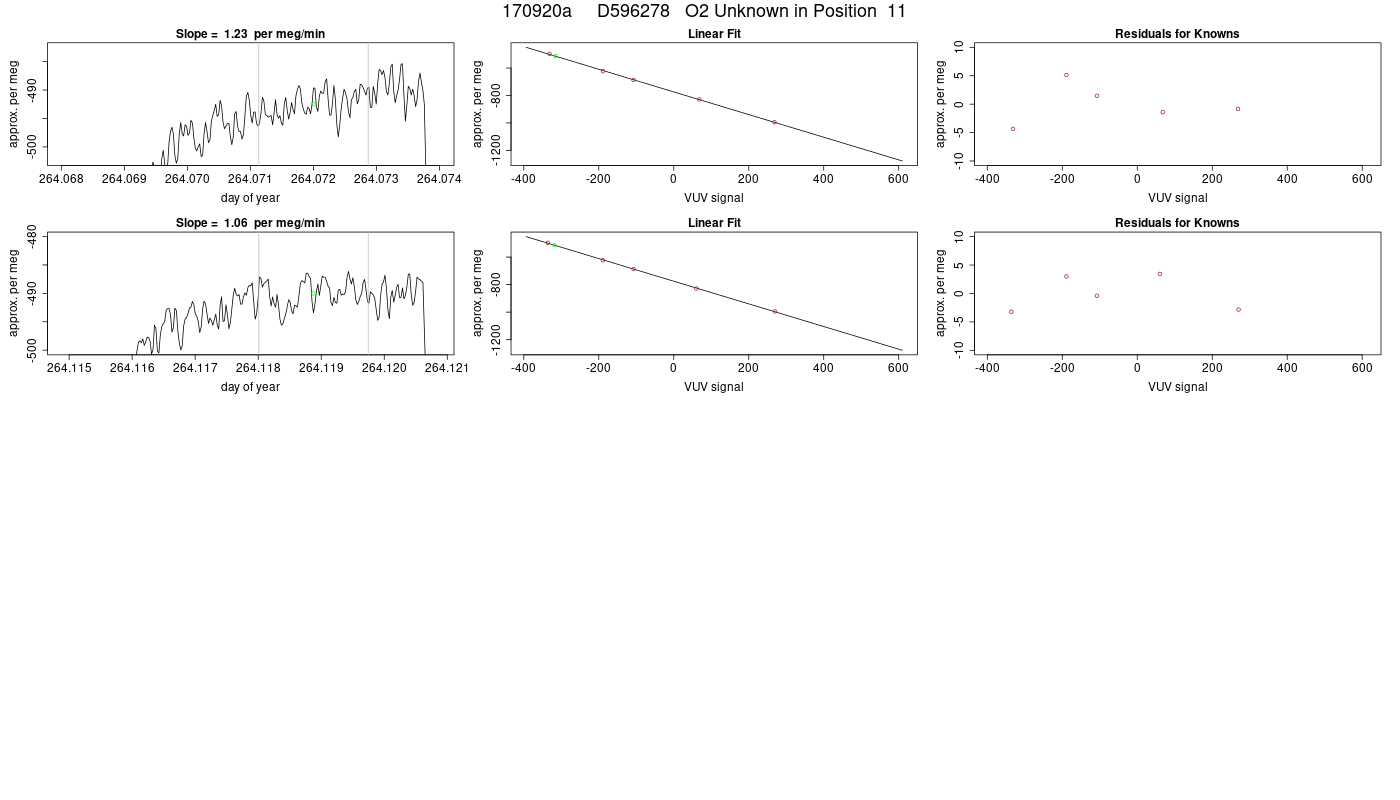

11 D596278    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.759 390.927 0.012 -410.87 2.08 391.145 0.012
263.806 390.906 0.011 -437.94 2.06 391.125 0.011
263.916 390.896 0.010 -467.17 2.81 391.114 0.010
263.963 390.918 0.010 -473.47 2.29 391.137 0.010
264.072 390.908 0.015 -486.26 2.25 391.127 0.015
264.119 390.922 0.009 -486.46 2.32 391.140 0.009

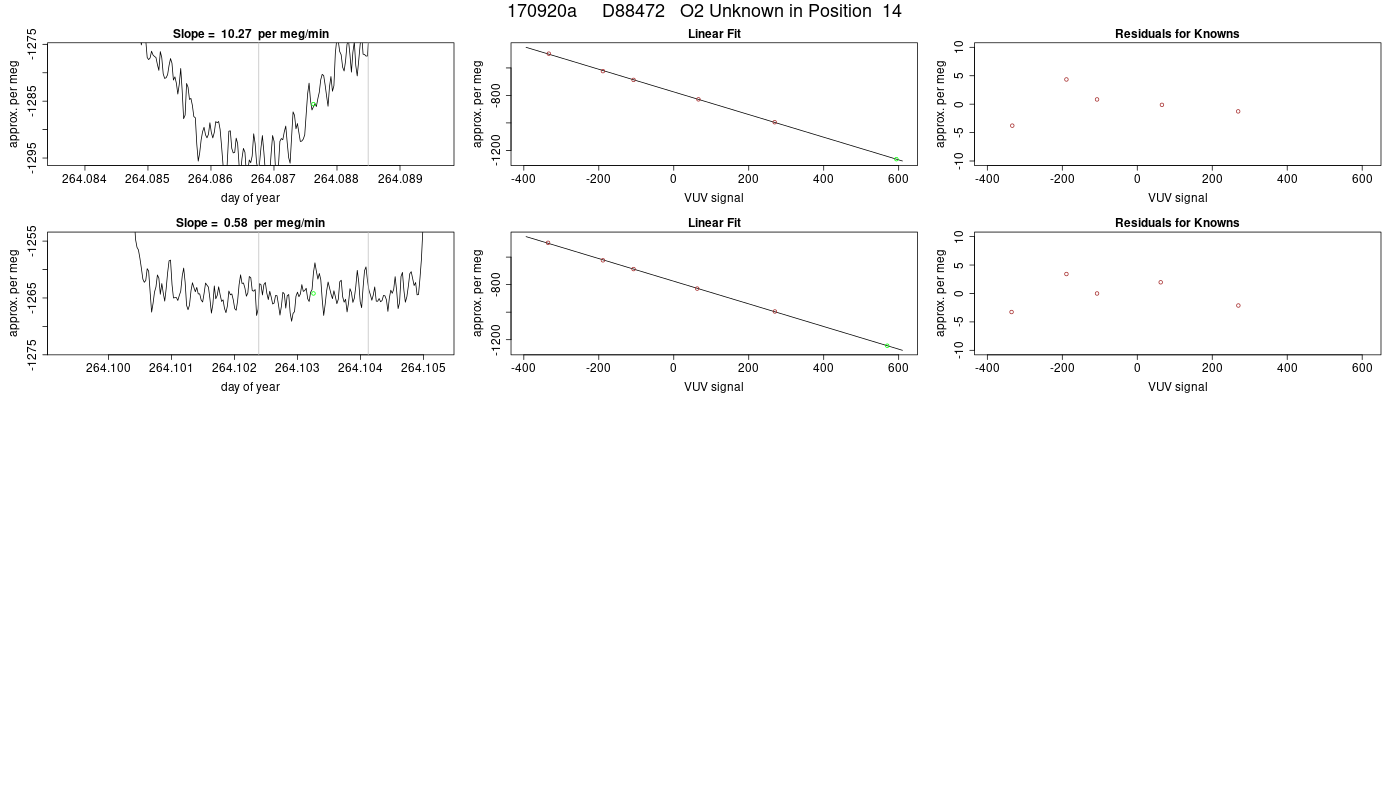

14 D88472    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.775 409.595 0.013 -1278.40 1.98 409.789 0.013
263.791 409.584 0.016 -1271.64 3.86 409.778 0.016
263.931 409.538 0.016 -1243.83 9.34 409.733 0.016
263.947 409.592 0.012 -1212.54 2.62 409.786 0.012
264.088 409.553 0.014 -1218.34 7.52 409.747 0.014
264.103 409.593 0.013 -1198.24 2.13 409.788 0.013

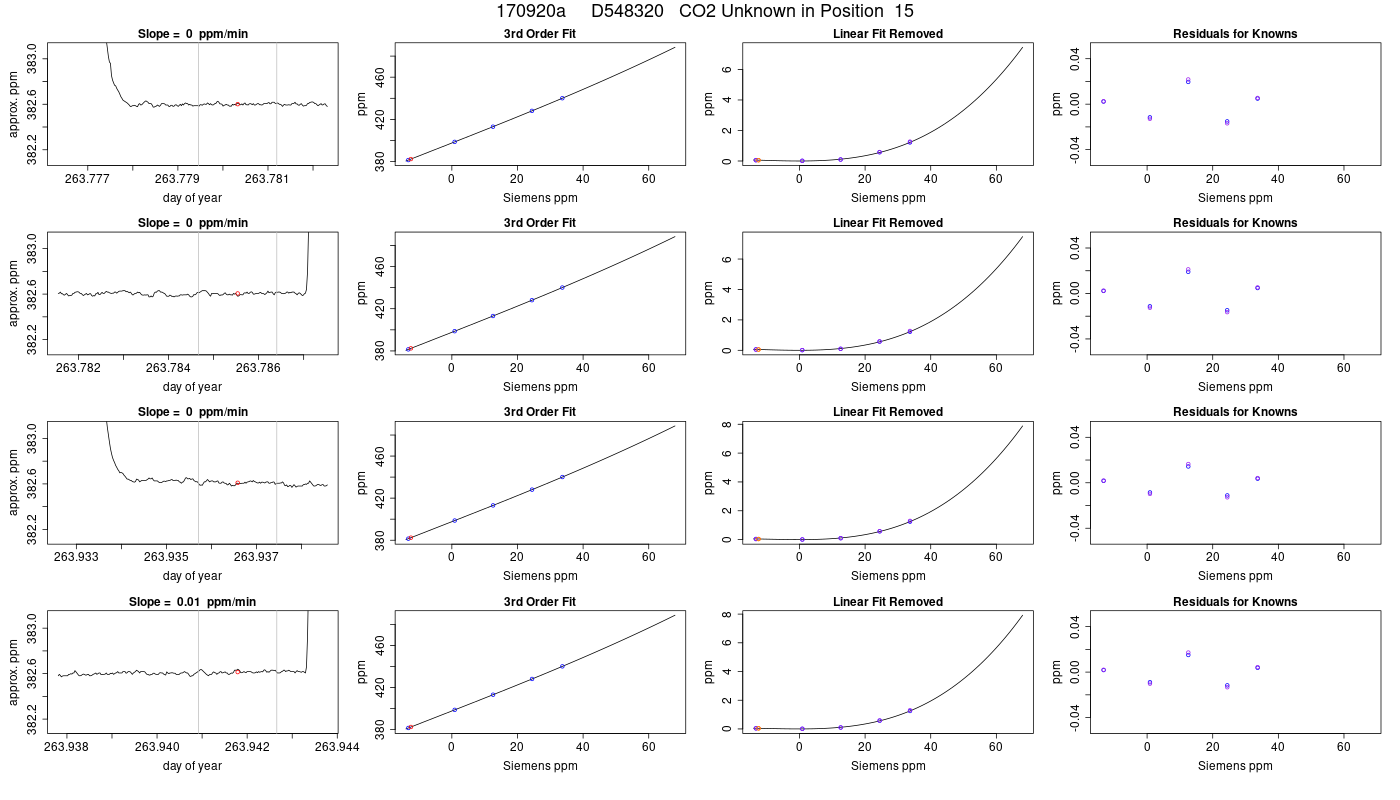

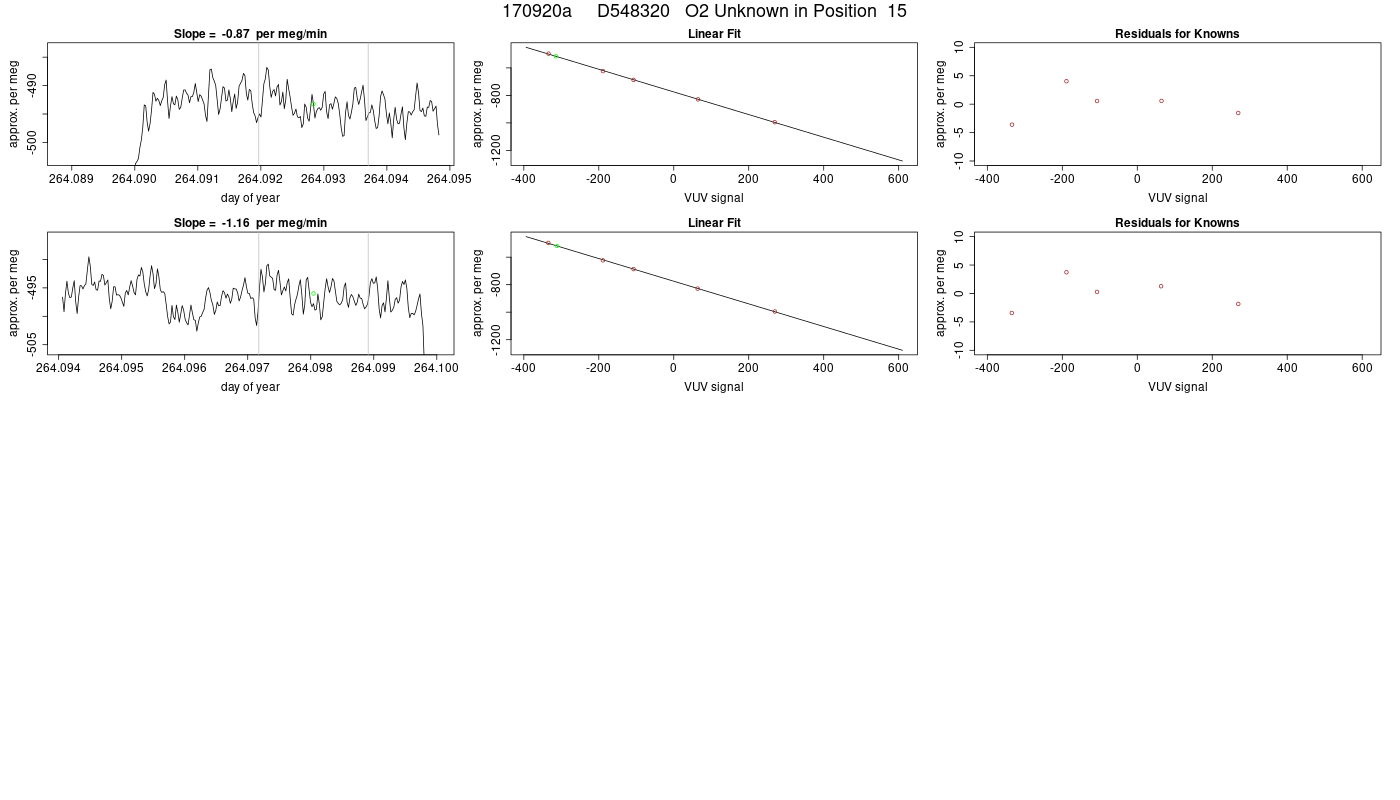

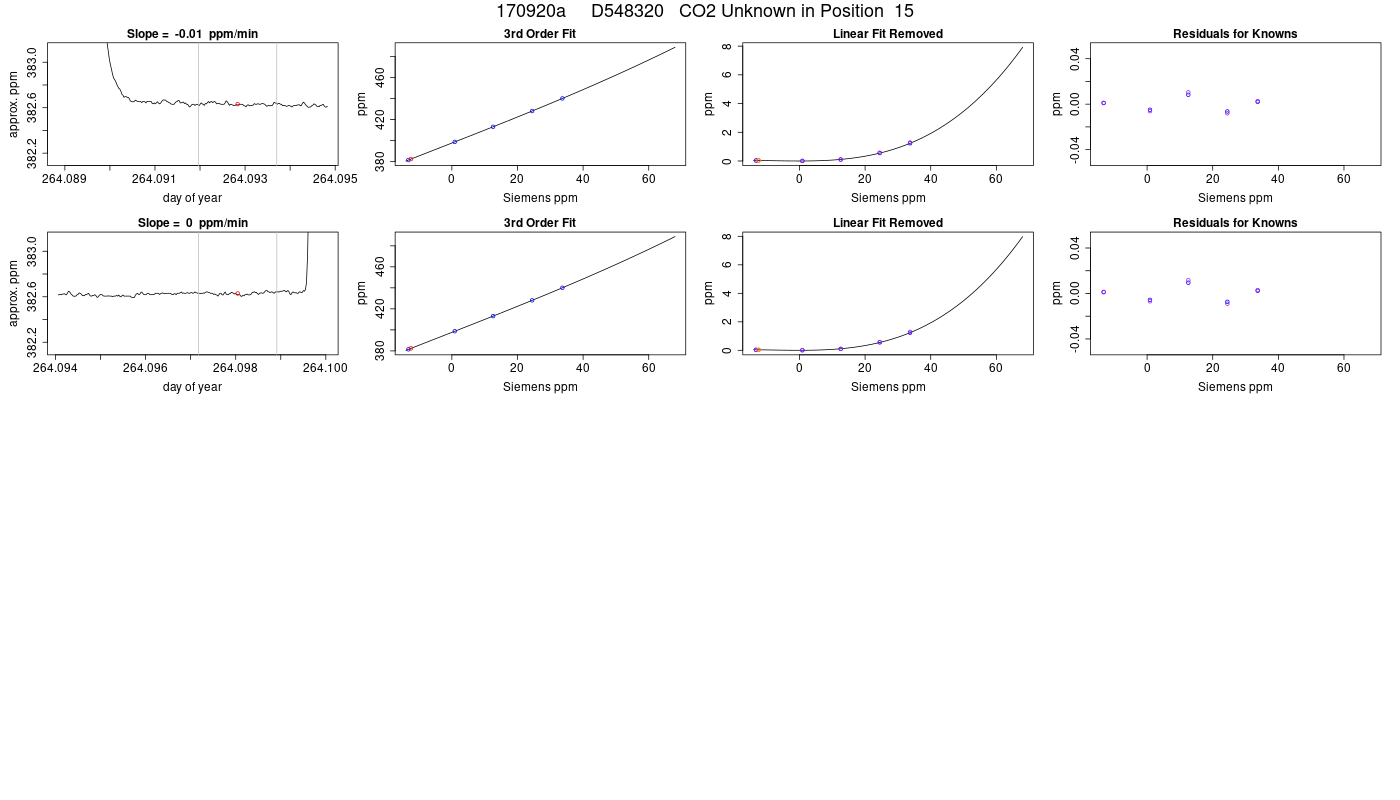

15 D548320    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
263.780 382.435 0.009 -432.00 2.70 382.656 0.009
263.786 382.440 0.012 -438.03 1.94 382.661 0.012
263.937 382.424 0.012 -480.18 2.09 382.645 0.012
263.942 382.427 0.013 -485.03 2.07 382.647 0.013
264.093 382.428 0.011 -496.67 2.45 382.648 0.011
264.098 382.424 0.011 -499.59 2.25 382.645 0.011
