UEA CRAM Lab O2 and CO2 calibration results
RUN = 160119a
PROCESSED: 09:10:56 Fri 4Aug2023

Notes
Logfile

Results

Using data from 19.839 to 20.2 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 CA07857 361.787 0.014 0.070 361.363 0.014 0.071 5 -4551.20 4.59 9.04 5
3 D88532 381.988 0.012 -0.005 382.322 0.012 -0.004 5 -483.13 1.07 -4.03 5
5 D88533 408.672 0.009 0.018 408.207 0.009 0.018 5 -590.67 0.71 -1.78 5
6 CA07809 400.210 0.013 0.024 400.043 0.013 0.023 5 -4535.00 6.06 6.39 5
10 CA07825 431.674 0.018 0.038 431.024 0.018 0.041 5 -4646.89 4.98 -13.50 5
11 D073419 440.491 0.012 0.031 440.295 0.012 0.035 5 -919.61 0.97 -1.65 5
12 D073409 399.060 0.004 -0.020 398.935 0.004 -0.019 5 -651.12 1.26 -2.97 5
13 D073418 413.933 0.009 -0.059 413.315 0.009 -0.056 5 -775.27 0.72 -0.13 5
14 D089507 429.009 0.012 -0.089 428.296 0.012 -0.087 5 -557.56 0.52 -4.09 5
15 D88531 401.994 0.007 -0.002 401.762 0.007 -0.002 5 -641.48 0.81 -5.84 5
WT D078943 407.641 0.009 -0.045 407.210 0.008 -0.043 70 -610.11 0.27 -1.47 70
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns

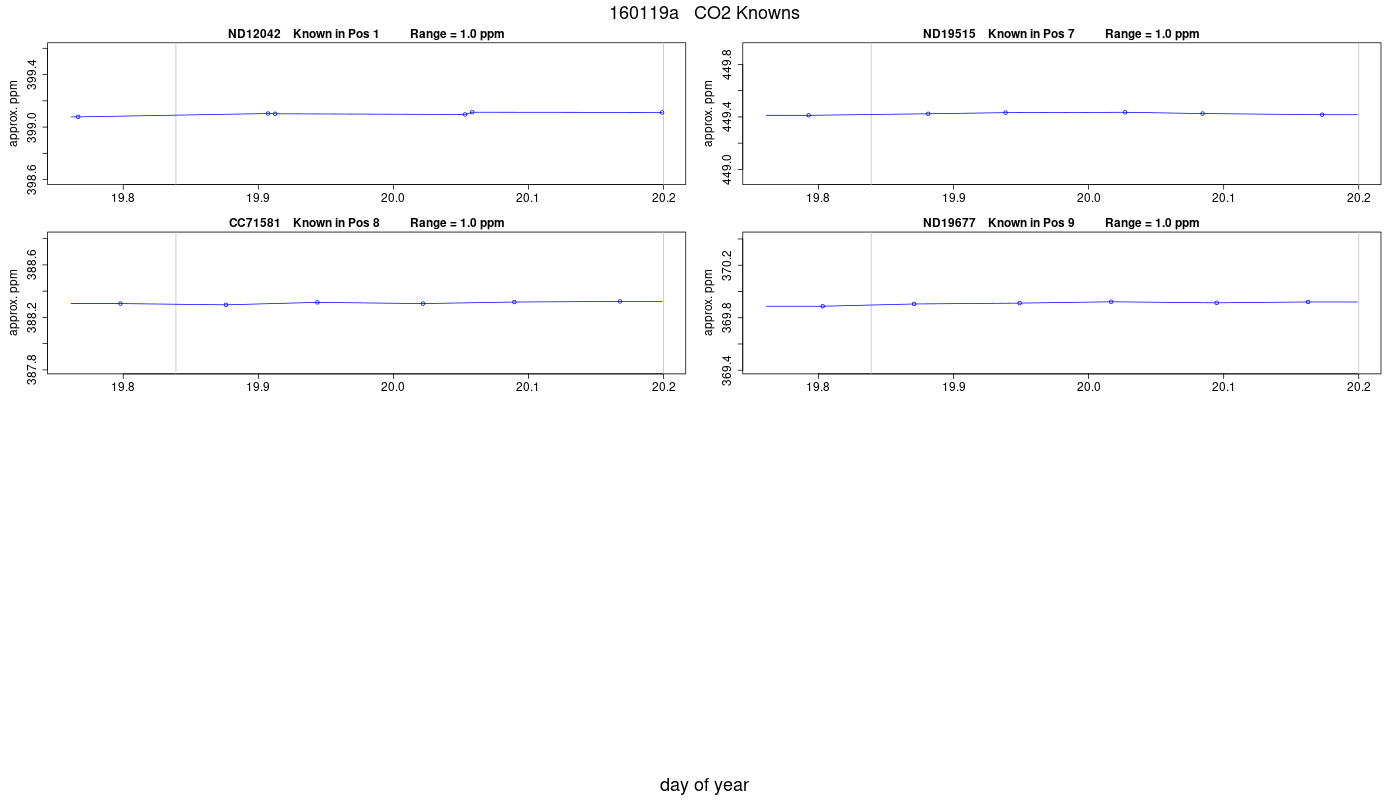

 CO2 Averages for Knowns

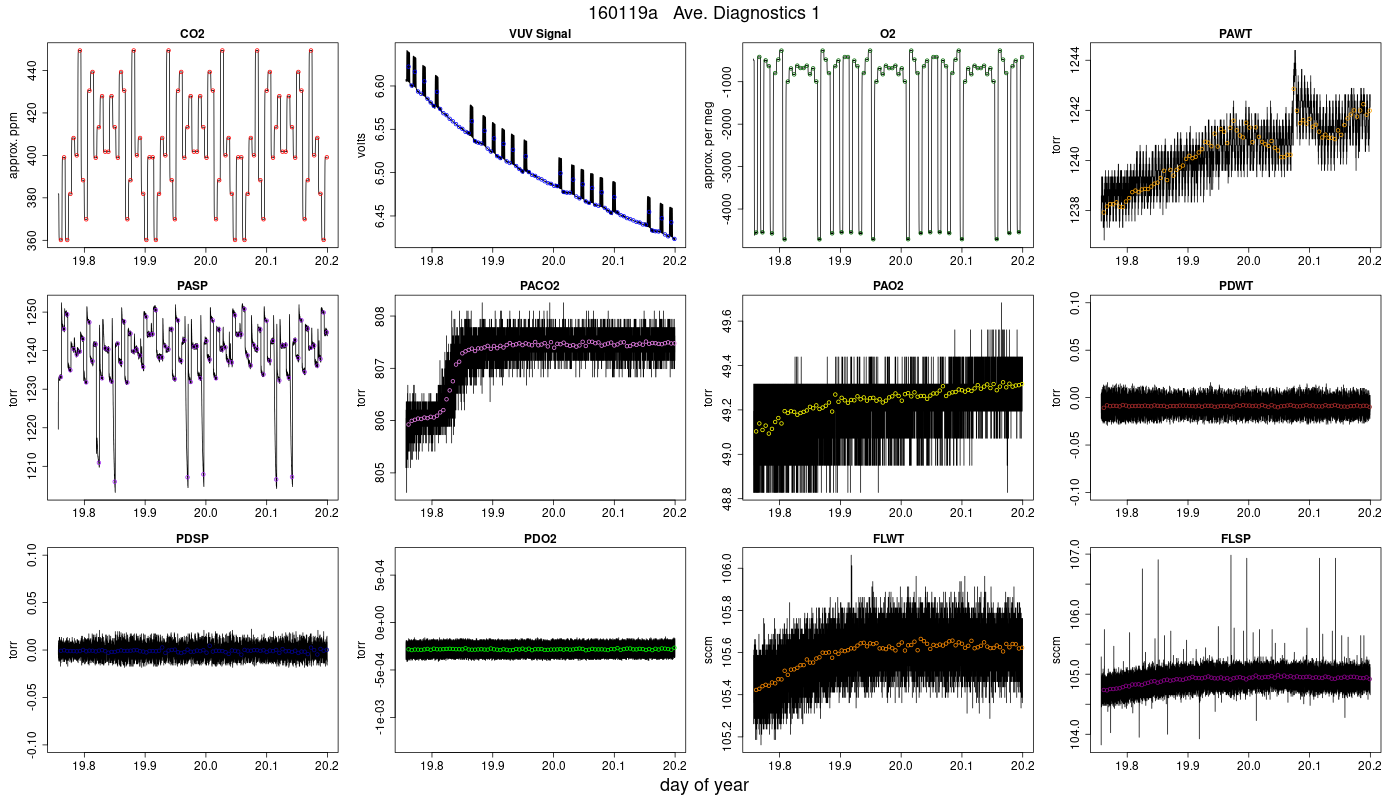

Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics

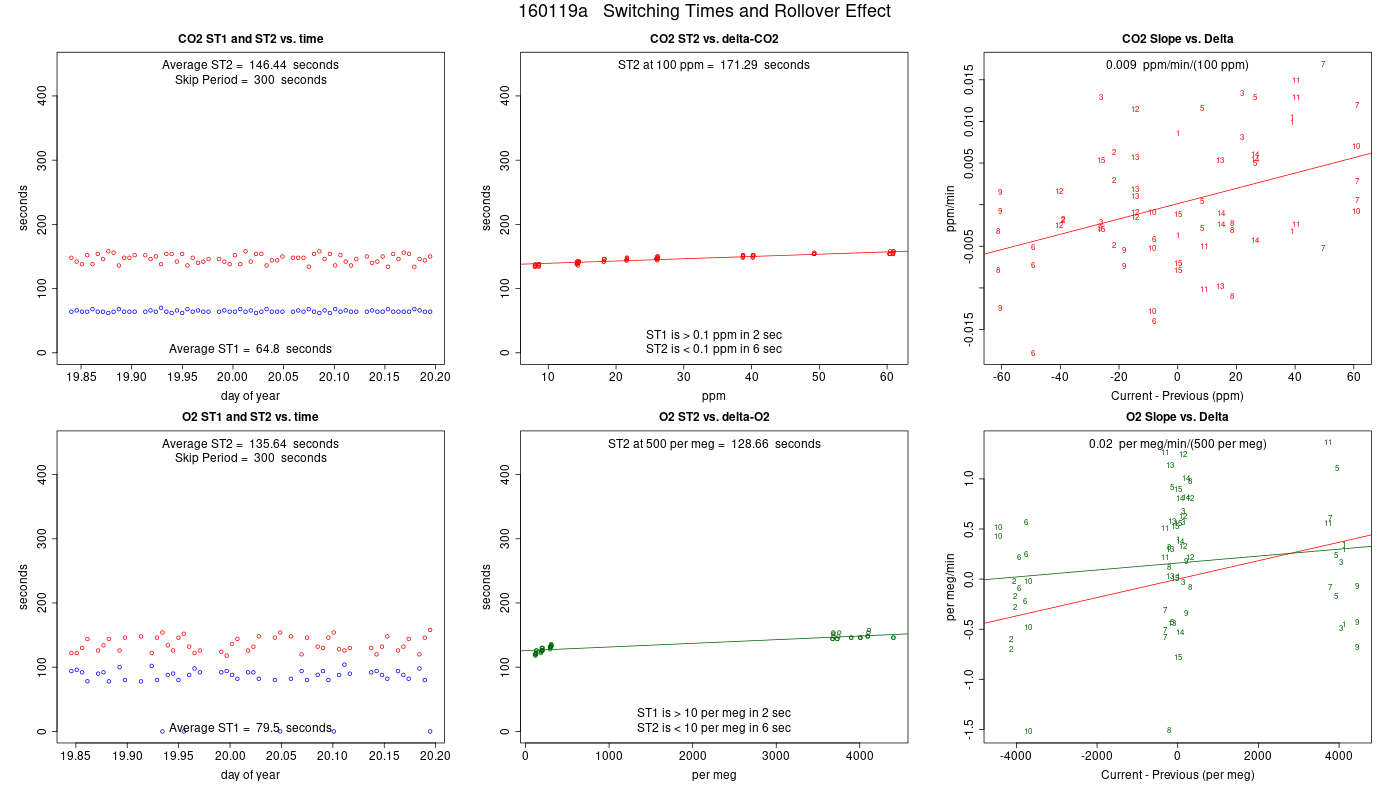

 Rollover Effect
 Flushing Effect

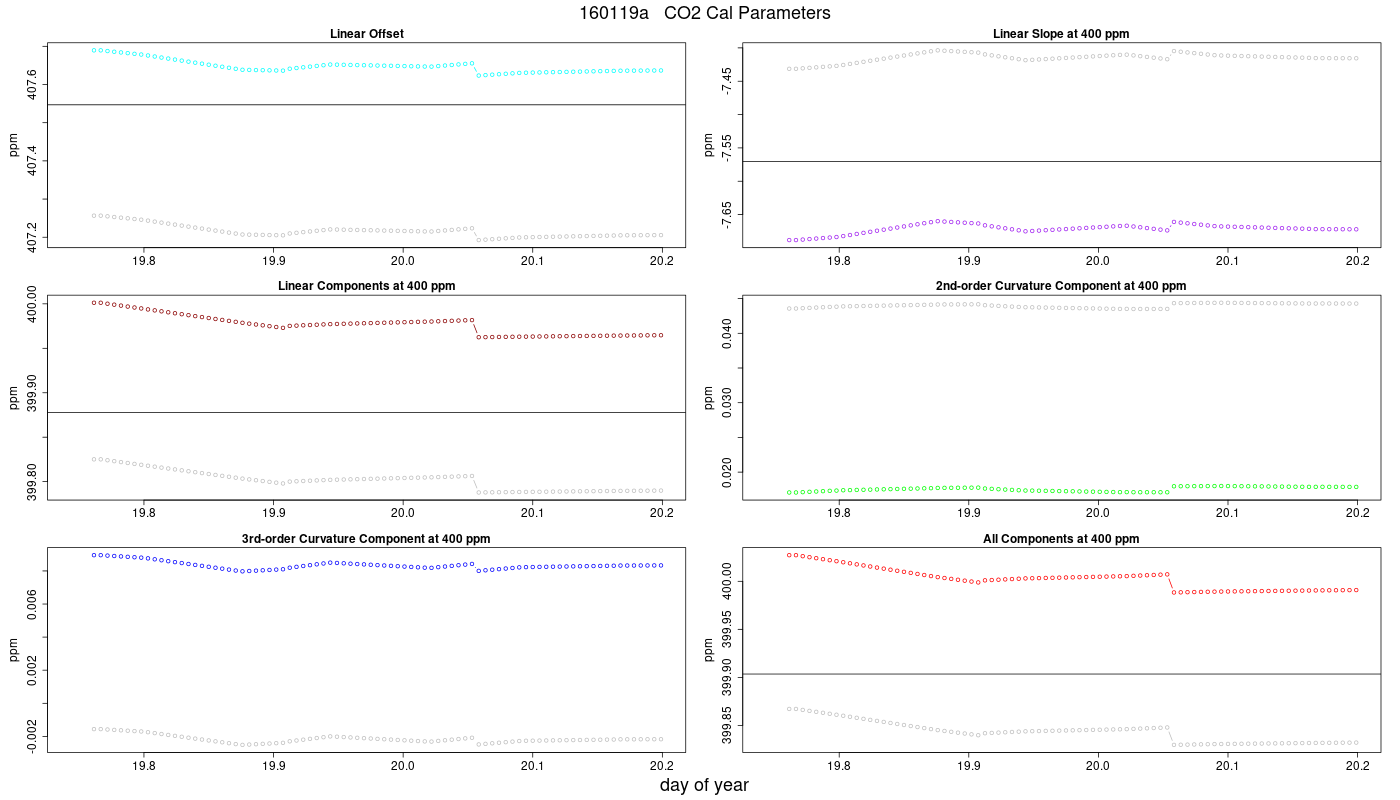

CO2 Parameters

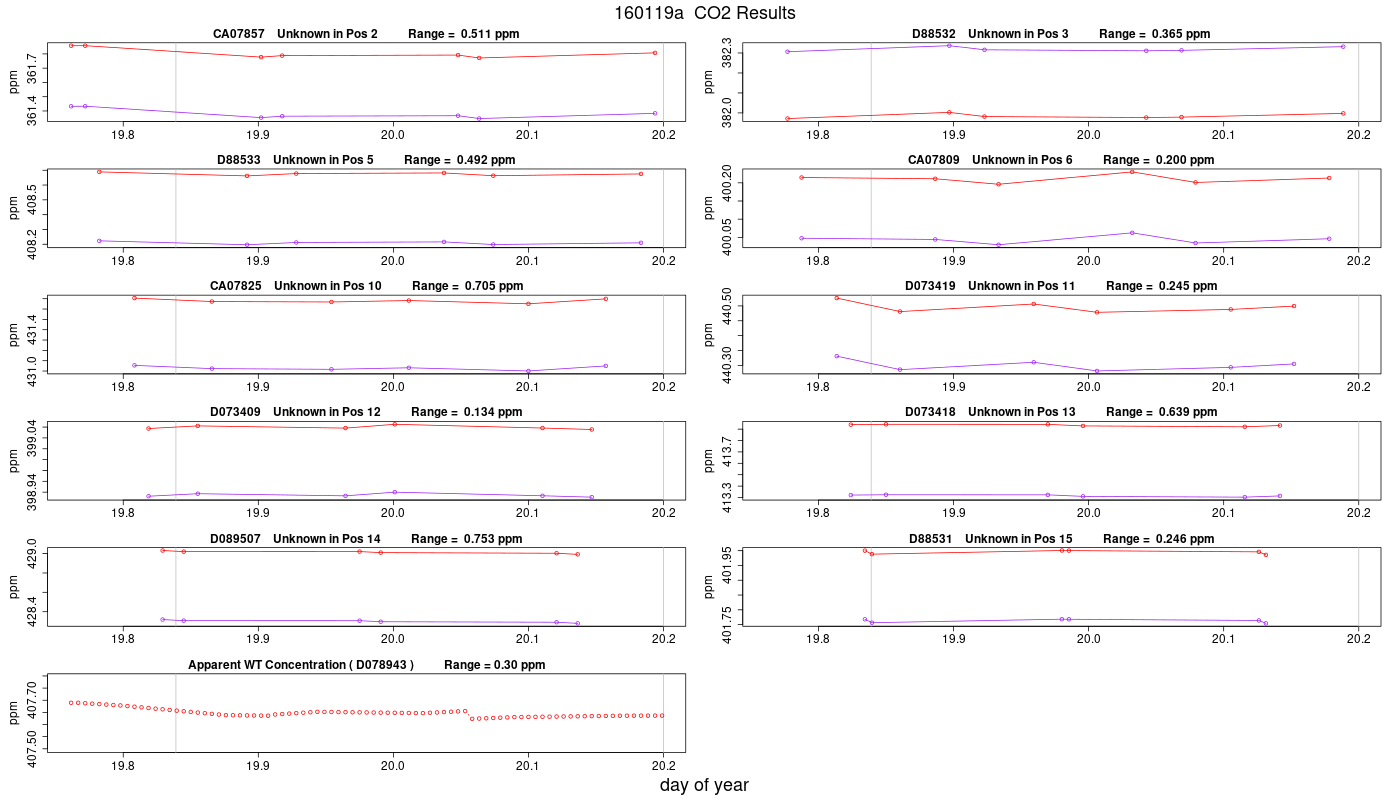

 CO2 Results

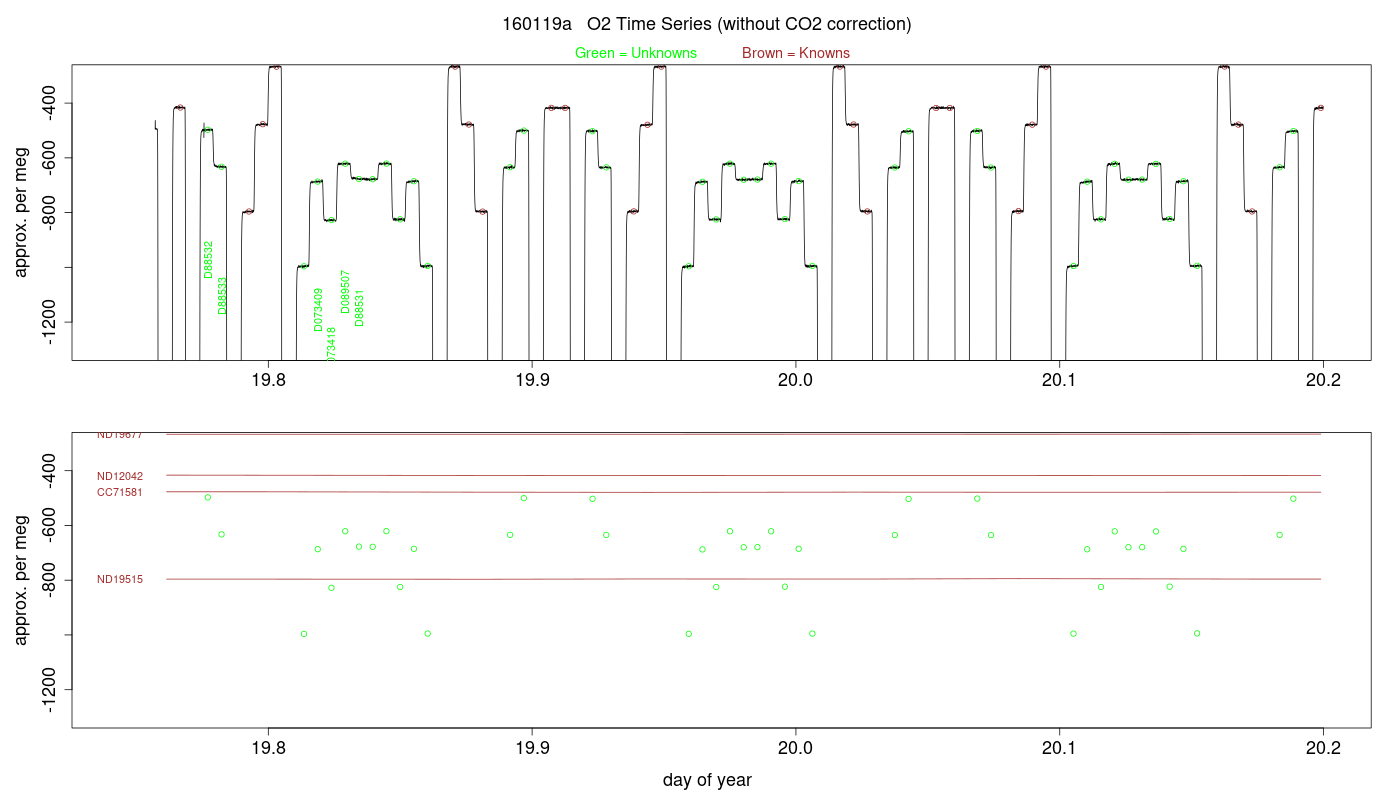

 O2 Timeseries

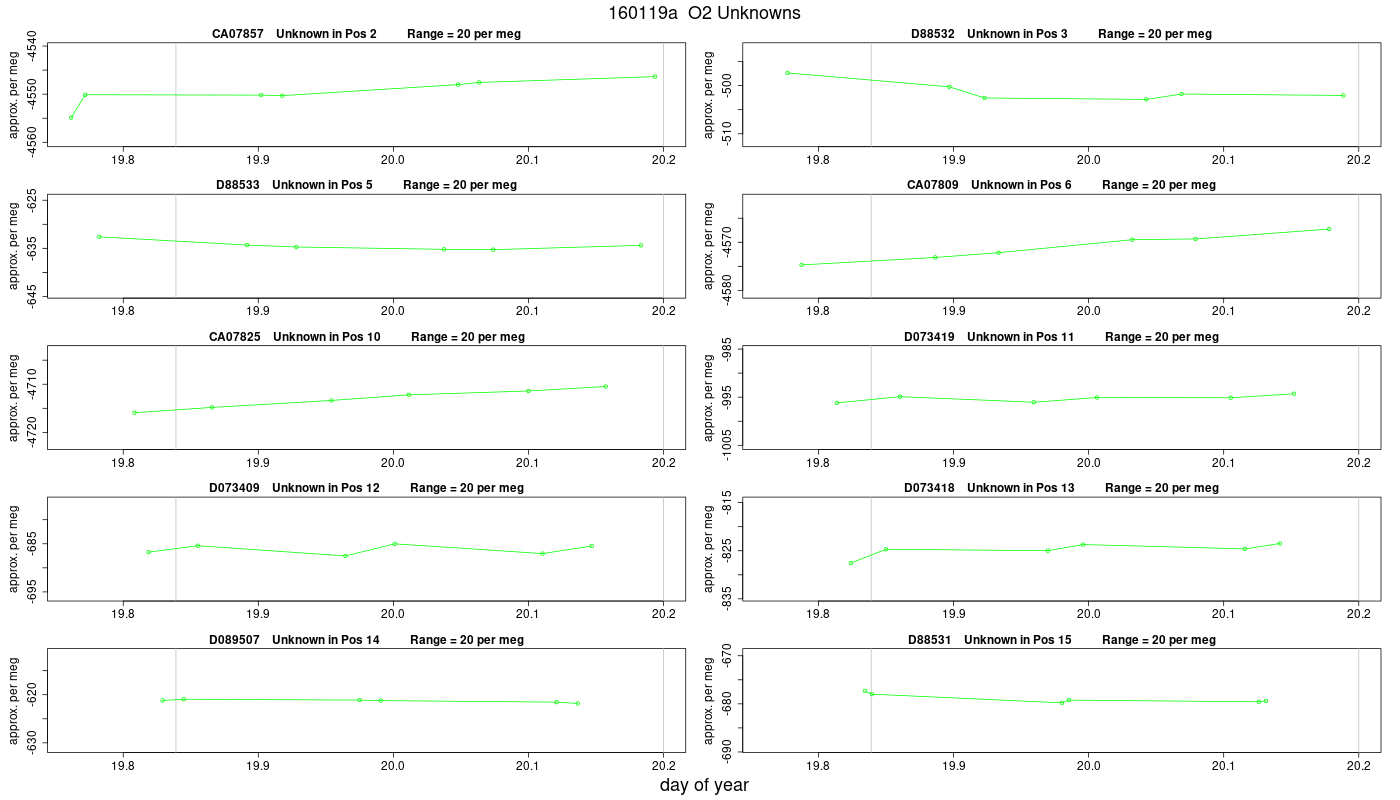

O2 Averages for Unknowns

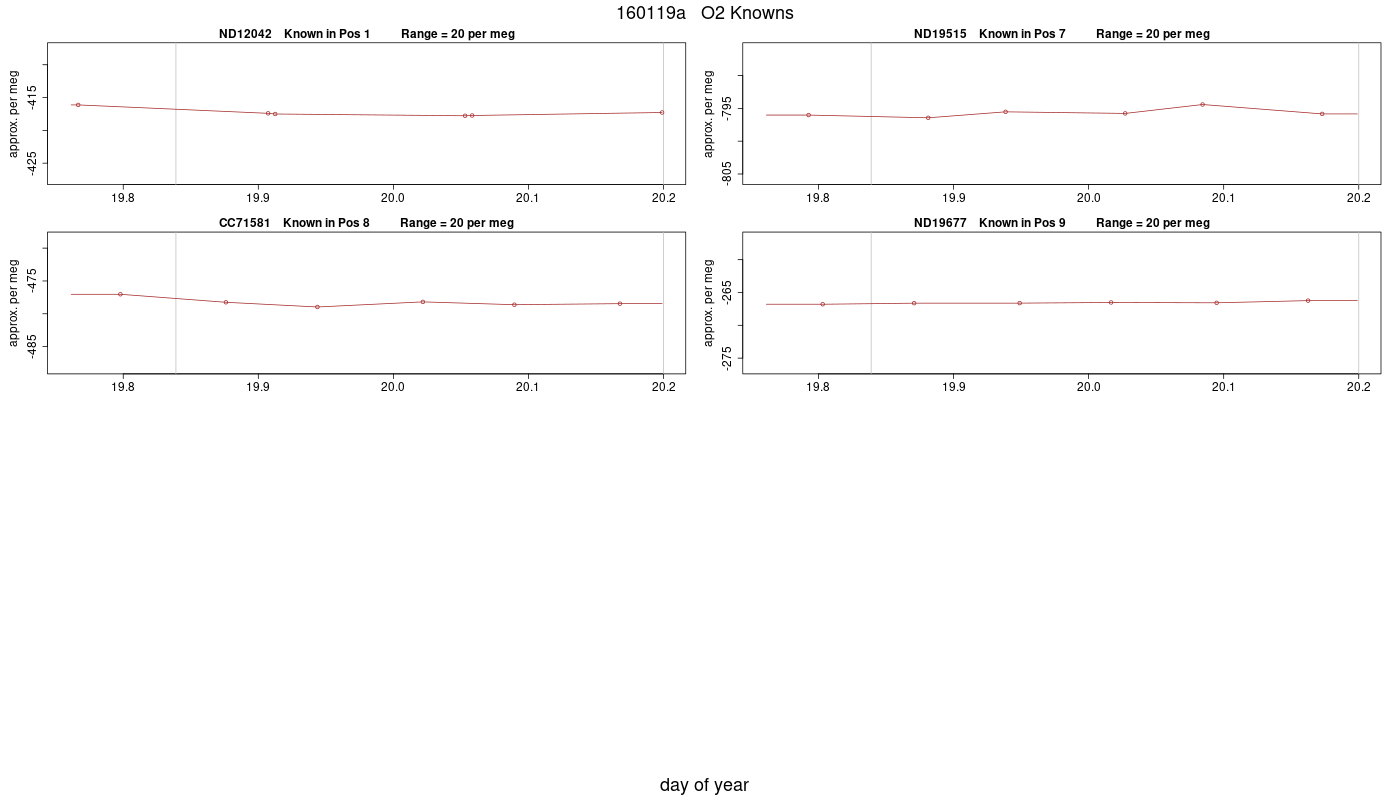

 O2 Averages for Knowns
 O2 Parameters
O2 Results

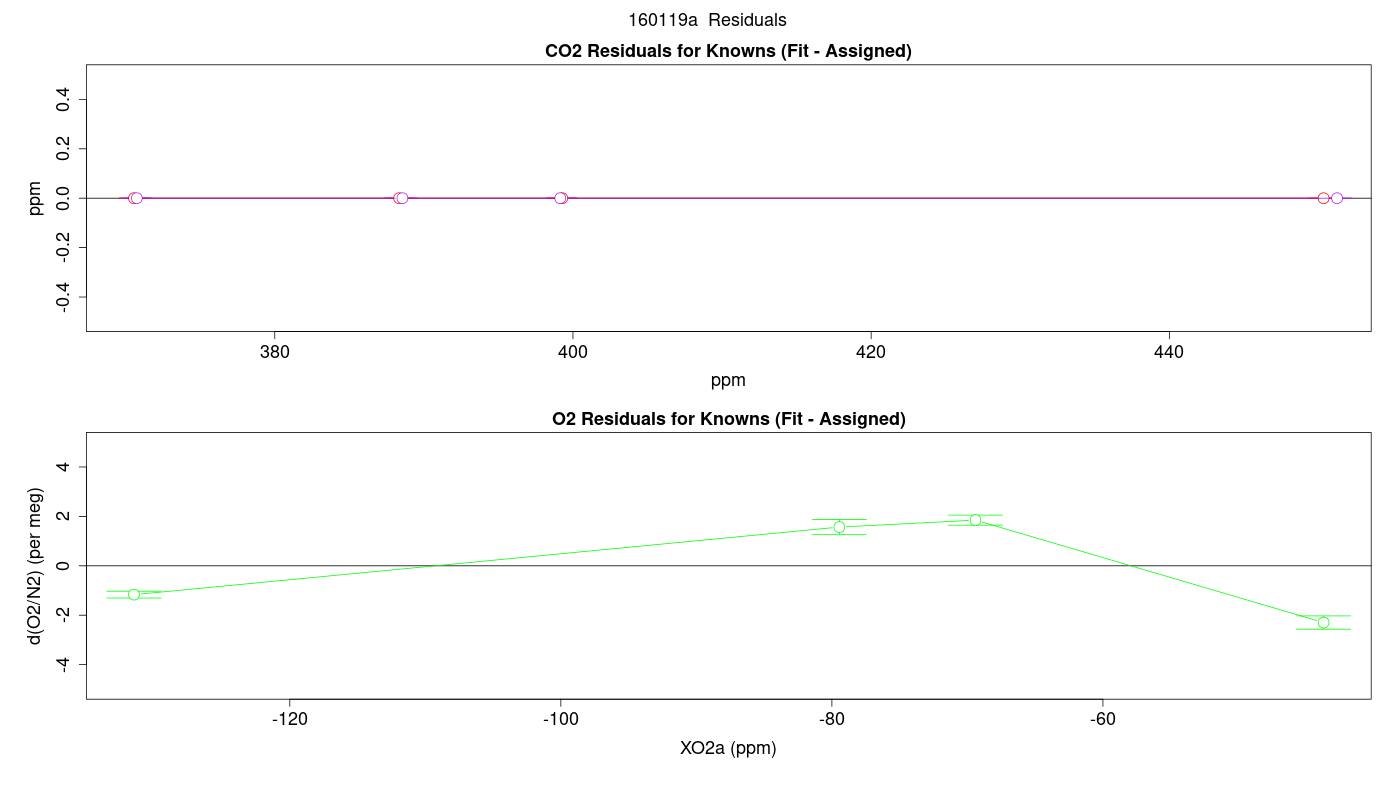

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

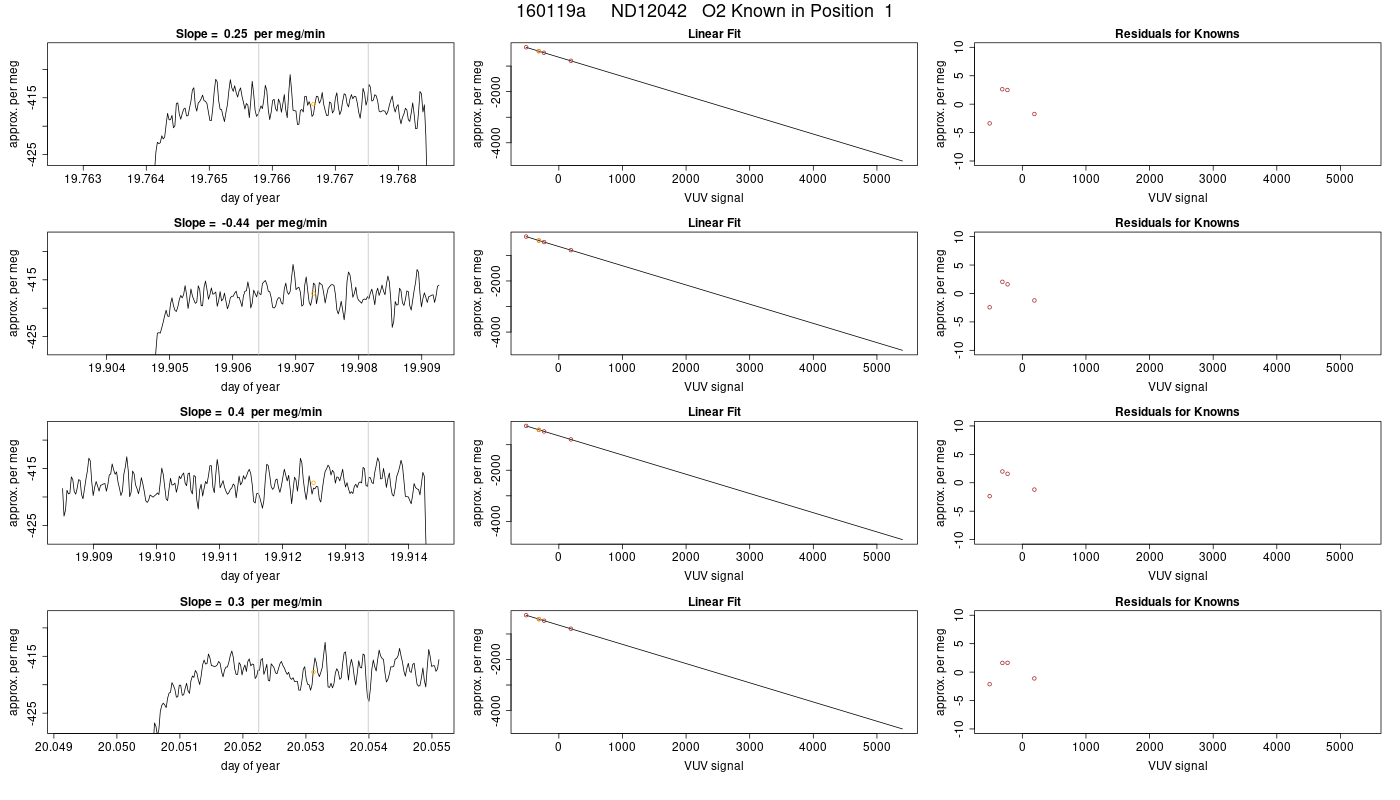

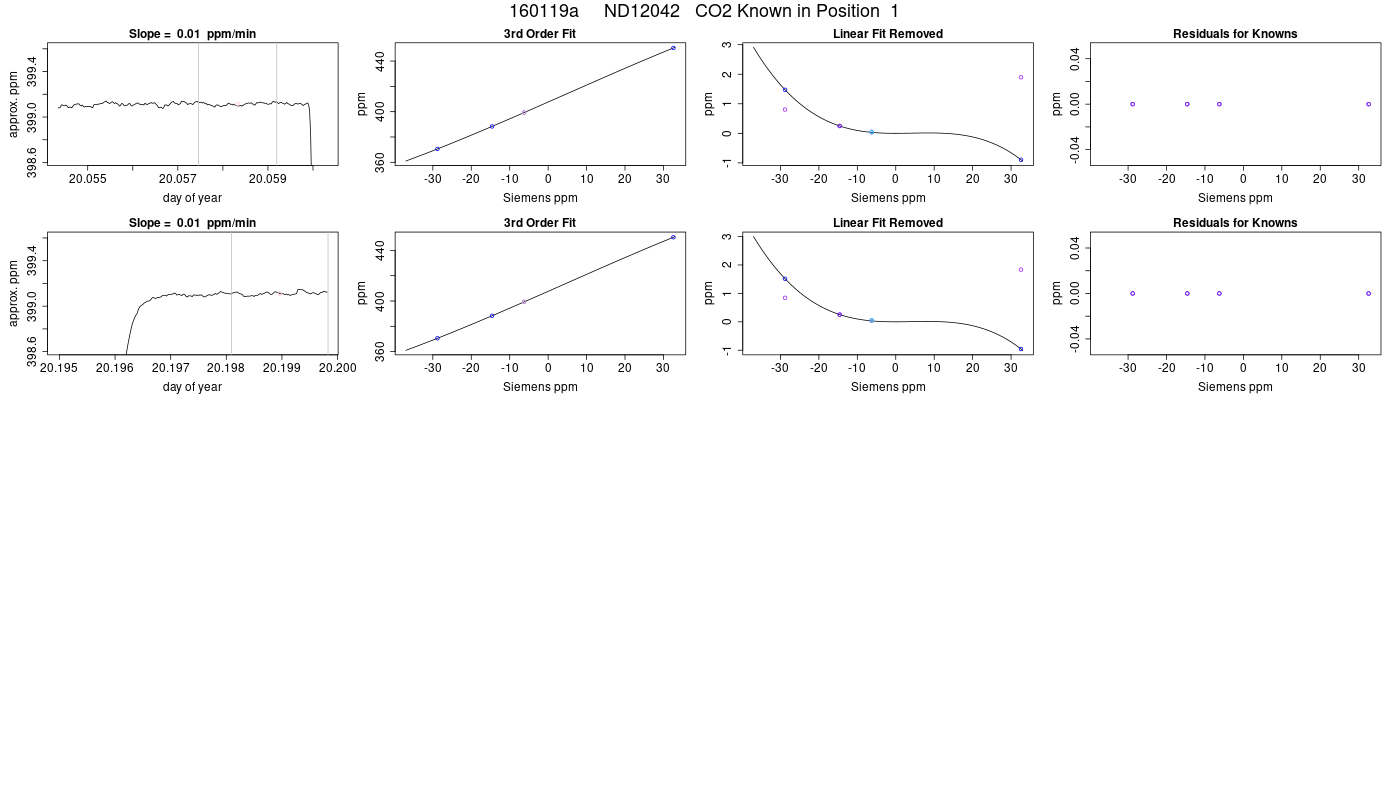

1 ND12042 399.283 0.000 0.000 399.150 0.000 0.000 5 -384.25 1.85 0.20 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

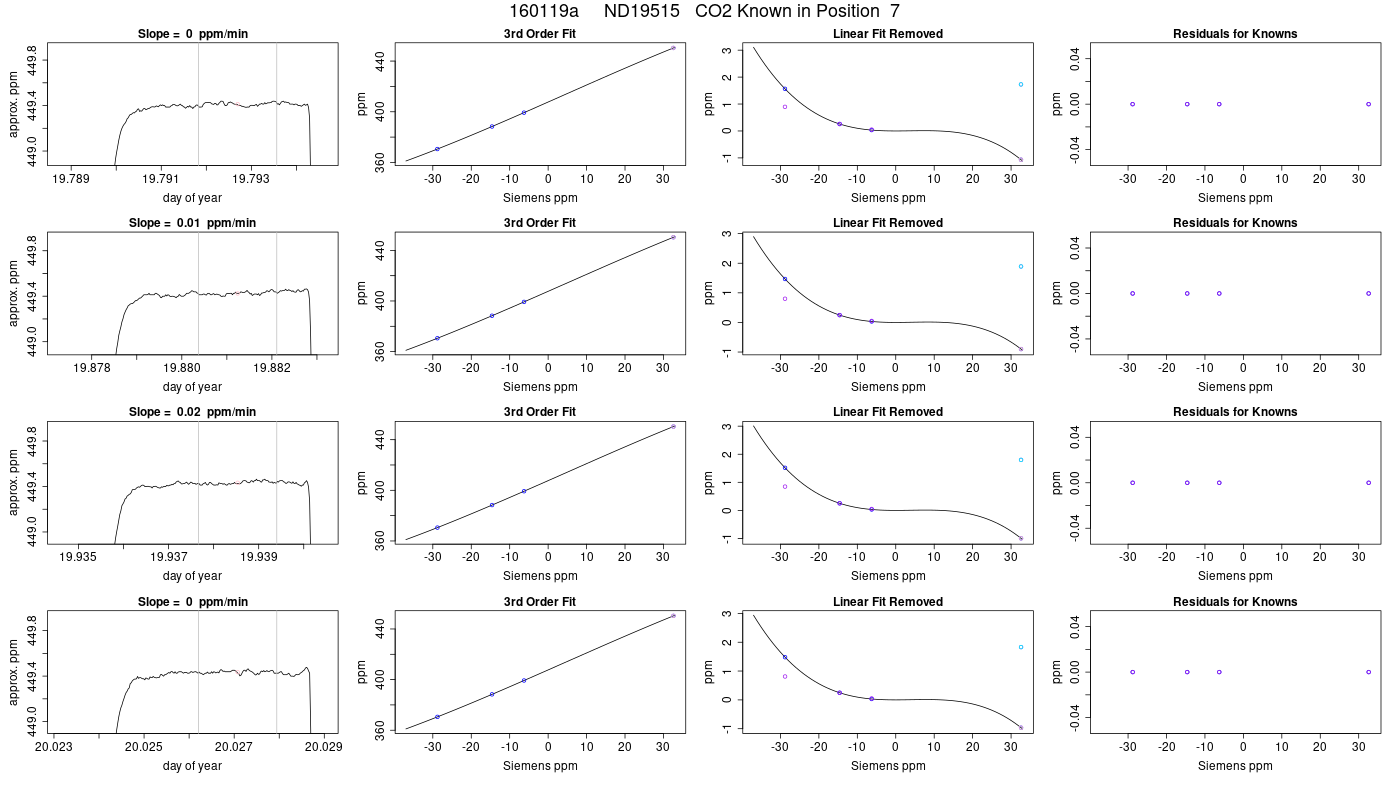

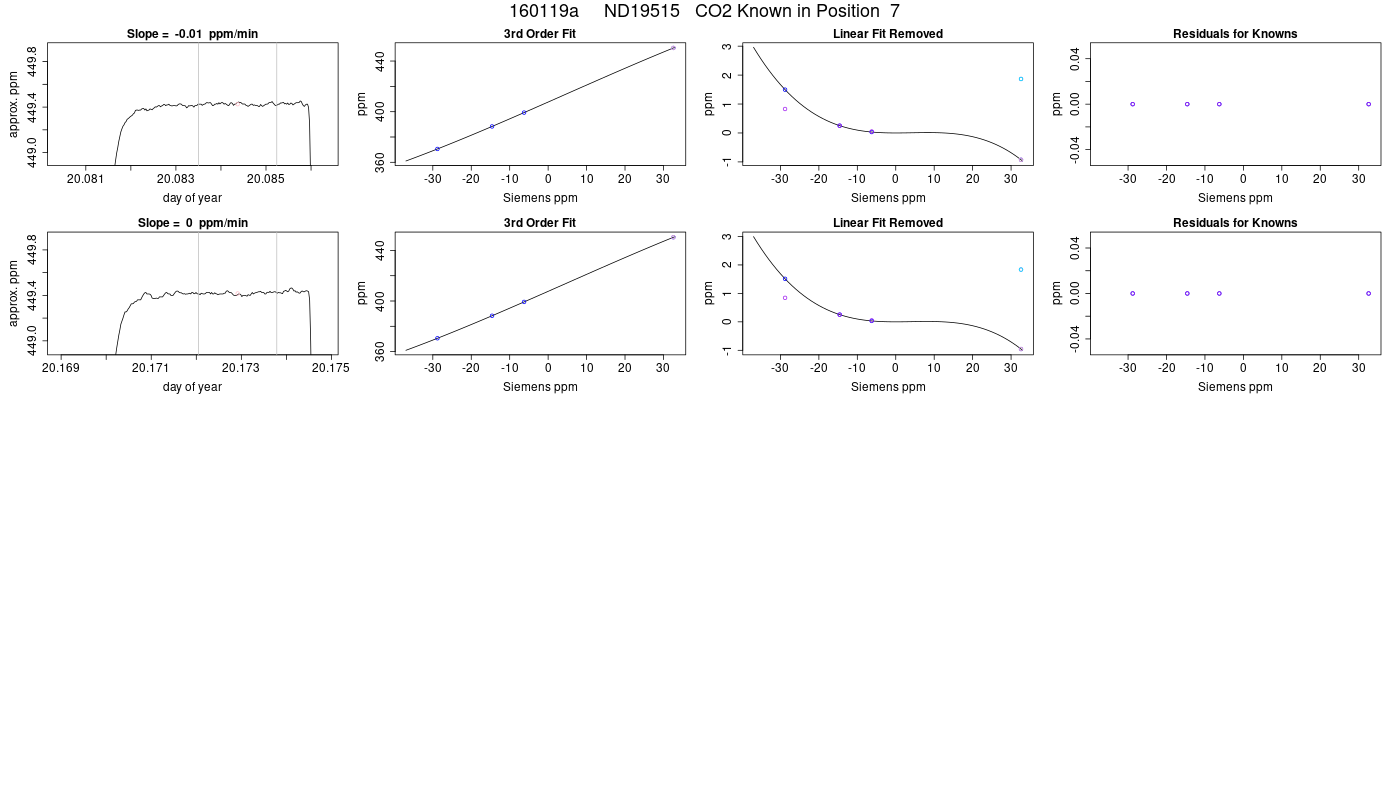

7 ND19515 450.346 0.000 0.000 451.248 0.000 0.000 5 -707.13 -1.17 0.14 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

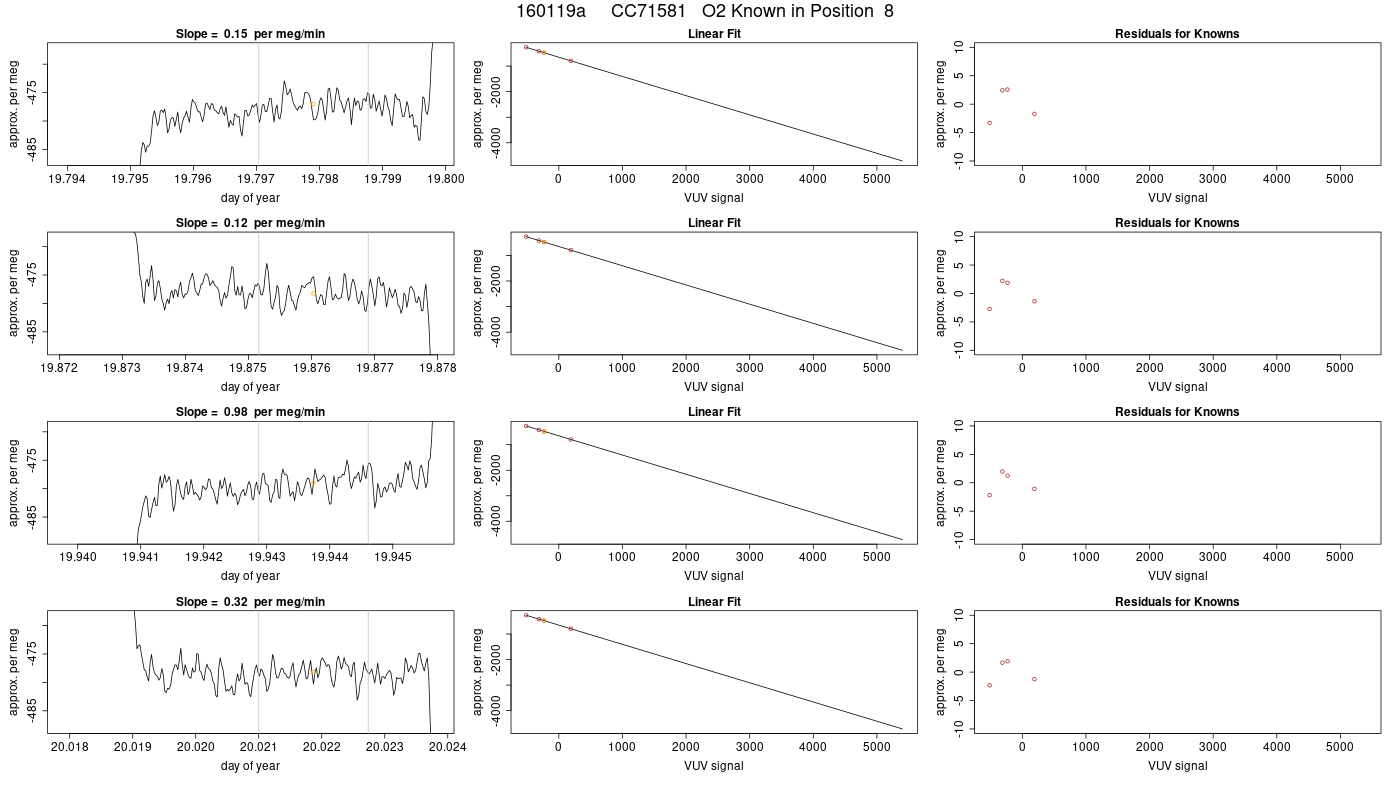

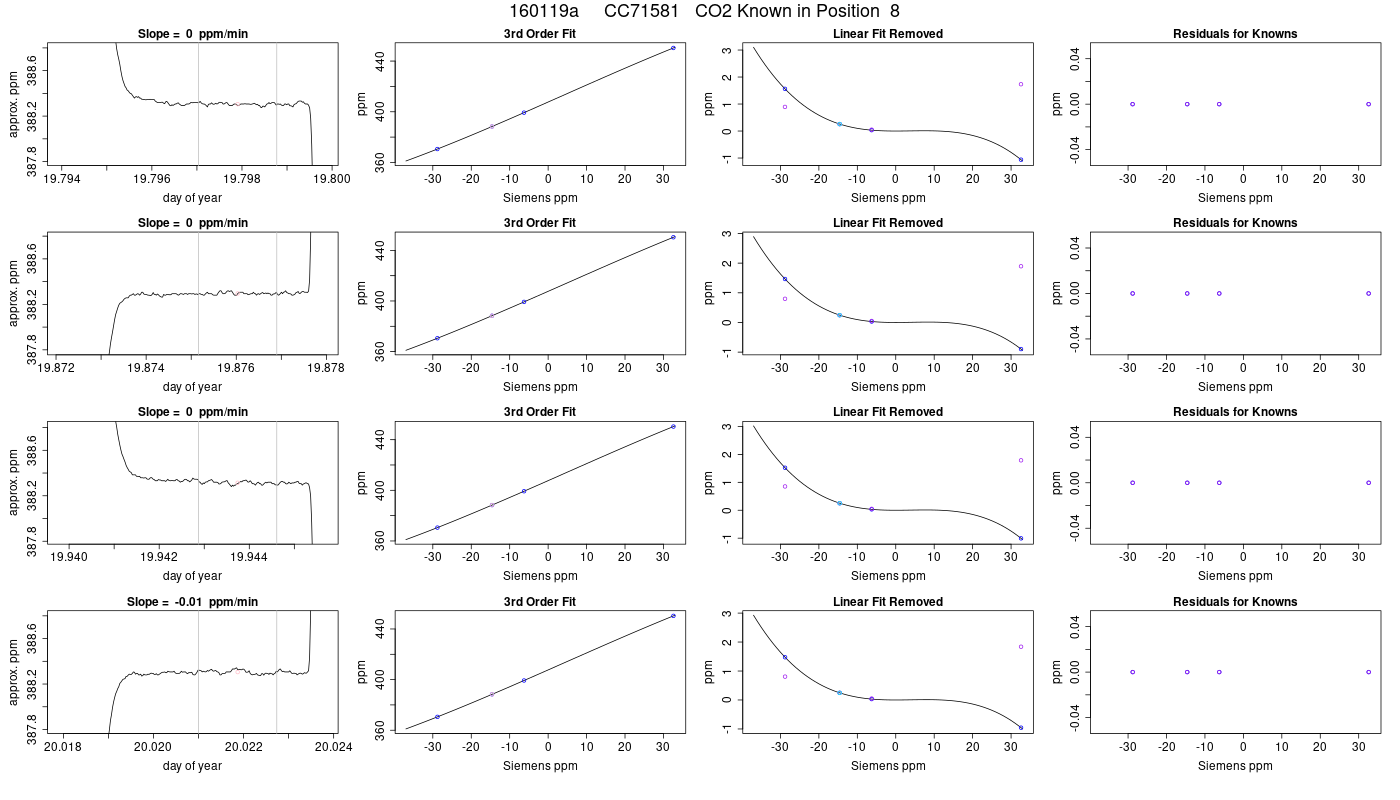

8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 5 -454.95 1.57 0.31 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

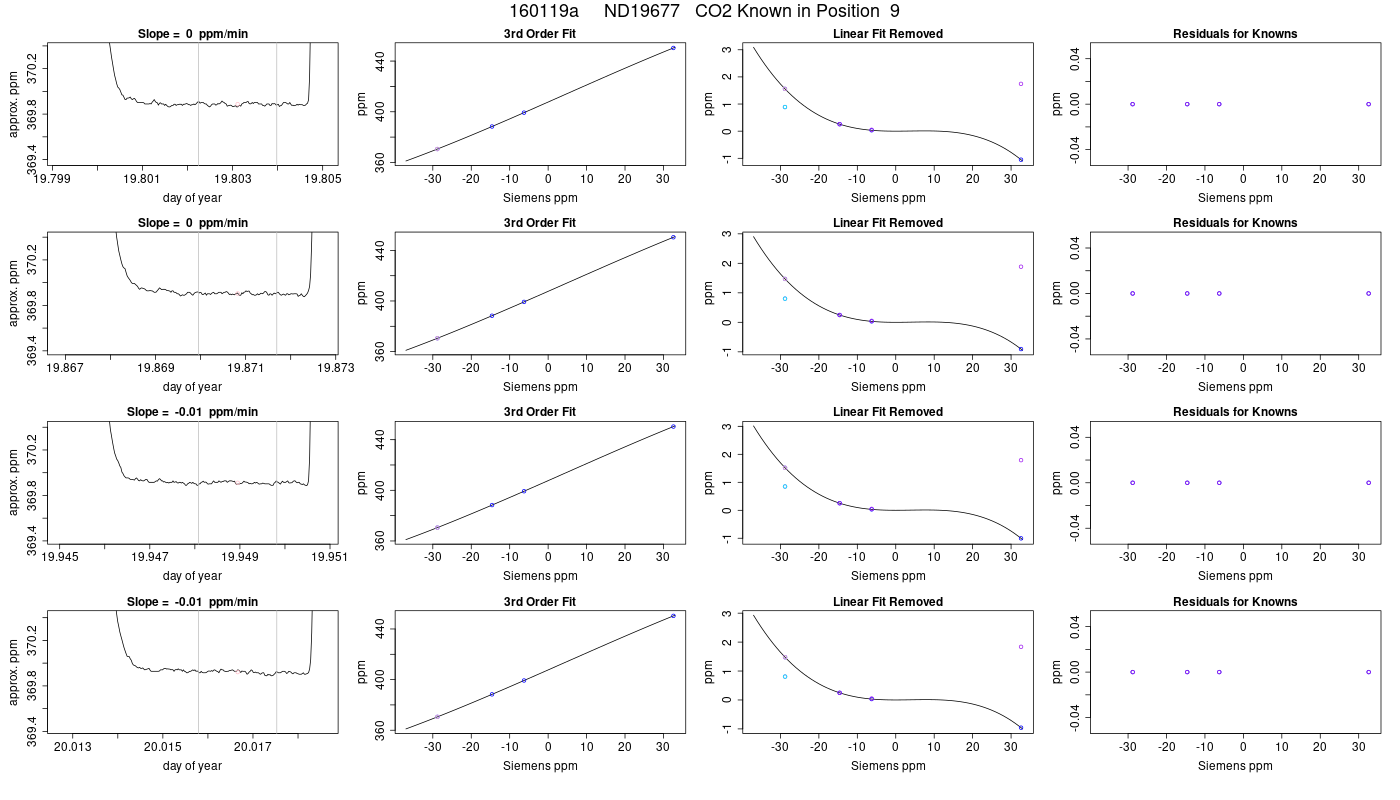

9 ND19677 370.558 0.000 0.000 370.748 0.000 0.000 5 -256.57 -2.30 0.27 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

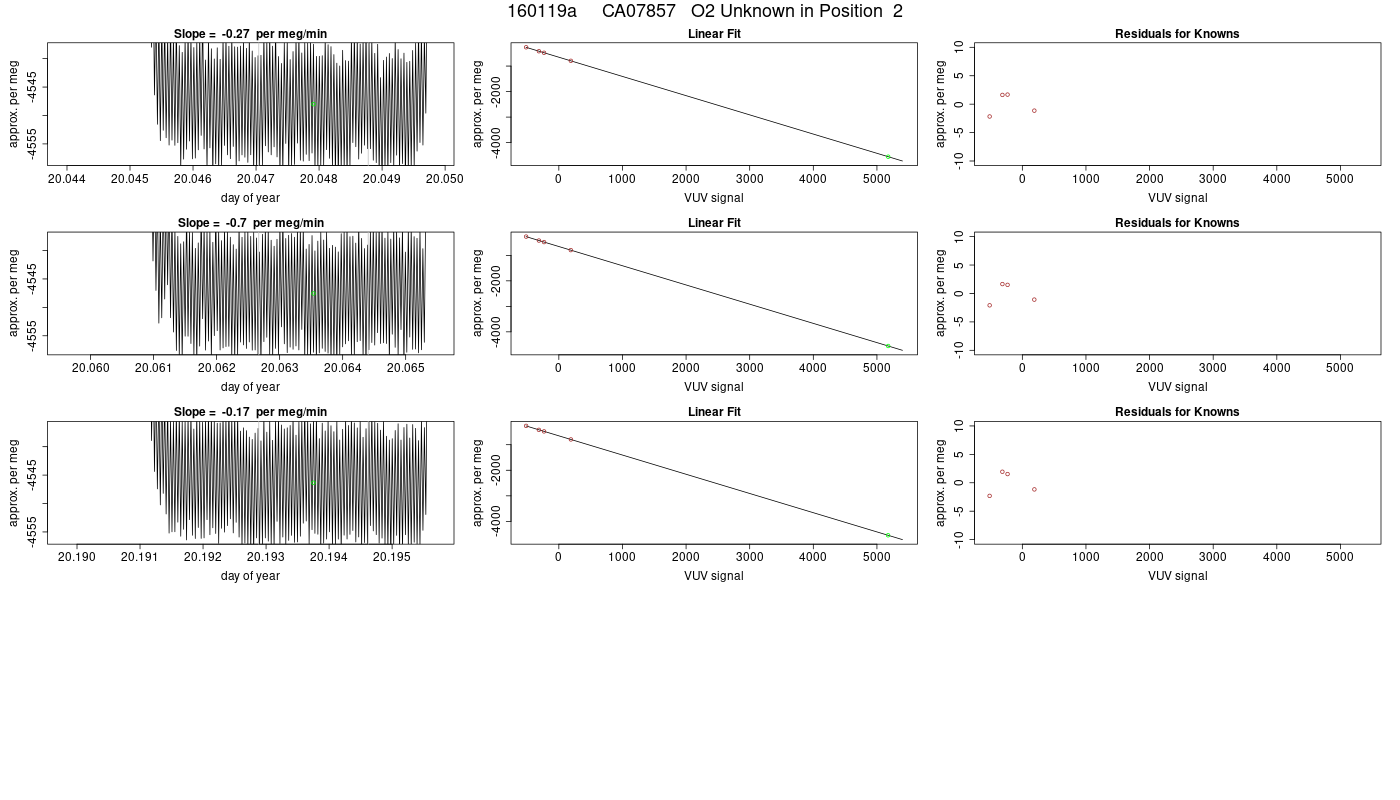

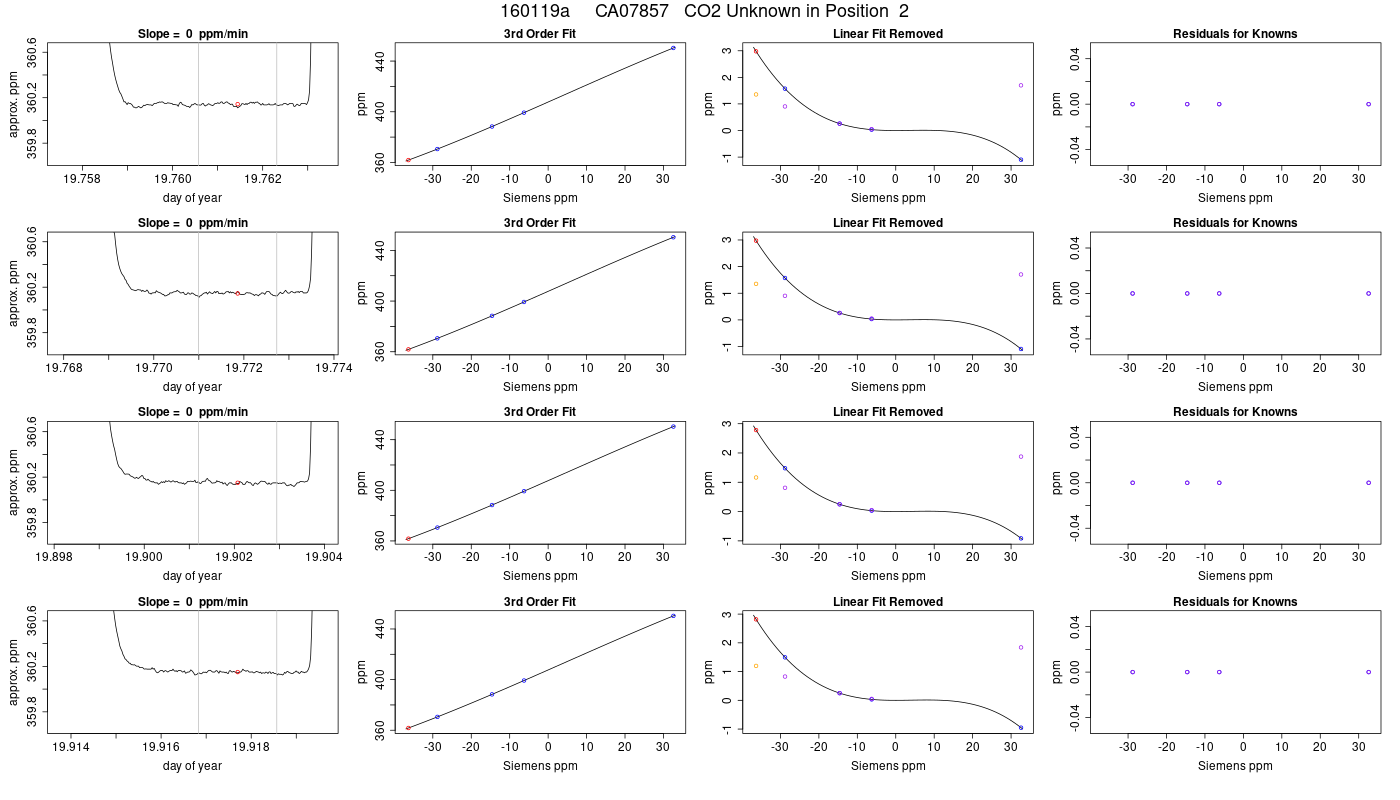

2 CA07857    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.761 361.858 0.012 -4552.78 10.37 361.433 0.012
19.772 361.858 0.012 -4548.09 10.22 361.433 0.012
19.902 361.778 0.012 -4548.87 10.32 361.353 0.012
19.918 361.788 0.009 -4551.40 10.36 361.363 0.009
20.048 361.792 0.011 -4554.03 10.32 361.367 0.011
20.064 361.771 0.011 -4556.78 10.26 361.347 0.011
20.194 361.807 0.009 -4544.91 10.26 361.383 0.009

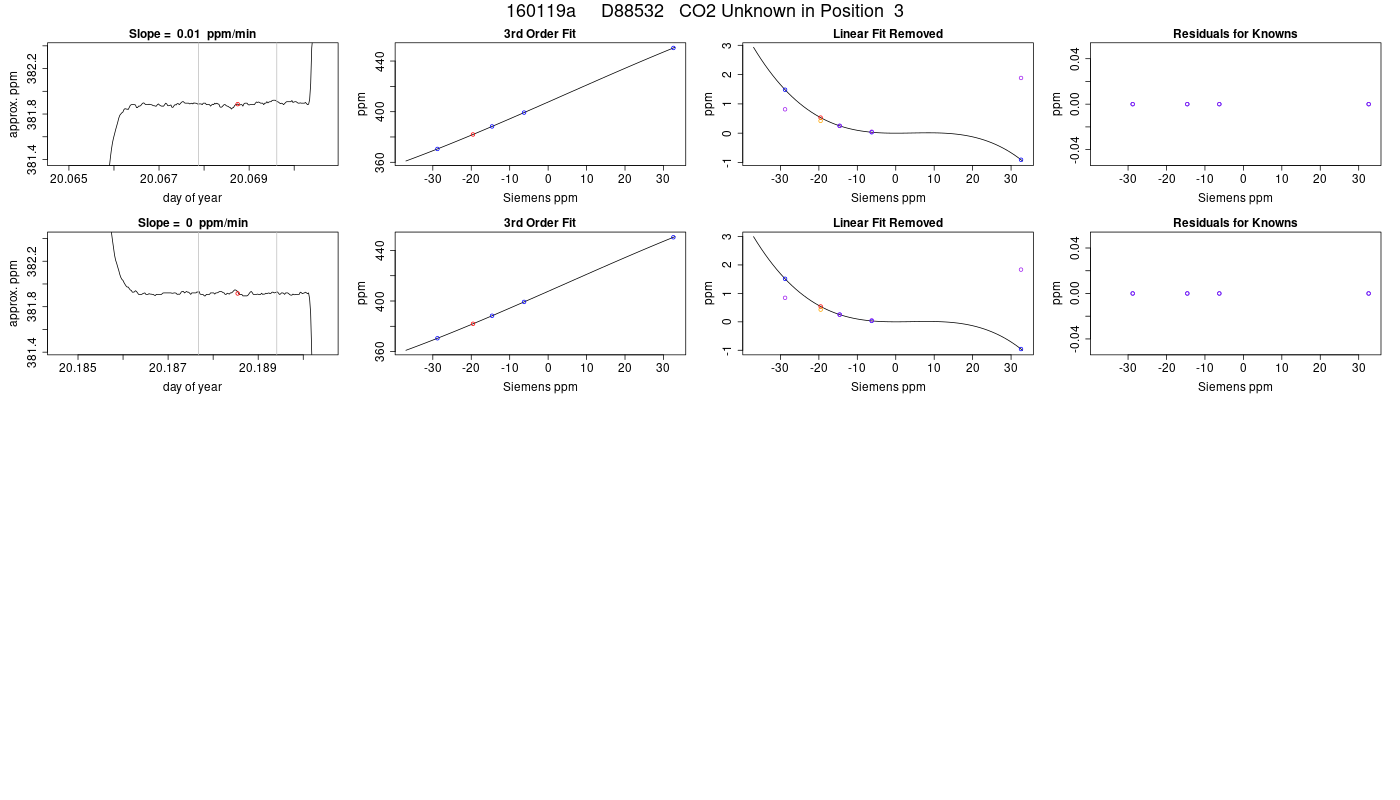

3 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.777 381.972 0.015 -479.13 1.78 382.306 0.015
19.897 382.003 0.013 -481.35 1.66 382.336 0.013
19.923 381.982 0.013 -483.67 1.73 382.316 0.013
20.043 381.977 0.010 -484.15 1.60 382.311 0.010
20.069 381.979 0.016 -483.17 1.98 382.313 0.016
20.189 381.998 0.012 -483.33 1.61 382.332 0.012

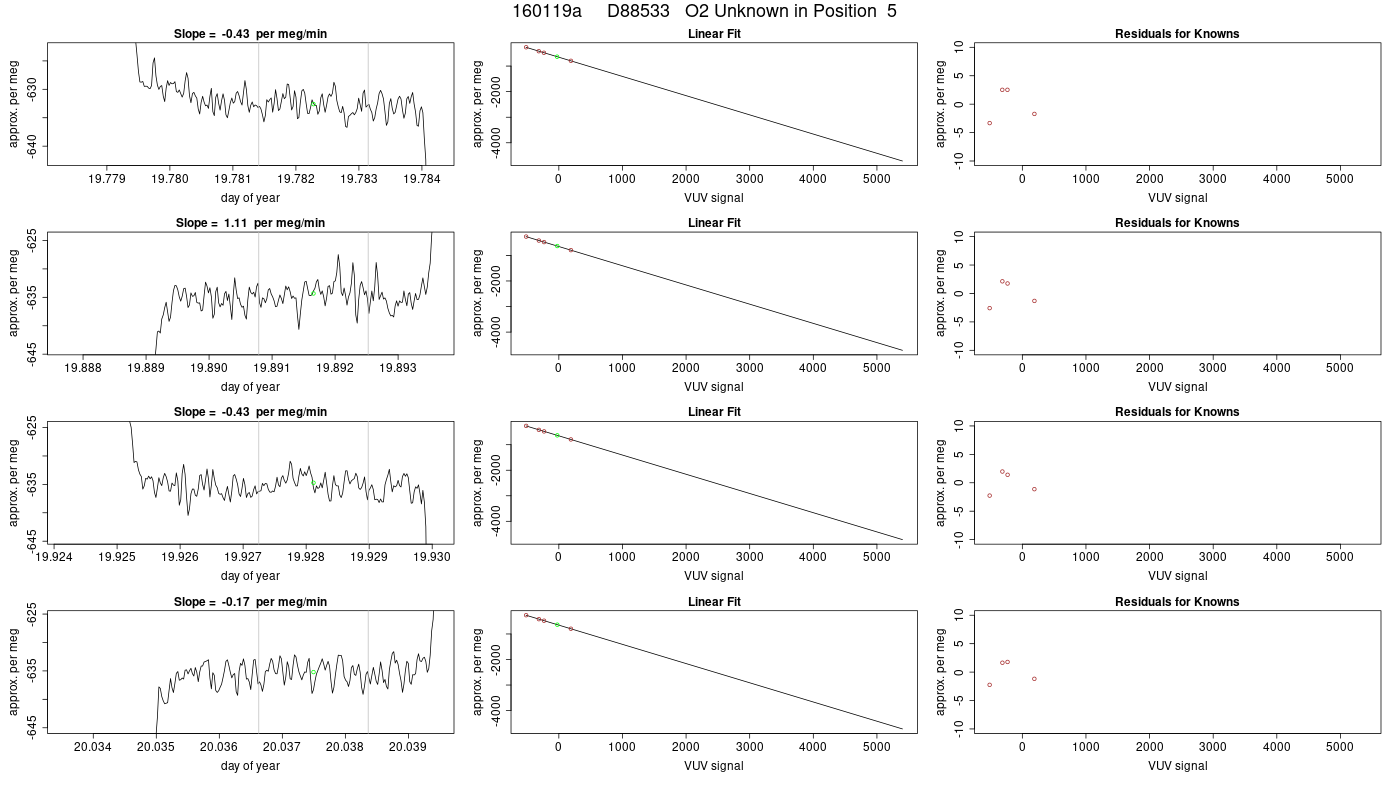

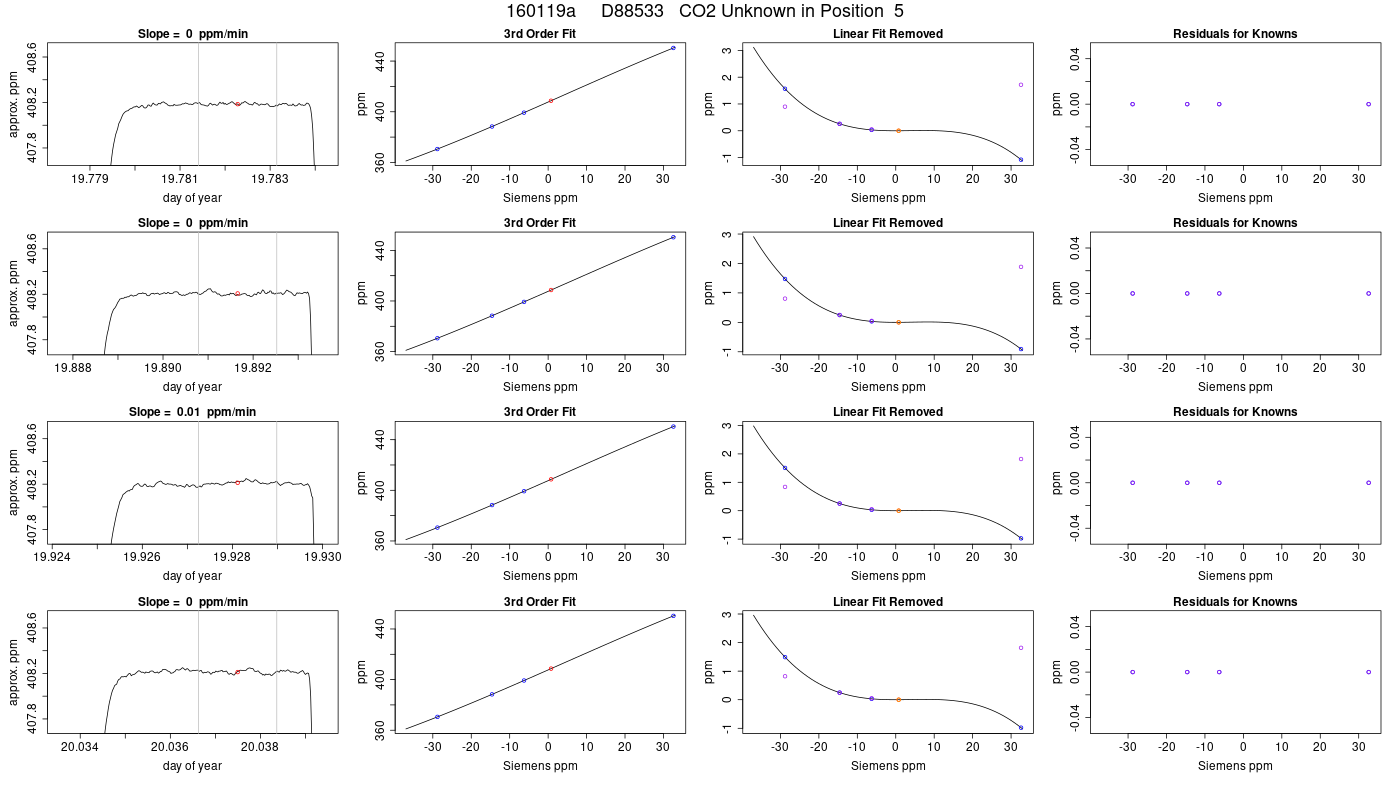

5 D88533    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.782 408.689 0.011 -588.81 1.75 408.223 0.011
19.892 408.662 0.016 -589.90 2.11 408.197 0.016
19.928 408.678 0.015 -590.47 1.50 408.212 0.015
20.037 408.682 0.016 -591.13 1.81 408.216 0.016
20.074 408.663 0.016 -591.65 1.92 408.198 0.016
20.183 408.675 0.013 -590.18 1.44 408.210 0.013

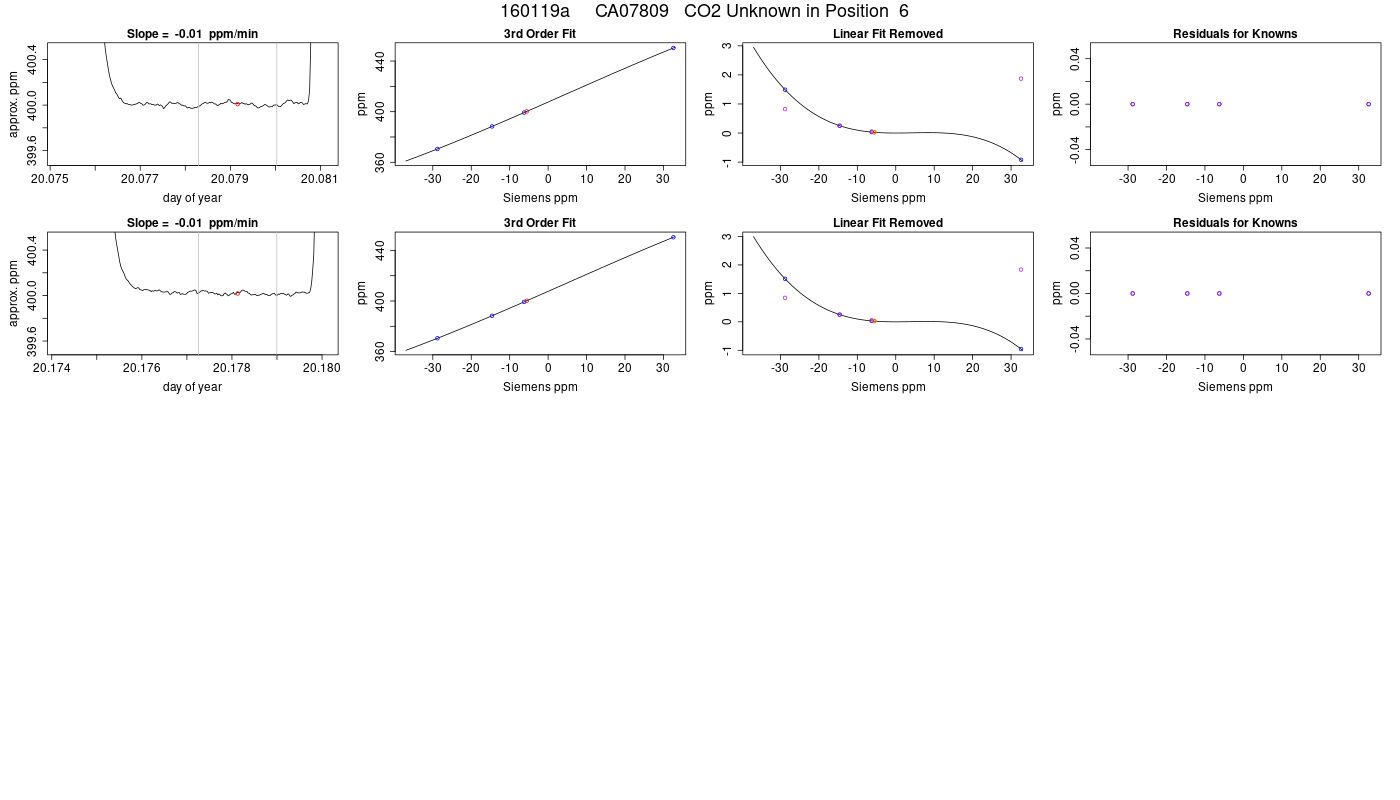

6 CA07809    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.787 400.215 0.012 -4535.03 10.41 400.048 0.012
19.886 400.211 0.011 -4531.44 10.39 400.044 0.011
19.933 400.196 0.012 -4537.53 10.48 400.030 0.012
20.032 400.230 0.016 -4534.22 10.47 400.063 0.016
20.079 400.201 0.015 -4543.82 10.42 400.035 0.015
20.178 400.213 0.014 -4527.96 10.36 400.046 0.014

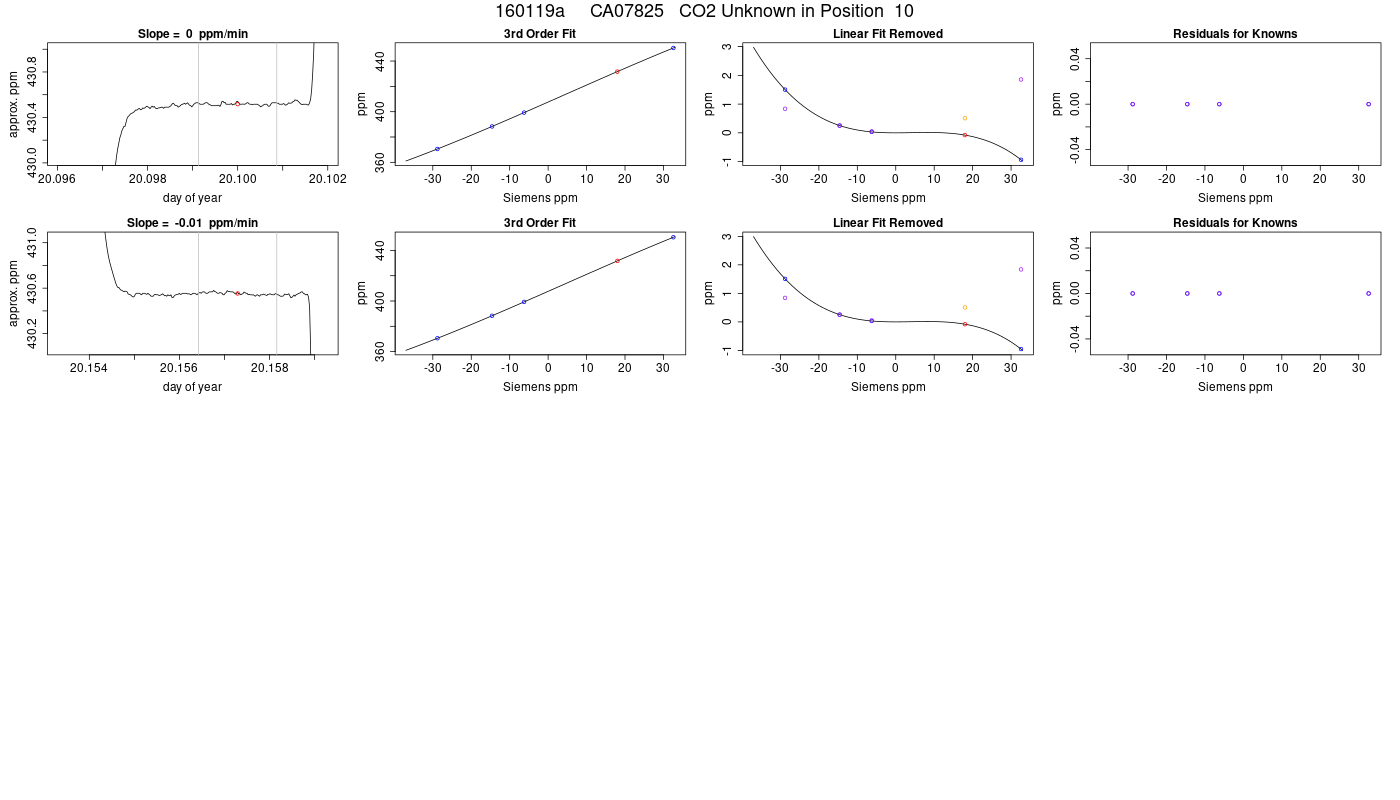

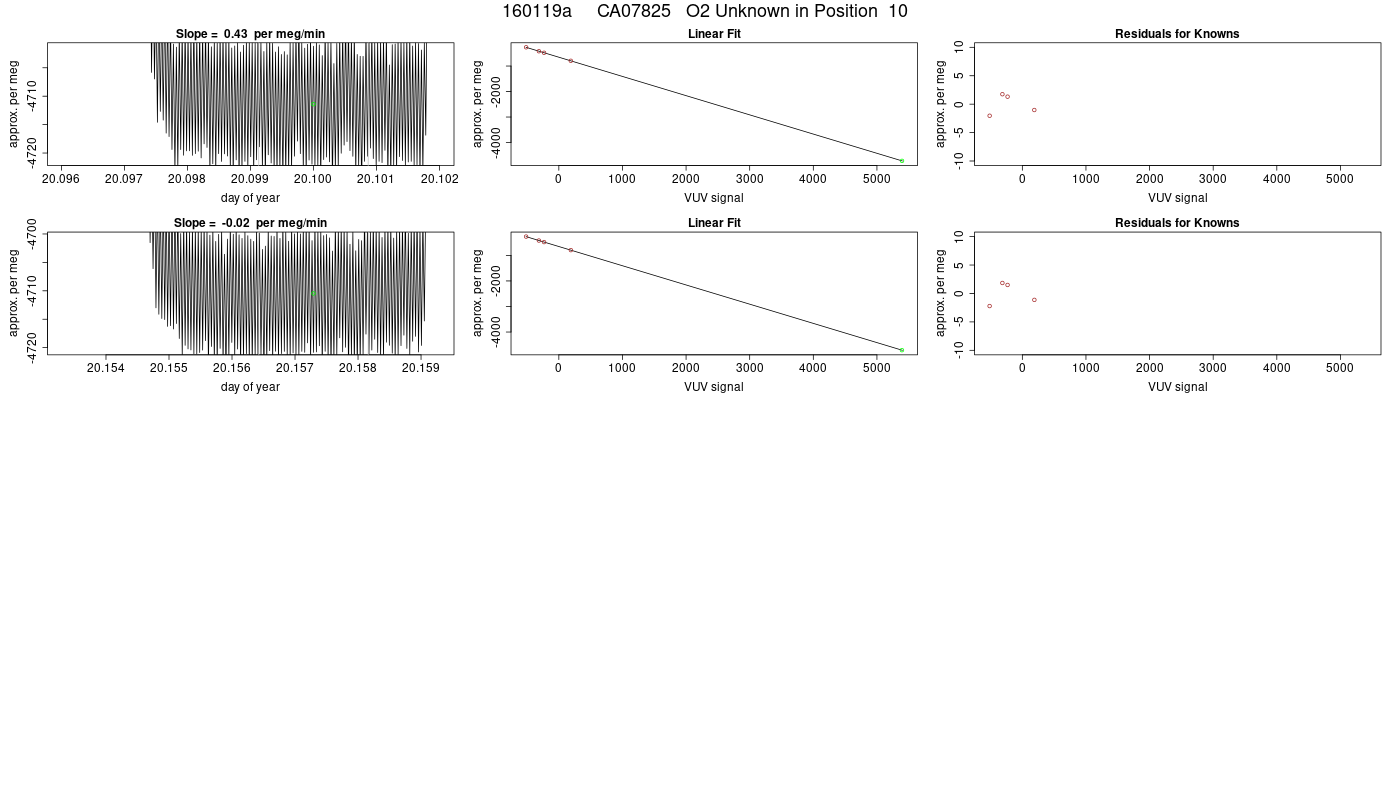

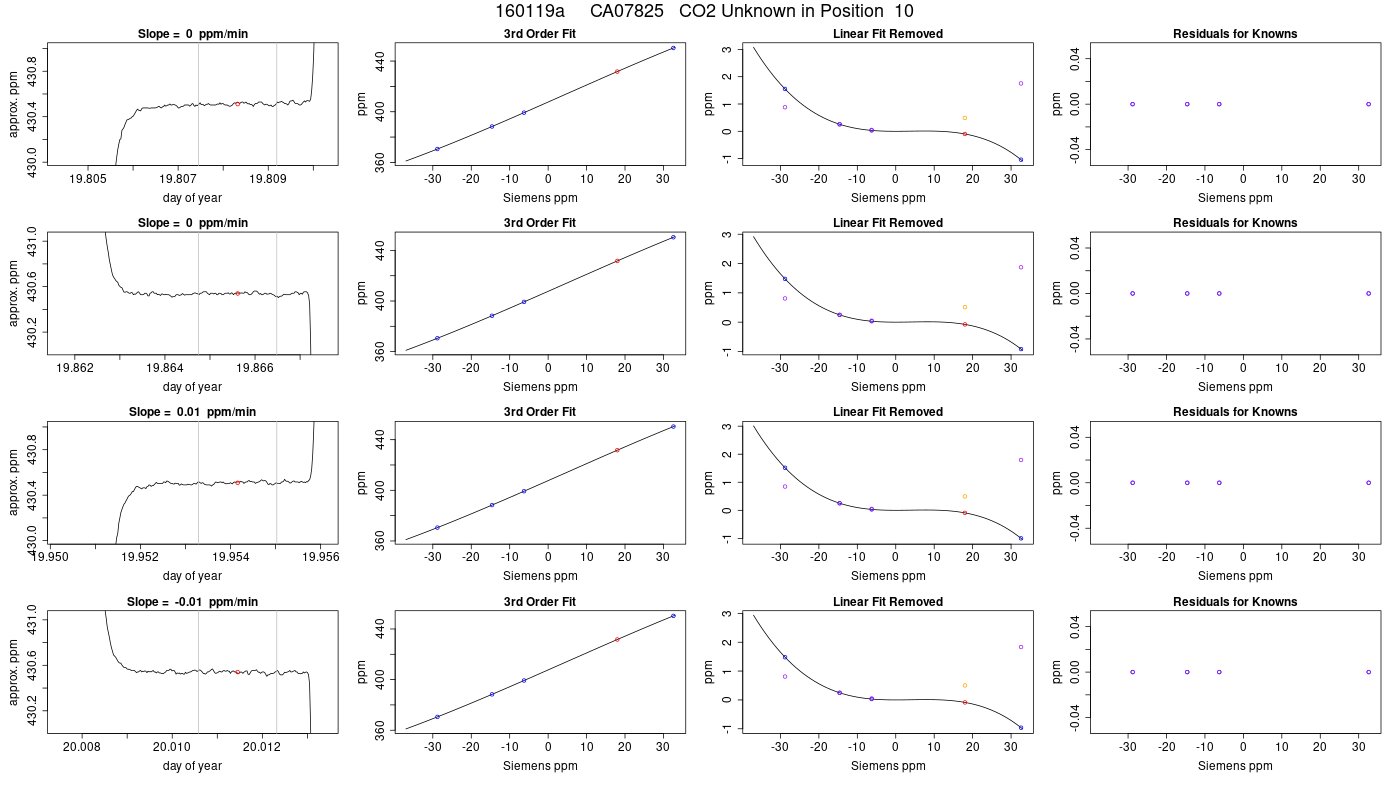

10 CA07825    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.808 431.706 0.011 -4645.35 11.19 431.055 0.011
19.866 431.673 0.010 -4642.14 11.30 431.023 0.010
19.954 431.668 0.012 -4648.78 11.25 431.017 0.012
20.011 431.682 0.013 -4645.80 11.17 431.031 0.013
20.100 431.651 0.011 -4654.54 11.17 431.001 0.011
20.157 431.698 0.012 -4643.20 11.12 431.050 0.012

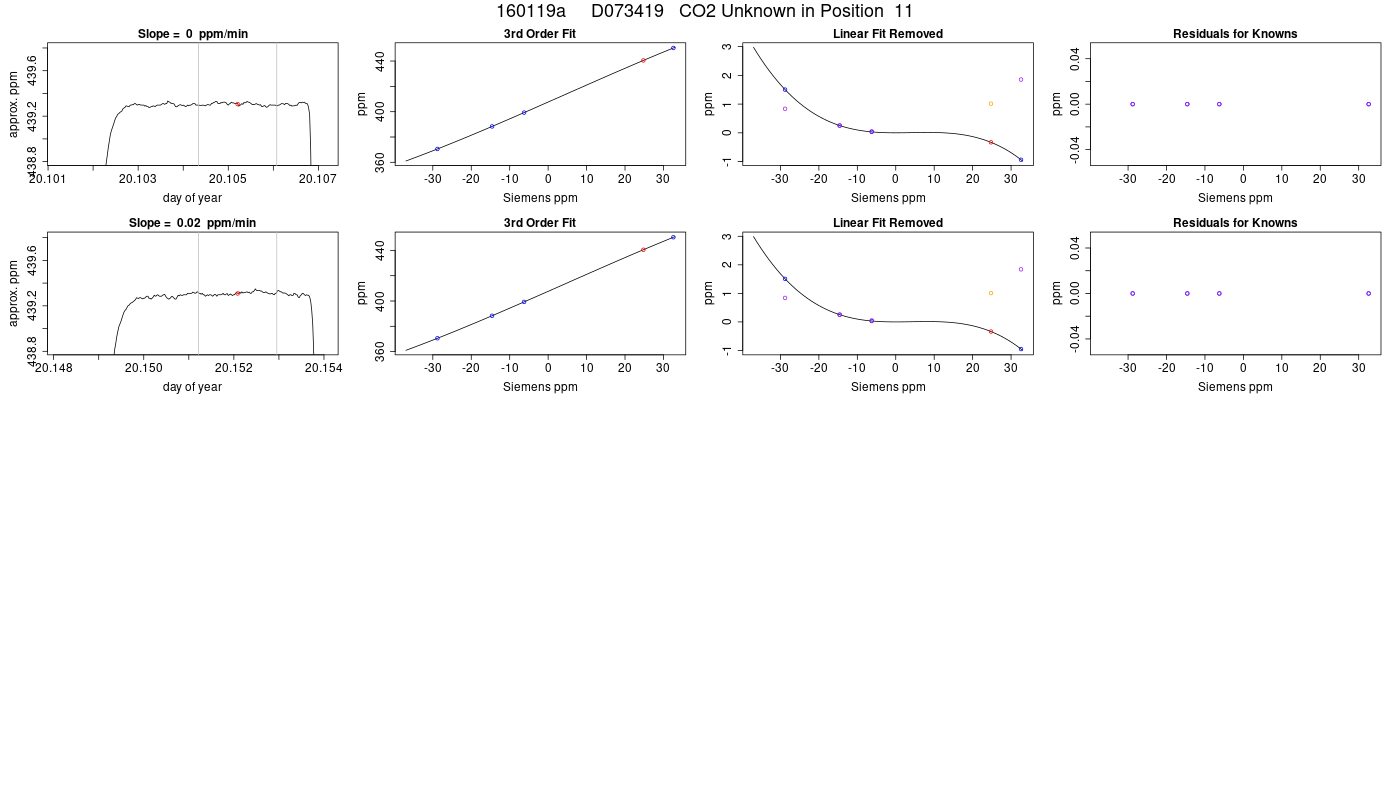

11 D073419    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.814 440.526 0.011 -920.34 1.94 440.331 0.011
19.860 440.481 0.013 -918.60 2.13 440.286 0.013
19.959 440.506 0.013 -920.53 2.30 440.310 0.013
20.006 440.478 0.009 -919.46 1.71 440.281 0.009
20.105 440.488 0.012 -920.70 1.89 440.293 0.012
20.152 440.499 0.014 -918.77 1.77 440.305 0.014

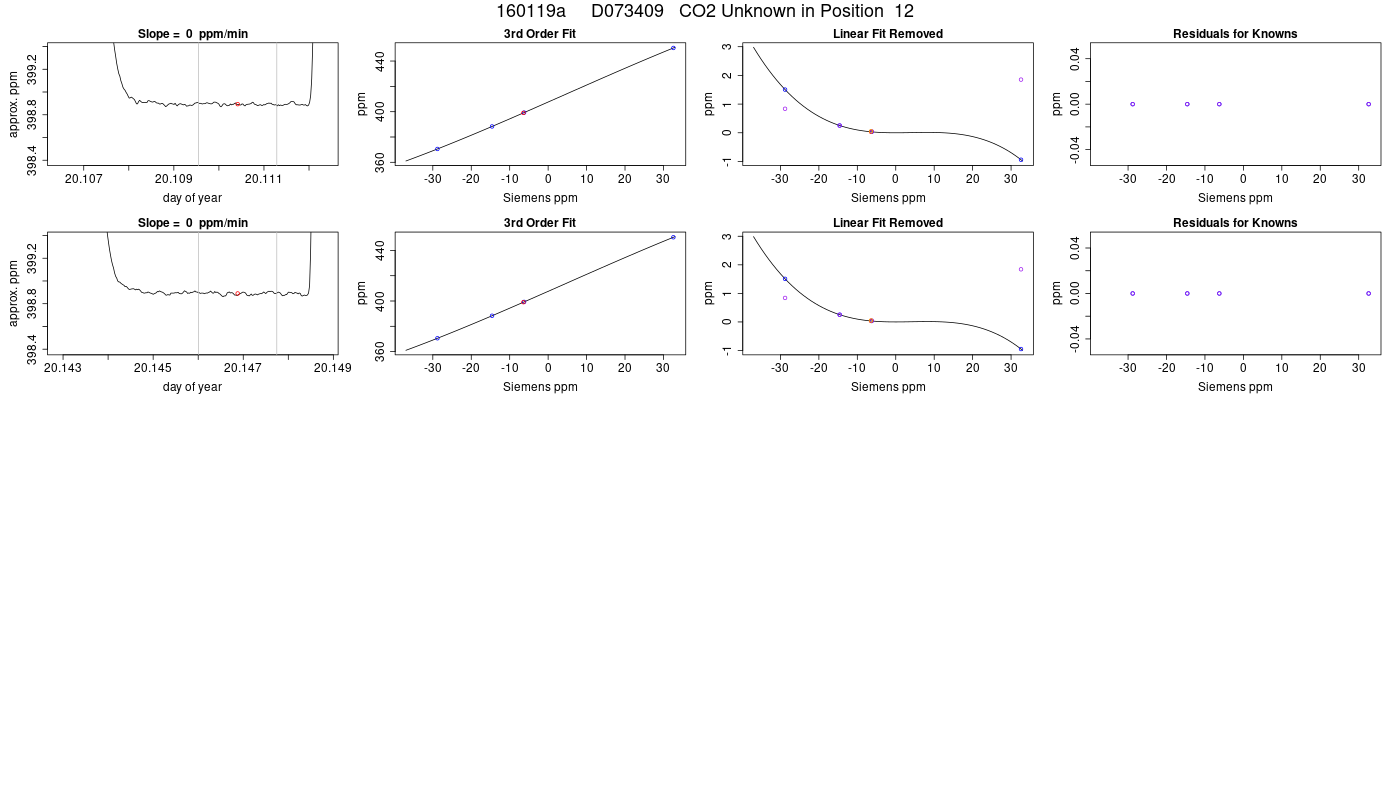

12 D073409    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.819 399.057 0.011 -651.80 1.61 398.933 0.011
19.855 399.062 0.015 -650.16 1.84 398.937 0.015
19.965 399.058 0.012 -652.44 1.80 398.933 0.012
20.001 399.065 0.010 -649.94 1.83 398.940 0.010
20.110 399.058 0.009 -652.51 1.79 398.933 0.009
20.147 399.056 0.012 -650.56 1.53 398.931 0.012

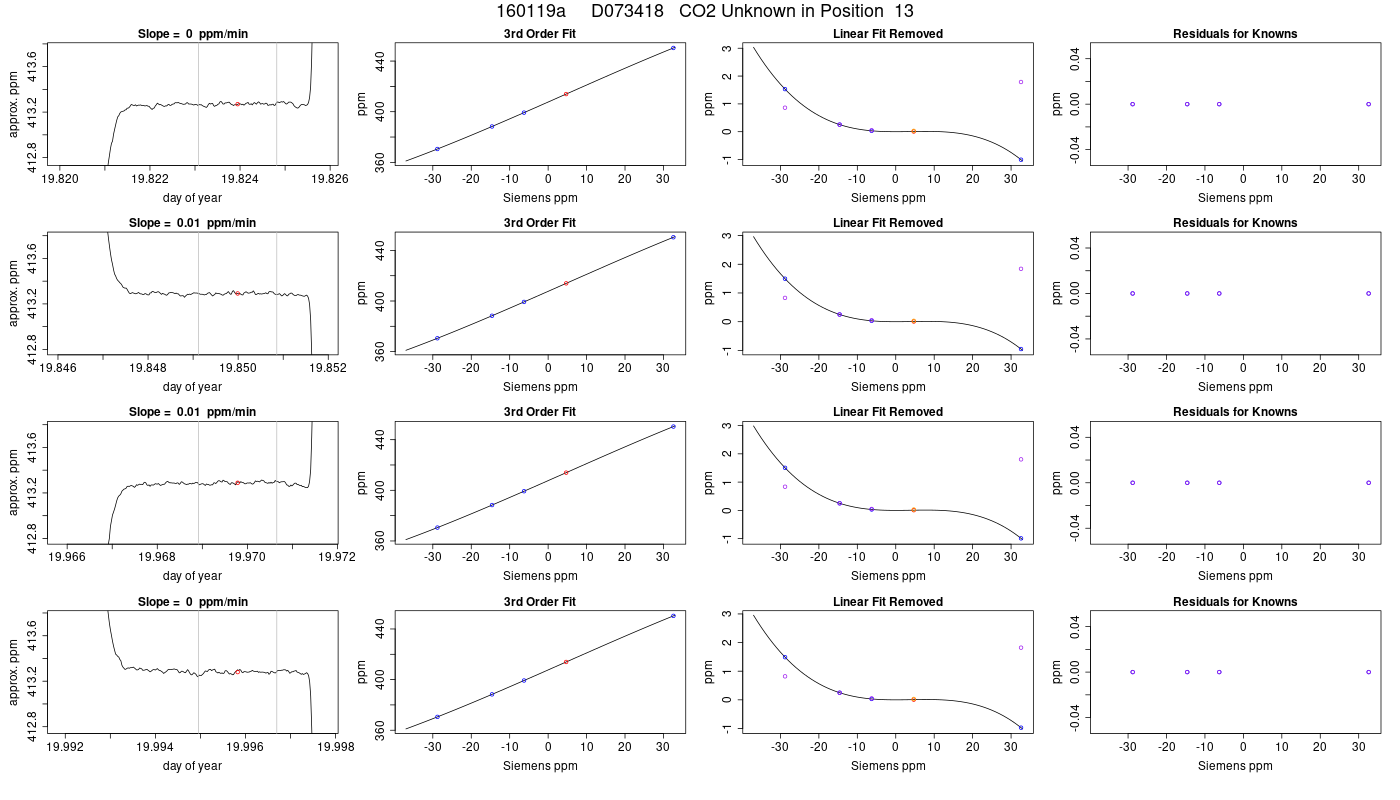

13 D073418    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.824 413.939 0.011 -778.28 1.84 413.321 0.011
19.850 413.942 0.010 -775.18 2.00 413.324 0.010
19.970 413.942 0.012 -775.85 1.95 413.323 0.012
19.996 413.928 0.013 -774.56 1.96 413.310 0.013
20.116 413.920 0.015 -776.16 1.85 413.303 0.015
20.142 413.932 0.014 -774.61 1.96 413.314 0.014

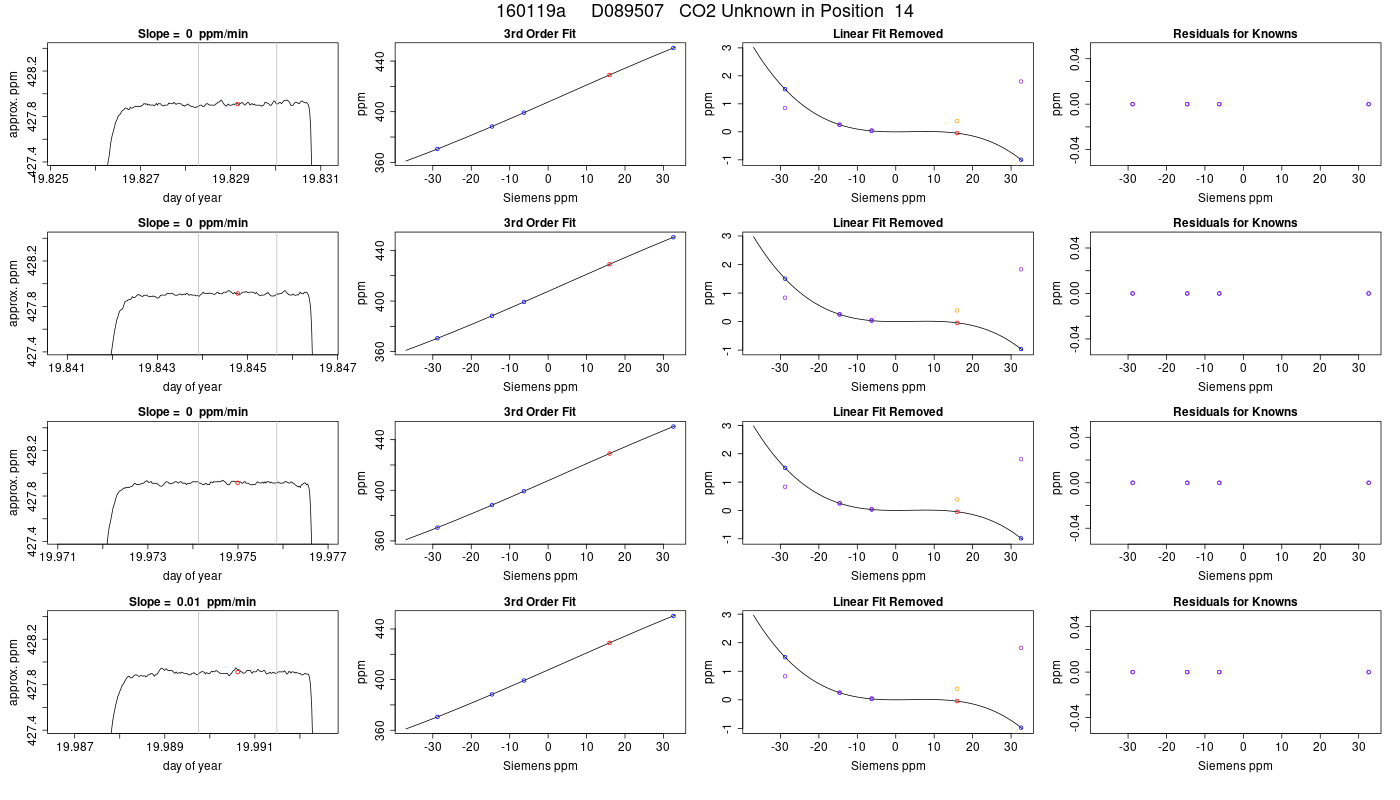

14 D089507    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.829 429.032 0.012 -557.40 1.86 428.319 0.012
19.845 429.020 0.012 -557.04 2.09 428.307 0.012
19.975 429.021 0.010 -557.20 1.97 428.307 0.010
19.991 429.010 0.013 -557.33 1.68 428.296 0.013
20.121 429.003 0.012 -558.02 1.89 428.291 0.012
20.136 428.992 0.011 -558.19 1.74 428.279 0.011

15 D88531    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
19.834 402.000 0.010 -639.45 1.64 401.768 0.010
19.840 401.988 0.010 -640.11 1.68 401.756 0.010
19.980 402.001 0.011 -641.93 2.14 401.768 0.011
19.985 402.000 0.015 -641.36 1.76 401.768 0.015
20.126 401.996 0.014 -642.10 1.50 401.764 0.014
20.131 401.986 0.010 -641.88 1.80 401.754 0.010
