UEA CRAM Lab O2 and CO2 calibration results
RUN = 151119a
PROCESSED: 13:16:45 Wed 2Aug2023

Notes
Logfile

Results

Using data from 323.73 to 324.092 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 CA07857 361.581 0.031 -0.227 361.384 0.031 -0.230 5 NA NA NA 0
4 D801299 381.409 0.009 0.022 381.681 0.009 0.020 5 -473.92 0.98 -2.05 5
5 D596276 403.670 0.010 0.070 403.480 0.009 0.068 5 -860.98 0.94 -4.23 5
6 CA07809 400.130 0.007 0.034 400.029 0.007 0.034 5 NA NA NA 0
10 CA07825 431.335 0.005 -0.026 430.992 0.006 -0.025 5 NA NA NA 0
11 D88528 407.685 0.005 0.016 407.401 0.004 0.016 5 -709.08 1.22 -10.01 5
13 D073419 440.236 0.009 -0.073 440.274 0.010 -0.076 5 -920.98 3.02 21.66 5
14 D073409 398.981 0.008 0.047 398.910 0.008 0.046 5 -645.33 0.83 2.38 5
15 D596277 398.518 0.015 0.125 398.458 0.015 0.122 5 -743.25 3.26 24.17 5
WT D078943 407.526 0.007 -0.066 407.246 0.007 -0.065 70 -608.08 0.89 -8.10 70
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries

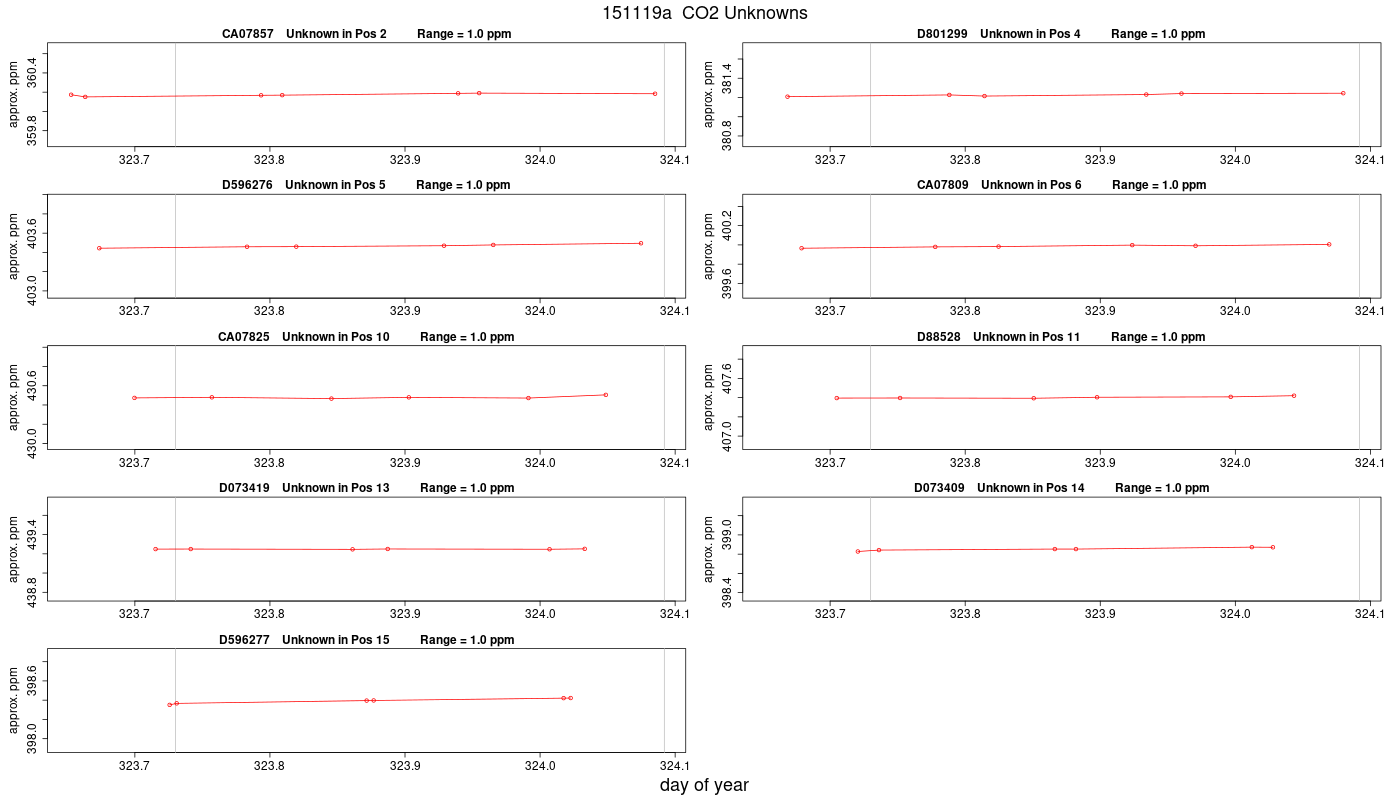

 CO2 Averages for Unknowns

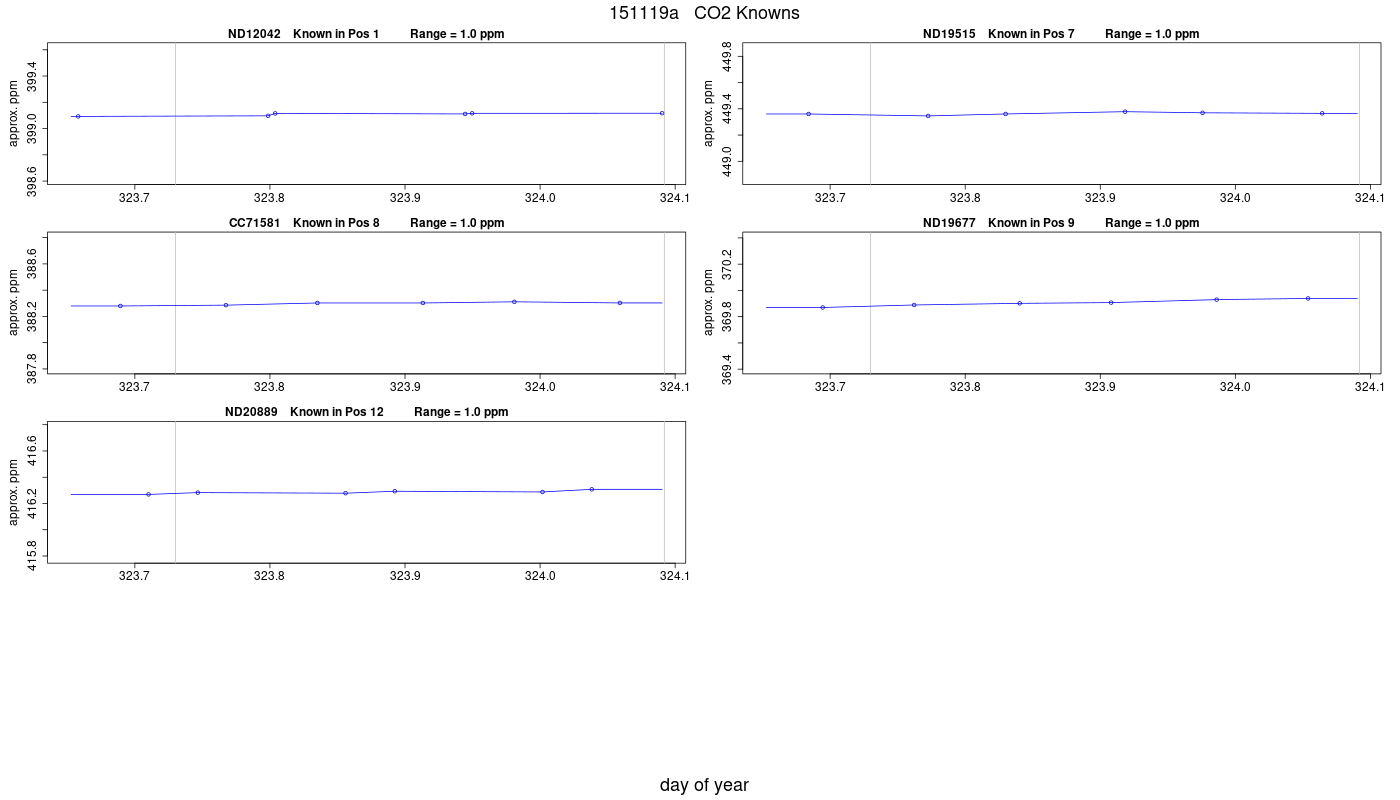

 CO2 Averages for Knowns

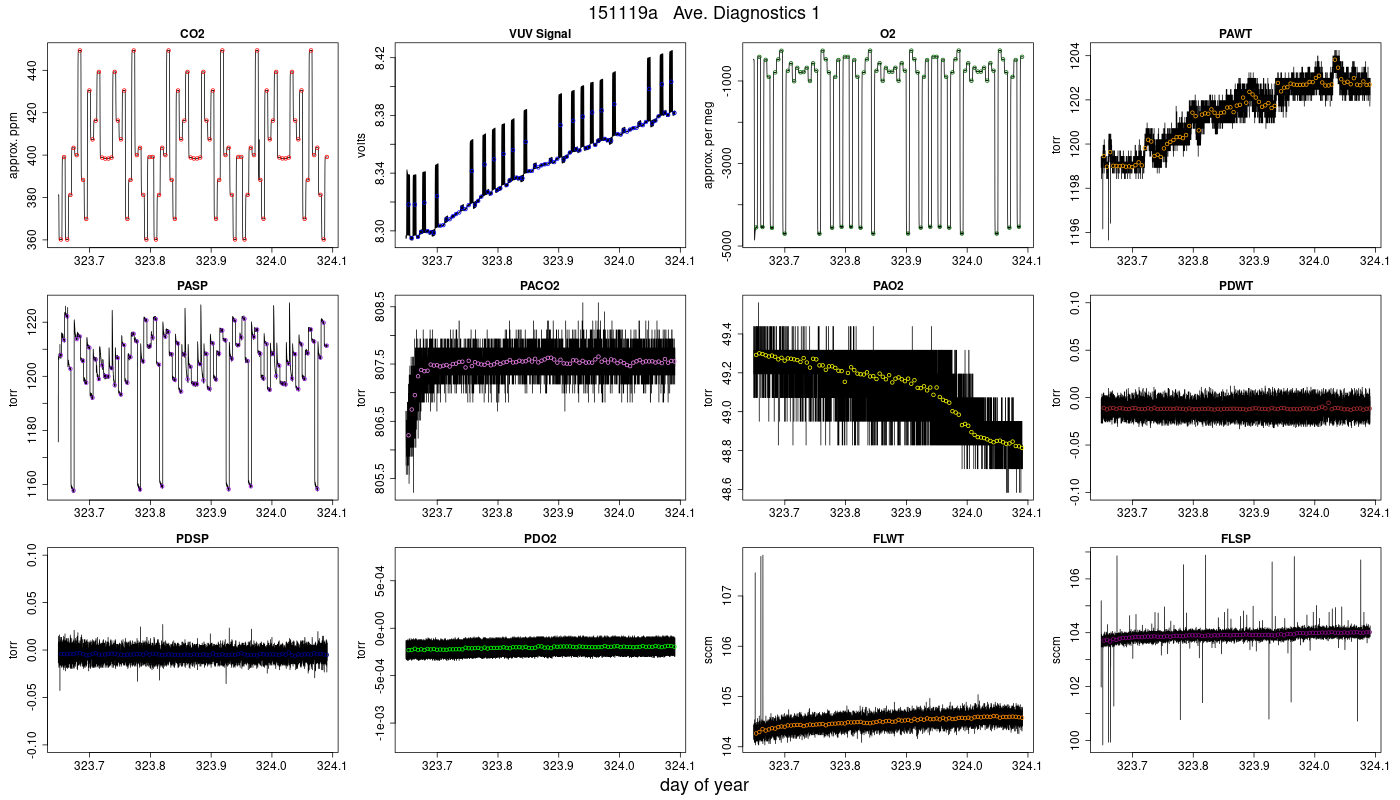

Jog Ave. Diagnostics 1

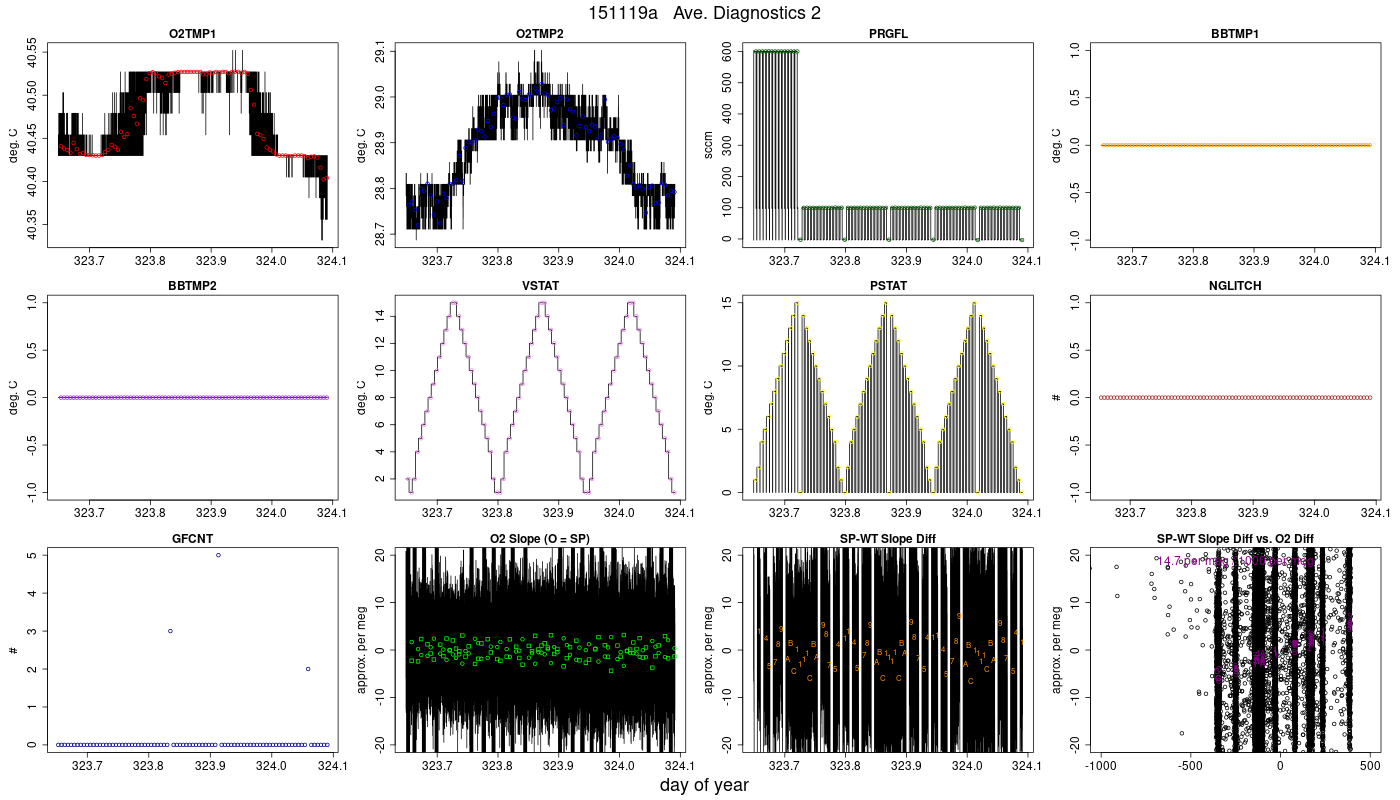

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect

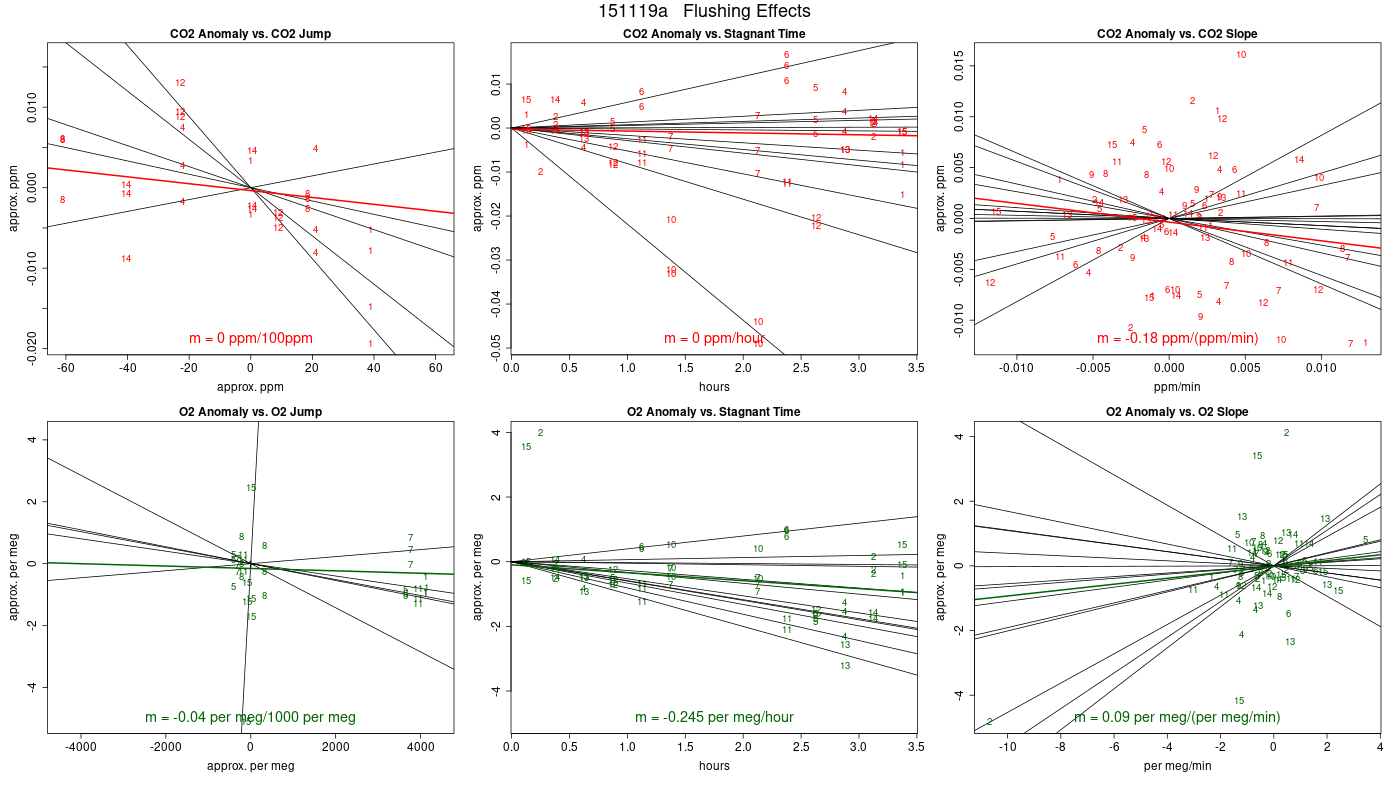

 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries

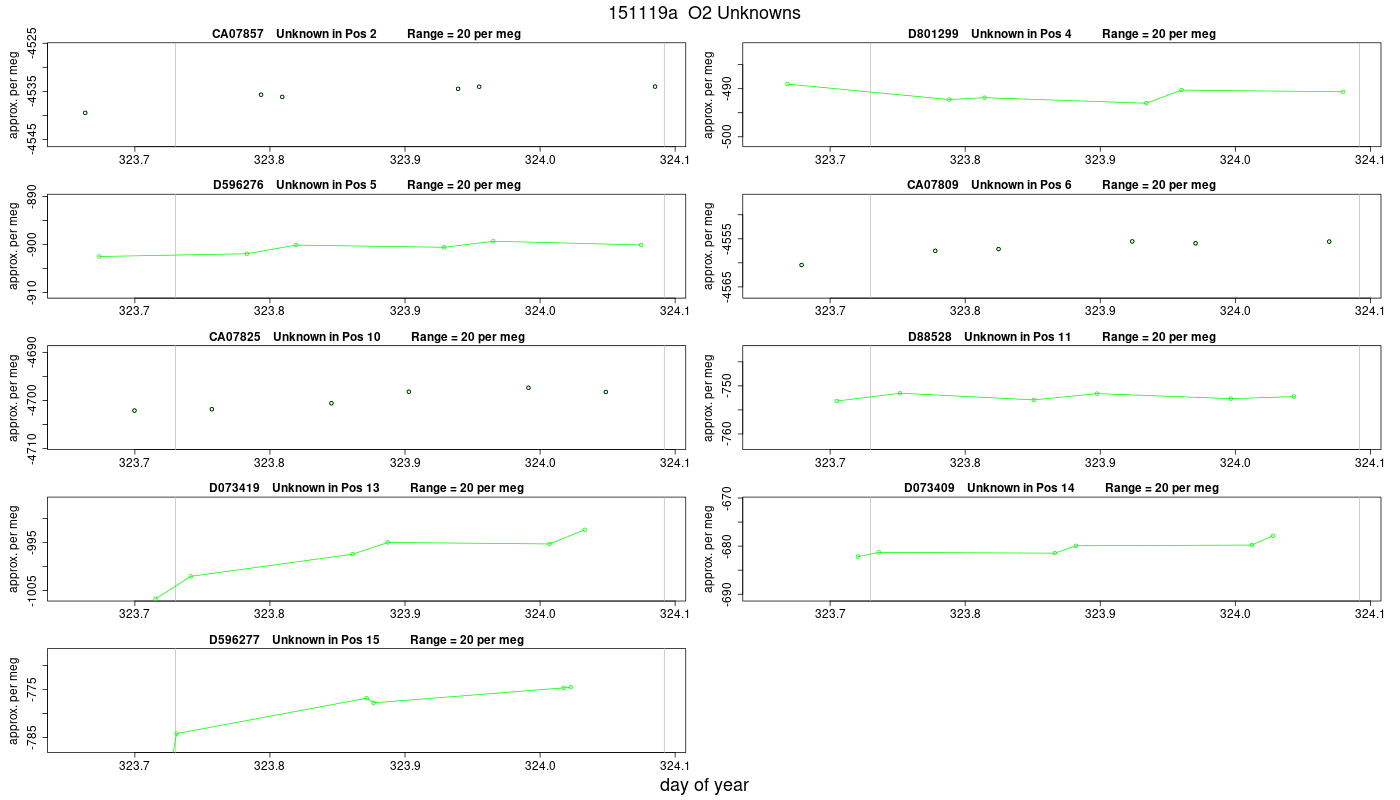

O2 Averages for Unknowns

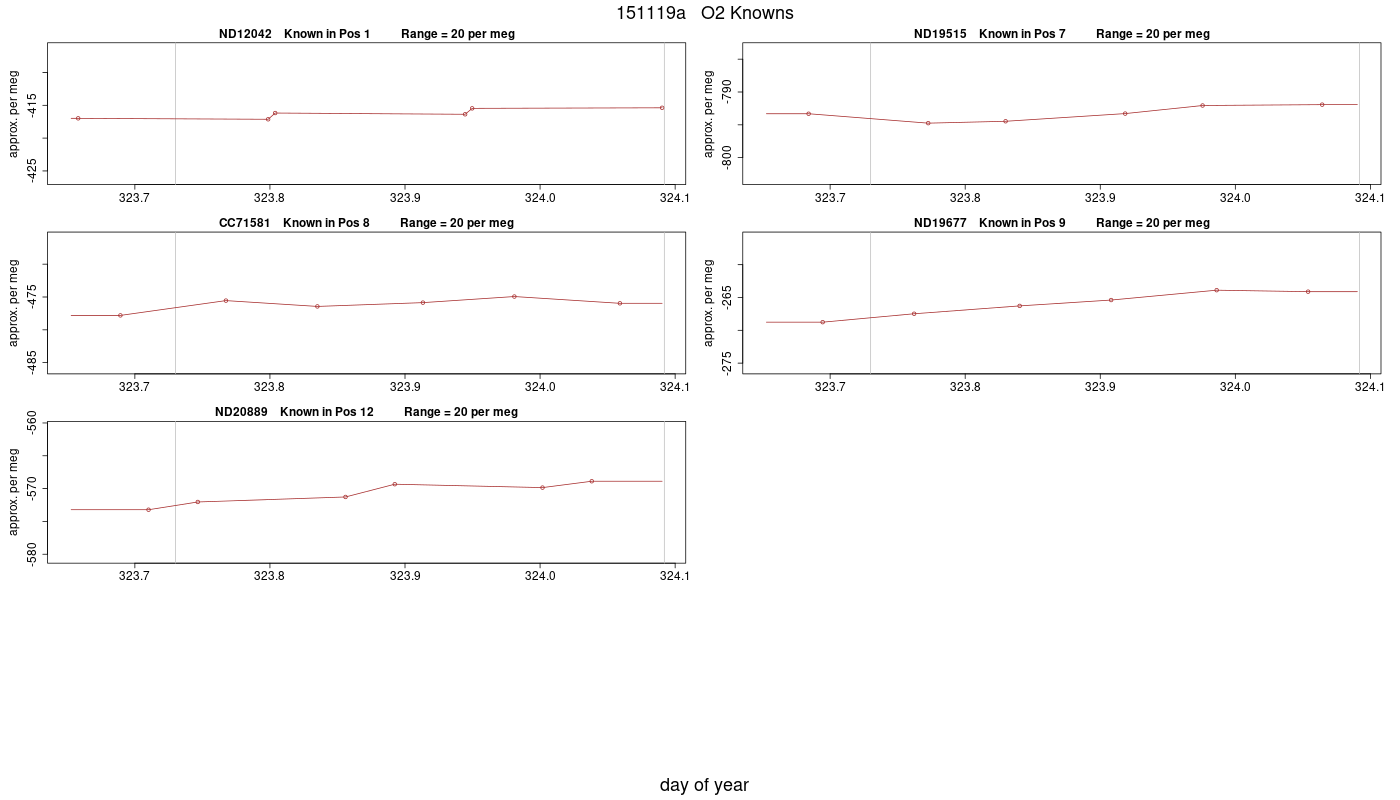

 O2 Averages for Knowns
 O2 Parameters
O2 Results

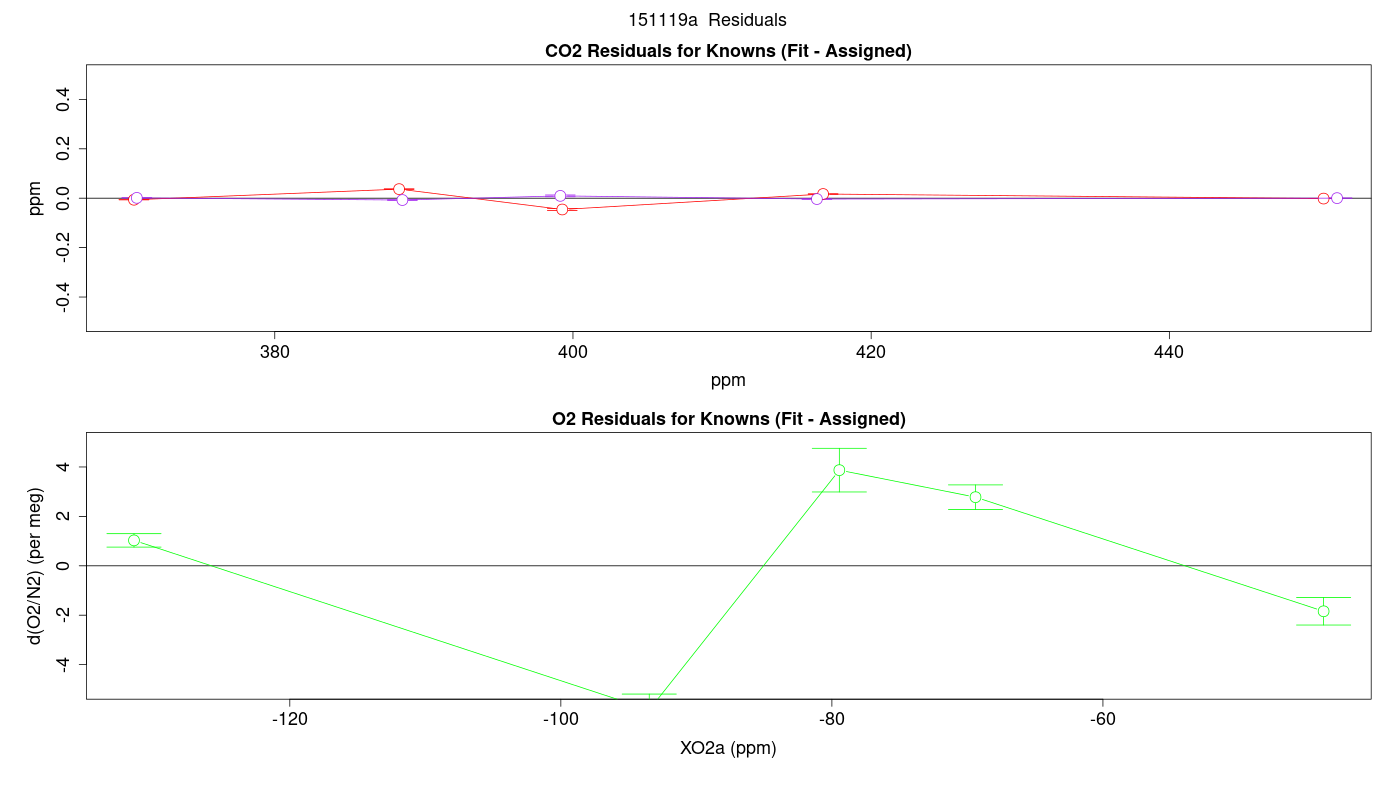

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

1 ND12042 399.283 -0.046 0.004 399.150 0.009 0.004 5 -384.25 2.78 0.50 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
7 ND19515 450.346 -0.002 0.000 451.248 0.000 0.000 5 -707.13 1.03 0.27 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
8 CC71581 388.340 0.037 0.001 388.560 -0.007 0.001 5 -454.95 3.87 0.88 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
9 ND19677 370.558 -0.006 0.000 370.748 0.001 0.000 5 -256.57 -1.84 0.56 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
12 ND20889 416.777 0.017 0.001 416.361 -0.003 0.001 5 -513.13 -5.83 0.64 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

2 CA07857    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.653 361.639 0.017 -4564.77 11.92 361.444 0.017
323.663 361.619 0.013 -4555.35 10.03 361.423 0.013
323.793 361.593 0.010 -4532.86 9.98 361.397 0.010
323.809 361.608 0.013 -4530.76 10.00 361.411 0.013
323.939 361.588 0.010 -4534.93 10.04 361.391 0.010
323.955 361.587 0.014 -4533.04 10.10 361.391 0.014
324.085 361.528 0.016 -4537.09 9.98 361.330 0.016

4 D801299    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.668 381.412 0.010 -469.43 2.22 381.684 0.010
323.788 381.419 0.012 -473.44 2.02 381.690 0.012
323.814 381.396 0.011 -473.34 2.23 381.668 0.011
323.934 381.405 0.011 -475.64 2.27 381.677 0.011
323.960 381.409 0.012 -473.35 1.83 381.681 0.012
324.080 381.416 0.012 -473.84 1.61 381.687 0.012

5 D596276    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.674 403.660 0.013 -863.09 2.17 403.470 0.013
323.783 403.667 0.010 -861.34 2.12 403.477 0.010
323.820 403.659 0.012 -859.50 1.88 403.470 0.012
323.929 403.666 0.014 -861.52 2.24 403.476 0.014
323.965 403.672 0.015 -860.67 2.48 403.482 0.015
324.075 403.685 0.010 -861.89 1.99 403.495 0.010

6 CA07809    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.679 400.122 0.009 -4538.58 10.11 400.022 0.009
323.778 400.130 0.009 -4517.16 10.02 400.029 0.009
323.825 400.121 0.010 -4513.43 10.03 400.021 0.010
323.924 400.134 0.008 -4517.53 10.10 400.034 0.008
323.971 400.125 0.012 -4517.52 10.04 400.024 0.012
324.070 400.138 0.010 -4520.72 10.13 400.037 0.010

10 CA07825    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.700 431.350 0.012 -4647.56 10.87 431.006 0.012
323.757 431.343 0.019 -4634.69 10.81 430.999 0.019
323.846 431.337 0.010 -4626.62 10.88 430.993 0.010
323.903 431.331 0.017 -4629.74 10.82 430.986 0.017
323.991 431.330 0.015 -4627.50 10.82 430.985 0.015
324.049 431.337 0.012 -4632.66 10.91 430.994 0.012

11 D88528    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.705 407.695 0.009 -709.11 2.06 407.411 0.009
323.752 407.687 0.014 -707.42 2.39 407.403 0.014
323.851 407.678 0.012 -708.89 2.33 407.395 0.012
323.898 407.682 0.014 -708.56 2.19 407.398 0.014
323.997 407.687 0.014 -710.35 2.10 407.404 0.014
324.043 407.689 0.013 -710.20 1.97 407.405 0.013

13 D073419    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.715 440.254 0.011 -930.95 1.97 440.292 0.011
323.741 440.247 0.013 -925.95 2.28 440.286 0.013
323.861 440.243 0.012 -920.99 2.50 440.281 0.012
323.887 440.235 0.013 -919.36 2.00 440.273 0.013
324.007 440.233 0.013 -920.58 1.91 440.271 0.013
324.033 440.223 0.008 -918.00 2.01 440.262 0.008

14 D073409    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.721 398.966 0.012 -646.30 1.71 398.895 0.012
323.736 398.980 0.014 -645.47 2.03 398.908 0.014
323.866 398.974 0.010 -646.17 1.88 398.903 0.010
323.882 398.973 0.012 -644.99 2.71 398.902 0.012
324.012 398.991 0.012 -645.93 2.12 398.919 0.012
324.028 398.989 0.009 -644.09 2.17 398.917 0.009

15 D596277    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
323.726 398.483 0.007 -756.79 1.96 398.424 0.007
323.731 398.499 0.010 -748.92 2.01 398.439 0.010
323.872 398.511 0.012 -741.97 2.02 398.451 0.012
323.877 398.512 0.013 -743.06 2.08 398.452 0.013
324.017 398.533 0.011 -741.21 1.91 398.473 0.011
324.023 398.534 0.015 -741.11 2.89 398.474 0.015
