UEA CRAM Lab O2 and CO2 calibration results
RUN = 151109b
PROCESSED: 13:14:26 Wed 2Aug2023

Notes
Logfile

Results

Using data from 313.869 to 314.304 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 ND12042 398.933 0.007 -0.035 399.145 0.007 -0.035 7 -382.02 0.89 -5.79 7
5 D073418 413.081 0.016 -0.009 413.273 0.016 -0.009 7 -786.71 1.13 -0.13 7
7 ND19515 451.062 0.054 0.111 451.323 0.054 0.111 7 -721.77 0.68 2.70 7
9 ND19677 370.574 0.018 0.047 370.765 0.018 0.048 7 -255.33 2.18 12.37 7
11 D089507 428.070 0.006 0.028 428.258 0.006 0.029 7 -571.75 1.80 8.52 7
12 ND20889 416.153 0.012 0.044 416.342 0.012 0.044 6 -528.72 2.64 14.71 7
13 D073419 440.067 0.012 0.055 440.277 0.012 0.055 7 -940.00 1.87 7.01 7
15 D801298 426.240 0.011 0.044 426.427 0.011 0.044 7 -736.56 1.50 -1.50 7
WT D078943 407.016 0.012 -0.066 407.216 0.012 -0.065 84 -621.09 0.74 -4.83 84
Text File

Raw Data and Diagnostics Figures

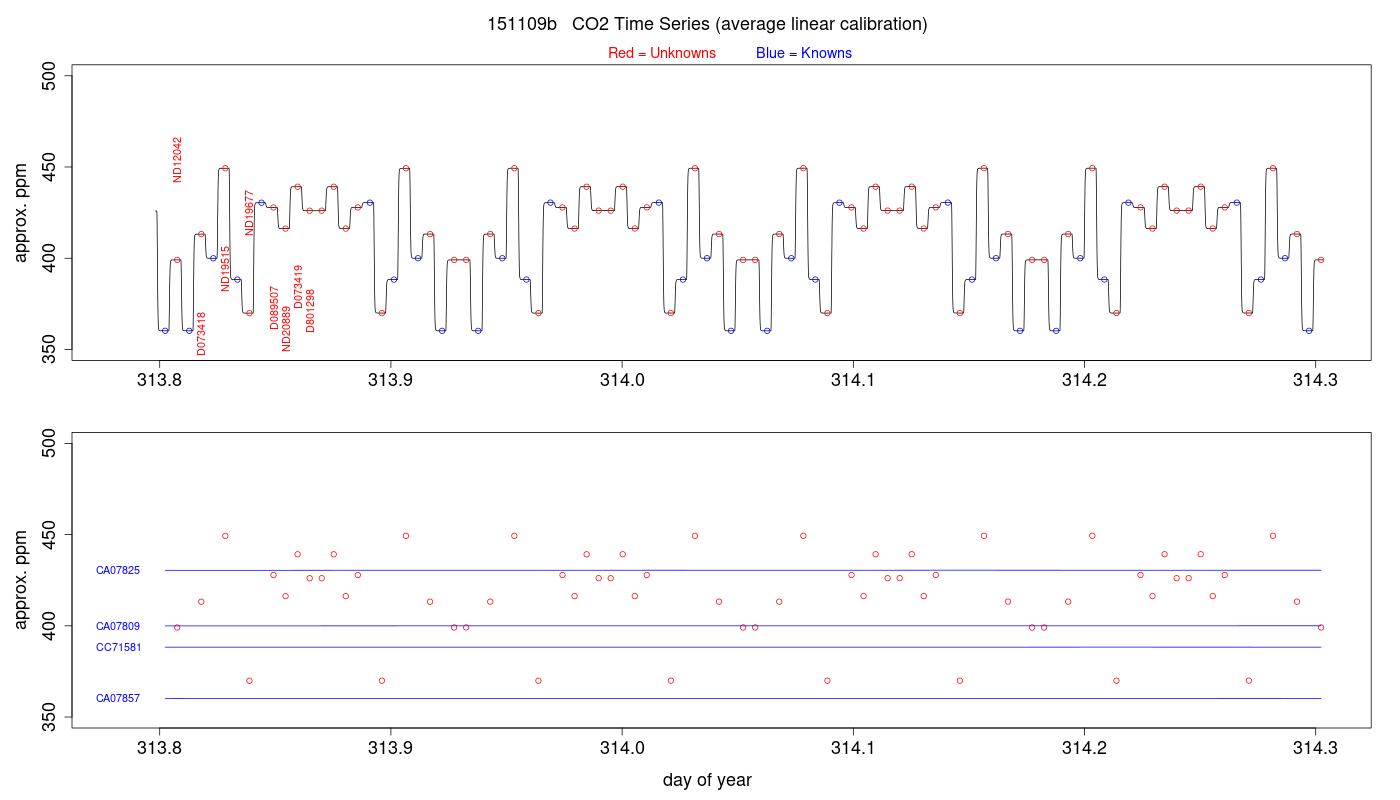

CO2 Timeseries

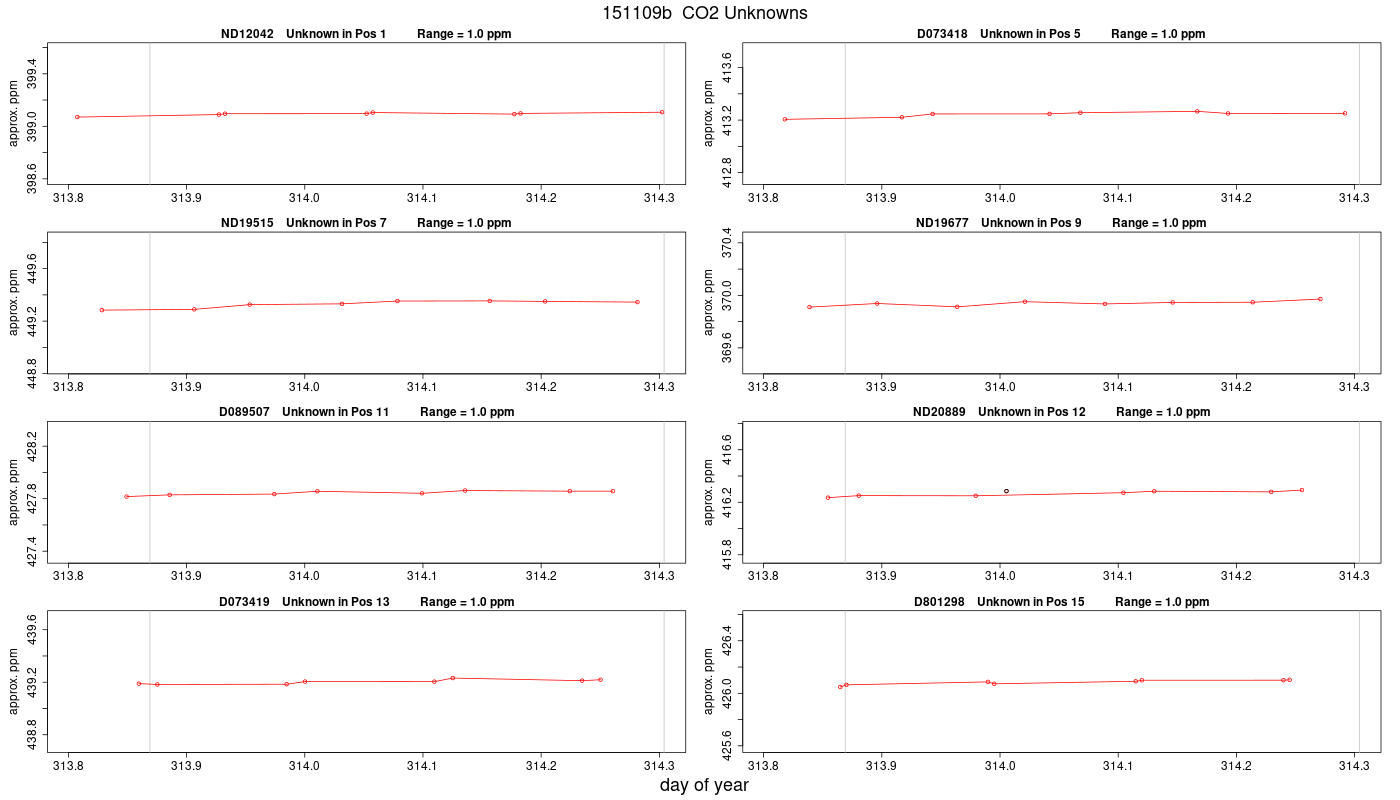

 CO2 Averages for Unknowns
 CO2 Averages for Knowns

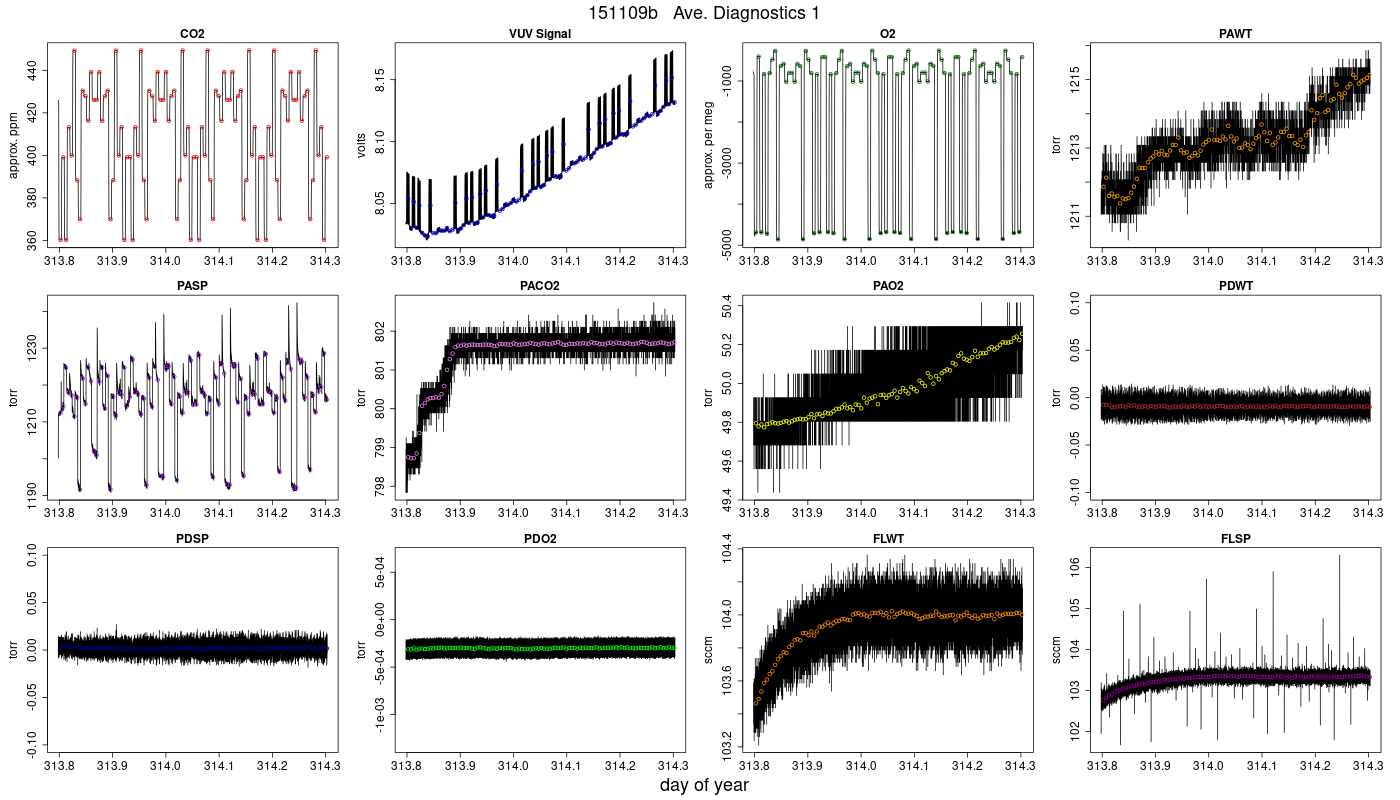

Jog Ave. Diagnostics 1

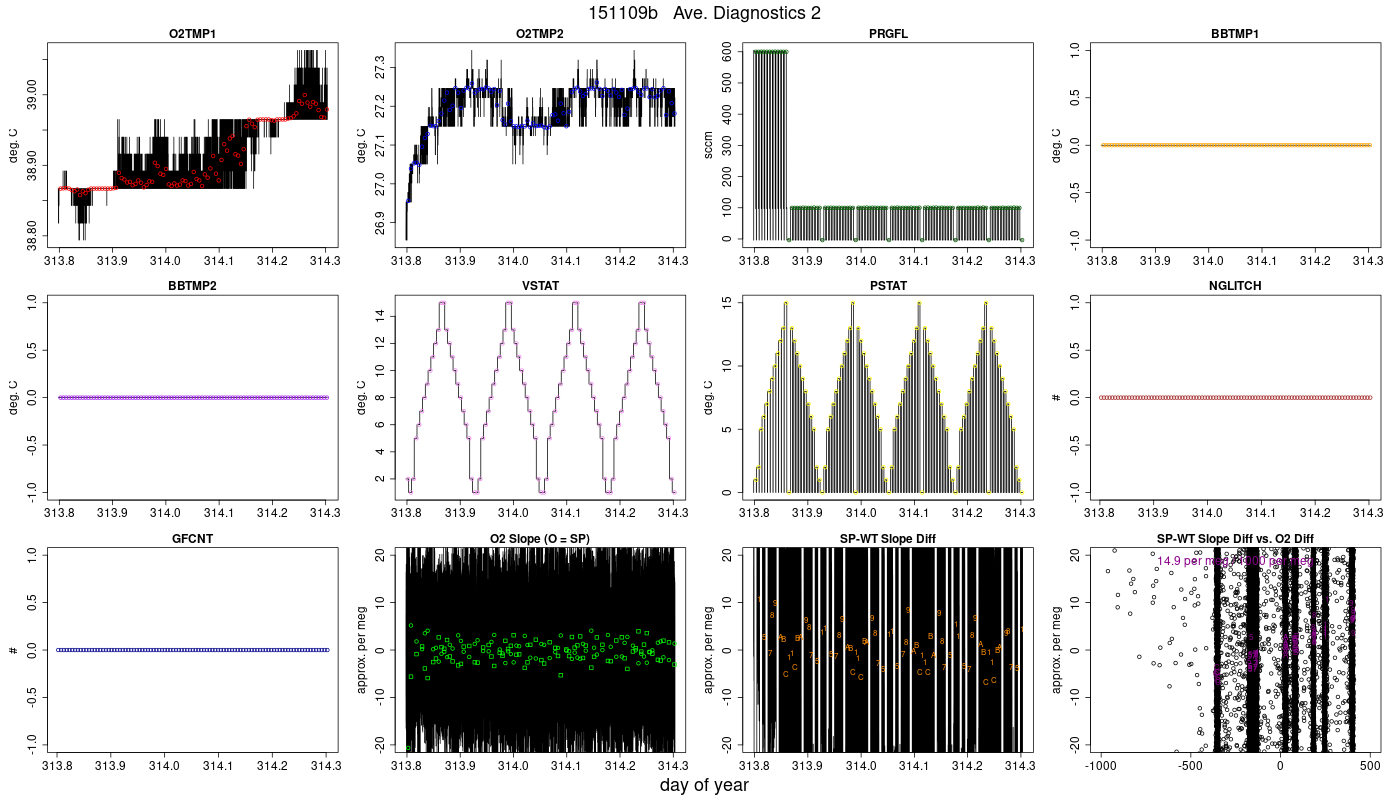

 Jog Ave. Diagnostics 2

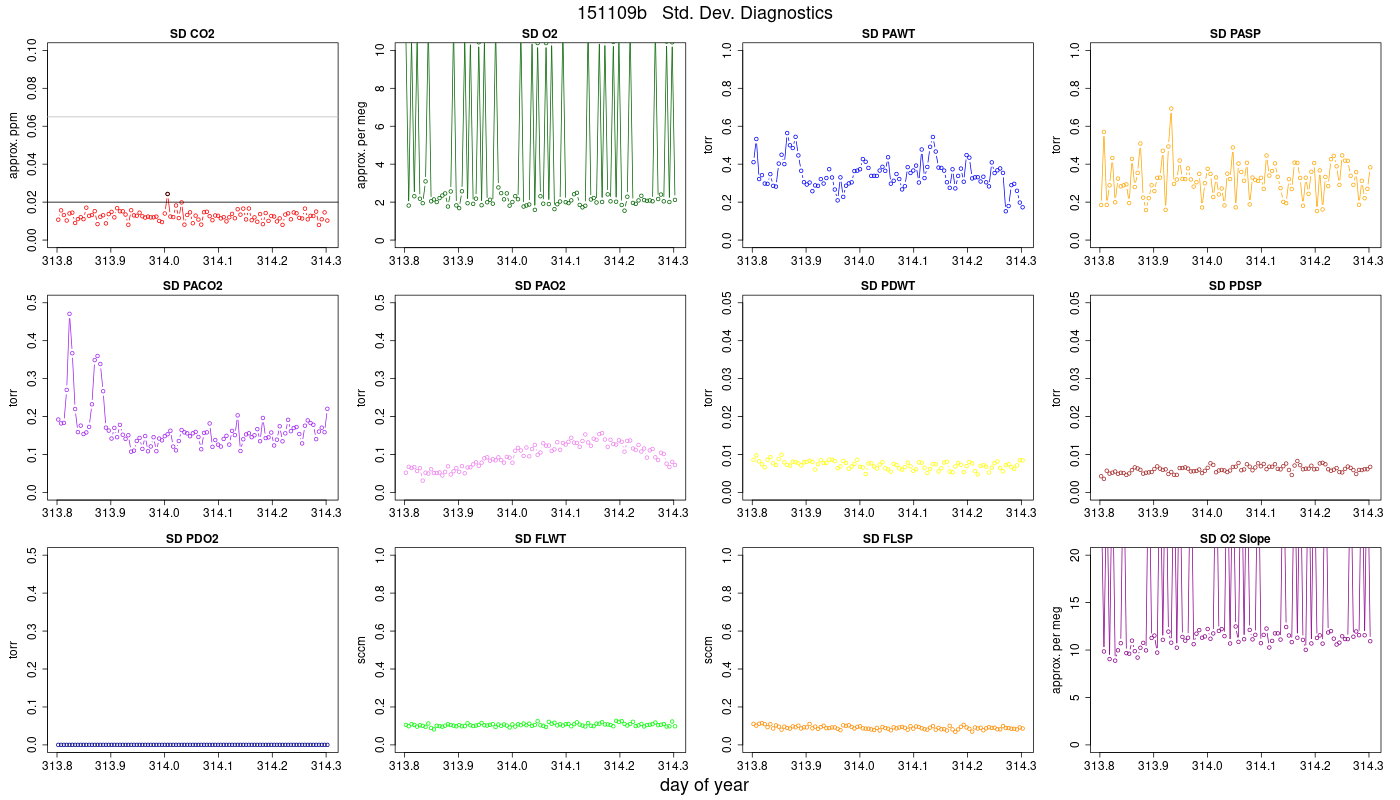

 Jog Std. Dev. Diagnostics

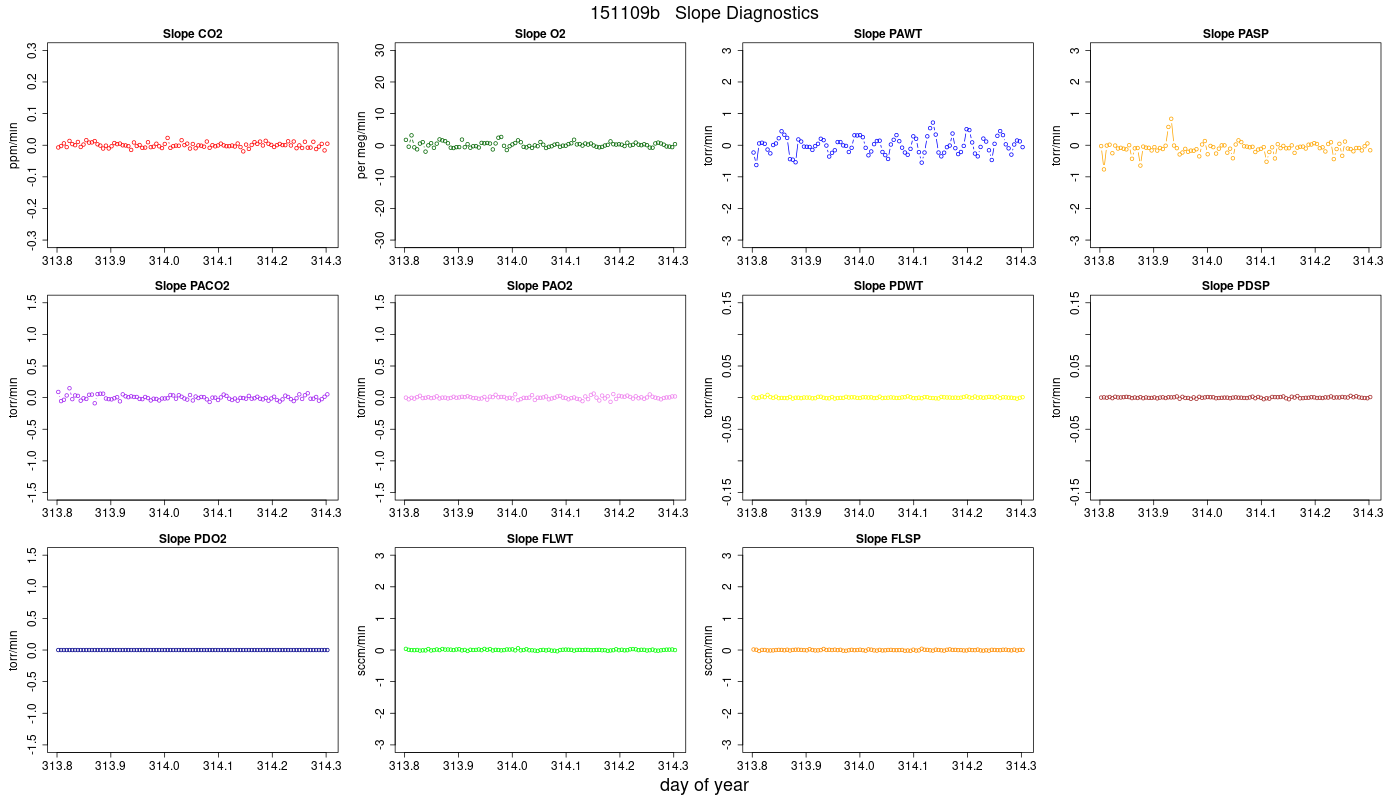

Jog Slope Diagnostics

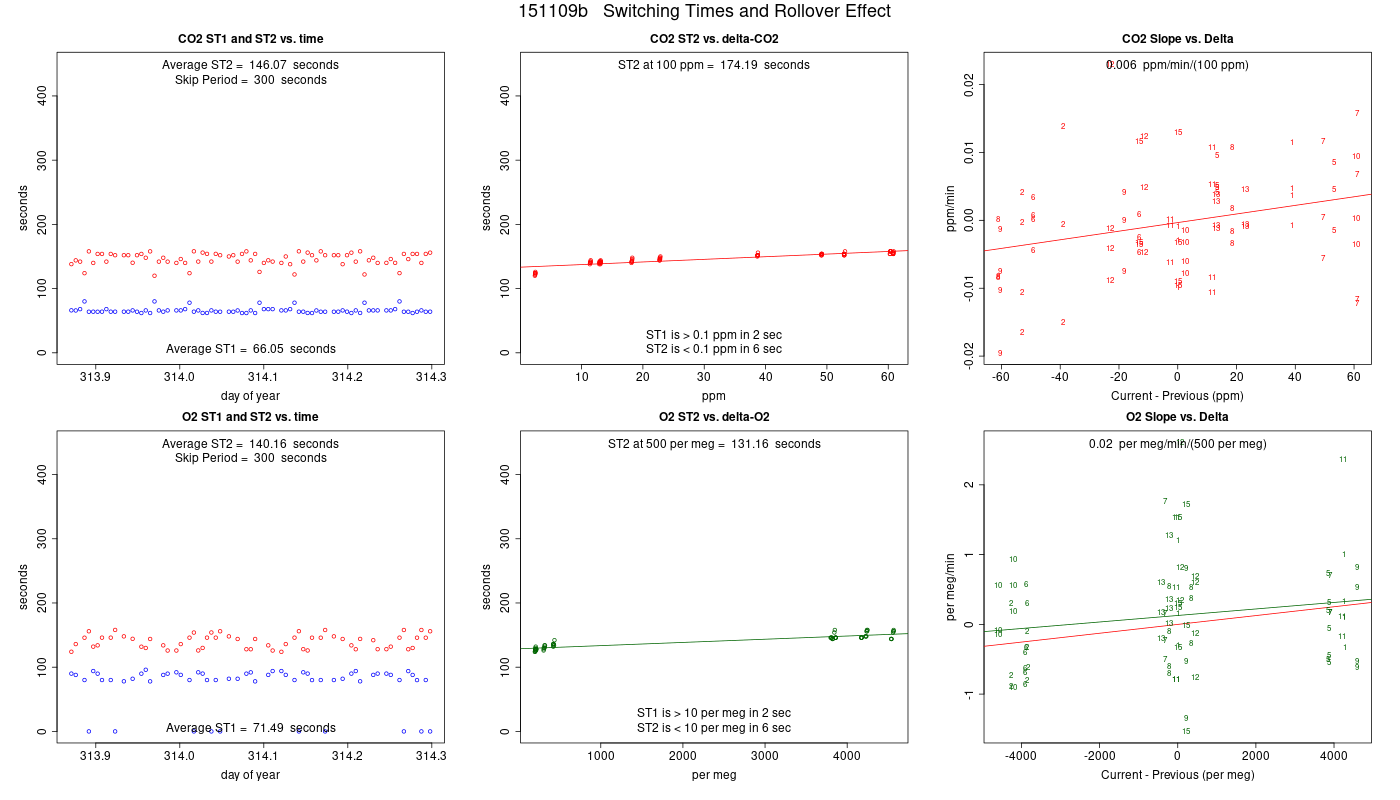

 Rollover Effect

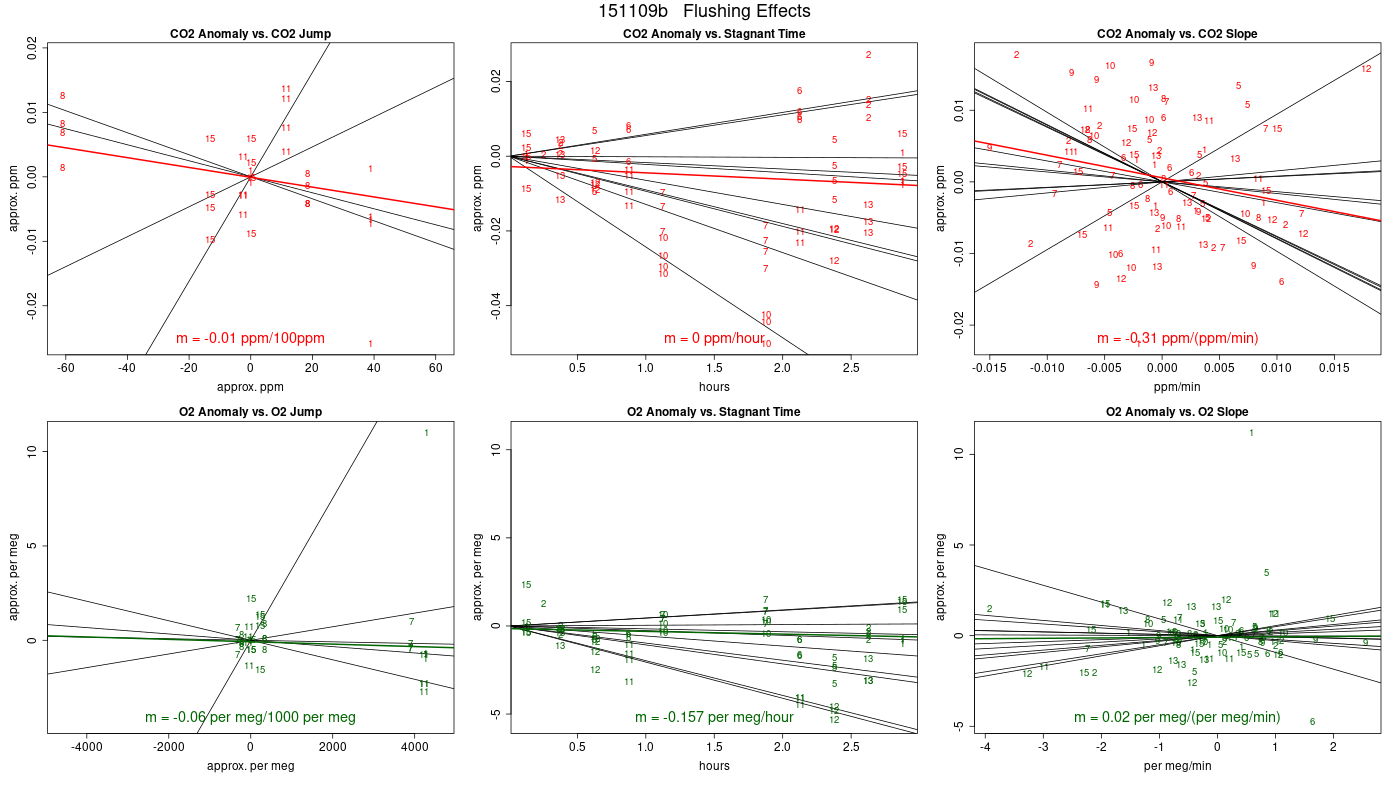

 Flushing Effect

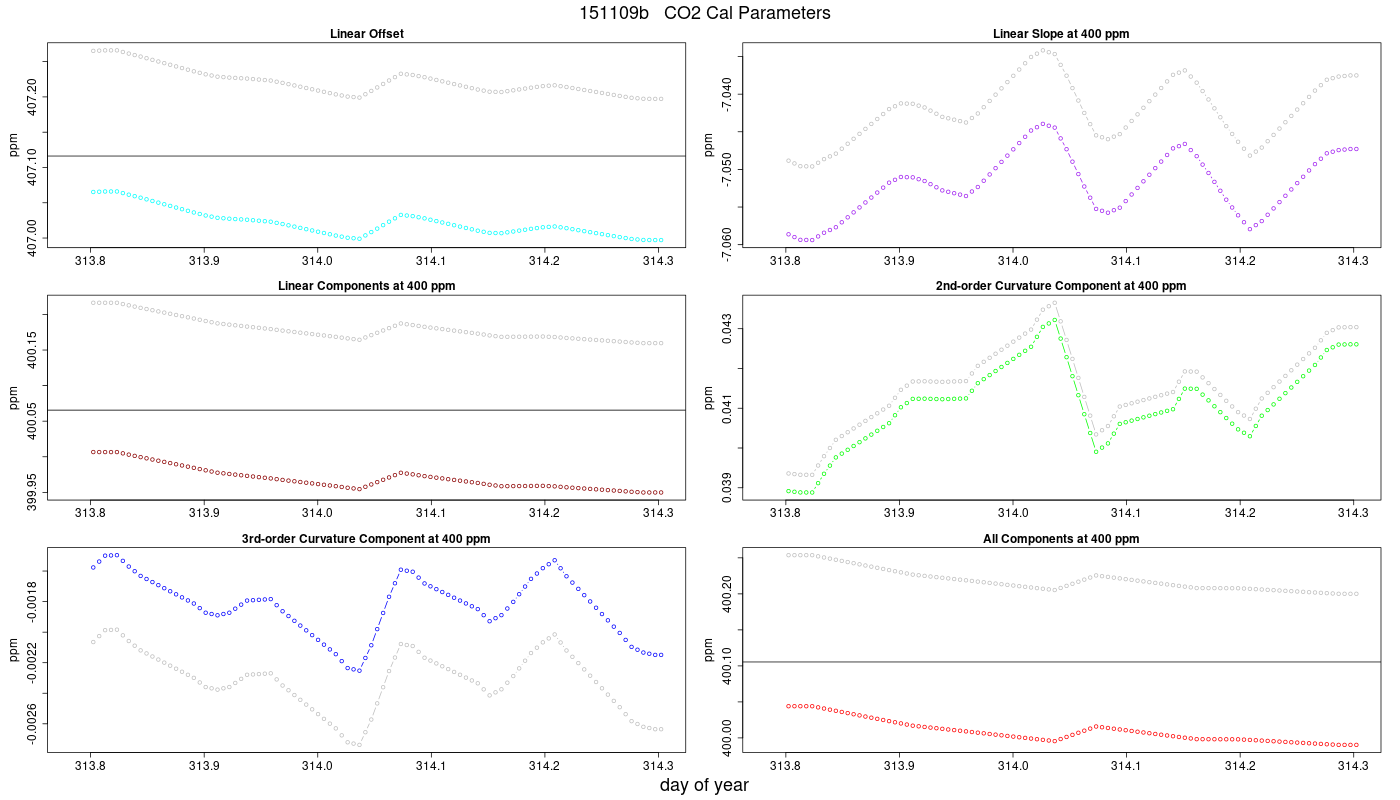

CO2 Parameters

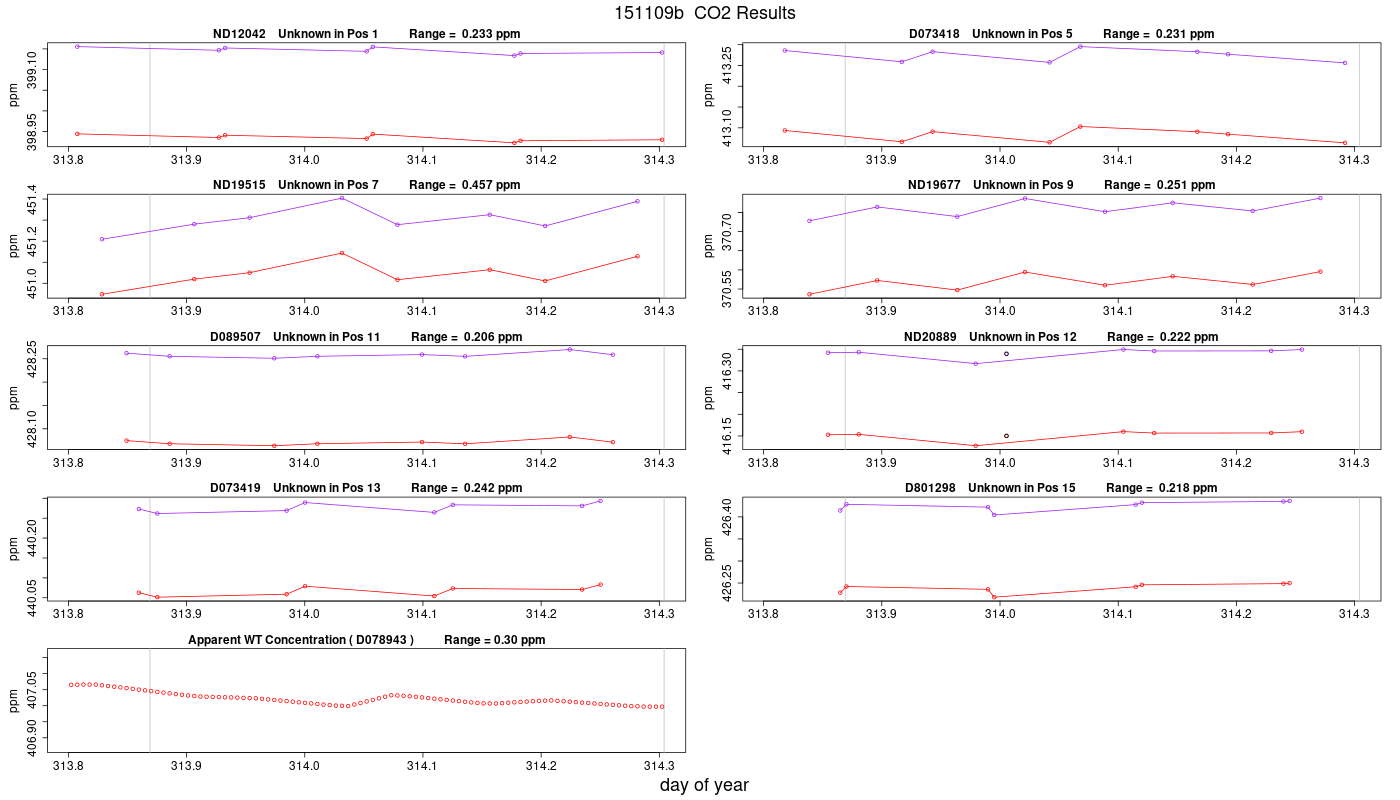

 CO2 Results

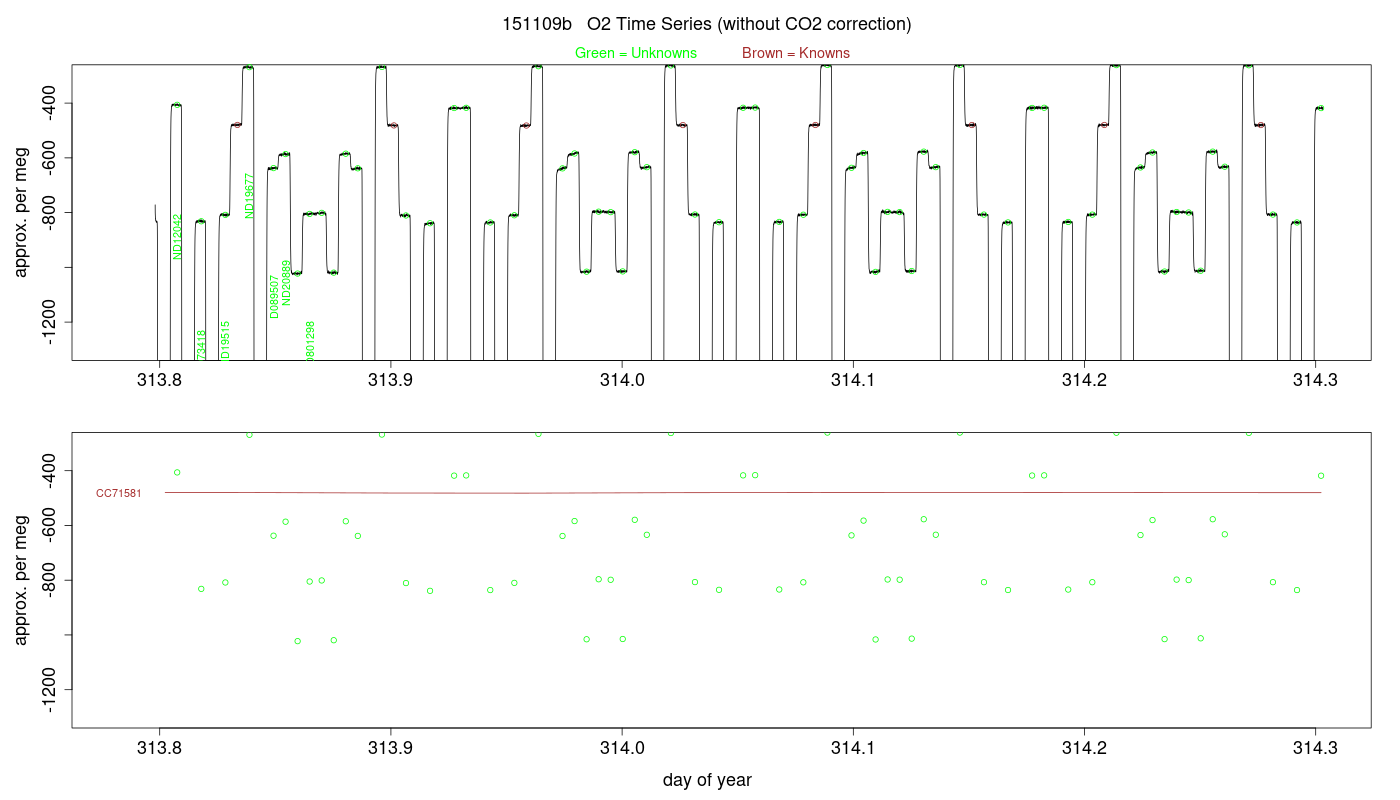

 O2 Timeseries

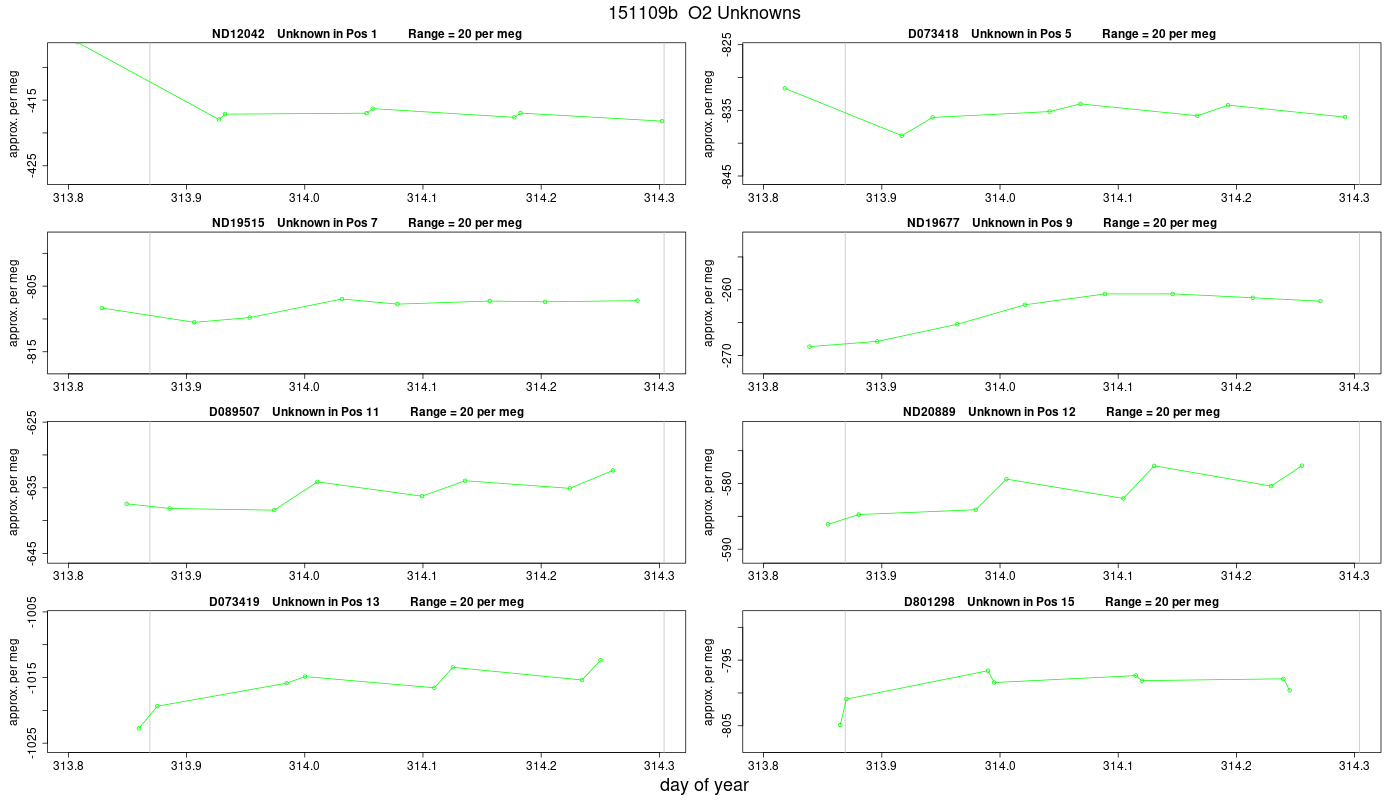

O2 Averages for Unknowns

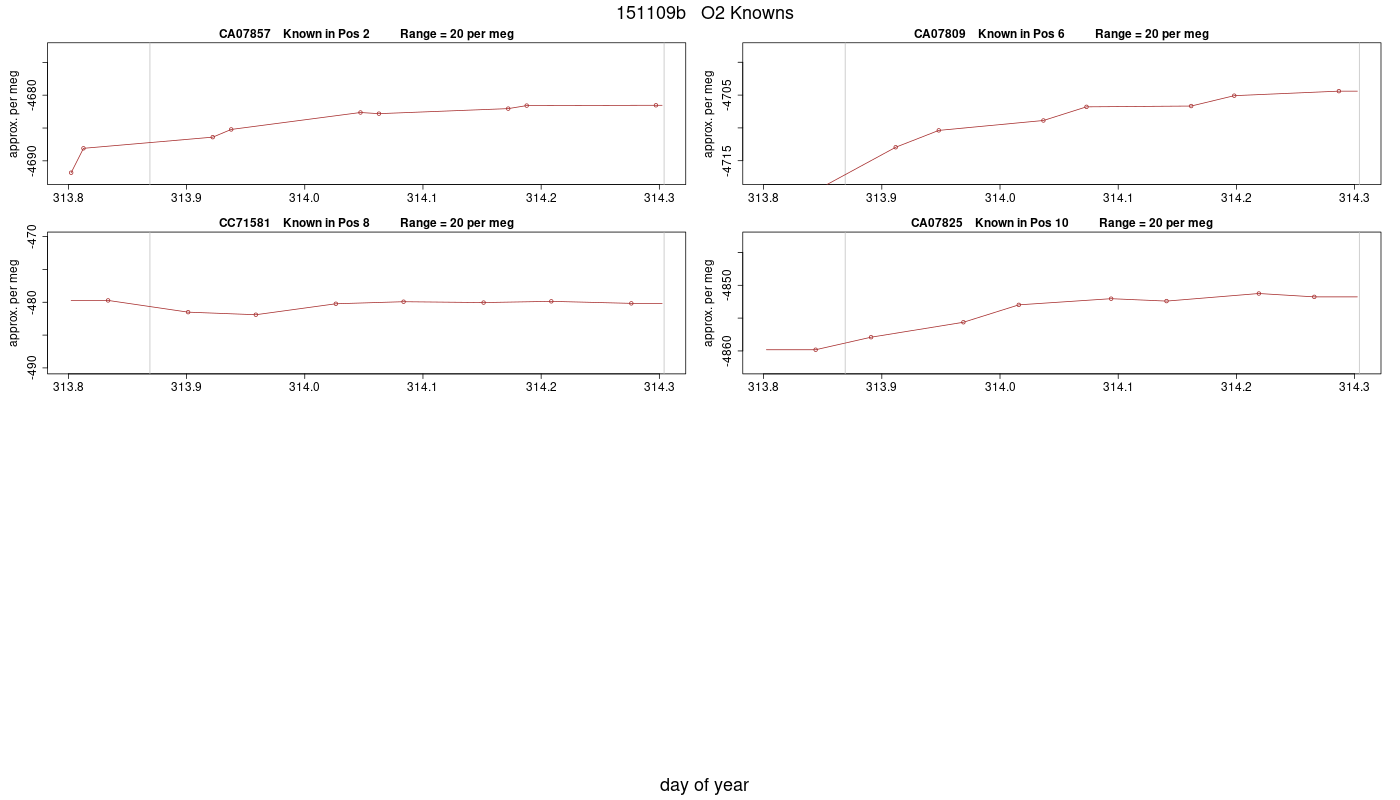

 O2 Averages for Knowns

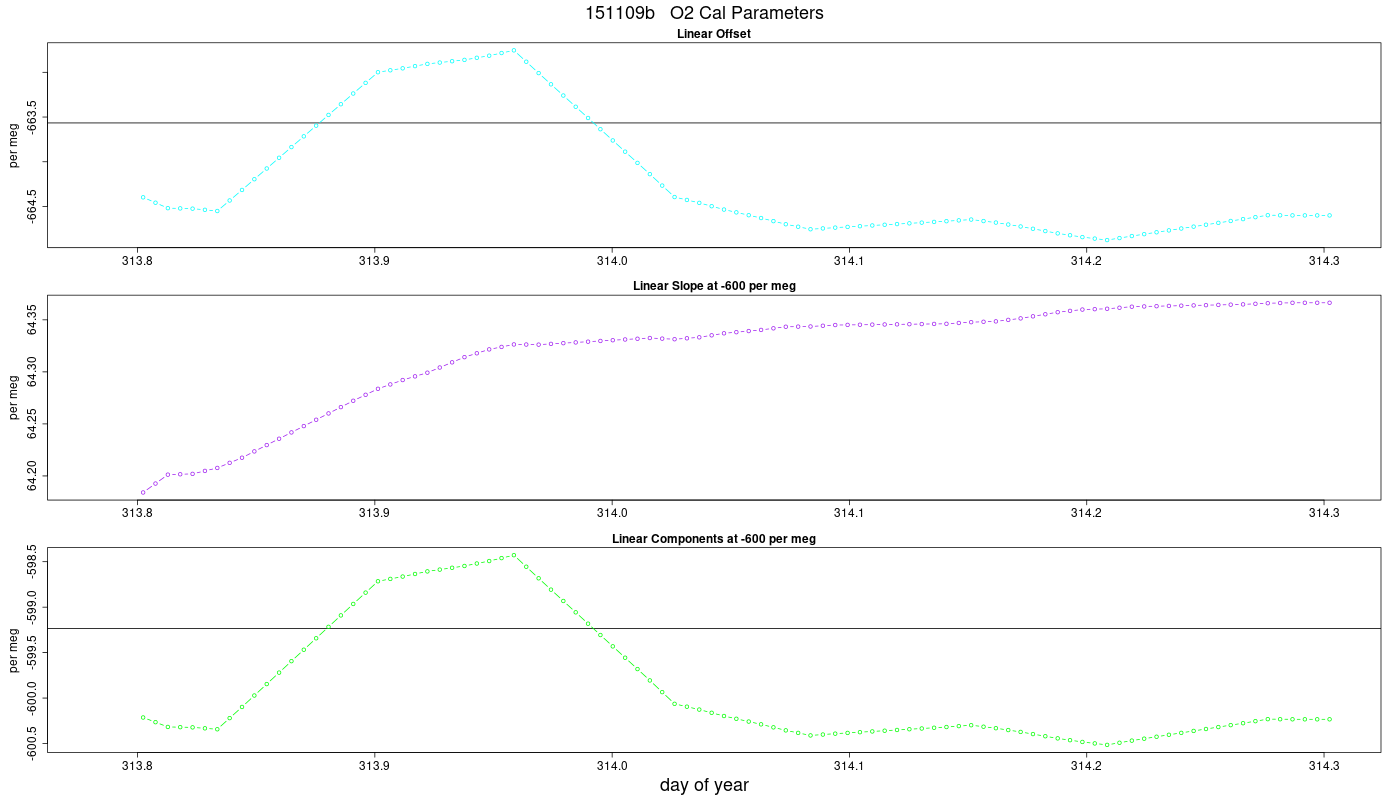

 O2 Parameters

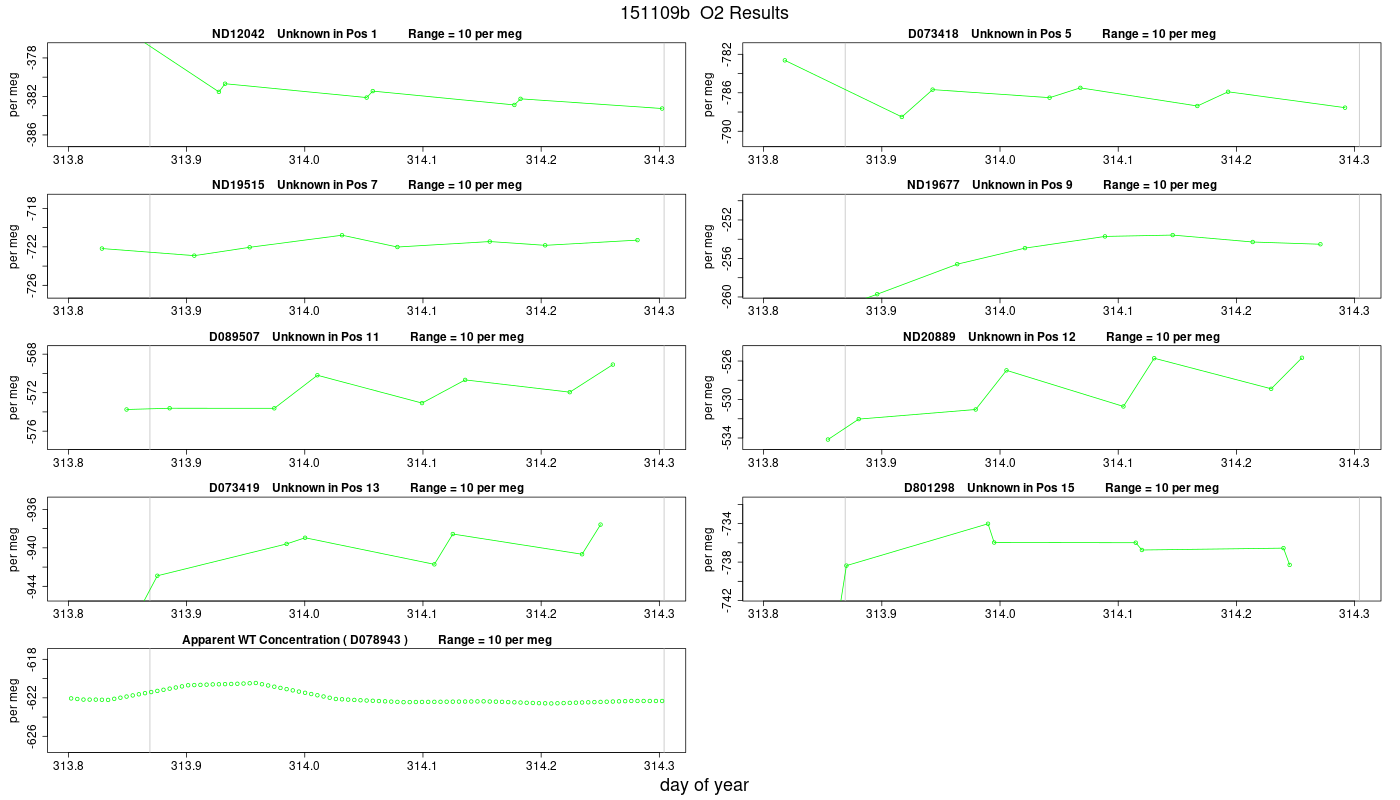

O2 Results

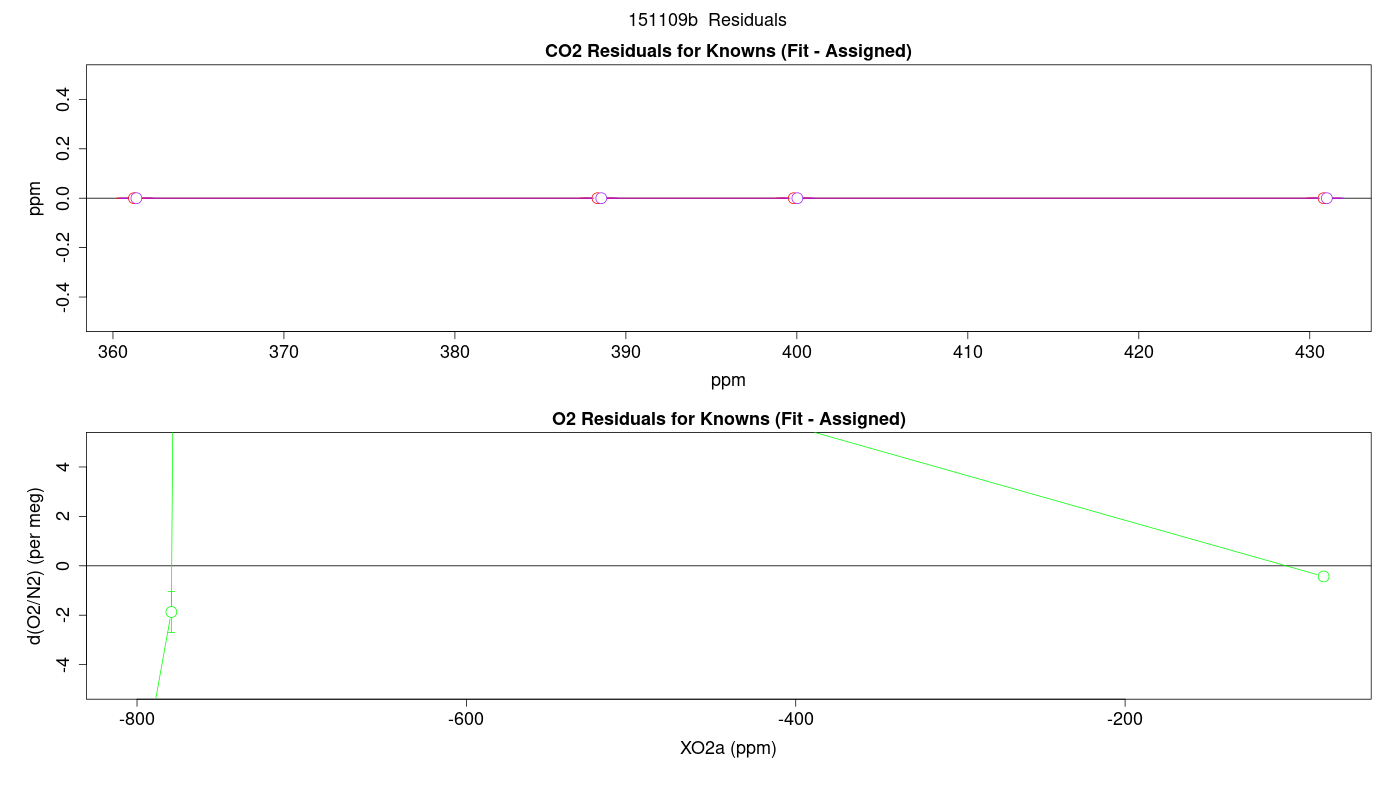

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

2 CA07857 361.230 0.000 0.000 361.370 0.000 0.000 7 -4698.75 12.73 0.48 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
6 CA07809 399.820 0.000 0.000 400.030 0.000 0.000 7 -4670.85 -1.87 0.83 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 7 -454.95 -0.43 0.02 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
10 CA07825 430.810 0.000 0.000 431.000 0.000 0.000 7 -4777.54 -10.30 0.52 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

1 ND12042    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.808 398.944 0.016 -371.78 1.82 399.155 0.016
313.927 398.935 0.013 -381.53 1.91 399.147 0.013
313.933 398.941 0.008 -380.68 2.18 399.152 0.008
314.052 398.933 0.009 -382.12 2.31 399.144 0.009
314.058 398.944 0.013 -381.45 1.92 399.155 0.013
314.177 398.923 0.014 -382.88 2.41 399.134 0.014
314.183 398.928 0.008 -382.25 2.04 399.139 0.008
314.302 398.930 0.010 -383.26 2.12 399.141 0.010

5 D073418    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.818 413.094 0.010 -782.63 2.31 413.286 0.010
313.917 413.067 0.015 -788.51 1.94 413.259 0.015
313.943 413.091 0.013 -785.67 1.84 413.283 0.013
314.042 413.065 0.013 -786.51 1.59 413.257 0.013
314.068 413.103 0.008 -785.49 1.90 413.295 0.008
314.167 413.091 0.012 -787.37 2.01 413.283 0.012
314.193 413.085 0.010 -785.90 2.02 413.277 0.010
314.292 413.064 0.011 -787.55 2.01 413.256 0.011

7 ND19515    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.828 450.948 0.014 -722.18 2.18 451.209 0.014
313.907 451.020 0.012 -722.91 2.57 451.281 0.012
313.953 451.051 0.014 -722.05 1.99 451.312 0.014
314.032 451.144 0.020 -720.79 1.87 451.405 0.020
314.078 451.017 0.015 -722.02 1.63 451.278 0.015
314.157 451.065 0.017 -721.45 1.98 451.326 0.017
314.203 451.011 0.012 -721.84 1.85 451.272 0.012
314.282 451.128 0.015 -721.30 2.04 451.389 0.015

9 ND19677    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.839 370.536 0.011 -262.26 3.09 370.728 0.011
313.896 370.572 0.014 -259.71 1.83 370.764 0.014
313.964 370.547 0.012 -256.59 1.92 370.739 0.012
314.021 370.594 0.018 -254.92 1.77 370.786 0.018
314.089 370.560 0.010 -253.71 2.03 370.752 0.010
314.146 370.583 0.017 -253.57 2.14 370.775 0.017
314.214 370.562 0.011 -254.29 2.29 370.754 0.011
314.271 370.596 0.013 -254.52 2.16 370.787 0.013

11 D089507    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.849 428.075 0.011 -573.75 2.04 428.262 0.011
313.886 428.068 0.013 -573.62 2.56 428.255 0.013
313.974 428.064 0.012 -573.63 2.77 428.251 0.012
314.011 428.068 0.012 -570.19 2.15 428.255 0.012
314.099 428.072 0.013 -573.08 2.00 428.259 0.013
314.136 428.068 0.016 -570.67 1.81 428.255 0.016
314.224 428.082 0.013 -571.95 1.96 428.270 0.013
314.261 428.071 0.017 -569.08 2.04 428.259 0.017

12 ND20889    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.854 416.153 0.017 -534.16 2.14 416.342 0.017
313.880 416.154 0.012 -532.04 1.77 416.343 0.012
313.979 416.128 0.012 -531.04 2.47 416.317 0.012
314.005 416.150 0.024 -526.97 2.31 416.339 0.024
314.104 416.160 0.011 -530.72 1.95 416.349 0.011
314.130 416.157 0.012 -525.71 1.72 416.346 0.012
314.229 416.157 0.014 -528.89 1.91 416.346 0.014
314.255 416.160 0.011 -525.67 2.09 416.349 0.011

13 D073419    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.860 440.063 0.013 -946.53 2.00 440.273 0.013
313.875 440.051 0.008 -942.90 2.46 440.262 0.008
313.985 440.059 0.012 -939.59 2.15 440.269 0.012
314.000 440.079 0.014 -938.95 2.01 440.289 0.014
314.110 440.054 0.012 -941.71 2.09 440.264 0.012
314.125 440.073 0.014 -938.56 1.85 440.284 0.014
314.235 440.071 0.011 -940.66 2.09 440.281 0.011
314.250 440.083 0.012 -937.58 2.07 440.293 0.012

15 D801298    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
313.865 426.228 0.013 -742.42 2.21 426.414 0.013
313.870 426.242 0.015 -738.37 2.35 426.428 0.015
313.990 426.236 0.010 -734.02 2.46 426.422 0.010
313.995 426.218 0.009 -735.97 1.81 426.404 0.009
314.115 426.242 0.010 -735.99 2.42 426.428 0.010
314.120 426.246 0.012 -736.74 2.49 426.432 0.012
314.240 426.249 0.015 -736.55 2.33 426.435 0.015
314.245 426.250 0.014 -738.29 2.11 426.436 0.014
