UEA CRAM Lab O2 and CO2 calibration results
RUN = 151028b
PROCESSED: 12:08:28 Wed 2Aug2023

Notes
Logfile

Results

Using data from 301.43 to 301.739 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 ND12042 398.928 0.006 -0.017 399.139 0.006 -0.017 5 -382.30 0.66 2.09 5
3 CC180655 358.440 0.013 -0.110 358.558 0.013 -0.110 5 -416.47 0.90 8.69 5
5 CC177811 383.408 0.026 0.169 383.627 0.026 0.169 5 -402.84 1.05 7.13 5
7 ND19515 451.016 0.091 0.501 451.278 0.090 0.500 5 -720.98 0.78 7.17 5
9 ND19677 370.568 0.020 0.006 370.760 0.020 0.005 5 -253.59 0.54 0.39 5
11 D842554 397.710 0.007 -0.048 397.923 0.007 -0.047 5 -902.16 1.79 -15.16 5
12 D88474 409.322 0.016 -0.146 409.519 0.016 -0.146 5 -518.25 8.34 -44.19 5
13 D88471 380.264 0.011 0.082 380.481 0.011 0.082 5 -417.96 1.61 -2.66 5
WT D078943 407.013 0.014 -0.117 407.213 0.014 -0.117 60 -620.21 0.67 6.76 60
Text File

Raw Data and Diagnostics Figures

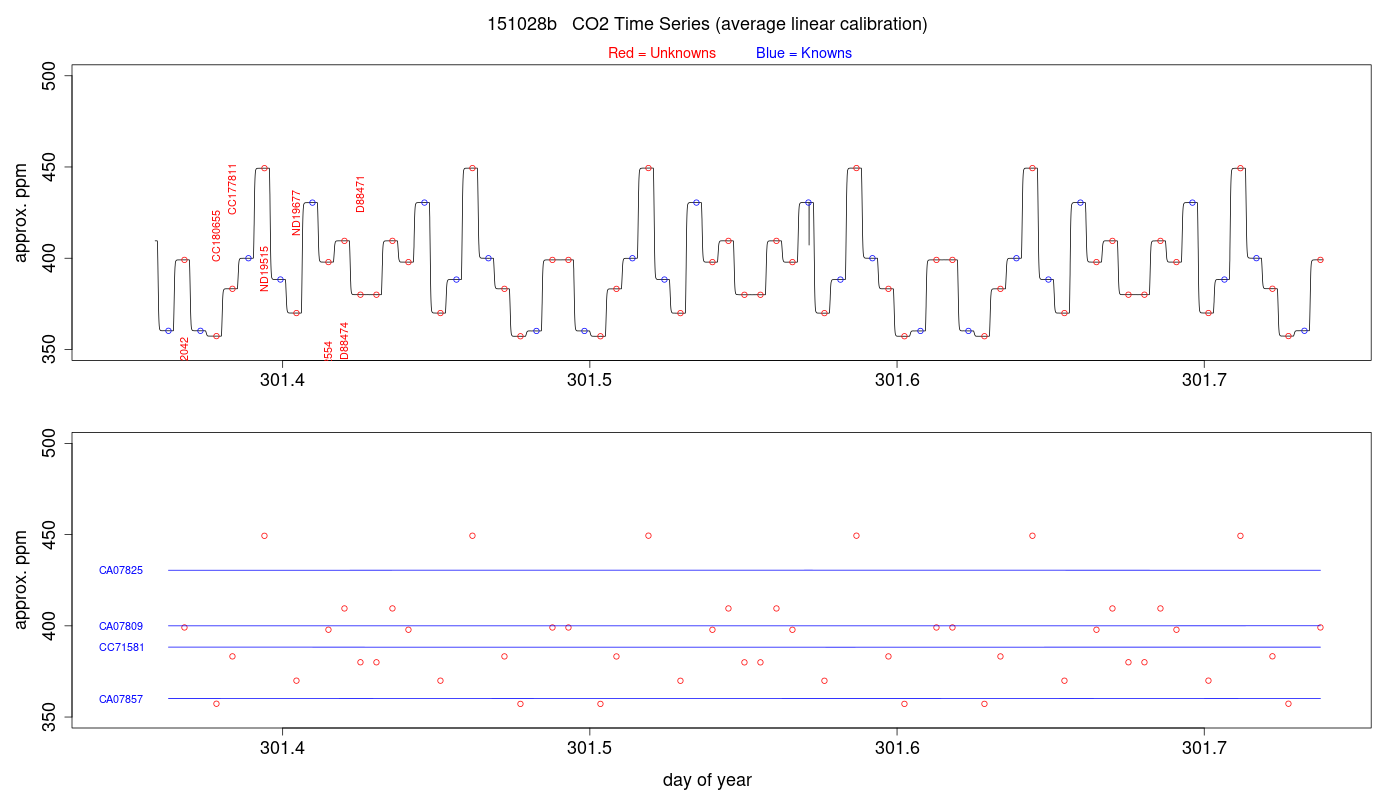

CO2 Timeseries

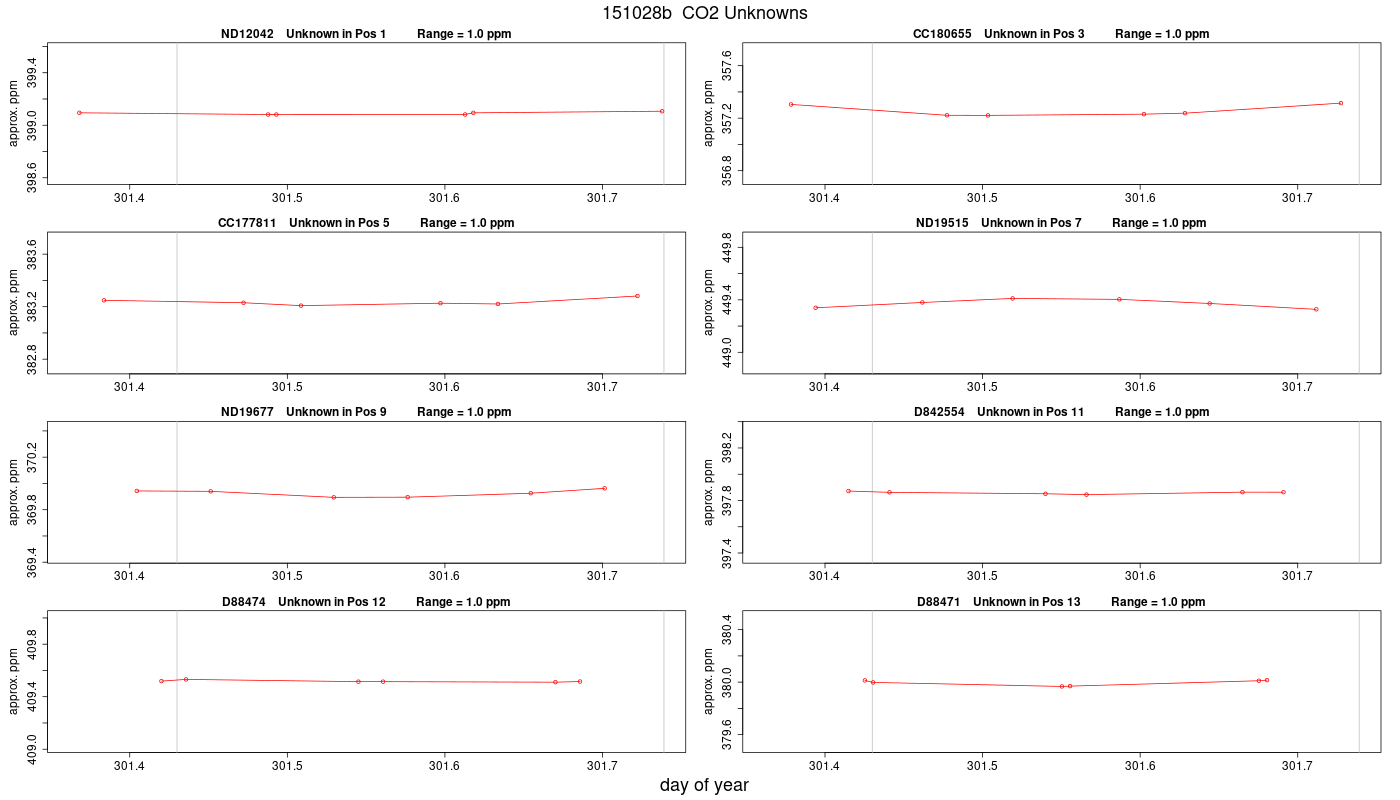

 CO2 Averages for Unknowns

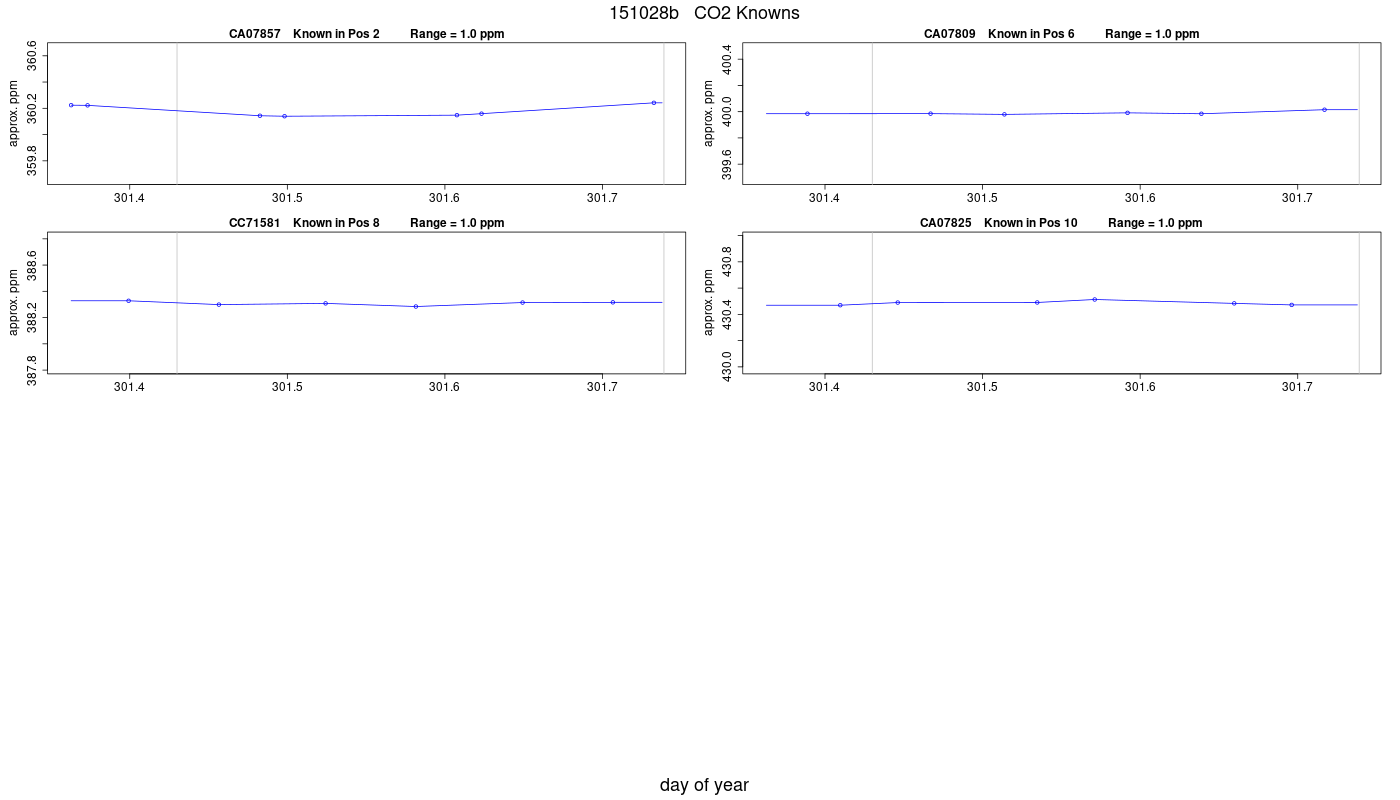

 CO2 Averages for Knowns

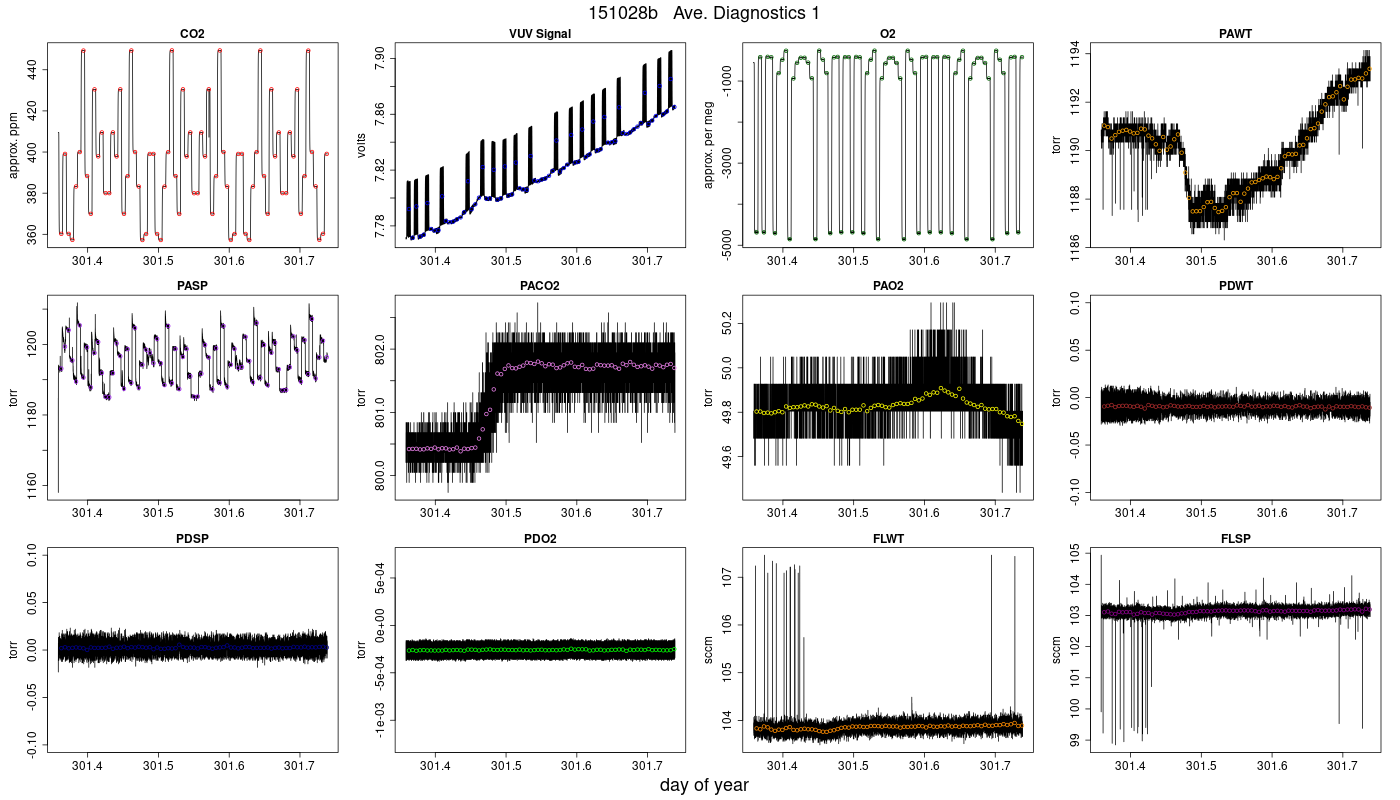

Jog Ave. Diagnostics 1

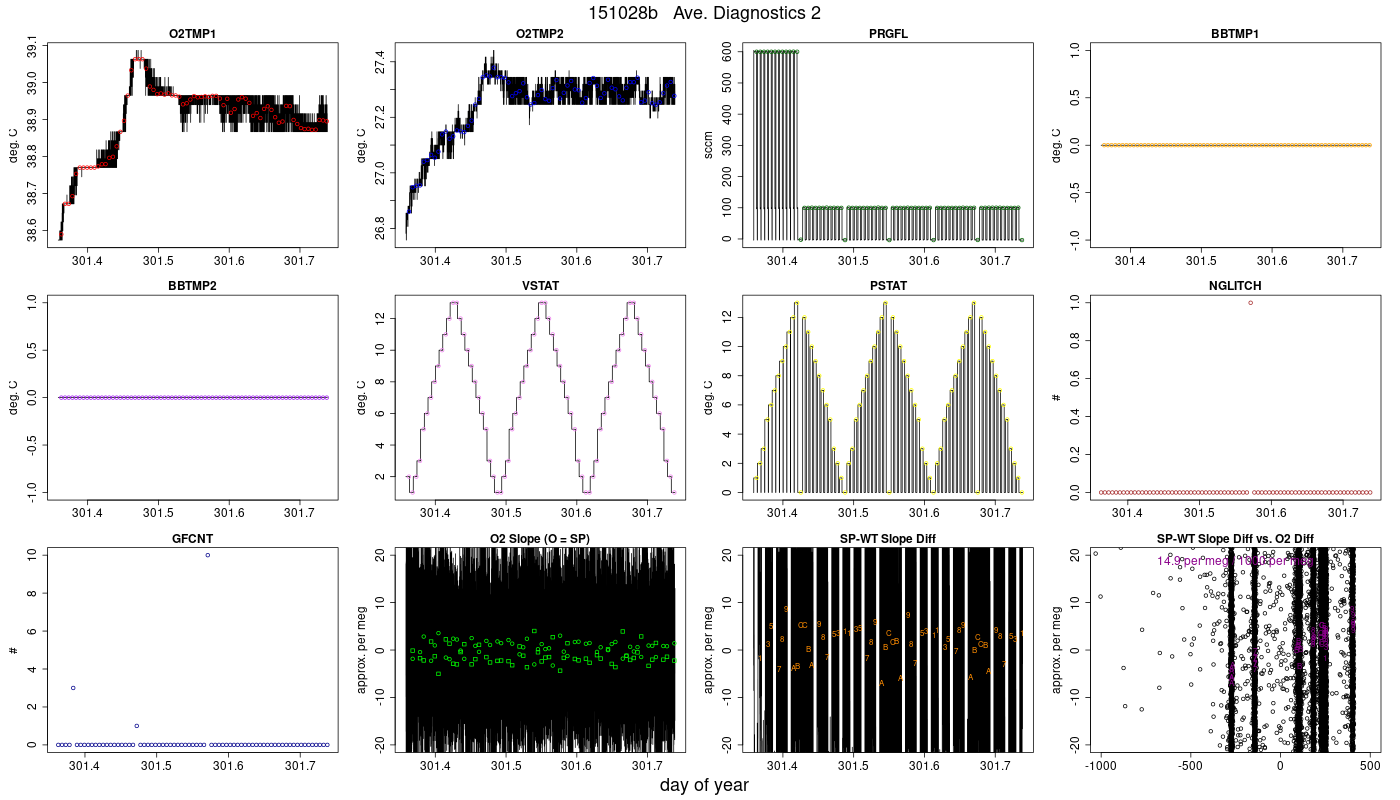

 Jog Ave. Diagnostics 2

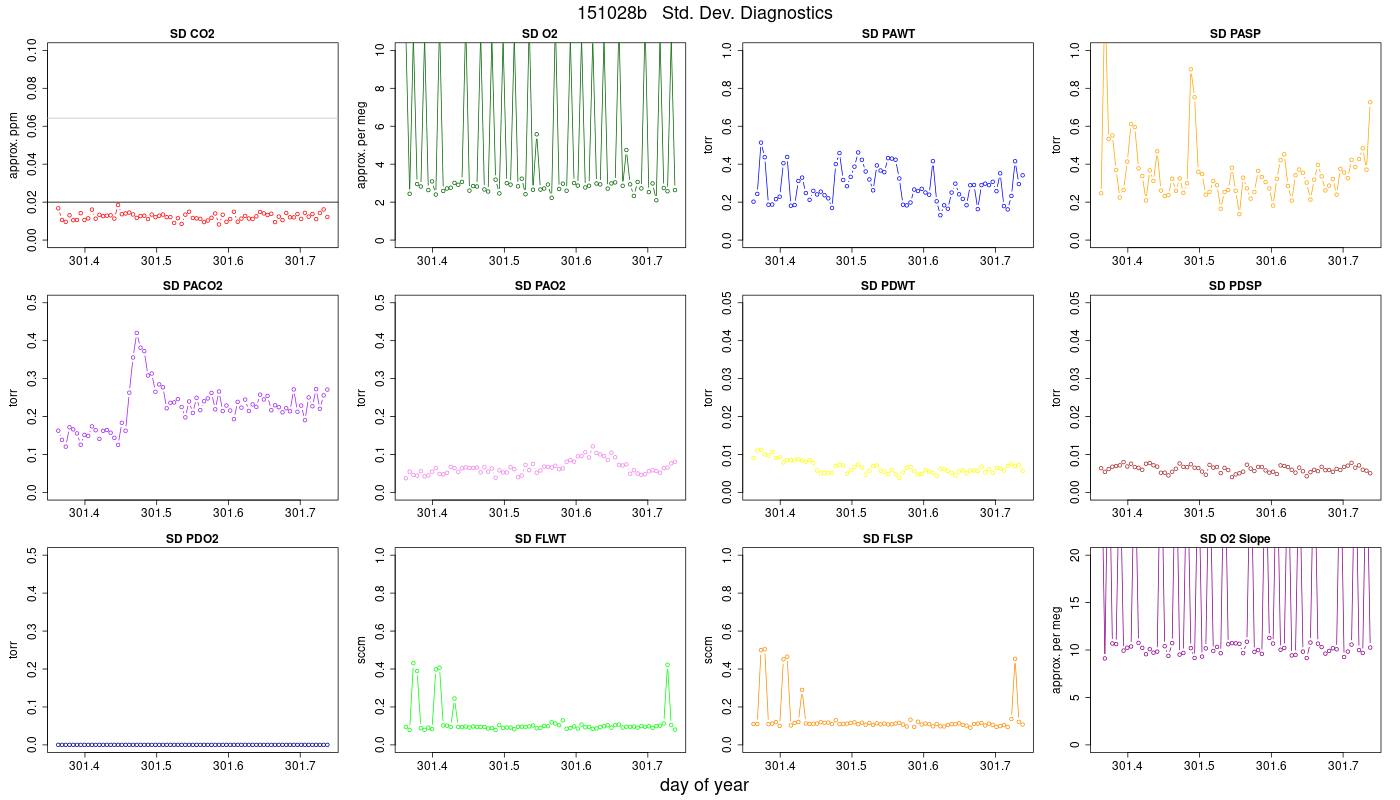

 Jog Std. Dev. Diagnostics

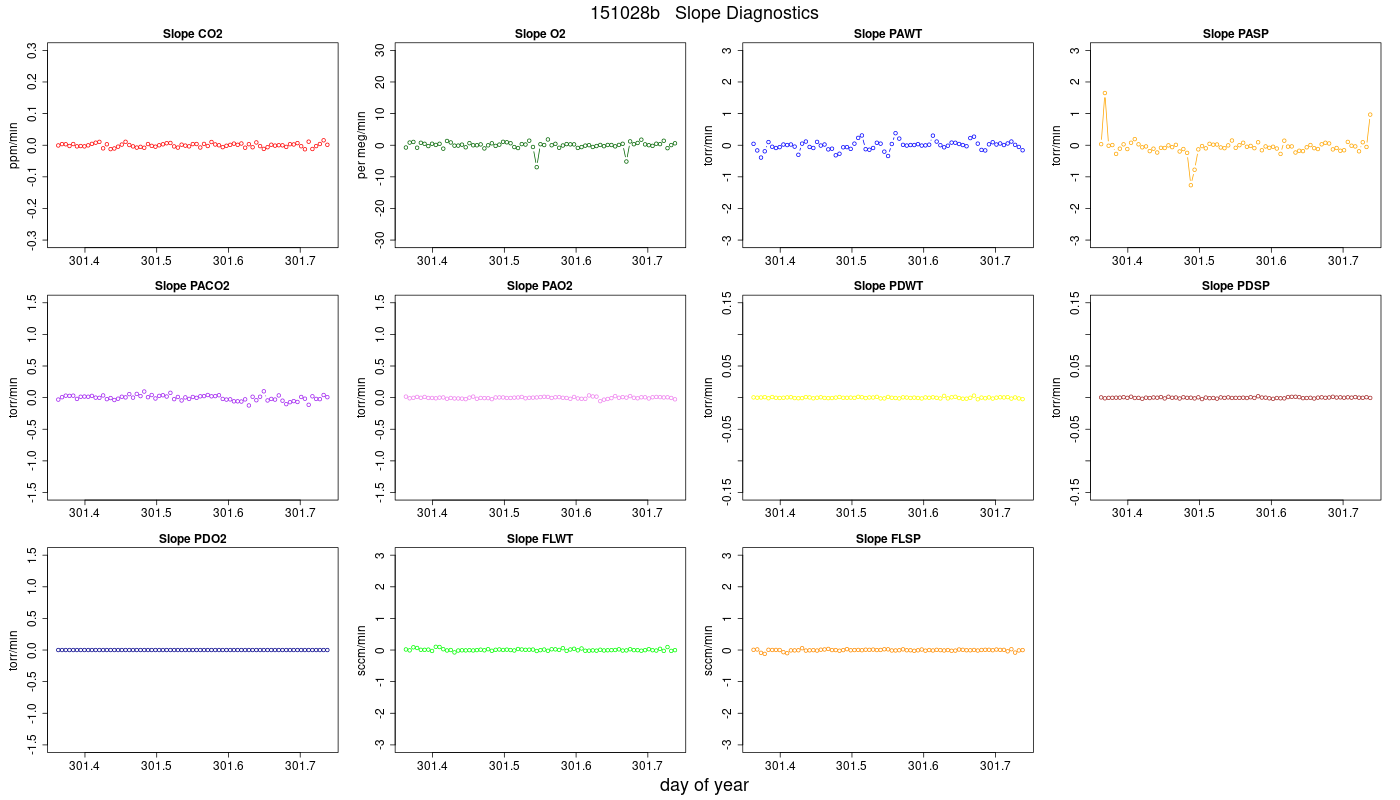

Jog Slope Diagnostics

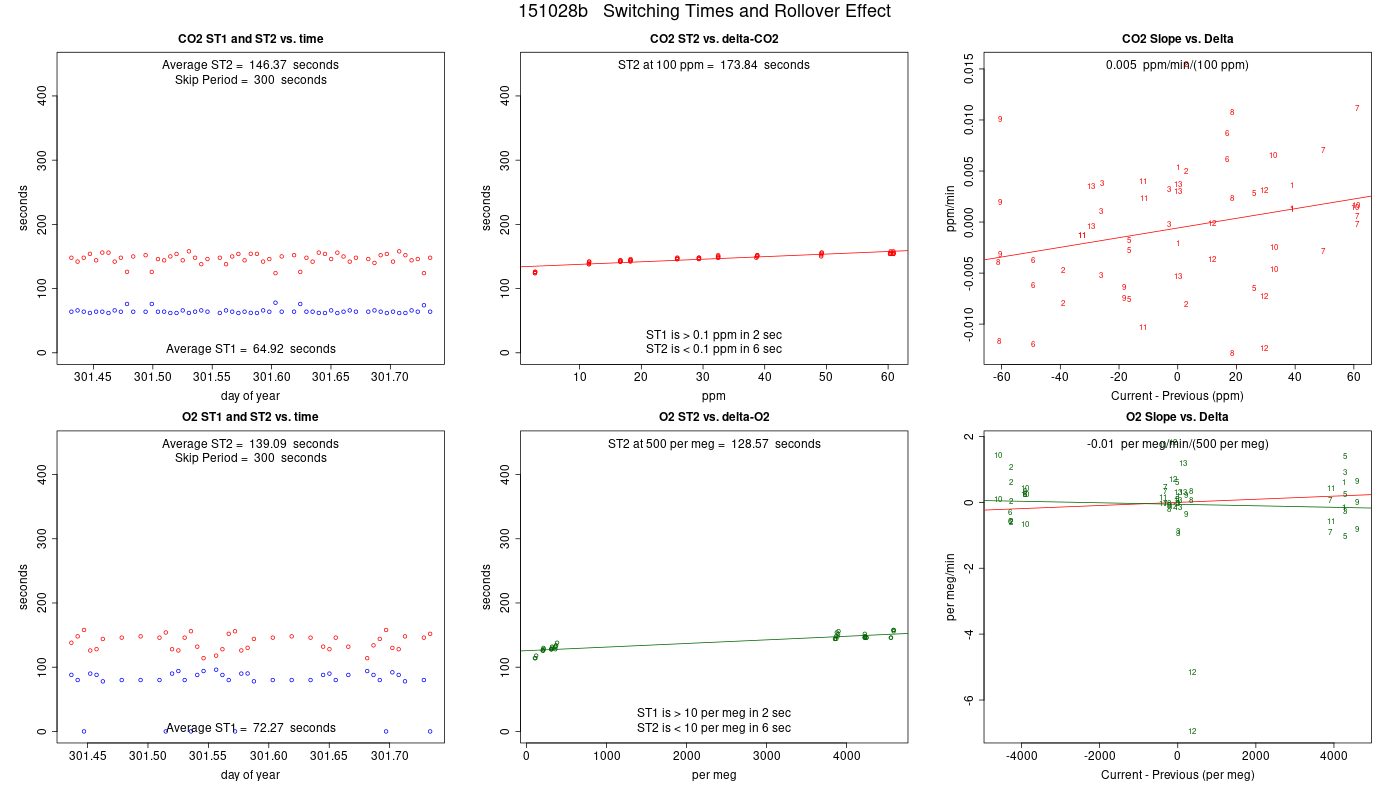

 Rollover Effect

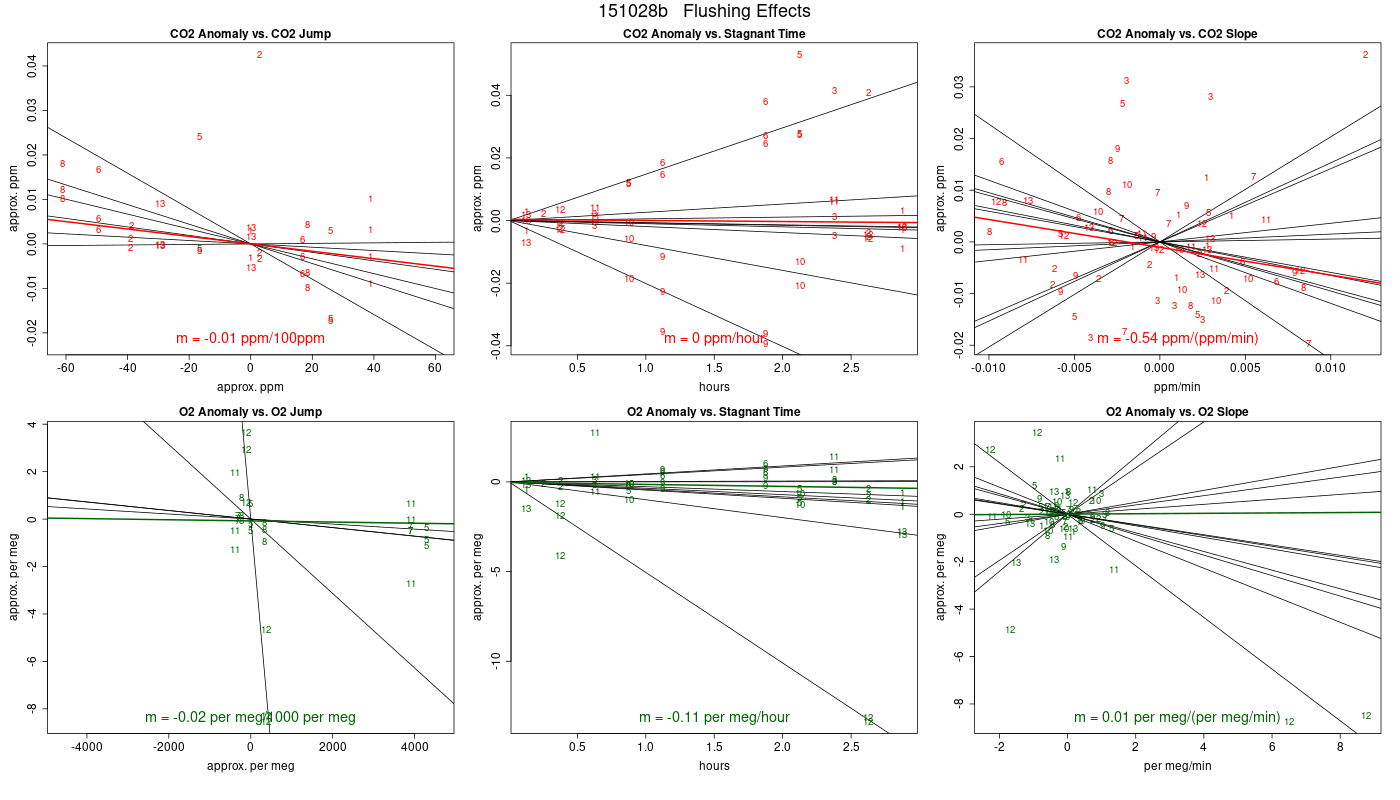

 Flushing Effect

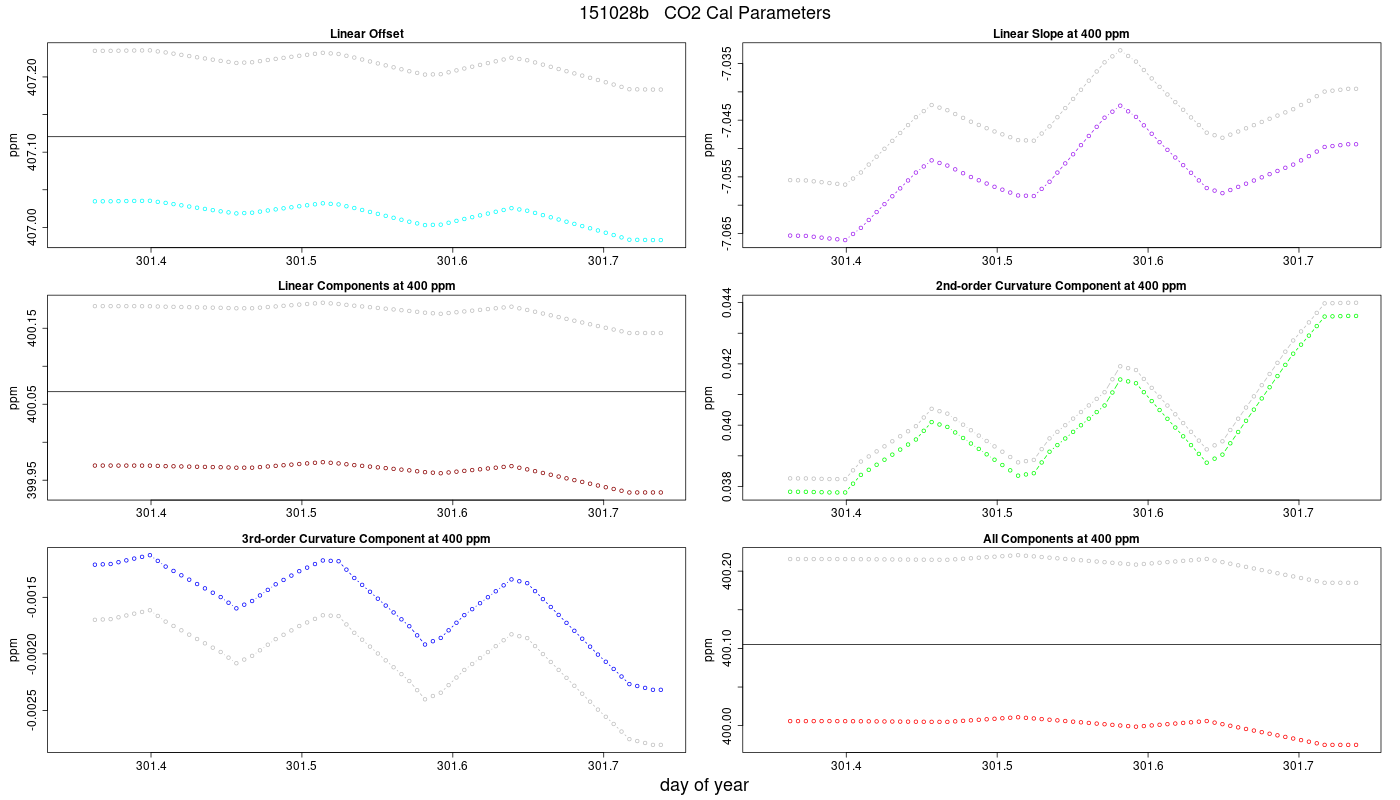

CO2 Parameters

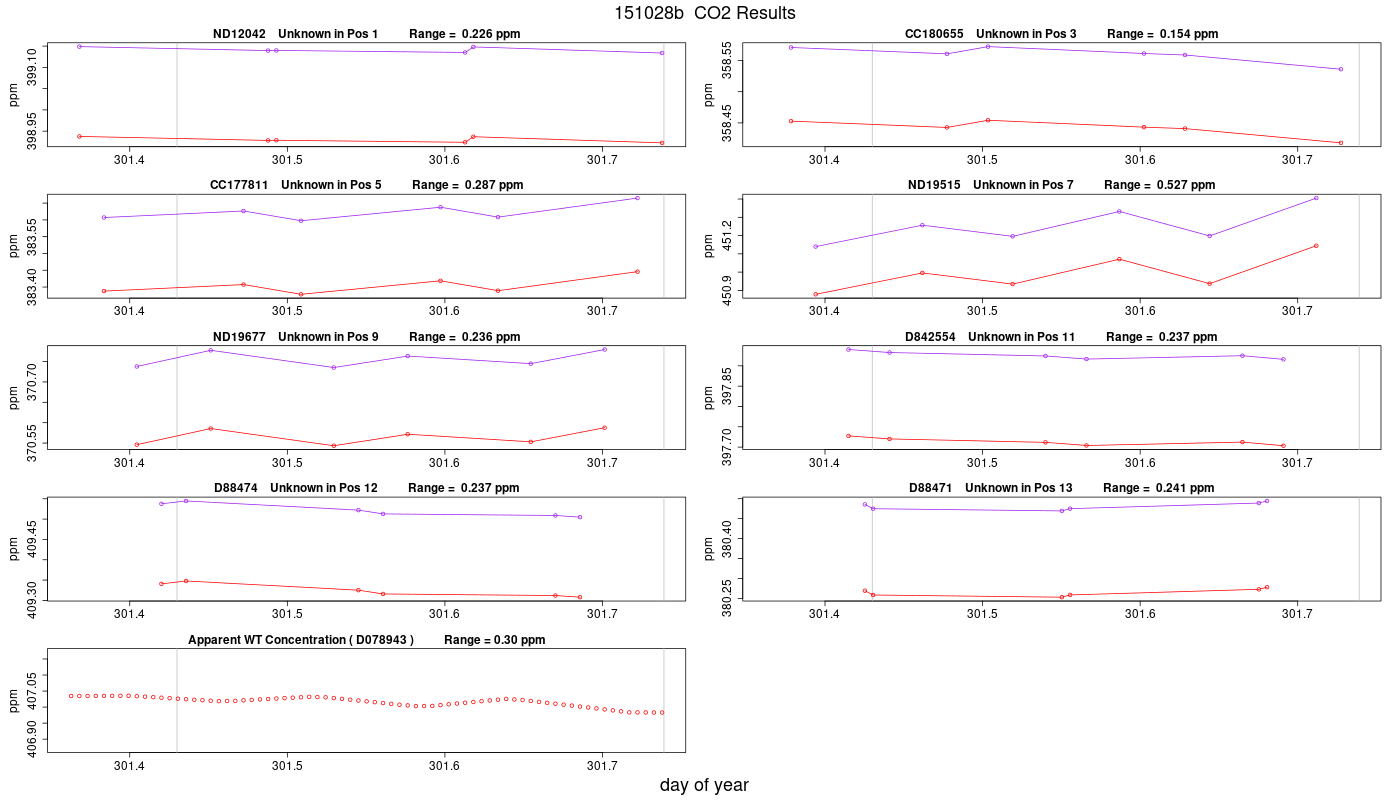

 CO2 Results

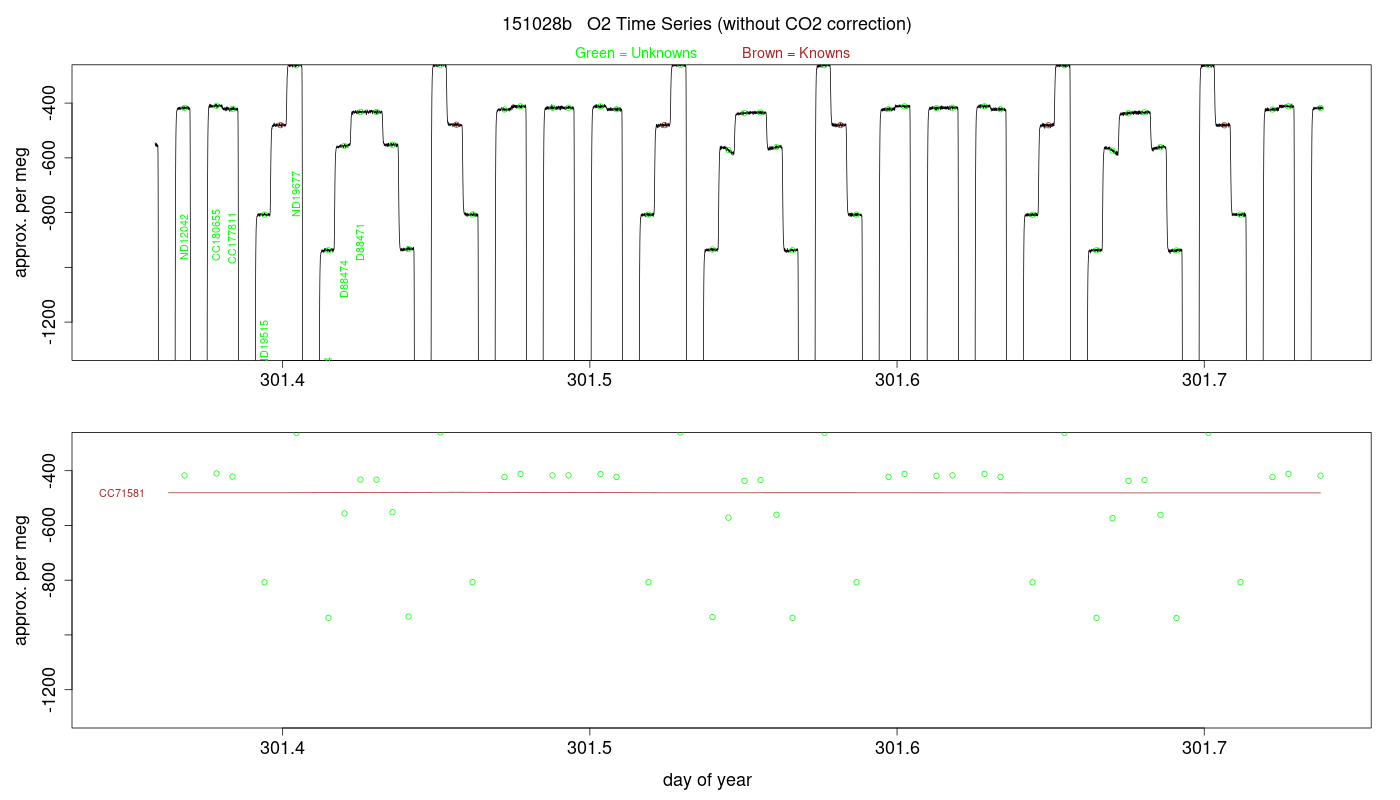

 O2 Timeseries

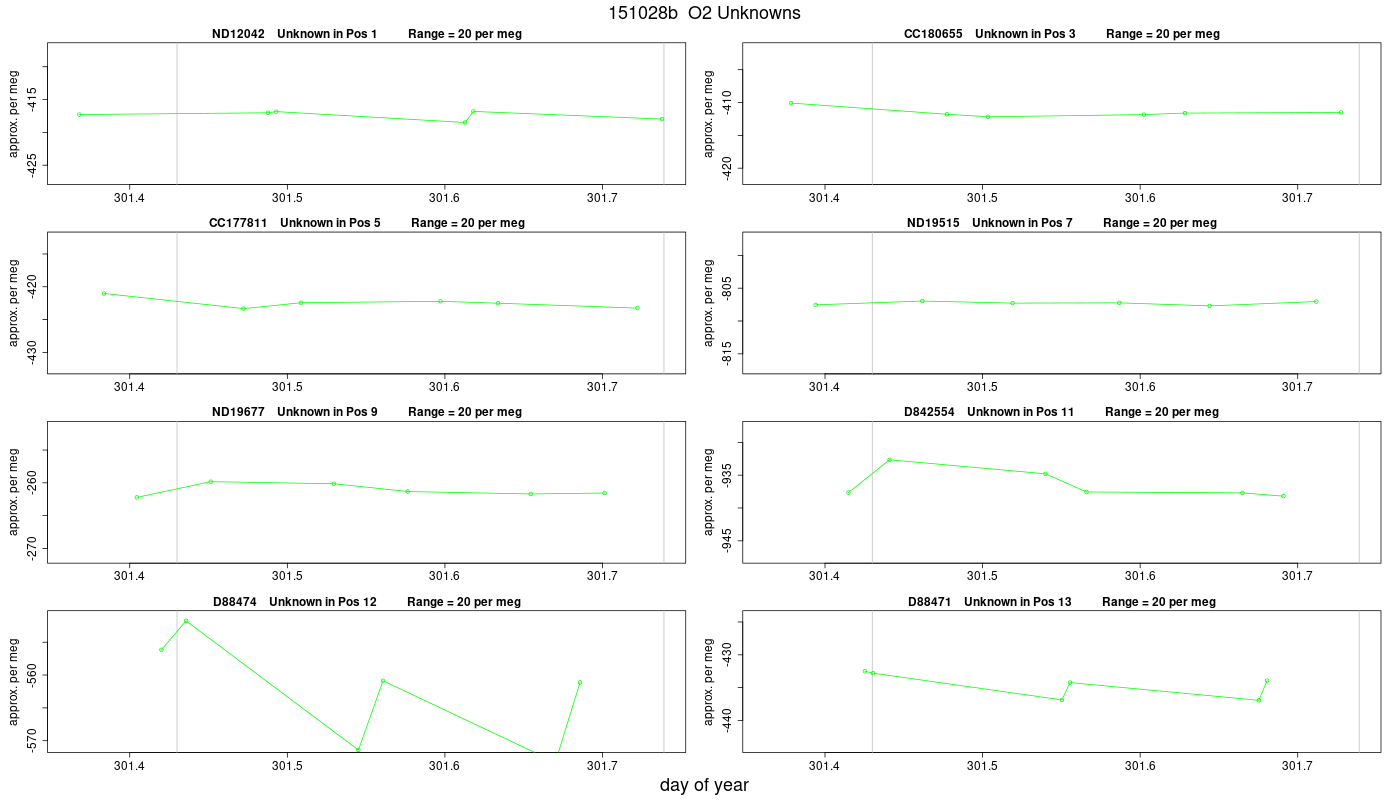

O2 Averages for Unknowns

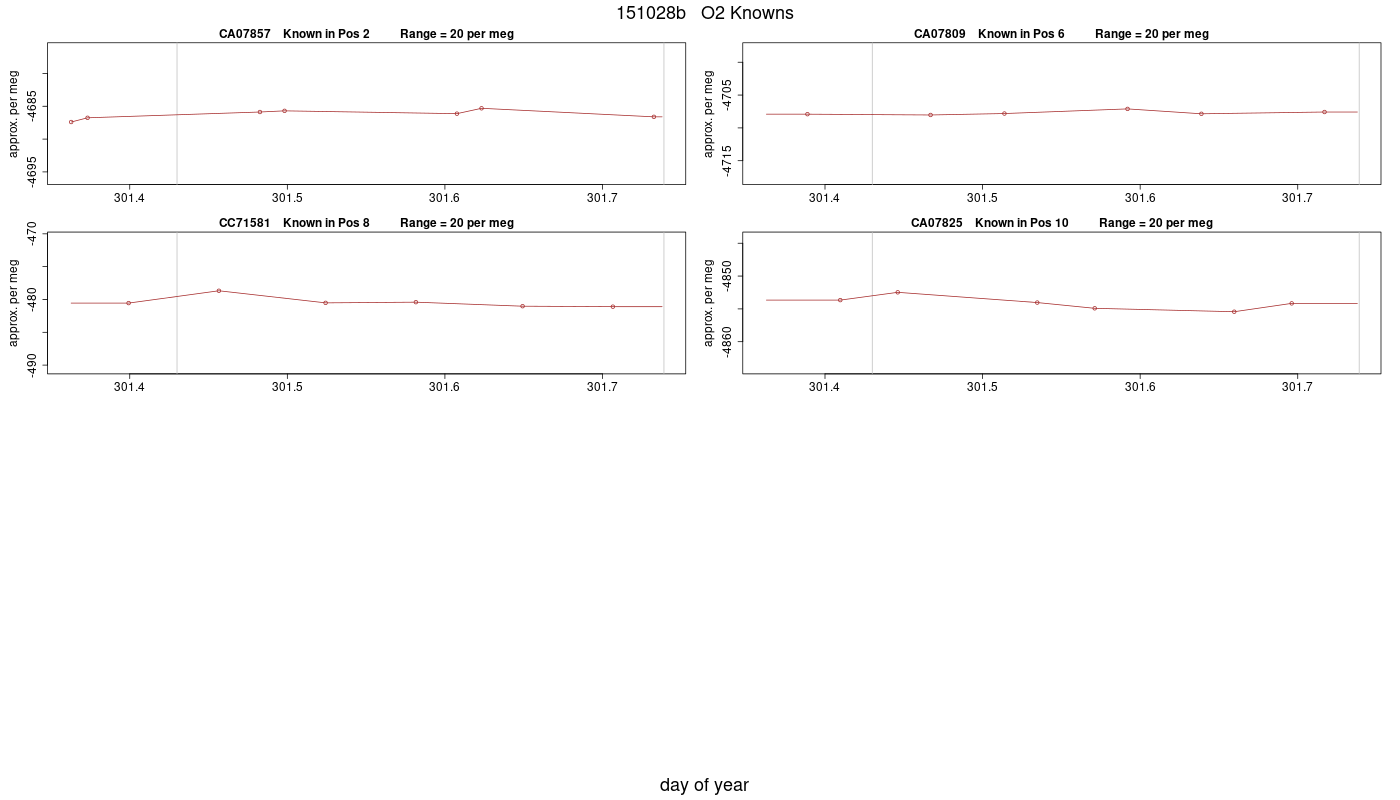

 O2 Averages for Knowns

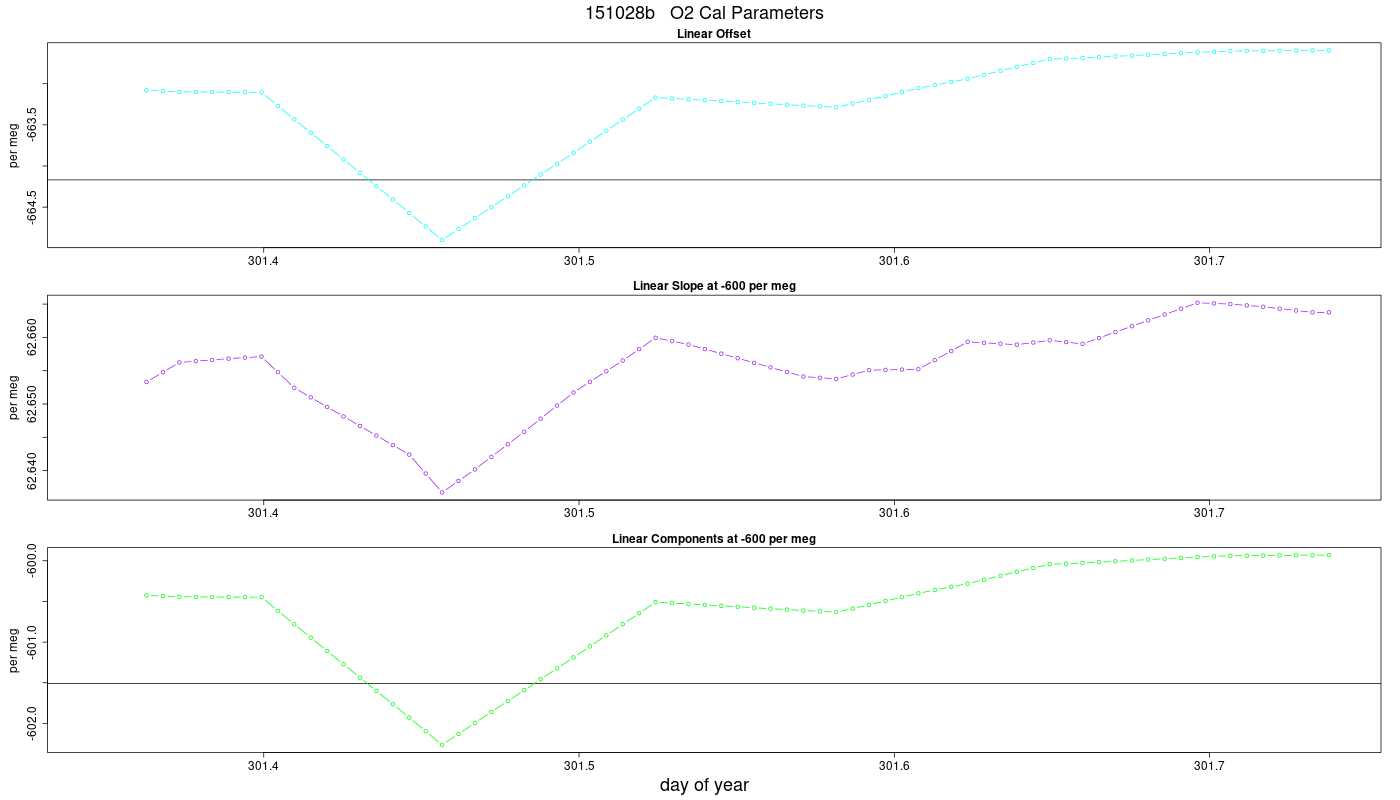

 O2 Parameters

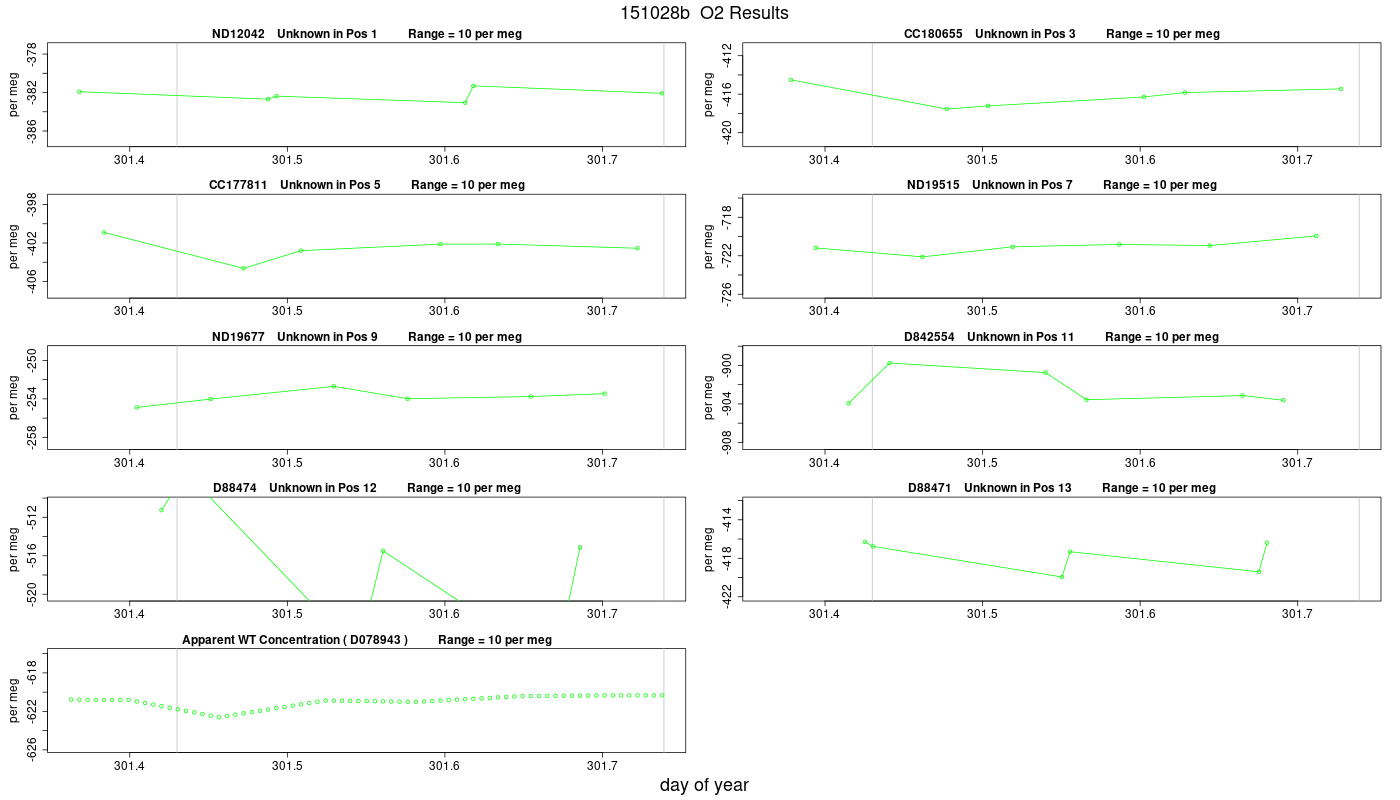

O2 Results

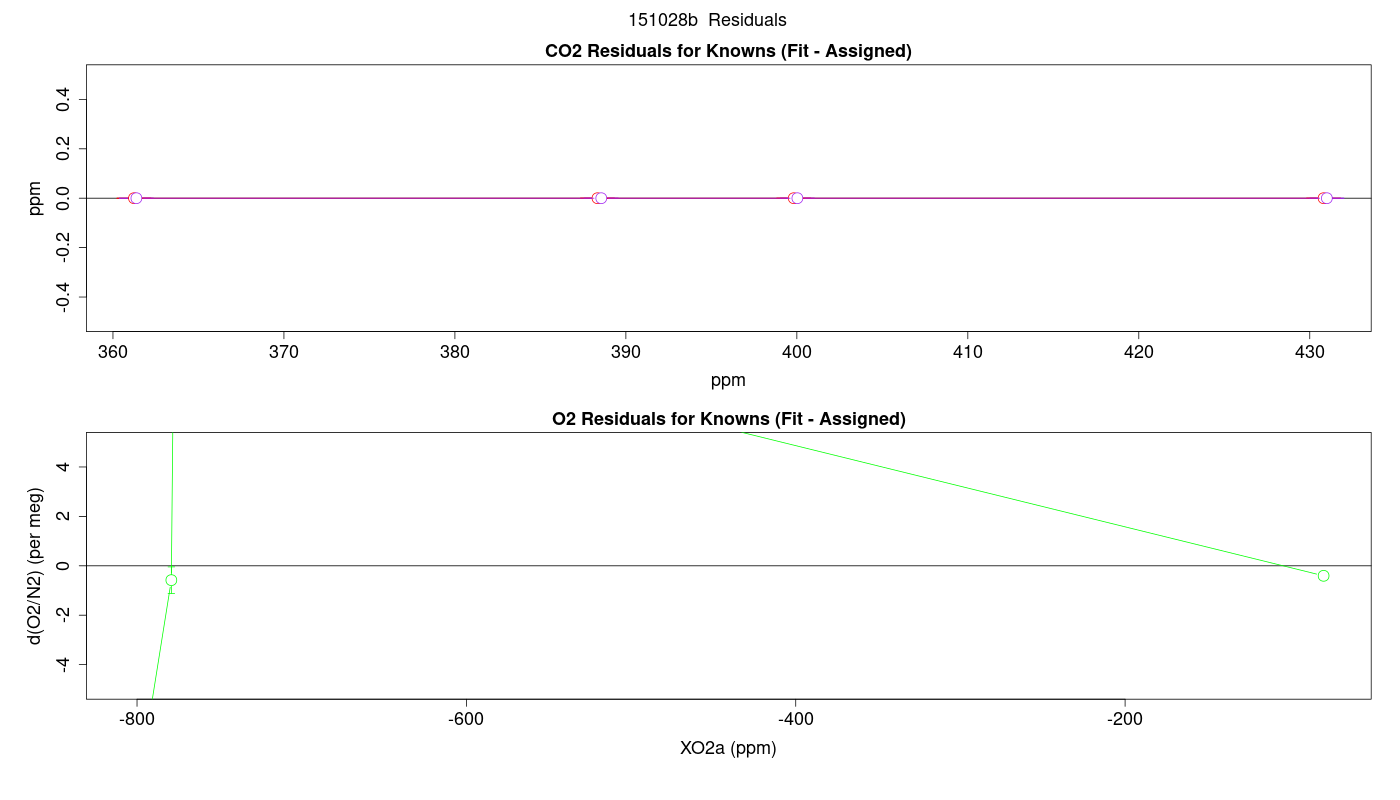

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

2 CA07857 361.230 0.000 0.000 361.370 0.000 0.000 5 -4698.75 11.07 0.47 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
6 CA07809 399.820 0.000 0.000 400.030 0.000 0.000 5 -4670.85 -0.58 0.54 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 5 -454.95 -0.41 0.03 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
10 CA07825 430.810 0.000 0.000 431.000 0.000 0.000 5 -4777.54 -10.06 0.84 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

1 ND12042    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.368 398.938 0.011 -381.91 2.44 399.149 0.011
301.488 398.928 0.011 -382.69 3.18 399.139 0.011
301.493 398.929 0.013 -382.38 2.46 399.140 0.013
301.613 398.924 0.010 -383.06 2.77 399.135 0.010
301.618 398.937 0.011 -381.31 2.86 399.148 0.011
301.738 398.923 0.012 -382.08 2.64 399.134 0.012

3 CC180655    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.378 358.453 0.013 -414.52 2.95 358.571 0.013
301.477 358.443 0.013 -417.55 2.56 358.561 0.013
301.503 358.454 0.013 -417.22 3.00 358.572 0.013
301.602 358.443 0.011 -416.29 2.87 358.561 0.011
301.628 358.441 0.011 -415.83 2.98 358.559 0.011
301.727 358.418 0.014 -415.45 2.57 358.536 0.014

5 CC177811    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.384 383.388 0.010 -400.90 2.82 383.607 0.010
301.472 383.407 0.012 -404.64 2.67 383.626 0.012
301.509 383.378 0.013 -402.79 2.92 383.597 0.013
301.597 383.419 0.010 -402.12 3.01 383.638 0.010
301.634 383.389 0.011 -402.11 2.93 383.608 0.011
301.722 383.446 0.011 -402.54 2.74 383.665 0.011

7 ND19515    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.394 450.879 0.014 -721.18 2.63 451.140 0.014
301.462 450.996 0.014 -722.11 2.82 451.257 0.014
301.519 450.934 0.012 -721.07 2.83 451.196 0.012
301.587 451.071 0.008 -720.82 2.60 451.332 0.008
301.644 450.937 0.015 -720.94 2.71 451.198 0.015
301.712 451.144 0.012 -719.94 2.10 451.405 0.012

9 ND19677    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.404 370.546 0.011 -254.89 2.40 370.738 0.011
301.451 370.586 0.014 -254.02 2.61 370.778 0.014
301.529 370.543 0.012 -252.70 2.42 370.735 0.012
301.576 370.572 0.012 -253.99 2.69 370.763 0.012
301.654 370.553 0.013 -253.76 3.04 370.745 0.013
301.701 370.588 0.011 -253.46 2.53 370.780 0.011

11 D842554    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.415 397.728 0.011 -903.95 2.59 397.940 0.011
301.441 397.720 0.011 -899.75 3.07 397.933 0.011
301.540 397.712 0.013 -900.75 2.65 397.924 0.013
301.566 397.704 0.009 -903.56 2.23 397.917 0.009
301.665 397.712 0.009 -903.13 2.86 397.925 0.009
301.691 397.703 0.012 -903.62 2.72 397.916 0.012

12 D88474    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.420 409.341 0.013 -511.26 2.72 409.538 0.013
301.436 409.348 0.013 -507.35 2.92 409.545 0.013
301.545 409.325 0.015 -525.99 5.58 409.522 0.015
301.561 409.316 0.011 -515.49 2.93 409.513 0.011
301.670 409.312 0.012 -527.32 4.75 409.509 0.012
301.686 409.308 0.012 -515.12 3.06 409.505 0.012

13 D88471    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
301.425 380.269 0.013 -416.29 2.76 380.486 0.013
301.431 380.259 0.013 -416.77 3.02 380.475 0.013
301.550 380.253 0.012 -419.94 2.66 380.469 0.012
301.556 380.259 0.011 -417.32 2.72 380.475 0.011
301.675 380.273 0.011 -419.41 2.94 380.489 0.011
301.681 380.278 0.014 -416.38 2.33 380.494 0.014
