UEA CRAM Lab O2 and CO2 calibration results
RUN = 151027b
PROCESSED: 12:06:52 Wed 2Aug2023

Notes
Logfile

Results

Using data from 300.423 to 300.733 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 ND12042 398.932 0.004 -0.031 399.143 0.004 -0.031 5 -382.76 0.58 0.73 5
3 CC180655 358.432 0.013 0.010 358.550 0.013 0.010 5 -415.66 0.62 2.99 5
5 CC177811 383.425 0.012 -0.048 383.644 0.012 -0.048 4 -402.14 0.60 3.22 5
7 ND19515 451.057 0.109 -0.218 451.318 0.109 -0.217 5 -721.36 1.11 9.25 5
9 ND19677 370.559 0.018 -0.083 370.751 0.018 -0.083 5 -253.86 0.91 3.66 5
11 D842554 397.712 0.007 0.002 397.925 0.007 0.002 5 -904.44 1.20 -8.45 5
12 D88474 409.317 0.007 0.019 409.514 0.007 0.019 5 -519.89 7.66 -42.80 5
13 D88471 380.266 0.004 -0.005 380.482 0.004 -0.005 5 -417.69 1.37 -9.52 5
WT D078943 407.015 0.013 -0.004 407.215 0.013 -0.004 60 -621.17 0.78 6.37 60
Text File

Raw Data and Diagnostics Figures

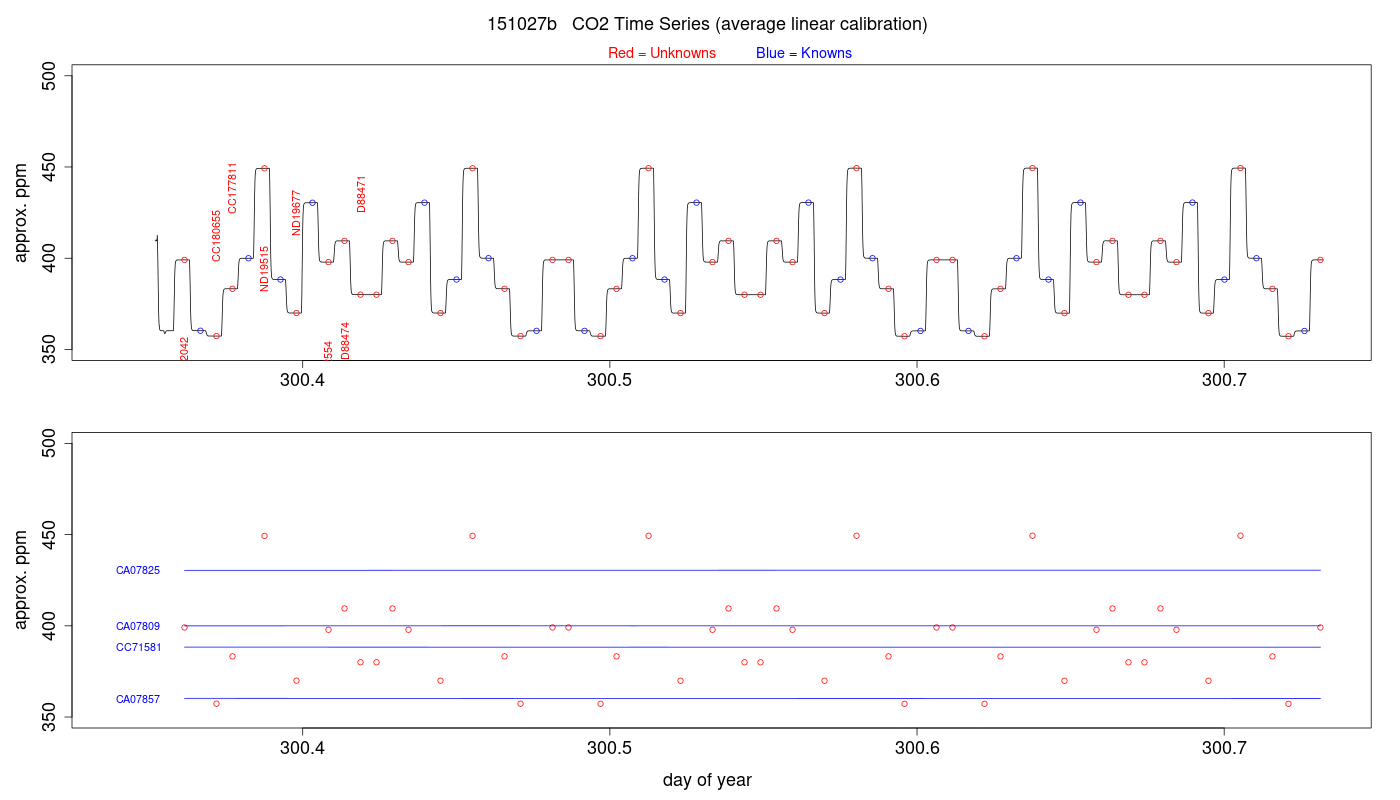

CO2 Timeseries

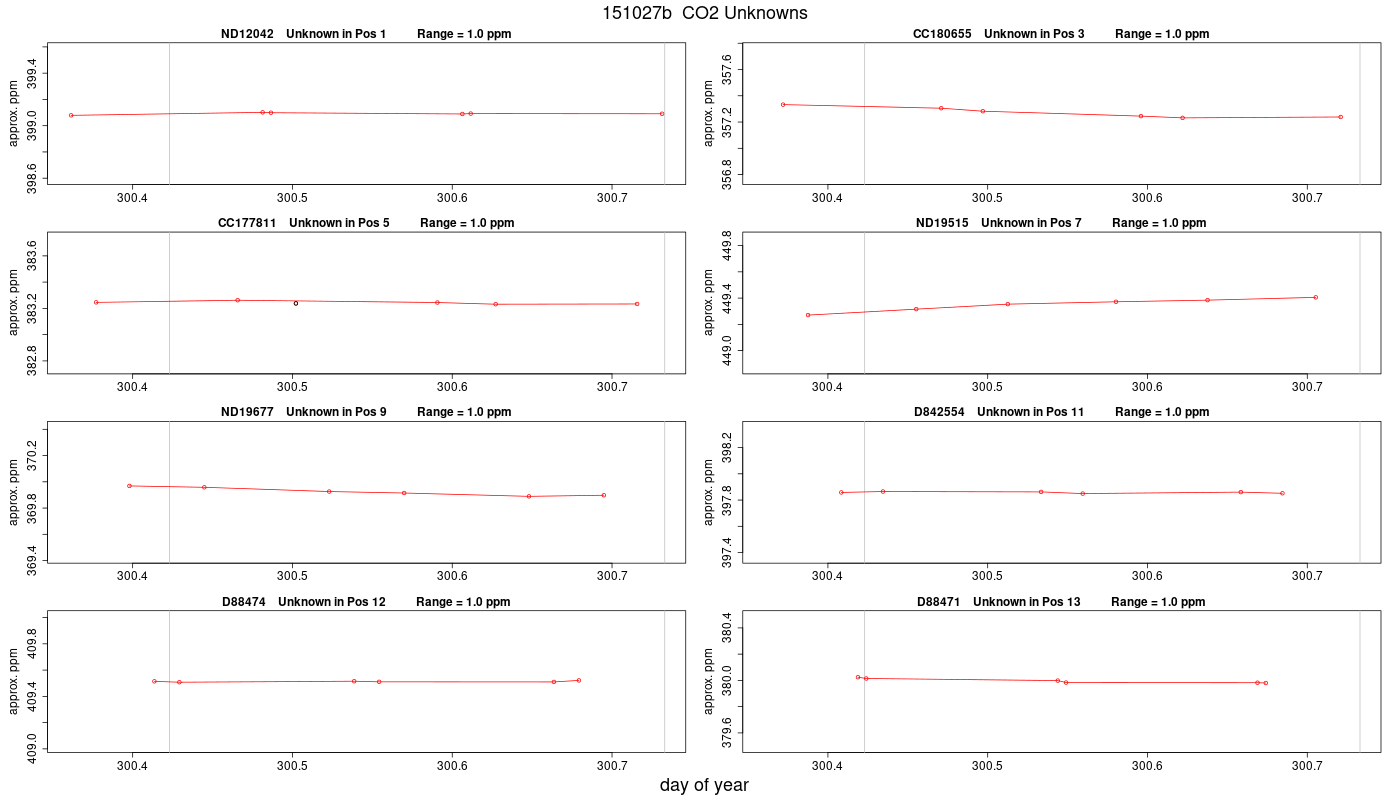

 CO2 Averages for Unknowns
 CO2 Averages for Knowns

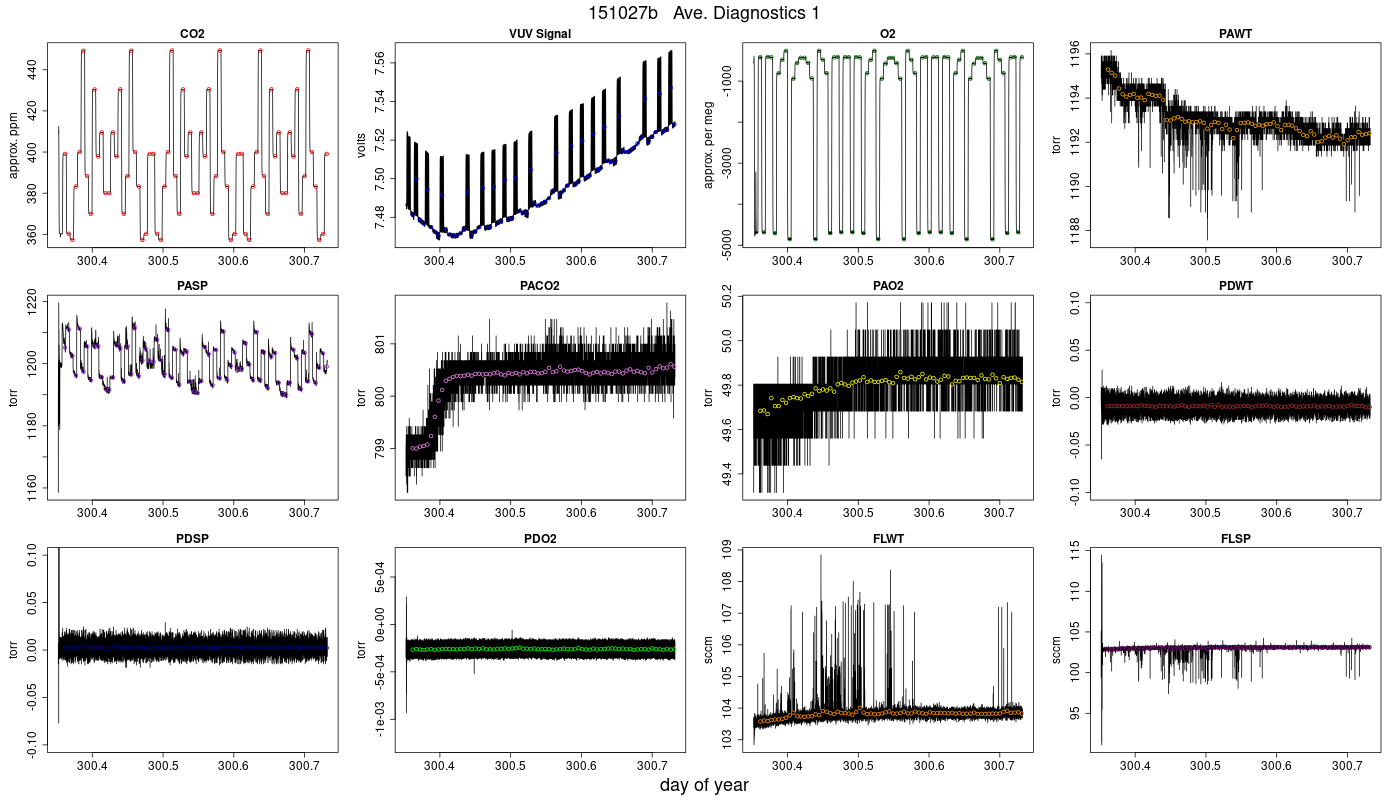

Jog Ave. Diagnostics 1

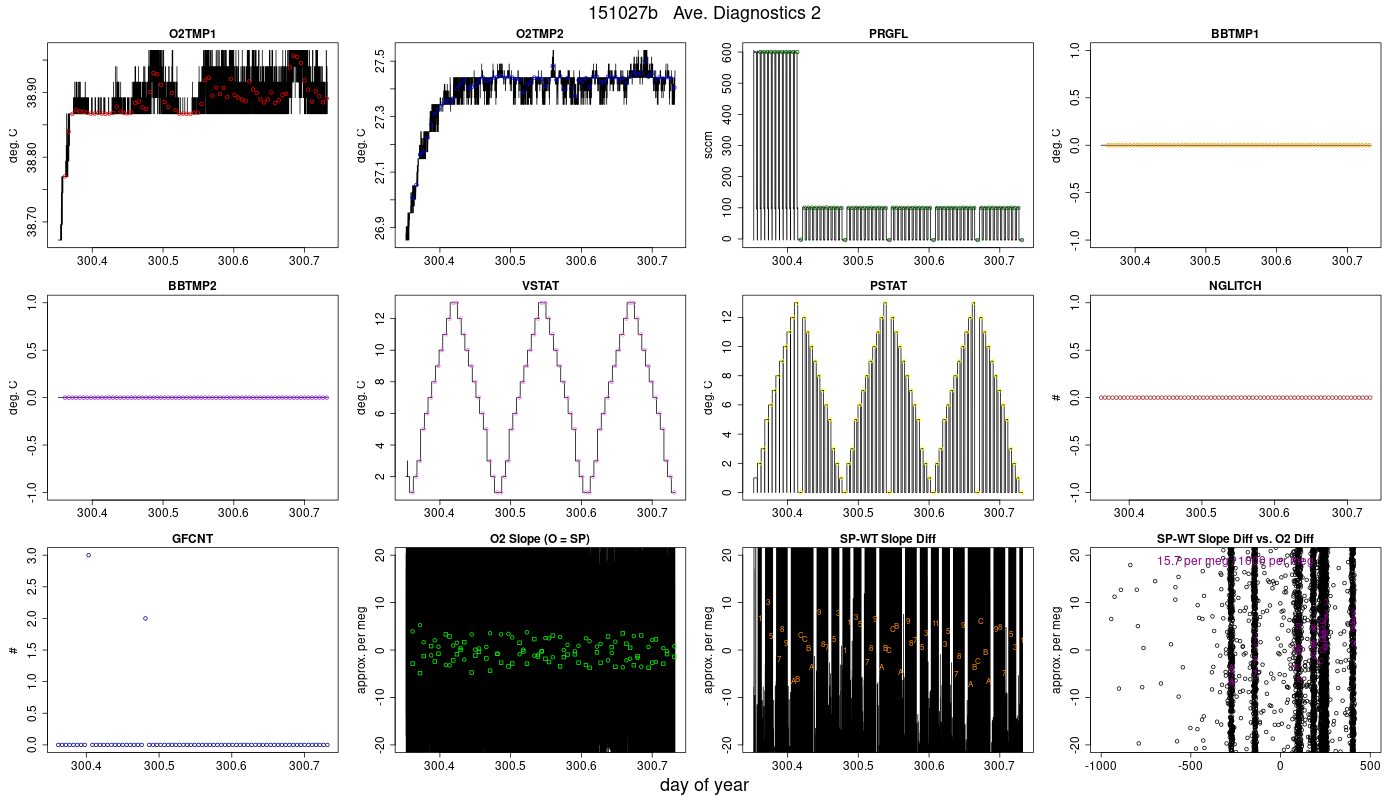

 Jog Ave. Diagnostics 2

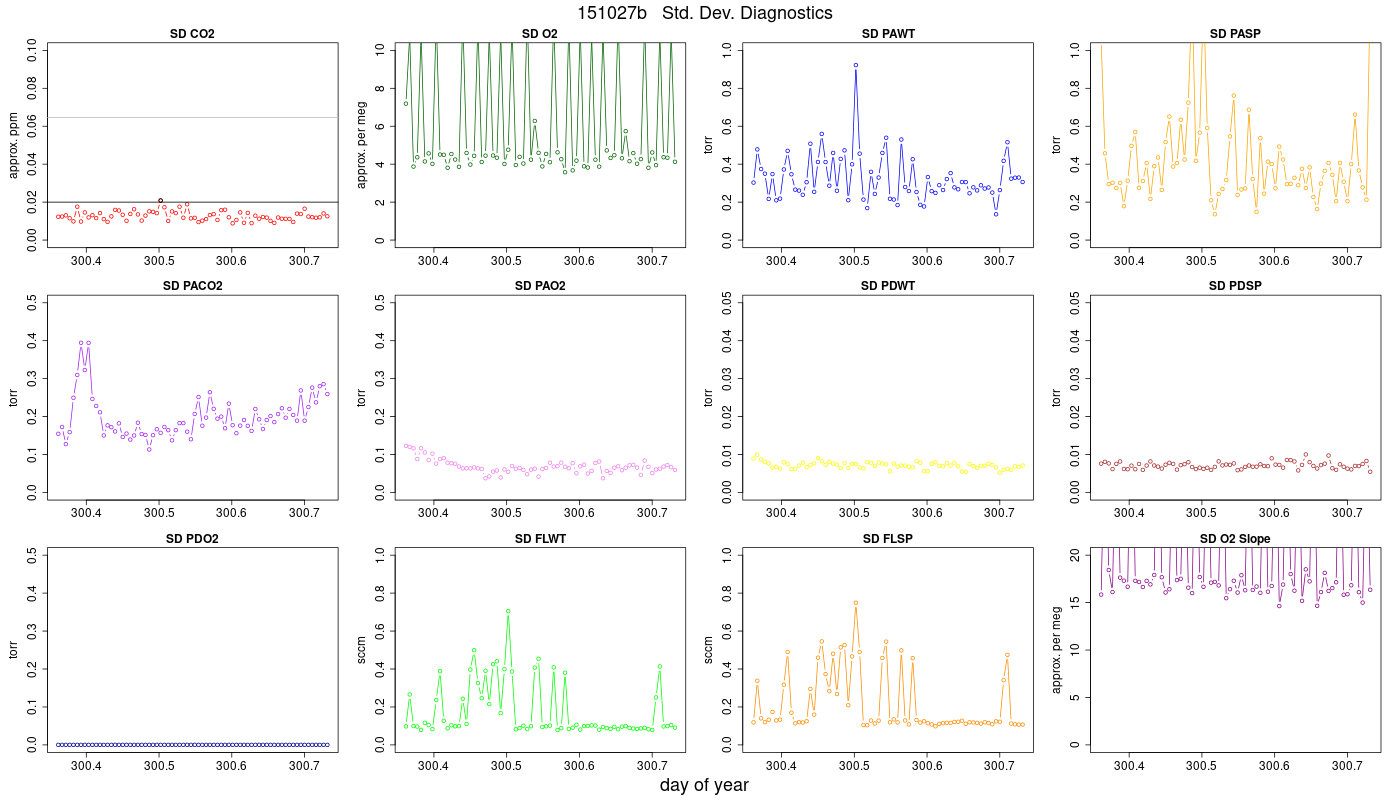

 Jog Std. Dev. Diagnostics

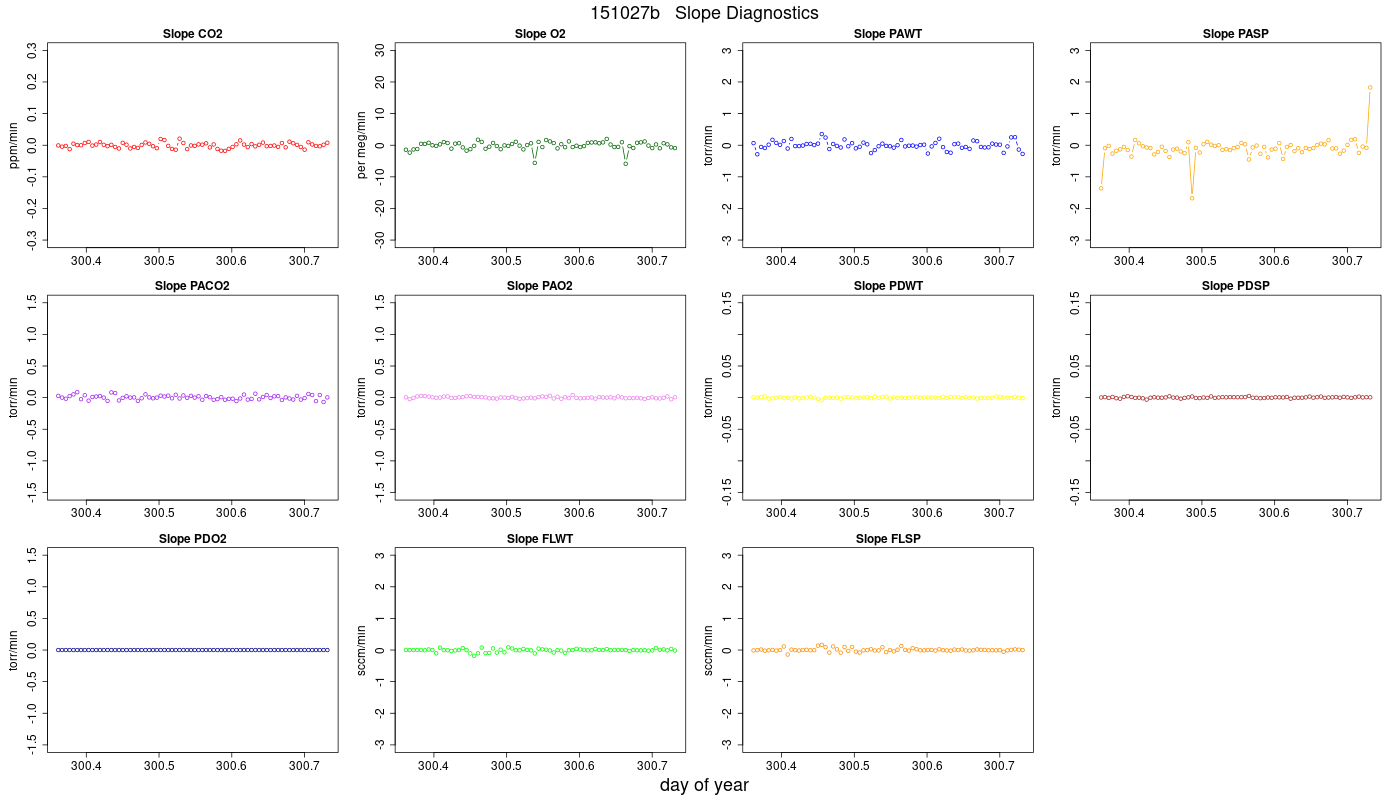

Jog Slope Diagnostics

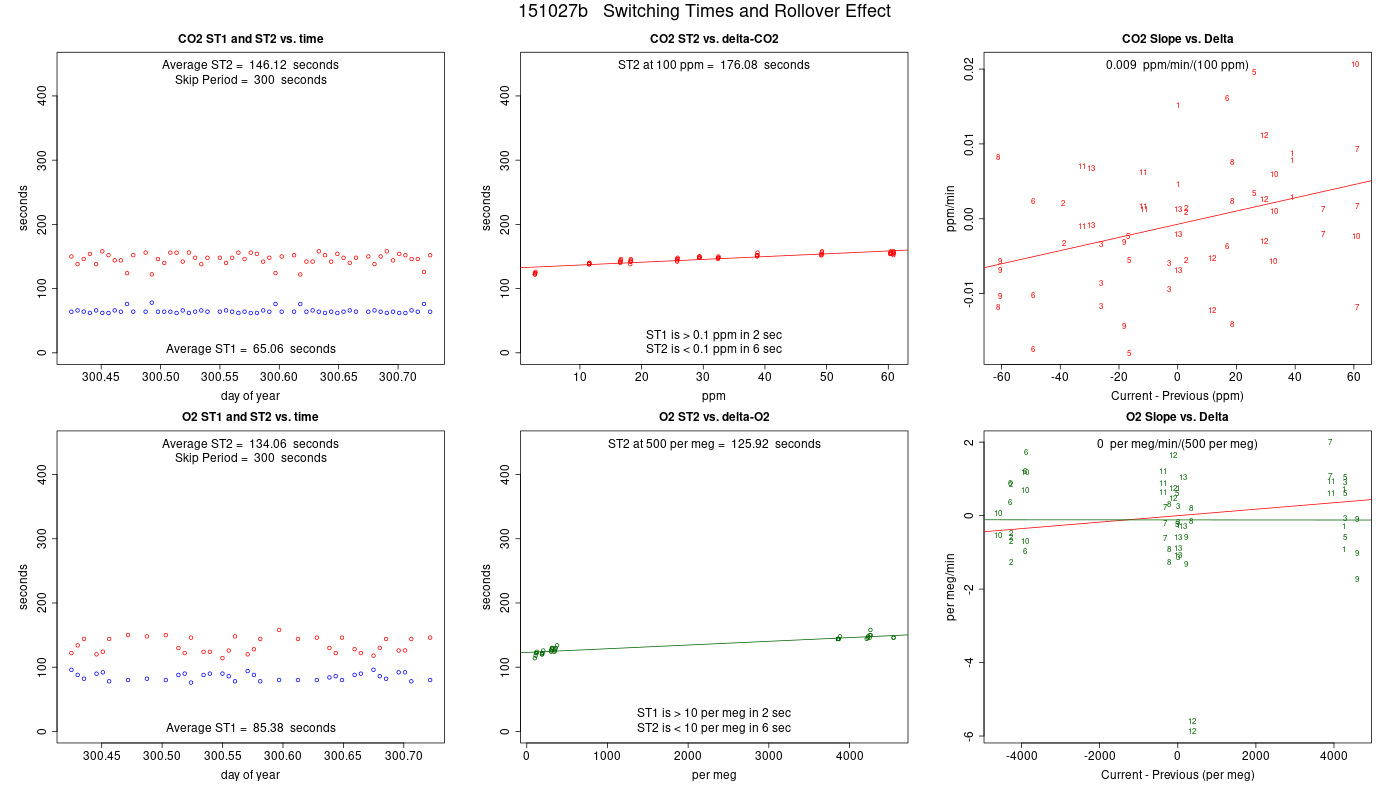

 Rollover Effect

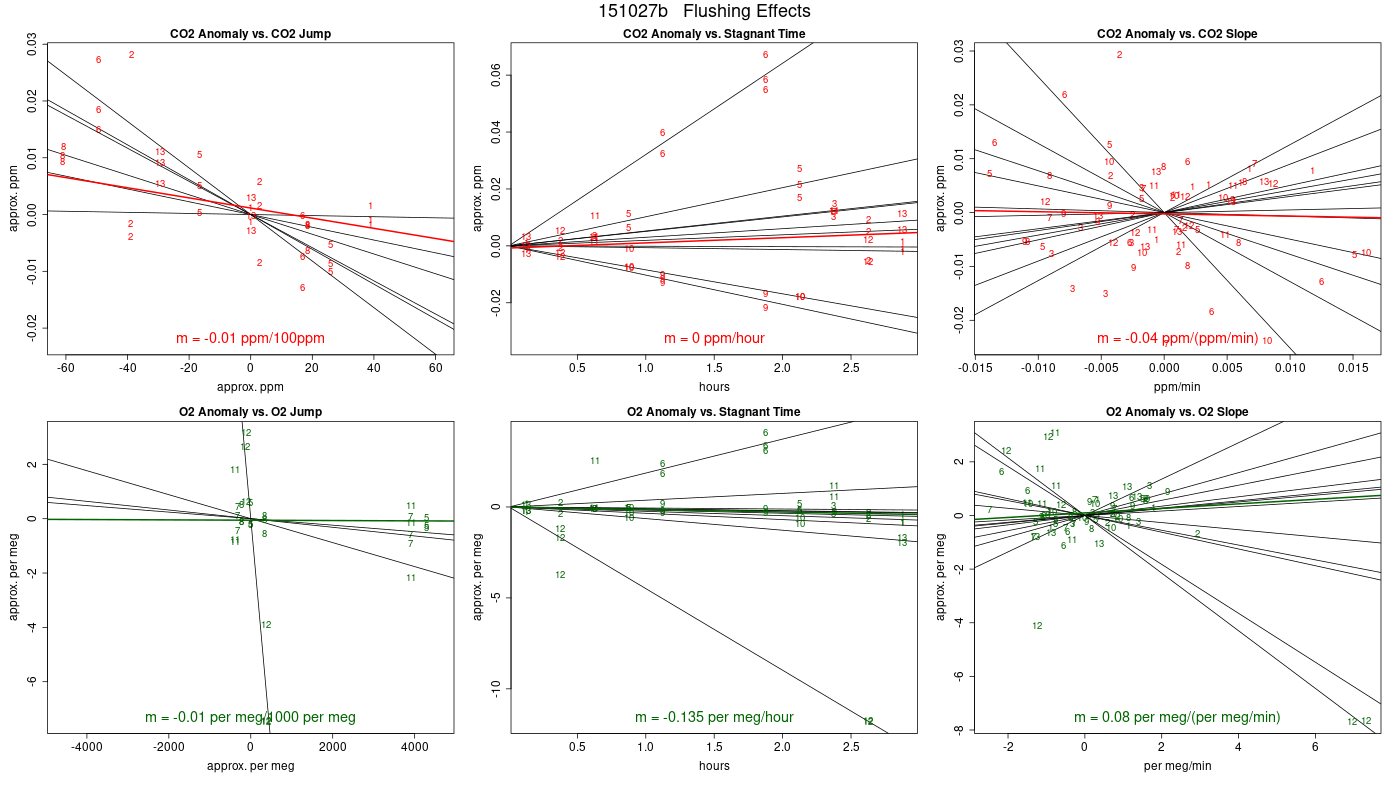

 Flushing Effect

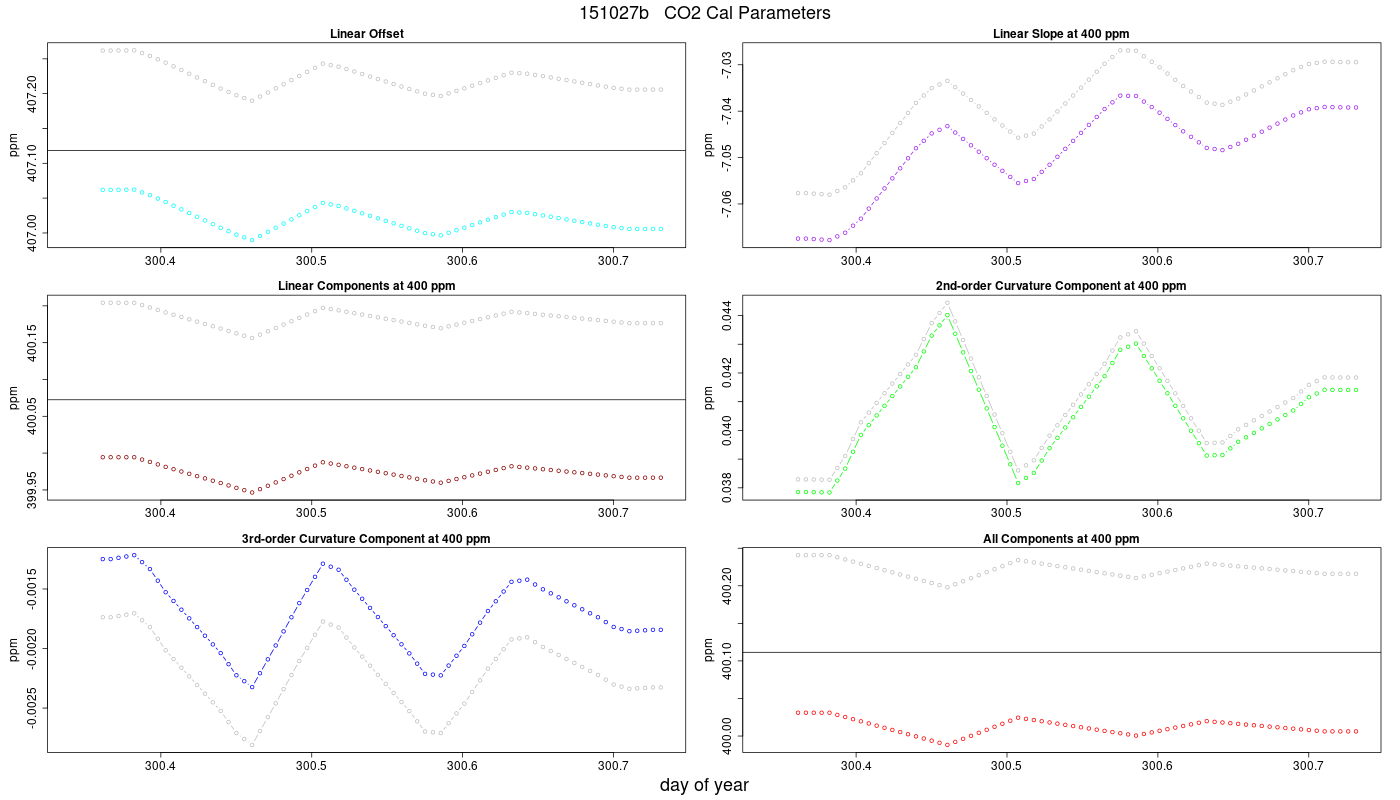

CO2 Parameters

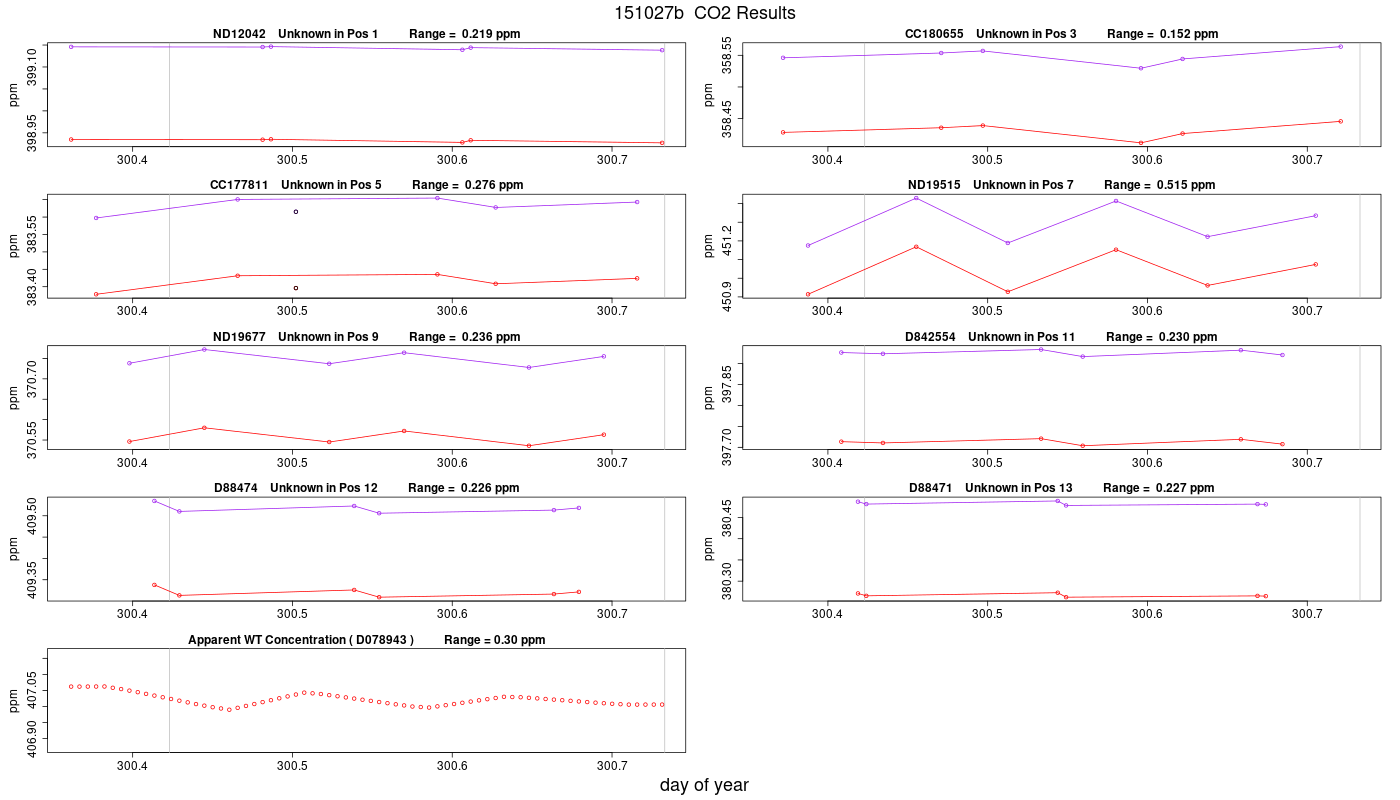

 CO2 Results

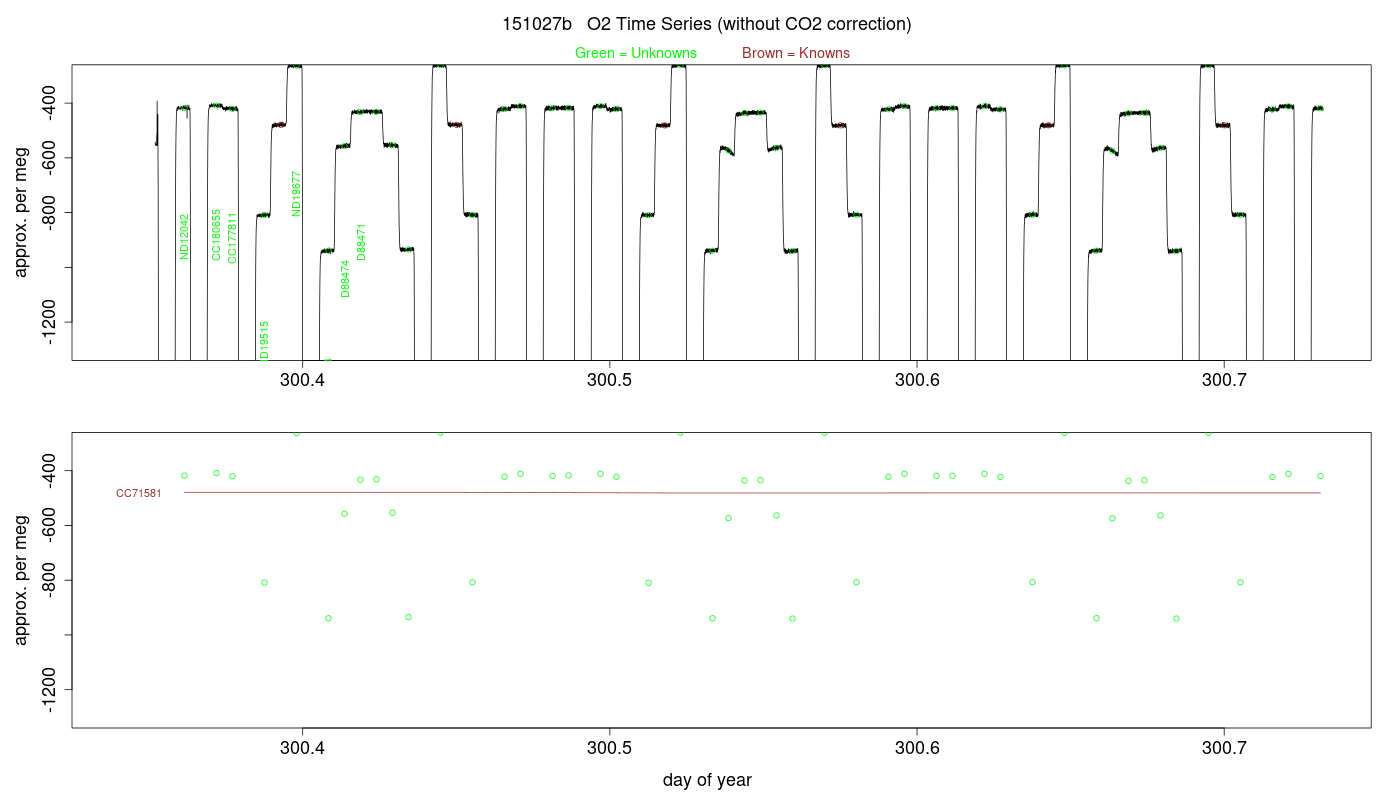

 O2 Timeseries

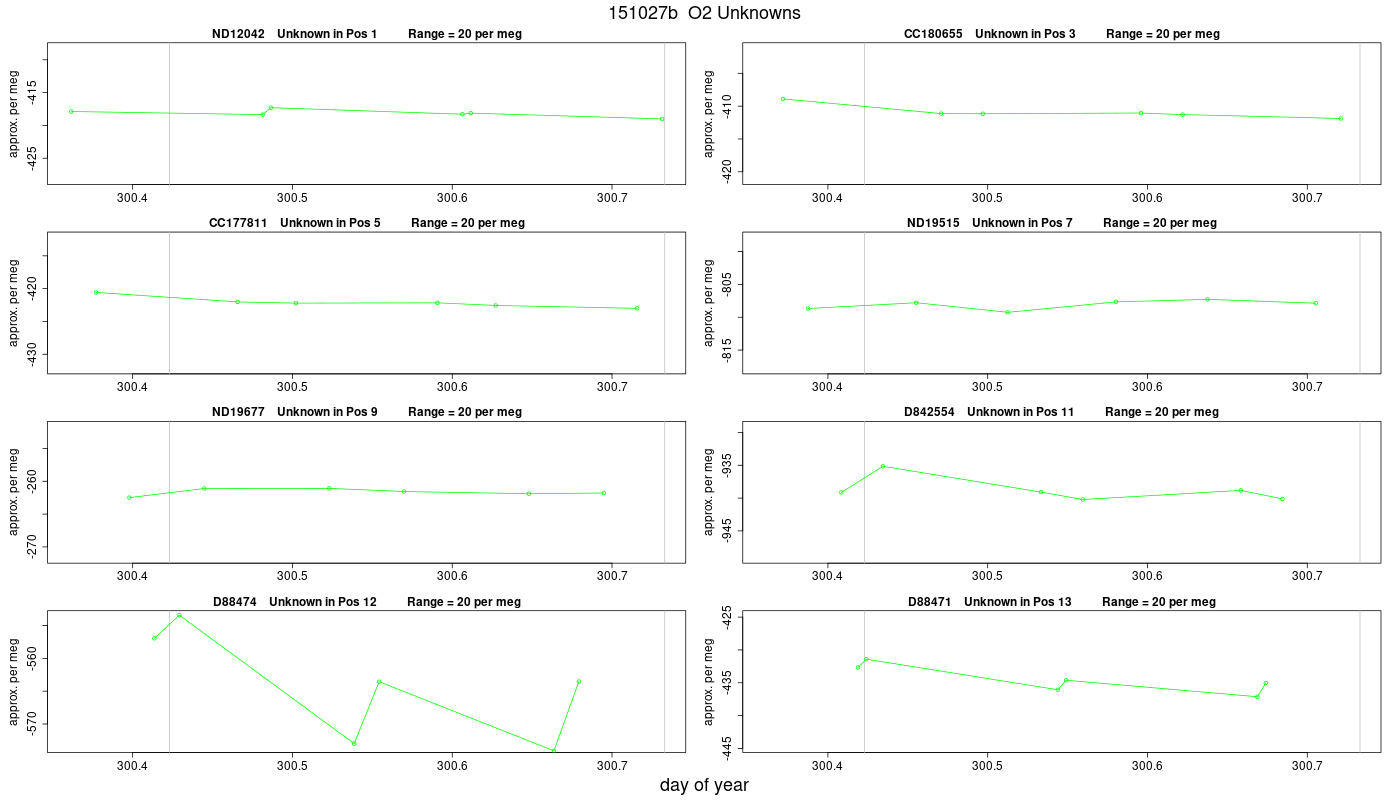

O2 Averages for Unknowns

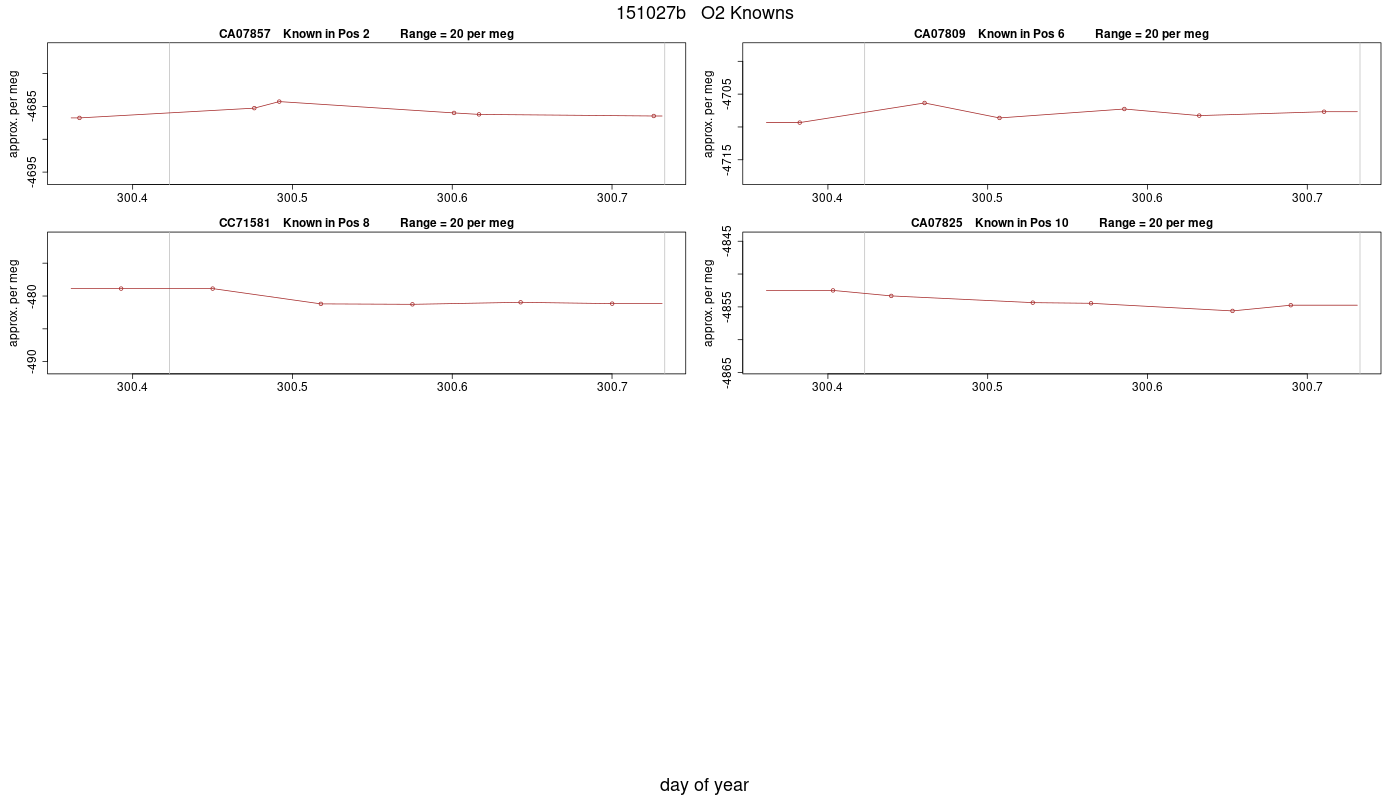

 O2 Averages for Knowns

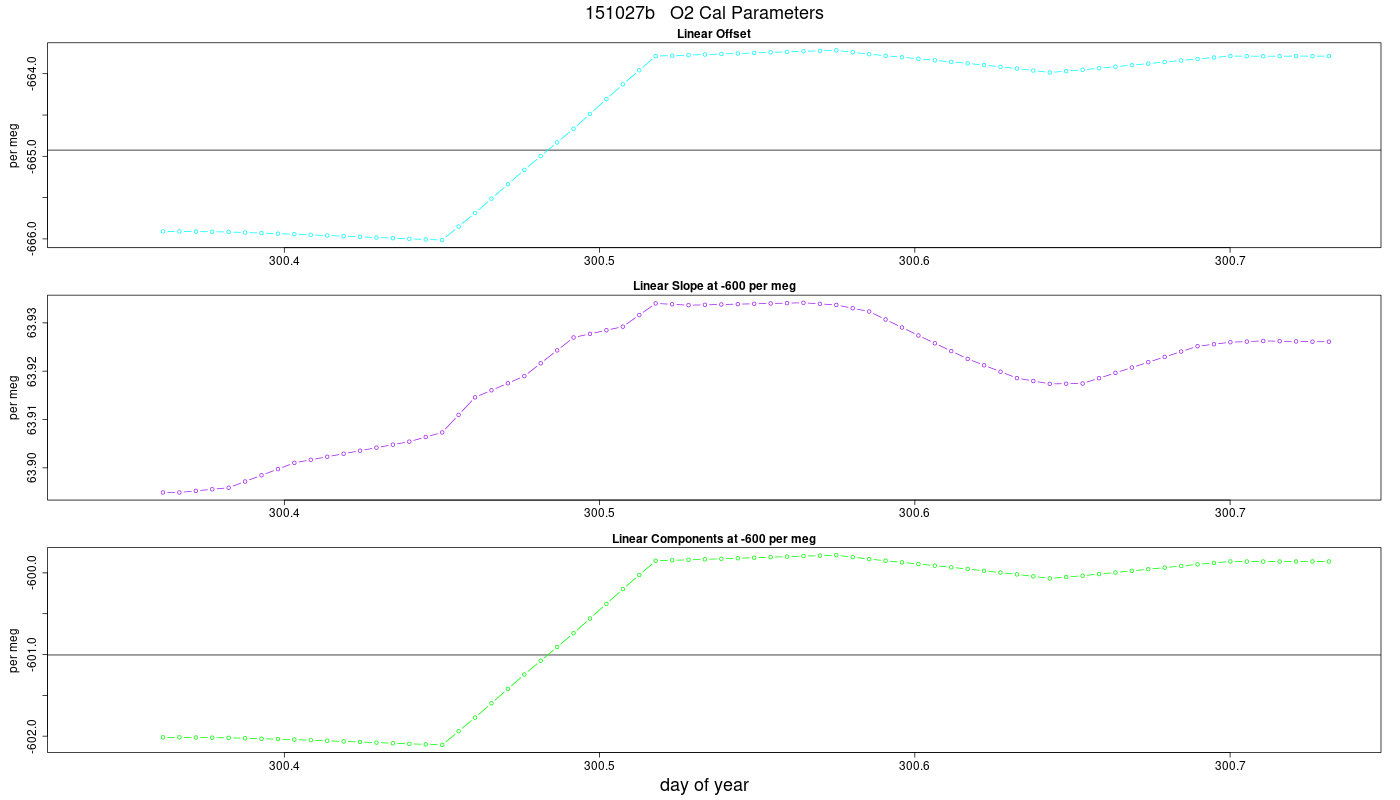

 O2 Parameters

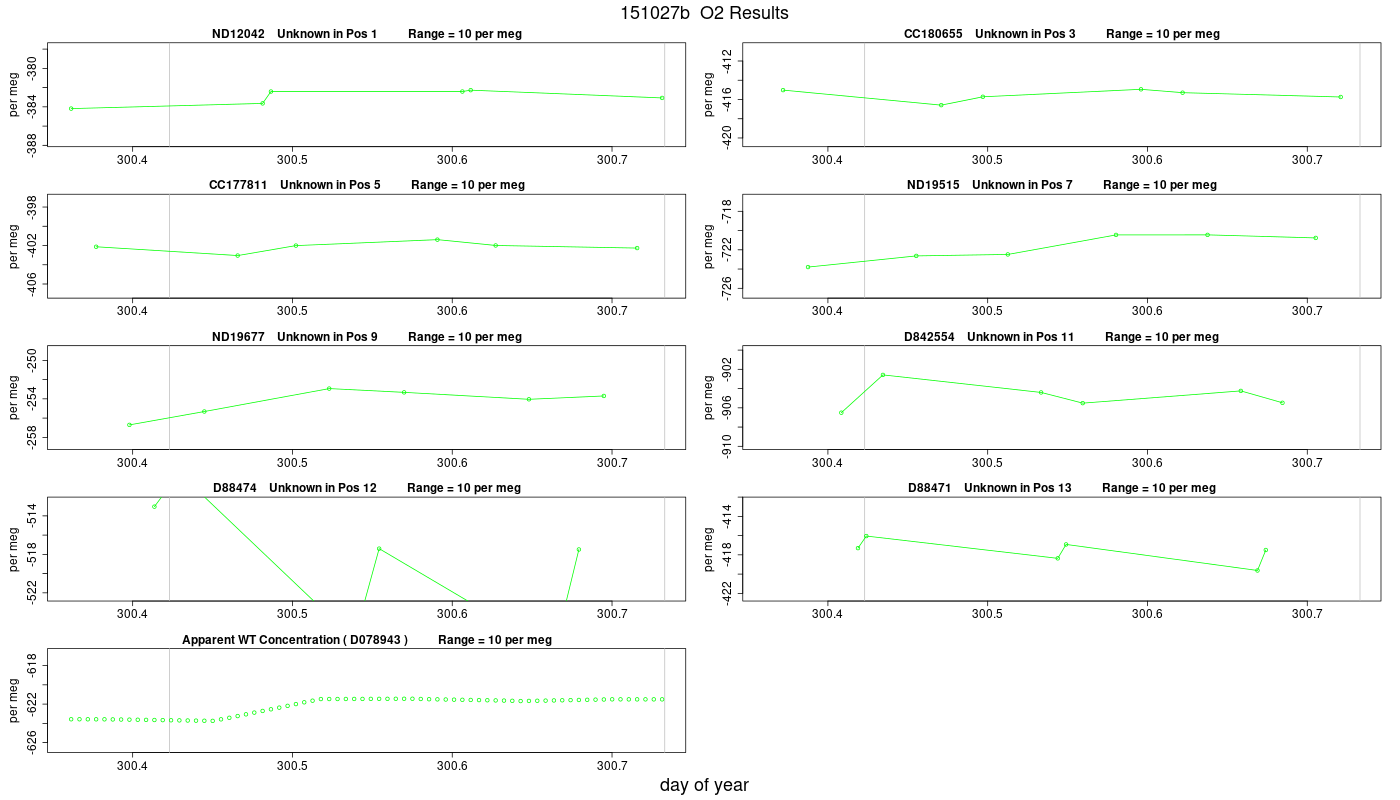

O2 Results

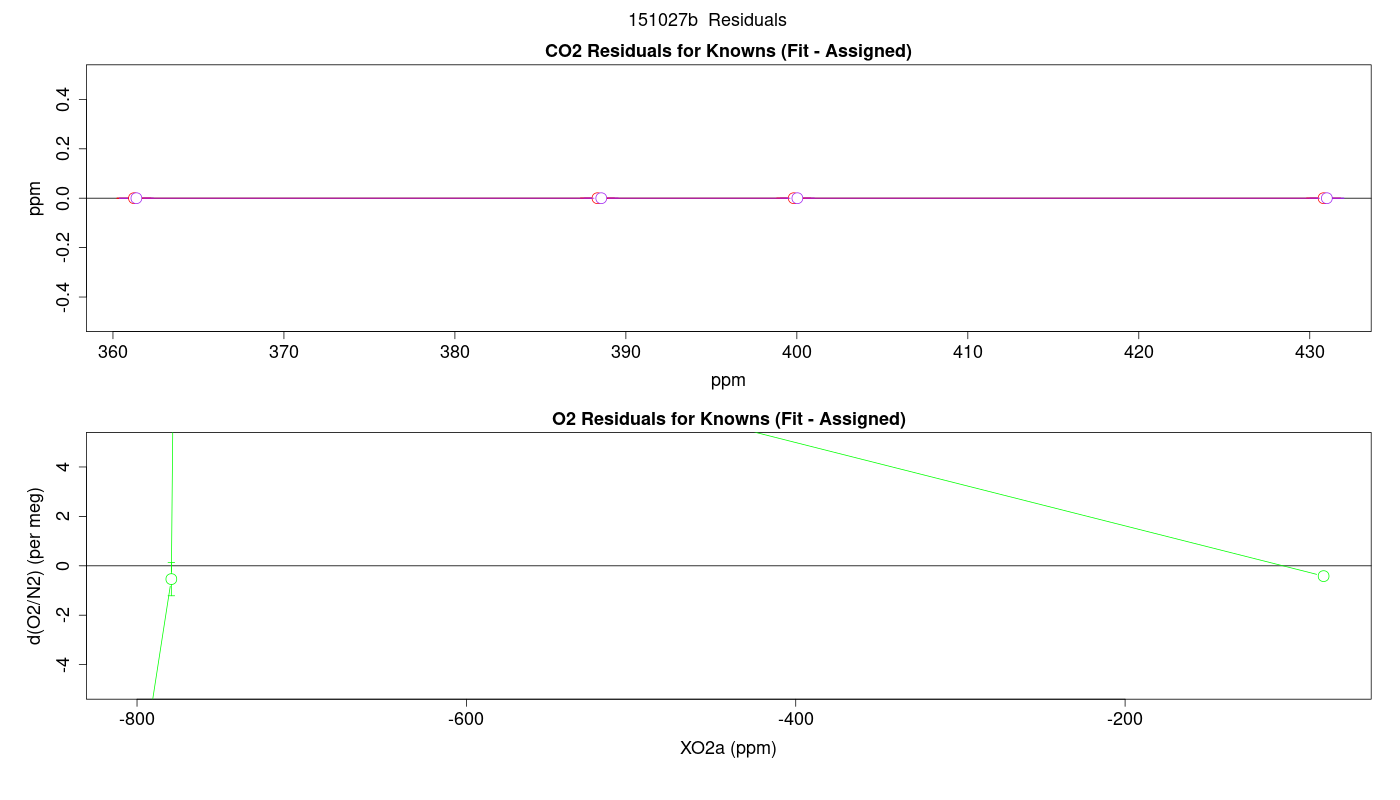

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

2 CA07857 361.230 0.000 0.000 361.370 0.000 0.000 5 -4698.75 11.35 0.48 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
6 CA07809 399.820 0.000 0.000 400.030 0.000 0.000 5 -4670.85 -0.54 0.67 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 5 -454.95 -0.42 0.01 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
10 CA07825 430.810 0.000 0.000 431.000 0.000 0.000 5 -4777.54 -10.29 0.38 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

1 ND12042    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.362 398.935 0.012 -384.18 7.19 399.146 0.012
300.481 398.934 0.013 -383.64 4.46 399.145 0.013
300.487 398.935 0.015 -382.41 4.34 399.146 0.015
300.606 398.928 0.011 -382.41 3.89 399.139 0.011
300.612 398.933 0.015 -382.27 3.82 399.144 0.015
300.731 398.927 0.013 -383.07 4.13 399.138 0.013

3 CC180655    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.372 358.428 0.013 -415.03 3.87 358.546 0.013
300.471 358.436 0.014 -416.59 4.45 358.554 0.014
300.497 358.439 0.014 -415.72 4.01 358.557 0.014
300.596 358.412 0.012 -414.94 4.19 358.530 0.012
300.622 358.426 0.014 -415.29 4.24 358.544 0.014
300.721 358.446 0.012 -415.74 4.34 358.564 0.012

5 CC177811    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.377 383.378 0.012 -402.13 4.36 383.597 0.012
300.466 383.431 0.016 -403.04 4.12 383.651 0.016
300.502 383.396 0.021 -402.01 4.76 383.615 0.021
300.591 383.435 0.016 -401.39 3.67 383.655 0.016
300.627 383.408 0.009 -402.00 3.87 383.628 0.009
300.716 383.424 0.012 -402.27 4.37 383.643 0.012

7 ND19515    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.388 450.914 0.018 -723.80 4.14 451.175 0.018
300.455 451.169 0.010 -722.63 4.44 451.430 0.010
300.513 450.928 0.010 -722.48 3.96 451.189 0.010
300.580 451.153 0.011 -720.45 3.58 451.414 0.011
300.638 450.962 0.011 -720.45 4.73 451.223 0.011
300.705 451.074 0.012 -720.77 3.95 451.335 0.012

9 ND19677    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.398 370.546 0.015 -256.70 4.02 370.738 0.015
300.445 370.580 0.016 -255.31 4.59 370.772 0.016
300.523 370.545 0.014 -252.93 4.03 370.737 0.014
300.570 370.572 0.013 -253.33 4.62 370.764 0.013
300.648 370.536 0.012 -254.05 4.47 370.728 0.012
300.695 370.563 0.014 -253.70 3.81 370.755 0.014

11 D842554    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.408 397.714 0.013 -906.51 4.51 397.926 0.013
300.434 397.710 0.012 -902.58 3.86 397.923 0.012
300.533 397.721 0.012 -904.40 4.24 397.933 0.012
300.559 397.704 0.010 -905.51 4.10 397.916 0.010
300.658 397.719 0.009 -904.24 4.31 397.932 0.009
300.684 397.708 0.010 -905.48 4.27 397.920 0.010

12 D88474    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.414 409.338 0.012 -513.04 4.49 409.535 0.012
300.429 409.313 0.010 -509.56 4.24 409.510 0.010
300.539 409.326 0.019 -526.85 6.28 409.523 0.019
300.554 409.309 0.009 -517.41 4.54 409.506 0.009
300.664 409.316 0.012 -528.13 5.74 409.513 0.012
300.679 409.322 0.011 -517.50 4.02 409.518 0.011

13 D88471    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
300.419 380.271 0.014 -417.30 3.81 380.487 0.014
300.424 380.265 0.011 -416.05 4.54 380.482 0.011
300.544 380.273 0.011 -418.36 4.60 380.489 0.011
300.549 380.262 0.012 -416.92 3.88 380.478 0.012
300.669 380.265 0.011 -419.62 4.16 380.482 0.011
300.674 380.265 0.011 -417.50 4.58 380.481 0.011
