UEA CRAM Lab O2 and CO2 calibration results
RUN = 130803a
PROCESSED: 13:14:53 Tue 1Aug2023

Notes
Logfile

Results

Using data from 215.541 to 215.904 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 D88534 417.053 0.022 -0.043 416.370 0.021 -0.040 7 -738.90 2.94 -0.76 7
3 D88535 439.554 0.024 -0.100 439.304 0.024 -0.099 7 -508.82 1.07 -4.02 7
4 D255734 399.703 0.010 0.042 399.555 0.010 0.041 7 -601.60 1.82 -3.37 7
6 D596276 402.980 0.009 0.004 402.713 0.008 0.004 7 -614.69 2.00 0.48 7
10 D88536 397.402 0.008 -0.053 397.337 0.008 -0.051 7 -599.45 1.69 9.60 7
11 D88532 389.442 0.007 -0.033 389.634 0.007 -0.032 7 -623.28 1.56 0.69 7
WT D743660 408.723 0.016 -0.118 408.257 0.016 -0.114 70 -662.11 1.00 -2.68 70
Text File

Raw Data and Diagnostics Figures

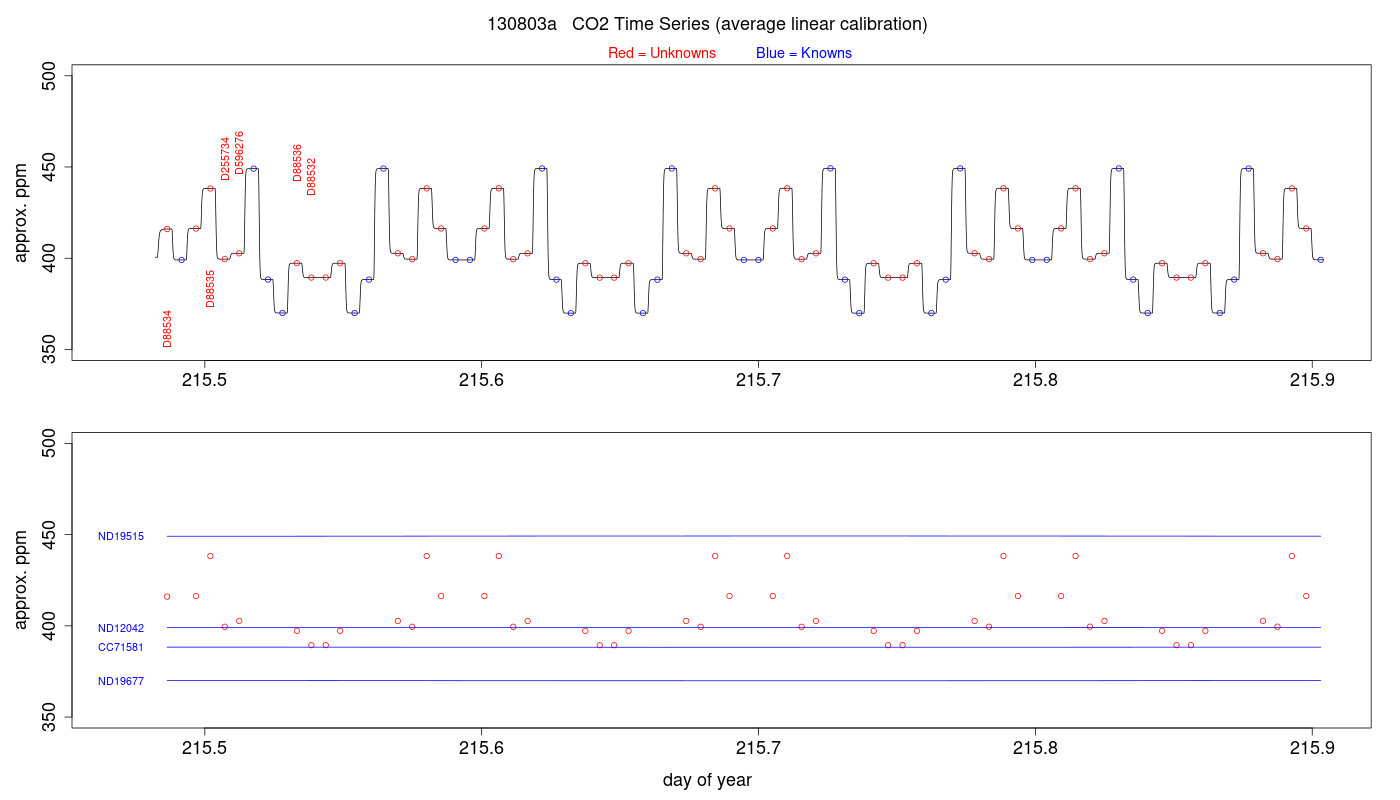

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2

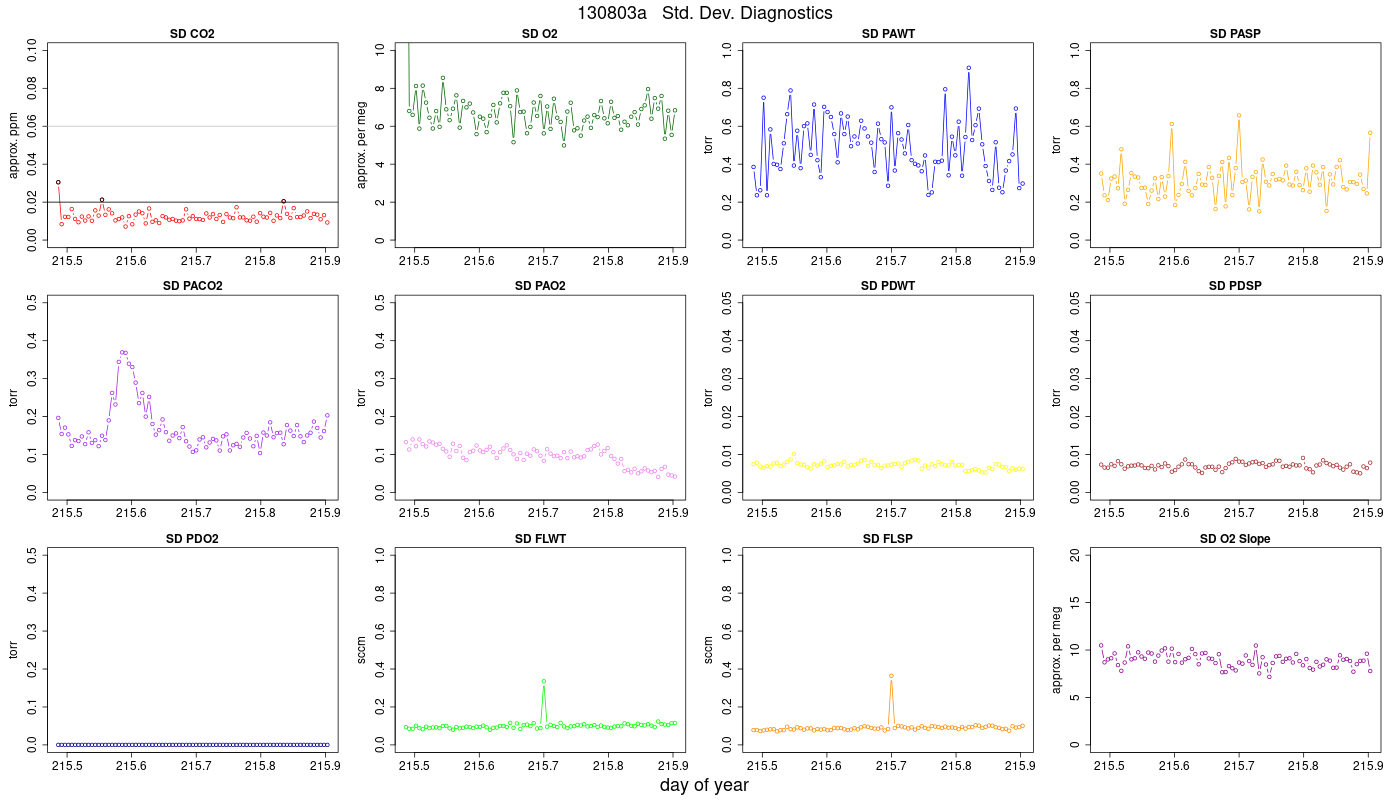

 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters

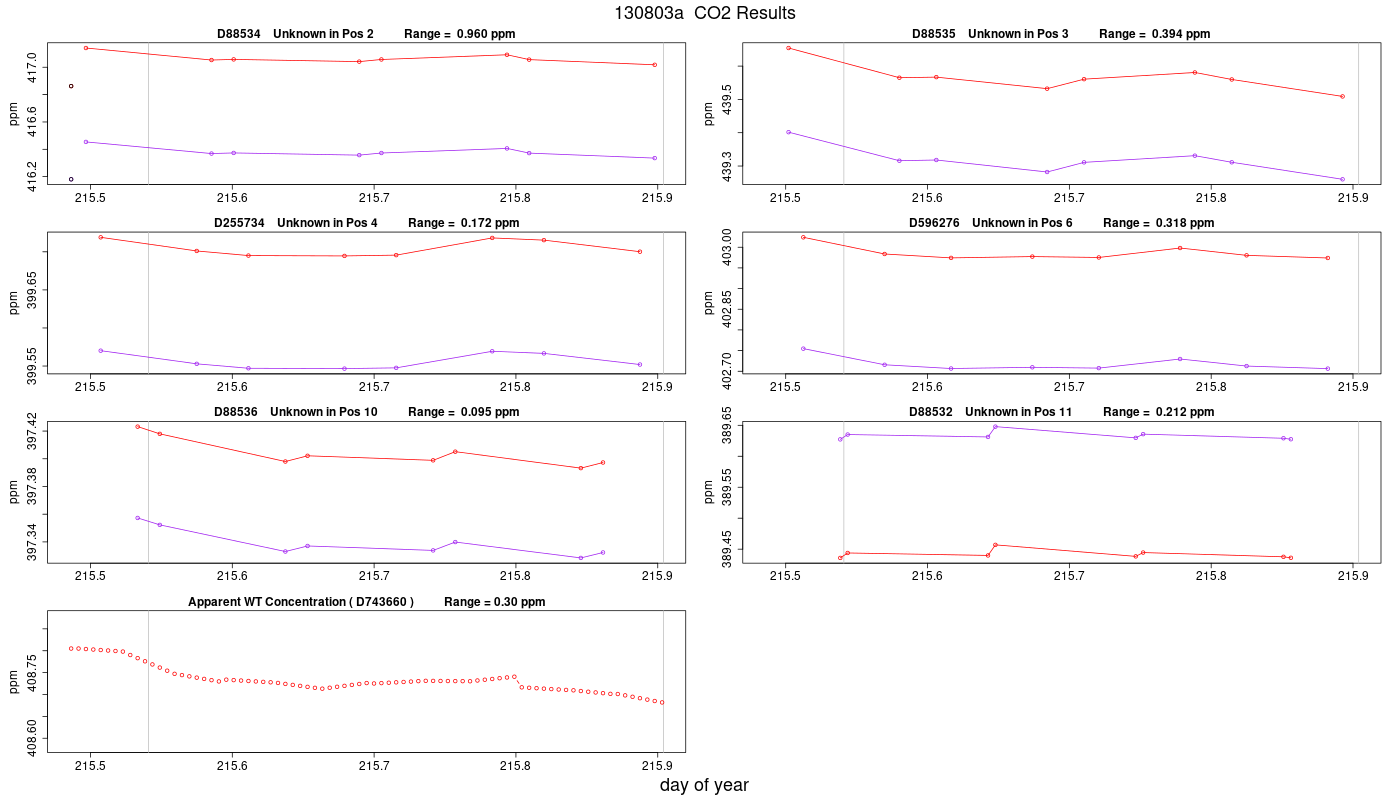

 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters

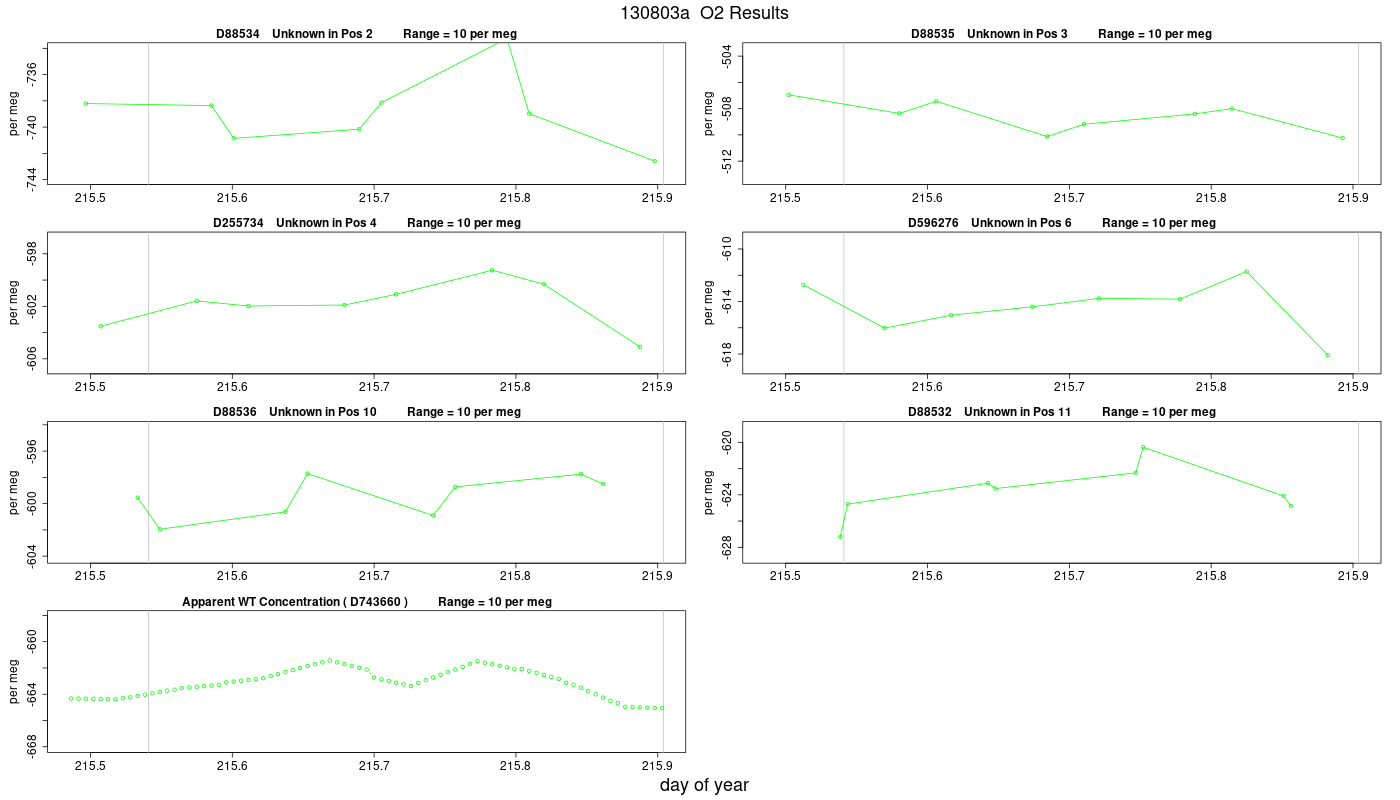

O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

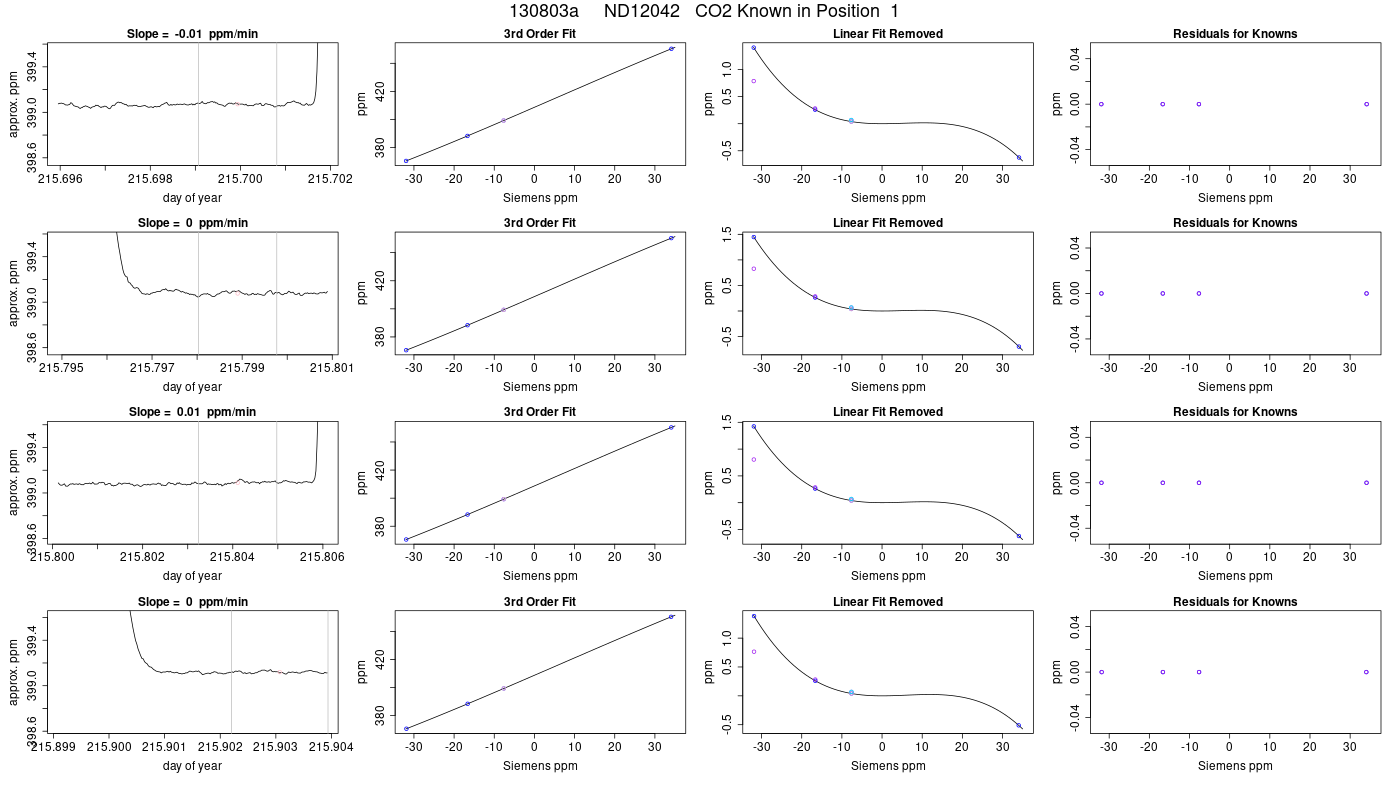

1 ND12042 399.283 0.000 0.000 399.150 0.000 0.000 7 -384.25 1.42 1.17 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

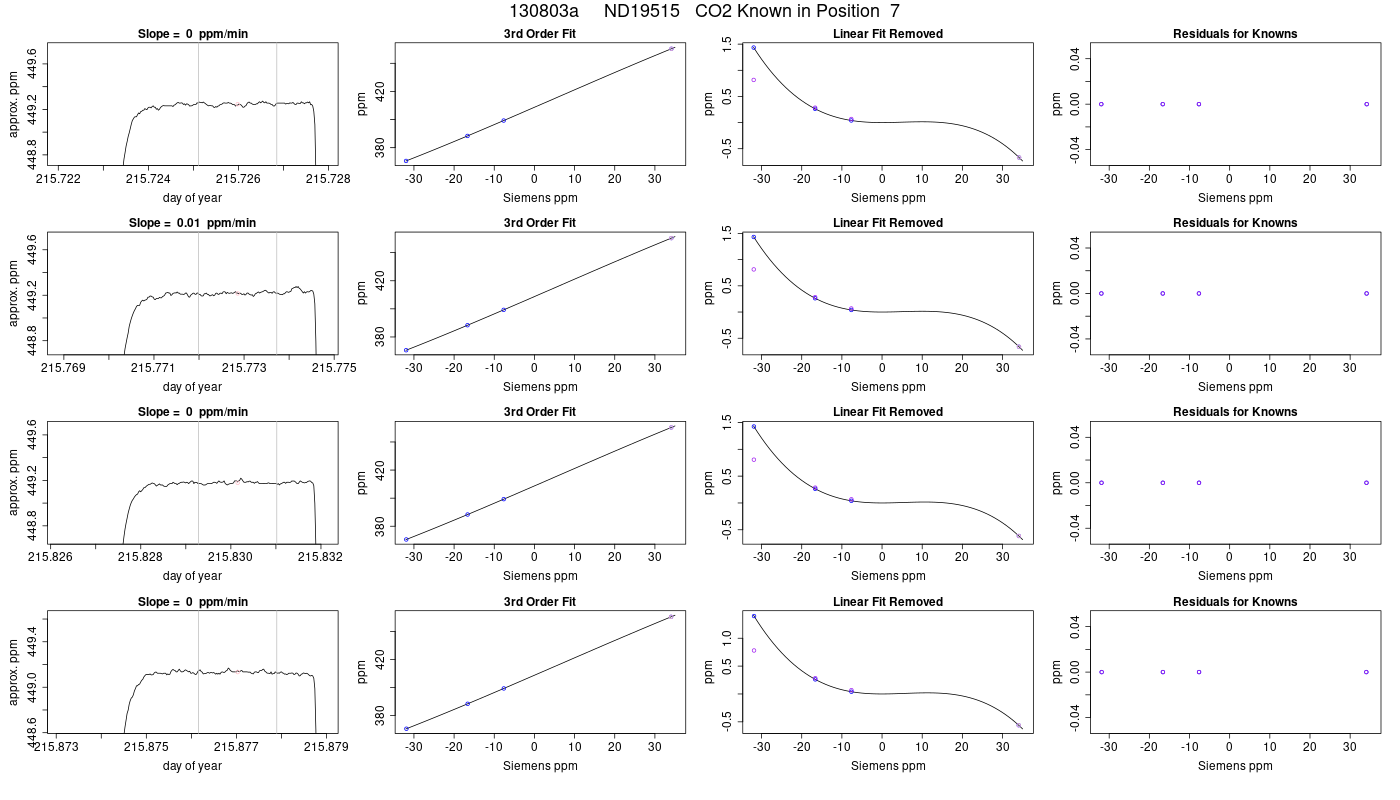

7 ND19515 450.346 0.000 0.000 451.248 0.000 0.000 7 -707.13 -1.13 0.45 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 6 -454.95 1.83 1.29 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
9 ND19677 370.558 0.000 0.000 370.748 0.000 0.000 6 -256.57 -2.08 0.87 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

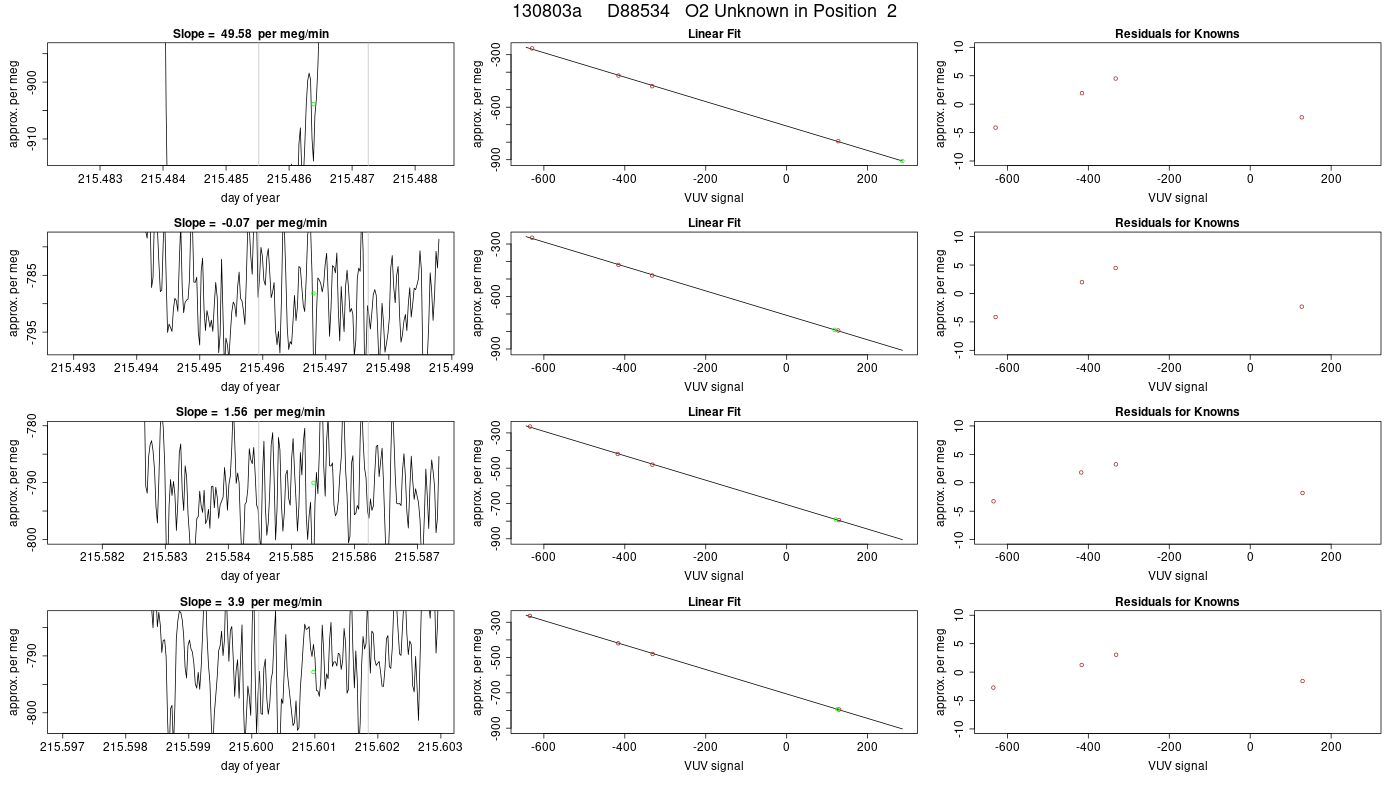

2 D88534    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
215.486 416.862 0.030 -855.37 36.86 416.181 0.030
215.497 417.141 0.012 -738.21 6.60 416.454 0.012
215.585 417.053 0.012 -738.36 7.19 416.369 0.012
215.601 417.057 0.008 -740.86 6.50 416.373 0.008
215.690 417.041 0.011 -740.16 6.54 416.357 0.011
215.705 417.057 0.011 -738.13 7.04 416.373 0.011
215.794 417.091 0.010 -733.25 6.42 416.406 0.010
215.809 417.056 0.012 -738.98 6.44 416.372 0.012
215.898 417.018 0.013 -742.59 5.54 416.336 0.013

3 D88535    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
215.502 439.654 0.012 -506.95 8.12 439.402 0.012
215.580 439.565 0.011 -508.37 6.99 439.316 0.011
215.606 439.567 0.013 -507.44 6.40 439.318 0.013
215.684 439.532 0.016 -510.13 7.25 439.282 0.016
215.710 439.561 0.011 -509.19 5.86 439.311 0.011
215.788 439.581 0.012 -508.40 7.33 439.331 0.012
215.815 439.560 0.014 -508.00 6.54 439.311 0.014
215.893 439.509 0.011 -510.24 6.82 439.260 0.011

4 D255734    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
215.507 399.719 0.016 -603.51 5.87 399.570 0.016
215.575 399.701 0.010 -601.59 7.33 399.553 0.010
215.611 399.695 0.015 -601.98 5.69 399.547 0.015
215.679 399.695 0.010 -601.90 5.96 399.547 0.010
215.716 399.696 0.014 -601.08 7.45 399.548 0.014
215.783 399.718 0.010 -599.25 6.48 399.569 0.010
215.820 399.715 0.010 -600.32 5.82 399.567 0.010
215.887 399.700 0.013 -605.08 5.34 399.552 0.013

6 D596276    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
215.512 403.024 0.011 -612.72 8.14 402.755 0.011
215.570 402.984 0.014 -616.03 5.93 402.716 0.014
215.617 402.974 0.014 -615.04 6.55 402.707 0.014
215.674 402.977 0.010 -614.40 5.63 402.710 0.010
215.721 402.975 0.012 -613.76 6.45 402.708 0.012
215.778 402.998 0.010 -613.82 6.59 402.730 0.010
215.825 402.980 0.013 -611.71 6.24 402.713 0.013
215.882 402.974 0.014 -618.08 7.60 402.706 0.014

10 D88536    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
215.533 397.423 0.012 -599.55 6.80 397.357 0.012
215.549 397.418 0.013 -601.95 6.89 397.352 0.013
215.637 397.398 0.010 -600.63 7.76 397.333 0.010
215.653 397.402 0.012 -597.71 5.16 397.337 0.012
215.742 397.399 0.010 -600.91 7.24 397.334 0.010
215.757 397.405 0.012 -598.73 5.50 397.340 0.012
215.846 397.393 0.012 -597.75 6.09 397.328 0.012
215.861 397.397 0.012 -598.50 7.96 397.332 0.012

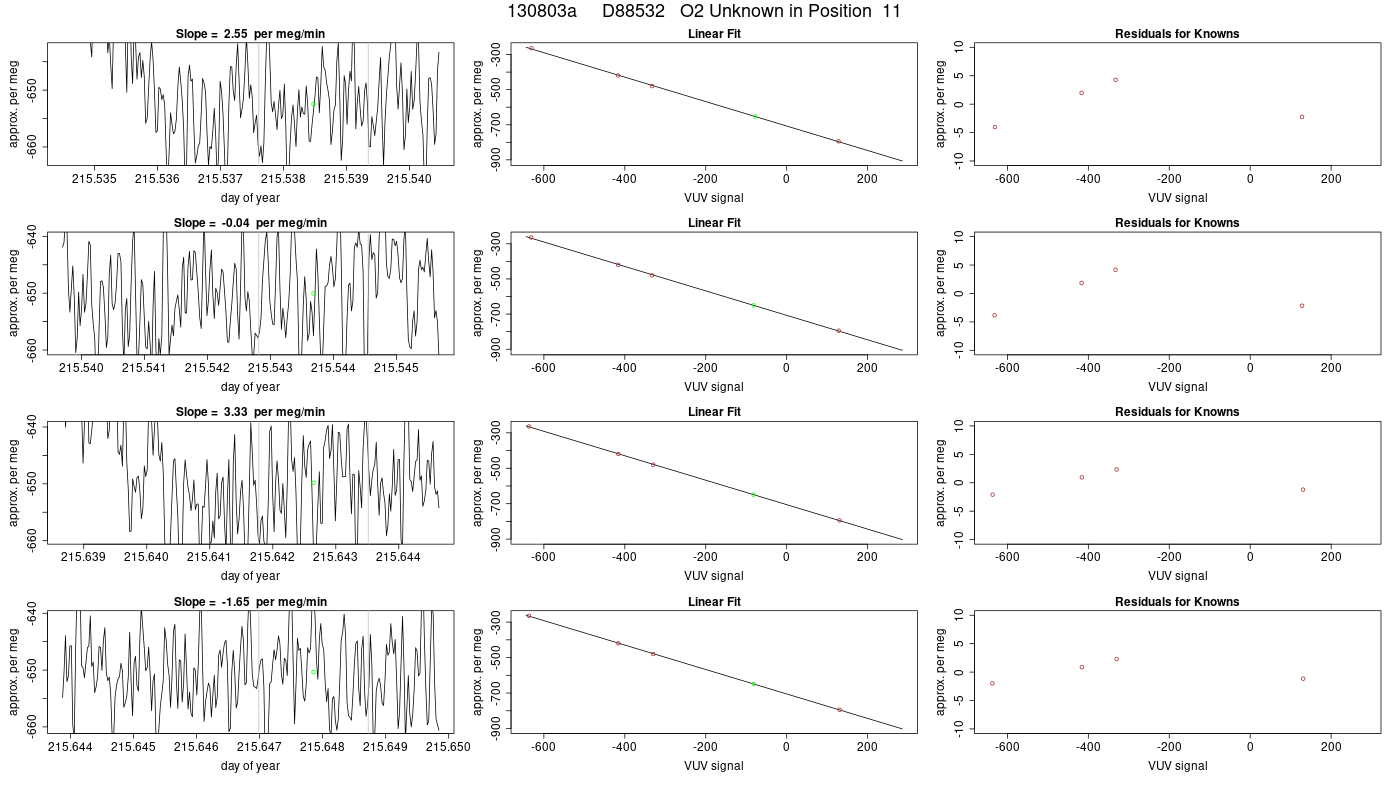

11 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
215.538 389.436 0.010 -627.20 5.97 389.627 0.010
215.544 389.444 0.016 -624.71 8.55 389.635 0.016
215.643 389.440 0.009 -623.11 7.76 389.631 0.009
215.648 389.457 0.013 -623.52 7.06 389.648 0.013
215.747 389.438 0.014 -622.32 5.78 389.630 0.014
215.752 389.445 0.012 -620.37 5.89 389.636 0.012
215.851 389.438 0.017 -624.09 6.91 389.629 0.017
215.856 389.436 0.012 -624.86 7.10 389.627 0.012
