UEA CRAM Lab O2 and CO2 calibration results
RUN = 130711a
PROCESSED: 16:18:11 Tue 1Aug2023

Notes
Logfile

Results

Using data from 192.547 to 192.873 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 CC177837 359.088 0.013 -0.072 358.357 0.013 -0.090 6 -418.33 NA -53.26 1
3 CC177841 360.515 0.026 -0.117 359.958 0.028 -0.135 6 -250.85 3.50 30.88 2
4 D88532 389.431 0.009 0.001 389.622 0.009 0.001 7 -635.34 2.57 -9.80 2
6 CC178444 379.076 0.012 -0.031 379.423 0.012 -0.031 7 -411.88 2.34 89.50 3
10 D88536 397.400 0.019 0.080 397.335 0.018 0.077 7 NA NA NA 0
WT D743660 408.468 0.009 -0.037 408.009 0.008 -0.037 63 -668.33 1.08 -11.21 63
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries

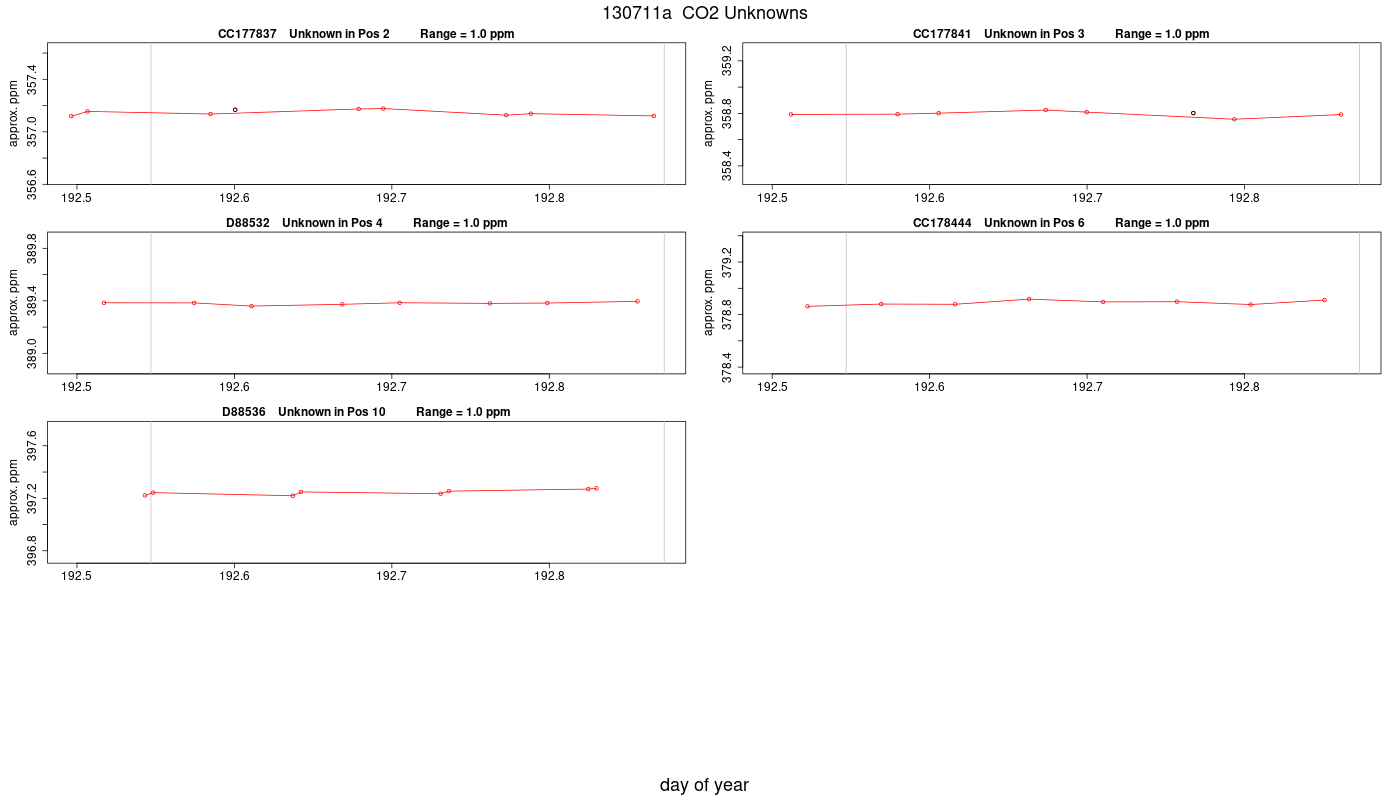

 CO2 Averages for Unknowns

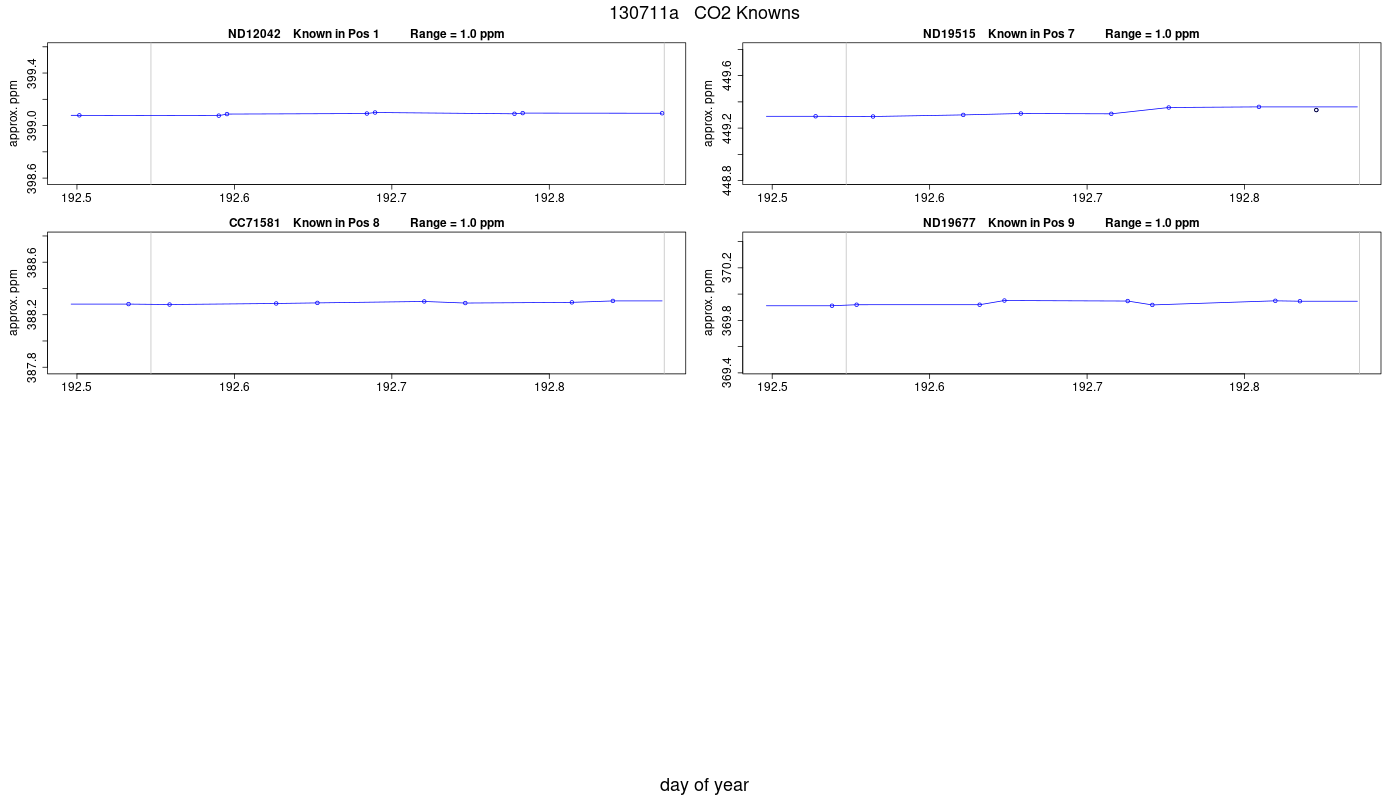

 CO2 Averages for Knowns

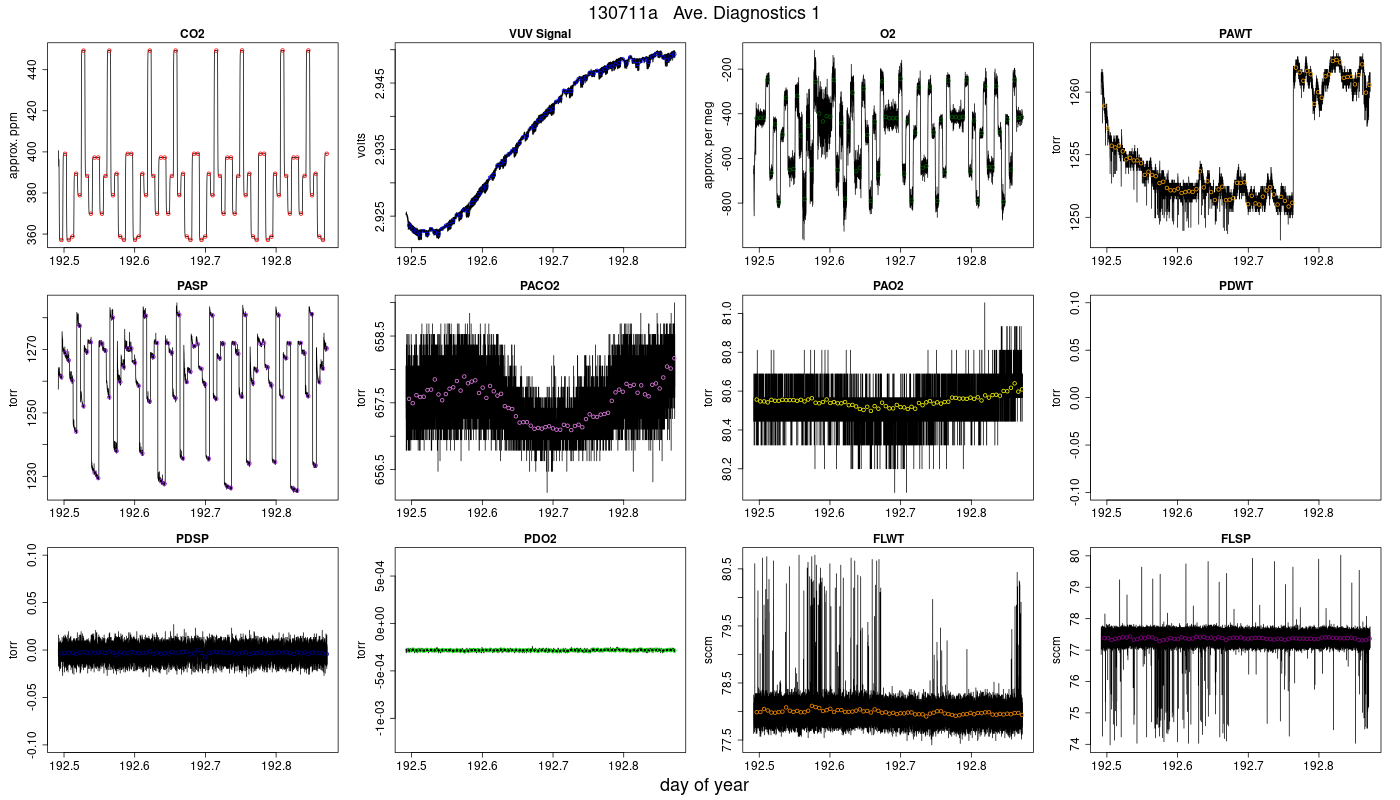

Jog Ave. Diagnostics 1

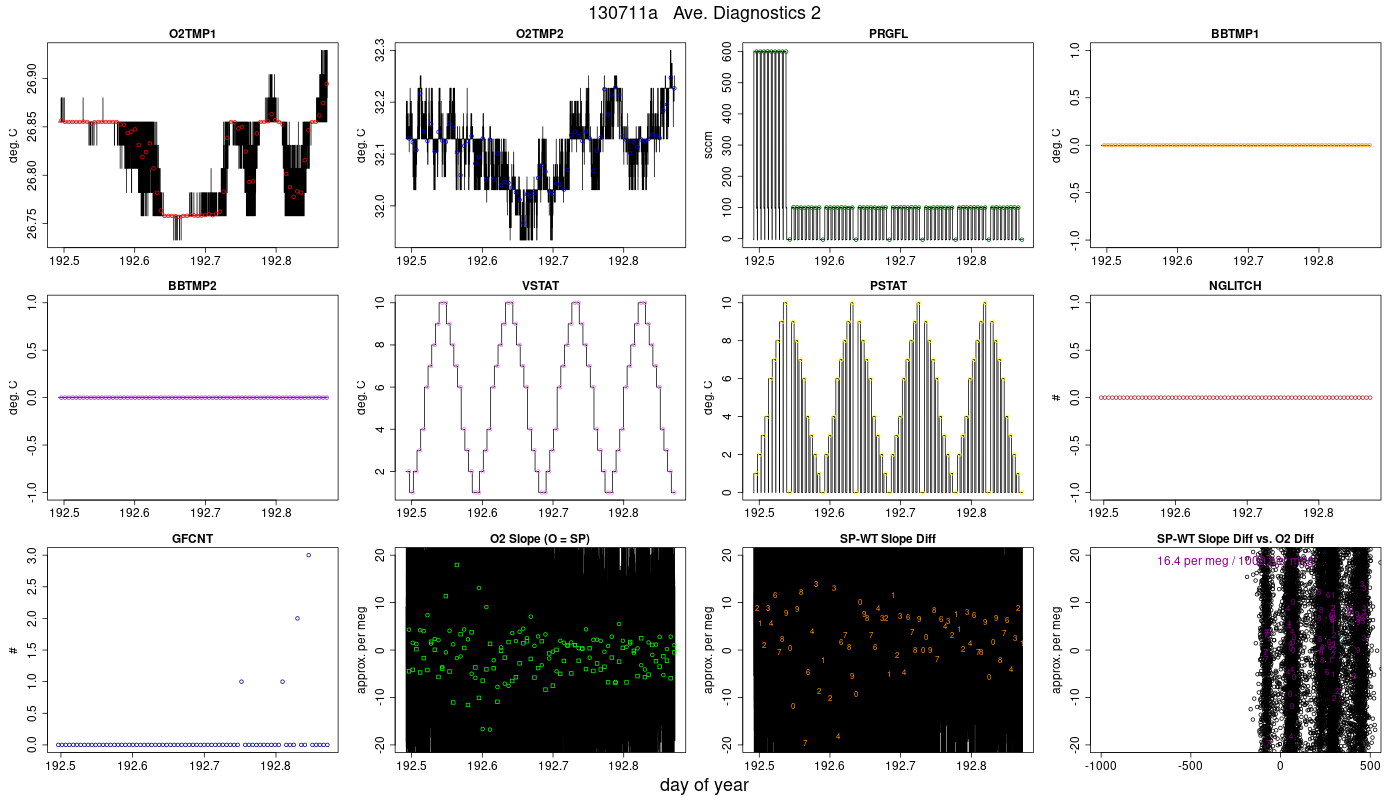

 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics

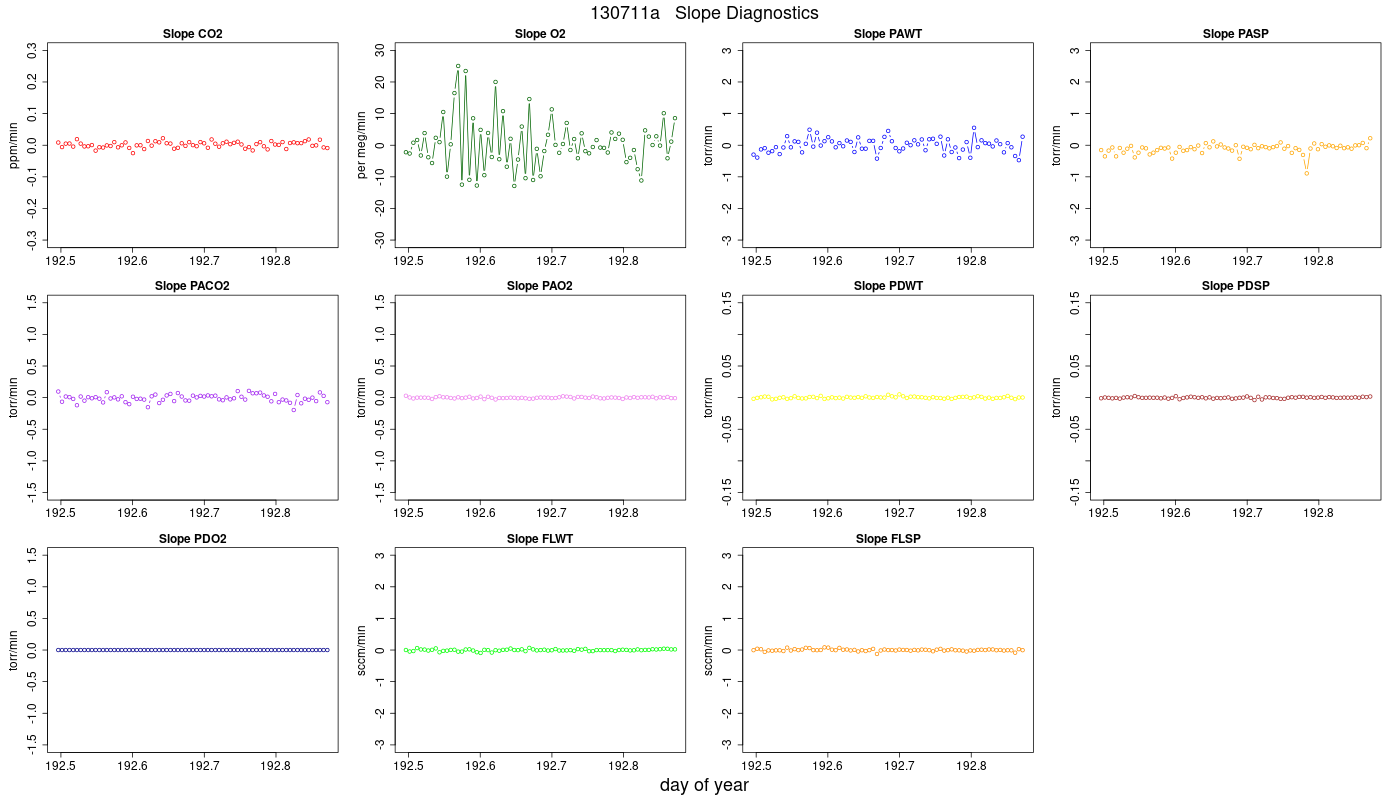

Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results

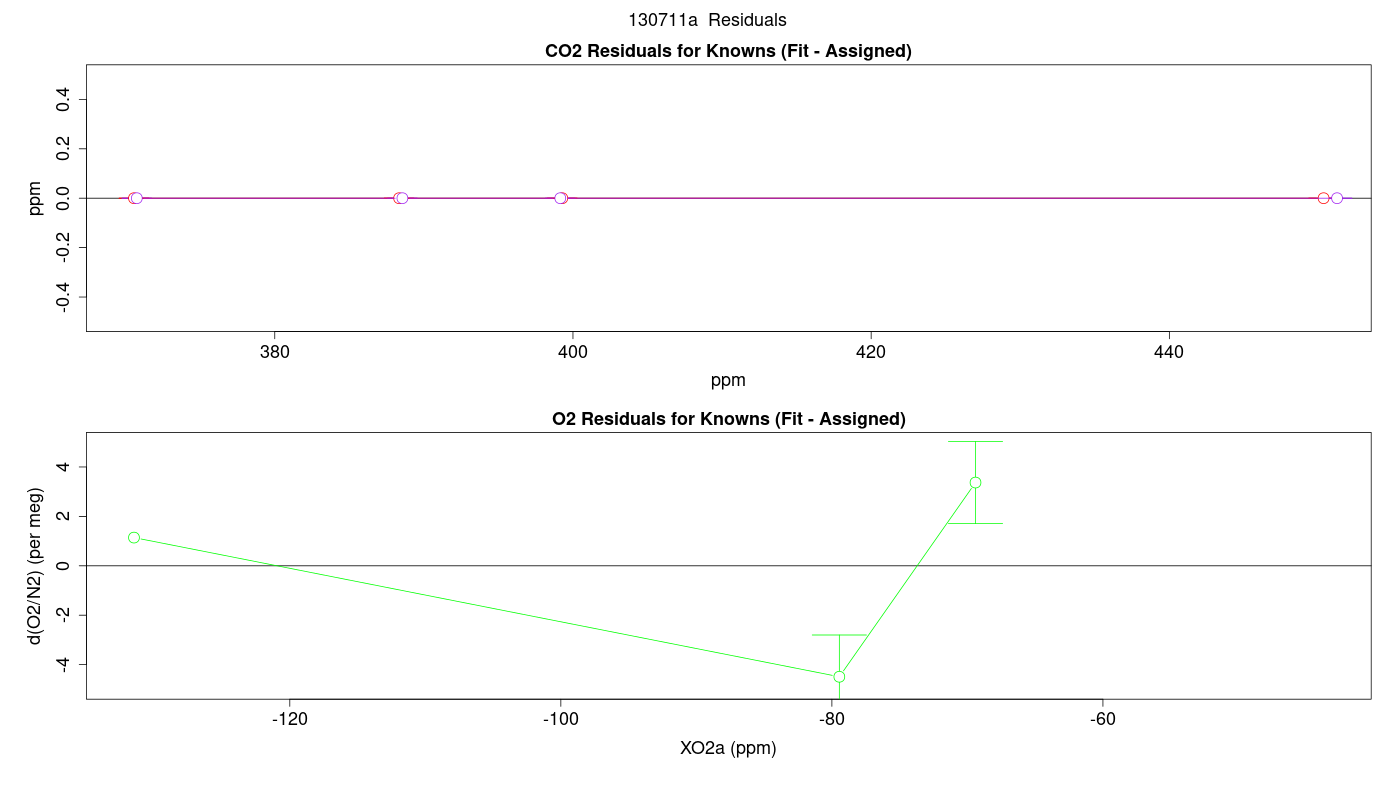

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

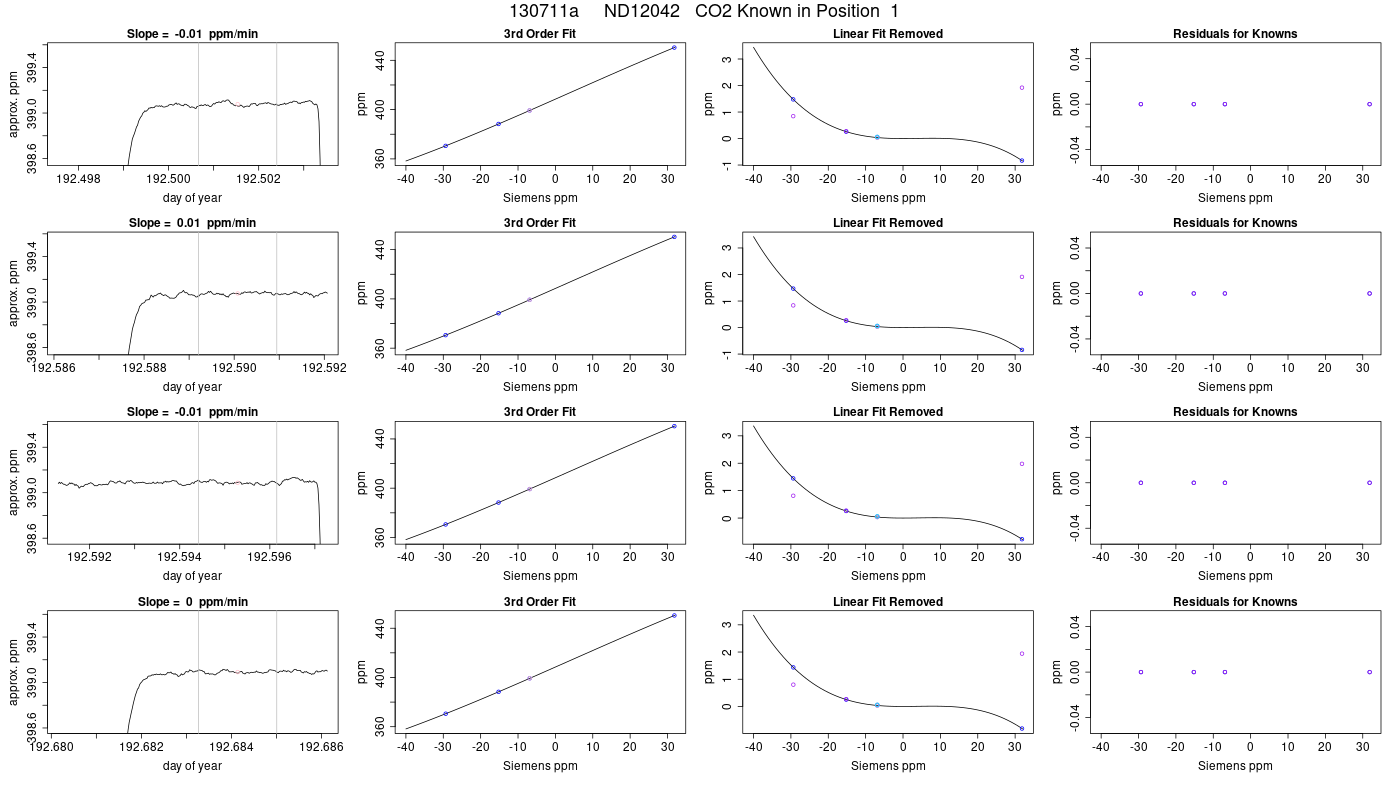

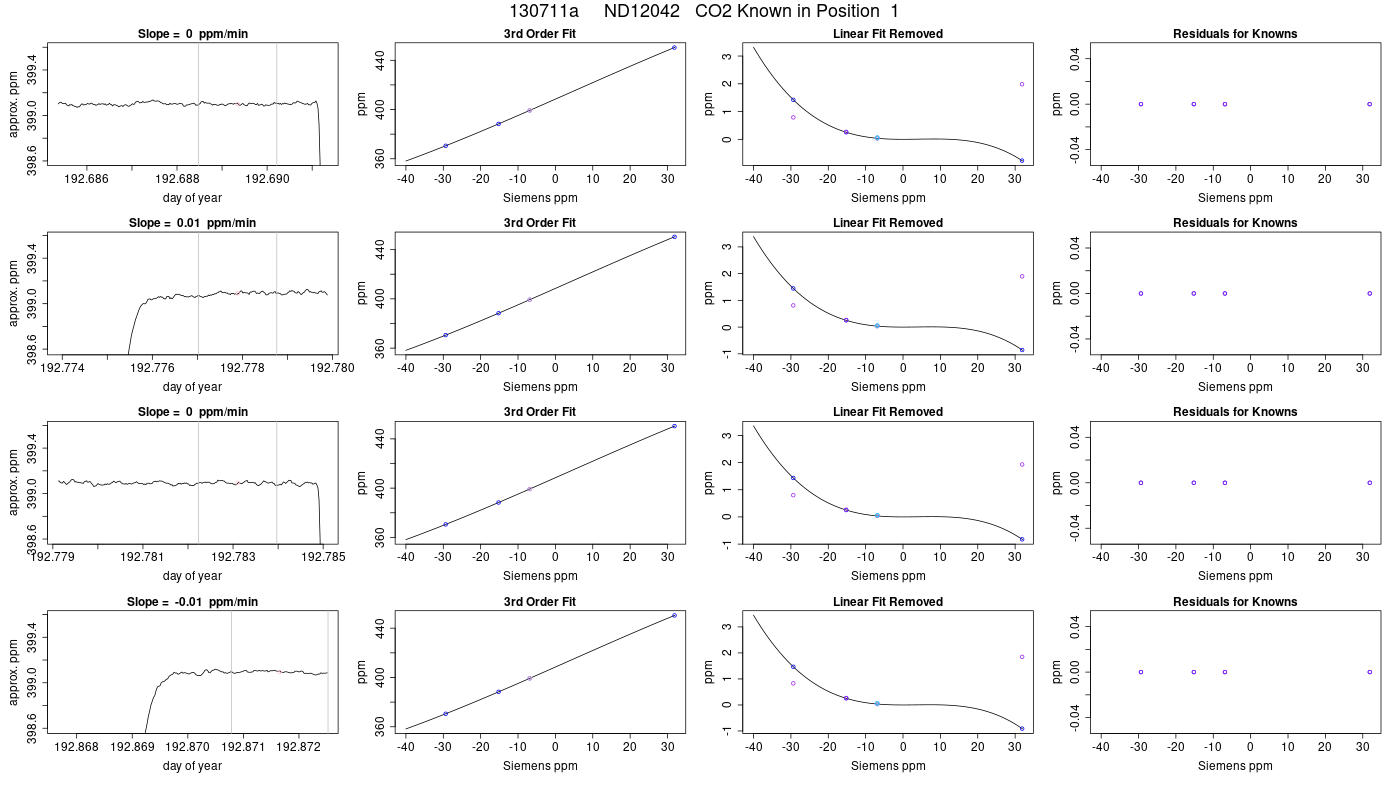

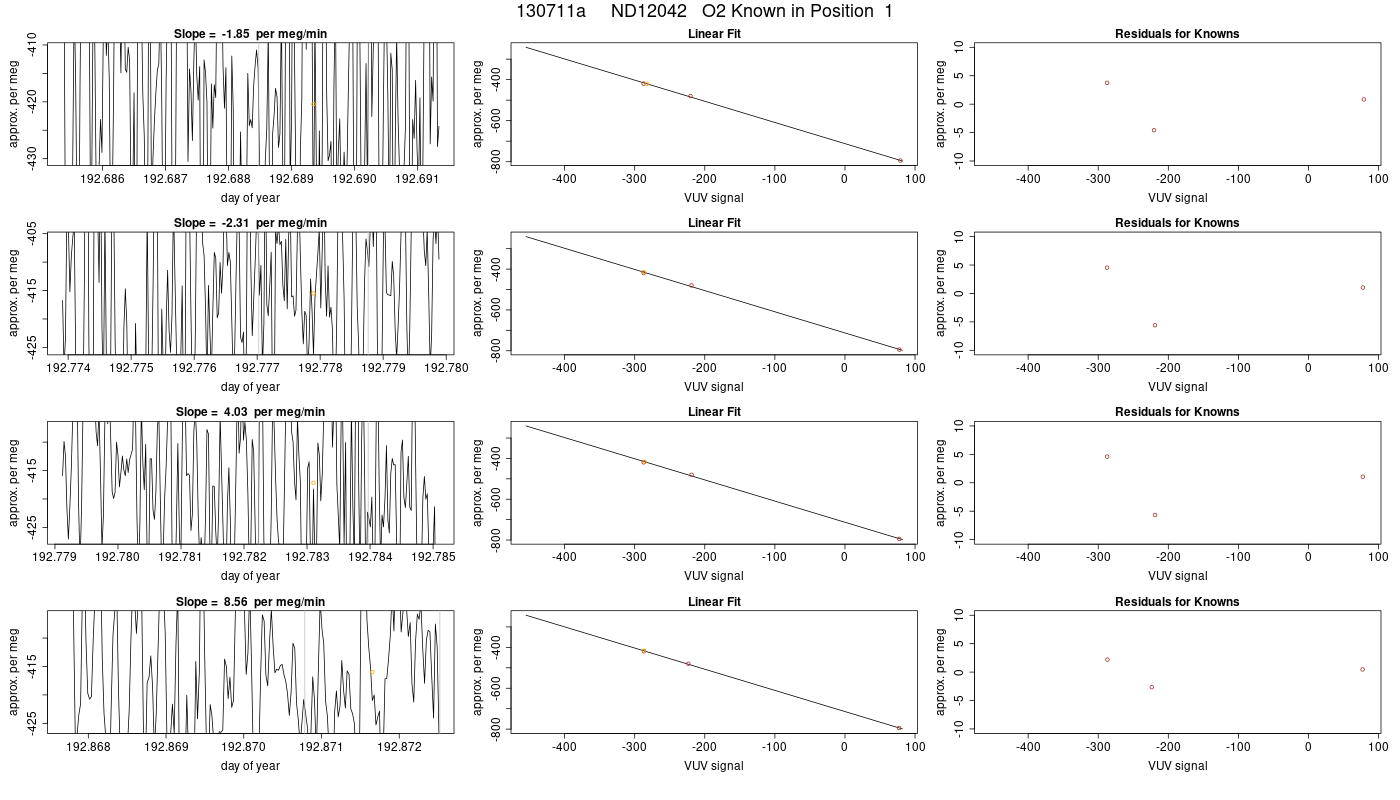

1 ND12042 399.283 0.000 0.000 399.150 0.000 0.000 7 -384.25 3.37 1.66 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

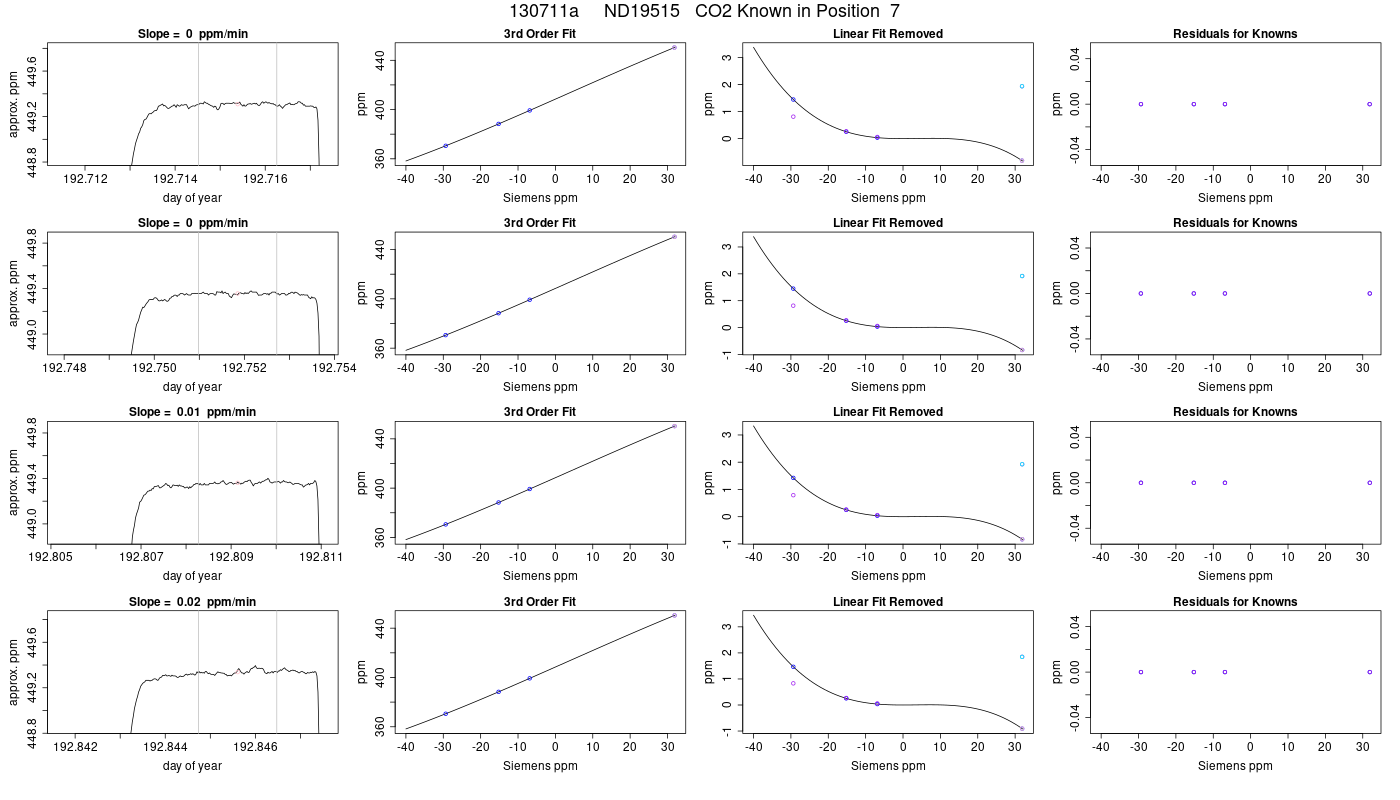

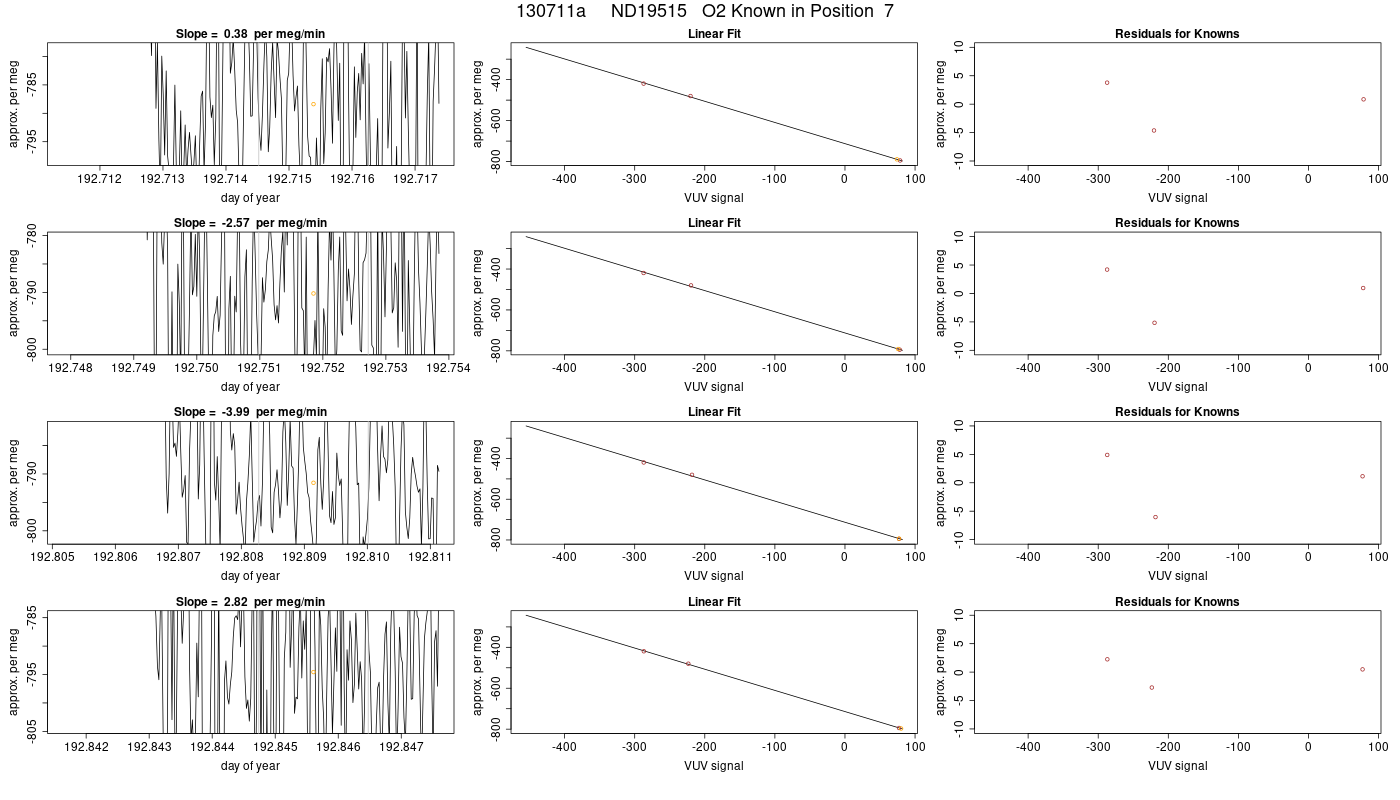

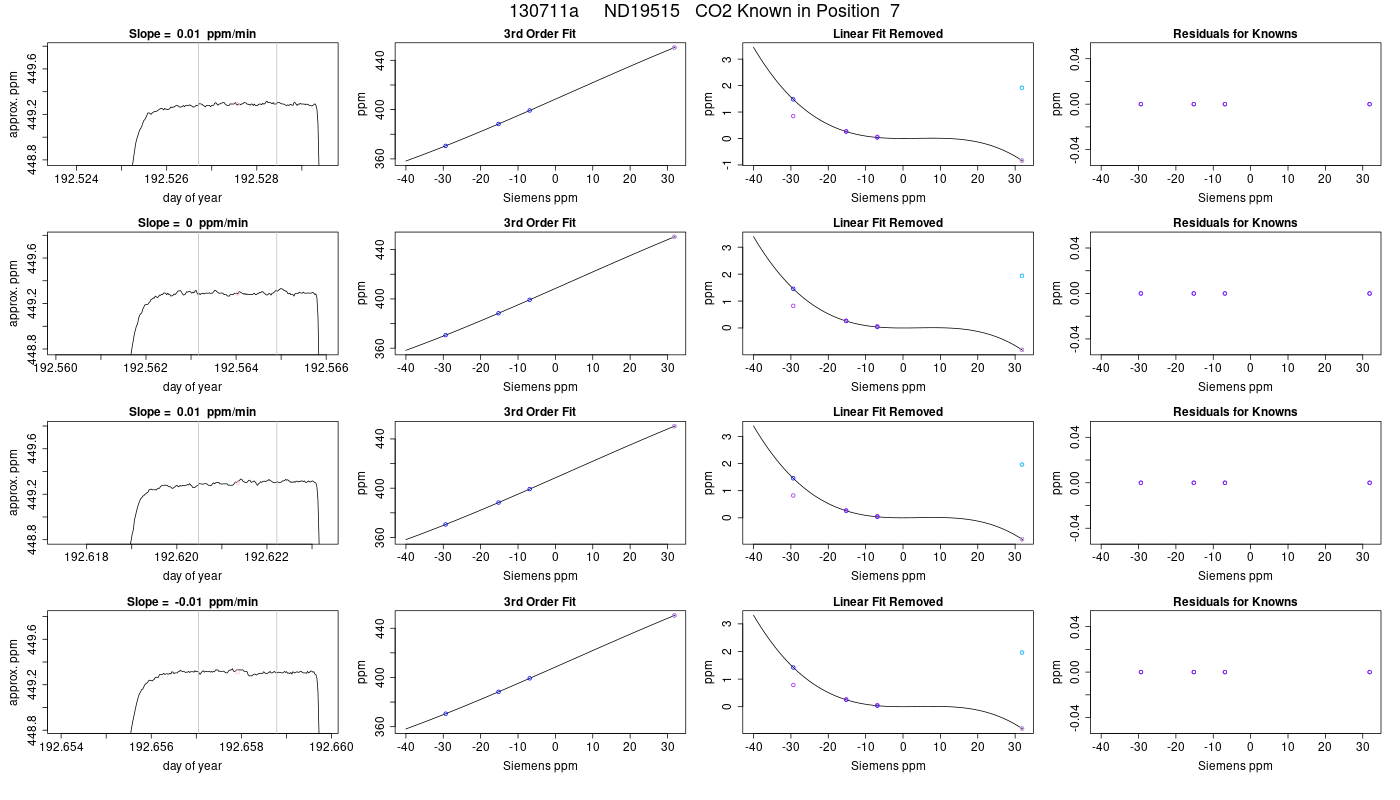

7 ND19515 450.346 0.000 0.000 451.248 0.000 0.000 6 -707.13 1.14 NA 1    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

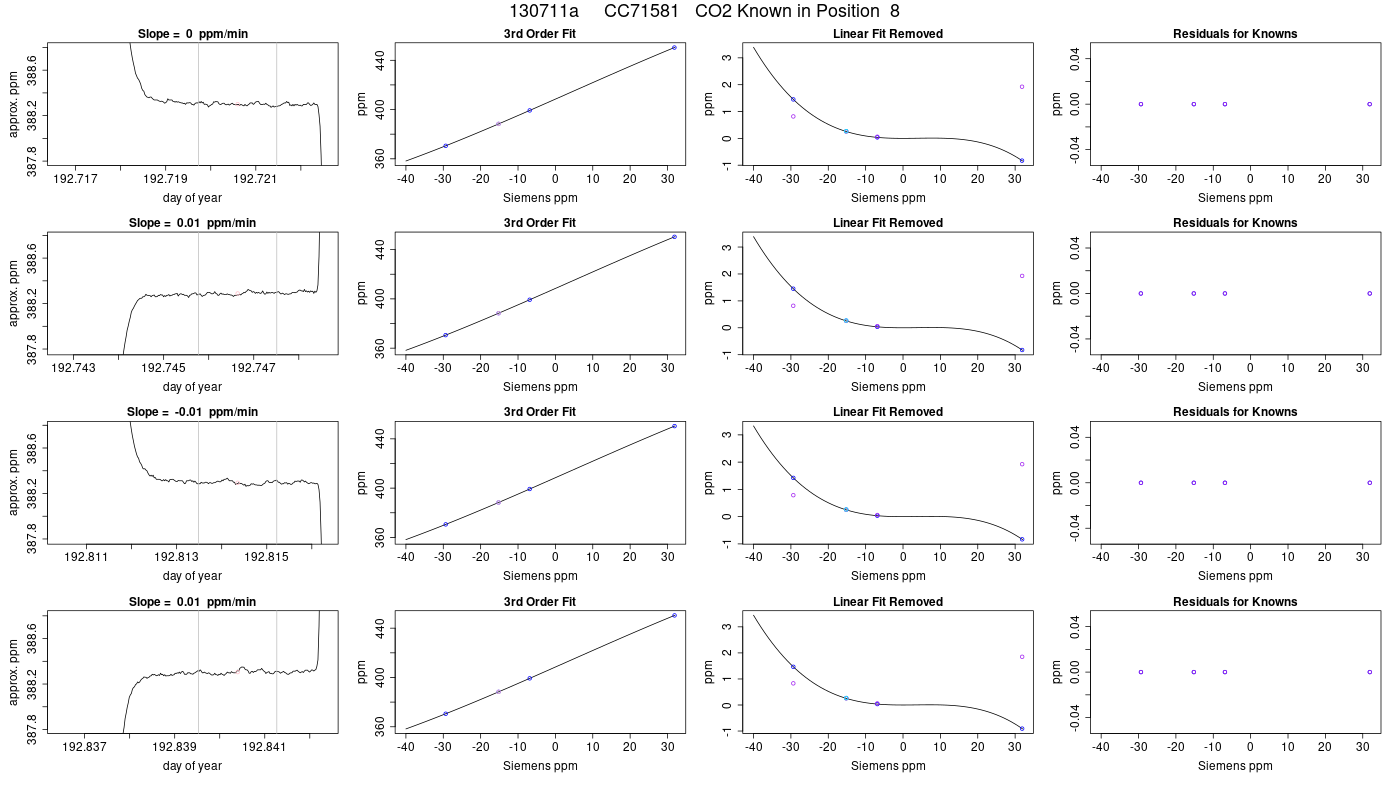

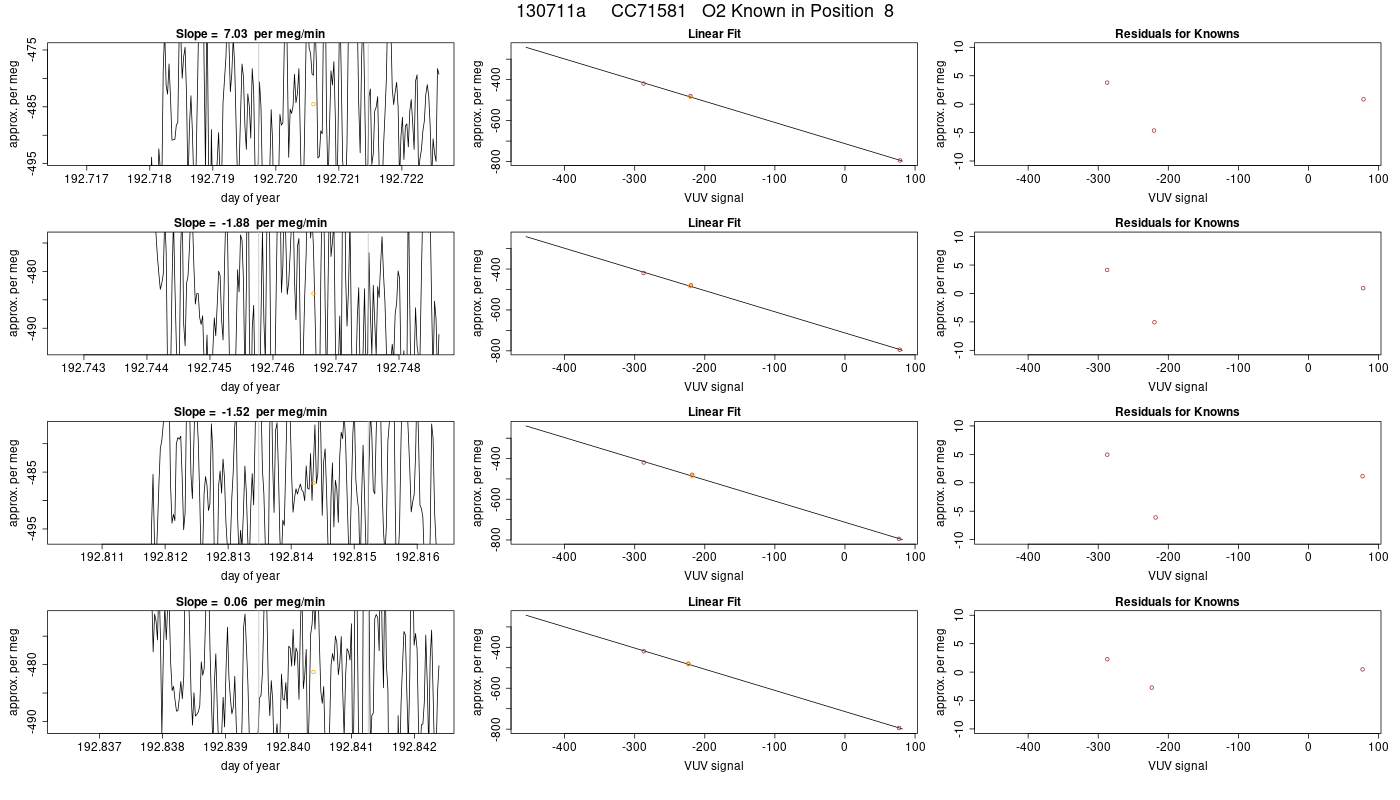

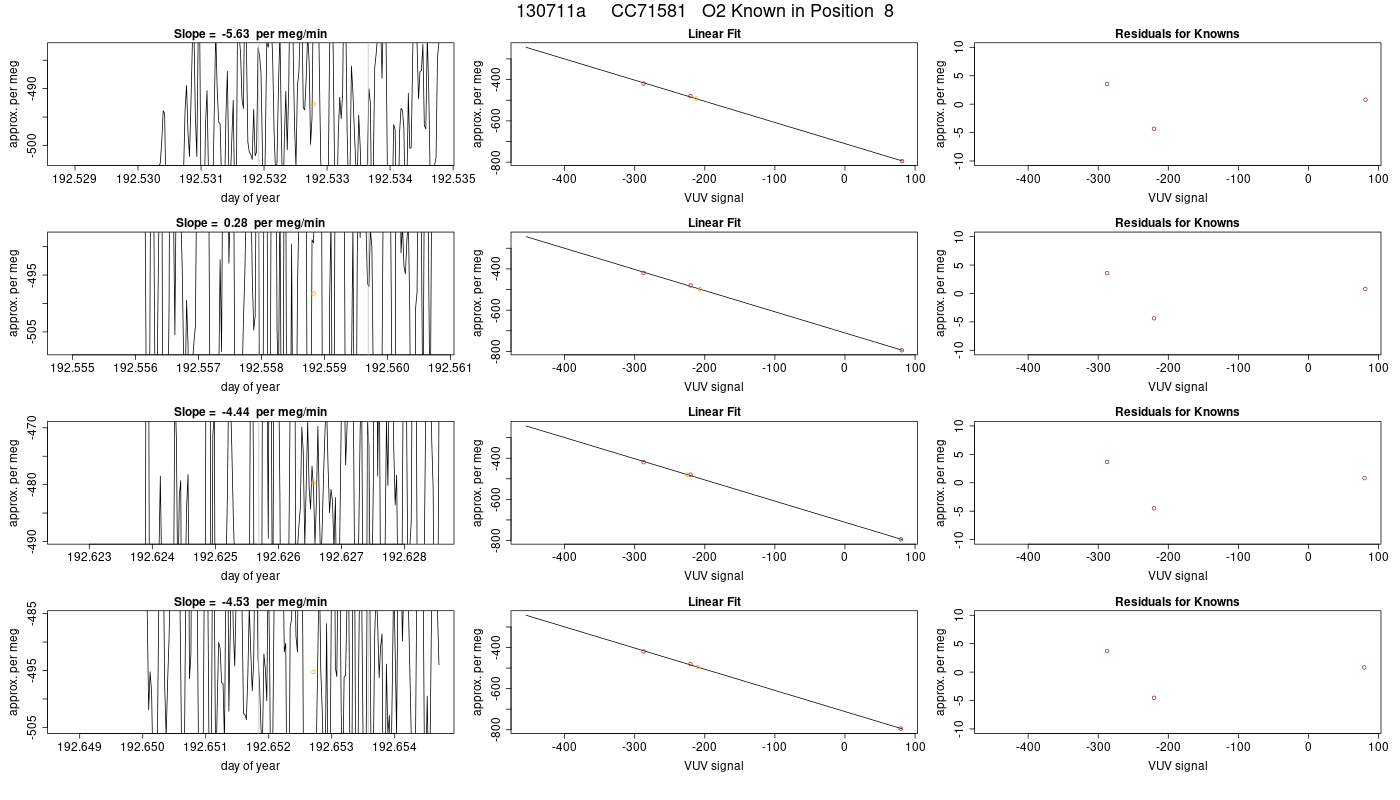

8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 7 -454.95 -4.49 1.69 3    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

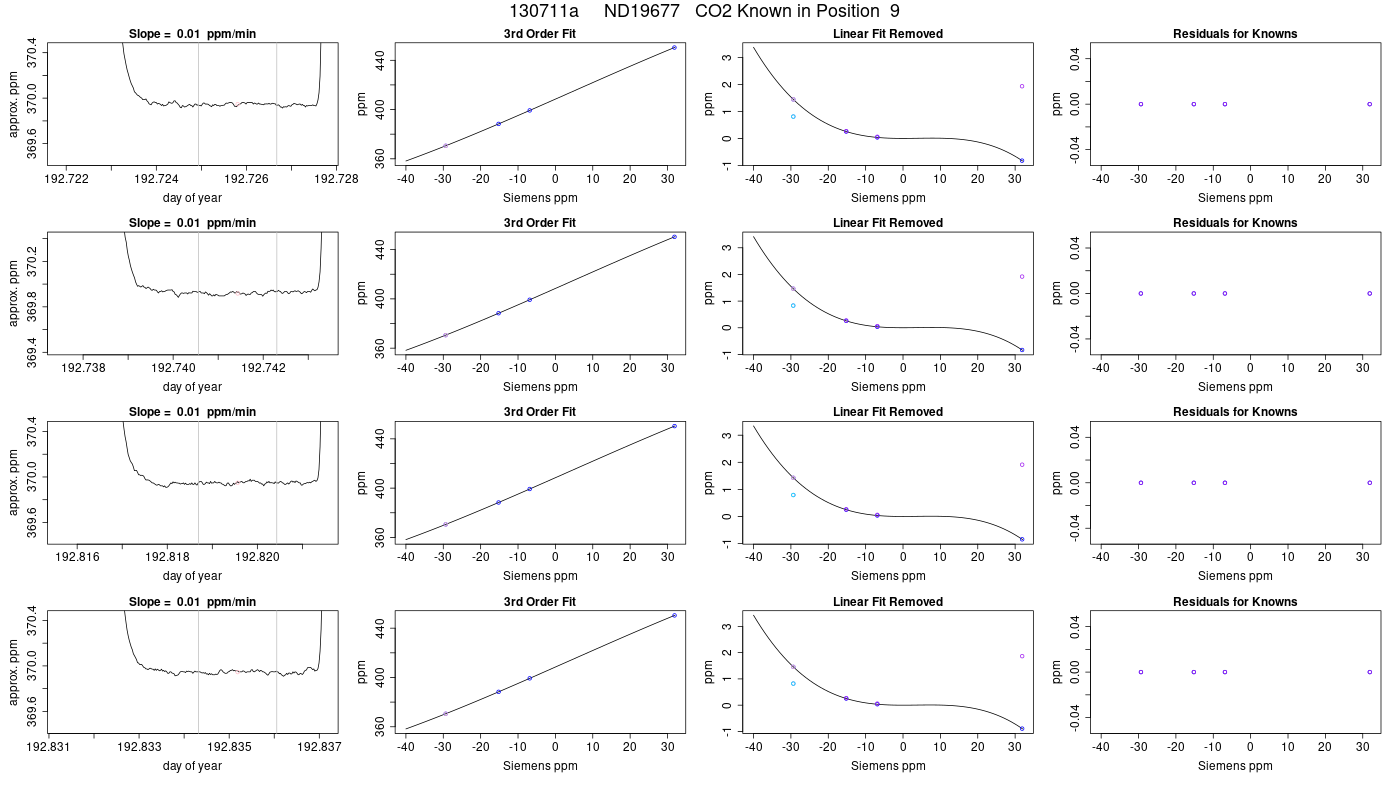

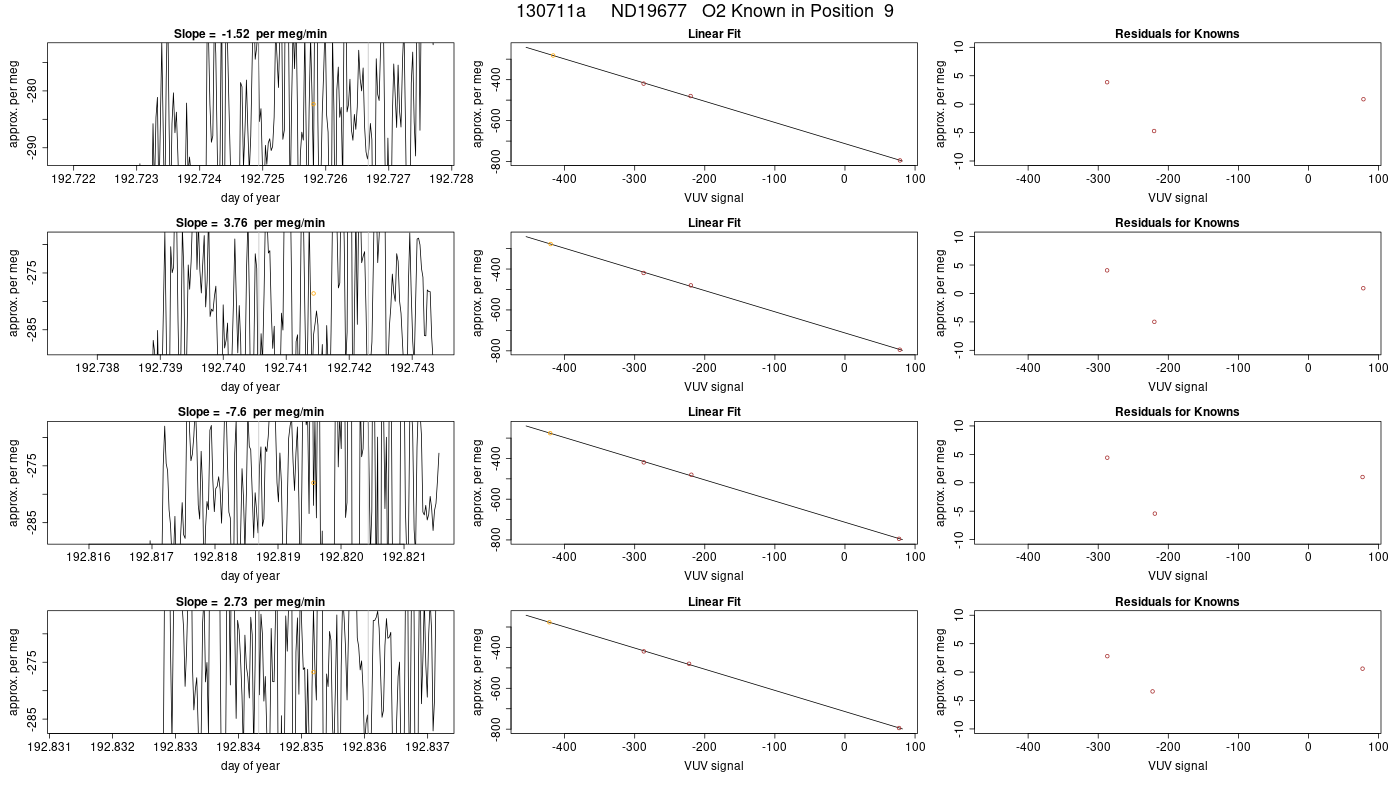

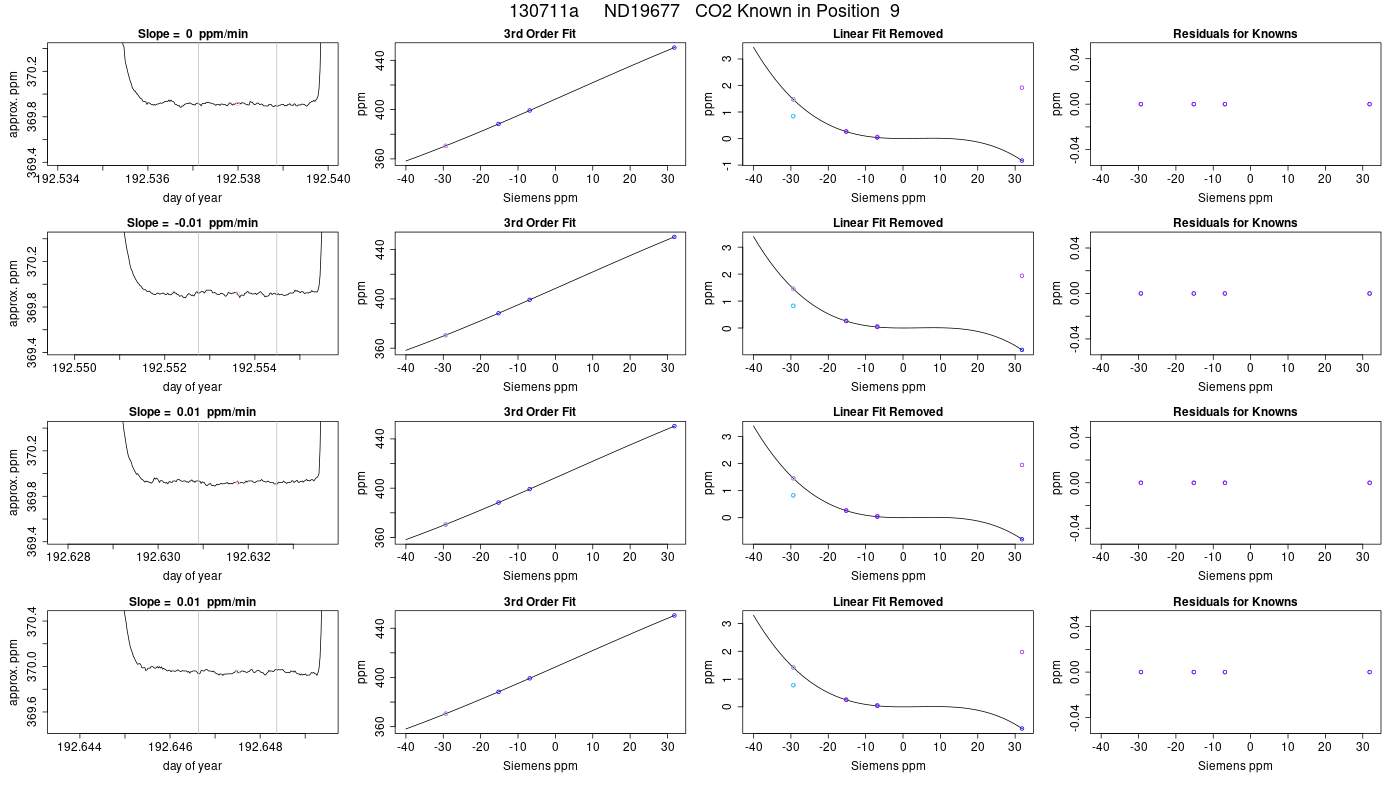

9 ND19677 370.558 0.000 0.000 370.748 0.000 0.000 7 NA NA NA 0    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

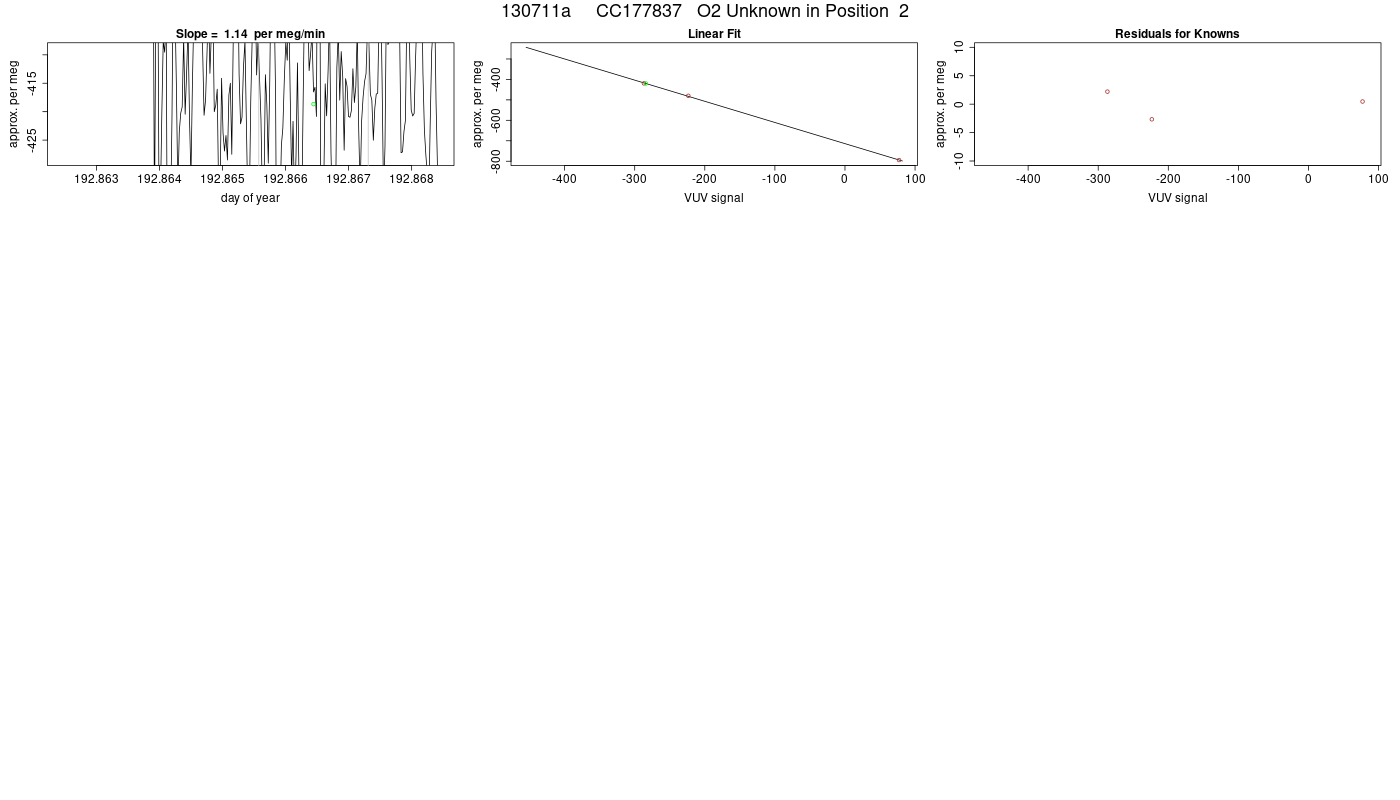

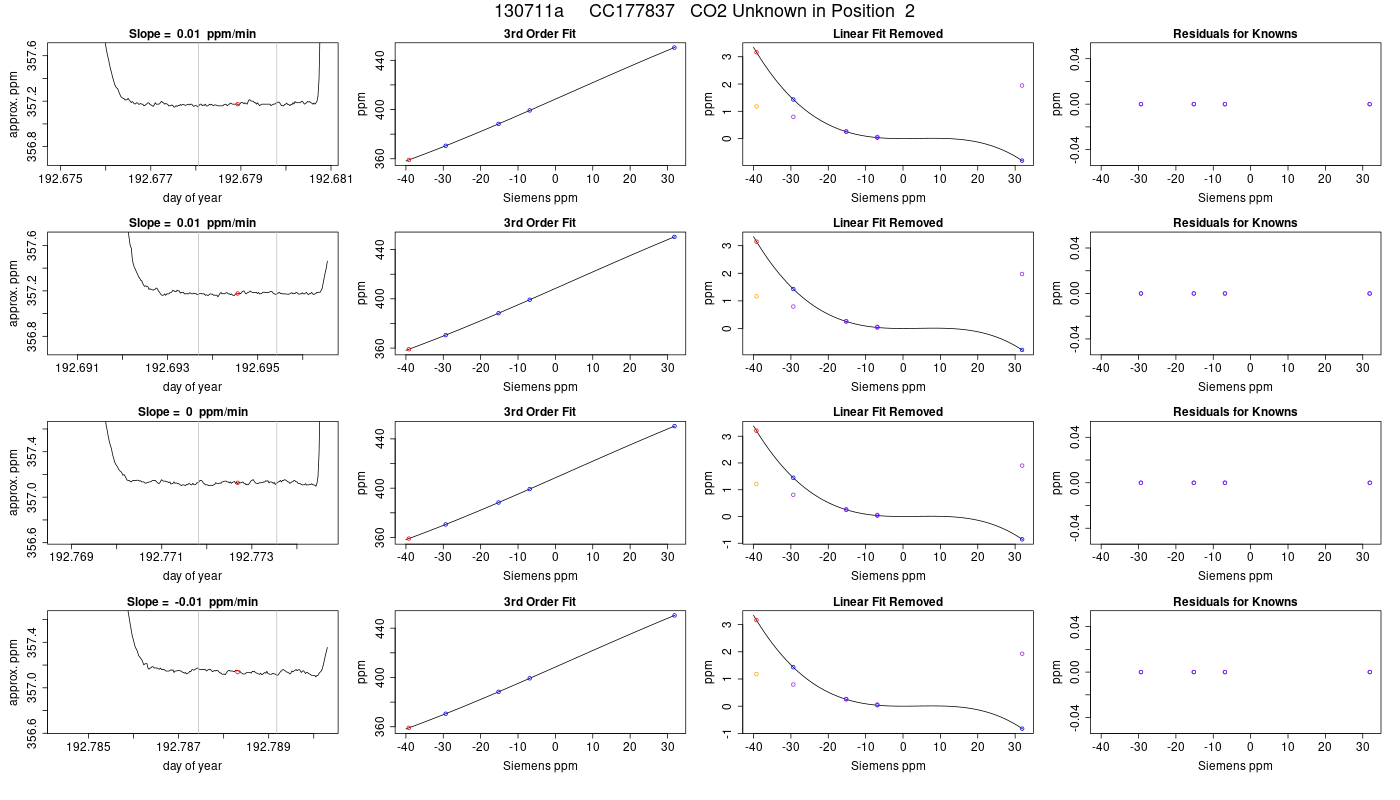

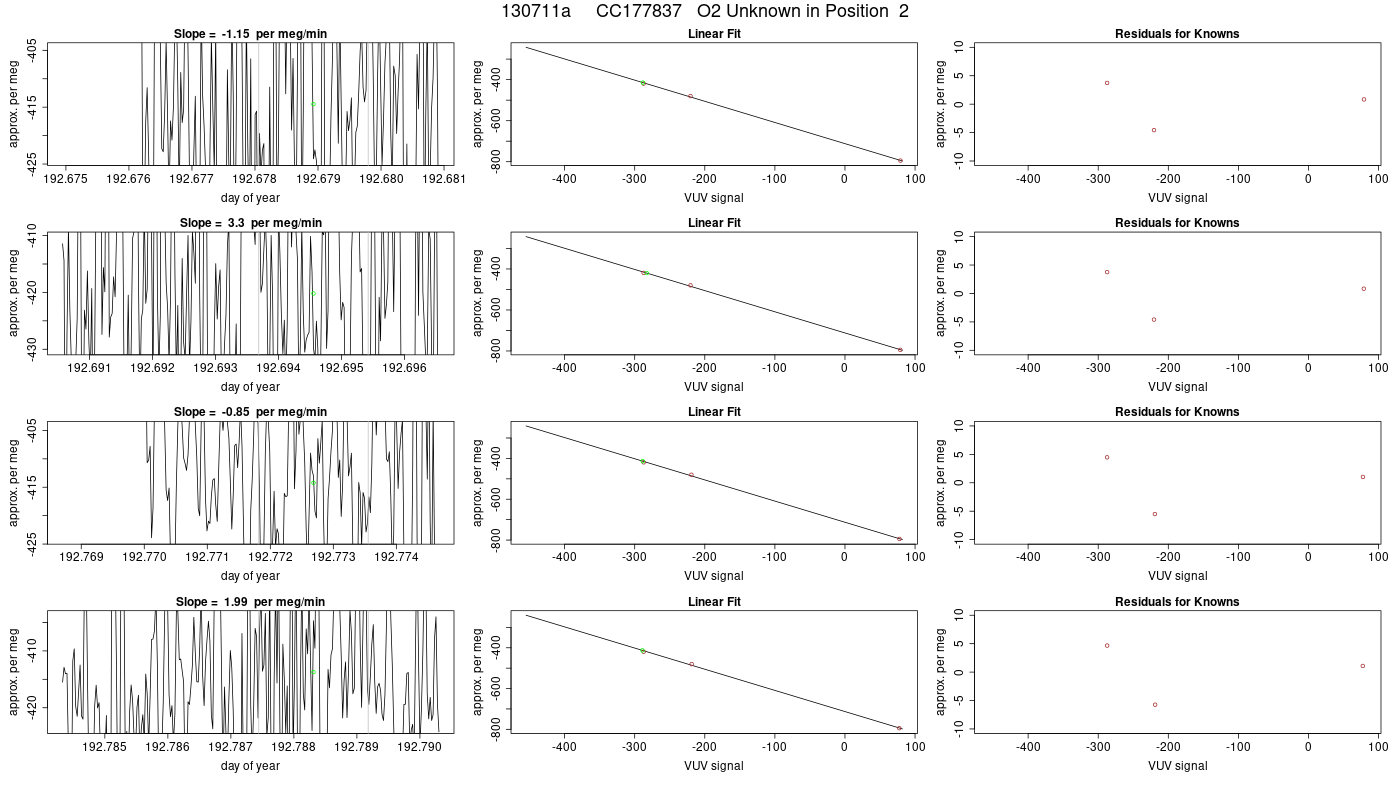

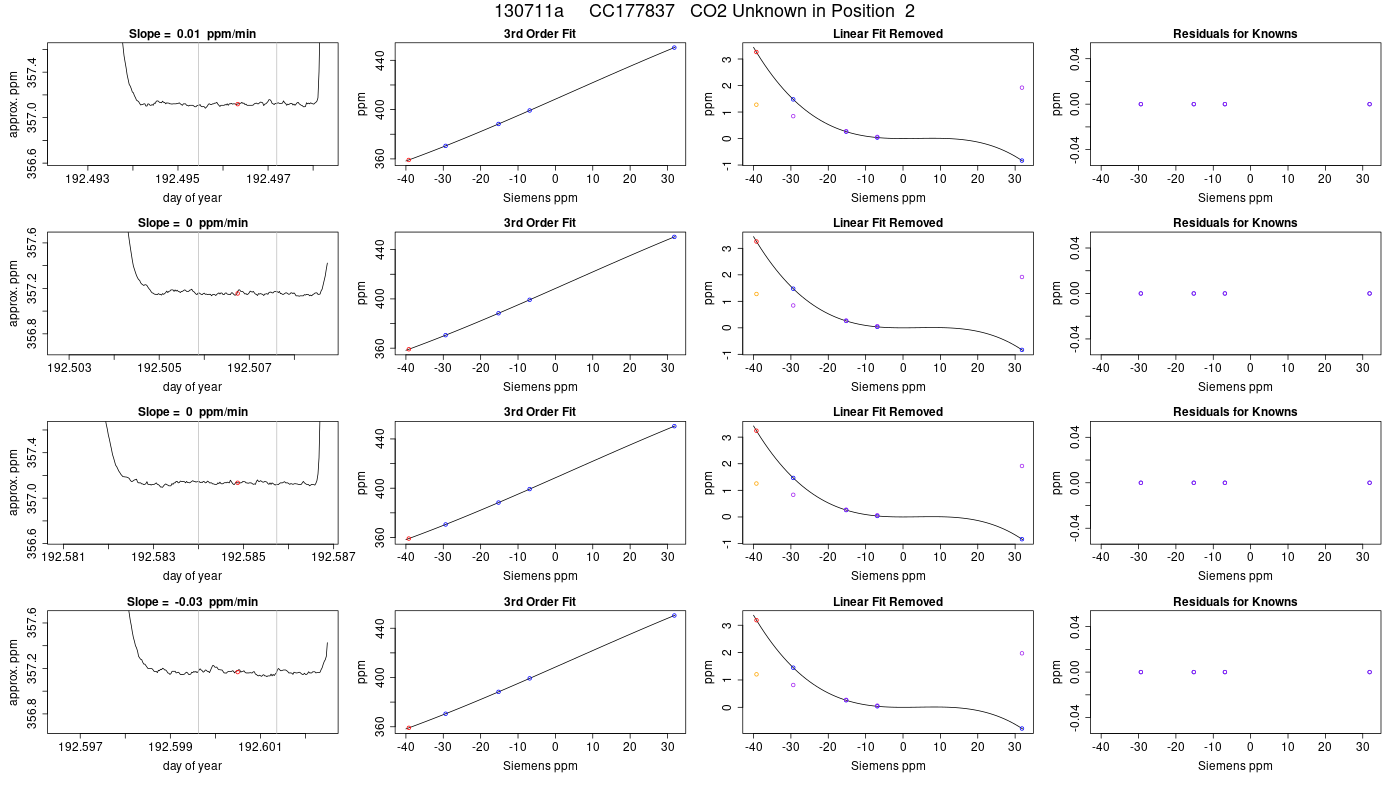

2 CC177837    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
192.496 359.114 0.013 -425.65 21.15 358.382 0.013
192.507 359.146 0.011 -422.12 15.07 358.418 0.011
192.585 359.112 0.010 -404.10 57.71 358.381 0.010
192.600 359.119 0.023 -417.71 43.64 358.393 0.023
192.679 359.084 0.012 -419.34 24.99 358.354 0.012
192.695 359.081 0.011 -425.03 18.12 358.352 0.011
192.773 359.087 0.012 -418.33 12.67 358.355 0.012
192.788 359.075 0.015 -417.61 19.96 358.343 0.015
192.866 359.090 0.015 -424.64 15.44 358.354 0.015

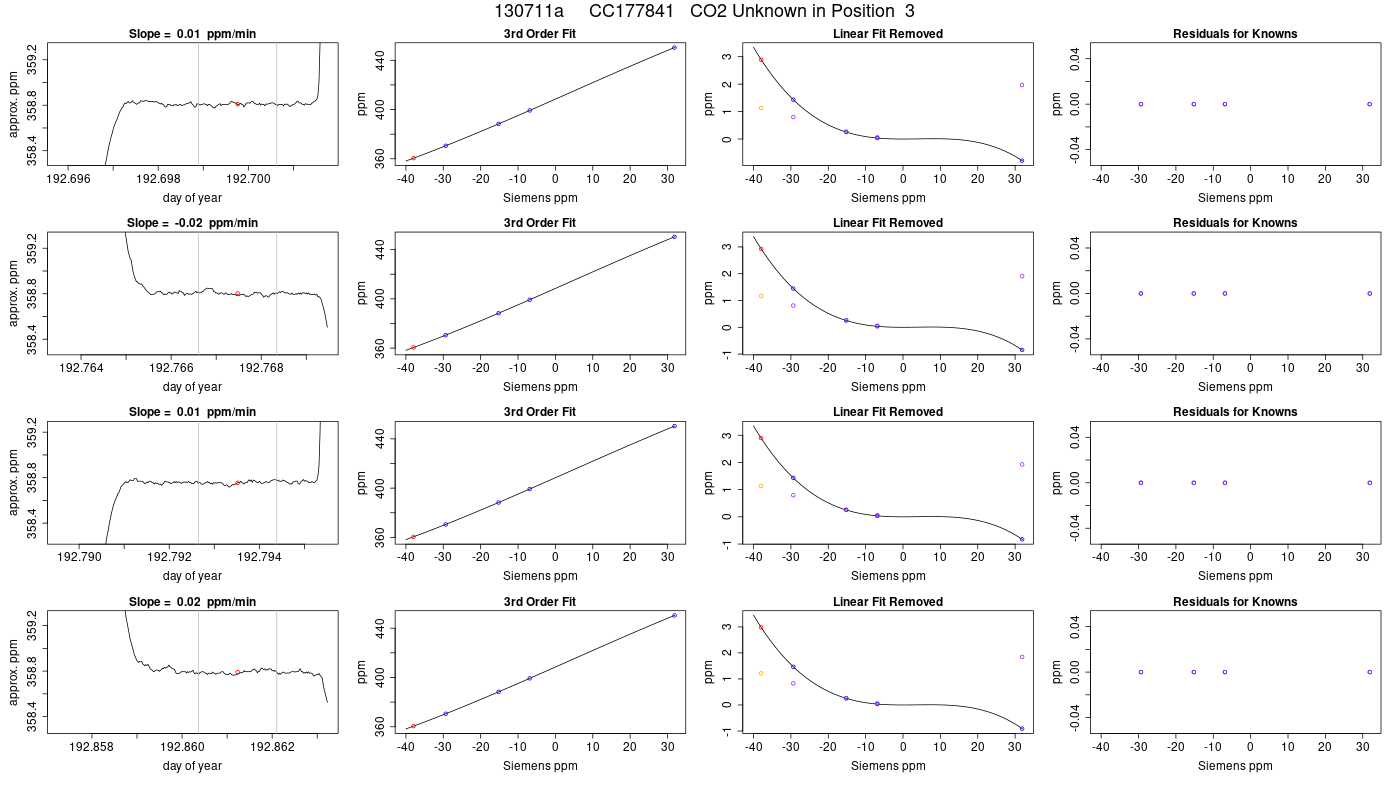

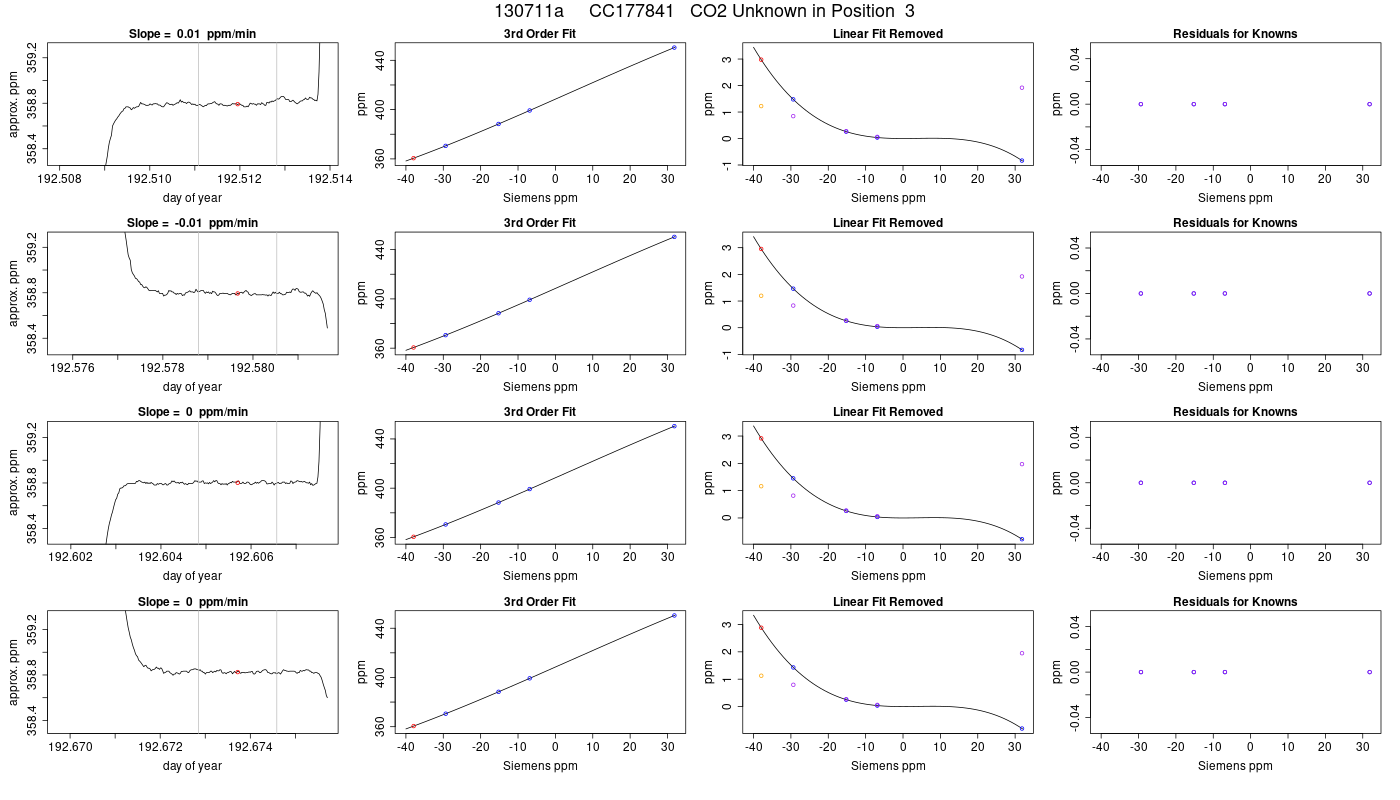

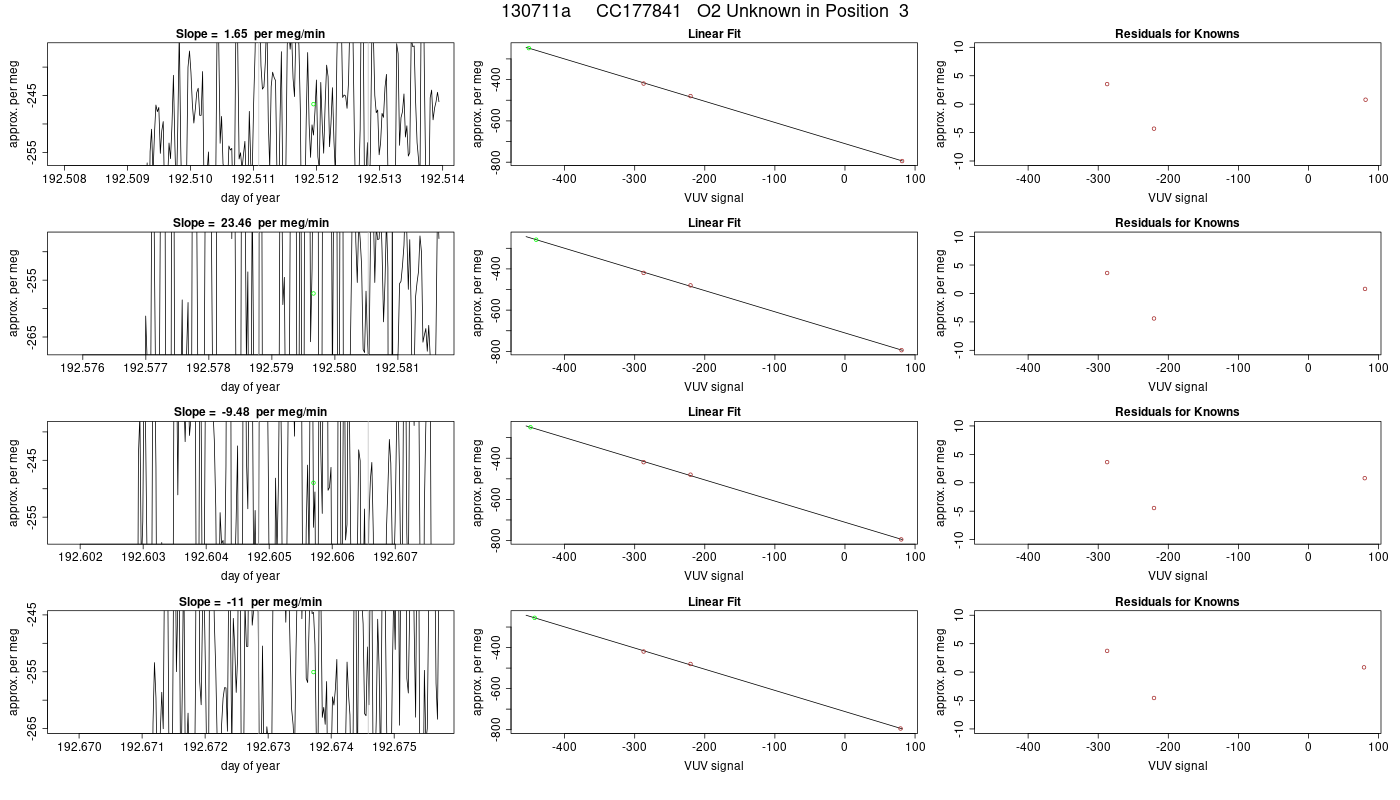

3 CC177841    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
192.512 360.557 0.014 -251.12 12.78 360.002 0.014
192.580 360.541 0.012 -261.46 58.16 359.985 0.012
192.606 360.535 0.010 -252.89 39.32 359.981 0.010
192.674 360.512 0.010 -258.42 19.84 359.957 0.010
192.700 360.502 0.012 -246.24 24.46 359.945 0.012
192.767 360.537 0.020 -253.33 13.23 359.982 0.020
192.794 360.471 0.015 -248.38 10.34 359.910 0.015
192.861 360.529 0.016 -251.56 21.71 359.970 0.016

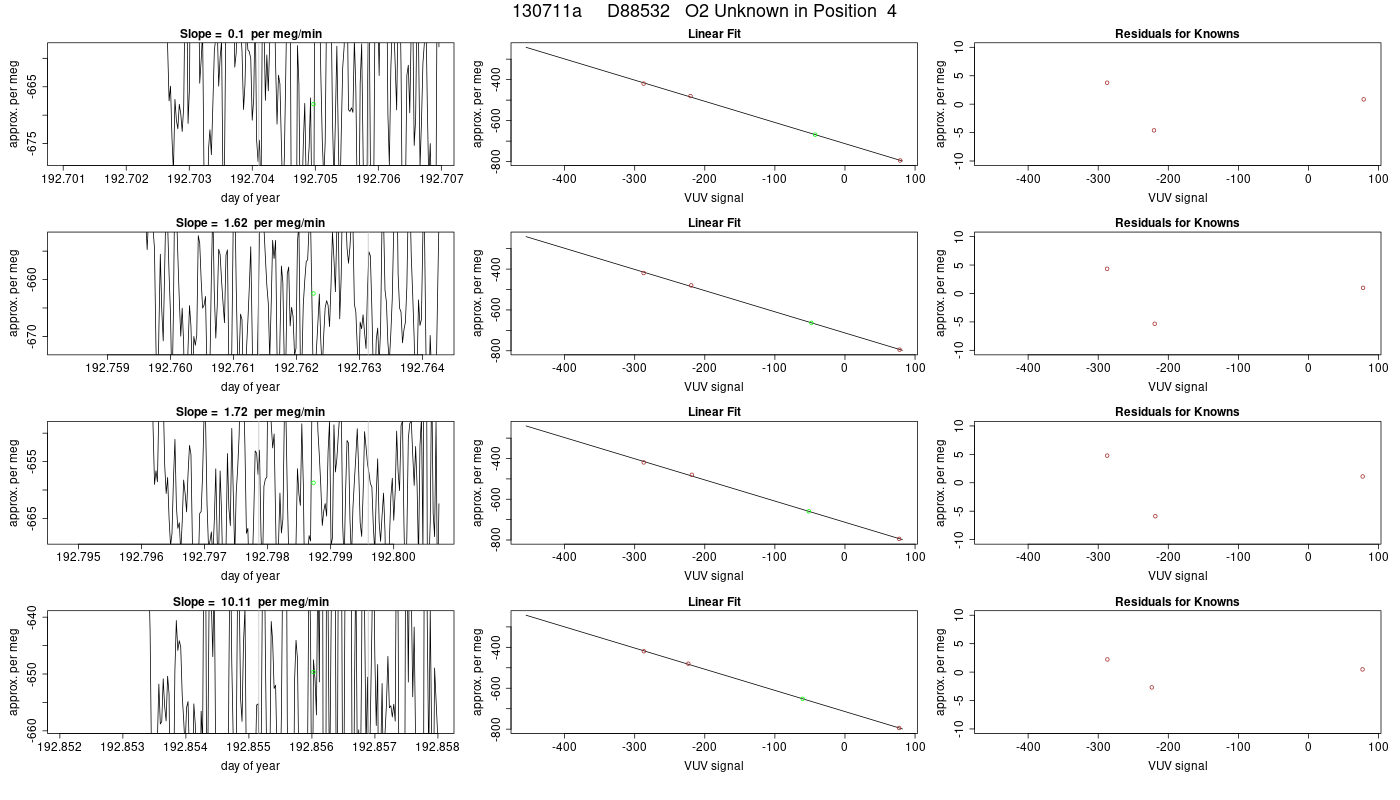

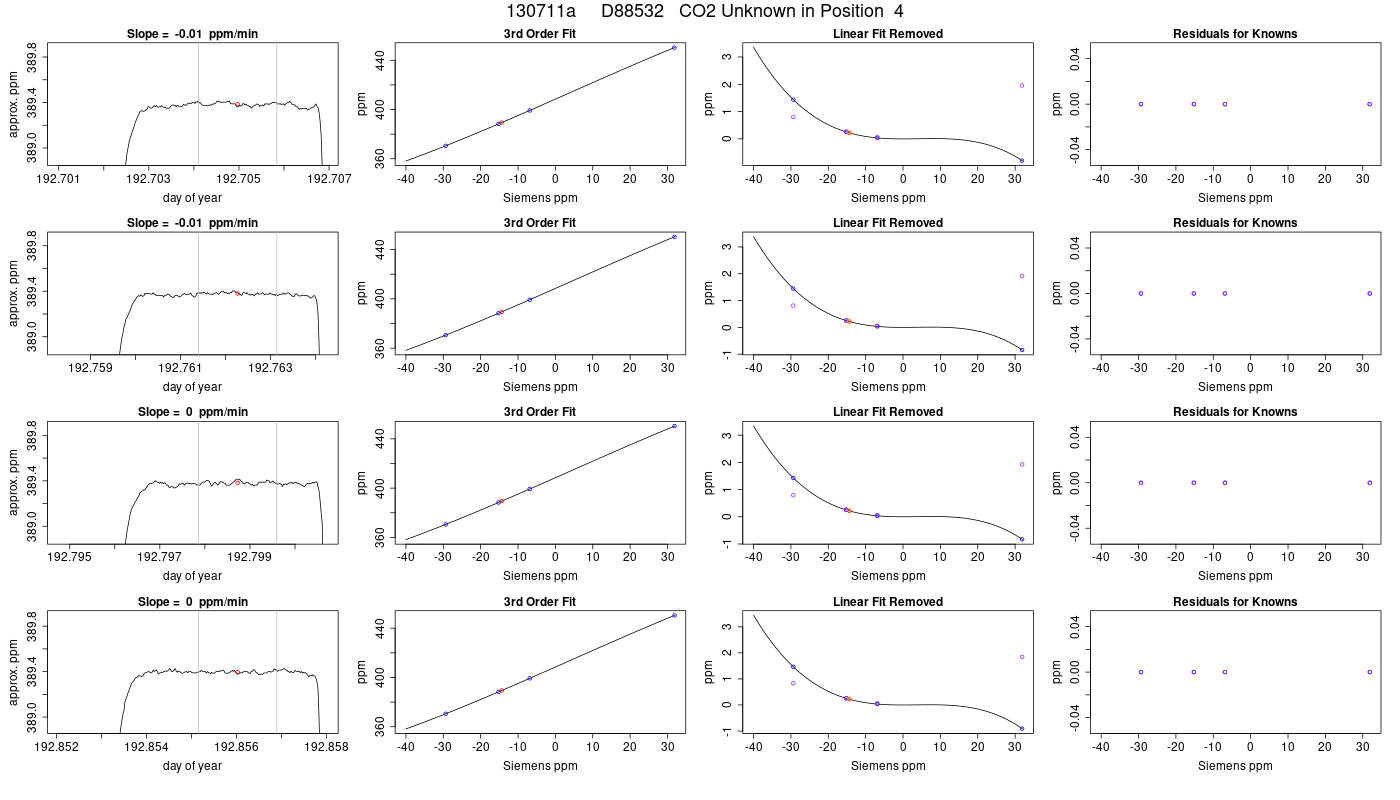

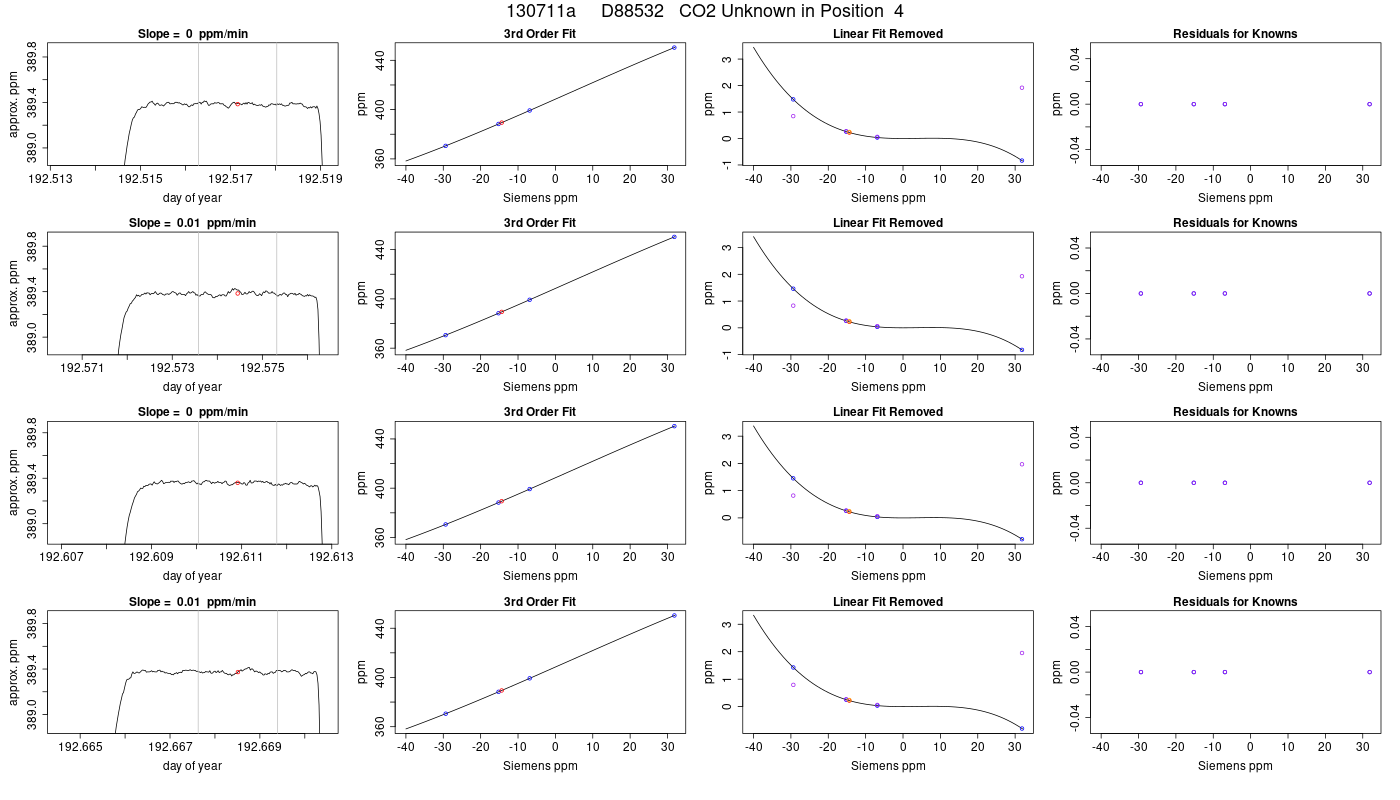

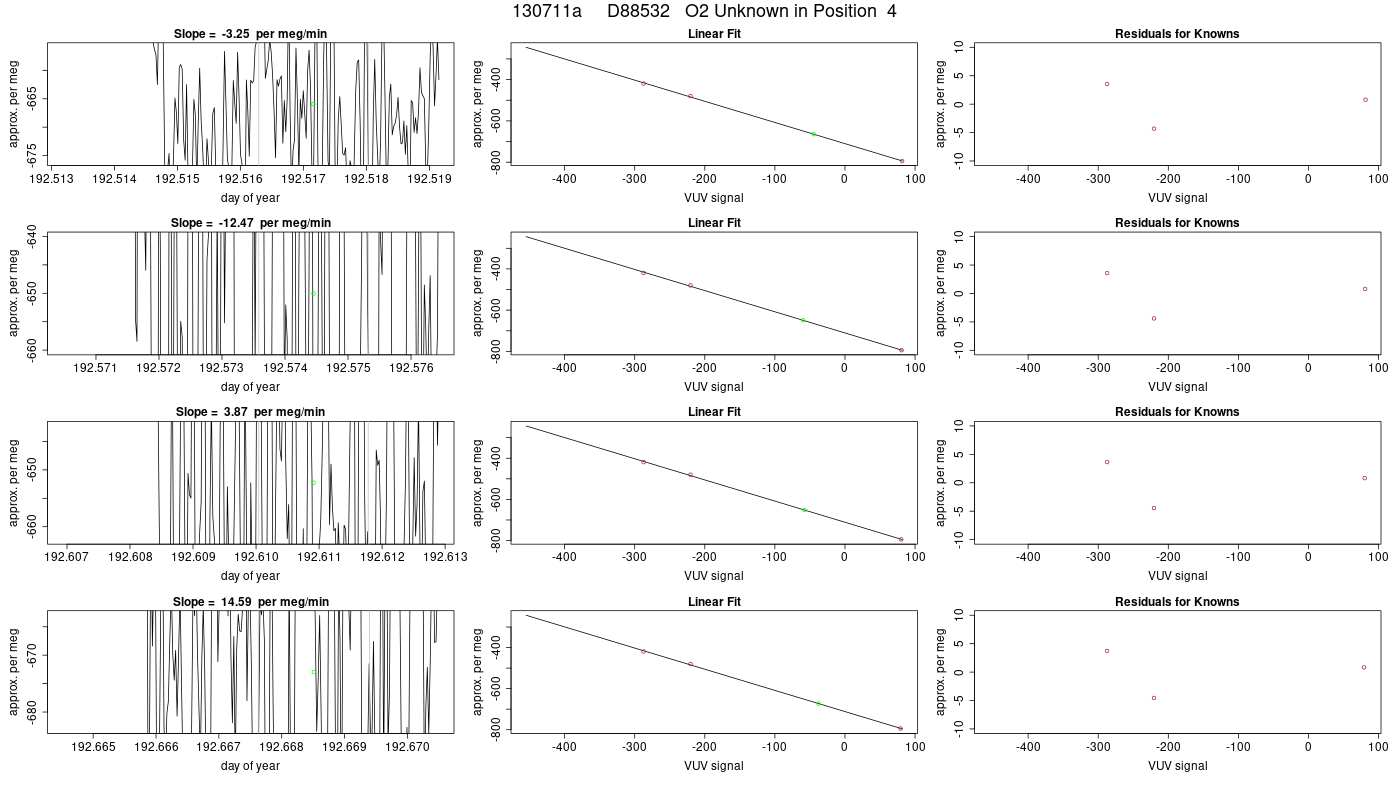

4 D88532    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
192.517 389.446 0.013 -638.63 12.85 389.637 0.013
192.574 389.447 0.019 -623.24 59.32 389.638 0.019
192.611 389.418 0.012 -625.83 33.16 389.610 0.012
192.669 389.423 0.016 -647.04 37.28 389.615 0.016
192.705 389.429 0.014 -642.48 20.10 389.621 0.014
192.762 389.432 0.010 -637.16 9.59 389.624 0.010
192.799 389.432 0.015 -633.53 11.77 389.624 0.015
192.856 389.434 0.011 -625.75 30.49 389.625 0.011

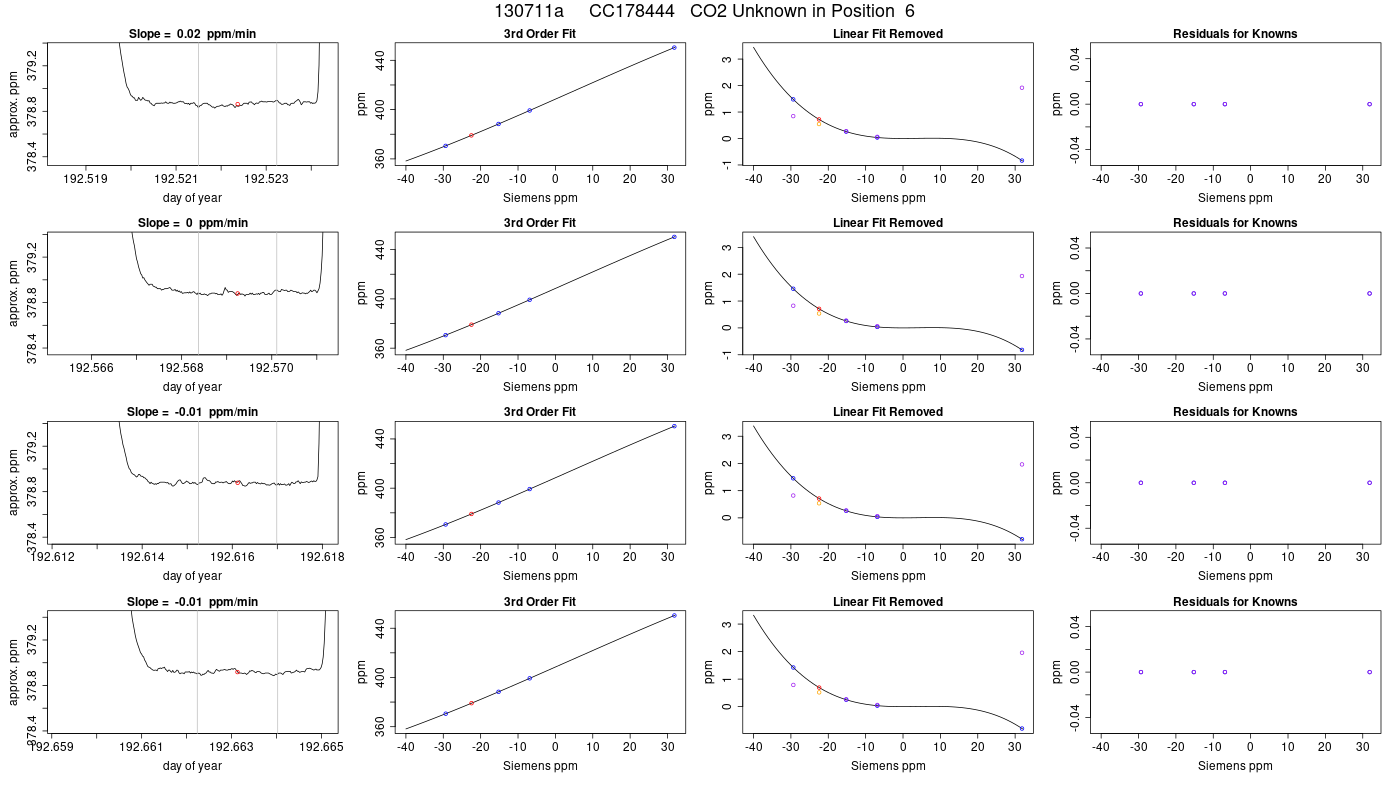

6 CC178444    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
192.522 379.059 0.017 -432.21 13.10 379.407 0.017
192.569 379.075 0.013 -438.41 56.86 379.423 0.013
192.616 379.072 0.015 -425.84 64.00 379.420 0.015
192.663 379.095 0.016 -419.27 27.94 379.442 0.016
192.710 379.069 0.016 -414.58 8.93 379.417 0.016
192.757 379.085 0.016 -410.68 11.90 379.433 0.016
192.804 379.056 0.012 -413.34 20.75 379.404 0.012
192.851 379.075 0.011 -410.40 11.12 379.423 0.011

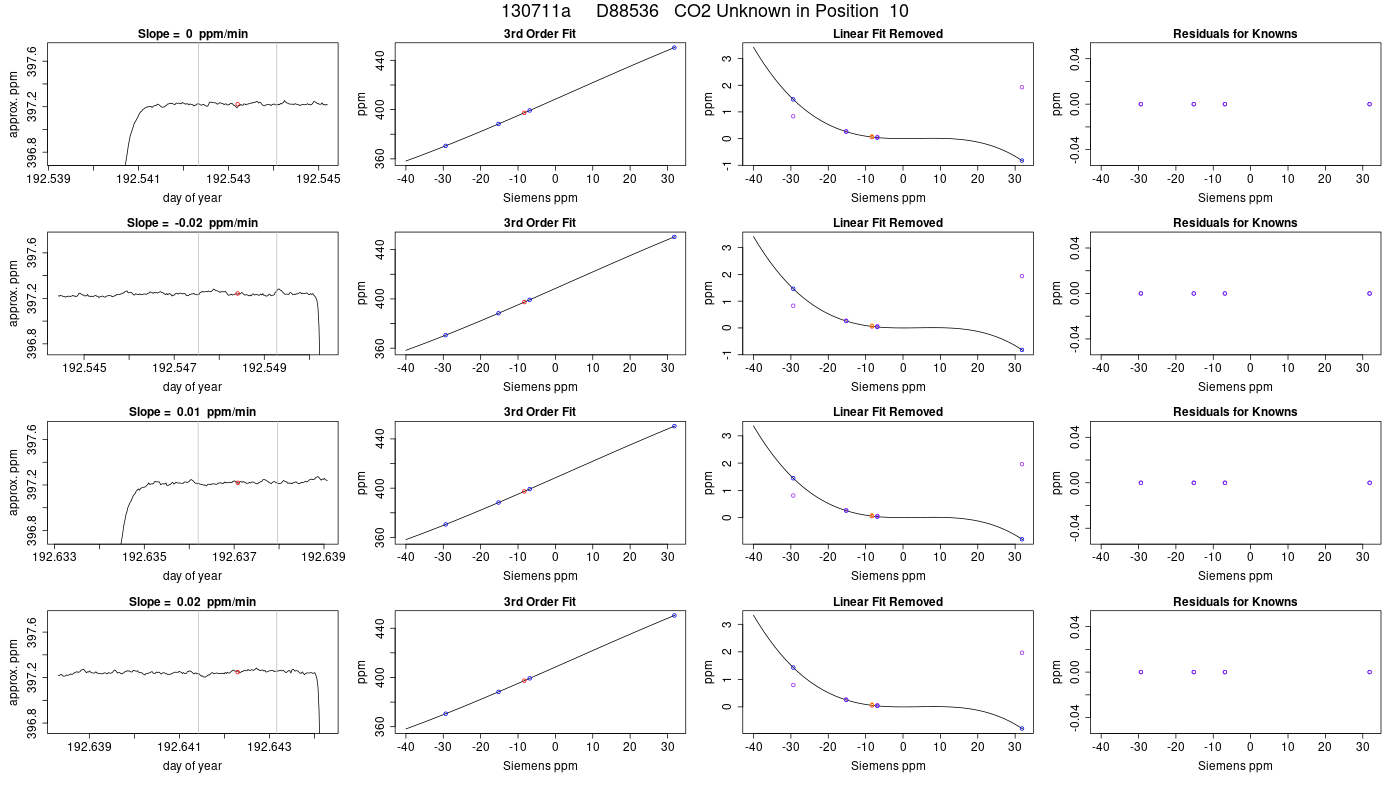

10 D88536    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
192.543 397.386 0.011 -616.52 25.04 397.322 0.011
192.548 397.408 0.015 -612.57 24.85 397.342 0.015
192.637 397.371 0.011 -623.49 26.65 397.307 0.011
192.642 397.401 0.018 -608.10 28.80 397.336 0.018
192.731 397.381 0.014 -608.96 15.65 397.317 0.014
192.736 397.402 0.011 -601.62 14.57 397.337 0.011
192.825 397.417 0.010 -606.66 19.86 397.352 0.010
192.830 397.423 0.014 -608.03 23.24 397.357 0.014
