UEA CRAM Lab O2 and CO2 calibration results
RUN = 130619a
PROCESSED: 11:46:35 Tue 1Aug2023

Notes
Logfile

Results

Using data from 170.584 to 170.839 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 CC177837 359.261 0.105 0.763 358.521 0.104 0.774 7 -412.68 2.47 -12.67 7
3 CC177841 360.671 0.080 0.507 360.108 0.079 0.512 6 -242.12 3.25 -37.12 7
6 CC178444 379.055 0.024 0.055 379.404 0.025 0.058 7 -407.35 2.87 25.15 7
WT D743660 415.491 0.066 -0.004 414.836 0.064 -0.004 49 -694.98 0.76 1.31 49
Text File

Raw Data and Diagnostics Figures

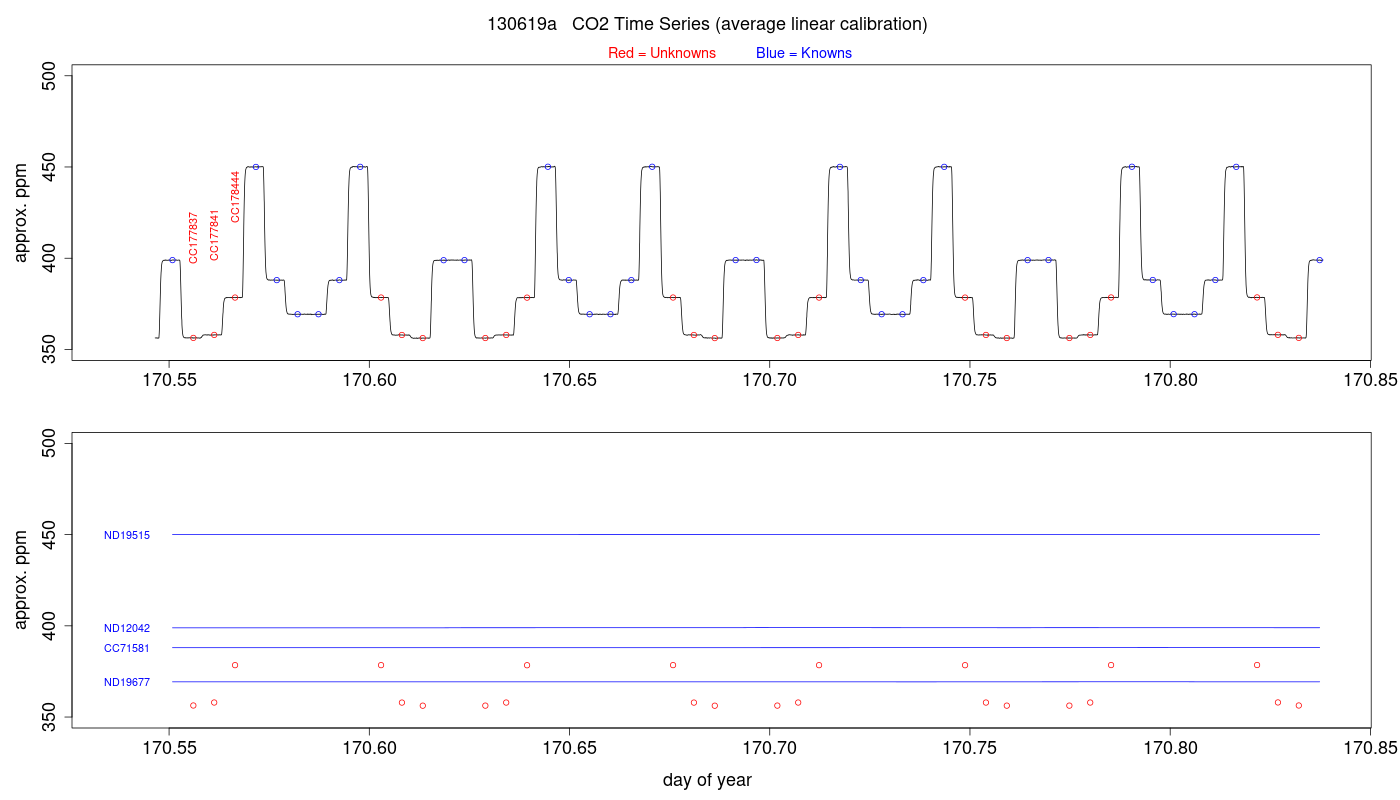

CO2 Timeseries

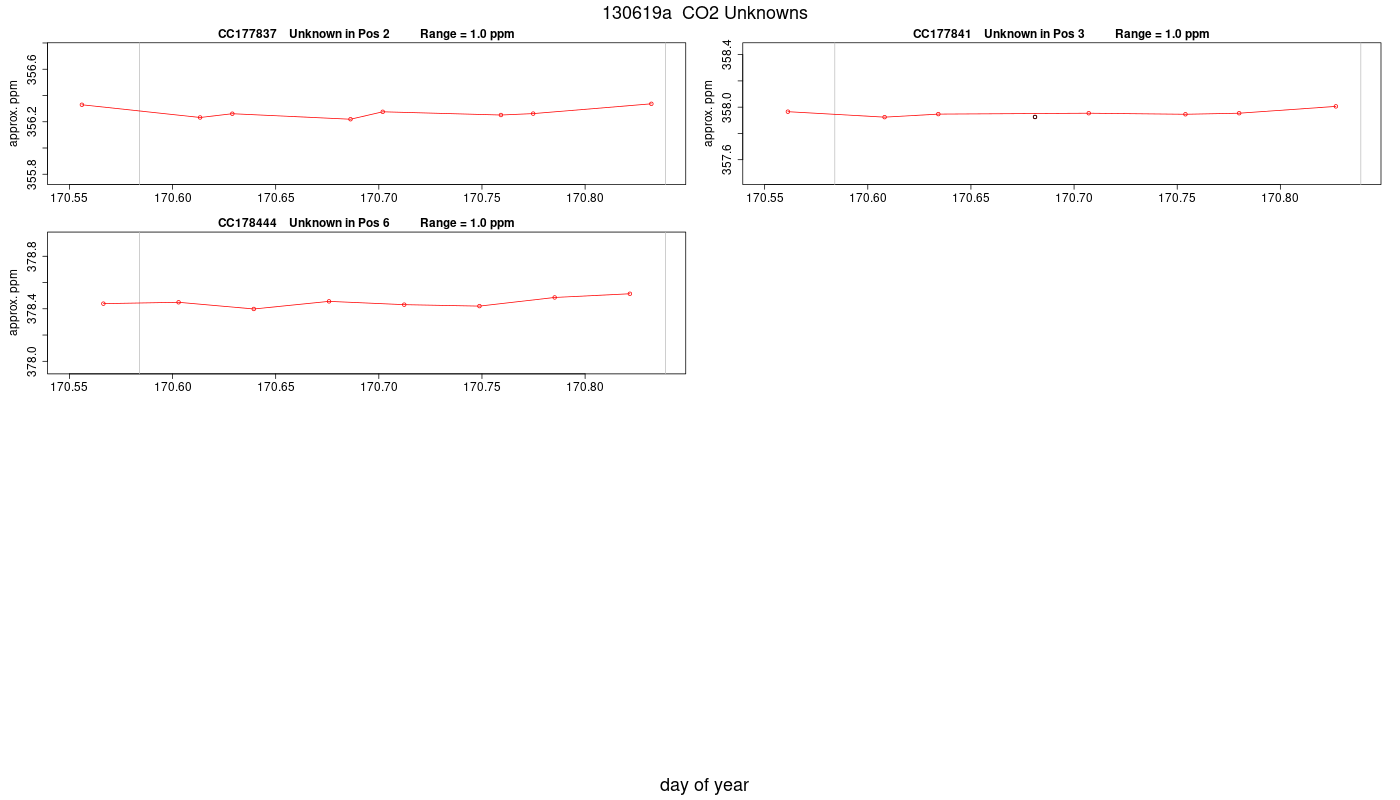

 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect

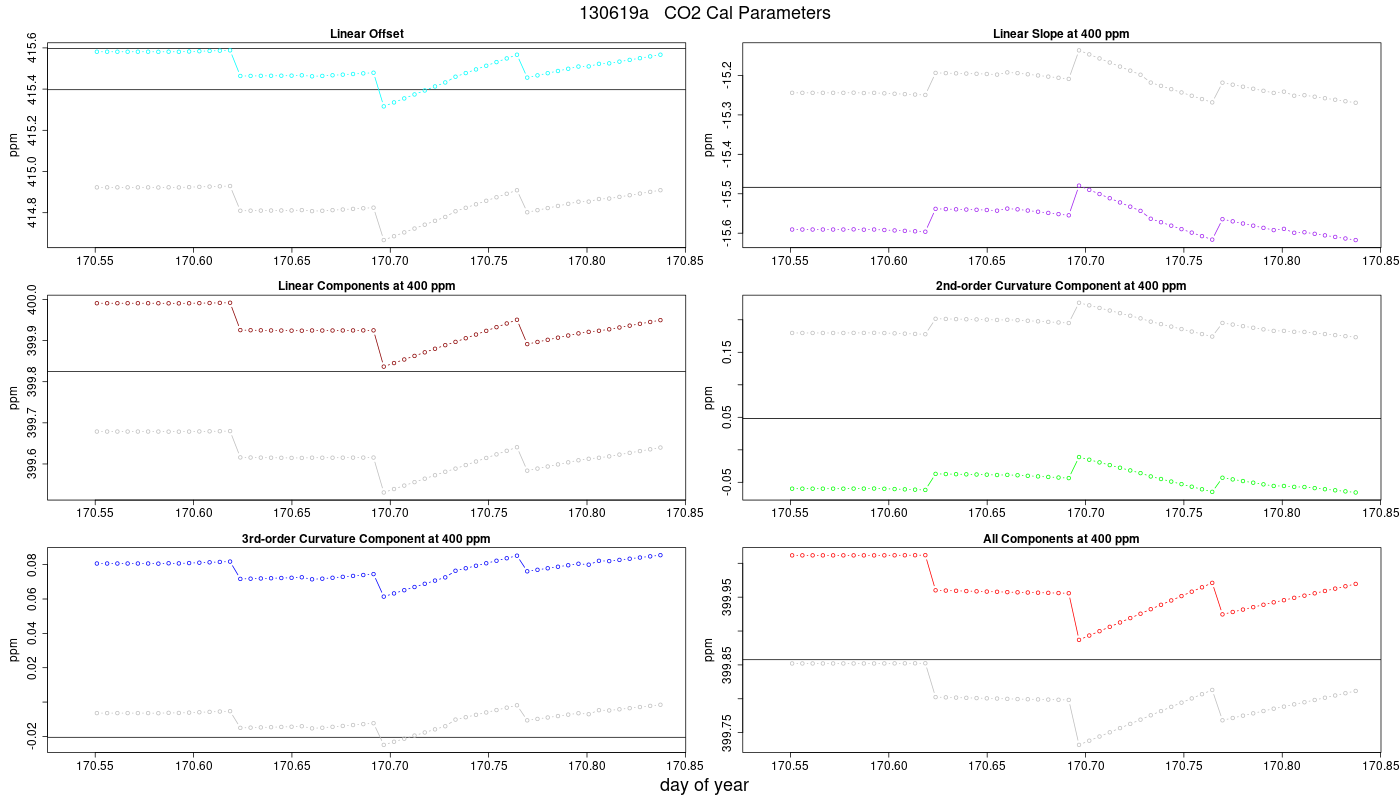

CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters

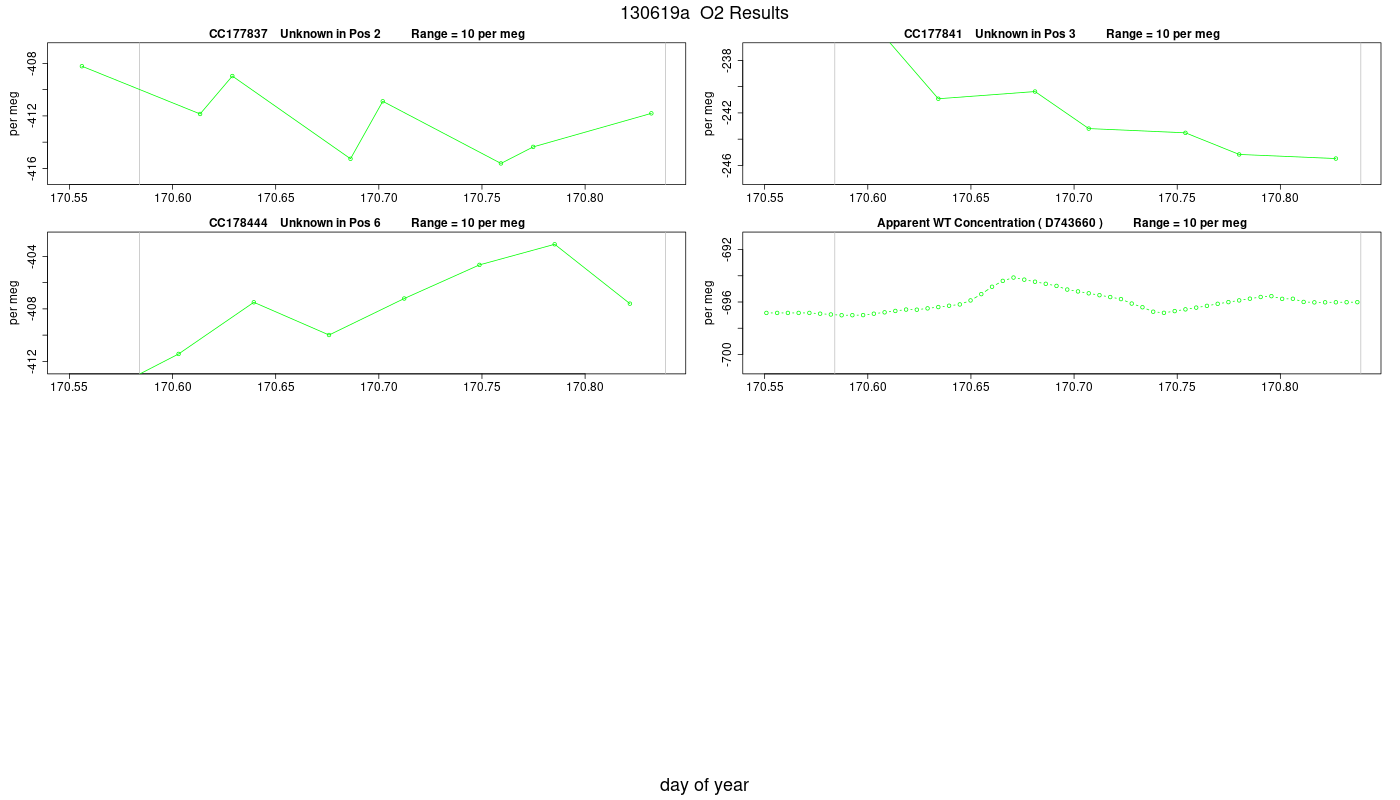

O2 Results

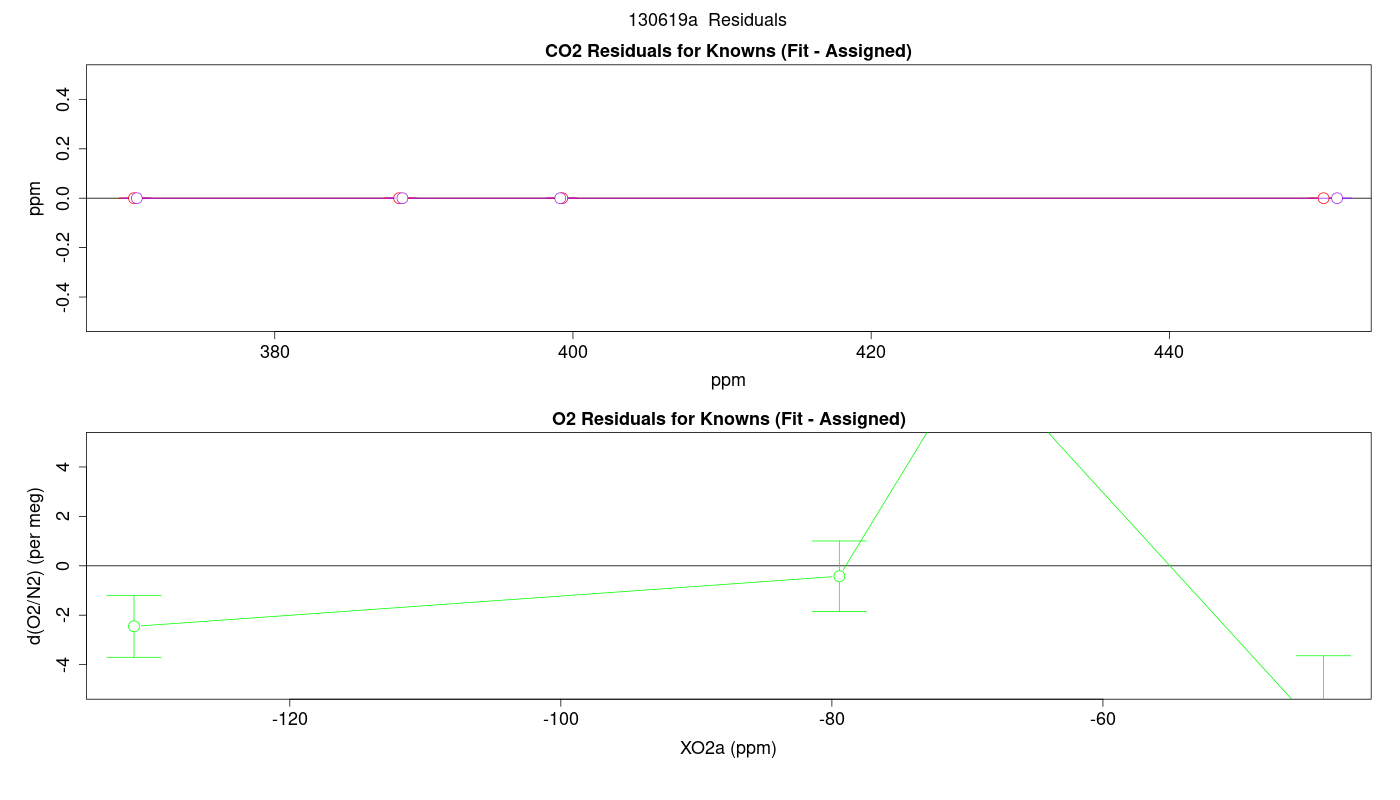

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

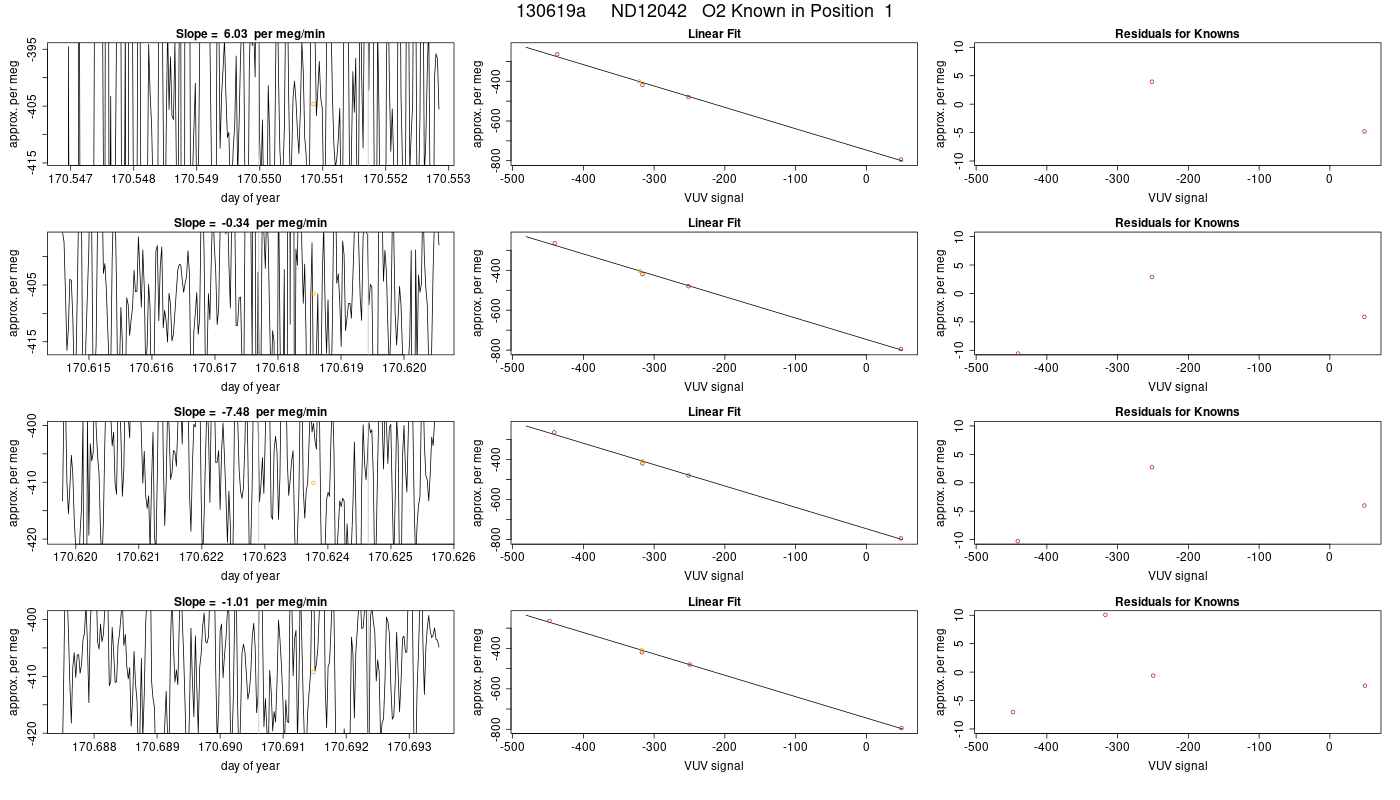

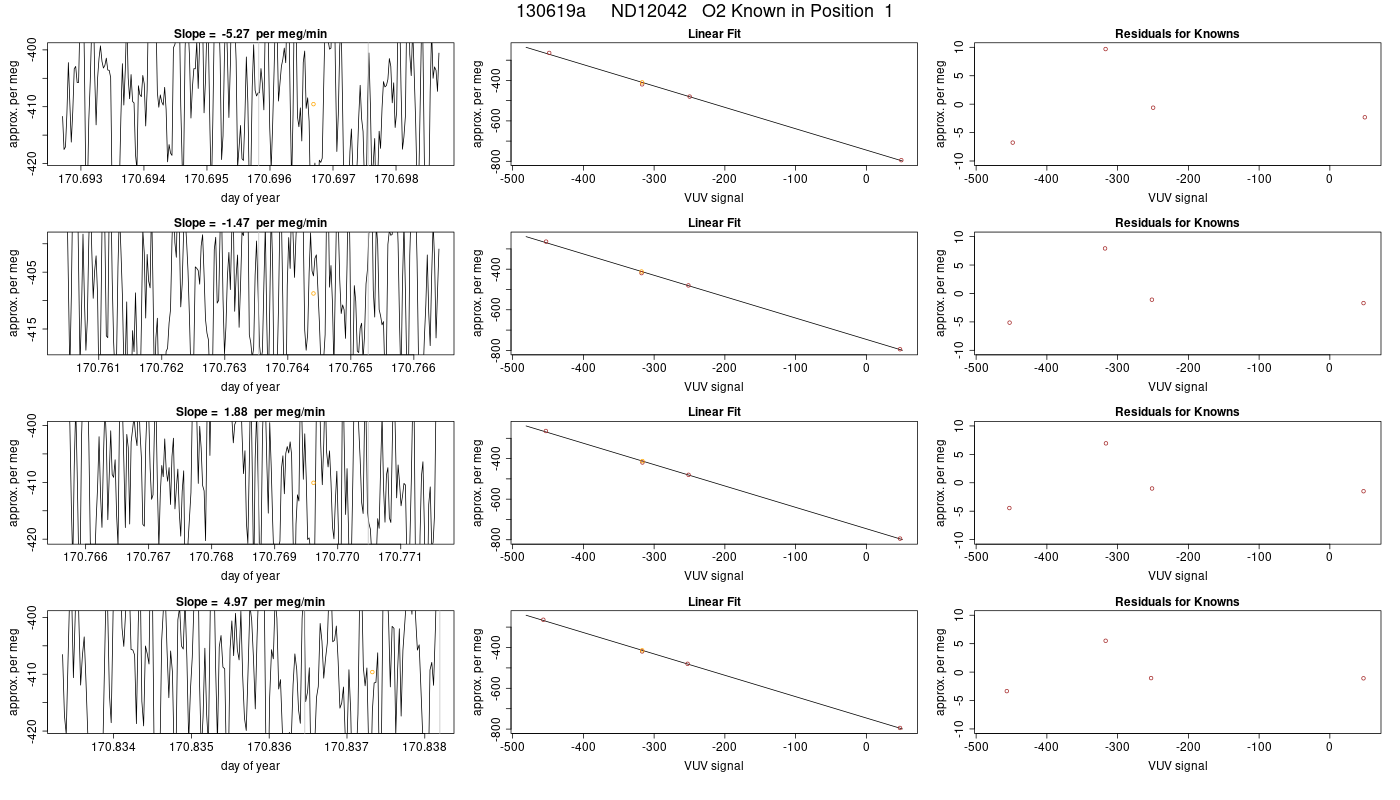

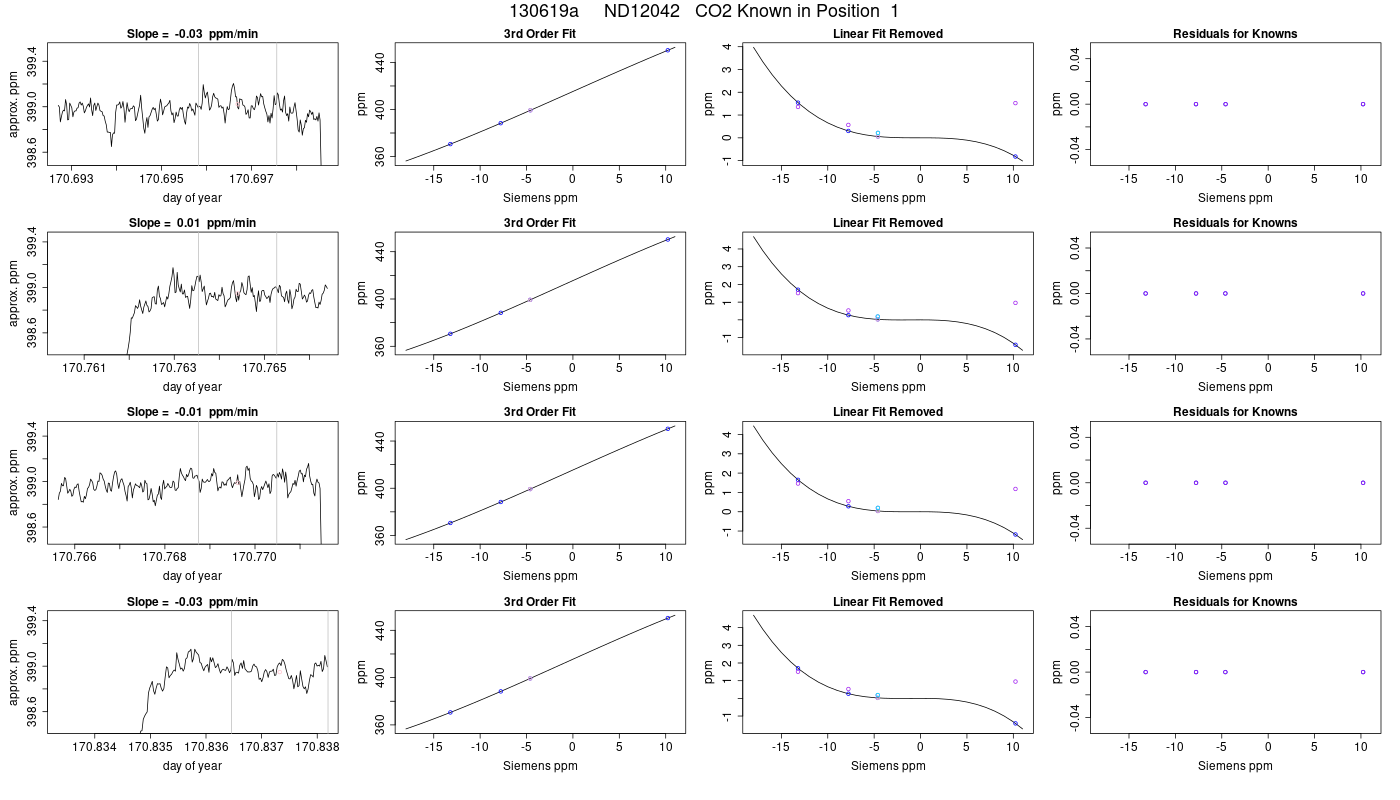

1 ND12042 399.283 0.000 0.000 399.150 0.000 0.000 7 -384.25 8.61 2.23 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

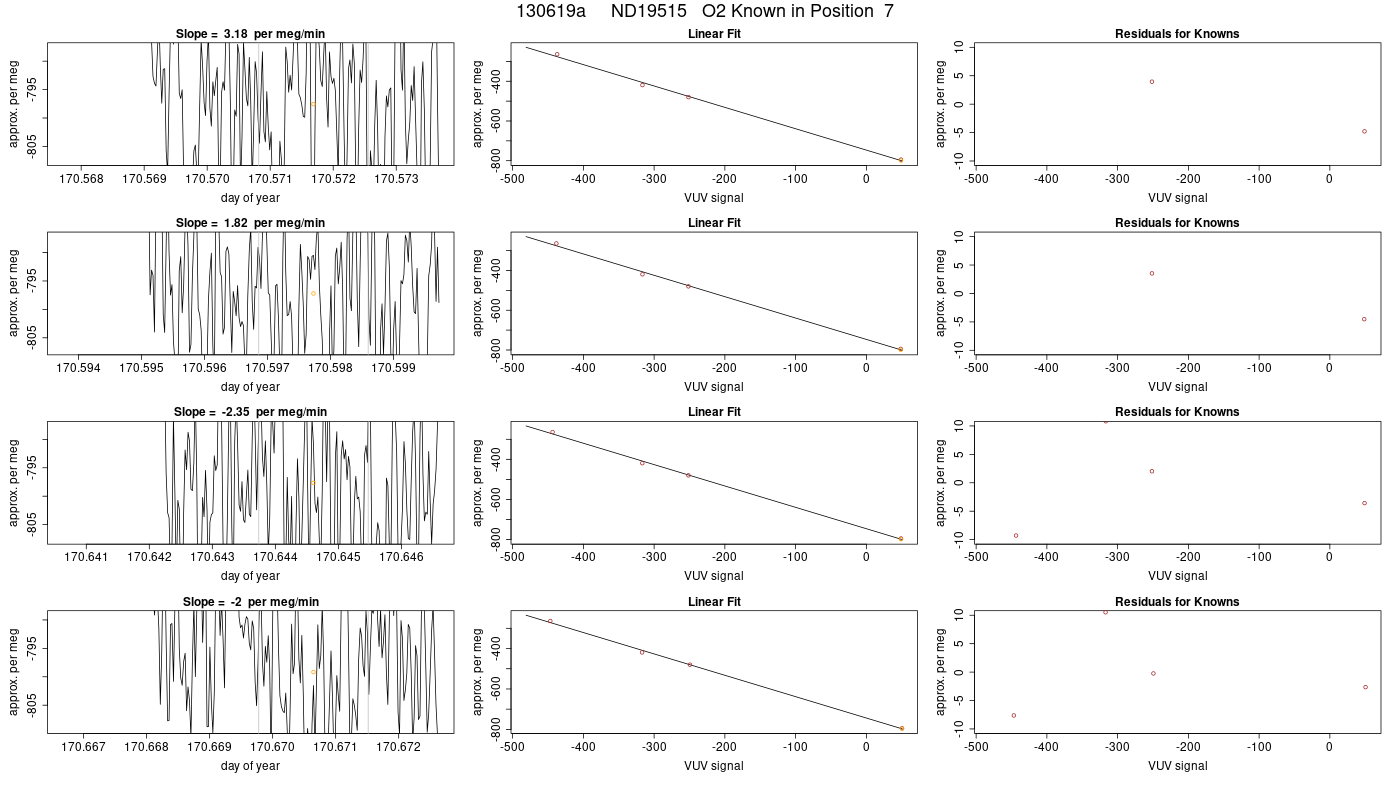

7 ND19515 450.346 0.000 0.000 451.248 0.000 0.000 2 -707.13 -2.45 1.25 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

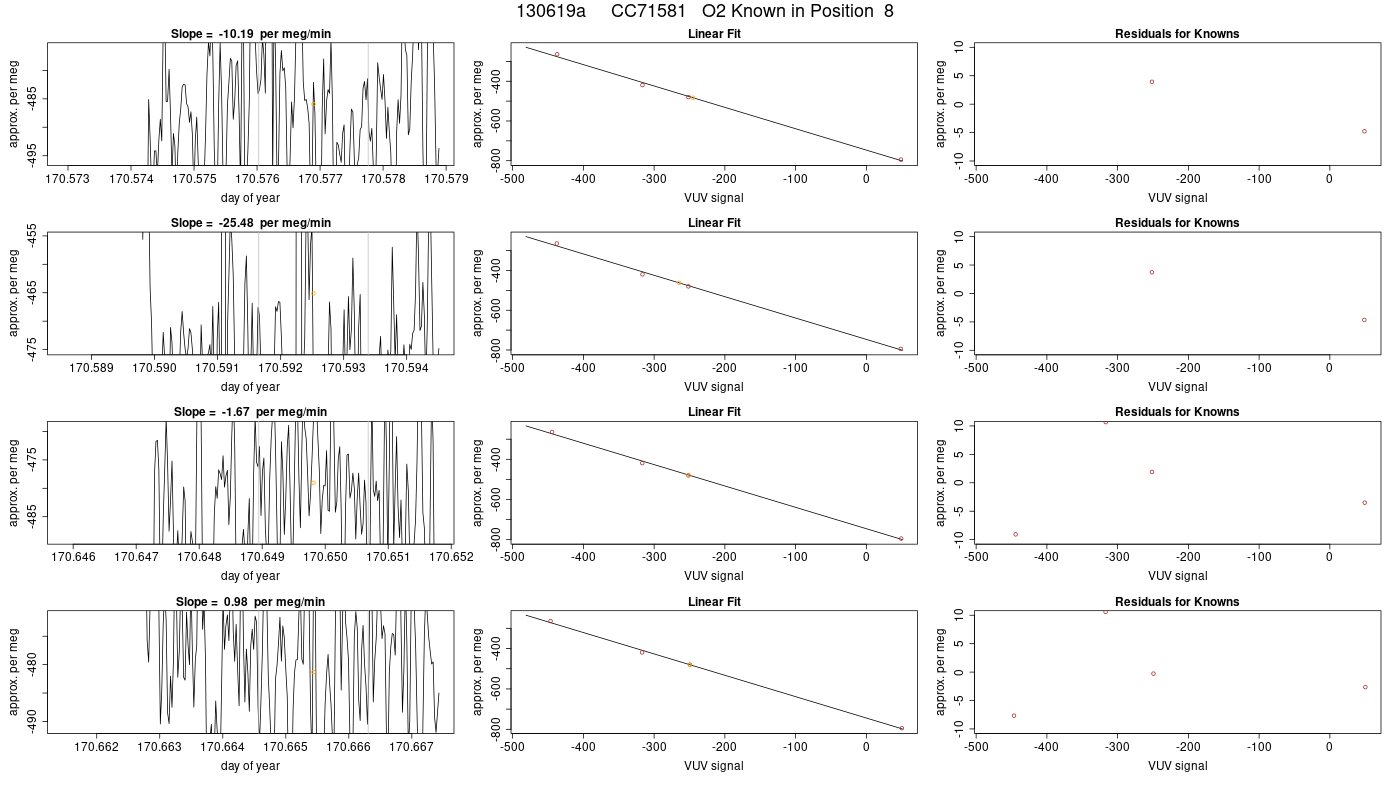

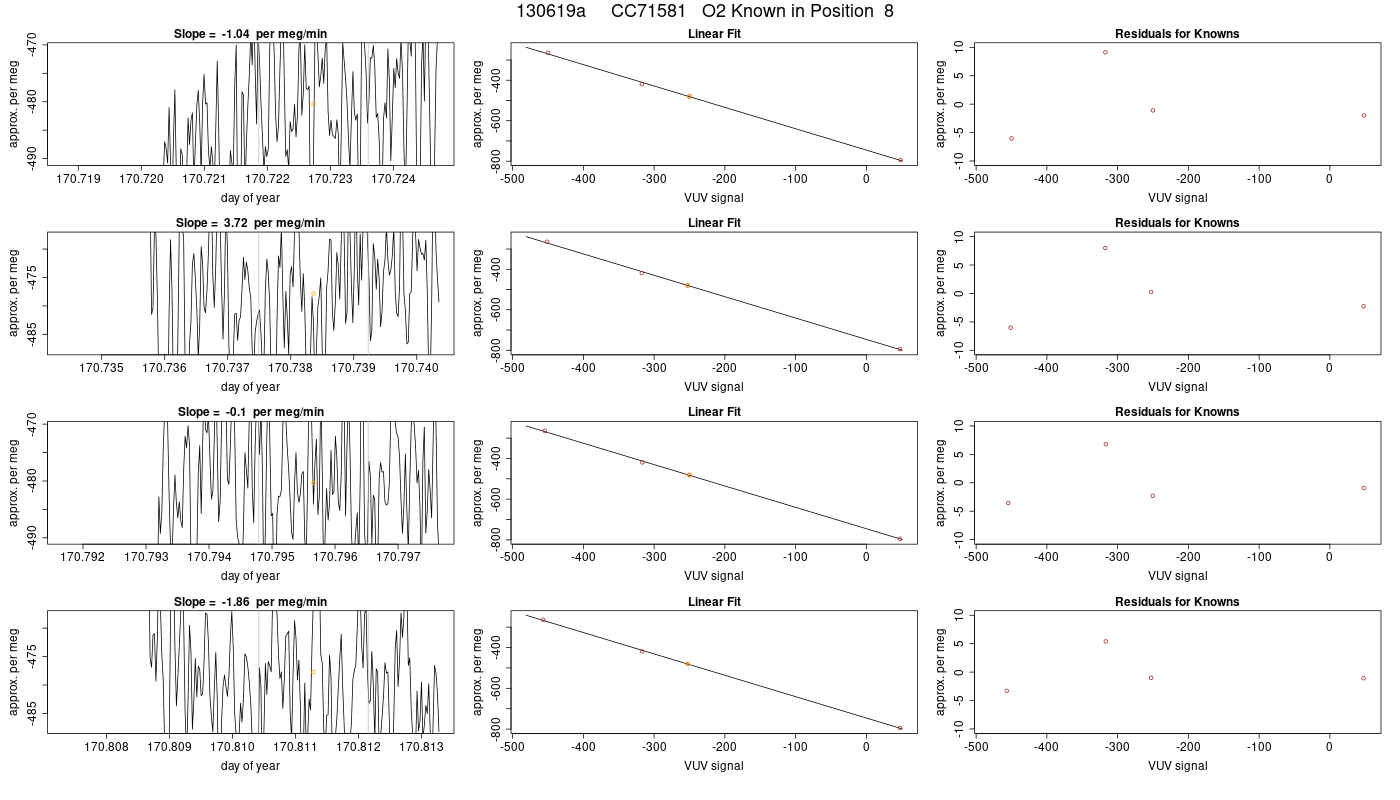

8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 5 -454.95 -0.42 1.43 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

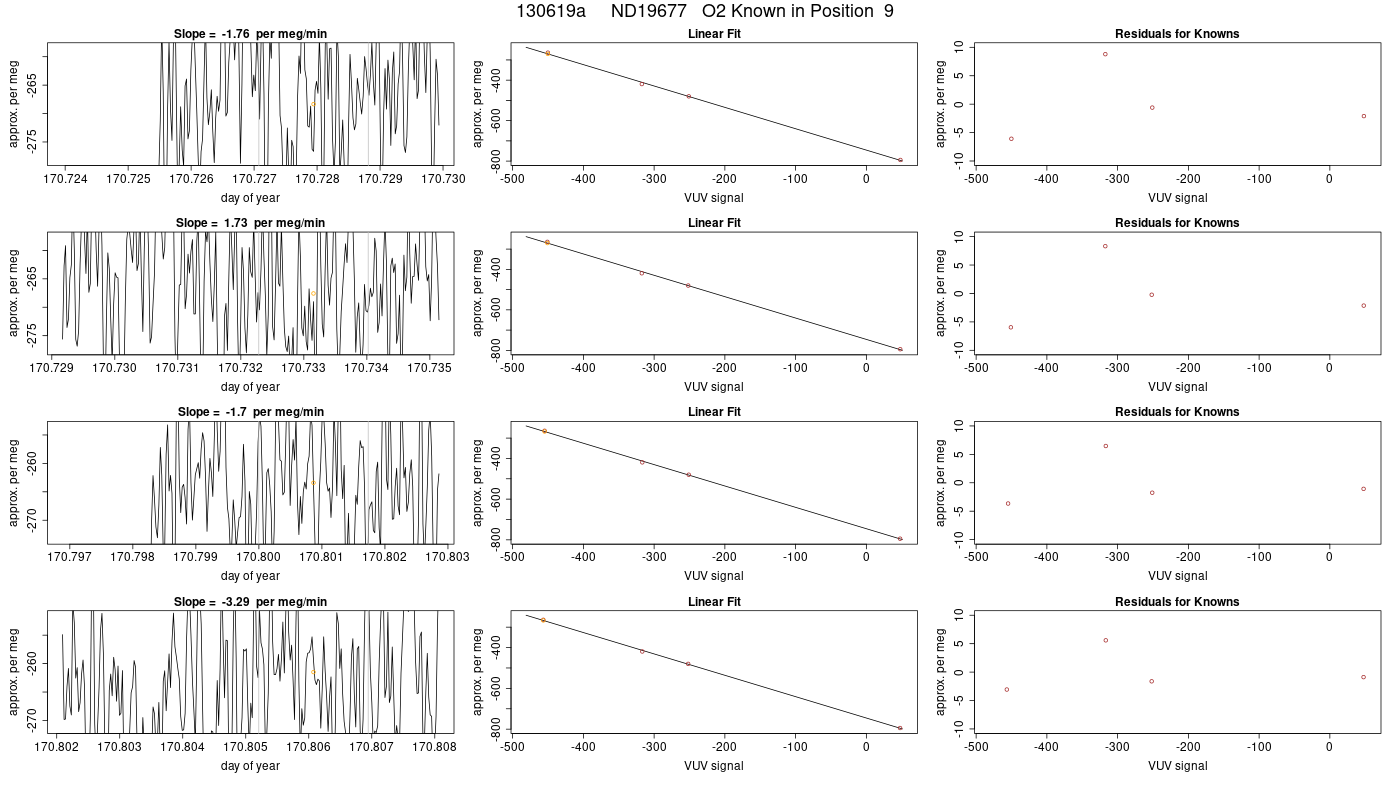

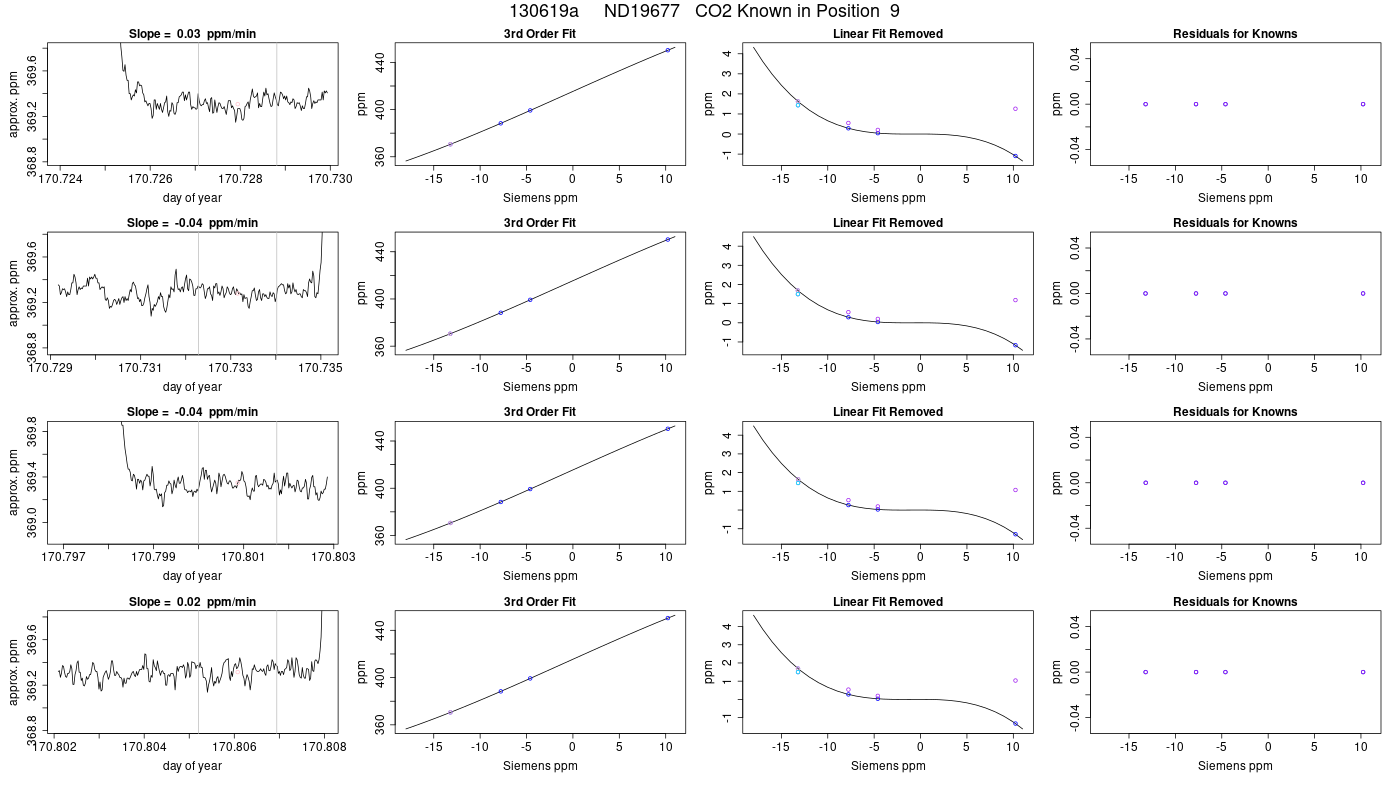

9 ND19677 370.558 0.000 0.000 370.748 0.000 0.000 7 -256.57 -6.81 3.17 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

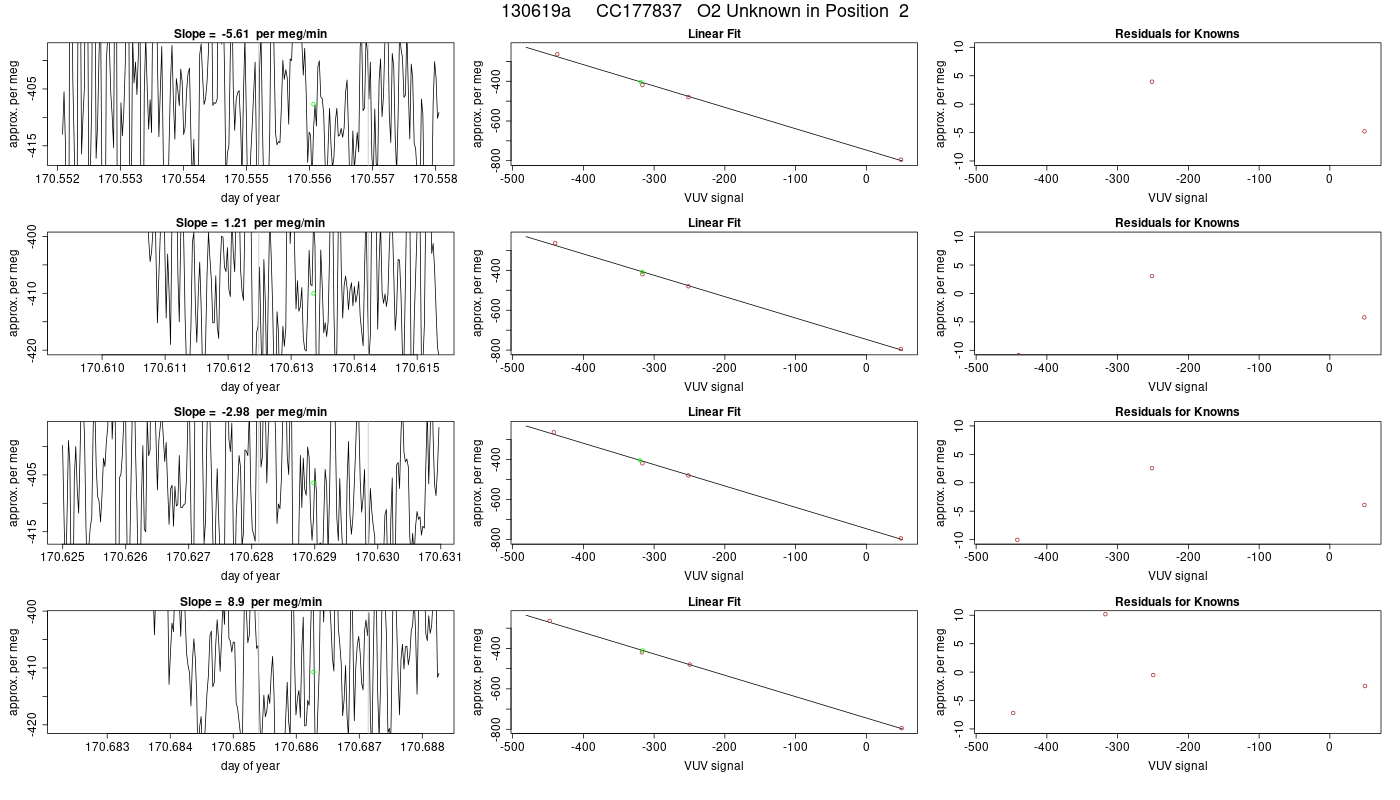

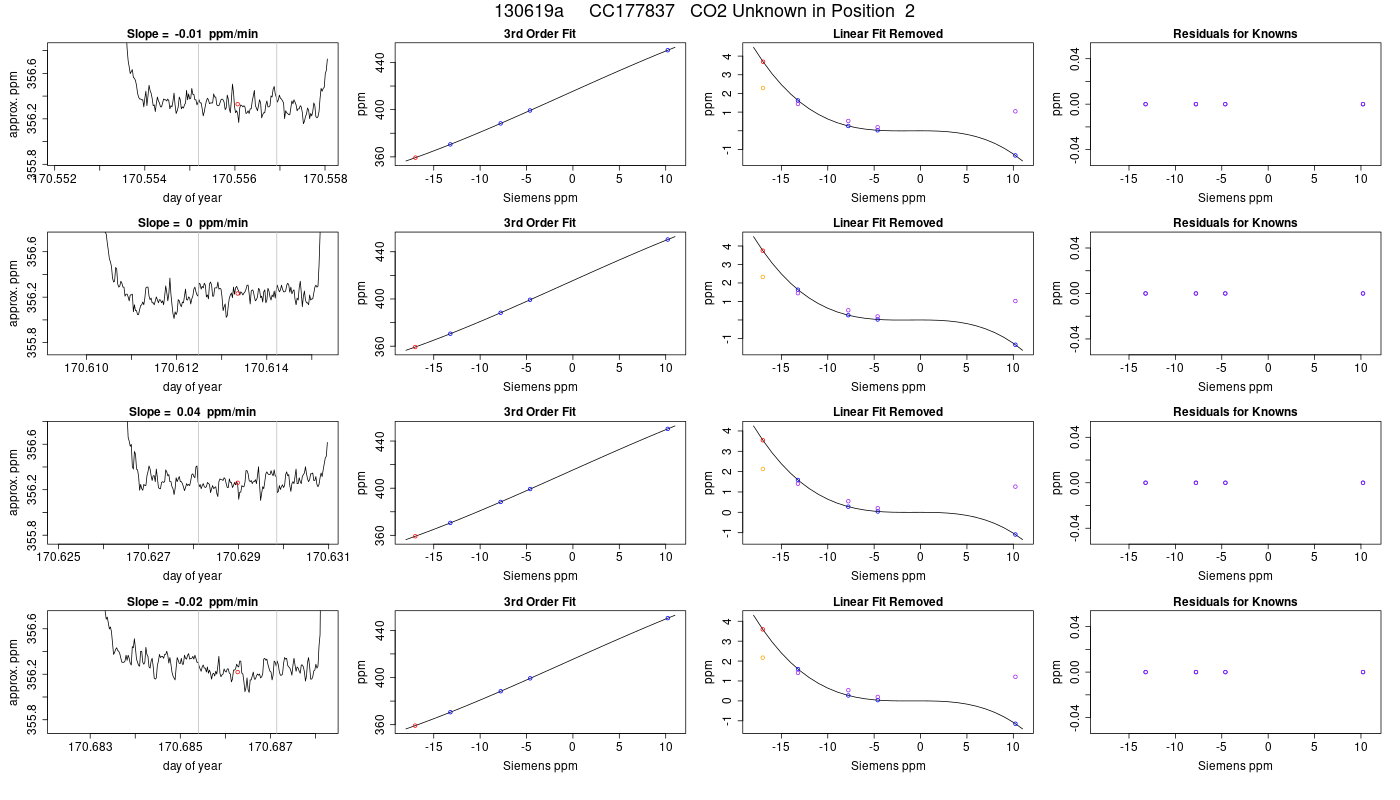

2 CC177837    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
170.556 359.350 0.064 -408.22 10.13 358.617 0.064
170.613 359.289 0.064 -411.85 11.23 358.545 0.064
170.629 359.207 0.060 -408.97 12.72 358.470 0.060
170.686 359.177 0.065 -415.27 11.51 358.433 0.065
170.702 359.115 0.061 -410.89 13.09 358.382 0.061
170.759 359.351 0.047 -415.62 10.99 358.608 0.047
170.775 359.263 0.066 -414.36 10.64 358.521 0.066
170.832 359.421 0.067 -411.81 14.75 358.685 0.067

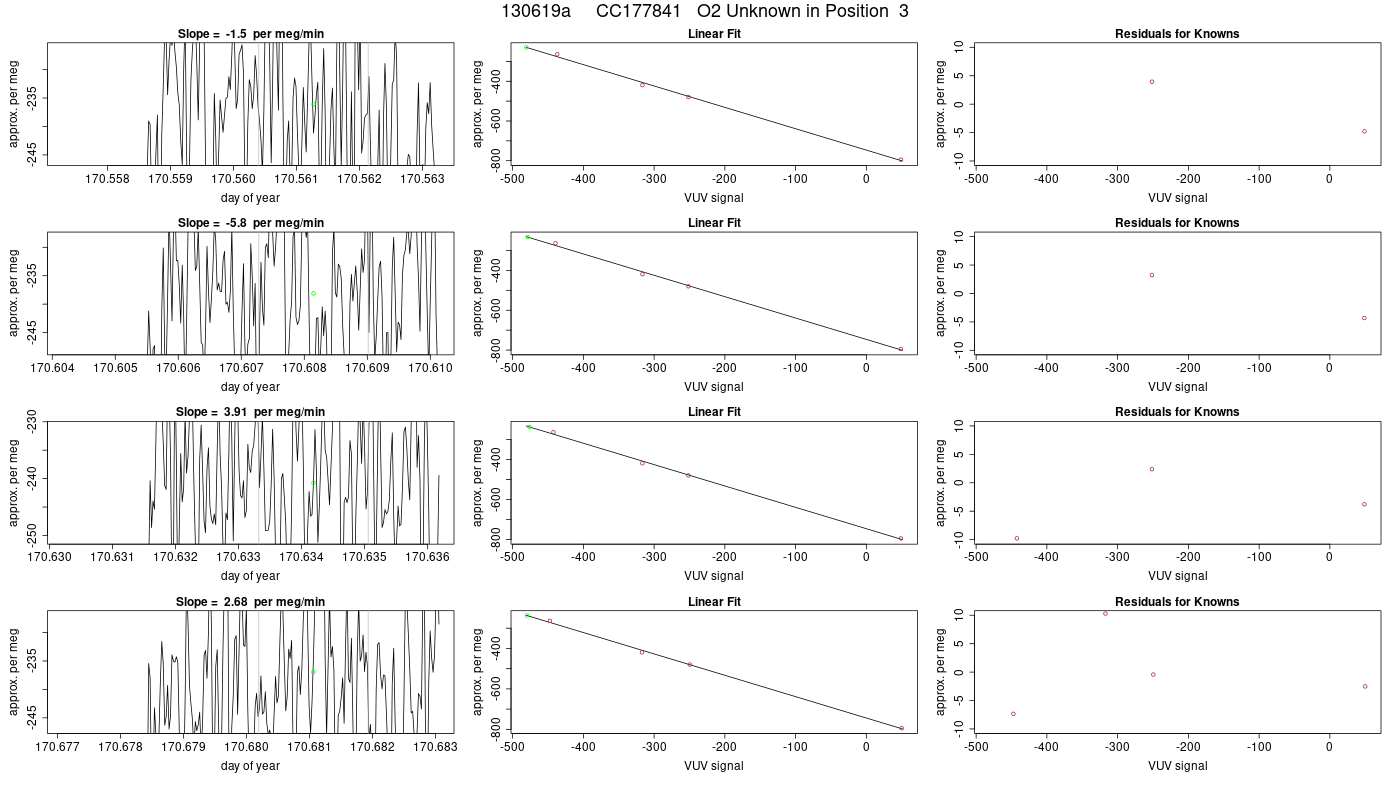

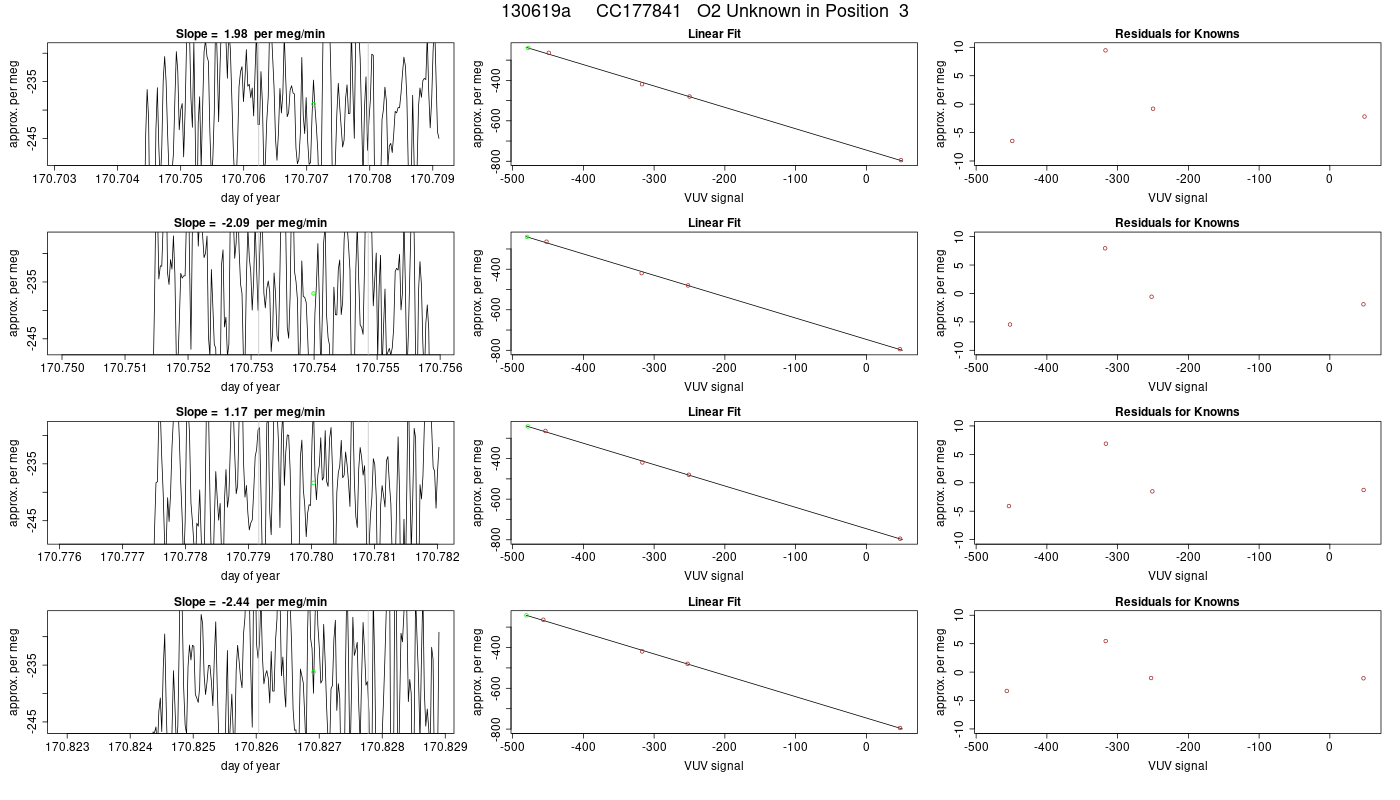

3 CC177841    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
170.561 360.701 0.072 -232.63 13.60 360.139 0.072
170.608 360.680 0.065 -236.19 12.43 360.113 0.065
170.634 360.617 0.057 -240.92 12.34 360.056 0.057
170.681 360.591 0.086 -240.37 11.86 360.025 0.086
170.707 360.554 0.069 -243.19 9.11 359.995 0.069
170.754 360.731 0.077 -243.52 10.90 360.167 0.077
170.780 360.663 0.066 -245.16 9.17 360.098 0.066
170.827 360.780 0.053 -245.48 9.67 360.219 0.053

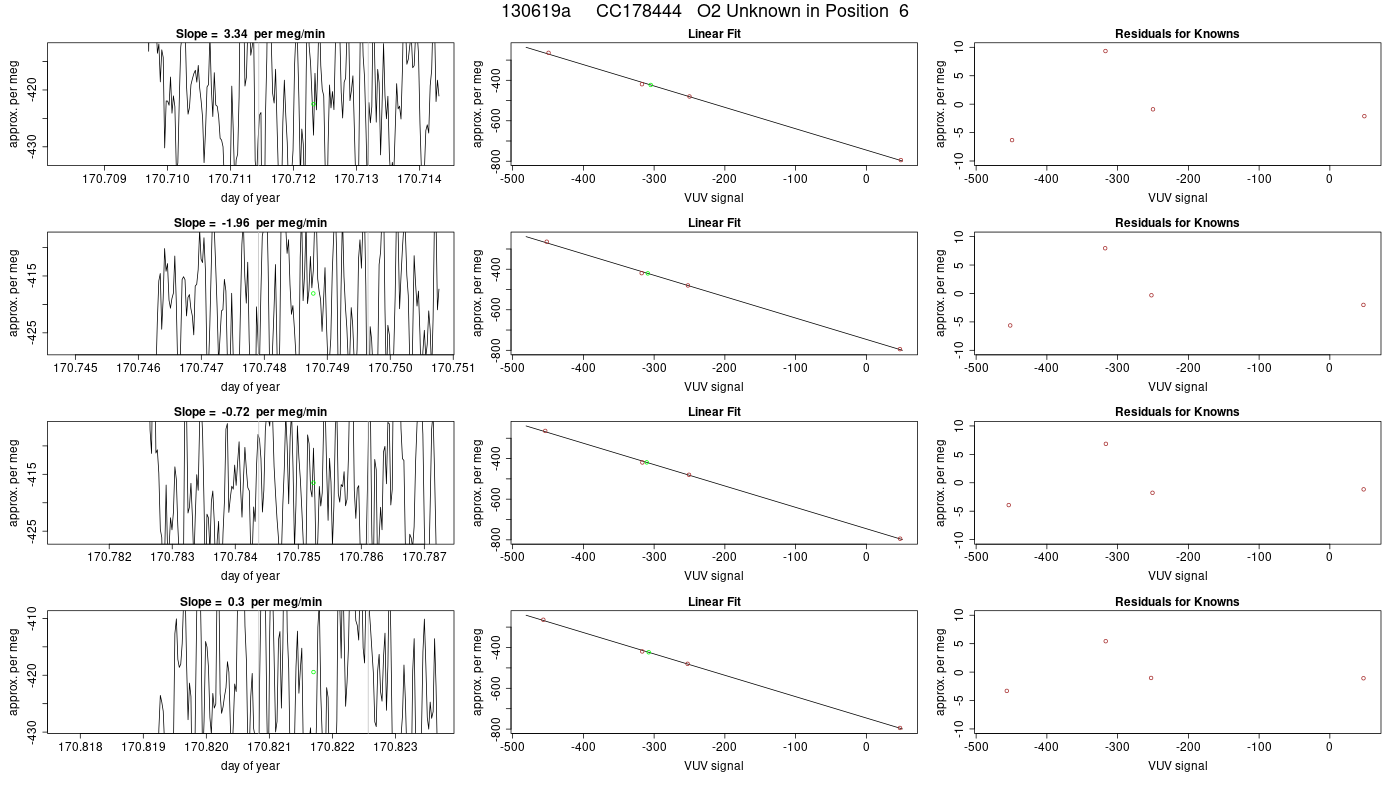

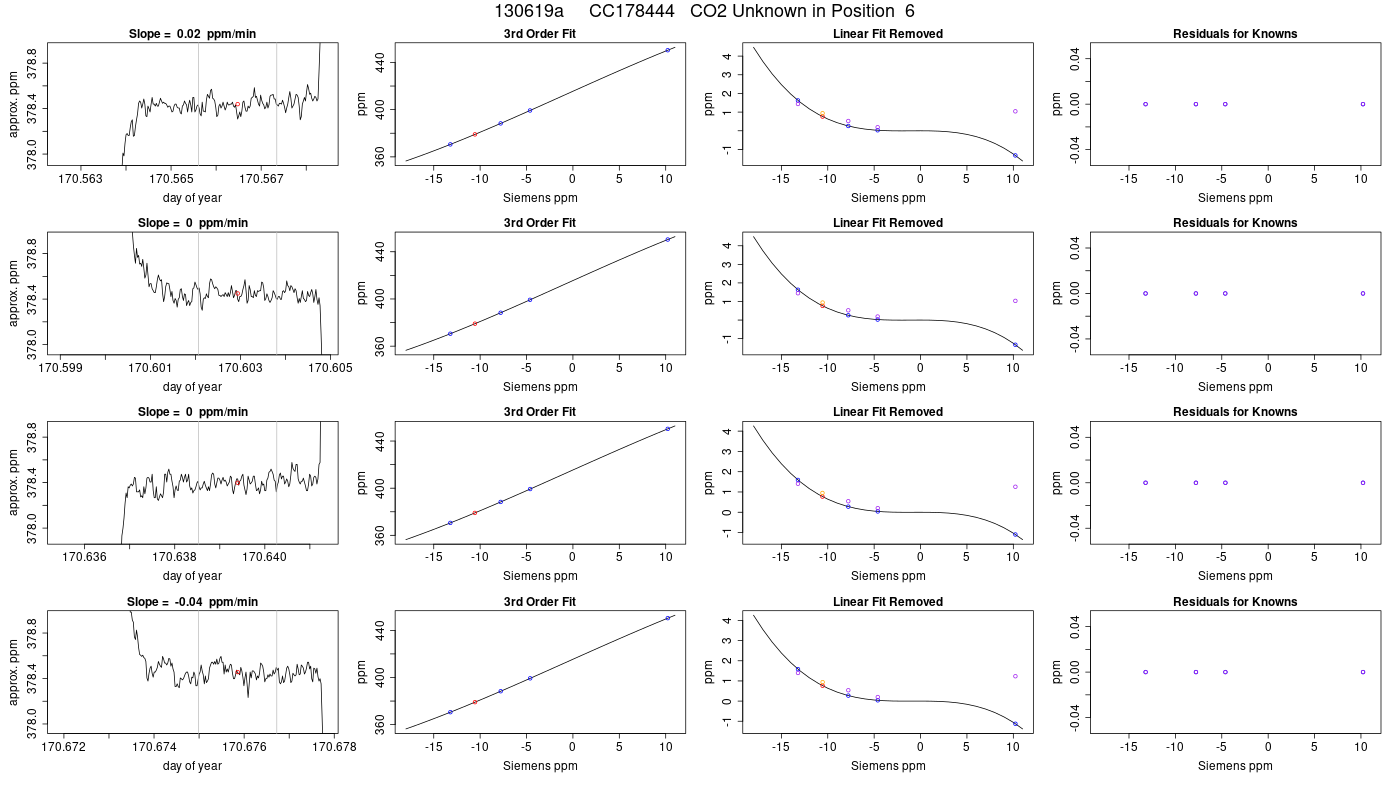

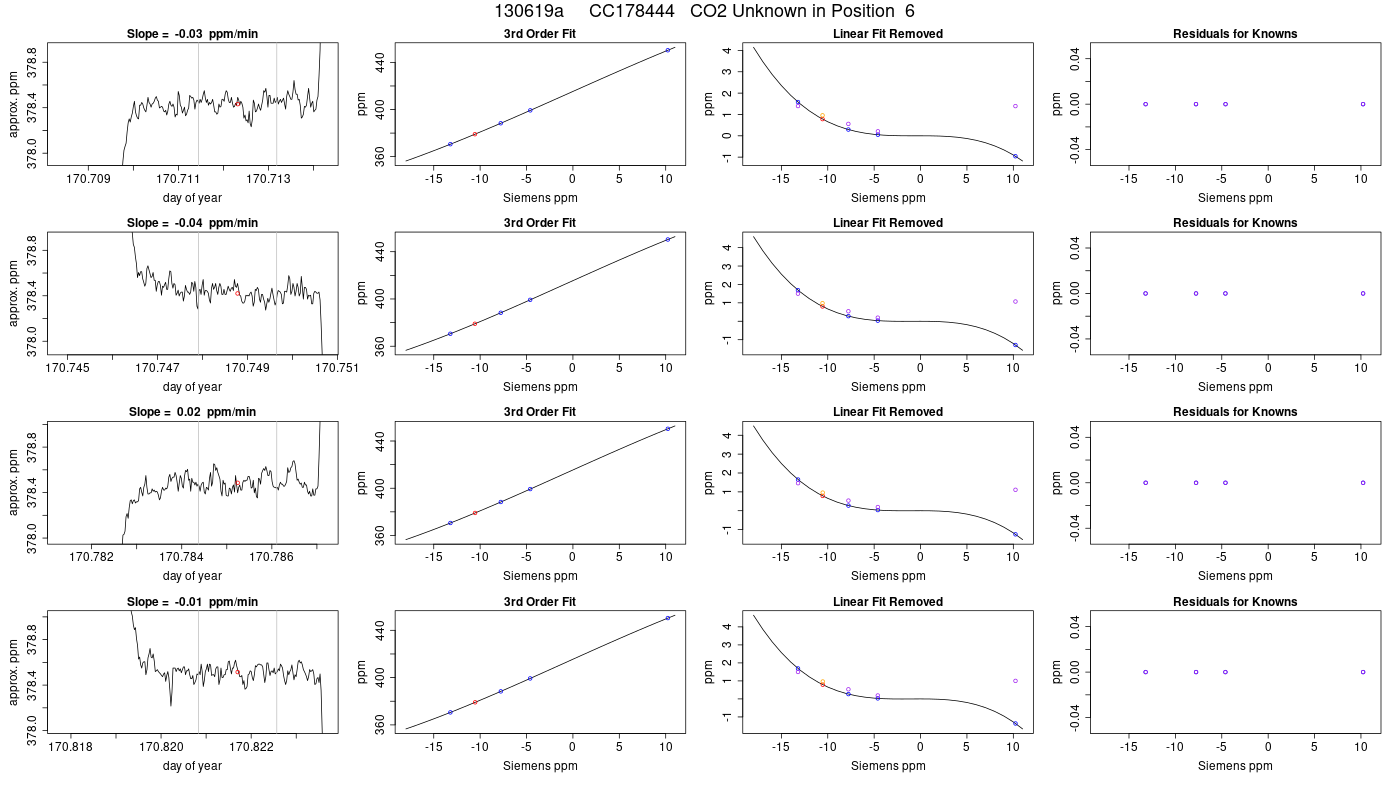

6 CC178444    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
170.566 379.057 0.059 -414.38 13.94 379.406 0.059
170.603 379.067 0.054 -411.43 12.03 379.416 0.054
170.639 379.032 0.053 -407.50 9.73 379.380 0.053
170.676 379.072 0.065 -409.99 9.22 379.421 0.065
170.712 379.053 0.071 -407.21 12.67 379.401 0.071
170.749 379.015 0.058 -404.65 11.22 379.365 0.058
170.785 379.058 0.075 -403.08 10.01 379.408 0.075
170.822 379.087 0.060 -407.60 13.73 379.436 0.060
