UEA CRAM Lab O2 and CO2 calibration results
RUN = 170926a
PROCESSED: 16:21:36 Mon 21Aug2023

Notes
Logfile

Results

Using data from 269.776 to 270.431 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 D399093 415.229 0.007 -0.001 415.417 0.007 -0.001 9 -877.58 1.31 -2.68 9
2 D88489 400.125 0.007 -0.002 400.333 0.007 -0.002 9 -463.80 1.19 0.68 9
4 D399092 409.261 0.007 -0.013 409.456 0.007 -0.013 9 -683.21 0.89 -3.00 8
6 D548335 415.631 0.011 -0.014 415.818 0.011 -0.014 9 -694.53 0.84 1.73 9
7 D548334 488.672 0.205 0.660 489.381 0.205 0.662 7 -957.54 1.22 3.02 9
8 D596276 439.485 0.008 0.005 439.694 0.008 0.005 9 -891.69 1.57 -5.96 9
10 D399094 404.464 0.009 0.004 404.665 0.009 0.004 9 -807.73 1.14 -0.04 9
11 D596278 390.924 0.004 0.004 391.142 0.004 0.004 9 -509.69 1.15 0.13 9
15 D548320 382.447 0.004 0.013 382.667 0.004 0.013 9 -524.56 1.13 0.88 9
WT D258964 397.596 0.007 -0.031 397.807 0.007 -0.031 126 -748.22 0.54 2.40 126
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

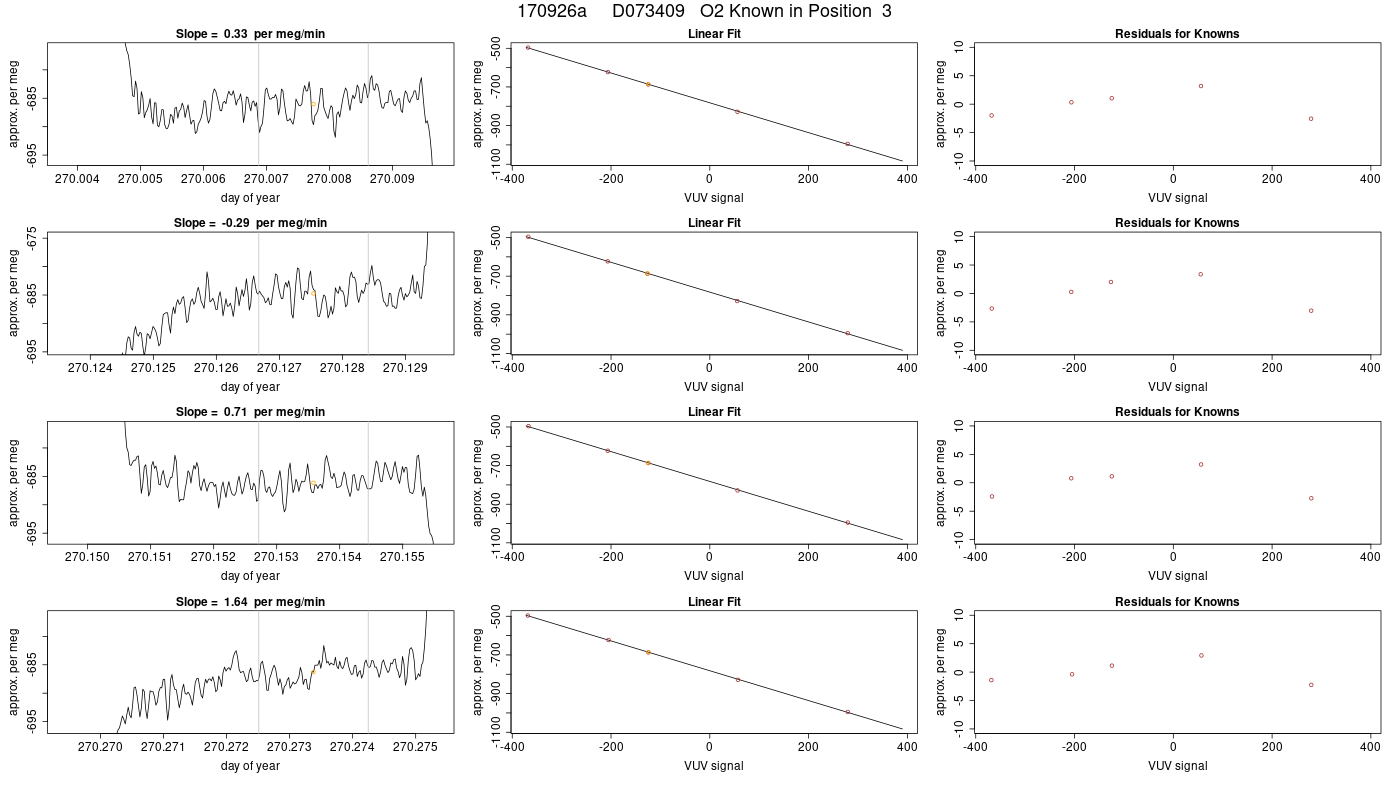

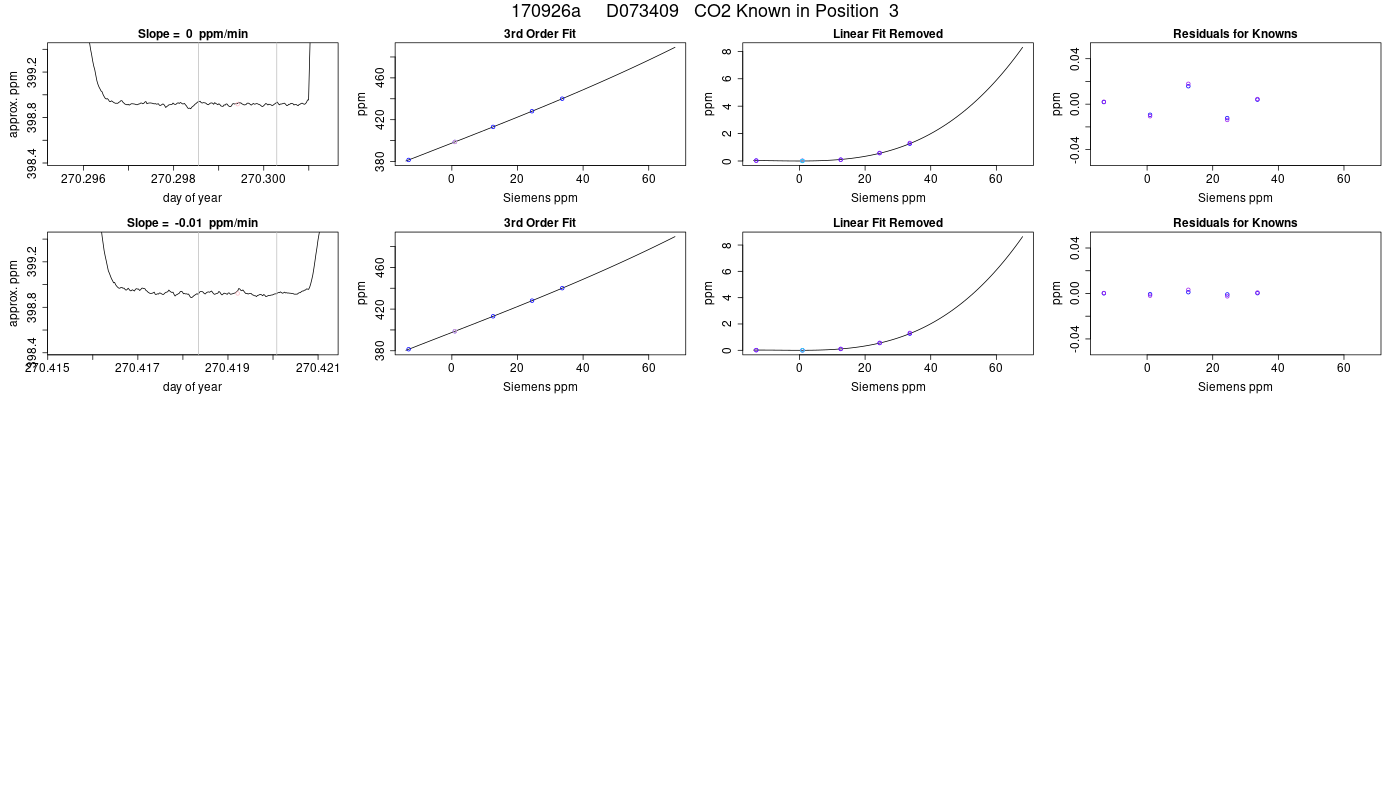

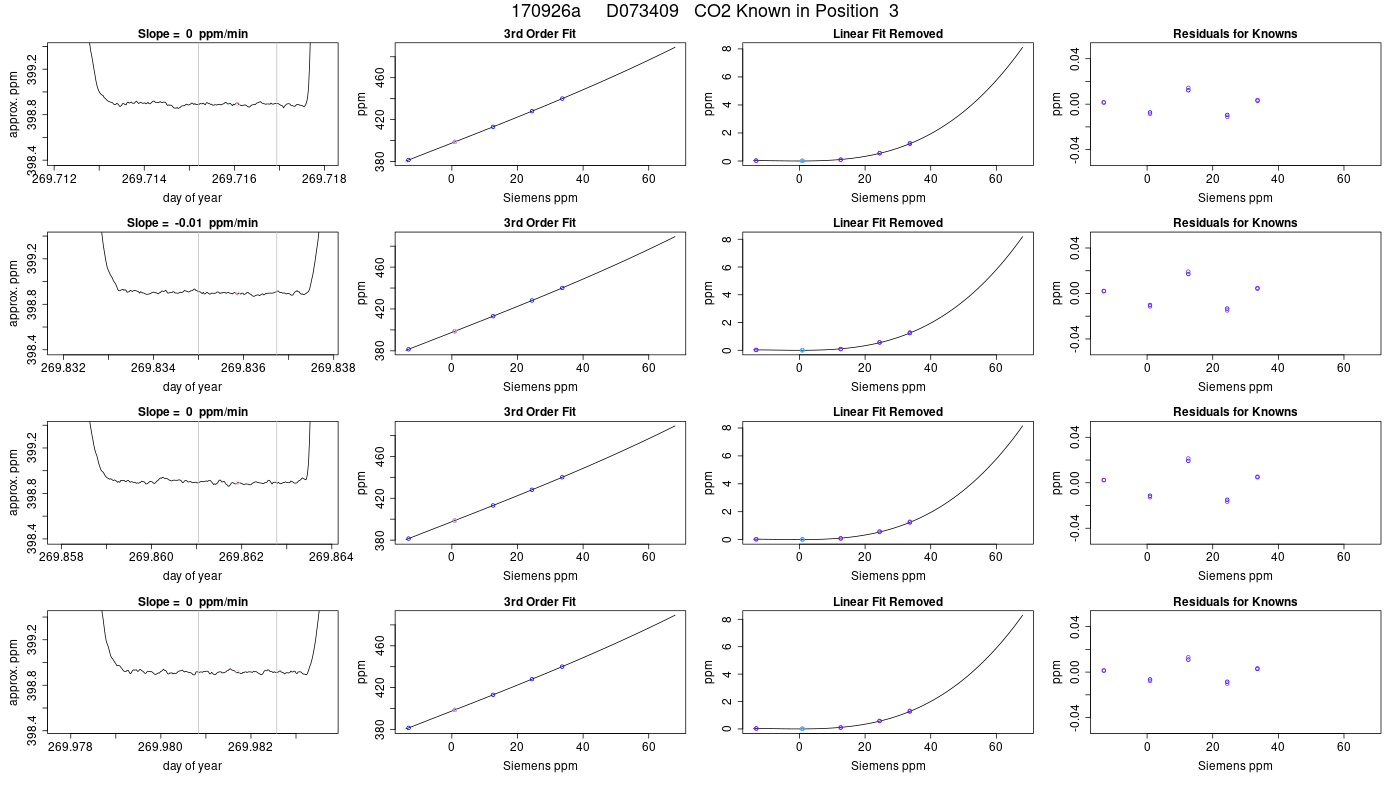

3 D073409 398.707 -0.008 0.003 398.918 -0.009 0.003 9 -651.78 1.19 0.88 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

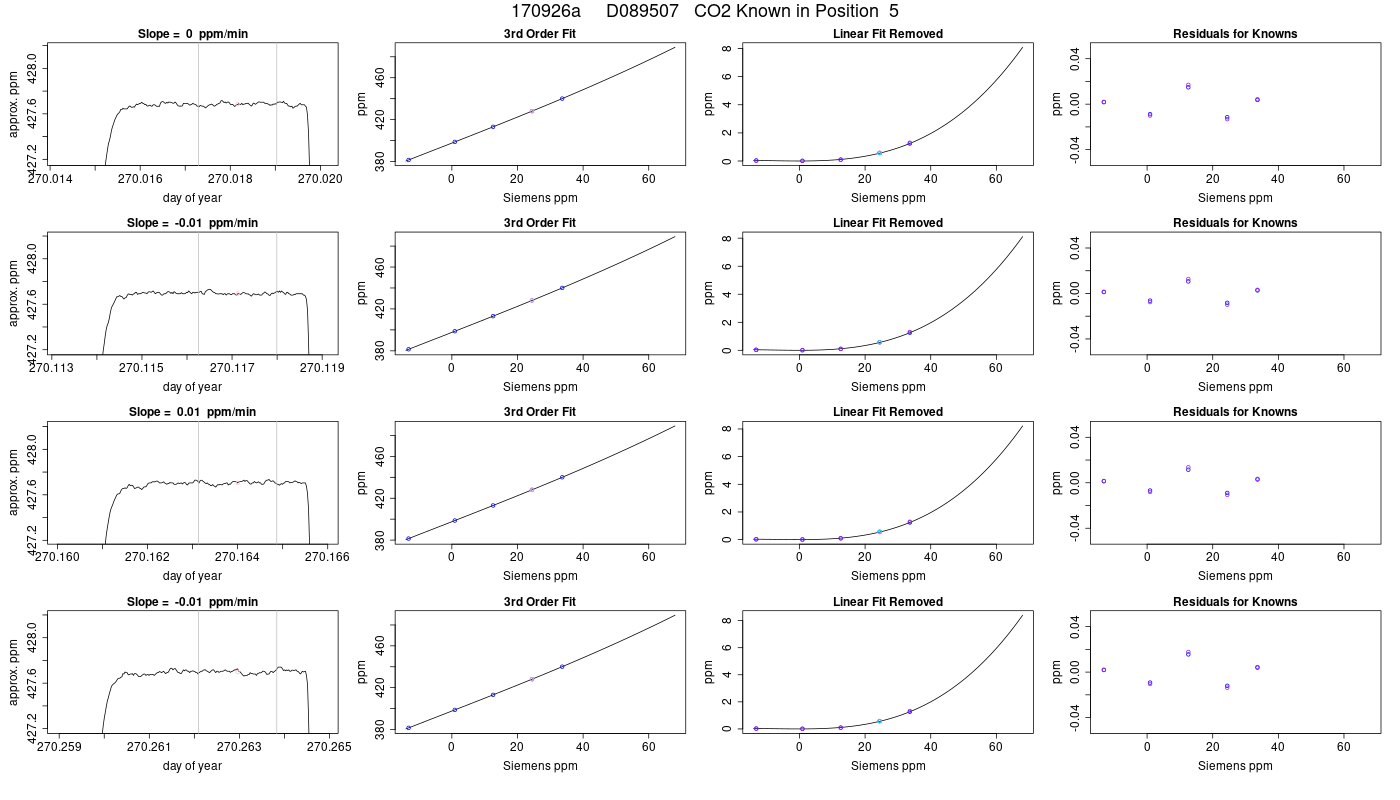

5 D089507 428.087 -0.010 0.004 428.275 -0.012 0.004 9 -559.23 -0.31 0.86 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

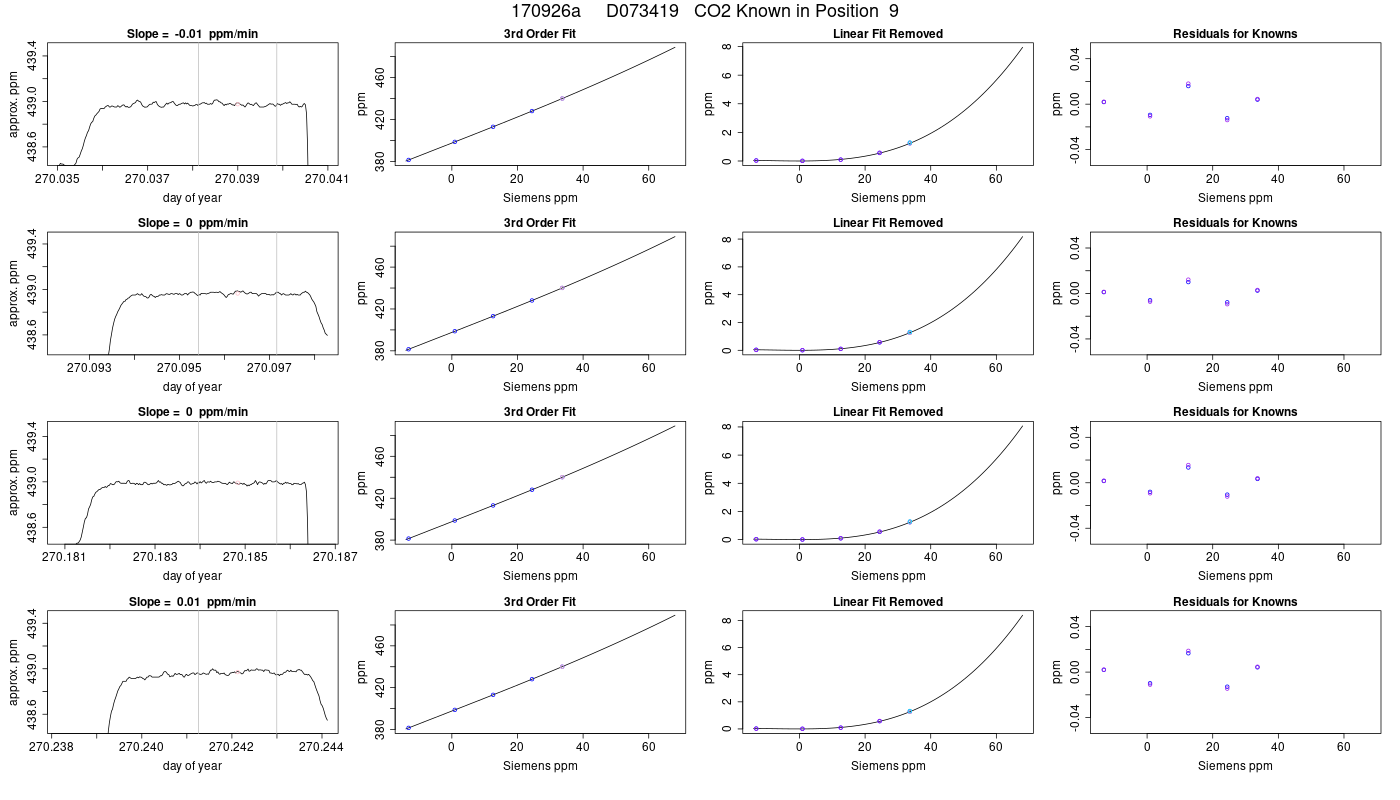

9 D073419 440.065 0.003 0.001 440.275 0.004 0.001 9 -919.32 -2.69 0.48 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

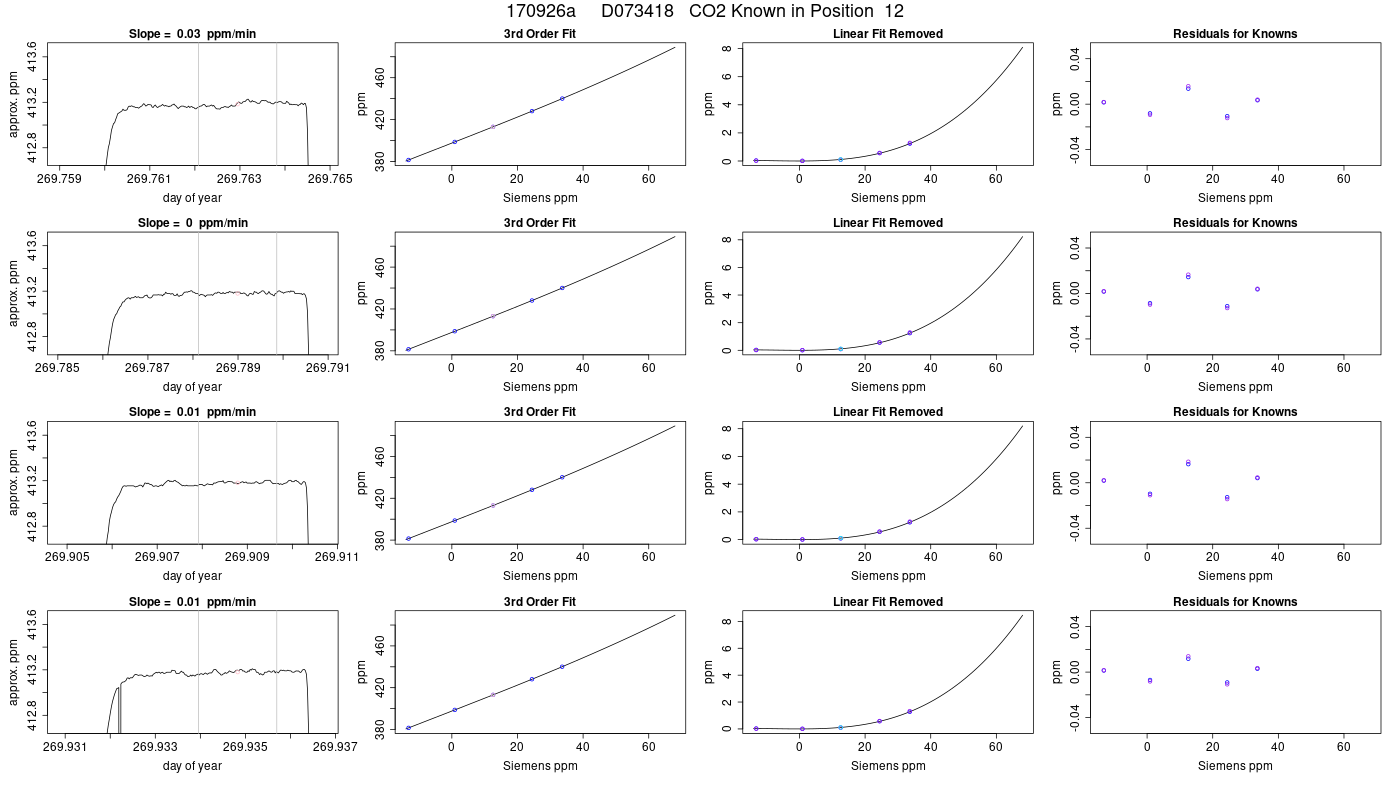

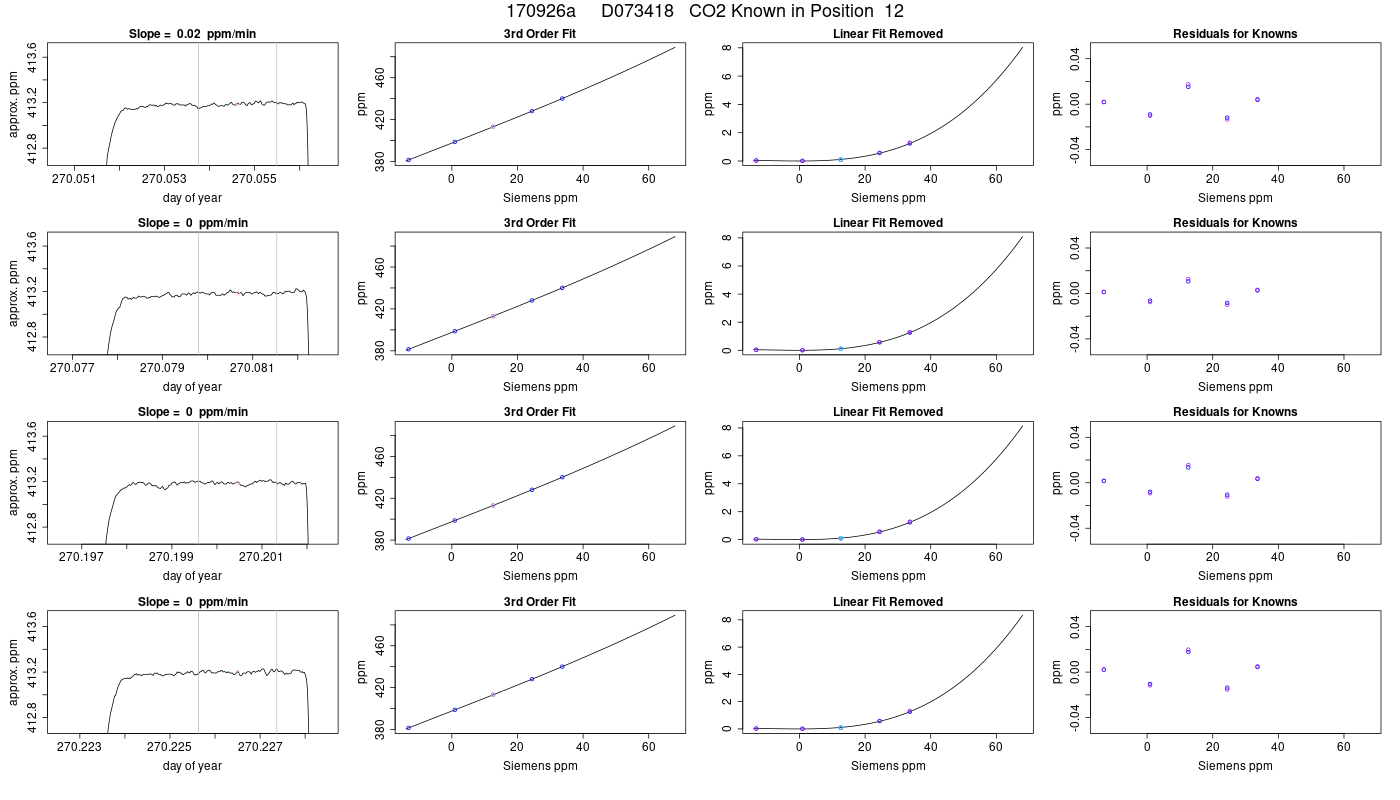

12 D073418 413.092 0.013 0.004 413.280 0.015 0.004 9 -779.40 3.48 1.37 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

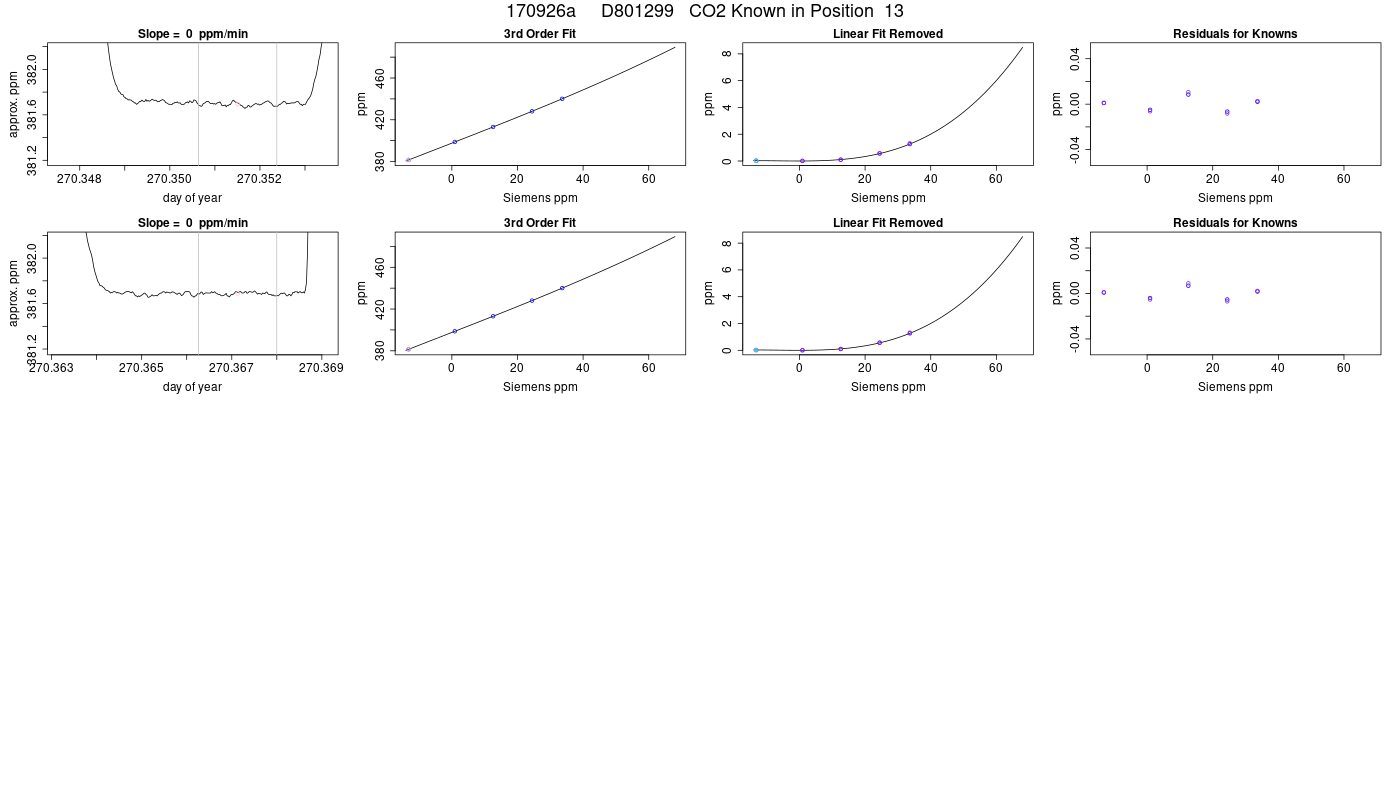

13 D801299 381.475 0.001 0.000 381.695 0.002 0.000 9 -477.75 -1.83 0.68 9    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

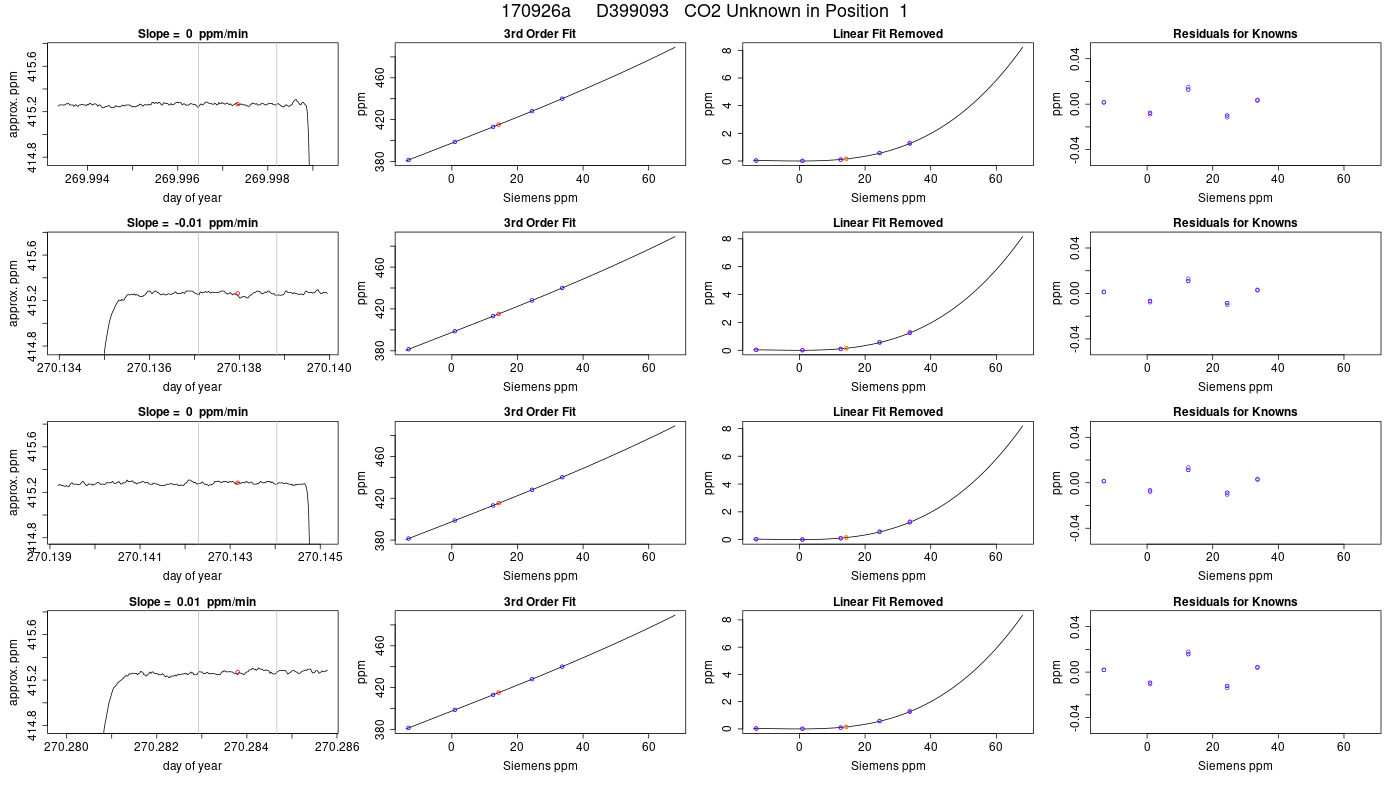

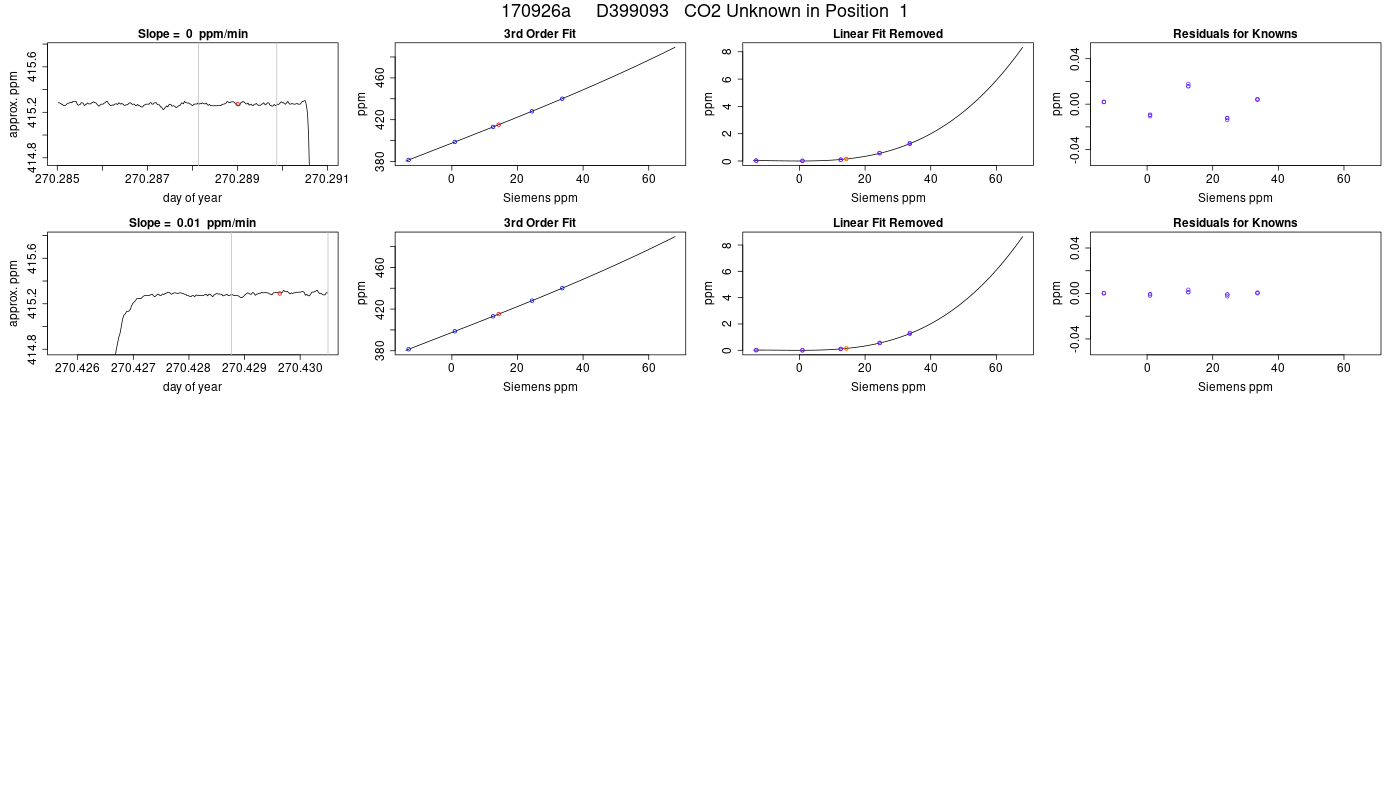

1 D399093    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.706 415.247 0.009 -873.78 1.93 415.435 0.009
269.846 415.236 0.013 -876.91 1.57 415.424 0.013
269.851 415.227 0.012 -875.72 1.79 415.415 0.012
269.992 415.222 0.018 -878.73 2.47 415.410 0.018
269.997 415.230 0.008 -877.16 1.37 415.418 0.008
270.138 415.220 0.017 -879.07 1.90 415.408 0.017
270.143 415.242 0.010 -876.54 1.94 415.430 0.010
270.284 415.225 0.016 -879.44 2.04 415.413 0.016
270.289 415.227 0.011 -876.50 1.81 415.415 0.011
270.430 415.233 0.014 -878.14 1.80 415.421 0.014

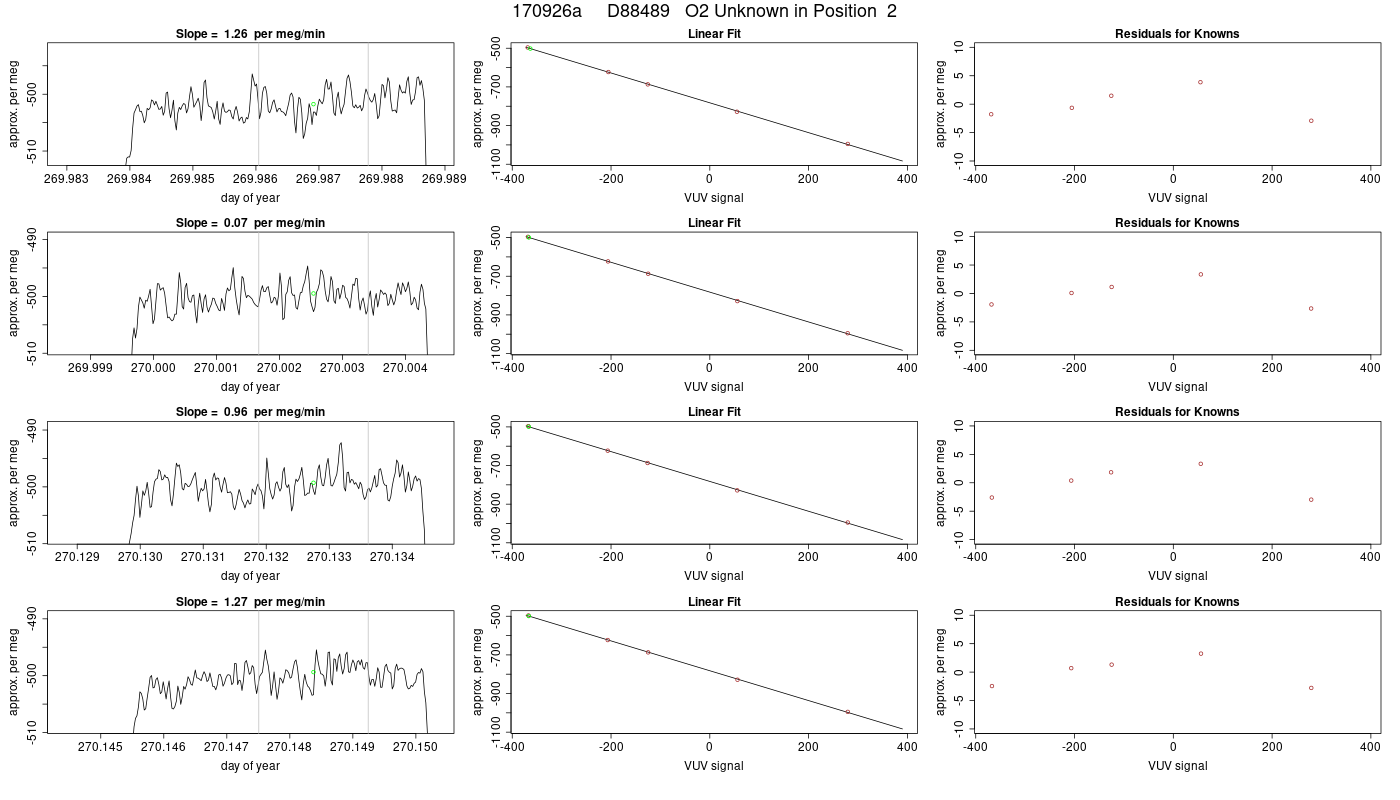

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.700 400.099 0.010 -463.22 2.14 400.307 0.010
269.711 400.132 0.012 -460.08 1.99 400.340 0.012
269.841 400.122 0.014 -465.20 2.01 400.330 0.014
269.857 400.134 0.010 -463.23 1.88 400.342 0.010
269.987 400.113 0.012 -465.60 2.24 400.321 0.012
270.003 400.131 0.016 -463.01 2.05 400.339 0.016
270.133 400.124 0.016 -462.94 2.26 400.332 0.016
270.148 400.131 0.011 -462.69 2.17 400.339 0.011
270.279 400.117 0.010 -463.52 2.10 400.325 0.010
270.294 400.125 0.011 -462.75 1.86 400.332 0.011
270.424 400.129 0.016 -465.23 1.66 400.337 0.016

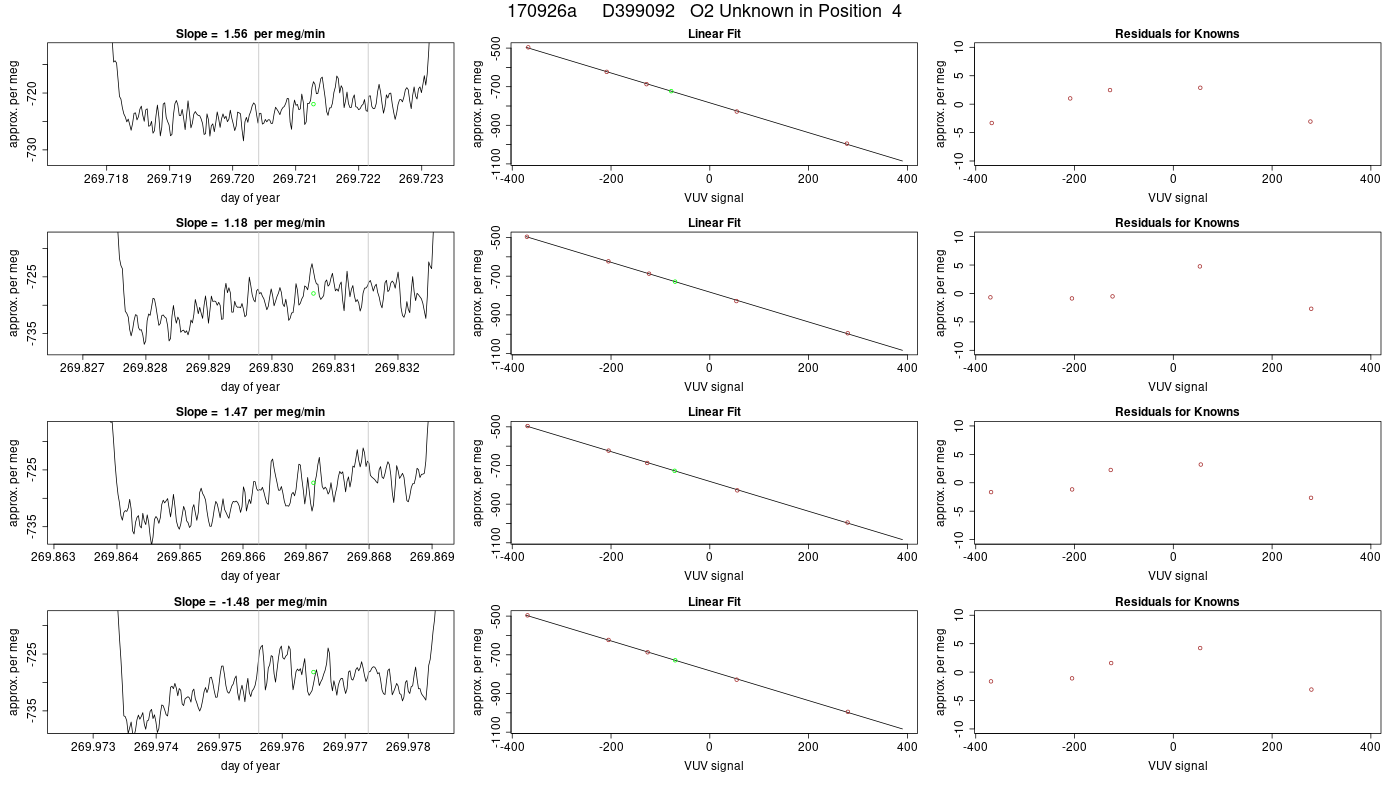

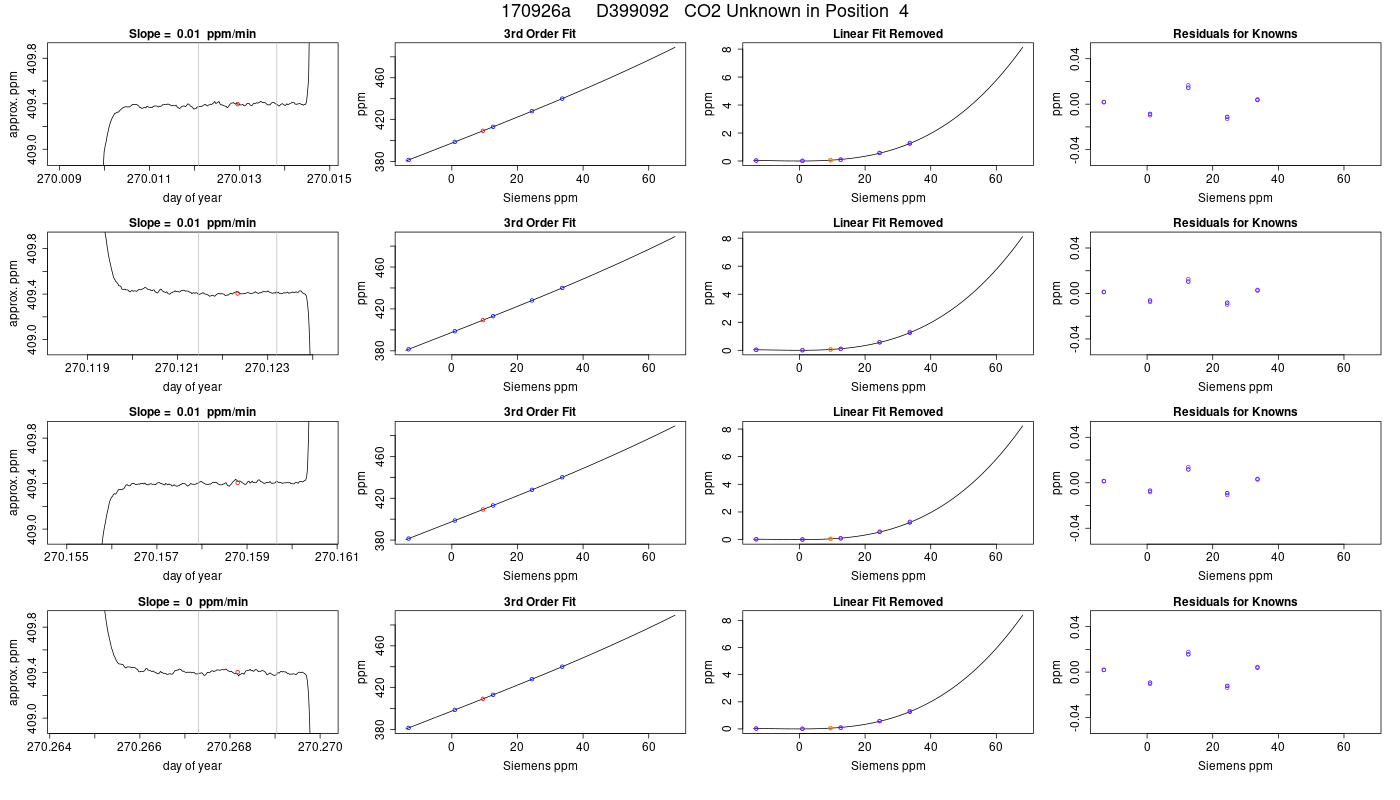

4 D399092    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.721 409.272 0.013 -677.88 2.21 409.467 0.013
269.831 409.275 0.010 -682.83 2.03 409.470 0.010
269.867 409.260 0.012 -682.27 2.71 409.455 0.012
269.976 409.255 0.012 -683.16 2.38 409.450 0.012
270.013 409.258 0.012 -682.43 2.47 409.453 0.012
270.122 409.264 0.011 -680.47 23.69 409.458 0.011
270.159 409.267 0.012 -682.63 1.99 409.462 0.012
270.268 409.258 0.016 -684.62 1.87 409.453 0.016
270.305 409.254 0.017 -683.32 2.02 409.449 0.017
270.414 409.262 0.015 -684.44 1.85 409.457 0.015

6 D548335    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.732 415.623 0.010 -692.19 1.99 415.811 0.010
269.820 415.647 0.013 -695.83 2.38 415.835 0.013
269.878 415.620 0.012 -694.48 1.60 415.808 0.012
269.966 415.631 0.012 -694.38 2.08 415.819 0.012
270.023 415.625 0.014 -694.93 2.80 415.812 0.014
270.112 415.645 0.017 -694.20 1.97 415.833 0.017
270.169 415.629 0.012 -693.42 2.22 415.817 0.012
270.258 415.631 0.010 -695.74 2.60 415.819 0.010
270.315 415.612 0.018 -693.65 1.47 415.799 0.018
270.404 415.634 0.015 -694.17 2.01 415.822 0.015

7 D548334    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.737 488.493 0.015 -955.68 1.92 489.201 0.015
269.815 488.646 0.021 -956.62 2.41 489.354 0.021
269.883 488.466 0.018 -958.03 1.88 489.173 0.018
269.961 488.852 0.011 -957.59 3.03 489.561 0.011
270.029 488.412 0.013 -958.02 2.56 489.120 0.013
270.107 488.529 0.016 -959.98 2.40 489.237 0.016
270.174 488.559 0.023 -956.45 3.24 489.267 0.023
270.253 488.763 0.013 -957.72 2.74 489.471 0.013
270.320 488.736 0.012 -957.73 2.06 489.445 0.012
270.398 488.948 0.013 -955.72 1.81 489.657 0.013

8 D596276    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.742 439.491 0.016 -889.35 2.21 439.700 0.016
269.810 439.488 0.013 -888.42 1.85 439.697 0.013
269.888 439.485 0.009 -890.86 1.97 439.694 0.009
269.956 439.492 0.016 -891.73 2.33 439.701 0.016
270.034 439.470 0.012 -890.71 1.75 439.679 0.012
270.101 439.485 0.014 -892.47 2.06 439.694 0.014
270.180 439.486 0.013 -892.36 2.52 439.695 0.013
270.247 439.473 0.010 -893.78 2.25 439.681 0.010
270.325 439.495 0.014 -893.08 2.16 439.703 0.014
270.393 439.492 0.014 -891.84 1.76 439.700 0.014

10 D399094    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.753 404.484 0.011 -804.43 2.36 404.685 0.011
269.799 404.457 0.012 -805.83 1.95 404.658 0.012
269.898 404.474 0.011 -809.67 2.01 404.675 0.011
269.945 404.453 0.012 -807.81 2.00 404.655 0.012
270.044 404.474 0.012 -808.23 2.64 404.676 0.012
270.091 404.455 0.010 -807.79 2.10 404.657 0.010
270.190 404.475 0.011 -808.43 2.45 404.676 0.011
270.237 404.460 0.016 -806.25 2.16 404.662 0.016
270.336 404.470 0.013 -807.72 2.30 404.671 0.013
270.383 404.458 0.011 -807.79 2.25 404.659 0.011

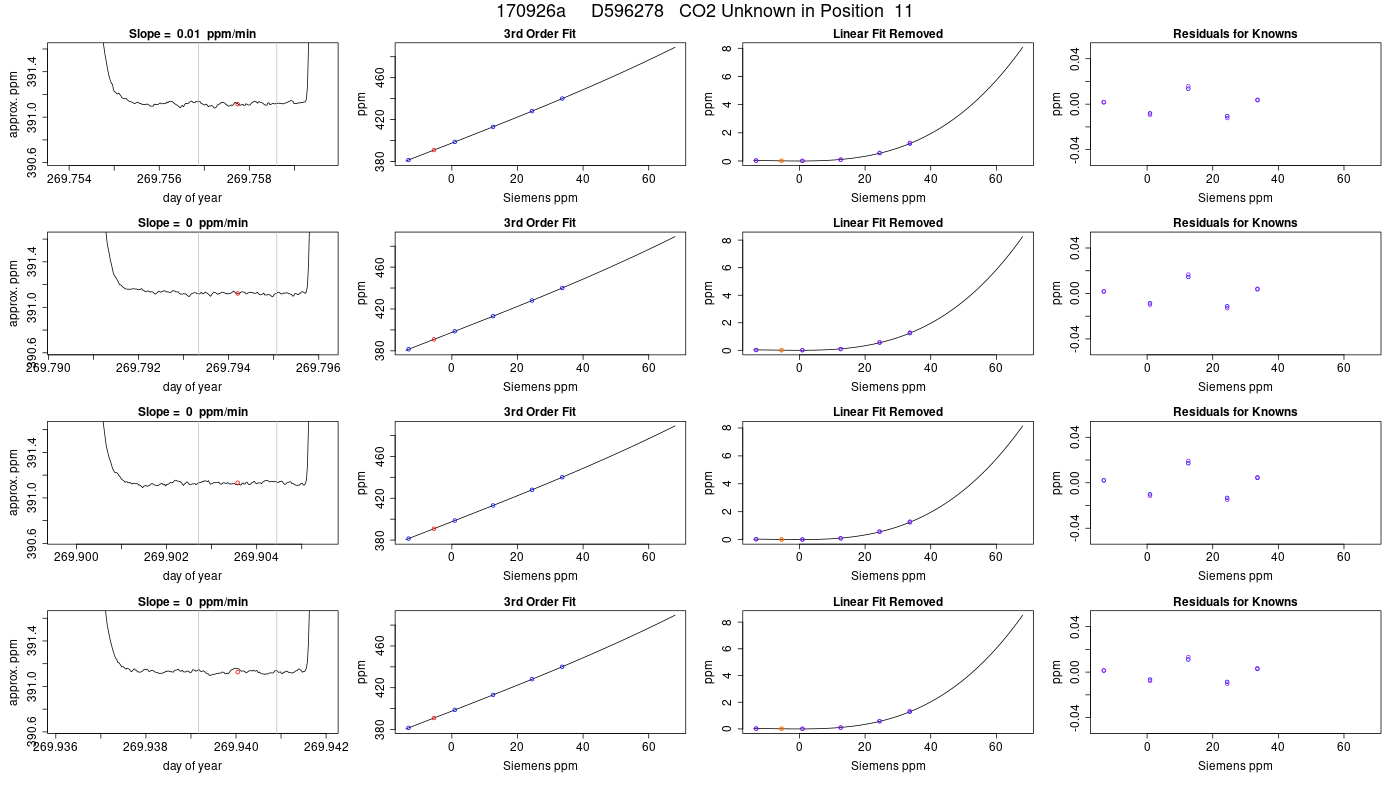

11 D596278    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.758 390.924 0.013 -508.14 1.98 391.143 0.013
269.794 390.927 0.010 -509.08 1.96 391.146 0.010
269.904 390.926 0.011 -509.41 1.89 391.144 0.011
269.940 390.918 0.016 -510.08 1.87 391.136 0.016
270.049 390.919 0.013 -511.45 1.61 391.138 0.013
270.086 390.924 0.013 -509.23 2.43 391.142 0.013
270.195 390.920 0.010 -510.98 2.20 391.139 0.010
270.232 390.925 0.011 -507.47 2.05 391.143 0.011
270.341 390.923 0.014 -509.52 2.35 391.142 0.014
270.378 390.930 0.011 -509.95 2.16 391.149 0.011

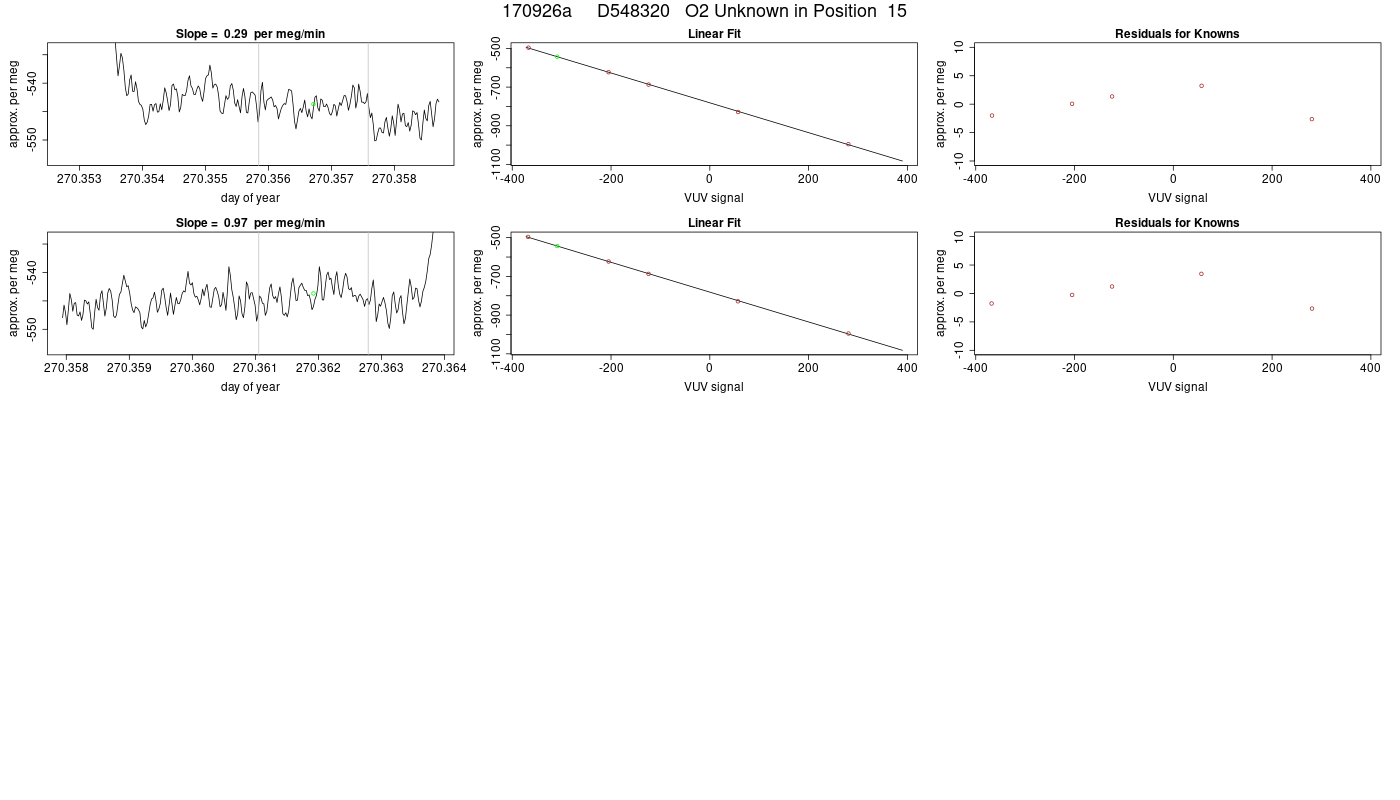

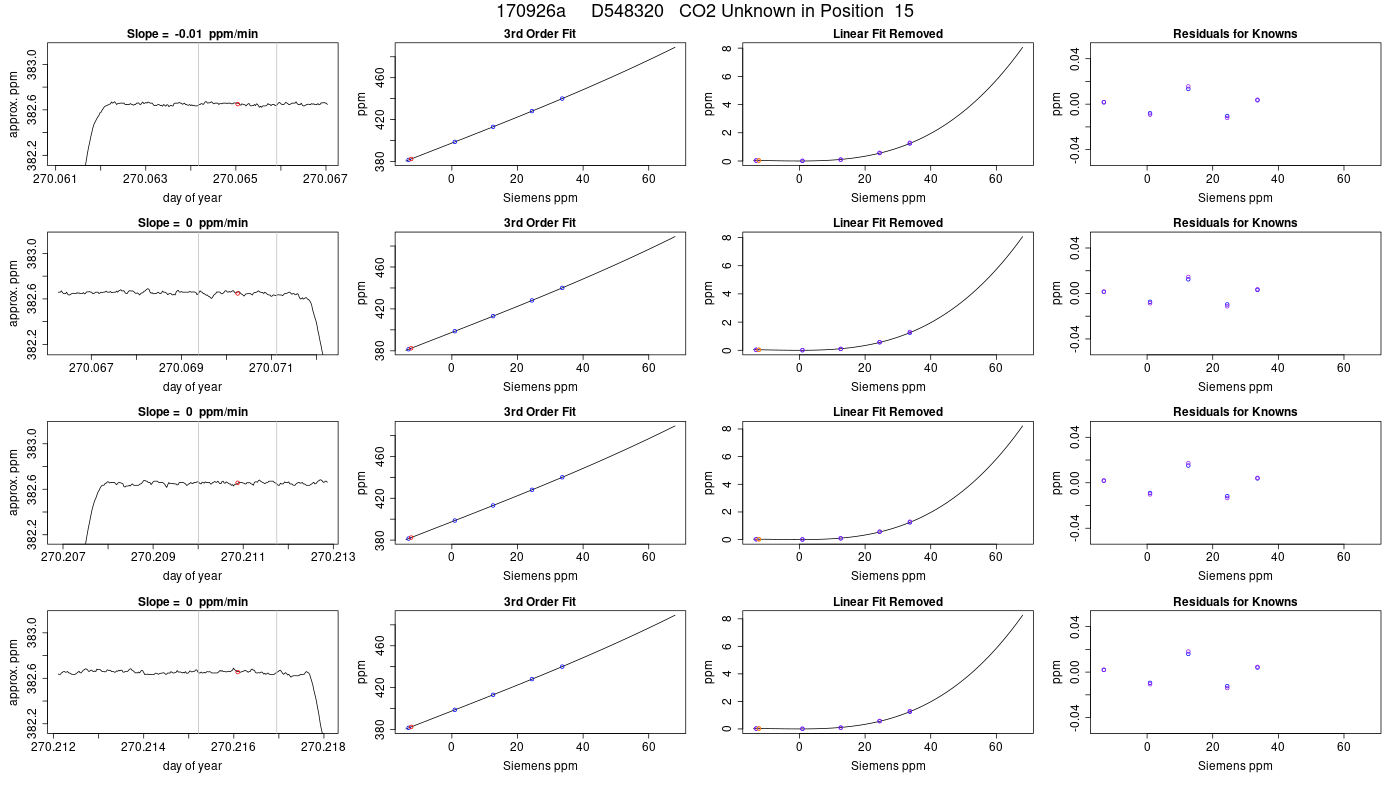

15 D548320    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
269.773 382.440 0.014 -524.50 1.82 382.661 0.014
269.779 382.442 0.012 -524.76 2.02 382.663 0.012
269.919 382.449 0.015 -522.57 2.23 382.669 0.015
269.924 382.439 0.015 -525.19 1.85 382.660 0.015
270.065 382.445 0.011 -525.67 1.78 382.666 0.011
270.070 382.447 0.016 -526.45 2.21 382.668 0.016
270.211 382.452 0.010 -524.13 1.86 382.673 0.010
270.216 382.450 0.012 -524.27 1.74 382.671 0.012
270.357 382.448 0.017 -523.80 1.61 382.668 0.017
270.362 382.449 0.014 -524.16 1.98 382.670 0.014
