UEA CRAM Lab O2 and CO2 calibration results
RUN = 170923a
PROCESSED: 16:20:28 Mon 21Aug2023

Notes
Logfile

Results

Using data from 266.843 to 267.388 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 D399093 415.231 0.006 -0.014 415.419 0.006 -0.014 7 -877.23 0.91 -18.16 2
2 D88489 400.122 0.009 -0.021 400.330 0.009 -0.021 7 -460.97 0.35 -4.17 2
4 D399092 409.265 0.006 0.003 409.460 0.006 0.003 7 -682.23 0.33 5.40 2
6 D548335 415.624 0.003 -0.013 415.811 0.003 -0.013 7 -698.80 2.30 15.50 2
7 D548334 488.527 0.095 -0.344 489.235 0.095 -0.345 6 -960.79 0.49 11.64 2
8 D596276 439.482 0.006 0.012 439.690 0.006 0.012 7 -887.91 0.67 2.81 2
10 D399094 404.466 0.007 0.001 404.667 0.007 0.001 7 -806.37 2.08 10.72 2
11 D596278 390.915 0.005 0.004 391.134 0.005 0.004 7 -508.62 0.91 -1.41 2
14 D88472 409.591 0.008 0.003 409.785 0.008 0.003 7 -1184.08 2.93 -9.42 2
15 D548320 382.434 0.013 0.054 382.654 0.013 0.054 7 -522.06 0.92 12.57 3
WT D258964 397.593 0.007 -0.037 397.805 0.007 -0.037 105 -748.88 0.27 1.15 105
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

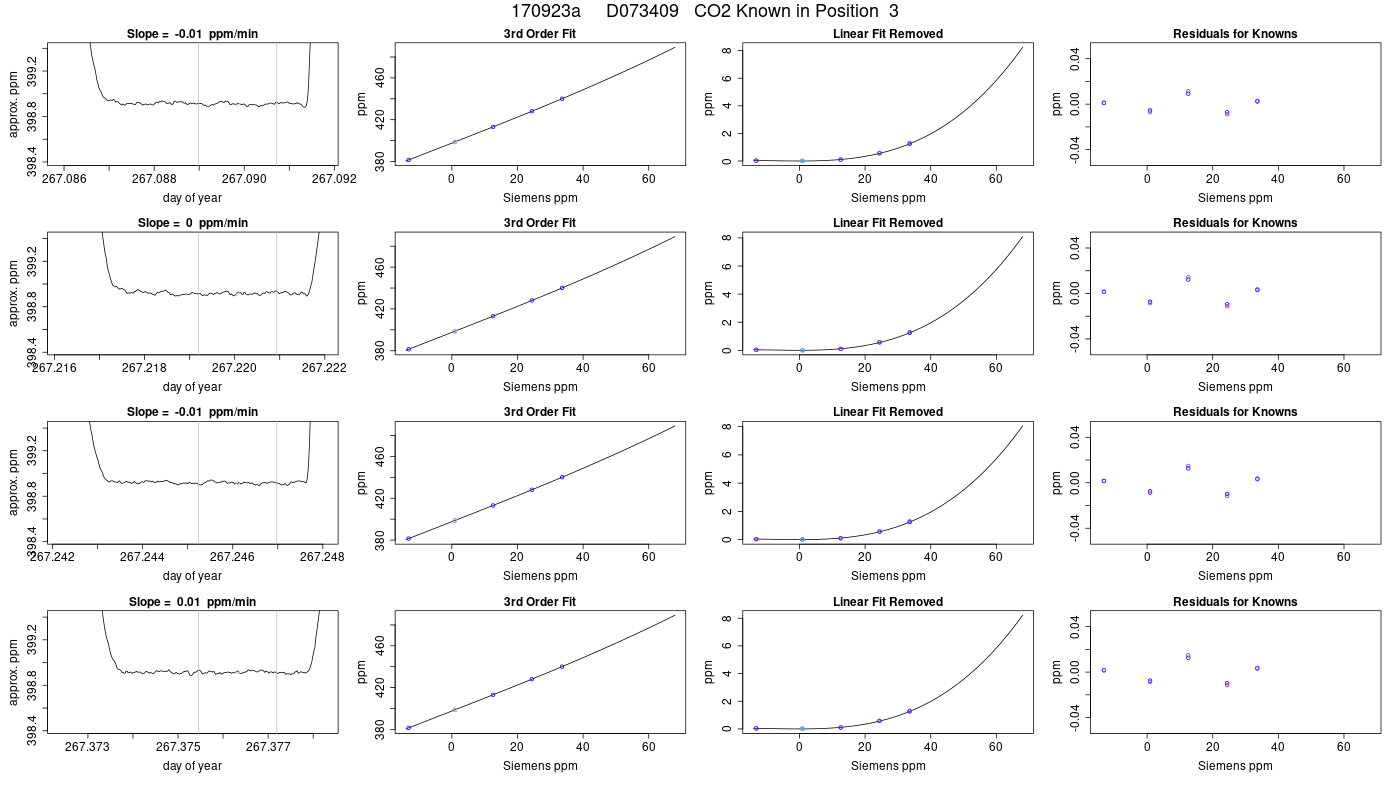

3 D073409 398.707 -0.006 0.002 398.918 -0.007 0.002 7 -651.78 1.97 0.61 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

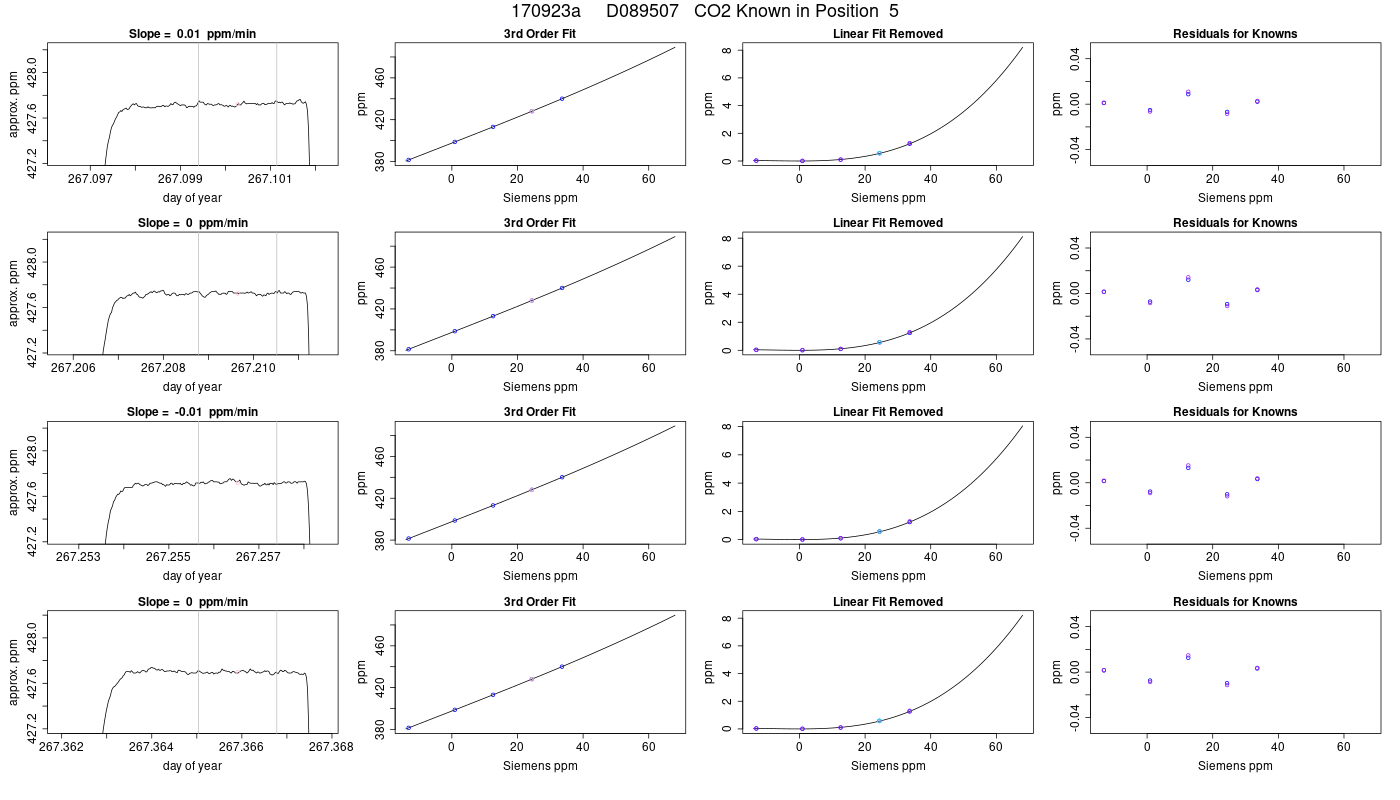

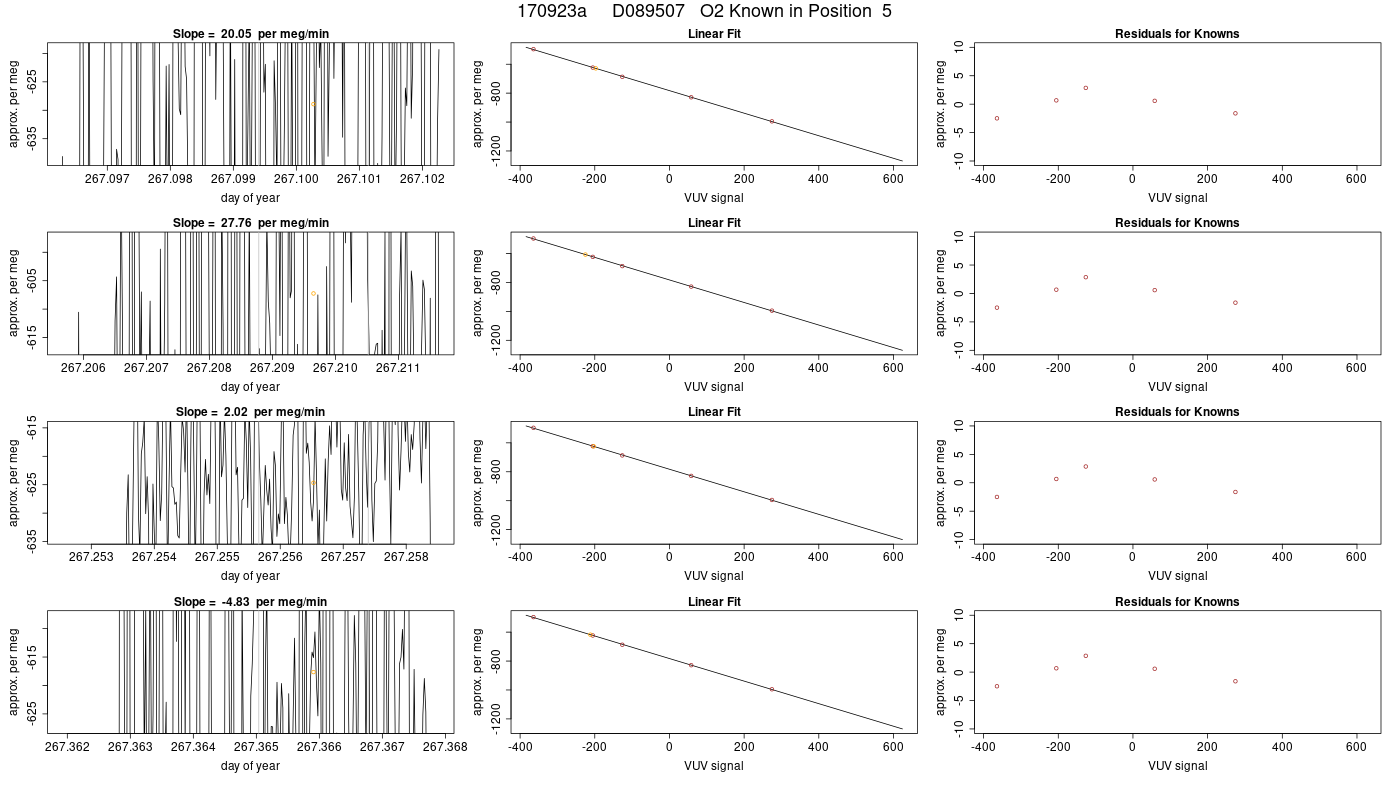

5 D089507 428.087 -0.008 0.002 428.275 -0.010 0.002 7 -559.23 -0.87 1.46 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

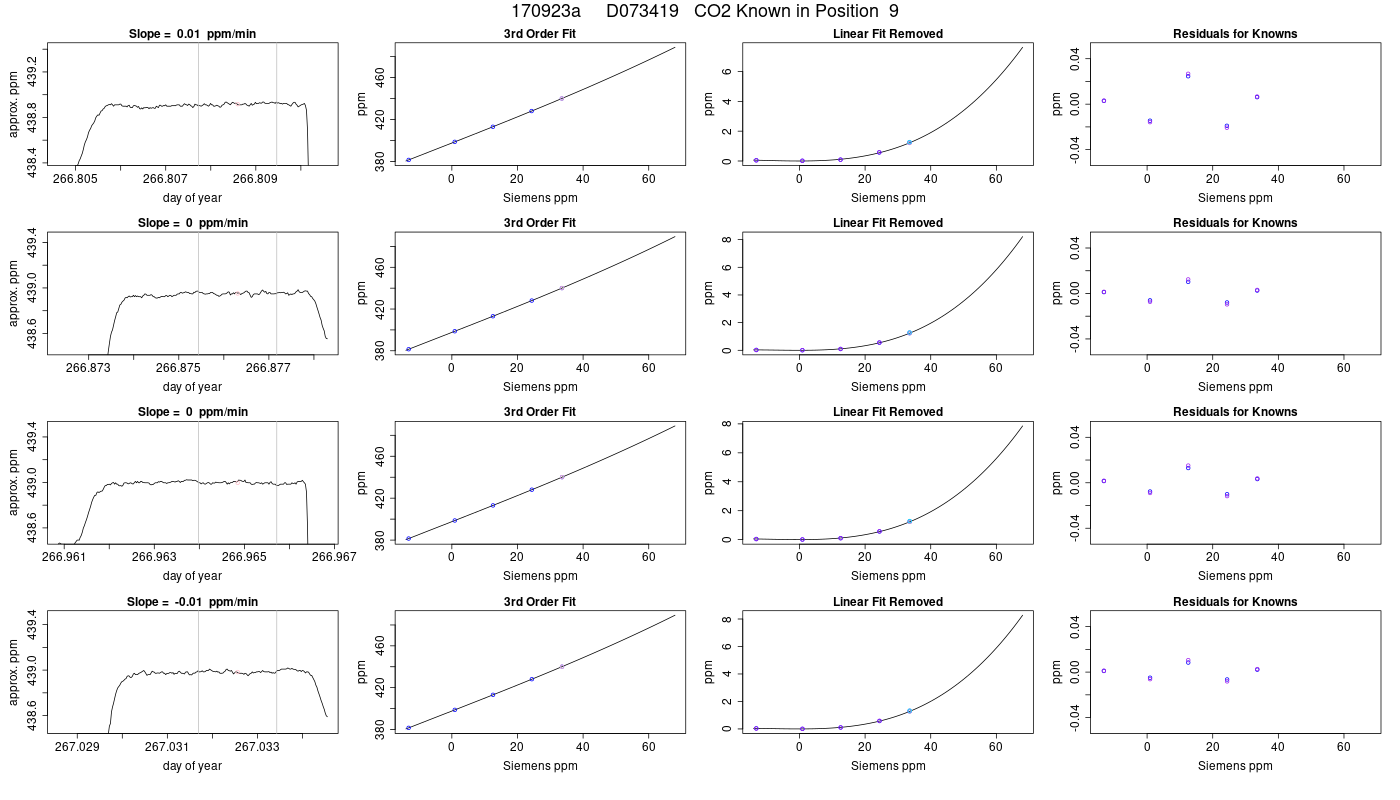

9 D073419 440.065 0.003 0.001 440.275 0.003 0.001 7 -919.32 -1.58 0.08 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

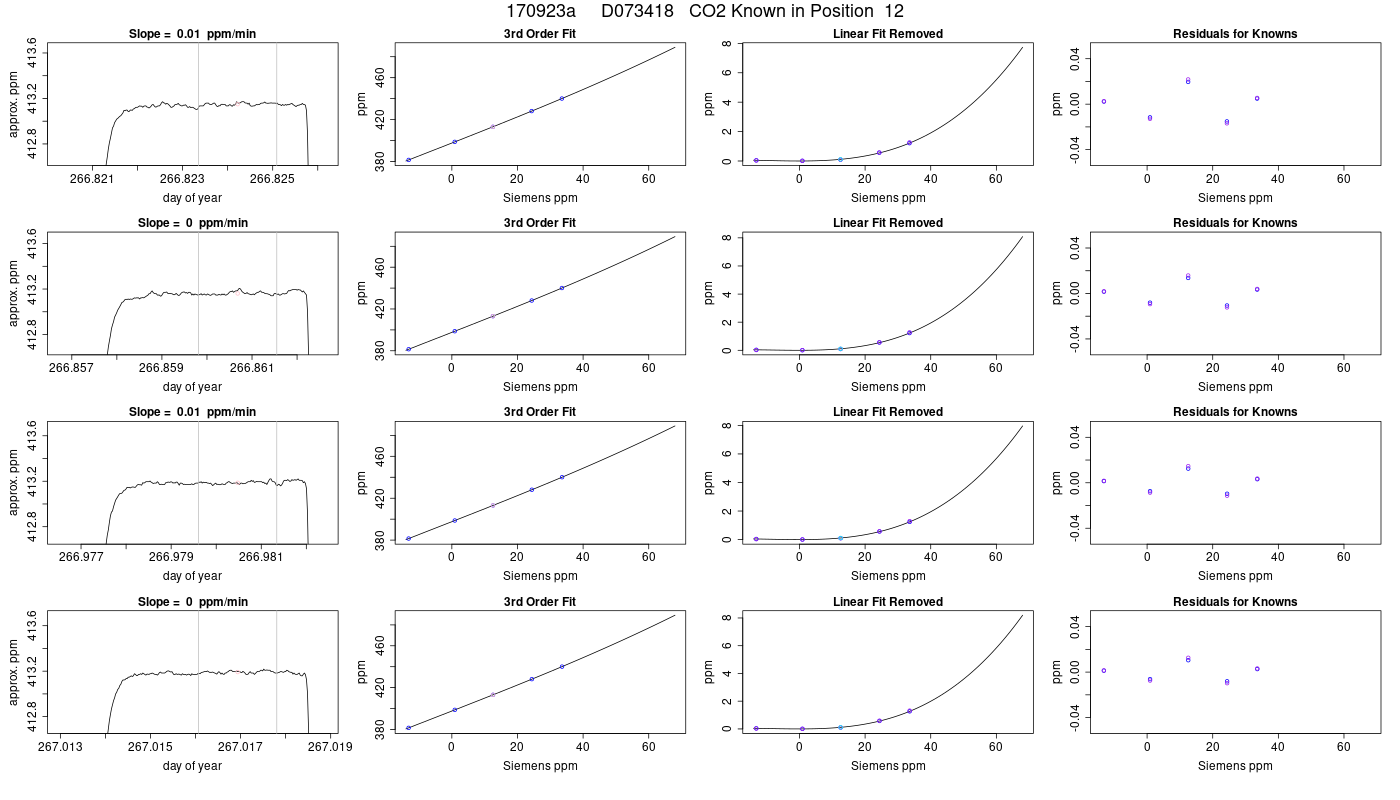

12 D073418 413.092 0.012 0.002 413.280 0.014 0.002 7 -779.40 1.36 1.08 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2
13 D801299 381.475 0.001 0.000 381.695 0.002 0.000 7 -477.75 -1.45 1.48 2    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

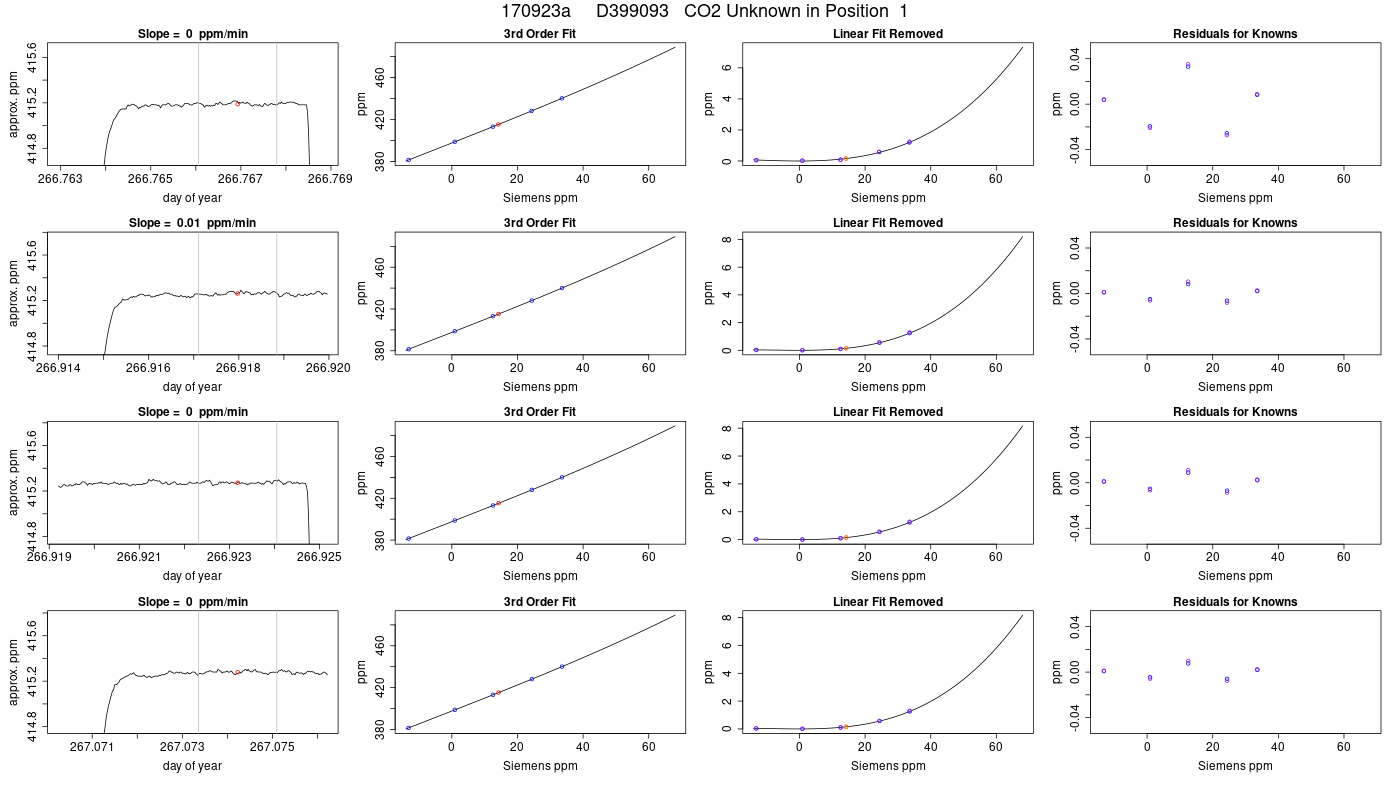

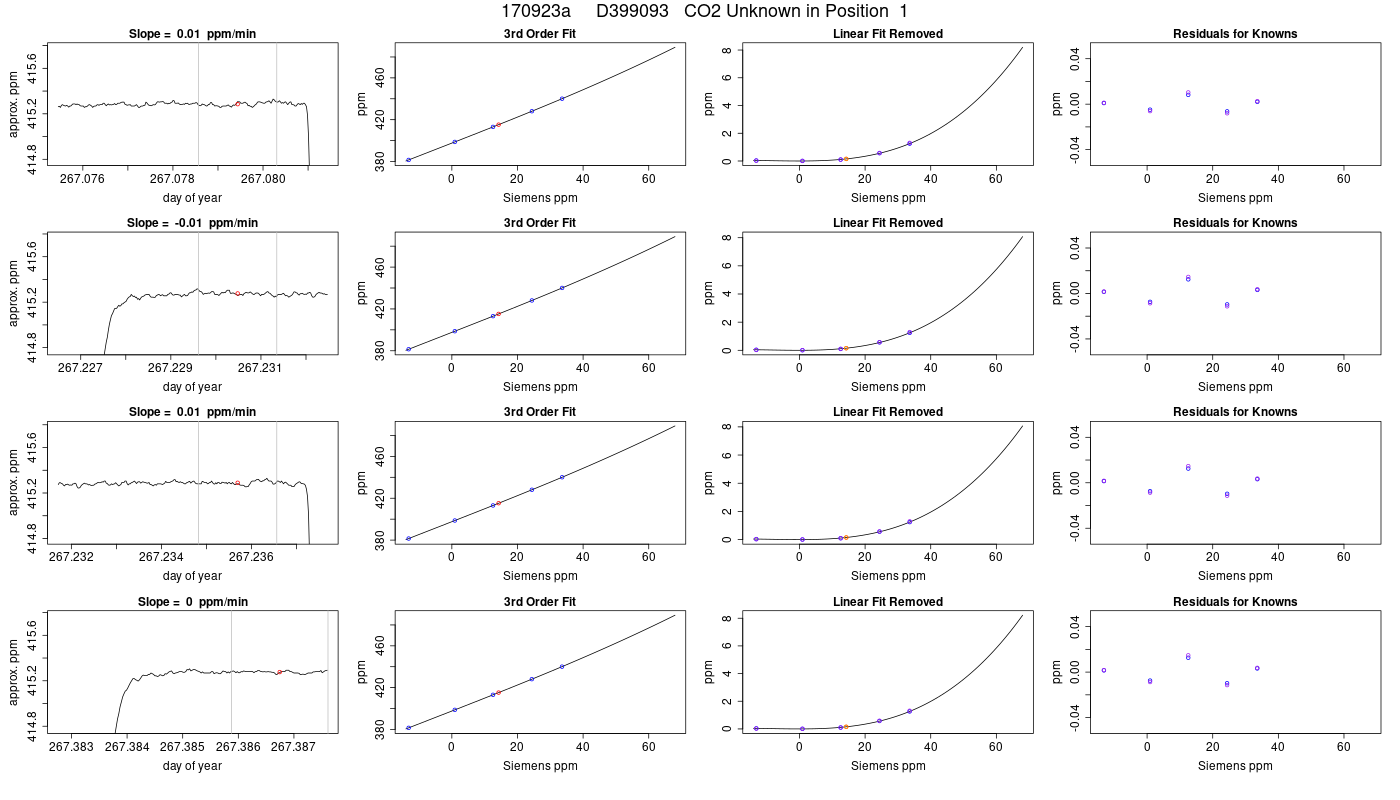

1 D399093    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.767 415.210 0.013 -873.51 3.90 415.398 0.013
266.918 415.230 0.012 -877.87 1.70 415.418 0.012
266.923 415.240 0.011 -876.58 1.46 415.428 0.011
267.074 415.229 0.011 -889.11 38.39 415.417 0.011
267.079 415.234 0.017 -891.79 100.79 415.422 0.017
267.230 415.220 0.013 -881.19 71.73 415.408 0.013
267.236 415.234 0.016 -900.48 104.78 415.422 0.016
267.387 415.231 0.010 -882.27 16.96 415.419 0.010

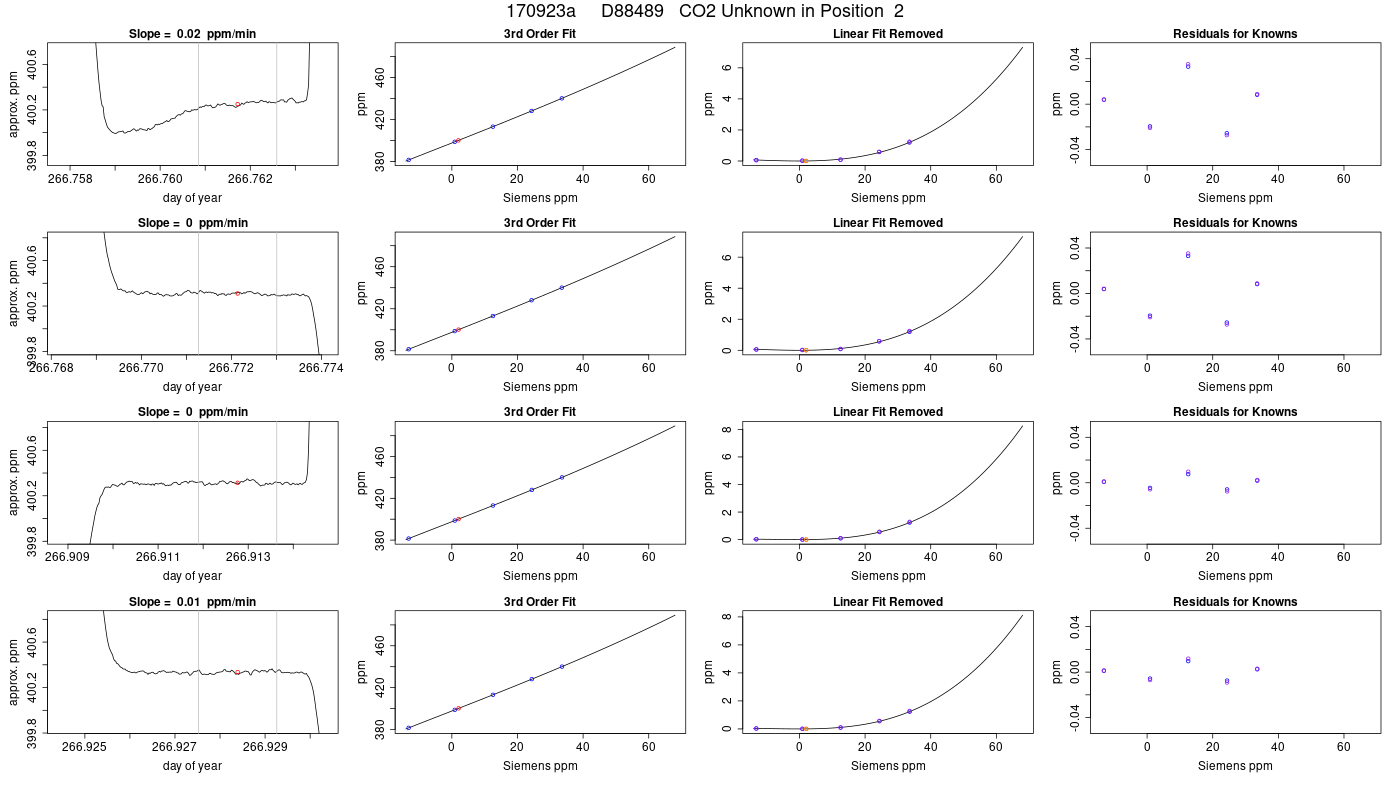

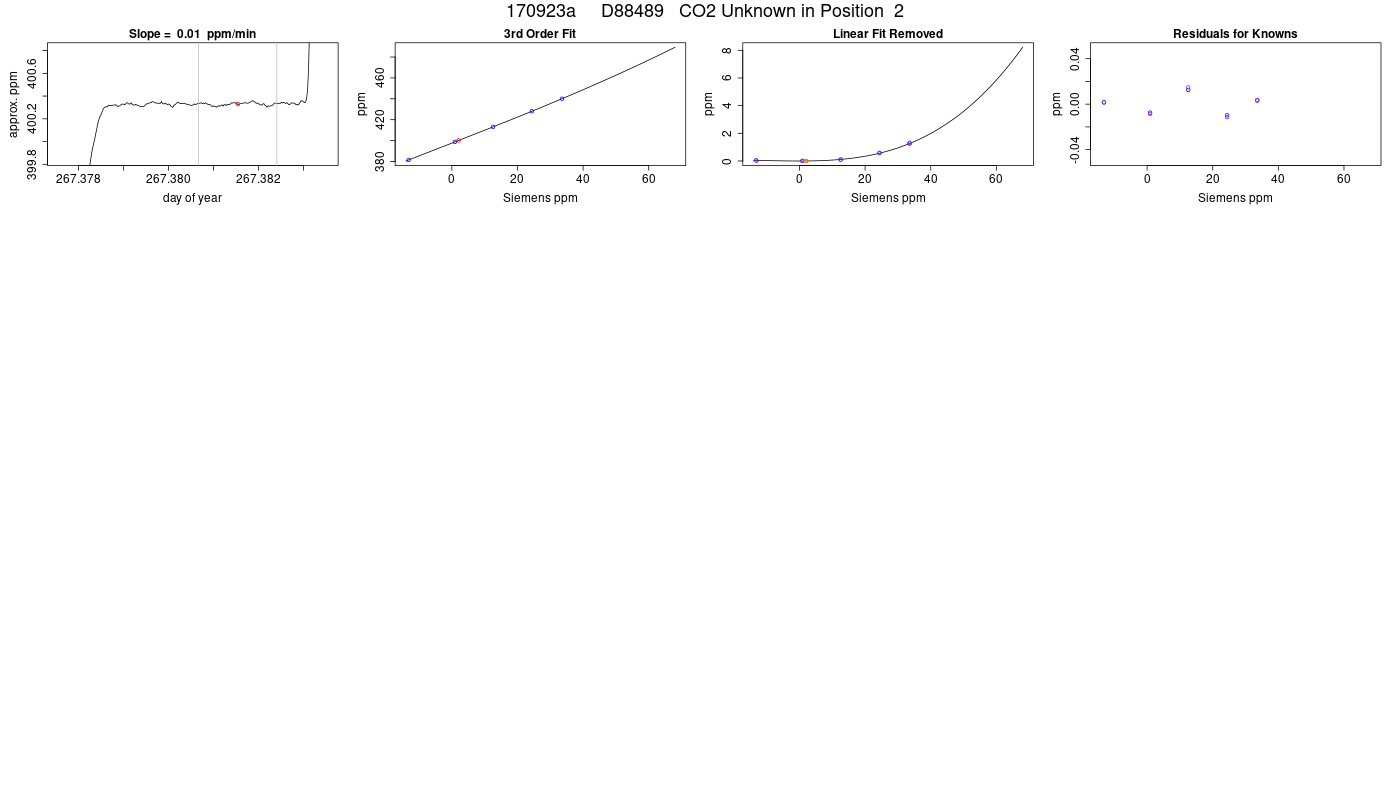

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
266.762 400.061 0.018 -457.89 3.84 400.268 0.018
266.772 400.121 0.011 -453.97 1.64 400.329 0.011
266.913 400.119 0.015 -460.72 1.94 400.326 0.015
266.928 400.138 0.014 -461.21 1.90 400.345 0.014
267.069 400.115 0.014 -447.20 62.87 400.323 0.014
267.085 400.126 0.013 -461.27 81.02 400.334 0.013
267.225 400.115 0.016 -463.39 112.52 400.322 0.016
267.241 400.129 0.012 -462.07 49.27 400.337 0.012
267.382 400.115 0.013 -459.64 35.19 400.323 0.013

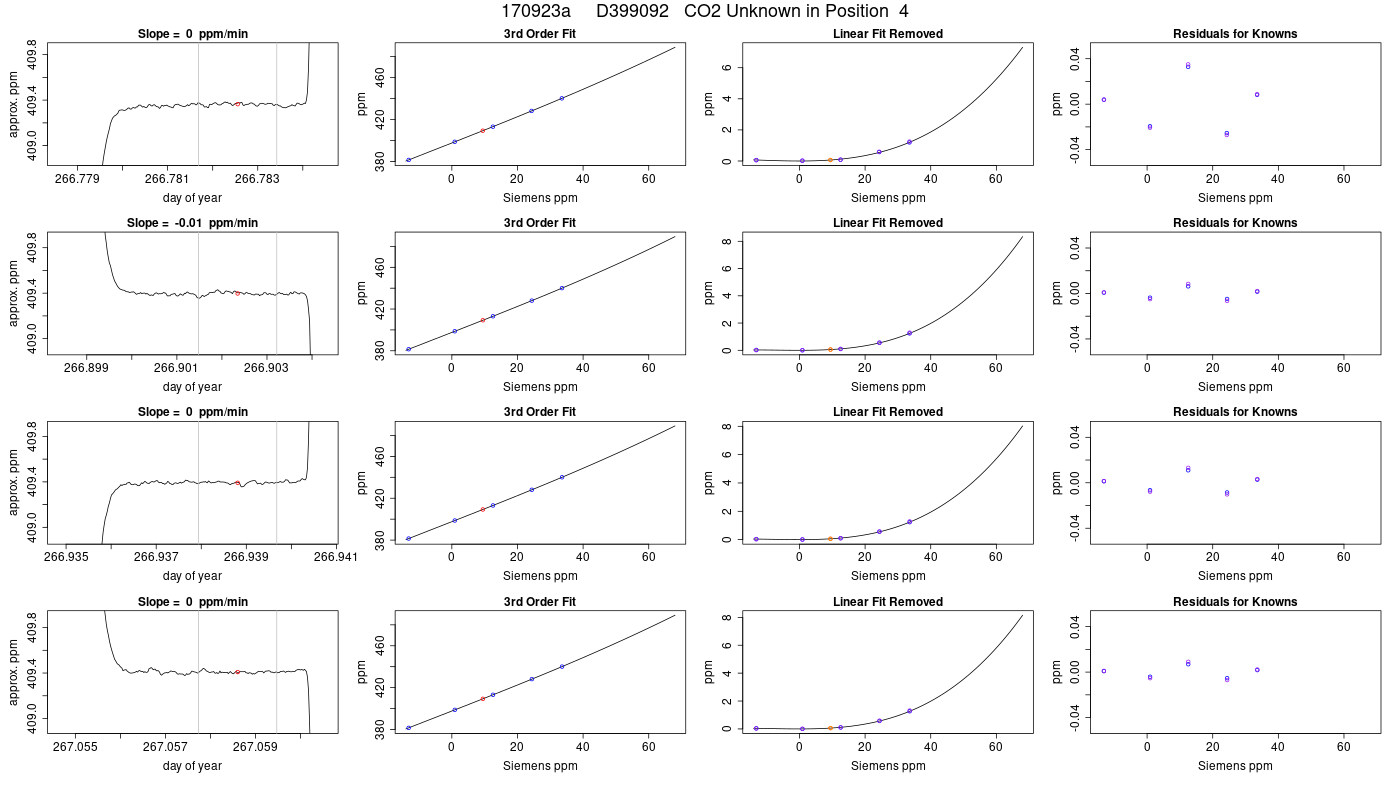

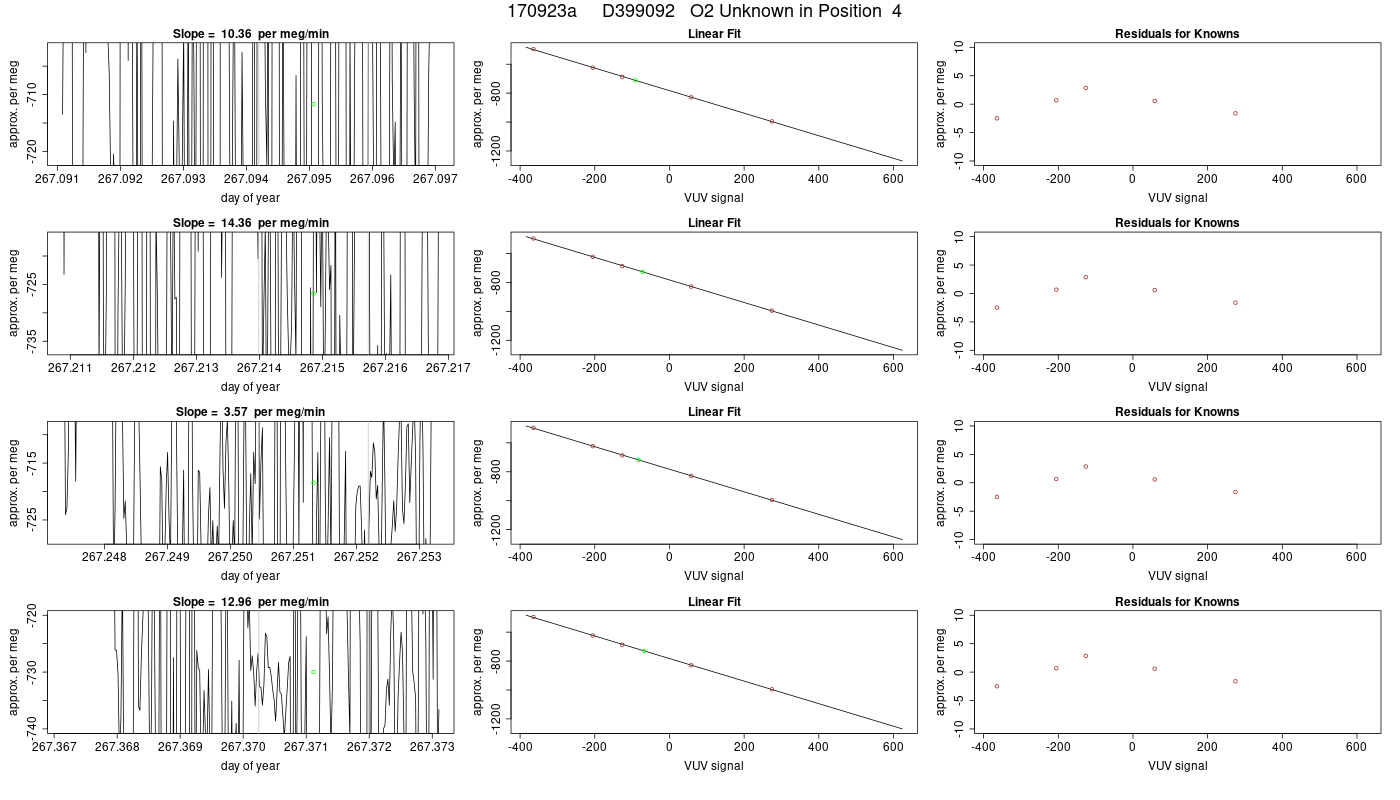

4 D399092    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.783 409.270 0.011 -677.84 2.07 409.464 0.011
266.902 409.269 0.015 -681.99 2.00 409.464 0.015
266.939 409.259 0.011 -682.46 2.49 409.454 0.011
267.059 409.258 0.010 -691.51 47.93 409.453 0.010
267.095 409.273 0.010 -666.17 100.39 409.468 0.010
267.215 409.268 0.011 -681.07 75.70 409.463 0.011
267.251 409.259 0.016 -672.95 58.97 409.454 0.016
267.371 409.267 0.016 -684.48 63.91 409.462 0.016

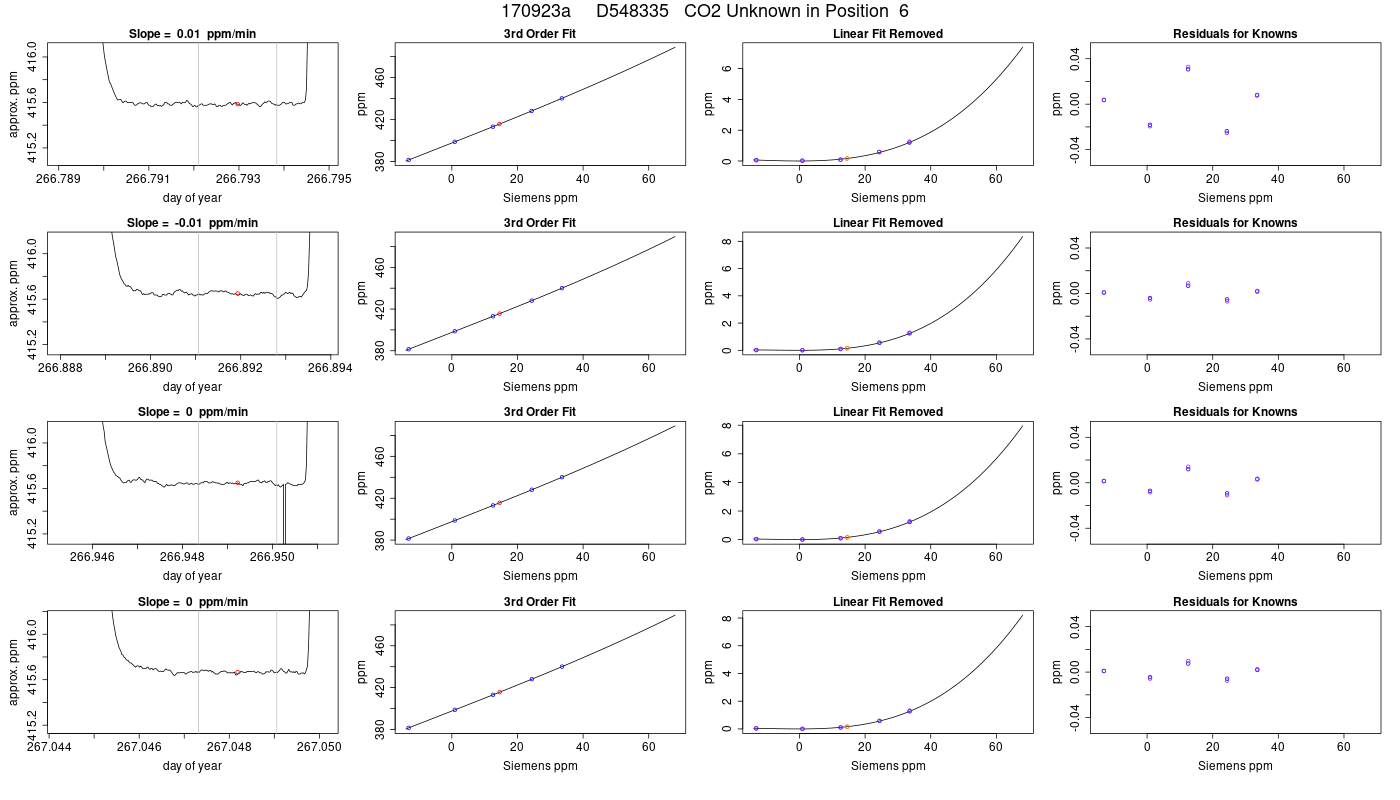

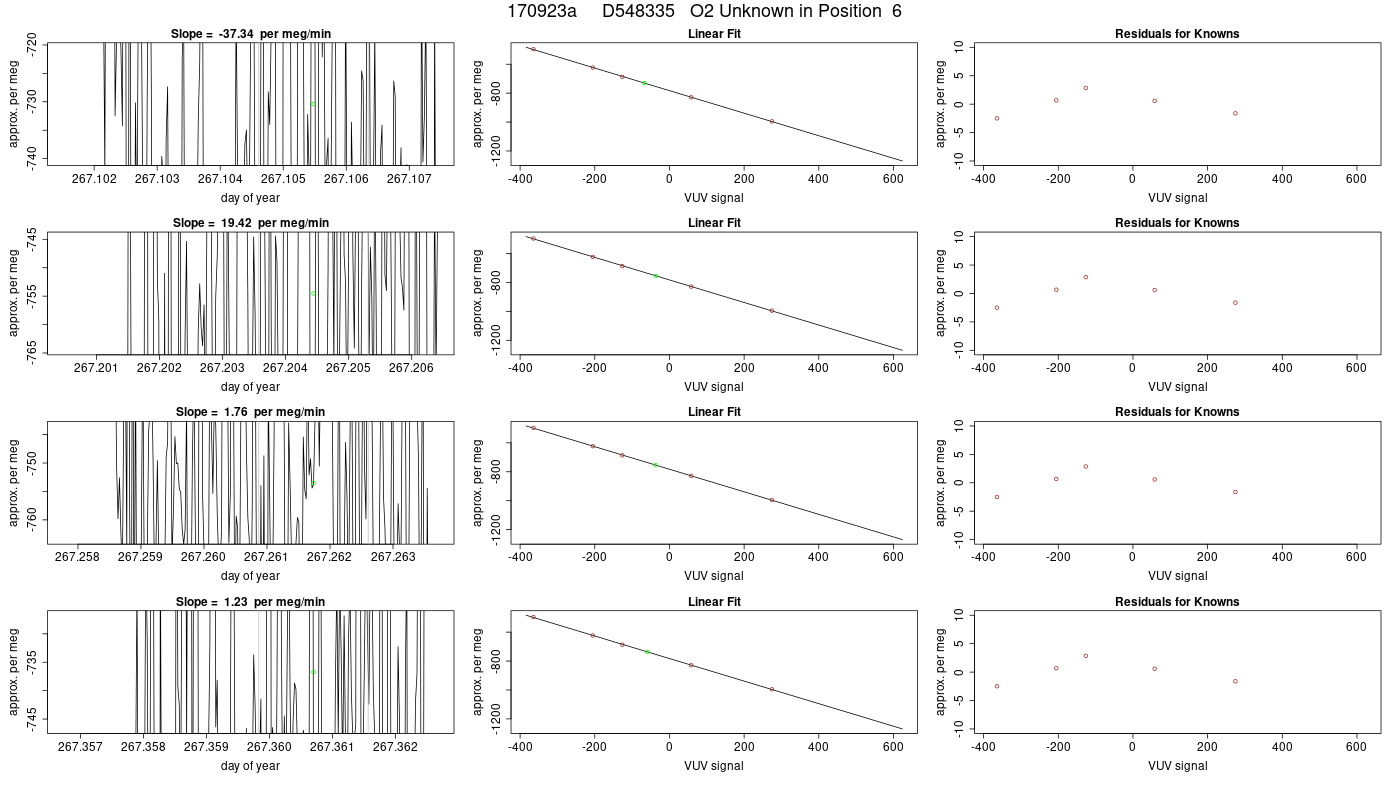

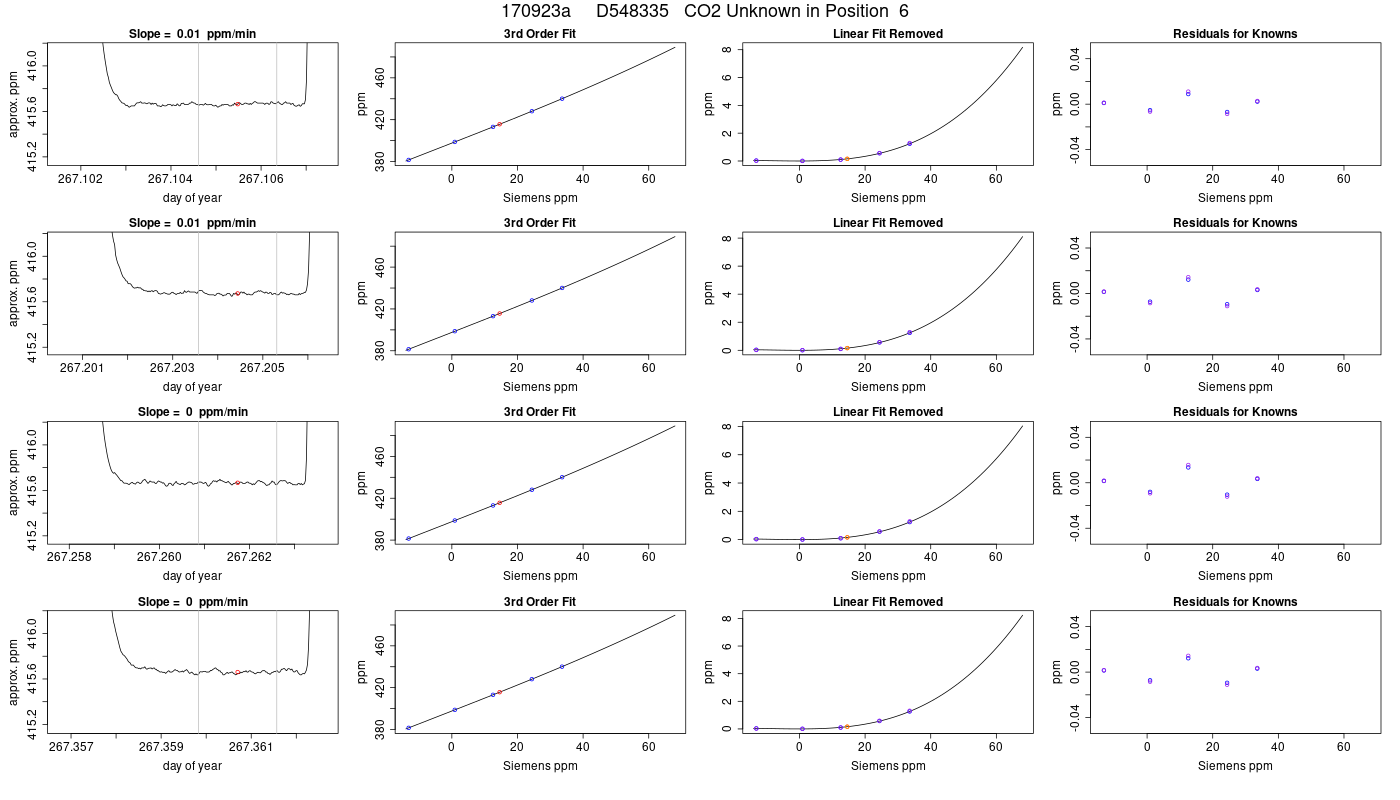

6 D548335    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.793 415.613 0.012 -693.60 5.67 415.801 0.012
266.892 415.631 0.014 -700.43 3.04 415.818 0.014
266.949 415.624 0.011 -697.17 2.27 415.811 0.011
267.048 415.624 0.010 -701.85 119.11 415.812 0.010
267.105 415.621 0.010 -678.67 99.76 415.808 0.010
267.204 415.624 0.013 -702.77 68.38 415.812 0.013
267.262 415.620 0.013 -701.72 33.48 415.808 0.013
267.361 415.623 0.013 -684.98 73.85 415.811 0.013

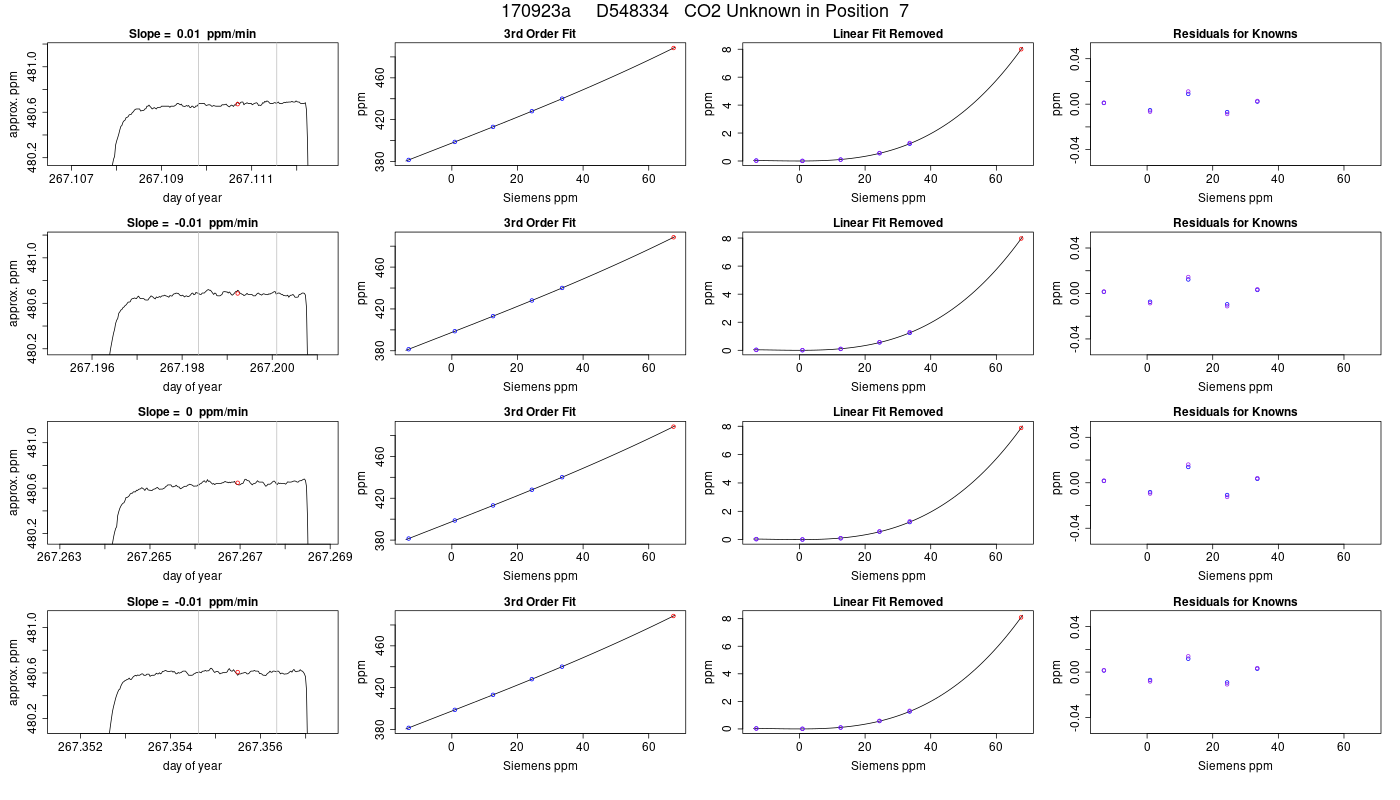

7 D548334    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.798 487.807 0.012 -959.74 1.62 488.512 0.012
266.887 488.668 0.013 -961.14 1.88 489.377 0.013
266.954 488.314 0.021 -960.45 2.46 489.022 0.021
267.043 488.542 0.015 -989.16 131.74 489.251 0.015
267.111 488.513 0.013 -976.66 76.48 489.221 0.013
267.199 488.483 0.014 -978.26 74.02 489.191 0.014
267.267 488.383 0.013 -945.52 51.88 489.091 0.013
267.355 488.571 0.014 -973.76 94.90 489.279 0.014

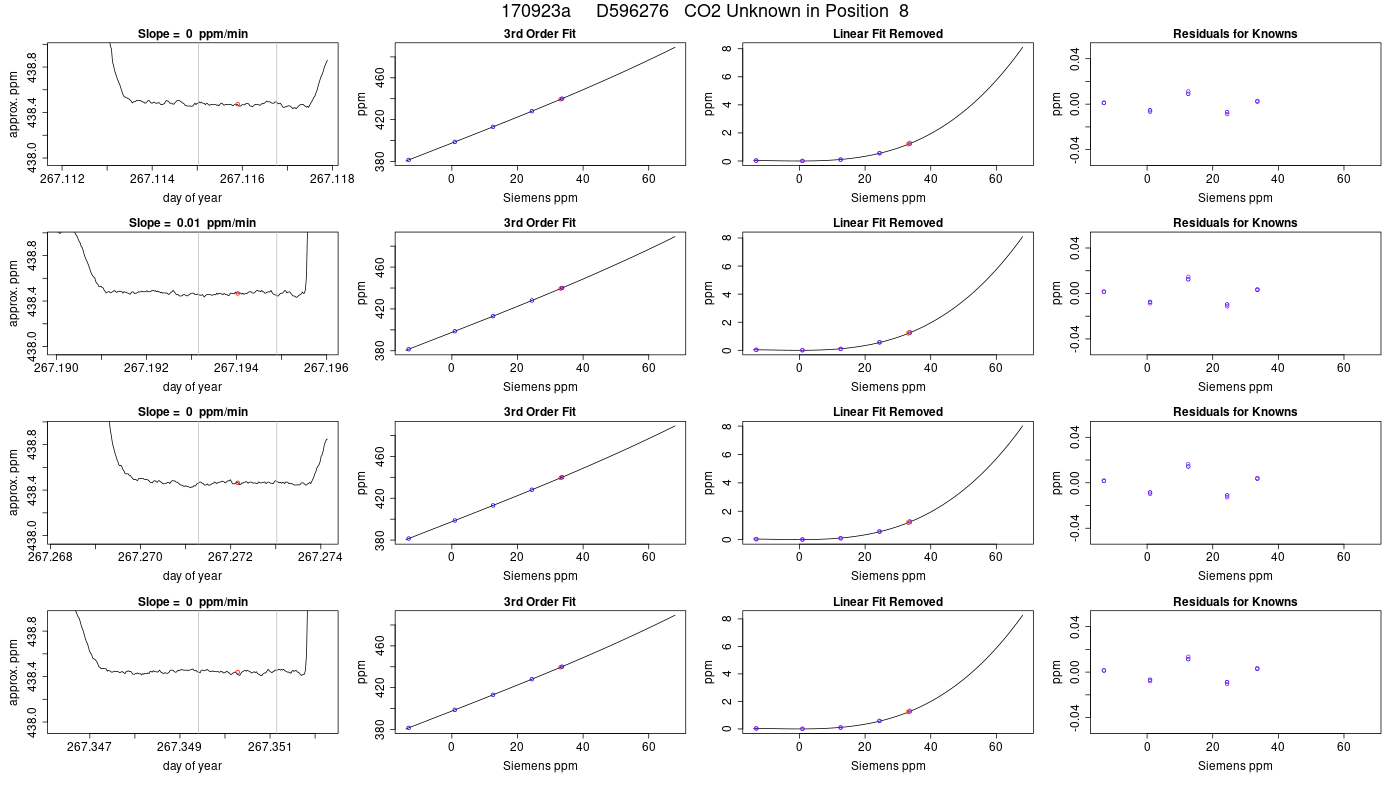

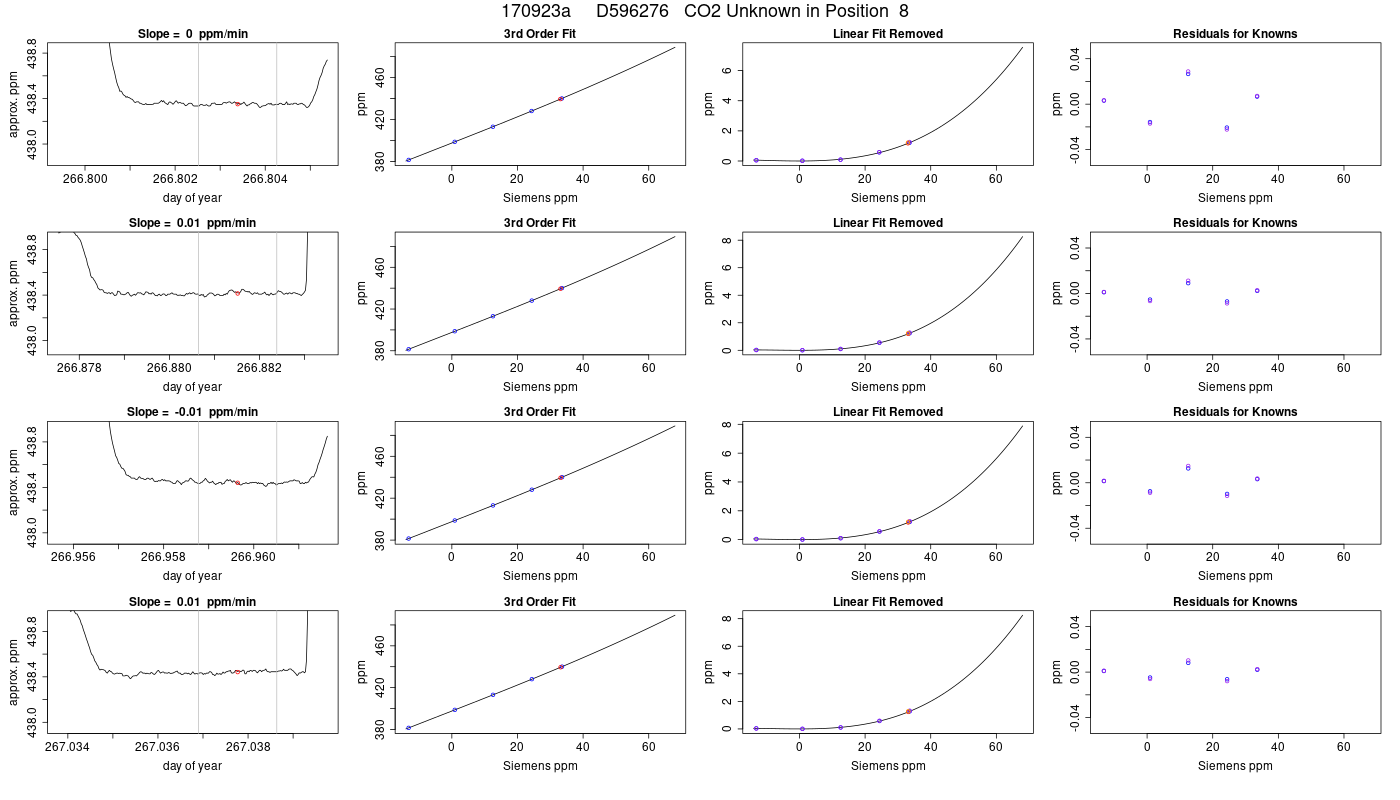

8 D596276    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.803 439.463 0.011 -887.98 1.80 439.671 0.011
266.882 439.485 0.015 -887.44 1.81 439.693 0.015
266.960 439.472 0.013 -888.39 1.96 439.681 0.013
267.038 439.482 0.012 -854.09 112.48 439.690 0.012
267.116 439.487 0.011 -872.45 113.03 439.695 0.011
267.194 439.477 0.013 -881.61 67.46 439.686 0.013
267.272 439.480 0.010 -885.94 70.88 439.689 0.010
267.350 439.489 0.013 -877.84 55.58 439.698 0.013

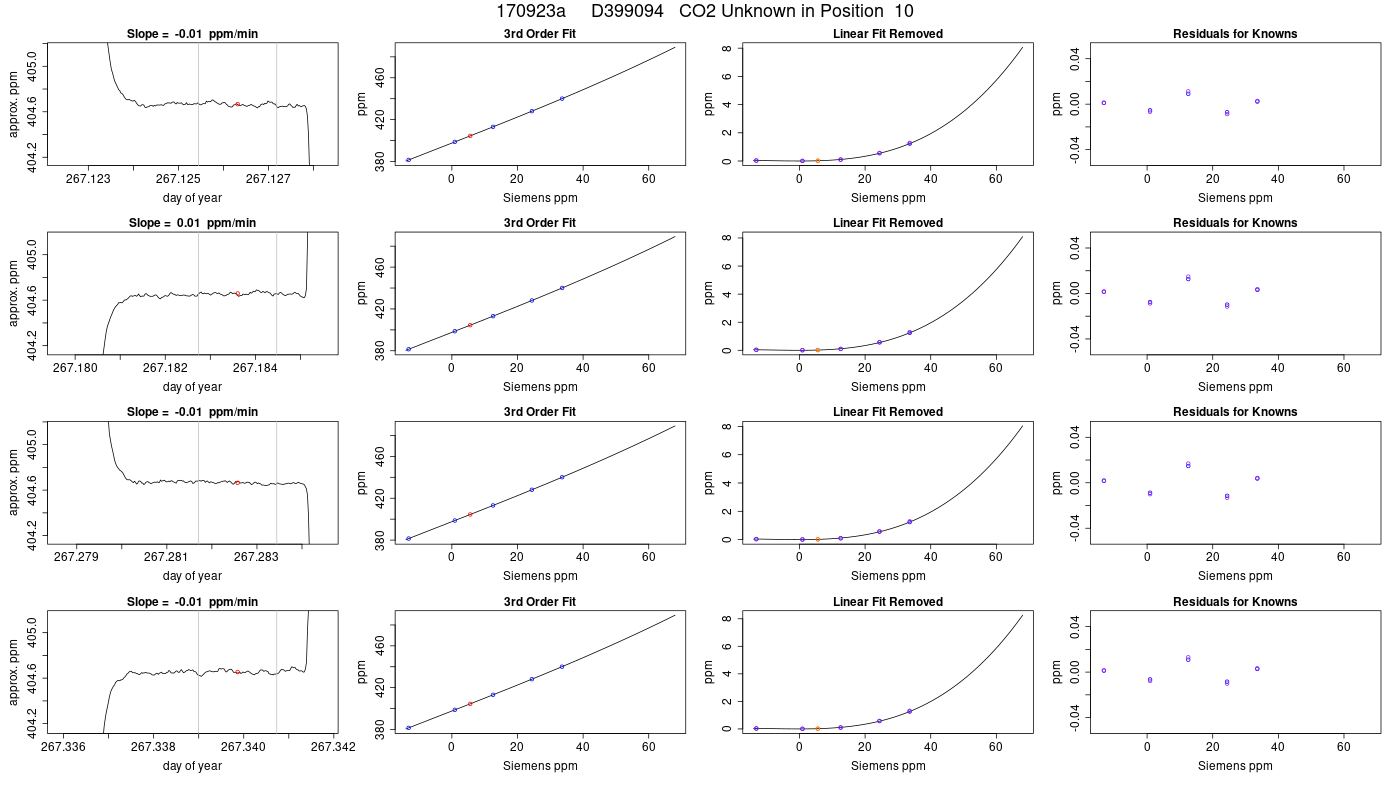

10 D399094    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.814 404.478 0.013 -804.47 2.18 404.680 0.013
266.871 404.467 0.011 -804.90 1.96 404.669 0.011
266.970 404.462 0.013 -807.85 2.49 404.664 0.013
267.027 404.457 0.014 -817.35 75.49 404.659 0.014
267.126 404.479 0.016 -807.77 67.48 404.681 0.016
267.184 404.465 0.012 -797.10 45.10 404.666 0.012
267.283 404.468 0.012 -807.48 78.46 404.670 0.012
267.340 404.461 0.016 -803.75 20.34 404.662 0.016

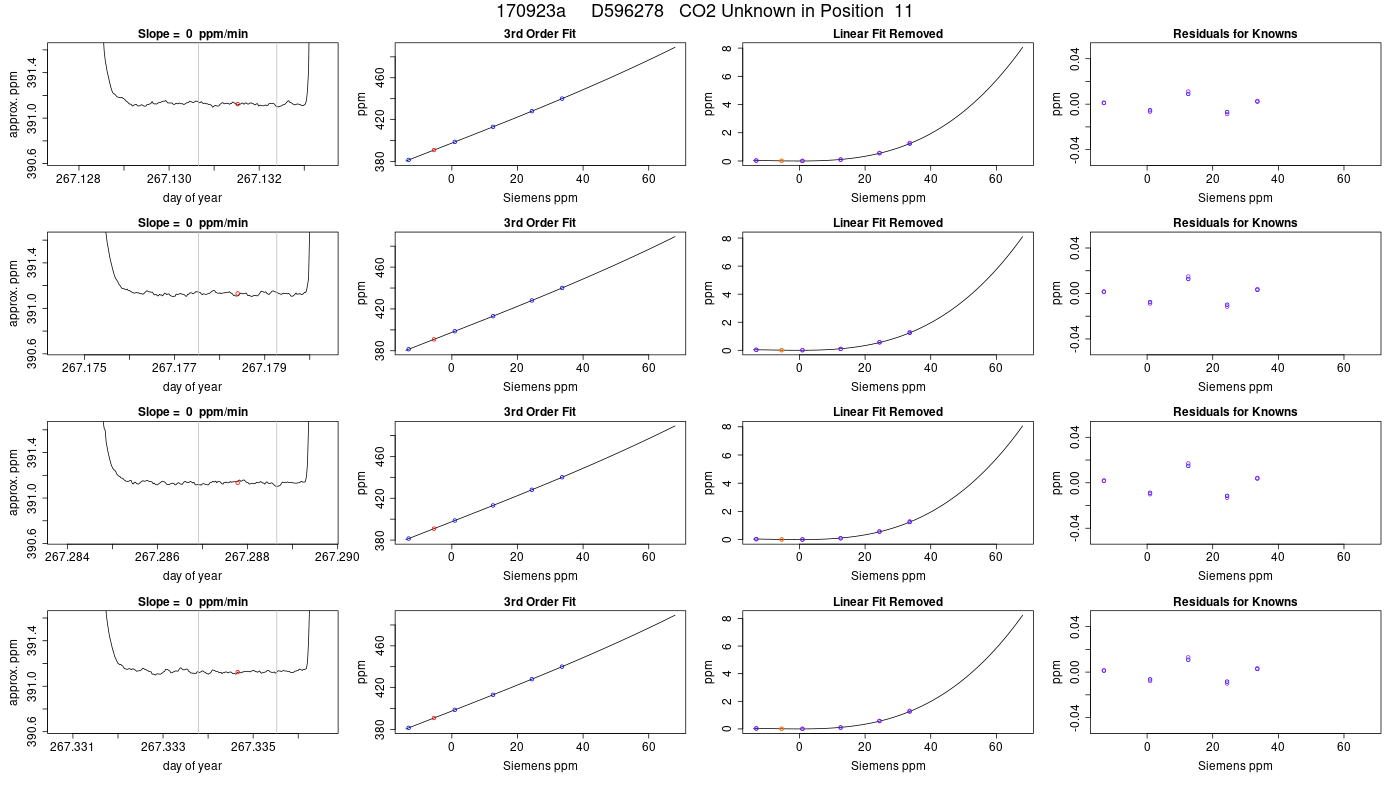

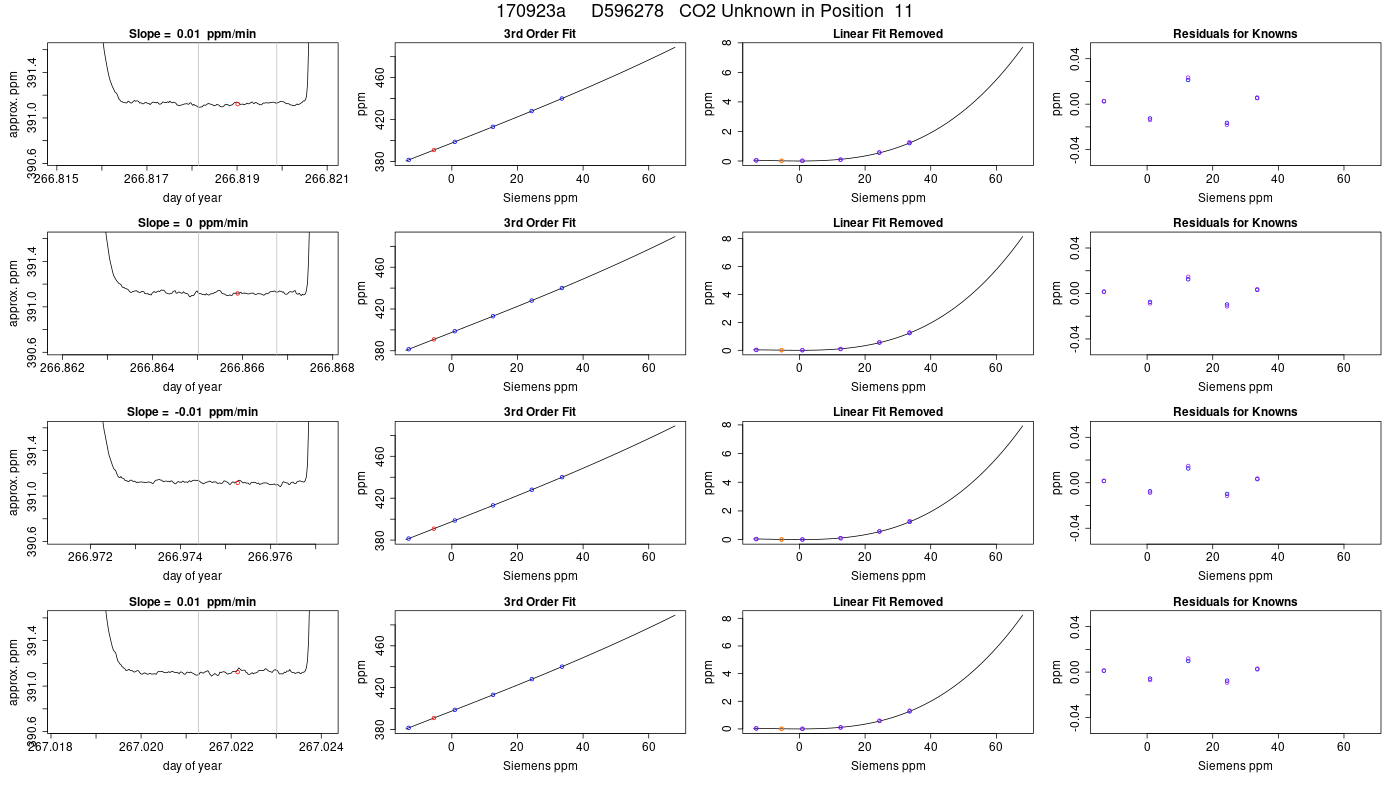

11 D596278    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.819 390.913 0.012 -504.75 2.07 391.132 0.012
266.866 390.914 0.011 -507.97 1.82 391.132 0.011
266.975 390.910 0.010 -509.26 1.65 391.129 0.010
267.022 390.916 0.016 -498.92 109.69 391.134 0.016
267.132 390.918 0.010 -493.89 83.35 391.136 0.010
267.178 390.923 0.013 -496.98 45.57 391.141 0.013
267.288 390.918 0.012 -504.73 64.64 391.136 0.012
267.335 390.910 0.008 -513.04 29.31 391.129 0.008

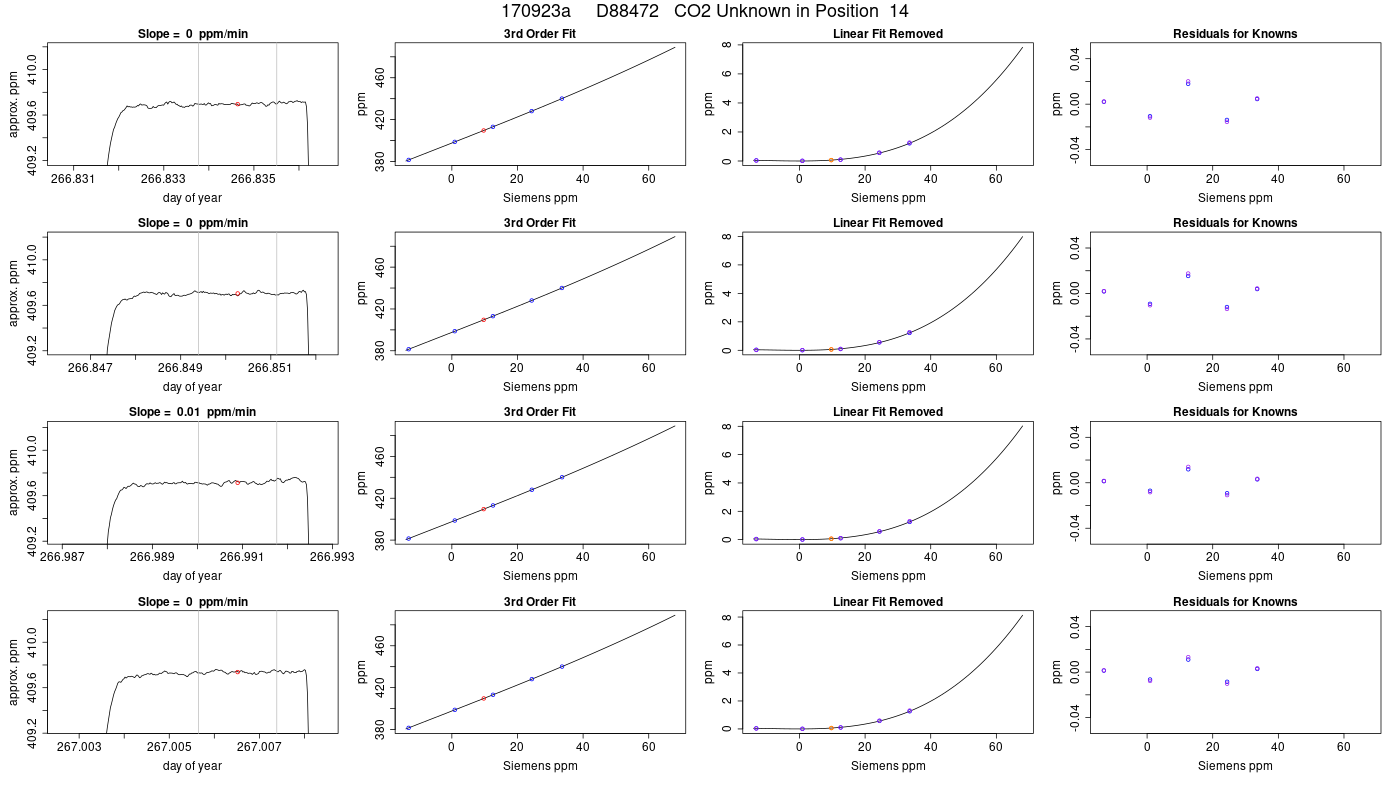

14 D88472    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.835 409.593 0.008 -1184.76 1.74 409.787 0.008
266.850 409.596 0.011 -1186.16 2.29 409.791 0.011
266.991 409.576 0.014 -1193.97 4.62 409.770 0.014
267.007 409.597 0.011 -1182.01 2.05 409.791 0.011
267.147 409.591 0.014 -1223.11 91.28 409.785 0.014
267.163 409.591 0.012 -1171.61 73.59 409.785 0.012
267.303 409.585 0.012 -1195.55 28.31 409.779 0.012
267.319 409.600 0.013 -1185.22 21.59 409.794 0.013

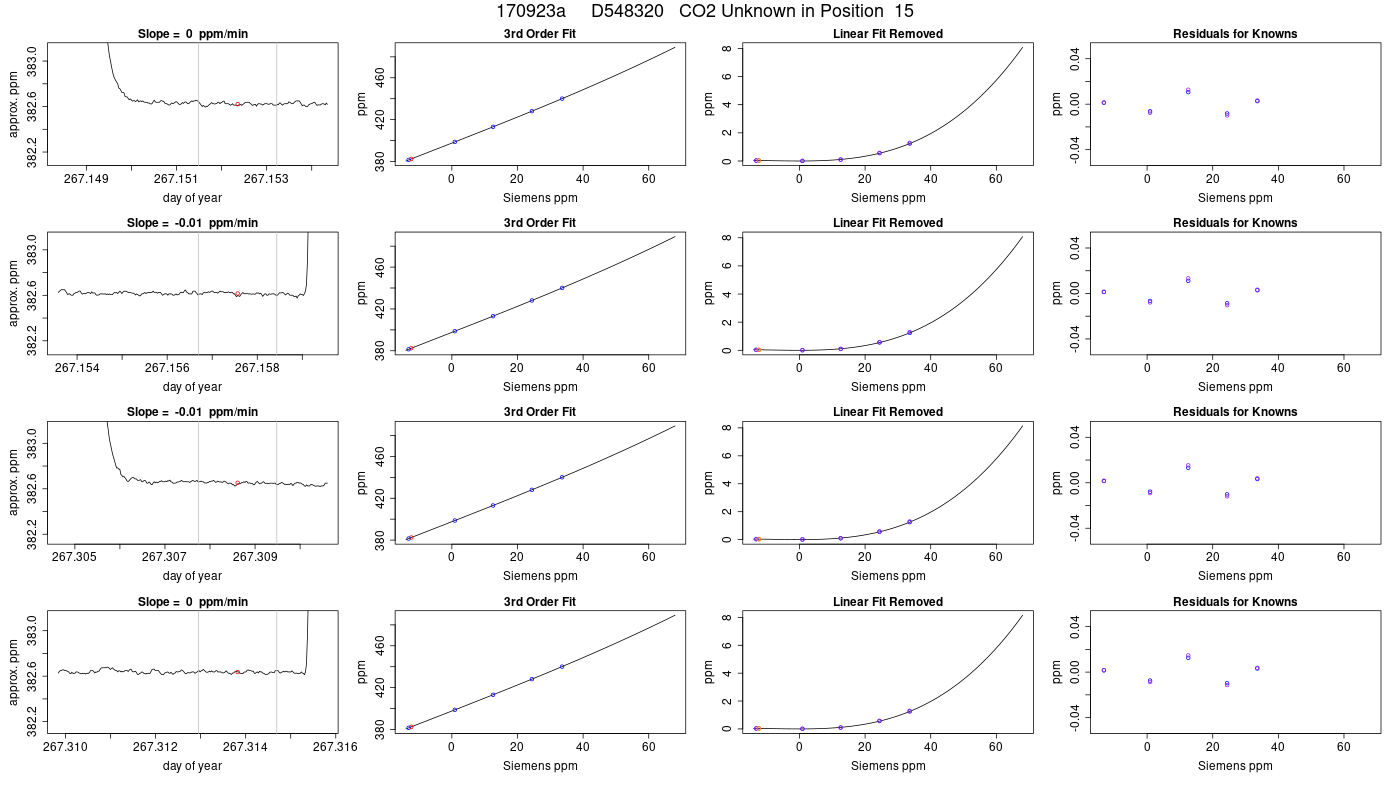

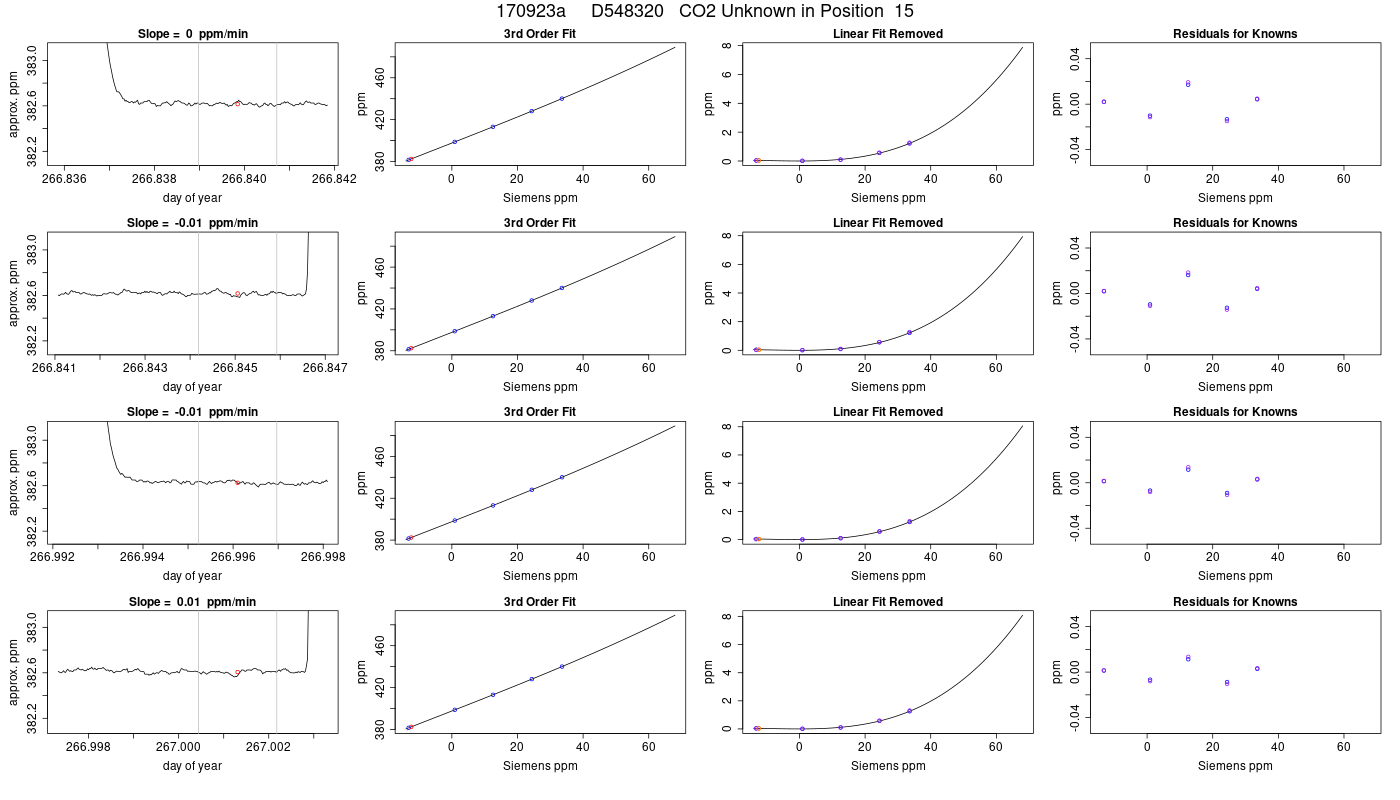

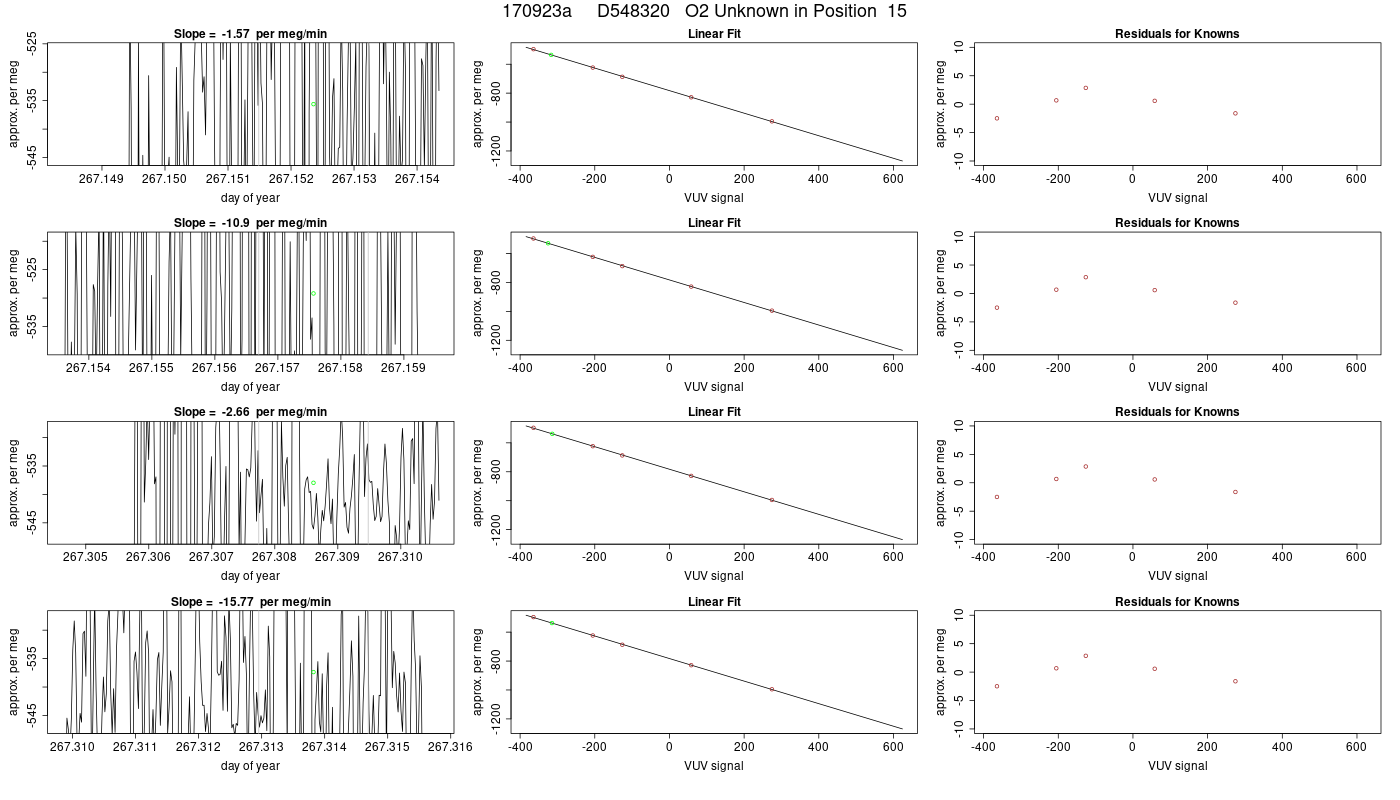

15 D548320    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
266.840 382.414 0.012 -520.85 1.85 382.635 0.012
266.845 382.416 0.017 -522.40 1.69 382.636 0.017
266.996 382.442 0.013 -521.02 2.39 382.662 0.013
267.001 382.422 0.017 -522.77 1.96 382.643 0.017
267.152 382.434 0.011 -516.49 72.27 382.655 0.011
267.158 382.430 0.011 -510.07 71.14 382.651 0.011
267.309 382.454 0.010 -518.81 23.77 382.675 0.010
267.314 382.438 0.010 -518.25 32.27 382.658 0.010
