UEA CRAM Lab O2 and CO2 calibration results
RUN = 170921a
PROCESSED: 16:19:57 Mon 21Aug2023

Notes
Logfile

Results

Using data from 264.843 to 265.545 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

1 D399093 415.222 0.009 -0.001 415.410 0.009 -0.001 9 -879.08 1.76 5.37 7
2 D88489 400.118 0.007 0.000 400.326 0.007 0.000 9 -463.30 1.25 -1.60 7
4 D399092 409.262 0.005 0.007 409.456 0.005 0.006 9 -683.85 0.74 34.42 6
6 D548335 415.619 0.009 0.000 415.806 0.009 0.000 9 -698.86 1.75 0.25 7
7 D548334 488.570 0.271 0.258 489.277 0.272 0.259 9 -957.62 1.41 21.34 7
8 D596276 439.480 0.015 0.032 439.688 0.015 0.033 9 -887.81 1.60 17.55 7
10 D399094 404.466 0.008 0.007 404.668 0.008 0.007 9 -805.09 0.61 -2.17 7
11 D596278 390.916 0.005 0.005 391.134 0.005 0.005 9 -509.59 0.86 28.42 7
14 D88472 409.583 0.012 0.012 409.778 0.012 0.012 9 -1184.02 4.50 -24.28 5
15 D548320 382.425 0.007 0.030 382.646 0.007 0.030 9 -522.63 2.31 2.87 7
WT D258964 397.597 0.013 -0.056 397.808 0.013 -0.056 135 -749.87 1.37 6.32 135
Text File

Raw Data and Diagnostics Figures

CO2 Timeseries
 CO2 Averages for Unknowns
 CO2 Averages for Knowns
Jog Ave. Diagnostics 1
 Jog Ave. Diagnostics 2
 Jog Std. Dev. Diagnostics
Jog Slope Diagnostics
 Rollover Effect
 Flushing Effect
CO2 Parameters
 CO2 Results
 O2 Timeseries
O2 Averages for Unknowns
 O2 Averages for Knowns
 O2 Parameters
O2 Results
 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

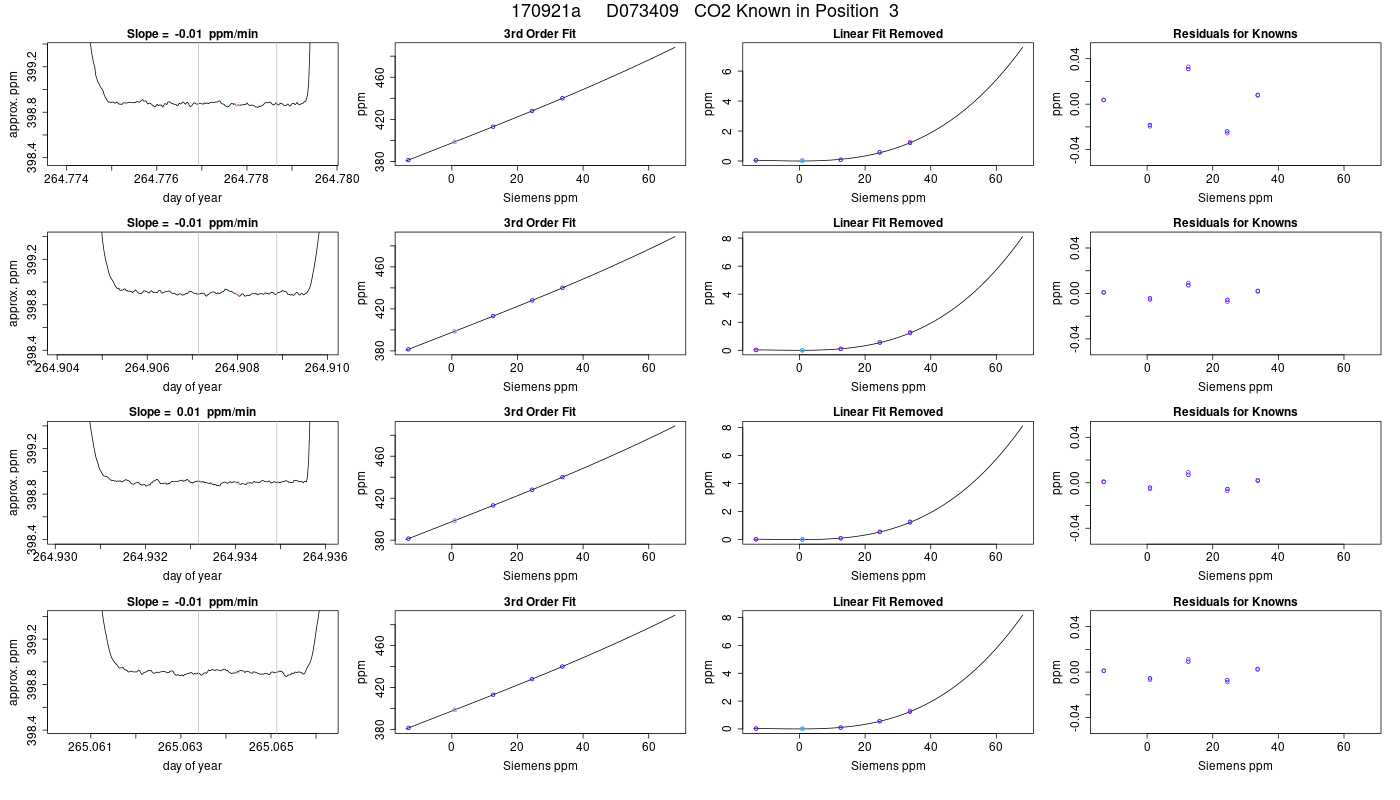

3 D073409 398.707 -0.006 0.001 398.918 -0.007 0.001 9 -651.78 0.50 0.61 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

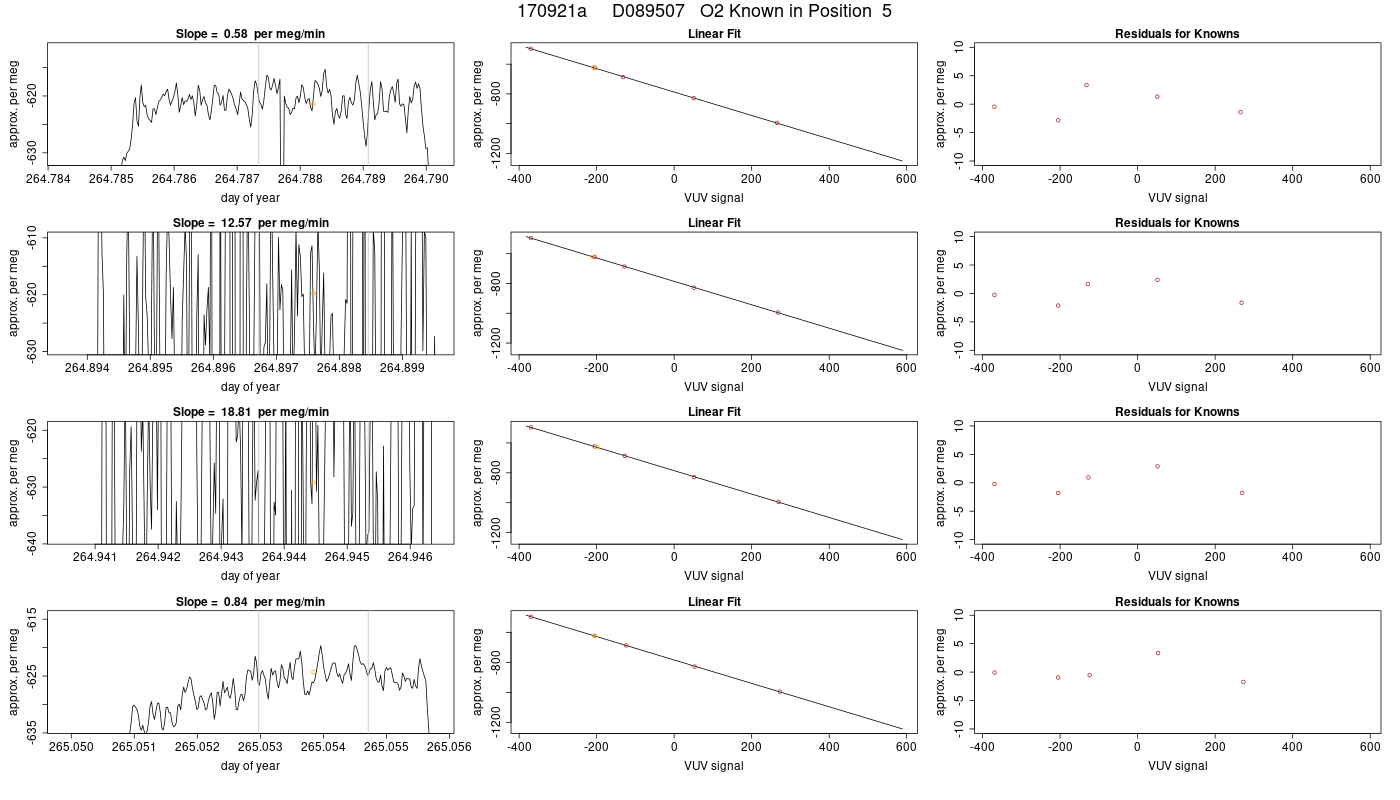

5 D089507 428.087 -0.008 0.002 428.275 -0.010 0.002 9 -559.23 -1.30 0.54 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

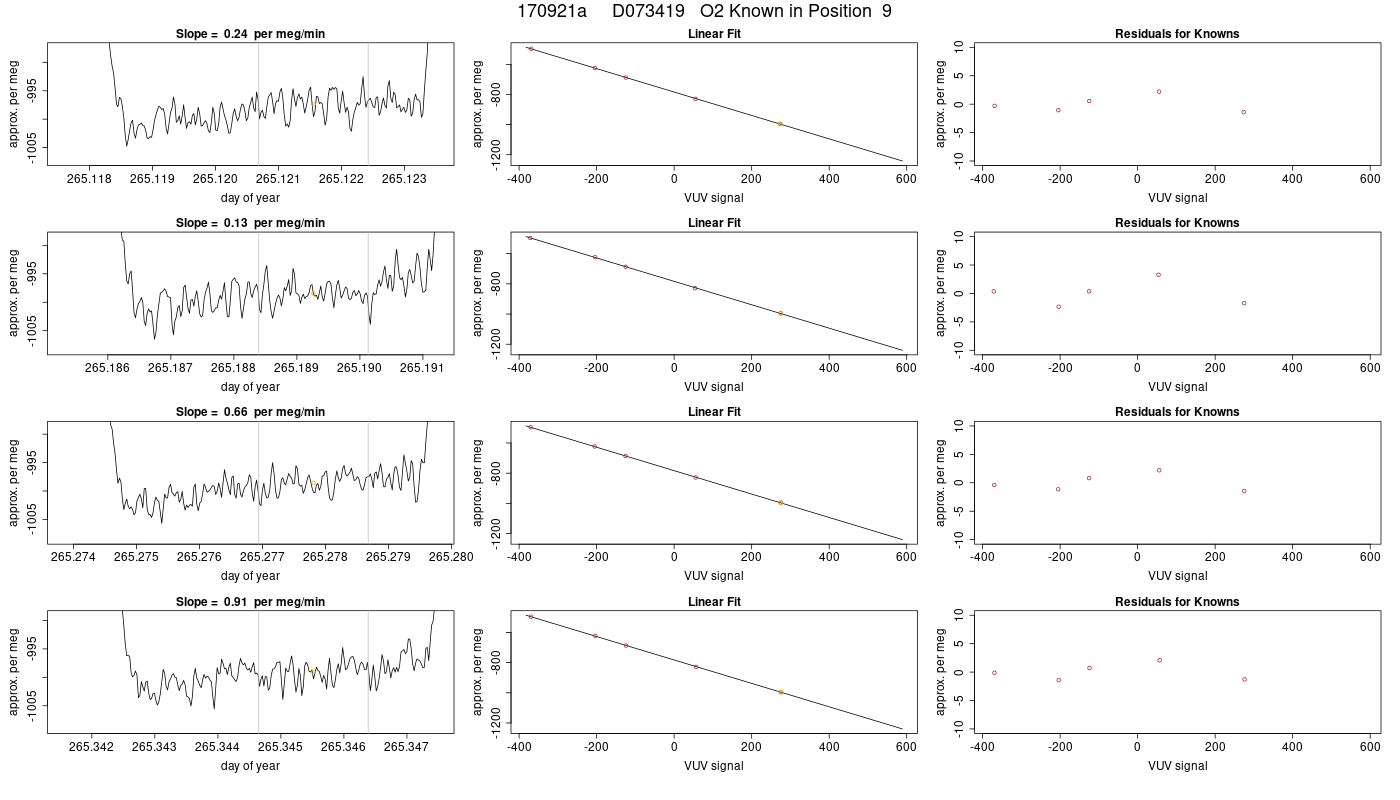

9 D073419 440.065 0.003 0.001 440.275 0.003 0.001 8 -919.32 -1.29 0.59 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

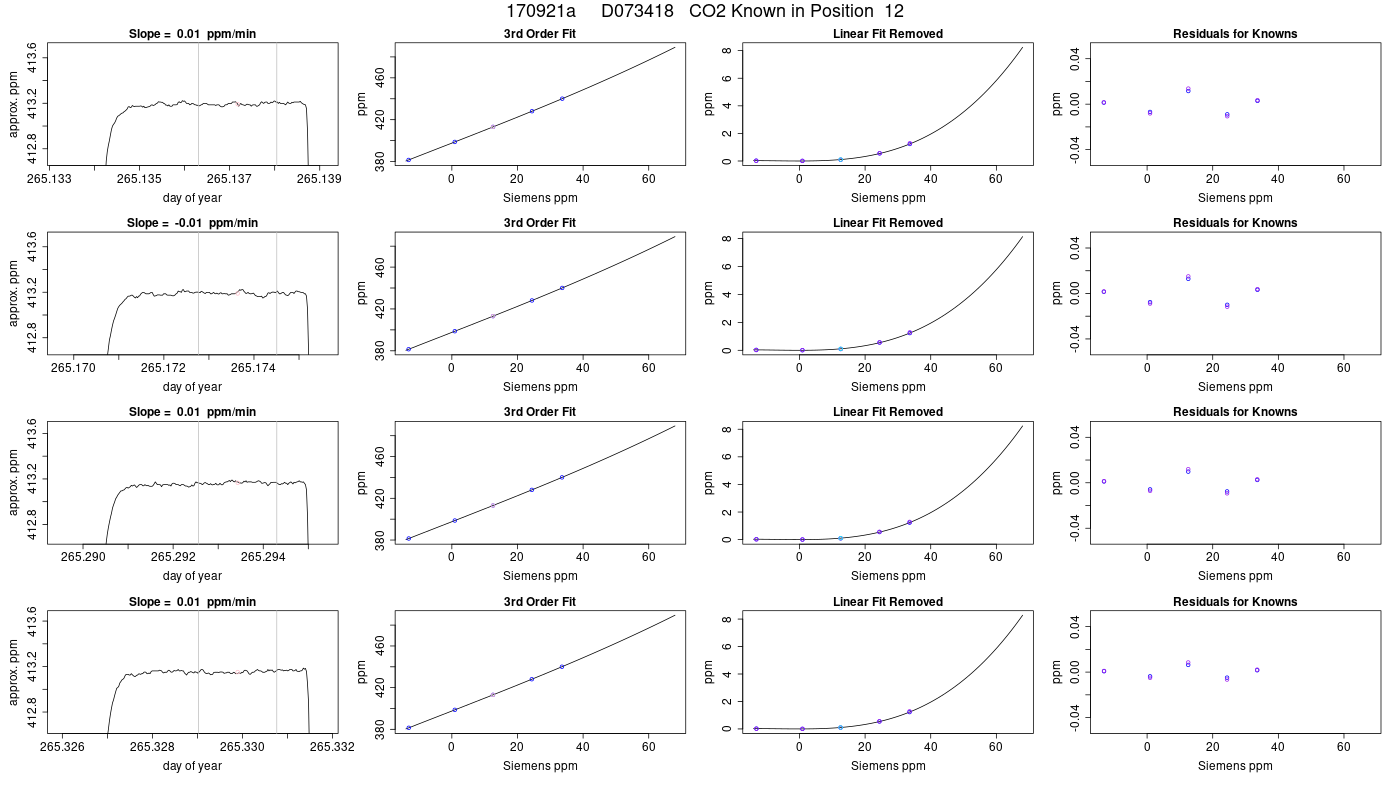

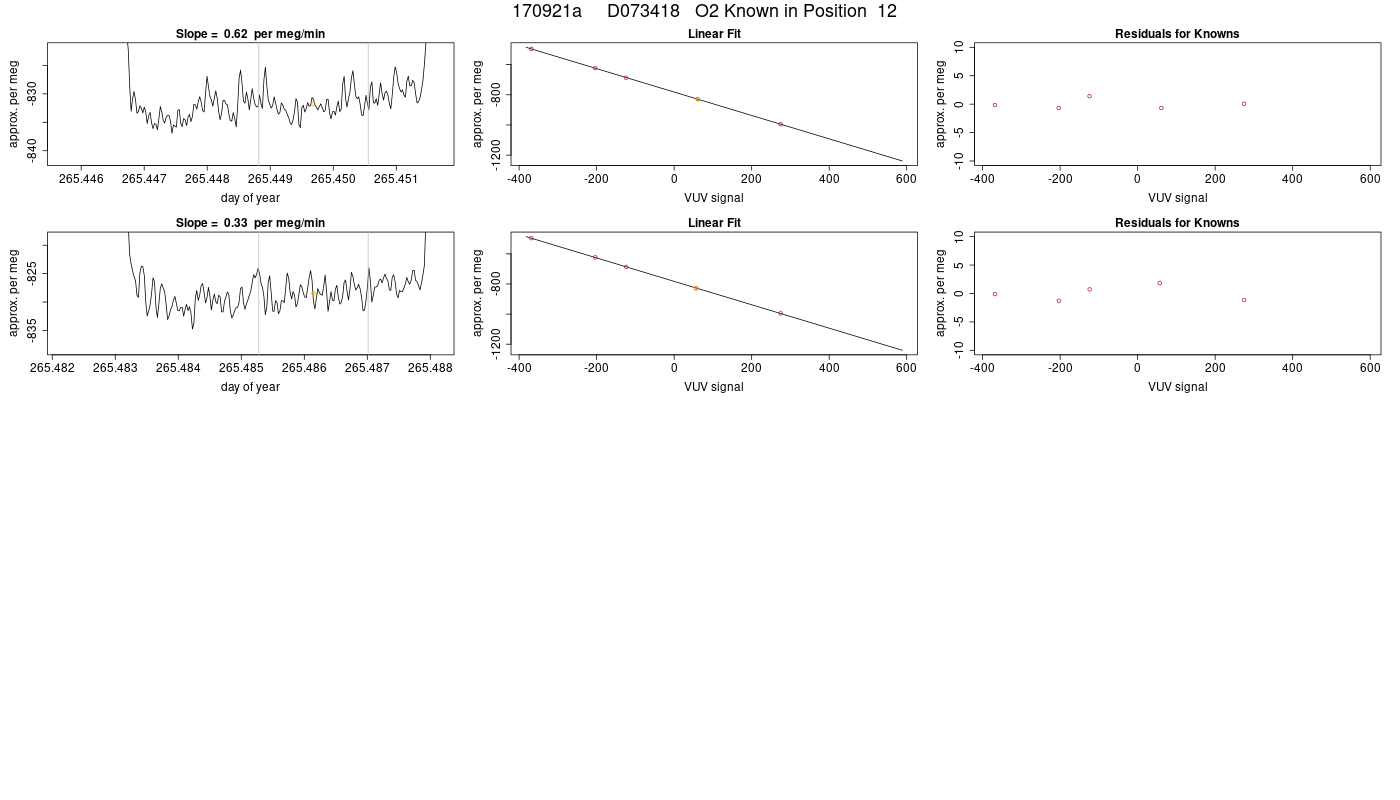

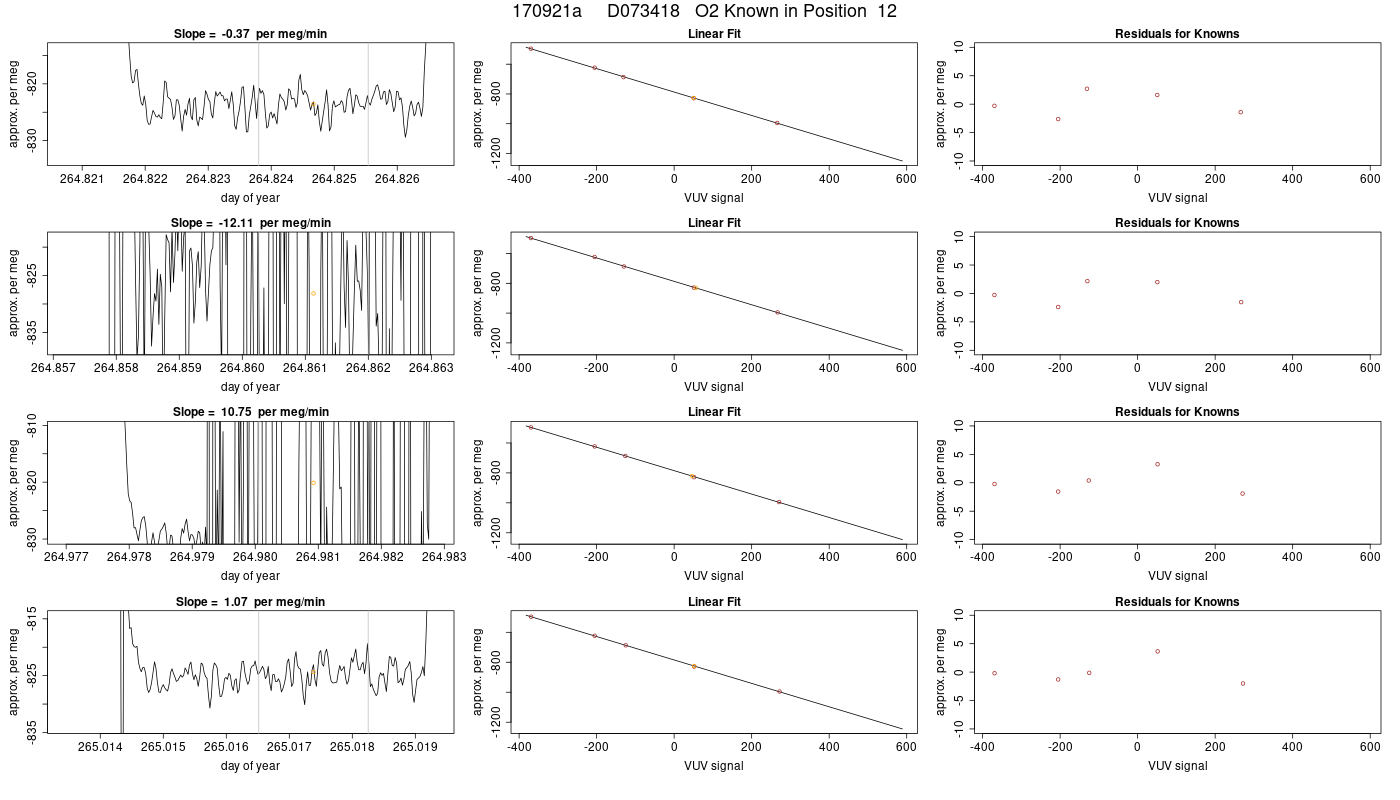

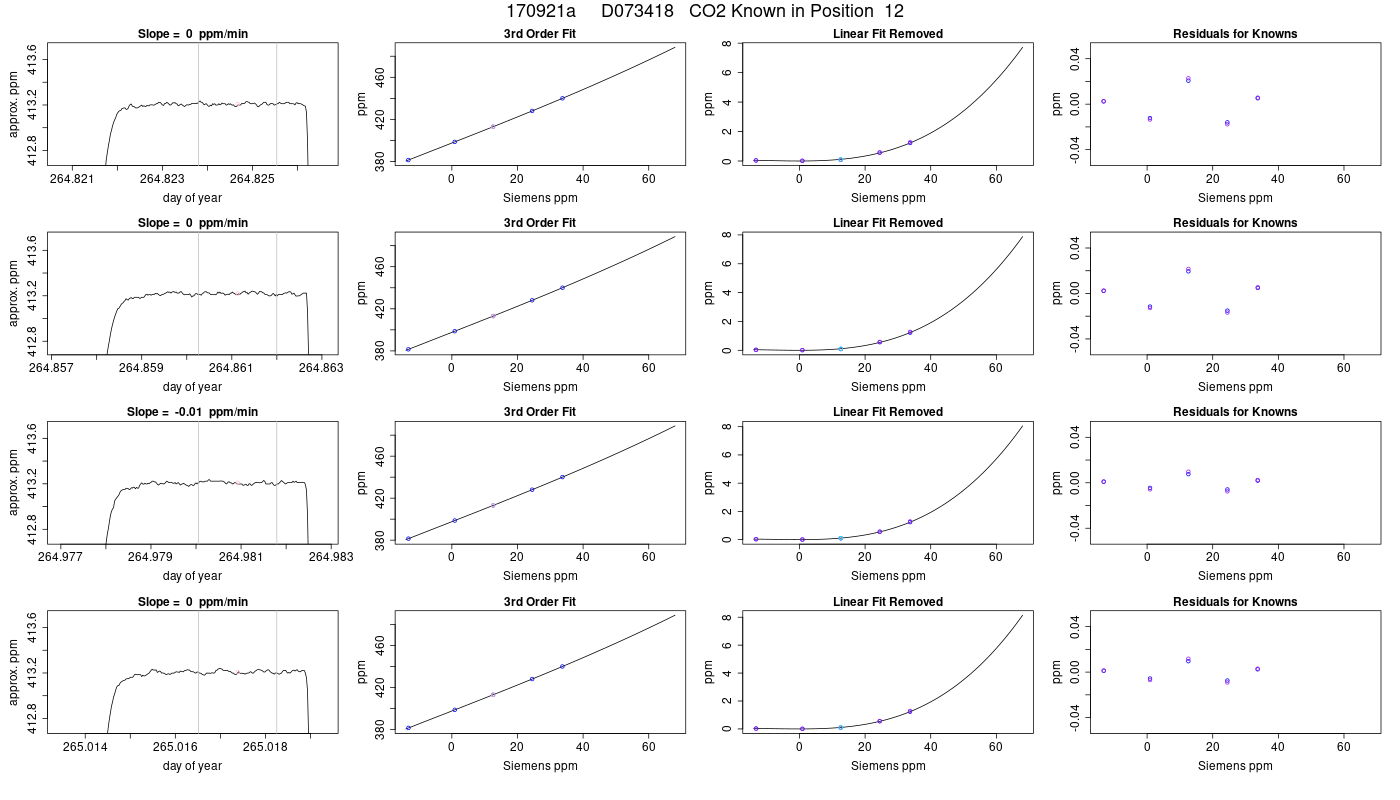

12 D073418 413.092 0.012 0.004 413.280 0.014 0.004 9 -779.40 2.10 1.40 7    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

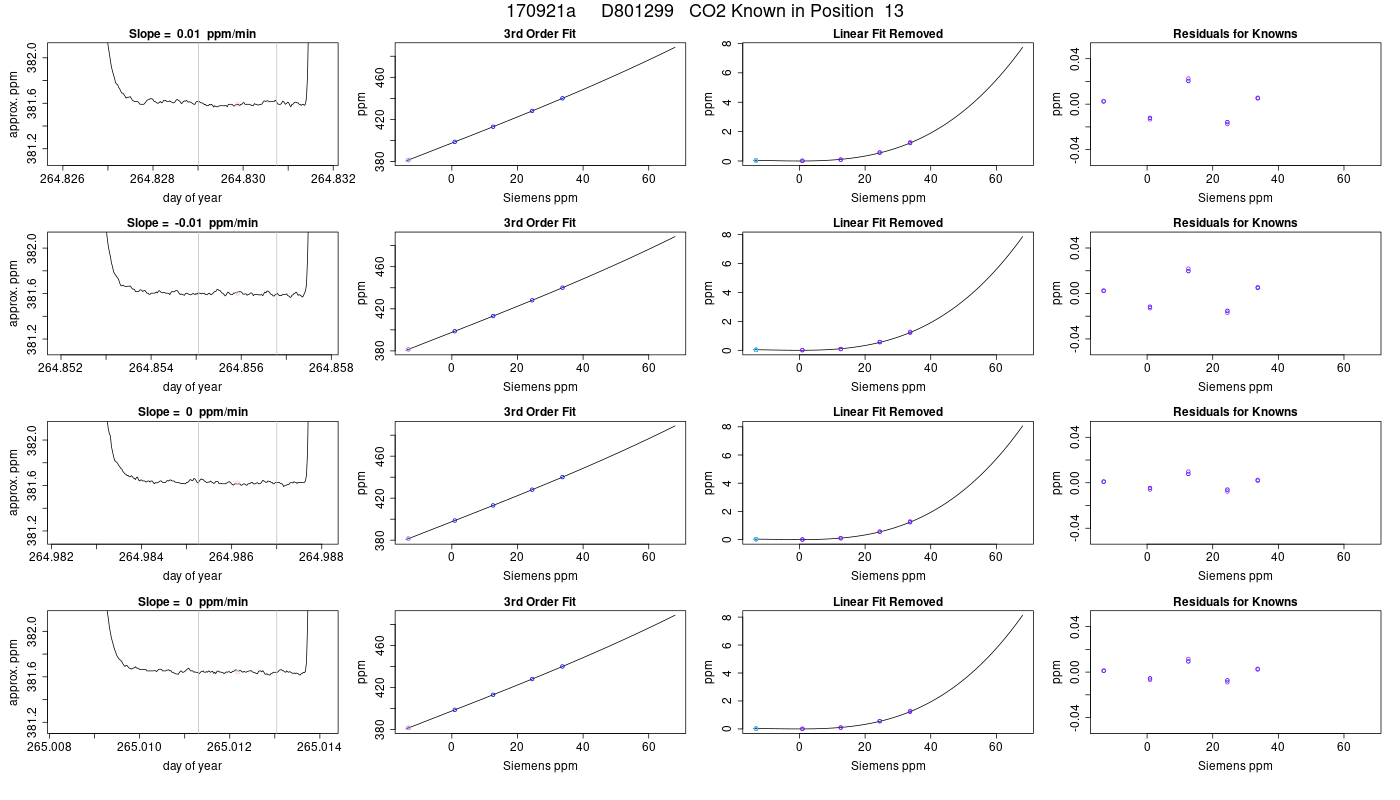

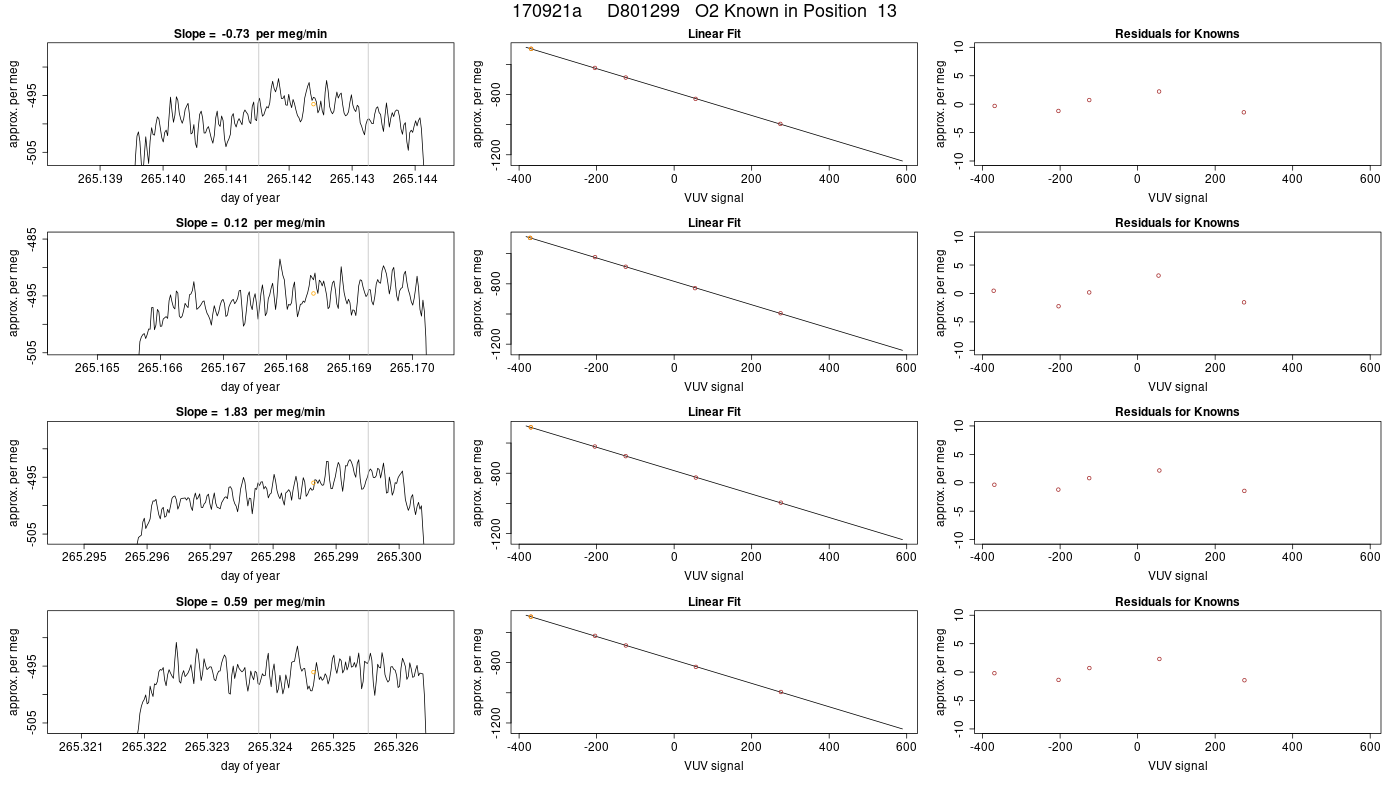

13 D801299 381.475 0.001 0.000 381.695 0.002 0.000 9 -477.75 -0.11 0.30 6    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

1 D399093    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.767 415.215 0.011 -870.00 3.08 415.403 0.011
264.918 415.214 0.015 -891.25 49.79 415.402 0.015
264.924 415.234 0.012 -871.90 53.34 415.422 0.012
265.075 415.215 0.010 -880.98 2.47 415.403 0.010
265.080 415.227 0.010 -878.07 2.00 415.415 0.010
265.231 415.210 0.012 -881.75 1.76 415.398 0.012
265.236 415.229 0.013 -878.47 2.89 415.417 0.013
265.387 415.224 0.016 -878.54 2.04 415.412 0.016
265.392 415.232 0.017 -876.58 1.75 415.420 0.017
265.543 415.217 0.011 -879.20 2.33 415.405 0.011

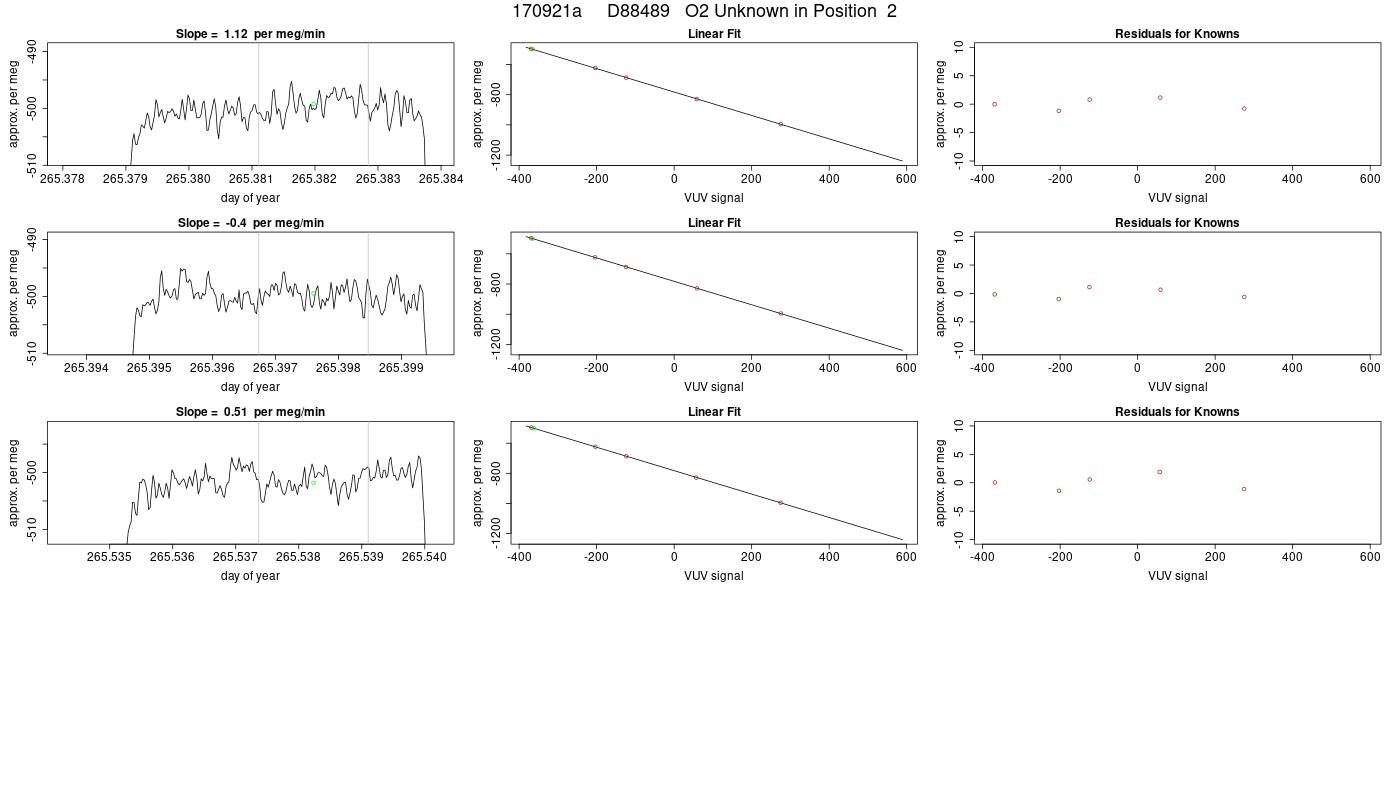

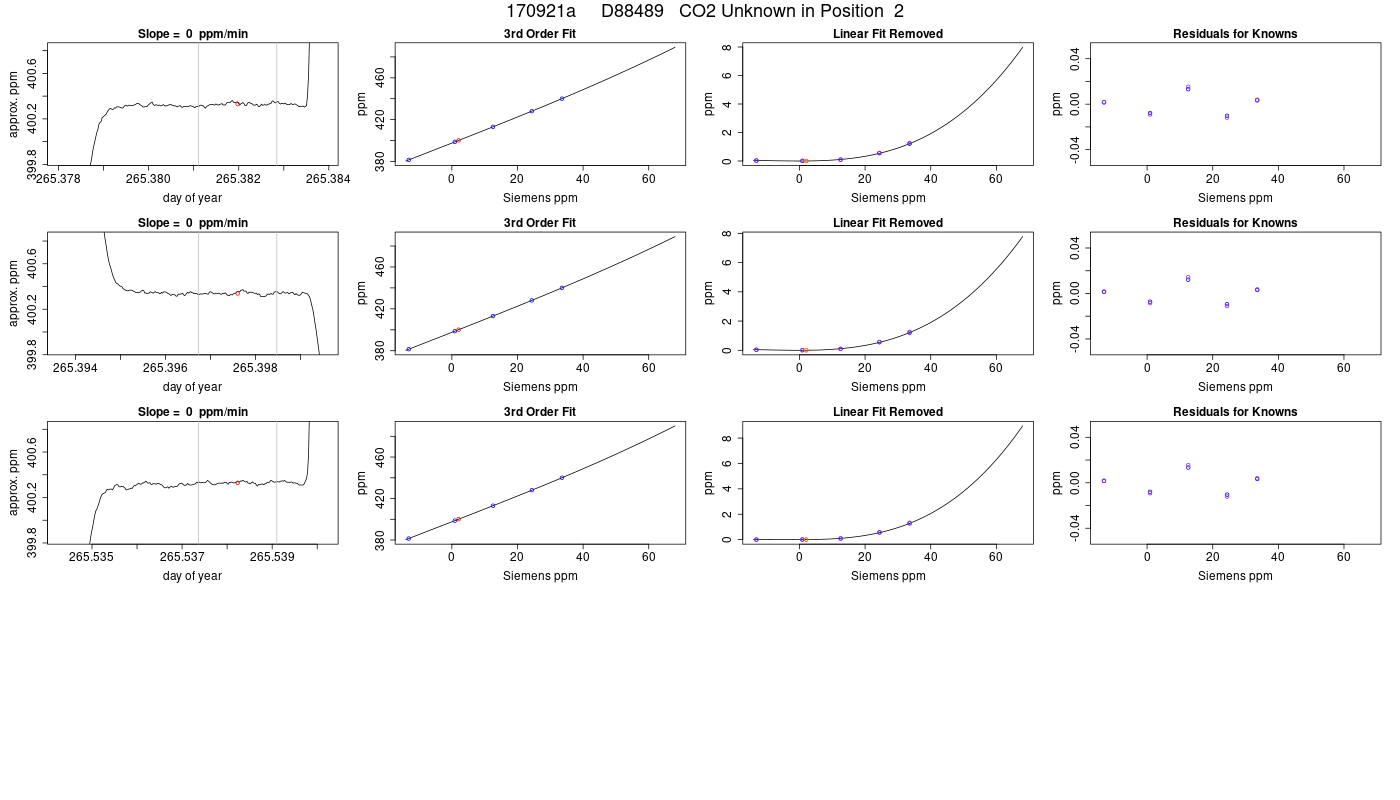

2 D88489    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.762 400.065 0.022 -450.46 3.96 400.273 0.022
264.773 400.118 0.014 -450.76 4.93 400.325 0.014
264.913 400.110 0.011 -471.24 82.62 400.318 0.011
264.929 400.126 0.009 -454.17 39.85 400.333 0.009
265.069 400.118 0.010 -463.42 2.17 400.326 0.010
265.085 400.130 0.010 -461.22 2.04 400.338 0.010
265.226 400.107 0.011 -464.57 1.76 400.315 0.011
265.241 400.115 0.015 -464.36 2.13 400.322 0.015
265.382 400.117 0.014 -462.44 1.93 400.325 0.014
265.398 400.121 0.013 -462.69 1.67 400.328 0.013
265.538 400.122 0.011 -464.42 1.71 400.330 0.011

4 D399092    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.783 409.256 0.017 -678.36 3.40 409.451 0.017
264.903 409.263 0.015 -730.26 114.80 409.457 0.015
264.939 409.250 0.011 -682.78 39.72 409.444 0.011
265.059 409.269 0.010 -683.88 1.93 409.464 0.010
265.096 409.263 0.013 -683.06 1.88 409.458 0.013
265.215 409.263 0.011 -683.52 2.14 409.458 0.011
265.252 409.257 0.012 -683.51 1.76 409.452 0.012
265.372 409.265 0.015 -684.46 4.12 409.459 0.015
265.408 409.262 0.013 -683.91 2.13 409.456 0.013
265.528 409.263 0.012 -685.23 2.30 409.458 0.012

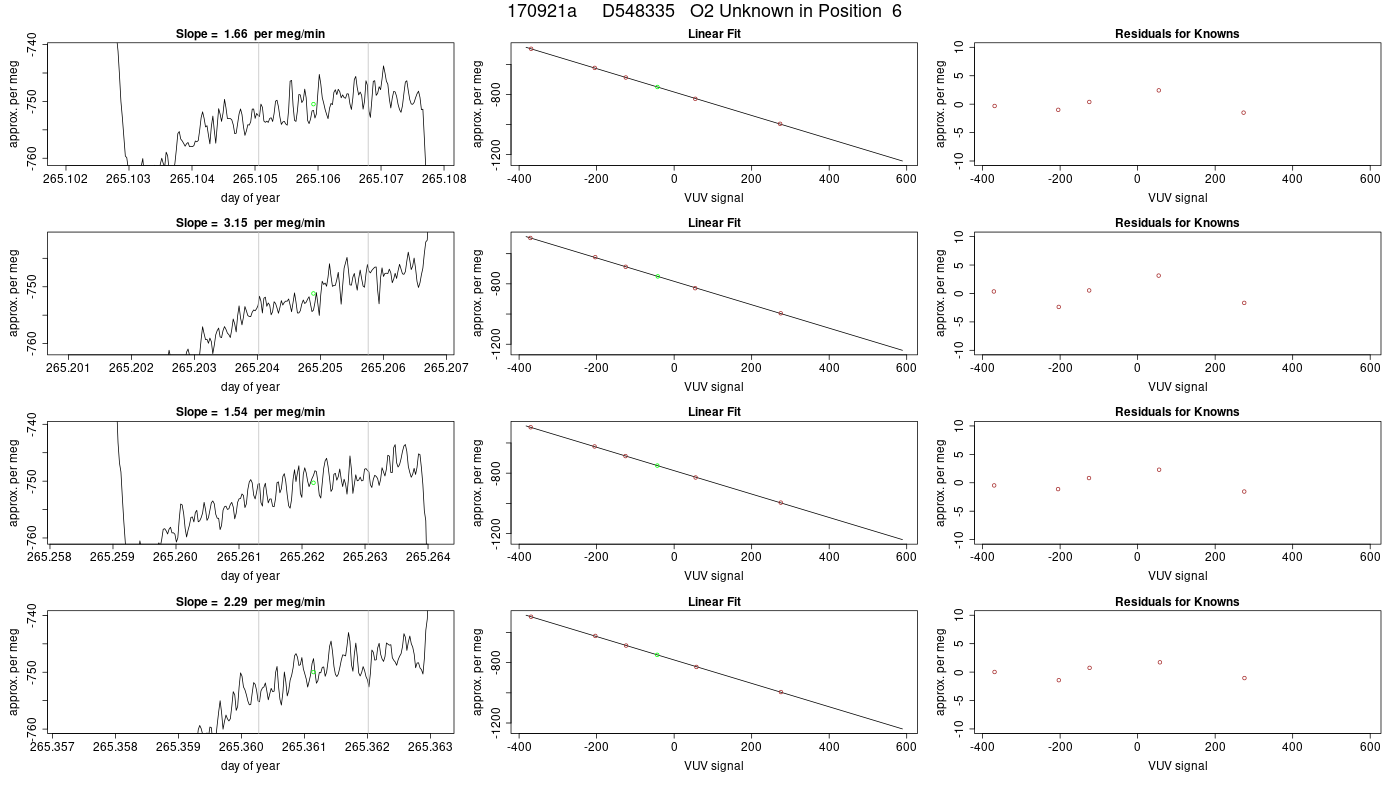

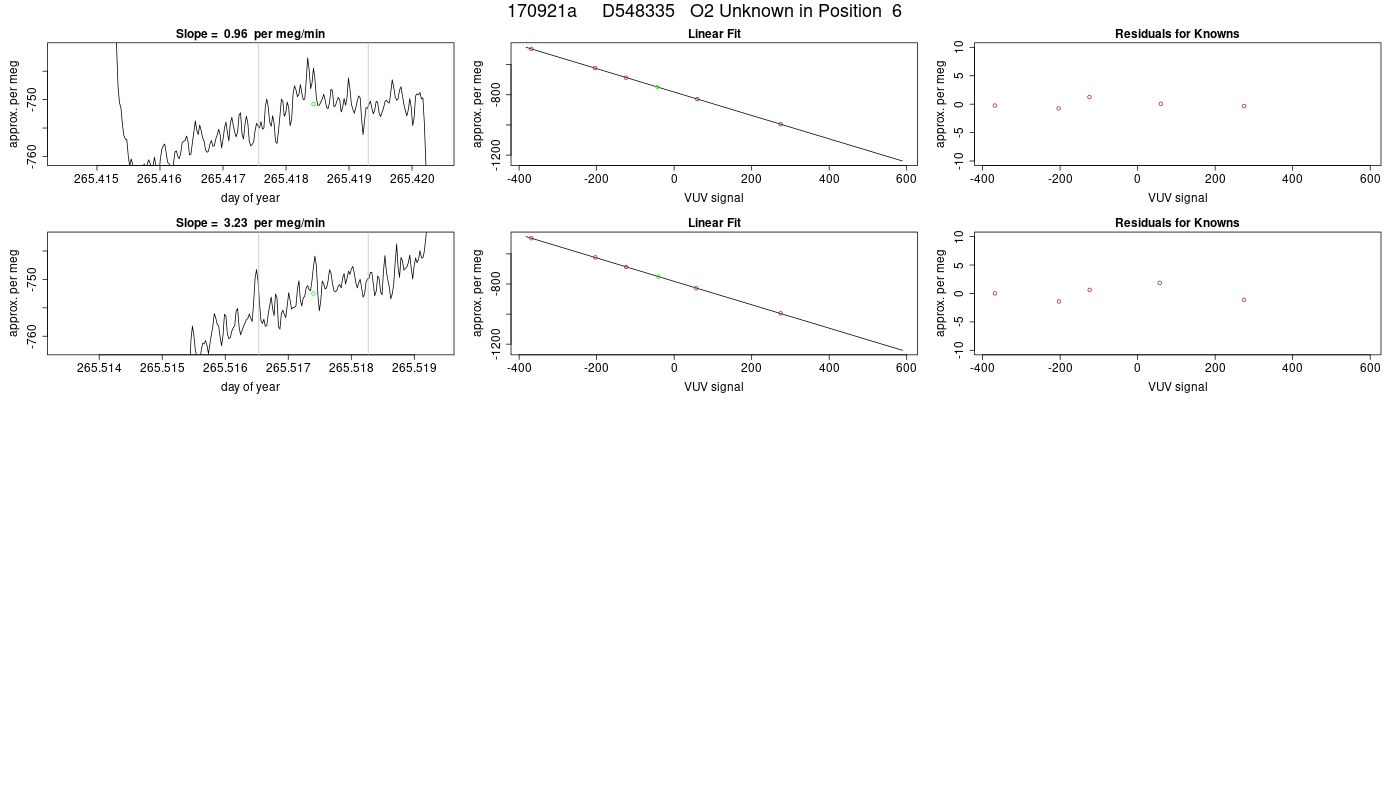

6 D548335    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.793 415.619 0.012 -695.82 2.04 415.806 0.012
264.892 415.628 0.012 -698.50 66.84 415.816 0.012
264.950 415.617 0.015 -695.70 73.05 415.804 0.015
265.049 415.622 0.011 -702.28 3.00 415.810 0.011
265.106 415.604 0.012 -698.61 2.39 415.792 0.012
265.205 415.625 0.012 -699.13 2.59 415.813 0.012
265.262 415.604 0.012 -698.27 2.17 415.792 0.012
265.361 415.626 0.011 -696.87 2.75 415.813 0.011
265.418 415.619 0.016 -697.47 2.86 415.807 0.016
265.517 415.622 0.010 -699.41 2.96 415.810 0.010

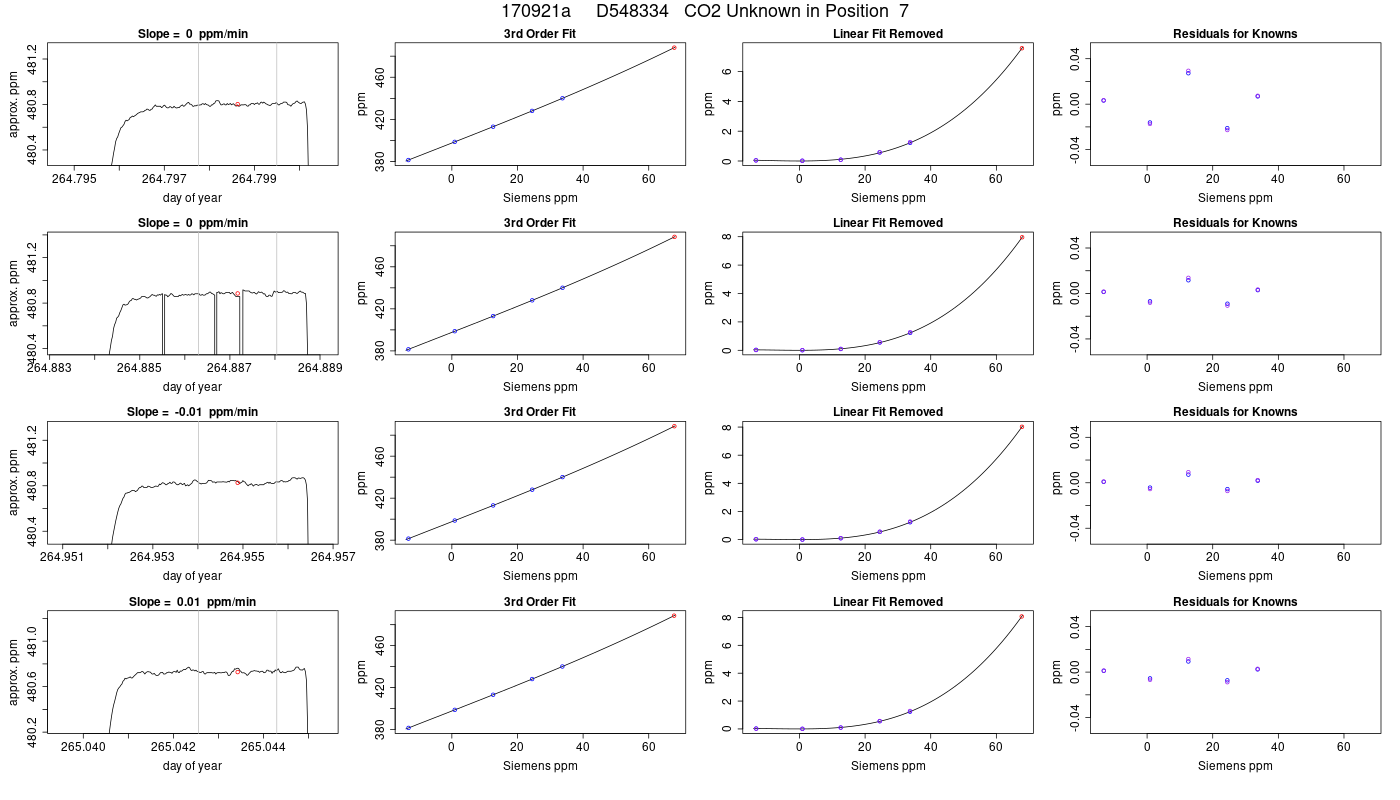

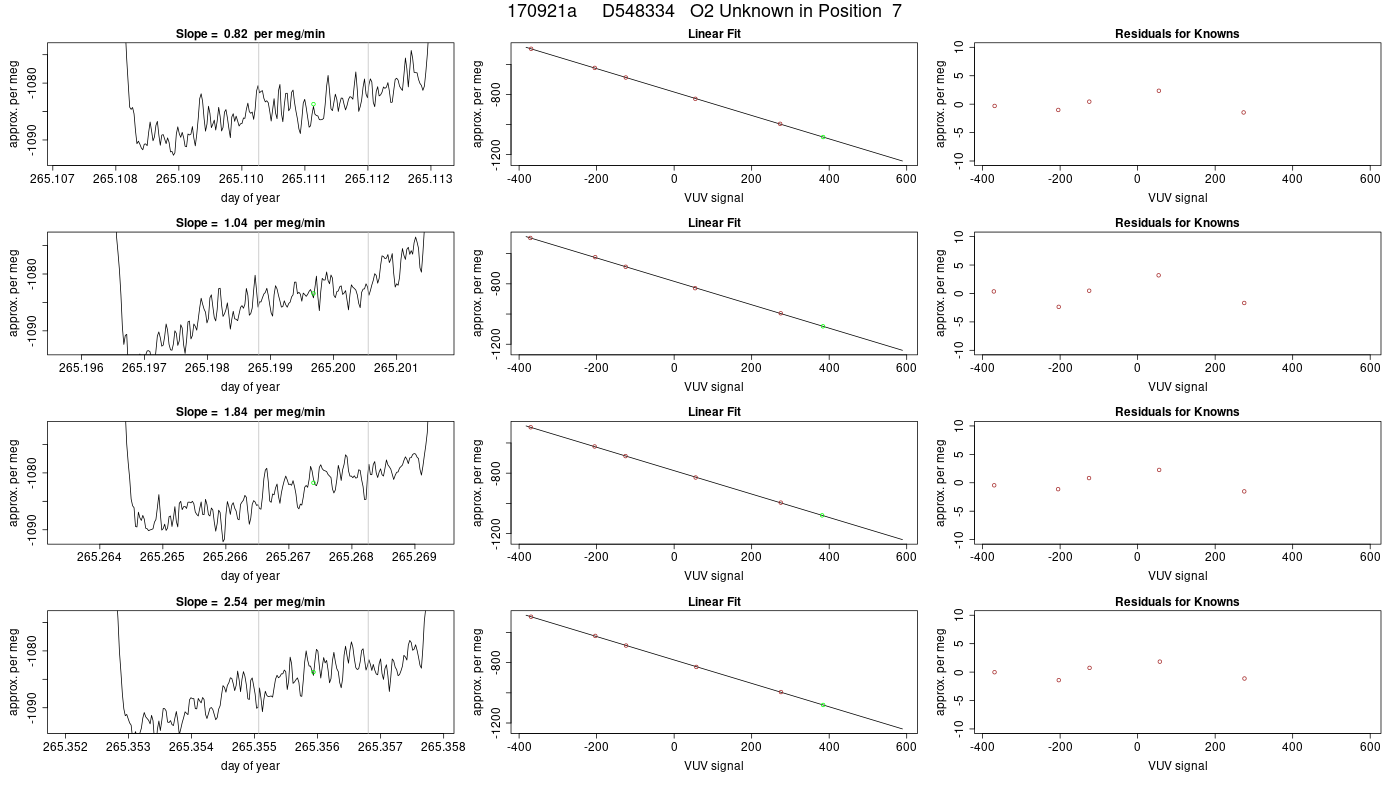

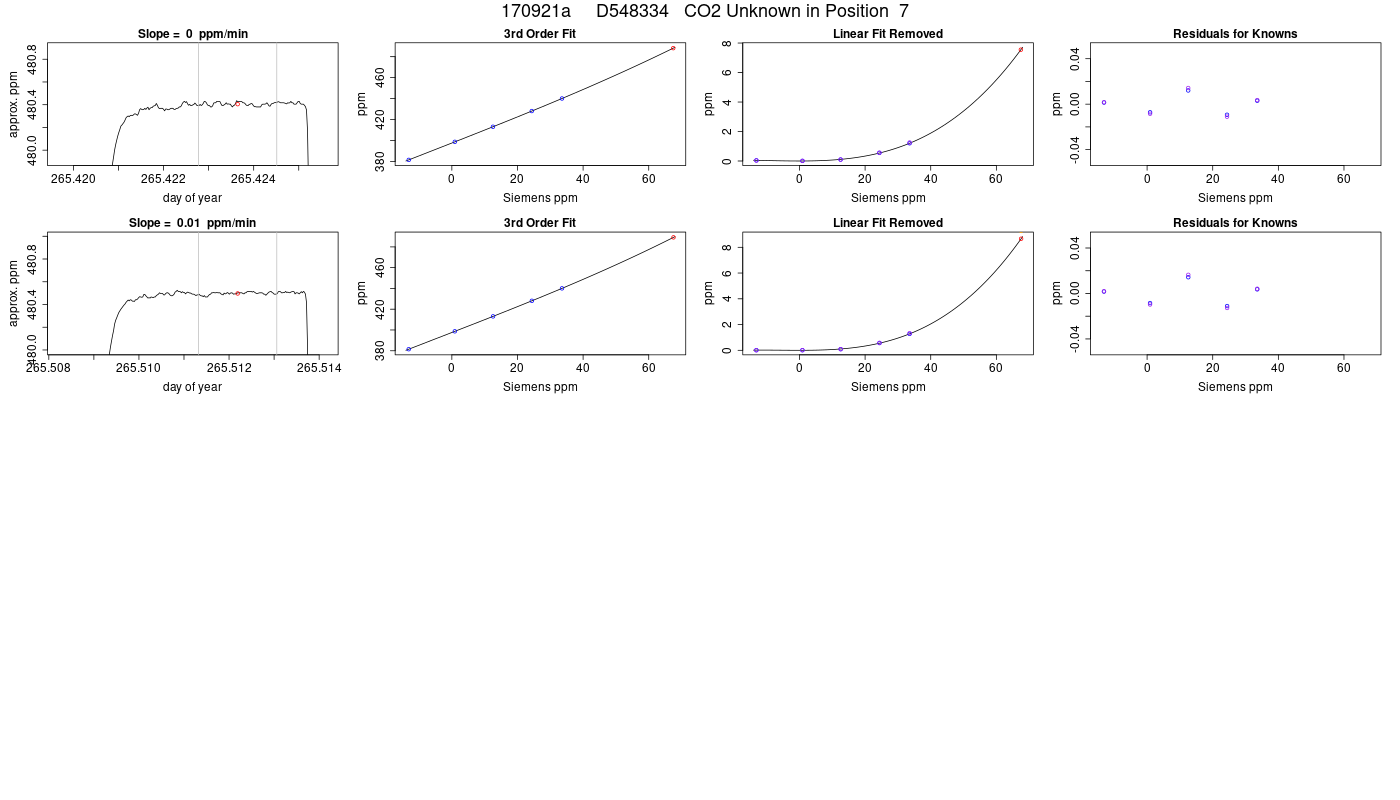

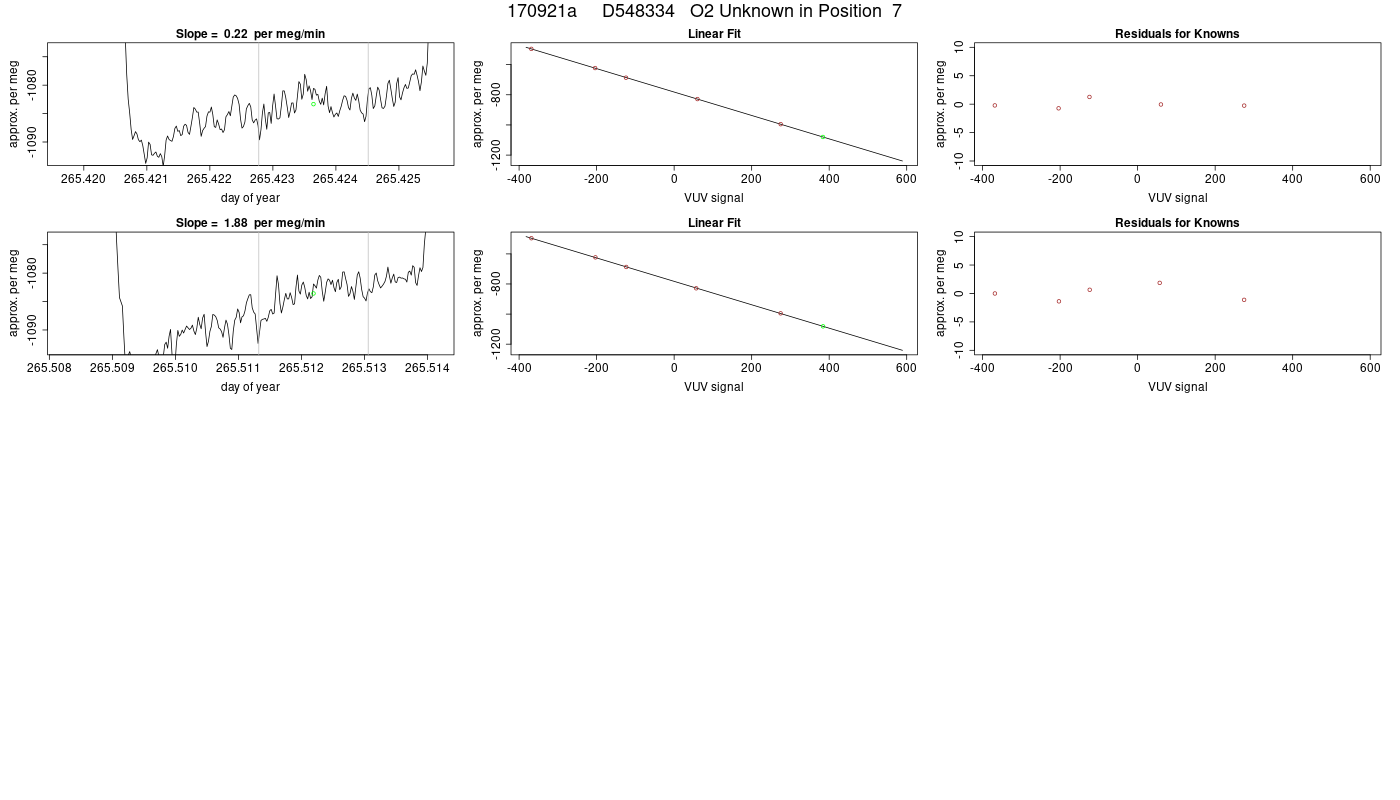

7 D548334    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.799 488.090 0.011 -960.23 1.98 488.797 0.011
264.887 488.498 0.015 -965.73 63.09 489.205 0.015
264.955 488.529 0.013 -975.42 48.71 489.236 0.013
265.043 488.578 0.013 -959.78 1.84 489.286 0.013
265.111 488.697 0.013 -959.17 2.24 489.405 0.013
265.200 488.499 0.011 -957.76 1.62 489.207 0.011
265.267 488.498 0.018 -955.80 2.24 489.206 0.018
265.356 488.555 0.014 -956.95 2.72 489.263 0.014
265.424 488.113 0.015 -956.72 2.16 488.820 0.015
265.512 489.159 0.012 -957.16 2.39 489.868 0.012

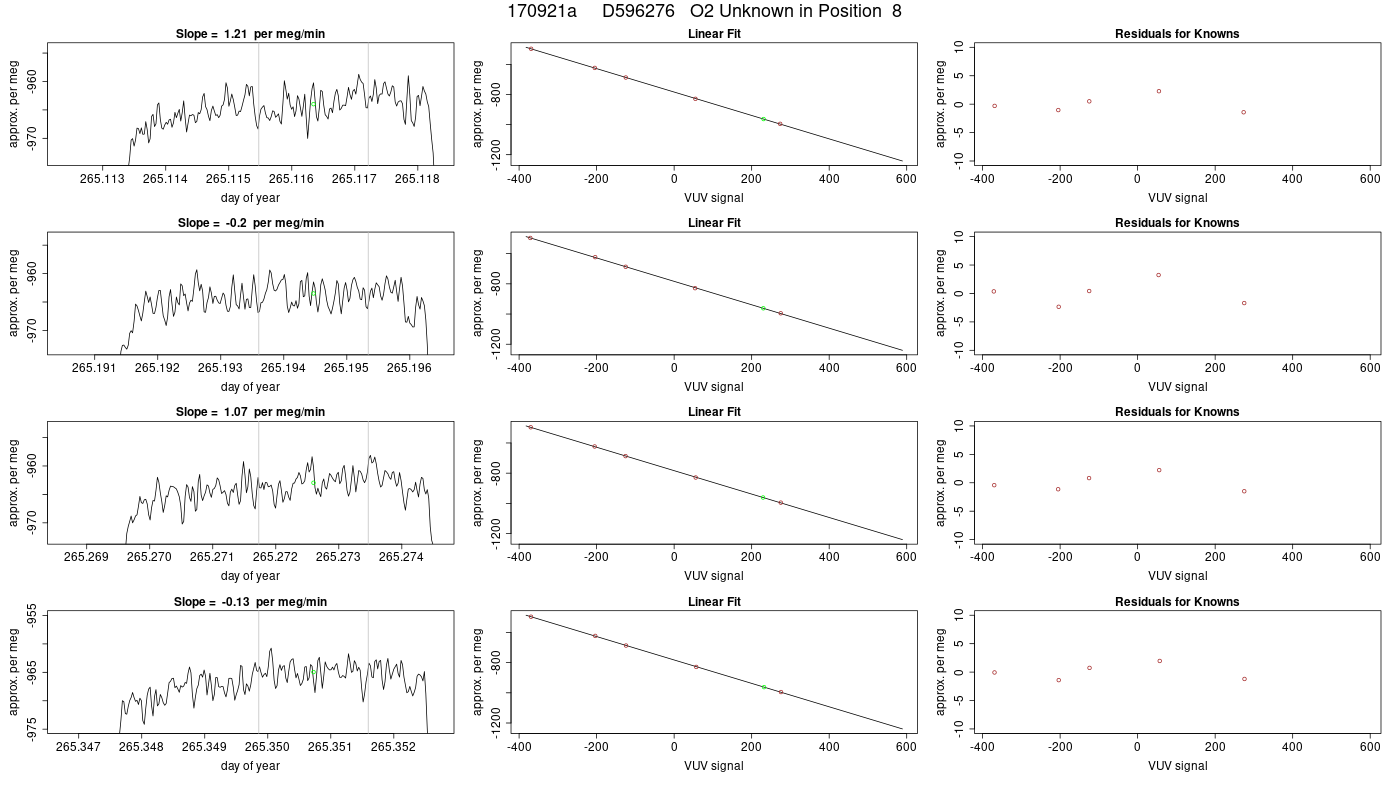

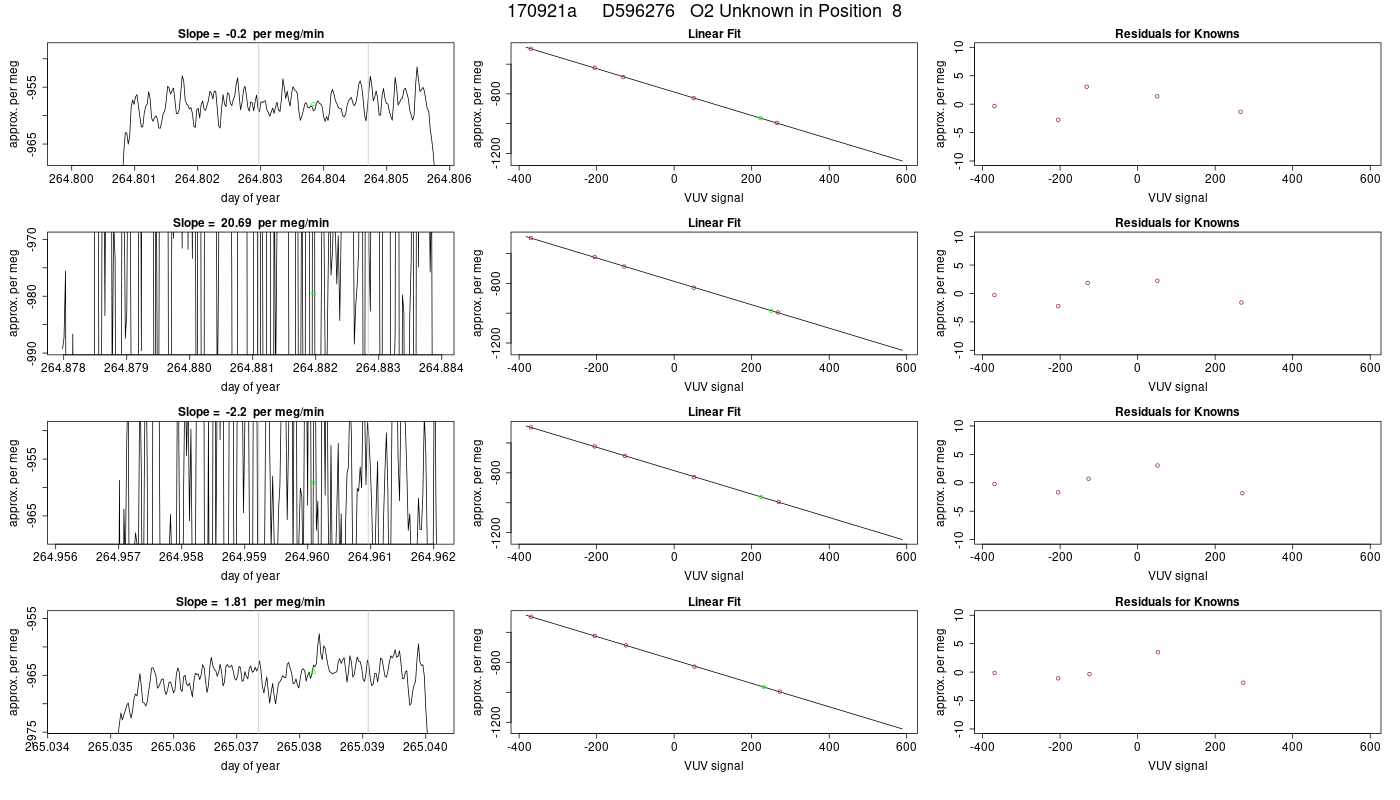

8 D596276    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.804 439.490 0.015 -888.11 1.71 439.698 0.015
264.882 439.478 0.015 -908.36 85.85 439.687 0.015
264.960 439.484 0.014 -886.29 22.06 439.693 0.014
265.038 439.453 0.013 -889.92 2.31 439.662 0.013
265.116 439.483 0.013 -888.28 2.23 439.691 0.013
265.194 439.472 0.015 -887.04 2.04 439.681 0.015
265.273 439.488 0.014 -886.21 1.78 439.697 0.014
265.351 439.466 0.010 -887.45 1.74 439.674 0.010
265.429 439.488 0.011 -885.95 1.84 439.697 0.011
265.507 439.506 0.012 -889.80 1.88 439.714 0.012

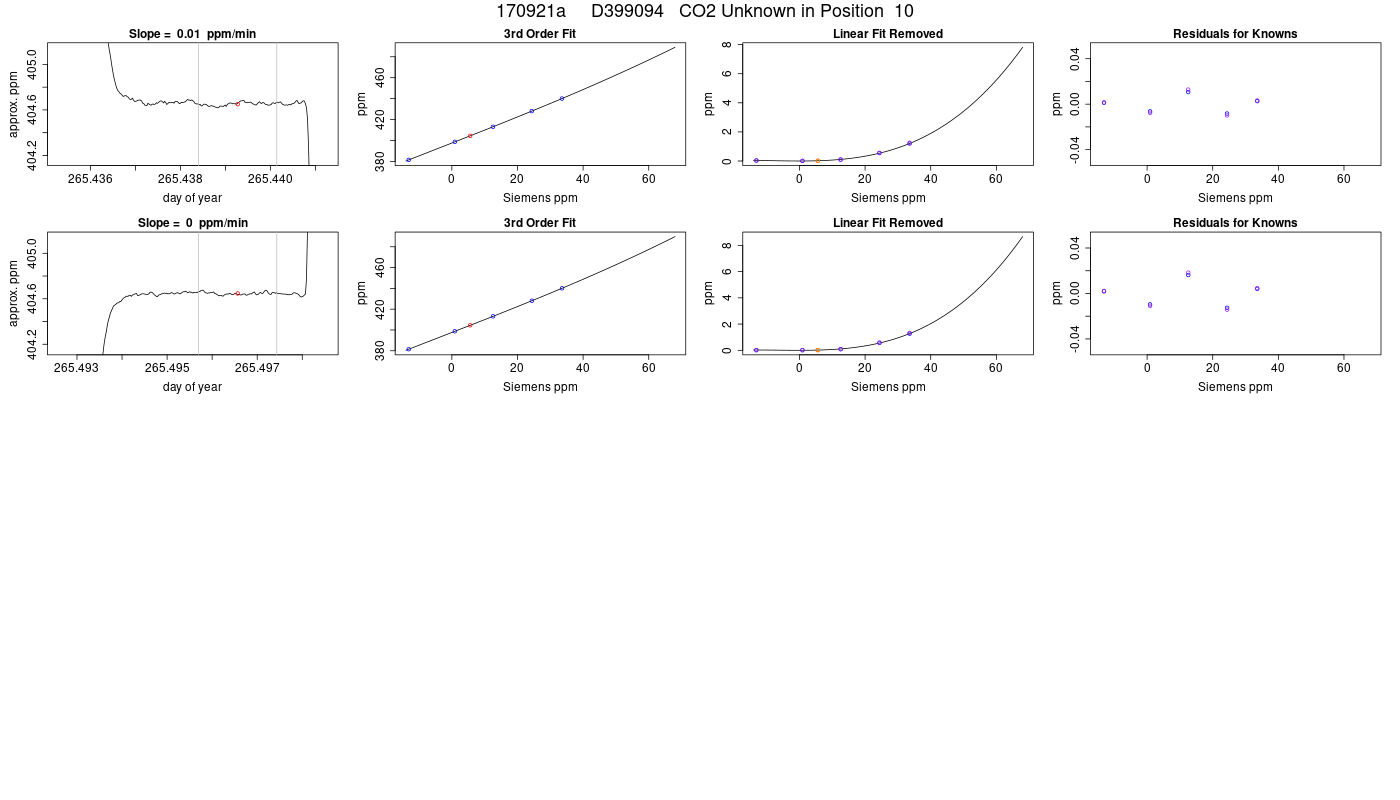

10 D399094    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.814 404.479 0.012 -803.54 1.86 404.680 0.012
264.872 404.464 0.013 -796.08 116.08 404.665 0.013
264.971 404.469 0.011 -814.23 58.49 404.670 0.011
265.028 404.452 0.012 -805.45 1.70 404.653 0.012
265.127 404.476 0.014 -804.79 2.33 404.677 0.014
265.184 404.460 0.012 -805.61 2.16 404.662 0.012
265.283 404.471 0.014 -805.23 2.27 404.673 0.014
265.340 404.473 0.010 -803.83 1.73 404.675 0.010
265.439 404.471 0.015 -805.33 1.87 404.672 0.015
265.497 404.460 0.012 -805.39 1.98 404.662 0.012

11 D596278    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.819 390.903 0.012 -507.74 2.29 391.121 0.012
264.866 390.915 0.014 -490.73 57.87 391.133 0.014
264.976 390.909 0.013 -587.33 403.12 391.127 0.013
265.023 390.922 0.014 -507.94 1.96 391.140 0.014
265.132 390.917 0.013 -509.94 2.05 391.135 0.013
265.179 390.912 0.015 -510.11 1.98 391.130 0.015
265.288 390.914 0.011 -510.15 1.75 391.133 0.011
265.335 390.922 0.012 -510.40 1.91 391.141 0.012
265.444 390.913 0.013 -509.58 2.38 391.132 0.013
265.491 390.919 0.012 -509.01 1.82 391.137 0.012

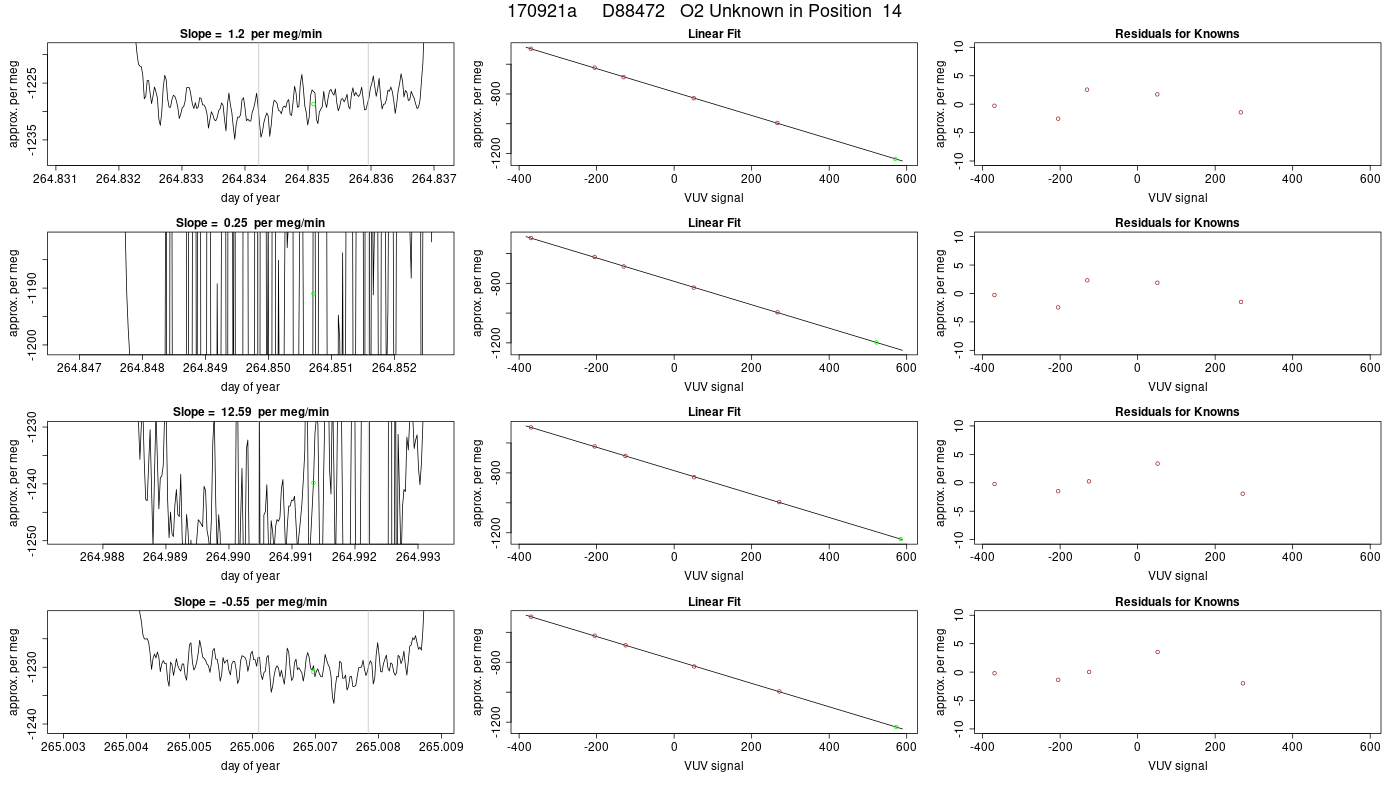

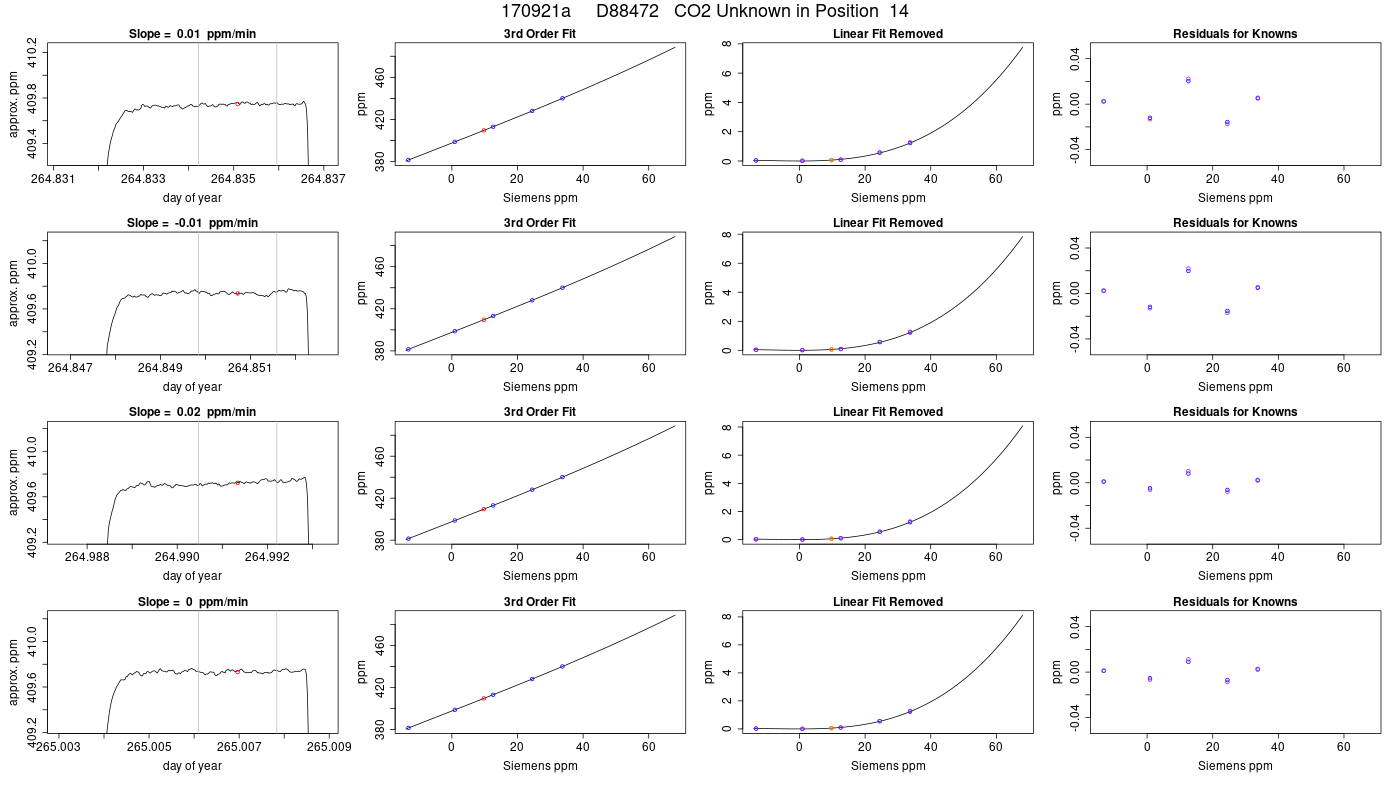

14 D88472    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.835 409.603 0.011 -1190.16 2.19 409.797 0.011
264.851 409.588 0.013 -1151.61 121.85 409.782 0.013
264.991 409.570 0.016 -1196.57 29.11 409.764 0.016
265.007 409.578 0.013 -1187.11 1.85 409.773 0.013
265.148 409.580 0.016 -1195.03 4.76 409.775 0.016
265.163 409.596 0.017 -1180.76 1.66 409.791 0.017
265.304 409.563 0.013 -1193.02 5.17 409.758 0.013
265.319 409.594 0.013 -1180.41 2.23 409.788 0.013
265.460 409.583 0.019 -1190.44 3.50 409.778 0.019
265.476 409.596 0.013 -1181.41 2.00 409.790 0.013

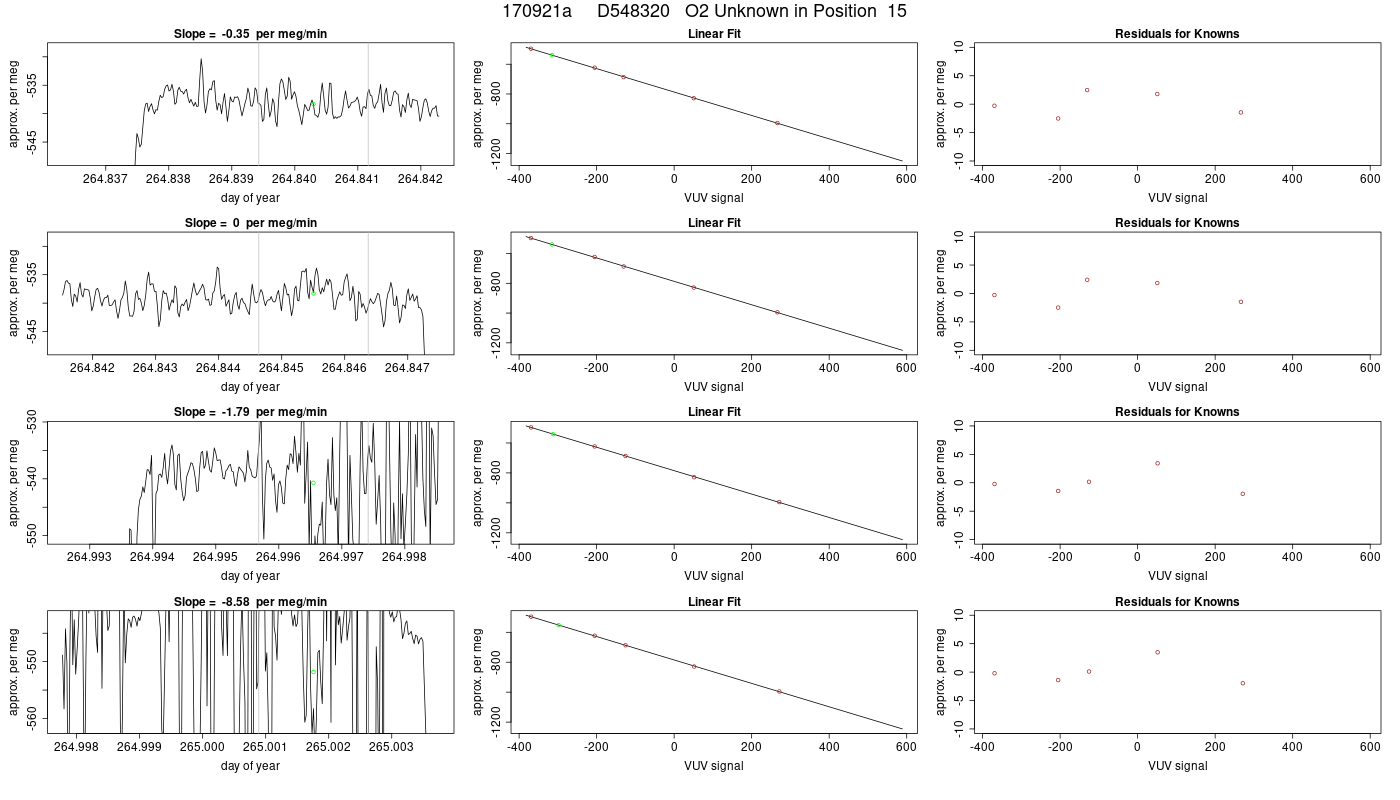

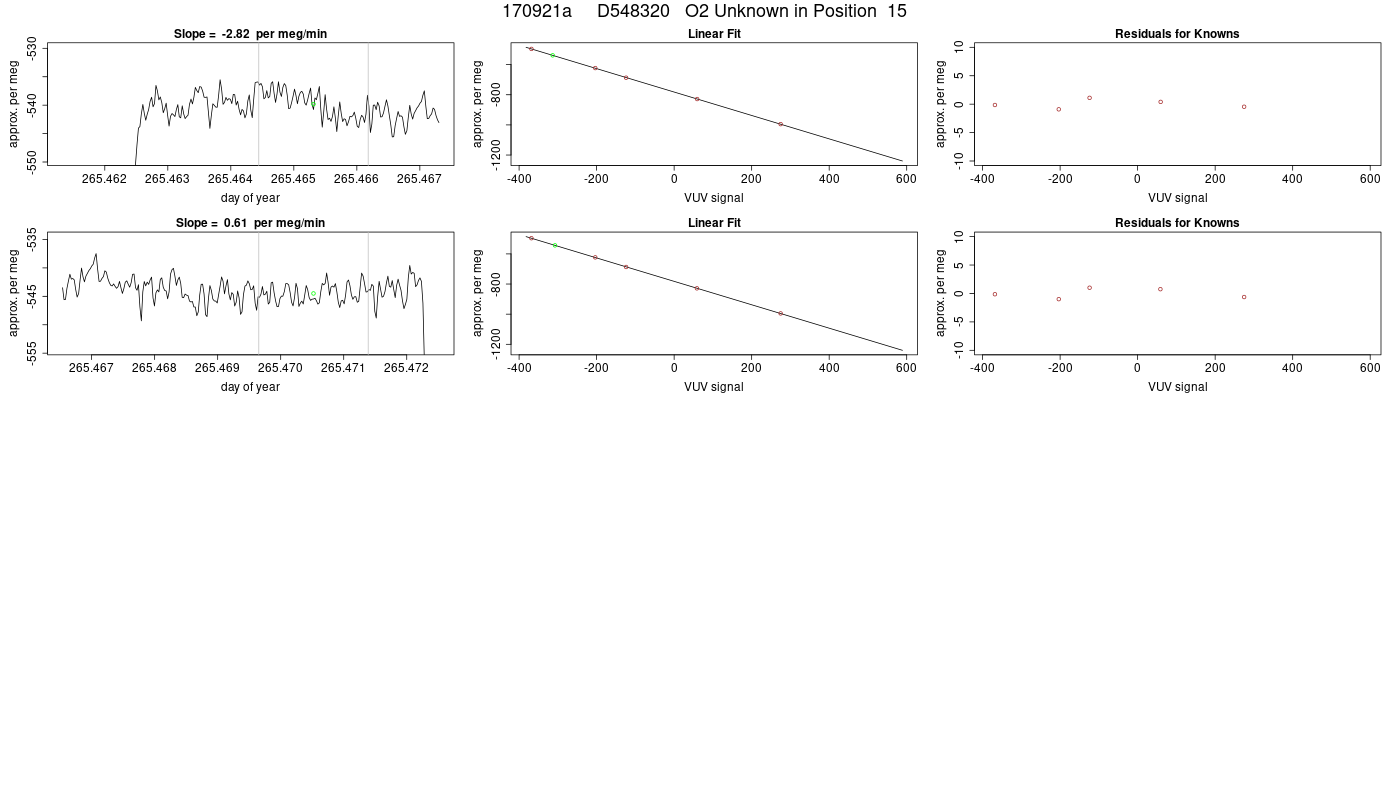

15 D548320    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2    CO2 Fits 3   O2 Fits 3
264.840 382.403 0.013 -519.99 2.06 382.623 0.013
264.846 382.417 0.015 -519.92 2.11 382.638 0.015
264.997 382.420 0.014 -521.79 10.04 382.640 0.014
265.002 382.416 0.014 -532.95 41.31 382.637 0.014
265.153 382.428 0.015 -522.30 2.20 382.649 0.015
265.158 382.418 0.009 -525.65 1.95 382.639 0.009
265.309 382.426 0.013 -521.86 2.18 382.647 0.013
265.314 382.430 0.014 -524.43 2.05 382.651 0.014
265.465 382.433 0.010 -519.76 2.36 382.654 0.010
265.471 382.435 0.018 -524.44 1.51 382.656 0.018
