UEA CRAM Lab O2 and CO2 calibration results
RUN = 130530a
PROCESSED: 11:28:25 Tue 1Aug2023

Notes
Logfile

Results

Using data from 150.675 to 150.858 (Day of Year and Day Fraction)
(Position, CylinderID, SIO_CO2, SIO_CO2_sigma, SIO_CO2_slope, GMD_CO2, GMD_CO2_sigma, GMD_CO2_slope, CO2_n, d(O2/N2), d(O2/N2)_sigma, d(O2/N2)_slope, d(O2/N2)_n)

2 CC177837 359.097 0.089 -0.398 358.354 0.085 -0.317 4 -417.14 4.14 21.85 5
3 CC177841 360.518 0.075 -0.098 359.950 0.072 -0.050 5 -247.76 1.75 17.82 5
6 CC178444 379.072 0.061 0.170 379.420 0.060 0.168 5 -406.77 2.21 14.01 5
WT D88536 424.269 0.077 -0.679 423.520 0.075 -0.665 35 -685.60 0.43 0.64 35
Text File

Raw Data and Diagnostics Figures

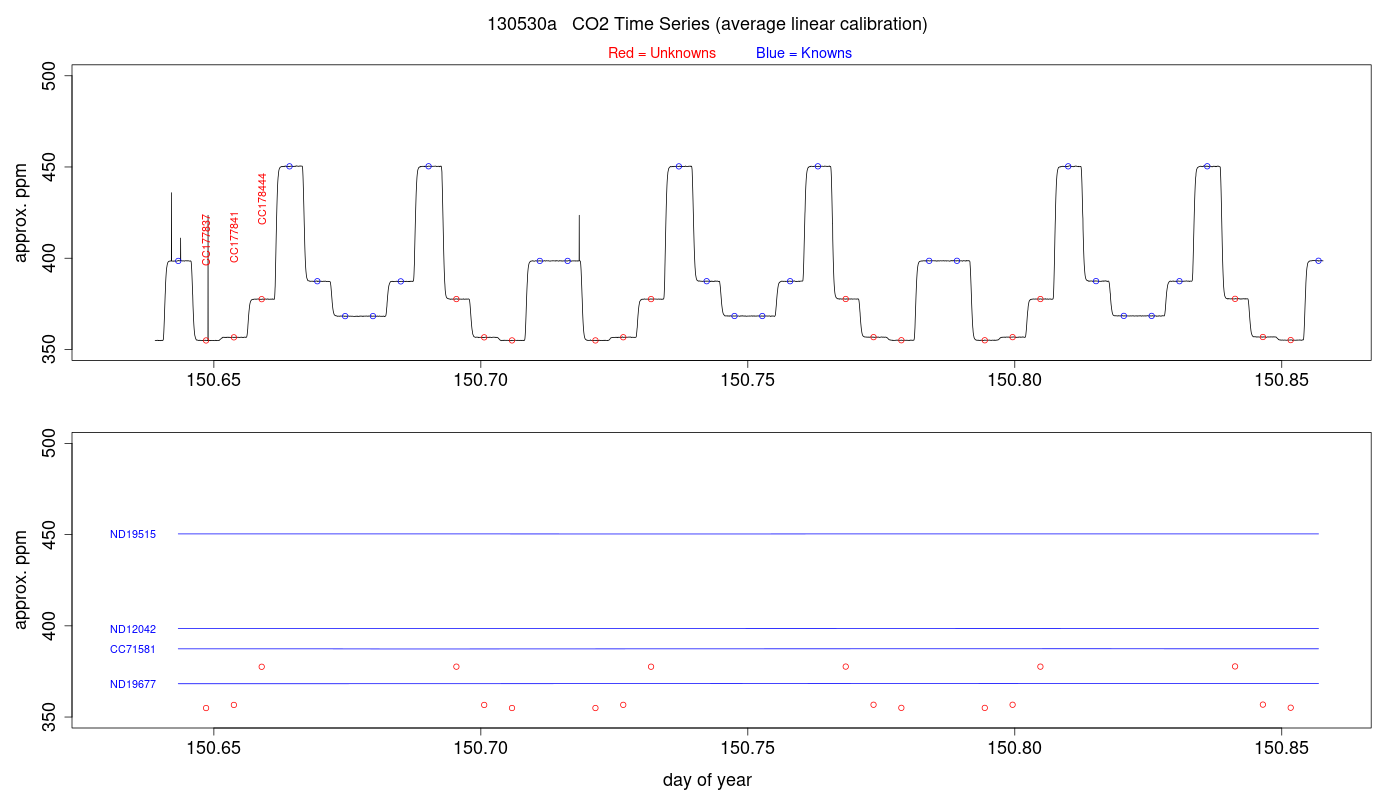

CO2 Timeseries

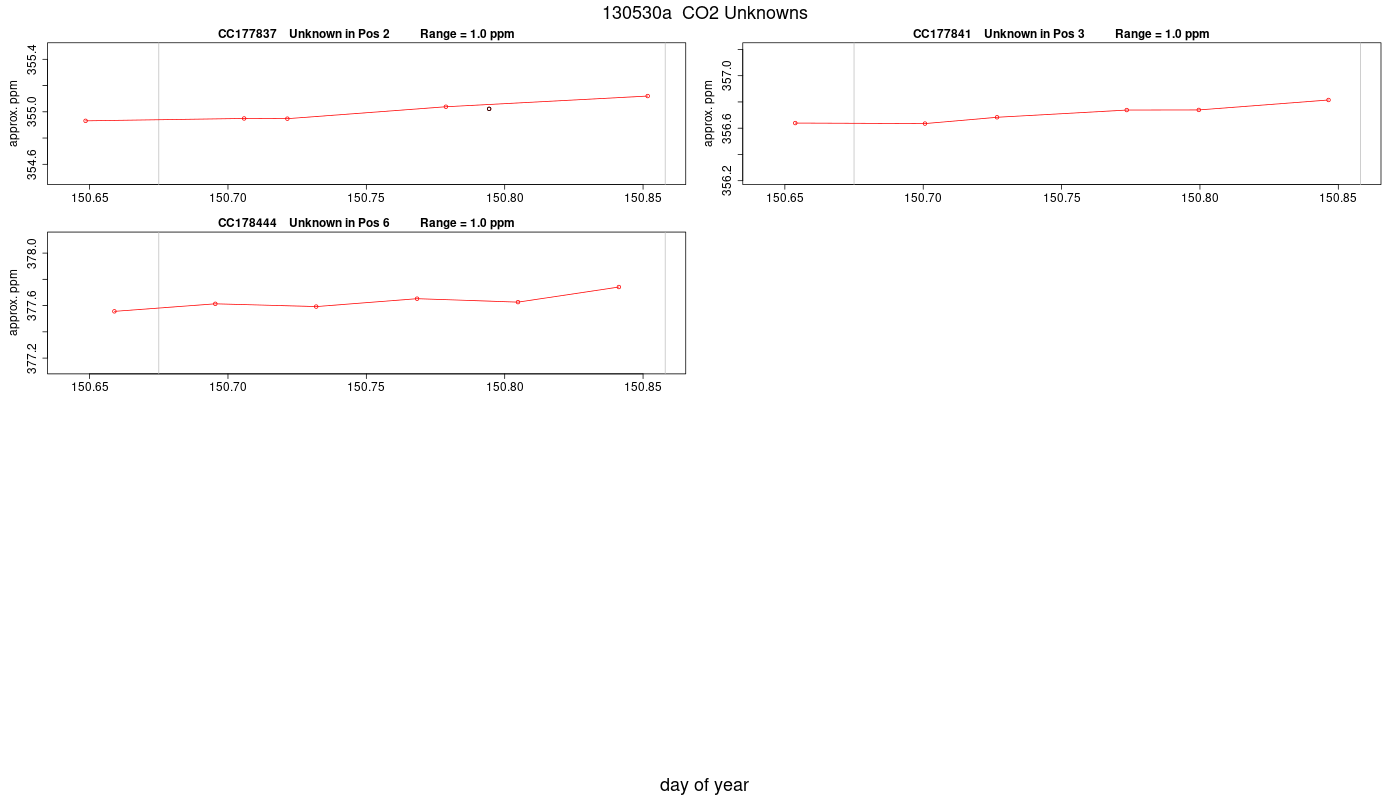

 CO2 Averages for Unknowns

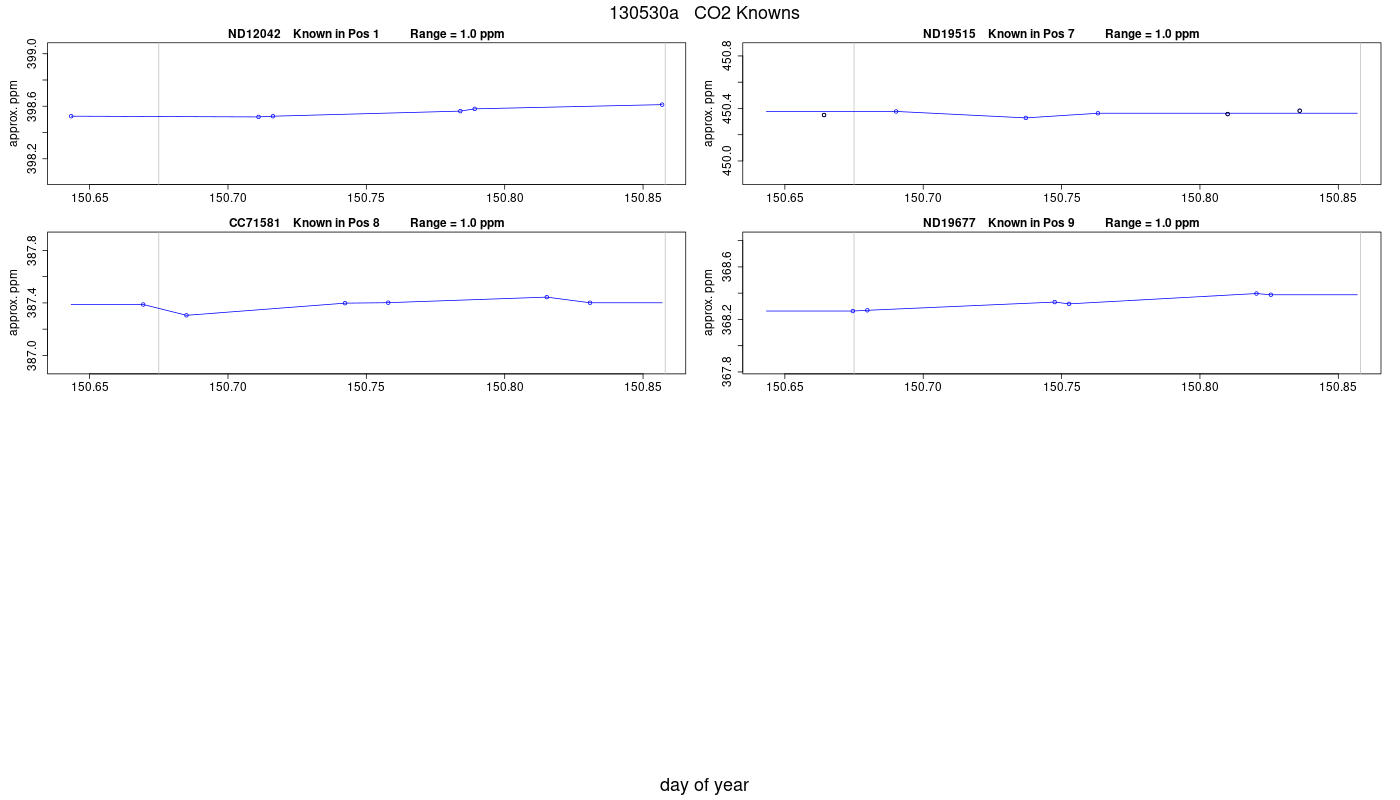

 CO2 Averages for Knowns

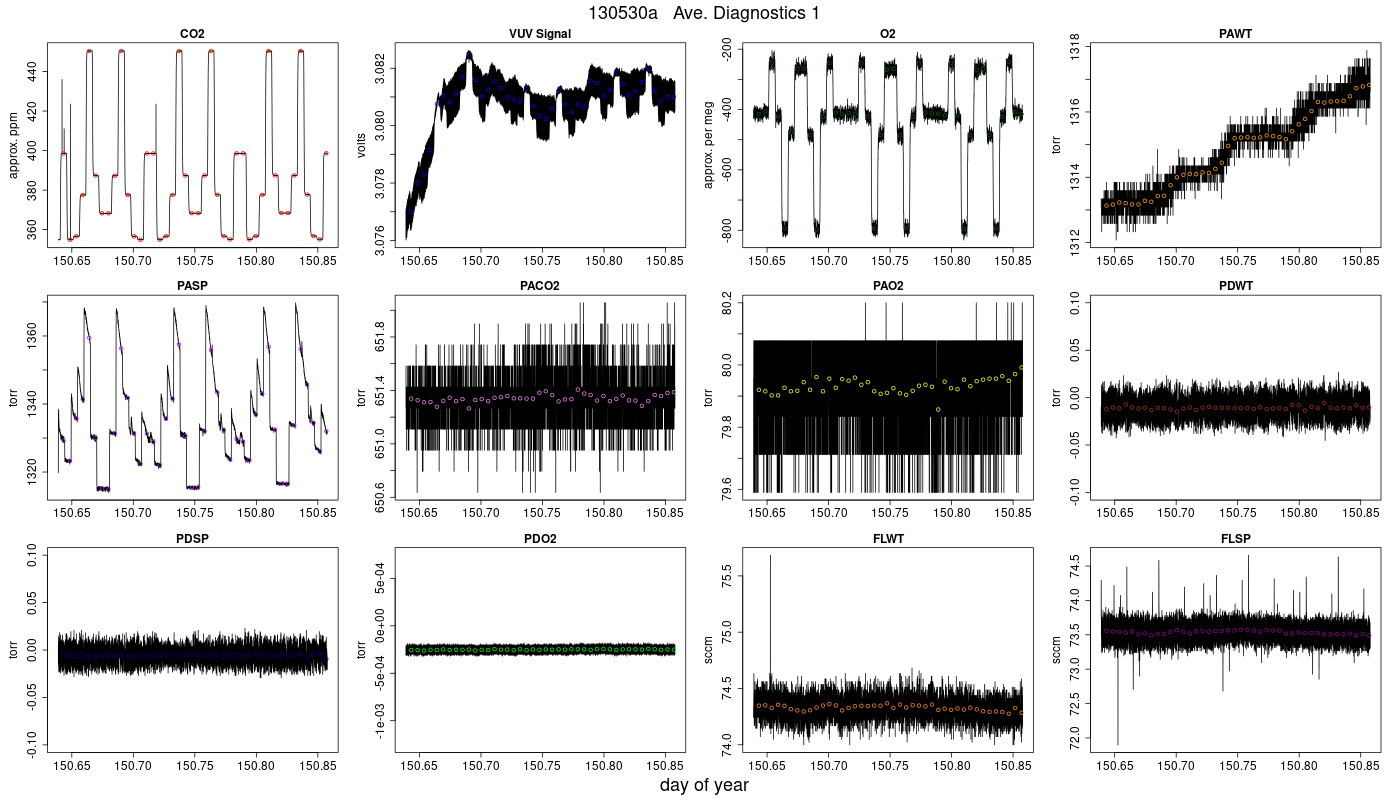

Jog Ave. Diagnostics 1

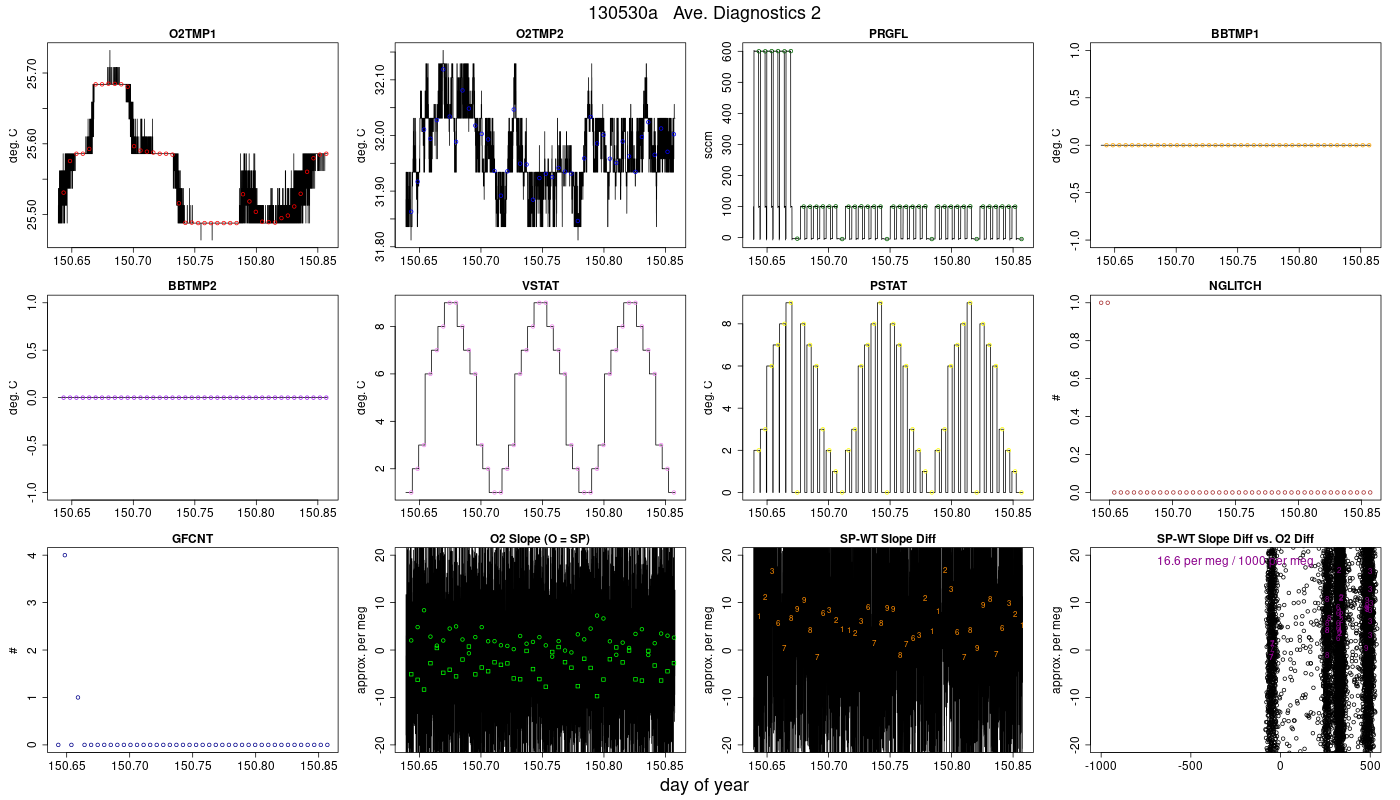

 Jog Ave. Diagnostics 2

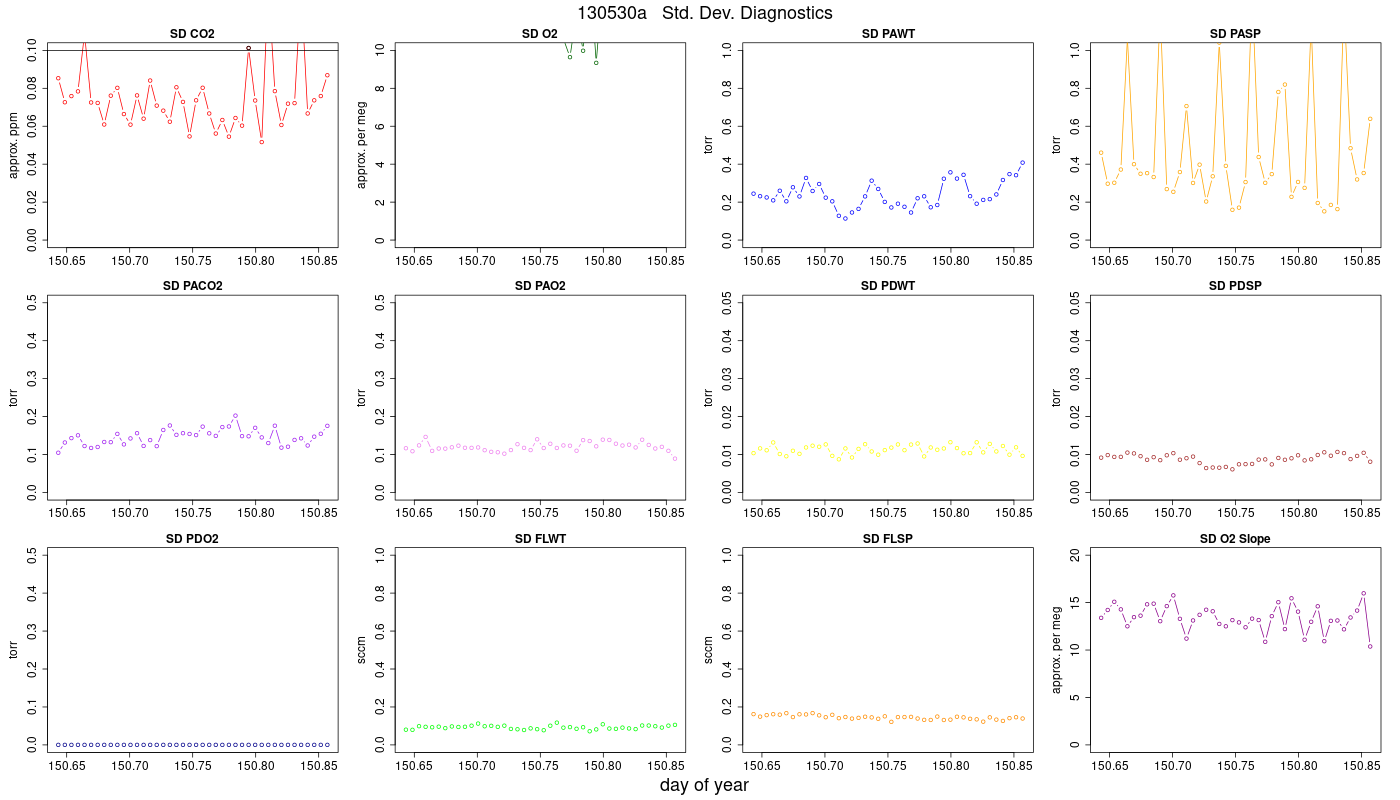

 Jog Std. Dev. Diagnostics

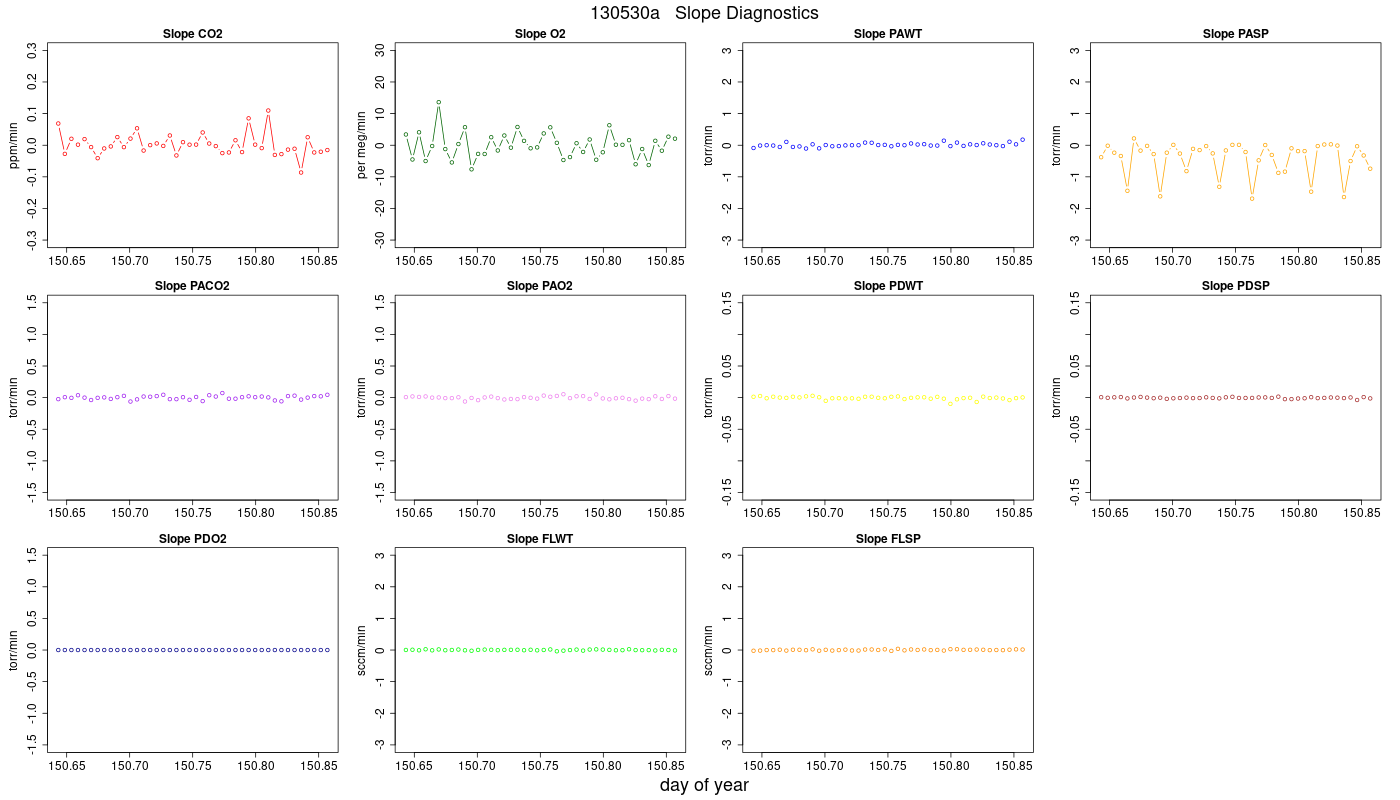

Jog Slope Diagnostics
 Rollover Effect

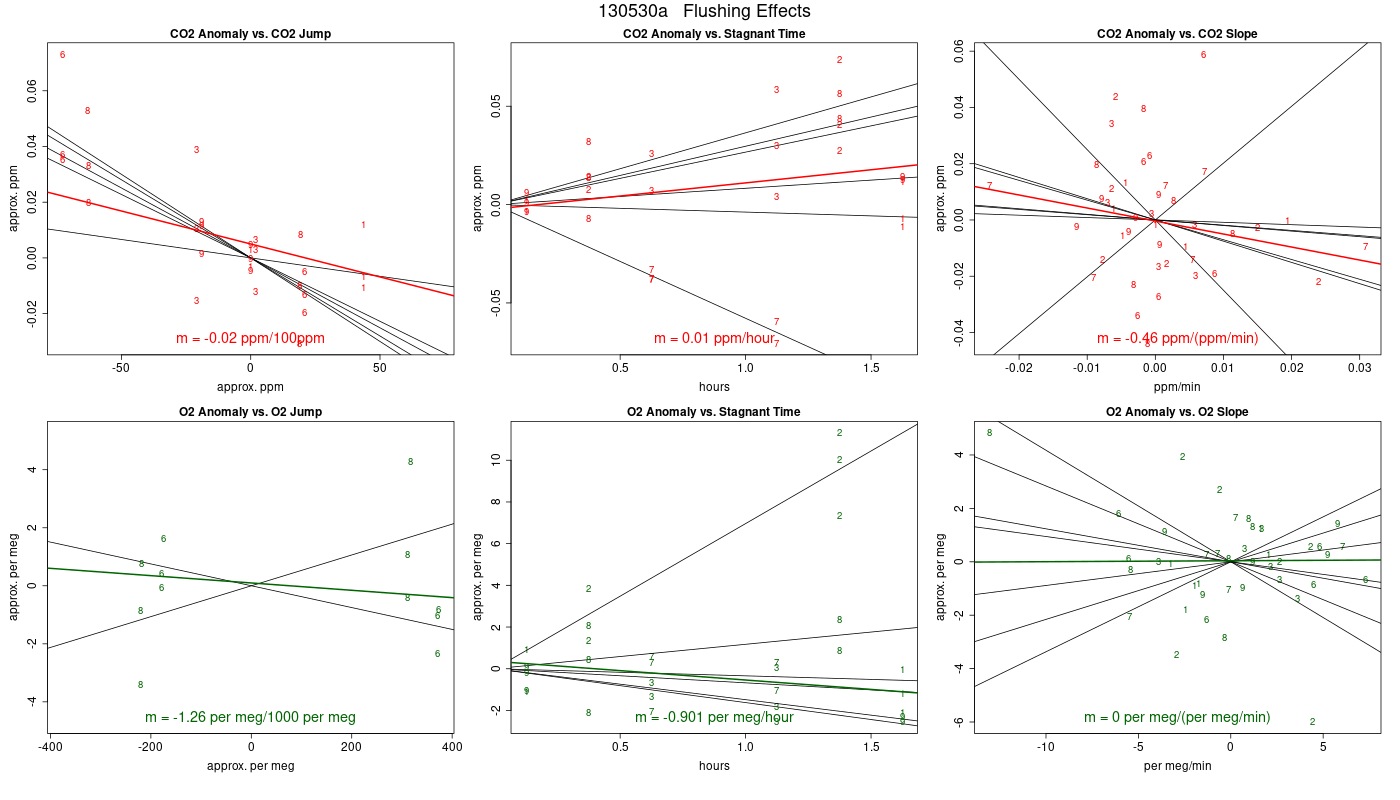

 Flushing Effect

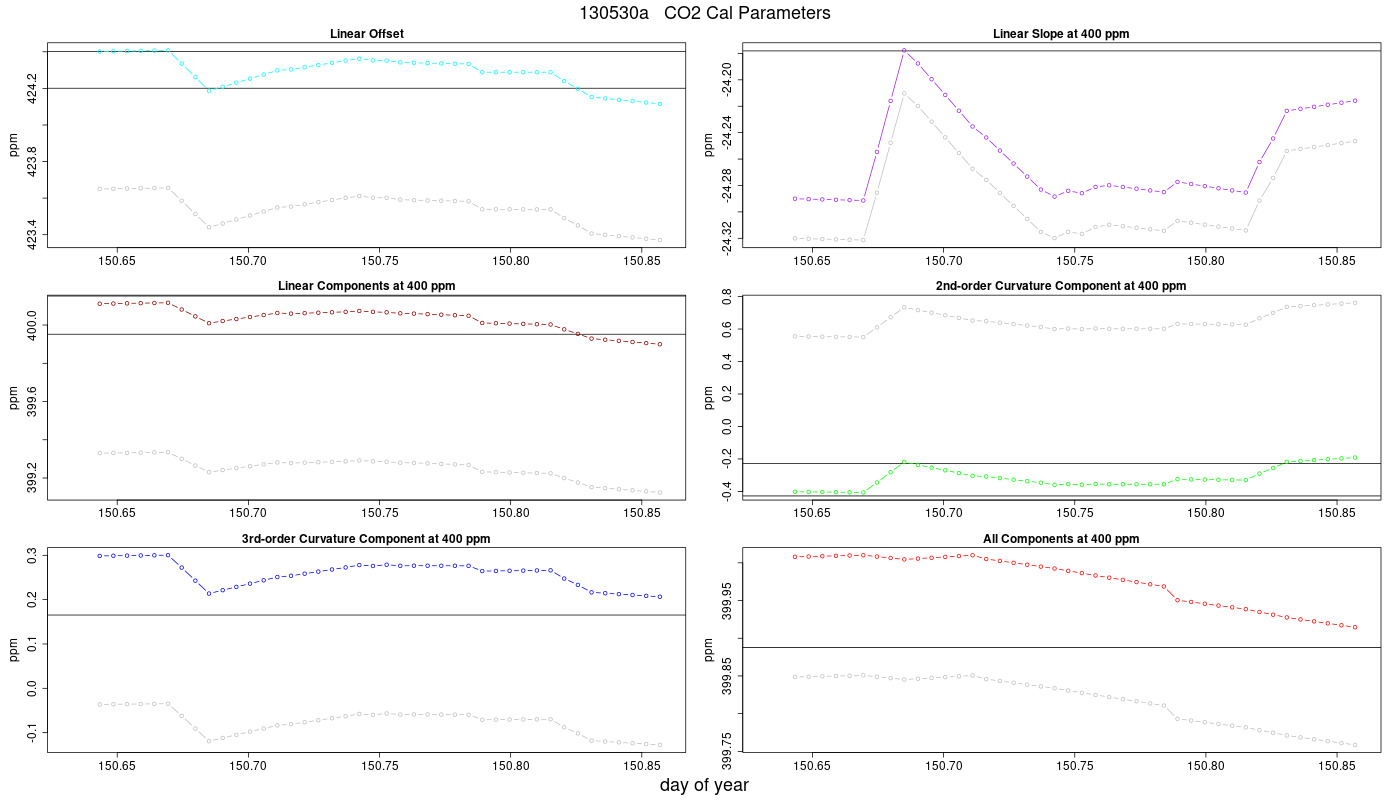

CO2 Parameters

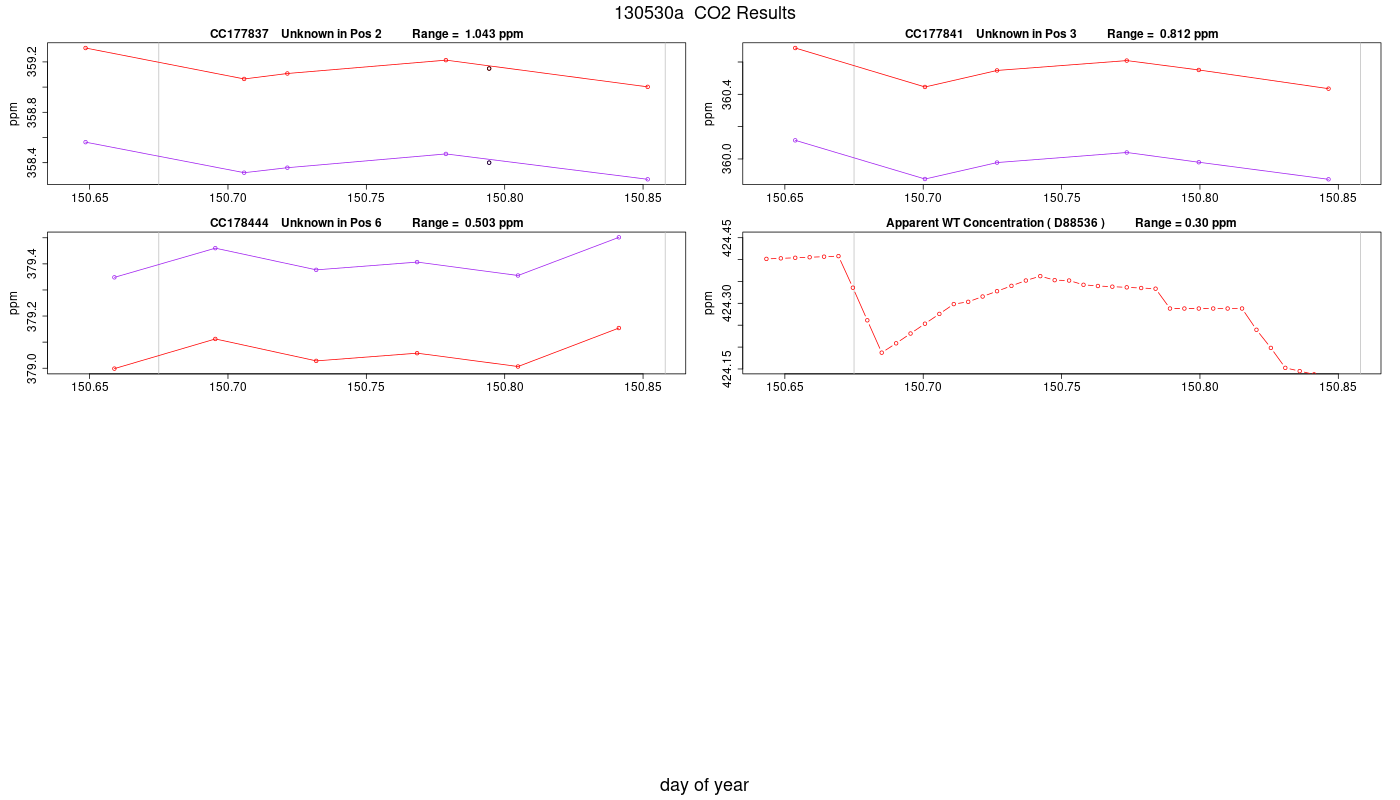

 CO2 Results

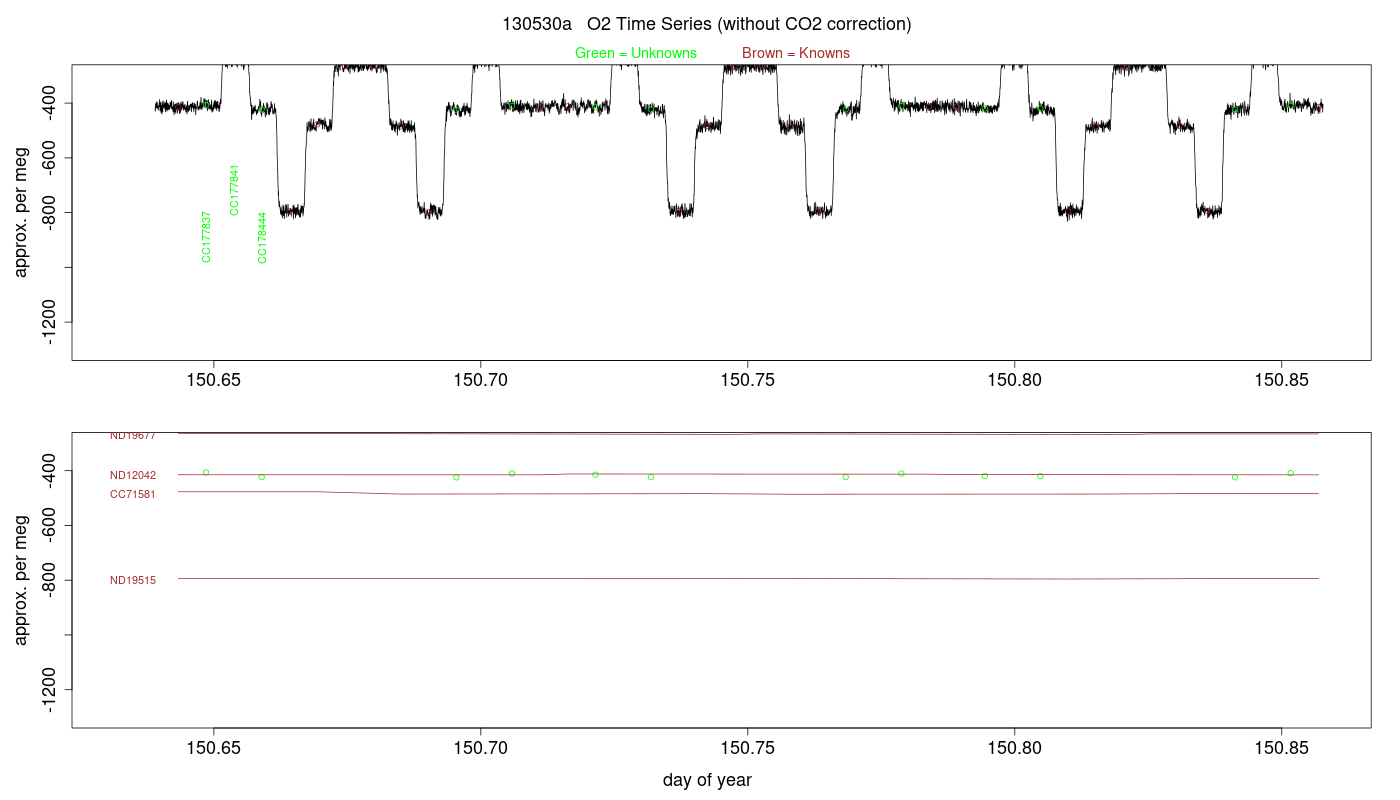

 O2 Timeseries

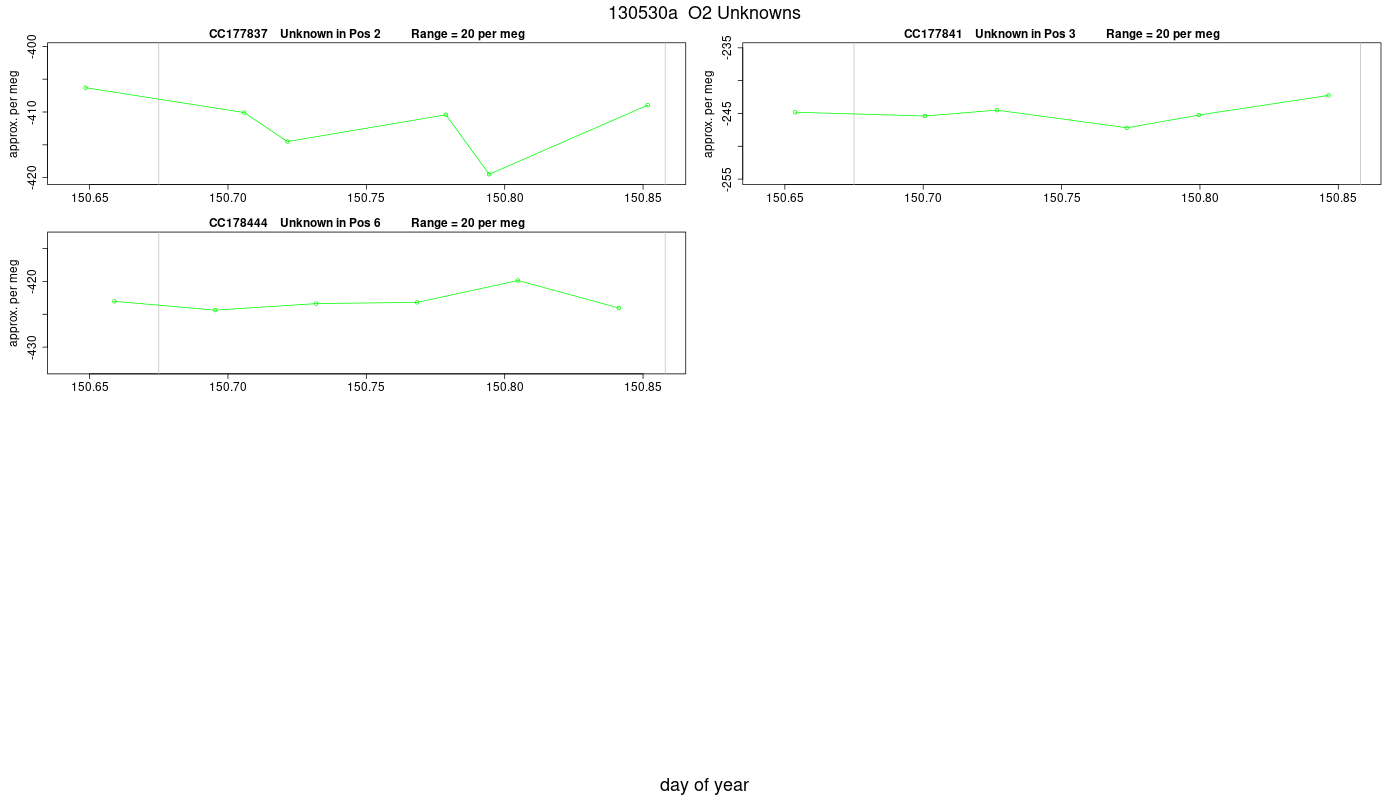

O2 Averages for Unknowns

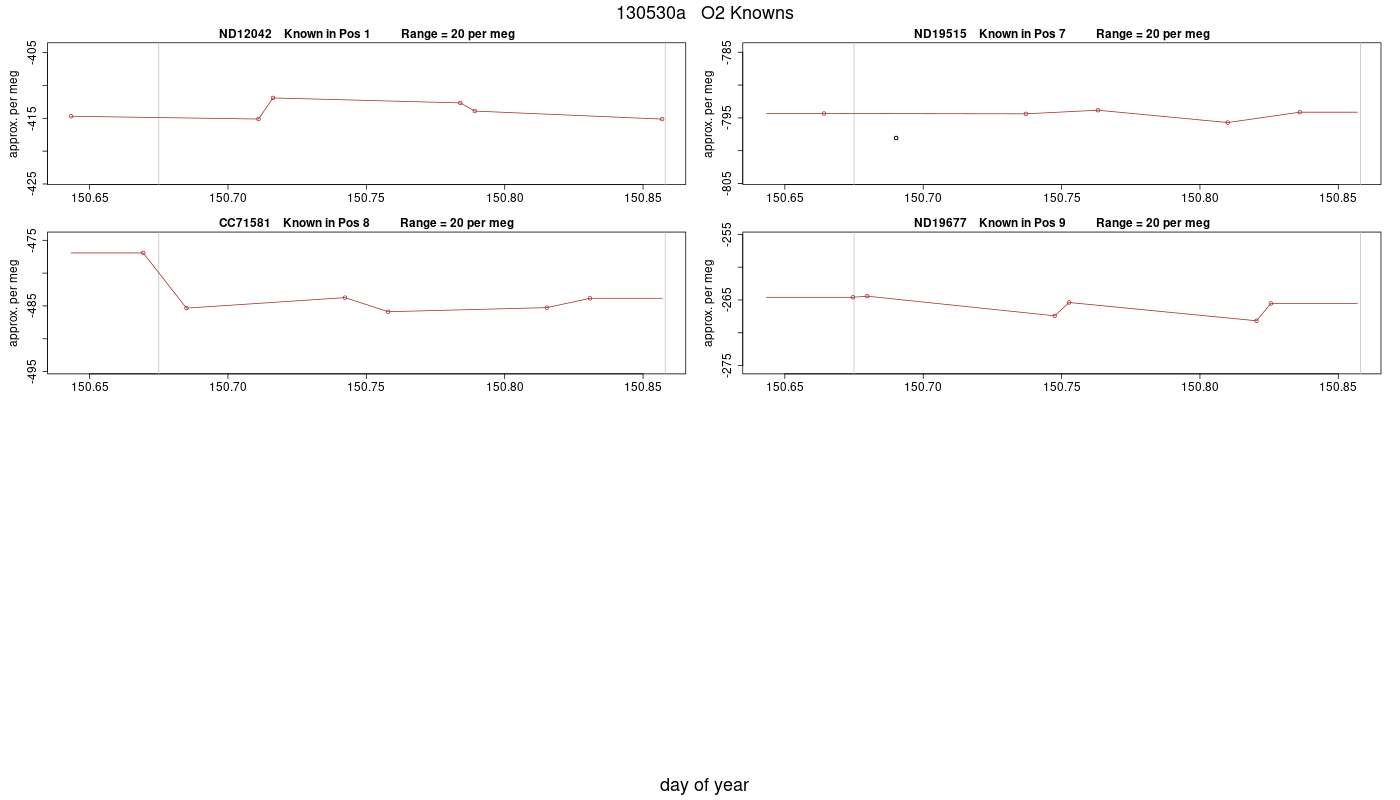

 O2 Averages for Knowns

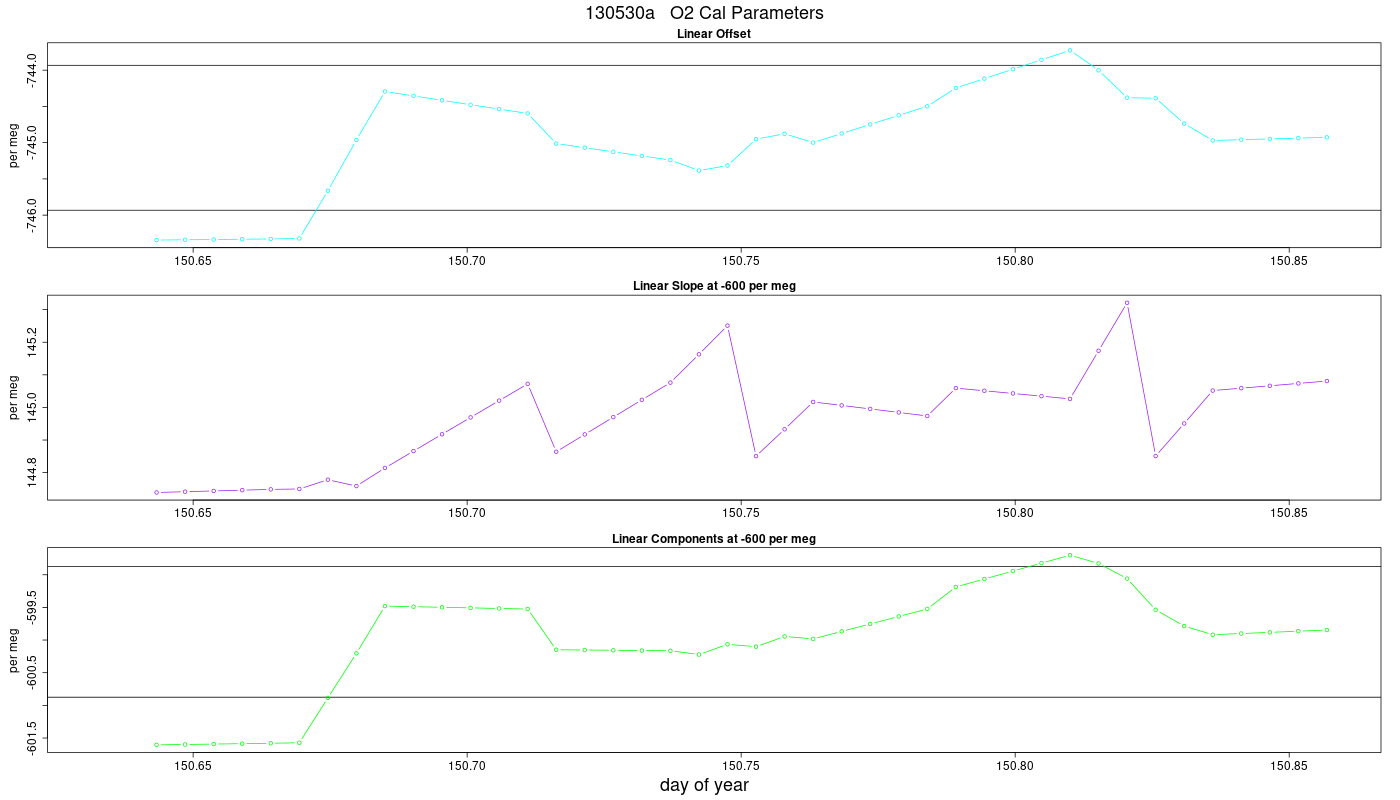

 O2 Parameters

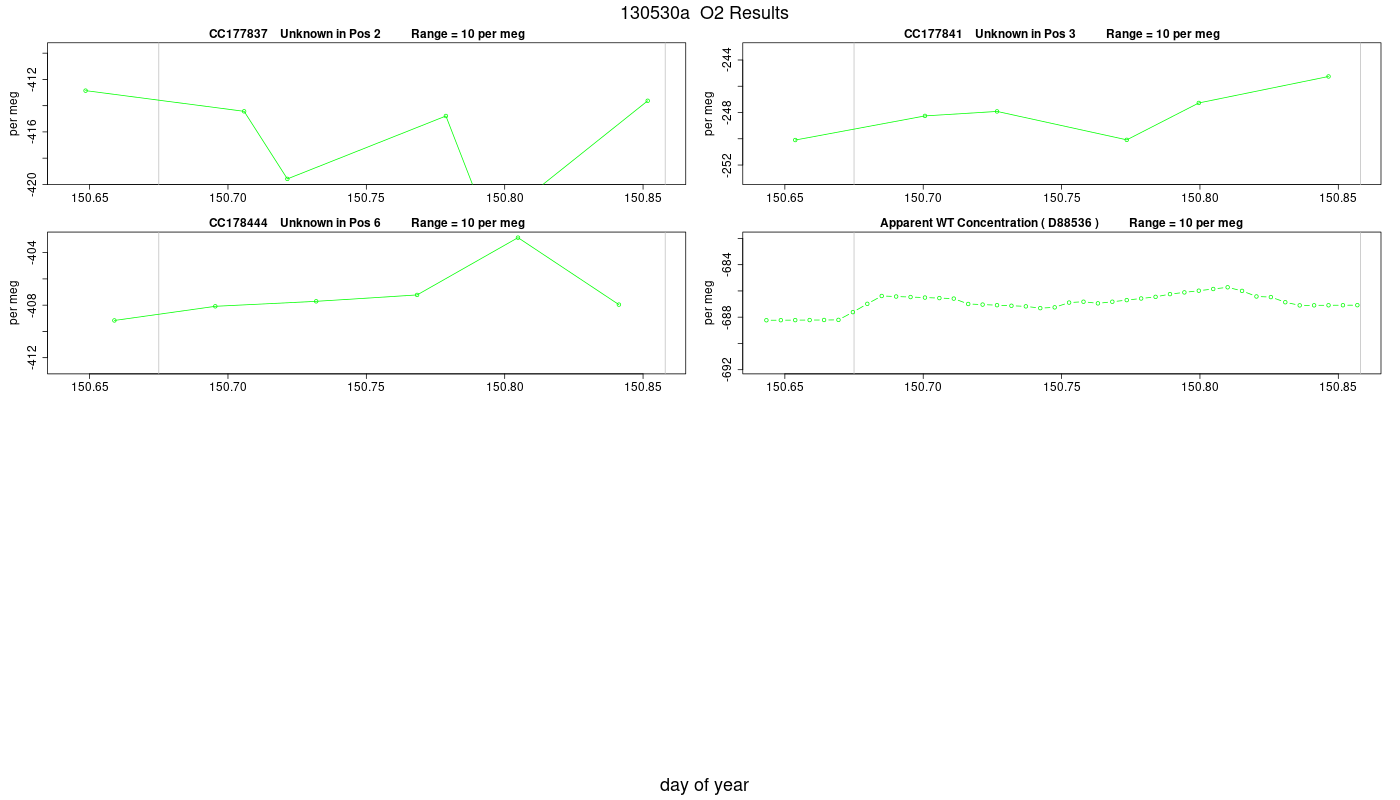

O2 Results

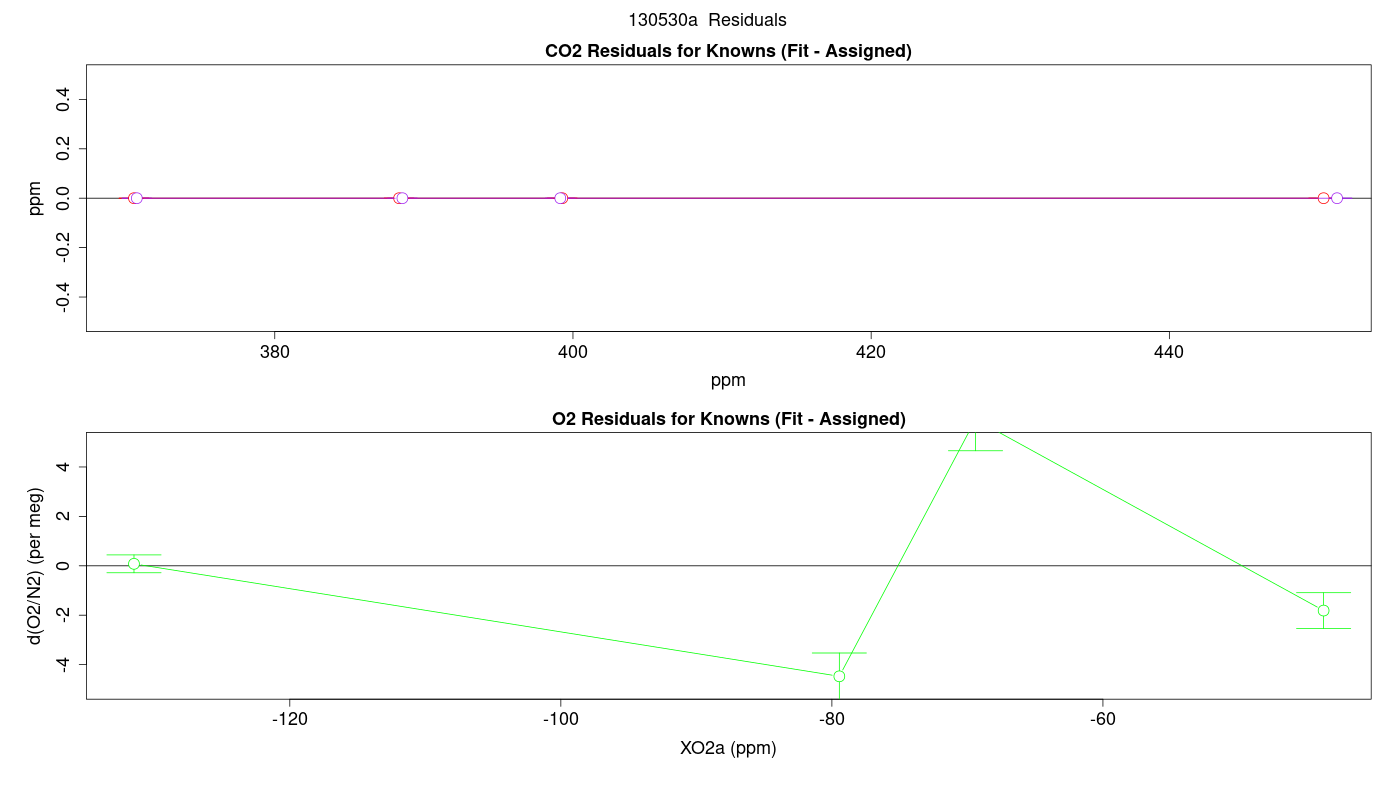

 Residuals

Reference Cylinders, Assigned Concentrations, and Calculated Offsets from Fit

(Position, Cylinder ID, SIO CO2 in ppm, SIO Delta-CO2, SIO CO2 sigma, GMD CO2 in ppm, GMD Delta-CO2, GMD CO2 sigma, CO2 n, d(O2/N2) in per meg, Delta-d(O2/N2), d(O2/N2) sigma, d(O2/N2) n, Plots)

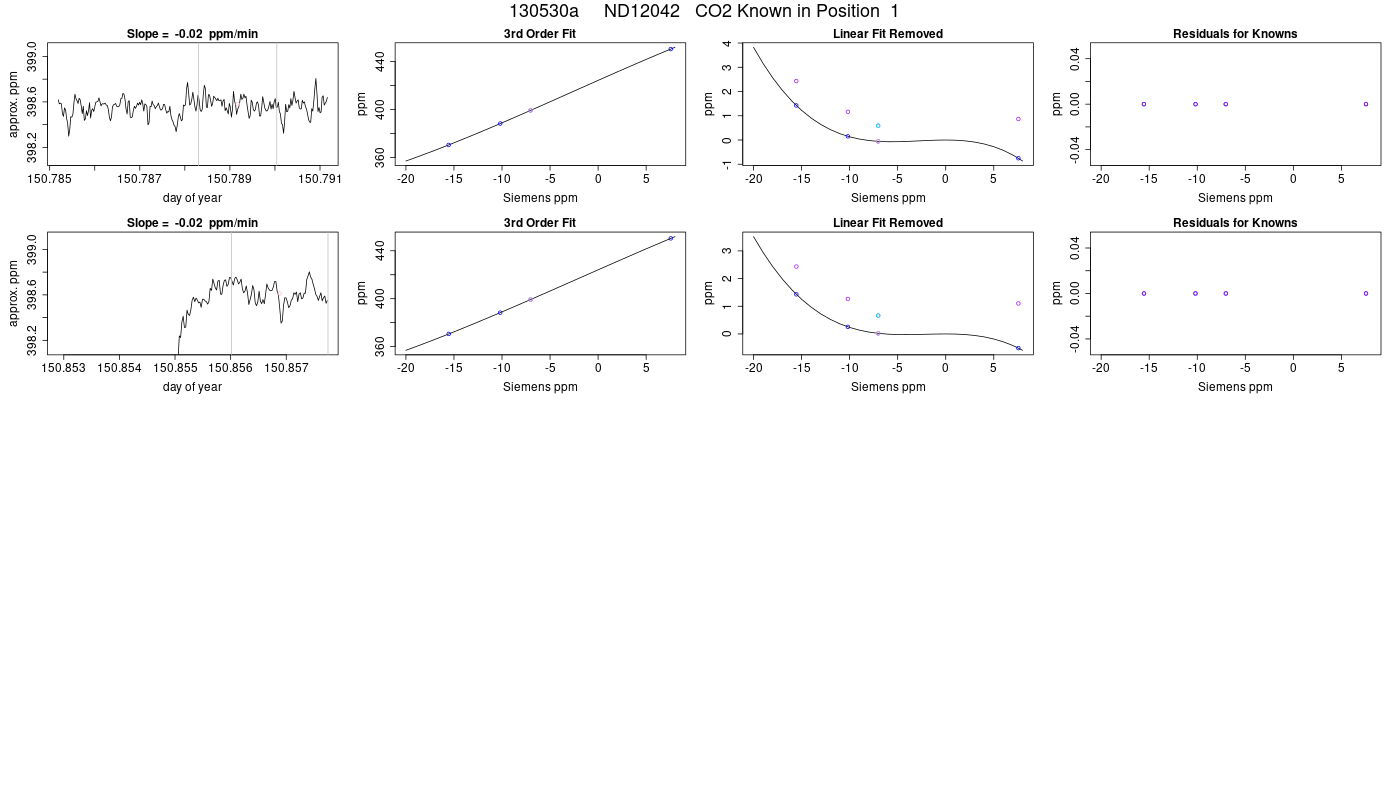

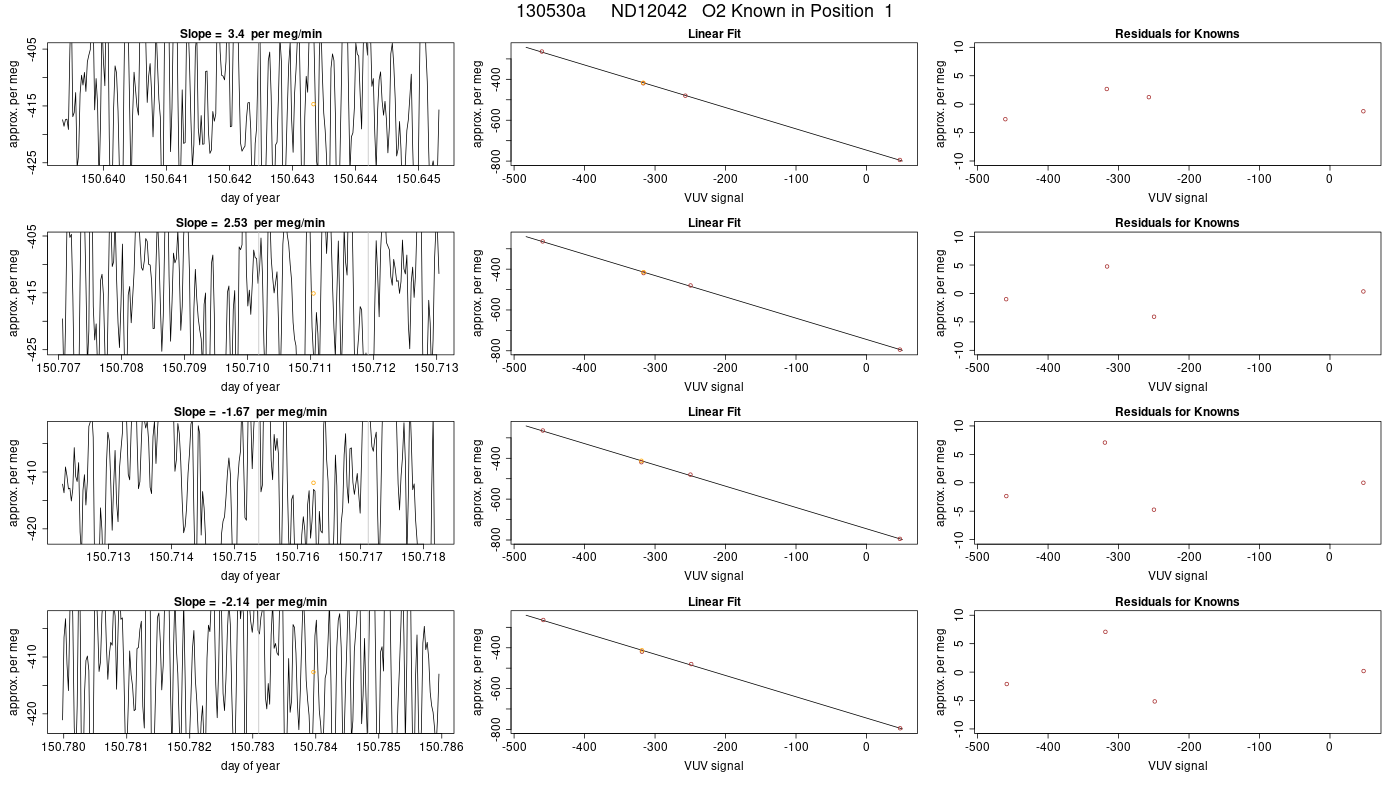

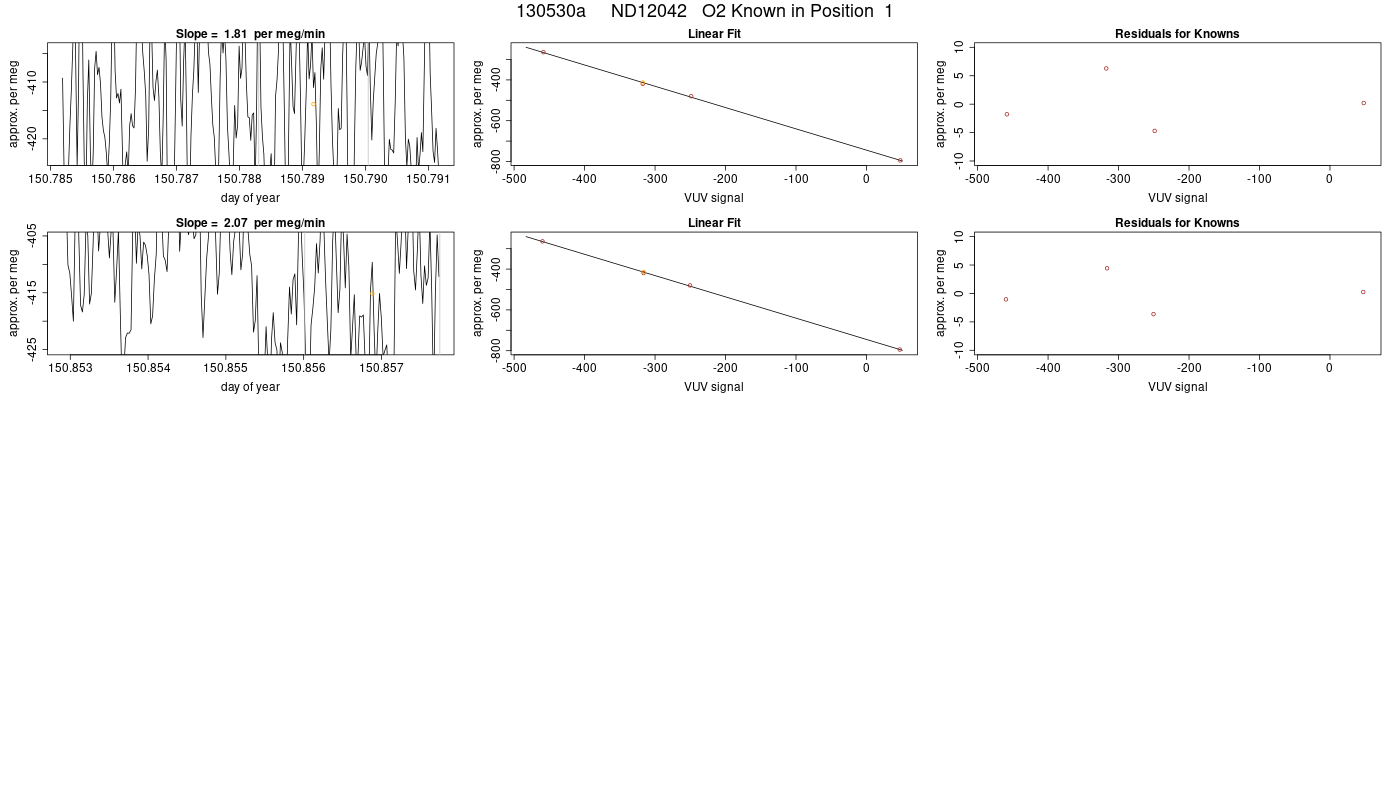

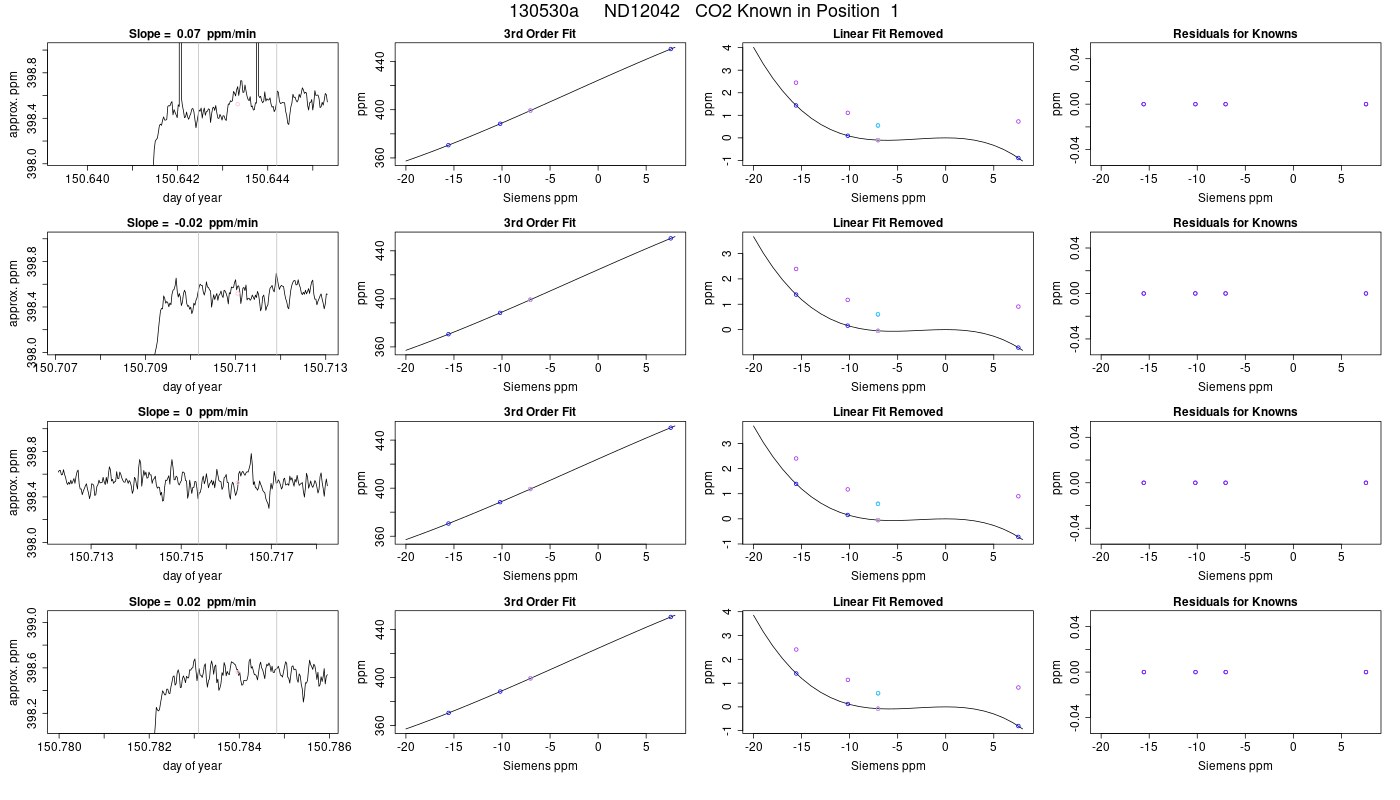

1 ND12042 399.283 0.000 0.000 399.150 0.000 0.000 5 -384.25 5.92 1.27 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

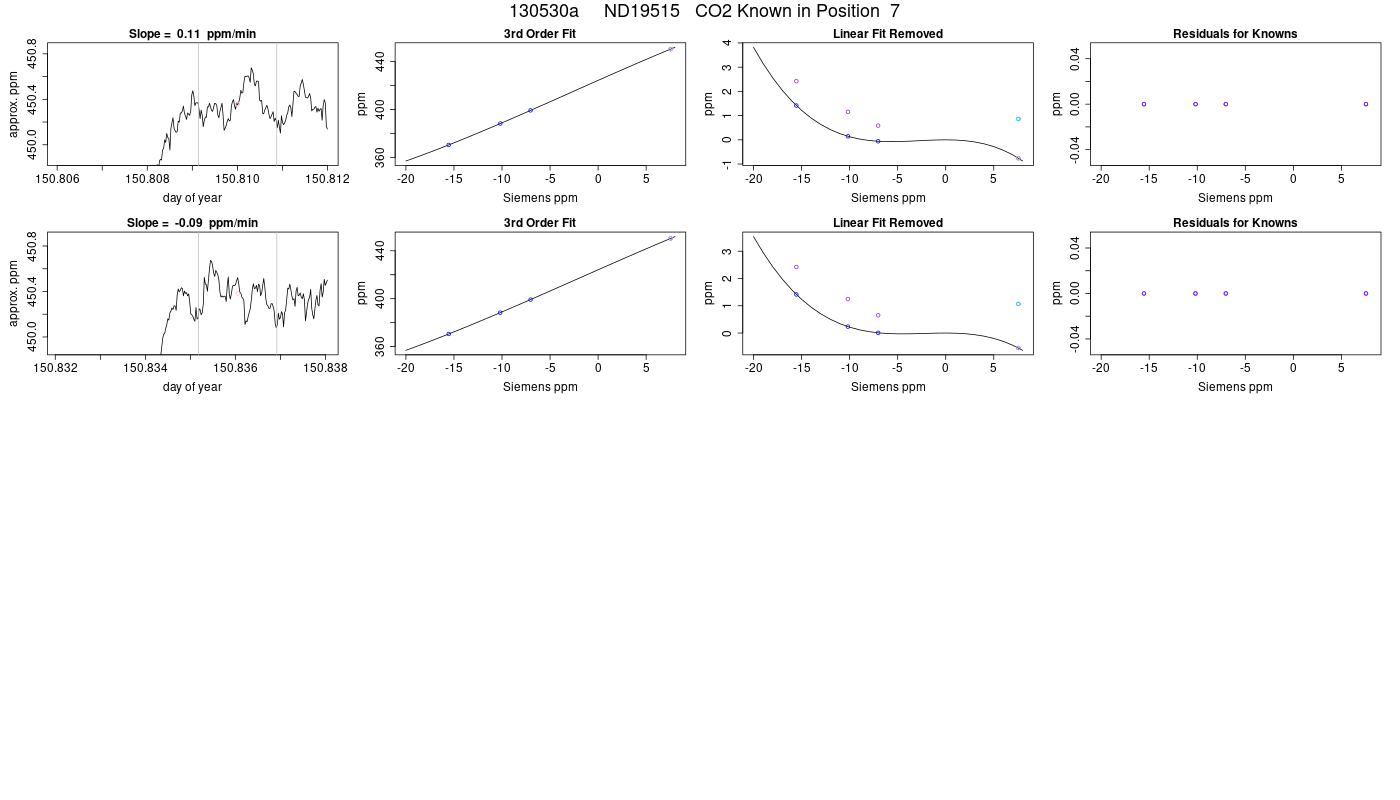

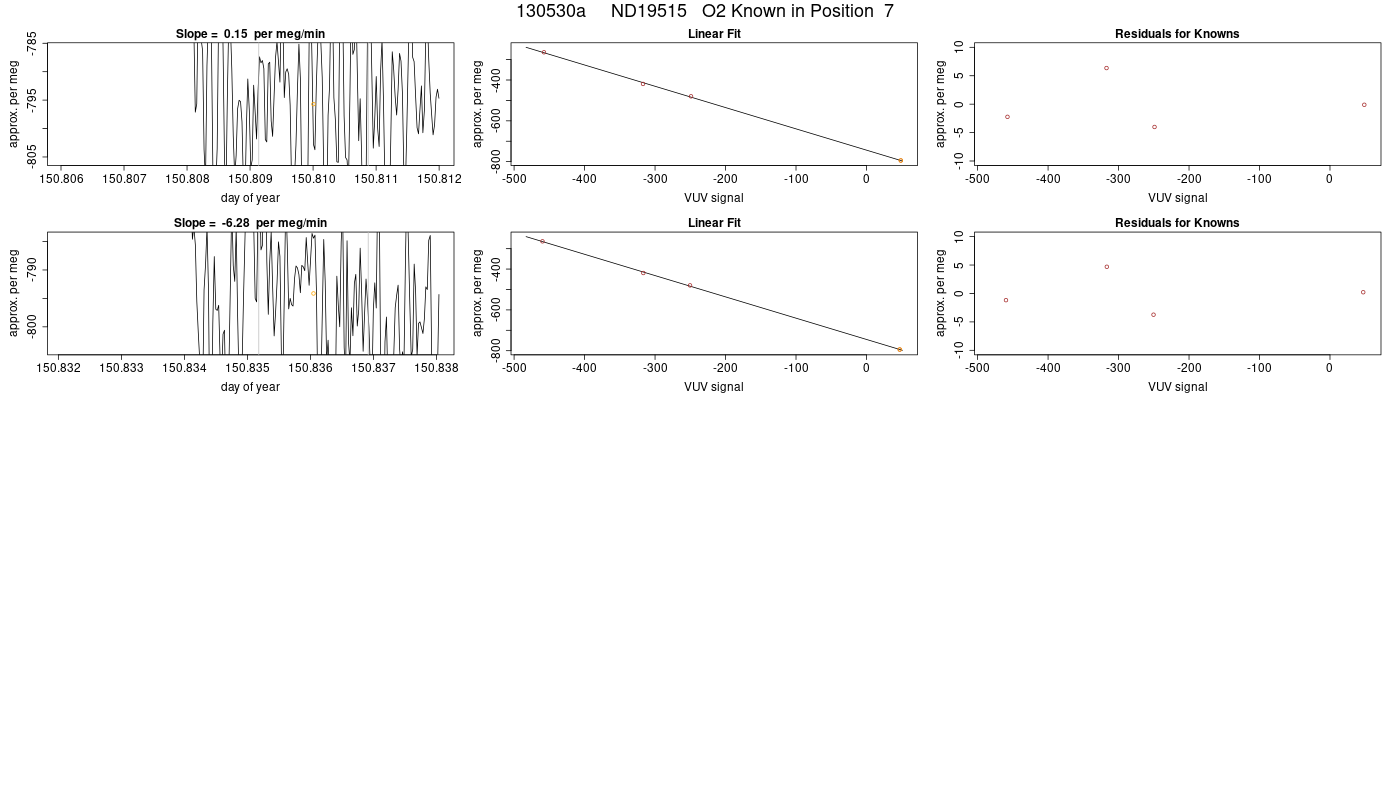

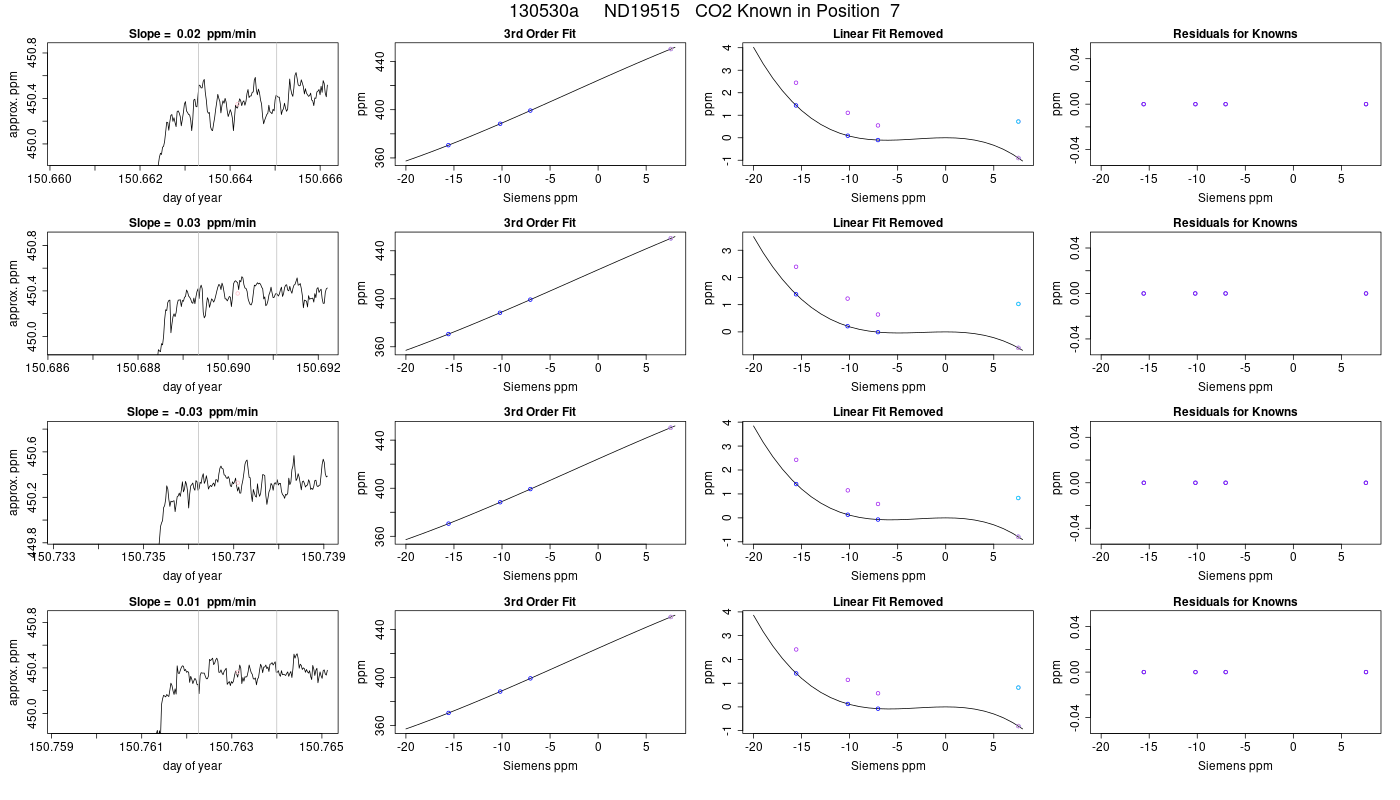

7 ND19515 450.346 0.000 0.000 451.248 0.000 0.000 3 -707.13 0.08 0.36 4    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

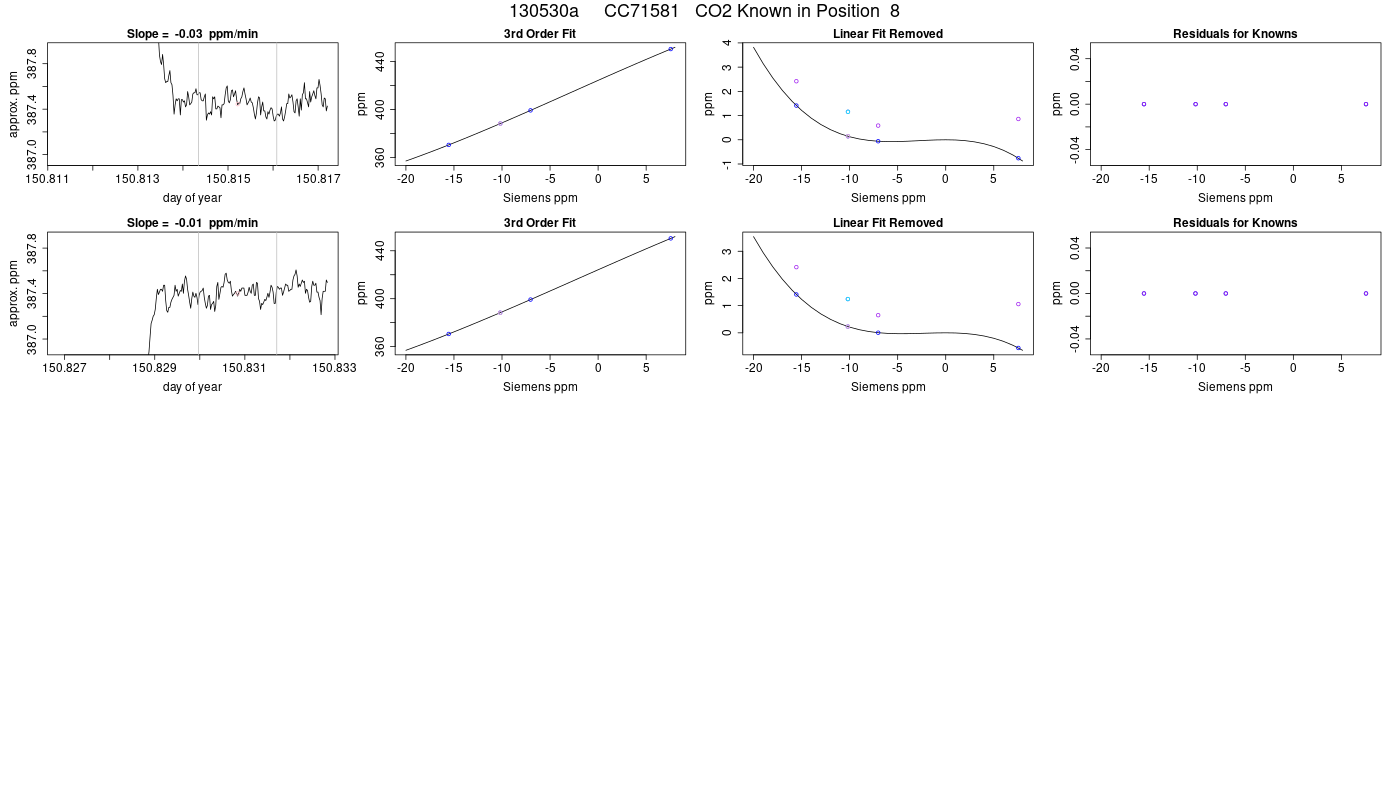

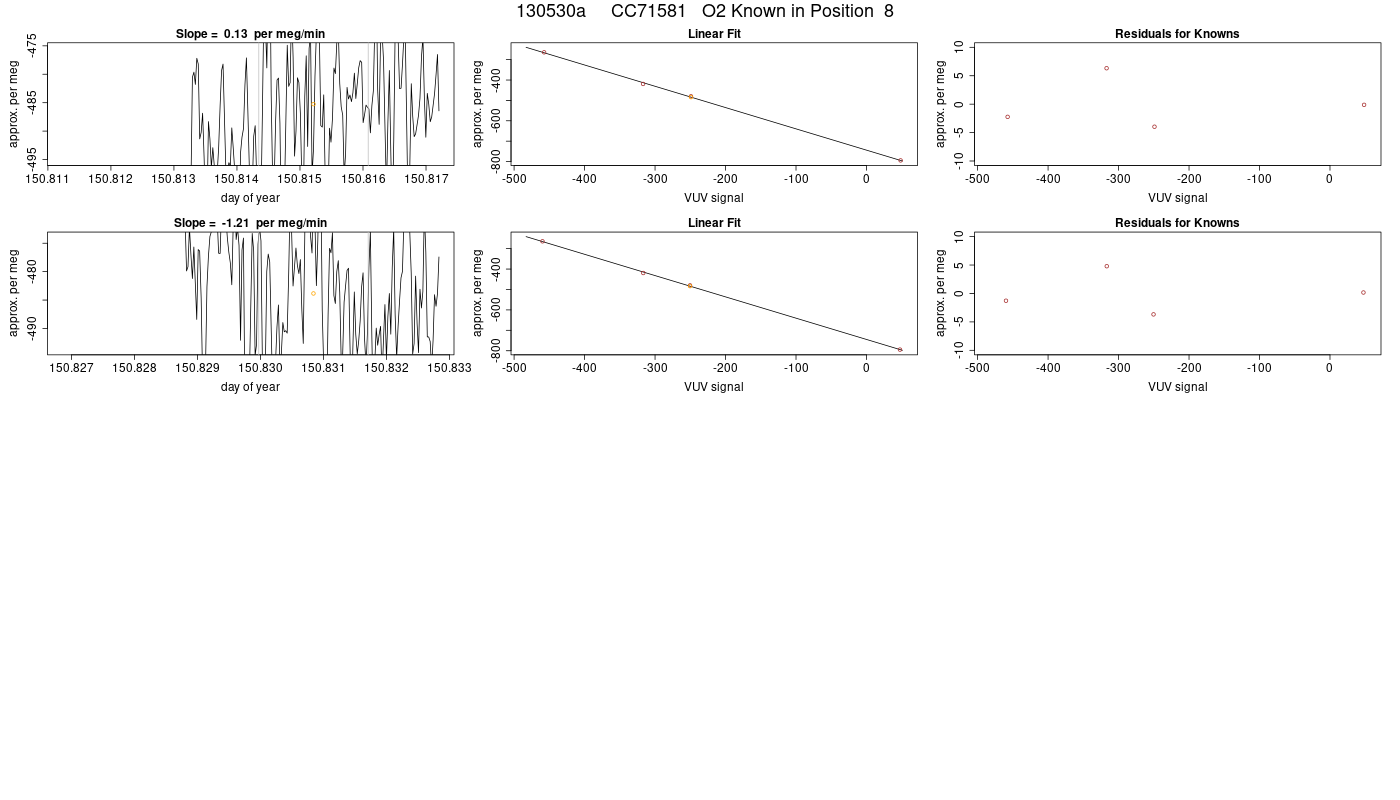

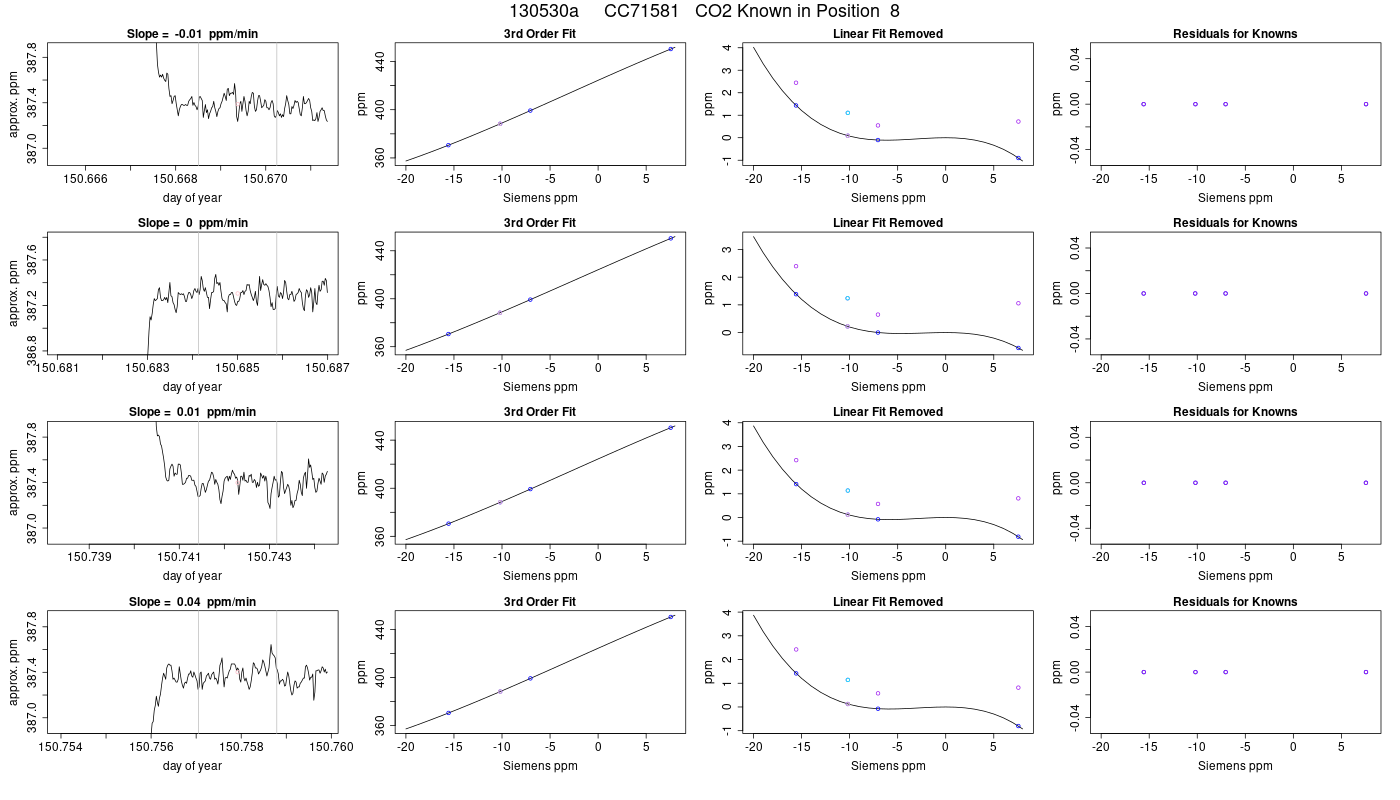

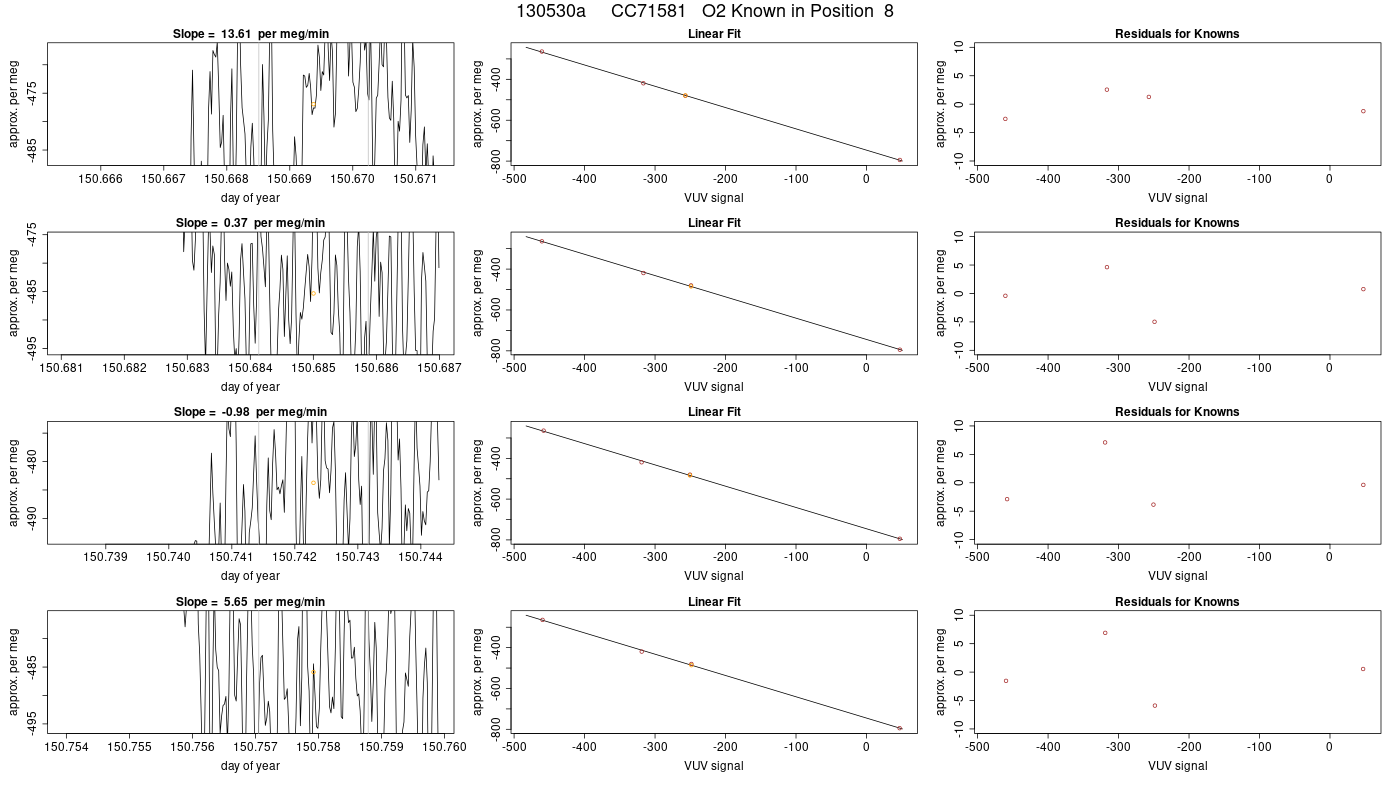

8 CC71581 388.340 0.000 0.000 388.560 0.000 0.000 5 -454.95 -4.47 0.94 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

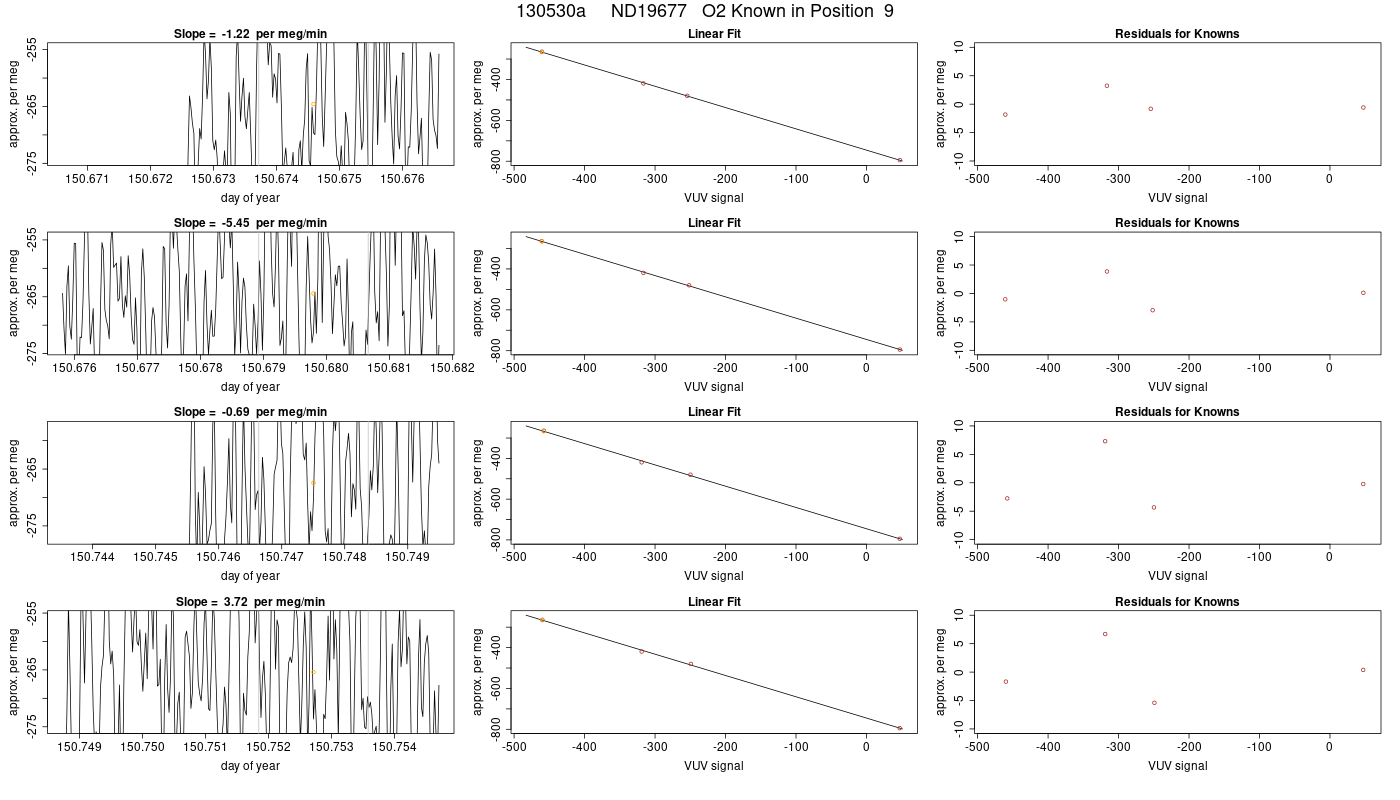

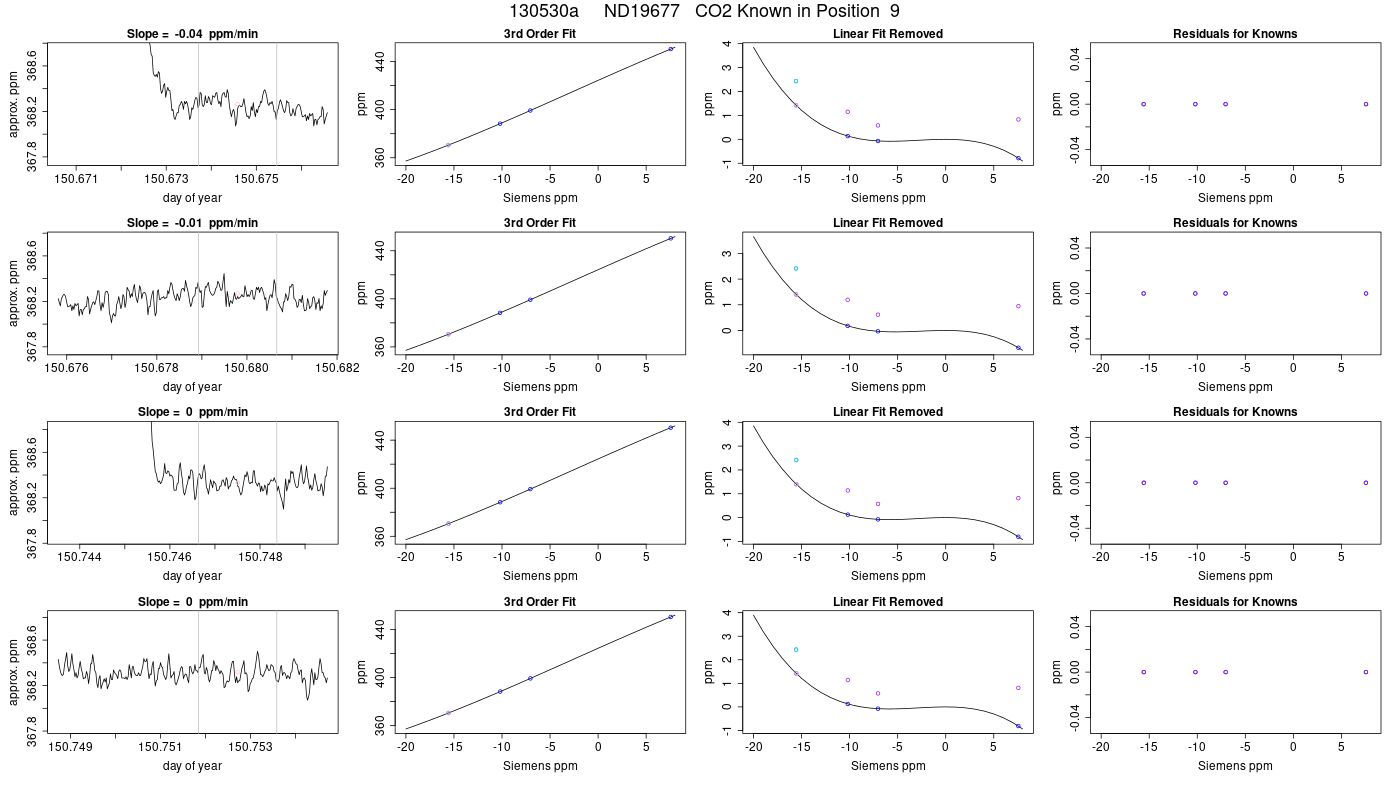

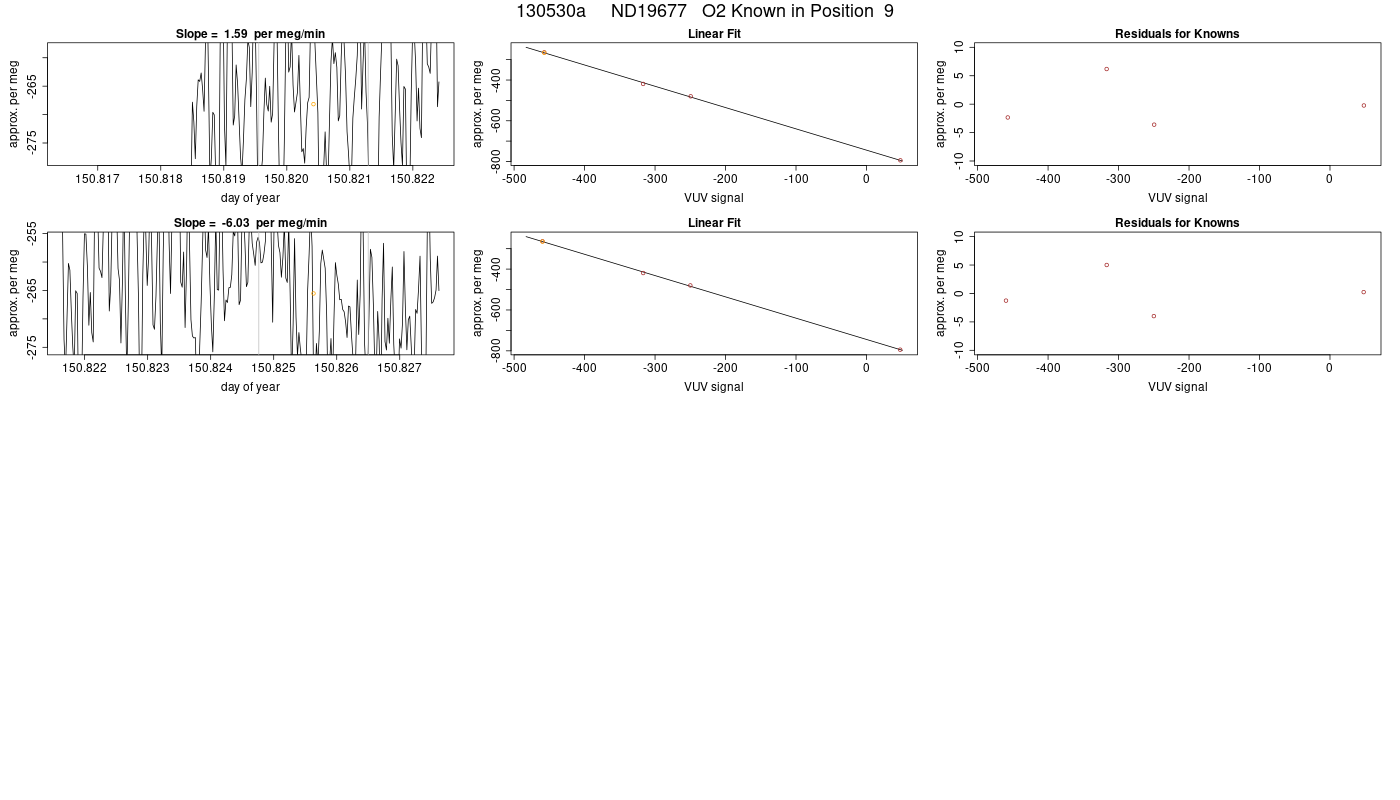

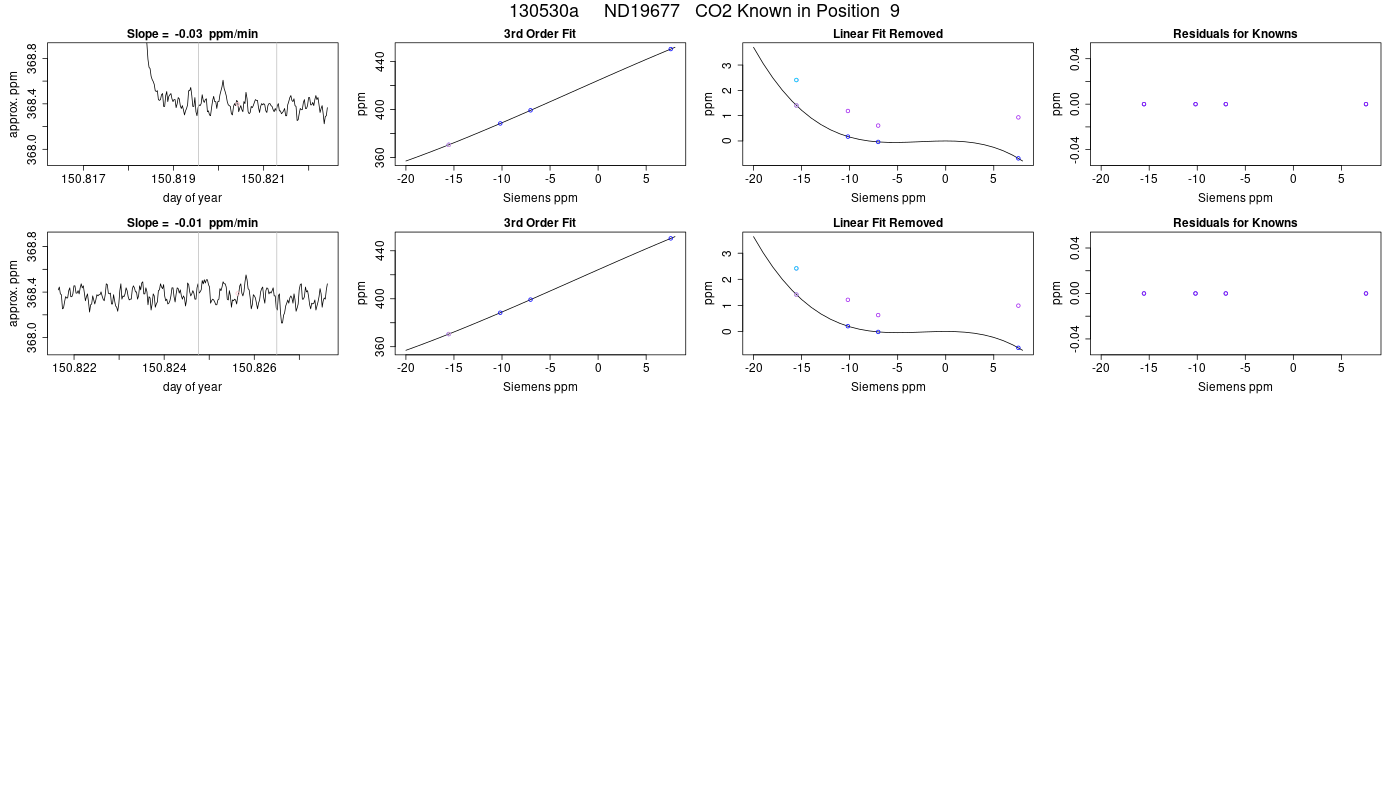

9 ND19677 370.558 0.000 0.000 370.748 0.000 0.000 5 -256.57 -1.81 0.72 5    CO2 Fits 1    O2 Fits 1    CO2 Fits 2   O2 Fits 2

Measured Cylinders and Calculated Concentrations

(Position, Cylinder ID, Plots)
(Day of Year and Day Fraction, SIO CO2 in ppm, SD CO2 (ppm), d(O2/N2) in per meg, SD d(O2/N2) (per meg), GMD CO2 in ppm, SD CO2 (ppm), Plots)

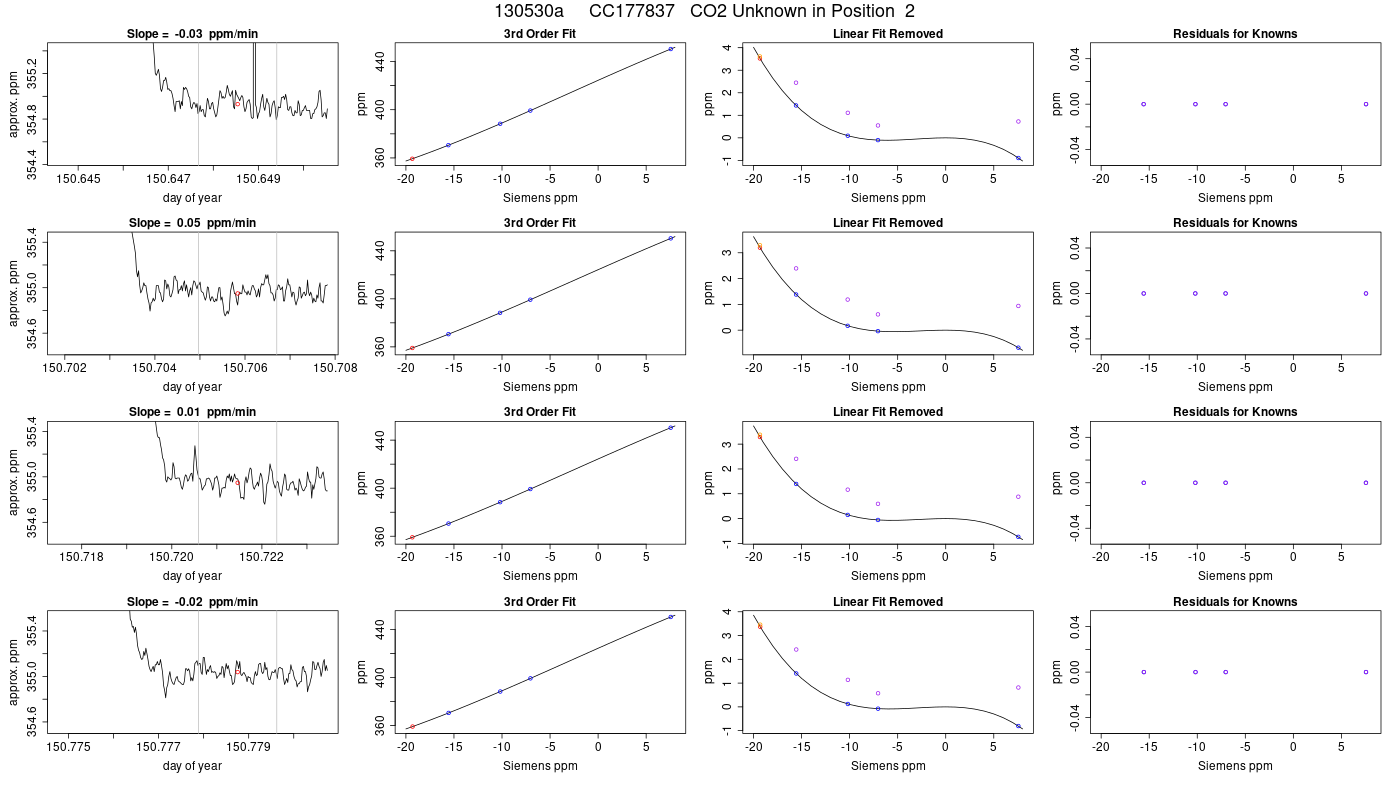

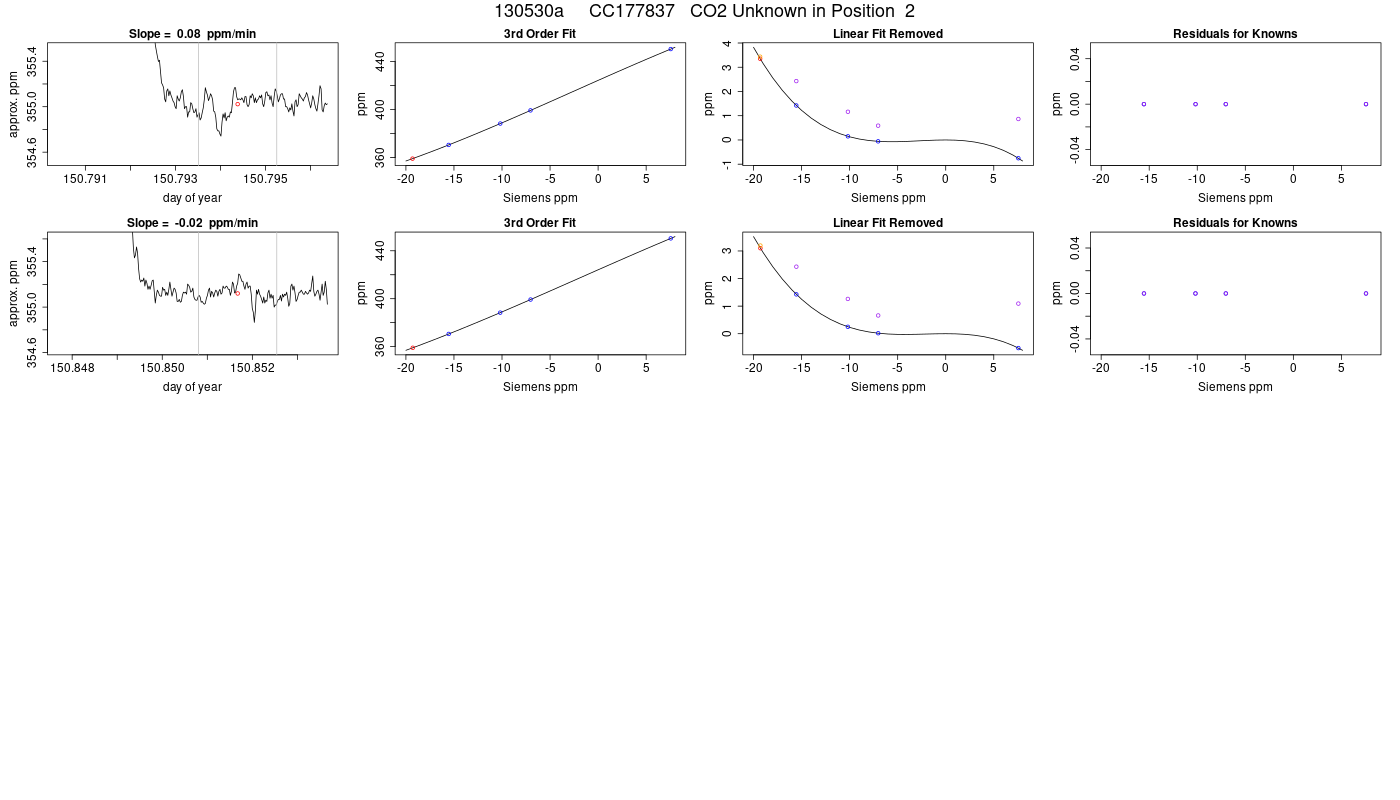

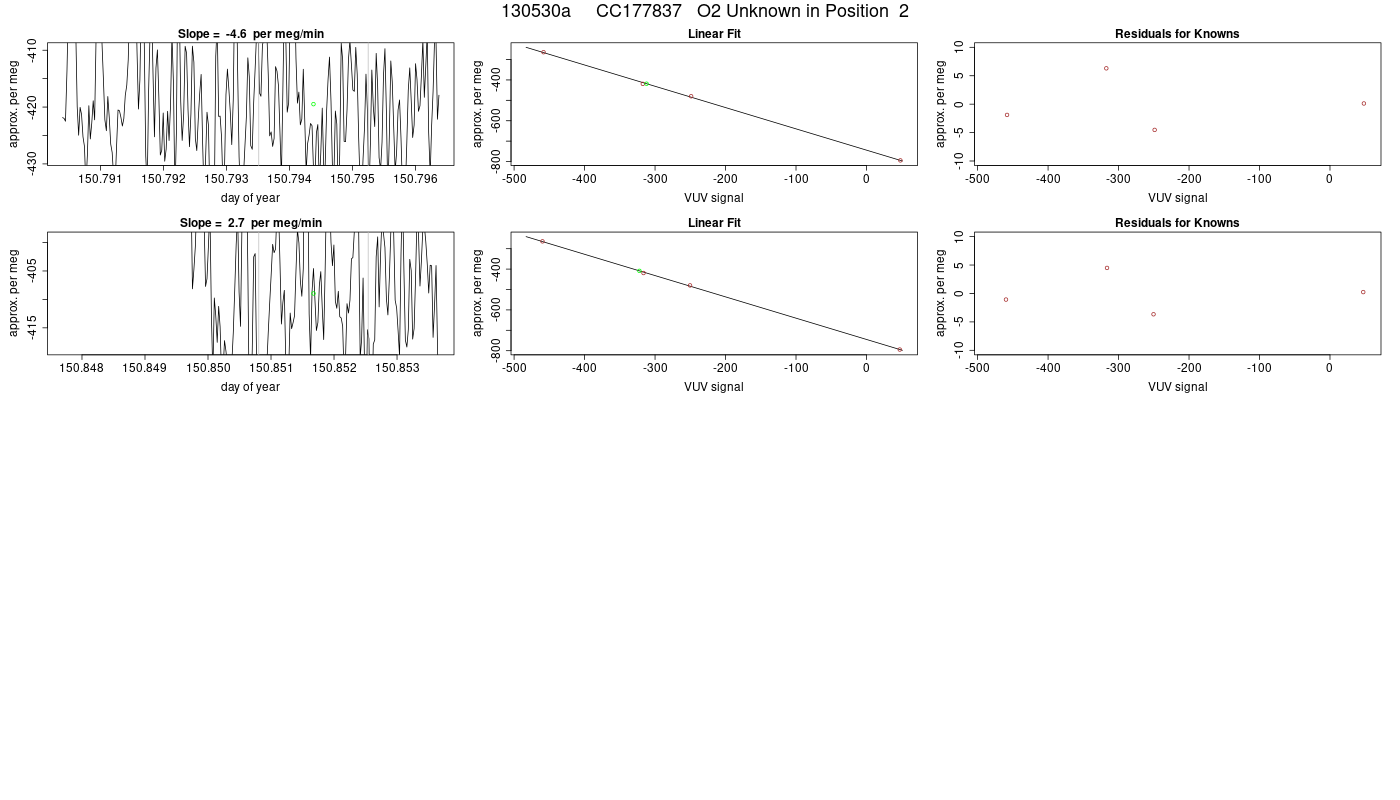

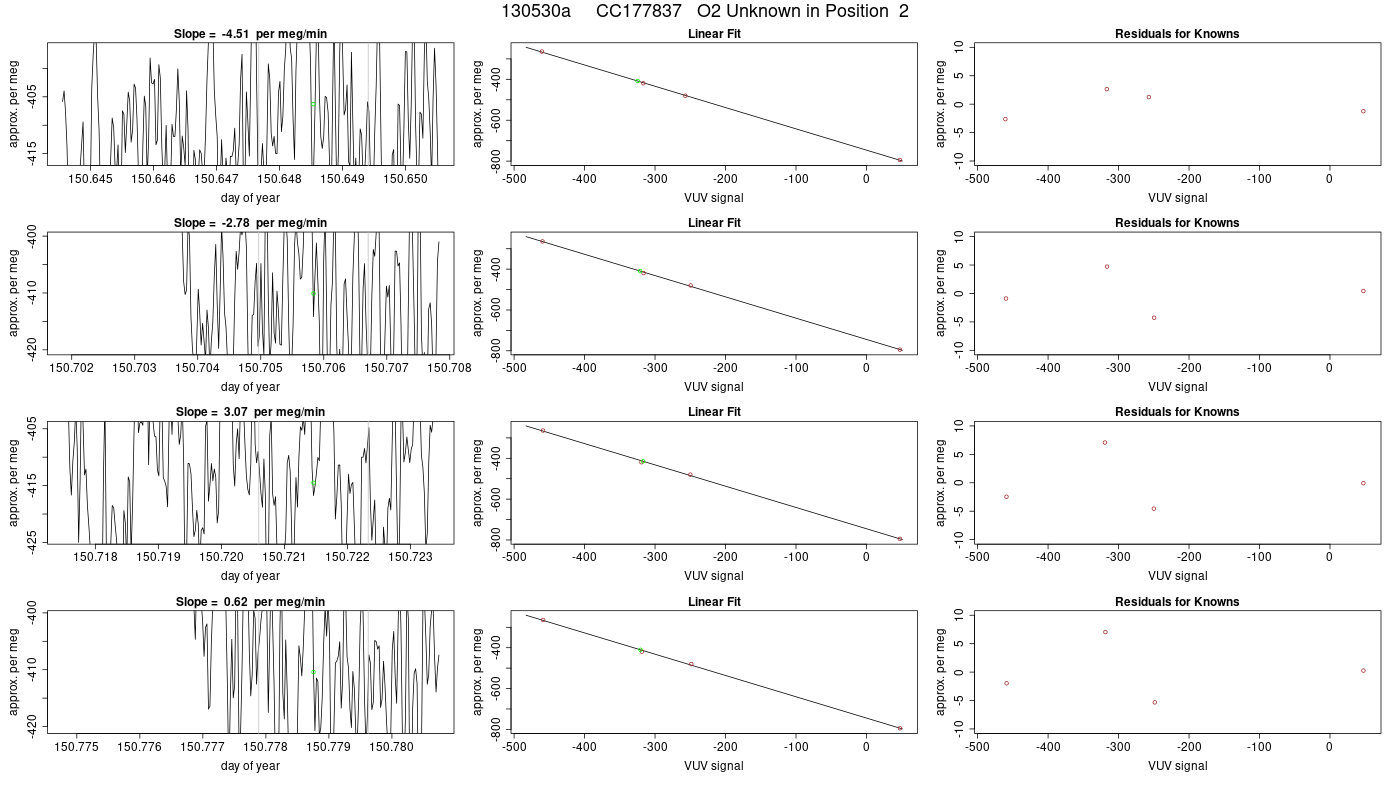

2 CC177837    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
150.649 359.310 0.073 -412.86 11.19 358.563 0.073
150.706 359.065 0.076 -414.43 11.52 358.320 0.076
150.721 359.108 0.071 -419.58 12.75 358.360 0.071
150.779 359.214 0.055 -414.79 12.03 358.469 0.055
150.794 359.148 0.101 -423.27 9.34 358.400 0.101
150.852 359.002 0.076 -413.63 12.87 358.268 0.076

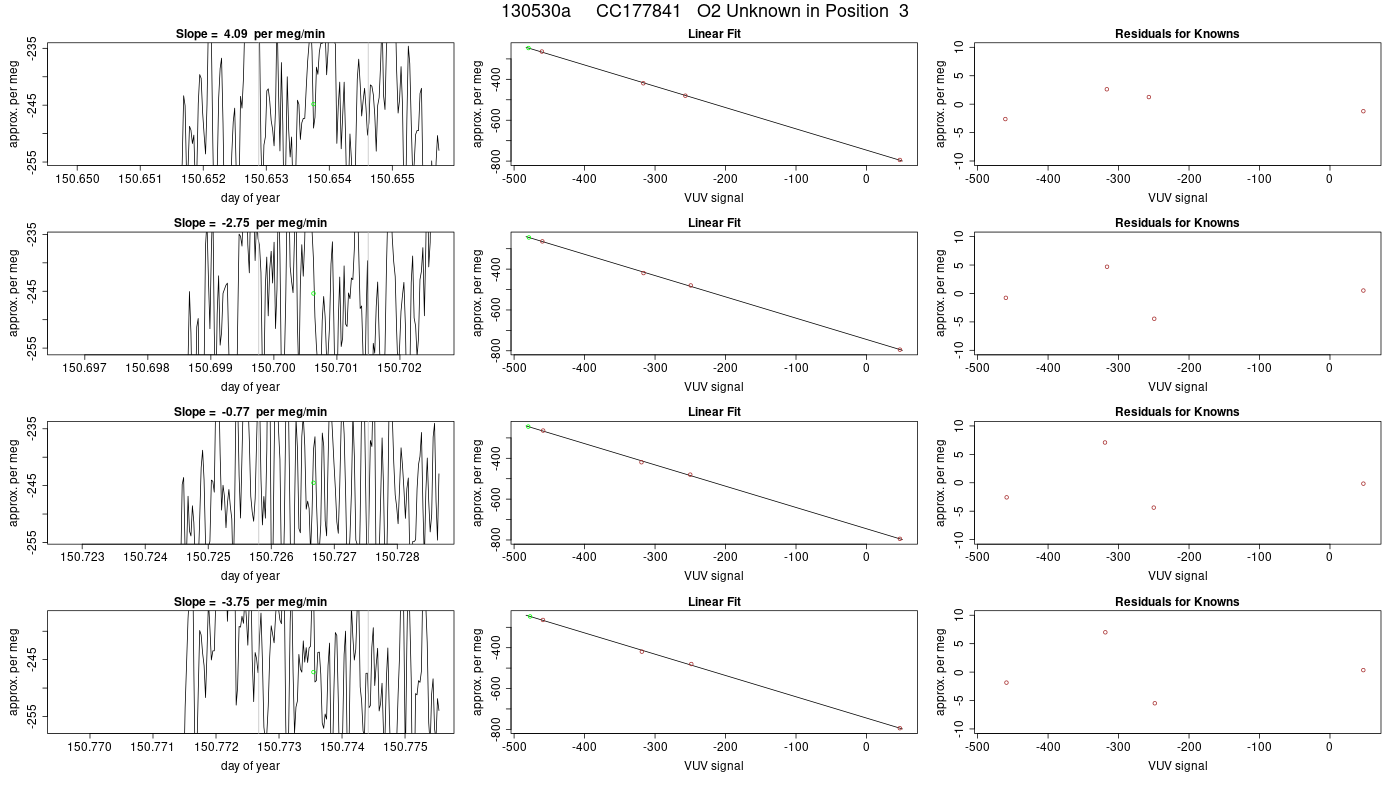

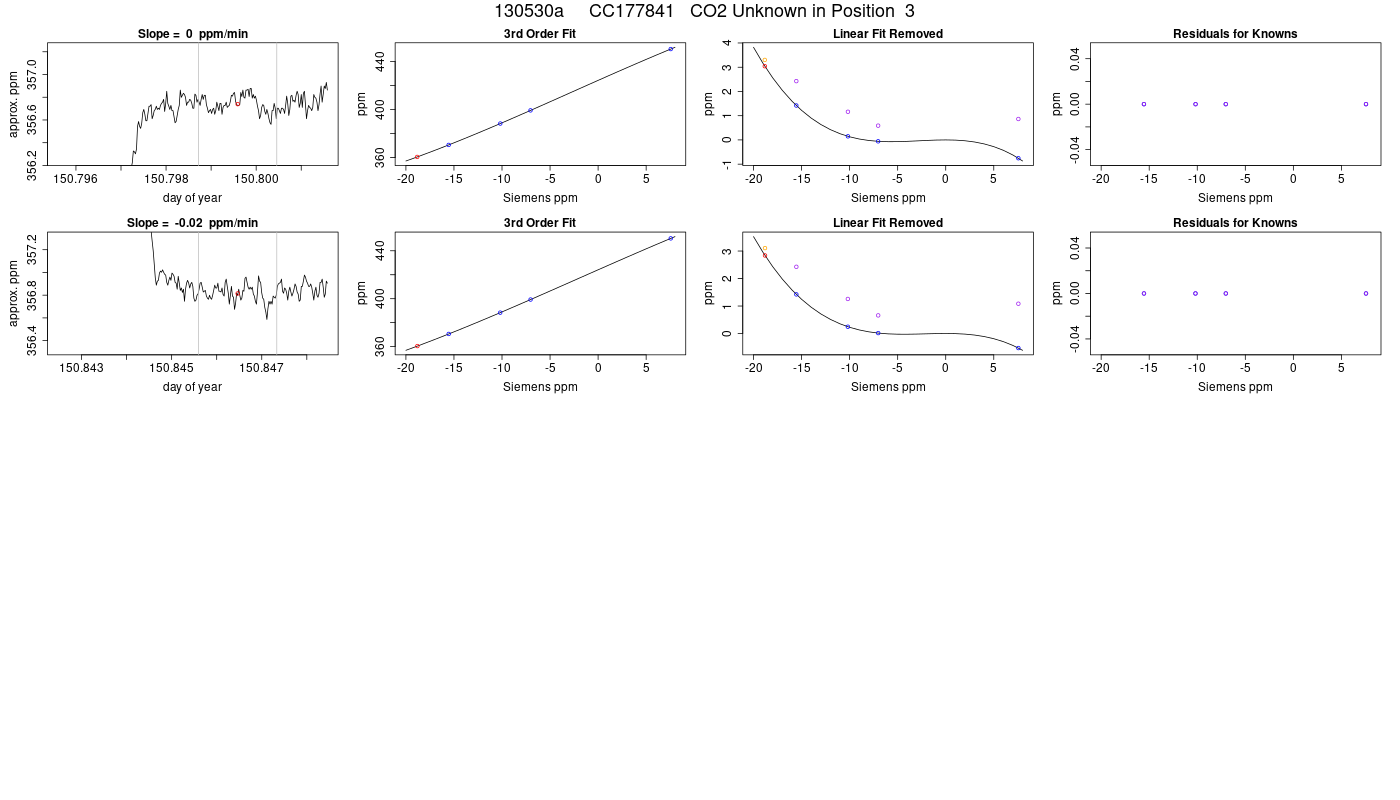

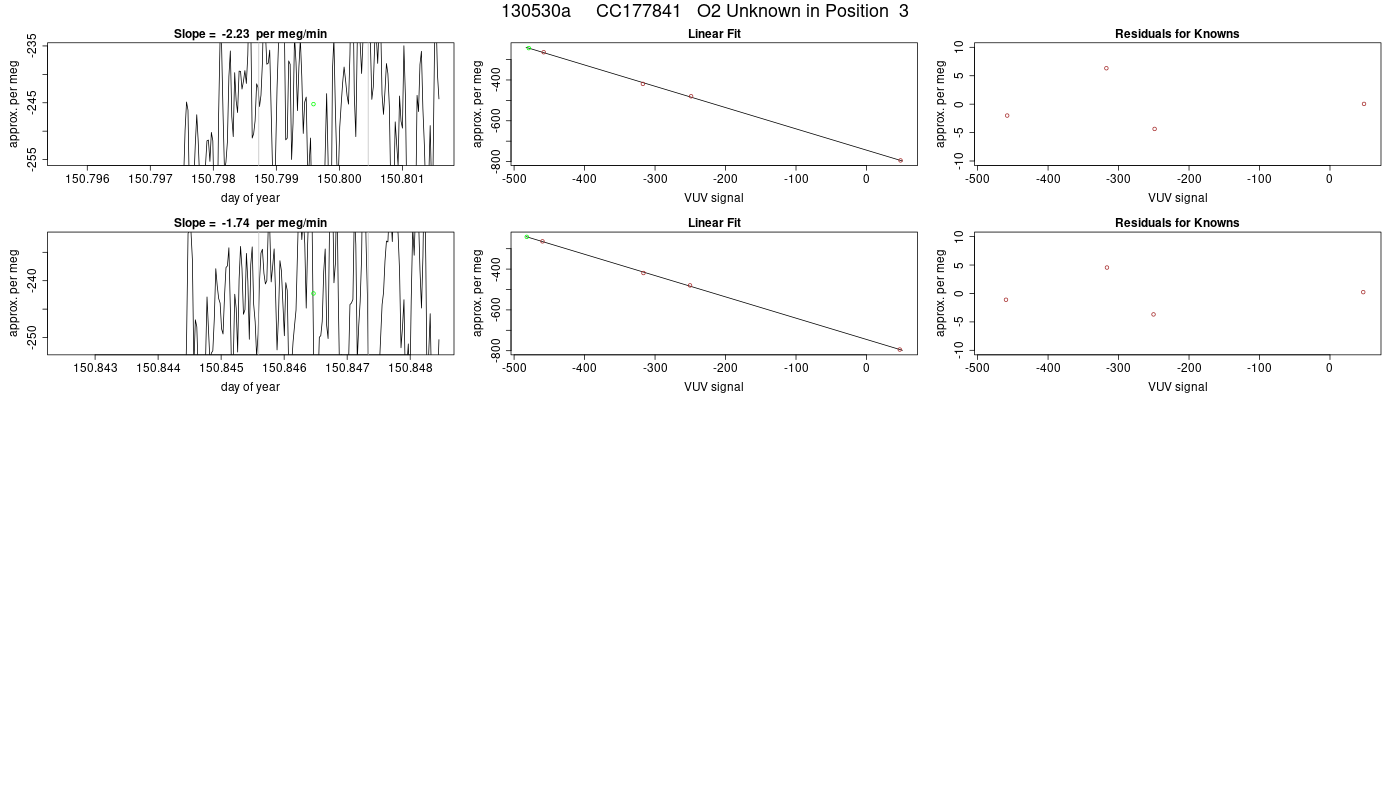

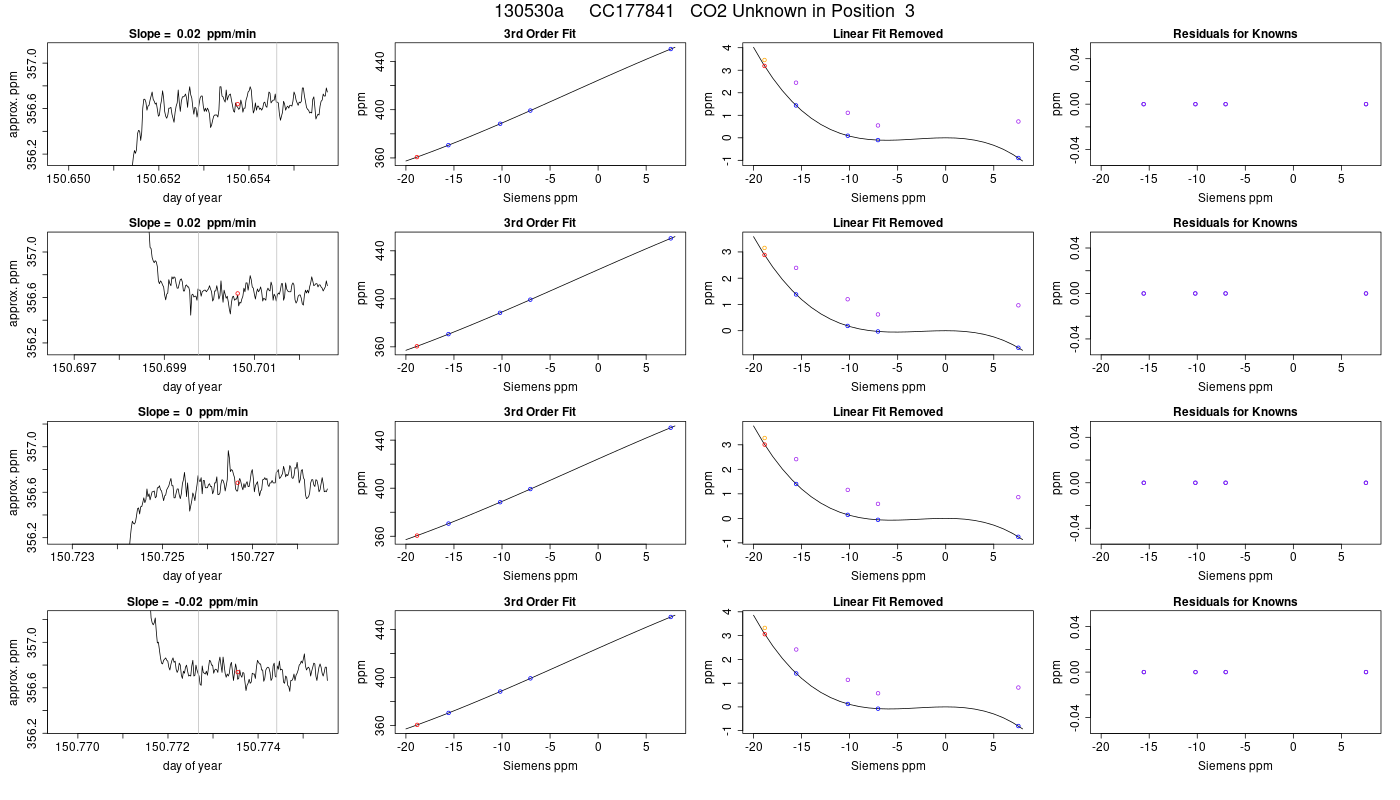

3 CC177841    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
150.654 360.687 0.076 -250.10 11.28 360.115 0.076
150.701 360.445 0.061 -248.26 11.09 359.876 0.061
150.727 360.548 0.068 -247.92 12.76 359.978 0.068
150.774 360.609 0.063 -250.08 9.64 360.040 0.063
150.800 360.551 0.074 -247.27 13.65 359.980 0.074
150.846 360.435 0.074 -245.25 13.42 359.874 0.074

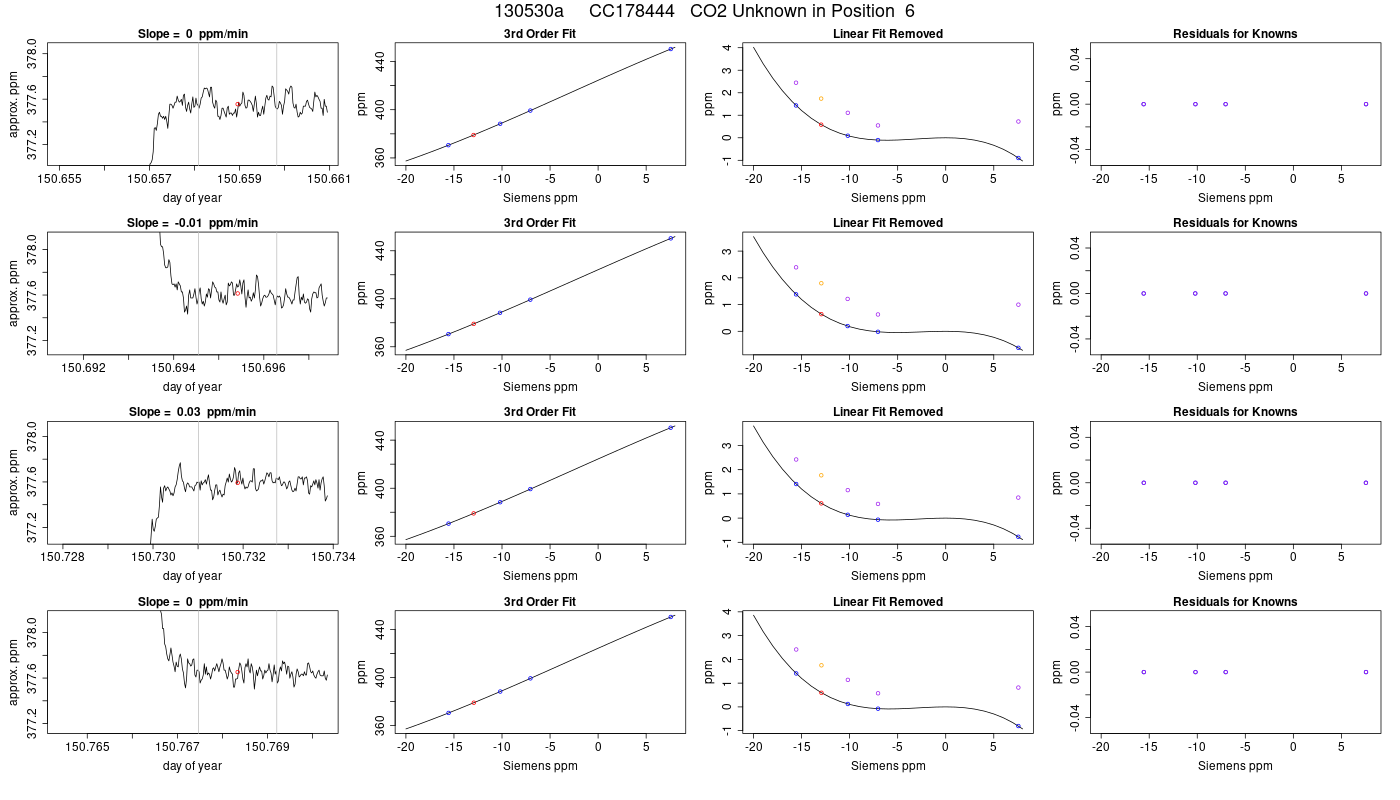

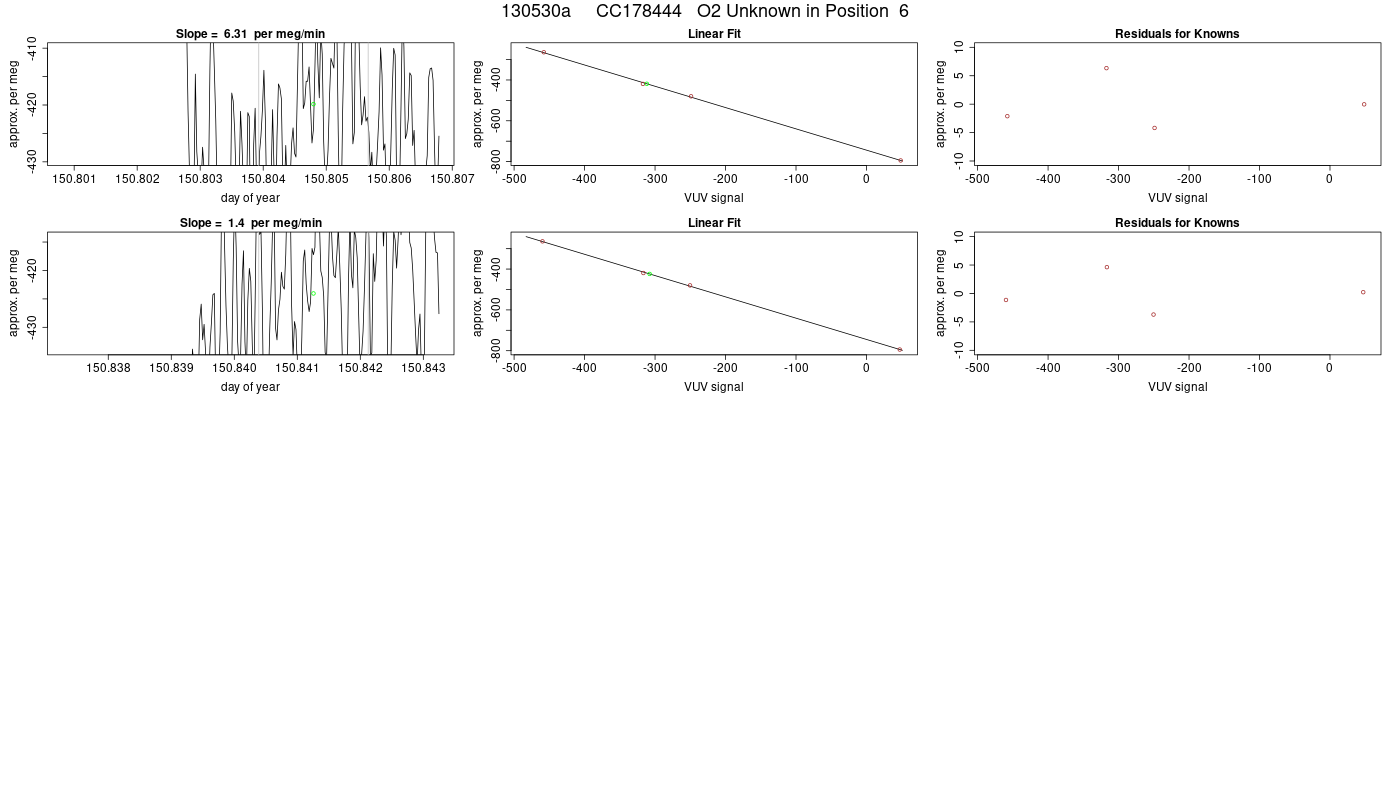

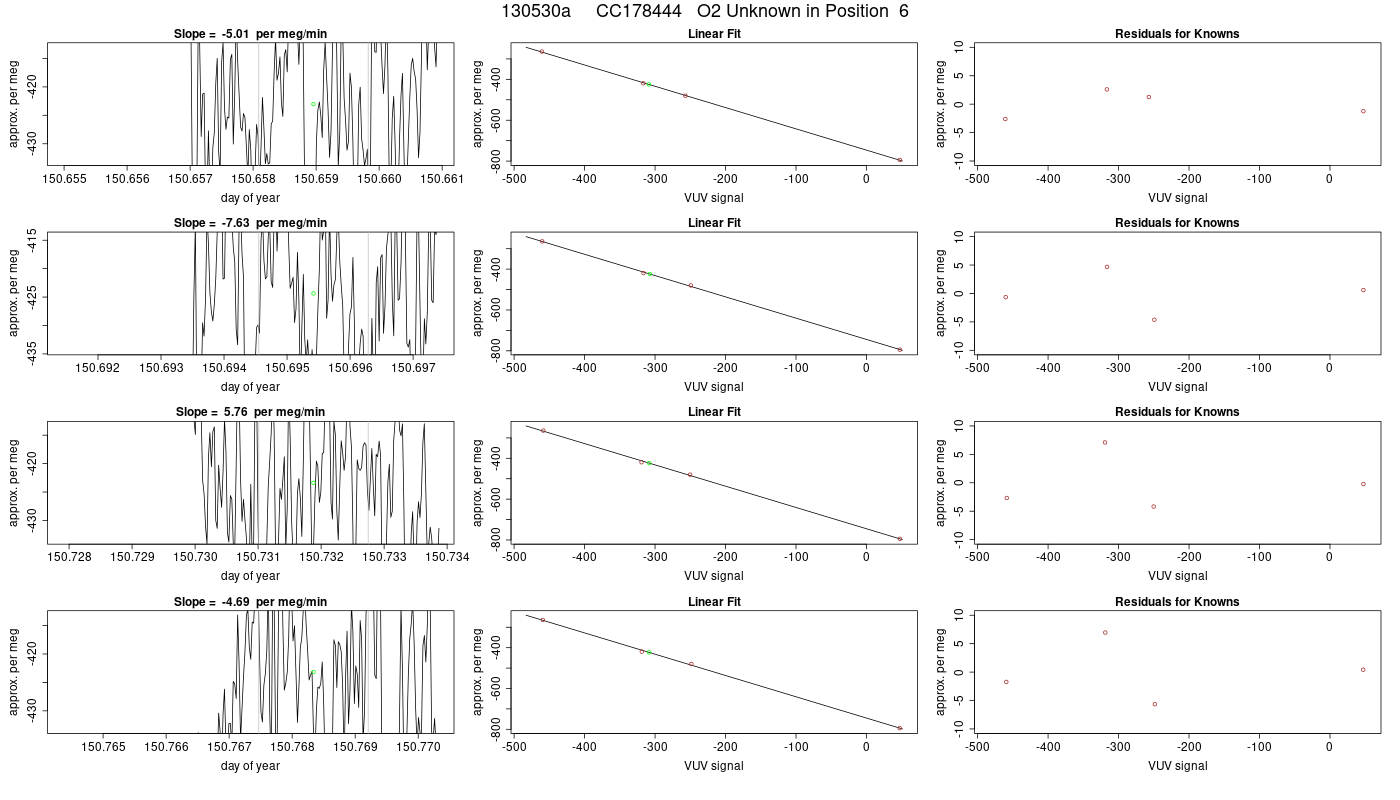

6 CC178444    CO2 Fits 1   O2 Fits 1    CO2 Fits 2   O2 Fits 2
150.659 378.998 0.078 -409.17 13.17 379.348 0.078
150.695 379.112 0.066 -408.09 12.58 379.460 0.066
150.732 379.028 0.062 -407.71 11.62 379.377 0.062
150.768 379.058 0.056 -407.22 10.61 379.407 0.056
150.805 379.006 0.052 -402.86 12.31 379.355 0.052
150.841 379.154 0.067 -407.96 12.74 379.502 0.067
